1. Database abstraction – GoogleApps Script
Desktop liberation

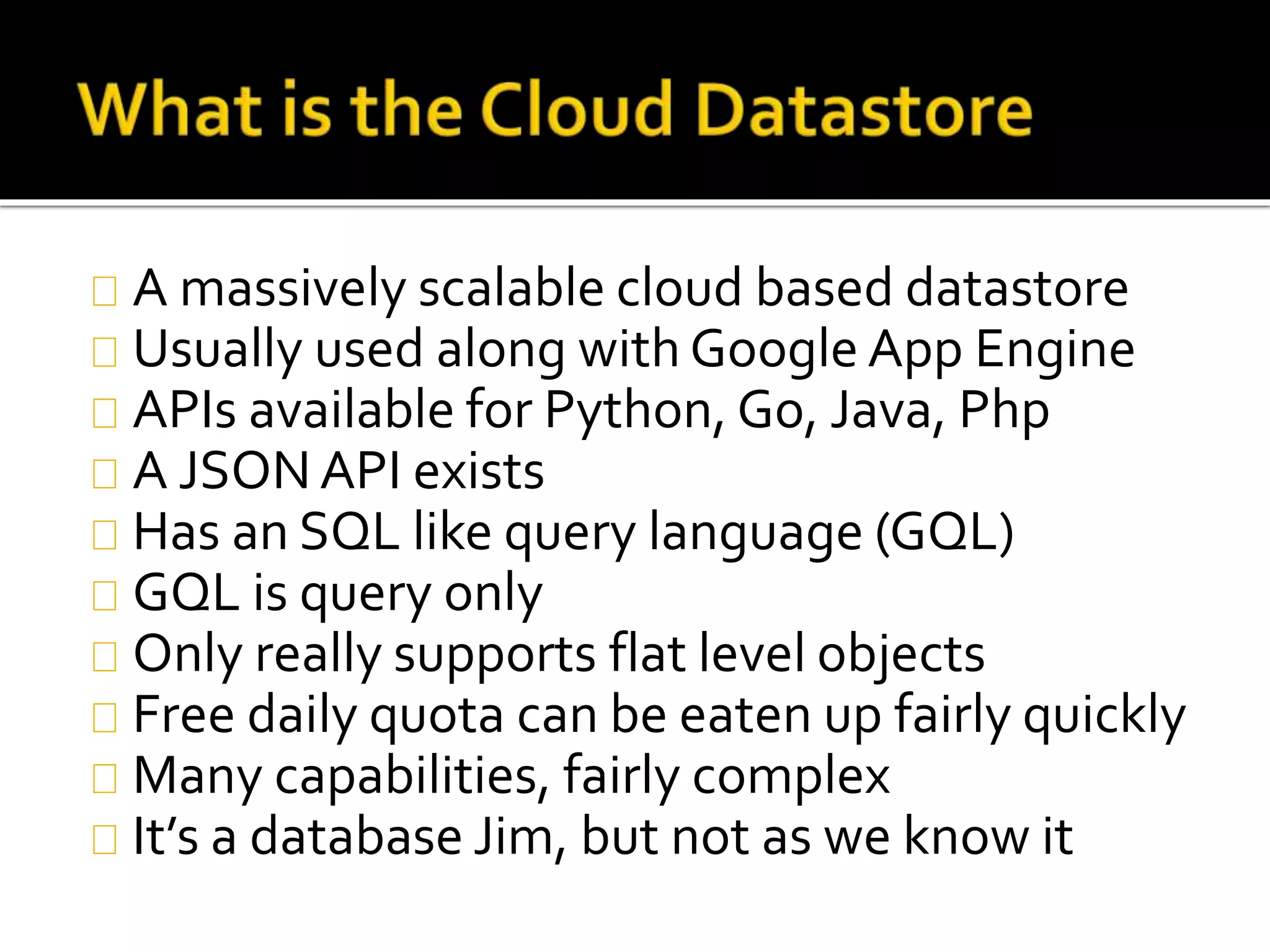

2. A massively scalable cloud based datastore
Usually used along with Google App Engine
APIs available for Python, Go, Java, Php
A JSONAPI exists
Has an SQL like query language (GQL)
GQL is query only
Only really supports flat level objects
Free daily quota can be eaten up fairly quickly
Many capabilities, fairly complex
It’s a database Jim, but not as we know it

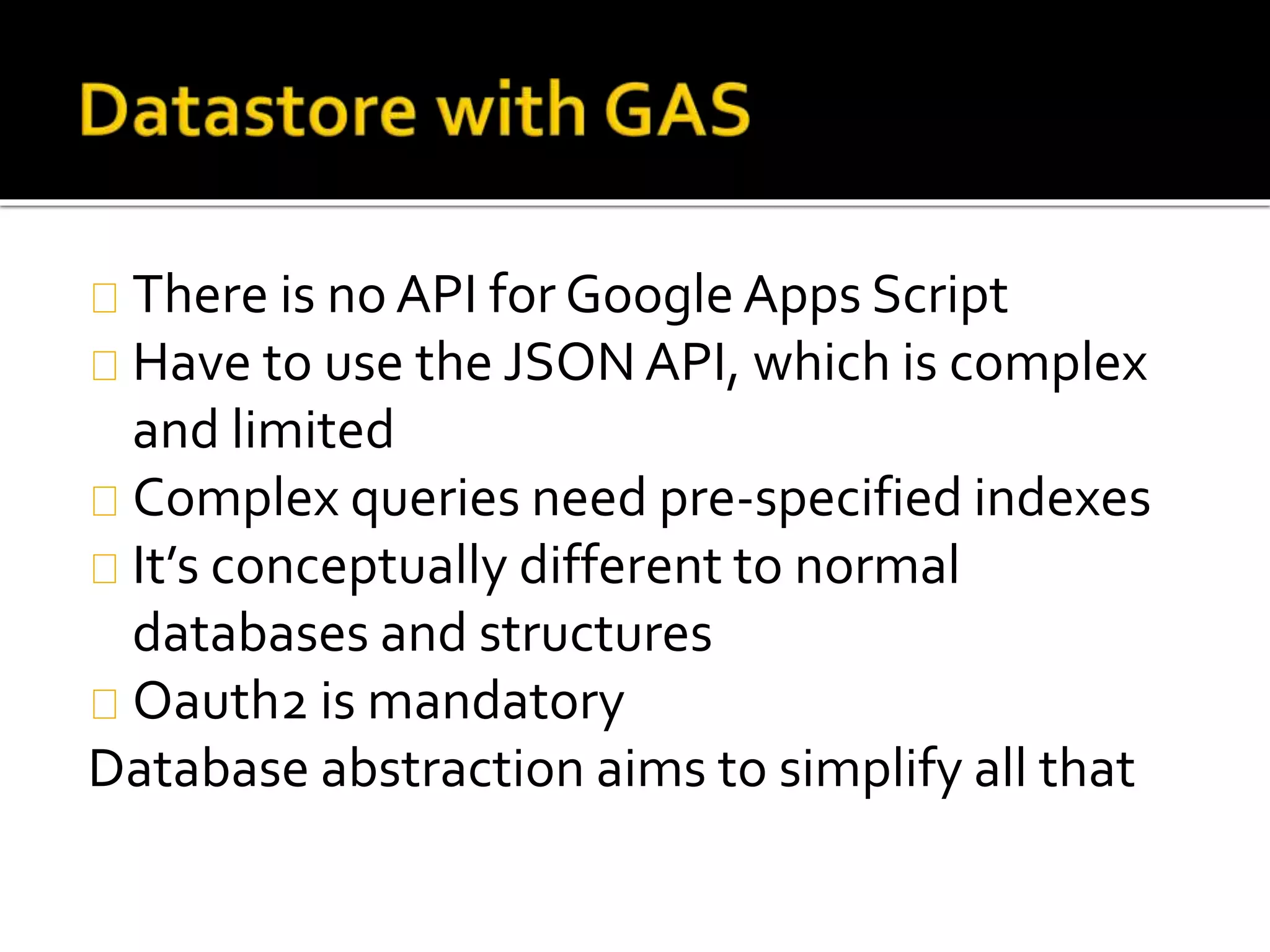

3. There is no API for Google Apps Script
Have to use the JSON API, which is complex
and limited
Complex queries need pre-specified indexes
It’s conceptually different to normal
databases and structures
Oauth2 is mandatory
Database abstraction aims to simplify all that

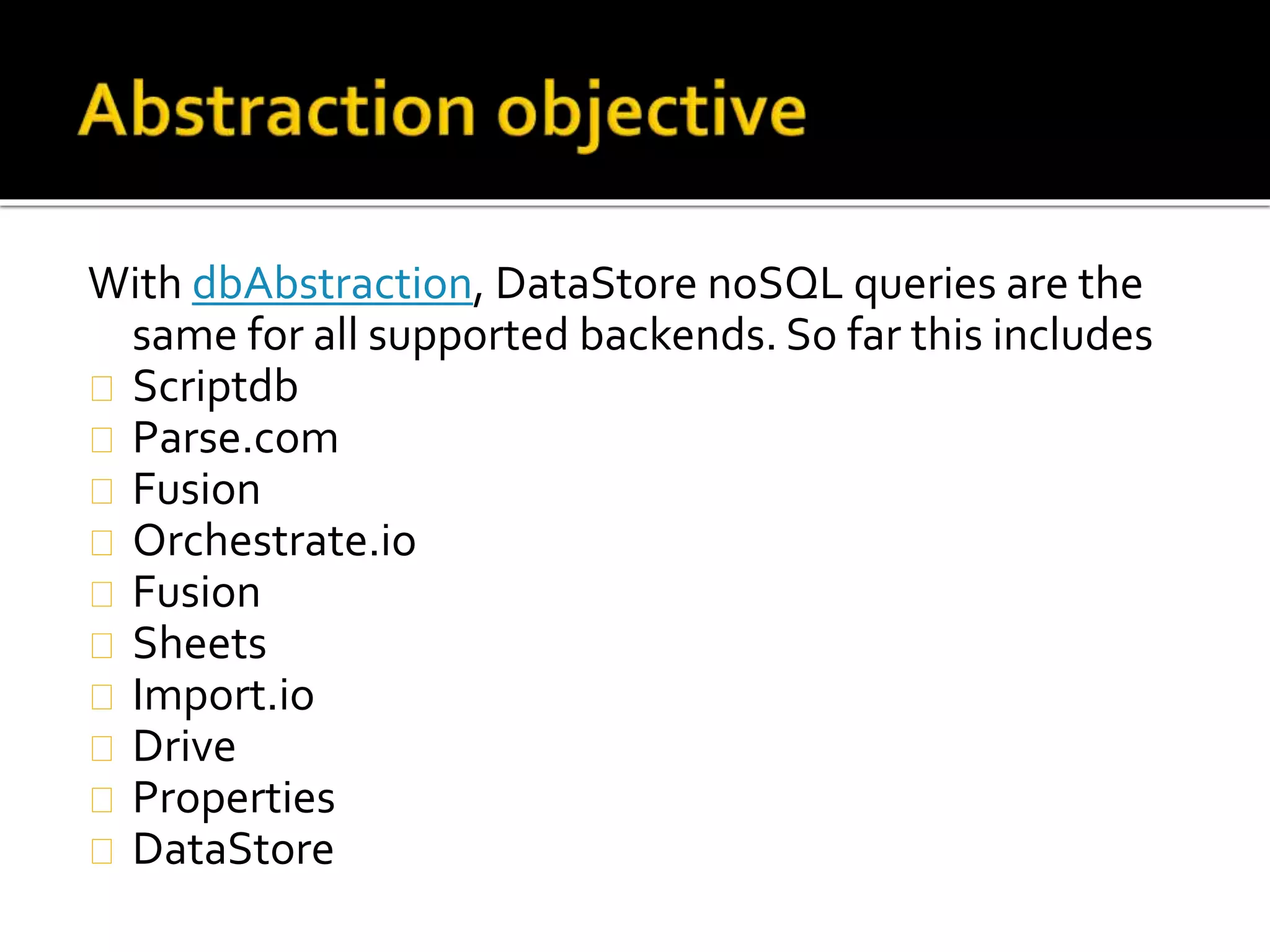

4. With dbAbstraction, DataStore noSQL queries are the
same for all supported backends. So far this includes
Scriptdb
Parse.com
Fusion
Orchestrate.io
Fusion
Sheets
Import.io
Drive
Properties
DataStore

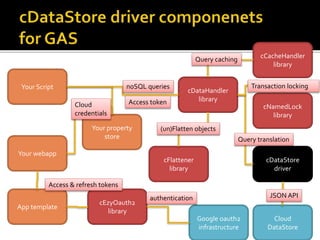

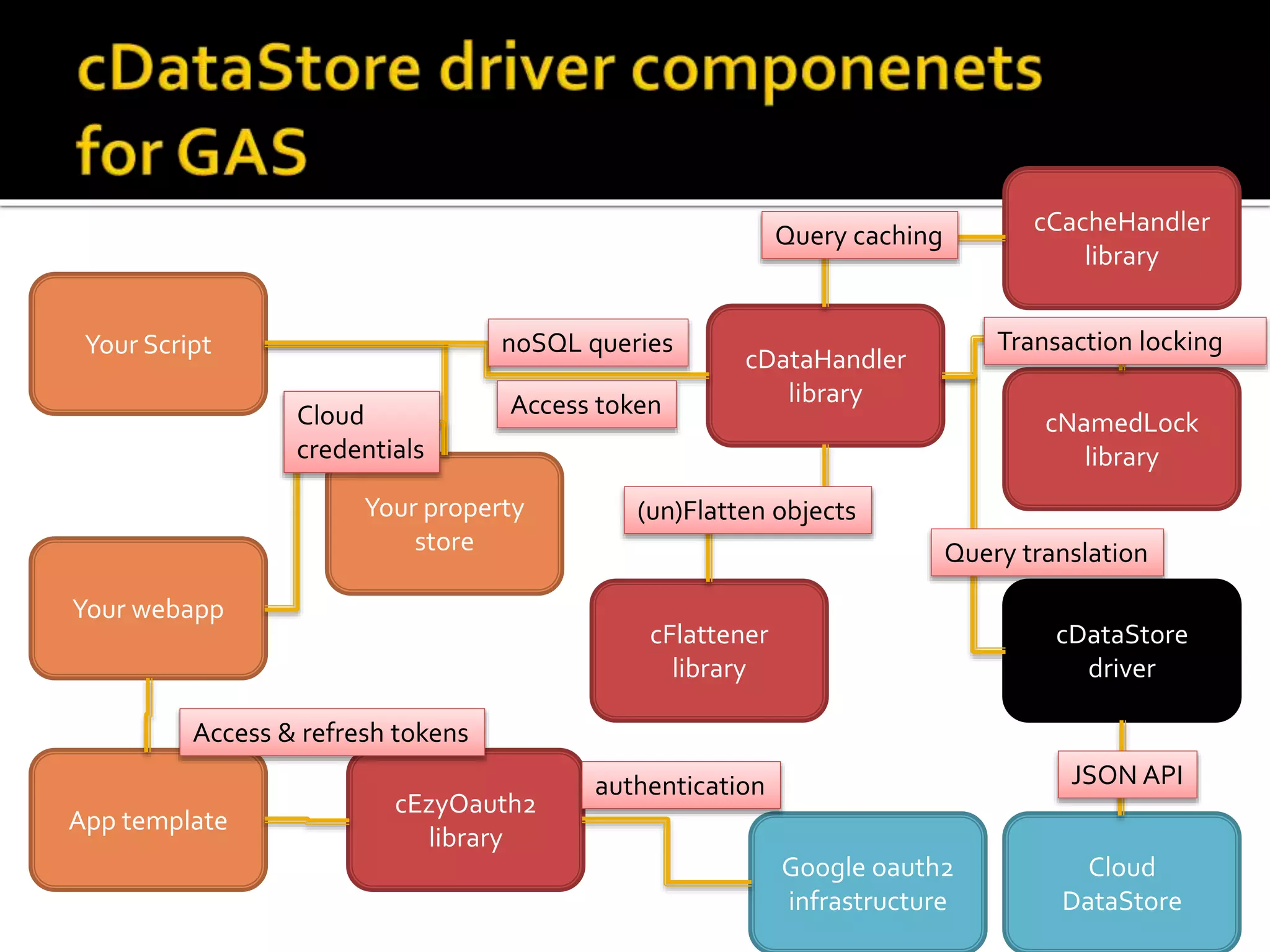

5. Your Script
cDataHandler
library
cEzyOauth2
library
cCacheHandler
library
Your webapp
App template
Your property
store
cDataStore
driver
Cloud
DataStore
cFlattener
library
noSQL queries
Access token
Google oauth2
infrastructure
Query caching
cNamedLock
library
Transaction locking
JSON API
Query translation
authentication
Cloud
credentials
Access & refresh tokens
(un)Flatten objects

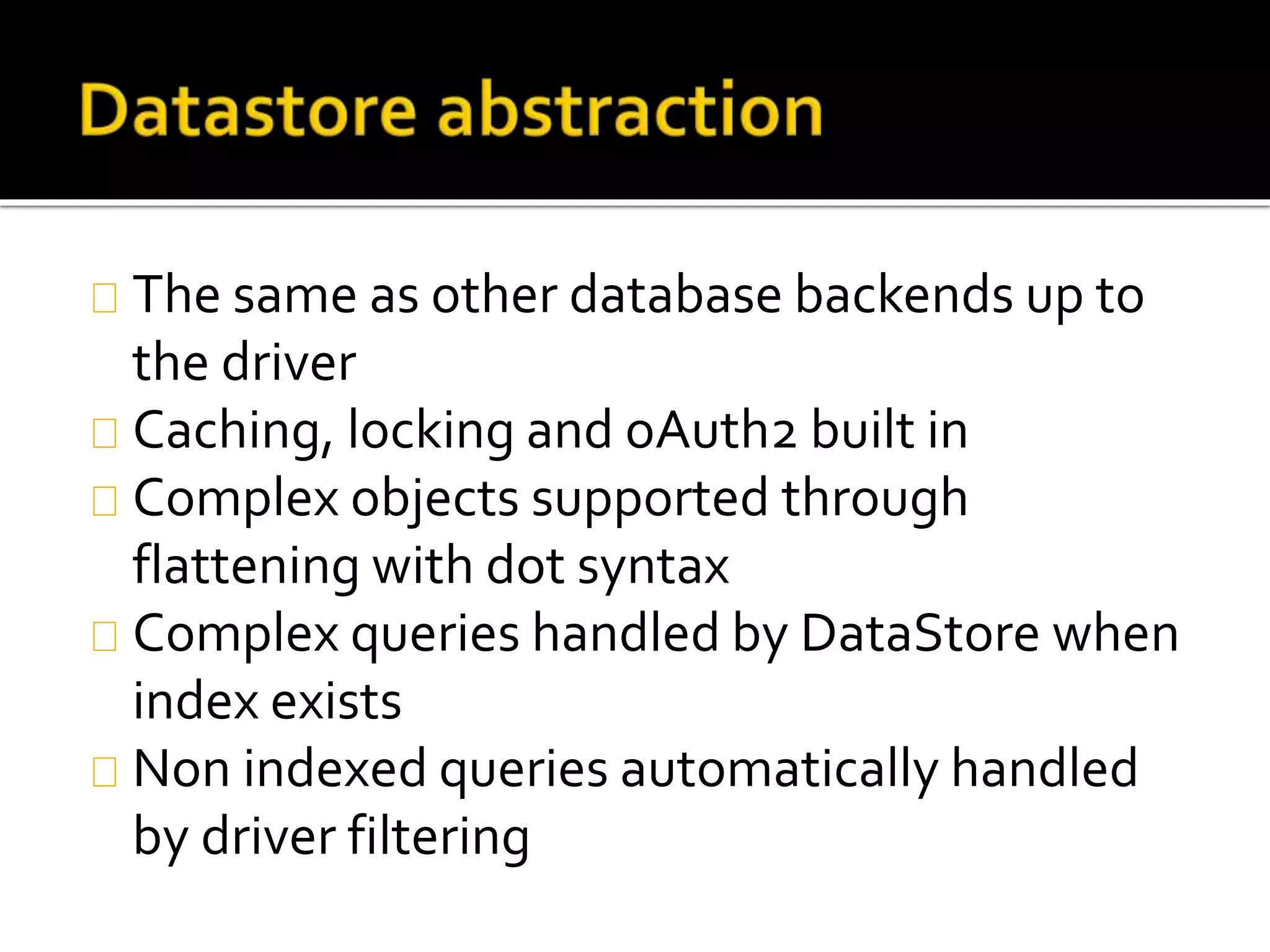

6. The same as other database backends up to
the driver
Caching, locking and oAuth2 built in
Complex objects supported through
flattening with dot syntax
Complex queries handled by DataStore when
index exists
Non indexed queries automatically handled
by driver filtering

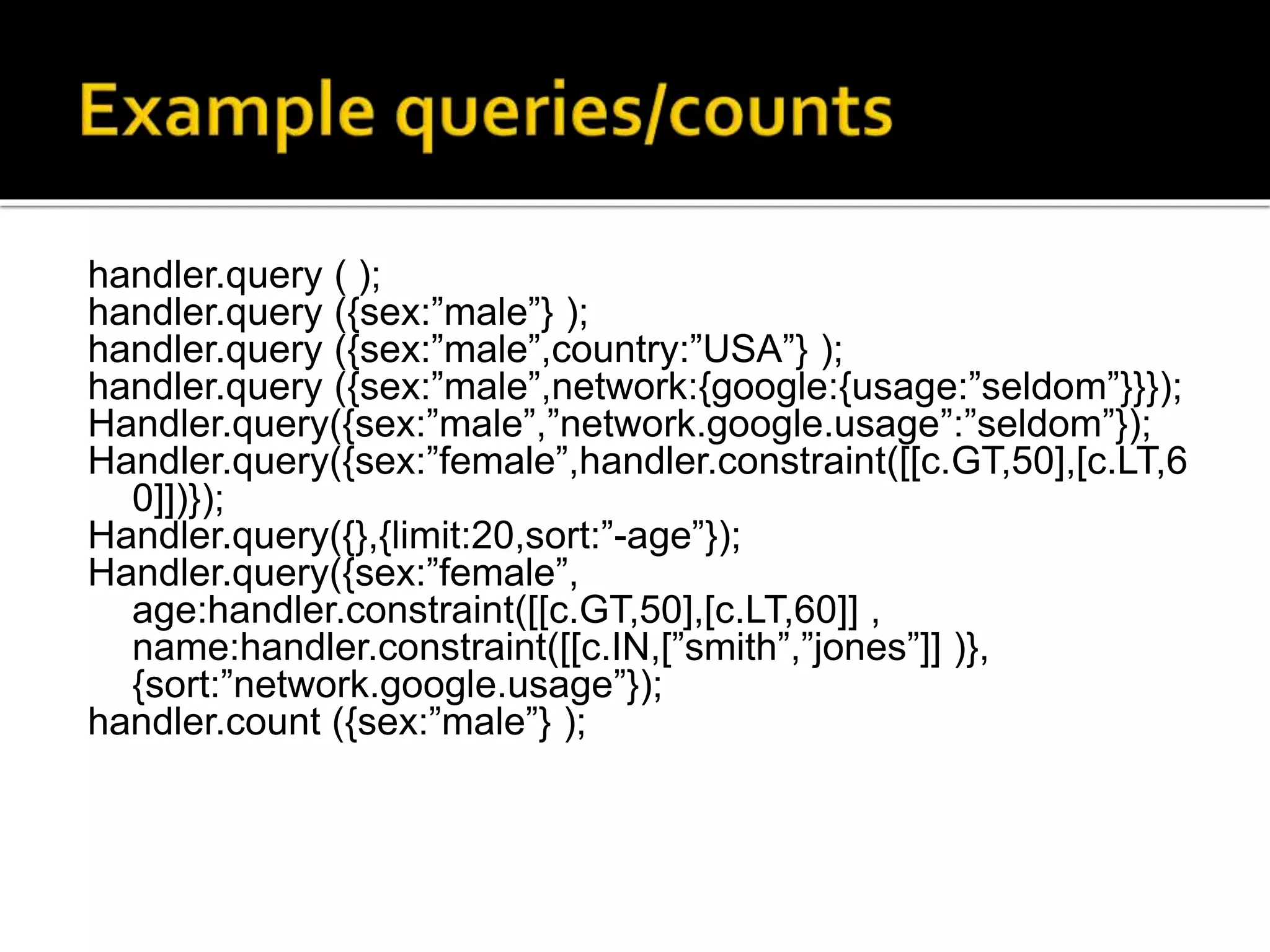

7. handler.query ( );
handler.query ({sex:”male”} );
handler.query ({sex:”male”,country:”USA”} );
handler.query ({sex:”male”,network:{google:{usage:”seldom”}}});
Handler.query({sex:”male”,”network.google.usage”:”seldom”});
Handler.query({sex:”female”,handler.constraint([[c.GT,50],[c.LT,6
0]])});
Handler.query({},{limit:20,sort:”-age”});
Handler.query({sex:”female”,
age:handler.constraint([[c.GT,50],[c.LT,60]] ,
name:handler.constraint([[c.IN,[”smith”,”jones”]] )},
{sort:”network.google.usage”});
handler.count ({sex:”male”} );

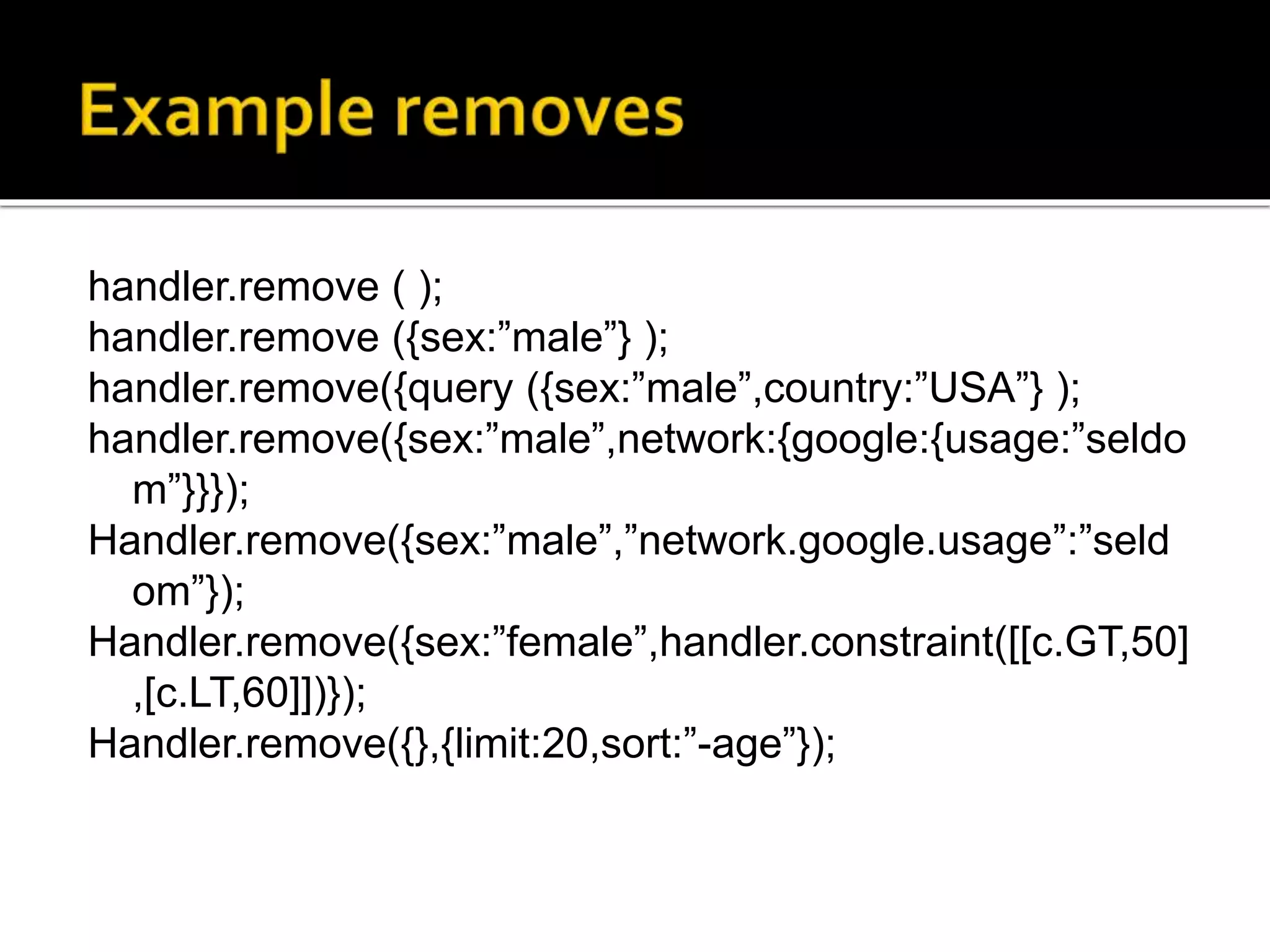

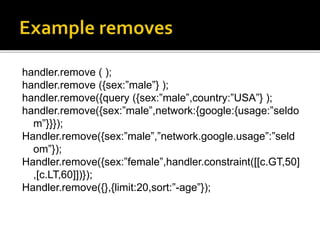

8. handler.remove ( );
handler.remove ({sex:”male”} );
handler.remove({query ({sex:”male”,country:”USA”} );
handler.remove({sex:”male”,network:{google:{usage:”seldo
m”}}});
Handler.remove({sex:”male”,”network.google.usage”:”seld
om”});
Handler.remove({sex:”female”,handler.constraint([[c.GT,50]
,[c.LT,60]])});
Handler.remove({},{limit:20,sort:”-age”});

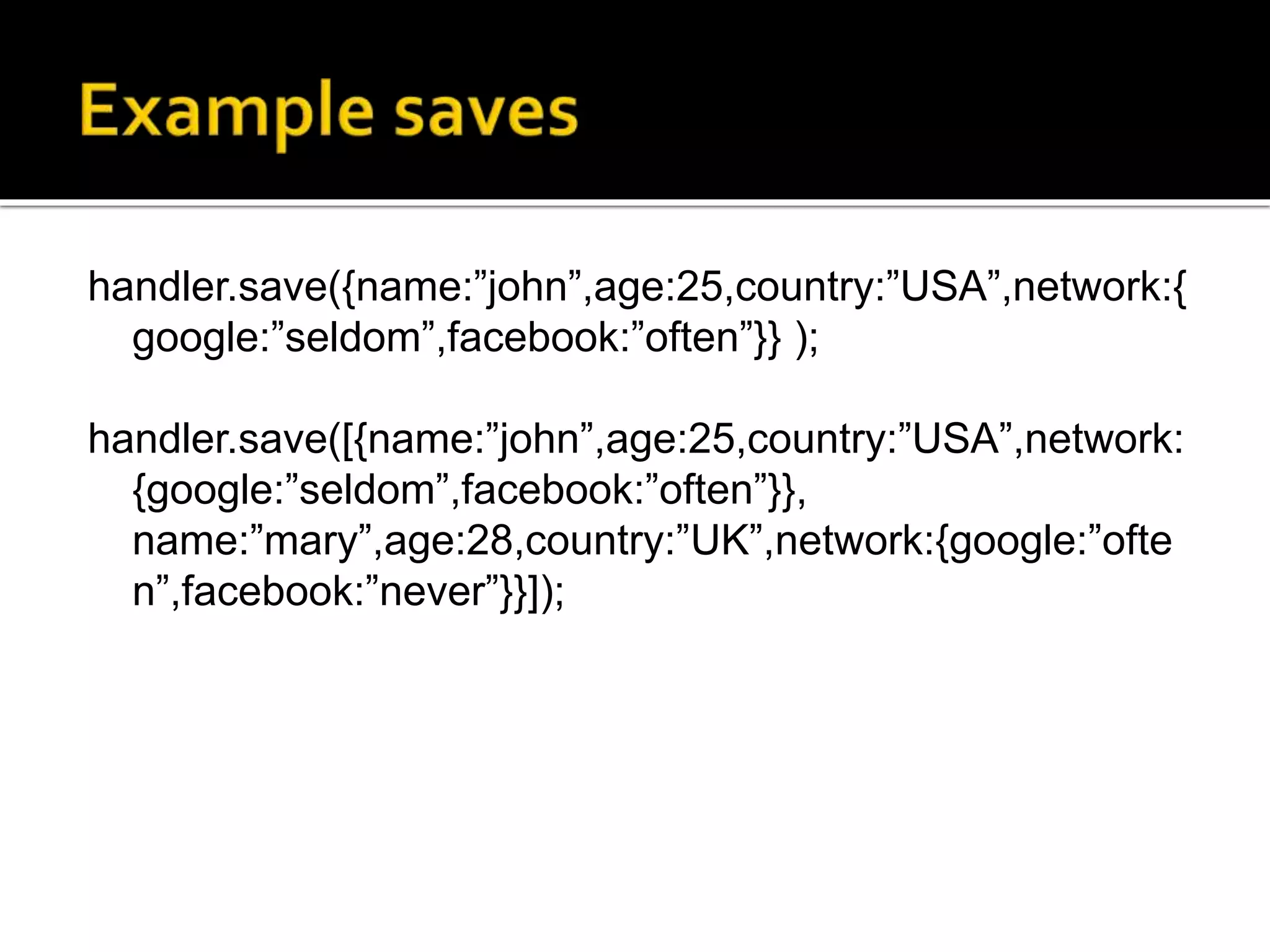

9. handler.save({name:”john”,age:25,country:”USA”,network:{
google:”seldom”,facebook:”often”}} );
handler.save([{name:”john”,age:25,country:”USA”,network:
{google:”seldom”,facebook:”often”}},
name:”mary”,age:28,country:”UK”,network:{google:”ofte
n”,facebook:”never”}}]);

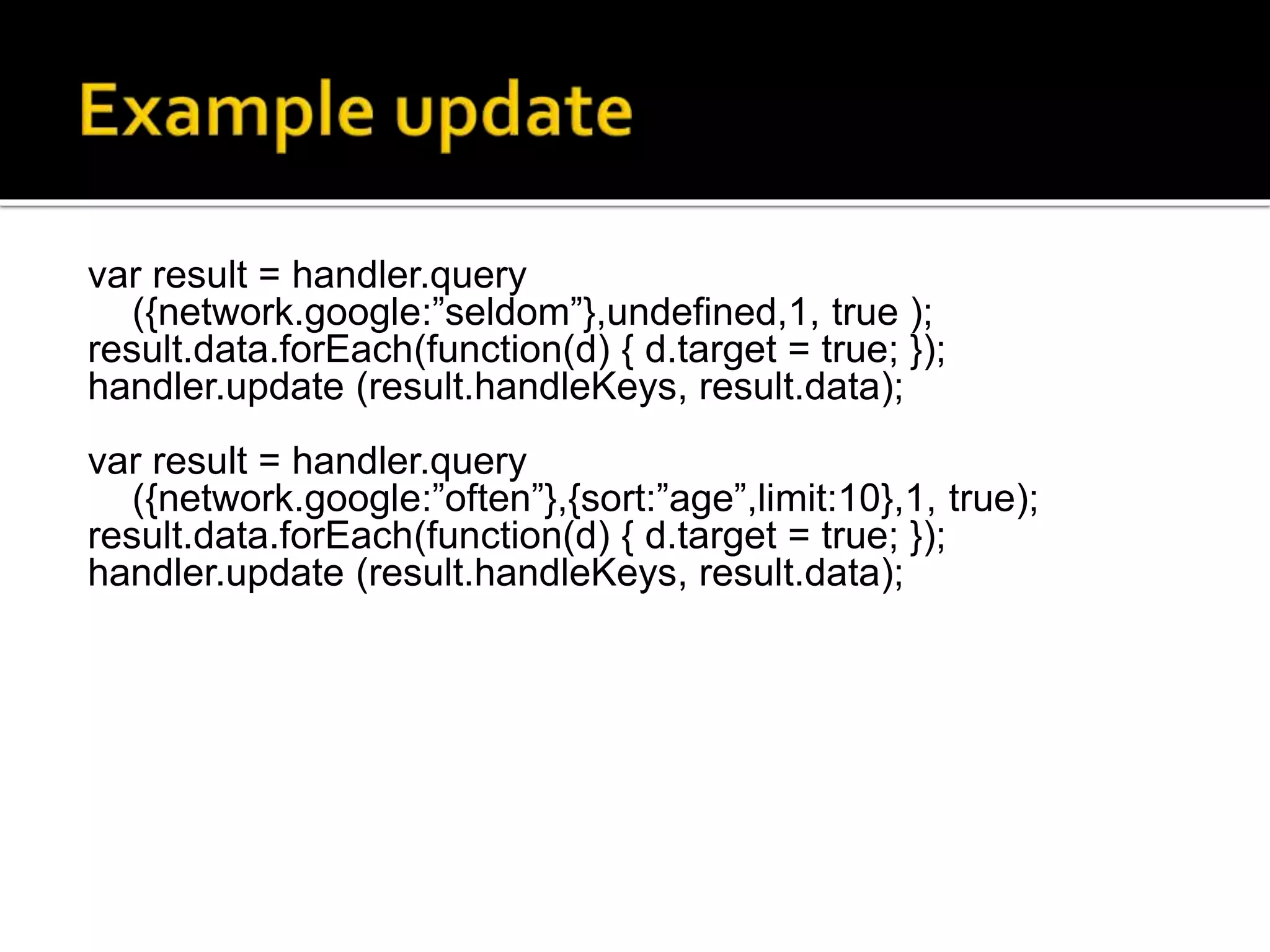

10. var result = handler.query
({network.google:”seldom”},undefined,1, true );
result.data.forEach(function(d) { d.target = true; });
handler.update (result.handleKeys, result.data);
var result = handler.query
({network.google:”often”},{sort:”age”,limit:10},1, true);
result.data.forEach(function(d) { d.target = true; });
handler.update (result.handleKeys, result.data);

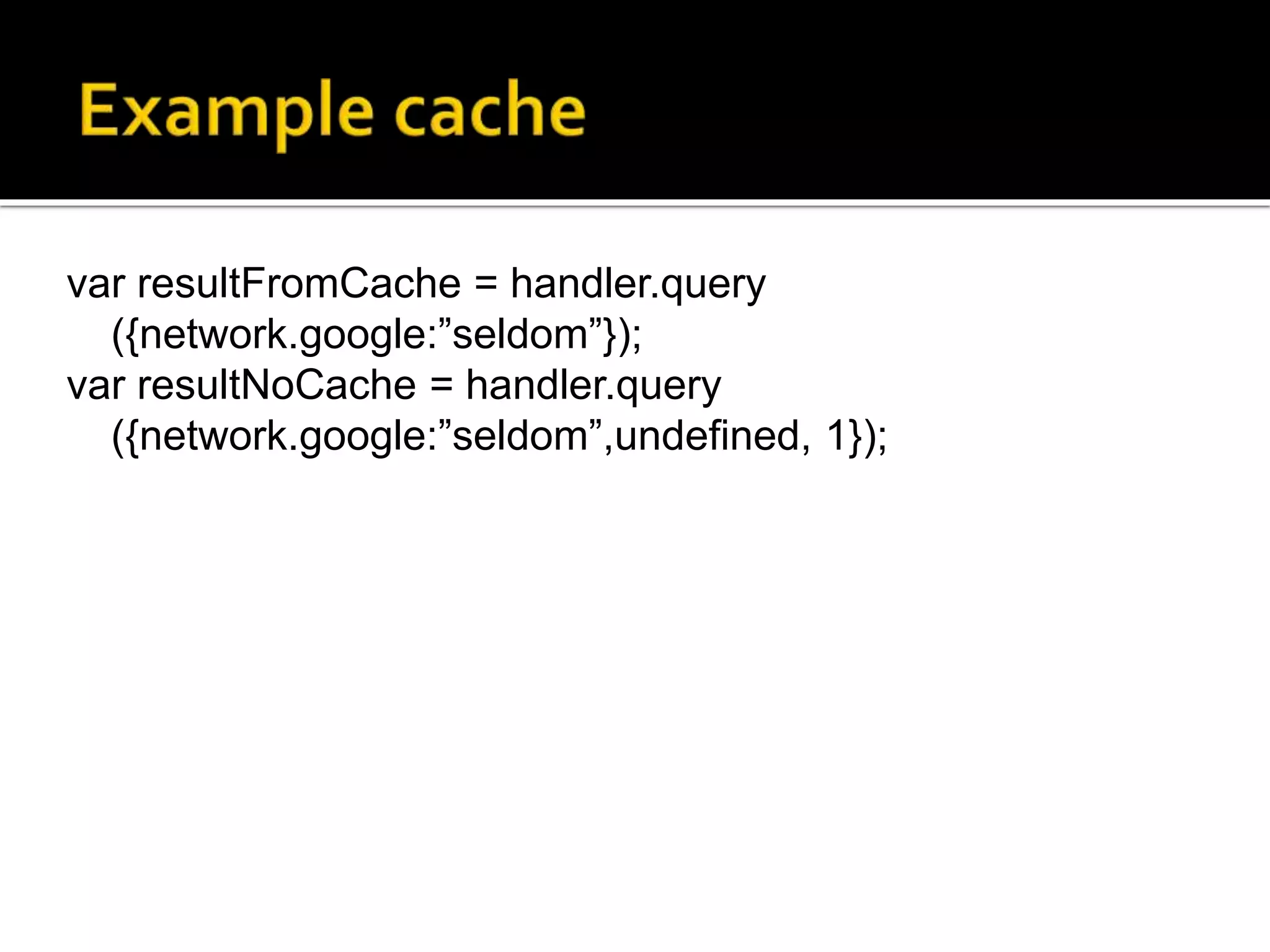

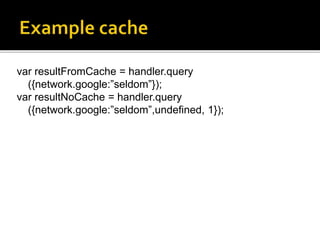

11. var resultFromCache = handler.query
({network.google:”seldom”});
var resultNoCache = handler.query
({network.google:”seldom”,undefined, 1});

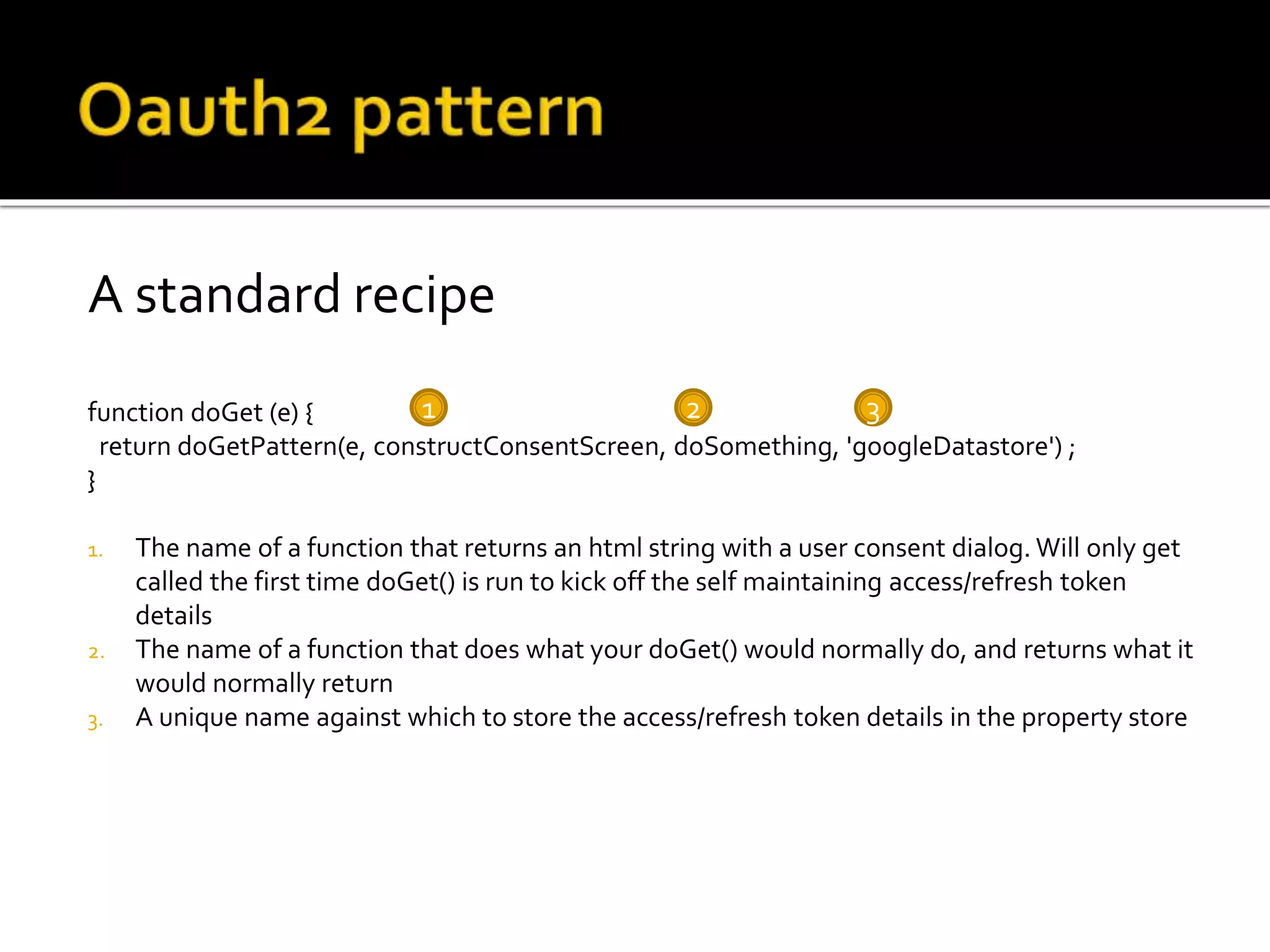

12. A standard recipe
function doGet (e) {
return doGetPattern(e, constructConsentScreen, doSomething, 'googleDatastore') ;
}
1. The name of a function that returns an html string with a user consent dialog. Will only get
called the first time doGet() is run to kick off the self maintaining access/refresh token
details
2. The name of a function that does what your doGet() would normally do, and returns what it
would normally return
3. A unique name against which to store the access/refresh token details in the property store
1 2 3

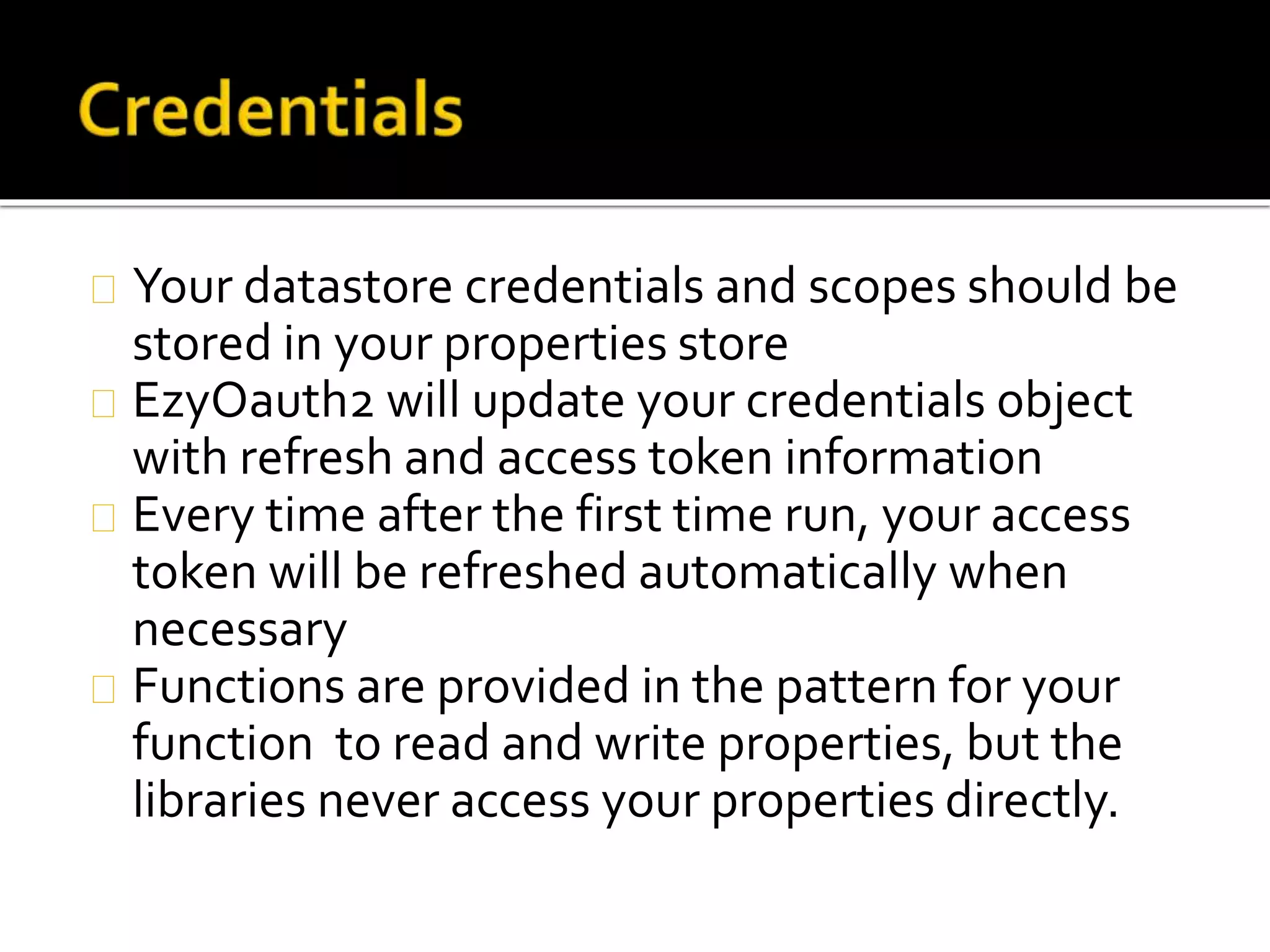

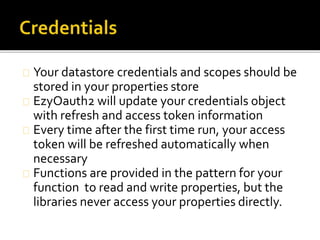

13. Your datastore credentials and scopes should be
stored in your properties store
EzyOauth2 will update your credentials object
with refresh and access token information
Every time after the first time run, your access
token will be refreshed automatically when
necessary
Functions are provided in the pattern for your
function to read and write properties, but the
libraries never access your properties directly.

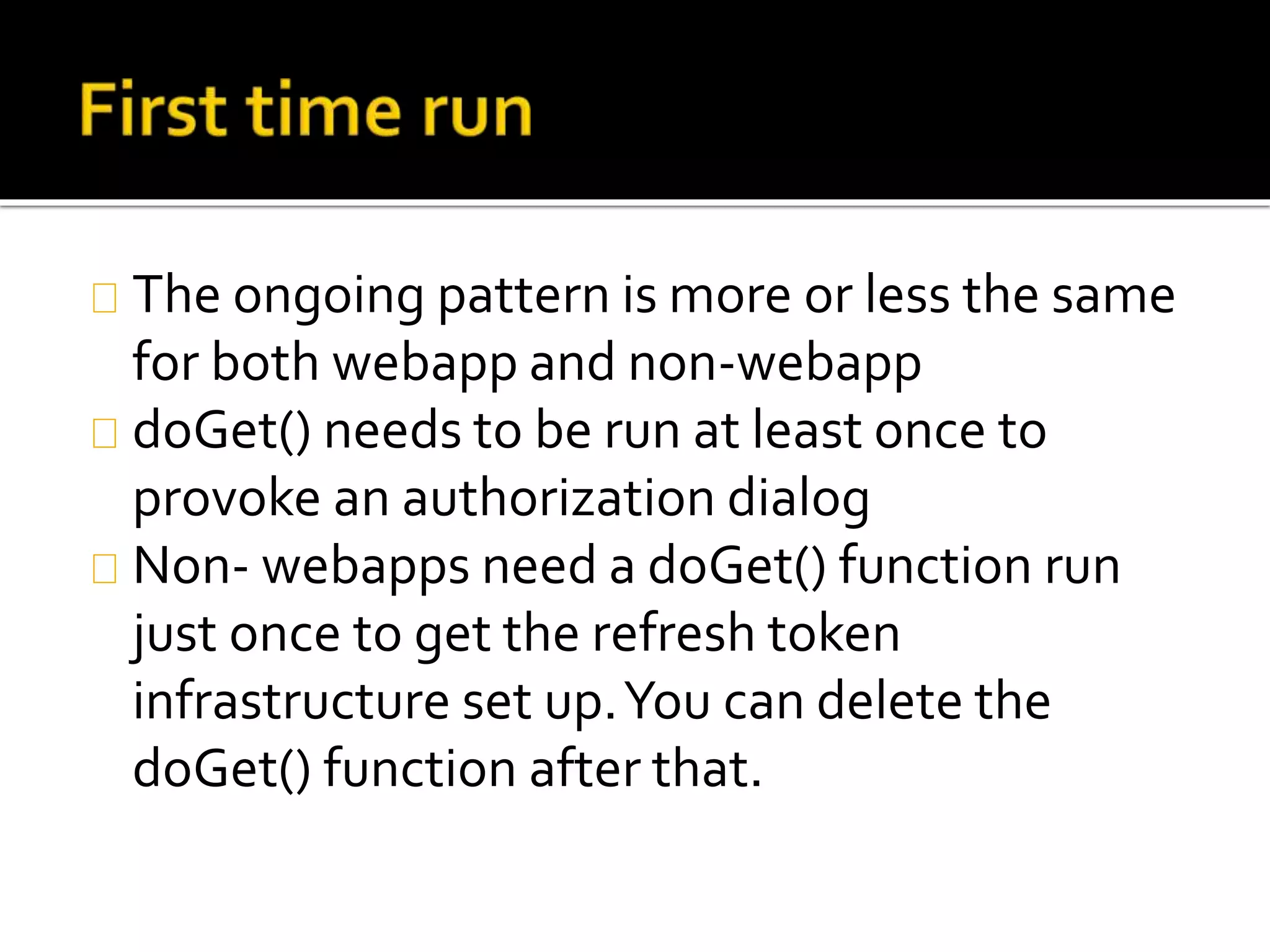

14. The ongoing pattern is more or less the same
for both webapp and non-webapp
doGet() needs to be run at least once to
provoke an authorization dialog
Non- webapps need a doGet() function run
just once to get the refresh token
infrastructure set up.You can delete the
doGet() function after that.

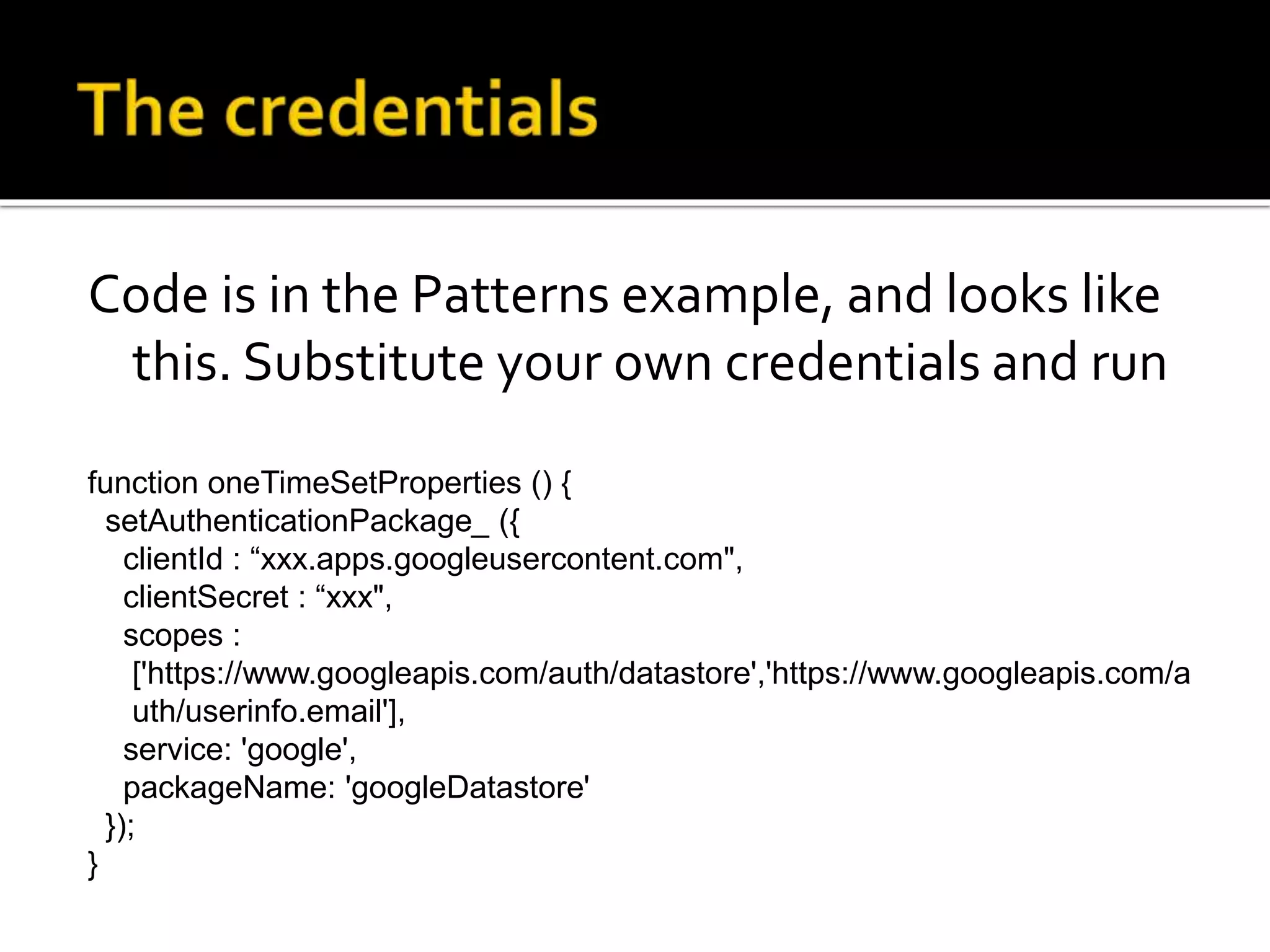

15. Code is in the Patterns example, and looks like
this. Substitute your own credentials and run
function oneTimeSetProperties () {
setAuthenticationPackage_ ({
clientId : “xxx.apps.googleusercontent.com",
clientSecret : “xxx",
scopes :
['https://www.googleapis.com/auth/datastore','https://www.googleapis.com/a
uth/userinfo.email'],
service: 'google',
packageName: 'googleDatastore'
});
}

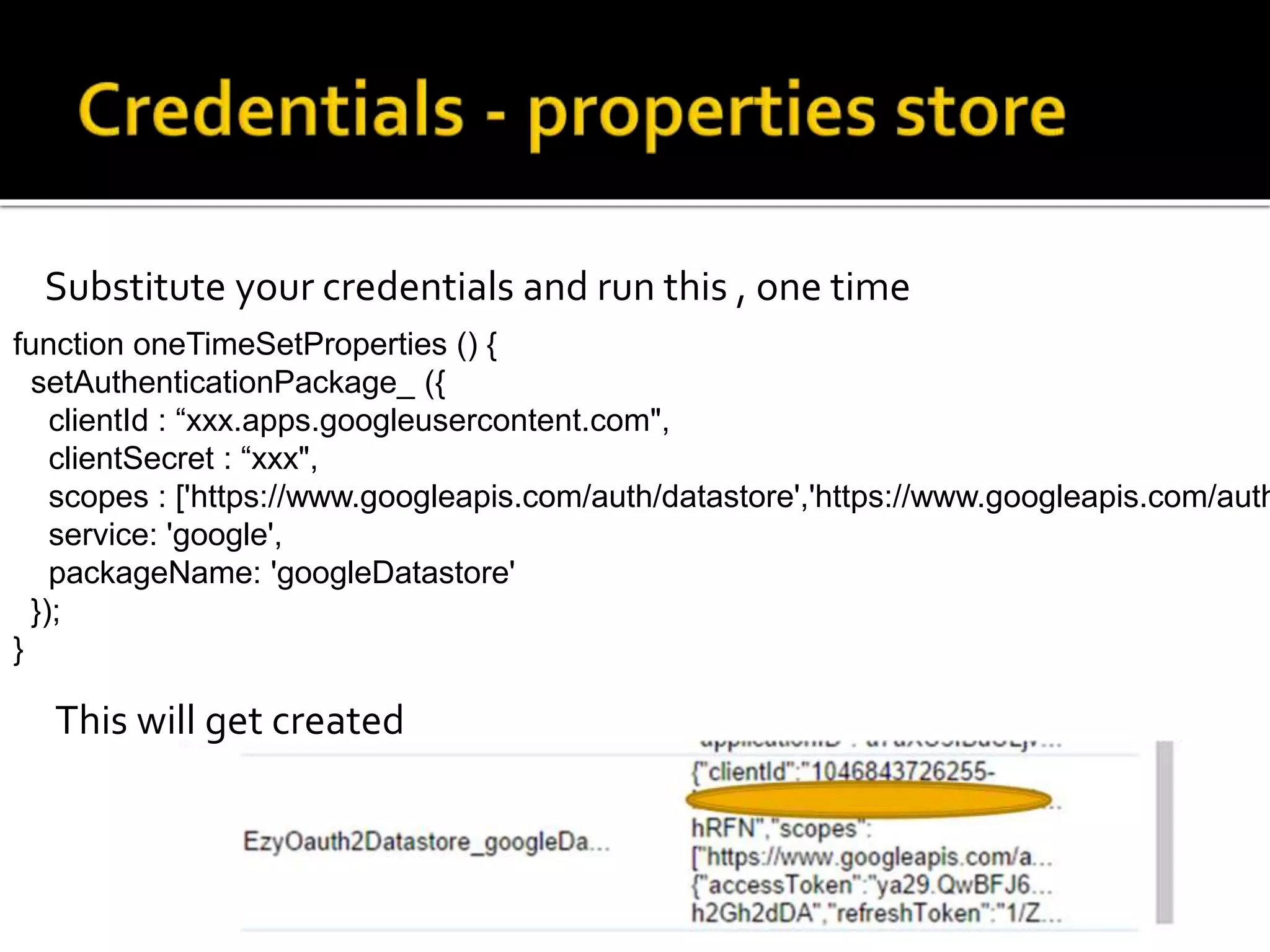

16. Substitute your credentials and run this , one time
function oneTimeSetProperties () {
setAuthenticationPackage_ ({
clientId : “xxx.apps.googleusercontent.com",
clientSecret : “xxx",
scopes : ['https://www.googleapis.com/auth/datastore','https://www.googleapis.com/auth
service: 'google',
packageName: 'googleDatastore'
});
}
This will get created

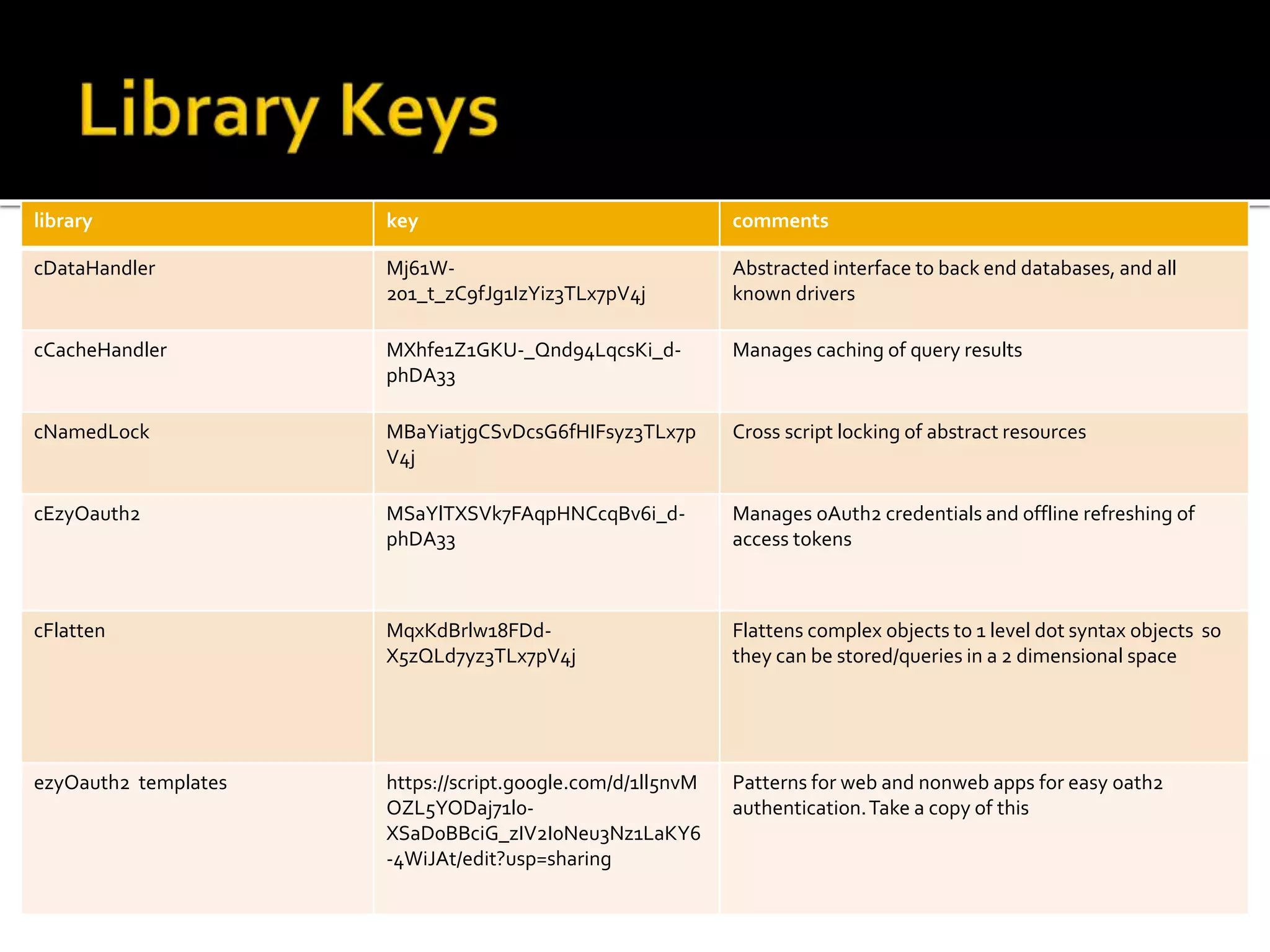

17. library key comments
cDataHandler Mj61W-
201_t_zC9fJg1IzYiz3TLx7pV4j
Abstracted interface to back end databases, and all
known drivers
cCacheHandler MXhfe1Z1GKU-_Qnd94LqcsKi_d-
phDA33
Manages caching of query results
cNamedLock MBaYiatjgCSvDcsG6fHIFsyz3TLx7p
V4j
Cross script locking of abstract resources
cEzyOauth2 MSaYlTXSVk7FAqpHNCcqBv6i_d-
phDA33
Manages oAuth2 credentials and offline refreshing of
access tokens
cFlatten MqxKdBrlw18FDd-
X5zQLd7yz3TLx7pV4j
Flattens complex objects to 1 level dot syntax objects so
they can be stored/queries in a 2 dimensional space
ezyOauth2 templates https://script.google.com/d/1ll5nvM
OZL5YODaj71l0-
XSaD0BBciG_zIV2I0Neu3Nz1LaKY6
-4WiJAt/edit?usp=sharing
Patterns for web and nonweb apps for easy oath2
authentication.Take a copy of this

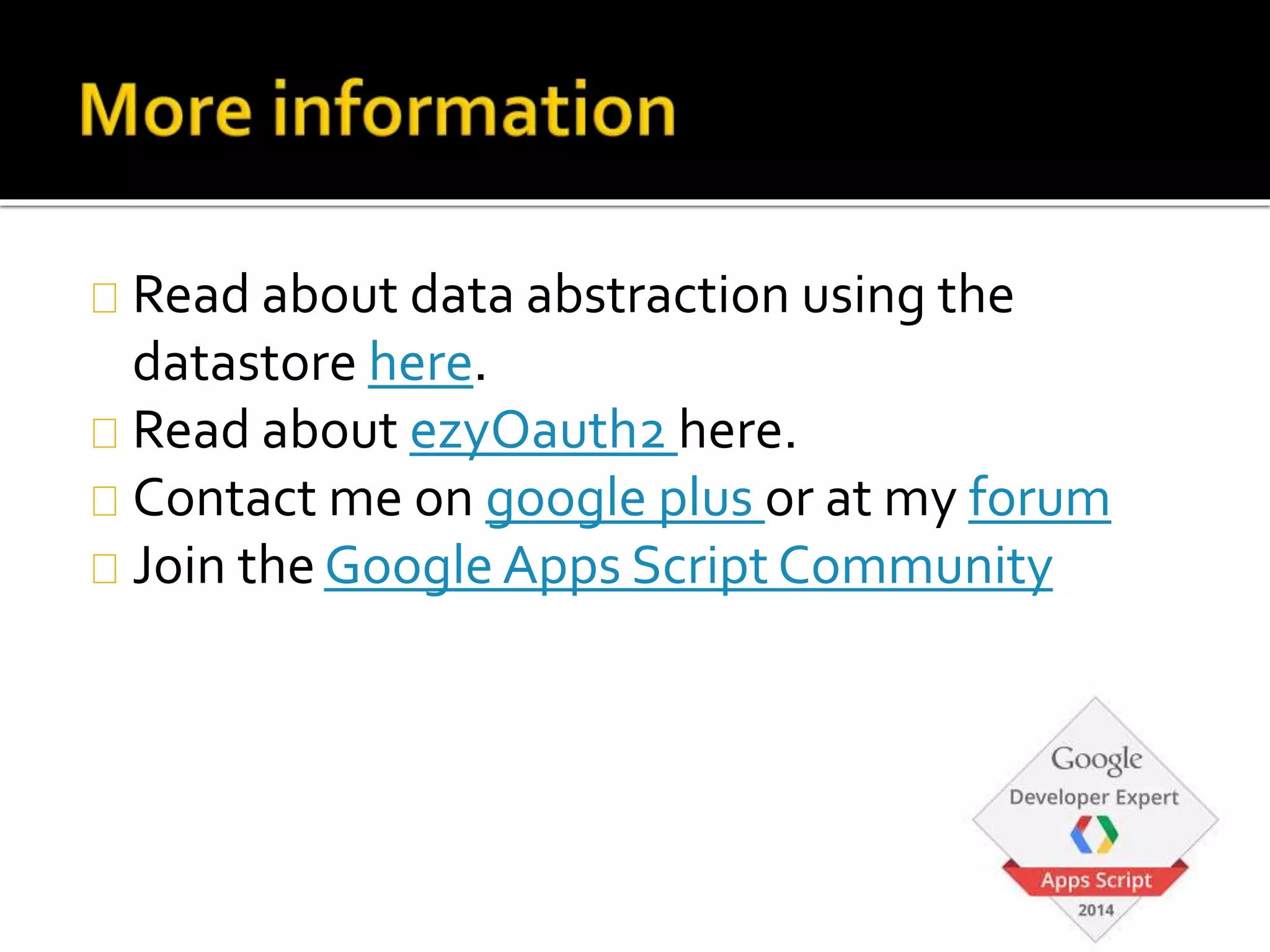

18. Read about data abstraction using the
datastore here.
Read about ezyOauth2 here.
Contact me on google plus or at my forum
Join the Google Apps Script Community
