The CC-S series of heavy-duty elevator buckets are designed to outperform other agricultural buckets with greater capacities, longer life, and cleaner discharges. They feature a stackable design that saves on freight and storage space. The buckets are molded from premium virgin materials and have an "Iceberg Edge" lip design that increases wear life and prevents bowing for smoother discharge. Technical specifications are provided for 35 different bucket sizes.

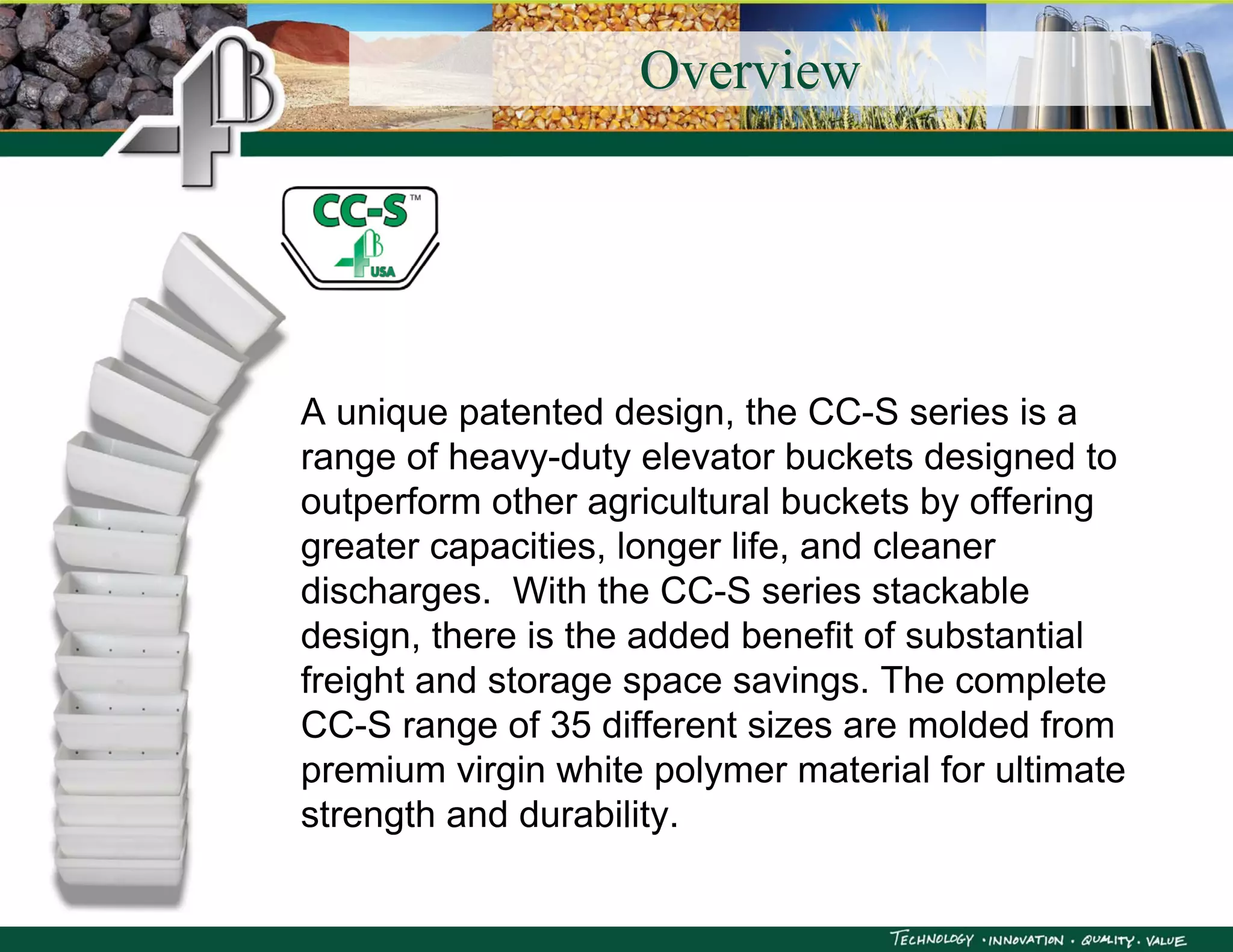

2. OverviewOverview
A unique patented design, the CC-S series is a
range of heavy-duty elevator buckets designed to
outperform other agricultural buckets by offering
greater capacities, longer life, and cleaner
discharges. With the CC-S series stackable
design, there is the added benefit of substantial
freight and storage space savings. The complete
CC-S range of 35 different sizes are molded from
premium virgin white polymer material for ultimate
strength and durability.

3. FeaturesFeatures
► High-density polyethylene, nylon or urethane (All prime virgin grade)
►Stackable for greater freight savings and reduced storage space
► Original wingless profile for closer spacing and greater capacities
► Engineered for clean discharge and greater capacities
► Iceberg Edge™ thicker front lip design -
• Longer wear life
• Prevents bowing for a smoother discharge

4. Iceberg EdgeIceberg Edge®
Cut away of CC-S detailing the
Iceberg® Edge thicker front lip
Maxi-Lift HD-MaxTapco CC-HD

5. Bucket ProfilesBucket Profiles
Tapco CC-HD 4B CC-S Maxi-Lift HD-Max

6. Clean DischargeClean Discharge
Testing at 4B’s in-house research facility
Running at
Full Capacity

7. Bucket SpacingBucket Spacing
8.5” 9”
8” 8”
4B CC-S Spacing
Projection +1/2”
Tapco CC-HD Spacing
Projection +1”

8. Bucket ComparisonBucket Comparison
Based on 14 x 8 Buckets Handling Grain Over 48” Diameter Pulleys – Operating @ 723 FPM
TonsPerHour

9. Bucket ComparisonBucket Comparison
TonsPerHour
Based on 14 x 8 Buckets Handling Grain Over 48” Diameter Pulleys – Operating @ 723 FPM

10. Stackable DesignStackable Design
Stackable for greater freight savings
and reduced storage space
Side Profile

11. Venting OptionsVenting Options
Custom or standard
venting available.

12. Bucket ComparisonBucket Comparison
Based on 14 x 8 Bucket

13. Bucket ComparisonBucket Comparison
Based on 14 x 8 Bucket

14. Bucket ComparisonBucket Comparison
Based on 14 x 8 Bucket

15. Bucket ComparisonBucket Comparison
Based on 14 x 8 Bucket

16. Bucket ComparisonBucket Comparison
Based on 14 x 8 Bucket

17. Technical SpecificationsTechnical Specifications
Size
Length
A
Projection
B
Front
Depth
D
Back
Depth
C
Thickness
T
Minimum
Bucket
Spacing
Usable
Water
Level
3 x 2 3-5/16 2-1/2 1-3/8 2-1/16 3/16 2-1/2 7 6
4 x 3 4-5/16 3-1/2 2-1/8 3-1/16 3/16 3-1/2 19 17
5 x 4 5-1/4 4-1/2 2-7/8 4-1/16 1/4 4-1/2 41 37
6 x 4 6-1/4 4-1/2 2-7/8 4-1/16 1/4 4-1/2 50 45
7 x 4 7-1/4 4-1/2 2-7/8 4-1/16 1/4 4-1/2 58 53
6 x 5 6-3/8 5-1/2 3-11/16 5-5/32 1/4 5-1/2 77 70
7 x 5 7-3/8 5-1/2 3-11/16 5-5/32 1/4 5-1/2 91 83
8 x 5 8-3/8 5-1/2 3-11/16 5-5/32 1/4 5-1/2 105 95
9 x 5 9-3/8 5-1/2 3-11/16 5-5/32 1/4 5-1/2 118 107
10 x 5 10-3/8 5-1/2 3-11/16 5-5/32 1/4 5-1/2 132 120
11 x 5 11-3/8 5-1/2 3-11/16 5-5/32 1/4 5-1/2 145 132
12 x 5 12-3/8 5-1/2 3-11/16 5-5/32 1/4 5-1/2 160 145
8 x 6 8-3/8 6-5/8 4-5/16 6-1/16 9/32 6-1/2 150 136
9 x 6 9-3/8 6-5/8 4-5/16 6-1/16 9/32 6-1/2 169 154
10 x 6 10-3/8 6-5/8 4-5/16 6-1/16 9/32 6-1/2 190 172
11 x 6 11-3/8 6-5/8 4-5/16 6-1/16 9/32 6-1/2 209 190
12 x 6 12-3/8 6-5/8 4-5/16 6-1/16 9/32 6-1/2 230 209
13 x 6 13-3/8 6-5/8 4-5/16 6-1/16 9/32 6-1/2 250 227
14 x 6 14-3/8 6-5/8 4-5/16 6-1/16 9/32 6-1/2 264 240
10 x 7 10-3/4 7-7/8 5 7-1/16 5/16 7-1/2 266 241
11 x 7 11-3/4 7-7/8 5 7-1/16 5/16 7-1/2 293 267
12 x 7 12-3/4 7-7/8 5 7-1/16 5/16 7-1/2 321 292
13 x 7 13-3/4 7-7/8 5 7-1/16 5/16 7-1/2 349 317
14 x 7 14-3/4 7-7/8 5 7-1/16 5/16 7-1/2 377 343
15 x 7 15-3/4 7-7/8 5 7-1/16 5/16 7-1/2 405 368
16 x 7 16-3/4 7-7/8 5 7-1/16 5/16 7-1/2 432 393
10 x 8 10-13/16 8-15/16 5-7/8 8-1/4 13/32 8-1/2 348 316
11 x 8 11-13/16 8-15/16 5-7/8 8-1/4 13/32 8-1/2 384 349
12 x 8 12-13/16 8-15/16 5-7/8 8-1/4 13/32 8-1/2 422 384
13 x 8 13-13/16 8-15/16 5-7/8 8-1/4 13/32 8-1/2 459 417
14 x 8 14-13/16 8-15/16 5-7/8 8-1/4 13/32 8-1/2 496 451
15 x 8 15-13/16 8-15/16 5-7/8 8-1/4 13/32 8-1/2 533 484
16 x 8 16-13/16 8-15/16 5-7/8 8-1/4 13/32 8-1/2 569 517
18 x 8 18-13/16 8-15/16 5-7/8 8-1/4 13/32 8-1/2 645 586
20 x 8 20-13/16 8-15/16 5-7/8 8-1/4 13/32 8-1/2 718 652
Dimension (Inches) Capacity (in³)

18. Low Profile VersionLow Profile Version

19. Questions?
