Cathode ray-oscilloscope-cro-20 m-hz
•
0 likes•4,335 views

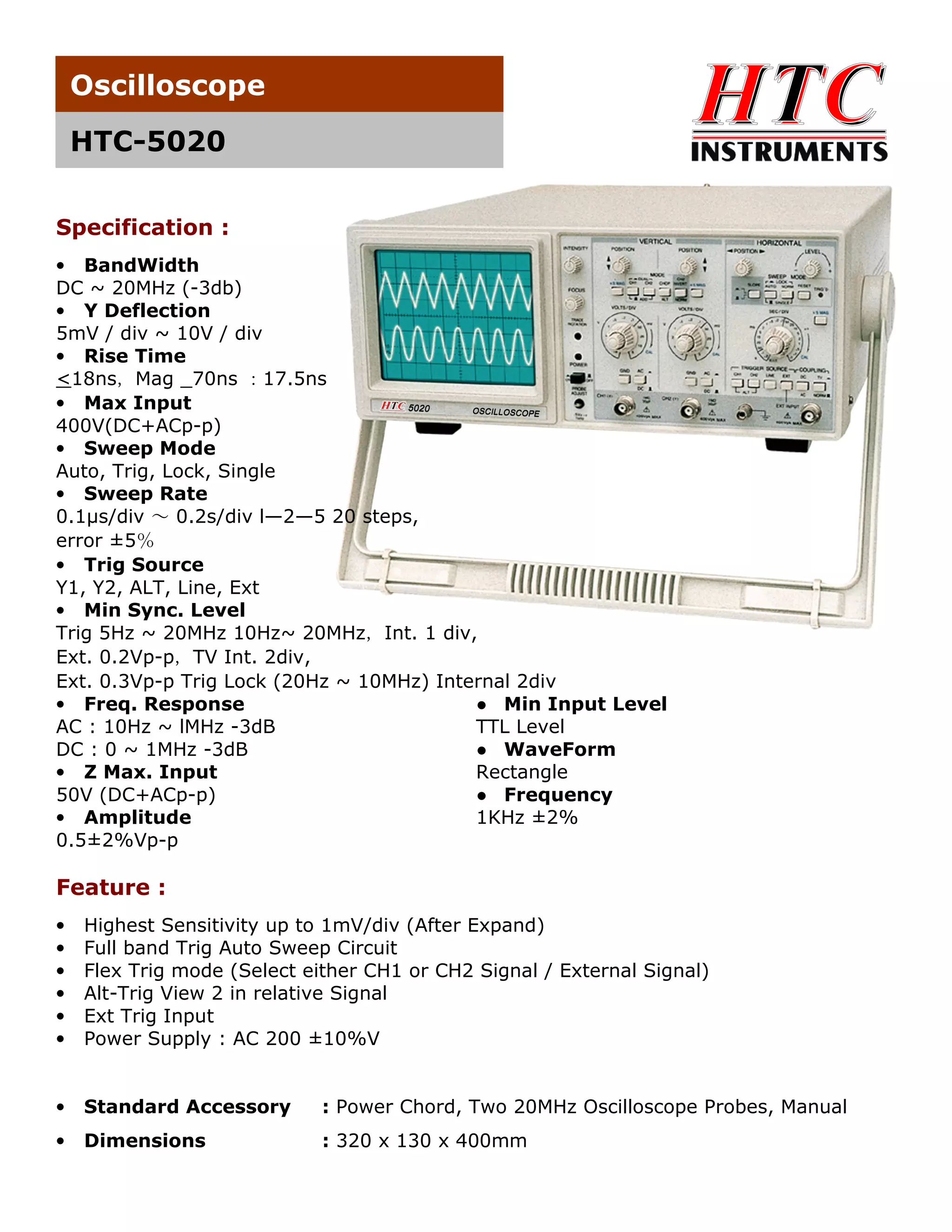

The HTC-5020 oscilloscope has a bandwidth of DC to 20MHz, sweep rates from 0.1μs/div to 0.2s/div, and can trigger from channel 1, channel 2, alternate, line, or external sources. It has sensitivity up to 1mV/div and can accept maximum input voltages of 400V or 50V depending on the input. Key features include high sensitivity, full band auto sweep triggering, flexible triggering options, and alternate triggering to view two signals relative to each other.
