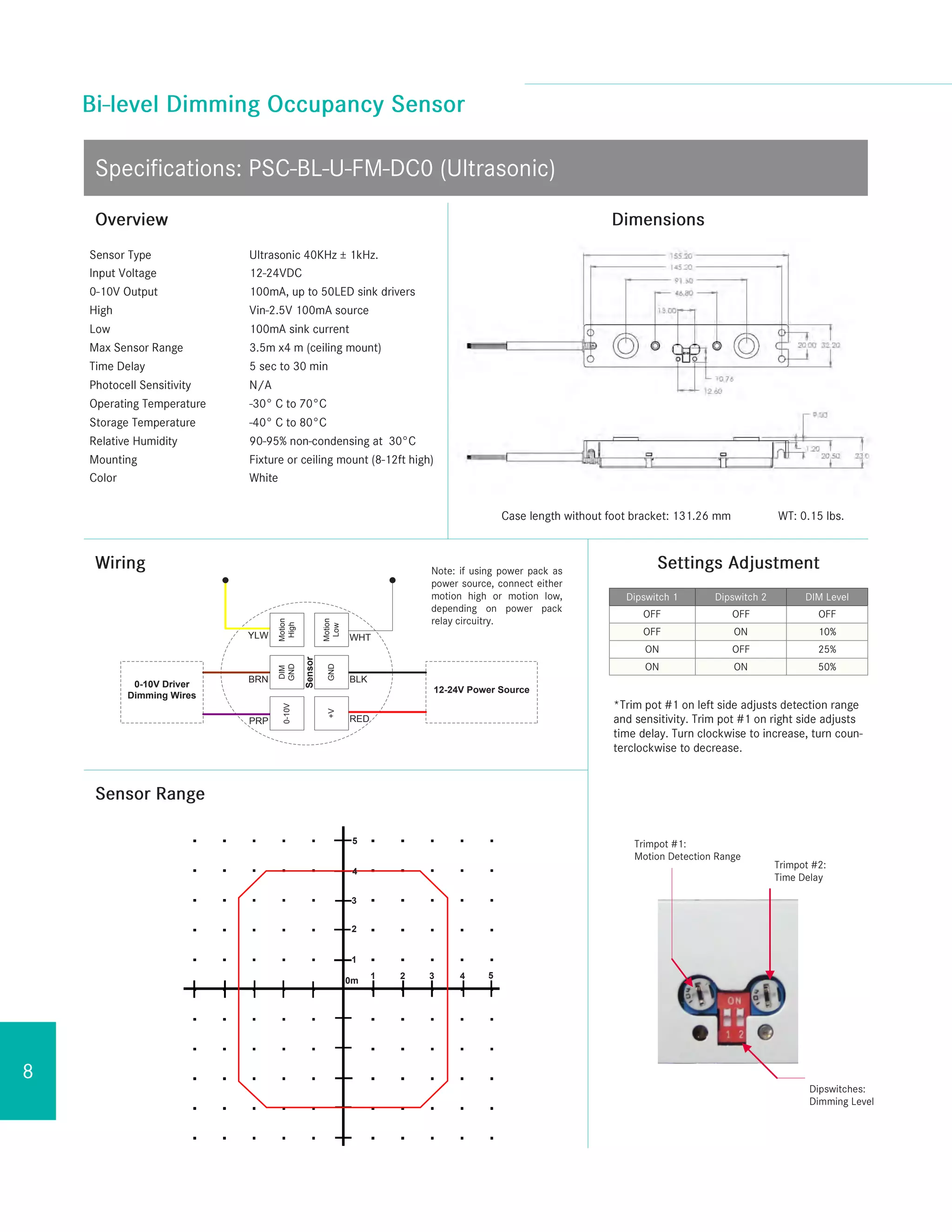

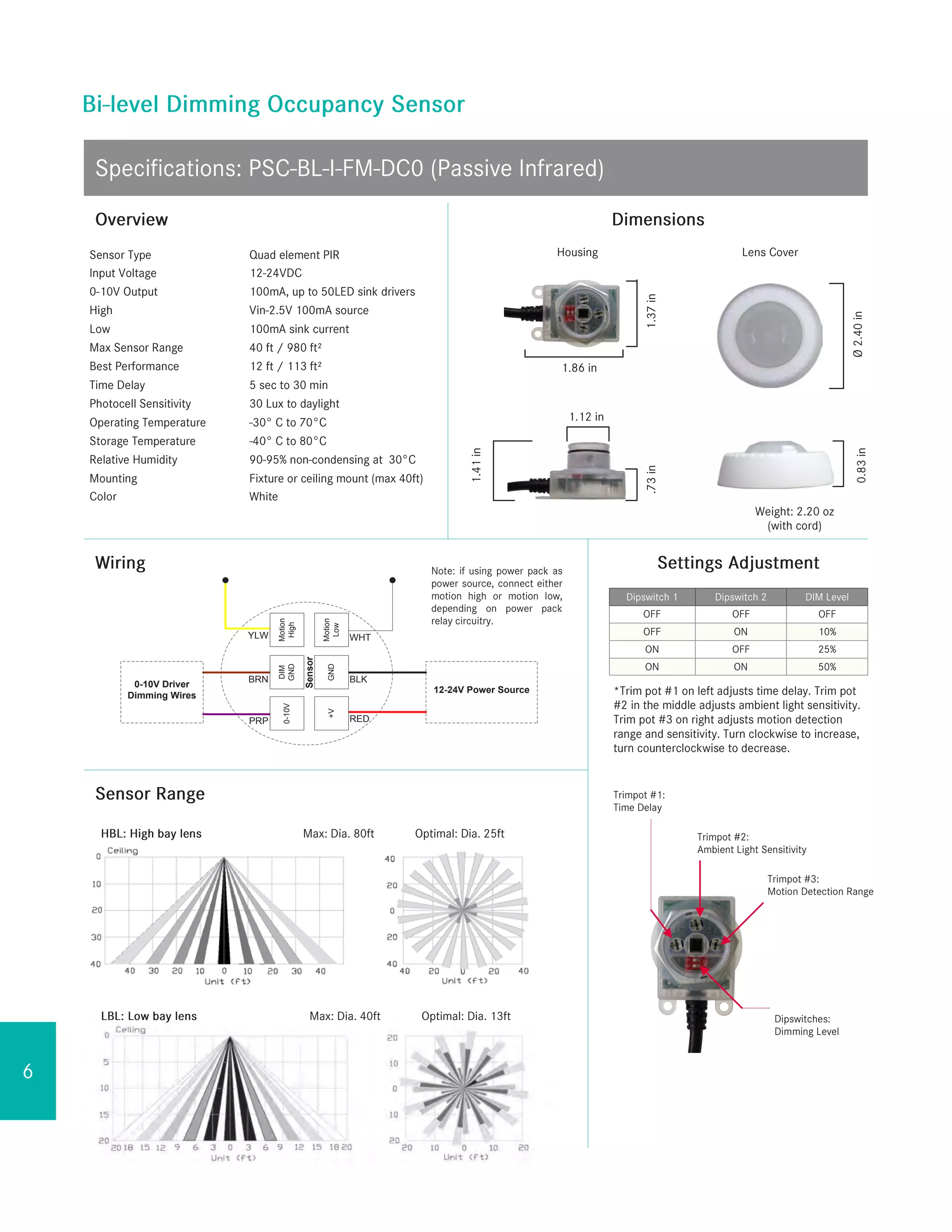

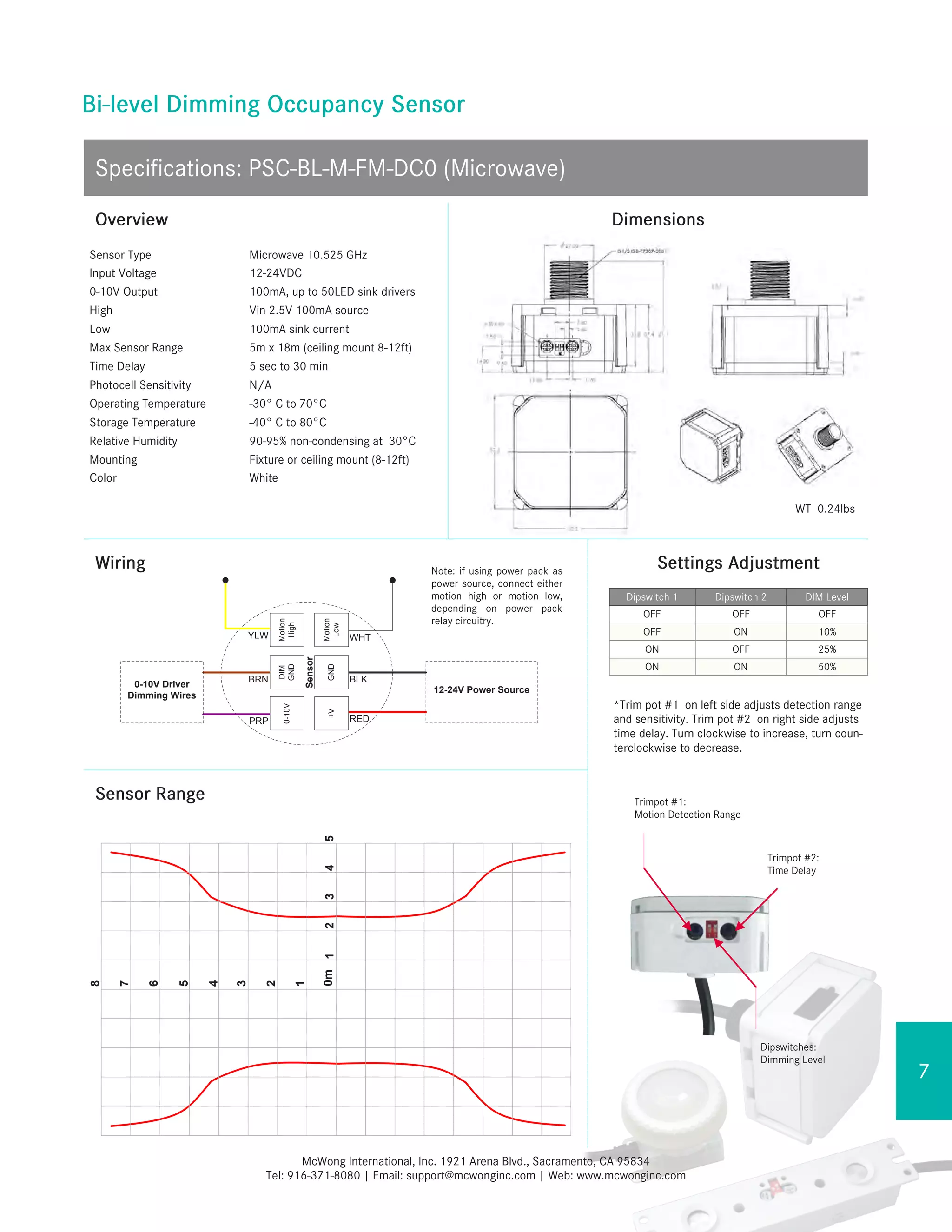

6. 12-24V Power Source
Sensor
YLW
BRN
PRP
0-10V Driver
Dimming Wires
WHT
Motion
Low
Motion
High
DIM
GND
0-10V
RED
+V
BLK
GND
Note: If using power pack as power source, connect either Motion High or Motion Low, depending on power pack relay circuitry.
7. 12-24V Power Source
Sensor
YLW
BRN
PRP
0-10V Driver
Dimming Wires
WHT
Motion
Low
Motion
High
DIM
GND
0-10V
RED
+V
BLK
GND
Note: If using power pack as power source, connect either Motion High or Motion Low, depending on power pack relay circuitry.
0m
1
1
2
2
3
34
4
5
5
6
7
8
8. 12-24V Power Source
Sensor
YLW
BRN
PRP
0-10V Driver
Dimming Wires
WHT
Motion
Low
Motion
High
DIM
GND
0-10V
RED
+V
BLK
GND
Note: If using power pack as power source, connect either Motion High or Motion Low, depending on power pack relay circuitry.
0m
1
1
2
2
3
3 4
4
5
5

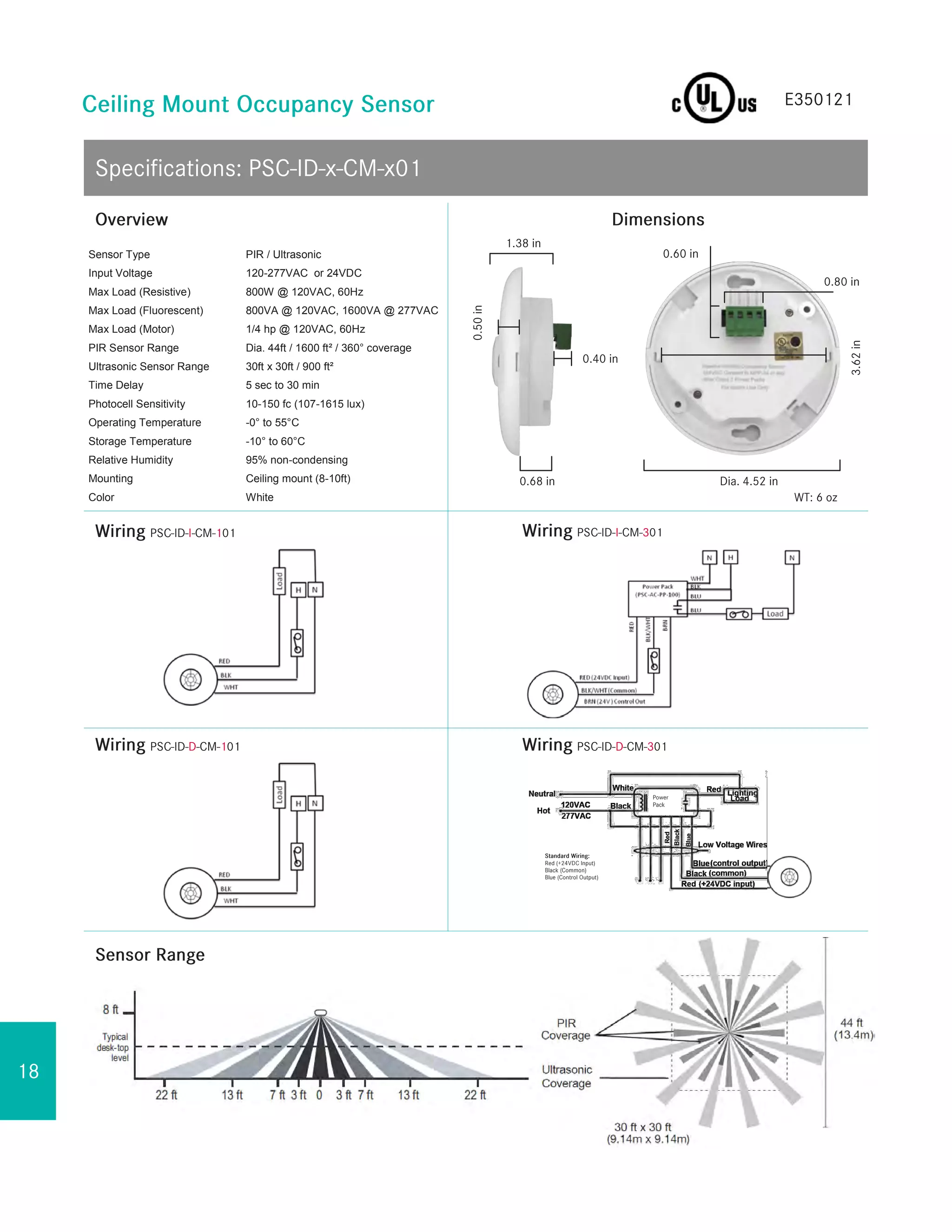

18. Sensor Type PIR / Ultrasonic
Input Voltage 120-277VAC or 24VDC
Max Load (Resistive) 800W @ 120VAC, 60Hz
Max Load (Fluorescent) 800VA @ 120VAC, 1600VA @ 277VAC
Max Load (Motor) 1/4 hp @ 120VAC, 60Hz
PIR Sensor Range Dia. 44ft / 1600 ft² / 360° coverage
Ultrasonic Sensor Range 30ft x 30ft / 900 ft²
Time Delay 5 sec to 30 min
Photocell Sensitivity 10-150 fc (107-1615 lux)
Operating Temperature -0° to 55°C
Storage Temperature -10° to 60°C
Relative Humidity 95% non-condensing
Mounting Ceiling mount (8-10ft)
Color White
E350121

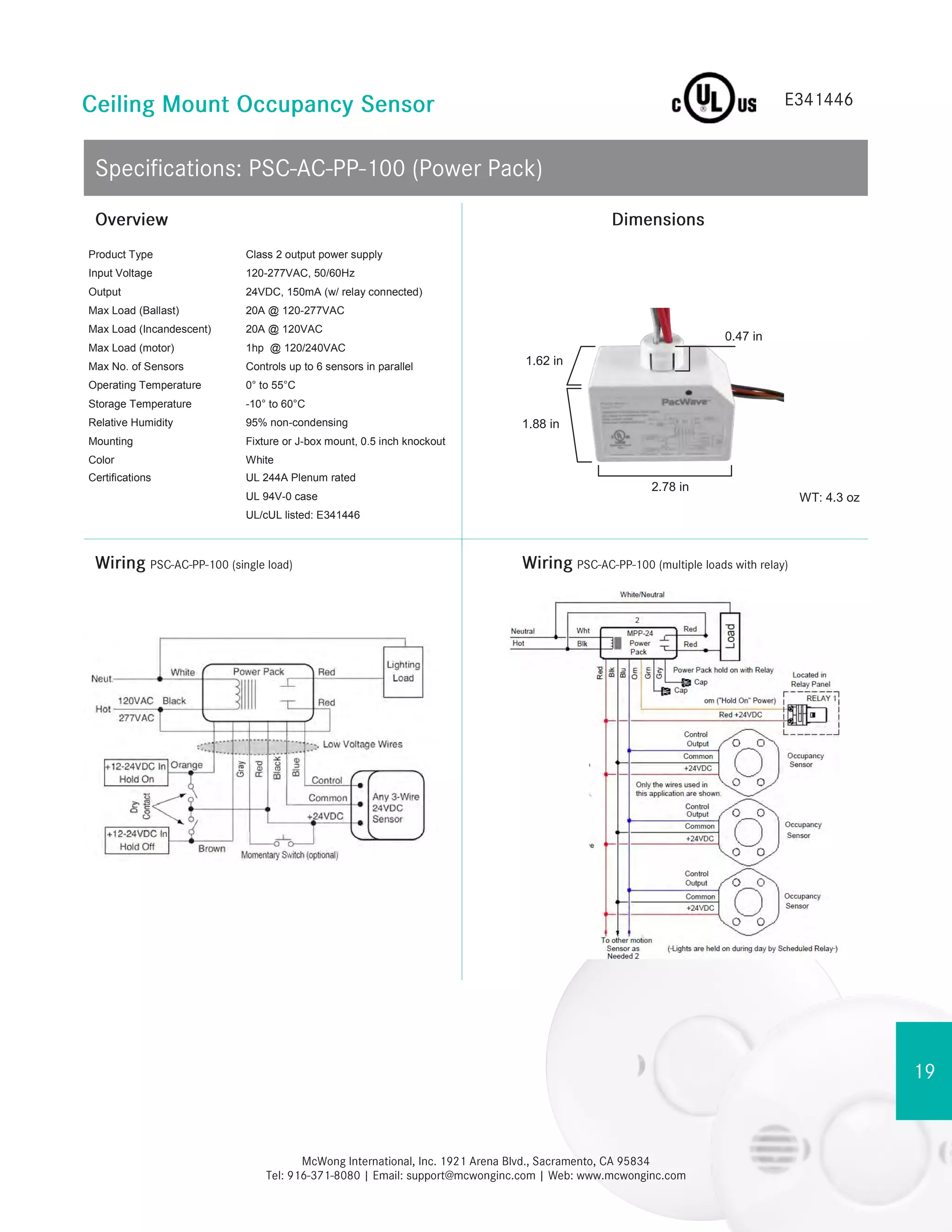

19. 1.88 in
1.62 in
WT: 4.3 oz
2.78 in
0.47 in
Product Type Class 2 output power supply
Input Voltage 120-277VAC, 50/60Hz
Output 24VDC, 150mA (w/ relay connected)
Max Load (Ballast) 20A @ 120-277VAC
Max Load (Incandescent) 20A @ 120VAC
Max Load (motor) 1hp @ 120/240VAC
Max No. of Sensors Controls up to 6 sensors in parallel
Operating Temperature 0° to 55°C
Storage Temperature -10° to 60°C
Relative Humidity 95% non-condensing
Mounting Fixture or J-box mount, 0.5 inch knockout
Color White
Certifications UL 244A Plenum rated
UL 94V-0 case
UL/cUL listed: E341446

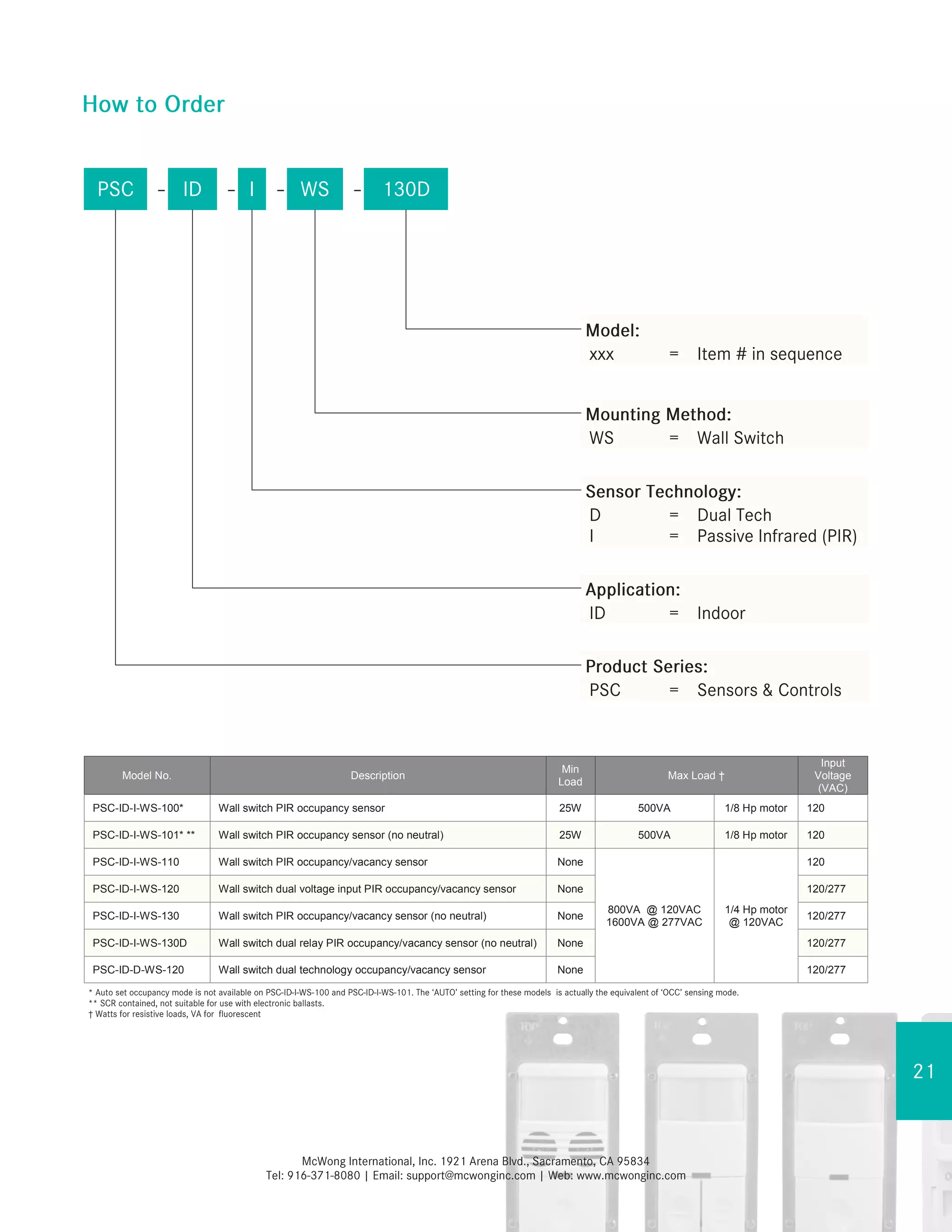

21. Model No. Description
Min
Load
Max Load †
Input
Voltage
(VAC)
PSC-ID-I-WS-100* Wall switch PIR occupancy sensor 25W 500VA 1/8 Hp motor 120
PSC-ID-I-WS-101* ** Wall switch PIR occupancy sensor (no neutral) 25W 500VA 1/8 Hp motor 120
PSC-ID-I-WS-110 Wall switch PIR occupancy/vacancy sensor None
800VA @ 120VAC
1600VA @ 277VAC
120
1/4 Hp motor
@ 120VAC
PSC-ID-I-WS-120 Wall switch dual voltage input PIR occupancy/vacancy sensor None 120/277
PSC-ID-I-WS-130 Wall switch PIR occupancy/vacancy sensor (no neutral) None 120/277
PSC-ID-I-WS-130D Wall switch dual relay PIR occupancy/vacancy sensor (no neutral) None 120/277
PSC-ID-D-WS-120 Wall switch dual technology occupancy/vacancy sensor None 120/277
