The afqevo active multi-function filter is designed to enhance energy efficiency by reducing harmonic currents, correcting power factors, and balancing phases in electrical systems. It features a compact design for easy installation, with capabilities for remote monitoring and auto-diagnosis to ensure optimal performance. The filter is suitable for a wide range of applications, including industrial and commercial installations, where power quality is critical.

1. AFQevo Active Multi-Function Filter
AFQevo
Active Multi-Function Filter
Technology for energy efficiency

2. Tư vấn chọn sản phẩm
Giao hàng tận nơi
Hỗ trợ kỹ thuật
Chính sách hậu mãi đa dạng
DỊCH VỤ CHĂM SÓC KHÁCH HÀNG TOÀN DIỆN
Nhà cung cấp thiết bị điện chuyên nghiệp
Email: contact@beeteco.com
Hotline: 0909 41 61 43
CÔNG TY TNHH THƯƠNG MẠI KỸ THUẬT ASTER
Số 7/31 KDC Thương Mại Sóng Thần, Kp. Nhị Đồng 1, P. Dĩ An, Tx. Dĩ An, Bình Dương
Tel: (0650) 3617 012
Fax: (0650) 3617 011

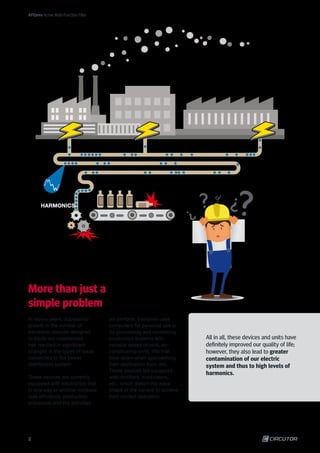

3. AFQevo Active Multi-Function Filter
More than just a
simple problem
In recent years, substantial
growth in the number of
electronic devices designed
to equip our installations
has resulted in significant
changes in the types of loads
connected to the power
distribution system.
These devices are currently
equipped with electronics that
in one way or another increase
task efficiency, production
processes and the activities
All in all, these devices and units have
definitely improved our quality of life;
however, they also lead to greater
contamination of our electric
system and thus to high levels of
harmonics.
we perform. Everyone uses
computers for personal use or
for processing and controlling
production systems with
variable speed drivers, air-
conditioning units, lifts that
slow down when approaching
their destination floor, etc.
These devices are equipped
with rectifiers, modulators,
etc., which distort the wave
shape of the current to achieve
their correct operation.
HARMONICS
2

4. AFQevo
Power
Studio
compatible
AFQevo Active Multi-Function Filter
A solution
MULTI-FUNCTION
INTUITIVE
EFFICIENT3 Functions in 1
1. Harmonic filtering
Reduction of harmonic currents up to
the 50th harmonic (2500 Hz). Optional
selection of the harmonic frequencies
to be filtered in order to achieve higher
efficiency.
Power factor correction. Both
inductive and capacitive currents.
Current balancing correction,
improving the phase-to-phase
consumption of an installation. The
4-wire model reduces the neutral
current.
2. Power factor correction 3. Phase balancing
The AFQevo active filters are multi-
function 3-in-1 units, with cutting
edge technology to perform 3
different functions with a single
unit.
In addition, these functions can be
prioritised in the required order.
HARMONICS
With AFQevoWithout AFQevo
Auto-diagnosis Remote
verification
Datalogger Electric energy
management via
communication
systems
3

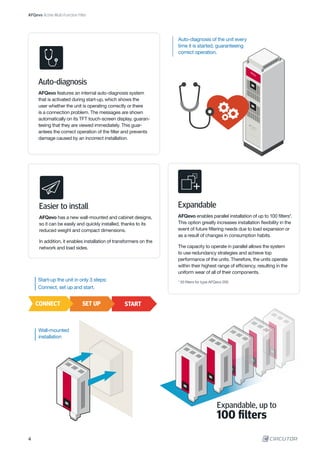

5. AFQevo Active Multi-Function Filter
Auto-diagnosis
AFQevo features an internal auto-diagnosis system
that is activated during start-up, which shows the
user whether the unit is operating correctly or there
is a connection problem. The messages are shown
automatically on its TFT touch-screen display, guaran-
teeing that they are viewed immediately. This guar-
antees the correct operation of the filter and prevents
damage caused by an incorrect installation.
Auto-diagnosis of the unit every
time it is started, guaranteeing
correct operation.
Expandable
AFQevo enables parallel installation of up to 100 filters*.
This option greatly increases installation flexibility in the
event of future filtering needs due to load expansion or
as a result of changes in consumption habits.
The capacity to operate in parallel allows the system
to use redundancy strategies and achieve top
performance of the units. Therefore, the units operate
within their highest range of efficiency, resulting in the
uniform wear of all of their components.
* 50 filters for type AFQevo 200
Easier to install
AFQevo has a new wall-mounted and cabinet designs,
so it can be easily and quickly installed, thanks to its
reduced weight and compact dimensions.
In addition, it enables installation of transformers on the
network and load sides.
CONNECT SET UP START
Start-up the unit in only 3 steps:
Connect, set up and start.
Wall-mounted
installation
100 filters
Expandable, up to
4

6. 2GB
AFQevo Active Multi-Function Filter

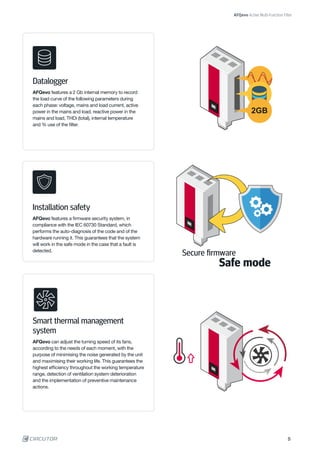

Datalogger
AFQevo features a 2 Gb internal memory to record
the load curve of the following parameters during
each phase: voltage, mains and load current, active
power in the mains and load, reactive power in the
mains and load, THDi (total), internal temperature
and % use of the filter.
Smart thermal management
system
AFQevo can adjust the turning speed of its fans,
according to the needs of each moment, with the
purpose of minimising the noise generated by the unit
and maximising their working life. This guarantees the
highest efficiency throughout the working temperature
range, detection of ventilation system deterioration
and the implementation of preventive maintenance
actions.
Installation safety
AFQevo features a firmware security system, in
compliance with the IEC 60730 Standard, which
performs the auto-diagnosis of the code and of the
hardware running it. This guarantees that the system
will work in the safe mode in the case that a fault is
detected.
Secure firmware
Safe mode
5

7. AFQevo Active Multi-Function Filter
Remote verification
AFQevo can be remotely accessed via Ethernet
connection to perform on-line diagnosis tasks or
to update the system, without the need for on-site
technical support.
Built-in web server
AFQevo features an Ethernet port to access its web
site from any browser, with the purpose of monitoring
instantaneous parameters, downloading data and
events stored on-line, with no need to download a
software application.
With optional remote verification
and assistance
Electric energy management via
communication systems
AFQevo features an RS-485 port and an Ethernet
port, so the unit can be connected with the Modbus
RTU protocol to our “PowerStudio Scada” energy
management software to monitor the instantaneous
values, create graphics and tables, generate
reports and detect alarms.
Power
Studio
compatible
6

8. internet
AFQevo Active Multi-Function Filter
Touch-screen display
Touch-screen HMI display, for quick
management and configuration of the unit.
It can also display the "in situ" filter data.
The AFQevo active filters can work
in 12 different modes, with a series
of simple combinations, prioritising
their 3 main functions: Harmonics
filtering, Power factor correction
and Phase balancing.
Multi-purpose
The AFQevo active filters are very versatile,
since they can be configured with different
configurations and operating modes.
Therefore, they can be used in any type of
installation and for any type of situation:
›› Available for 3 or 4-wire installations.
›› Suitable for the following voltages: 230, 400
and 480 V.
›› These filters can be adapted to the
complexities of each installation, since they
are connected to the network or load side.
›› They feature a priority system, which can be
adjusted for power factor correction, phase
balancing or harmonics filtering.
Connectivity
Check the data of your active filters in real
time, process the data via the screens and
generate reports with a remote connection using
PowerStudio SCADA.
OPERATING
modes
7

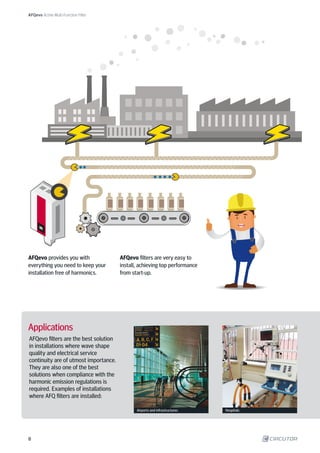

9. AFQevo Active Multi-Function Filter
Applications
AFQevo filters are the best solution
in installations where wave shape
quality and electrical service
continuity are of utmost importance.
They are also one of the best
solutions when compliance with the
harmonic emission regulations is
required. Examples of installations
where AFQ filters are installed:
HospitalsAirports and infrastructures
AFQevo filters are very easy to
install, achieving top performance
from start-up.
AFQevo provides you with
everything you need to keep your
installation free of harmonics.
8

10. AFQevo Active Multi-Function Filter

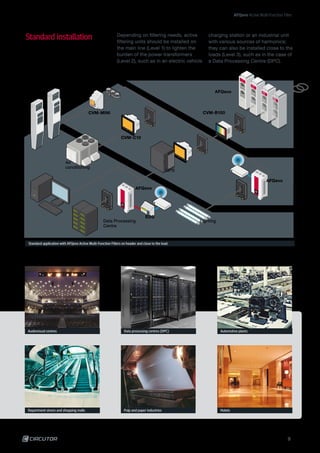

Standard installation Depending on filtering needs, active
filtering units should be installed on
the main line (Level 1) to lighten the
burden of the power transformers
(Level 2), such as in an electric vehicle
charging station or an industrial unit
with various sources of harmonics;
they can also be installed close to the
loads (Level 3), such as in the case of
a Data Processing Centre (DPC).
Standard application with AFQevo Active Multi-Function Filters on header and close to the load.
Audiovisual centres
Department stores and shopping malls
Data processing centres (DPC)
Pulp and paper industries
Automotive plants
Hotels
AFQevo
EDS
CVM-B100
CVM-C10
CVM-MINI
UPS
Data Processing
Centre
Level 1
Level 2
Level 3
RVE
Electric vehicle
Charging
Panel
Air
conditioning
Lighting
AFQevo
AFQevo
9

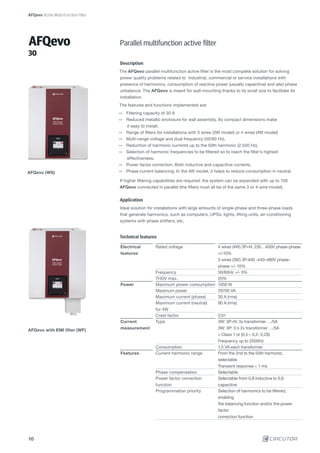

11. AFQevo
30
AFQevo Active Multi-Function Filter
AFQevo (WS)
AFQevo with EMI filter (WF)
Parallel multifunction active filter
Description
The AFQevo parallel multifunction active filter is the most complete solution for solving
power quality problems related to industrial, commercial or service installations with
presence of harmonics, consumption of reactive power (usually capacitive) and also phase
unbalance. The AFQevo is meant for wall-mounting thanks to its small size to facilitate its
installation.
The features and functions implemented are:
— Filtering capacity of 30 A
— Reduced metallic enclosure for wall assembly. Its compact dimensions make
it easy to install.
— Range of filters for installations with 3 wires (3W model) or 4 wires (4W model)
— Multi-range voltage and dual frequency (50/60 Hz).
— Reduction of harmonic currents up to the 50th harmonic (2,500 Hz).
— Selection of harmonic frequencies to be filtered so to reach the filter’s highest
effectiveness.
— Power factor correction. Both inductive and capacitive currents.
— Phase current balancing. In the 4W model, it helps to reduce consumption in neutral.
If higher filtering capabilities are required, the system can be expanded with up to 100
AFQevo connected in parallel (the filters must all be of the same 3 or 4-wire model).
Application
Ideal solution for installations with large amounts of single-phase and three-phase loads
that generate harmonics, such as computers, UPSs, lights, lifting units, air-conditioning
systems with phase shifters, etc.
Technical features
Electrical
features
Rated voltage 4 wires (4W) 3P+N: 230…400V phase-phase
+/-10%
3 wires (3W) 3P:400 -440-480V phase-
phase +/- 10%
Frequency 50/60Hz +/- 5%
THDV max. 25%
Power Maximum power consumption 1050 W
Maximum power 20700 VA
Maximum current (phase) 30 A (r ms)
Maximum current (neutral)
for 4W
90 A (rms)
Crest factor 2:01
Current
measurement
Type 4W: 3P+N: 3x transformer …/5A
3W: 3P: 3 ó 2x transformer …/5A
≥ Class 1 or (0,5 – 0,2- 0,2S)
Frequency up to 2500Hz
Consumption 1.5 VA each transformer
Features Current harmonic range From the 2nd to the 50th harmonic,
selectable
Transient response < 1 ms
Phase compensation Selectable
Power factor correction
function
Selectable from 0,8 inductive to 0,8
capacitive
Programmation priority Selection of harmonics to be filtered,
enabling
the balancing function and/or the power
factor
correction function
10

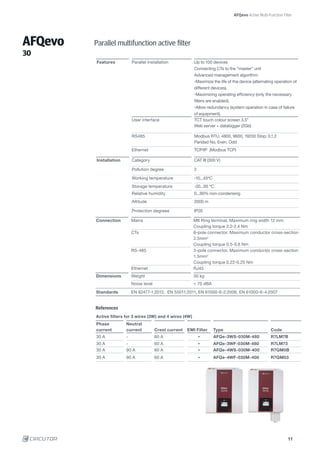

12. AFQevo
30
AFQevo Active Multi-Function Filter
Features Parallel installation Up to 100 devices
Connecting CTs to the “master” unit
Advanced management algorithm:
xxMaximize the life of the device (alternating operation of
different devices).
xxMaximizing operating efficiency (only the necessary
filters are enabled).
xxAllow redundancy (system operation in case of failure
of equipment).
User interface TCT touch colour screen 3,5”
Web server + datalogger (2Gb)
RS485 Modbus RTU, 4800, 9600, 19200 Stop: 0,1,2
Paridad No, Even, Odd
Ethernet TCP/IP (Modbus TCP)
Installation Category CAT III (300 V)
Pollution degree 2
Working temperature -10...45ºC
Storage temperature -20...95 ºC
Relative humidity 0...90% non-condensing
Altitude 2000 m
Protection degreee IP20
References
Phase
current
Neutral
current Crest current EMI Filter Type Code
30 A - 60 A Ÿ AFQe-3WS-030M-480 R7LM7B
30 A - 60 A Ÿ AFQe-3WF-030M-480 R7LM73
30 A 90 A 60 A Ÿ AFQe-4WS-030M-400 R7QM0B
30 A 90 A 60 A Ÿ AFQe-4WF-030M-400 R7QM03
Active filters for 3 wires (3W) and 4 wires (4W)
Connection Mains M6 Ring terminal. Maximum ring width 12 mm
Coupling torque 2.2-2.4 Nm
CTs 6-pole connector. Maximum conductor cross-section
2.5mm2
Coupling torque 0.5-0.6 Nm
RS-485 3-pole connector. Maximum conductor cross-section
1.5mm2
Coupling torque 0.22-0.25 Nm
Ethernet RJ45
Dimensions Weight 30 kg
Noise level < 70 dBA
Standards EN 62477-1:2012, EN 55011:2011, EN 61000-6-2:2006, EN 61000-6-4:2007
Parallel multifunction active filter
11

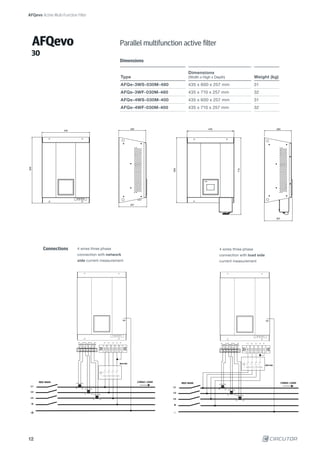

13. AFQevo
30
L1
L2
L3
S1 S2 S1 S2 S1 S2
L1
P1 P2
L2 L3
P1 P2P1 P2
N
S1 S2
P1 P2 S1 S2
P1 P2 S1 S2
P1 P2
CARGA / LOAD
L1 L2 L3 N N
RED/ MAIN
MCB 40A
L1
L2
L3
S1 S2 S1 S2 S1 S2
L1
P1 P2
L2 L3
P1 P2P1 P2
N
S1 S2
P1 P2 S1 S2
P1 P2 S1 S2
P1 P2
CARGA / LOAD
L1 L2 L3 N N
RED/ MAIN
MCB 40A
435
710
257
250
600
257
300
n9
9
250
435
600
570
AFQevo Active Multi-Function Filter
Connections 4 wires three phase
connection with network
side current measurement
4 wires three phase
connection with load side
current measurement
Dimensions
Parallel multifunction active filter
Type
Dimensions
(Width x High x Depth) Weight (kg)
AFQe-3WS-030M-480 435 x 600 x 257 mm 31
AFQe-3WF-030M-480 435 x 710 x 257 mm 32
AFQe-4WS-030M-400 435 x 600 x 257 mm 31
AFQe-4WF-030M-400 435 x 710 x 257 mm 32
12

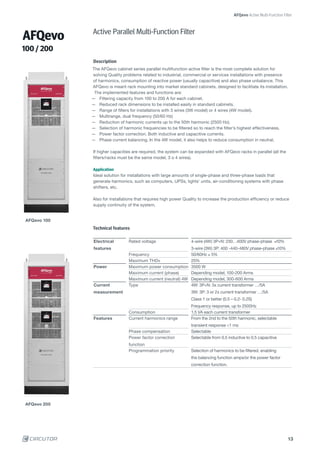

14. AFQevo
AFQevo 100
AFQevo 200
100 / 200
AFQevo Active Multi-Function Filter
Active Parallel Multi-Function Filter
Description
The AFQevo cabinet series parallel multifunction active filter is the most complete solution for
solving Quality problems related to industrial, commercial or services installations with presence
of harmonics, consumption of reactive power (usually capacitive) and also phase unbalance. This
AFQevo is meant rack mounting into market standard cabinets, designed to facilitate its installation.
The implemented features and functions are:
— Filtering capacity from 100 to 200 A for each cabinet.
— Reduced rack dimensions to be installed easily in standard cabinets.
— Range of filters for installations with 3 wires (3W model) or 4 wires (4W model).
— Multirange, dual frequency (50/60 Hz)
— Reduction of harmonic currents up to the 50th harmonic (2500 Hz).
— Selection of harmonic frequencies to be filtered so to reach the filter’s highest effectiveness.
— Power factor correction. Both inductive and capacitive currents.
— Phase current balancing. In the 4W model, it also helps to reduce consumption in neutral.
If higher capacities are required, the system can be expanded with AFQevo racks in parallel (all the
filters/racks must be the same model, 3 o 4 wires).
Application
Ideal solution for installations with large amounts of single-phase and three-phase loads that
generate harmonics, such as computers, UPSs, lights’ units, air-conditioning systems with phase
shifters, etc.
Also for installations that requires high power Quality to increase the production efficiency or reduce
supply continuity of the system.
Technical features
Electrical
features
Rated voltage 4-wire (4W) 3P+N: 230…400V phase-phase ±10%
3-wire (3W) 3P: 400 -440-480V phase-phase ±10%
Frequency 50/60Hz ± 5%
Maximum THDv 25%
Power Maximum power consumption 3500 W
Maximum current (phase) Depending model, 100-200 Arms
Maximum current (neutral) 4W Depending model, 300-600 Arms
Current
measurement
Type 4W: 3P+N: 3x current transformer …/5A
3W: 3P: 3 or 2x current transformer …/5A
Class 1 or better (0.5 – 0.2- 0.2S)
Frequency response, up to 2500Hz
Consumption 1.5 VA each current transformer
Features Current harmonics range From the 2nd to the 50th harmonic, selectable
transient response <1 ms
Phase compensation Selectable
Power factor correction
function
Selectable from 0.5 inductive to 0.5 capacitive
Programmation priority Selection of harmonics to be filtered, enabling
the balancing function amps/or the power factor
correction function.
13

15. AFQevo
100 / 200
AFQevo Active Multi-Function Filter
Dimensions Depending model. See table
Weight Depending model. See table
Connection Mains M10 Ring terminal
Maximum ring width 12 mm.
Coupling Torque 0.5-0.6 Nm
CT's 6-pole connector
Maximum conductor cross section 2.5 mm2
Coupling Torque 0.5-0.6 Nm
RS485 3-pole connector
Maximum conductor cross section 1.5 mm2
Coupling Torque 0.22-0.25 Nm
Ethernet RJ45
Standards IEC 62477-1:2012, IEC 55011:2011, IEC 61000-6-2, IEC 61000-6-4:2007
Active Parallel Multi-Function Filter
Features Parallel installation xx Up to 100 devices / racks (AFQe 100A)
xx Up to 50 devices / racks (AFQe 200A)
xx Connecting CT's to the master unit.
Advanced processing algorithm:
xx Maximize the life of the device (alternating operation of
different devices).
xx Maximizing operating efficiency (only the necessary filters are
enabled).
xx Allow redundancy (system operation in case of failure of
equipment).
Noise level ≤ 65 dBA
Crest factor 2
User interface TCT touch colour screen 3.5"
Web server and datalogger (2 Gb)
RS-485 Modbus RTU, 4800, 9600, 19200 Stop 0,1,2
Parity No, Even, Odd
Ethernet TCP/IP (Modbus TCP)
Installation Installation category CAT III (300 V)
Pollution degree 2
Working temperature -10...45ºC
Storage temperature -20...55ºC
Relative humidity 0...95% non-condensation
Altitude 2,000 m
Protection Degree IP21 (other protection degrees under demand)
References
Phase current
Neutral
current Crest current
EMI
Filter Type Code
100 A - 200 A Ÿ AFQe-3WF-100C-480 R7LF75
200 A - 400 A Ÿ AFQe-3WF-200C-480 R7LF77
100 A 300 A 200 A Ÿ AFQe-4WF-100C-400 R7QF05
200 A 600 A 400 A Ÿ AFQe-4WF-200C-400 R7QF05
Active filters for 3 wires (3W) and 4 wires (4W)
14

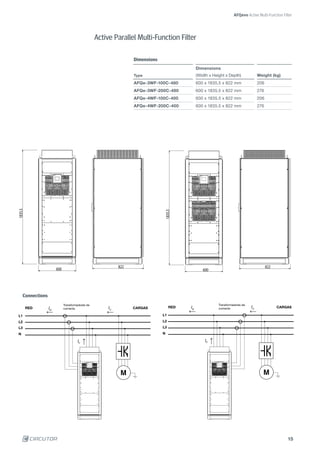

16. 1835.5
600
822
1835.5
600
822
L1
L2
L3
N
RED CARGAS
Transformadores de
corrienteIR
IF
IC
L1
L2
L3
N
Transformadores de
corrienteIR
IF
IC
RED CARGAS
AFQevo Active Multi-Function Filter
Connections
Dimensions
Active Parallel Multi-Function Filter
Type
Dimensions
(Width x Height x Depth) Weight (kg)
AFQe-3WF-100C-480 600 x 1835.5 x 822 mm 206
AFQe-3WF-200C-480 600 x 1835.5 x 822 mm 276
AFQe-4WF-100C-400 600 x 1835.5 x 822 mm 206
AFQe-4WF-200C-400 600 x 1835.5 x 822 mm 276
15

17. www.circutor.com
Designedby:ImageandCommunicationsDepartment-CIRCUTOR,SA
+ info: comunicacion@circutor.com
AFQevo
Active Multi-Function Filter
CIRCUTOR, SA reserves the right to change any information contained in this catalogue.
CIRCUTOR, SA - Vial Sant Jordi, s/n
08232 Viladecavalls (Barcelona) Spain
Tel. (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14
central@circutor.com
Code: C2R731-03
