Cassandra uses a layered architecture with an API layer, Dynamo layer, and database layer. The API layer supports Thrift, CQL, and JMX interfaces. The Dynamo layer handles ring operations and messaging. The database layer includes the memtable, SSTables, and components for data storage and access like Table and ColumnFamilyStore. Messages are processed asynchronously across stages like READ and MUTATION using handlers and callbacks.

1. CASSANDRA SF 2013
CASSANDRA
INTERNALS
Aaron Morton
@aaronmorton
www.thelastpickle.com
#Cassandra13
Licensed under a Creative Commons Attribution-NonCommercial 3.0 New Zealand License

2. About Me
Freelance Cassandra Consultant
Based in Wellington, New Zealand
Apache Cassandra Committer
#Cassandra13

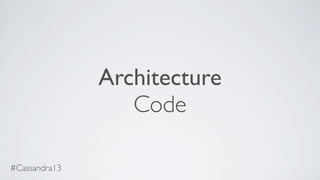

3. Architecture
Code
#Cassandra13

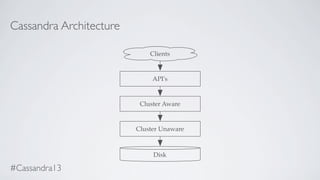

4. Cassandra Architecture
API's
Cluster Aware
Cluster Unaware
Clients
Disk
#Cassandra13

5. Cassandra Cluster Architecture
API's
Cluster Aware
Cluster Unaware
Clients
Disk
API's
Cluster Aware
Cluster Unaware
Disk
Node 1 Node 2
#Cassandra13

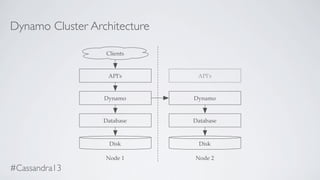

6. Dynamo Cluster Architecture
API's
Dynamo
Database
Clients
Disk
API's
Dynamo
Database
Disk
Node 1 Node 2
#Cassandra13

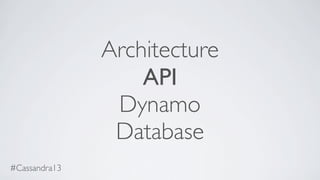

7. Architecture
API
Dynamo
Database
#Cassandra13

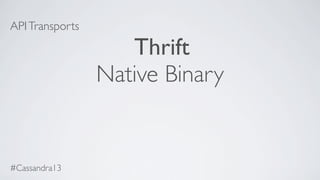

8. APITransports
Thrift
Native Binary
#Cassandra13

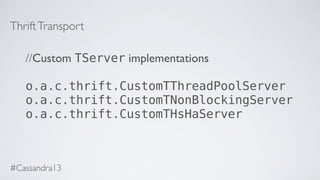

9. ThriftTransport
//Custom TServer implementations
o.a.c.thrift.CustomTThreadPoolServer
o.a.c.thrift.CustomTNonBlockingServer
o.a.c.thrift.CustomTHsHaServer
#Cassandra13

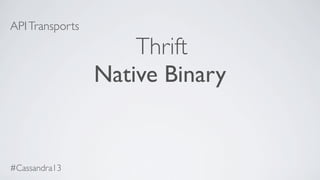

10. APITransports
Thrift
Native Binary
#Cassandra13

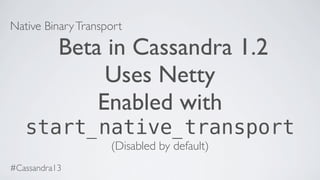

11. Native BinaryTransport
Beta in Cassandra 1.2
Uses Netty
Enabled with
start_native_transport
(Disabled by default)
#Cassandra13

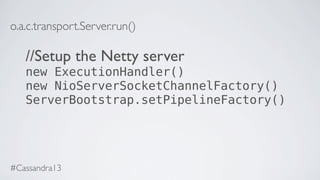

12. o.a.c.transport.Server.run()
//Setup the Netty server
new ExecutionHandler()
new NioServerSocketChannelFactory()
ServerBootstrap.setPipelineFactory()
#Cassandra13

13. o.a.c.transport.Message.Dispatcher.messageReceived()
//Process message from client
ServerConnection.validateNewMessage()
Request.execute()
ServerConnection.applyStateTransition()
Channel.write()
#Cassandra13

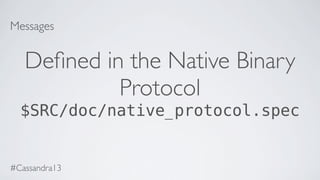

14. Messages
Defined in the Native Binary
Protocol
$SRC/doc/native_protocol.spec
#Cassandra13

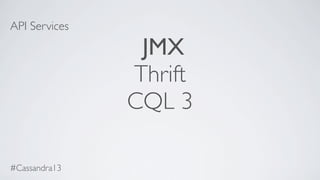

15. API Services
JMX
Thrift
CQL 3
#Cassandra13

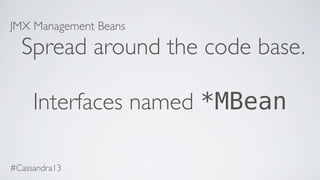

16. JMX Management Beans
Spread around the code base.
Interfaces named *MBean
#Cassandra13

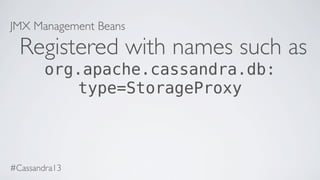

17. JMX Management Beans
Registered with names such as
org.apache.cassandra.db:
type=StorageProxy
#Cassandra13

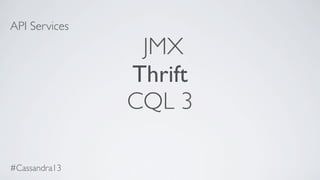

18. API Services
JMX
Thrift
CQL 3
#Cassandra13

19. o.a.c.thrift.CassandraServer
// Implements Thrift Interface
// Access control
// Input validation
// Mapping to/from Thrift and internal types
#Cassandra13

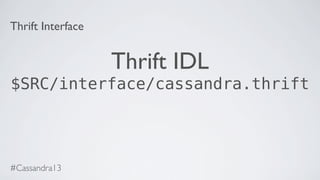

20. Thrift Interface
Thrift IDL
$SRC/interface/cassandra.thrift
#Cassandra13

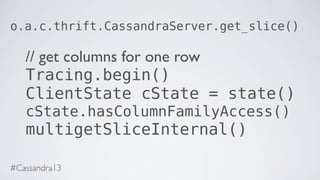

21. o.a.c.thrift.CassandraServer.get_slice()
// get columns for one row
Tracing.begin()
ClientState cState = state()
cState.hasColumnFamilyAccess()
multigetSliceInternal()
#Cassandra13

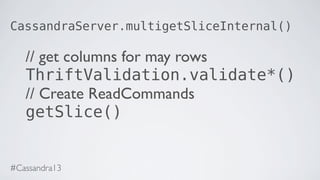

22. CassandraServer.multigetSliceInternal()
// get columns for may rows
ThriftValidation.validate*()
// Create ReadCommands
getSlice()
#Cassandra13

23. CassandraServer.getSlice()
// Process ReadCommands
// return Thrift types
readColumnFamily()
thriftifyColumnFamily()
#Cassandra13

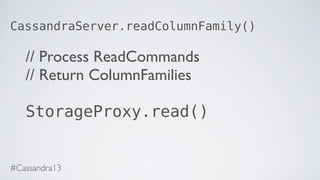

24. CassandraServer.readColumnFamily()
// Process ReadCommands
// Return ColumnFamilies
StorageProxy.read()
#Cassandra13

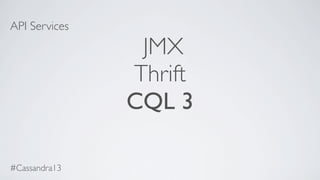

25. API Services
JMX
Thrift
CQL 3
#Cassandra13

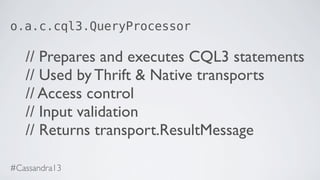

26. o.a.c.cql3.QueryProcessor
// Prepares and executes CQL3 statements
// Used by Thrift & Native transports
// Access control
// Input validation
// Returns transport.ResultMessage
#Cassandra13

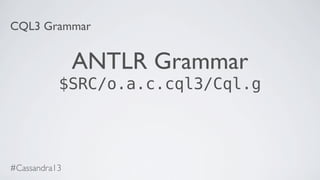

27. CQL3 Grammar
ANTLR Grammar
$SRC/o.a.c.cql3/Cql.g
#Cassandra13

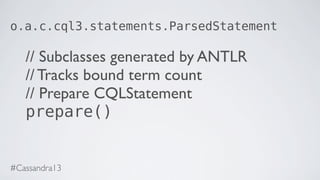

28. o.a.c.cql3.statements.ParsedStatement
// Subclasses generated by ANTLR
// Tracks bound term count
// Prepare CQLStatement
prepare()
#Cassandra13

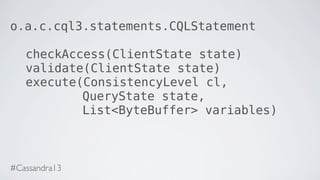

29. o.a.c.cql3.statements.CQLStatement
checkAccess(ClientState state)
validate(ClientState state)
execute(ConsistencyLevel cl,
QueryState state,
List<ByteBuffer> variables)
#Cassandra13

30. statements.SelectStatement.RawStatement
// Implements ParsedStatement
// Input validation
prepare()
#Cassandra13

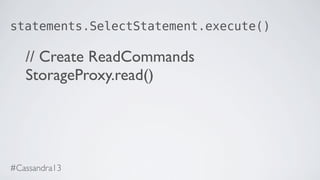

31. statements.SelectStatement.execute()
// Create ReadCommands
StorageProxy.read()
#Cassandra13

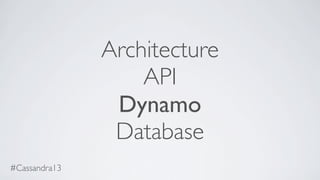

32. Architecture
API
Dynamo
Database
#Cassandra13

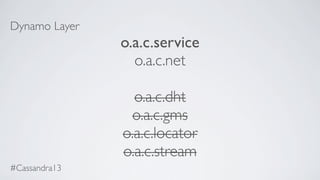

33. Dynamo Layer
o.a.c.service
o.a.c.net
o.a.c.dht
o.a.c.gms
o.a.c.locator
o.a.c.stream
#Cassandra13

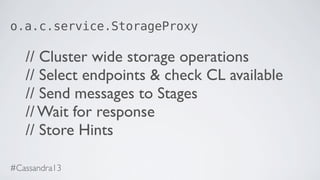

34. o.a.c.service.StorageProxy
// Cluster wide storage operations
// Select endpoints & check CL available
// Send messages to Stages
// Wait for response
// Store Hints
#Cassandra13

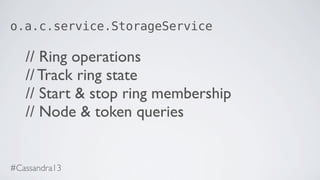

35. o.a.c.service.StorageService
// Ring operations
// Track ring state
// Start & stop ring membership
// Node & token queries
#Cassandra13

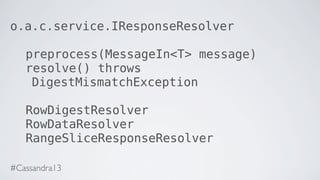

36. o.a.c.service.IResponseResolver
preprocess(MessageIn<T> message)
resolve() throws
DigestMismatchException
RowDigestResolver
RowDataResolver
RangeSliceResponseResolver
#Cassandra13

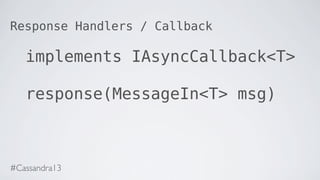

37. Response Handlers / Callback
implements IAsyncCallback<T>
response(MessageIn<T> msg)
#Cassandra13

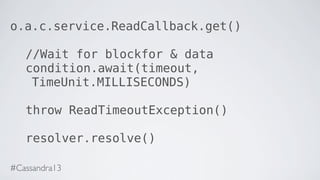

38. o.a.c.service.ReadCallback.get()
//Wait for blockfor & data
condition.await(timeout,
TimeUnit.MILLISECONDS)
throw ReadTimeoutException()
resolver.resolve()
#Cassandra13

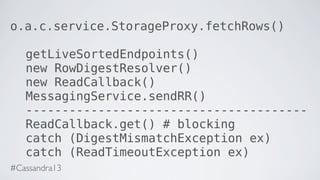

39. o.a.c.service.StorageProxy.fetchRows()
getLiveSortedEndpoints()
new RowDigestResolver()
new ReadCallback()
MessagingService.sendRR()
---------------------------------------
ReadCallback.get() # blocking
catch (DigestMismatchException ex)
catch (ReadTimeoutException ex)
#Cassandra13

40. Dynamo Layer
o.a.c.service
o.a.c.net
o.a.c.dht
o.a.c.gms
o.a.c.locator
o.a.c.stream
#Cassandra13

41. o.a.c.net.MessagingService.verb<<enum>>
MUTATION
READ
REQUEST_RESPONSE
TREE_REQUEST
TREE_RESPONSE
(And more...)
#Cassandra13

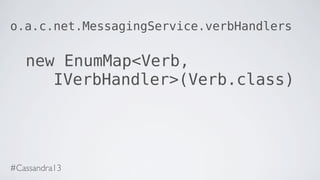

42. o.a.c.net.MessagingService.verbHandlers
new EnumMap<Verb,
IVerbHandler>(Verb.class)
#Cassandra13

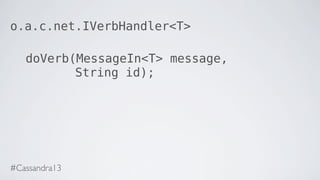

43. o.a.c.net.IVerbHandler<T>
doVerb(MessageIn<T> message,
String id);
#Cassandra13

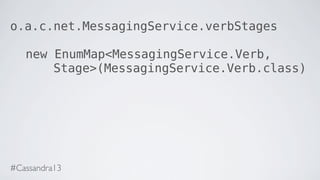

44. o.a.c.net.MessagingService.verbStages
new EnumMap<MessagingService.Verb,
Stage>(MessagingService.Verb.class)
#Cassandra13

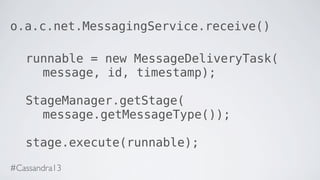

45. o.a.c.net.MessagingService.receive()
runnable = new MessageDeliveryTask(
message, id, timestamp);
StageManager.getStage(
message.getMessageType());
stage.execute(runnable);
#Cassandra13

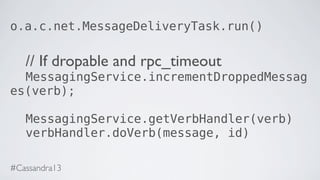

46. o.a.c.net.MessageDeliveryTask.run()
// If dropable and rpc_timeout
MessagingService.incrementDroppedMessag
es(verb);
MessagingService.getVerbHandler(verb)
verbHandler.doVerb(message, id)
#Cassandra13

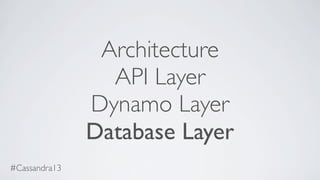

47. Architecture
API Layer
Dynamo Layer
Database Layer
#Cassandra13

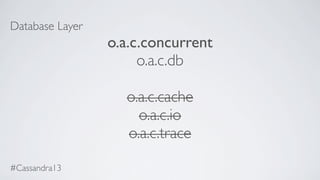

48. Database Layer
o.a.c.concurrent
o.a.c.db
o.a.c.cache
o.a.c.io
o.a.c.trace
#Cassandra13

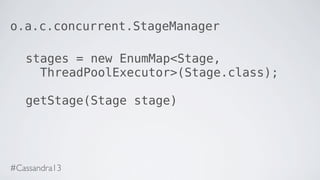

49. o.a.c.concurrent.StageManager
stages = new EnumMap<Stage,
ThreadPoolExecutor>(Stage.class);
getStage(Stage stage)
#Cassandra13

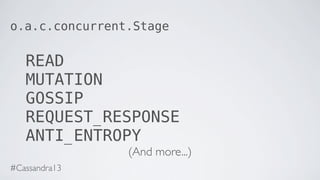

50. o.a.c.concurrent.Stage
READ
MUTATION
GOSSIP
REQUEST_RESPONSE
ANTI_ENTROPY
(And more...)
#Cassandra13

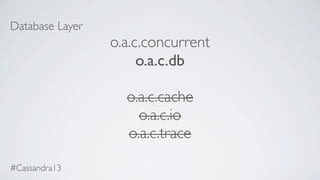

51. Database Layer
o.a.c.concurrent
o.a.c.db
o.a.c.cache
o.a.c.io
o.a.c.trace
#Cassandra13

52. o.a.c.db.Table
// Keyspace
open(String table)
getColumnFamilyStore(String cfName)
getRow(QueryFilter filter)
apply(RowMutation mutation,
boolean writeCommitLog)
#Cassandra13

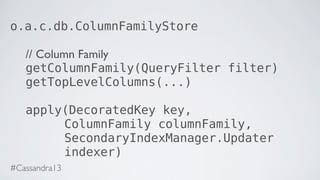

53. o.a.c.db.ColumnFamilyStore
// Column Family
getColumnFamily(QueryFilter filter)
getTopLevelColumns(...)
apply(DecoratedKey key,
ColumnFamily columnFamily,
SecondaryIndexManager.Updater
indexer)
#Cassandra13

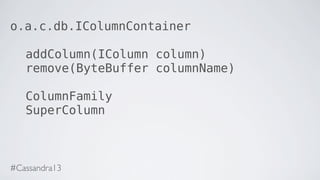

54. o.a.c.db.IColumnContainer
addColumn(IColumn column)
remove(ByteBuffer columnName)
ColumnFamily
SuperColumn
#Cassandra13

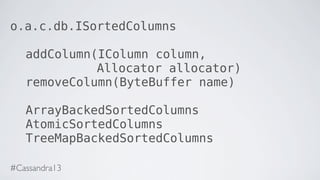

55. o.a.c.db.ISortedColumns
addColumn(IColumn column,
Allocator allocator)
removeColumn(ByteBuffer name)
ArrayBackedSortedColumns
AtomicSortedColumns
TreeMapBackedSortedColumns
#Cassandra13

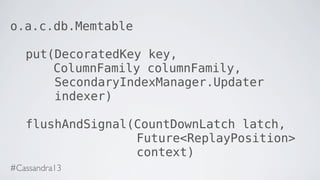

56. o.a.c.db.Memtable
put(DecoratedKey key,
ColumnFamily columnFamily,
SecondaryIndexManager.Updater
indexer)
flushAndSignal(CountDownLatch latch,
Future<ReplayPosition>
context)
#Cassandra13

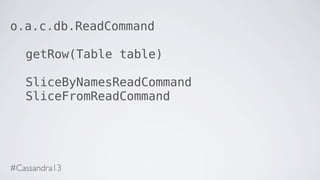

57. o.a.c.db.ReadCommand
getRow(Table table)
SliceByNamesReadCommand
SliceFromReadCommand
#Cassandra13

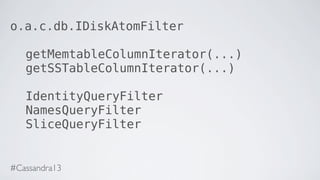

58. o.a.c.db.IDiskAtomFilter
getMemtableColumnIterator(...)
getSSTableColumnIterator(...)
IdentityQueryFilter
NamesQueryFilter
SliceQueryFilter
#Cassandra13

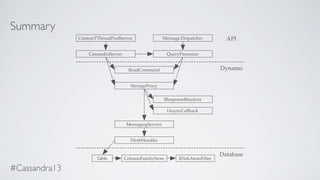

59. Summary
CustomTThreadPoolServer Message.Dispatcher
CassandraServer QueryProcessor
ReadCommand
StorageProxy
IResponseResolver
IAsyncCallback
MessagingService
IVerbHandler
Table ColumnFamilyStore IDiskAtomFilter
API
Dynamo
Database
#Cassandra13

60. Thanks.
#Cassandra13

61. Aaron Morton
@aaronmorton
www.thelastpickle.com
Licensed under a Creative Commons Attribution-NonCommercial 3.0 New Zealand License
