CASSANDRA COMMUNITY WEBINARS AUGUST 2013
CASSANDRA
INTERNALS
Aaron Morton
@aaronmorton
Co-Founder & Principal Consultant
www.thelastpickle.com
Licensed under a Creative Commons Attribution-NonCommercial 3.0 New Zealand License

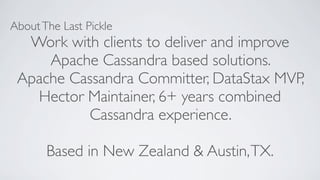

AboutThe Last Pickle
Work with clients to deliver and improve
Apache Cassandra based solutions.
Apache Cassandra Committer, DataStax MVP,
Hector Maintainer, 6+ years combined
Cassandra experience.
Based in New Zealand & Austin,TX.

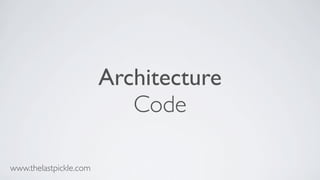

Architecture
Code
www.thelastpickle.com

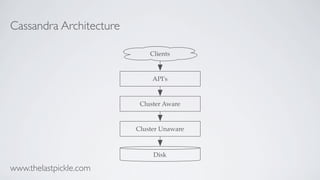

Cassandra Architecture
API's
Cluster Aware
Cluster Unaware
Clients
Disk
www.thelastpickle.com

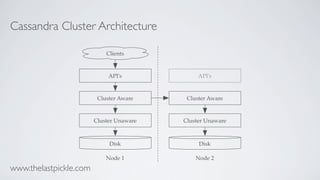

Cassandra Cluster Architecture
API's
Cluster Aware
Cluster Unaware
Clients
Disk
API's
Cluster Aware
Cluster Unaware
Disk
Node 1 Node 2
www.thelastpickle.com

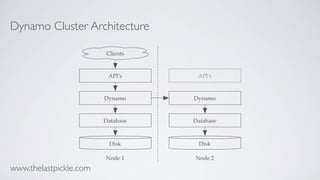

Dynamo Cluster Architecture
API's
Dynamo
Database
Clients
Disk
API's
Dynamo
Database
Disk
Node 1 Node 2
www.thelastpickle.com

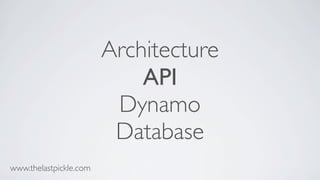

Architecture
API
Dynamo
Database
www.thelastpickle.com

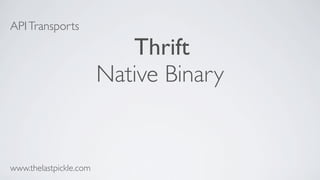

APITransports
Thrift
Native Binary
www.thelastpickle.com

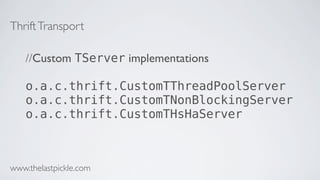

ThriftTransport
//Custom TServer implementations
o.a.c.thrift.CustomTThreadPoolServer
o.a.c.thrift.CustomTNonBlockingServer
o.a.c.thrift.CustomTHsHaServer
www.thelastpickle.com

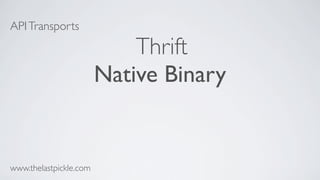

APITransports
Thrift
Native Binary
www.thelastpickle.com

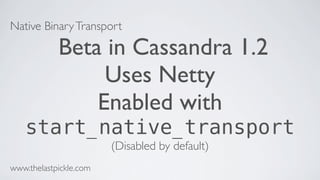

Native BinaryTransport
Beta in Cassandra 1.2
Uses Netty
Enabled with
start_native_transport
(Disabled by default)
www.thelastpickle.com

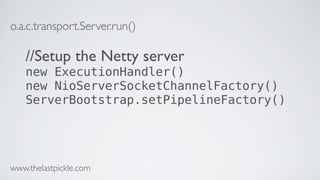

o.a.c.transport.Server.run()
//Setup the Netty server
new ExecutionHandler()
new NioServerSocketChannelFactory()
ServerBootstrap.setPipelineFactory()
www.thelastpickle.com

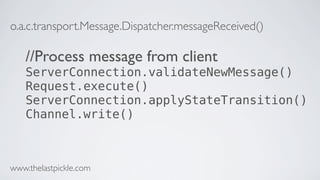

o.a.c.transport.Message.Dispatcher.messageReceived()
//Process message from client
ServerConnection.validateNewMessage()
Request.execute()
ServerConnection.applyStateTransition()
Channel.write()
www.thelastpickle.com

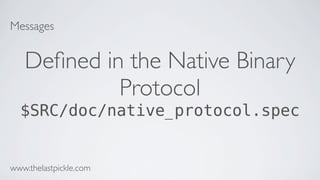

Messages
Defined in the Native Binary
Protocol
$SRC/doc/native_protocol.spec
www.thelastpickle.com

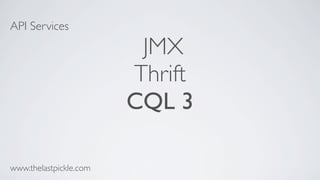

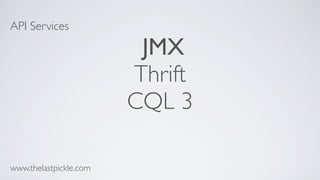

API Services
JMX
Thrift
CQL 3
www.thelastpickle.com

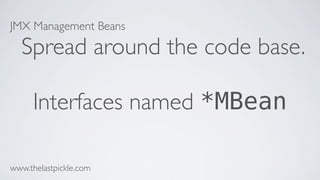

JMX Management Beans
Spread around the code base.
Interfaces named *MBean
www.thelastpickle.com

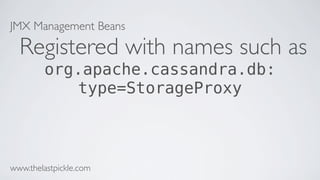

JMX Management Beans
Registered with names such as
org.apache.cassandra.db:
type=StorageProxy
www.thelastpickle.com

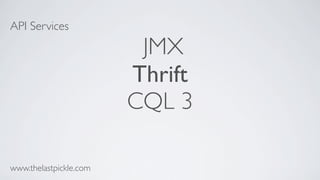

API Services
JMX
Thrift
CQL 3
www.thelastpickle.com
o.a.c.thrift.CassandraServer
// Implements Thrift Interface
// Access control
// Input validation
// Mapping to/from Thrift and internal types
www.thelastpickle.com

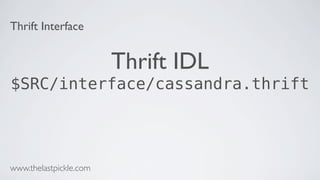

Thrift Interface
Thrift IDL
$SRC/interface/cassandra.thrift
www.thelastpickle.com
o.a.c.thrift.CassandraServer.get_slice()
// get columns for one row
Tracing.begin()
ClientState cState = state()
cState.hasColumnFamilyAccess()
multigetSliceInternal()
www.thelastpickle.com

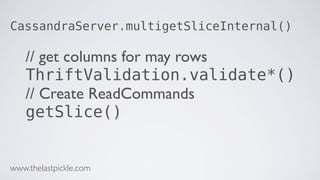

CassandraServer.multigetSliceInternal()
// get columns for may rows
ThriftValidation.validate*()
// Create ReadCommands
getSlice()
www.thelastpickle.com

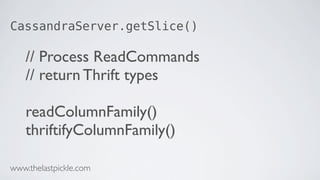

CassandraServer.getSlice()
// Process ReadCommands
// return Thrift types
readColumnFamily()
thriftifyColumnFamily()
www.thelastpickle.com

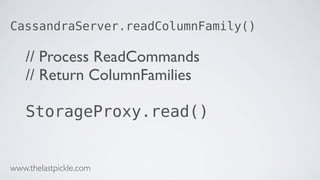

CassandraServer.readColumnFamily()
// Process ReadCommands
// Return ColumnFamilies
StorageProxy.read()
www.thelastpickle.com
API Services
JMX
Thrift
CQL 3
www.thelastpickle.com

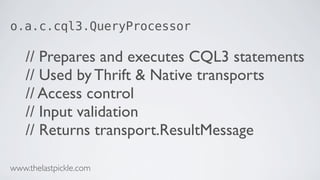

o.a.c.cql3.QueryProcessor
// Prepares and executes CQL3 statements
// Used by Thrift & Native transports
// Access control
// Input validation
// Returns transport.ResultMessage
www.thelastpickle.com

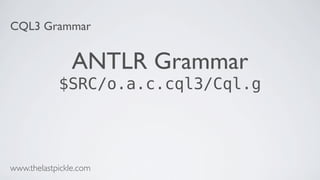

CQL3 Grammar
ANTLR Grammar
$SRC/o.a.c.cql3/Cql.g
www.thelastpickle.com

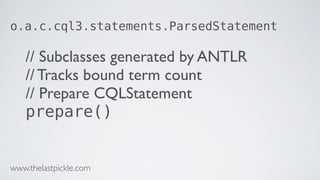

o.a.c.cql3.statements.ParsedStatement
// Subclasses generated by ANTLR
// Tracks bound term count
// Prepare CQLStatement
prepare()
www.thelastpickle.com

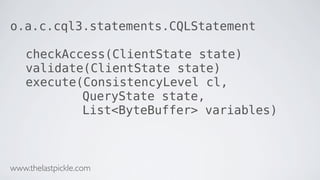

o.a.c.cql3.statements.CQLStatement
checkAccess(ClientState state)
validate(ClientState state)
execute(ConsistencyLevel cl,
QueryState state,
List<ByteBuffer> variables)
www.thelastpickle.com

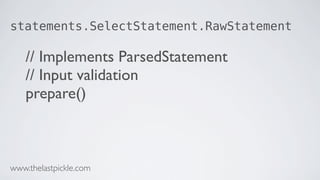

statements.SelectStatement.RawStatement
// Implements ParsedStatement
// Input validation
prepare()
www.thelastpickle.com

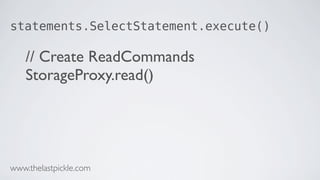

statements.SelectStatement.execute()
// Create ReadCommands
StorageProxy.read()
www.thelastpickle.com

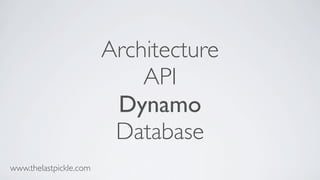

Architecture
API
Dynamo
Database
www.thelastpickle.com

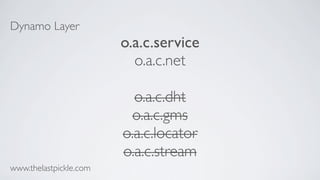

Dynamo Layer
o.a.c.service
o.a.c.net
o.a.c.dht
o.a.c.gms
o.a.c.locator
o.a.c.stream
www.thelastpickle.com

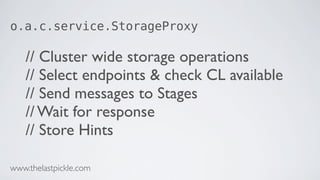

o.a.c.service.StorageProxy
// Cluster wide storage operations
// Select endpoints & check CL available
// Send messages to Stages
// Wait for response
// Store Hints
www.thelastpickle.com

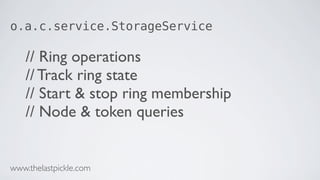

o.a.c.service.StorageService
// Ring operations
// Track ring state
// Start & stop ring membership
// Node & token queries
www.thelastpickle.com

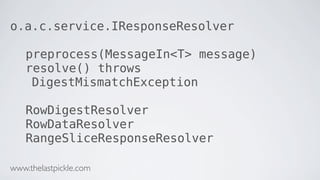

o.a.c.service.IResponseResolver
preprocess(MessageIn<T> message)
resolve() throws
DigestMismatchException
RowDigestResolver
RowDataResolver
RangeSliceResponseResolver
www.thelastpickle.com

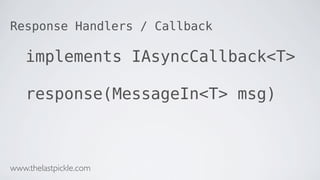

Response Handlers / Callback
implements IAsyncCallback<T>
response(MessageIn<T> msg)
www.thelastpickle.com

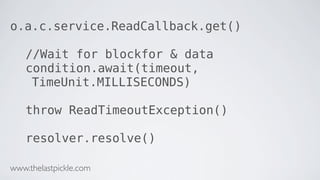

o.a.c.service.ReadCallback.get()
//Wait for blockfor & data
condition.await(timeout,
TimeUnit.MILLISECONDS)
throw ReadTimeoutException()
resolver.resolve()
www.thelastpickle.com

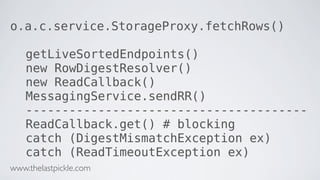

o.a.c.service.StorageProxy.fetchRows()
getLiveSortedEndpoints()
new RowDigestResolver()
new ReadCallback()
MessagingService.sendRR()
---------------------------------------
ReadCallback.get() # blocking
catch (DigestMismatchException ex)
catch (ReadTimeoutException ex)
www.thelastpickle.com
Dynamo Layer
o.a.c.service
o.a.c.net
o.a.c.dht
o.a.c.gms
o.a.c.locator
o.a.c.stream
www.thelastpickle.com

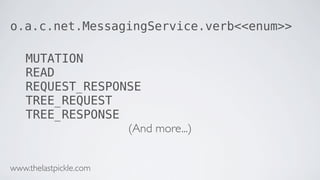

o.a.c.net.MessagingService.verb<<enum>>
MUTATION
READ
REQUEST_RESPONSE
TREE_REQUEST
TREE_RESPONSE
(And more...)
www.thelastpickle.com
o.a.c.net.MessagingService.verbHandlers
new EnumMap<Verb,
IVerbHandler>(Verb.class)
www.thelastpickle.com

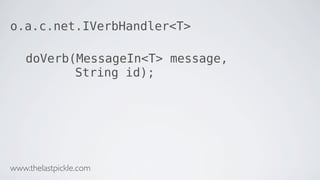

o.a.c.net.IVerbHandler<T>
doVerb(MessageIn<T> message,
String id);
www.thelastpickle.com

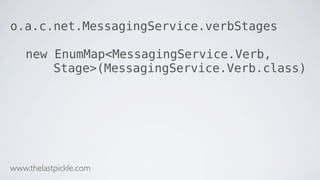

o.a.c.net.MessagingService.verbStages
new EnumMap<MessagingService.Verb,
Stage>(MessagingService.Verb.class)
www.thelastpickle.com

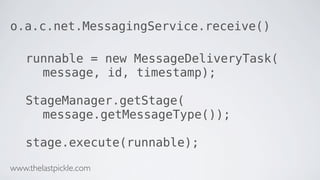

o.a.c.net.MessagingService.receive()
runnable = new MessageDeliveryTask(
message, id, timestamp);
StageManager.getStage(
message.getMessageType());
stage.execute(runnable);
www.thelastpickle.com

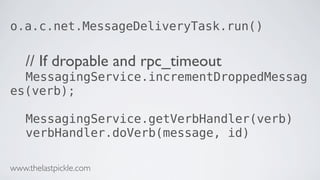

o.a.c.net.MessageDeliveryTask.run()
// If dropable and rpc_timeout
MessagingService.incrementDroppedMessag
es(verb);
MessagingService.getVerbHandler(verb)
verbHandler.doVerb(message, id)
www.thelastpickle.com

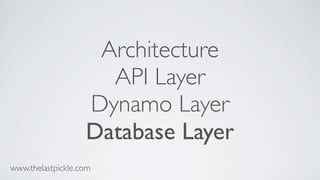

Architecture
API Layer
Dynamo Layer
Database Layer
www.thelastpickle.com
Database Layer
o.a.c.concurrent
o.a.c.db
o.a.c.cache
o.a.c.io
o.a.c.trace
www.thelastpickle.com

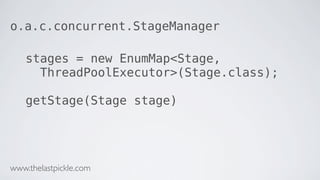

o.a.c.concurrent.StageManager
stages = new EnumMap<Stage,
ThreadPoolExecutor>(Stage.class);
getStage(Stage stage)
www.thelastpickle.com
o.a.c.concurrent.Stage
READ
MUTATION
GOSSIP
REQUEST_RESPONSE
ANTI_ENTROPY
(And more...)
www.thelastpickle.com

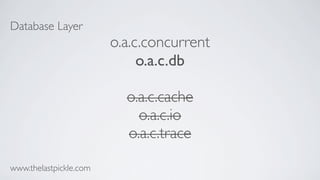

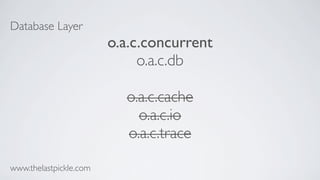

Database Layer
o.a.c.concurrent
o.a.c.db
o.a.c.cache
o.a.c.io
o.a.c.trace
www.thelastpickle.com

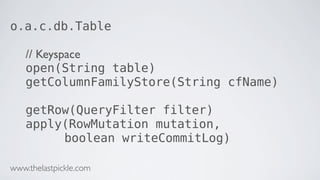

o.a.c.db.Table
// Keyspace
open(String table)
getColumnFamilyStore(String cfName)
getRow(QueryFilter filter)
apply(RowMutation mutation,
boolean writeCommitLog)
www.thelastpickle.com

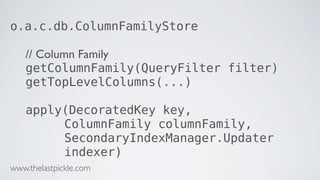

o.a.c.db.ColumnFamilyStore
// Column Family
getColumnFamily(QueryFilter filter)
getTopLevelColumns(...)
apply(DecoratedKey key,
ColumnFamily columnFamily,
SecondaryIndexManager.Updater
indexer)
www.thelastpickle.com

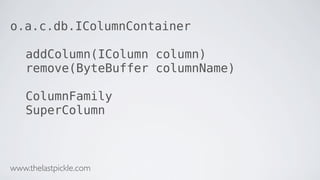

o.a.c.db.IColumnContainer
addColumn(IColumn column)
remove(ByteBuffer columnName)
ColumnFamily
SuperColumn
www.thelastpickle.com
o.a.c.db.ISortedColumns
addColumn(IColumn column,
Allocator allocator)
removeColumn(ByteBuffer name)
ArrayBackedSortedColumns
AtomicSortedColumns
TreeMapBackedSortedColumns
www.thelastpickle.com
o.a.c.db.Memtable
put(DecoratedKey key,
ColumnFamily columnFamily,
SecondaryIndexManager.Updater
indexer)
flushAndSignal(CountDownLatch latch,
Future<ReplayPosition>
context)
www.thelastpickle.com

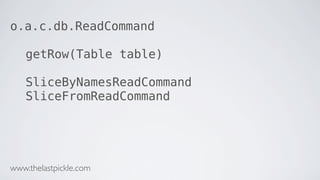

o.a.c.db.ReadCommand
getRow(Table table)
SliceByNamesReadCommand
SliceFromReadCommand
www.thelastpickle.com

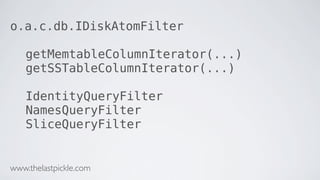

o.a.c.db.IDiskAtomFilter
getMemtableColumnIterator(...)
getSSTableColumnIterator(...)
IdentityQueryFilter
NamesQueryFilter
SliceQueryFilter
www.thelastpickle.com

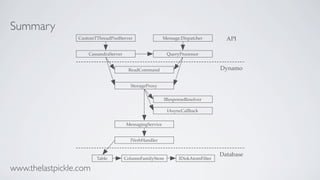

Summary
CustomTThreadPoolServer Message.Dispatcher
CassandraServer QueryProcessor
ReadCommand
StorageProxy
IResponseResolver
IAsyncCallback
MessagingService
IVerbHandler
Table ColumnFamilyStore IDiskAtomFilter
API
Dynamo
Database
www.thelastpickle.com
Thanks.
www.thelastpickle.com
Aaron Morton
@aaronmorton
Co-Founder & Principal Consultant
www.thelastpickle.com
Licensed under a Creative Commons Attribution-NonCommercial 3.0 New Zealand License

More Related Content

What's hot

Designing The Right Schema To Power Heap (PGConf Silicon Valley 2016)
Designing The Right Schema To Power Heap (PGConf Silicon Valley 2016)Designing The Right Schema To Power Heap (PGConf Silicon Valley 2016)
Designing The Right Schema To Power Heap (PGConf Silicon Valley 2016)Dan Robinson

Bulletproof Jobs: Patterns For Large-Scale Spark Processing
Bulletproof Jobs: Patterns For Large-Scale Spark ProcessingBulletproof Jobs: Patterns For Large-Scale Spark Processing
Bulletproof Jobs: Patterns For Large-Scale Spark ProcessingSpark Summit

Building a Scalable Distributed Stats Infrastructure with Storm and KairosDB
Building a Scalable Distributed Stats Infrastructure with Storm and KairosDBBuilding a Scalable Distributed Stats Infrastructure with Storm and KairosDB
Building a Scalable Distributed Stats Infrastructure with Storm and KairosDBCody Ray

Using script db as a deaddrop to pass data between GAS, JS and Excel
Using script db as a deaddrop to pass data between GAS, JS and ExcelUsing script db as a deaddrop to pass data between GAS, JS and Excel
Using script db as a deaddrop to pass data between GAS, JS and ExcelBruce McPherson

Event Sourcing with Cassandra (from Cassandra Japan Meetup in Tokyo March 2016)
Event Sourcing with Cassandra (from Cassandra Japan Meetup in Tokyo March 2016)Event Sourcing with Cassandra (from Cassandra Japan Meetup in Tokyo March 2016)
Event Sourcing with Cassandra (from Cassandra Japan Meetup in Tokyo March 2016)Luke Tillman

In Defense Of Core Data
In Defense Of Core DataIn Defense Of Core Data
In Defense Of Core DataDonny Wals

From Postgres to Cassandra (Rimas Silkaitis, Heroku) | C* Summit 2016
From Postgres to Cassandra (Rimas Silkaitis, Heroku) | C* Summit 2016From Postgres to Cassandra (Rimas Silkaitis, Heroku) | C* Summit 2016
From Postgres to Cassandra (Rimas Silkaitis, Heroku) | C* Summit 2016DataStax

ADO.Net Improvements in .Net 2.0
ADO.Net Improvements in .Net 2.0ADO.Net Improvements in .Net 2.0
ADO.Net Improvements in .Net 2.0David Truxall

Monitoring Cassandra with Riemann
Monitoring Cassandra with RiemannMonitoring Cassandra with Riemann
Monitoring Cassandra with RiemannPatricia Gorla

3 Dundee-Spark Overview for C* developers
3 Dundee-Spark Overview for C* developers3 Dundee-Spark Overview for C* developers
3 Dundee-Spark Overview for C* developersChristopher Batey

Cassandra + Hadoop = Brisk
Cassandra + Hadoop = BriskCassandra + Hadoop = Brisk
Cassandra + Hadoop = BriskDave Gardner

Updates from Cassandra Summit 2016 & SASI Indexes
Updates from Cassandra Summit 2016 & SASI IndexesUpdates from Cassandra Summit 2016 & SASI Indexes
Updates from Cassandra Summit 2016 & SASI IndexesJim Hatcher

Time series with Apache Cassandra - Long version
Time series with Apache Cassandra - Long versionTime series with Apache Cassandra - Long version
Time series with Apache Cassandra - Long versionPatrick McFadin

Scylla Summit 2018: From SAP to Scylla - Tracking the Fleet at GPS Insight
Scylla Summit 2018: From SAP to Scylla - Tracking the Fleet at GPS InsightScylla Summit 2018: From SAP to Scylla - Tracking the Fleet at GPS Insight
Scylla Summit 2018: From SAP to Scylla - Tracking the Fleet at GPS InsightScyllaDB

SSMS-waitstats
SSMS-waitstatsSSMS-waitstats
SSMS-waitstatsE Blake

Managing a 14 TB reporting datawarehouse with postgresql
Managing a 14 TB reporting datawarehouse with postgresql Managing a 14 TB reporting datawarehouse with postgresql
Managing a 14 TB reporting datawarehouse with postgresql Soumya Ranjan Subudhi

Lightning Fast Analytics with Cassandra and Spark
Lightning Fast Analytics with Cassandra and SparkLightning Fast Analytics with Cassandra and Spark
Lightning Fast Analytics with Cassandra and SparkTim Vincent

Manchester Hadoop Meetup: Spark Cassandra Integration
Manchester Hadoop Meetup: Spark Cassandra IntegrationManchester Hadoop Meetup: Spark Cassandra Integration
Manchester Hadoop Meetup: Spark Cassandra IntegrationChristopher Batey

Angular JS deep dive
Angular JS deep diveAngular JS deep dive
Angular JS deep diveAxilis


What's hot (20)

Designing The Right Schema To Power Heap (PGConf Silicon Valley 2016)
Designing The Right Schema To Power Heap (PGConf Silicon Valley 2016)Designing The Right Schema To Power Heap (PGConf Silicon Valley 2016)
Designing The Right Schema To Power Heap (PGConf Silicon Valley 2016)

Bulletproof Jobs: Patterns For Large-Scale Spark Processing
Bulletproof Jobs: Patterns For Large-Scale Spark ProcessingBulletproof Jobs: Patterns For Large-Scale Spark Processing
Bulletproof Jobs: Patterns For Large-Scale Spark Processing

Building a Scalable Distributed Stats Infrastructure with Storm and KairosDB
Building a Scalable Distributed Stats Infrastructure with Storm and KairosDBBuilding a Scalable Distributed Stats Infrastructure with Storm and KairosDB
Building a Scalable Distributed Stats Infrastructure with Storm and KairosDB

Using script db as a deaddrop to pass data between GAS, JS and Excel
Using script db as a deaddrop to pass data between GAS, JS and ExcelUsing script db as a deaddrop to pass data between GAS, JS and Excel
Using script db as a deaddrop to pass data between GAS, JS and Excel

Event Sourcing with Cassandra (from Cassandra Japan Meetup in Tokyo March 2016)
Event Sourcing with Cassandra (from Cassandra Japan Meetup in Tokyo March 2016)Event Sourcing with Cassandra (from Cassandra Japan Meetup in Tokyo March 2016)
Event Sourcing with Cassandra (from Cassandra Japan Meetup in Tokyo March 2016)

In Defense Of Core Data
In Defense Of Core DataIn Defense Of Core Data
In Defense Of Core Data

From Postgres to Cassandra (Rimas Silkaitis, Heroku) | C* Summit 2016
From Postgres to Cassandra (Rimas Silkaitis, Heroku) | C* Summit 2016From Postgres to Cassandra (Rimas Silkaitis, Heroku) | C* Summit 2016
From Postgres to Cassandra (Rimas Silkaitis, Heroku) | C* Summit 2016

ADO.Net Improvements in .Net 2.0
ADO.Net Improvements in .Net 2.0ADO.Net Improvements in .Net 2.0
ADO.Net Improvements in .Net 2.0

Monitoring Cassandra with Riemann
Monitoring Cassandra with RiemannMonitoring Cassandra with Riemann
Monitoring Cassandra with Riemann

3 Dundee-Spark Overview for C* developers
3 Dundee-Spark Overview for C* developers3 Dundee-Spark Overview for C* developers
3 Dundee-Spark Overview for C* developers

Cassandra + Hadoop = Brisk
Cassandra + Hadoop = BriskCassandra + Hadoop = Brisk
Cassandra + Hadoop = Brisk

Terraforming RDS
Terraforming RDSTerraforming RDS
Terraforming RDS

Updates from Cassandra Summit 2016 & SASI Indexes
Updates from Cassandra Summit 2016 & SASI IndexesUpdates from Cassandra Summit 2016 & SASI Indexes
Updates from Cassandra Summit 2016 & SASI Indexes

Time series with Apache Cassandra - Long version
Time series with Apache Cassandra - Long versionTime series with Apache Cassandra - Long version
Time series with Apache Cassandra - Long version

Scylla Summit 2018: From SAP to Scylla - Tracking the Fleet at GPS Insight
Scylla Summit 2018: From SAP to Scylla - Tracking the Fleet at GPS InsightScylla Summit 2018: From SAP to Scylla - Tracking the Fleet at GPS Insight
Scylla Summit 2018: From SAP to Scylla - Tracking the Fleet at GPS Insight

SSMS-waitstats
SSMS-waitstatsSSMS-waitstats
SSMS-waitstats

Managing a 14 TB reporting datawarehouse with postgresql
Managing a 14 TB reporting datawarehouse with postgresql Managing a 14 TB reporting datawarehouse with postgresql
Managing a 14 TB reporting datawarehouse with postgresql

Lightning Fast Analytics with Cassandra and Spark
Lightning Fast Analytics with Cassandra and SparkLightning Fast Analytics with Cassandra and Spark
Lightning Fast Analytics with Cassandra and Spark

Manchester Hadoop Meetup: Spark Cassandra Integration
Manchester Hadoop Meetup: Spark Cassandra IntegrationManchester Hadoop Meetup: Spark Cassandra Integration
Manchester Hadoop Meetup: Spark Cassandra Integration

Angular JS deep dive
Angular JS deep diveAngular JS deep dive
Angular JS deep dive


Viewers also liked

Cassandra - Wellington No Sql
Cassandra - Wellington No SqlCassandra - Wellington No Sql
Cassandra - Wellington No Sqlaaronmorton

On Rails with Apache Cassandra
On Rails with Apache CassandraOn Rails with Apache Cassandra
On Rails with Apache CassandraStu Hood

Cassandra Talk: Austin JUG
Cassandra Talk: Austin JUGCassandra Talk: Austin JUG
Cassandra Talk: Austin JUGStu Hood

Cassandra for Ruby/Rails Devs
Cassandra for Ruby/Rails DevsCassandra for Ruby/Rails Devs
Cassandra for Ruby/Rails DevsTyler Hobbs

Partners in Crime: Cassandra Analytics and ETL with Hadoop
Partners in Crime: Cassandra Analytics and ETL with HadoopPartners in Crime: Cassandra Analytics and ETL with Hadoop
Partners in Crime: Cassandra Analytics and ETL with HadoopStu Hood

Hadoop and Cassandra at Rackspace
Hadoop and Cassandra at RackspaceHadoop and Cassandra at Rackspace
Hadoop and Cassandra at RackspaceStu Hood


Viewers also liked (7)

Cassandra - Wellington No Sql
Cassandra - Wellington No SqlCassandra - Wellington No Sql
Cassandra - Wellington No Sql

On Rails with Apache Cassandra
On Rails with Apache CassandraOn Rails with Apache Cassandra
On Rails with Apache Cassandra

Nov 2011 HUG: Blur - Lucene on Hadoop
Nov 2011 HUG: Blur - Lucene on HadoopNov 2011 HUG: Blur - Lucene on Hadoop
Nov 2011 HUG: Blur - Lucene on Hadoop

Cassandra Talk: Austin JUG
Cassandra Talk: Austin JUGCassandra Talk: Austin JUG
Cassandra Talk: Austin JUG

Cassandra for Ruby/Rails Devs
Cassandra for Ruby/Rails DevsCassandra for Ruby/Rails Devs
Cassandra for Ruby/Rails Devs

Partners in Crime: Cassandra Analytics and ETL with Hadoop
Partners in Crime: Cassandra Analytics and ETL with HadoopPartners in Crime: Cassandra Analytics and ETL with Hadoop
Partners in Crime: Cassandra Analytics and ETL with Hadoop

Hadoop and Cassandra at Rackspace
Hadoop and Cassandra at RackspaceHadoop and Cassandra at Rackspace
Hadoop and Cassandra at Rackspace


Similar to Cassandra Community Webinar - August 22 2013 - Cassandra Internals

C* Summit EU 2013: Cassandra Internals
C* Summit EU 2013: Cassandra Internals C* Summit EU 2013: Cassandra Internals
C* Summit EU 2013: Cassandra Internals DataStax Academy

Cassandra SF 2013 - Cassandra Internals
Cassandra SF 2013 - Cassandra InternalsCassandra SF 2013 - Cassandra Internals
Cassandra SF 2013 - Cassandra Internalsaaronmorton

Apache Con NA 2013 - Cassandra Internals
Apache Con NA 2013 - Cassandra InternalsApache Con NA 2013 - Cassandra Internals
Apache Con NA 2013 - Cassandra Internalsaaronmorton

Apache Cassandra in Bangalore - Cassandra Internals and Performance
Apache Cassandra in Bangalore - Cassandra Internals and PerformanceApache Cassandra in Bangalore - Cassandra Internals and Performance
Apache Cassandra in Bangalore - Cassandra Internals and Performanceaaronmorton

Stampede con 2014 cassandra in the real world
Stampede con 2014   cassandra in the real worldStampede con 2014   cassandra in the real world
Stampede con 2014 cassandra in the real worldzznate

(DEV309) From Asgard to Zuul: How Netflix’s Proven Open Source Tools Can Help...
(DEV309) From Asgard to Zuul: How Netflix’s Proven Open Source Tools Can Help...(DEV309) From Asgard to Zuul: How Netflix’s Proven Open Source Tools Can Help...
(DEV309) From Asgard to Zuul: How Netflix’s Proven Open Source Tools Can Help...Amazon Web Services

LA Cassandra Day 2015 - Testing Cassandra
LA Cassandra Day 2015  - Testing CassandraLA Cassandra Day 2015  - Testing Cassandra
LA Cassandra Day 2015 - Testing CassandraChristopher Batey

Big data lambda architecture - Streaming Layer Hands On
Big data lambda architecture - Streaming Layer Hands OnBig data lambda architecture - Streaming Layer Hands On
Big data lambda architecture - Streaming Layer Hands Onhkbhadraa

KSQL – An Open Source Streaming Engine for Apache Kafka
KSQL – An Open Source Streaming Engine for Apache KafkaKSQL – An Open Source Streaming Engine for Apache Kafka
KSQL – An Open Source Streaming Engine for Apache KafkaKai Wähner

(BAC404) Deploying High Availability and Disaster Recovery Architectures with...
(BAC404) Deploying High Availability and Disaster Recovery Architectures with...(BAC404) Deploying High Availability and Disaster Recovery Architectures with...
(BAC404) Deploying High Availability and Disaster Recovery Architectures with...Amazon Web Services

Event streaming webinar feb 2020
Event streaming webinar feb 2020Event streaming webinar feb 2020
Event streaming webinar feb 2020Maheedhar Gunturu

Learning spark ch10 - Spark Streaming
Learning spark ch10 - Spark StreamingLearning spark ch10 - Spark Streaming
Learning spark ch10 - Spark Streamingphanleson

Building a Real-time Streaming ETL Framework Using ksqlDB and NoSQL
Building a Real-time Streaming ETL Framework Using ksqlDB and NoSQLBuilding a Real-time Streaming ETL Framework Using ksqlDB and NoSQL
Building a Real-time Streaming ETL Framework Using ksqlDB and NoSQLScyllaDB

AWS Summit Singapore 2019 | Autoscaling Your Kubernetes Workloads
AWS Summit Singapore 2019 | Autoscaling Your Kubernetes WorkloadsAWS Summit Singapore 2019 | Autoscaling Your Kubernetes Workloads
AWS Summit Singapore 2019 | Autoscaling Your Kubernetes WorkloadsAWS Summits

Dev309 from asgard to zuul - netflix oss-final
Dev309  from asgard to zuul - netflix oss-finalDev309  from asgard to zuul - netflix oss-final
Dev309 from asgard to zuul - netflix oss-finalRuslan Meshenberg

Connect, Test, Optimize: The Ultimate Kafka Connector Benchmarking Toolkit
Connect, Test, Optimize: The Ultimate Kafka Connector Benchmarking ToolkitConnect, Test, Optimize: The Ultimate Kafka Connector Benchmarking Toolkit
Connect, Test, Optimize: The Ultimate Kafka Connector Benchmarking ToolkitHostedbyConfluent

Developing a Real-time Engine with Akka, Cassandra, and Spray
Developing a Real-time Engine with Akka, Cassandra, and SprayDeveloping a Real-time Engine with Akka, Cassandra, and Spray
Developing a Real-time Engine with Akka, Cassandra, and SprayJacob Park


Similar to Cassandra Community Webinar - August 22 2013 - Cassandra Internals (20)

C* Summit EU 2013: Cassandra Internals
C* Summit EU 2013: Cassandra Internals C* Summit EU 2013: Cassandra Internals
C* Summit EU 2013: Cassandra Internals

Cassandra SF 2013 - Cassandra Internals
Cassandra SF 2013 - Cassandra InternalsCassandra SF 2013 - Cassandra Internals
Cassandra SF 2013 - Cassandra Internals

Apache Con NA 2013 - Cassandra Internals
Apache Con NA 2013 - Cassandra InternalsApache Con NA 2013 - Cassandra Internals
Apache Con NA 2013 - Cassandra Internals

Apache Cassandra in Bangalore - Cassandra Internals and Performance
Apache Cassandra in Bangalore - Cassandra Internals and PerformanceApache Cassandra in Bangalore - Cassandra Internals and Performance
Apache Cassandra in Bangalore - Cassandra Internals and Performance

Cassandra 3.x et la future 4.0
Cassandra 3.x et la future 4.0Cassandra 3.x et la future 4.0
Cassandra 3.x et la future 4.0

Stampede con 2014 cassandra in the real world
Stampede con 2014   cassandra in the real worldStampede con 2014   cassandra in the real world
Stampede con 2014 cassandra in the real world

(DEV309) From Asgard to Zuul: How Netflix’s Proven Open Source Tools Can Help...
(DEV309) From Asgard to Zuul: How Netflix’s Proven Open Source Tools Can Help...(DEV309) From Asgard to Zuul: How Netflix’s Proven Open Source Tools Can Help...
(DEV309) From Asgard to Zuul: How Netflix’s Proven Open Source Tools Can Help...

Apache cassandra
Apache cassandraApache cassandra
Apache cassandra

LA Cassandra Day 2015 - Testing Cassandra
LA Cassandra Day 2015  - Testing CassandraLA Cassandra Day 2015  - Testing Cassandra
LA Cassandra Day 2015 - Testing Cassandra

Big data lambda architecture - Streaming Layer Hands On
Big data lambda architecture - Streaming Layer Hands OnBig data lambda architecture - Streaming Layer Hands On
Big data lambda architecture - Streaming Layer Hands On

AWS Java SDK @ scale
AWS Java SDK @ scaleAWS Java SDK @ scale
AWS Java SDK @ scale

KSQL – An Open Source Streaming Engine for Apache Kafka
KSQL – An Open Source Streaming Engine for Apache KafkaKSQL – An Open Source Streaming Engine for Apache Kafka
KSQL – An Open Source Streaming Engine for Apache Kafka

(BAC404) Deploying High Availability and Disaster Recovery Architectures with...
(BAC404) Deploying High Availability and Disaster Recovery Architectures with...(BAC404) Deploying High Availability and Disaster Recovery Architectures with...
(BAC404) Deploying High Availability and Disaster Recovery Architectures with...

Event streaming webinar feb 2020
Event streaming webinar feb 2020Event streaming webinar feb 2020
Event streaming webinar feb 2020

Learning spark ch10 - Spark Streaming
Learning spark ch10 - Spark StreamingLearning spark ch10 - Spark Streaming
Learning spark ch10 - Spark Streaming

Building a Real-time Streaming ETL Framework Using ksqlDB and NoSQL
Building a Real-time Streaming ETL Framework Using ksqlDB and NoSQLBuilding a Real-time Streaming ETL Framework Using ksqlDB and NoSQL
Building a Real-time Streaming ETL Framework Using ksqlDB and NoSQL

AWS Summit Singapore 2019 | Autoscaling Your Kubernetes Workloads
AWS Summit Singapore 2019 | Autoscaling Your Kubernetes WorkloadsAWS Summit Singapore 2019 | Autoscaling Your Kubernetes Workloads
AWS Summit Singapore 2019 | Autoscaling Your Kubernetes Workloads

Dev309 from asgard to zuul - netflix oss-final
Dev309  from asgard to zuul - netflix oss-finalDev309  from asgard to zuul - netflix oss-final
Dev309 from asgard to zuul - netflix oss-final

Connect, Test, Optimize: The Ultimate Kafka Connector Benchmarking Toolkit
Connect, Test, Optimize: The Ultimate Kafka Connector Benchmarking ToolkitConnect, Test, Optimize: The Ultimate Kafka Connector Benchmarking Toolkit
Connect, Test, Optimize: The Ultimate Kafka Connector Benchmarking Toolkit

Developing a Real-time Engine with Akka, Cassandra, and Spray
Developing a Real-time Engine with Akka, Cassandra, and SprayDeveloping a Real-time Engine with Akka, Cassandra, and Spray
Developing a Real-time Engine with Akka, Cassandra, and Spray


More from aaronmorton

Cassandra South Bay Meetup - Backup And Restore For Apache Cassandra
Cassandra South Bay Meetup - Backup And Restore For Apache CassandraCassandra South Bay Meetup - Backup And Restore For Apache Cassandra
Cassandra South Bay Meetup - Backup And Restore For Apache Cassandraaaronmorton

Cassandra SF Meetup - CQL Performance With Apache Cassandra 3.X
Cassandra SF Meetup - CQL Performance With Apache Cassandra 3.XCassandra SF Meetup - CQL Performance With Apache Cassandra 3.X
Cassandra SF Meetup - CQL Performance With Apache Cassandra 3.Xaaronmorton

Cassandra London March 2016 - Lightening talk - introduction to incremental ...
Cassandra London March 2016  - Lightening talk - introduction to incremental ...Cassandra London March 2016  - Lightening talk - introduction to incremental ...
Cassandra London March 2016 - Lightening talk - introduction to incremental ...aaronmorton

Cassandra sf 2015 - Steady State Data Size With Compaction, Tombstones, and TTL
Cassandra sf 2015 - Steady State Data Size With Compaction, Tombstones, and TTL Cassandra sf 2015 - Steady State Data Size With Compaction, Tombstones, and TTL
Cassandra sf 2015 - Steady State Data Size With Compaction, Tombstones, and TTL aaronmorton

Cassandra TK 2014 - Large Nodes
Cassandra TK 2014 - Large NodesCassandra TK 2014 - Large Nodes
Cassandra TK 2014 - Large Nodesaaronmorton

Cassandra Community Webinar August 29th 2013 - In Case Of Emergency, Break Glass
Cassandra Community Webinar August 29th 2013 - In Case Of Emergency, Break GlassCassandra Community Webinar August 29th 2013 - In Case Of Emergency, Break Glass
Cassandra Community Webinar August 29th 2013 - In Case Of Emergency, Break Glassaaronmorton

Cassandra SF 2013 - In Case Of Emergency Break Glass
Cassandra SF 2013 - In Case Of Emergency Break GlassCassandra SF 2013 - In Case Of Emergency Break Glass
Cassandra SF 2013 - In Case Of Emergency Break Glassaaronmorton

Cassandra Community Webinar - Introduction To Apache Cassandra 1.2
Cassandra Community Webinar  - Introduction To Apache Cassandra 1.2Cassandra Community Webinar  - Introduction To Apache Cassandra 1.2
Cassandra Community Webinar - Introduction To Apache Cassandra 1.2aaronmorton

Cassandra SF 2012 - Technical Deep Dive: query performance
Cassandra SF 2012 - Technical Deep Dive: query performance Cassandra SF 2012 - Technical Deep Dive: query performance
Cassandra SF 2012 - Technical Deep Dive: query performance aaronmorton

Hello @world #cassandra
Hello @world #cassandraHello @world #cassandra
Hello @world #cassandraaaronmorton

Cassandra does what ? Code Mania 2012
Cassandra does what ? Code Mania 2012Cassandra does what ? Code Mania 2012
Cassandra does what ? Code Mania 2012aaronmorton

Nzpug welly-cassandra-02-12-2010
Nzpug welly-cassandra-02-12-2010Nzpug welly-cassandra-02-12-2010
Nzpug welly-cassandra-02-12-2010aaronmorton

Introduction to Cassandra
Introduction to CassandraIntroduction to Cassandra
Introduction to Cassandraaaronmorton

Building a distributed Key-Value store with Cassandra
Building a distributed Key-Value store with CassandraBuilding a distributed Key-Value store with Cassandra
Building a distributed Key-Value store with Cassandraaaronmorton


More from aaronmorton (14)

Cassandra South Bay Meetup - Backup And Restore For Apache Cassandra
Cassandra South Bay Meetup - Backup And Restore For Apache CassandraCassandra South Bay Meetup - Backup And Restore For Apache Cassandra
Cassandra South Bay Meetup - Backup And Restore For Apache Cassandra

Cassandra SF Meetup - CQL Performance With Apache Cassandra 3.X
Cassandra SF Meetup - CQL Performance With Apache Cassandra 3.XCassandra SF Meetup - CQL Performance With Apache Cassandra 3.X
Cassandra SF Meetup - CQL Performance With Apache Cassandra 3.X

Cassandra London March 2016 - Lightening talk - introduction to incremental ...
Cassandra London March 2016  - Lightening talk - introduction to incremental ...Cassandra London March 2016  - Lightening talk - introduction to incremental ...
Cassandra London March 2016 - Lightening talk - introduction to incremental ...

Cassandra sf 2015 - Steady State Data Size With Compaction, Tombstones, and TTL
Cassandra sf 2015 - Steady State Data Size With Compaction, Tombstones, and TTL Cassandra sf 2015 - Steady State Data Size With Compaction, Tombstones, and TTL
Cassandra sf 2015 - Steady State Data Size With Compaction, Tombstones, and TTL

Cassandra TK 2014 - Large Nodes
Cassandra TK 2014 - Large NodesCassandra TK 2014 - Large Nodes
Cassandra TK 2014 - Large Nodes

Cassandra Community Webinar August 29th 2013 - In Case Of Emergency, Break Glass
Cassandra Community Webinar August 29th 2013 - In Case Of Emergency, Break GlassCassandra Community Webinar August 29th 2013 - In Case Of Emergency, Break Glass
Cassandra Community Webinar August 29th 2013 - In Case Of Emergency, Break Glass

Cassandra SF 2013 - In Case Of Emergency Break Glass
Cassandra SF 2013 - In Case Of Emergency Break GlassCassandra SF 2013 - In Case Of Emergency Break Glass
Cassandra SF 2013 - In Case Of Emergency Break Glass

Cassandra Community Webinar - Introduction To Apache Cassandra 1.2
Cassandra Community Webinar  - Introduction To Apache Cassandra 1.2Cassandra Community Webinar  - Introduction To Apache Cassandra 1.2
Cassandra Community Webinar - Introduction To Apache Cassandra 1.2

Cassandra SF 2012 - Technical Deep Dive: query performance
Cassandra SF 2012 - Technical Deep Dive: query performance Cassandra SF 2012 - Technical Deep Dive: query performance
Cassandra SF 2012 - Technical Deep Dive: query performance

Hello @world #cassandra
Hello @world #cassandraHello @world #cassandra
Hello @world #cassandra

Cassandra does what ? Code Mania 2012
Cassandra does what ? Code Mania 2012Cassandra does what ? Code Mania 2012
Cassandra does what ? Code Mania 2012

Nzpug welly-cassandra-02-12-2010
Nzpug welly-cassandra-02-12-2010Nzpug welly-cassandra-02-12-2010
Nzpug welly-cassandra-02-12-2010

Introduction to Cassandra
Introduction to CassandraIntroduction to Cassandra
Introduction to Cassandra

Building a distributed Key-Value store with Cassandra
Building a distributed Key-Value store with CassandraBuilding a distributed Key-Value store with Cassandra
Building a distributed Key-Value store with Cassandra


Recently uploaded

Easier, Faster, and More Powerful – Notes Document Properties Reimagined
Easier, Faster, and More Powerful – Notes Document Properties ReimaginedEasier, Faster, and More Powerful – Notes Document Properties Reimagined
Easier, Faster, and More Powerful – Notes Document Properties Reimaginedpanagenda

The Zero-ETL Approach: Enhancing Data Agility and Insight
The Zero-ETL Approach: Enhancing Data Agility and InsightThe Zero-ETL Approach: Enhancing Data Agility and Insight
The Zero-ETL Approach: Enhancing Data Agility and InsightSafe Software

Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptxHarnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptxFIDO Alliance

Introduction to use of FHIR Documents in ABDM
Introduction to use of FHIR Documents in ABDMIntroduction to use of FHIR Documents in ABDM
Introduction to use of FHIR Documents in ABDMKumar Satyam

Working together SRE & Platform Engineering
Working together SRE & Platform EngineeringWorking together SRE & Platform Engineering
Working together SRE & Platform EngineeringMarcus Vechiato

2024 May Patch Tuesday
2024 May Patch Tuesday2024 May Patch Tuesday
2024 May Patch TuesdayIvanti

WebAssembly is Key to Better LLM Performance
WebAssembly is Key to Better LLM PerformanceWebAssembly is Key to Better LLM Performance
WebAssembly is Key to Better LLM PerformanceSamy Fodil

AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)
AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)
AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)Samir Dash

ADP Passwordless Journey Case Study.pptx
ADP Passwordless Journey Case Study.pptxADP Passwordless Journey Case Study.pptx
ADP Passwordless Journey Case Study.pptxFIDO Alliance

الأمن السيبراني - ما لا يسع للمستخدم جهله
الأمن السيبراني - ما لا يسع للمستخدم جهلهالأمن السيبراني - ما لا يسع للمستخدم جهله
الأمن السيبراني - ما لا يسع للمستخدم جهلهMohamed Sweelam

Frisco Automating Purchase Orders with MuleSoft IDP- May 10th, 2024.pptx.pdf
Frisco Automating Purchase Orders with MuleSoft IDP- May 10th, 2024.pptx.pdfFrisco Automating Purchase Orders with MuleSoft IDP- May 10th, 2024.pptx.pdf
Frisco Automating Purchase Orders with MuleSoft IDP- May 10th, 2024.pptx.pdfAnubhavMangla3

AI in Action: Real World Use Cases by Anitaraj
AI in Action: Real World Use Cases by AnitarajAI in Action: Real World Use Cases by Anitaraj
AI in Action: Real World Use Cases by AnitarajAnitaRaj43

JohnPollard-hybrid-app-RailsConf2024.pptx
JohnPollard-hybrid-app-RailsConf2024.pptxJohnPollard-hybrid-app-RailsConf2024.pptx
JohnPollard-hybrid-app-RailsConf2024.pptxJohnPollard37

How we scaled to 80K users by doing nothing!.pdf
How we scaled to 80K users by doing nothing!.pdfHow we scaled to 80K users by doing nothing!.pdf
How we scaled to 80K users by doing nothing!.pdfSrushith Repakula

How to Check CNIC Information Online with Pakdata cf
How to Check CNIC Information Online with Pakdata cfHow to Check CNIC Information Online with Pakdata cf
How to Check CNIC Information Online with Pakdata cfdanishmna97

AI mind or machine power point presentation
AI mind or machine power point presentationAI mind or machine power point presentation
AI mind or machine power point presentationyogeshlabana357357

“Iamnobody89757” Understanding the Mysterious of Digital Identity.pdf
“Iamnobody89757” Understanding the Mysterious of Digital Identity.pdf“Iamnobody89757” Understanding the Mysterious of Digital Identity.pdf
“Iamnobody89757” Understanding the Mysterious of Digital Identity.pdfMuhammad Subhan

Six Myths about Ontologies: The Basics of Formal Ontology
Six Myths about Ontologies: The Basics of Formal OntologySix Myths about Ontologies: The Basics of Formal Ontology
Six Myths about Ontologies: The Basics of Formal Ontologyjohnbeverley2021

Continuing Bonds Through AI: A Hermeneutic Reflection on Thanabots
Continuing Bonds Through AI: A Hermeneutic Reflection on ThanabotsContinuing Bonds Through AI: A Hermeneutic Reflection on Thanabots
Continuing Bonds Through AI: A Hermeneutic Reflection on ThanabotsLeah Henrickson


Recently uploaded (20)

Easier, Faster, and More Powerful – Notes Document Properties Reimagined
Easier, Faster, and More Powerful – Notes Document Properties ReimaginedEasier, Faster, and More Powerful – Notes Document Properties Reimagined
Easier, Faster, and More Powerful – Notes Document Properties Reimagined

The Zero-ETL Approach: Enhancing Data Agility and Insight
The Zero-ETL Approach: Enhancing Data Agility and InsightThe Zero-ETL Approach: Enhancing Data Agility and Insight
The Zero-ETL Approach: Enhancing Data Agility and Insight

Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptxHarnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx

Introduction to use of FHIR Documents in ABDM
Introduction to use of FHIR Documents in ABDMIntroduction to use of FHIR Documents in ABDM
Introduction to use of FHIR Documents in ABDM

Working together SRE & Platform Engineering
Working together SRE & Platform EngineeringWorking together SRE & Platform Engineering
Working together SRE & Platform Engineering

2024 May Patch Tuesday
2024 May Patch Tuesday2024 May Patch Tuesday
2024 May Patch Tuesday

WebAssembly is Key to Better LLM Performance
WebAssembly is Key to Better LLM PerformanceWebAssembly is Key to Better LLM Performance
WebAssembly is Key to Better LLM Performance

AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)
AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)
AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)

ADP Passwordless Journey Case Study.pptx
ADP Passwordless Journey Case Study.pptxADP Passwordless Journey Case Study.pptx
ADP Passwordless Journey Case Study.pptx

الأمن السيبراني - ما لا يسع للمستخدم جهله
الأمن السيبراني - ما لا يسع للمستخدم جهلهالأمن السيبراني - ما لا يسع للمستخدم جهله
الأمن السيبراني - ما لا يسع للمستخدم جهله

Frisco Automating Purchase Orders with MuleSoft IDP- May 10th, 2024.pptx.pdf
Frisco Automating Purchase Orders with MuleSoft IDP- May 10th, 2024.pptx.pdfFrisco Automating Purchase Orders with MuleSoft IDP- May 10th, 2024.pptx.pdf
Frisco Automating Purchase Orders with MuleSoft IDP- May 10th, 2024.pptx.pdf

AI in Action: Real World Use Cases by Anitaraj
AI in Action: Real World Use Cases by AnitarajAI in Action: Real World Use Cases by Anitaraj
AI in Action: Real World Use Cases by Anitaraj

Overview of Hyperledger Foundation
Overview of Hyperledger FoundationOverview of Hyperledger Foundation
Overview of Hyperledger Foundation

JohnPollard-hybrid-app-RailsConf2024.pptx
JohnPollard-hybrid-app-RailsConf2024.pptxJohnPollard-hybrid-app-RailsConf2024.pptx
JohnPollard-hybrid-app-RailsConf2024.pptx

How we scaled to 80K users by doing nothing!.pdf
How we scaled to 80K users by doing nothing!.pdfHow we scaled to 80K users by doing nothing!.pdf
How we scaled to 80K users by doing nothing!.pdf

How to Check CNIC Information Online with Pakdata cf
How to Check CNIC Information Online with Pakdata cfHow to Check CNIC Information Online with Pakdata cf
How to Check CNIC Information Online with Pakdata cf

AI mind or machine power point presentation
AI mind or machine power point presentationAI mind or machine power point presentation
AI mind or machine power point presentation

“Iamnobody89757” Understanding the Mysterious of Digital Identity.pdf
“Iamnobody89757” Understanding the Mysterious of Digital Identity.pdf“Iamnobody89757” Understanding the Mysterious of Digital Identity.pdf
“Iamnobody89757” Understanding the Mysterious of Digital Identity.pdf

Six Myths about Ontologies: The Basics of Formal Ontology
Six Myths about Ontologies: The Basics of Formal OntologySix Myths about Ontologies: The Basics of Formal Ontology
Six Myths about Ontologies: The Basics of Formal Ontology

Continuing Bonds Through AI: A Hermeneutic Reflection on Thanabots
Continuing Bonds Through AI: A Hermeneutic Reflection on ThanabotsContinuing Bonds Through AI: A Hermeneutic Reflection on Thanabots
Continuing Bonds Through AI: A Hermeneutic Reflection on Thanabots


Cassandra Community Webinar - August 22 2013 - Cassandra Internals
