1. AVIONICS CASE STUDY –
IV&V OF STANDBY ENGINE INSTRUMENT (SEI)
Oak Systems Pvt. Ltd.

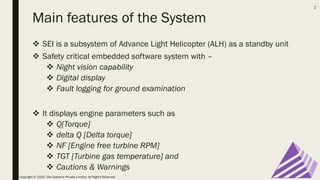

2. Main features of the System
❖ SEI is a subsystem of Advance Light Helicopter (ALH) as a standby unit
❖ Safety critical embedded software system with –
❖ Night vision capability
❖ Digital display
❖ Fault logging for ground examination
❖ It displays engine parameters such as
❖ Q[Torque]
❖ delta Q [Delta torque]
❖ NF [Engine free turbine RPM]
❖ TGT [Turbine gas temperature] and
❖ Cautions & Warnings
Copyright © 2020 Oak Systems Private Limited. All Rights Reserved
2

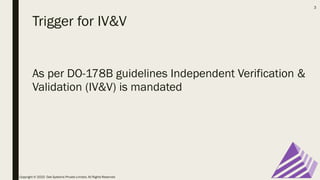

3. Trigger for IV&V
As per DO-178B guidelines Independent Verification &
Validation (IV&V) is mandated
Copyright © 2020 Oak Systems Private Limited. All Rights Reserved
3

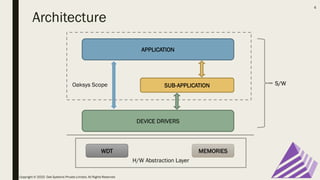

4. H/W Abstraction Layer
Architecture
APPLICATION
DEVICE DRIVERS
SUB-APPLICATION
WDT MEMORIES
Oaksys Scope S/W
Copyright © 2020 Oak Systems Private Limited. All Rights Reserved
4

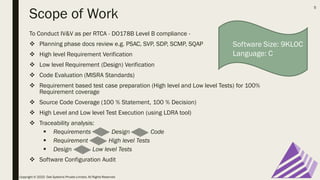

5. Scope of Work
To Conduct IV&V as per RTCA - DO178B Level B compliance -
❖ Planning phase docs review e.g. PSAC, SVP, SDP, SCMP, SQAP
❖ High level Requirement Verification
❖ Low level Requirement (Design) Verification
❖ Code Evaluation (MISRA Standards)
❖ Requirement based test case preparation (High level and Low level Tests) for 100%
Requirement coverage
❖ Source Code Coverage (100 % Statement, 100 % Decision)
❖ High Level and Low level Test Execution (using LDRA tool)
❖ Traceability analysis:
▪ Requirements Design Code
▪ Requirement High level Tests
▪ Design Low level Tests
❖ Software Configuration Audit
Copyright © 2020 Oak Systems Private Limited. All Rights Reserved
5
Software Size: 9KLOC
Language: C

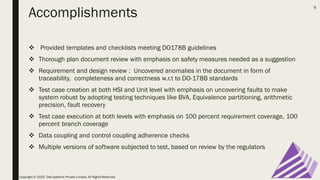

6. Accomplishments
❖ Provided templates and checklists meeting DO178B guidelines
❖ Thorough plan document review with emphasis on safety measures needed as a suggestion
❖ Requirement and design review : Uncovered anomalies in the document in form of
traceability, completeness and correctness w.r.t to DO-178B standards
❖ Test case creation at both HSI and Unit level with emphasis on uncovering faults to make
system robust by adopting testing techniques like BVA, Equivalence partitioning, arithmetic
precision, fault recovery
❖ Test case execution at both levels with emphasis on 100 percent requirement coverage, 100
percent branch coverage
❖ Data coupling and control coupling adherence checks
❖ Multiple versions of software subjected to test, based on review by the regulators
Copyright © 2020 Oak Systems Private Limited. All Rights Reserved
6

7. Outcome
Activity/Task Status
Review Plan Docs:
PSAC, SDP, SCMP, SRS, SDS, SCS, SQAP, SVP
Delivered
SRD Review
Delivered
HLR SVCP Preparation
Delivered
SDD Review
Delivered
LLR SVCP Preparation
Delivered
Code Review
Delivered
SDD-Code Traceability
Delivered
LLR Test Execution
Delivered
HLR Test Execution
Delivered
IVV Reports (SCI, SECI, SAS)
Delivered
Copyright © 2020 Oak Systems Private Limited. All Rights Reserved
7

8. Thank you!
Oak Systems Pvt. Ltd.
