1. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 1
Chapter 3
How to code and test a
Windows Forms
application

2. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 2

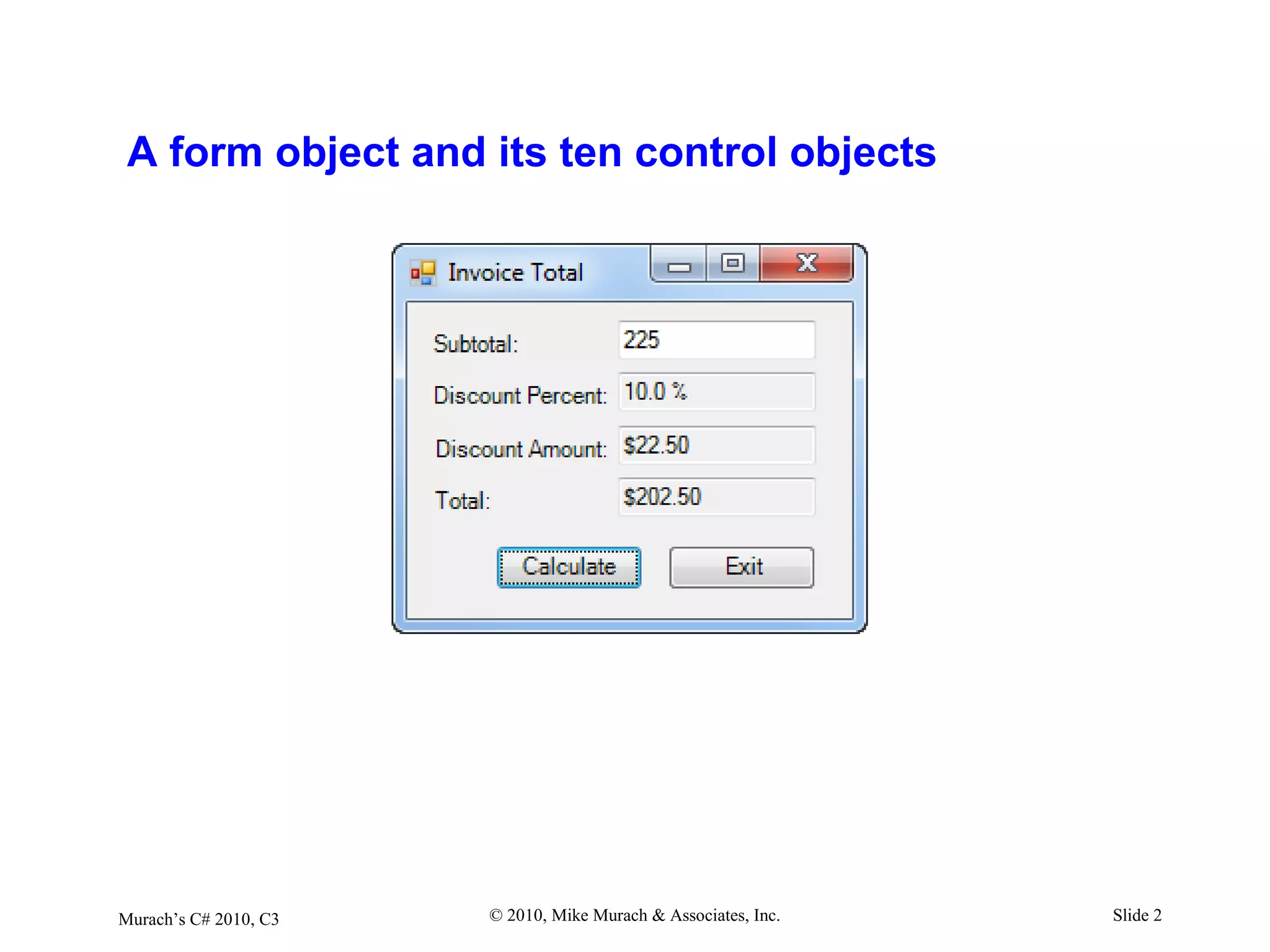

A form object and its ten control objects

3. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 3

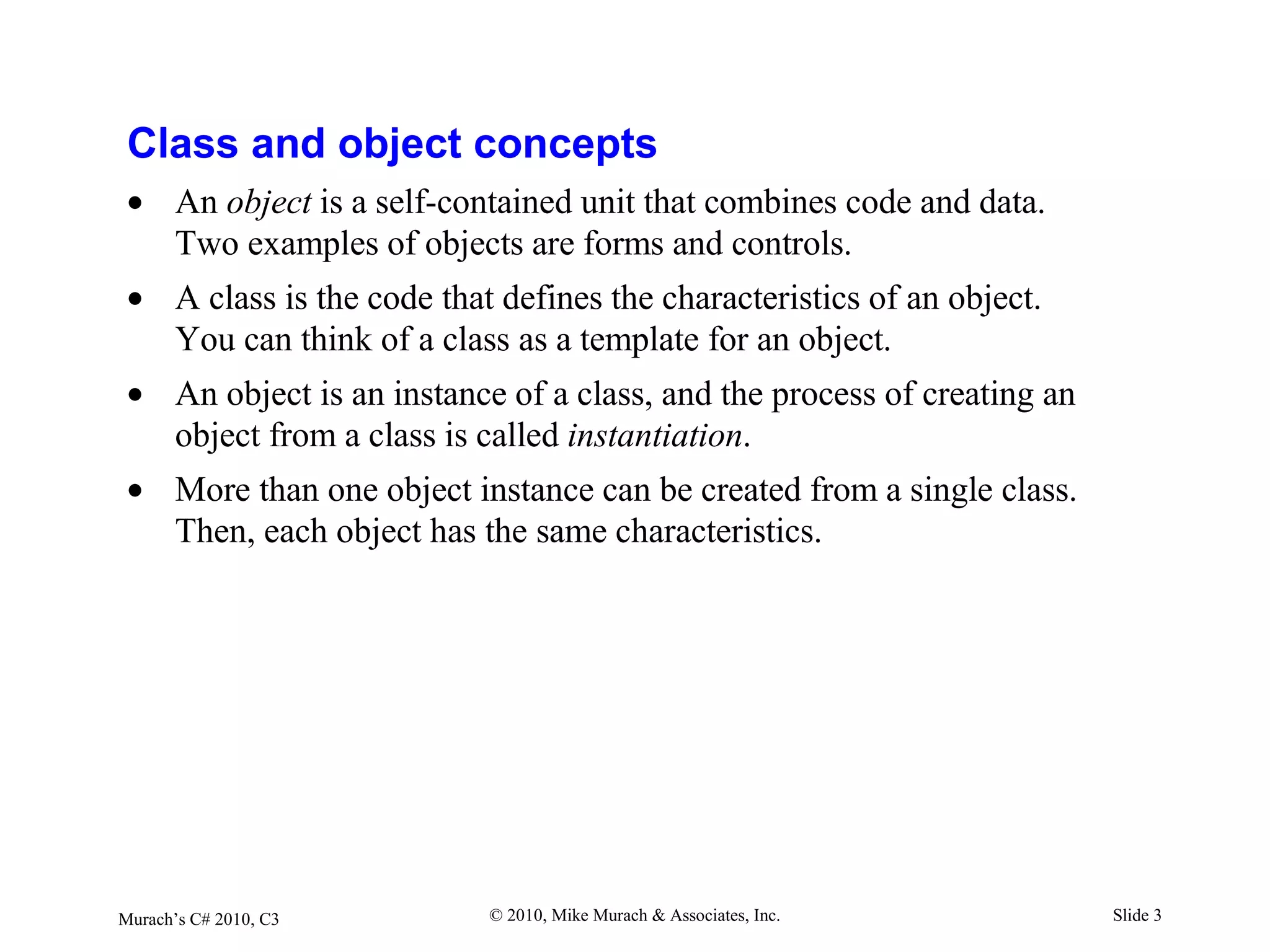

Class and object concepts
• An object is a self-contained unit that combines code and data.
Two examples of objects are forms and controls.
• A class is the code that defines the characteristics of an object.
You can think of a class as a template for an object.
• An object is an instance of a class, and the process of creating an
object from a class is called instantiation.
• More than one object instance can be created from a single class.
Then, each object has the same characteristics.

4. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 4

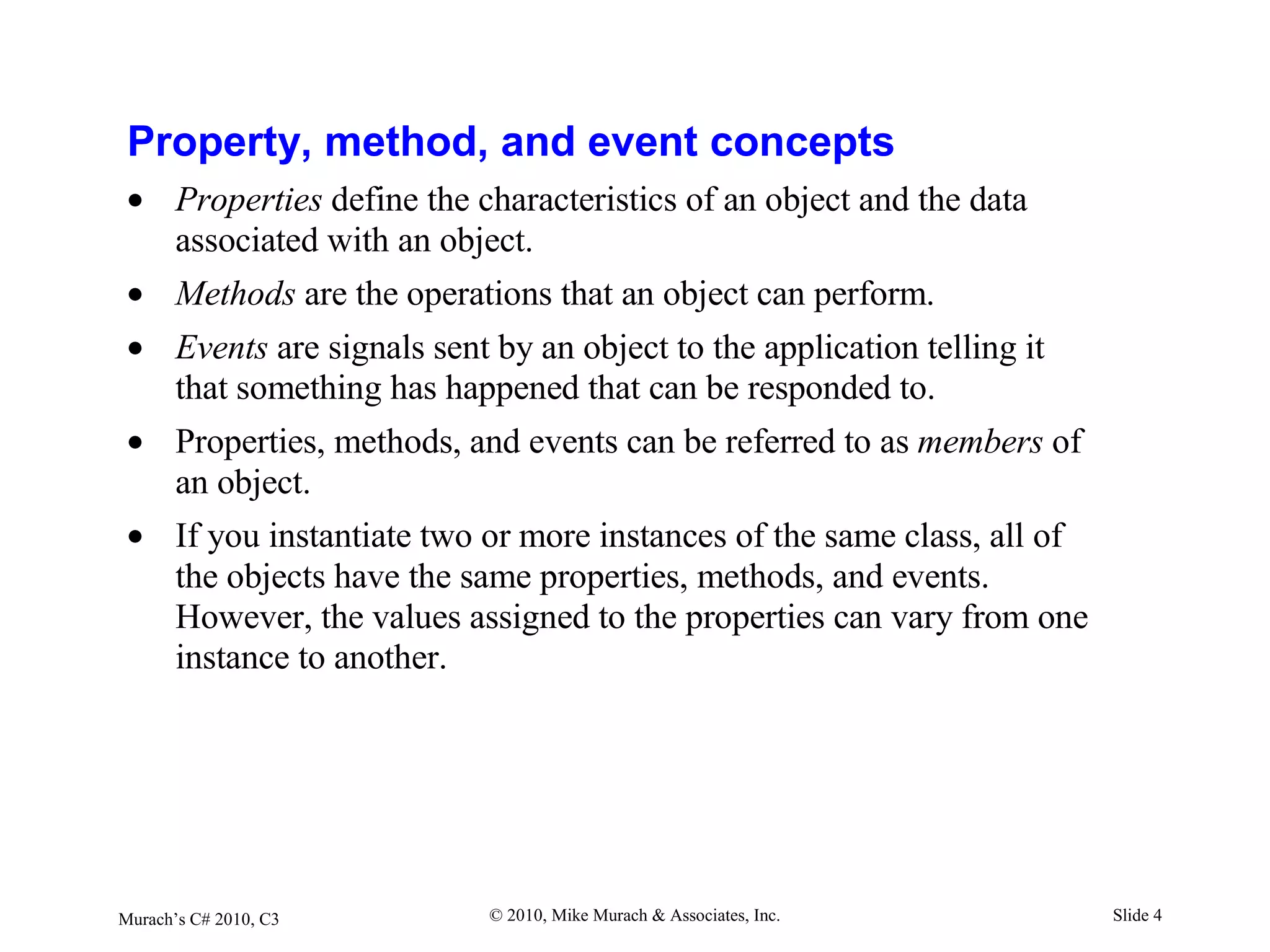

Property, method, and event concepts
• Properties define the characteristics of an object and the data
associated with an object.
• Methods are the operations that an object can perform.
• Events are signals sent by an object to the application telling it
that something has happened that can be responded to.
• Properties, methods, and events can be referred to as members of
an object.
• If you instantiate two or more instances of the same class, all of
the objects have the same properties, methods, and events.
However, the values assigned to the properties can vary from one
instance to another.

5. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 5

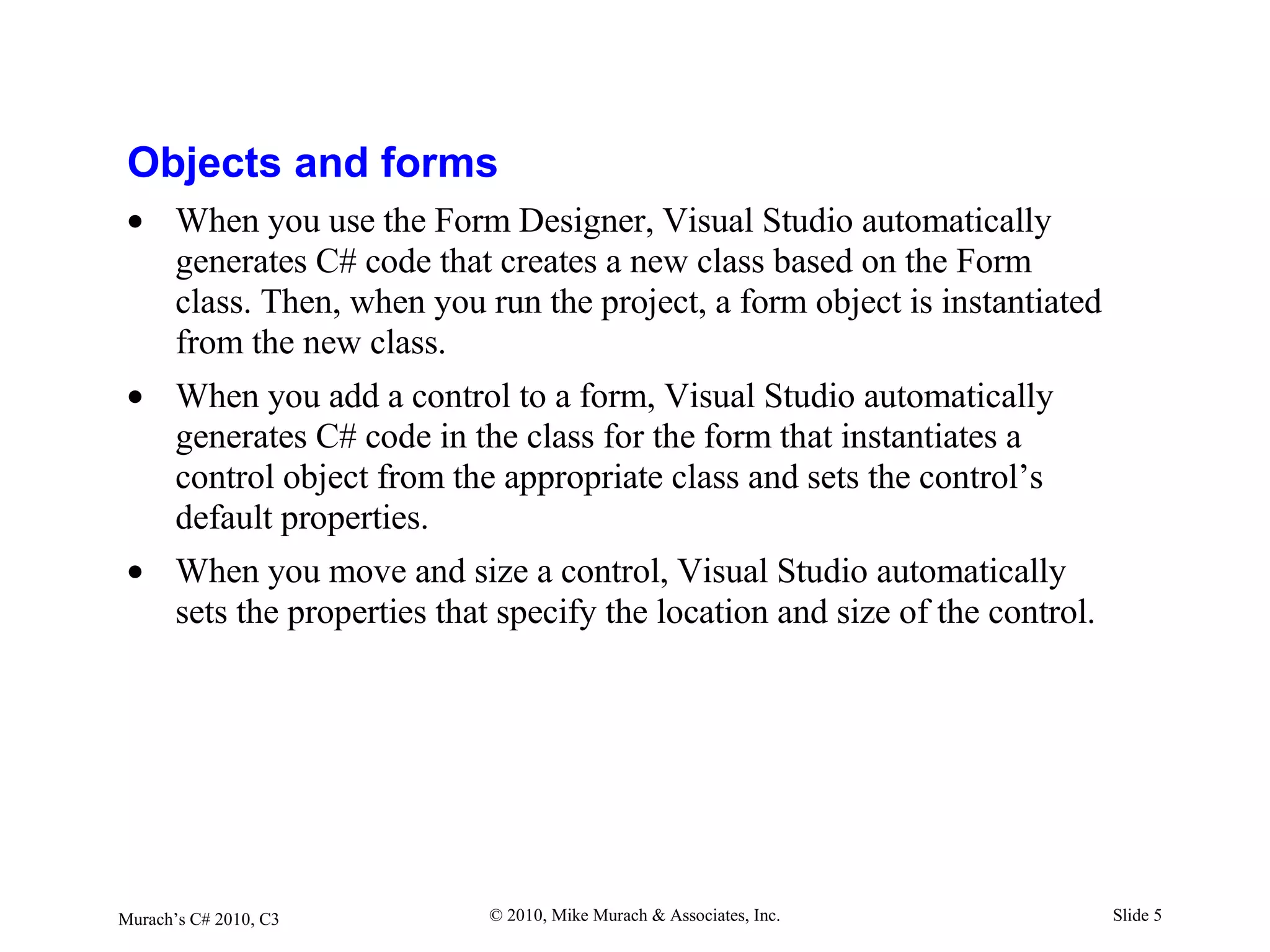

Objects and forms
• When you use the Form Designer, Visual Studio automatically
generates C# code that creates a new class based on the Form
class. Then, when you run the project, a form object is instantiated
from the new class.
• When you add a control to a form, Visual Studio automatically
generates C# code in the class for the form that instantiates a
control object from the appropriate class and sets the control’s
default properties.
• When you move and size a control, Visual Studio automatically
sets the properties that specify the location and size of the control.

6. Slide 6

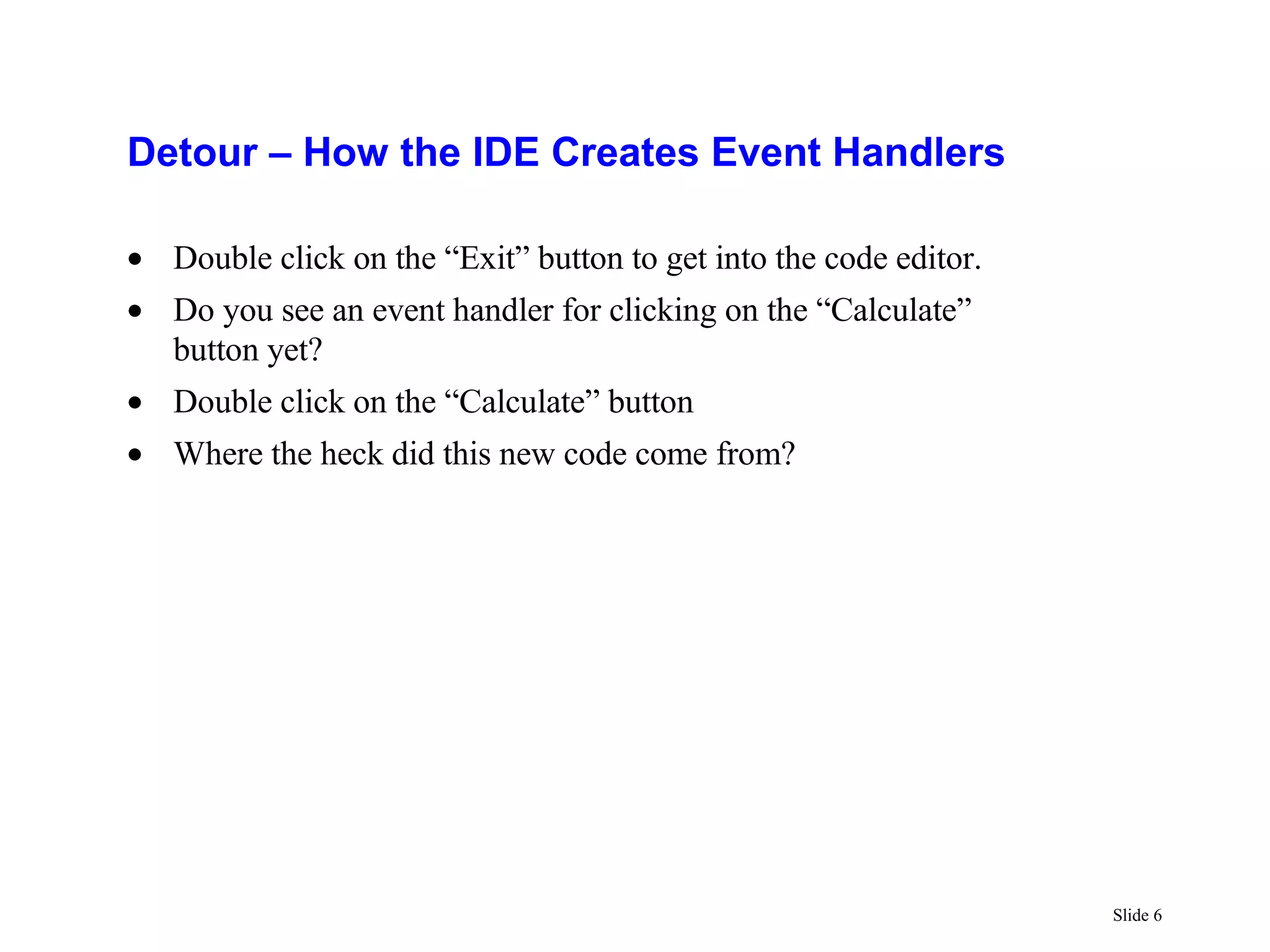

Detour – How the IDE Creates Event Handlers
• Double click on the “Exit” button to get into the code editor.
• Do you see an event handler for clicking on the “Calculate”
button yet?
• Double click on the “Calculate” button
• Where the heck did this new code come from?

7. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 7

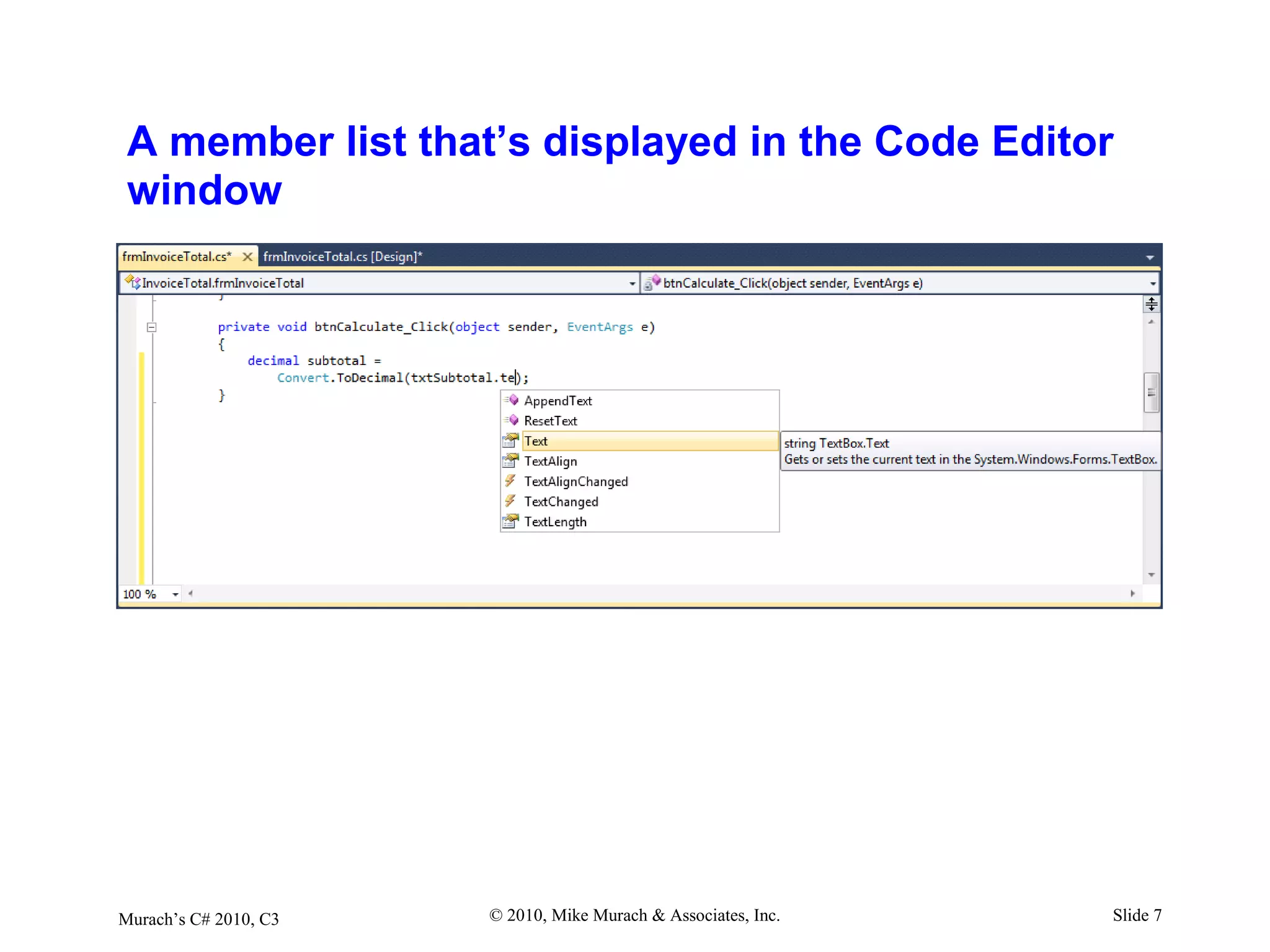

A member list that’s displayed in the Code Editor
window

8. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 8

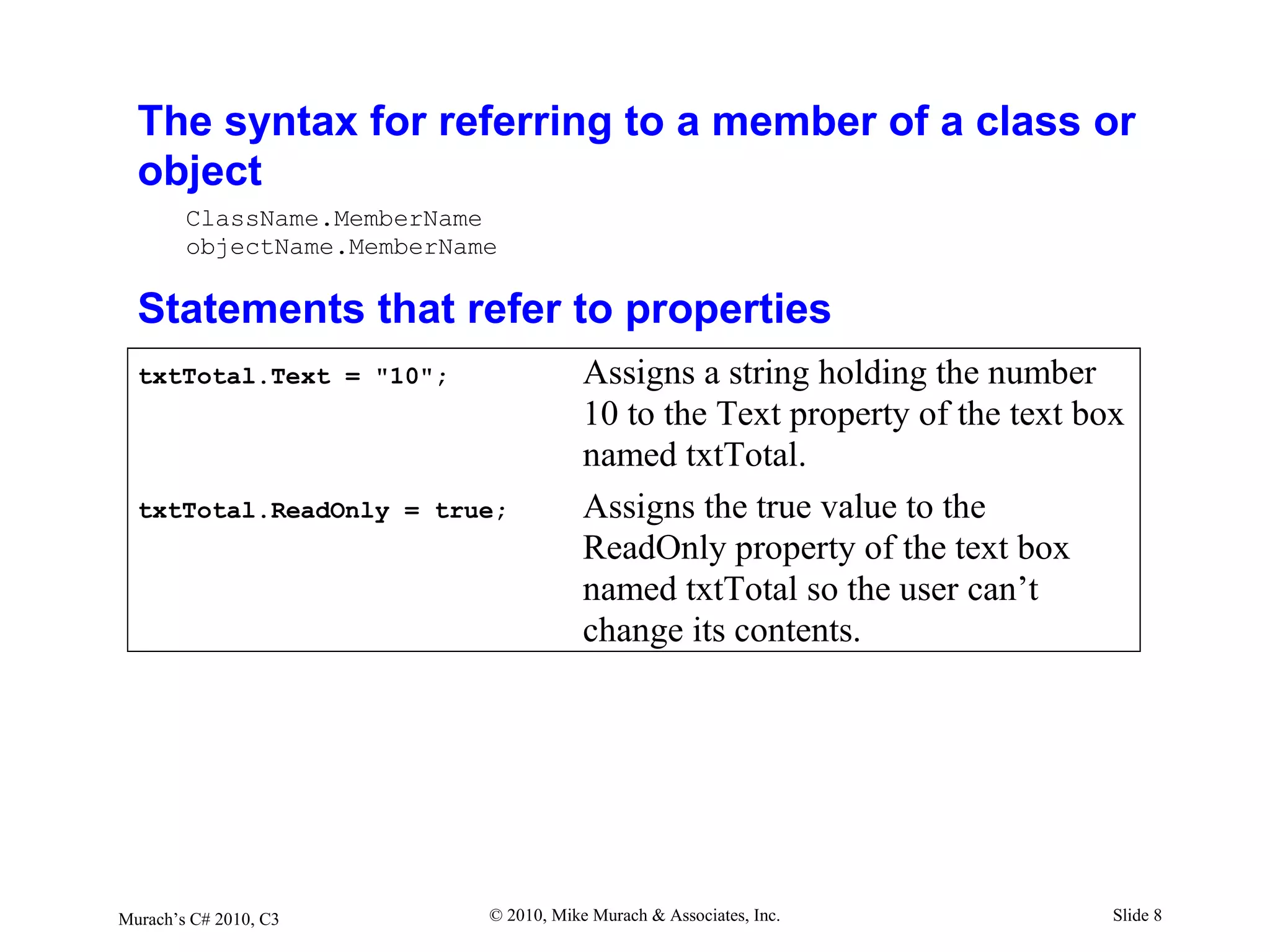

The syntax for referring to a member of a class or
object
ClassName.MemberName
objectName.MemberName
Statements that refer to properties
txtTotal.Text = "10"; Assigns a string holding the number
10 to the Text property of the text box
named txtTotal.
txtTotal.ReadOnly = true; Assigns the true value to the
ReadOnly property of the text box
named txtTotal so the user can’t
change its contents.

9. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 9

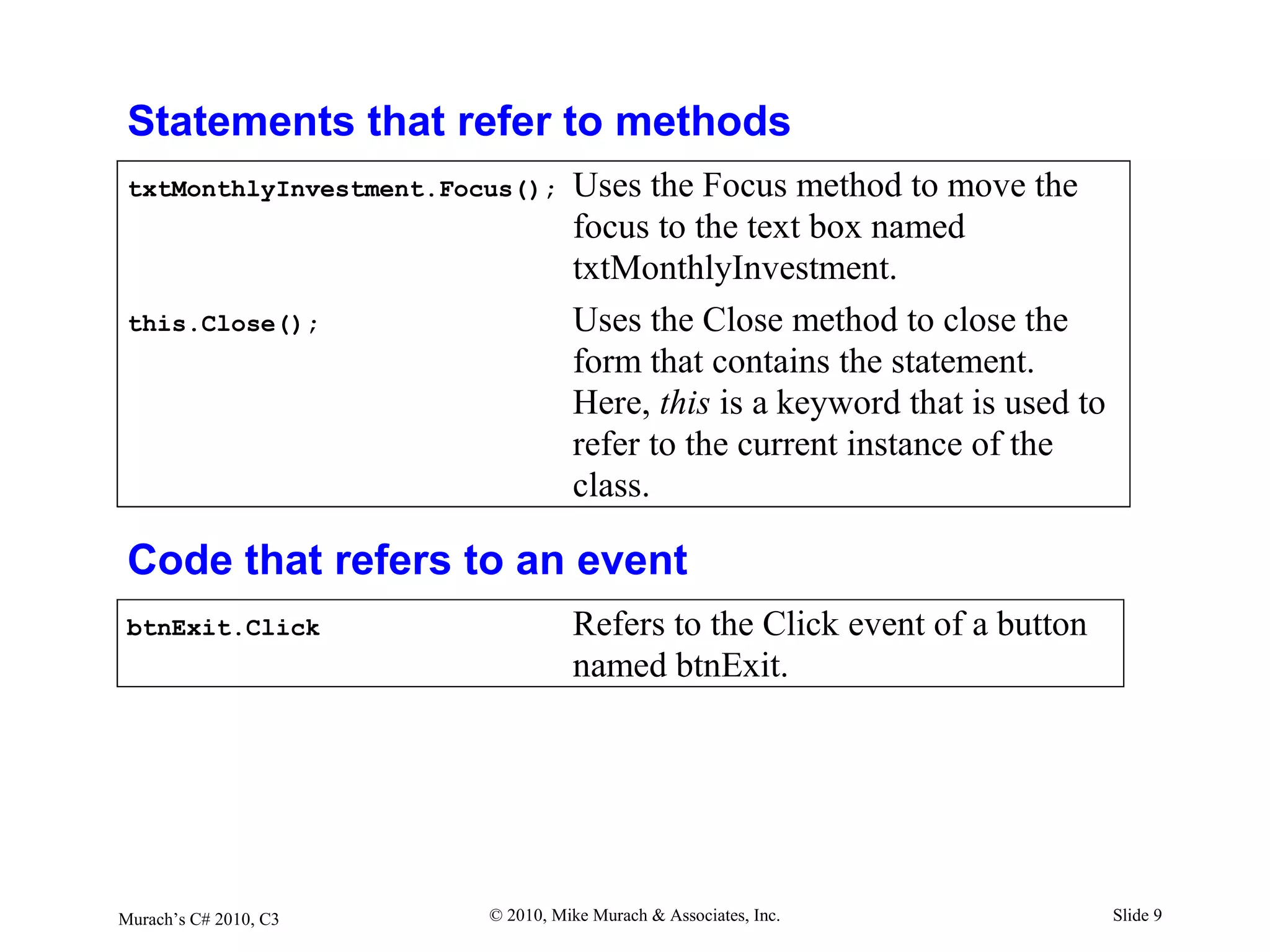

Statements that refer to methods
txtMonthlyInvestment.Focus(); Uses the Focus method to move the
focus to the text box named
txtMonthlyInvestment.
this.Close(); Uses the Close method to close the
form that contains the statement.
Here, this is a keyword that is used to
refer to the current instance of the
class.
Code that refers to an event
btnExit.Click Refers to the Click event of a button
named btnExit.

10. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 10

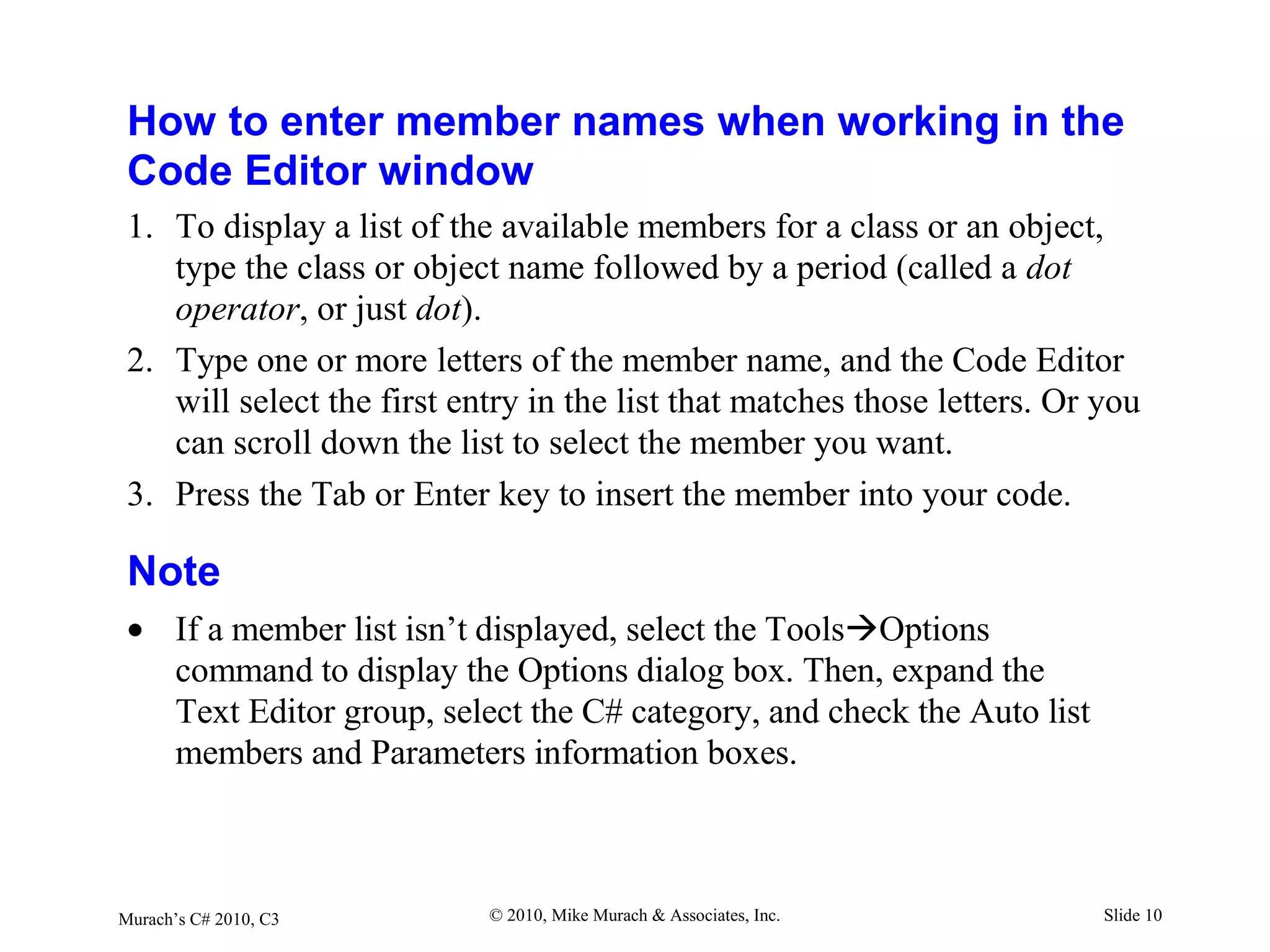

How to enter member names when working in the
Code Editor window
1. To display a list of the available members for a class or an object,
type the class or object name followed by a period (called a dot
operator, or just dot).
2. Type one or more letters of the member name, and the Code Editor
will select the first entry in the list that matches those letters. Or you
can scroll down the list to select the member you want.
3. Press the Tab or Enter key to insert the member into your code.
Note
• If a member list isn’t displayed, select the ToolsOptions
command to display the Options dialog box. Then, expand the
Text Editor group, select the C# category, and check the Auto list
members and Parameters information boxes.

11. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 11

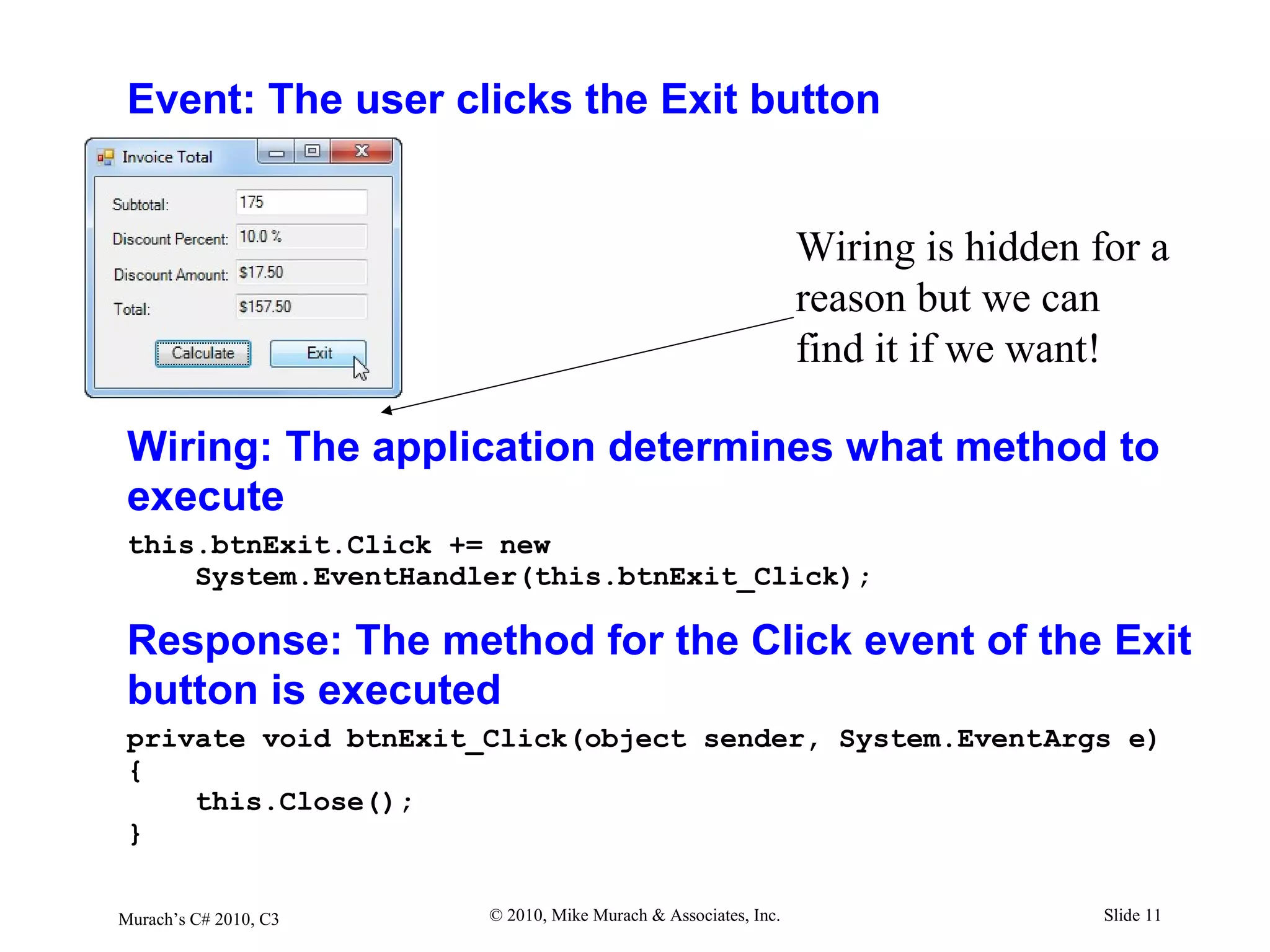

Event: The user clicks the Exit button
Wiring: The application determines what method to
execute
this.btnExit.Click += new
System.EventHandler(this.btnExit_Click);
Response: The method for the Click event of the Exit
button is executed
private void btnExit_Click(object sender, System.EventArgs e)
{
this.Close();
}
Wiring is hidden for a
reason but we can
find it if we want!

12. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 12

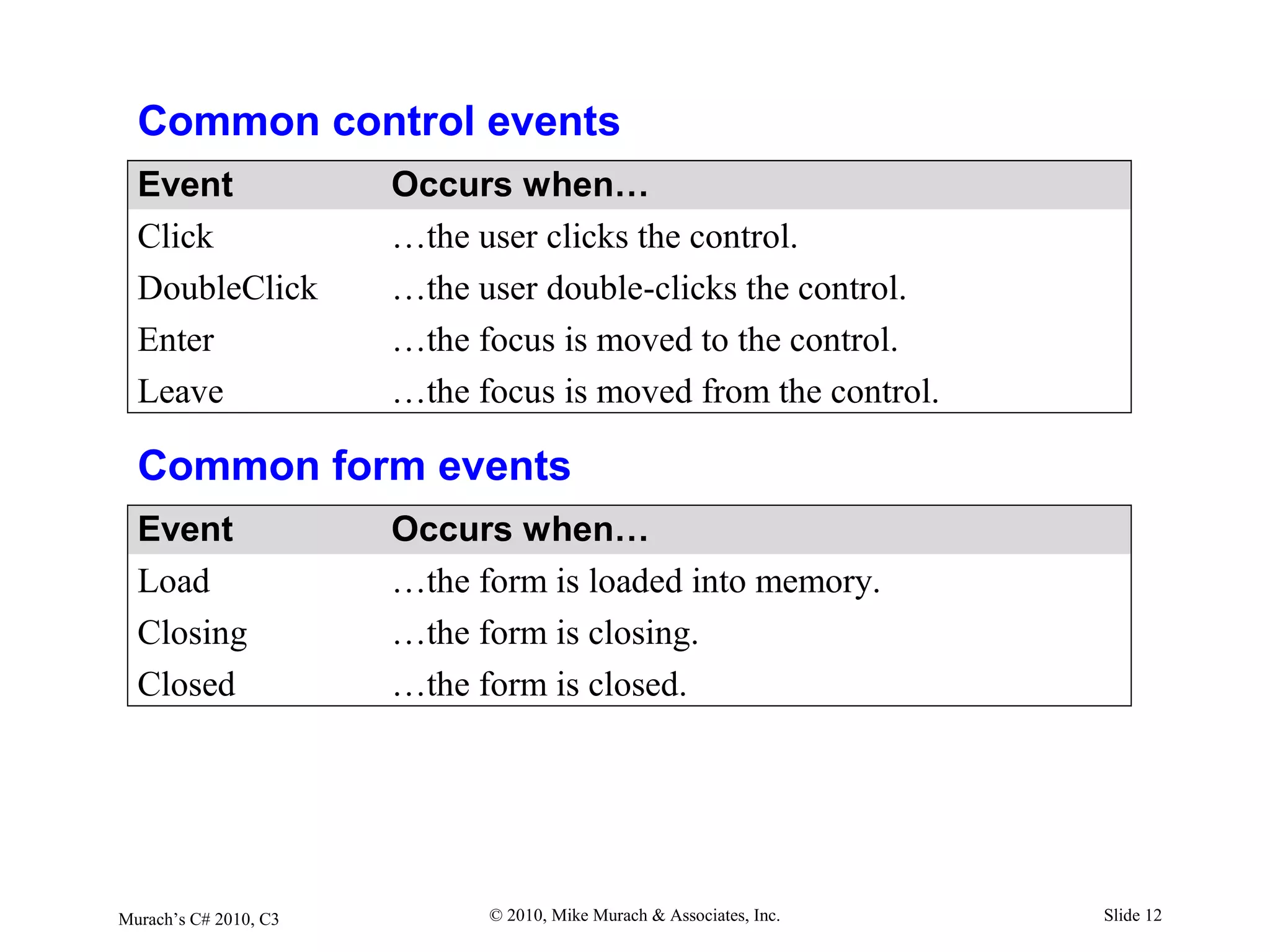

Common control events
Event Occurs when…
Click …the user clicks the control.
DoubleClick …the user double-clicks the control.
Enter …the focus is moved to the control.
Leave …the focus is moved from the control.
Common form events
Event Occurs when…
Load …the form is loaded into memory.
Closing …the form is closing.
Closed …the form is closed.

13. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 13

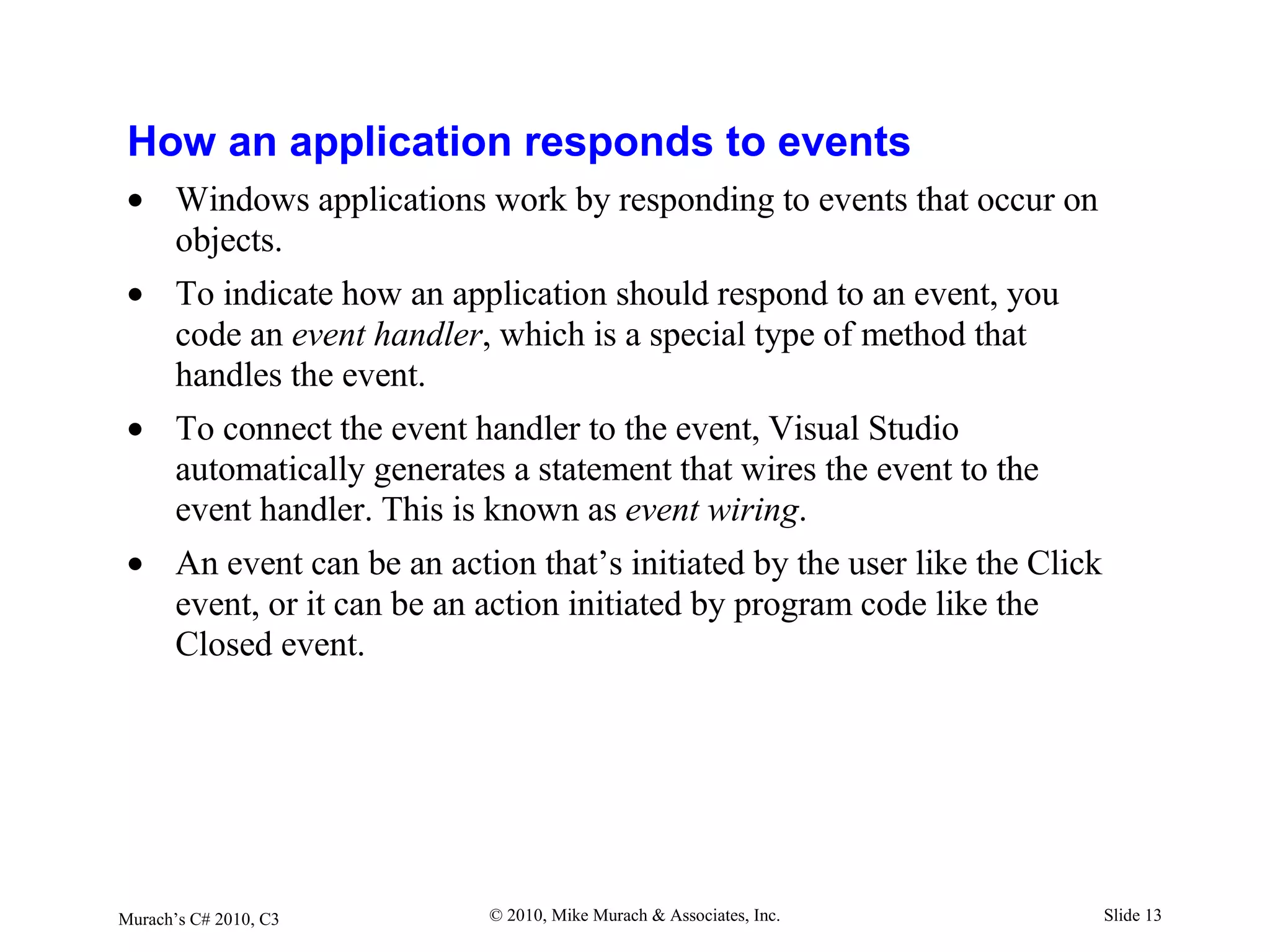

How an application responds to events
• Windows applications work by responding to events that occur on
objects.
• To indicate how an application should respond to an event, you
code an event handler, which is a special type of method that
handles the event.
• To connect the event handler to the event, Visual Studio
automatically generates a statement that wires the event to the
event handler. This is known as event wiring.
• An event can be an action that’s initiated by the user like the Click
event, or it can be an action initiated by program code like the
Closed event.

14. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 14

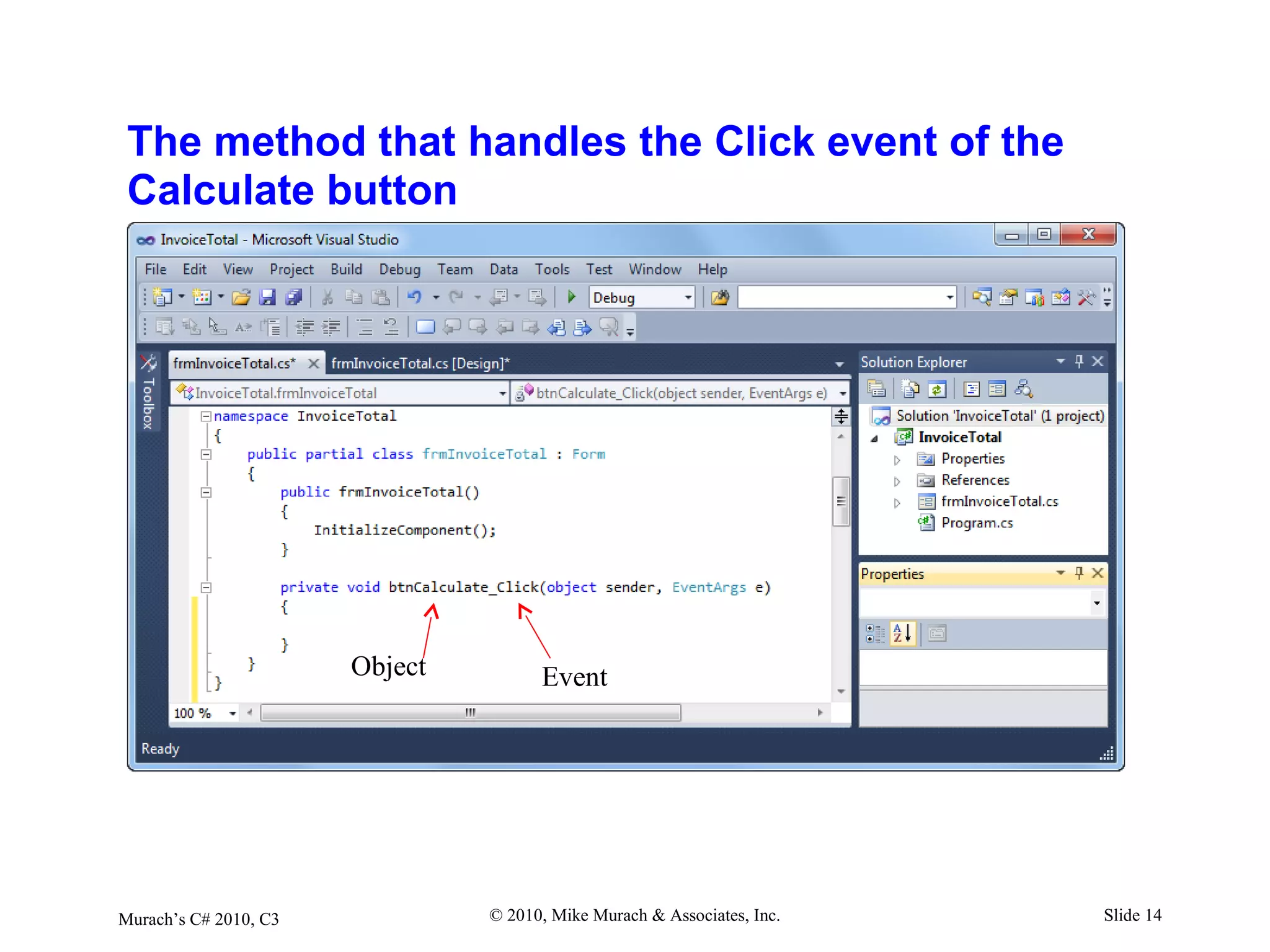

The method that handles the Click event of the
Calculate button
Object Event

15. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 15

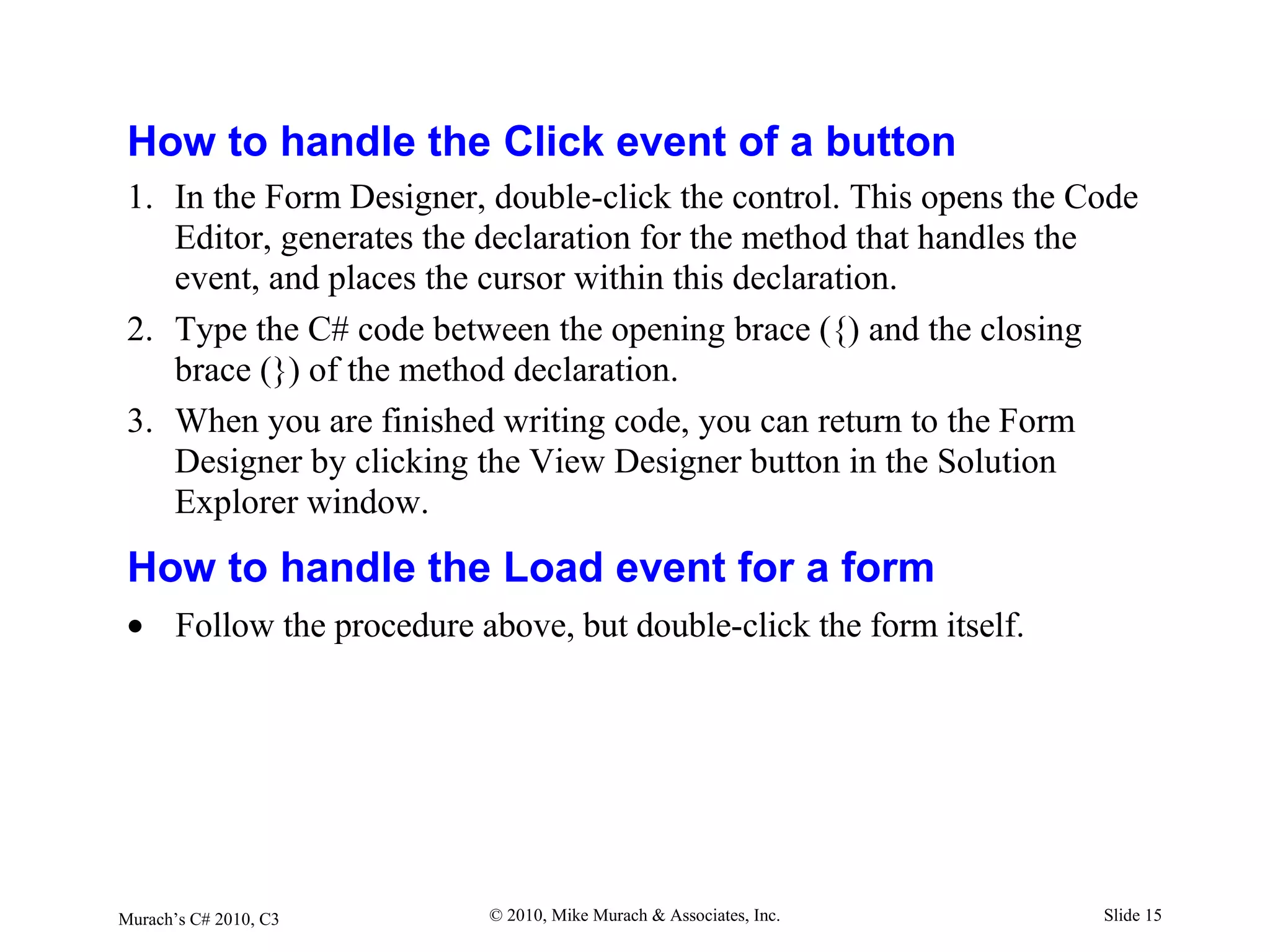

How to handle the Click event of a button
1. In the Form Designer, double-click the control. This opens the Code
Editor, generates the declaration for the method that handles the
event, and places the cursor within this declaration.
2. Type the C# code between the opening brace ({) and the closing
brace (}) of the method declaration.
3. When you are finished writing code, you can return to the Form
Designer by clicking the View Designer button in the Solution
Explorer window.
How to handle the Load event for a form
• Follow the procedure above, but double-click the form itself.

16. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 16

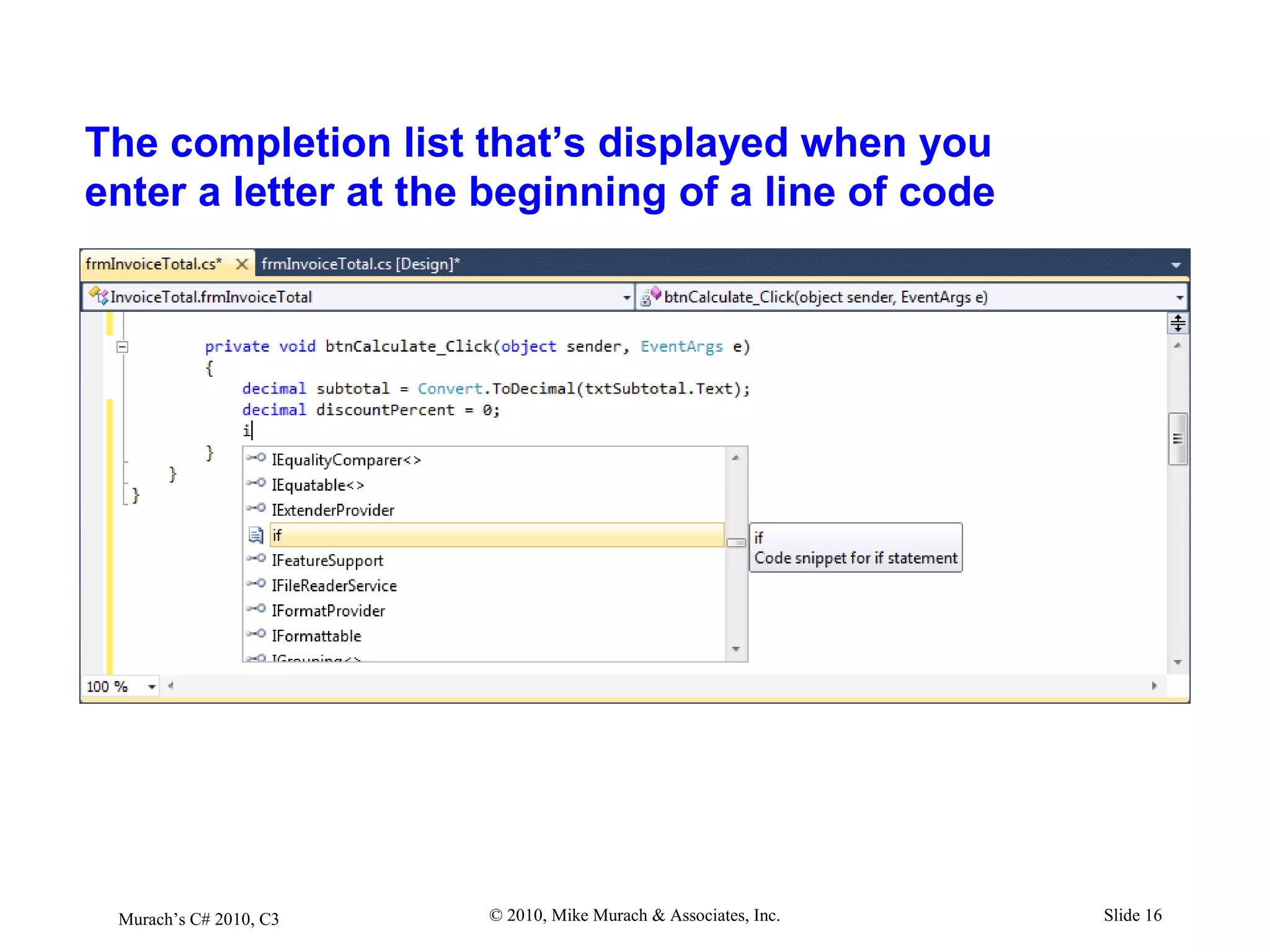

The completion list that’s displayed when you
enter a letter at the beginning of a line of code

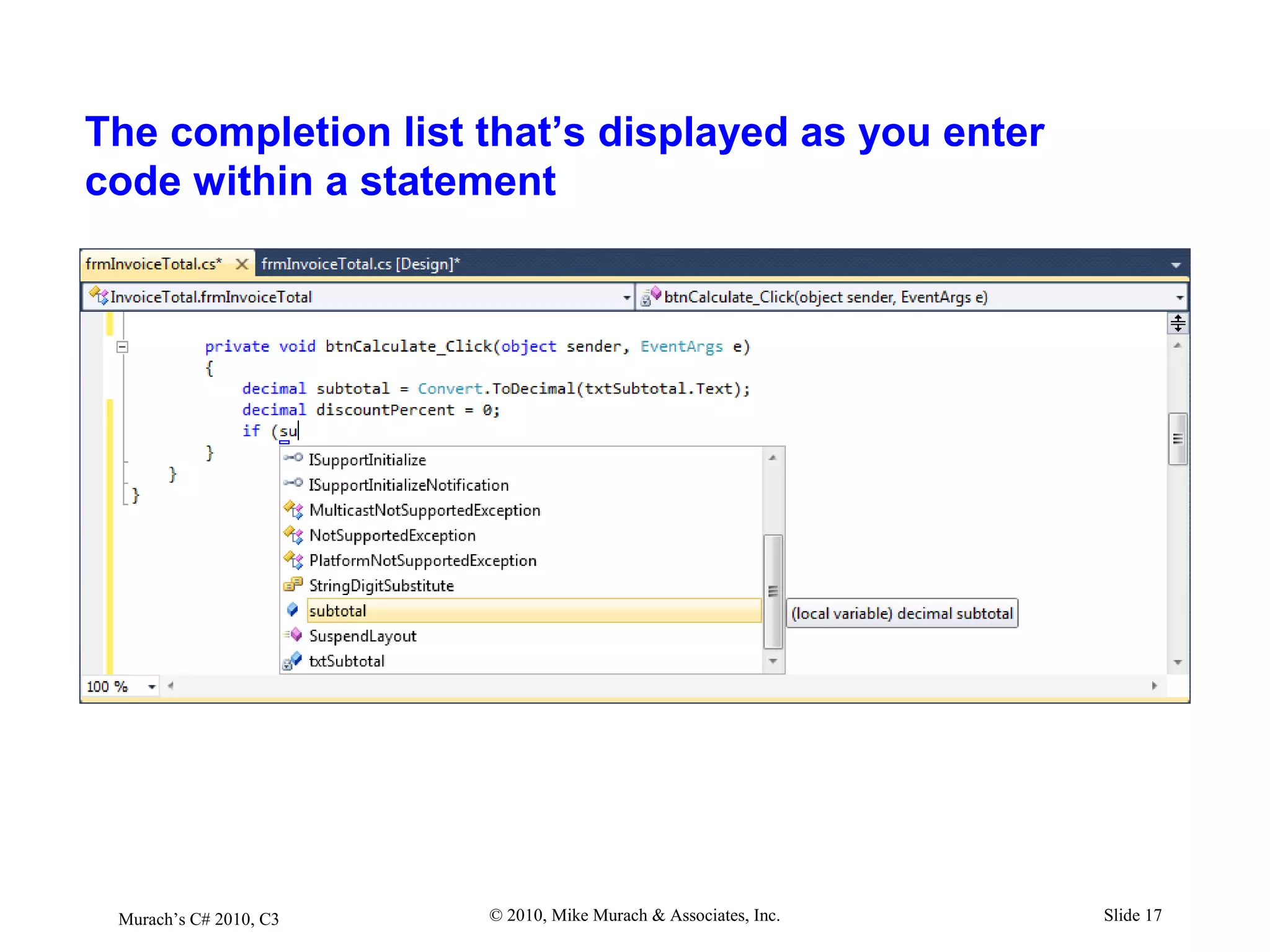

17. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 17
The completion list that’s displayed as you enter
code within a statement

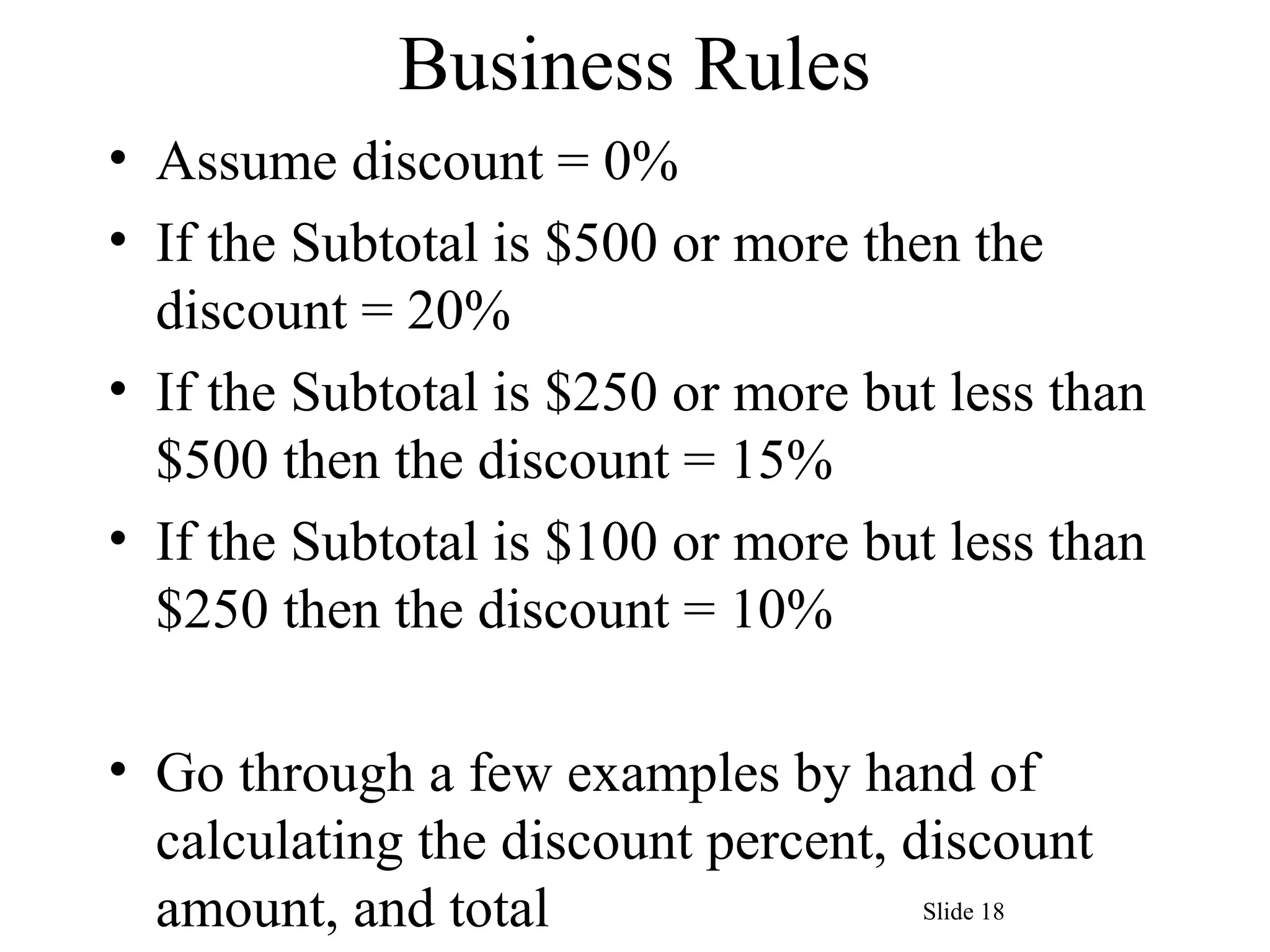

18. Business Rules
• Assume discount = 0%
• If the Subtotal is $500 or more then the
discount = 20%
• If the Subtotal is $250 or more but less than
$500 then the discount = 15%
• If the Subtotal is $100 or more but less than
$250 then the discount = 10%
• Go through a few examples by hand of
calculating the discount percent, discount
amount, and total Slide 18

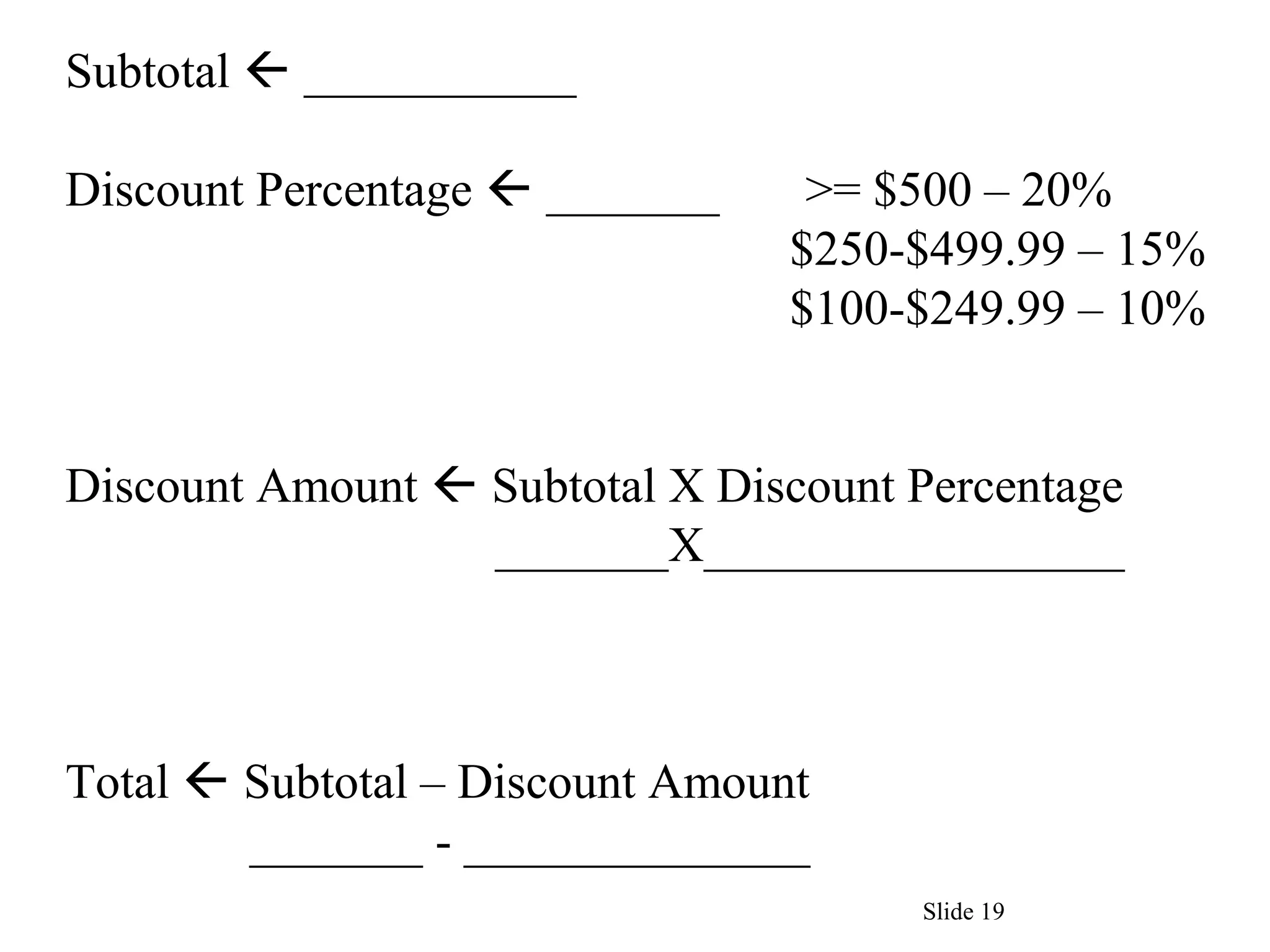

19. Slide 19
Subtotal  ___________
Discount Percentage  _______ >= $500 – 20%
$250-$499.99 – 15%
$100-$249.99 – 10%
Discount Amount  Subtotal X Discount Percentage
_______X_________________
Total  Subtotal – Discount Amount
_______ - ______________

20. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 20

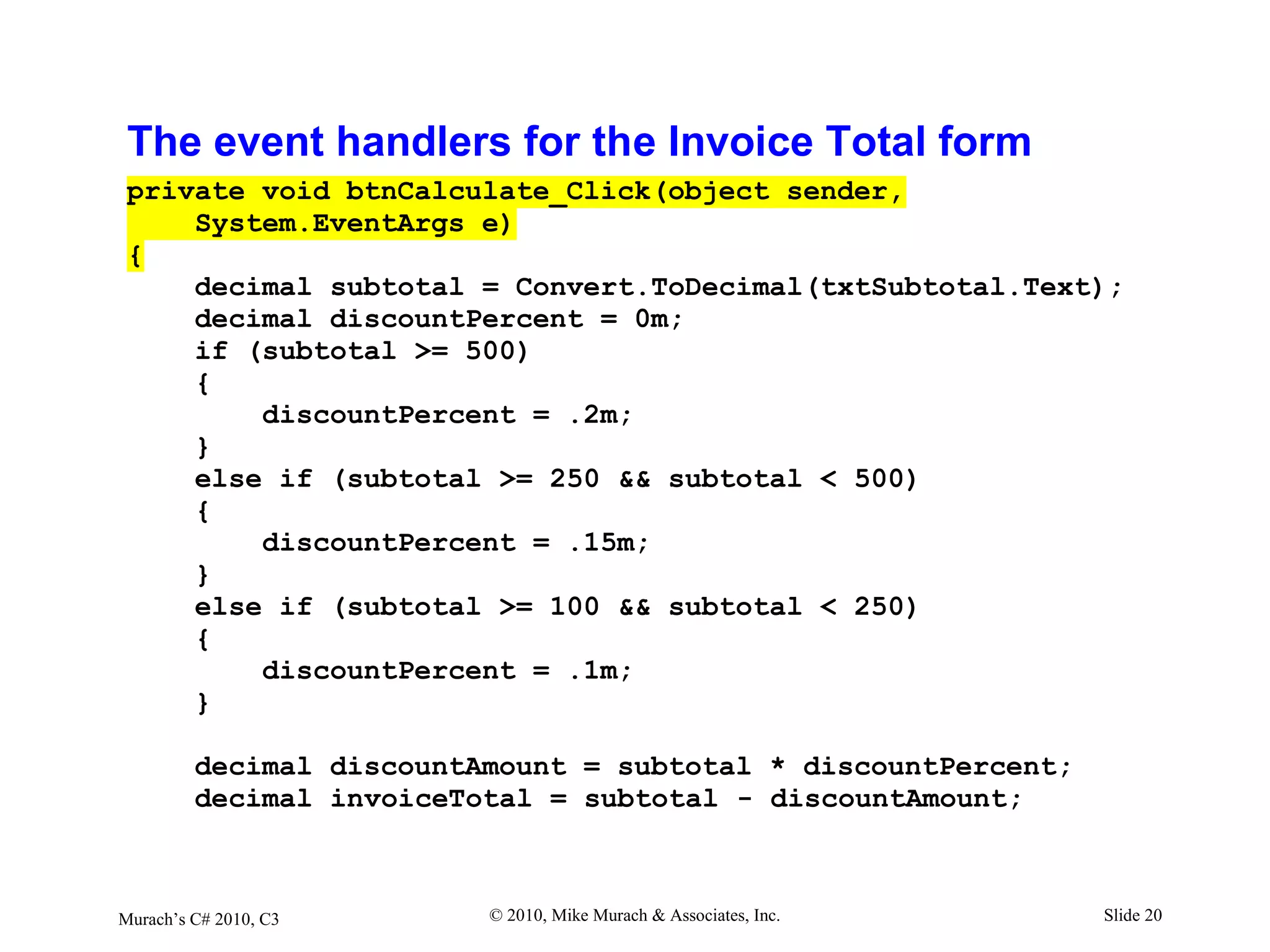

The event handlers for the Invoice Total form
private void btnCalculate_Click(object sender,
System.EventArgs e)
{
decimal subtotal = Convert.ToDecimal(txtSubtotal.Text);
decimal discountPercent = 0m;
if (subtotal >= 500)
{
discountPercent = .2m;
}
else if (subtotal >= 250 && subtotal < 500)
{
discountPercent = .15m;
}
else if (subtotal >= 100 && subtotal < 250)
{
discountPercent = .1m;
}
decimal discountAmount = subtotal * discountPercent;
decimal invoiceTotal = subtotal - discountAmount;

21. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 21

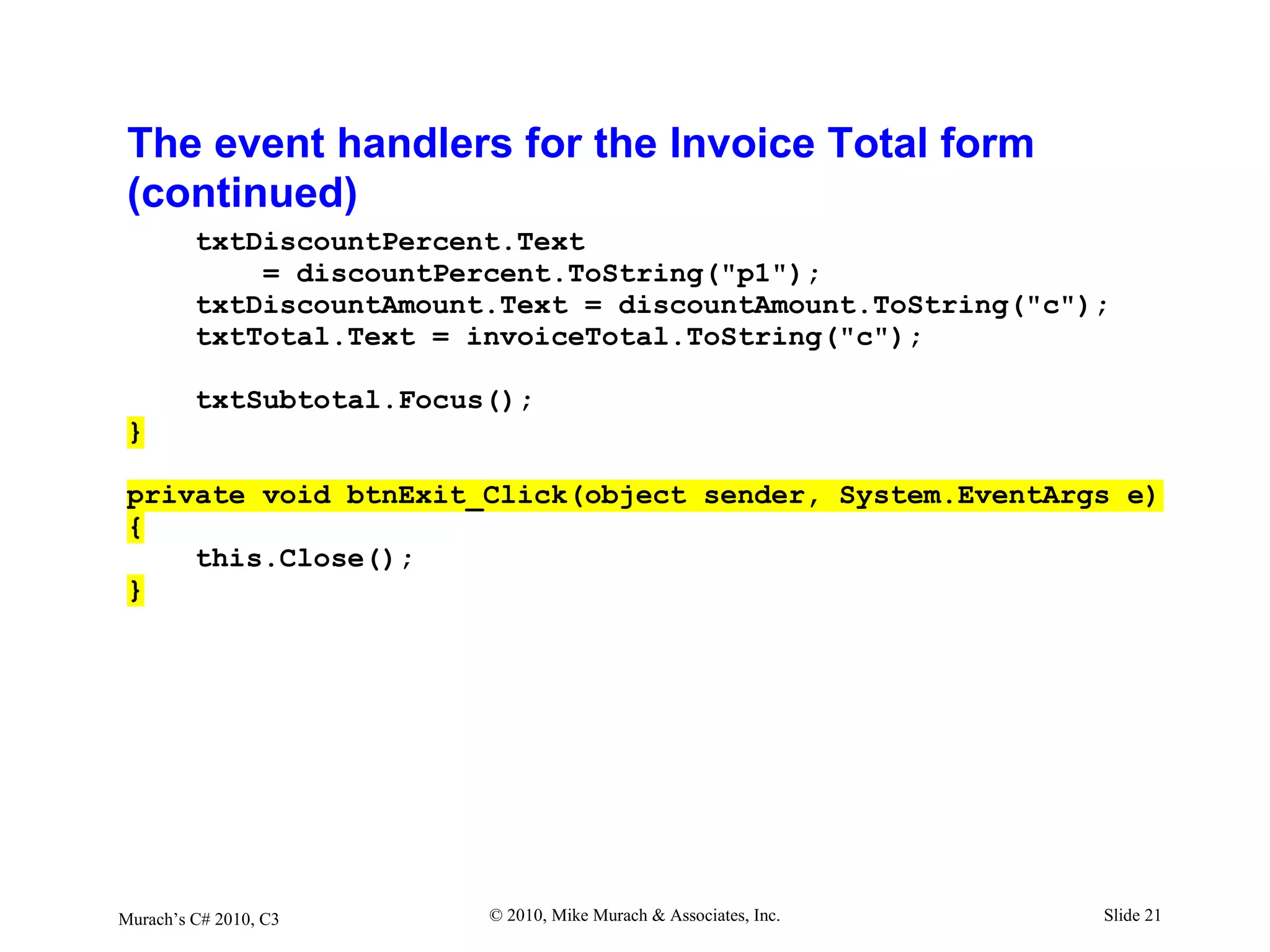

The event handlers for the Invoice Total form
(continued)
txtDiscountPercent.Text
= discountPercent.ToString("p1");
txtDiscountAmount.Text = discountAmount.ToString("c");
txtTotal.Text = invoiceTotal.ToString("c");
txtSubtotal.Focus();
}
private void btnExit_Click(object sender, System.EventArgs e)
{
this.Close();
}

22. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 22

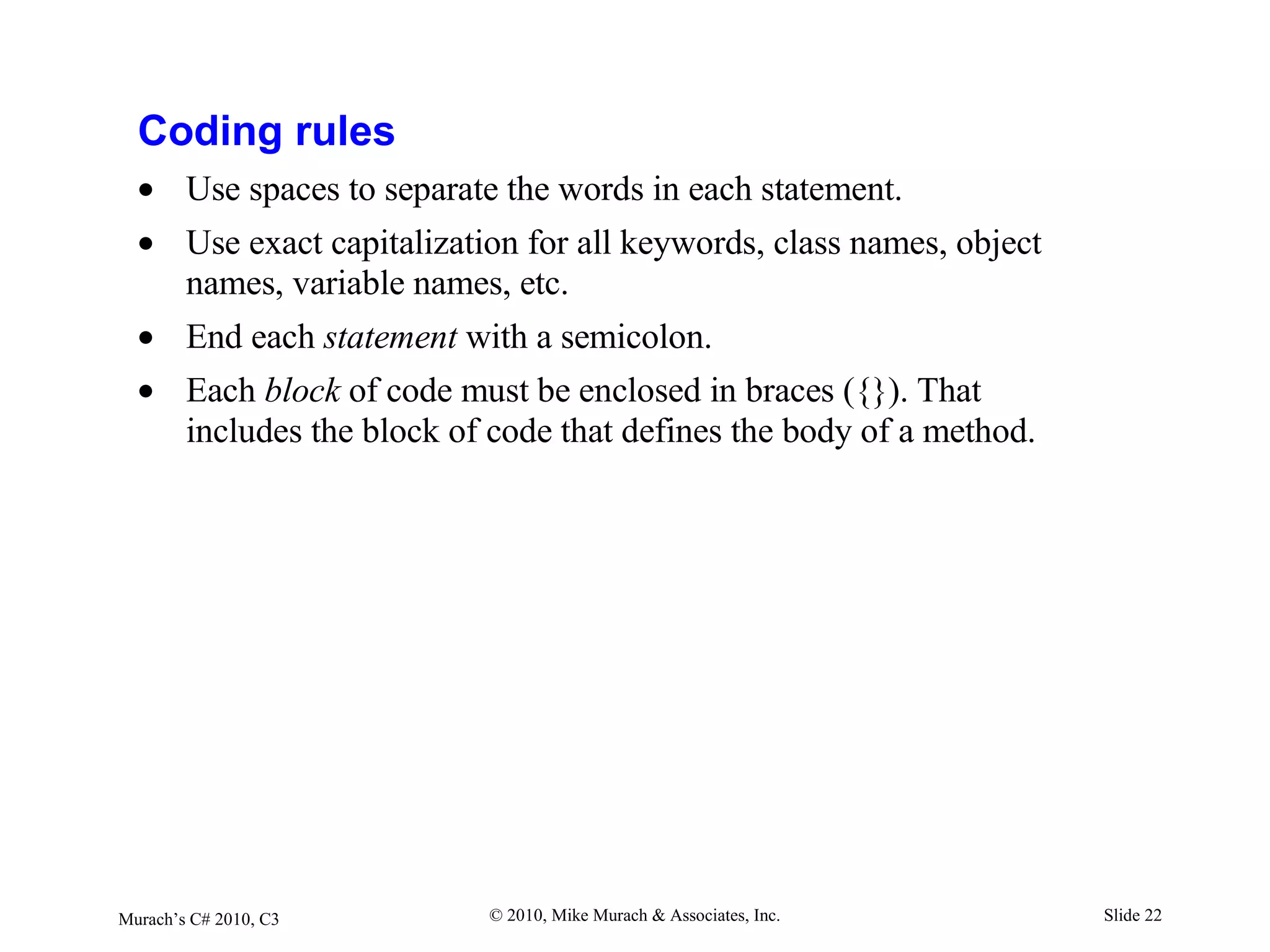

Coding rules
• Use spaces to separate the words in each statement.
• Use exact capitalization for all keywords, class names, object
names, variable names, etc.
• End each statement with a semicolon.
• Each block of code must be enclosed in braces ({}). That
includes the block of code that defines the body of a method.

23. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 23

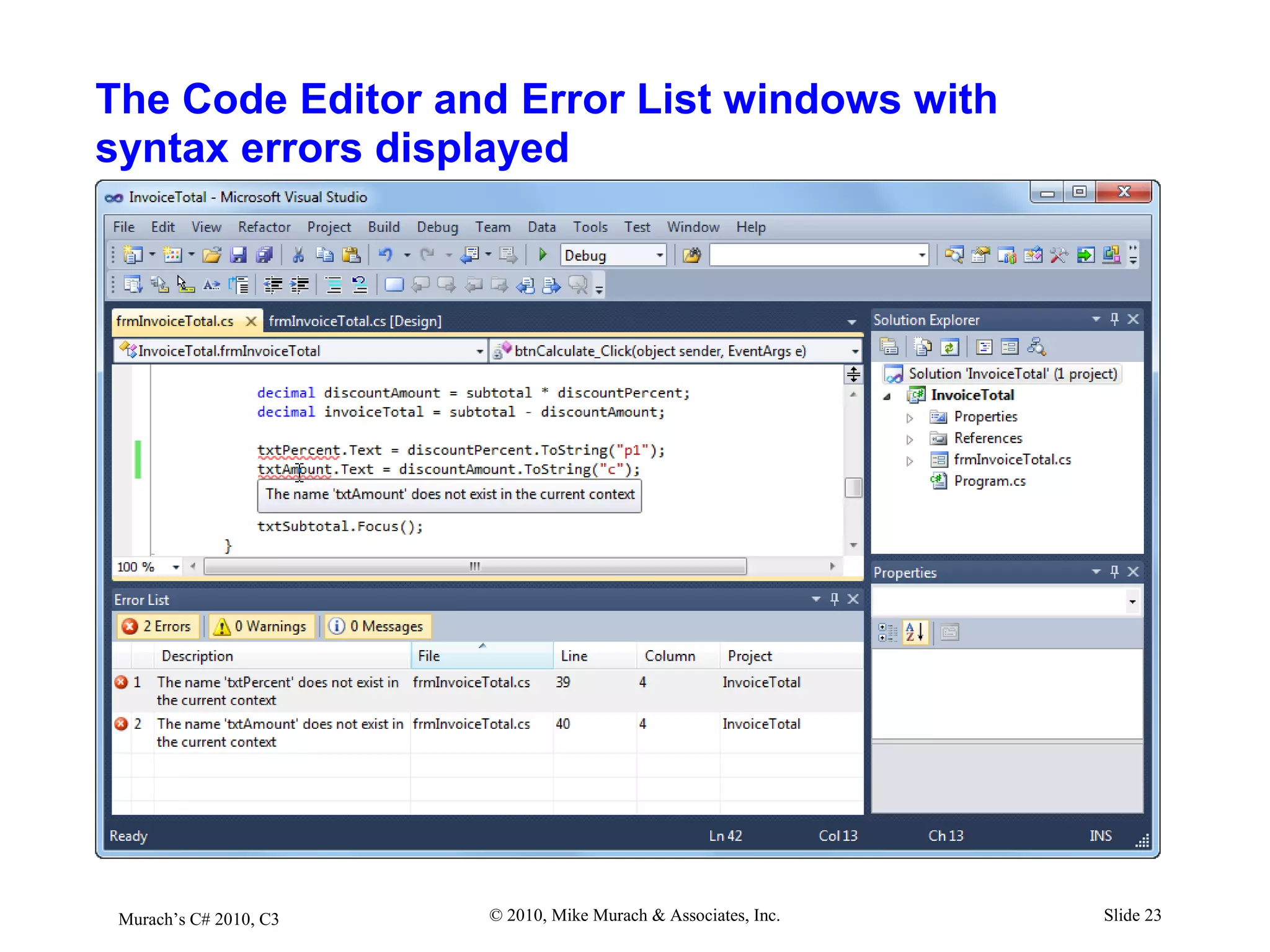

The Code Editor and Error List windows with
syntax errors displayed

24. Slide 24

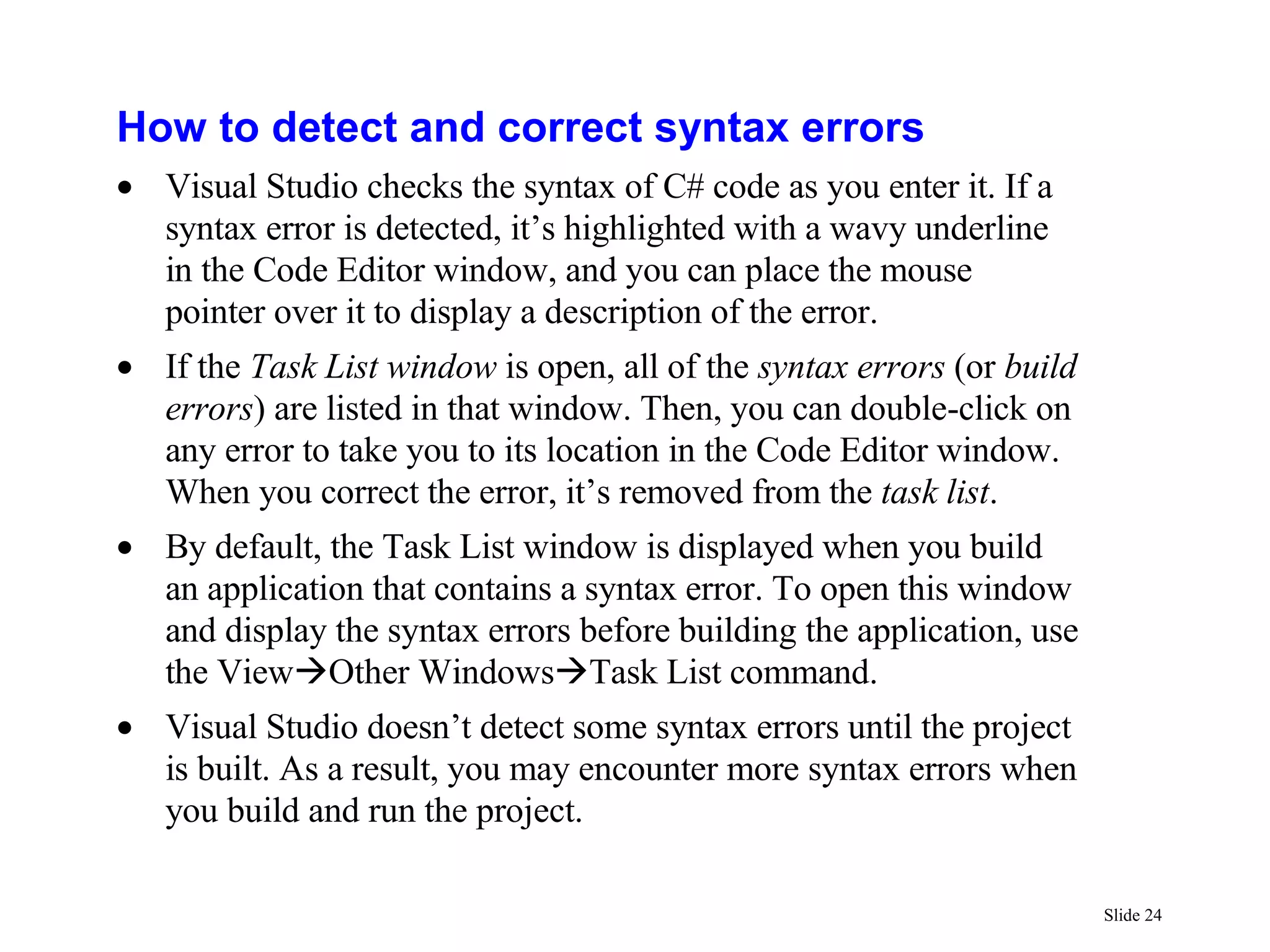

How to detect and correct syntax errors
• Visual Studio checks the syntax of C# code as you enter it. If a
syntax error is detected, it’s highlighted with a wavy underline
in the Code Editor window, and you can place the mouse
pointer over it to display a description of the error.
• If the Task List window is open, all of the syntax errors (or build
errors) are listed in that window. Then, you can double-click on
any error to take you to its location in the Code Editor window.
When you correct the error, it’s removed from the task list.
• By default, the Task List window is displayed when you build
an application that contains a syntax error. To open this window
and display the syntax errors before building the application, use
the ViewOther WindowsTask List command.
• Visual Studio doesn’t detect some syntax errors until the project
is built. As a result, you may encounter more syntax errors when
you build and run the project.

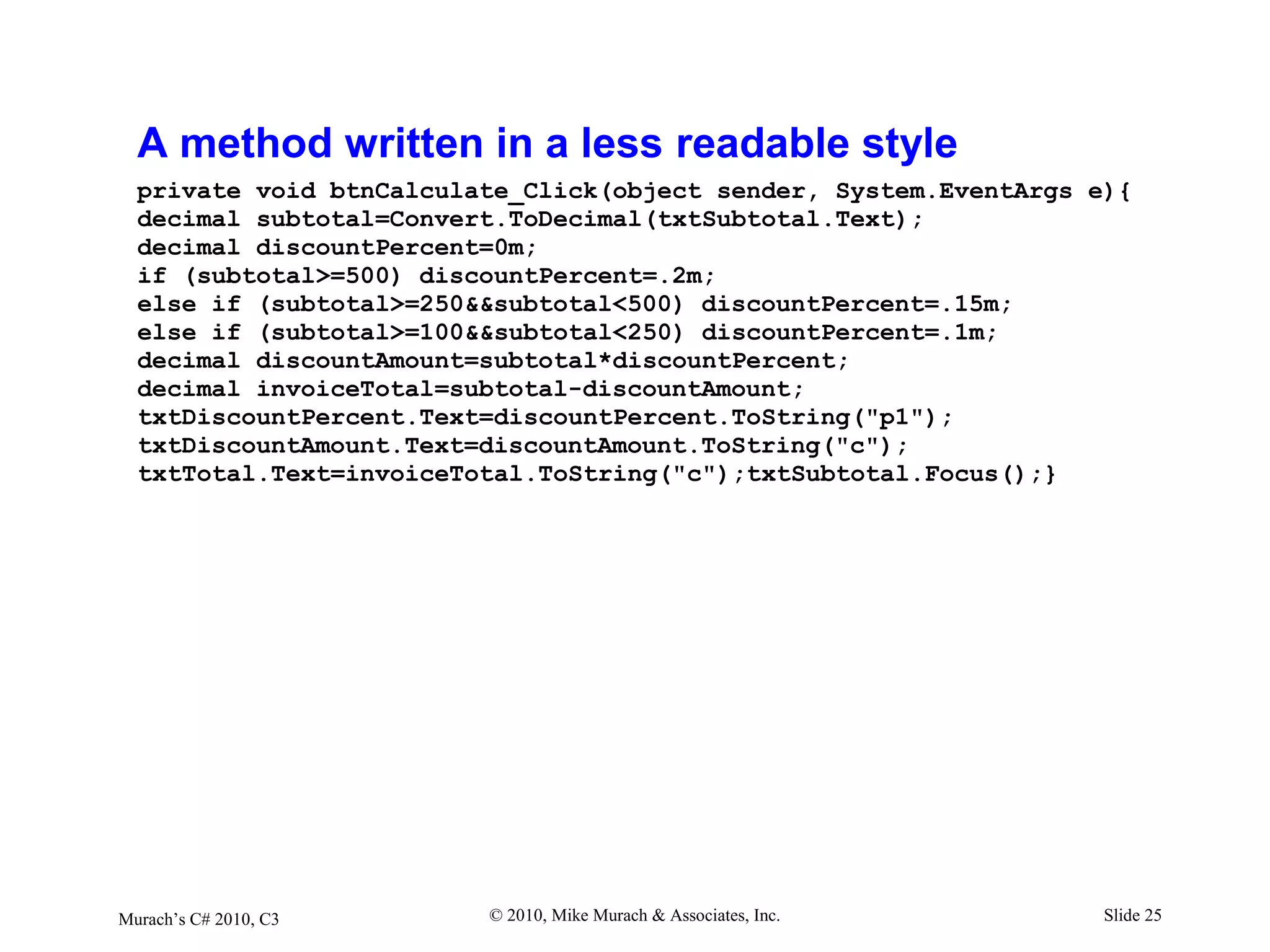

25. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 25
A method written in a less readable style
private void btnCalculate_Click(object sender, System.EventArgs e){
decimal subtotal=Convert.ToDecimal(txtSubtotal.Text);
decimal discountPercent=0m;
if (subtotal>=500) discountPercent=.2m;
else if (subtotal>=250&&subtotal<500) discountPercent=.15m;
else if (subtotal>=100&&subtotal<250) discountPercent=.1m;
decimal discountAmount=subtotal*discountPercent;
decimal invoiceTotal=subtotal-discountAmount;
txtDiscountPercent.Text=discountPercent.ToString("p1");
txtDiscountAmount.Text=discountAmount.ToString("c");
txtTotal.Text=invoiceTotal.ToString("c");txtSubtotal.Focus();}

26. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 26

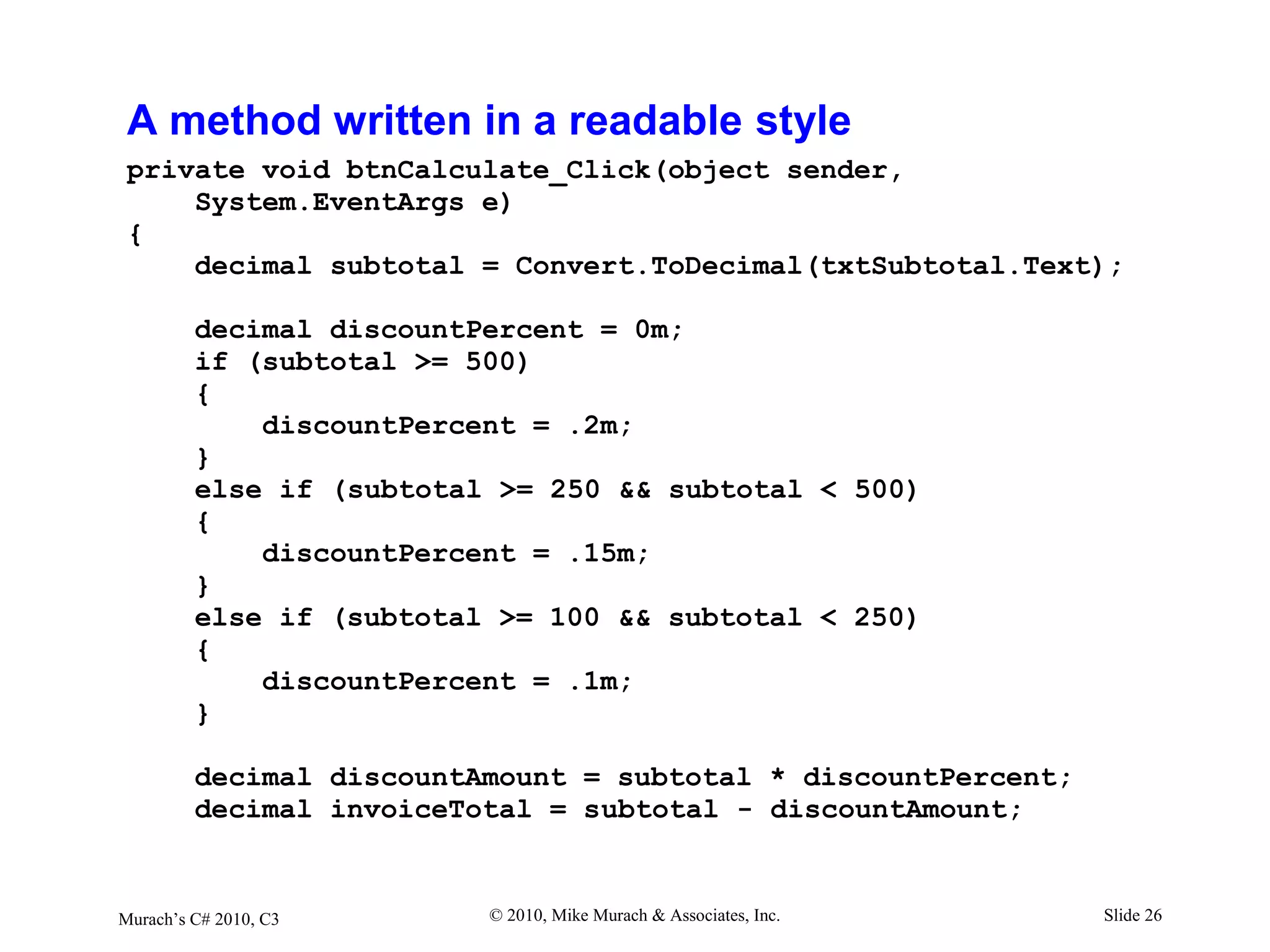

A method written in a readable style
private void btnCalculate_Click(object sender,
System.EventArgs e)
{
decimal subtotal = Convert.ToDecimal(txtSubtotal.Text);
decimal discountPercent = 0m;
if (subtotal >= 500)
{
discountPercent = .2m;
}
else if (subtotal >= 250 && subtotal < 500)
{
discountPercent = .15m;
}
else if (subtotal >= 100 && subtotal < 250)
{
discountPercent = .1m;
}
decimal discountAmount = subtotal * discountPercent;
decimal invoiceTotal = subtotal - discountAmount;

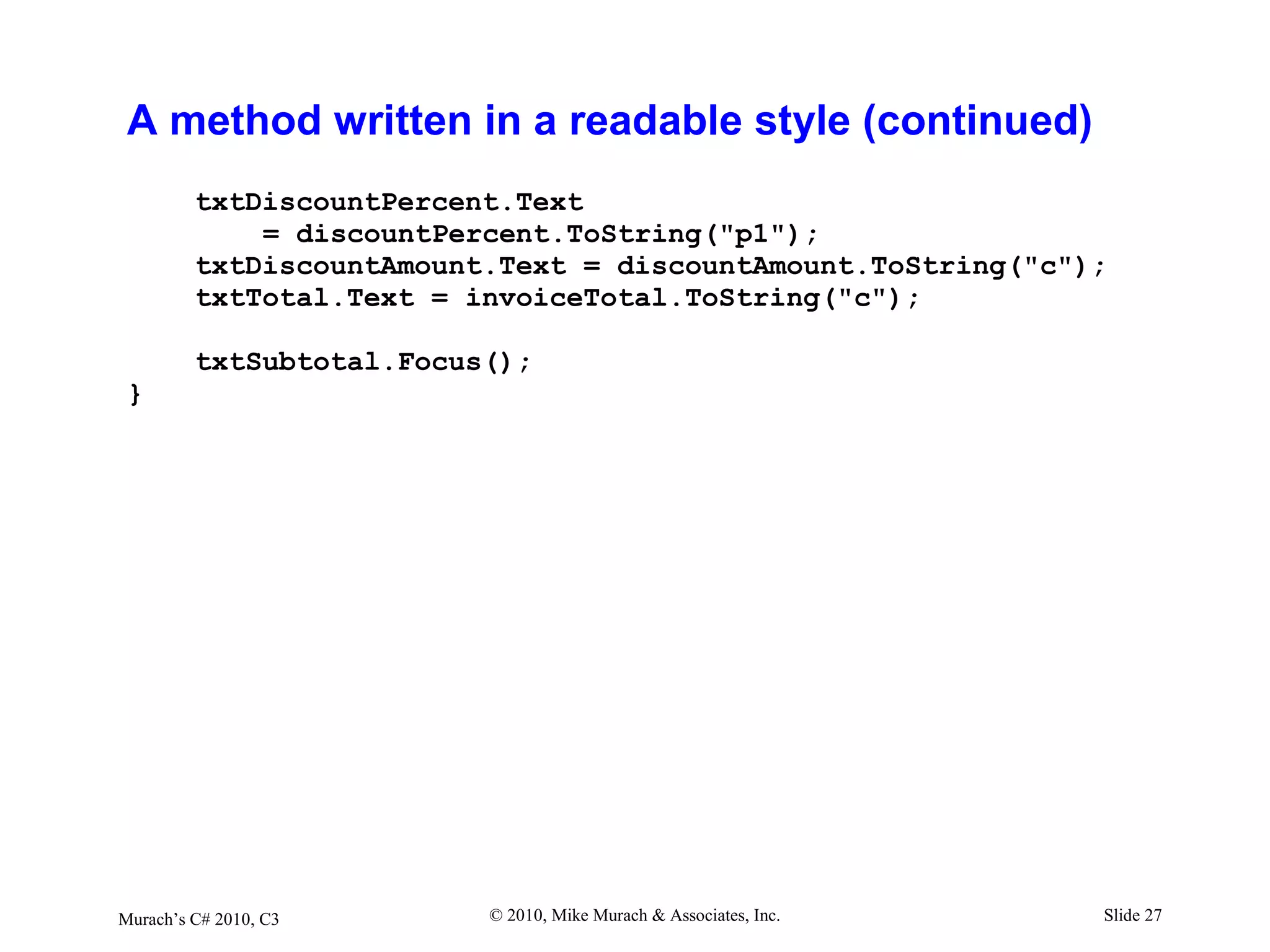

27. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 27
A method written in a readable style (continued)
txtDiscountPercent.Text
= discountPercent.ToString("p1");
txtDiscountAmount.Text = discountAmount.ToString("c");
txtTotal.Text = invoiceTotal.ToString("c");
txtSubtotal.Focus();
}

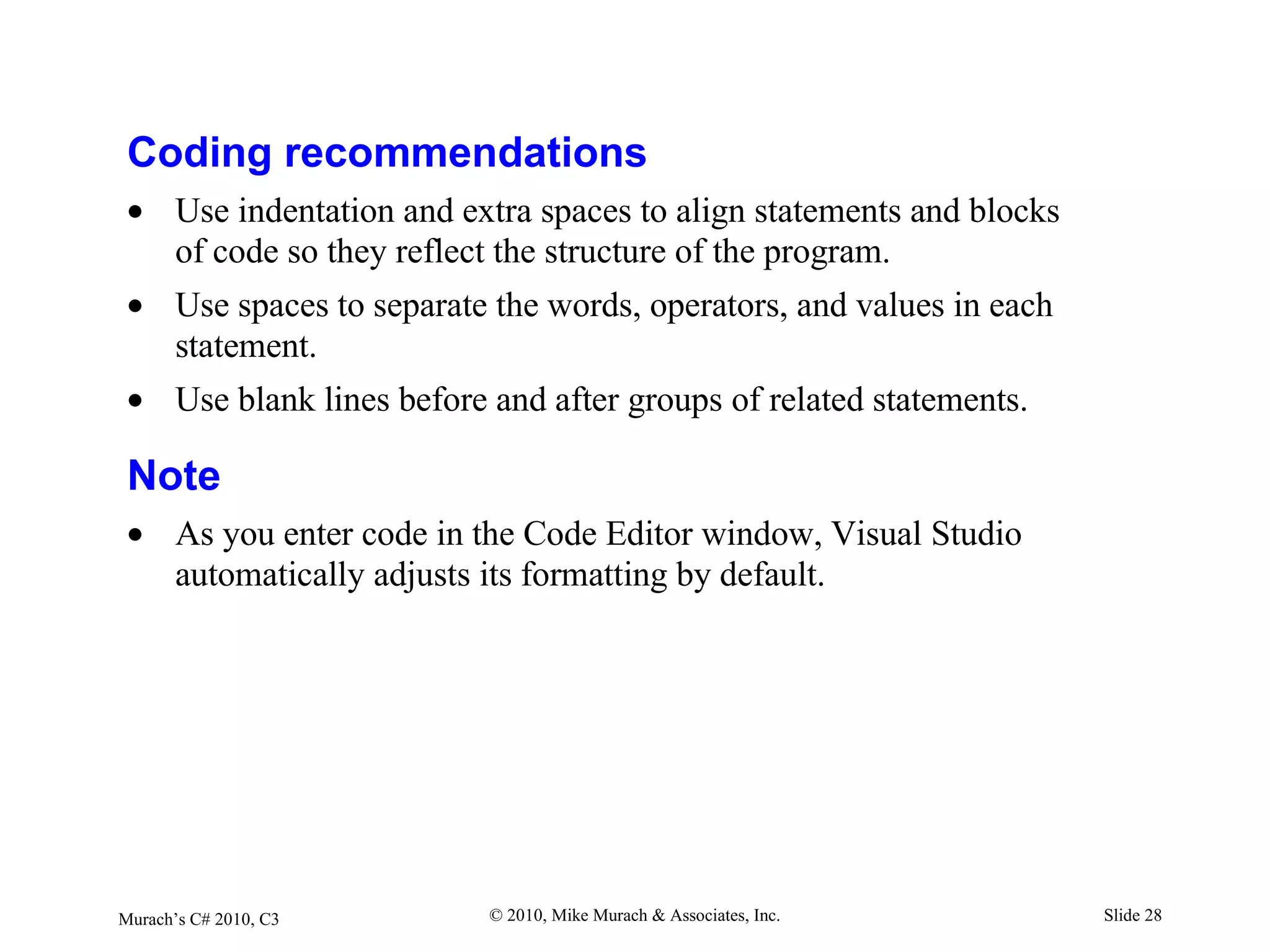

28. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 28
Coding recommendations
• Use indentation and extra spaces to align statements and blocks
of code so they reflect the structure of the program.
• Use spaces to separate the words, operators, and values in each
statement.
• Use blank lines before and after groups of related statements.
Note
• As you enter code in the Code Editor window, Visual Studio
automatically adjusts its formatting by default.

29. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 29

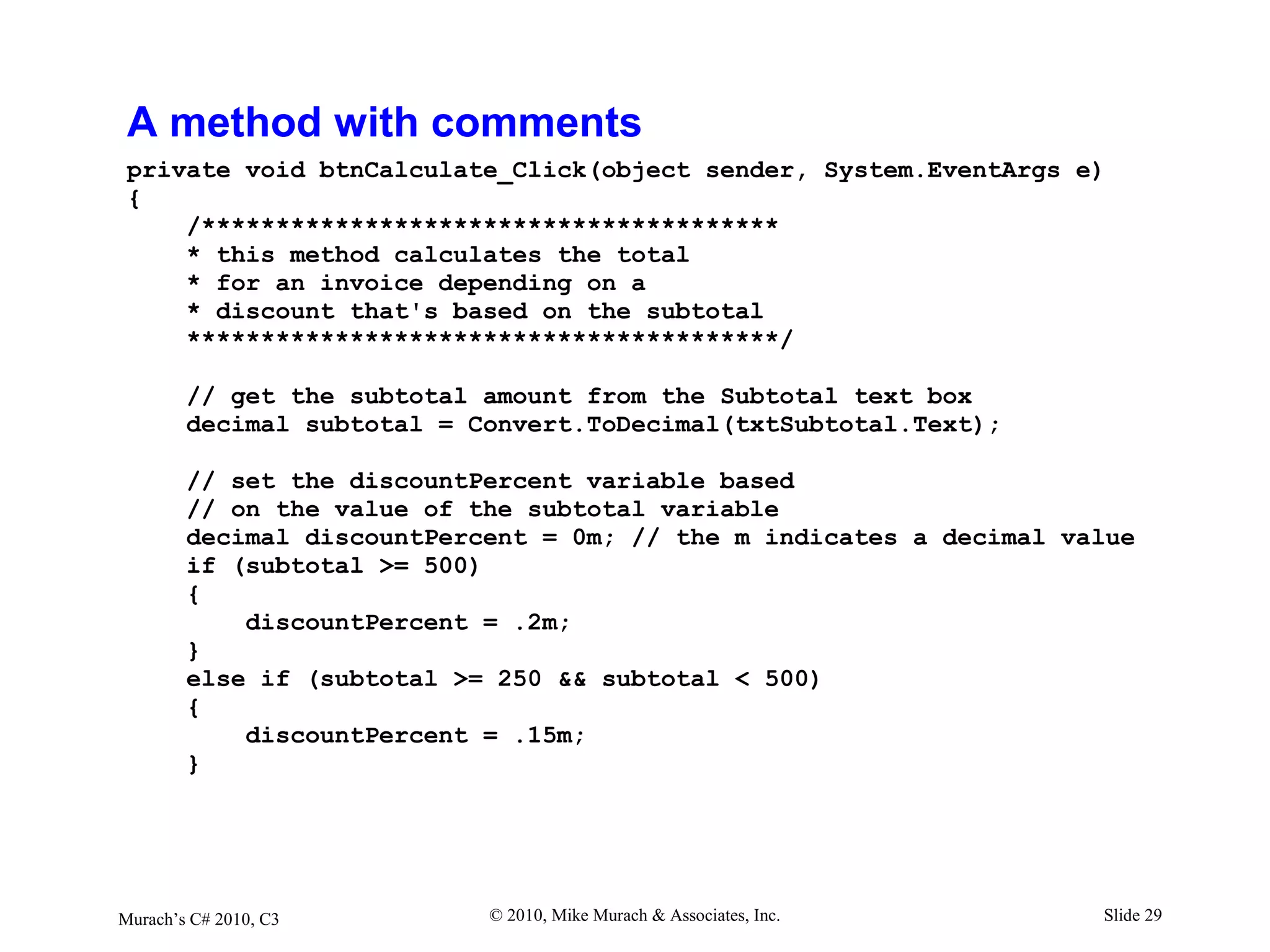

A method with comments
private void btnCalculate_Click(object sender, System.EventArgs e)
{
/***************************************
* this method calculates the total
* for an invoice depending on a
* discount that's based on the subtotal
****************************************/
// get the subtotal amount from the Subtotal text box
decimal subtotal = Convert.ToDecimal(txtSubtotal.Text);
// set the discountPercent variable based
// on the value of the subtotal variable
decimal discountPercent = 0m; // the m indicates a decimal value
if (subtotal >= 500)
{
discountPercent = .2m;
}
else if (subtotal >= 250 && subtotal < 500)
{
discountPercent = .15m;
}

30. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 30

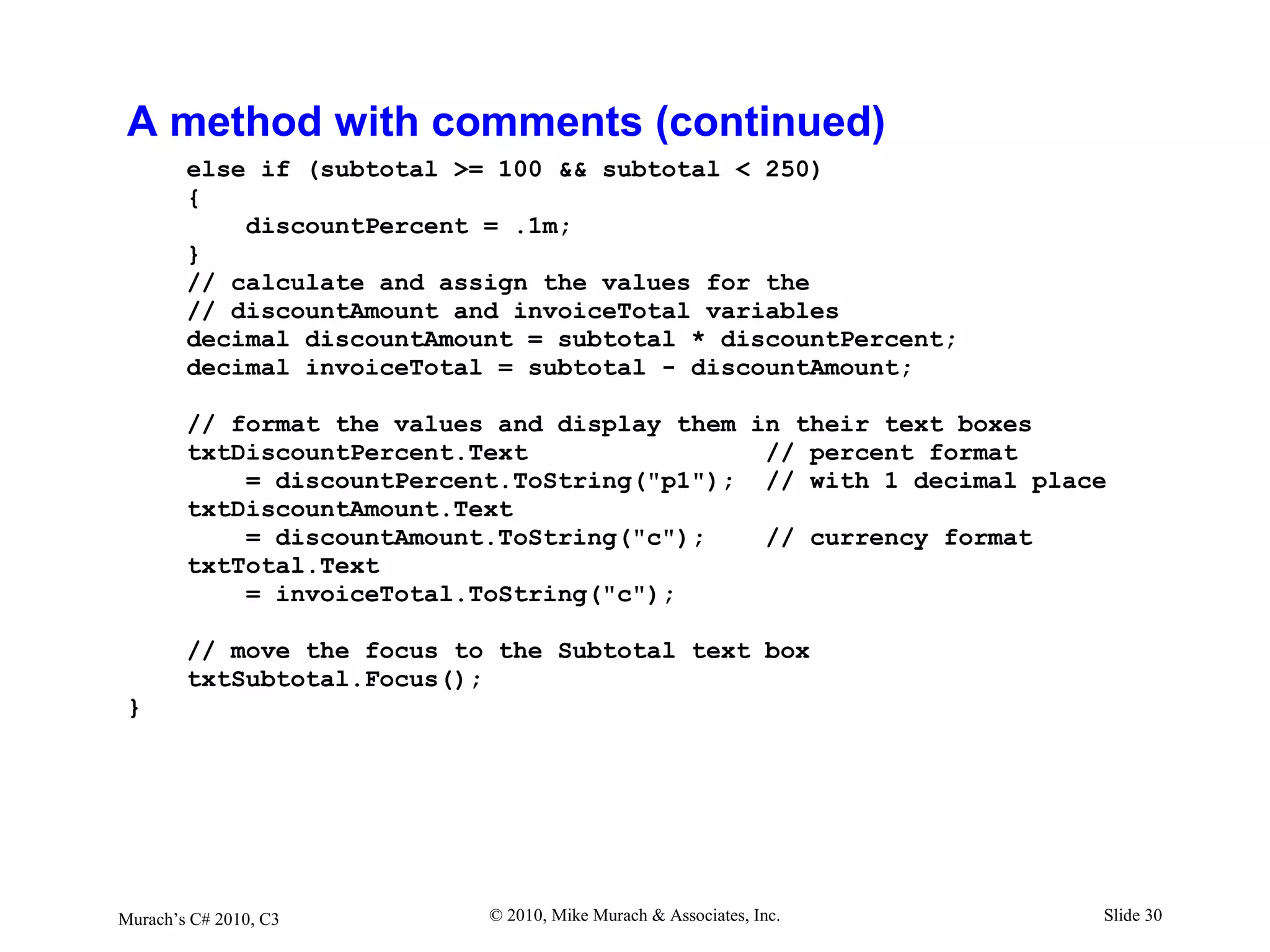

A method with comments (continued)
else if (subtotal >= 100 && subtotal < 250)
{
discountPercent = .1m;
}
// calculate and assign the values for the
// discountAmount and invoiceTotal variables
decimal discountAmount = subtotal * discountPercent;
decimal invoiceTotal = subtotal - discountAmount;
// format the values and display them in their text boxes
txtDiscountPercent.Text // percent format
= discountPercent.ToString("p1"); // with 1 decimal place
txtDiscountAmount.Text
= discountAmount.ToString("c"); // currency format
txtTotal.Text
= invoiceTotal.ToString("c");
// move the focus to the Subtotal text box
txtSubtotal.Focus();
}

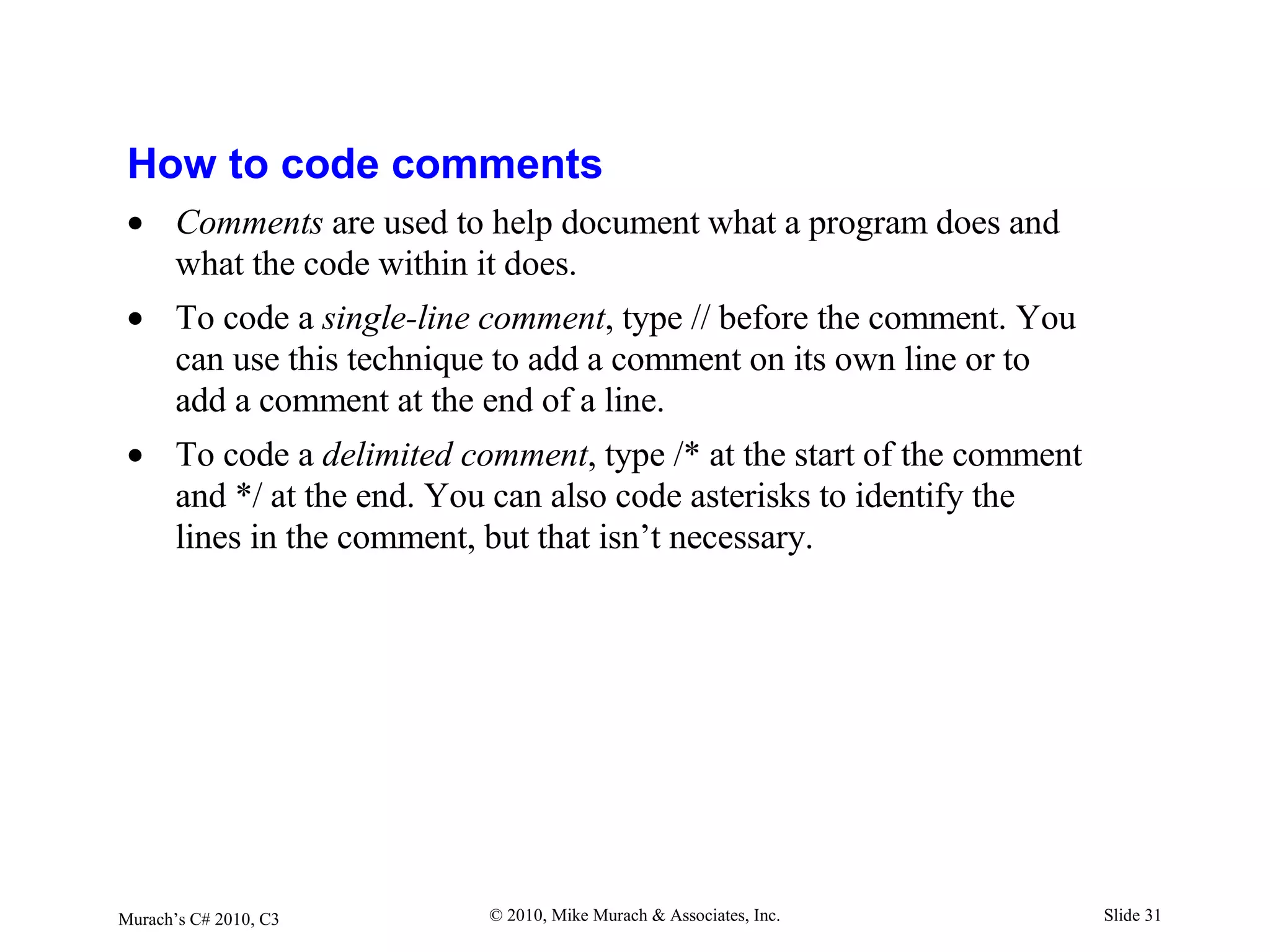

31. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 31
How to code comments
• Comments are used to help document what a program does and
what the code within it does.
• To code a single-line comment, type // before the comment. You
can use this technique to add a comment on its own line or to
add a comment at the end of a line.
• To code a delimited comment, type /* at the start of the comment
and */ at the end. You can also code asterisks to identify the
lines in the comment, but that isn’t necessary.

32. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 32

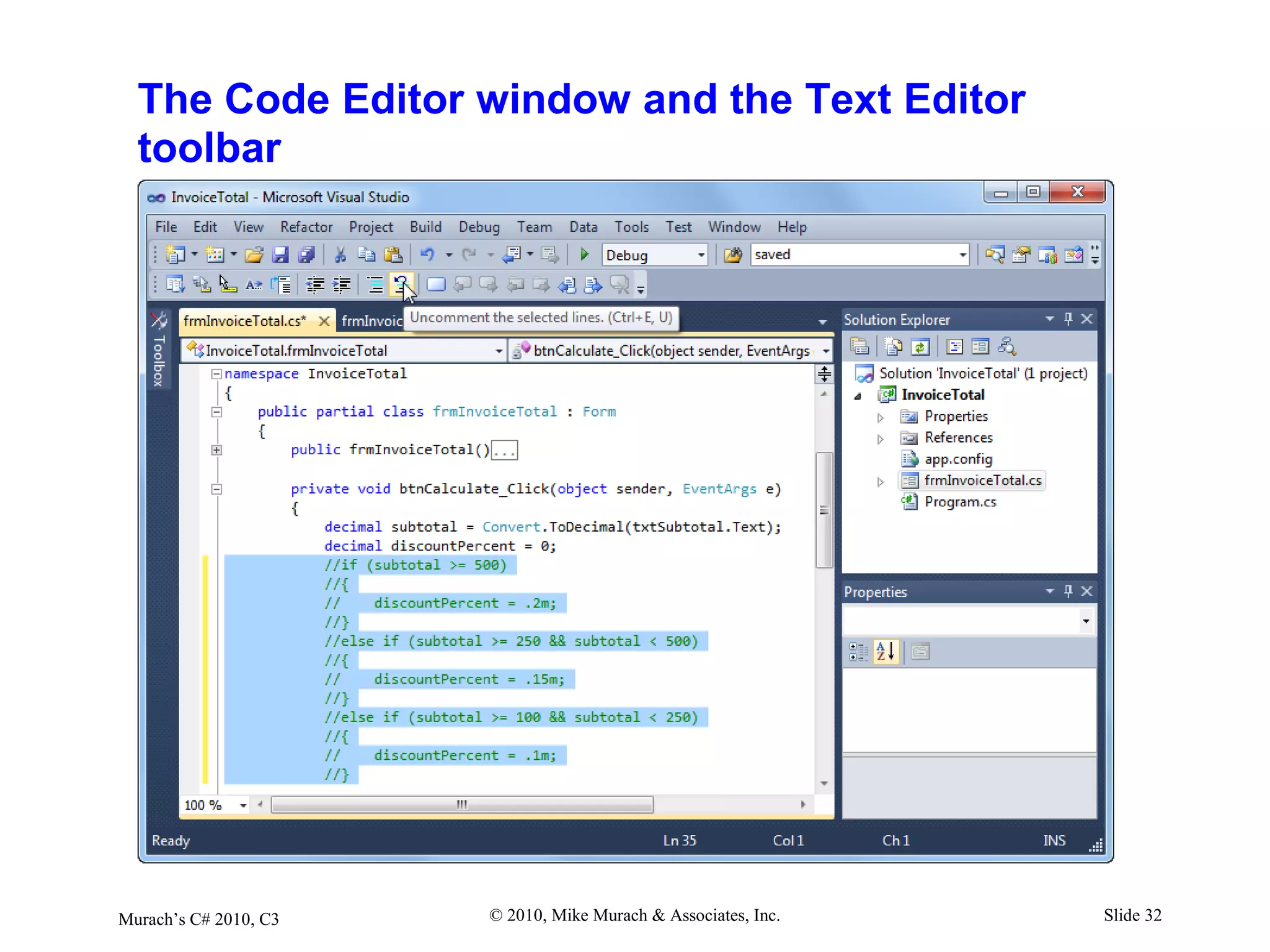

The Code Editor window and the Text Editor
toolbar

33. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 33

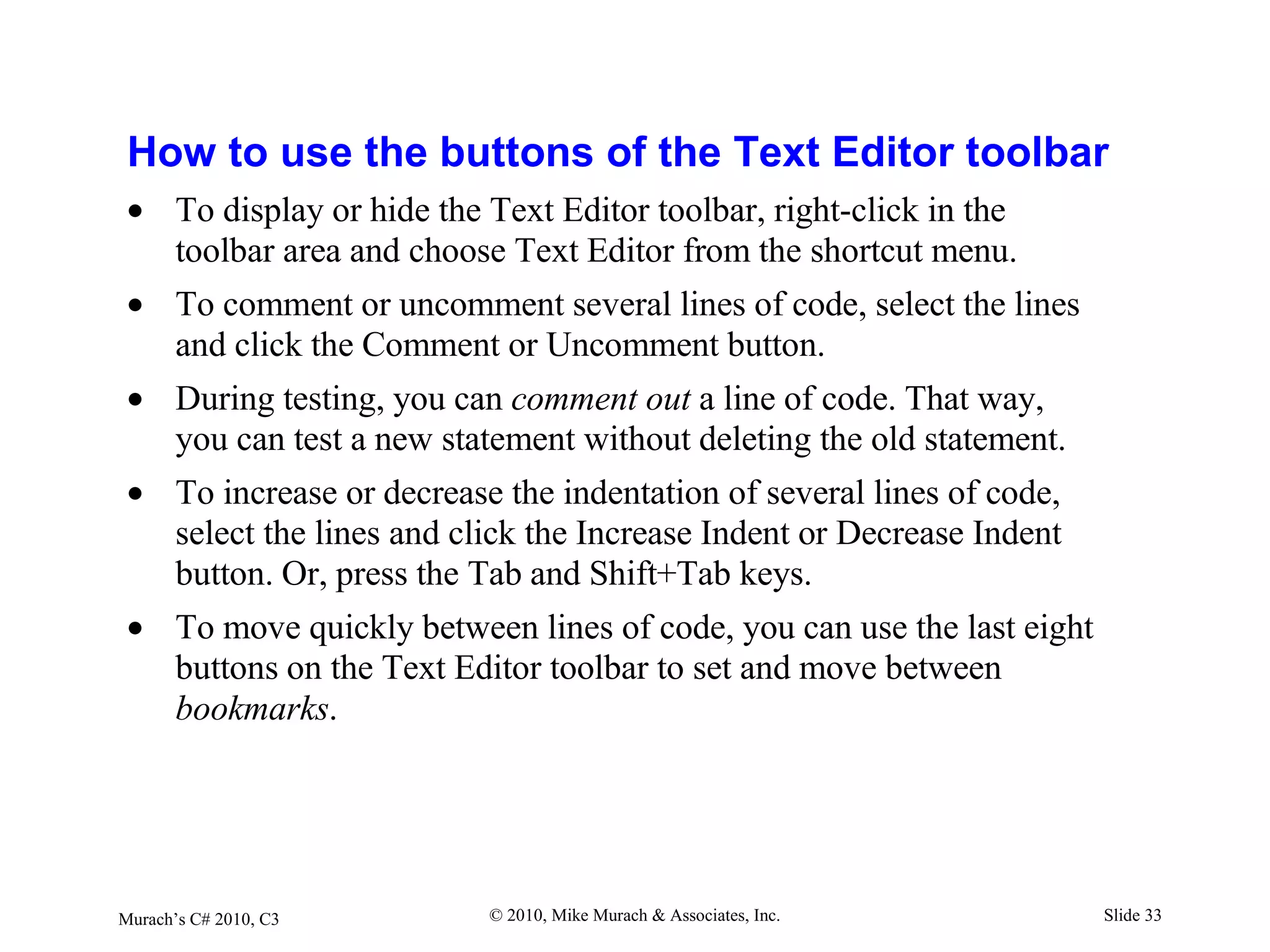

How to use the buttons of the Text Editor toolbar
• To display or hide the Text Editor toolbar, right-click in the
toolbar area and choose Text Editor from the shortcut menu.
• To comment or uncomment several lines of code, select the lines
and click the Comment or Uncomment button.
• During testing, you can comment out a line of code. That way,
you can test a new statement without deleting the old statement.
• To increase or decrease the indentation of several lines of code,
select the lines and click the Increase Indent or Decrease Indent
button. Or, press the Tab and Shift+Tab keys.
• To move quickly between lines of code, you can use the last eight
buttons on the Text Editor toolbar to set and move between
bookmarks.

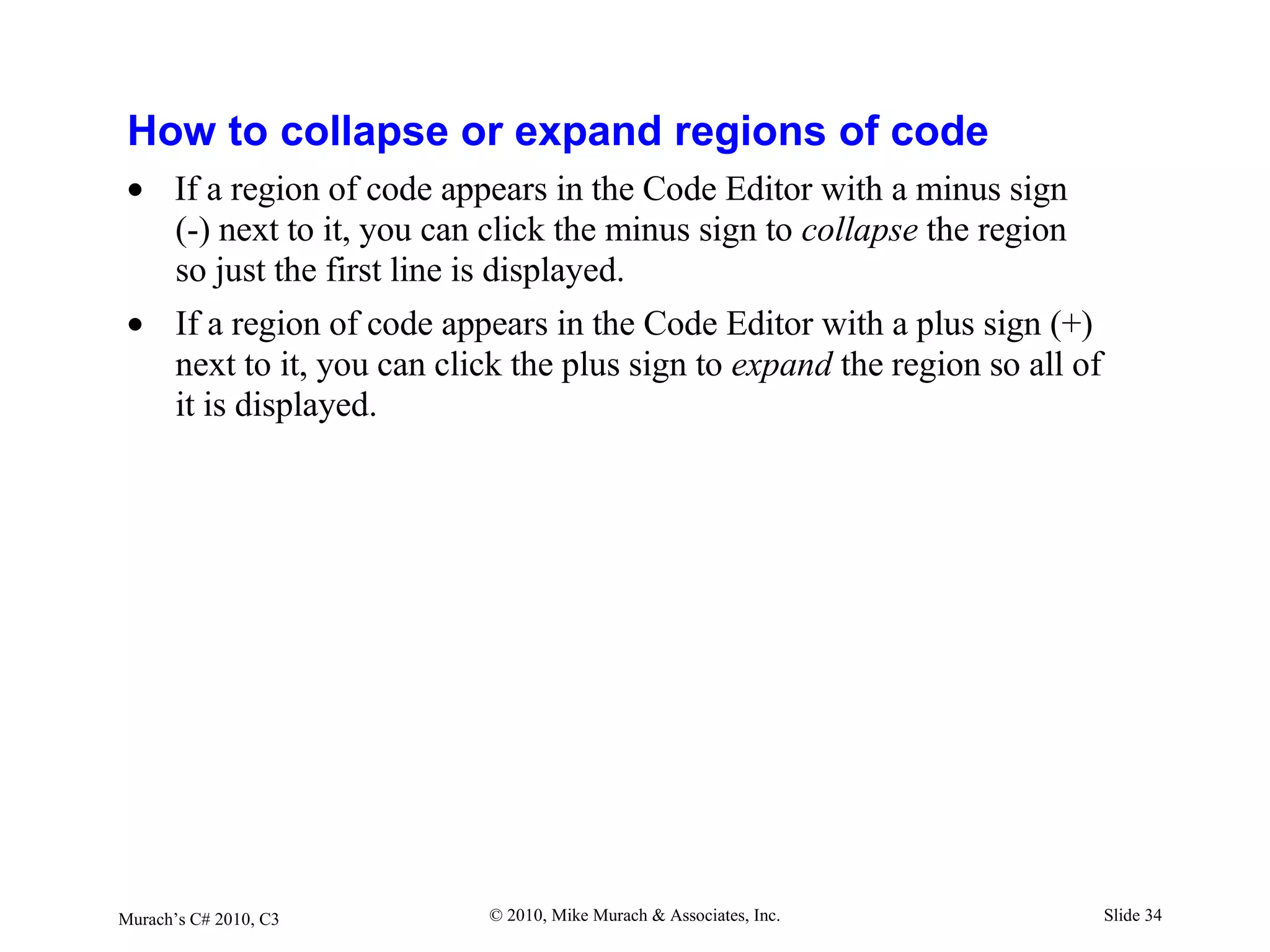

34. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 34
How to collapse or expand regions of code
• If a region of code appears in the Code Editor with a minus sign
(-) next to it, you can click the minus sign to collapse the region
so just the first line is displayed.
• If a region of code appears in the Code Editor with a plus sign (+)
next to it, you can click the plus sign to expand the region so all of
it is displayed.

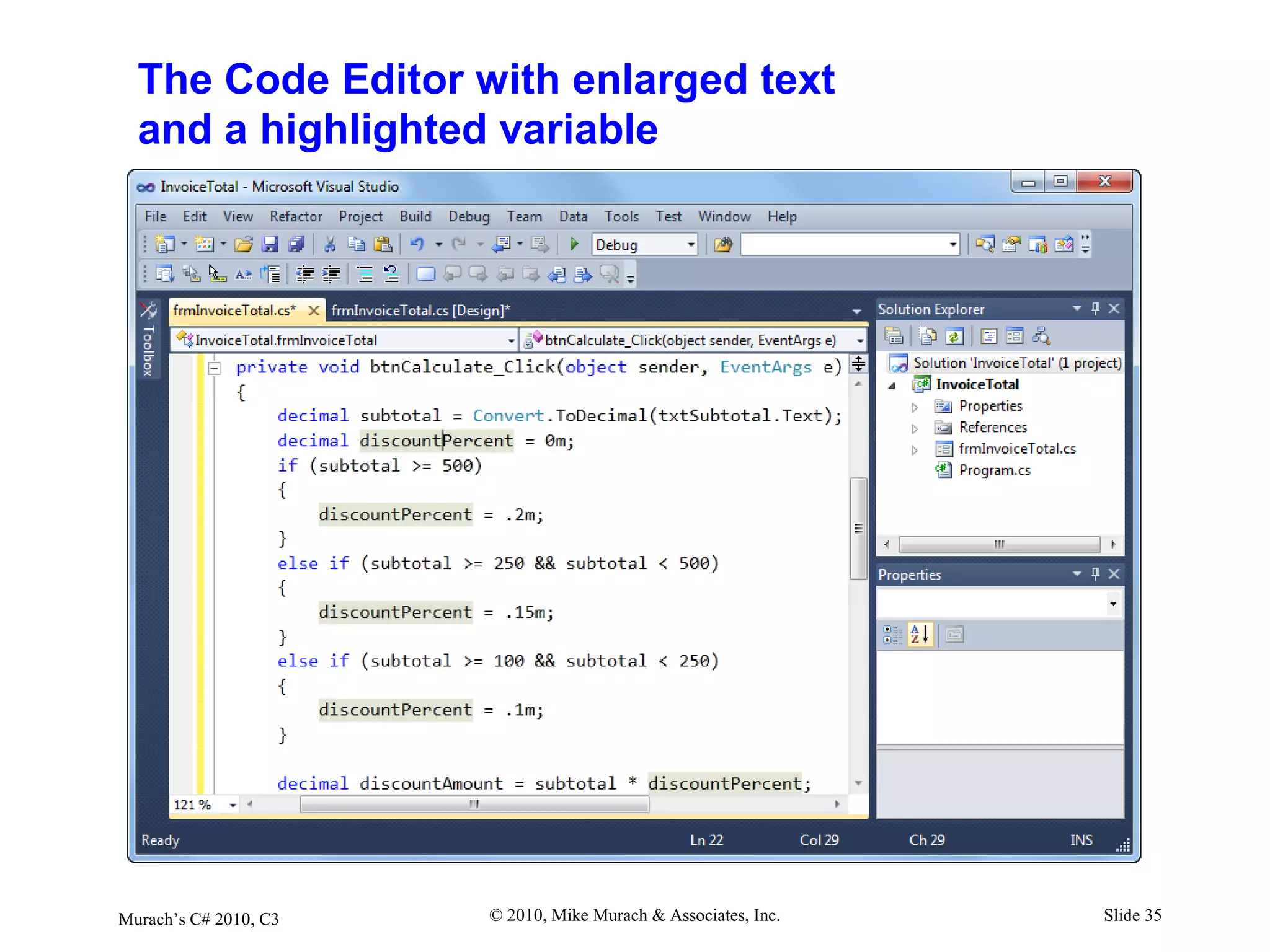

35. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 35
The Code Editor with enlarged text
and a highlighted variable

36. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 36

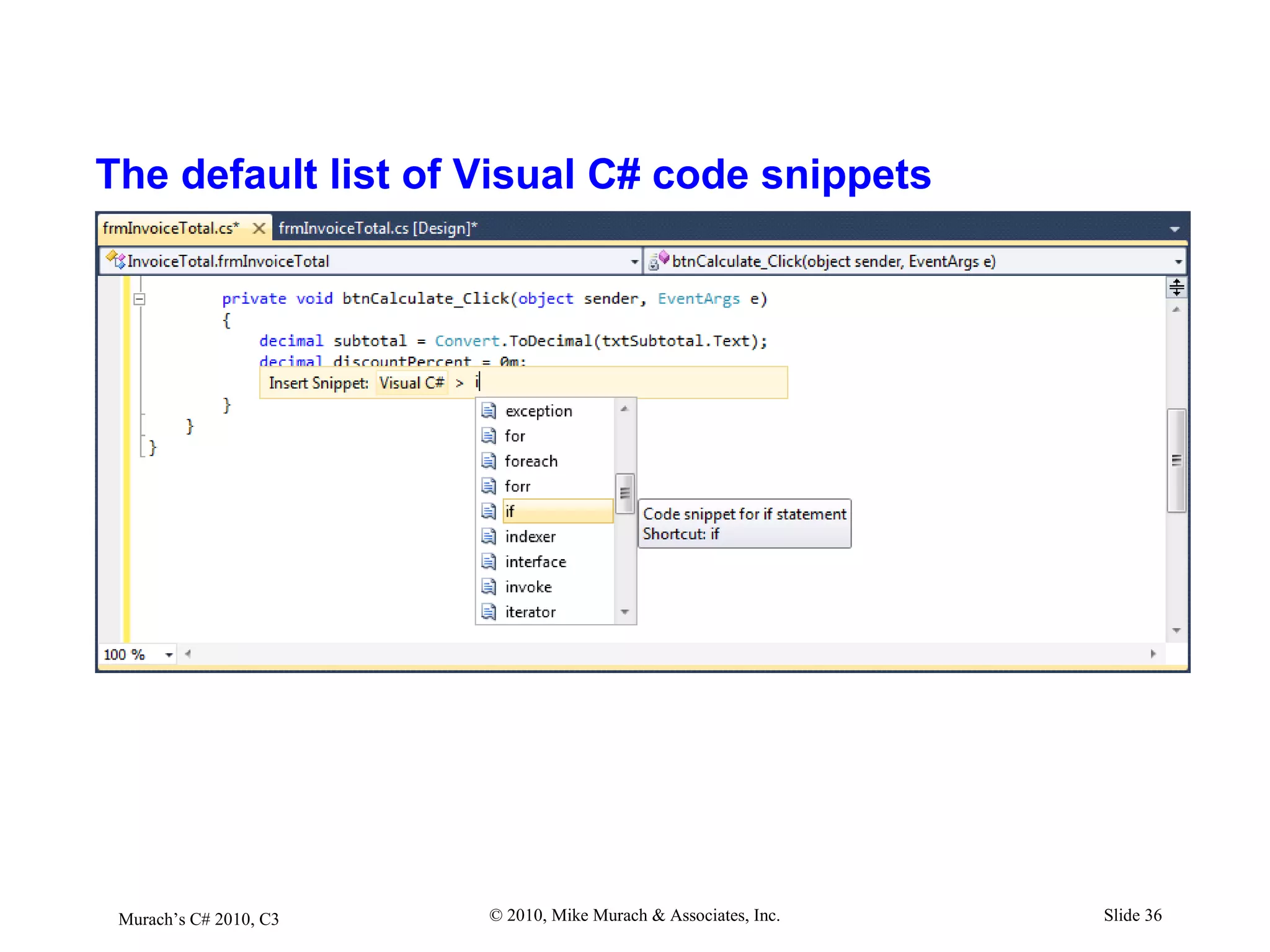

The default list of Visual C# code snippets

37. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 37

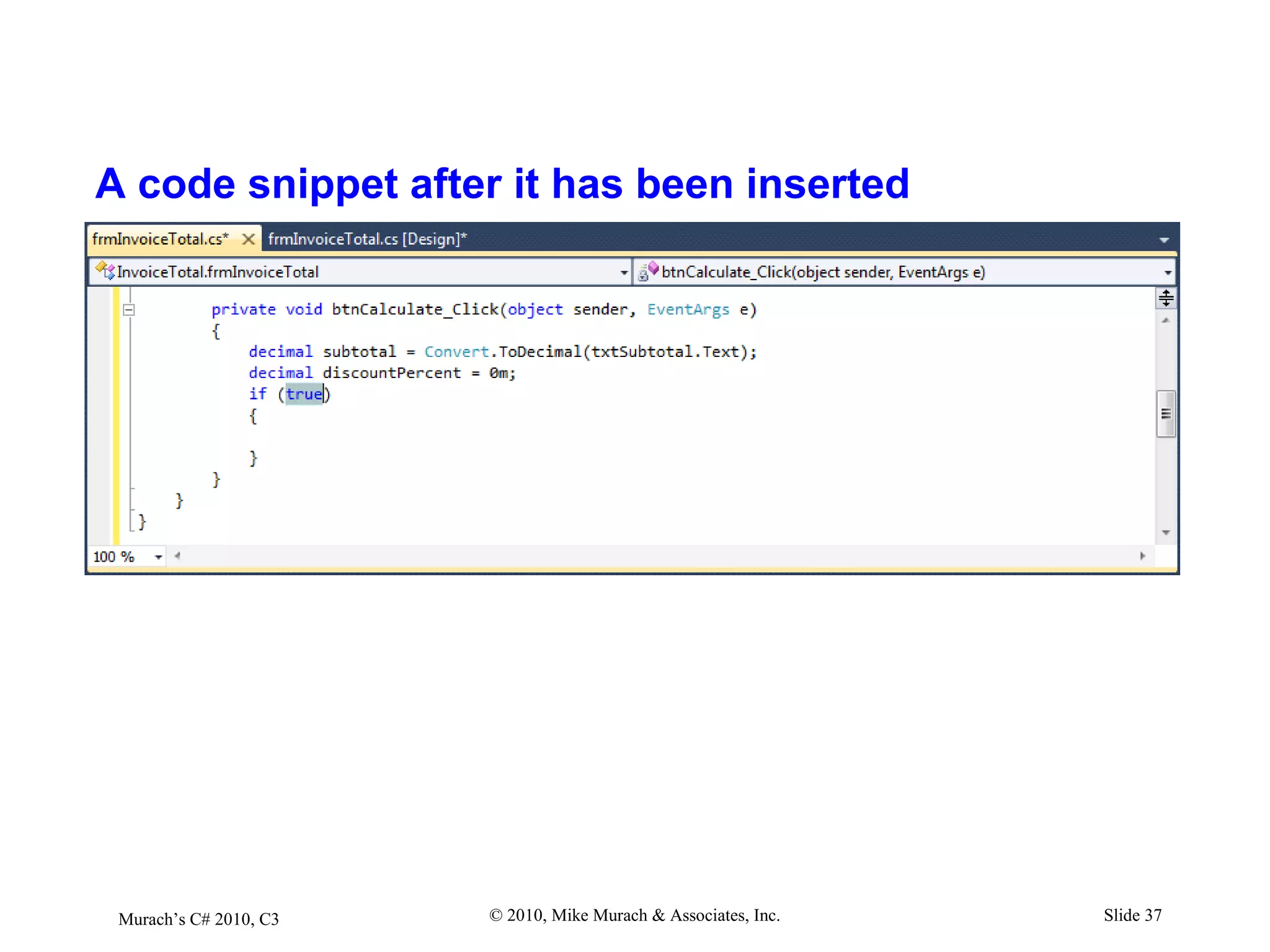

A code snippet after it has been inserted

38. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 38

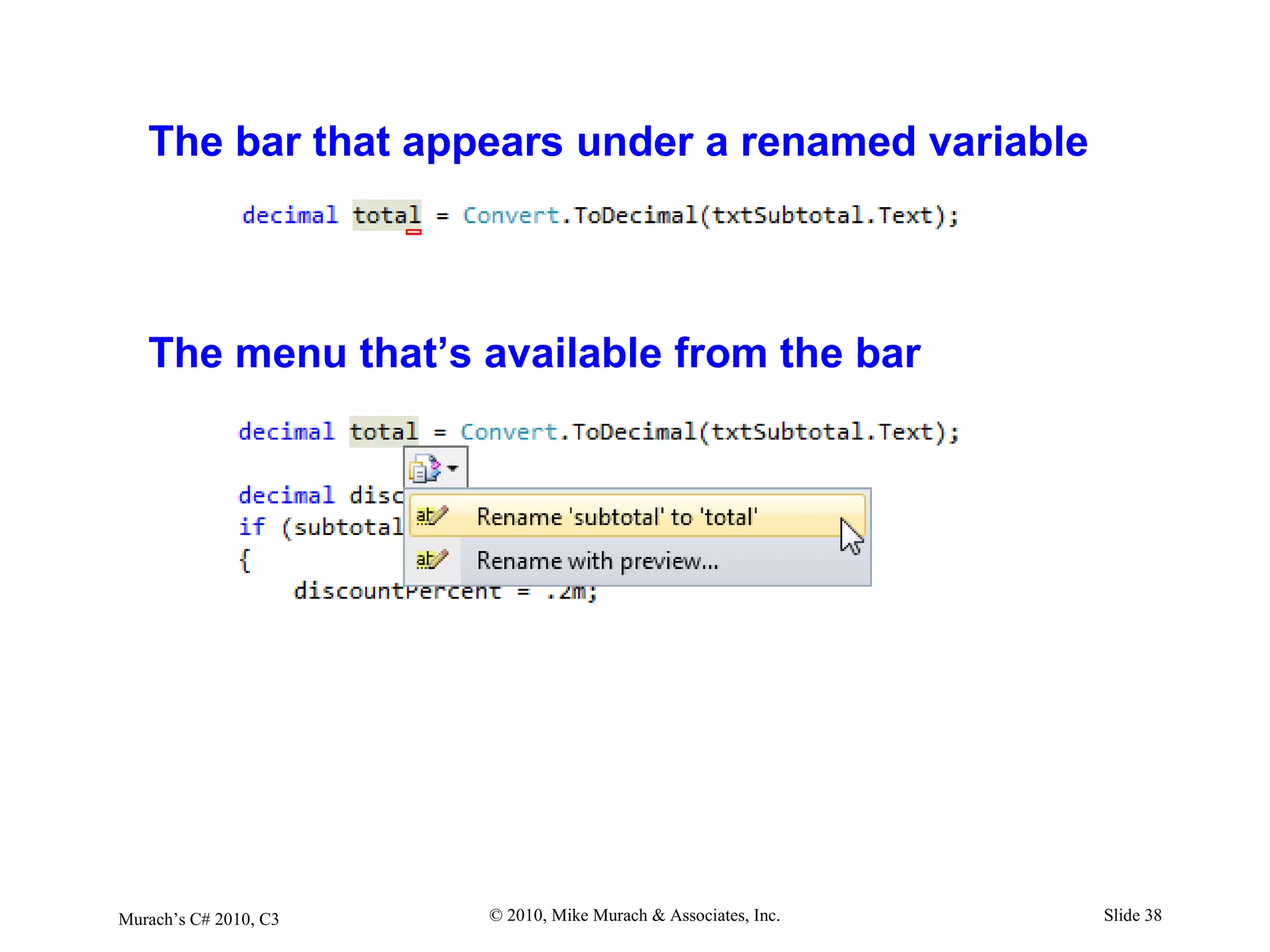

The bar that appears under a renamed variable
The menu that’s available from the bar

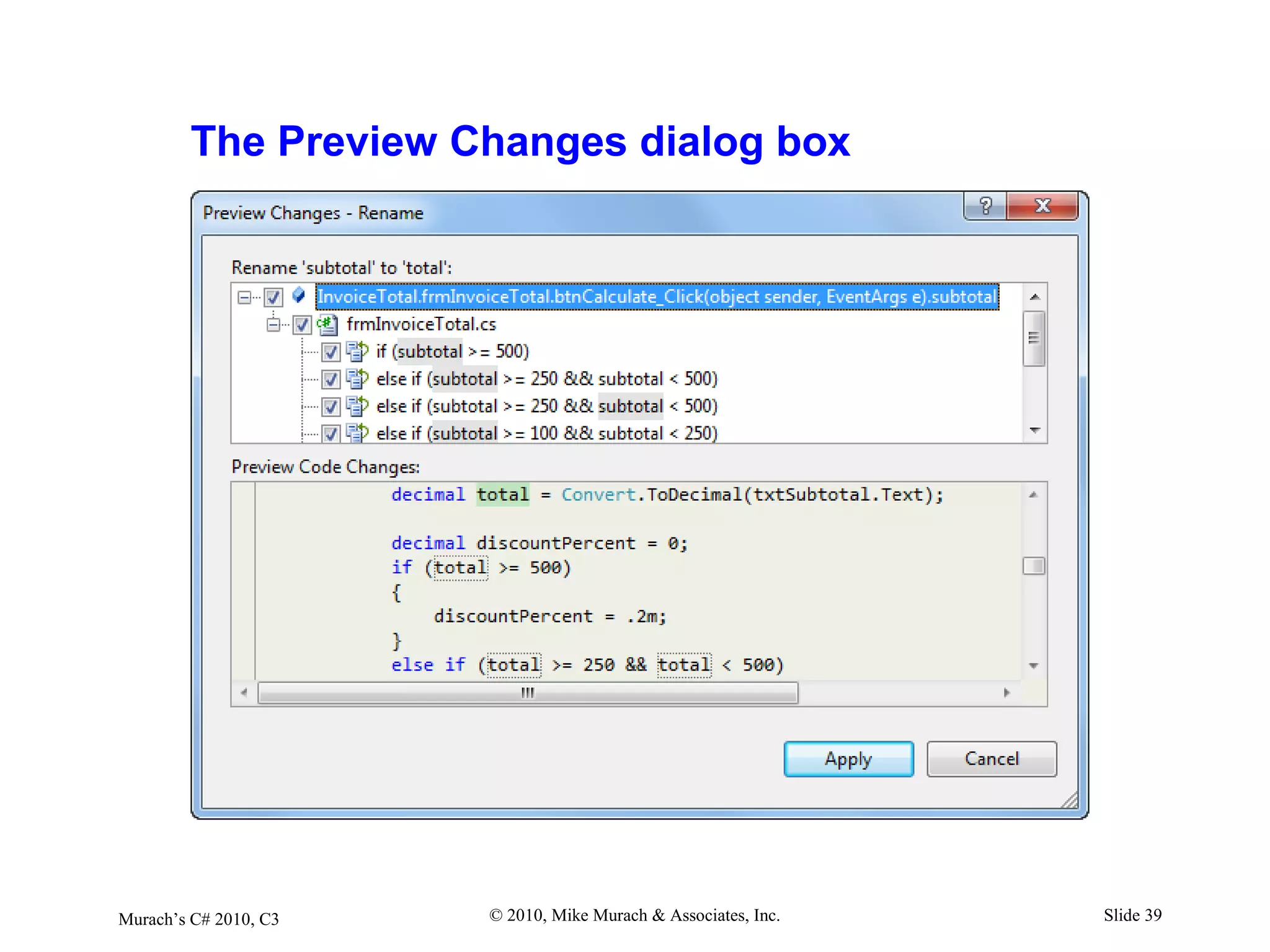

39. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 39
The Preview Changes dialog box

40. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 40

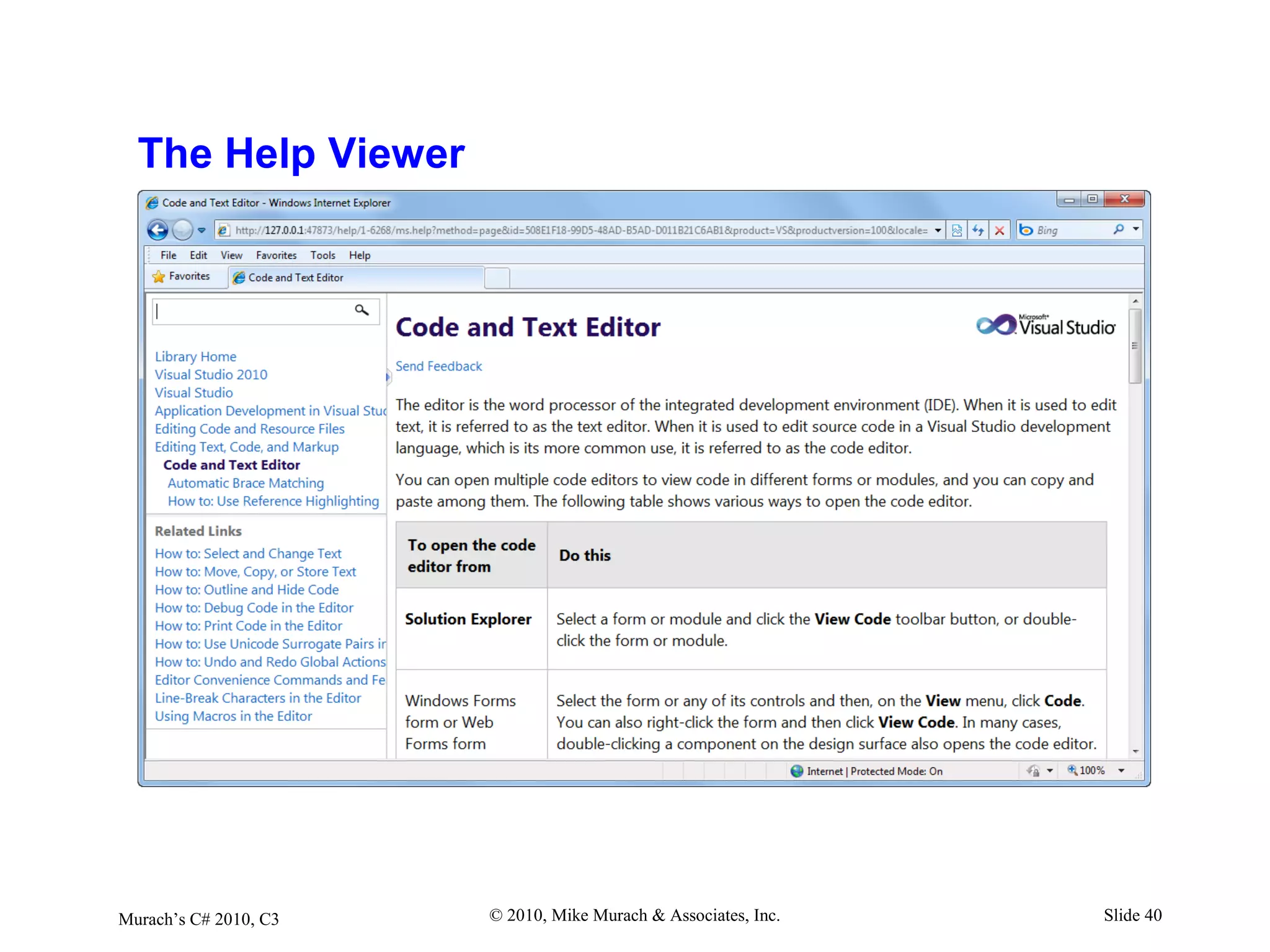

The Help Viewer

41. Slide 41

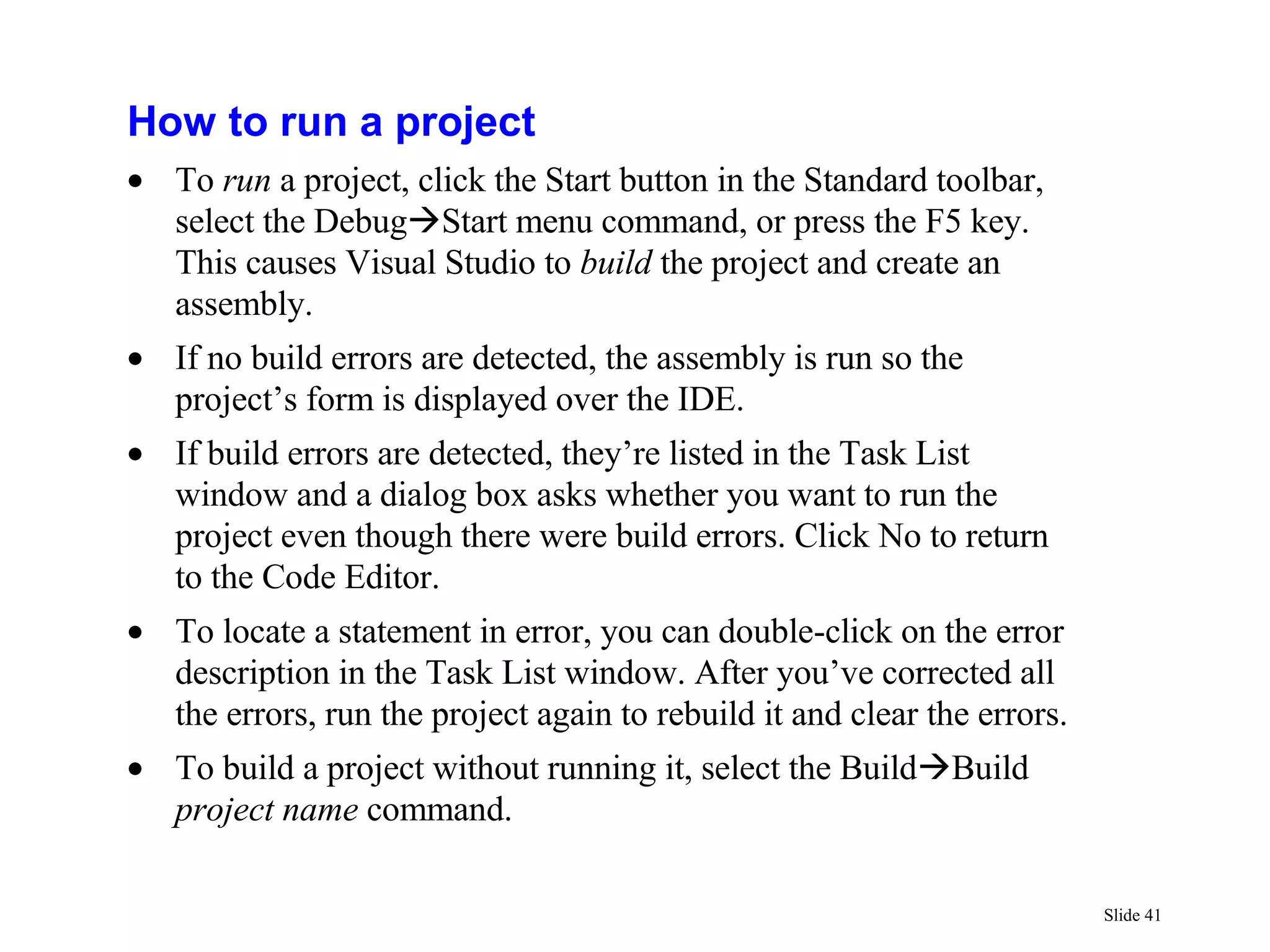

How to run a project
• To run a project, click the Start button in the Standard toolbar,
select the DebugStart menu command, or press the F5 key.
This causes Visual Studio to build the project and create an
assembly.
• If no build errors are detected, the assembly is run so the
project’s form is displayed over the IDE.
• If build errors are detected, they’re listed in the Task List
window and a dialog box asks whether you want to run the
project even though there were build errors. Click No to return
to the Code Editor.
• To locate a statement in error, you can double-click on the error
description in the Task List window. After you’ve corrected all
the errors, run the project again to rebuild it and clear the errors.
• To build a project without running it, select the BuildBuild
project name command.

42. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 42

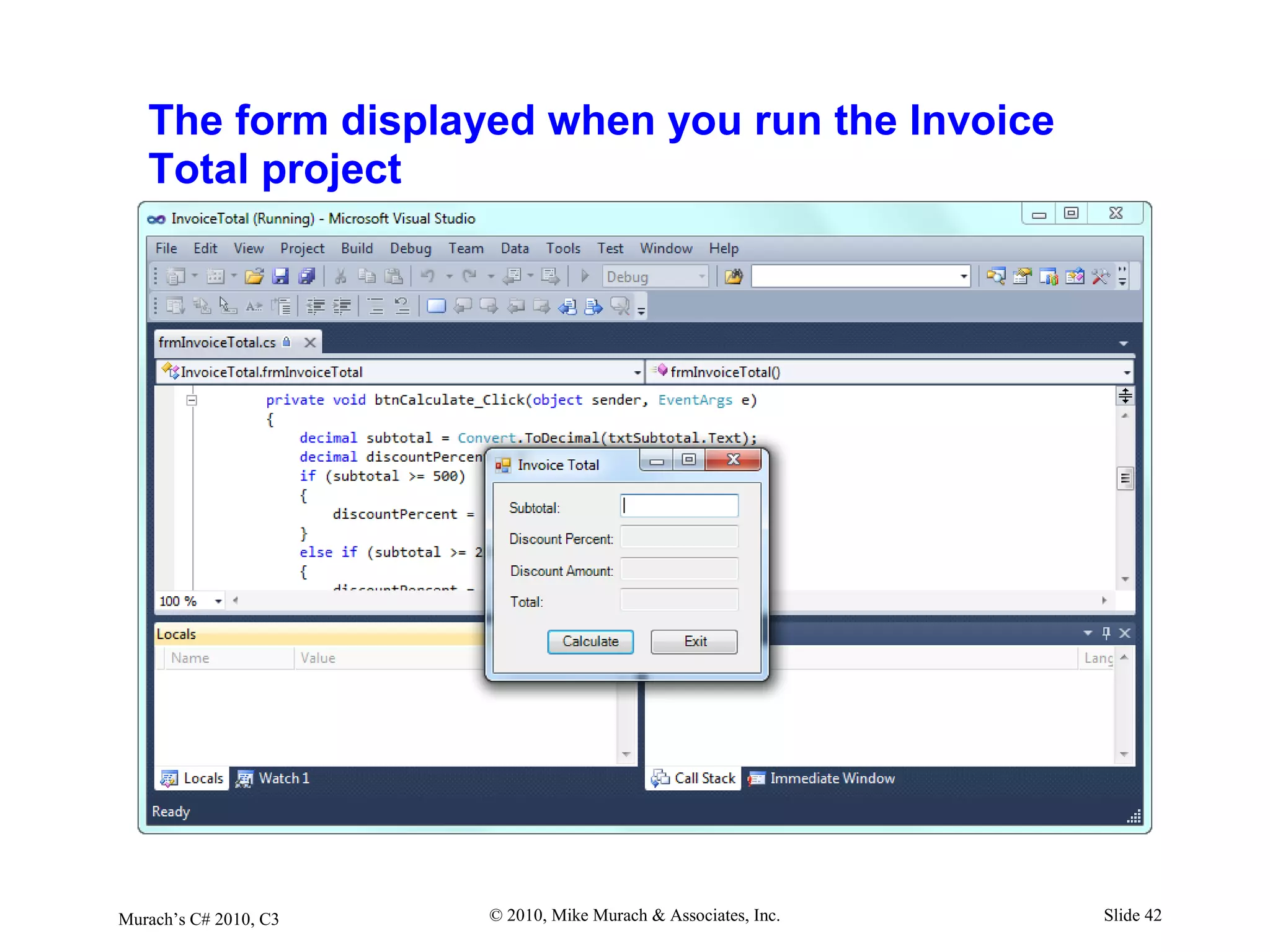

The form displayed when you run the Invoice
Total project

43. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 43

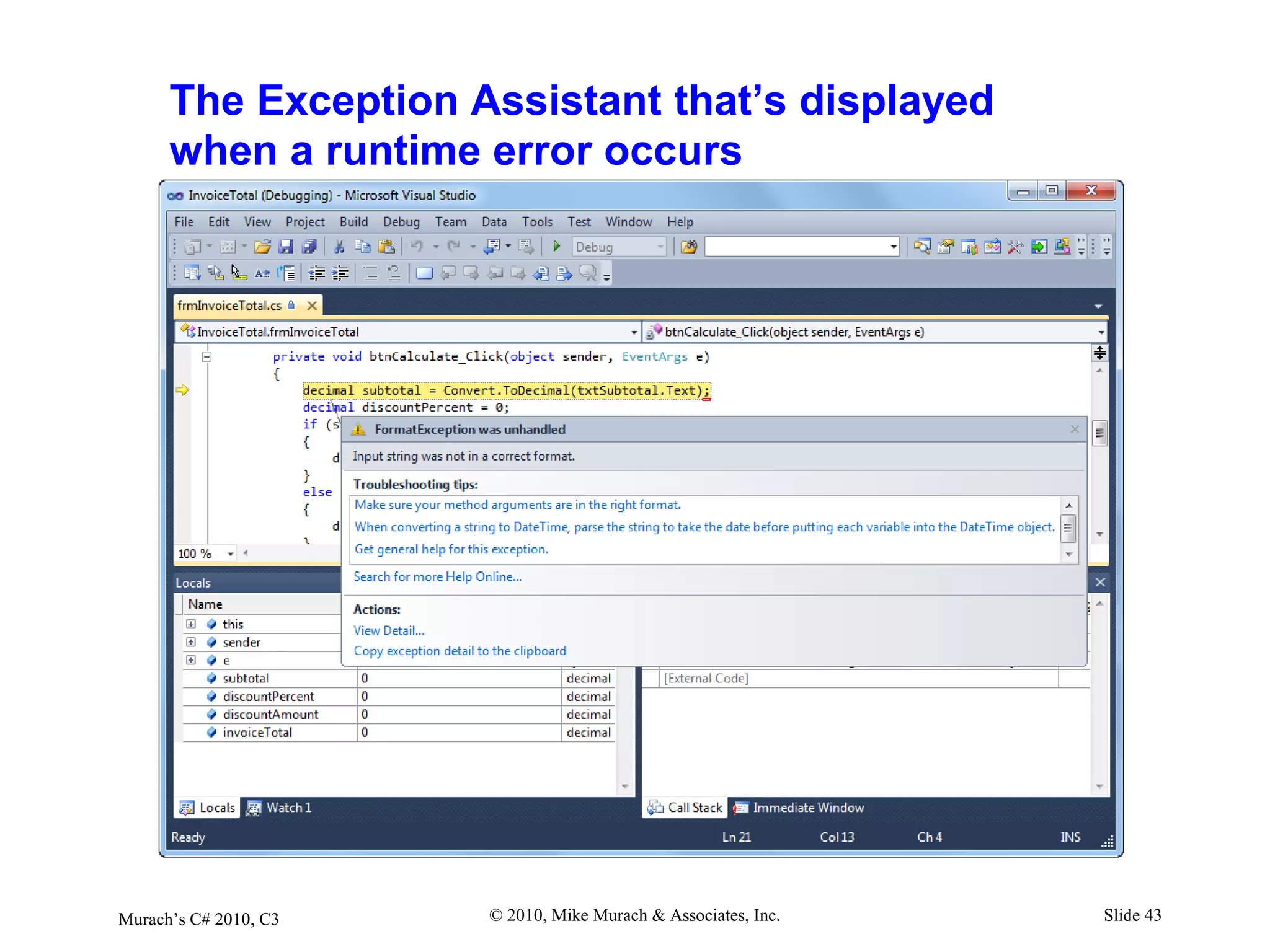

The Exception Assistant that’s displayed
when a runtime error occurs

44. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 44

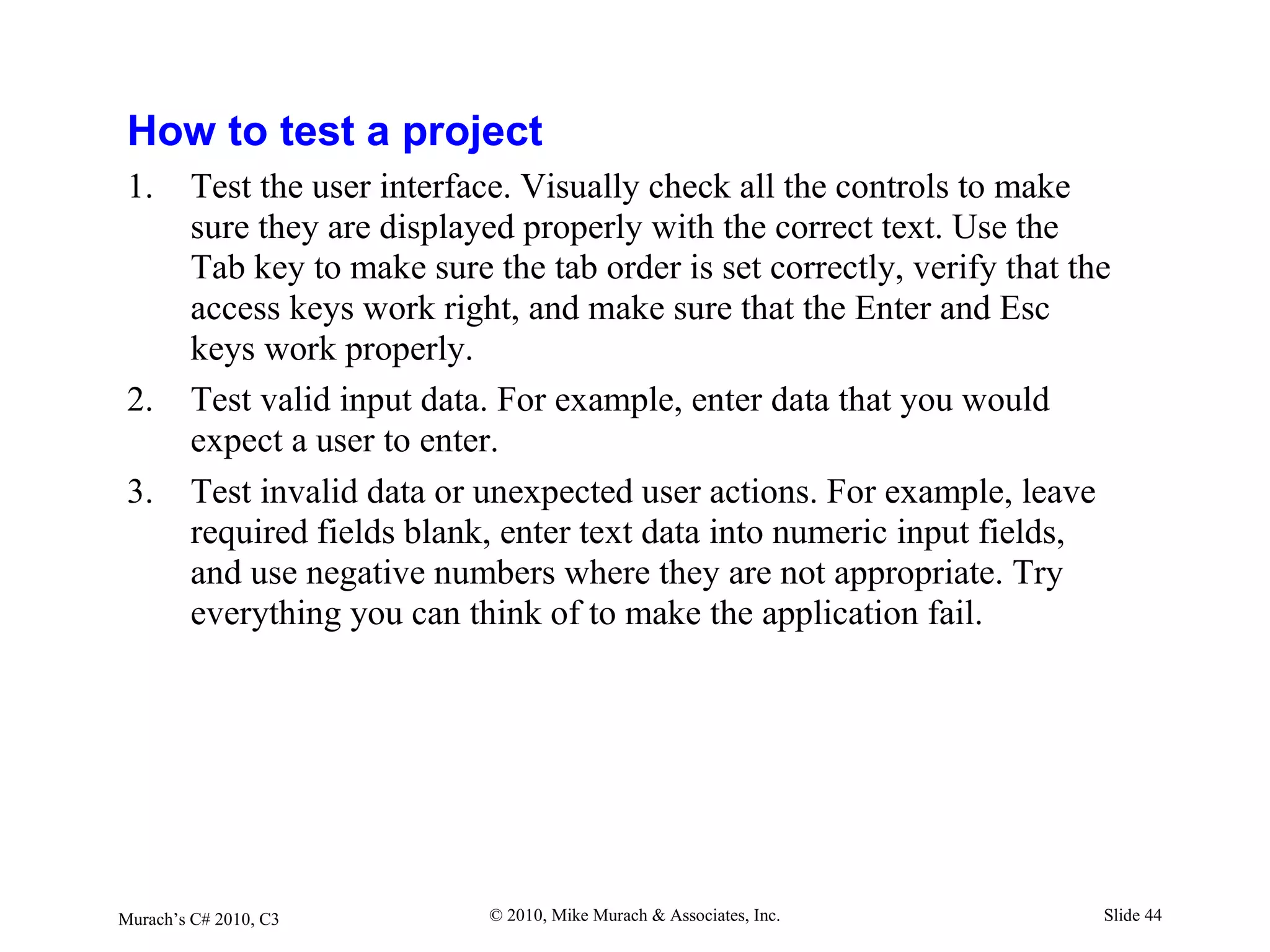

How to test a project
1. Test the user interface. Visually check all the controls to make
sure they are displayed properly with the correct text. Use the
Tab key to make sure the tab order is set correctly, verify that the
access keys work right, and make sure that the Enter and Esc
keys work properly.
2. Test valid input data. For example, enter data that you would
expect a user to enter.
3. Test invalid data or unexpected user actions. For example, leave
required fields blank, enter text data into numeric input fields,
and use negative numbers where they are not appropriate. Try
everything you can think of to make the application fail.

45. Murach’s C# 2010, C3 © 2010, Mike Murach & Associates, Inc. Slide 45

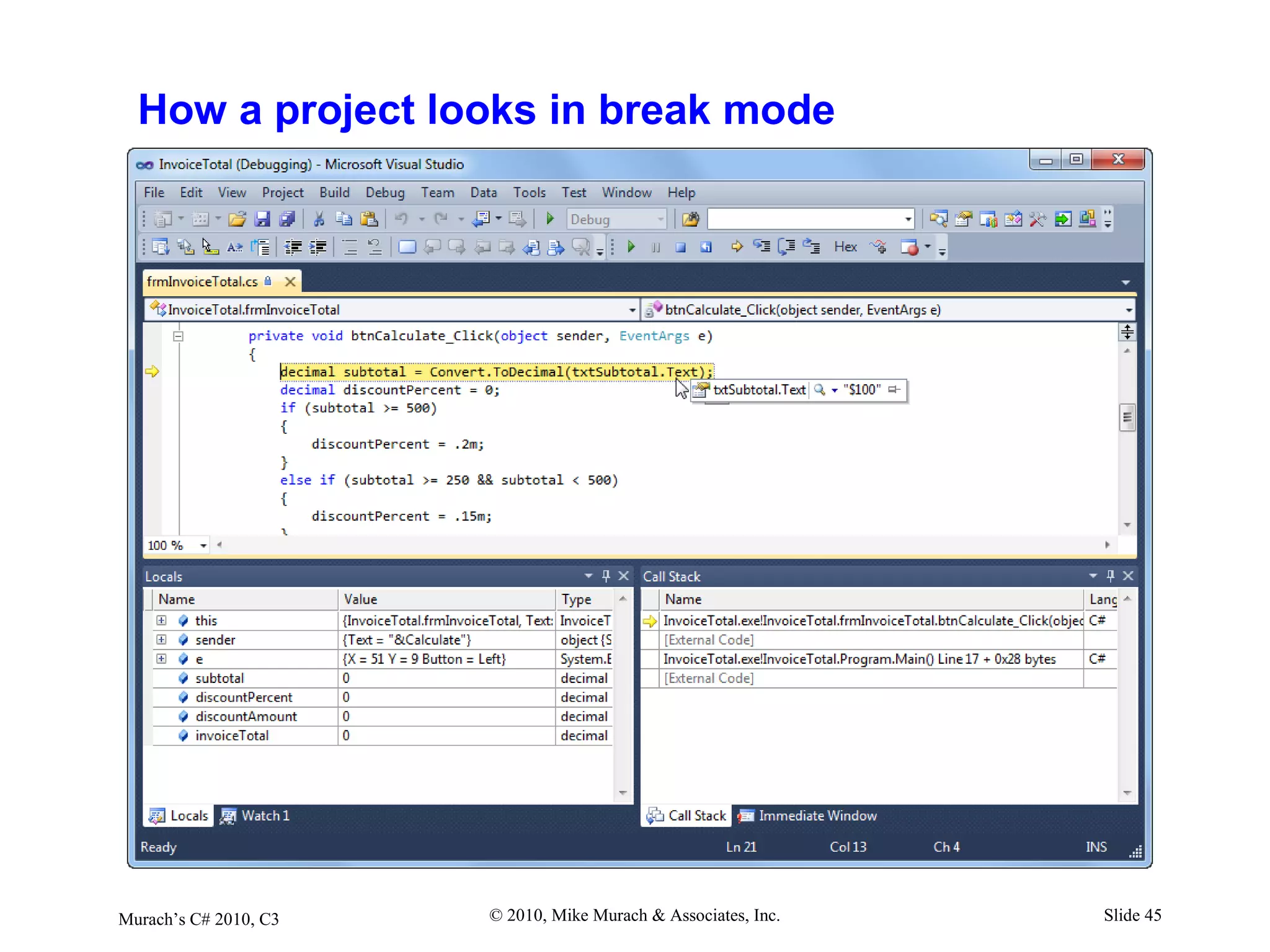

How a project looks in break mode

46. Slide 46

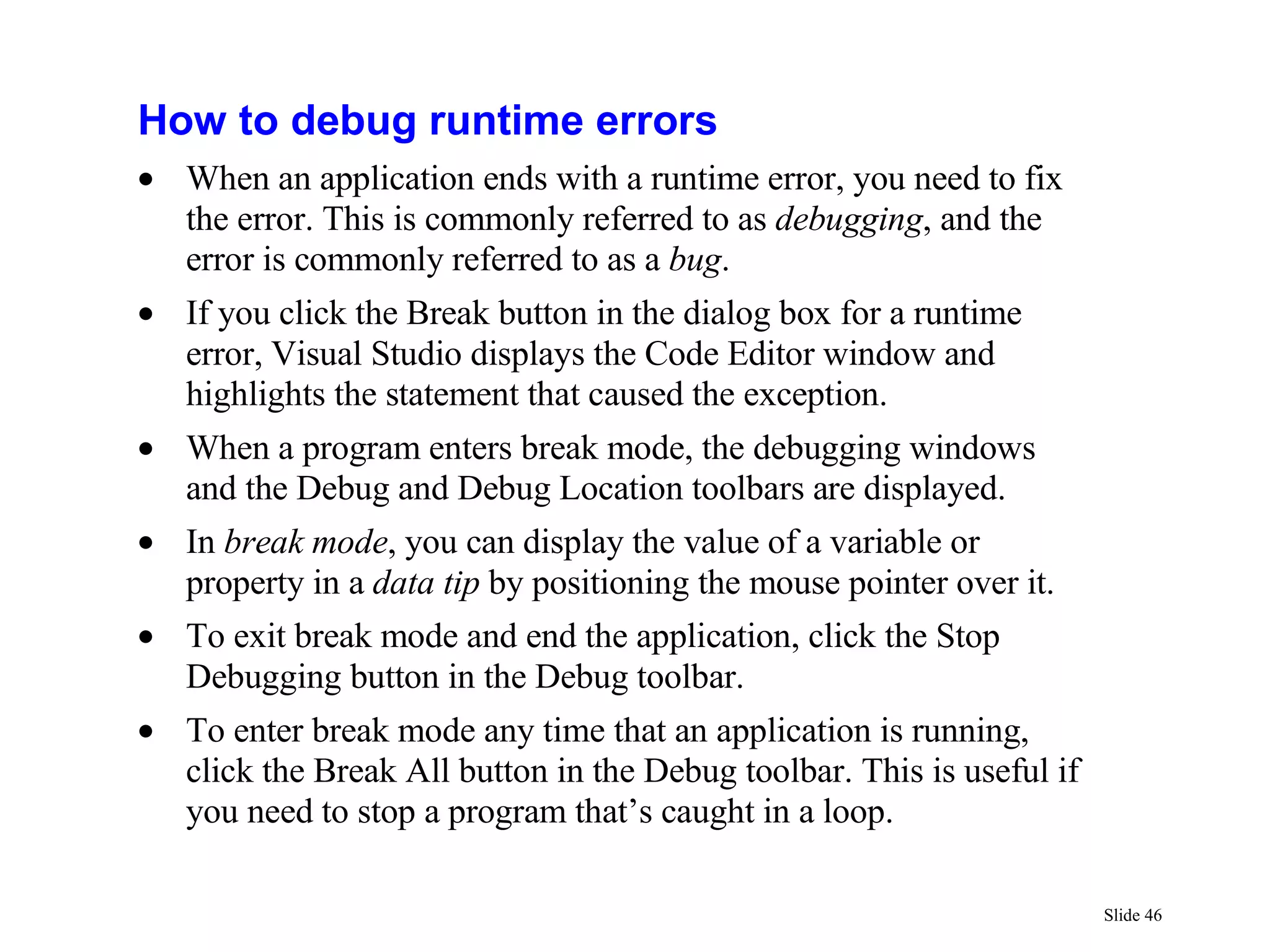

How to debug runtime errors
• When an application ends with a runtime error, you need to fix
the error. This is commonly referred to as debugging, and the
error is commonly referred to as a bug.
• If you click the Break button in the dialog box for a runtime
error, Visual Studio displays the Code Editor window and
highlights the statement that caused the exception.
• When a program enters break mode, the debugging windows
and the Debug and Debug Location toolbars are displayed.
• In break mode, you can display the value of a variable or
property in a data tip by positioning the mouse pointer over it.
• To exit break mode and end the application, click the Stop
Debugging button in the Debug toolbar.
• To enter break mode any time that an application is running,
click the Break All button in the Debug toolbar. This is useful if
you need to stop a program that’s caught in a loop.

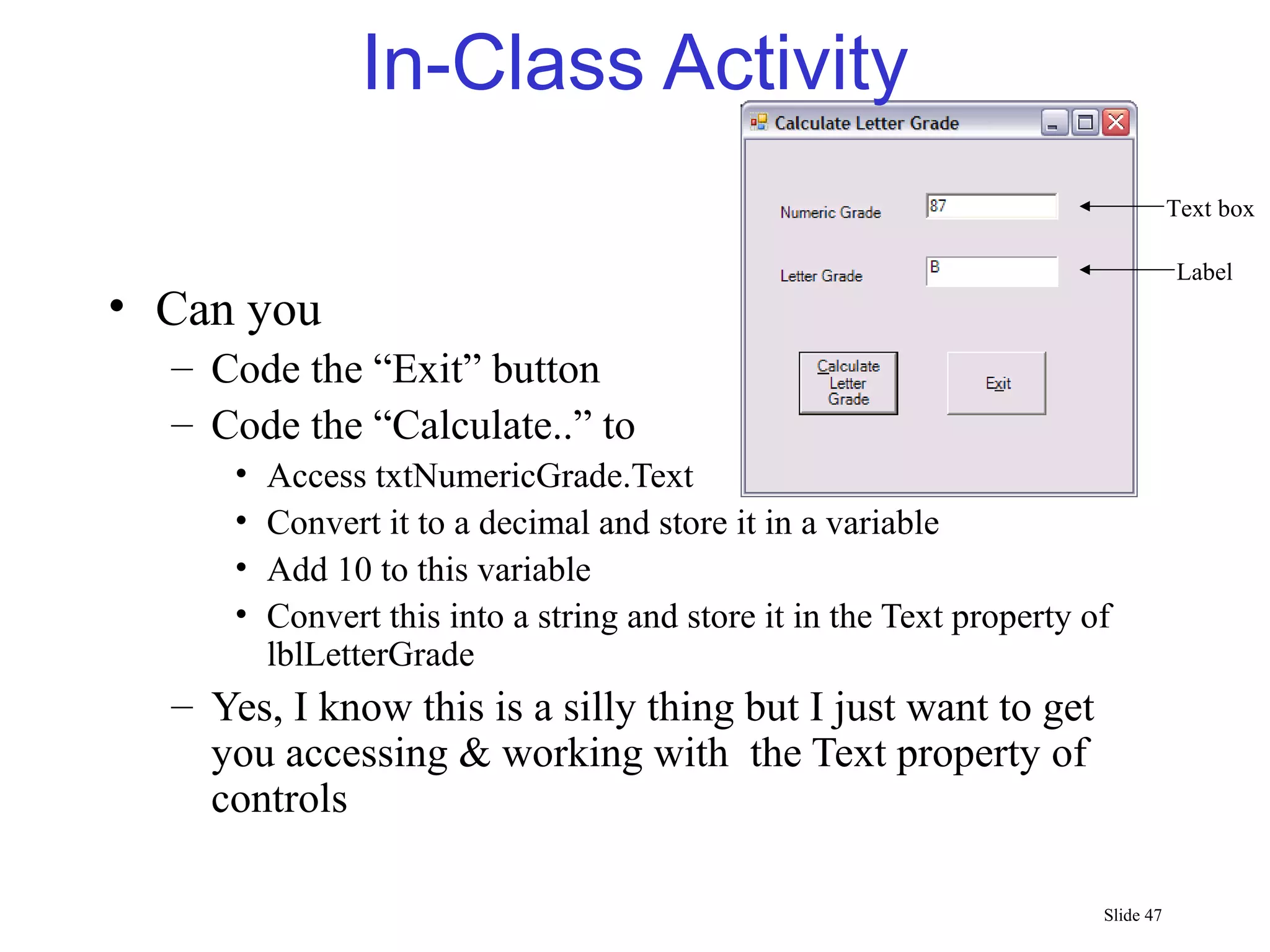

47. Slide 47
In-Class Activity
• Can you
– Code the “Exit” button
– Code the “Calculate..” to
• Access txtNumericGrade.Text
• Convert it to a decimal and store it in a variable
• Add 10 to this variable
• Convert this into a string and store it in the Text property of
lblLetterGrade
– Yes, I know this is a silly thing but I just want to get
you accessing & working with the Text property of
controls
Text box
Label

48. Slide 48

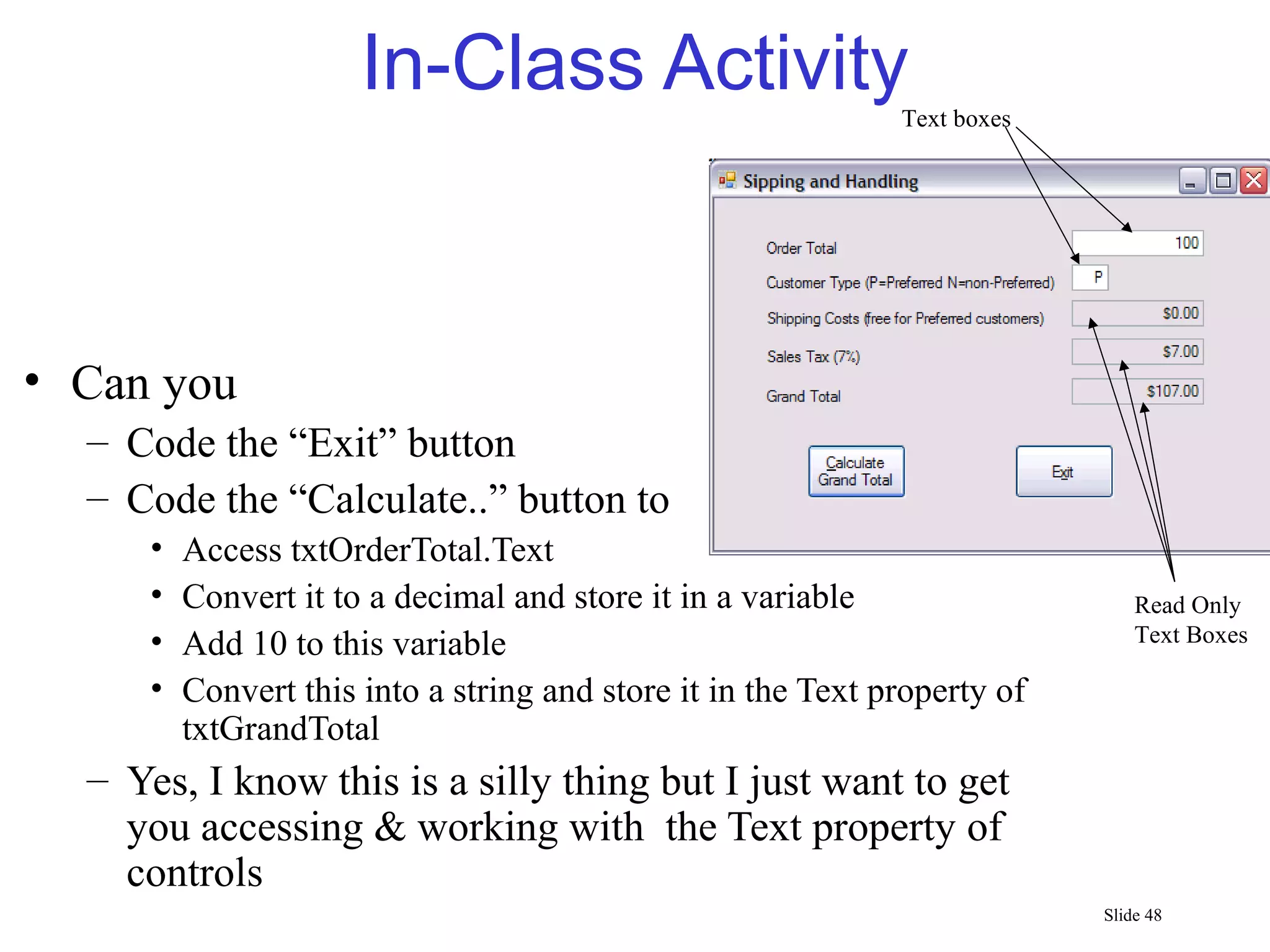

In-Class Activity
• Can you
– Code the “Exit” button
– Code the “Calculate..” button to
• Access txtOrderTotal.Text
• Convert it to a decimal and store it in a variable
• Add 10 to this variable
• Convert this into a string and store it in the Text property of
txtGrandTotal
– Yes, I know this is a silly thing but I just want to get
you accessing & working with the Text property of
controls
Text boxes
Read Only
Text Boxes

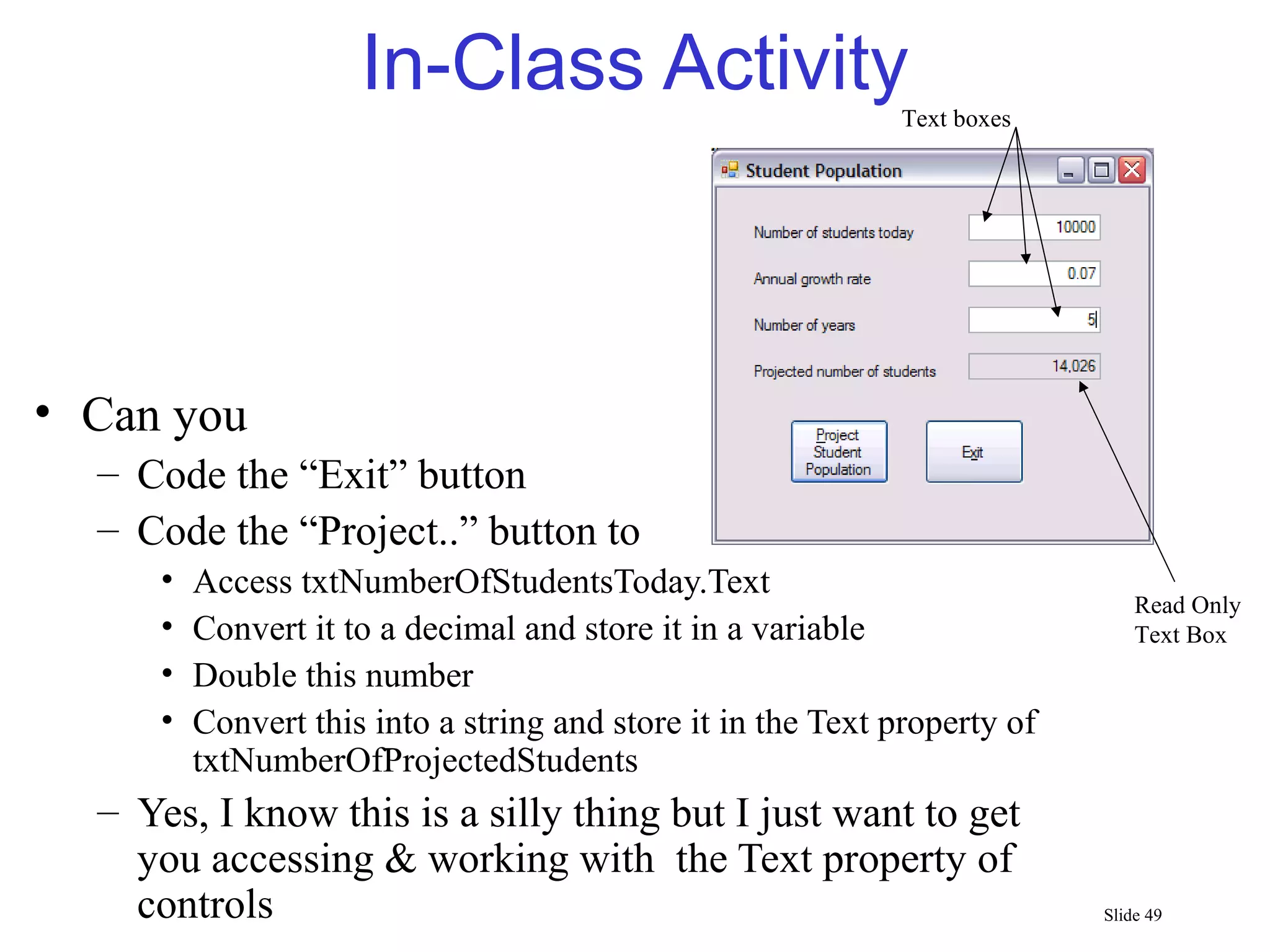

49. Slide 49
In-Class Activity
• Can you
– Code the “Exit” button
– Code the “Project..” button to
• Access txtNumberOfStudentsToday.Text
• Convert it to a decimal and store it in a variable
• Double this number
• Convert this into a string and store it in the Text property of
txtNumberOfProjectedStudents
– Yes, I know this is a silly thing but I just want to get
you accessing & working with the Text property of
controls
Text boxes
Read Only
Text Box

50. Slide 50

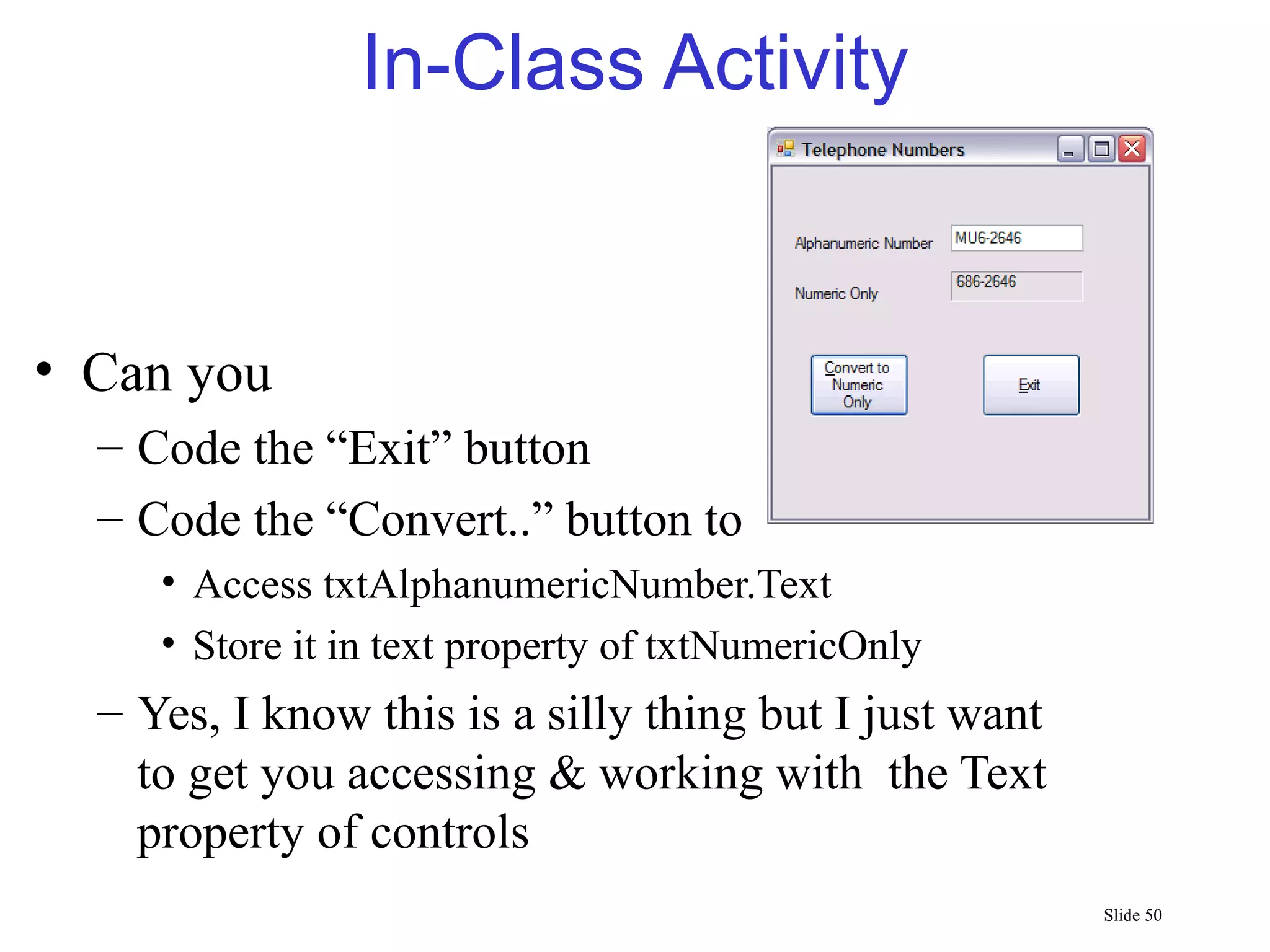

In-Class Activity
• Can you
– Code the “Exit” button
– Code the “Convert..” button to
• Access txtAlphanumericNumber.Text
• Store it in text property of txtNumericOnly
– Yes, I know this is a silly thing but I just want
to get you accessing & working with the Text
property of controls
