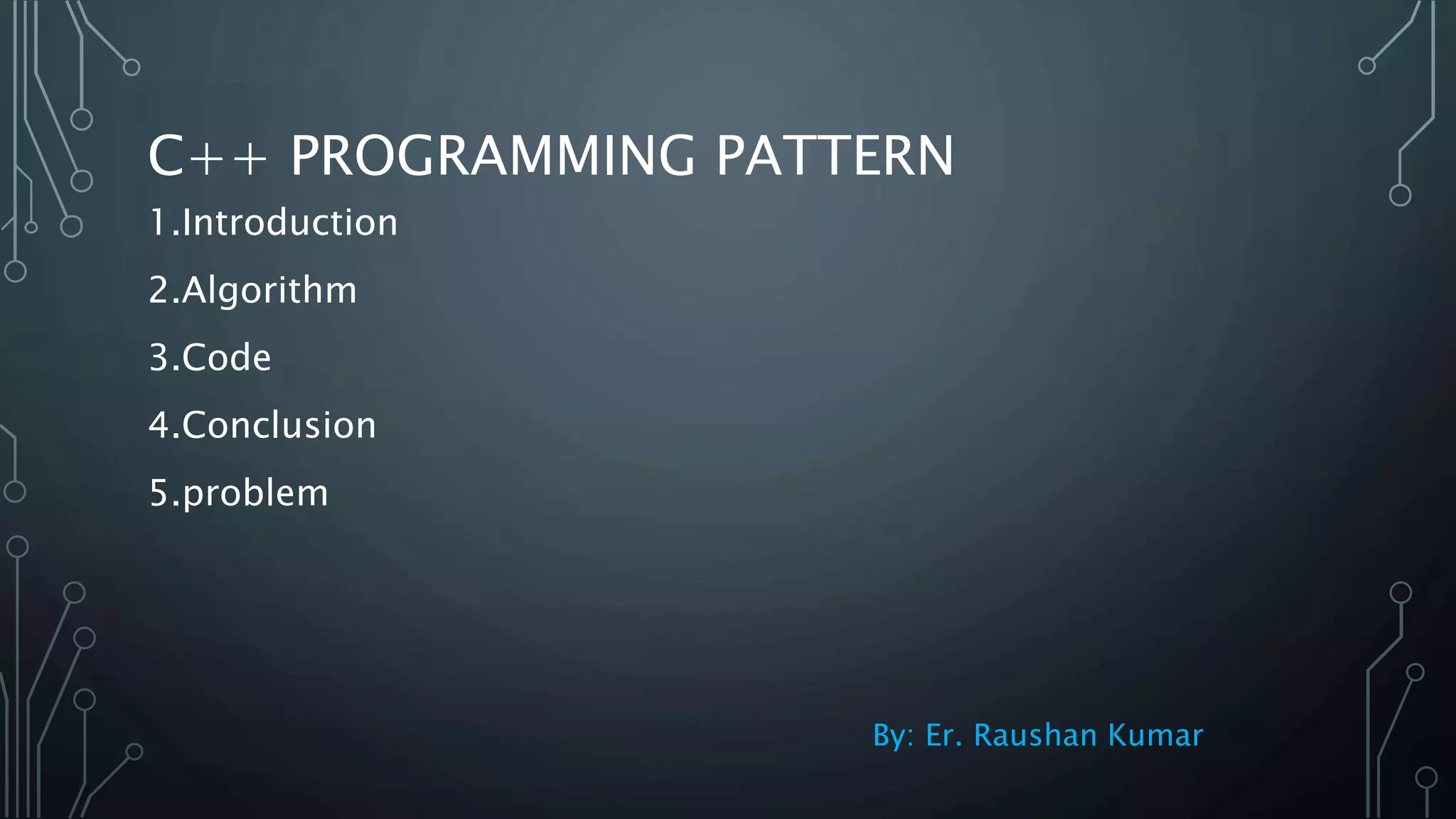

1. C++ PROGRAMMING PATTERN
1.Introduction
2.Algorithm
3.Code
4.Conclusion
5.problem
By: Er. Raushan Kumar

2. 1. INTRODUCTION
• C++—the popular and highly readable object-oriented
Programming language—is both powerful and relatively easy to
learn. Whether you're new to programming or an experienced
developer, this course can help you get started with C++. Er.
Raushan Kumar provides an overview of the Pattern program,
basic Algorithm, and an example of how to construct and run a
simple C++ program

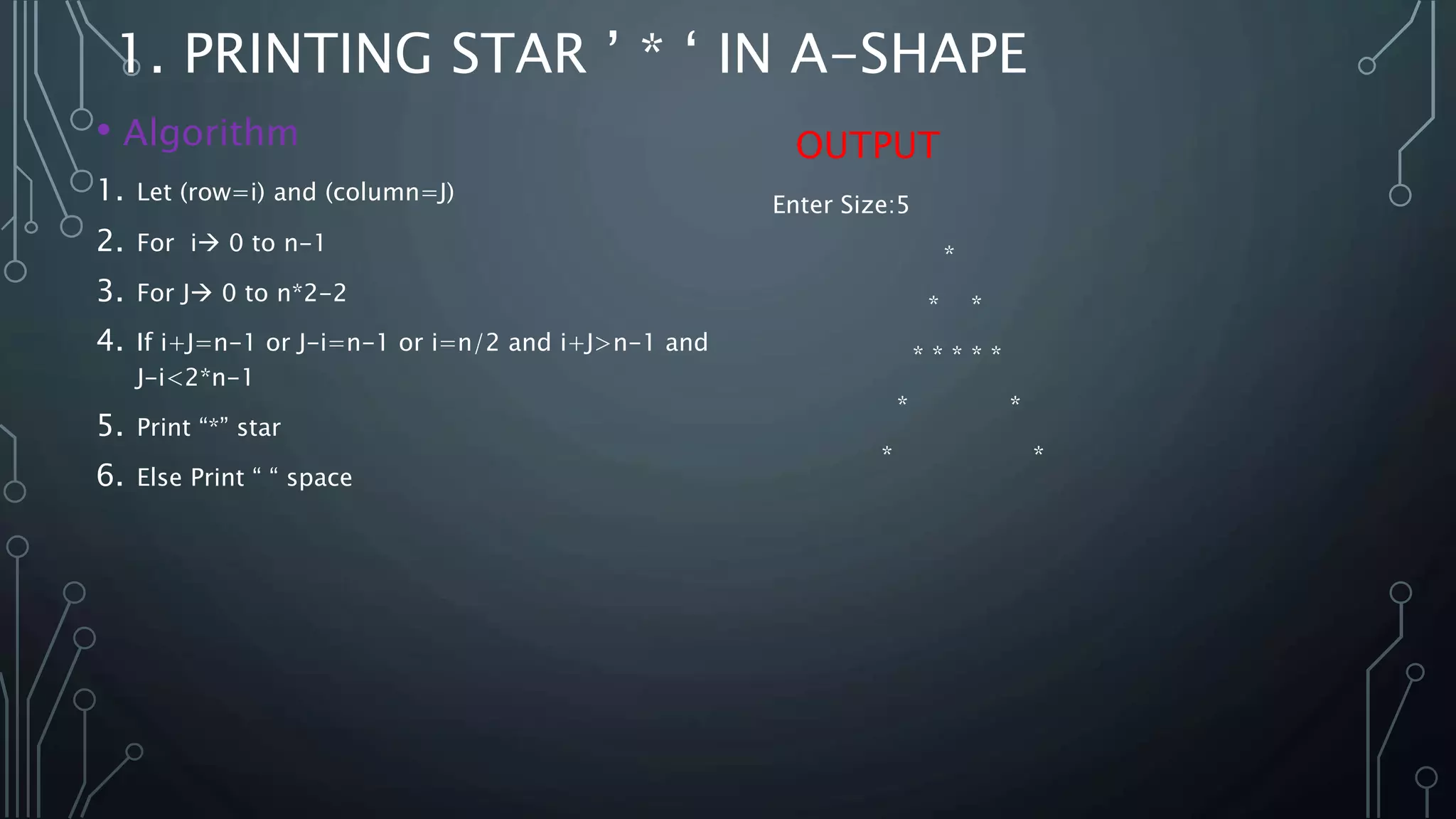

3. 1. PRINTING STAR ’ * ‘ IN A-SHAPE
• Algorithm
1. Let (row=i) and (column=J)
2. For i 0 to n-1
3. For J 0 to n*2-2
4. If i+J=n-1 or J-i=n-1 or i=n/2 and i+J>n-1 and
J-i<2*n-1
5. Print “*” star
6. Else Print “ “ space
OUTPUT
Enter Size:5
*
* *
* * * * *
* *
* *

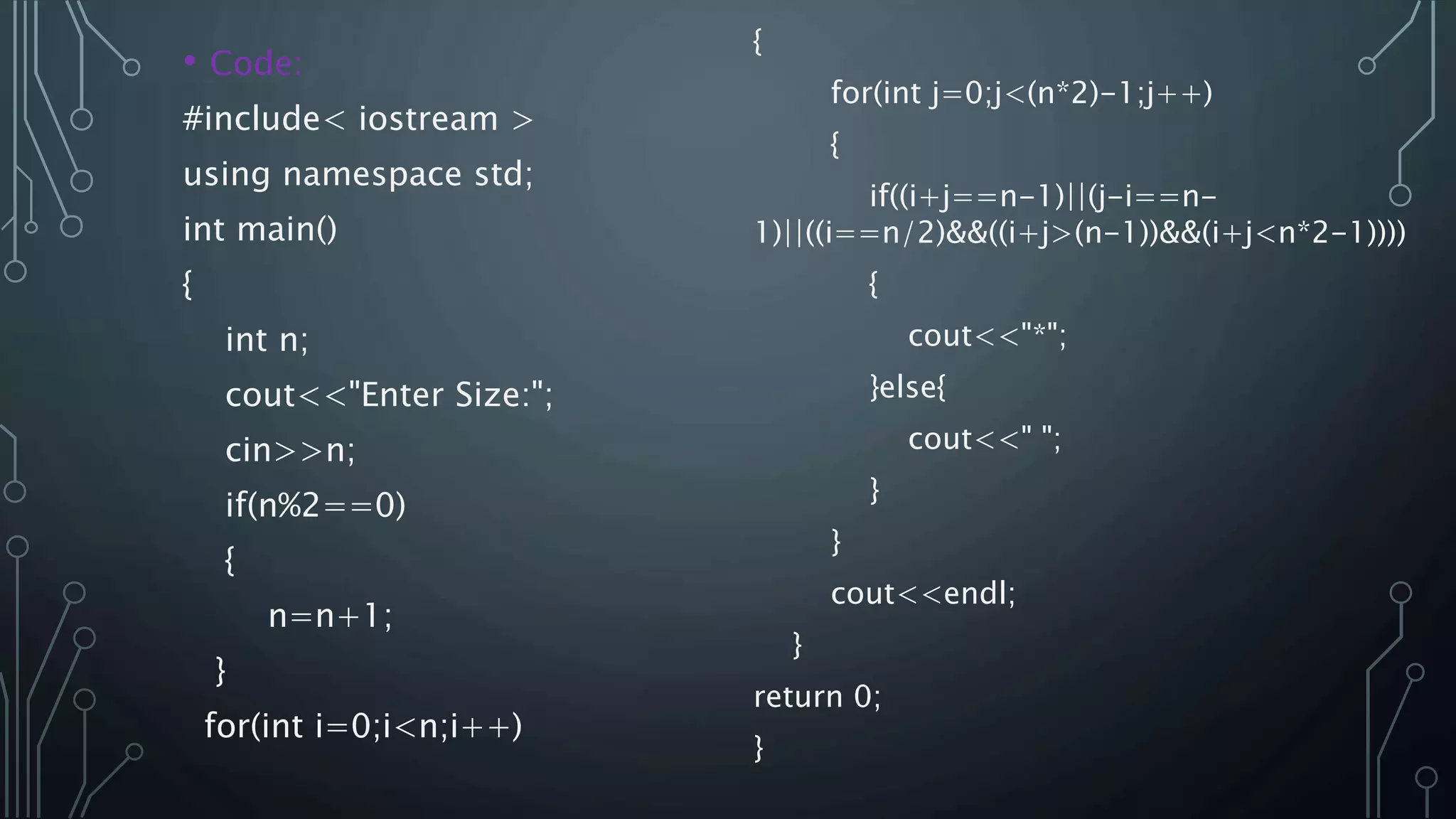

4. {
for(int j=0;j<(n*2)-1;j++)
{
if((i+j==n-1)||(j-i==n-
1)||((i==n/2)&&((i+j>(n-1))&&(i+j<n*2-1))))
{
cout<<"*";
}else{
cout<<" ";
}
}
cout<<endl;
}
return 0;
}
• Code:
#include< iostream >
using namespace std;
int main()
{
int n;
cout<<"Enter Size:";
cin>>n;
if(n%2==0)
{
n=n+1;
}
for(int i=0;i<n;i++)

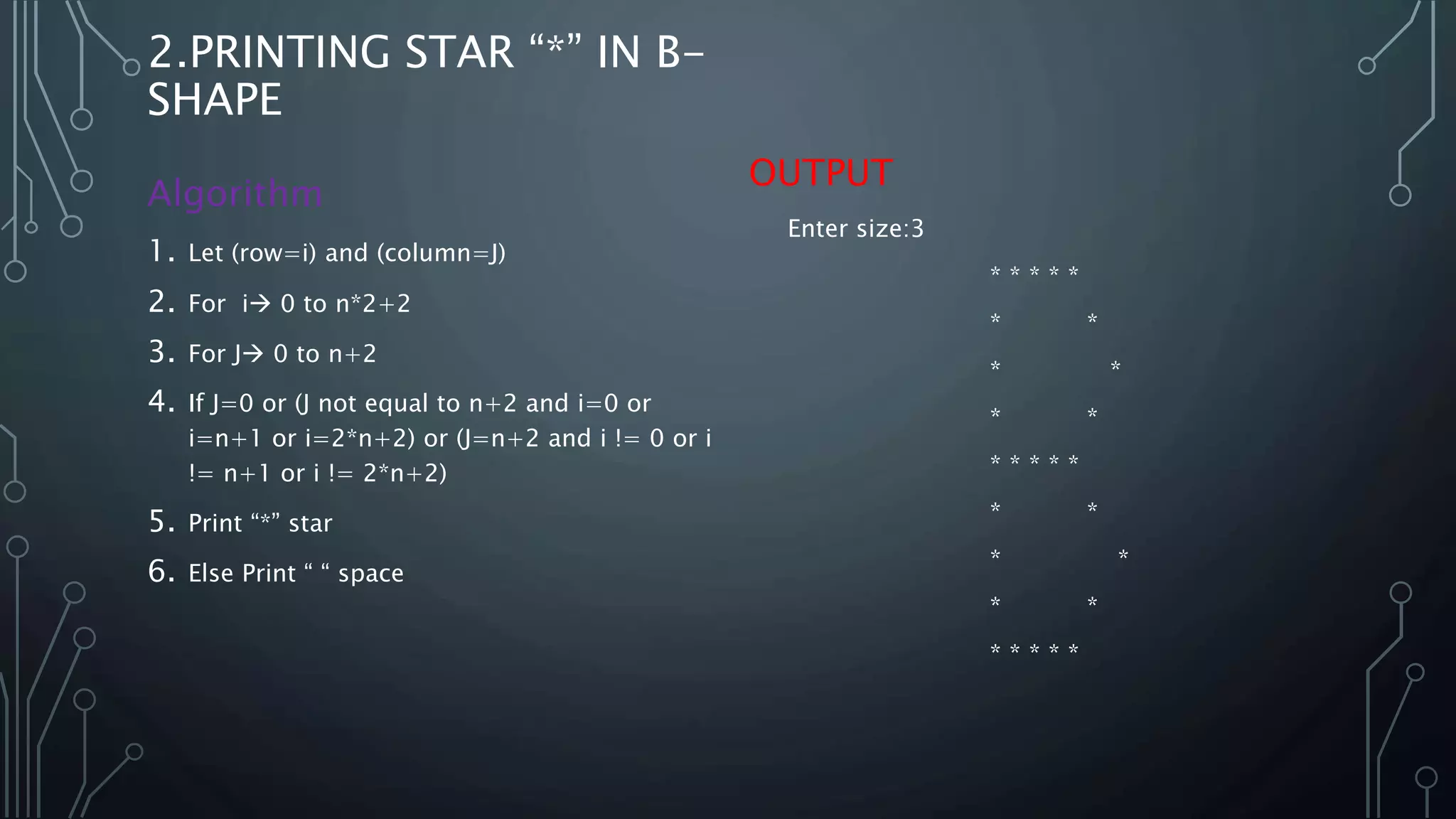

5. 2.PRINTING STAR “*” IN B-
SHAPE
Algorithm
1. Let (row=i) and (column=J)
2. For i 0 to n*2+2
3. For J 0 to n+2
4. If J=0 or (J not equal to n+2 and i=0 or
i=n+1 or i=2*n+2) or (J=n+2 and i != 0 or i
!= n+1 or i != 2*n+2)
5. Print “*” star
6. Else Print “ “ space
OUTPUT
Enter size:3
* * * * *
* *
* *
* *
* * * * *
* *
* *
* *
* * * * *

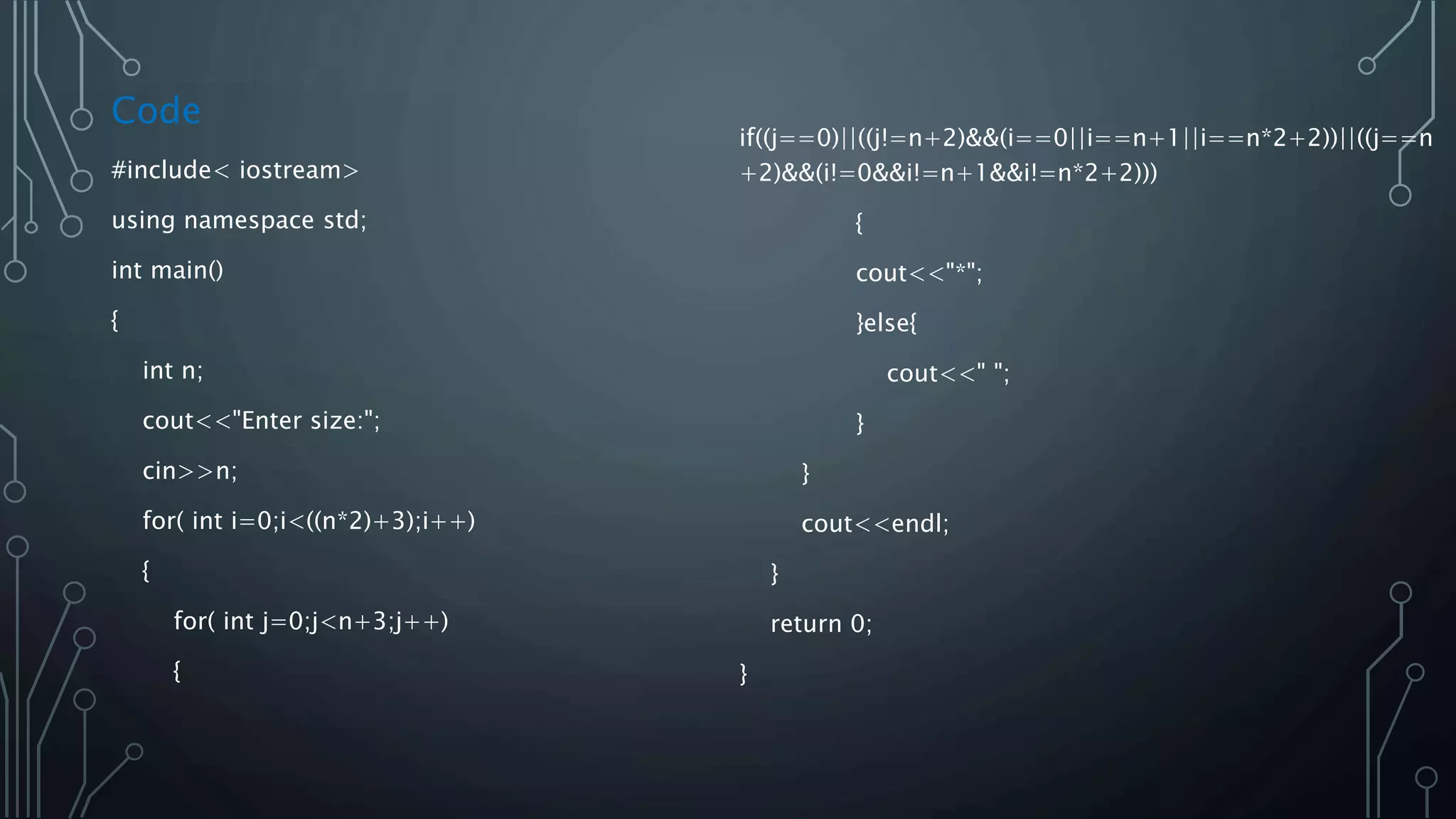

6. Code
#include< iostream>
using namespace std;
int main()
{
int n;
cout<<"Enter size:";
cin>>n;
for( int i=0;i<((n*2)+3);i++)
{
for( int j=0;j<n+3;j++)
{
if((j==0)||((j!=n+2)&&(i==0||i==n+1||i==n*2+2))||((j==n
+2)&&(i!=0&&i!=n+1&&i!=n*2+2)))
{
cout<<"*";
}else{
cout<<" ";
}
}
cout<<endl;
}
return 0;
}

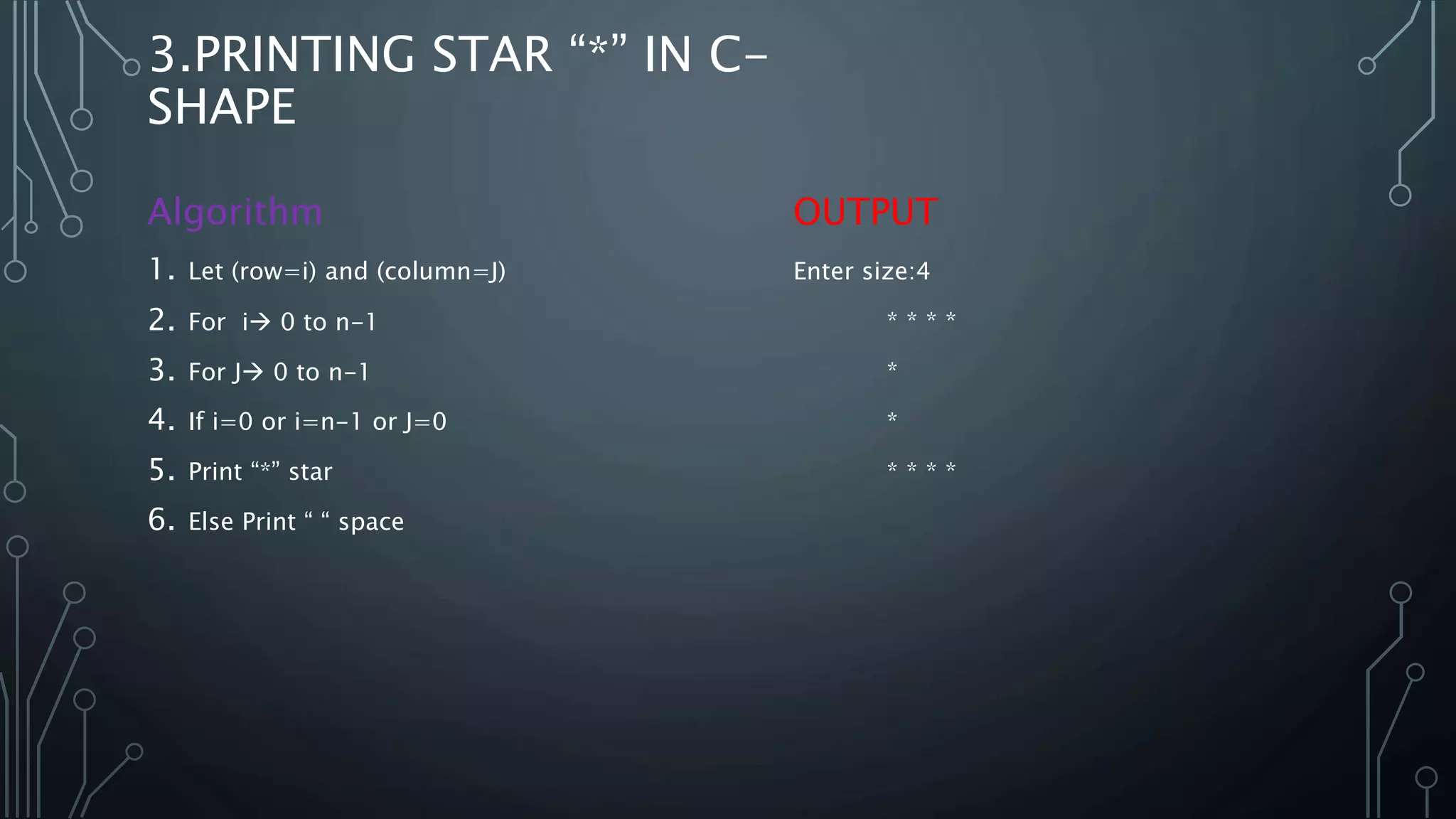

7. 3.PRINTING STAR “*” IN C-
SHAPE
Algorithm
1. Let (row=i) and (column=J)
2. For i 0 to n-1
3. For J 0 to n-1
4. If i=0 or i=n-1 or J=0
5. Print “*” star
6. Else Print “ “ space
OUTPUT
Enter size:4
* * * *
*
*
* * * *

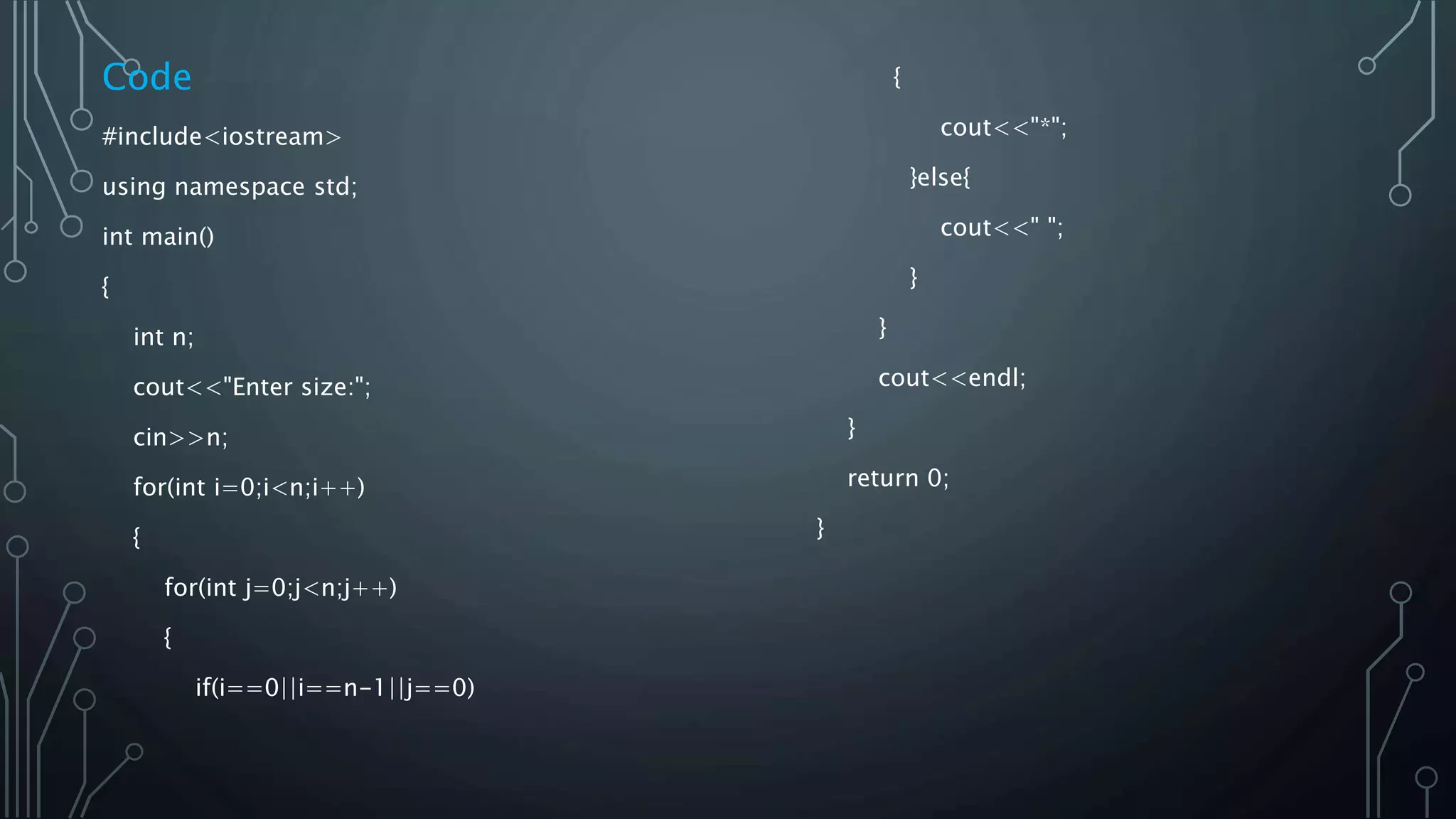

8. Code
#include<iostream>
using namespace std;
int main()
{
int n;
cout<<"Enter size:";
cin>>n;
for(int i=0;i<n;i++)
{
for(int j=0;j<n;j++)
{
if(i==0||i==n-1||j==0)
{
cout<<"*";
}else{
cout<<" ";
}
}
cout<<endl;
}
return 0;
}

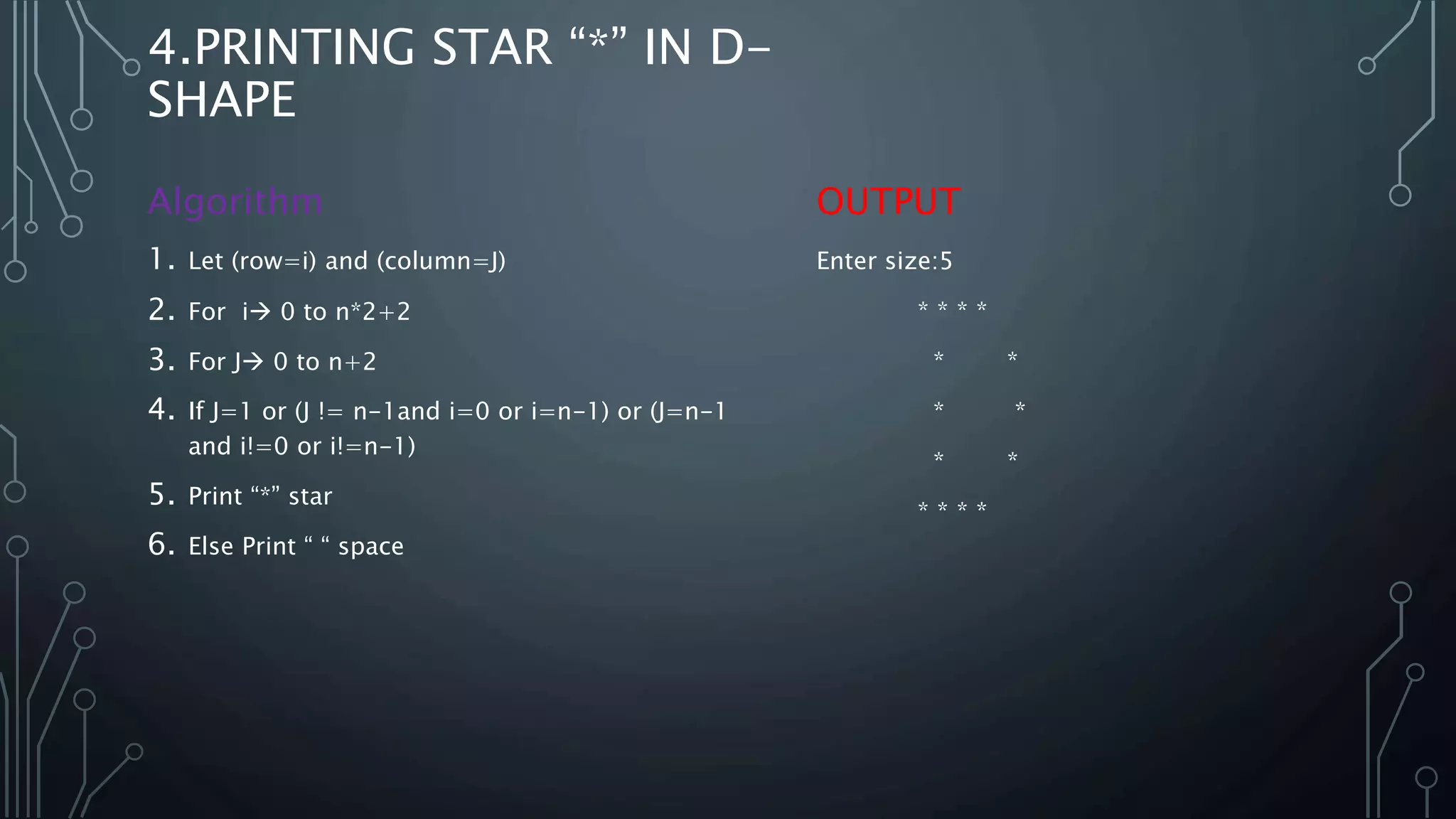

9. 4.PRINTING STAR “*” IN D-
SHAPE
Algorithm
1. Let (row=i) and (column=J)
2. For i 0 to n*2+2
3. For J 0 to n+2
4. If J=1 or (J != n-1and i=0 or i=n-1) or (J=n-1
and i!=0 or i!=n-1)
5. Print “*” star
6. Else Print “ “ space
OUTPUT
Enter size:5
* * * *
* *
* *
* *
* * * *

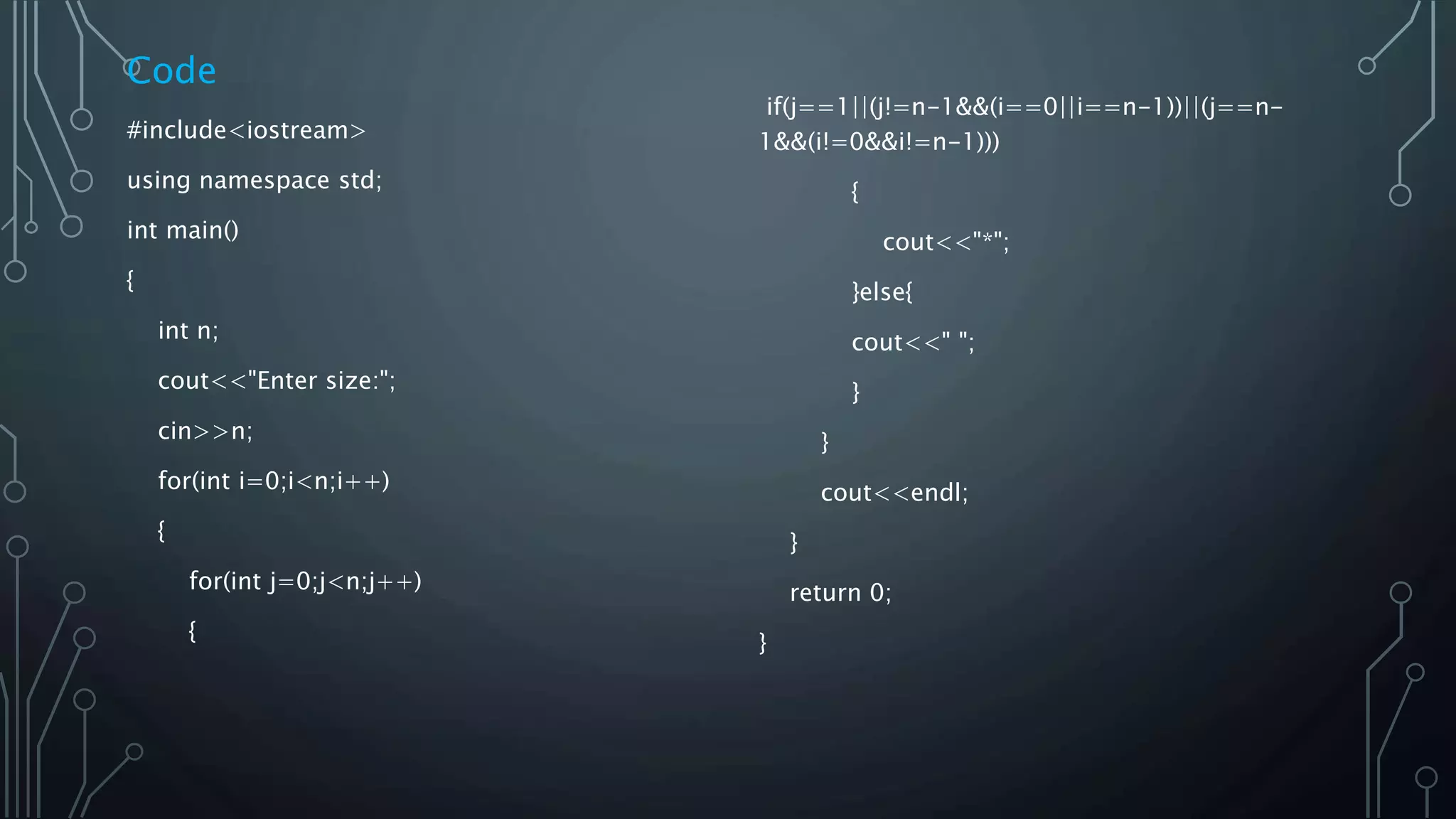

10. Code
#include<iostream>
using namespace std;
int main()
{
int n;
cout<<"Enter size:";
cin>>n;
for(int i=0;i<n;i++)
{
for(int j=0;j<n;j++)
{
if(j==1||(j!=n-1&&(i==0||i==n-1))||(j==n-
1&&(i!=0&&i!=n-1)))
{
cout<<"*";
}else{
cout<<" ";
}
}
cout<<endl;
}
return 0;
}

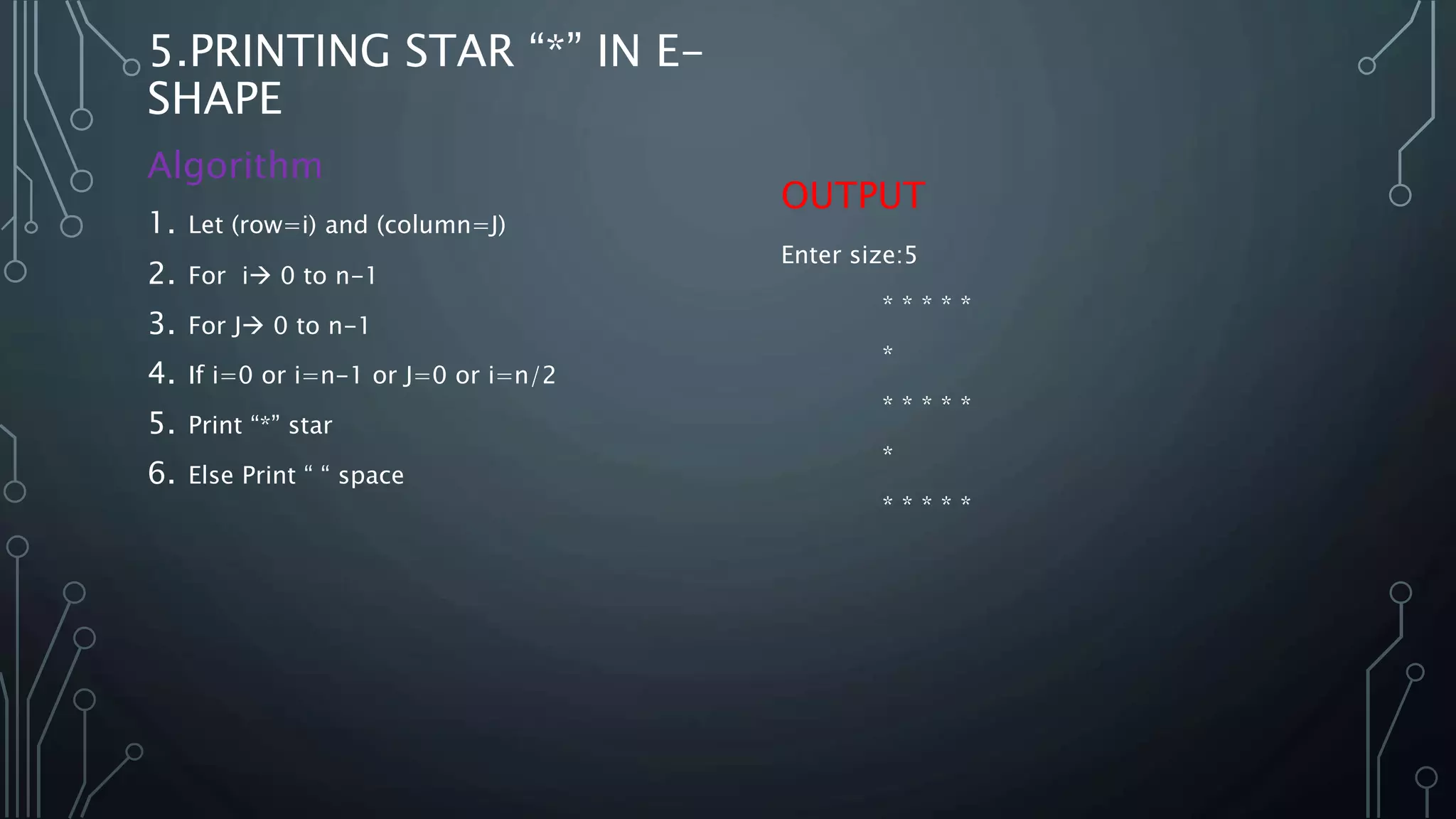

11. 5.PRINTING STAR “*” IN E-
SHAPE
Algorithm
1. Let (row=i) and (column=J)
2. For i 0 to n-1
3. For J 0 to n-1
4. If i=0 or i=n-1 or J=0 or i=n/2
5. Print “*” star
6. Else Print “ “ space
OUTPUT
Enter size:5
* * * * *
*
* * * * *
*
* * * * *

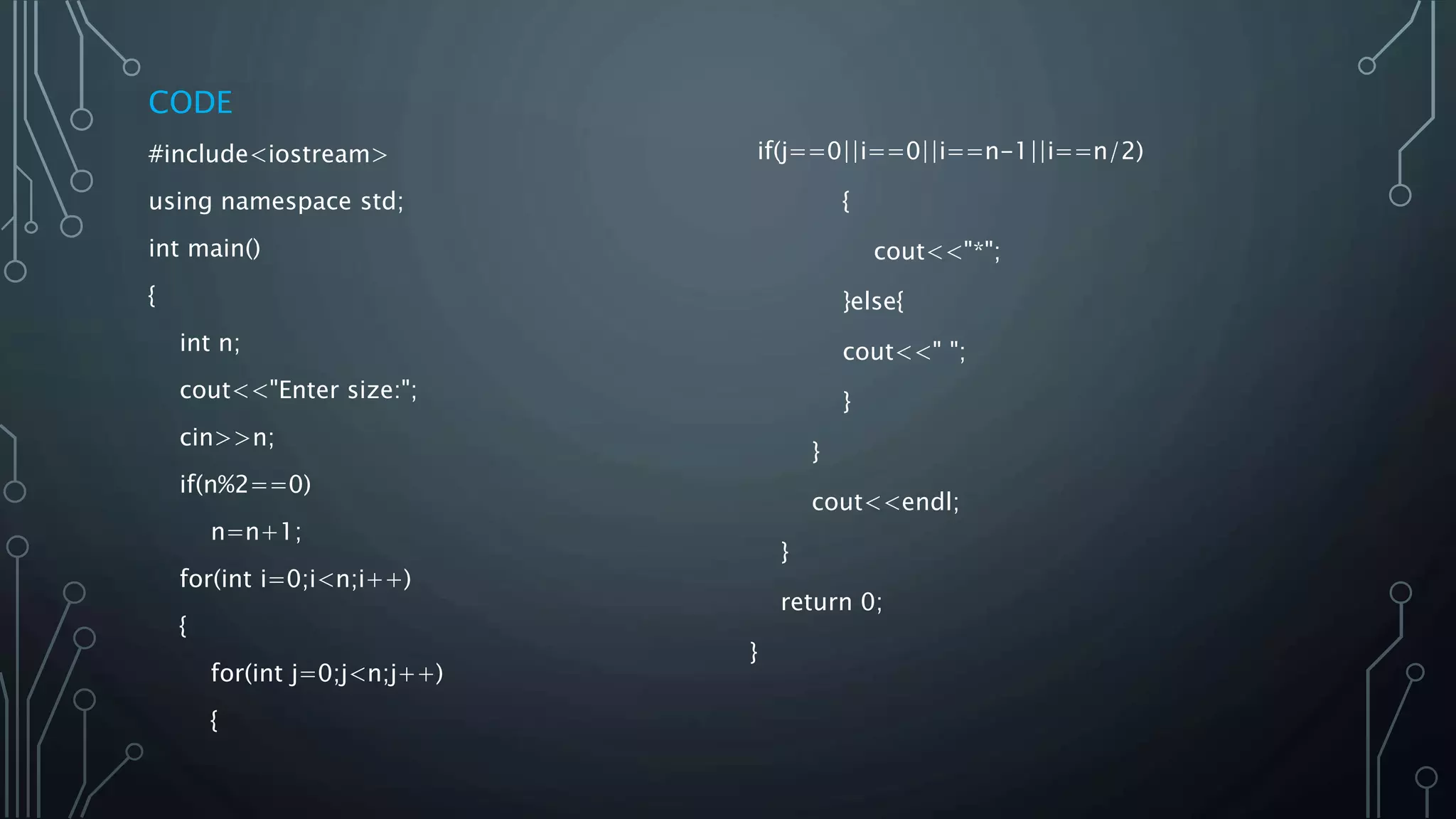

12. if(j==0||i==0||i==n-1||i==n/2)
{
cout<<"*";
}else{
cout<<" ";
}
}
cout<<endl;
}
return 0;
}
CODE
#include<iostream>
using namespace std;
int main()
{
int n;
cout<<"Enter size:";
cin>>n;
if(n%2==0)
n=n+1;
for(int i=0;i<n;i++)
{
for(int j=0;j<n;j++)
{

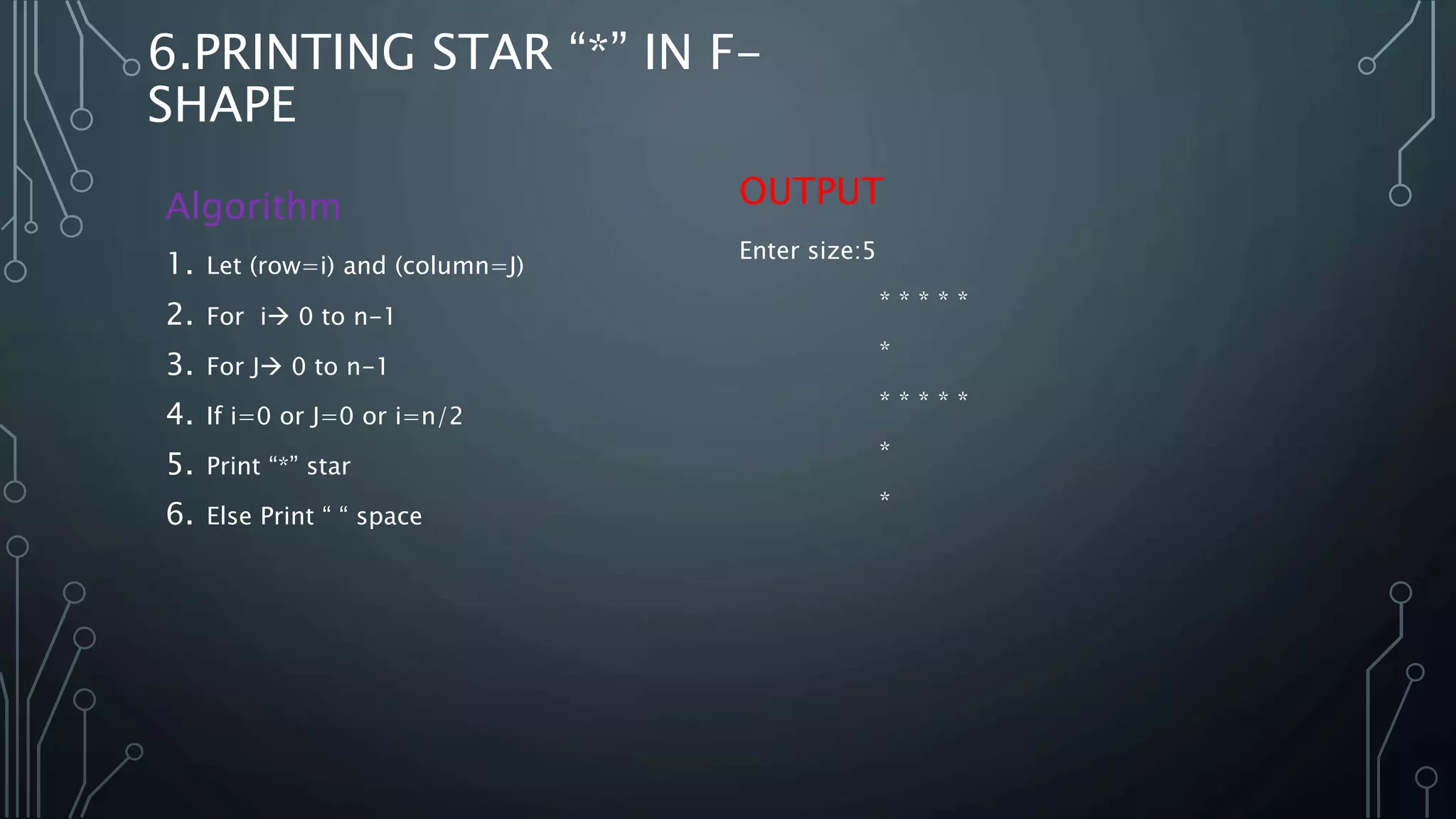

13. 6.PRINTING STAR “*” IN F-
SHAPE
OUTPUT
Enter size:5
* * * * *
*
* * * * *
*
*
Algorithm
1. Let (row=i) and (column=J)
2. For i 0 to n-1
3. For J 0 to n-1
4. If i=0 or J=0 or i=n/2
5. Print “*” star
6. Else Print “ “ space

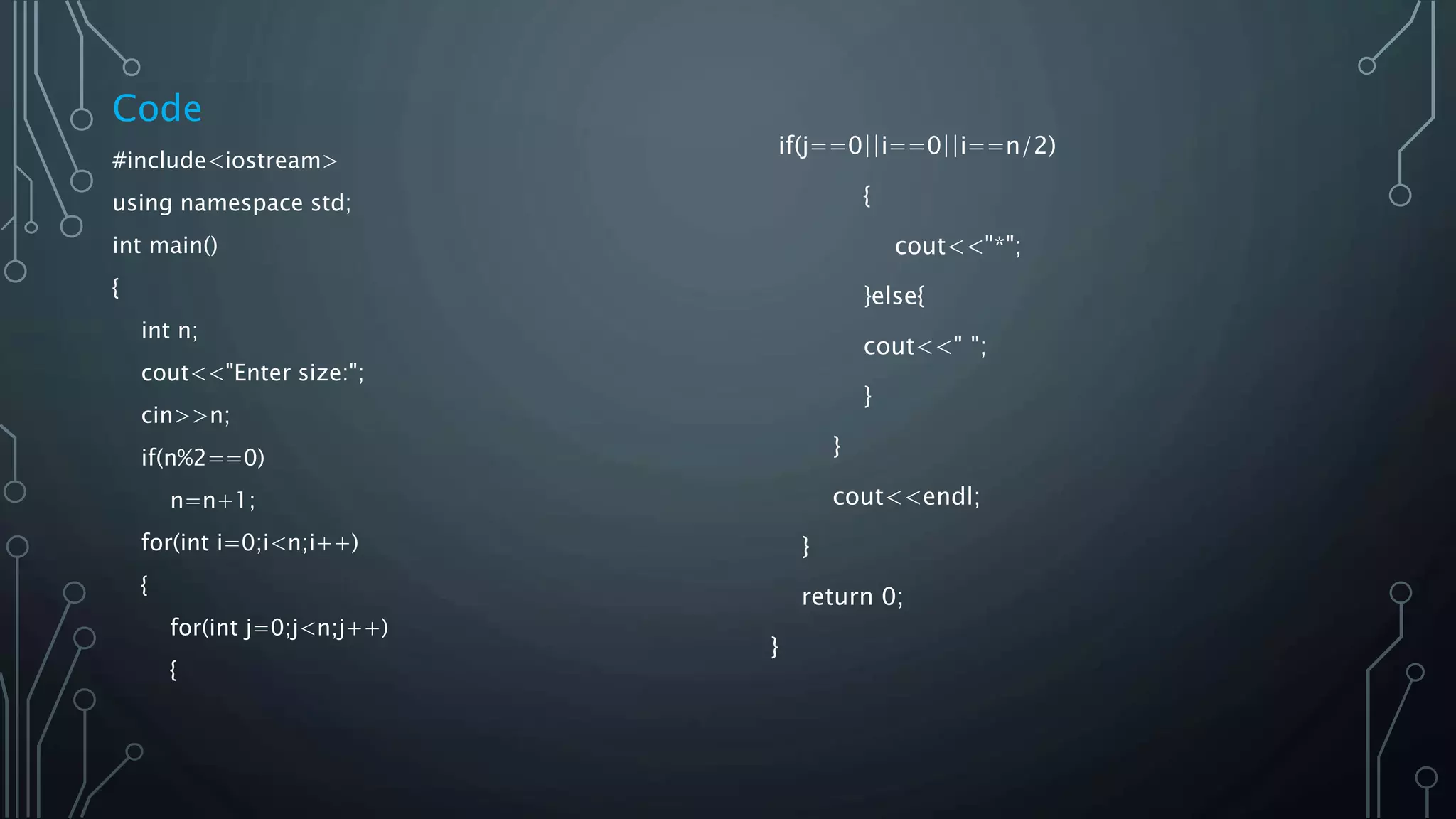

14. Code
#include<iostream>
using namespace std;
int main()
{
int n;
cout<<"Enter size:";
cin>>n;
if(n%2==0)
n=n+1;
for(int i=0;i<n;i++)
{
for(int j=0;j<n;j++)
{
if(j==0||i==0||i==n/2)
{
cout<<"*";
}else{
cout<<" ";
}
}
cout<<endl;
}
return 0;
}

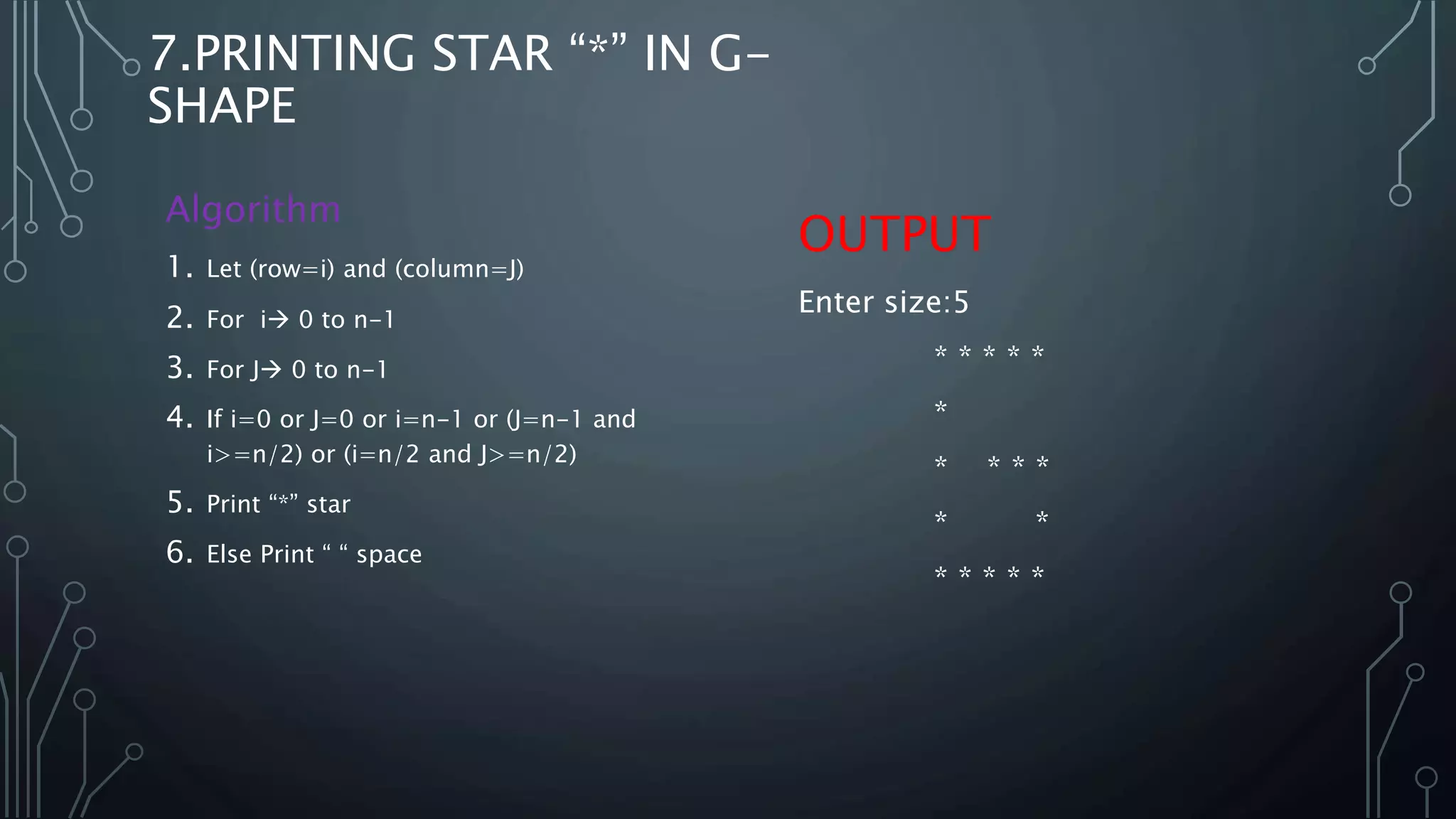

15. 7.PRINTING STAR “*” IN G-
SHAPE
OUTPUT
Enter size:5
* * * * *
*
* * * *
* *
* * * * *
Algorithm
1. Let (row=i) and (column=J)
2. For i 0 to n-1
3. For J 0 to n-1
4. If i=0 or J=0 or i=n-1 or (J=n-1 and
i>=n/2) or (i=n/2 and J>=n/2)
5. Print “*” star
6. Else Print “ “ space

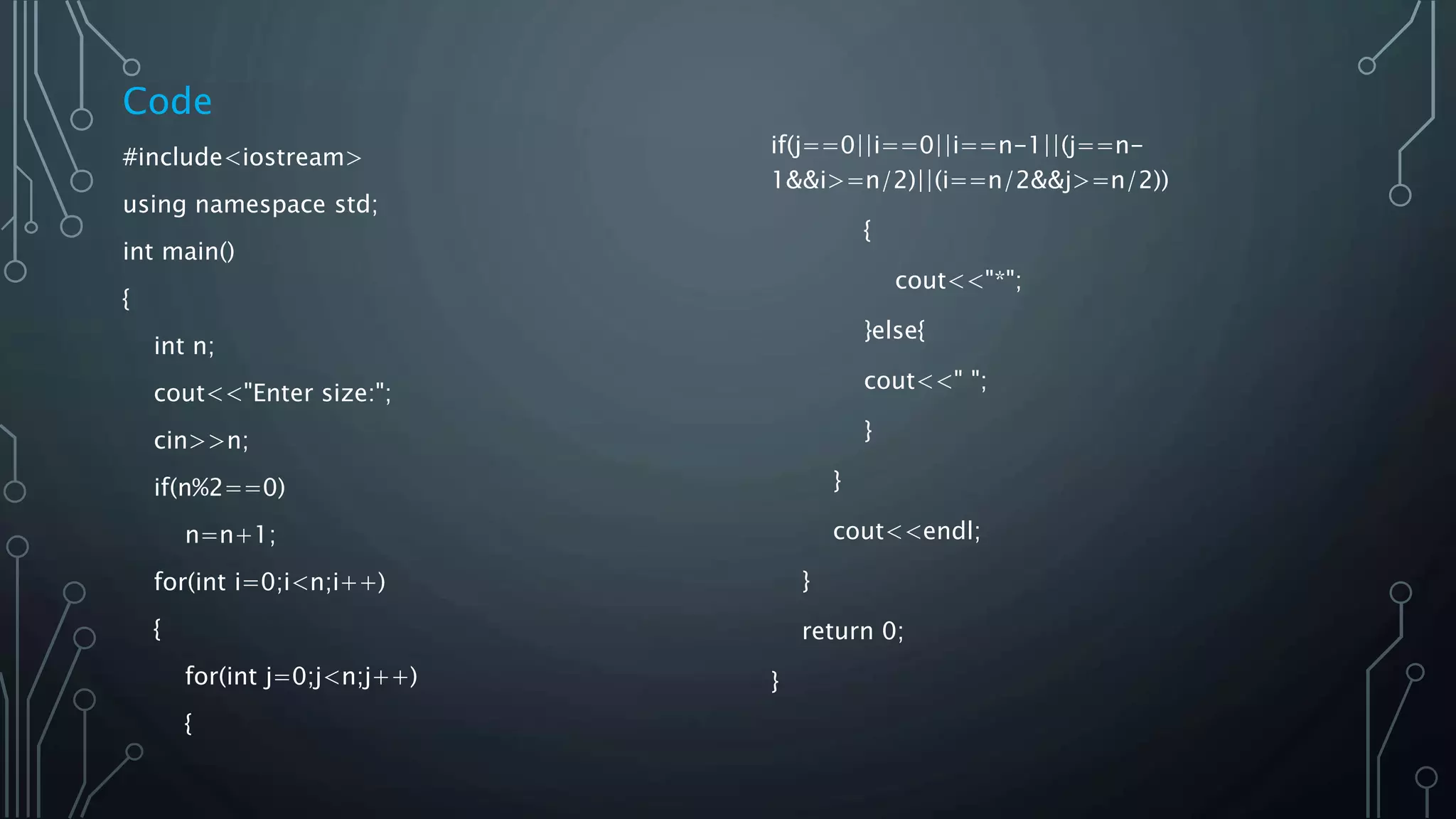

16. Code
#include<iostream>
using namespace std;
int main()
{
int n;
cout<<"Enter size:";
cin>>n;
if(n%2==0)
n=n+1;
for(int i=0;i<n;i++)
{
for(int j=0;j<n;j++)
{
if(j==0||i==0||i==n-1||(j==n-
1&&i>=n/2)||(i==n/2&&j>=n/2))
{
cout<<"*";
}else{
cout<<" ";
}
}
cout<<endl;
}
return 0;
}

17. 8.PRINTING STAR “*” IN H-
SHAPE
OUTPUT
Enter size:5
* *
* *
* * * * *
* *
* *
Algorithm
1. Let (row=i) and (column=J)
2. For i 0 to n-1
3. For J 0 to n-1
4. If J=0 or J=n-1 or i=n/2
5. Print “*” star
6. Else Print “ “ space

18. Code
#include<iostream>
using namespace std;
int main()
{
int n;
cout<<"Enter size:";
cin>>n;
if(n%2==0)
n=n+1;
for(int i=0;i<n;i++)
{
for(int j=0;j<n;j++)
{
if(j==0||j==n-1||i==n/2)
{
cout<<"*";
}else{
cout<<" ";
}
}
cout<<endl;
}
return 0;
}

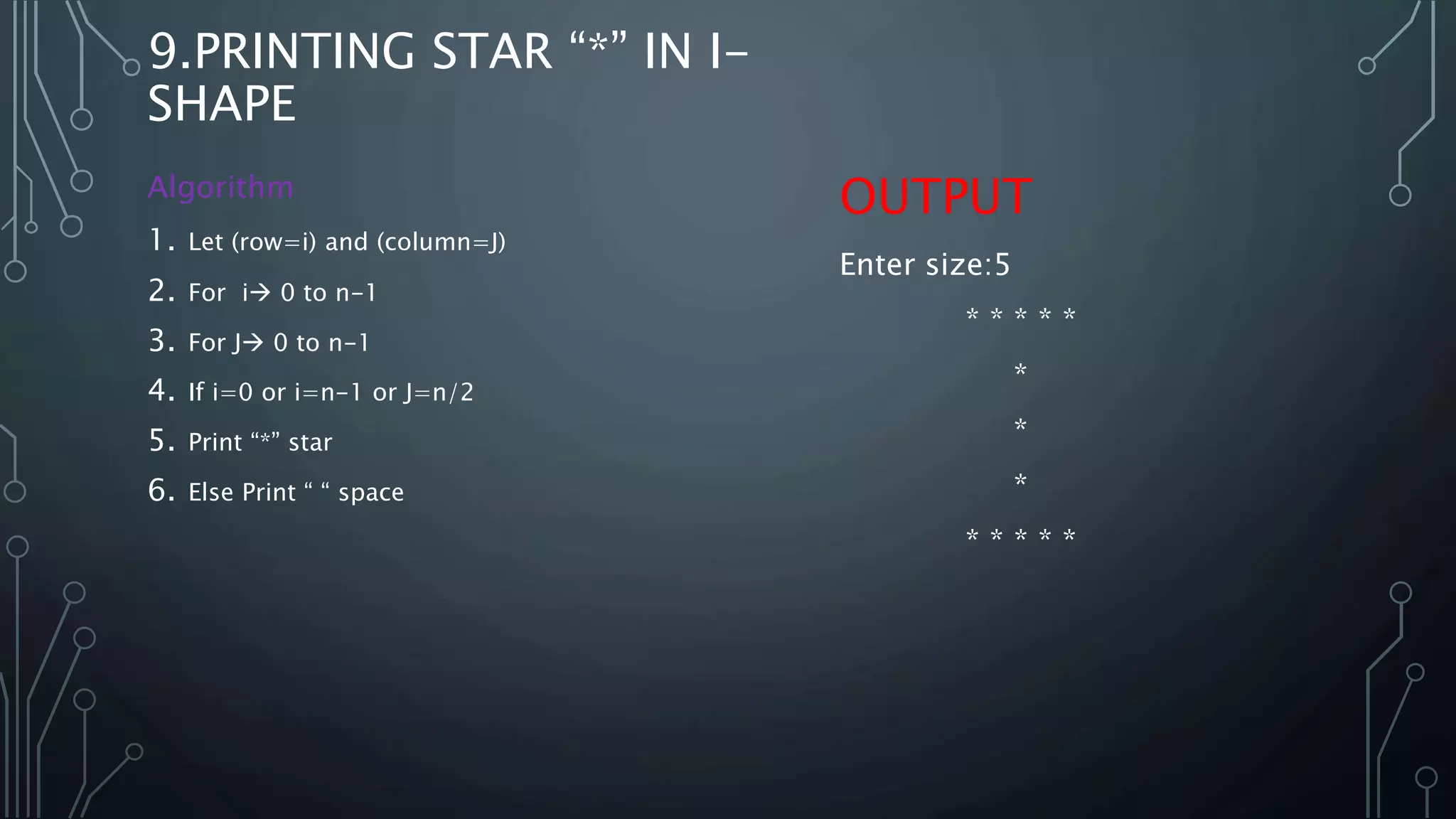

19. 9.PRINTING STAR “*” IN I-
SHAPE
Algorithm
1. Let (row=i) and (column=J)
2. For i 0 to n-1
3. For J 0 to n-1
4. If i=0 or i=n-1 or J=n/2
5. Print “*” star
6. Else Print “ “ space
OUTPUT
Enter size:5
* * * * *
*
*
*
* * * * *

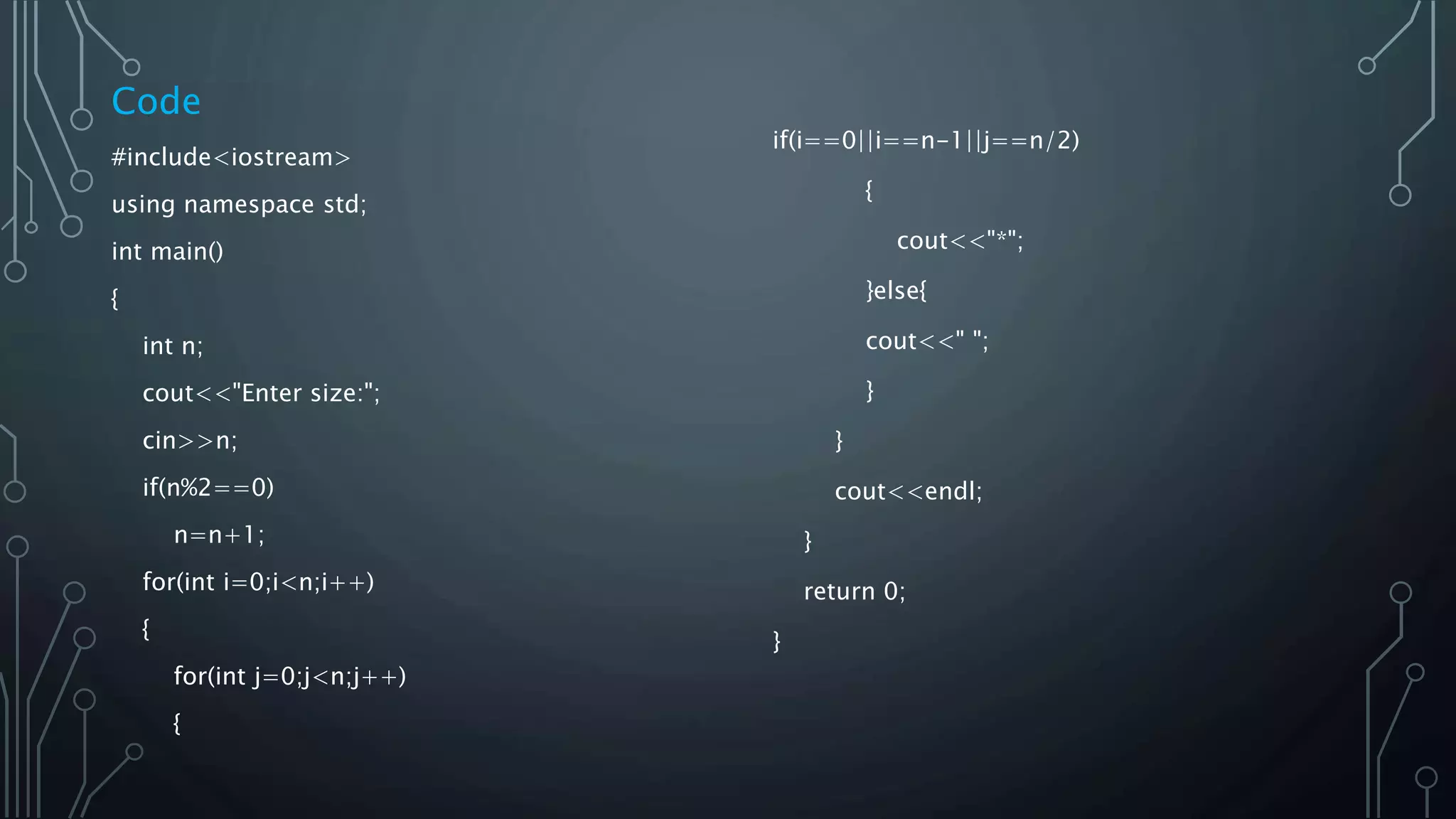

20. Code
#include<iostream>
using namespace std;
int main()
{
int n;
cout<<"Enter size:";
cin>>n;
if(n%2==0)
n=n+1;
for(int i=0;i<n;i++)
{
for(int j=0;j<n;j++)
{
if(i==0||i==n-1||j==n/2)
{
cout<<"*";
}else{
cout<<" ";
}
}
cout<<endl;
}
return 0;
}

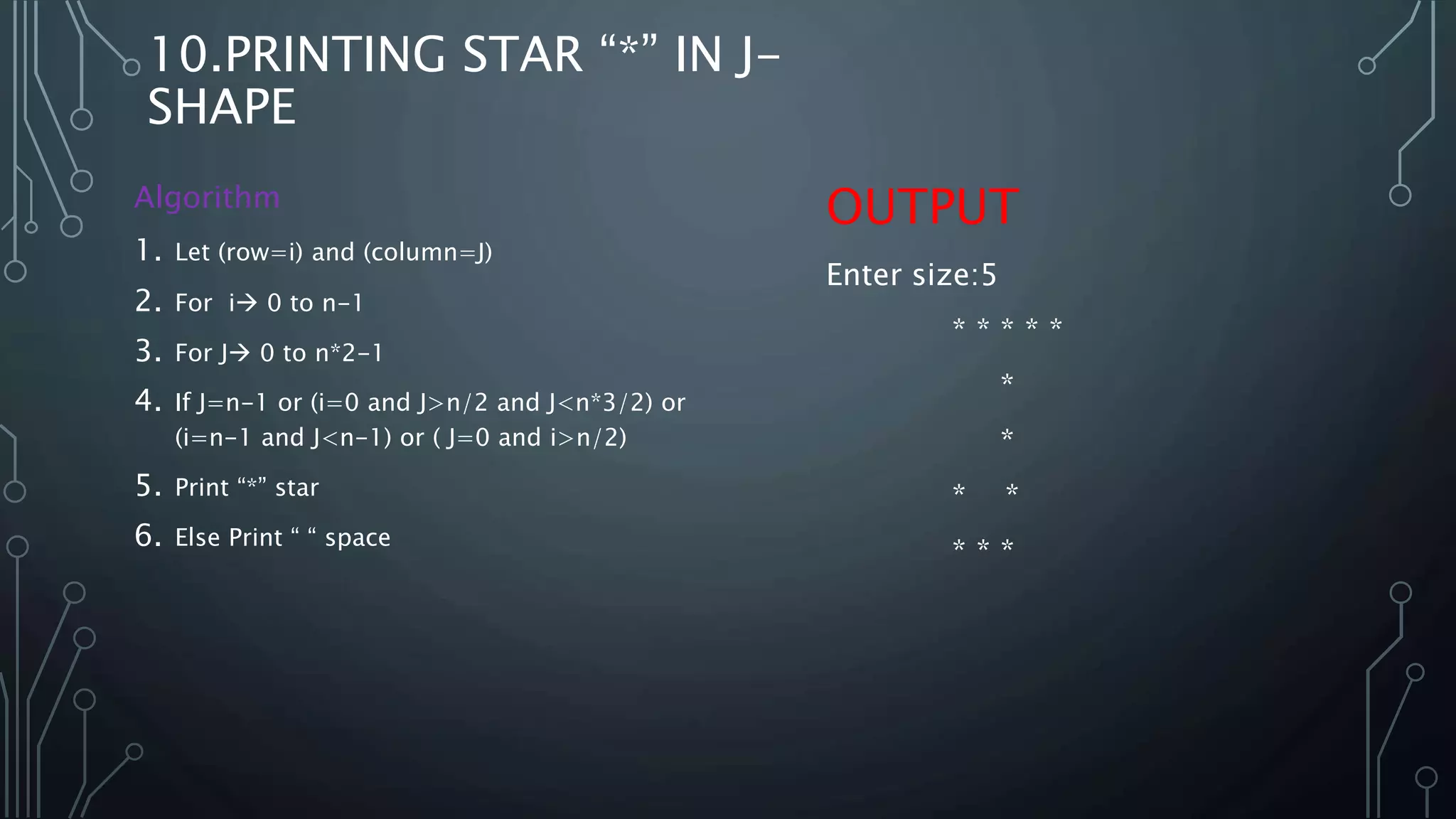

21. 10.PRINTING STAR “*” IN J-
SHAPE
Algorithm
1. Let (row=i) and (column=J)
2. For i 0 to n-1
3. For J 0 to n*2-1
4. If J=n-1 or (i=0 and J>n/2 and J<n*3/2) or
(i=n-1 and J<n-1) or ( J=0 and i>n/2)
5. Print “*” star
6. Else Print “ “ space
OUTPUT
Enter size:5
* * * * *
*
*
* *
* * *

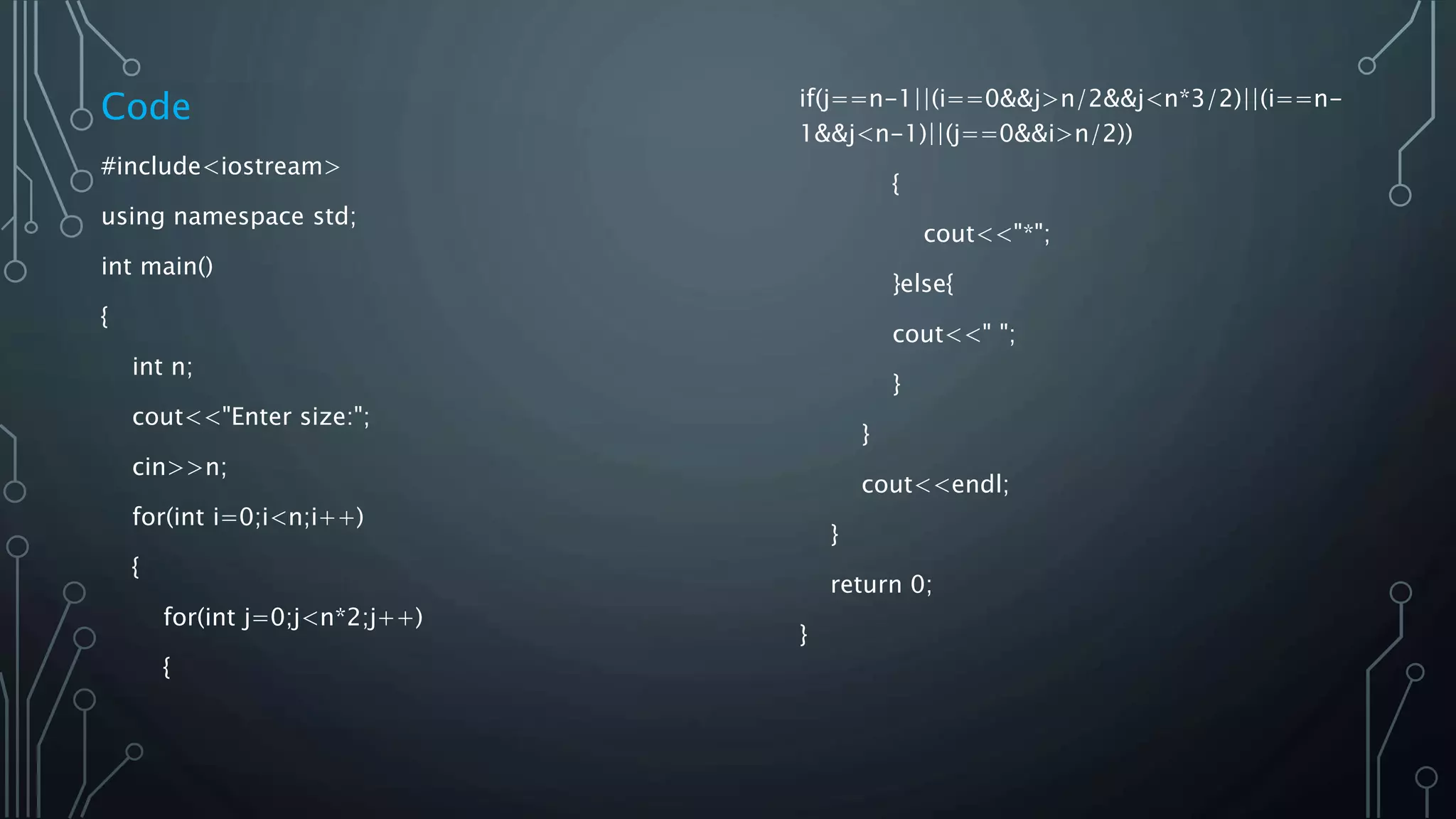

22. Code
#include<iostream>
using namespace std;
int main()
{
int n;
cout<<"Enter size:";
cin>>n;
for(int i=0;i<n;i++)
{
for(int j=0;j<n*2;j++)
{
if(j==n-1||(i==0&&j>n/2&&j<n*3/2)||(i==n-
1&&j<n-1)||(j==0&&i>n/2))
{
cout<<"*";
}else{
cout<<" ";
}
}
cout<<endl;
}
return 0;
}

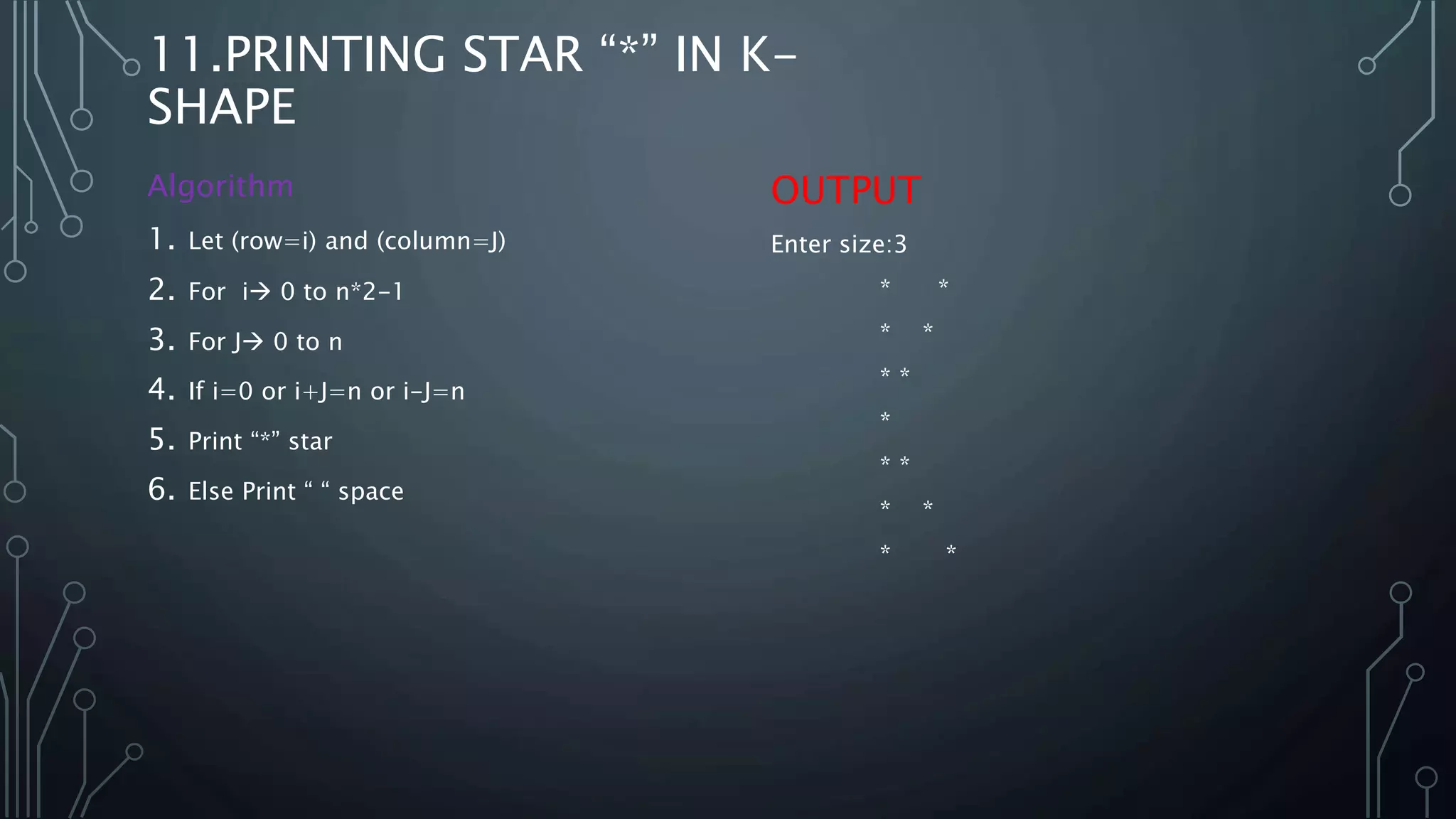

23. 11.PRINTING STAR “*” IN K-
SHAPE
Algorithm
1. Let (row=i) and (column=J)
2. For i 0 to n*2-1
3. For J 0 to n
4. If i=0 or i+J=n or i-J=n
5. Print “*” star
6. Else Print “ “ space
OUTPUT
Enter size:3
* *
* *
* *
*
* *
* *
* *

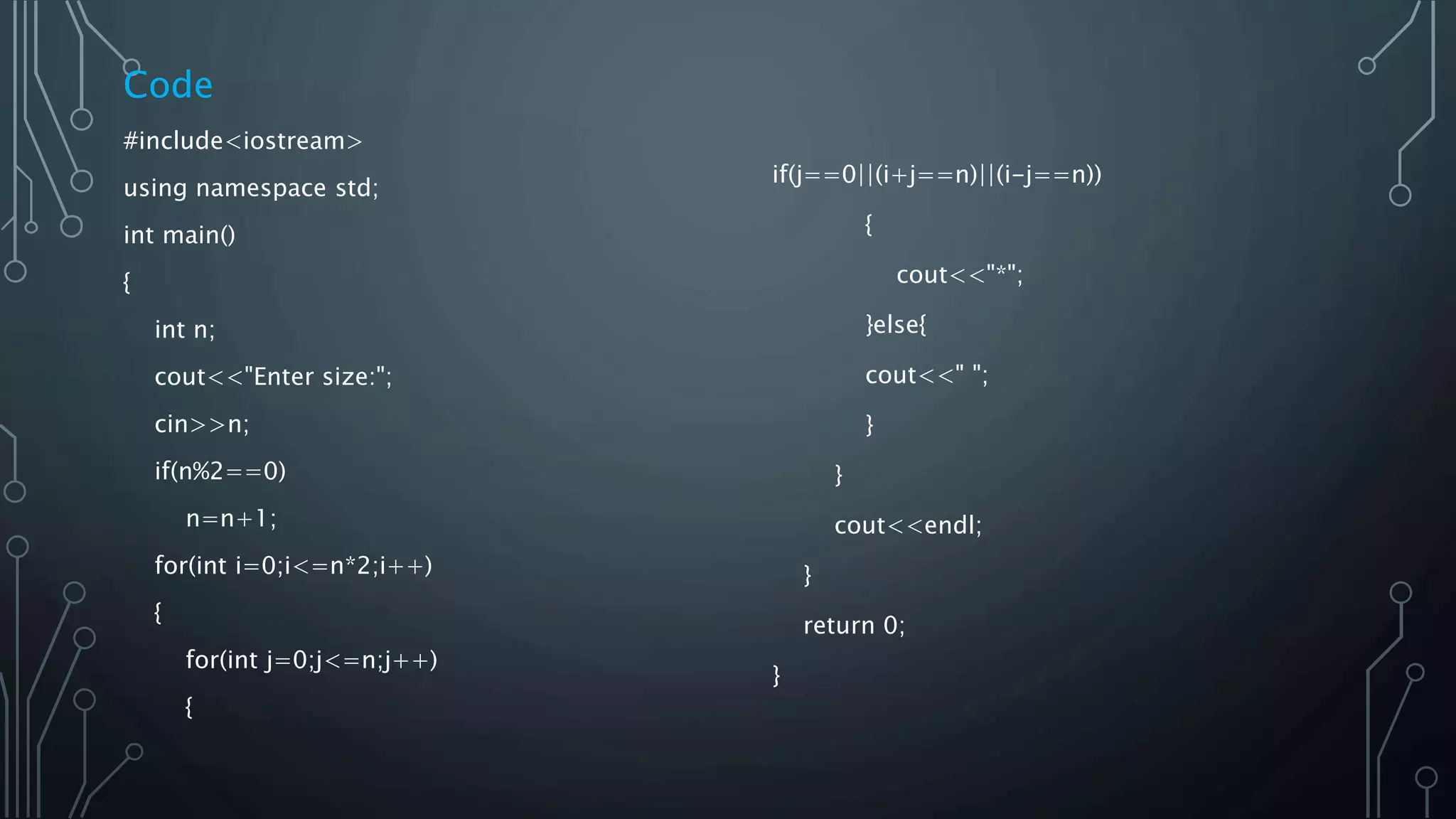

24. Code
#include<iostream>
using namespace std;
int main()
{
int n;
cout<<"Enter size:";
cin>>n;
if(n%2==0)
n=n+1;
for(int i=0;i<=n*2;i++)
{
for(int j=0;j<=n;j++)
{
if(j==0||(i+j==n)||(i-j==n))
{
cout<<"*";
}else{
cout<<" ";
}
}
cout<<endl;
}
return 0;
}

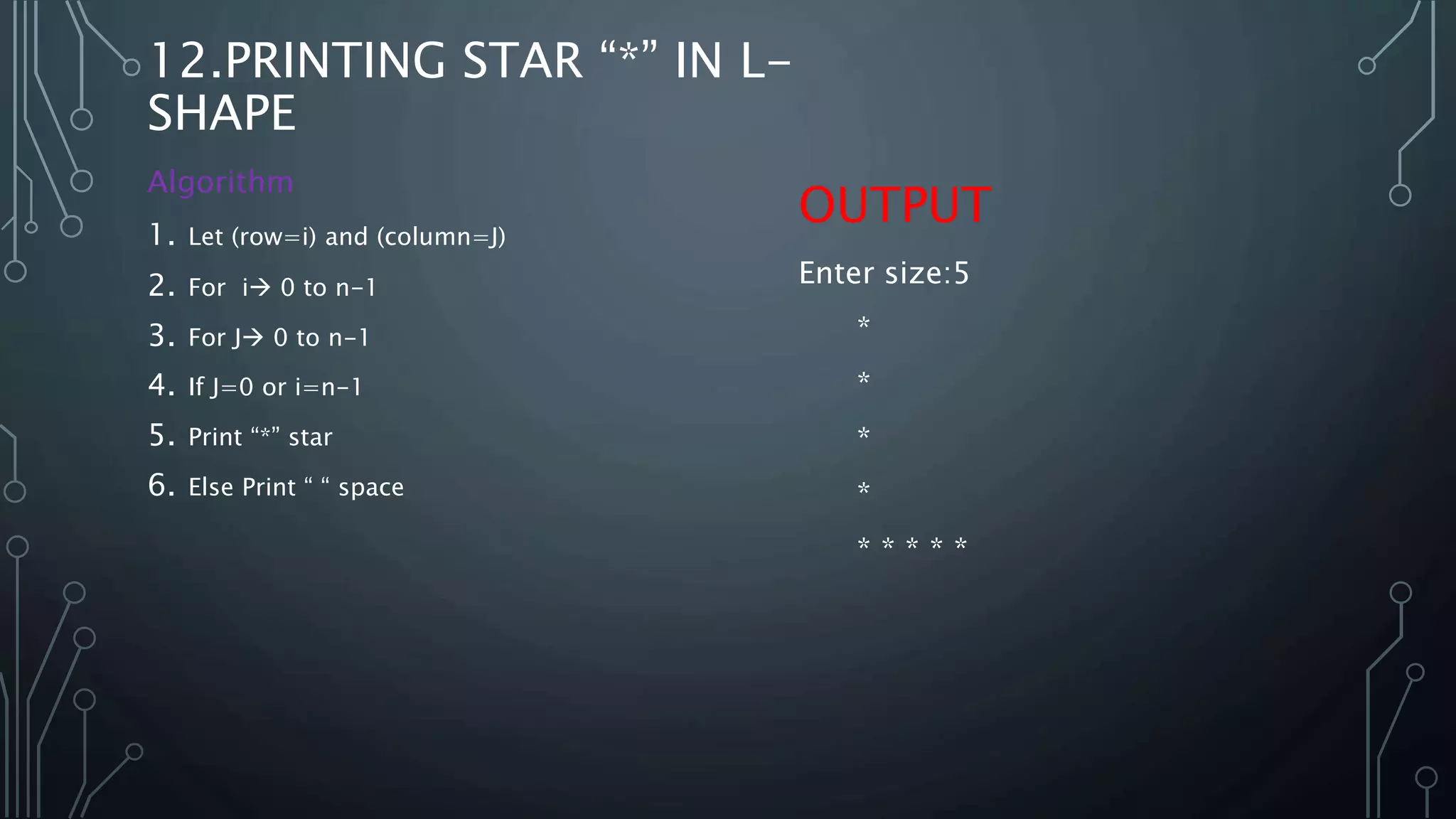

25. 12.PRINTING STAR “*” IN L-
SHAPE
Algorithm
1. Let (row=i) and (column=J)
2. For i 0 to n-1
3. For J 0 to n-1
4. If J=0 or i=n-1
5. Print “*” star
6. Else Print “ “ space
OUTPUT
Enter size:5
*
*
*
*
* * * * *

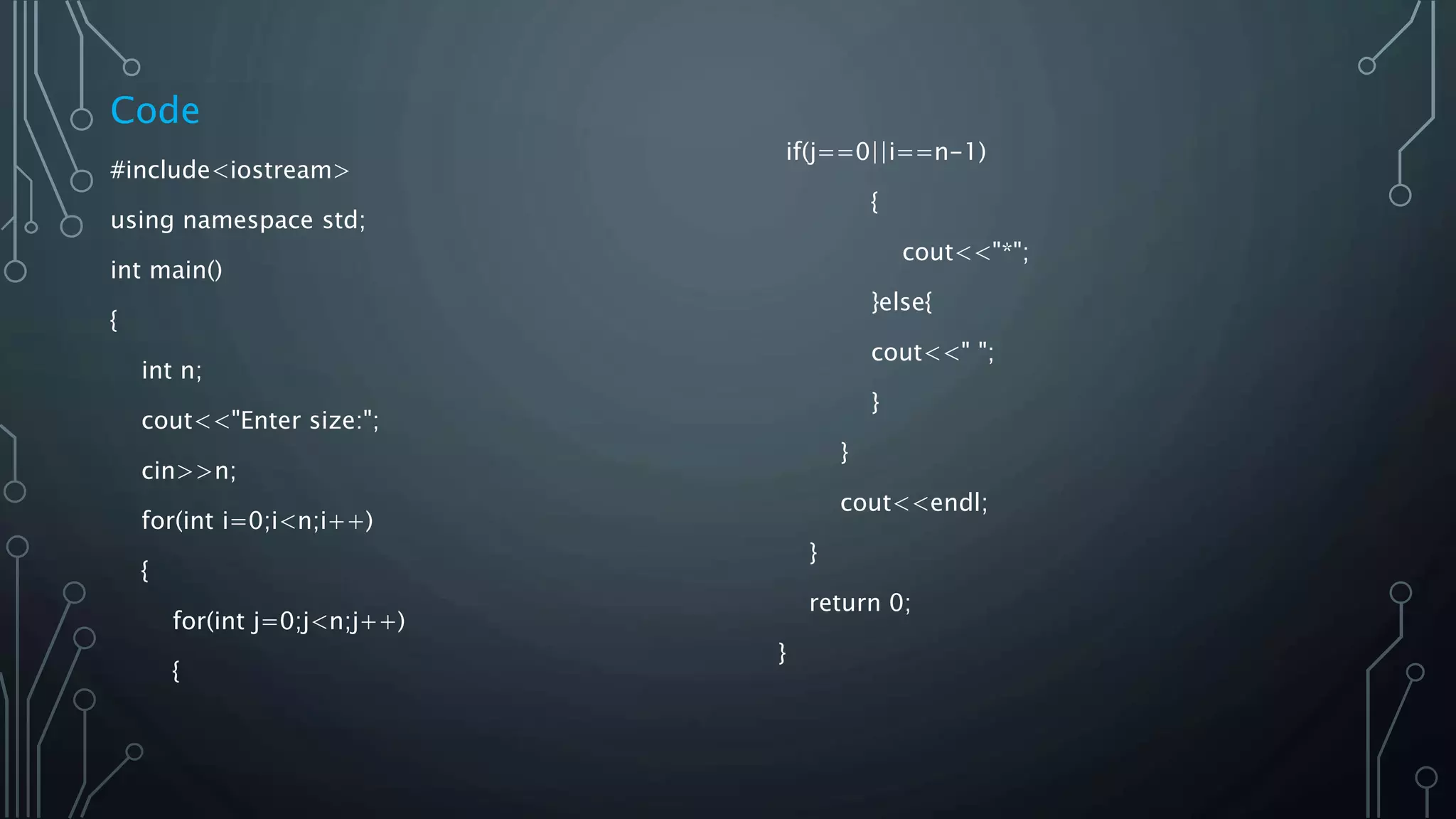

26. Code
#include<iostream>
using namespace std;
int main()
{
int n;
cout<<"Enter size:";
cin>>n;
for(int i=0;i<n;i++)
{
for(int j=0;j<n;j++)
{
if(j==0||i==n-1)
{
cout<<"*";
}else{
cout<<" ";
}
}
cout<<endl;
}
return 0;
}

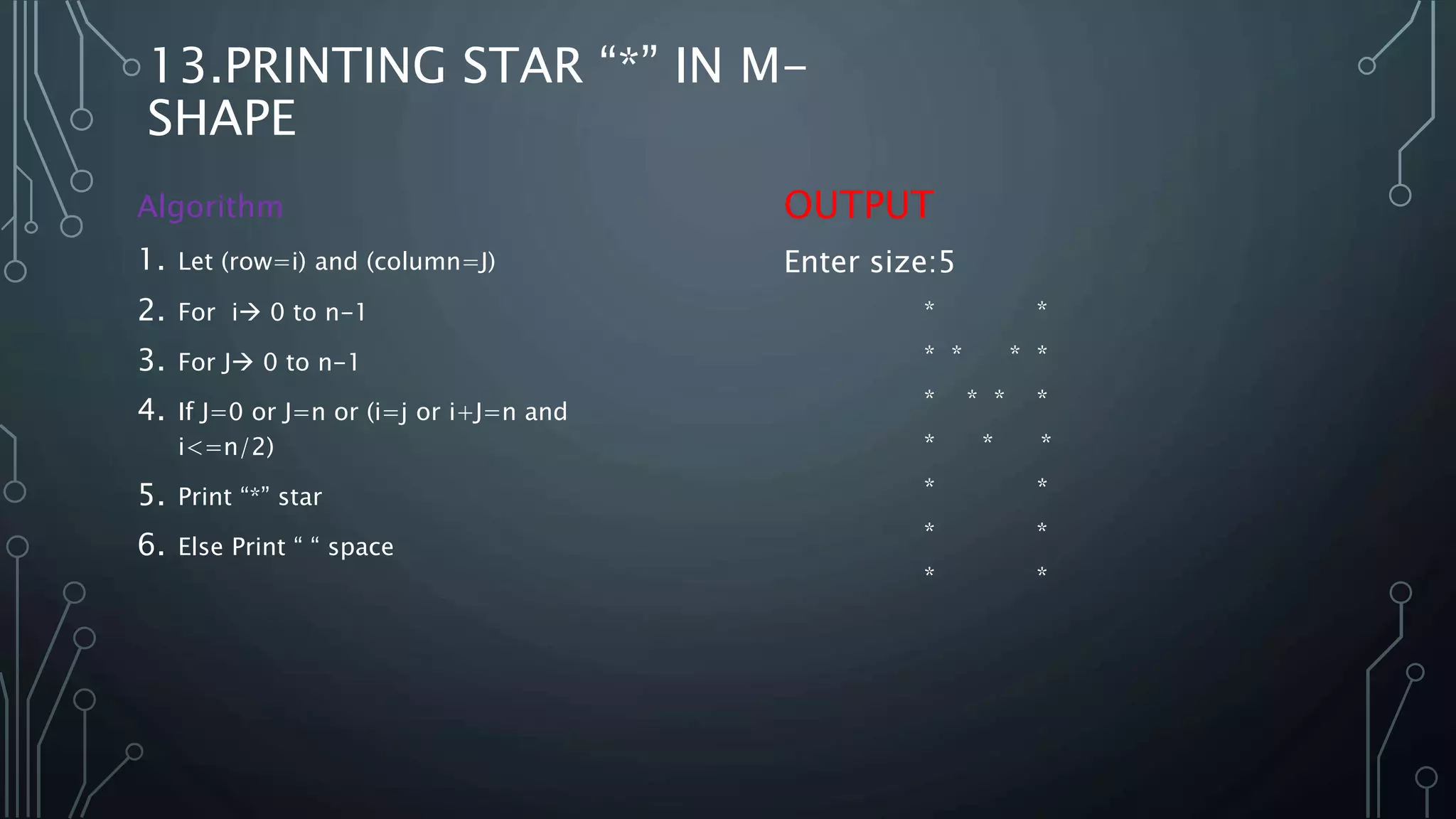

27. 13.PRINTING STAR “*” IN M-
SHAPE
Algorithm
1. Let (row=i) and (column=J)
2. For i 0 to n-1
3. For J 0 to n-1
4. If J=0 or J=n or (i=j or i+J=n and
i<=n/2)
5. Print “*” star
6. Else Print “ “ space
OUTPUT
Enter size:5
* *
* * * *
* * * *
* * *
* *
* *
* *

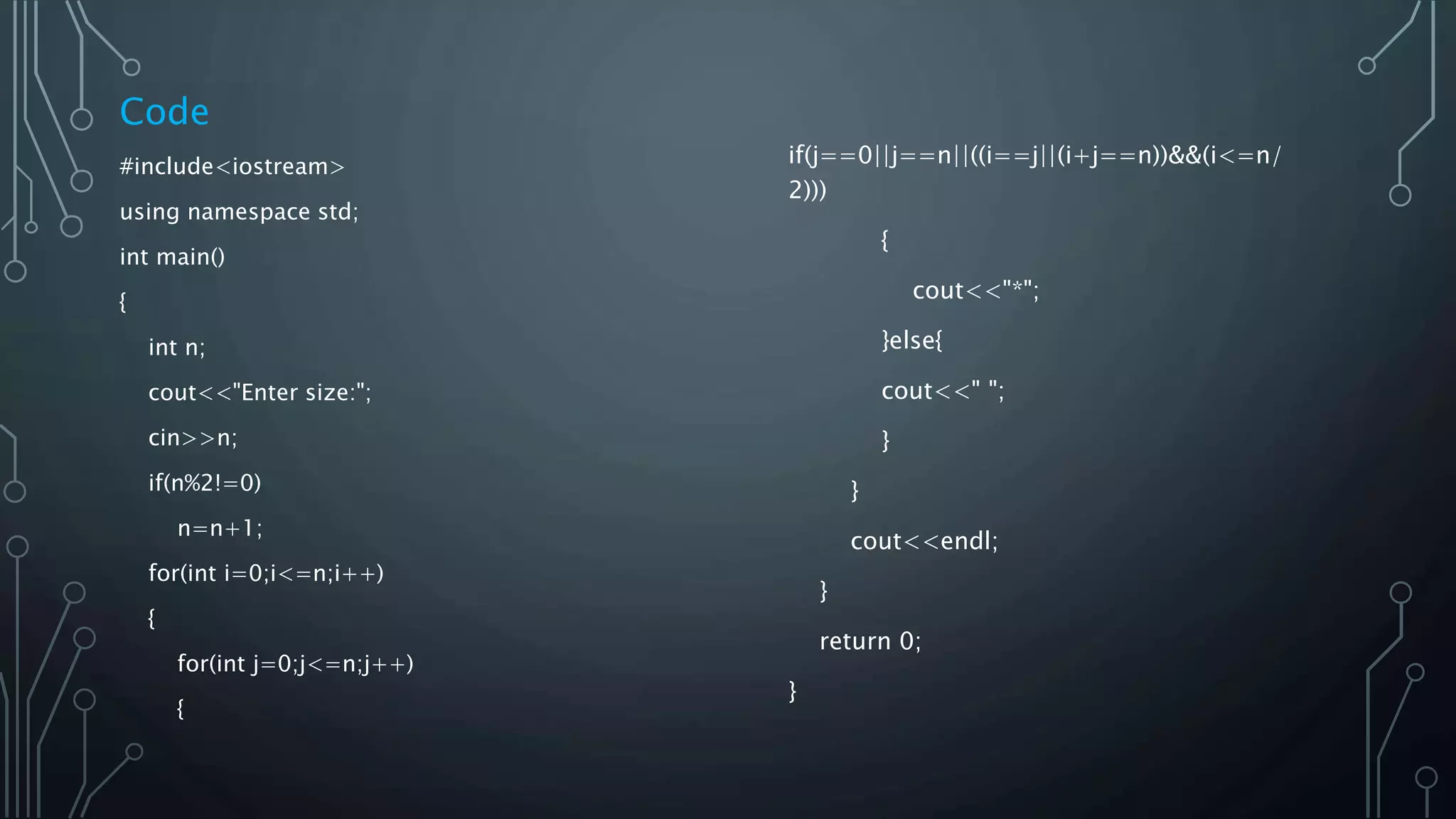

28. Code
#include<iostream>
using namespace std;
int main()
{
int n;
cout<<"Enter size:";
cin>>n;
if(n%2!=0)
n=n+1;
for(int i=0;i<=n;i++)
{
for(int j=0;j<=n;j++)
{
if(j==0||j==n||((i==j||(i+j==n))&&(i<=n/
2)))
{
cout<<"*";
}else{
cout<<" ";
}
}
cout<<endl;
}
return 0;
}

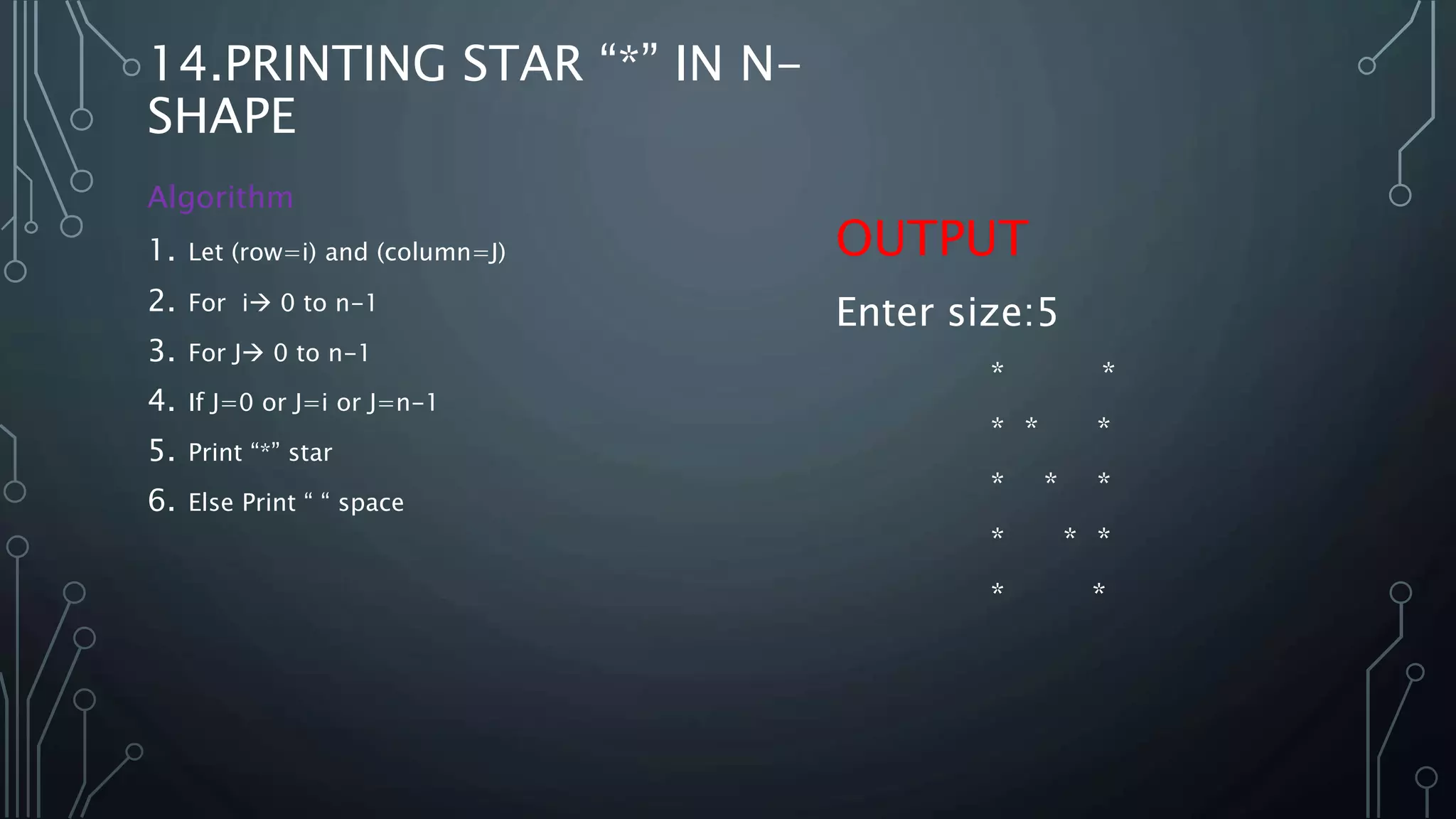

29. 14.PRINTING STAR “*” IN N-
SHAPE
Algorithm
1. Let (row=i) and (column=J)
2. For i 0 to n-1
3. For J 0 to n-1
4. If J=0 or J=i or J=n-1
5. Print “*” star
6. Else Print “ “ space
OUTPUT
Enter size:5
* *
* * *
* * *
* * *
* *

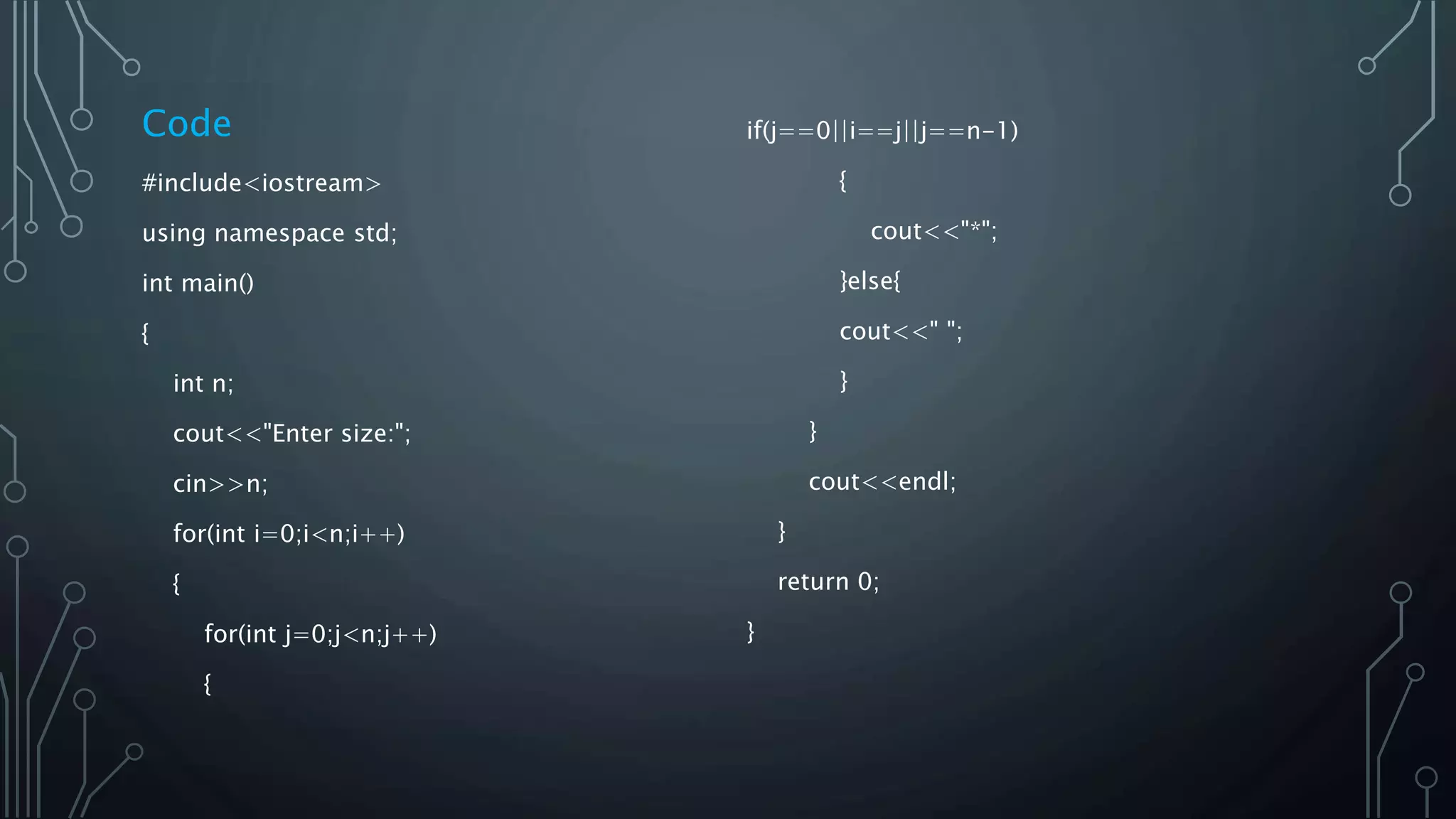

30. if(j==0||i==j||j==n-1)
{
cout<<"*";
}else{
cout<<" ";
}
}
cout<<endl;
}
return 0;
}
Code
#include<iostream>
using namespace std;
int main()
{
int n;
cout<<"Enter size:";
cin>>n;
for(int i=0;i<n;i++)
{
for(int j=0;j<n;j++)
{

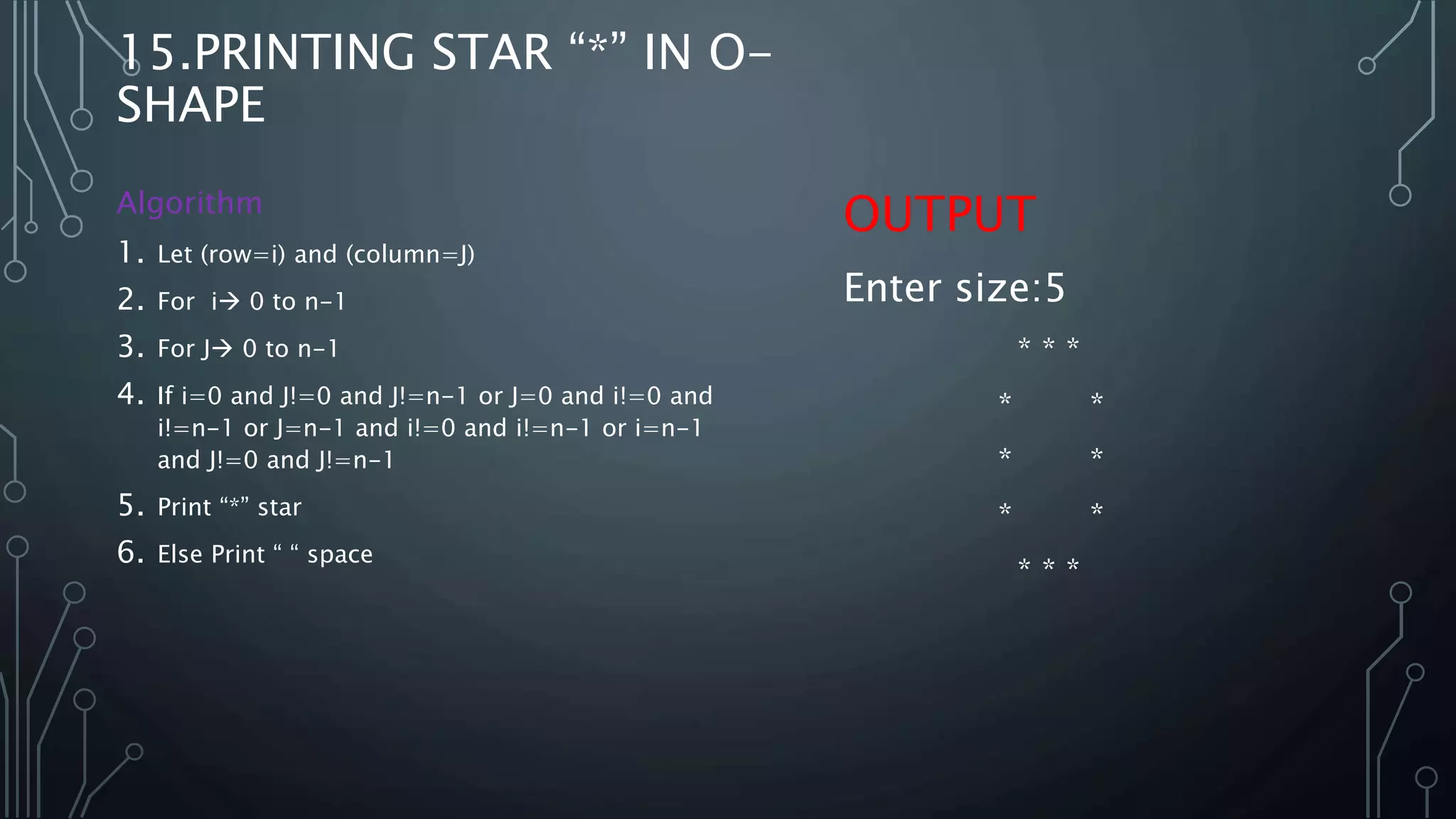

31. 15.PRINTING STAR “*” IN O-
SHAPE
OUTPUT
Enter size:5
* * *
* *
* *
* *
* * *
Algorithm
1. Let (row=i) and (column=J)
2. For i 0 to n-1
3. For J 0 to n-1
4. If i=0 and J!=0 and J!=n-1 or J=0 and i!=0 and
i!=n-1 or J=n-1 and i!=0 and i!=n-1 or i=n-1
and J!=0 and J!=n-1
5. Print “*” star
6. Else Print “ “ space

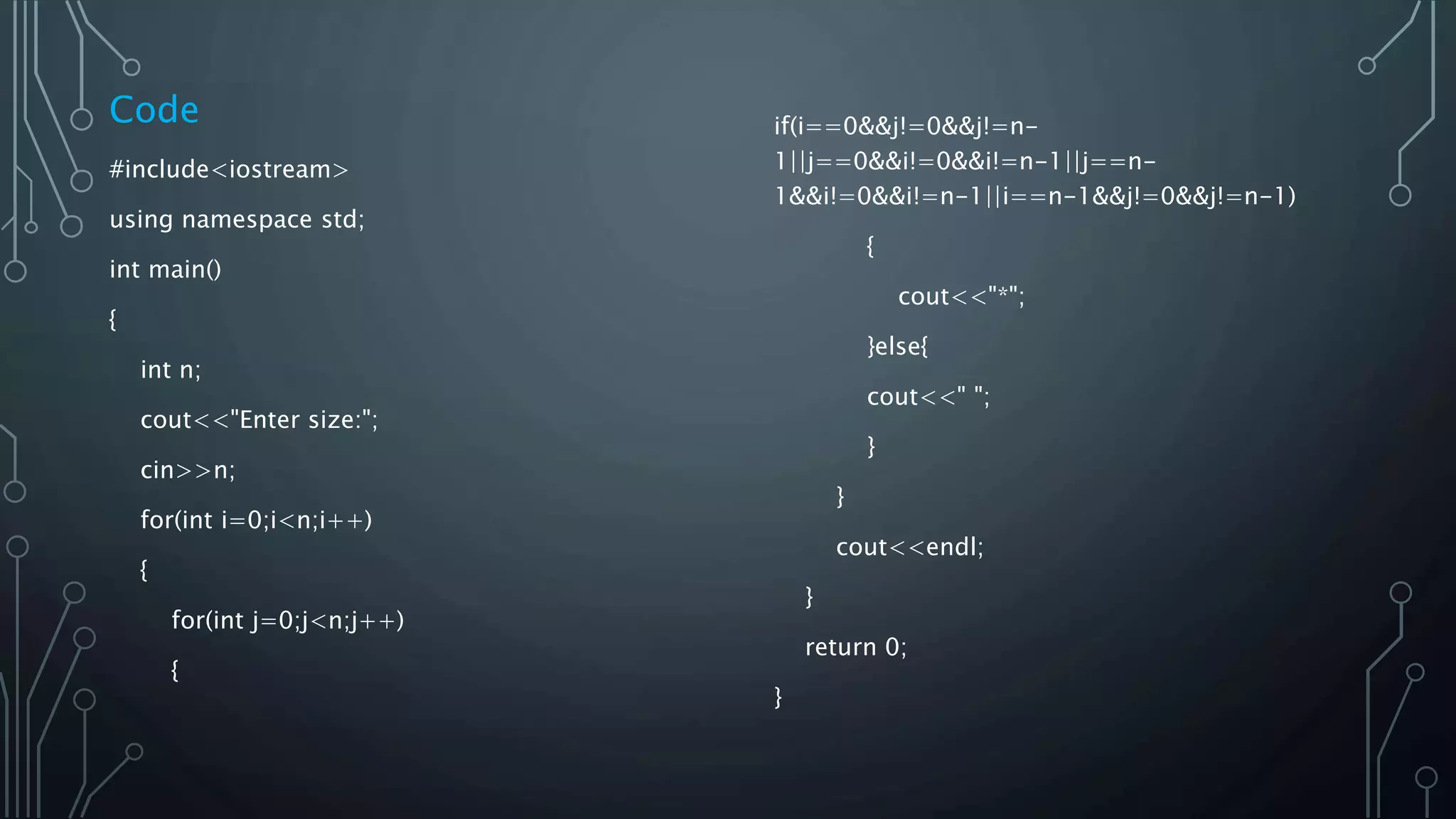

32. Code
#include<iostream>
using namespace std;
int main()
{
int n;
cout<<"Enter size:";
cin>>n;
for(int i=0;i<n;i++)
{
for(int j=0;j<n;j++)
{
if(i==0&&j!=0&&j!=n-
1||j==0&&i!=0&&i!=n-1||j==n-
1&&i!=0&&i!=n-1||i==n-1&&j!=0&&j!=n-1)
{
cout<<"*";
}else{
cout<<" ";
}
}
cout<<endl;
}
return 0;
}

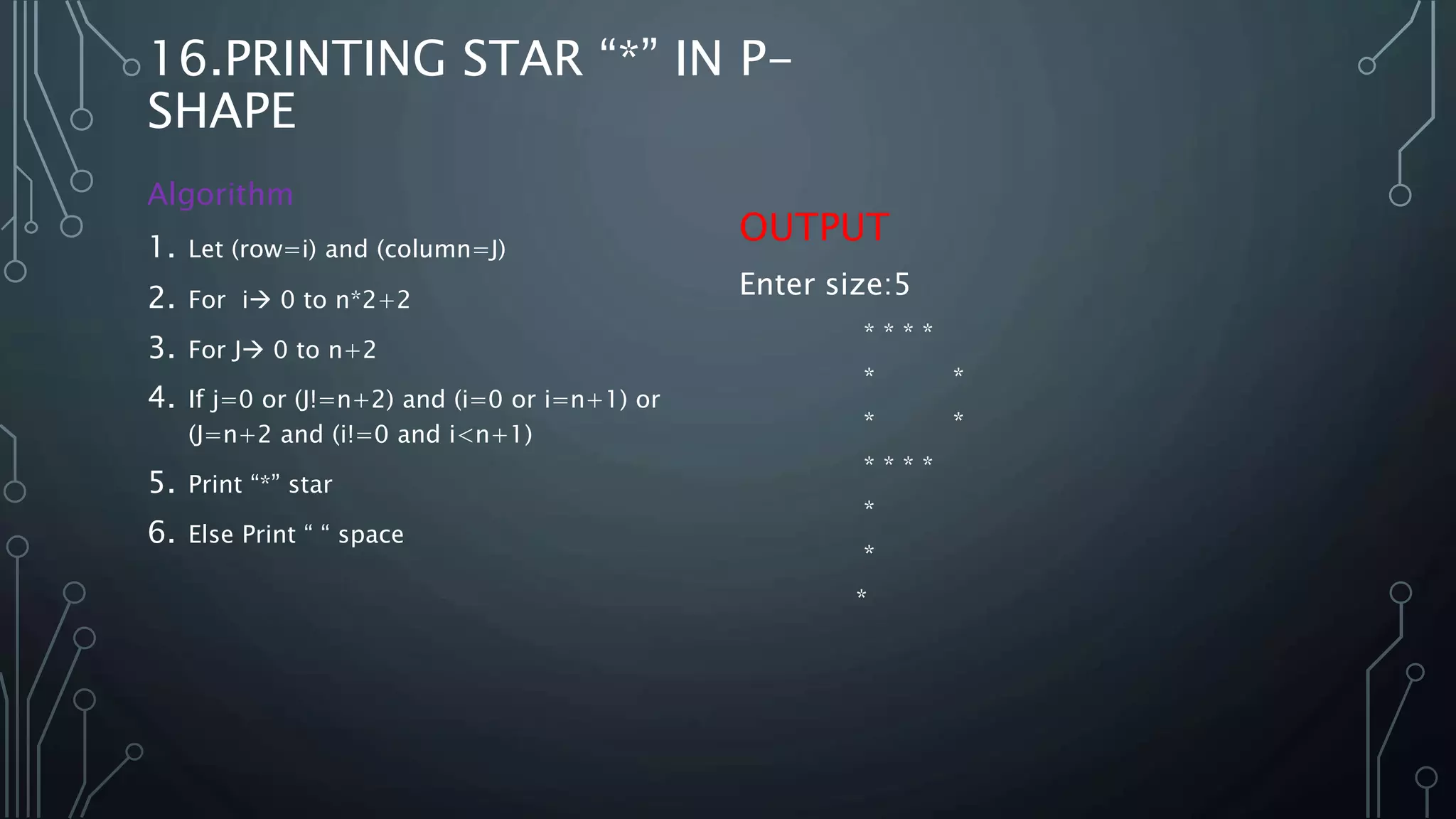

33. 16.PRINTING STAR “*” IN P-
SHAPE
OUTPUT
Enter size:5
* * * *
* *
* *
* * * *
*
*
*
Algorithm
1. Let (row=i) and (column=J)
2. For i 0 to n*2+2
3. For J 0 to n+2
4. If j=0 or (J!=n+2) and (i=0 or i=n+1) or
(J=n+2 and (i!=0 and i<n+1)
5. Print “*” star
6. Else Print “ “ space

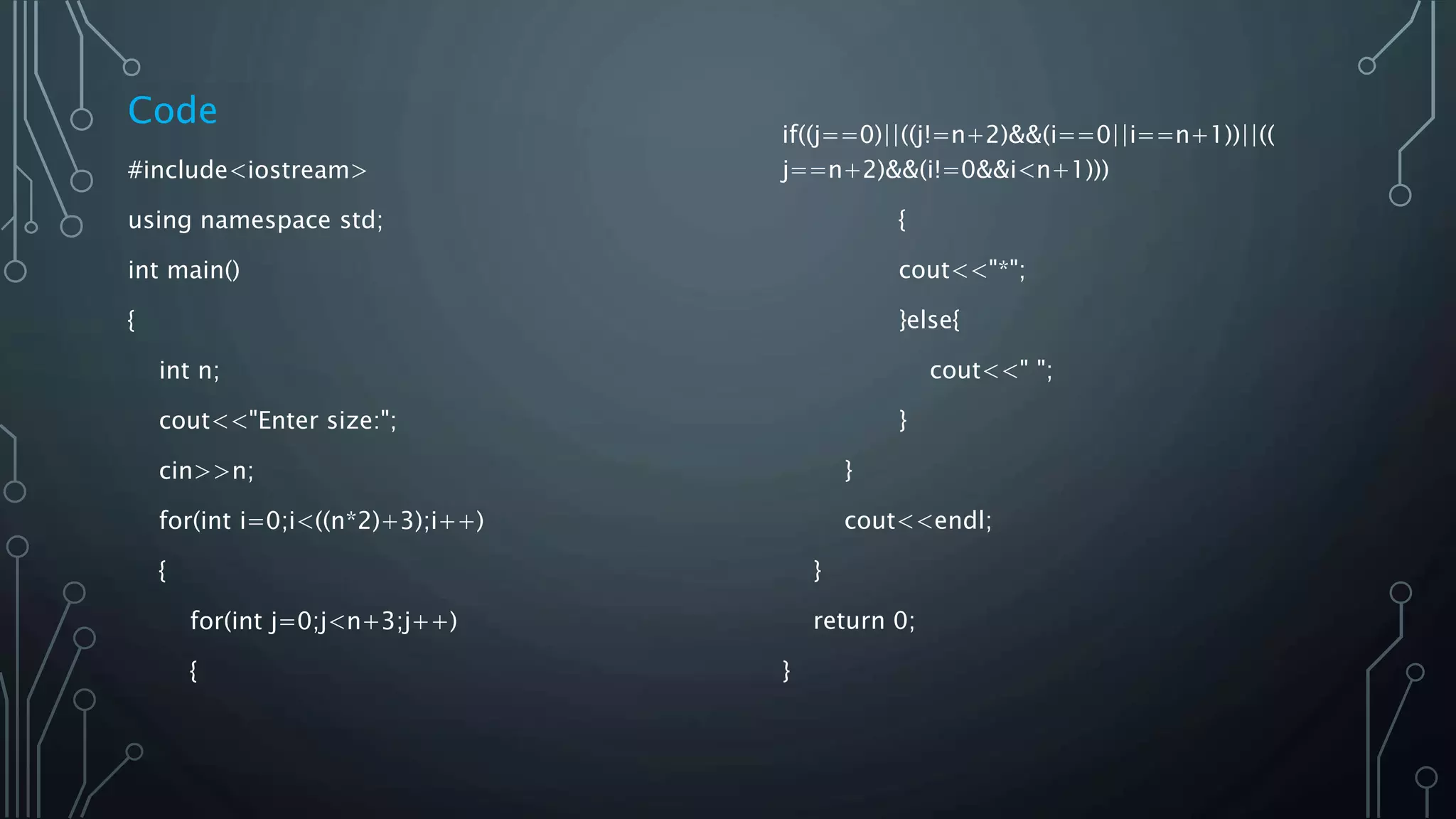

34. Code
#include<iostream>
using namespace std;
int main()
{
int n;
cout<<"Enter size:";
cin>>n;
for(int i=0;i<((n*2)+3);i++)
{
for(int j=0;j<n+3;j++)
{
if((j==0)||((j!=n+2)&&(i==0||i==n+1))||((
j==n+2)&&(i!=0&&i<n+1)))
{
cout<<"*";
}else{
cout<<" ";
}
}
cout<<endl;
}
return 0;
}

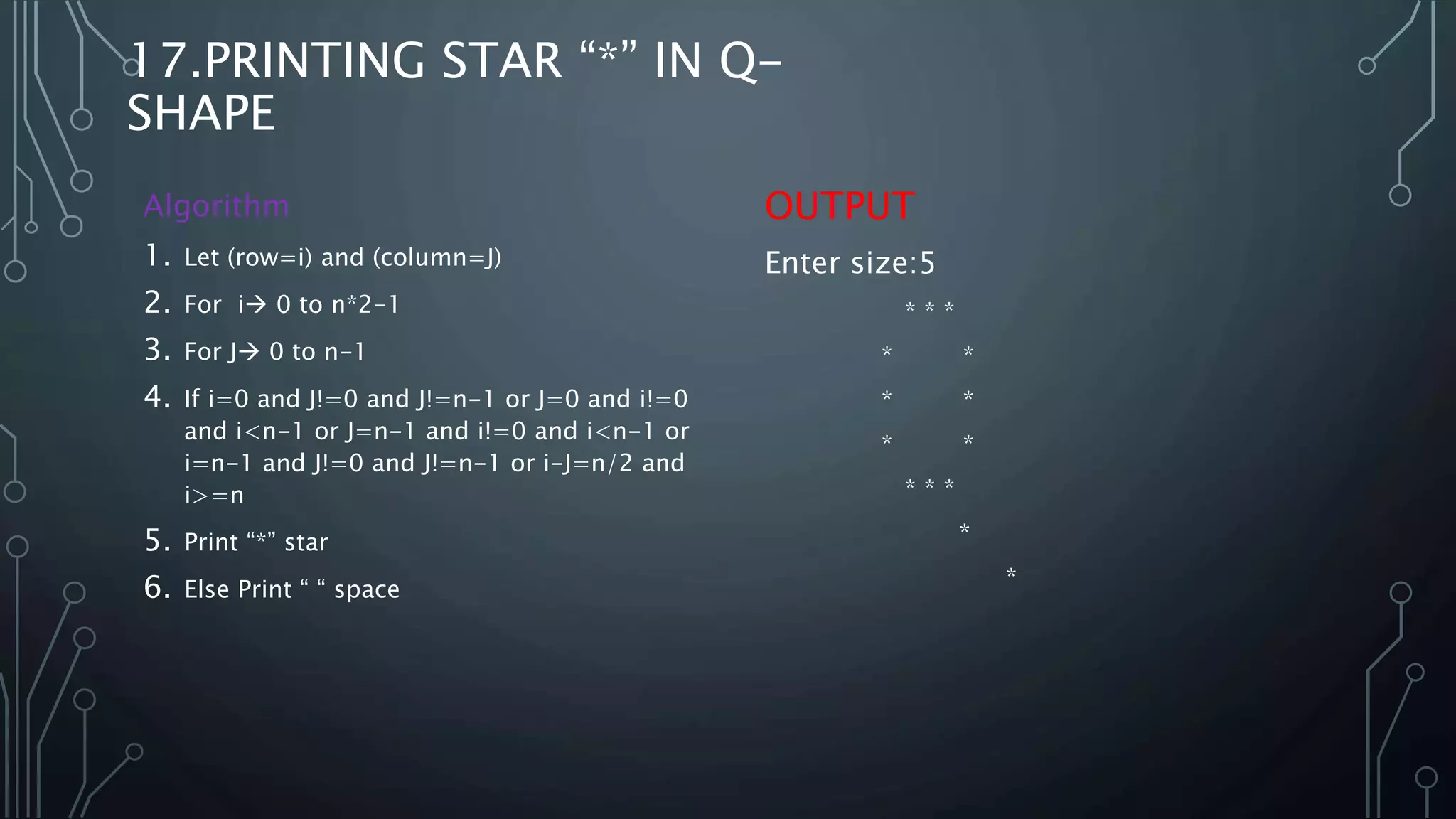

35. 17.PRINTING STAR “*” IN Q-
SHAPE
OUTPUT
Enter size:5
* * *
* *
* *
* *
* * *
*
*
Algorithm
1. Let (row=i) and (column=J)
2. For i 0 to n*2-1
3. For J 0 to n-1
4. If i=0 and J!=0 and J!=n-1 or J=0 and i!=0
and i<n-1 or J=n-1 and i!=0 and i<n-1 or
i=n-1 and J!=0 and J!=n-1 or i-J=n/2 and
i>=n
5. Print “*” star
6. Else Print “ “ space

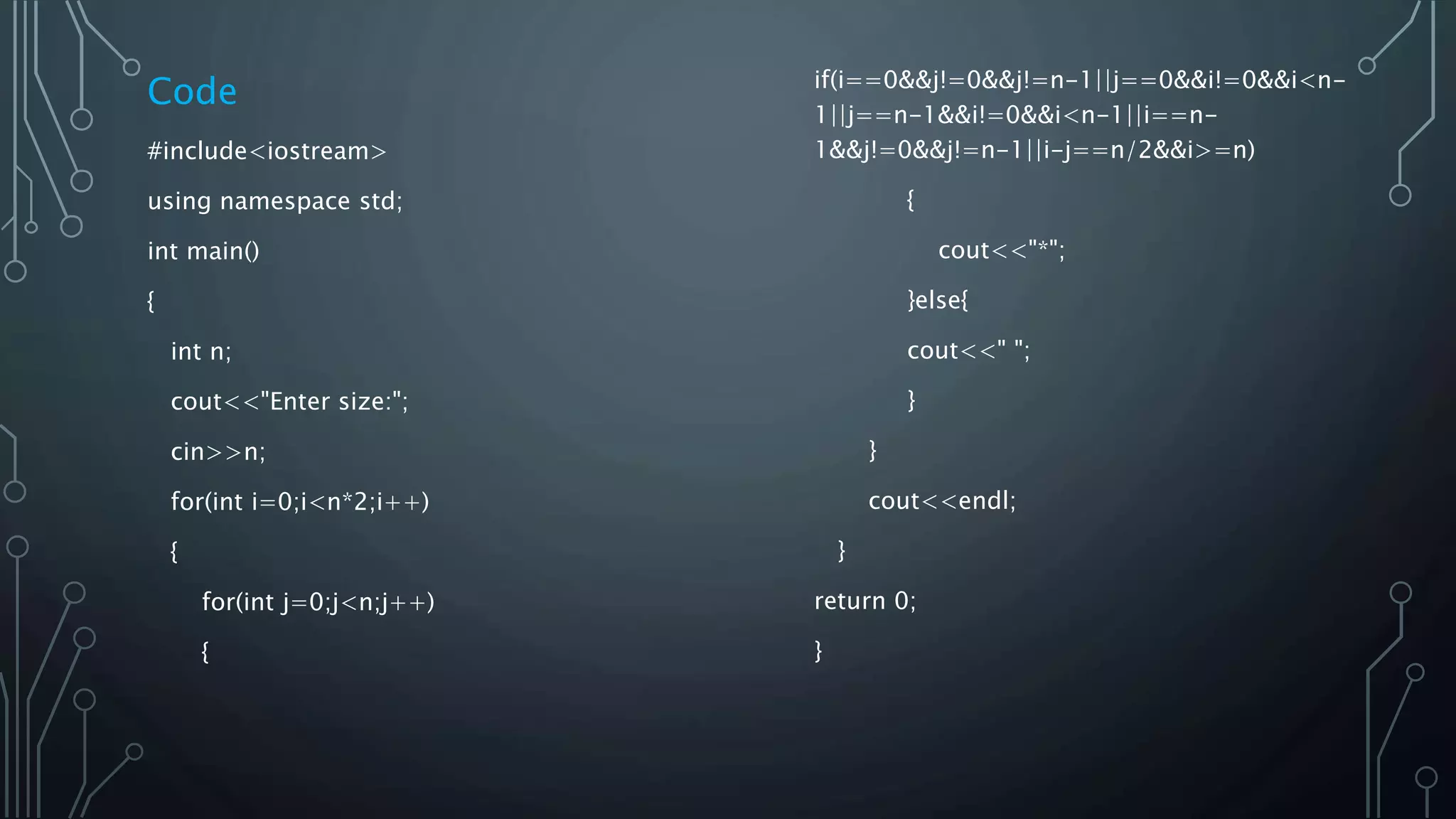

36. Code
#include<iostream>
using namespace std;
int main()
{
int n;
cout<<"Enter size:";
cin>>n;
for(int i=0;i<n*2;i++)
{
for(int j=0;j<n;j++)
{
if(i==0&&j!=0&&j!=n-1||j==0&&i!=0&&i<n-
1||j==n-1&&i!=0&&i<n-1||i==n-
1&&j!=0&&j!=n-1||i-j==n/2&&i>=n)
{
cout<<"*";
}else{
cout<<" ";
}
}
cout<<endl;
}
return 0;
}

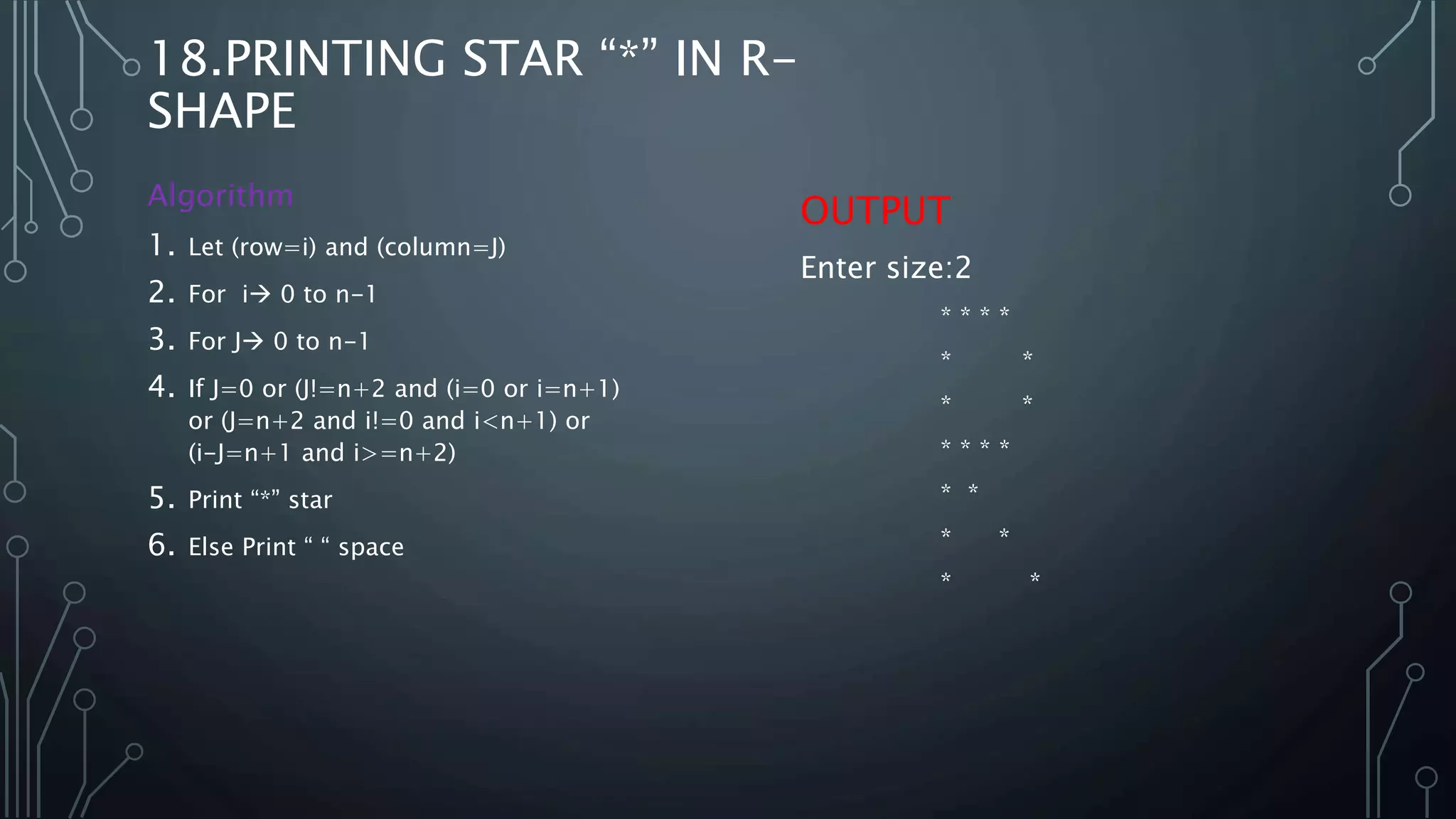

37. 18.PRINTING STAR “*” IN R-
SHAPE
Algorithm
1. Let (row=i) and (column=J)
2. For i 0 to n-1
3. For J 0 to n-1
4. If J=0 or (J!=n+2 and (i=0 or i=n+1)
or (J=n+2 and i!=0 and i<n+1) or
(i-J=n+1 and i>=n+2)
5. Print “*” star
6. Else Print “ “ space
OUTPUT
Enter size:2
* * * *
* *
* *
* * * *
* *
* *
* *

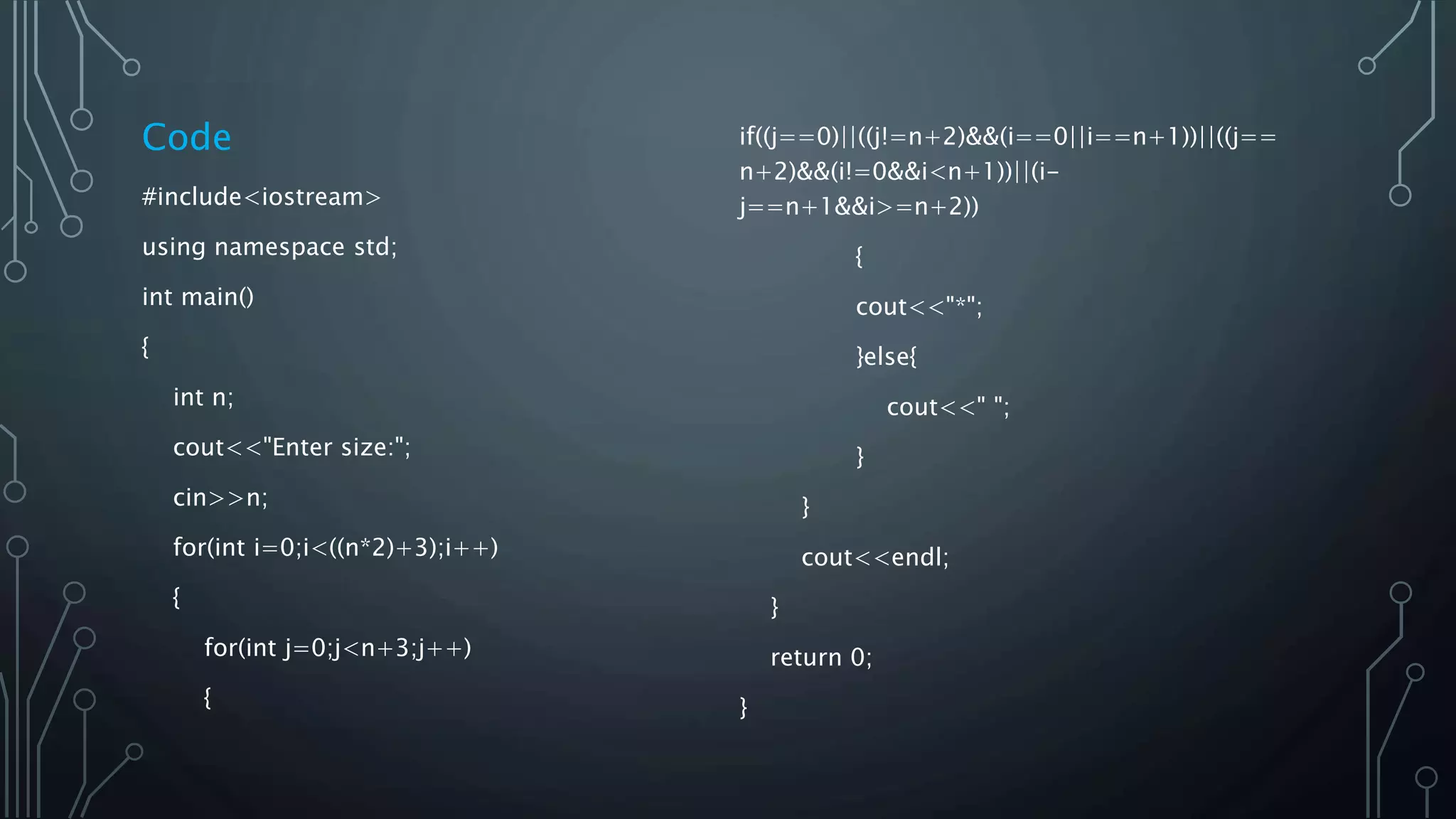

38. if((j==0)||((j!=n+2)&&(i==0||i==n+1))||((j==
n+2)&&(i!=0&&i<n+1))||(i-
j==n+1&&i>=n+2))
{
cout<<"*";
}else{
cout<<" ";
}
}
cout<<endl;
}
return 0;
}
Code
#include<iostream>
using namespace std;
int main()
{
int n;
cout<<"Enter size:";
cin>>n;
for(int i=0;i<((n*2)+3);i++)
{
for(int j=0;j<n+3;j++)
{

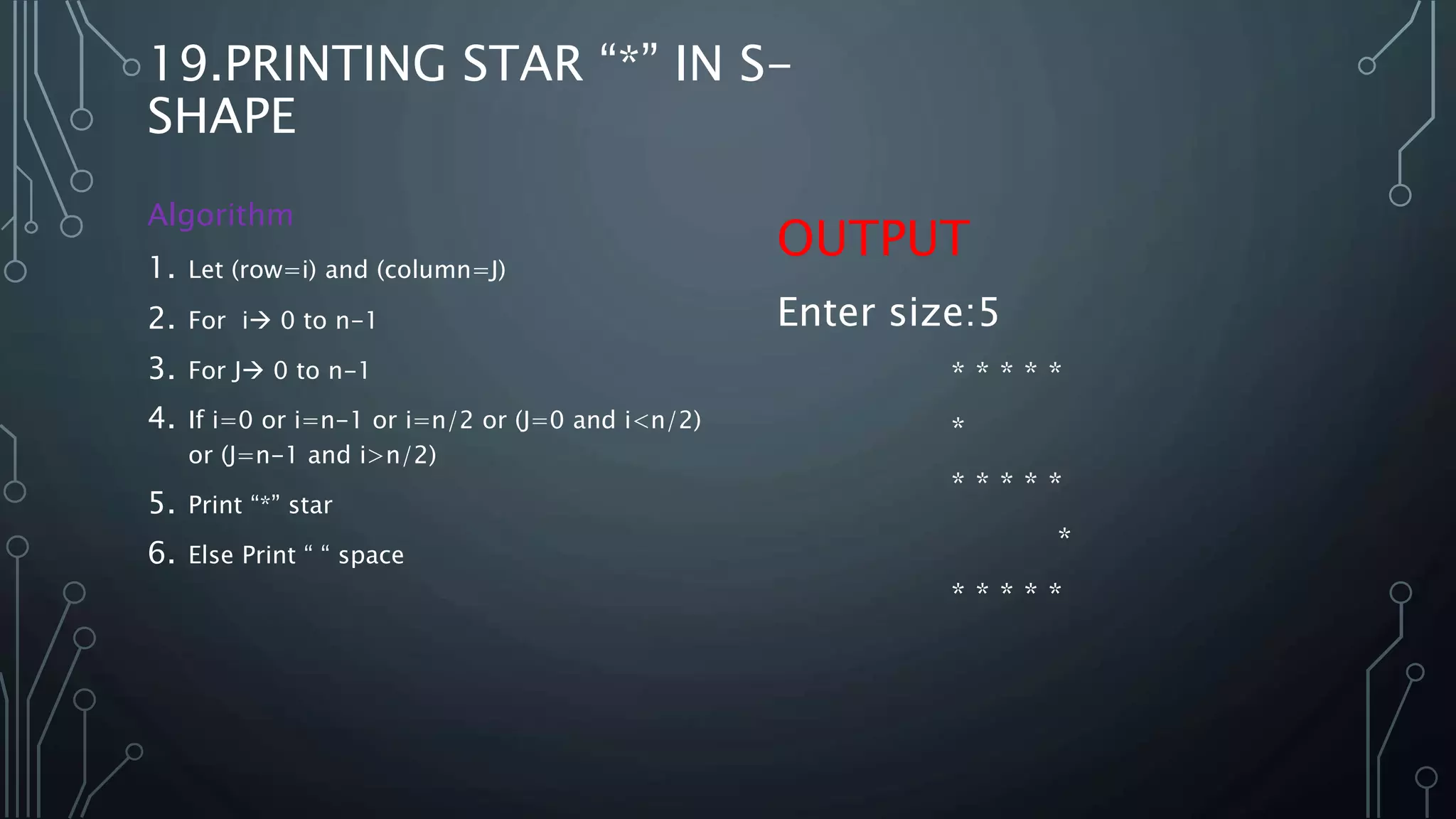

39. 19.PRINTING STAR “*” IN S-
SHAPE
Algorithm
1. Let (row=i) and (column=J)
2. For i 0 to n-1
3. For J 0 to n-1
4. If i=0 or i=n-1 or i=n/2 or (J=0 and i<n/2)
or (J=n-1 and i>n/2)
5. Print “*” star
6. Else Print “ “ space
OUTPUT
Enter size:5
* * * * *
*
* * * * *
*
* * * * *

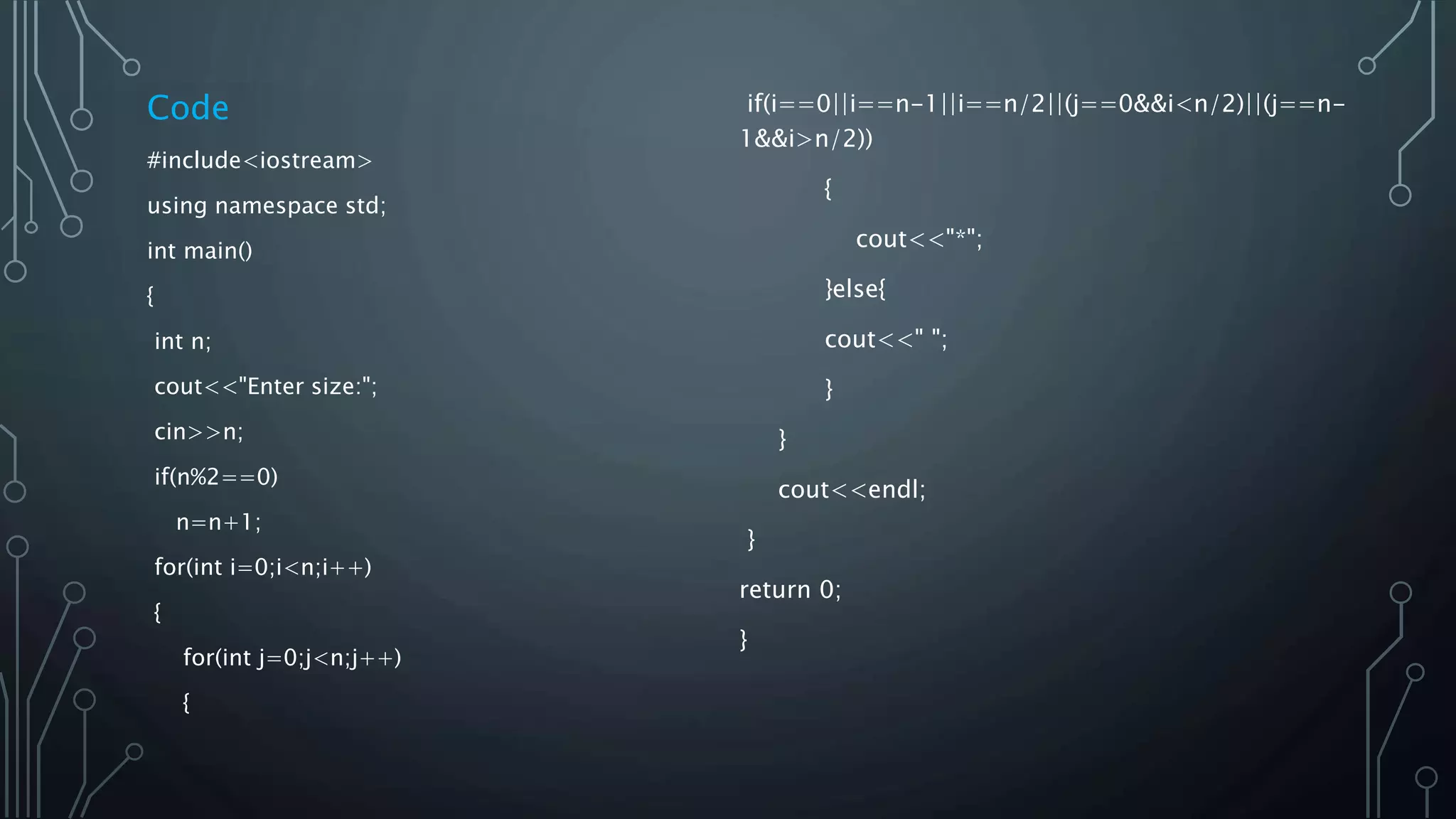

40. Code
#include<iostream>
using namespace std;
int main()
{
int n;
cout<<"Enter size:";
cin>>n;
if(n%2==0)
n=n+1;
for(int i=0;i<n;i++)
{
for(int j=0;j<n;j++)
{
if(i==0||i==n-1||i==n/2||(j==0&&i<n/2)||(j==n-
1&&i>n/2))
{
cout<<"*";
}else{
cout<<" ";
}
}
cout<<endl;
}
return 0;
}

41. 20.PRINTING STAR “*” IN T-
SHAPE
Algorithm
1. Let (row=i) and (column=J)
2. For i 0 to n-1
3. For J 0 to n-1
4. If i=0 or J=n/2
5. Print “*” star
6. Else Print “ “ space
OUTPUT
Enter size:5
* * * * *
*
*
*
*

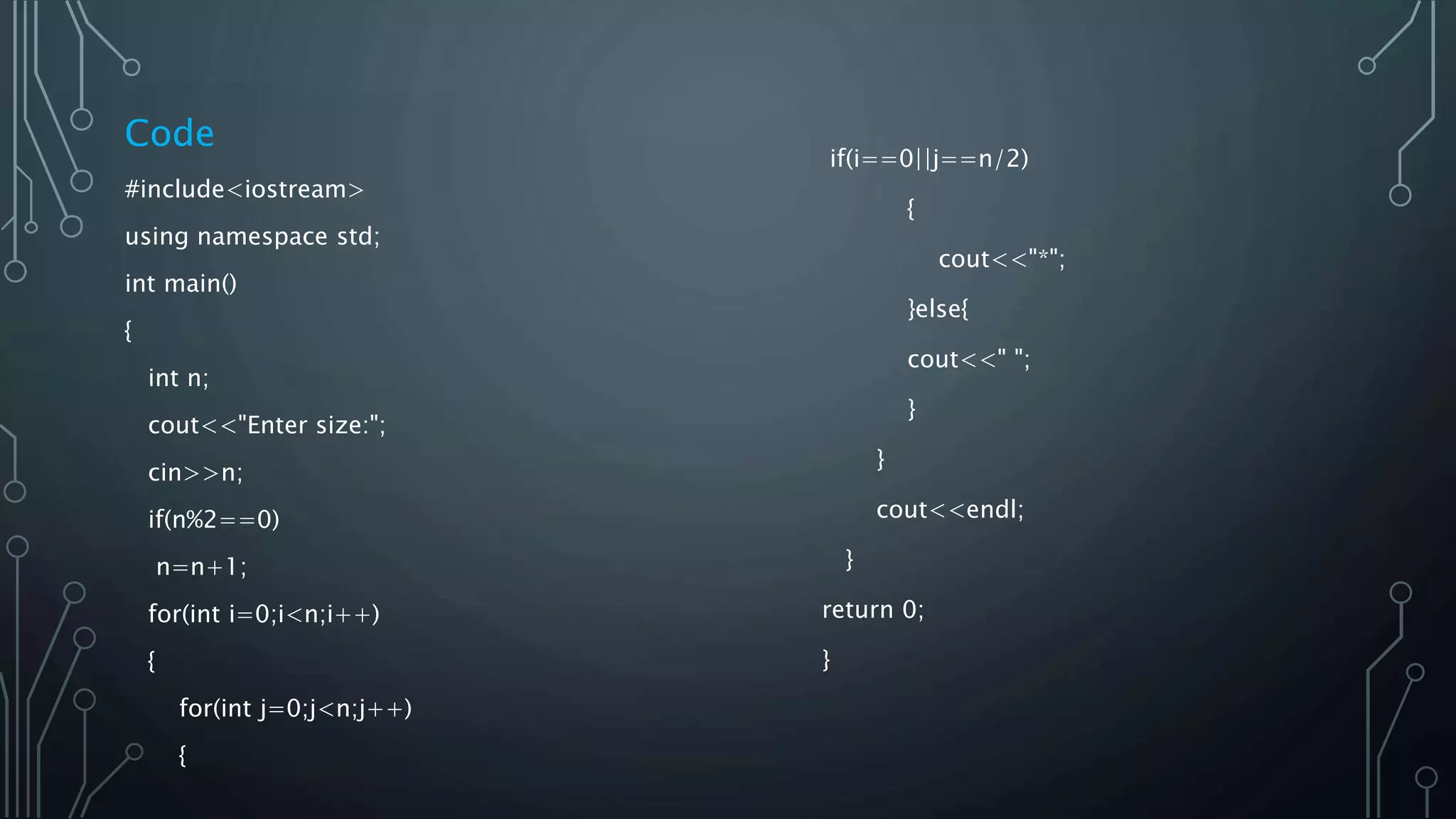

42. Code
#include<iostream>
using namespace std;
int main()
{
int n;
cout<<"Enter size:";
cin>>n;
if(n%2==0)
n=n+1;
for(int i=0;i<n;i++)
{
for(int j=0;j<n;j++)
{
if(i==0||j==n/2)
{
cout<<"*";
}else{
cout<<" ";
}
}
cout<<endl;
}
return 0;
}

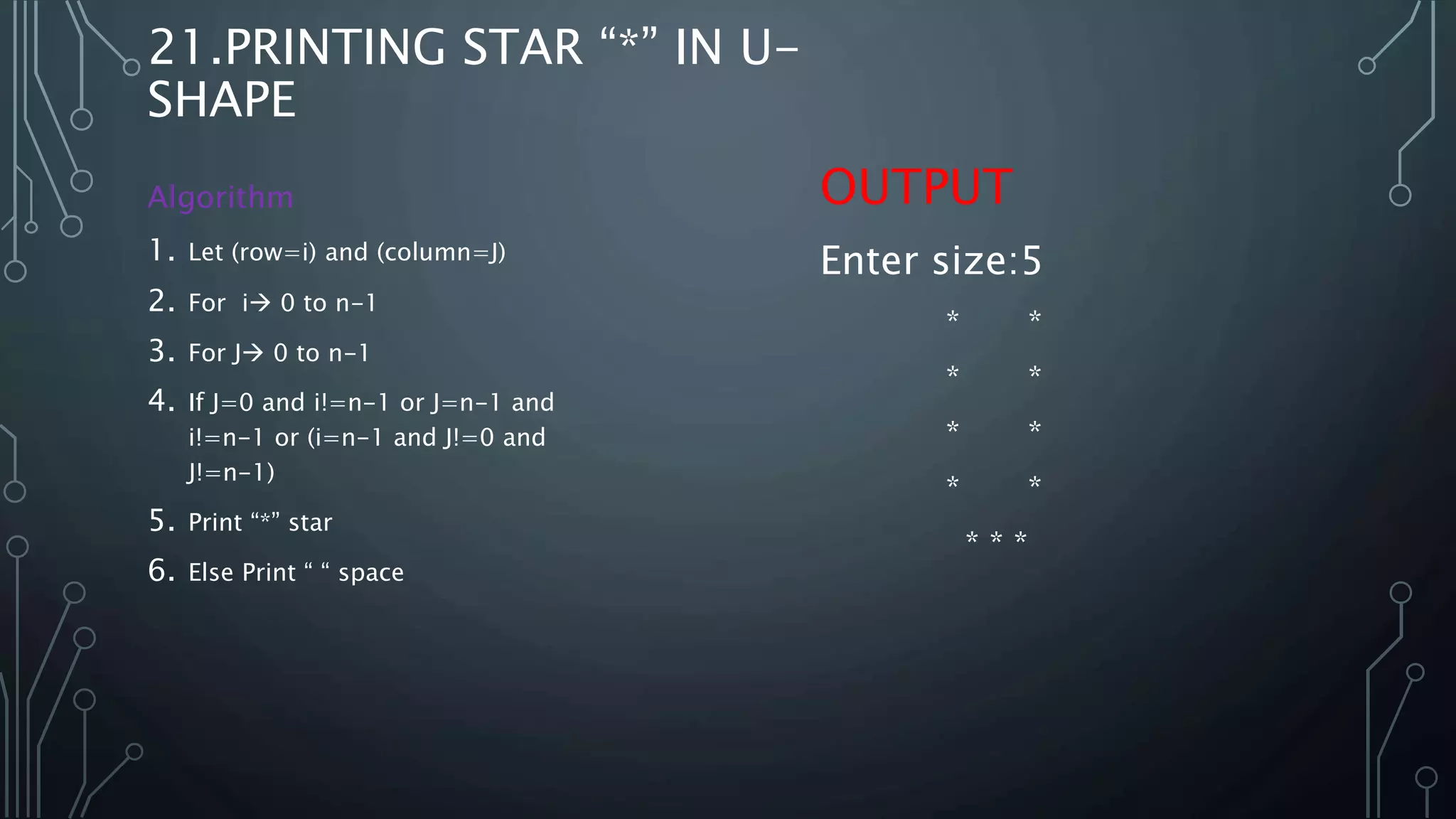

43. 21.PRINTING STAR “*” IN U-
SHAPE
Algorithm
1. Let (row=i) and (column=J)
2. For i 0 to n-1
3. For J 0 to n-1
4. If J=0 and i!=n-1 or J=n-1 and
i!=n-1 or (i=n-1 and J!=0 and
J!=n-1)
5. Print “*” star
6. Else Print “ “ space
OUTPUT
Enter size:5
* *
* *
* *
* *
* * *

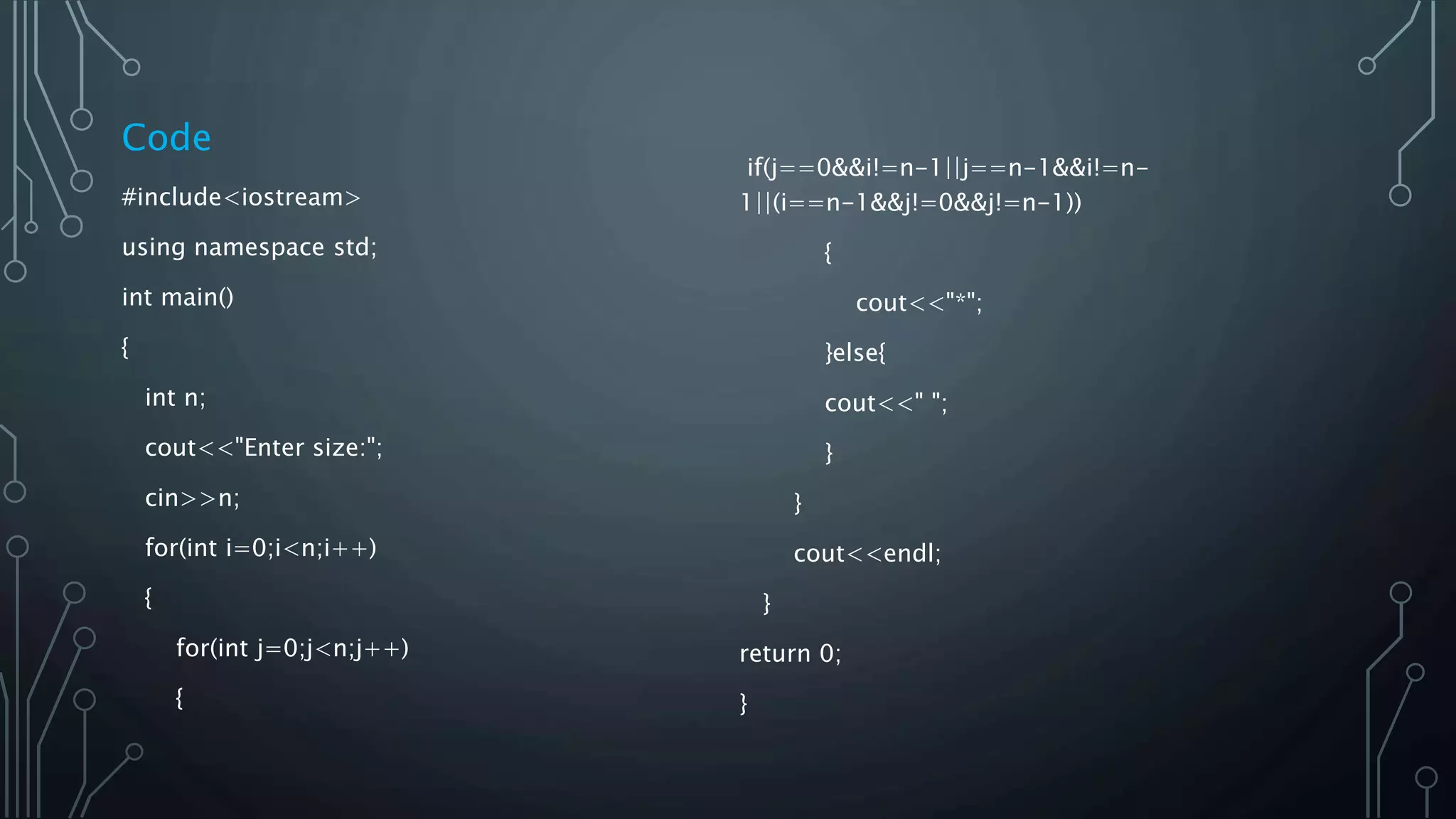

44. if(j==0&&i!=n-1||j==n-1&&i!=n-
1||(i==n-1&&j!=0&&j!=n-1))
{
cout<<"*";
}else{
cout<<" ";
}
}
cout<<endl;
}
return 0;
}
Code
#include<iostream>
using namespace std;
int main()
{
int n;
cout<<"Enter size:";
cin>>n;
for(int i=0;i<n;i++)
{
for(int j=0;j<n;j++)
{

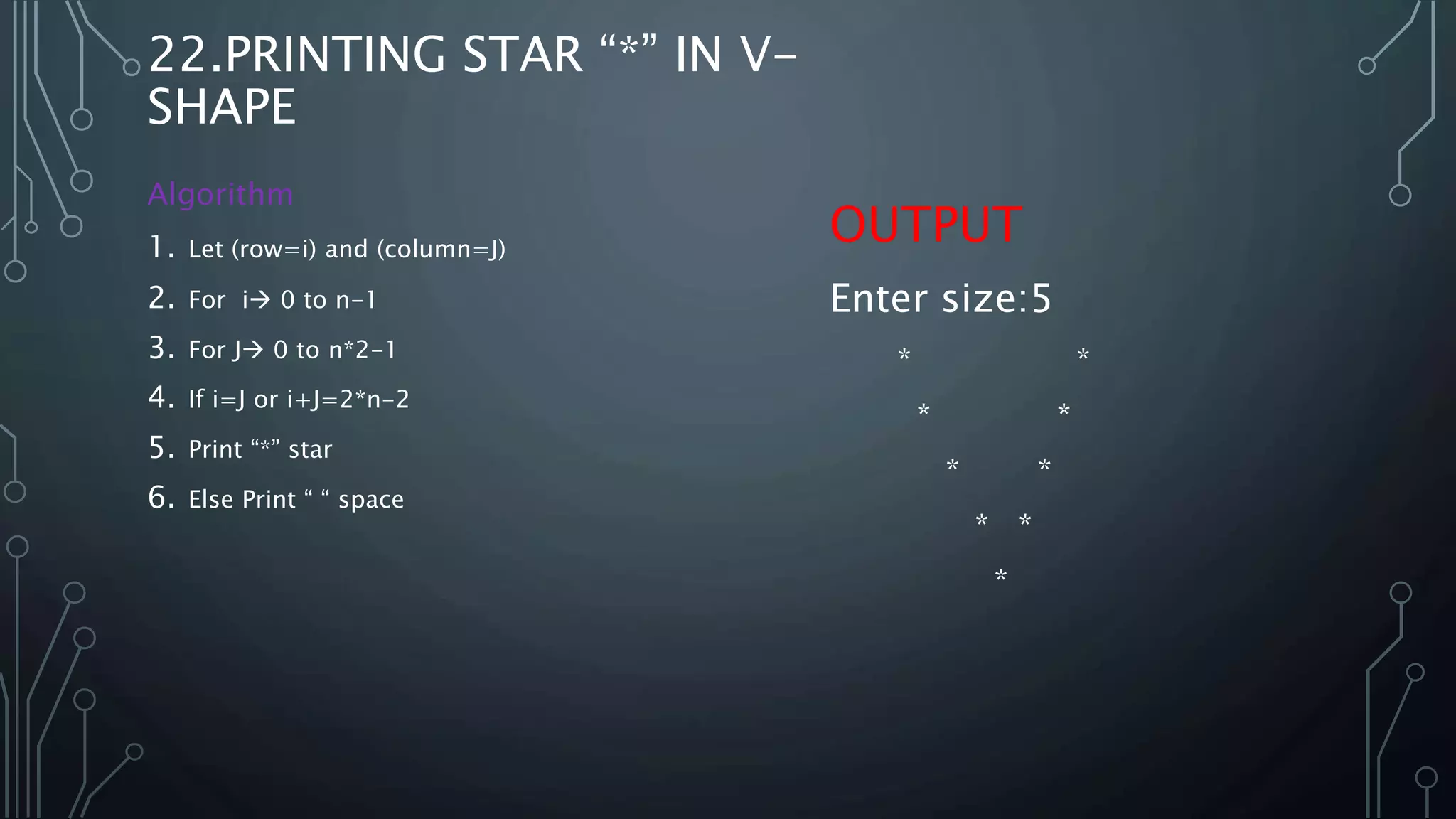

45. 22.PRINTING STAR “*” IN V-
SHAPE
Algorithm
1. Let (row=i) and (column=J)
2. For i 0 to n-1
3. For J 0 to n*2-1
4. If i=J or i+J=2*n-2
5. Print “*” star
6. Else Print “ “ space
OUTPUT
Enter size:5
* *
* *
* *
* *
*

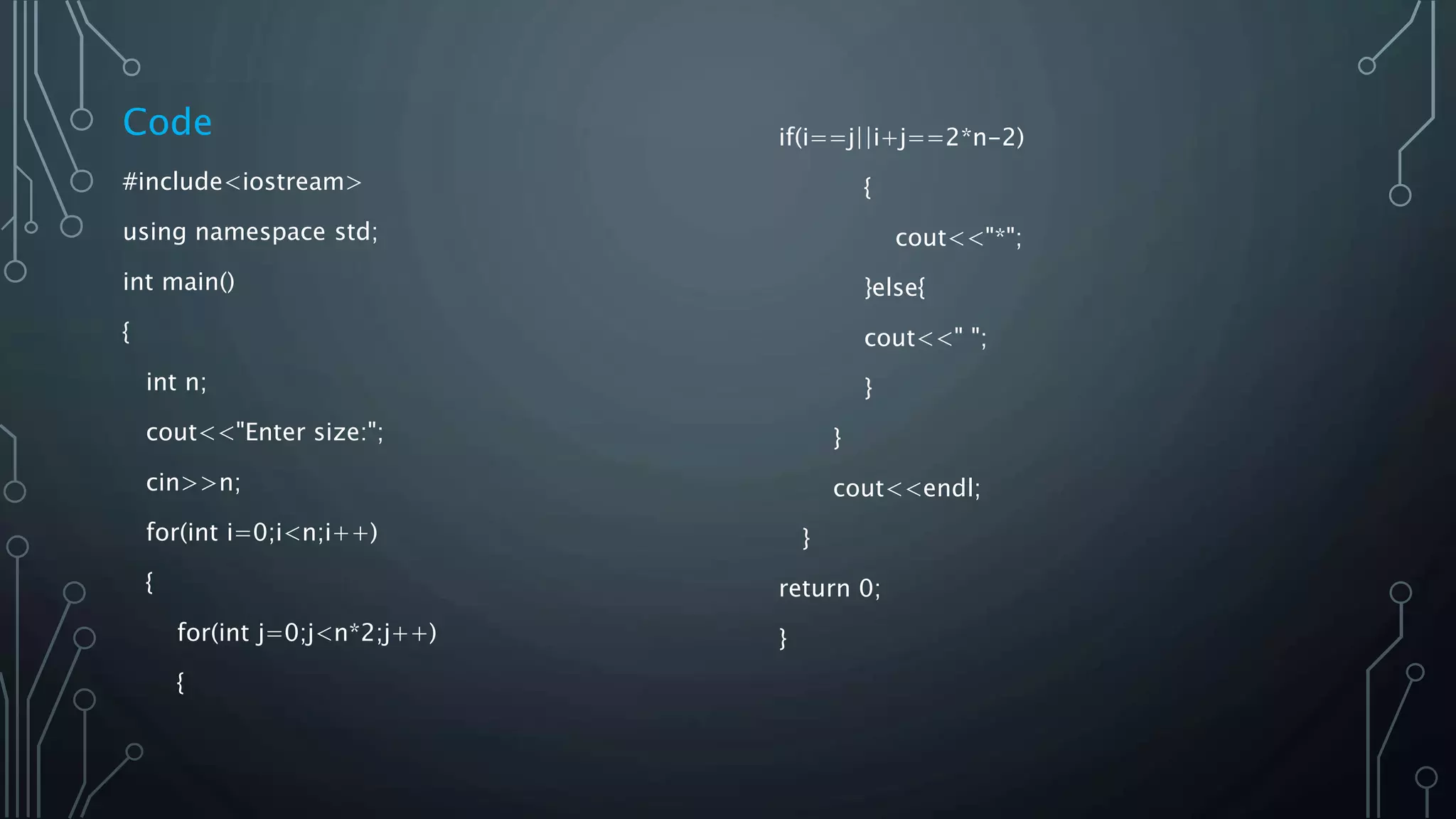

46. Code
#include<iostream>
using namespace std;
int main()
{
int n;
cout<<"Enter size:";
cin>>n;
for(int i=0;i<n;i++)
{
for(int j=0;j<n*2;j++)
{
if(i==j||i+j==2*n-2)
{
cout<<"*";
}else{
cout<<" ";
}
}
cout<<endl;
}
return 0;
}

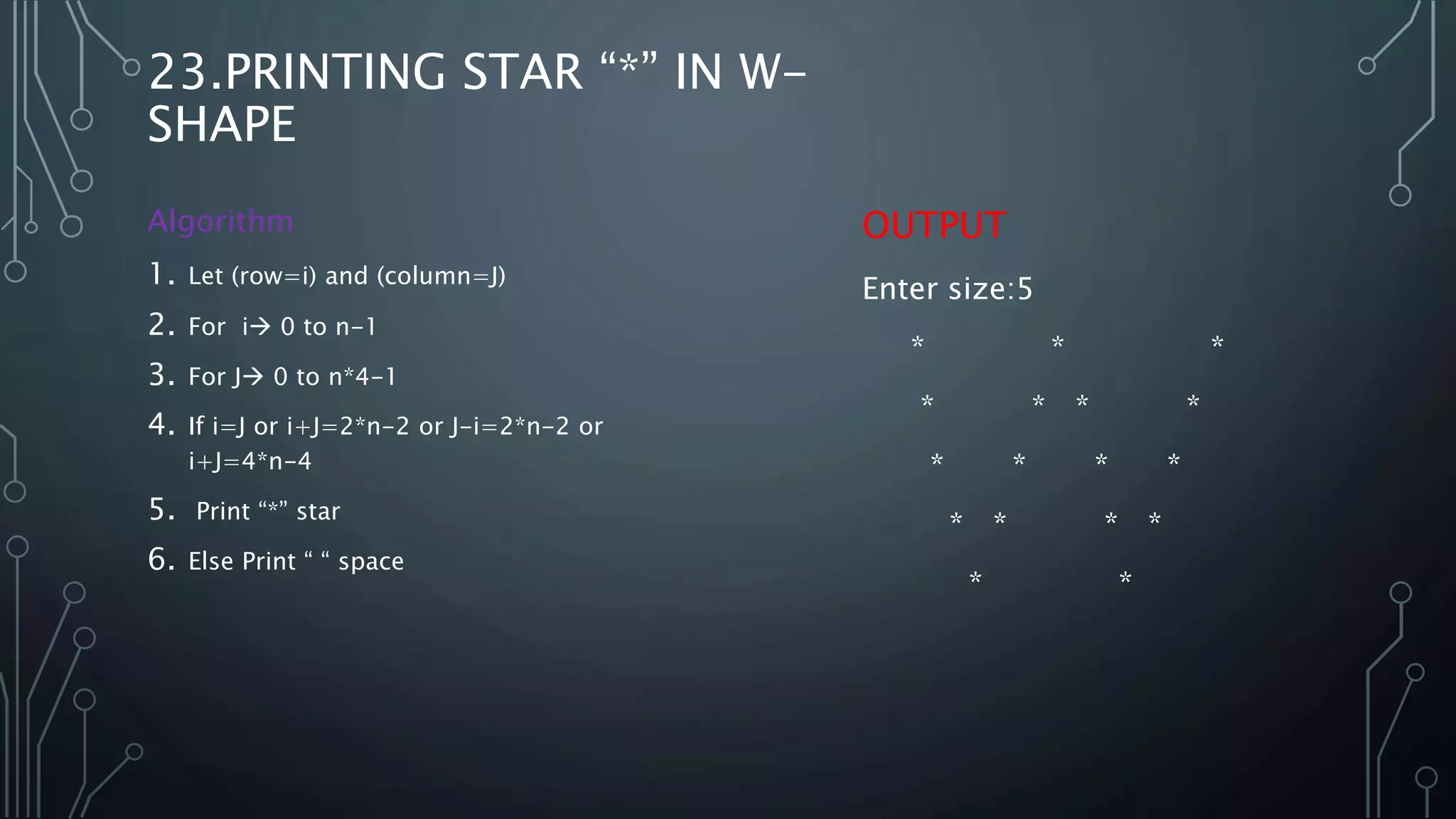

47. 23.PRINTING STAR “*” IN W-
SHAPE
Algorithm
1. Let (row=i) and (column=J)
2. For i 0 to n-1
3. For J 0 to n*4-1
4. If i=J or i+J=2*n-2 or J-i=2*n-2 or
i+J=4*n-4
5. Print “*” star
6. Else Print “ “ space
OUTPUT
Enter size:5
* * *
* * * *
* * * *
* * * *
* *

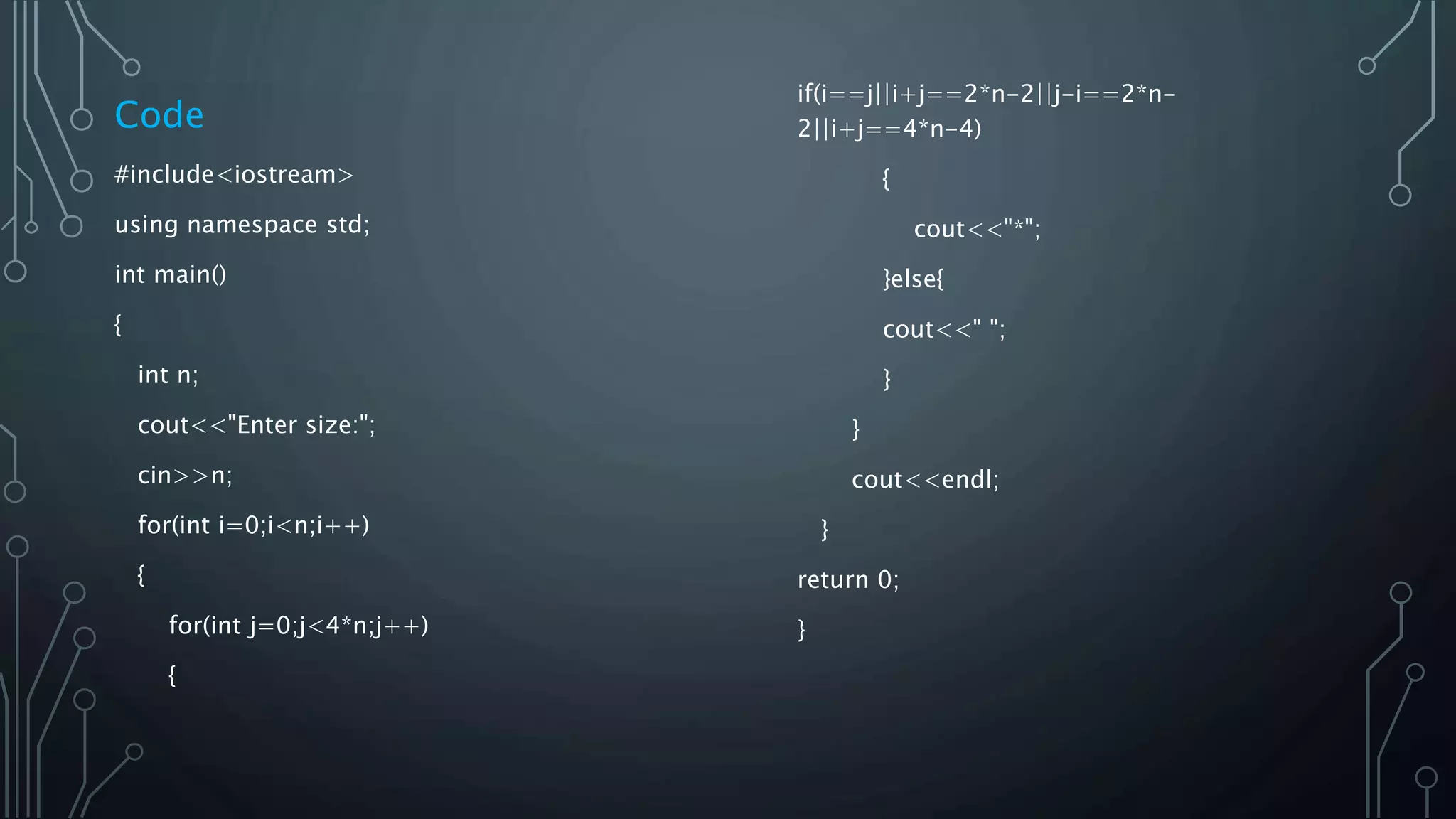

48. Code
#include<iostream>
using namespace std;
int main()
{
int n;
cout<<"Enter size:";
cin>>n;
for(int i=0;i<n;i++)
{
for(int j=0;j<4*n;j++)
{
if(i==j||i+j==2*n-2||j-i==2*n-
2||i+j==4*n-4)
{
cout<<"*";
}else{
cout<<" ";
}
}
cout<<endl;
}
return 0;
}

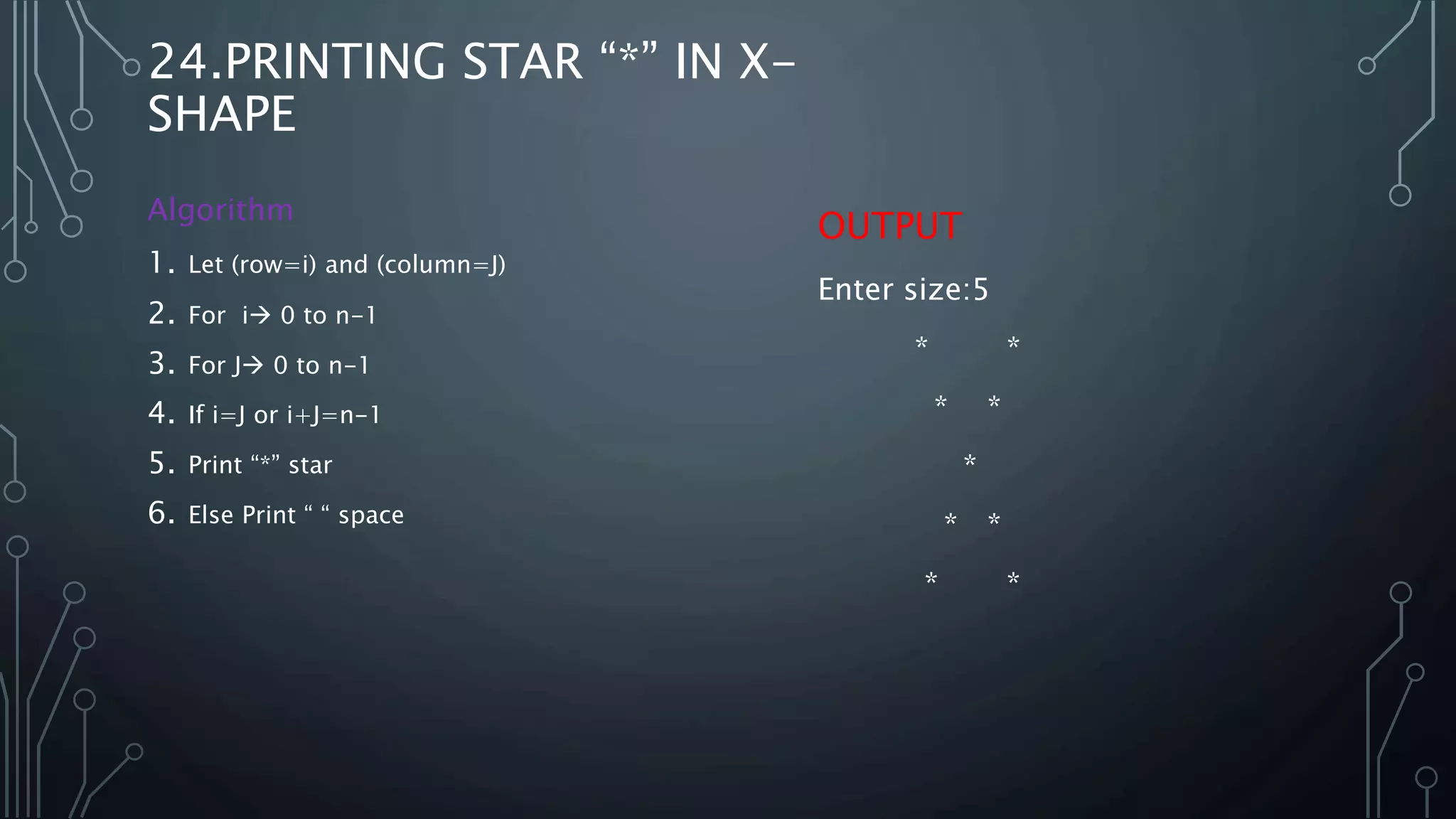

49. 24.PRINTING STAR “*” IN X-
SHAPE
Algorithm
1. Let (row=i) and (column=J)
2. For i 0 to n-1
3. For J 0 to n-1
4. If i=J or i+J=n-1
5. Print “*” star
6. Else Print “ “ space
OUTPUT
Enter size:5
* *
* *
*
* *
* *

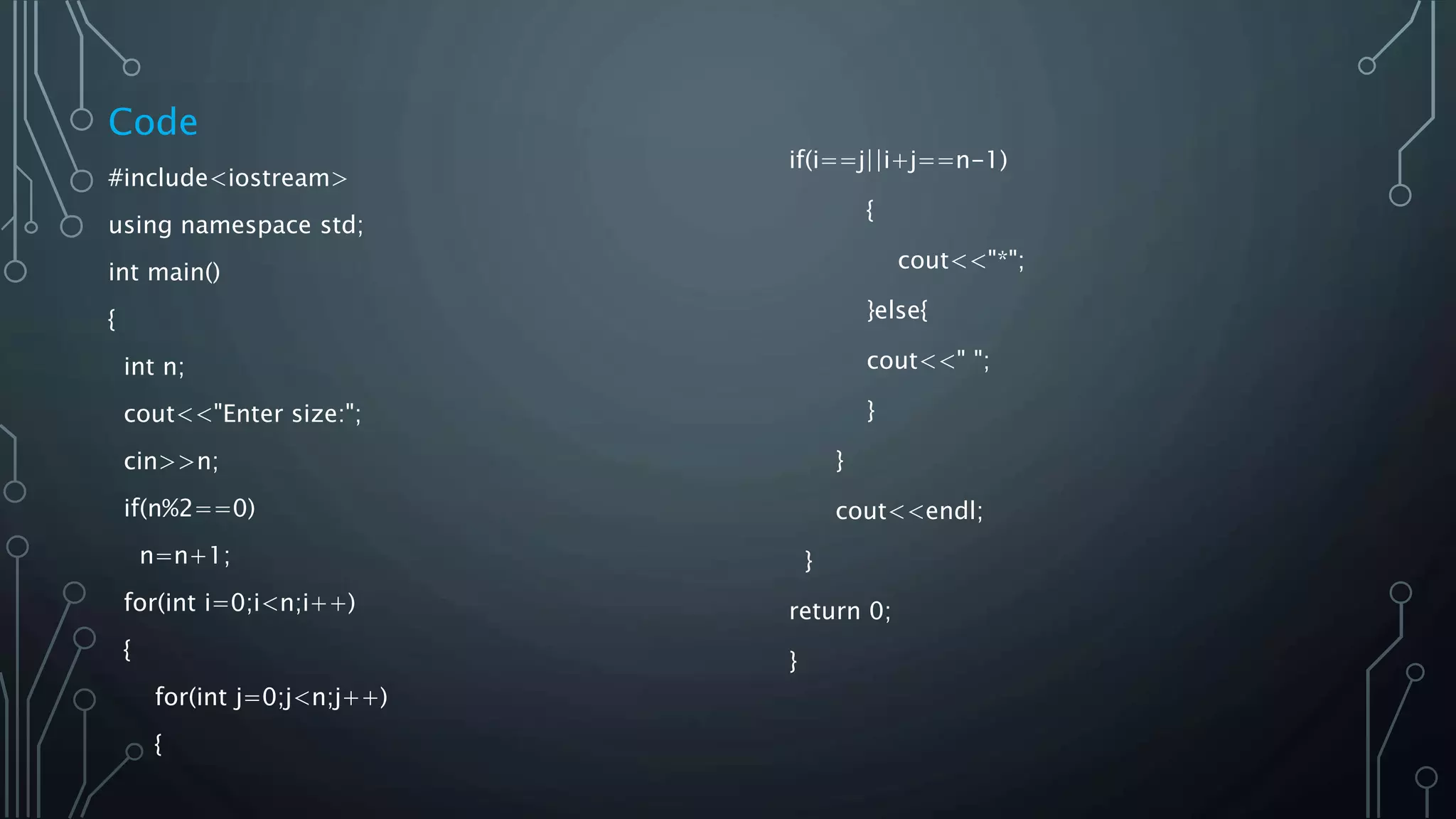

50. Code
#include<iostream>
using namespace std;
int main()
{
int n;
cout<<"Enter size:";
cin>>n;
if(n%2==0)
n=n+1;
for(int i=0;i<n;i++)
{
for(int j=0;j<n;j++)
{
if(i==j||i+j==n-1)
{
cout<<"*";
}else{
cout<<" ";
}
}
cout<<endl;
}
return 0;
}

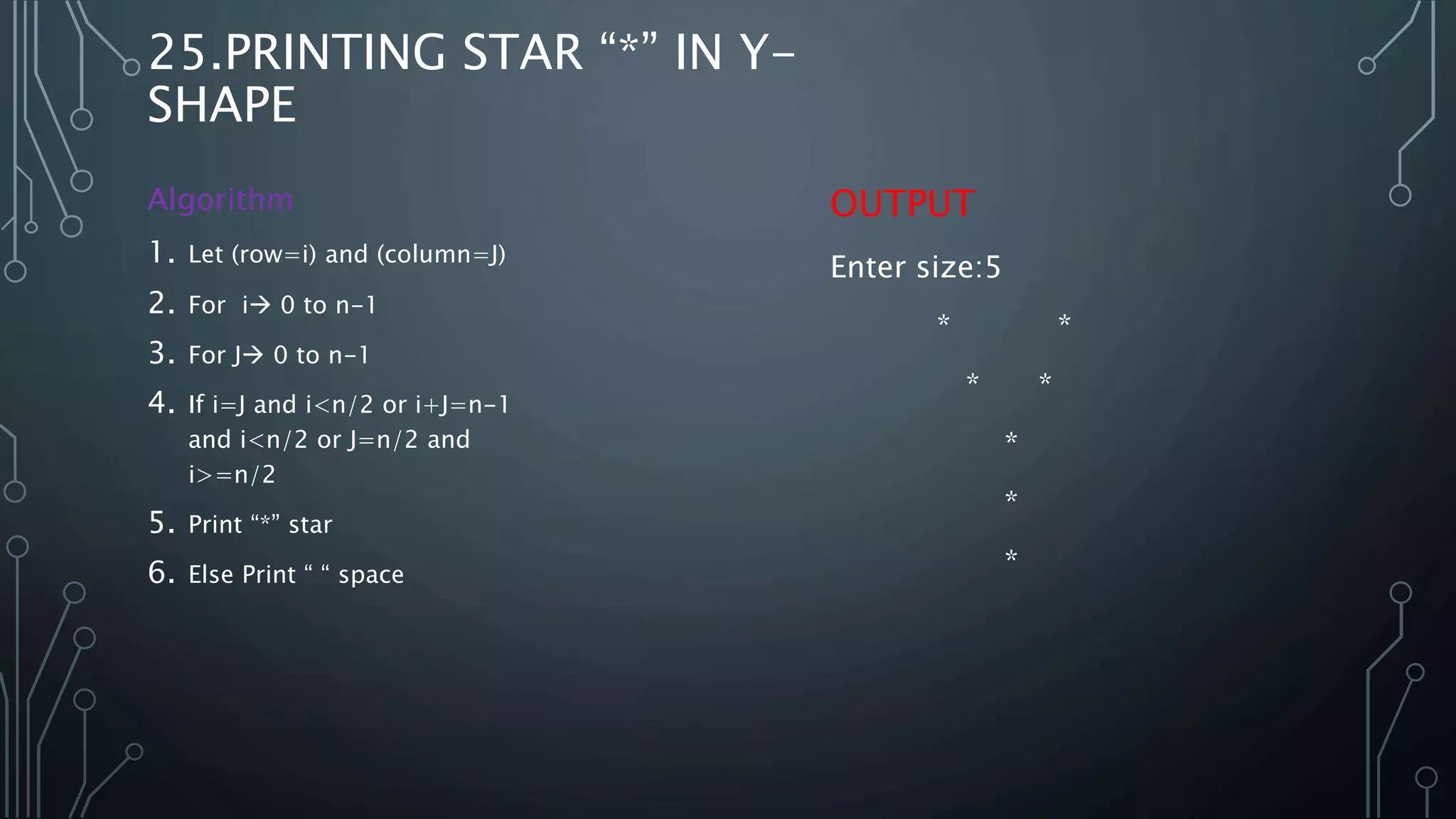

51. 25.PRINTING STAR “*” IN Y-
SHAPE
Algorithm
1. Let (row=i) and (column=J)
2. For i 0 to n-1
3. For J 0 to n-1
4. If i=J and i<n/2 or i+J=n-1
and i<n/2 or J=n/2 and
i>=n/2
5. Print “*” star
6. Else Print “ “ space
OUTPUT
Enter size:5
* *
* *
*
*
*

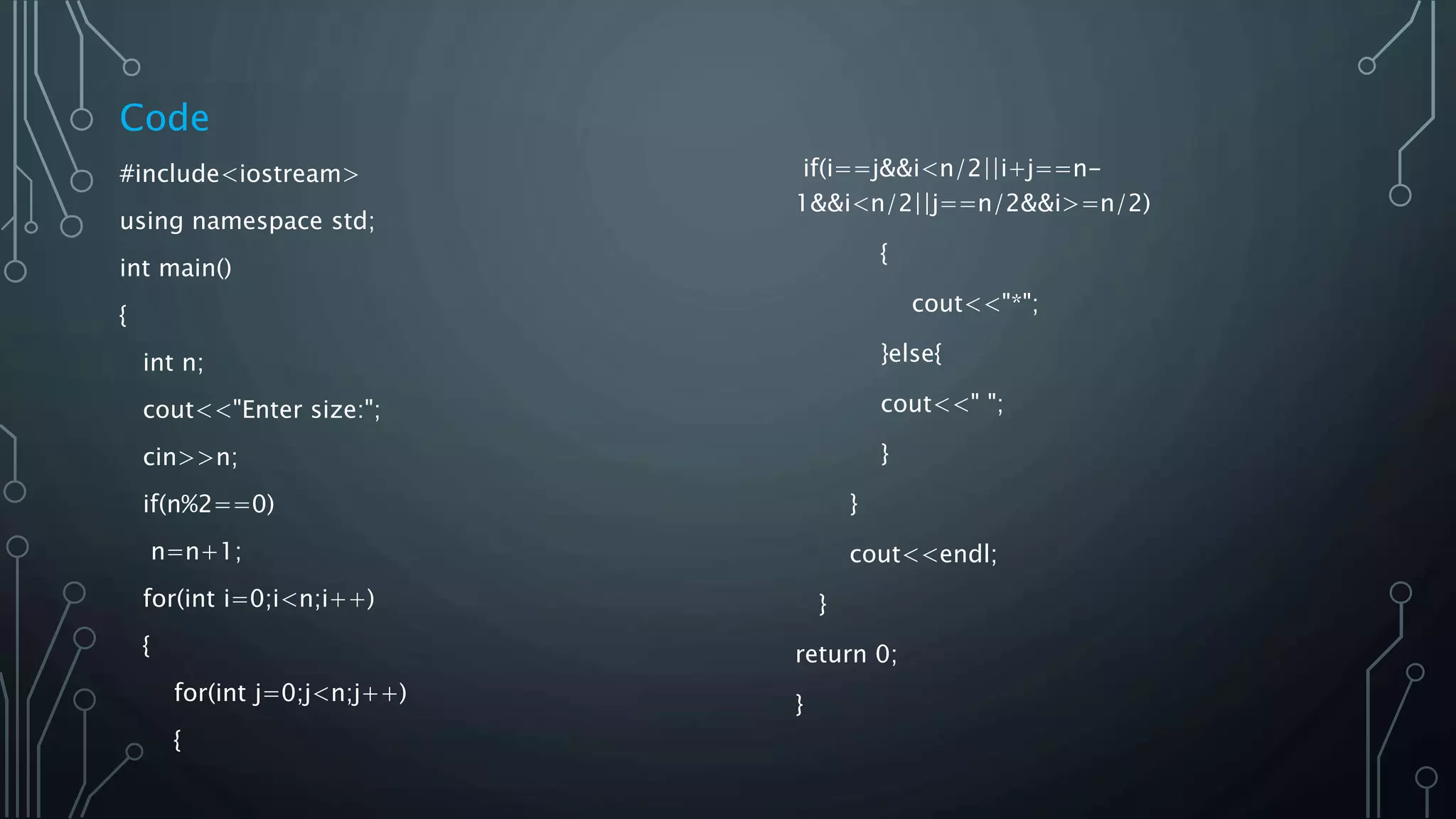

52. Code
#include<iostream>
using namespace std;
int main()
{
int n;
cout<<"Enter size:";
cin>>n;
if(n%2==0)
n=n+1;
for(int i=0;i<n;i++)
{
for(int j=0;j<n;j++)
{
if(i==j&&i<n/2||i+j==n-
1&&i<n/2||j==n/2&&i>=n/2)
{
cout<<"*";
}else{
cout<<" ";
}
}
cout<<endl;
}
return 0;
}

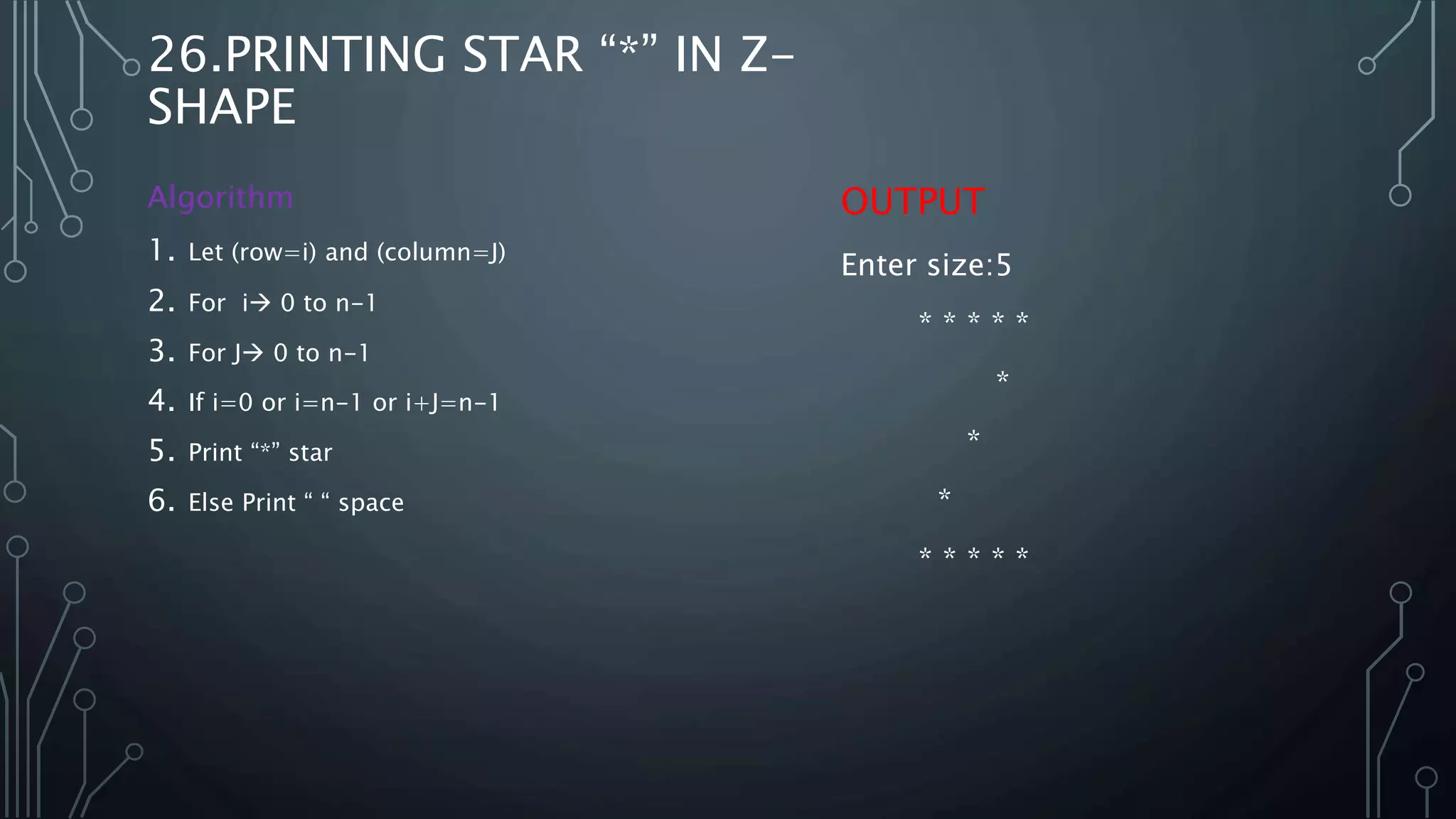

53. 26.PRINTING STAR “*” IN Z-
SHAPE
Algorithm
1. Let (row=i) and (column=J)
2. For i 0 to n-1
3. For J 0 to n-1
4. If i=0 or i=n-1 or i+J=n-1
5. Print “*” star
6. Else Print “ “ space
OUTPUT
Enter size:5
* * * * *
*
*
*
* * * * *

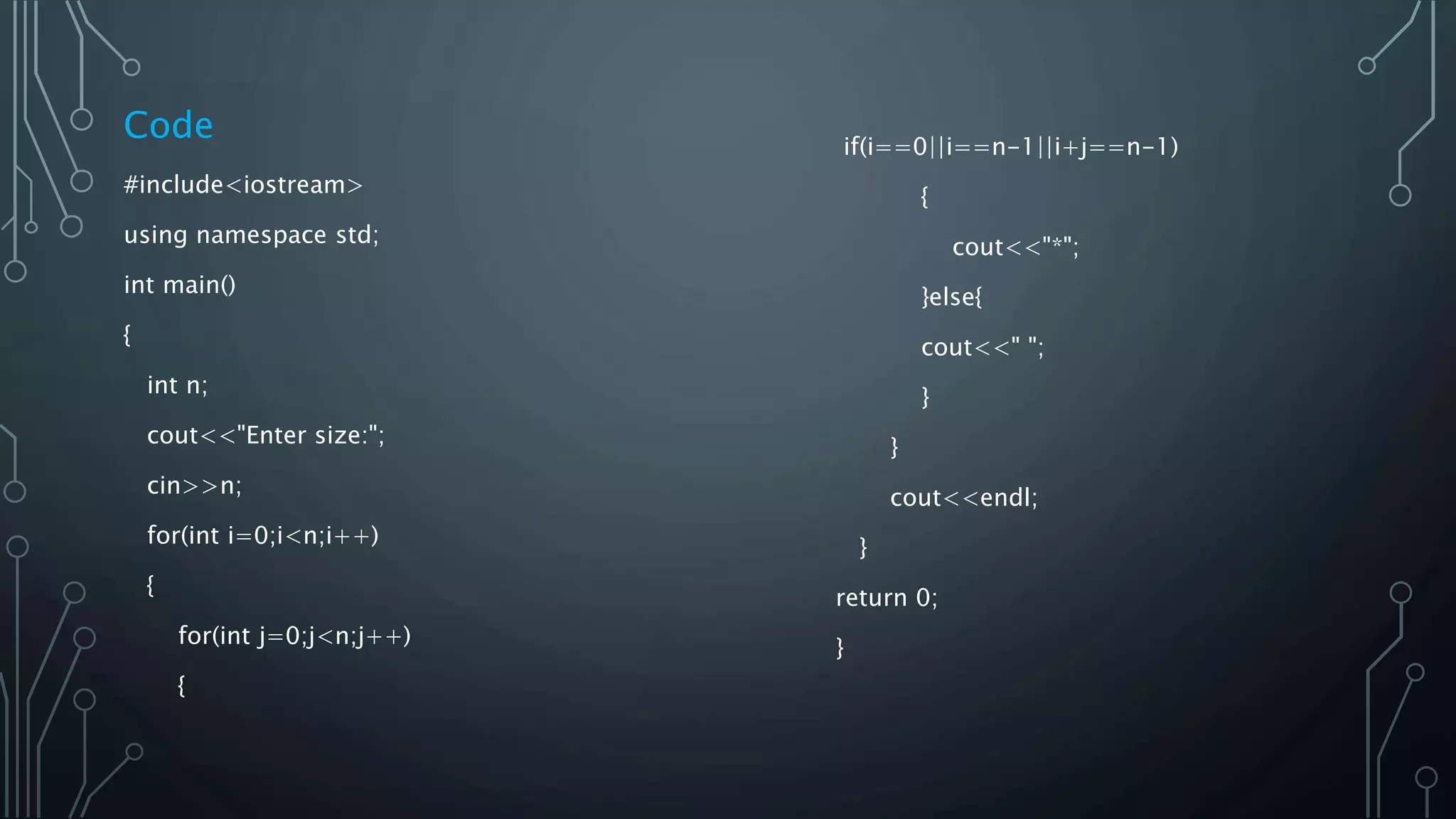

54. Code
#include<iostream>
using namespace std;
int main()
{
int n;
cout<<"Enter size:";
cin>>n;
for(int i=0;i<n;i++)
{
for(int j=0;j<n;j++)
{
if(i==0||i==n-1||i+j==n-1)
{
cout<<"*";
}else{
cout<<" ";
}
}
cout<<endl;
}
return 0;
}
