1. Introduction to C
(Reek, Chs. 1-2)
1 CS 3090: Safety Critical Programming in C

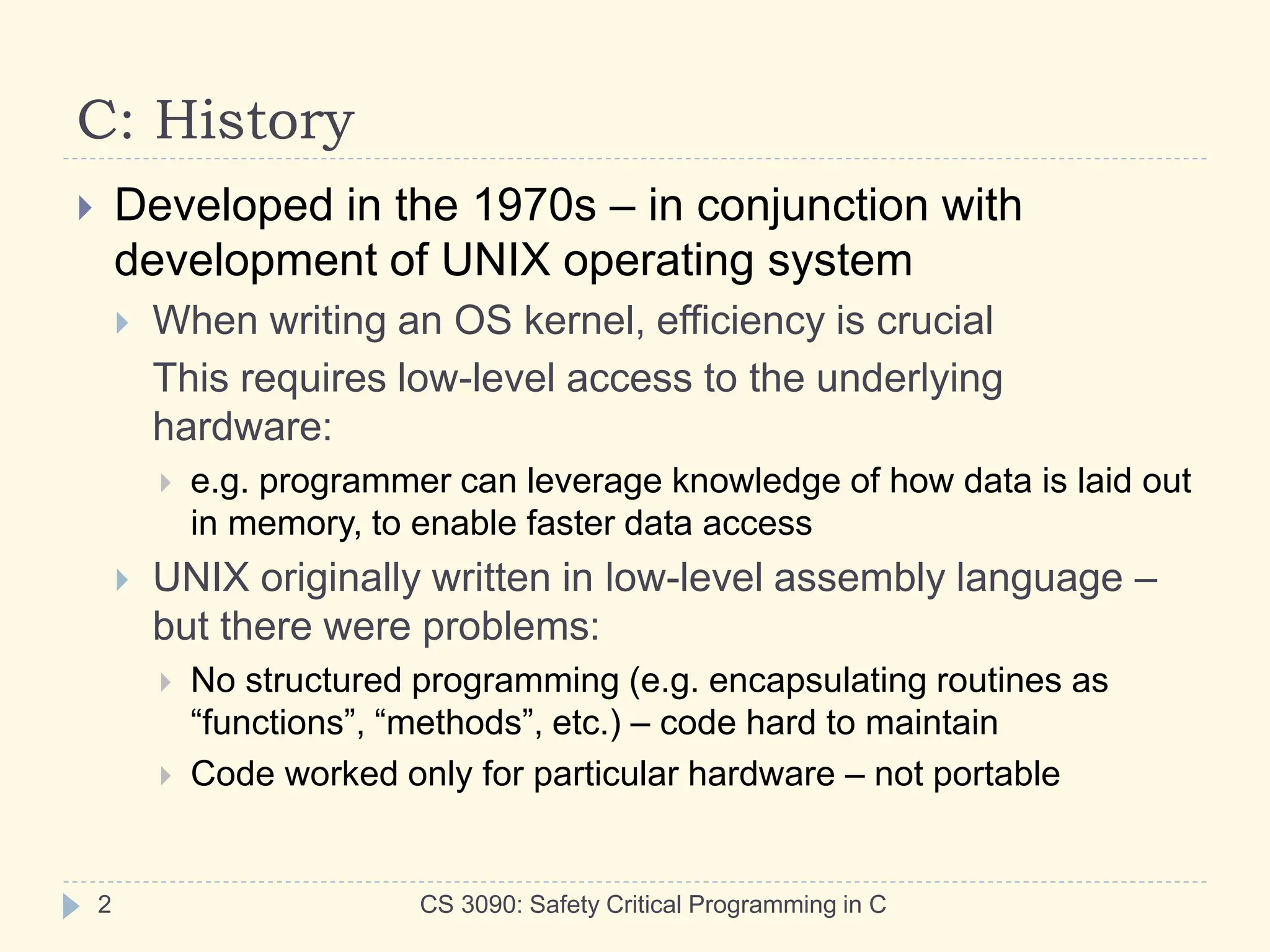

2. C: History
CS 3090: Safety Critical Programming in C
2
 Developed in the 1970s – in conjunction with
development of UNIX operating system
 When writing an OS kernel, efficiency is crucial
This requires low-level access to the underlying
hardware:
 e.g. programmer can leverage knowledge of how data is laid out
in memory, to enable faster data access
 UNIX originally written in low-level assembly language –
but there were problems:
 No structured programming (e.g. encapsulating routines as
“functions”, “methods”, etc.) – code hard to maintain
 Code worked only for particular hardware – not portable

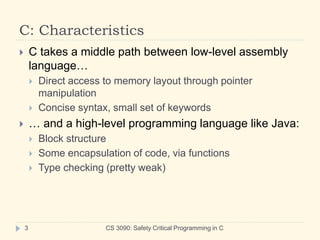

3. C: Characteristics
CS 3090: Safety Critical Programming in C
3
 C takes a middle path between low-level assembly
language…
 Direct access to memory layout through pointer
manipulation
 Concise syntax, small set of keywords
 … and a high-level programming language like Java:
 Block structure
 Some encapsulation of code, via functions
 Type checking (pretty weak)

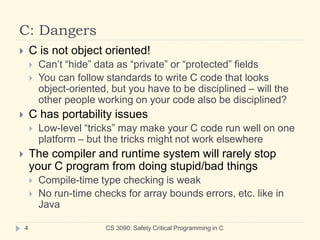

4. C: Dangers
CS 3090: Safety Critical Programming in C
4
 C is not object oriented!
 Can’t “hide” data as “private” or “protected” fields
 You can follow standards to write C code that looks
object-oriented, but you have to be disciplined – will the
other people working on your code also be disciplined?
 C has portability issues
 Low-level “tricks” may make your C code run well on one
platform – but the tricks might not work elsewhere
 The compiler and runtime system will rarely stop
your C program from doing stupid/bad things
 Compile-time type checking is weak
 No run-time checks for array bounds errors, etc. like in
Java

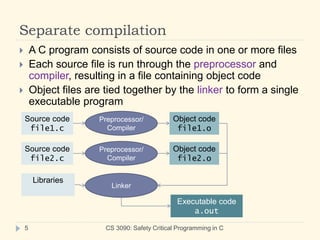

5. Separate compilation
CS 3090: Safety Critical Programming in C
5
 A C program consists of source code in one or more files
 Each source file is run through the preprocessor and
compiler, resulting in a file containing object code
 Object files are tied together by the linker to form a single
executable program
Source code
file1.c
Preprocessor/
Compiler
Object code
file1.o
Source code
file2.c
Preprocessor/
Compiler
Object code
file2.o
Linker
Libraries
Executable code
a.out

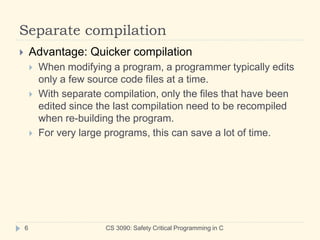

6. Separate compilation
CS 3090: Safety Critical Programming in C
6
 Advantage: Quicker compilation
 When modifying a program, a programmer typically edits
only a few source code files at a time.
 With separate compilation, only the files that have been
edited since the last compilation need to be recompiled
when re-building the program.
 For very large programs, this can save a lot of time.

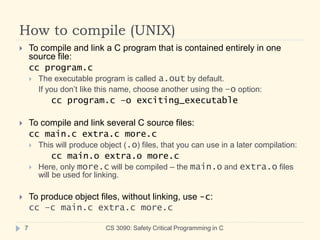

7. How to compile (UNIX)
CS 3090: Safety Critical Programming in C
7
 To compile and link a C program that is contained entirely in one
source file:
cc program.c
 The executable program is called a.out by default.
If you don’t like this name, choose another using the –o option:
cc program.c –o exciting_executable
 To compile and link several C source files:
cc main.c extra.c more.c
 This will produce object (.o) files, that you can use in a later compilation:
cc main.o extra.o more.c
 Here, only more.c will be compiled – the main.o and extra.o files
will be used for linking.
 To produce object files, without linking, use -c:
cc –c main.c extra.c more.c

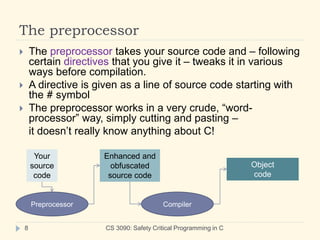

8. The preprocessor
CS 3090: Safety Critical Programming in C
8
 The preprocessor takes your source code and – following
certain directives that you give it – tweaks it in various
ways before compilation.
 A directive is given as a line of source code starting with
the # symbol
 The preprocessor works in a very crude, “word-
processor” way, simply cutting and pasting –
it doesn’t really know anything about C!
Your
source
code
Preprocessor
Enhanced and
obfuscated
source code
Compiler
Object
code

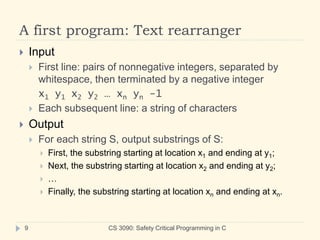

9. A first program: Text rearranger
 Input
 First line: pairs of nonnegative integers, separated by
whitespace, then terminated by a negative integer
x1 y1 x2 y2 … xn yn -1
 Each subsequent line: a string of characters
 Output
 For each string S, output substrings of S:
 First, the substring starting at location x1 and ending at y1;
 Next, the substring starting at location x2 and ending at y2;
 …
 Finally, the substring starting at location xn and ending at xn.
9 CS 3090: Safety Critical Programming in C

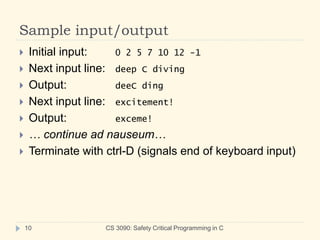

10. Sample input/output
CS 3090: Safety Critical Programming in C
10
 Initial input: 0 2 5 7 10 12 -1
 Next input line: deep C diving
 Output: deeC ding
 Next input line: excitement!
 Output: exceme!
 … continue ad nauseum…
 Terminate with ctrl-D (signals end of keyboard input)

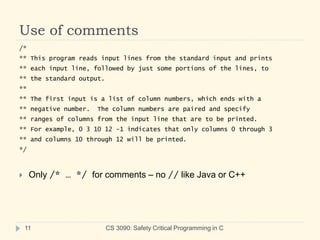

11. Use of comments
CS 3090: Safety Critical Programming in C
11
/*
** This program reads input lines from the standard input and prints
** each input line, followed by just some portions of the lines, to
** the standard output.
**
** The first input is a list of column numbers, which ends with a
** negative number. The column numbers are paired and specify
** ranges of columns from the input line that are to be printed.
** For example, 0 3 10 12 -1 indicates that only columns 0 through 3
** and columns 10 through 12 will be printed.
*/
 Only /* … */ for comments – no // like Java or C++

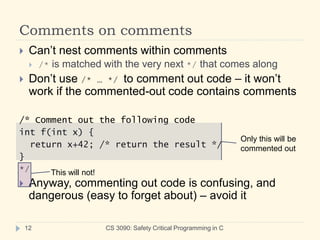

12. Comments on comments
CS 3090: Safety Critical Programming in C
12
 Can’t nest comments within comments
 /* is matched with the very next */ that comes along
 Don’t use /* … */ to comment out code – it won’t
work if the commented-out code contains comments
/* Comment out the following code
int f(int x) {
return x+42; /* return the result */
}
*/
 Anyway, commenting out code is confusing, and
dangerous (easy to forget about) – avoid it
Only this will be
commented out
This will not!

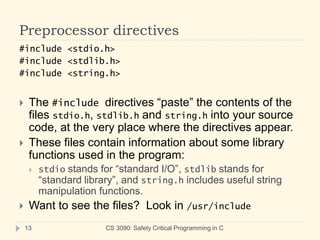

13. Preprocessor directives
CS 3090: Safety Critical Programming in C
13
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
 The #include directives “paste” the contents of the
files stdio.h, stdlib.h and string.h into your source
code, at the very place where the directives appear.
 These files contain information about some library
functions used in the program:
 stdio stands for “standard I/O”, stdlib stands for
“standard library”, and string.h includes useful string
manipulation functions.
 Want to see the files? Look in /usr/include

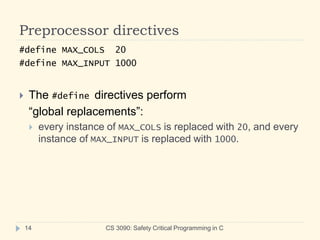

14. Preprocessor directives
CS 3090: Safety Critical Programming in C
14
#define MAX_COLS 20
#define MAX_INPUT 1000
 The #define directives perform
“global replacements”:
 every instance of MAX_COLS is replaced with 20, and every
instance of MAX_INPUT is replaced with 1000.

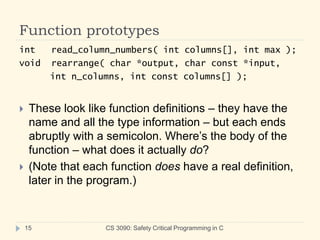

15. Function prototypes
CS 3090: Safety Critical Programming in C
15
int read_column_numbers( int columns[], int max );
void rearrange( char *output, char const *input,
int n_columns, int const columns[] );
 These look like function definitions – they have the
name and all the type information – but each ends
abruptly with a semicolon. Where’s the body of the
function – what does it actually do?
 (Note that each function does have a real definition,
later in the program.)

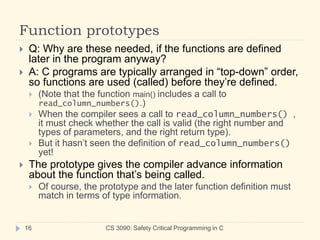

16. Function prototypes
CS 3090: Safety Critical Programming in C
16
 Q: Why are these needed, if the functions are defined
later in the program anyway?
 A: C programs are typically arranged in “top-down” order,
so functions are used (called) before they’re defined.
 (Note that the function main() includes a call to
read_column_numbers().)
 When the compiler sees a call to read_column_numbers() ,
it must check whether the call is valid (the right number and
types of parameters, and the right return type).
 But it hasn’t seen the definition of read_column_numbers()
yet!
 The prototype gives the compiler advance information
about the function that’s being called.
 Of course, the prototype and the later function definition must
match in terms of type information.

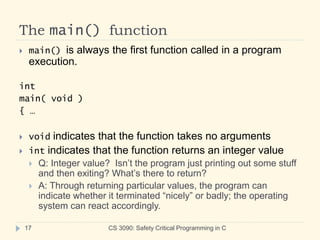

17. The main() function
CS 3090: Safety Critical Programming in C
17
 main() is always the first function called in a program
execution.
int
main( void )
{ …
 void indicates that the function takes no arguments
 int indicates that the function returns an integer value
 Q: Integer value? Isn’t the program just printing out some stuff
and then exiting? What’s there to return?
 A: Through returning particular values, the program can
indicate whether it terminated “nicely” or badly; the operating
system can react accordingly.

18. The printf() function
CS 3090: Safety Critical Programming in C
18
printf( "Original input : %sn", input );
 printf() is a library function declared in <stdio.h>
 Syntax: printf( FormatString, Expr, Expr...)
 FormatString: String of text to print
 Exprs: Values to print
 FormatString has placeholders to show where to put the
values (note: #placeholders should match #Exprs)
 Placeholders: %s (print as string), %c (print as char),
%d (print as integer),
%f (print as floating-point)
 n indicates a newline character
Make sure you pick
the right one!
Text line printed only
when n encountered
Don’t forget n when
printing “final results”

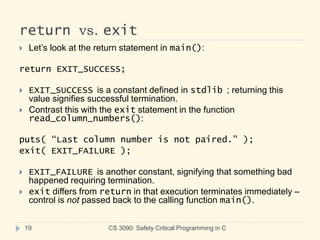

19. return vs. exit
CS 3090: Safety Critical Programming in C
19
 Let’s look at the return statement in main():
return EXIT_SUCCESS;
 EXIT_SUCCESS is a constant defined in stdlib ; returning this
value signifies successful termination.
 Contrast this with the exit statement in the function
read_column_numbers():
puts( “Last column number is not paired.” );
exit( EXIT_FAILURE );
 EXIT_FAILURE is another constant, signifying that something bad
happened requiring termination.
 exit differs from return in that execution terminates immediately –
control is not passed back to the calling function main().

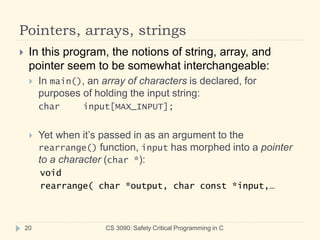

20. Pointers, arrays, strings
CS 3090: Safety Critical Programming in C
20
 In this program, the notions of string, array, and
pointer seem to be somewhat interchangeable:
 In main(), an array of characters is declared, for
purposes of holding the input string:
char input[MAX_INPUT];
 Yet when it’s passed in as an argument to the
rearrange() function, input has morphed into a pointer
to a character (char *):
void
rearrange( char *output, char const *input,…

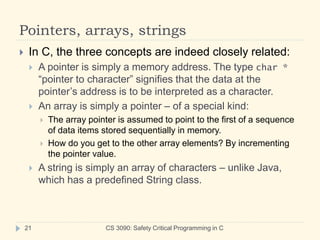

21. Pointers, arrays, strings
CS 3090: Safety Critical Programming in C
21
 In C, the three concepts are indeed closely related:
 A pointer is simply a memory address. The type char *
“pointer to character” signifies that the data at the
pointer’s address is to be interpreted as a character.
 An array is simply a pointer – of a special kind:
 The array pointer is assumed to point to the first of a sequence
of data items stored sequentially in memory.
 How do you get to the other array elements? By incrementing
the pointer value.
 A string is simply an array of characters – unlike Java,
which has a predefined String class.

22. String layout and access
CS 3090: Safety Critical Programming in C
22
p
(char)
o
(char)
i
(char)
n
(char)
t
(char)
e
(char)
r
(char)
NUL
(char)
(char *)
input
What is input?
It’s a string!
It’s a pointer to char!
It’s an array of char!
How do we get to the “n”?
Follow the input pointer,
then hop 3 to the right
*(input + 3)
- or -
input[3]
NUL is a special value
indicating end-of-string
