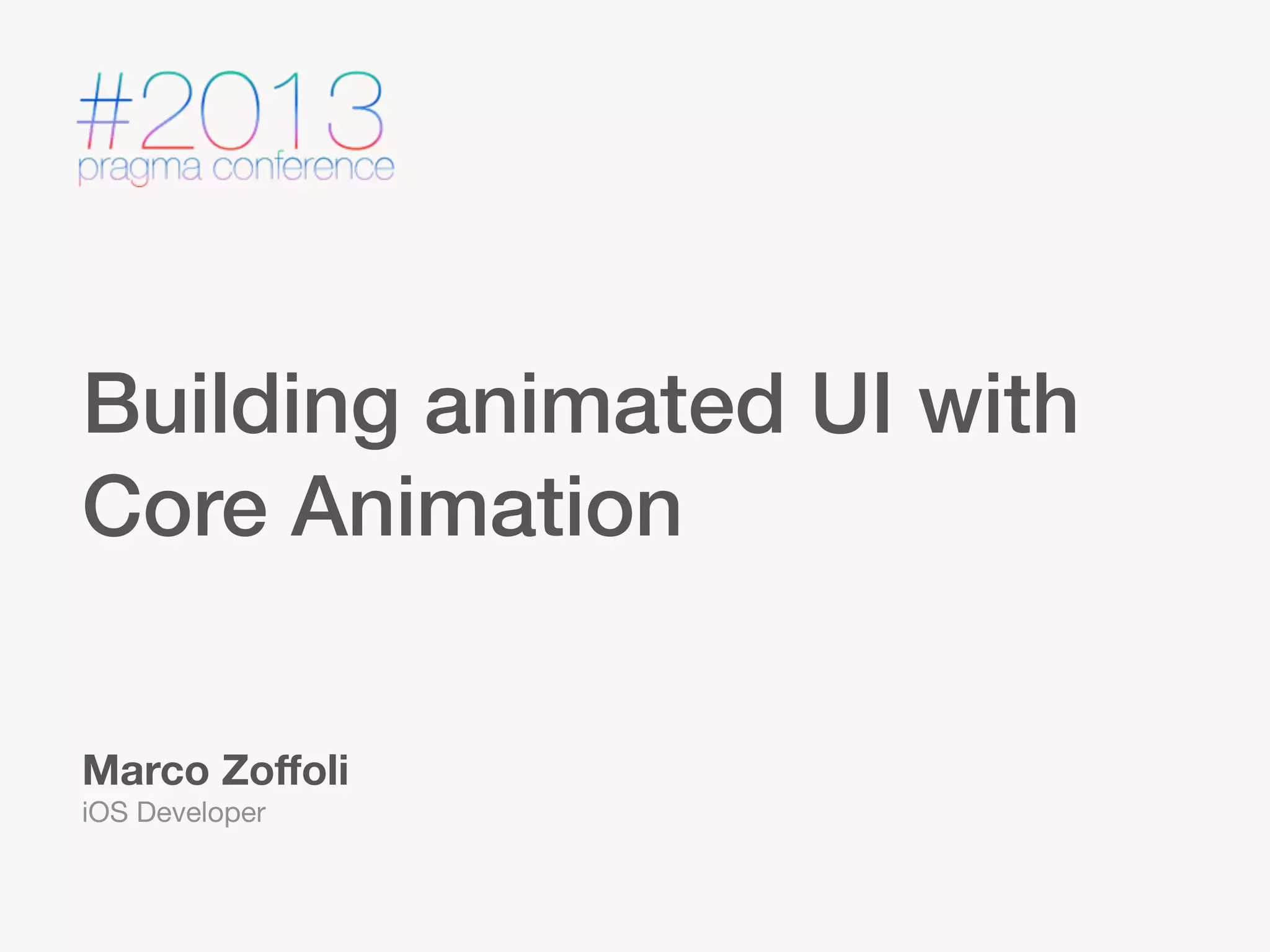

This document provides an overview of Core Animation, Apple's API for animating views and layers in iOS apps. It discusses key Core Animation concepts like layers, animating layer properties, transactions, 3D transforms, and advanced effects like replicator layers and particle emitters. The agenda outlines topics including what Core Animation is, how to work with CALayers, different types of animations, and performance tips for animations.

1. Building animated UI with
Core Animation
Marco Zoffoli
iOS Developer

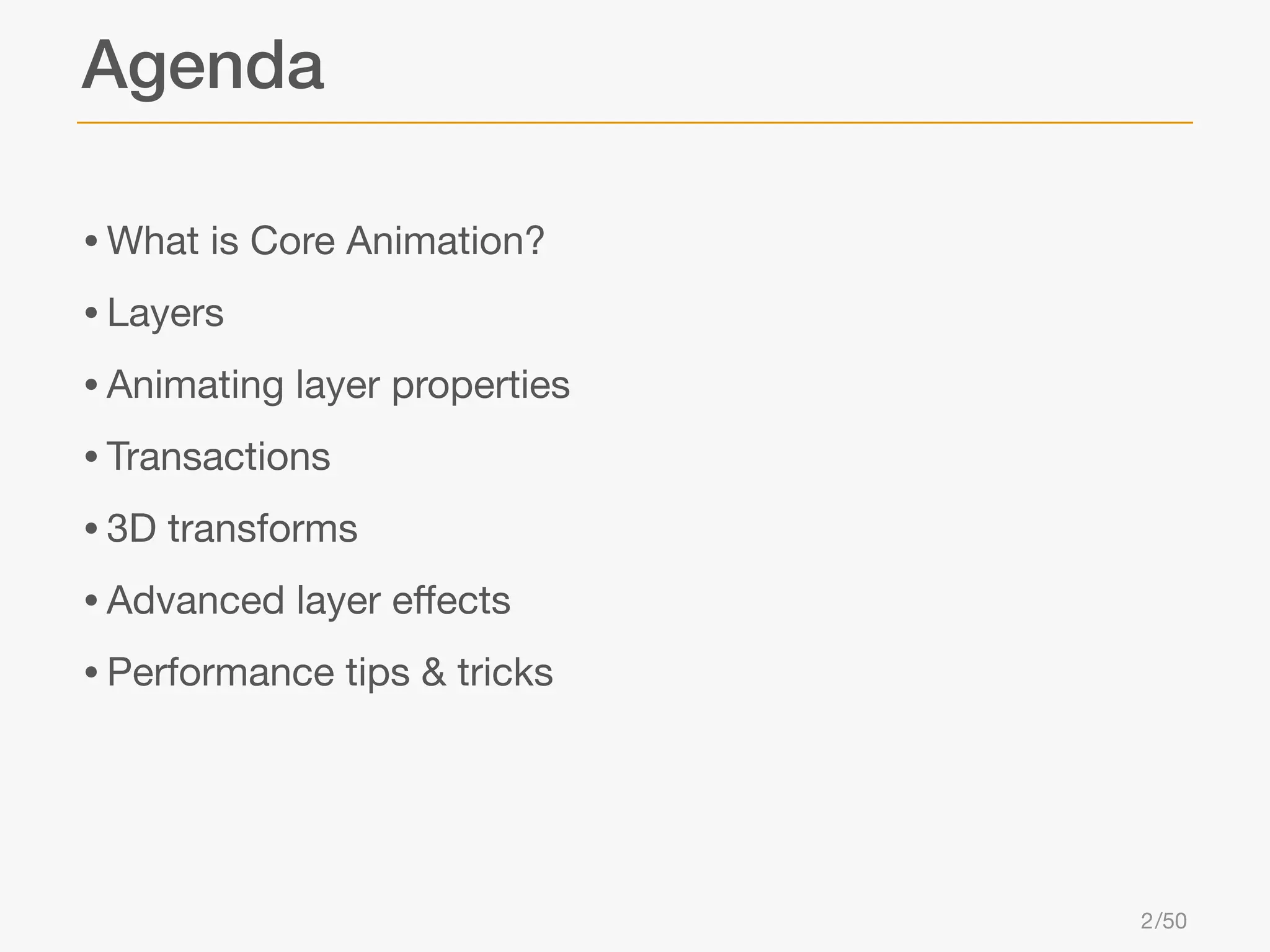

2. Agenda
• What is Core Animation?
• Layers
• Animating layer properties
• Transactions
• 3D transforms
• Advanced layer effects
• Performance tips & tricks
2 /50

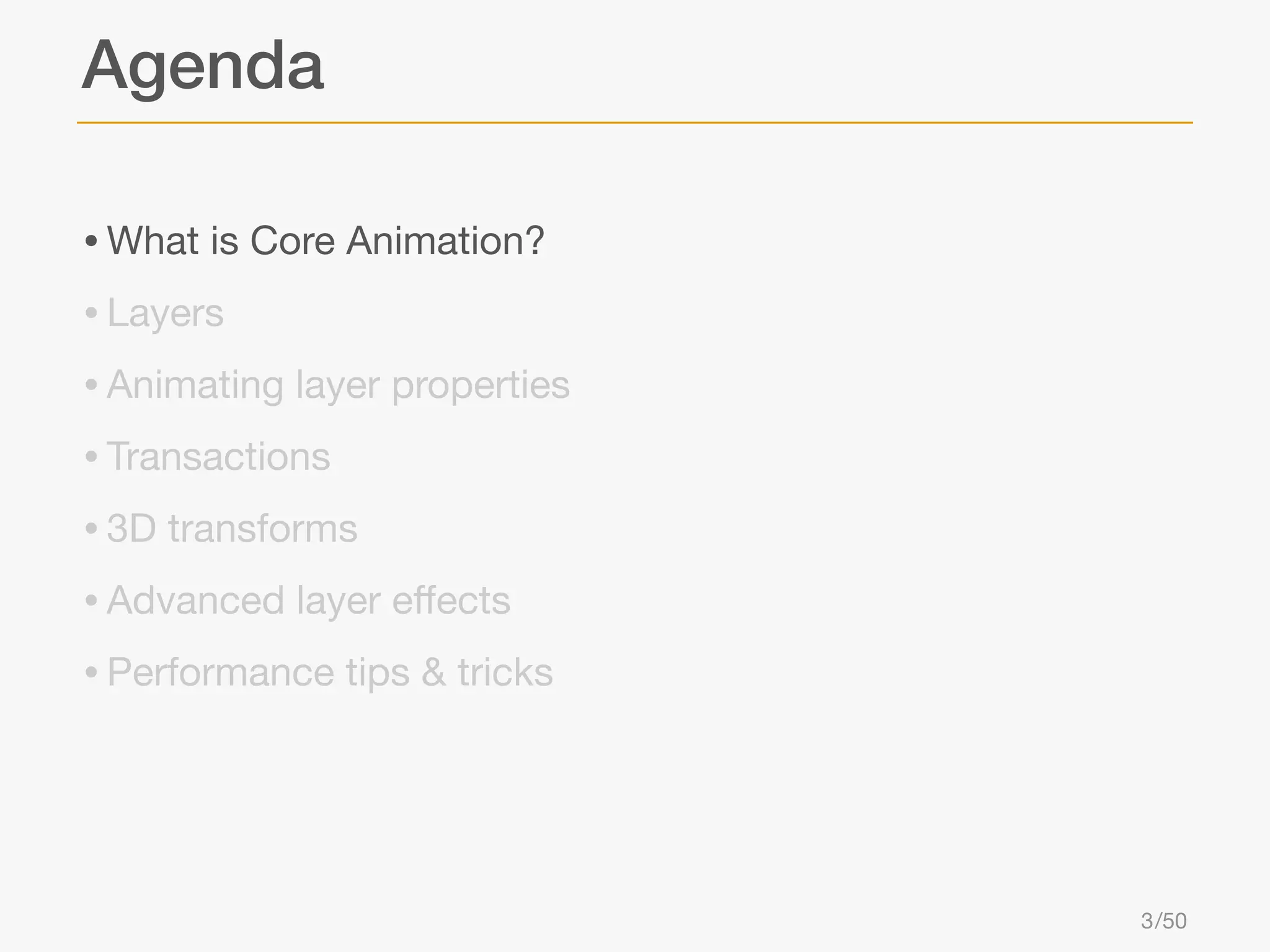

3. Agenda
• What is Core Animation?
• Layers
• Animating layer properties
• Transactions
• 3D transforms
• Advanced layer effects
• Performance tips & tricks
3 /50

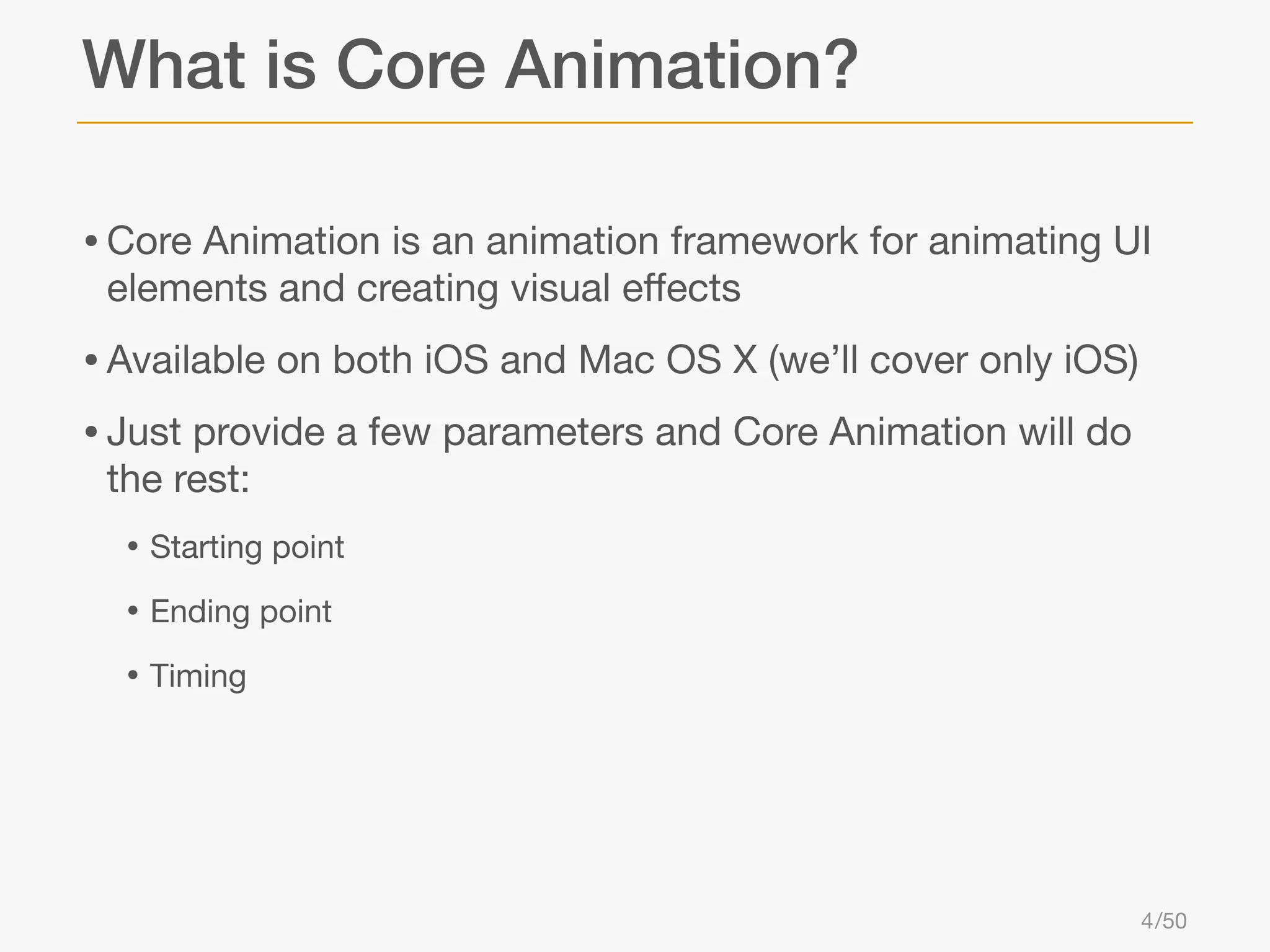

4. What is Core Animation?
• Core Animation is an animation framework for animating UI
elements and creating visual effects
• Available on both iOS and Mac OS X (we’ll cover only iOS)
• Just provide a few parameters and Core Animation will do
the rest:
• Starting point
• Ending point
• Timing
4 /50

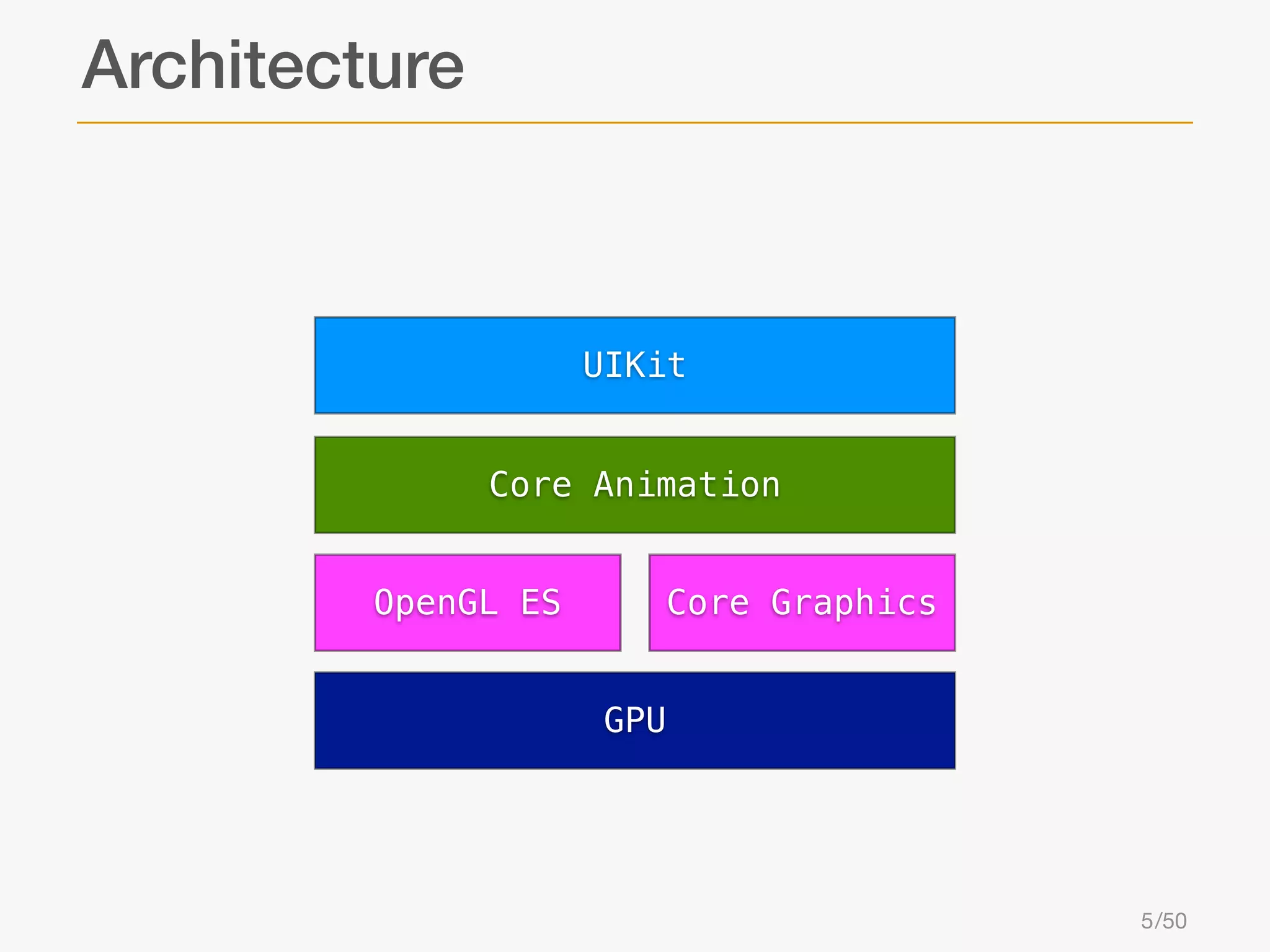

5. Architecture
UIKit
Core Animation
OpenGL ES
Core Graphics
GPU
5 /50

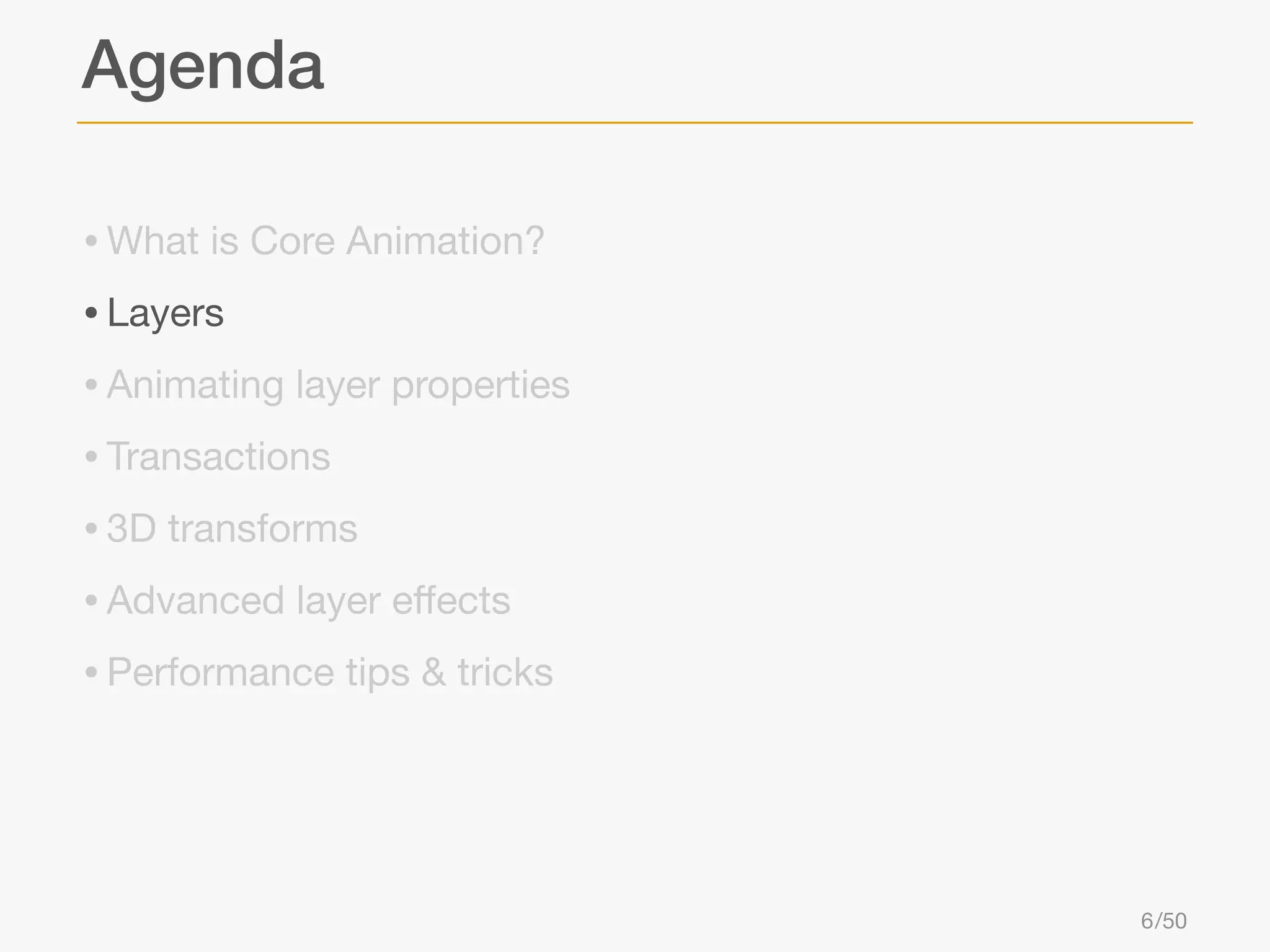

6. Agenda
• What is Core Animation?
• Layers
• Animating layer properties
• Transactions
• 3D transforms
• Advanced layer effects
• Performance tips & tricks
6 /50

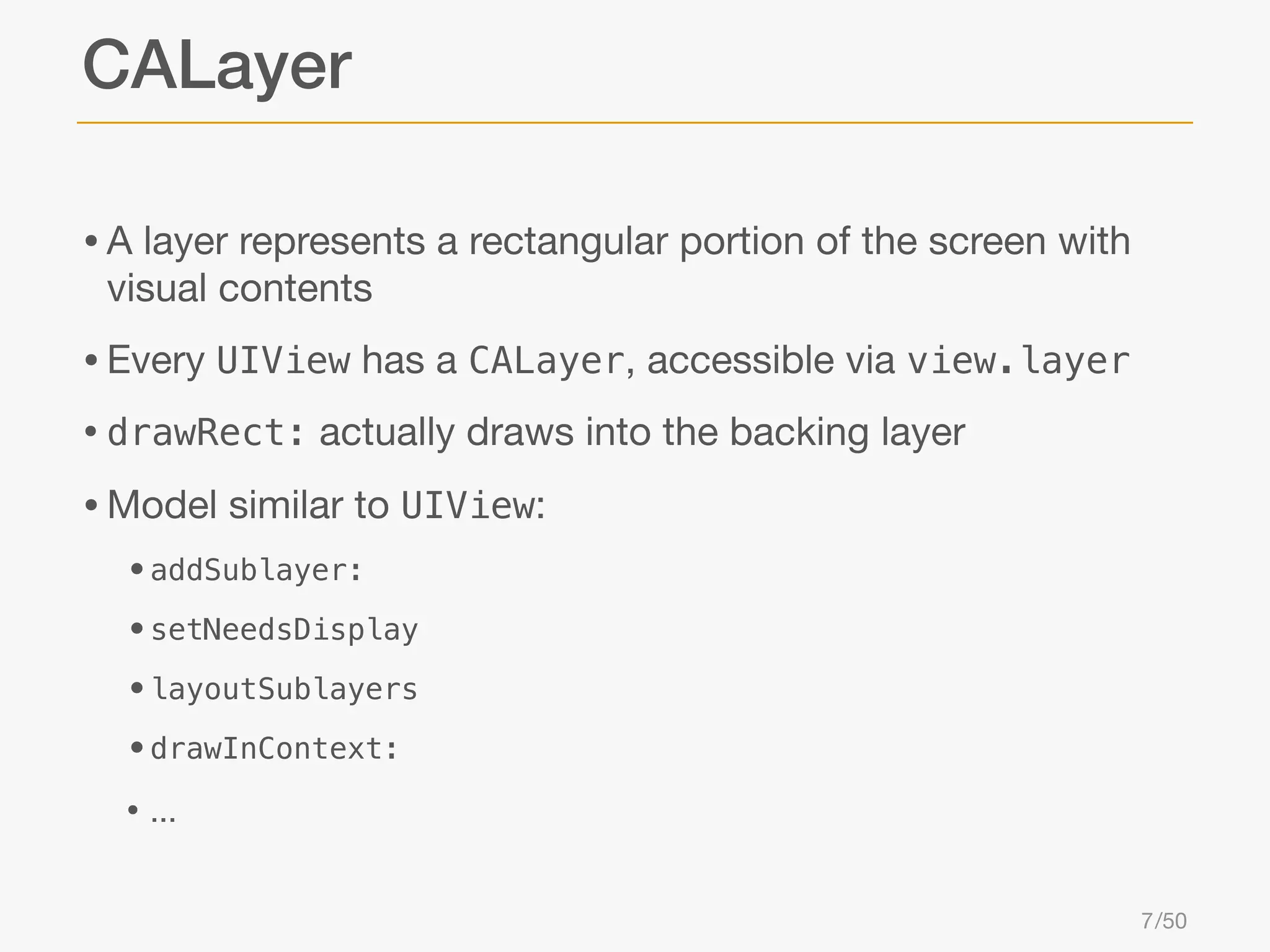

7. CALayer
• A layer represents a rectangular portion of the screen with
visual contents
• Every UIView has a CALayer, accessible via view.layer
• drawRect: actually draws into the backing layer
• Model similar to UIView:
• addSublayer:
• setNeedsDisplay
• layoutSublayers
• drawInContext:
• ...
7 /50

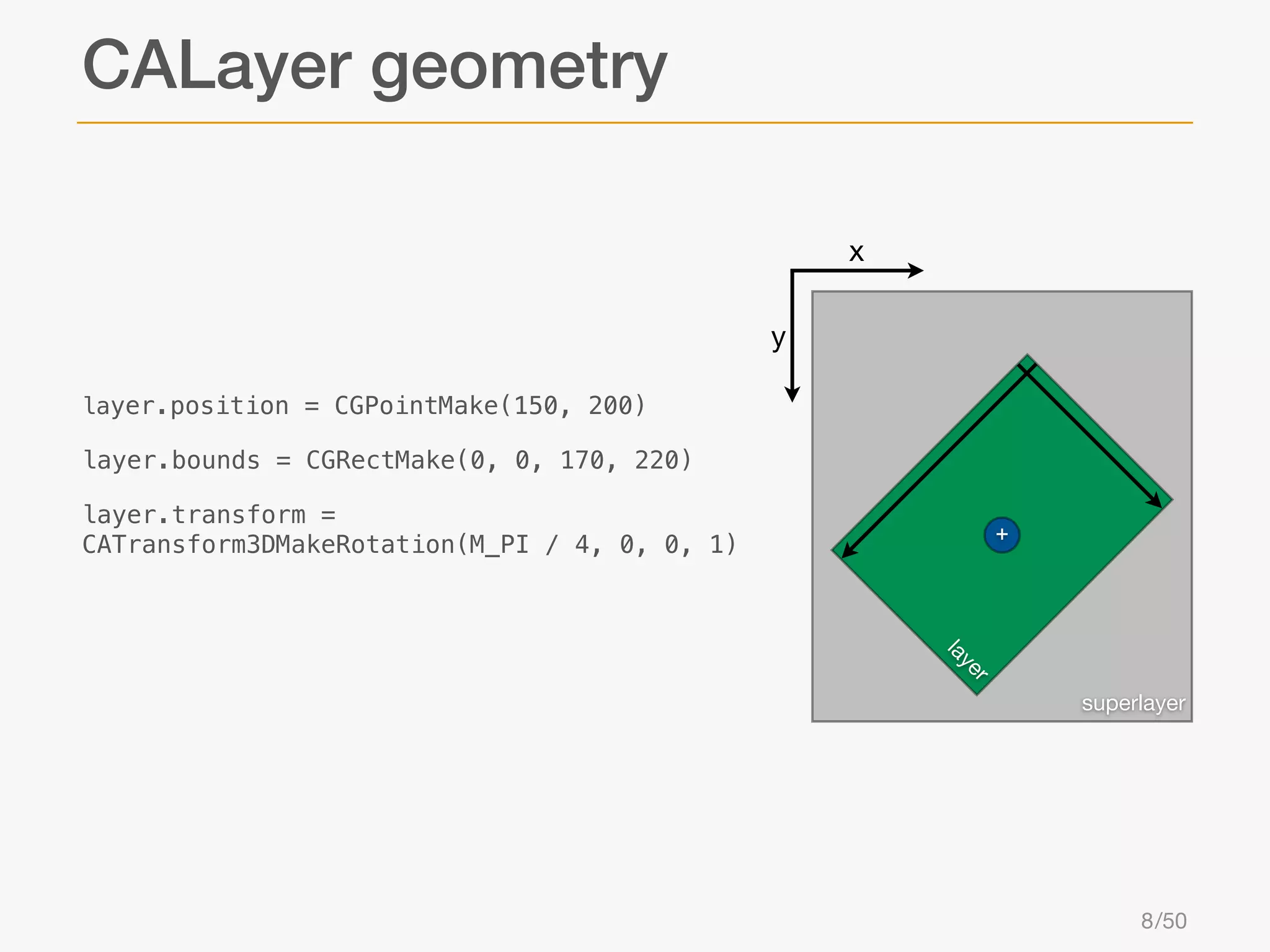

8. CALayer geometry
x
y
layer.position = CGPointMake(150, 200)
layer.bounds = CGRectMake(0, 0, 170, 220)
layer.transform =
CATransform3DMakeRotation(M_PI / 4, 0, 0, 1)
+
r
ye
la
superlayer
8 /50

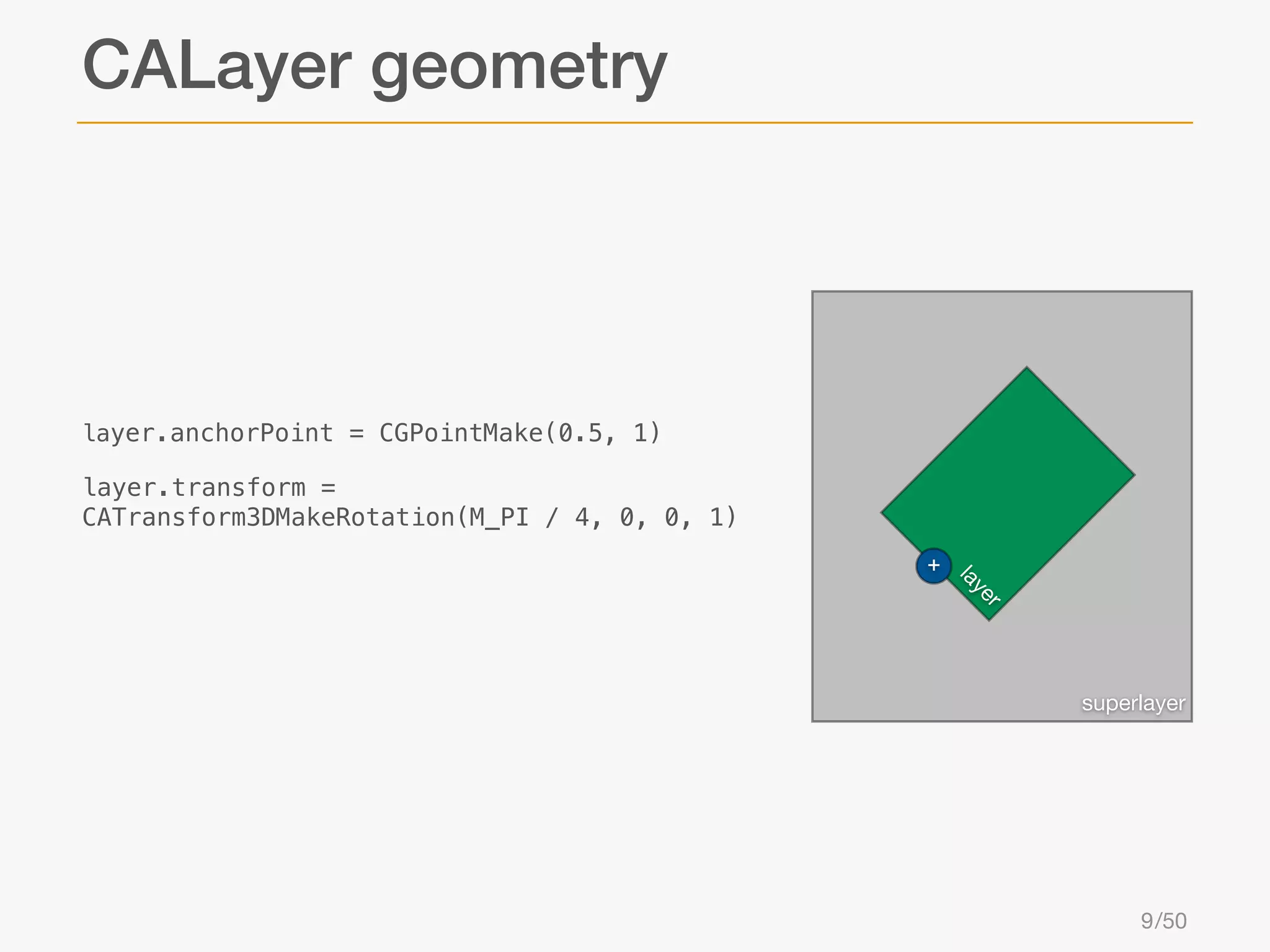

9. CALayer geometry
layer.anchorPoint = CGPointMake(0.5, 1)
layer.transform =
CATransform3DMakeRotation(M_PI / 4, 0, 0, 1)
ye
la
+
r
superlayer
y
la
er
9 /50

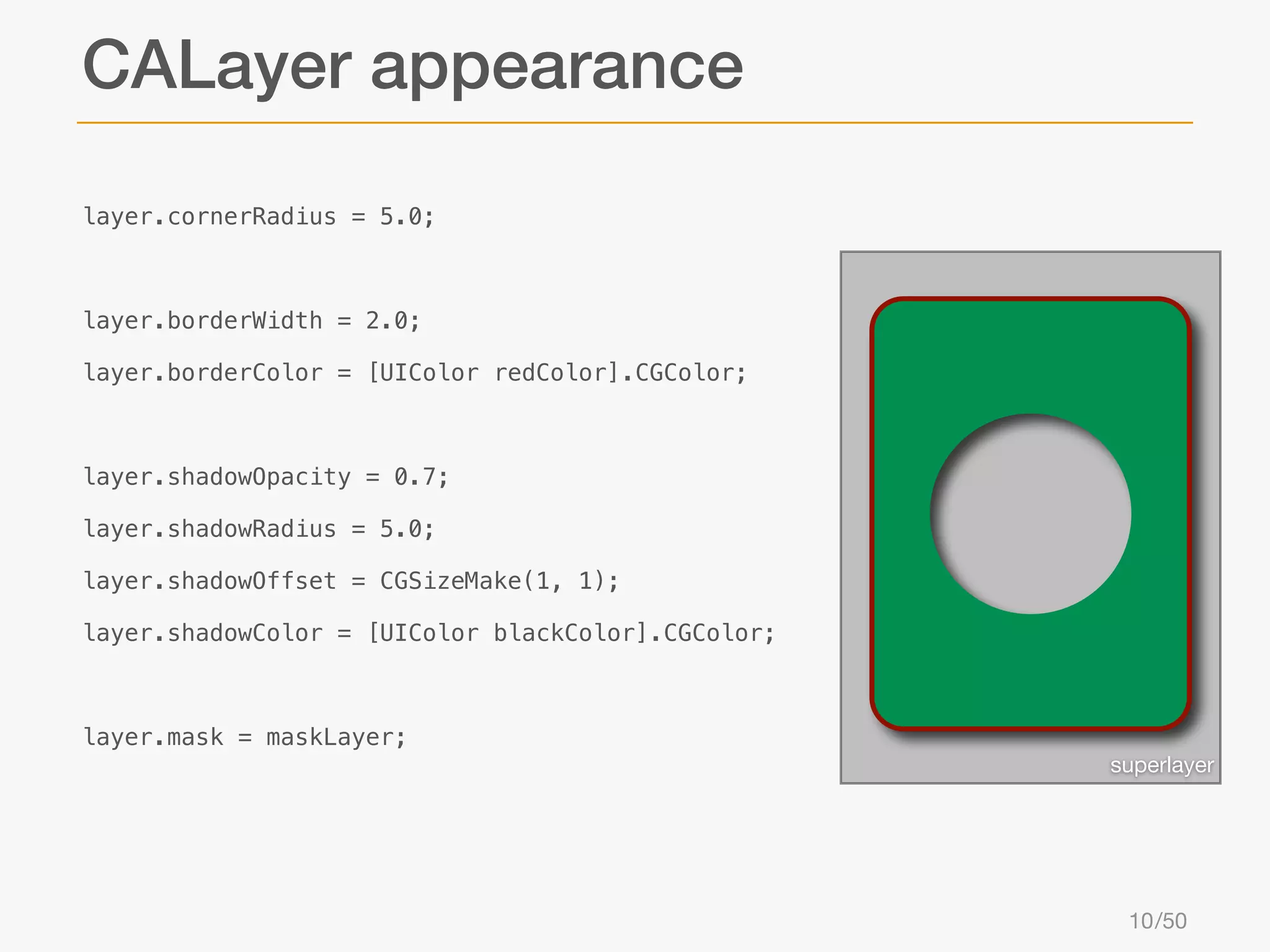

10. CALayer appearance
layer.cornerRadius = 5.0;
layer.borderWidth = 2.0;
layer.borderColor = [UIColor redColor].CGColor;
layer.shadowOpacity = 0.7;
layer.shadowRadius = 5.0;
layer.shadowOffset = CGSizeMake(1, 1);
layer.shadowColor = [UIColor blackColor].CGColor;
layer.mask = maskLayer;
superlayer
10 /50

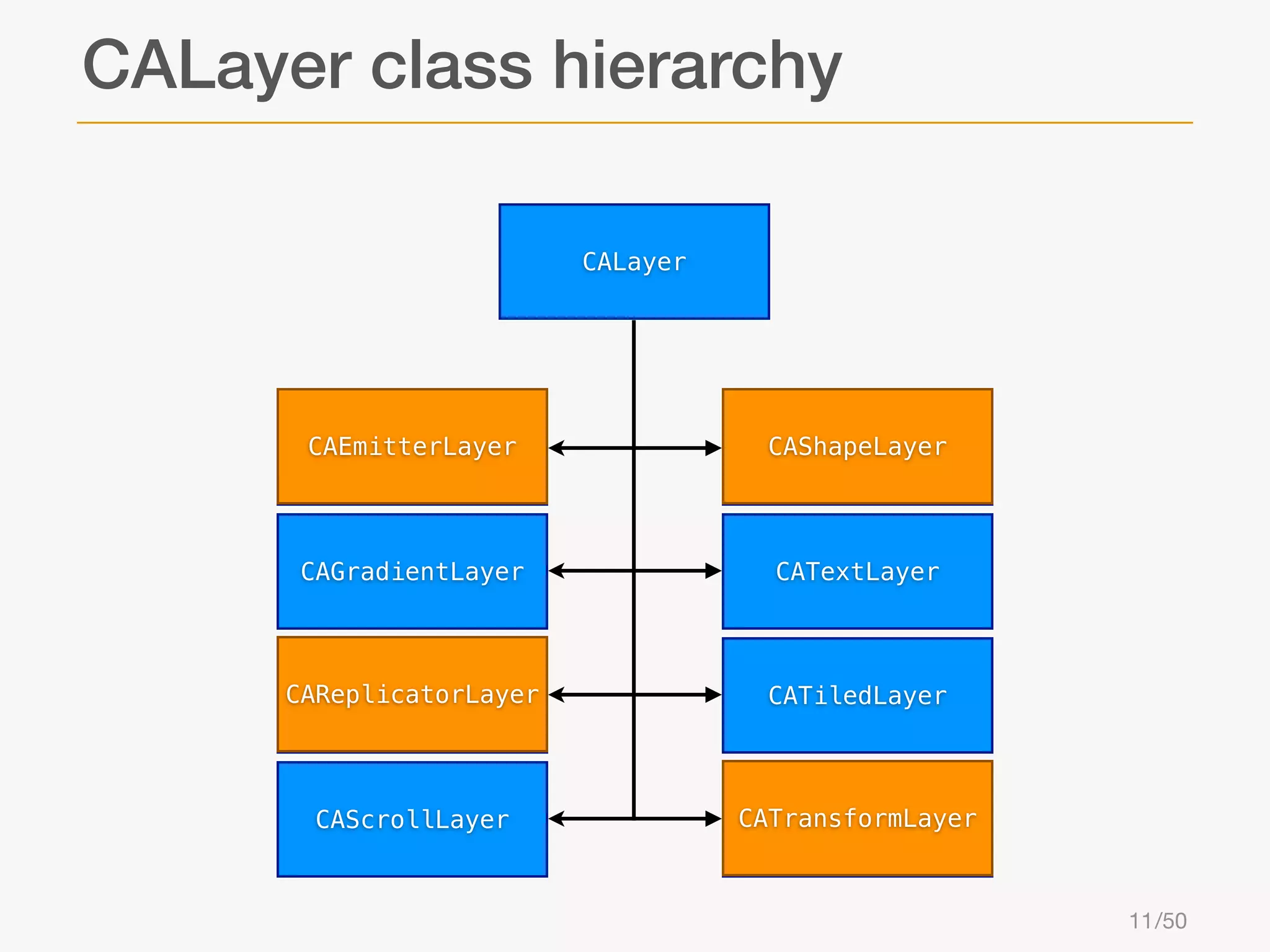

11. CALayer class hierarchy
CALayer
CAEmitterLayer
CAShapeLayer
CAGradientLayer
CATextLayer
CAReplicatorLayer
CATiledLayer
CAScrollLayer
CATransformLayer
11 /50

12. Agenda
• What is Core Animation?
• Layers
• Animating layer properties
• Transactions
• 3D transforms
• Advanced layer effects
• Performance tips & tricks
12 /50

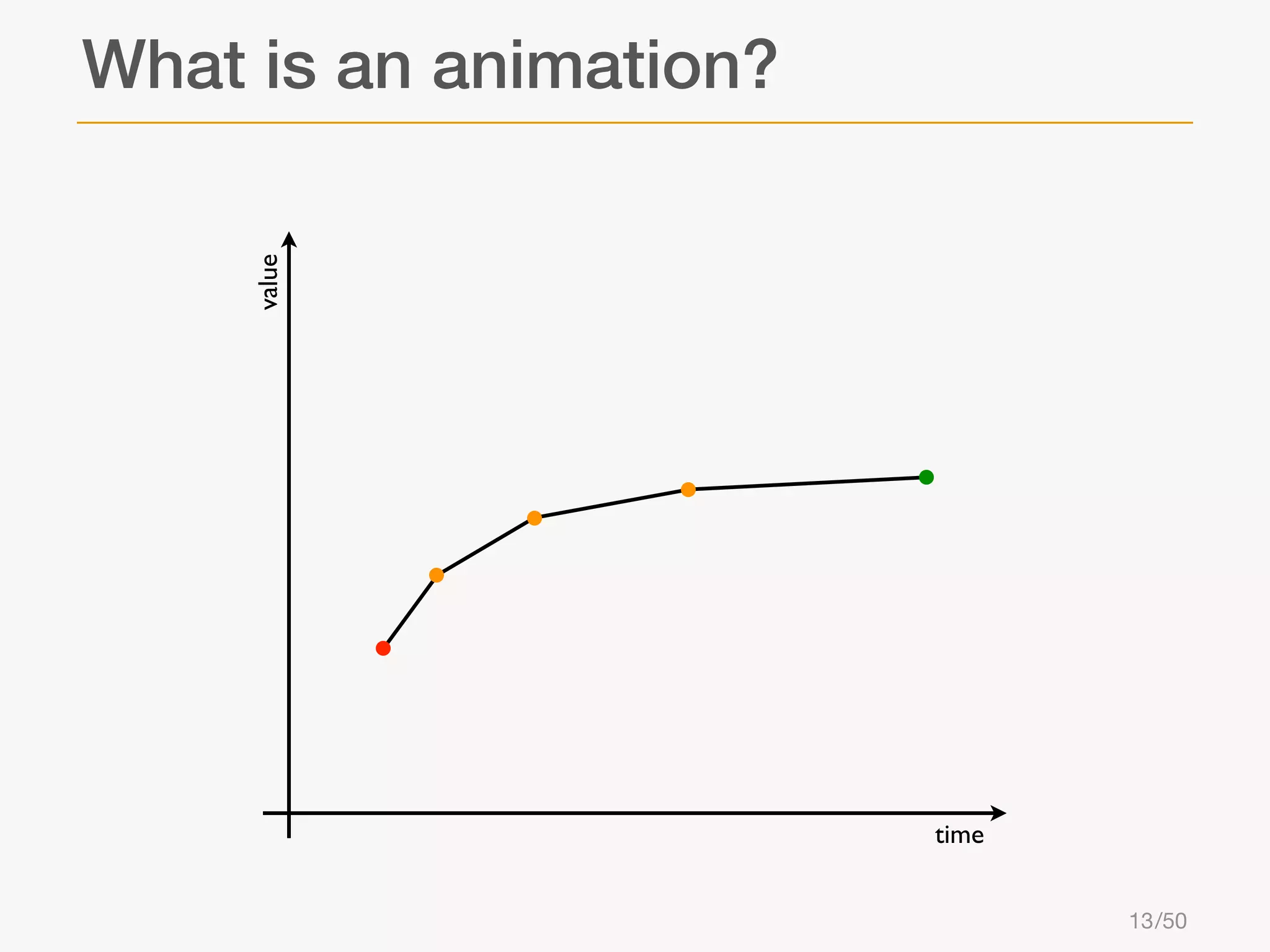

13. value
What is an animation?
time
13 /50

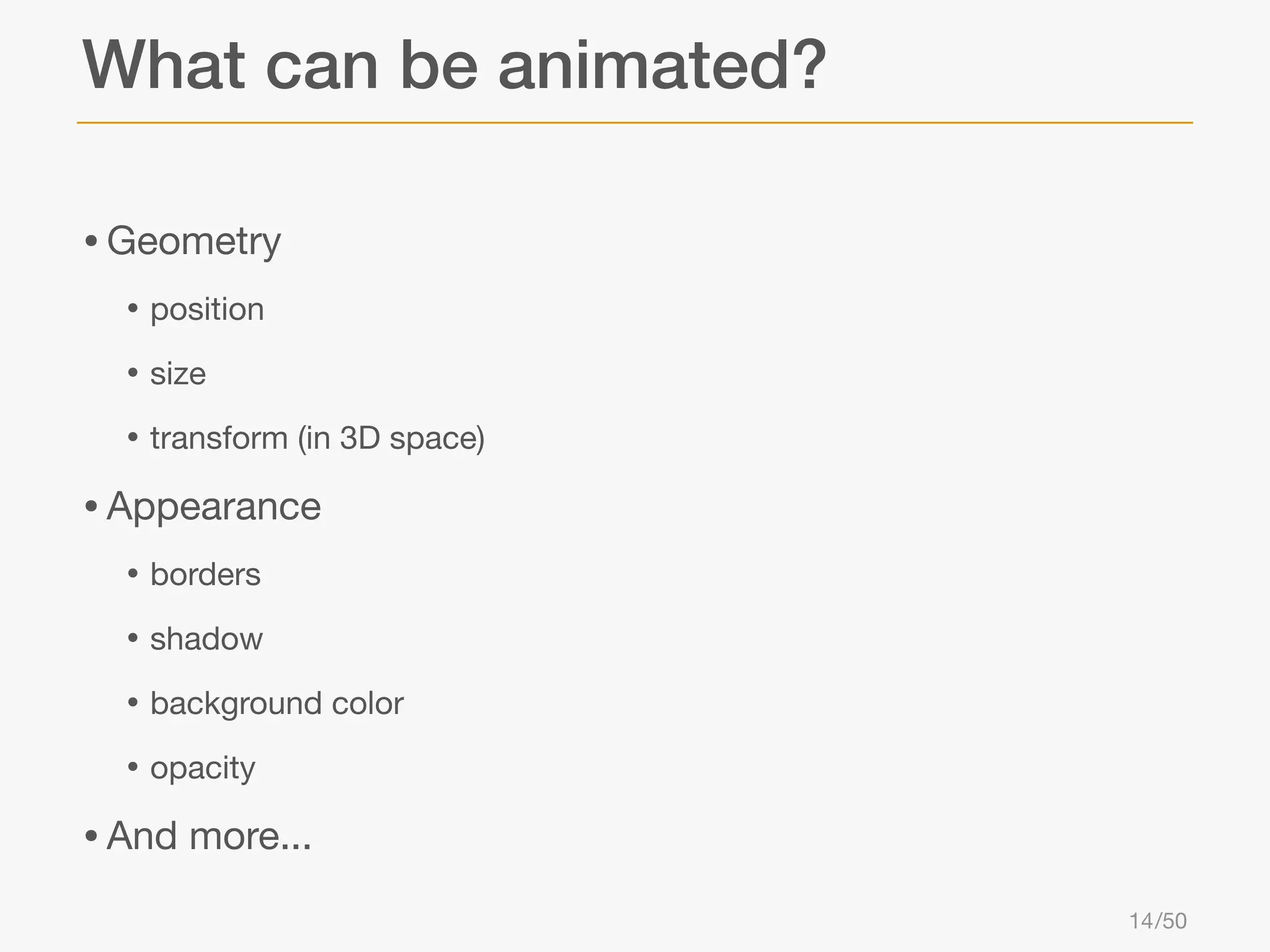

14. What can be animated?
• Geometry
• position
• size
• transform (in 3D space)
• Appearance
• borders
• shadow
• background color
• opacity
• And more...
14 /50

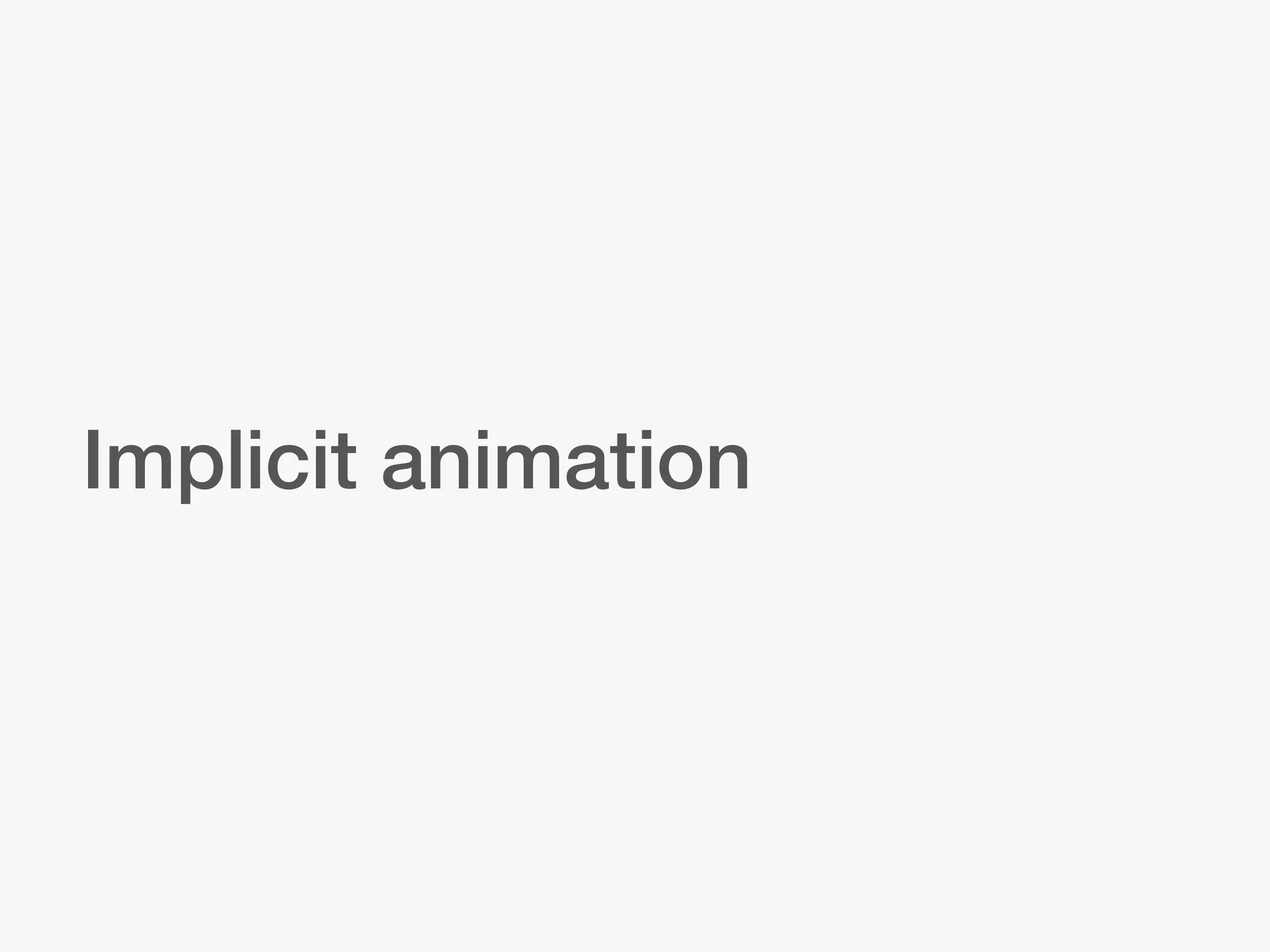

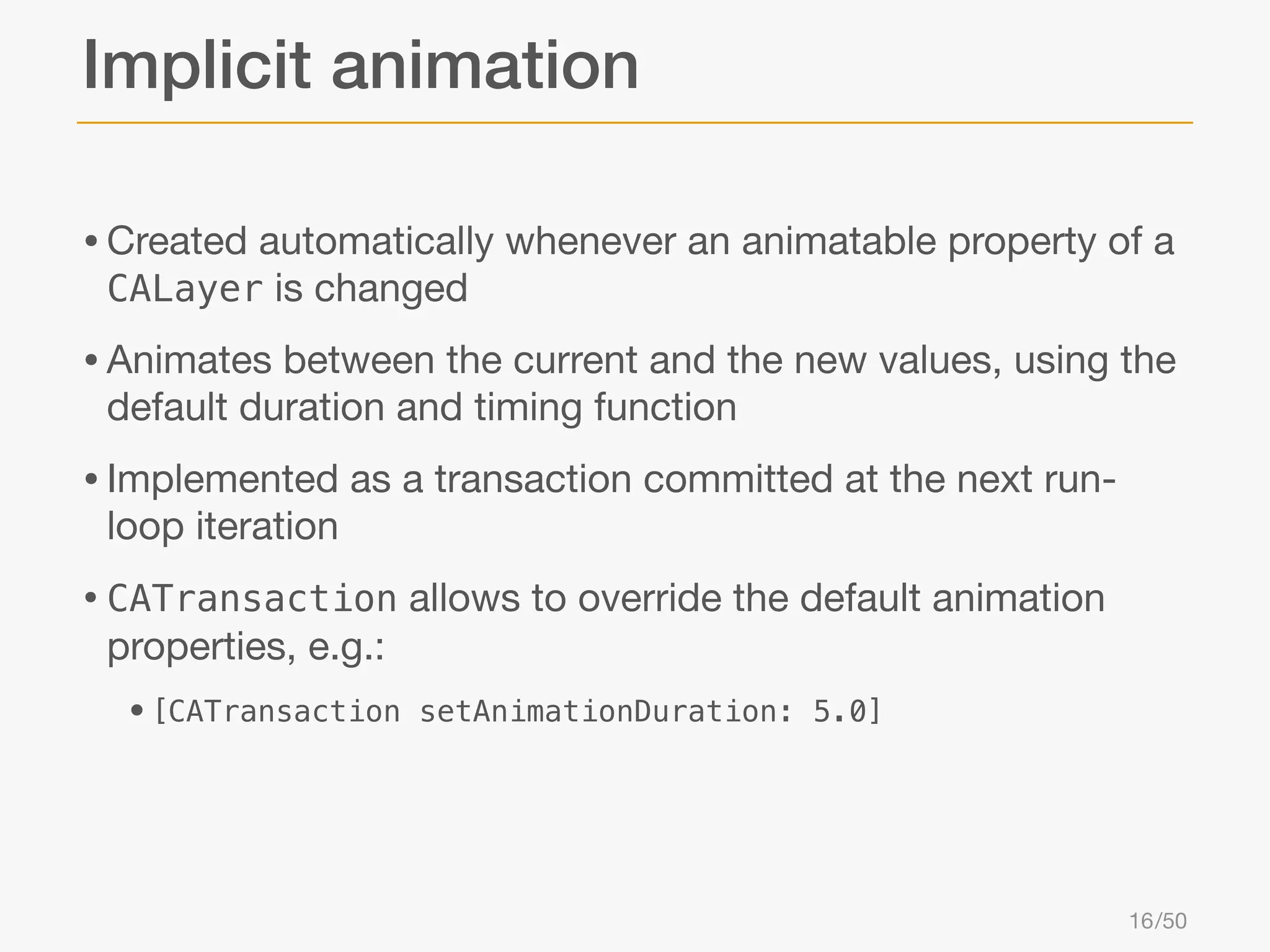

15. Implicit animation

16. Implicit animation
• Created automatically whenever an animatable property of a
CALayer is changed
• Animates between the current and the new values, using the
default duration and timing function
• Implemented as a transaction committed at the next runloop iteration
• CATransaction allows to override the default animation
properties, e.g.:
• [CATransaction
setAnimationDuration: 5.0]
16 /50

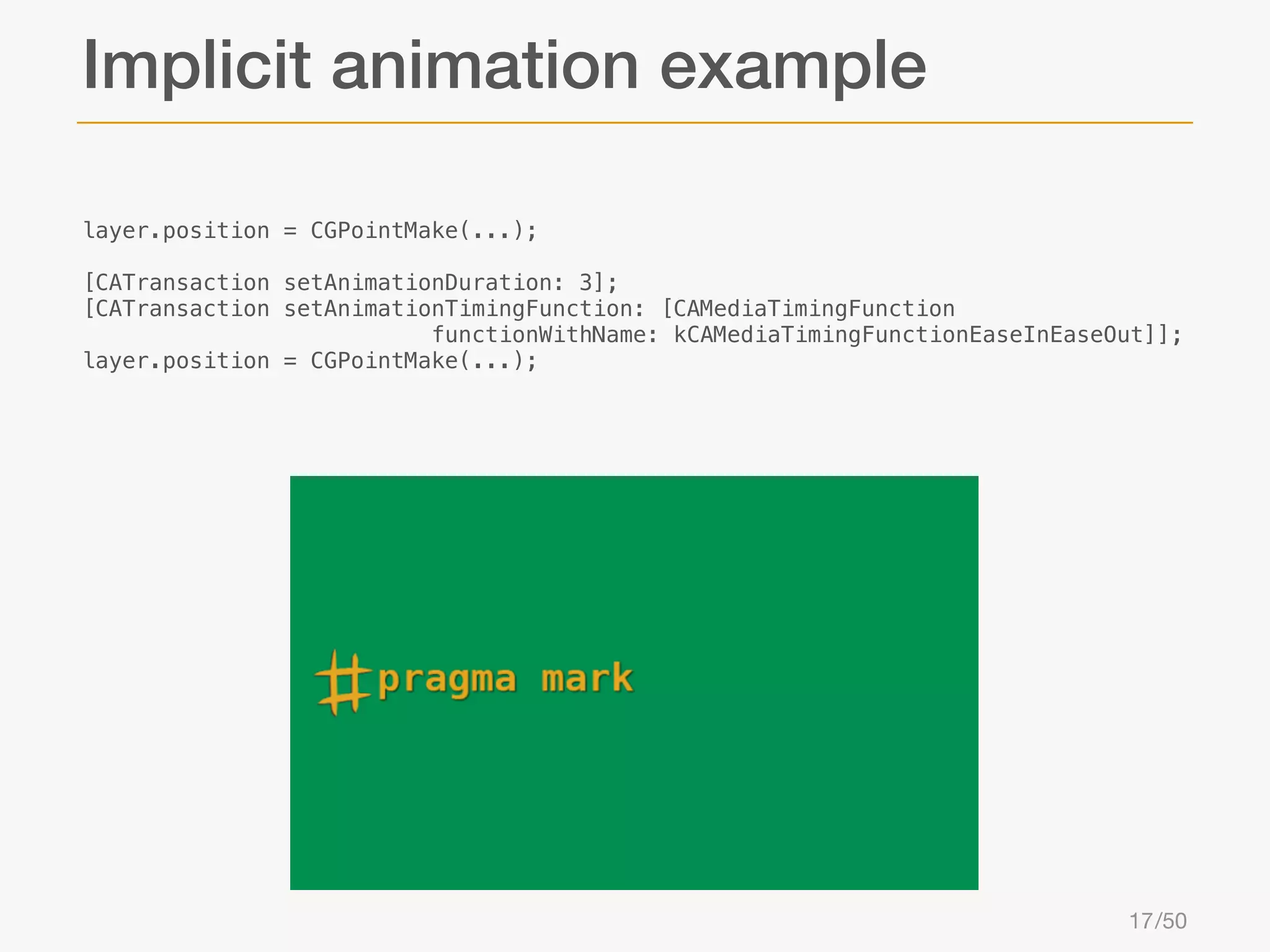

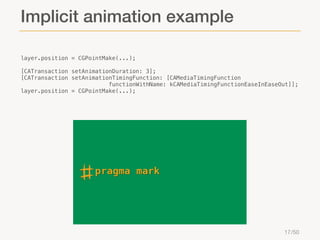

17. Implicit animation example
layer.position = CGPointMake(...);
[CATransaction setAnimationDuration: 3];
[CATransaction setAnimationTimingFunction: [CAMediaTimingFunction
functionWithName: kCAMediaTimingFunctionEaseInEaseOut]];
layer.position = CGPointMake(...);
17 /50

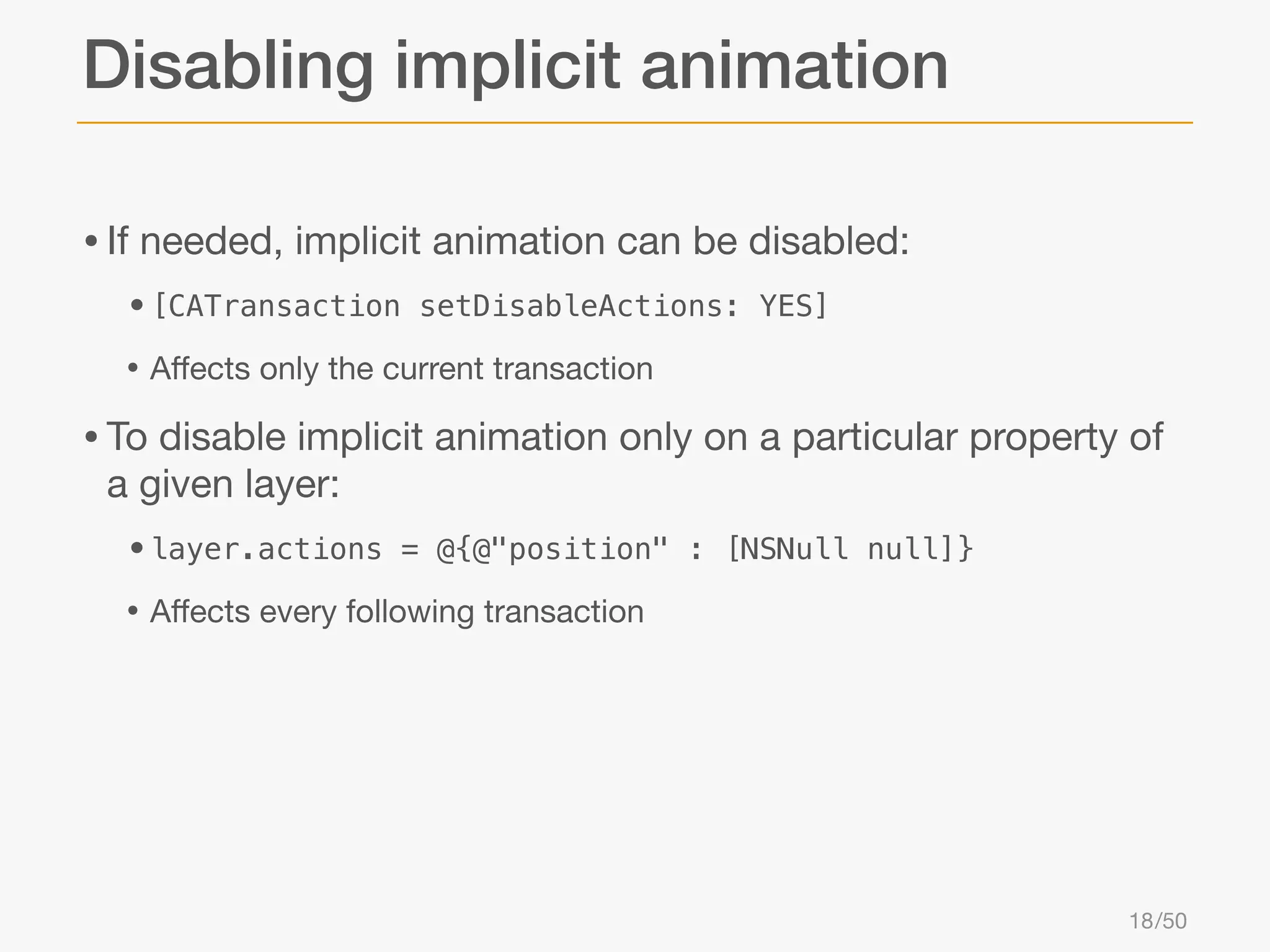

18. Disabling implicit animation
• If needed, implicit animation can be disabled:
• [CATransaction
setDisableActions: YES]
• Affects only the current transaction
• To disable implicit animation only on a particular property of
a given layer:
• layer.actions
= @{@"position" : [NSNull null]}
• Affects every following transaction
18 /50

19. Explicit animation

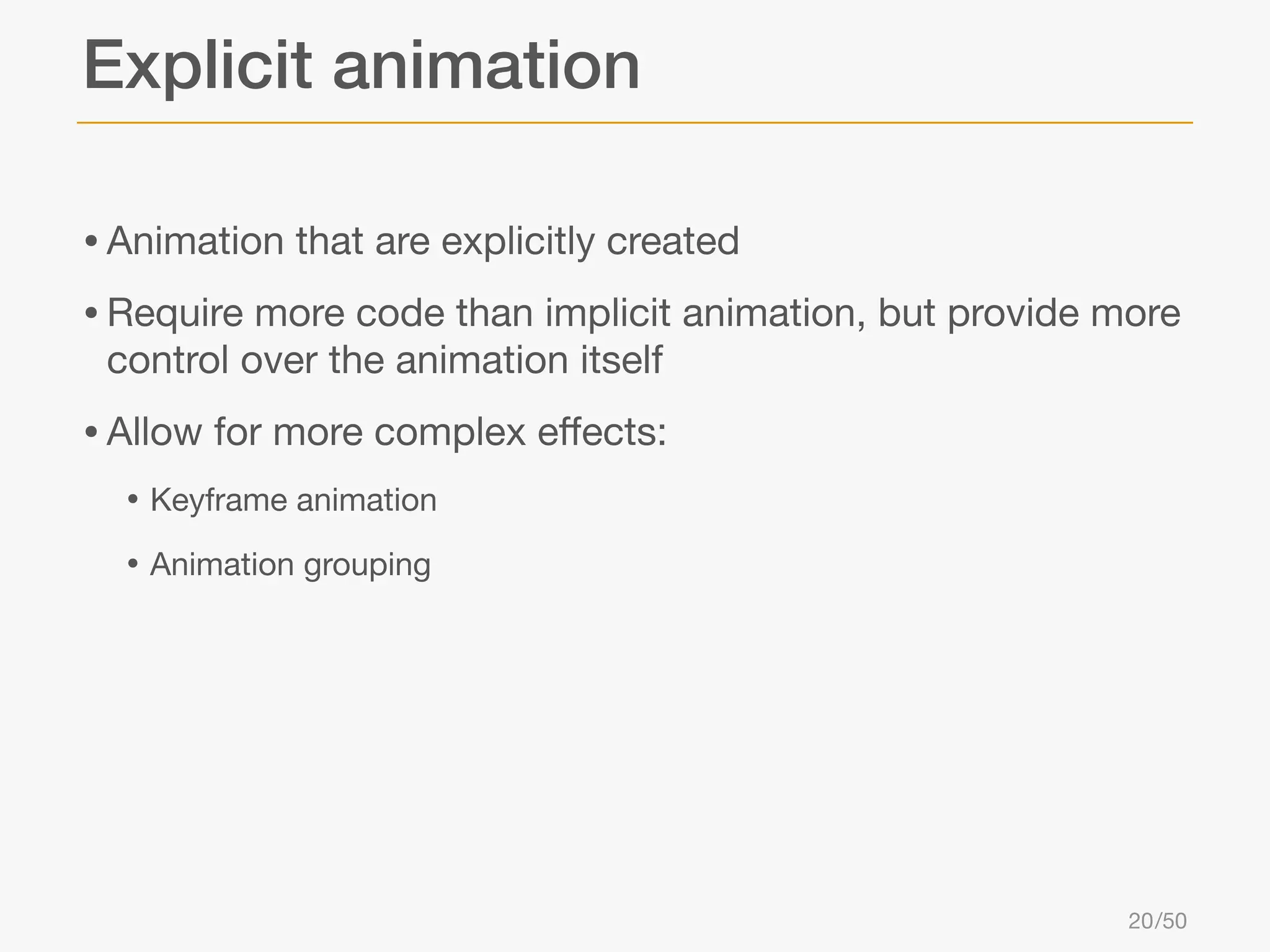

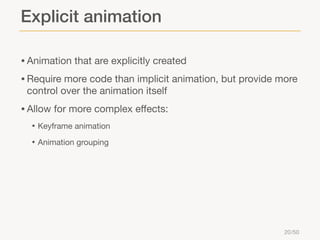

20. Explicit animation
• Animation that are explicitly created
• Require more code than implicit animation, but provide more
control over the animation itself
• Allow for more complex effects:
• Keyframe animation
• Animation grouping
20 /50

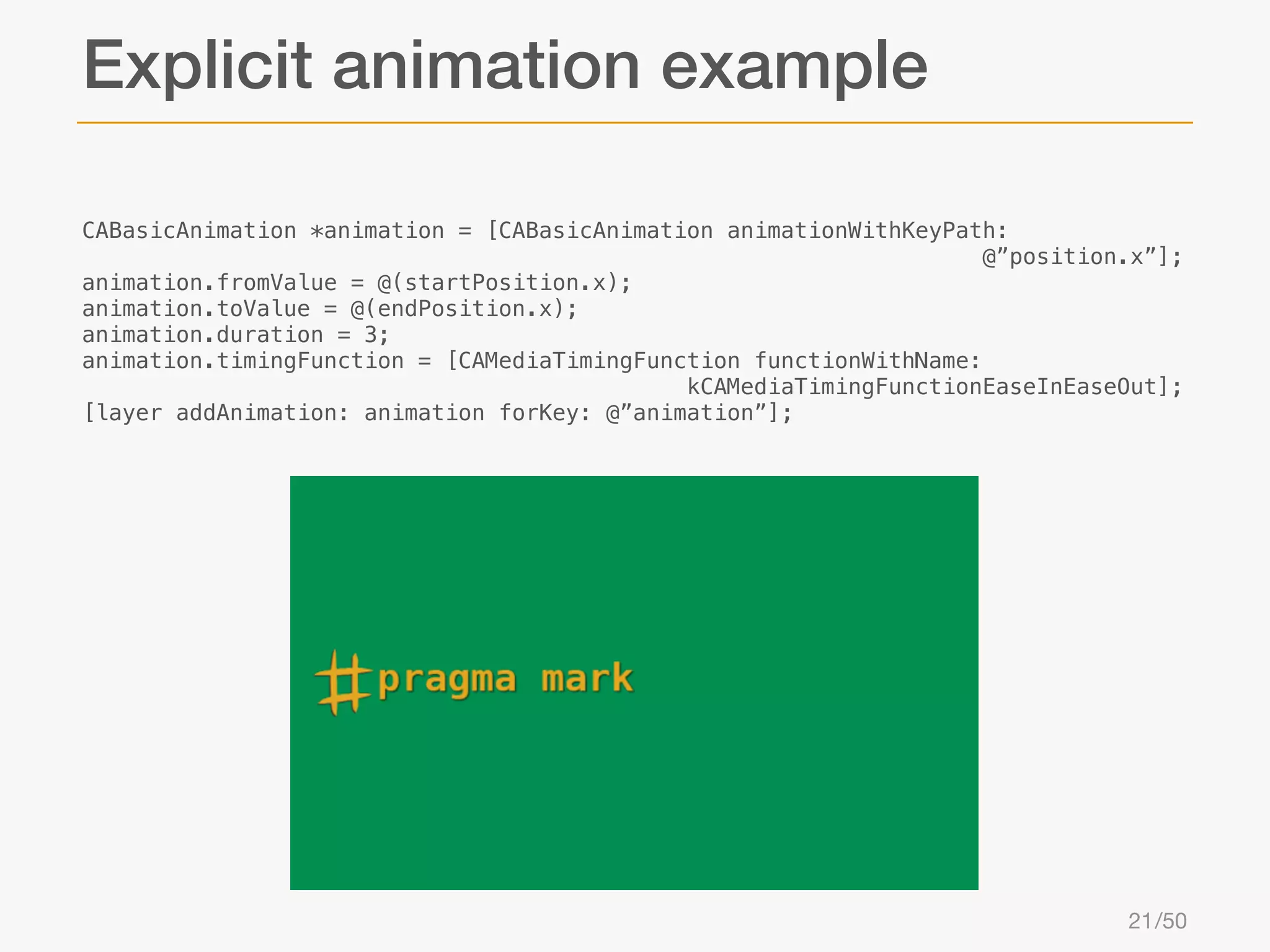

21. Explicit animation example
CABasicAnimation *animation = [CABasicAnimation animationWithKeyPath:
@”position.x”];
animation.fromValue = @(startPosition.x);
animation.toValue = @(endPosition.x);
animation.duration = 3;
animation.timingFunction = [CAMediaTimingFunction functionWithName:
kCAMediaTimingFunctionEaseInEaseOut];
[layer addAnimation: animation forKey: @”animation”];
21 /50

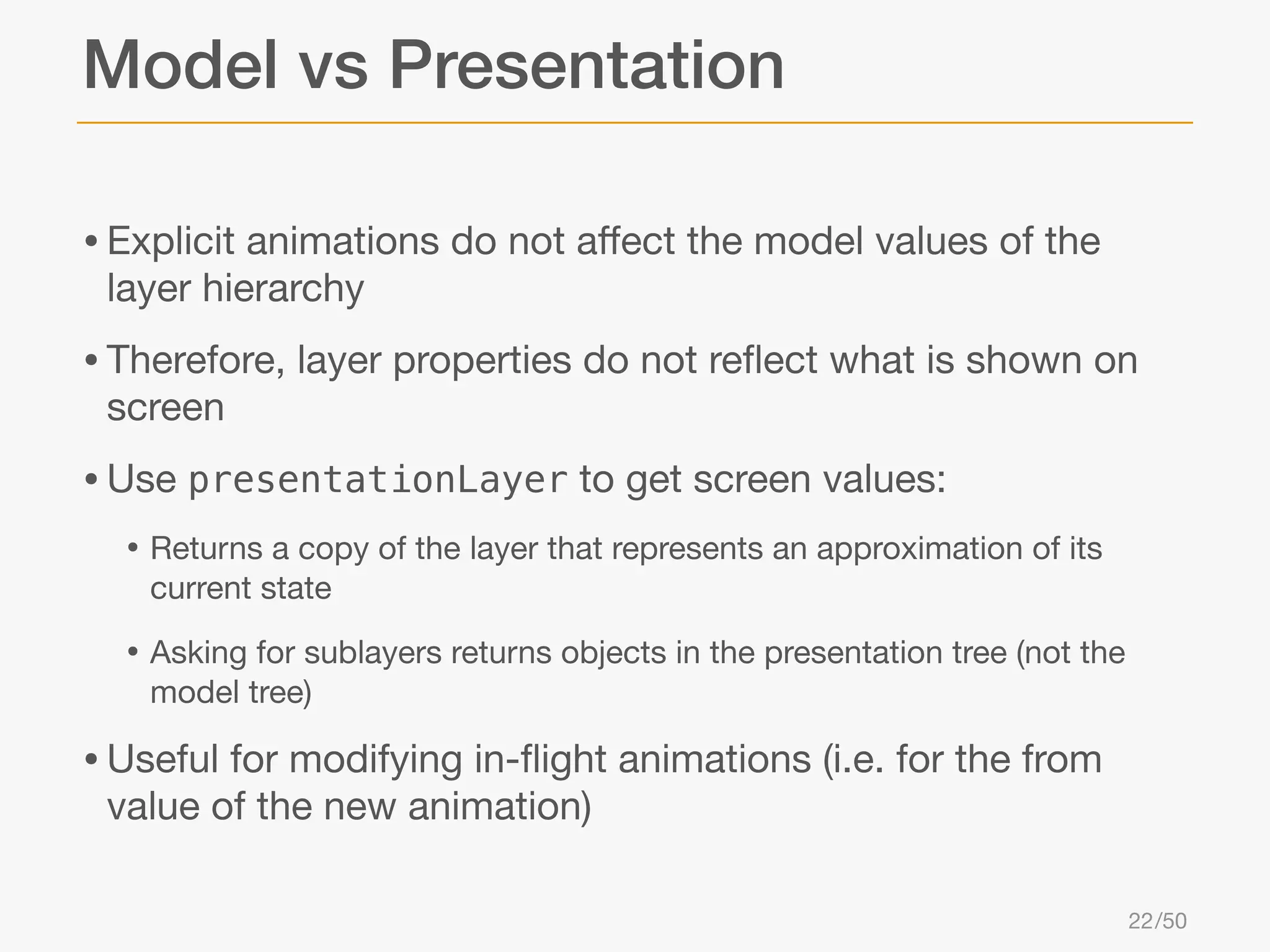

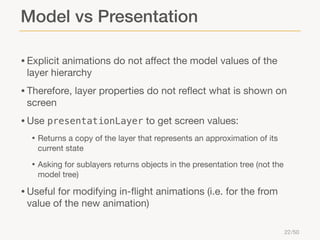

22. Model vs Presentation
• Explicit animations do not affect the model values of the
layer hierarchy
• Therefore, layer properties do not reflect what is shown on
screen
• Use presentationLayer to get screen values:
• Returns a copy of the layer that represents an approximation of its
current state
• Asking for sublayers returns objects in the presentation tree (not the
model tree)
• Useful for modifying in-flight animations (i.e. for the from
value of the new animation)
22 /50

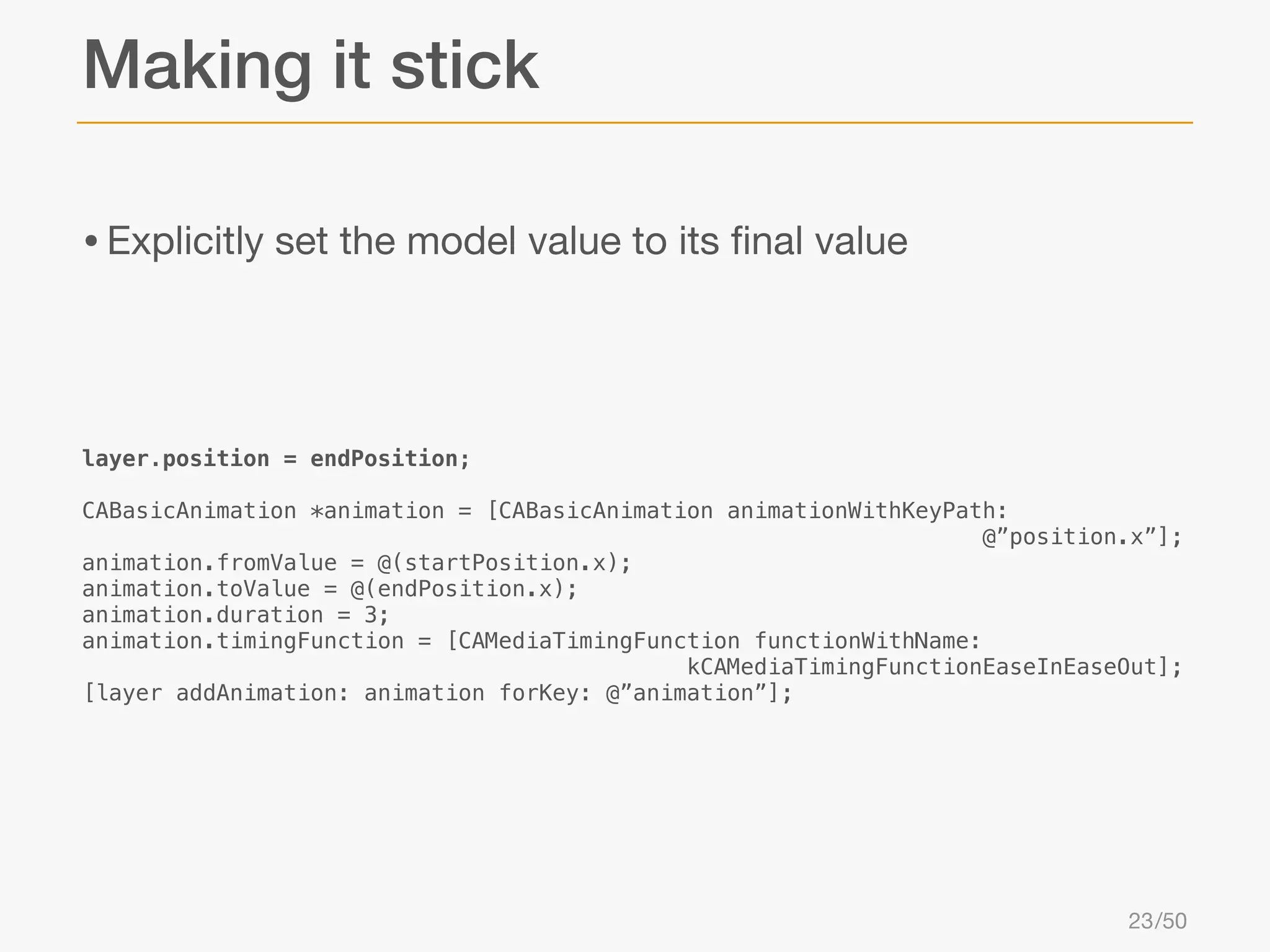

23. Making it stick
• Explicitly set the model value to its final value
layer.position = endPosition;
CABasicAnimation *animation = [CABasicAnimation animationWithKeyPath:
@”position.x”];
animation.fromValue = @(startPosition.x);
animation.toValue = @(endPosition.x);
animation.duration = 3;
animation.timingFunction = [CAMediaTimingFunction functionWithName:
kCAMediaTimingFunctionEaseInEaseOut];
[layer addAnimation: animation forKey: @”animation”];
23 /50

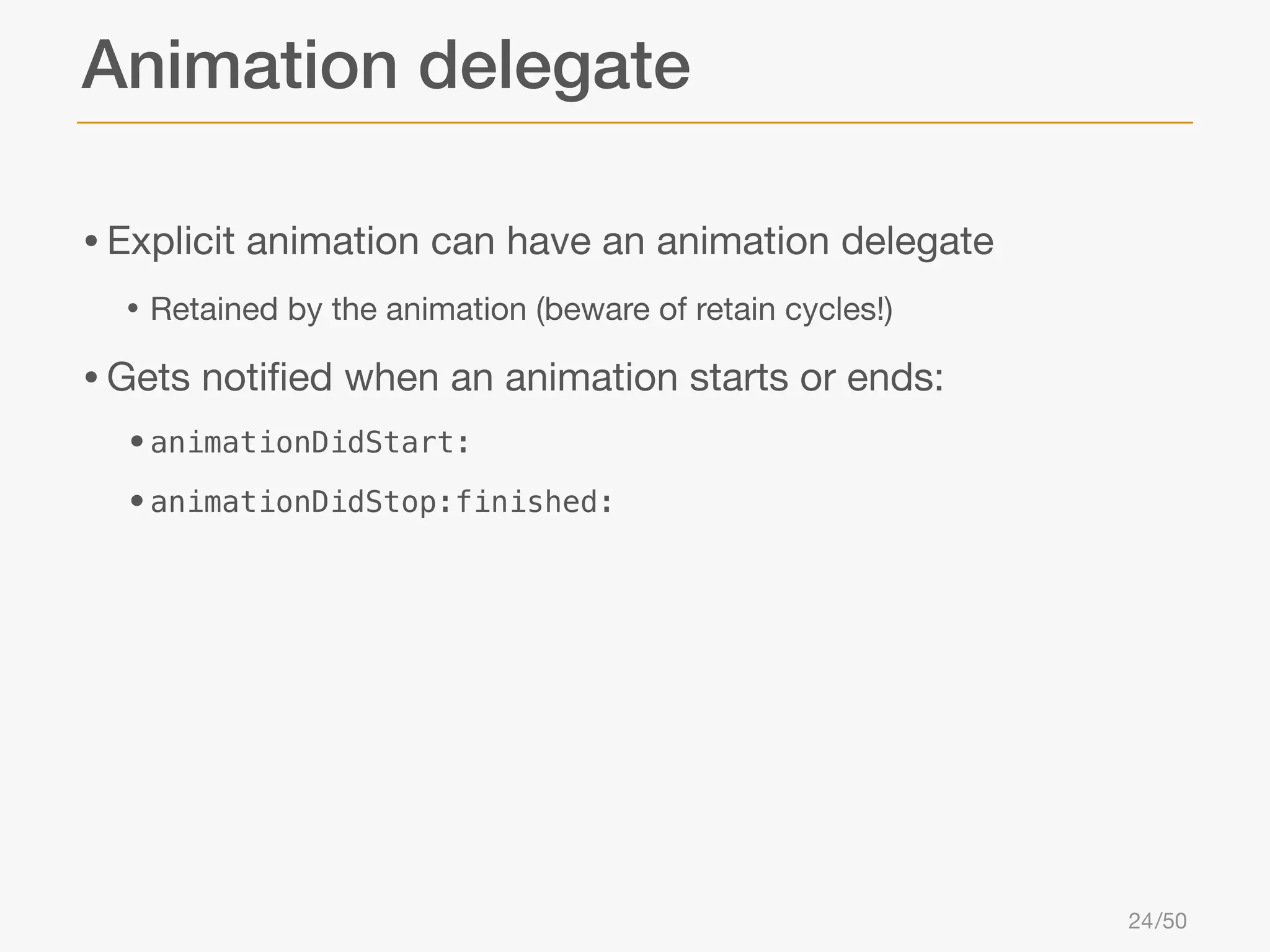

24. Animation delegate
• Explicit animation can have an animation delegate
• Retained by the animation (beware of retain cycles!)
• Gets notified when an animation starts or ends:
• animationDidStart:
• animationDidStop:finished:
24 /50

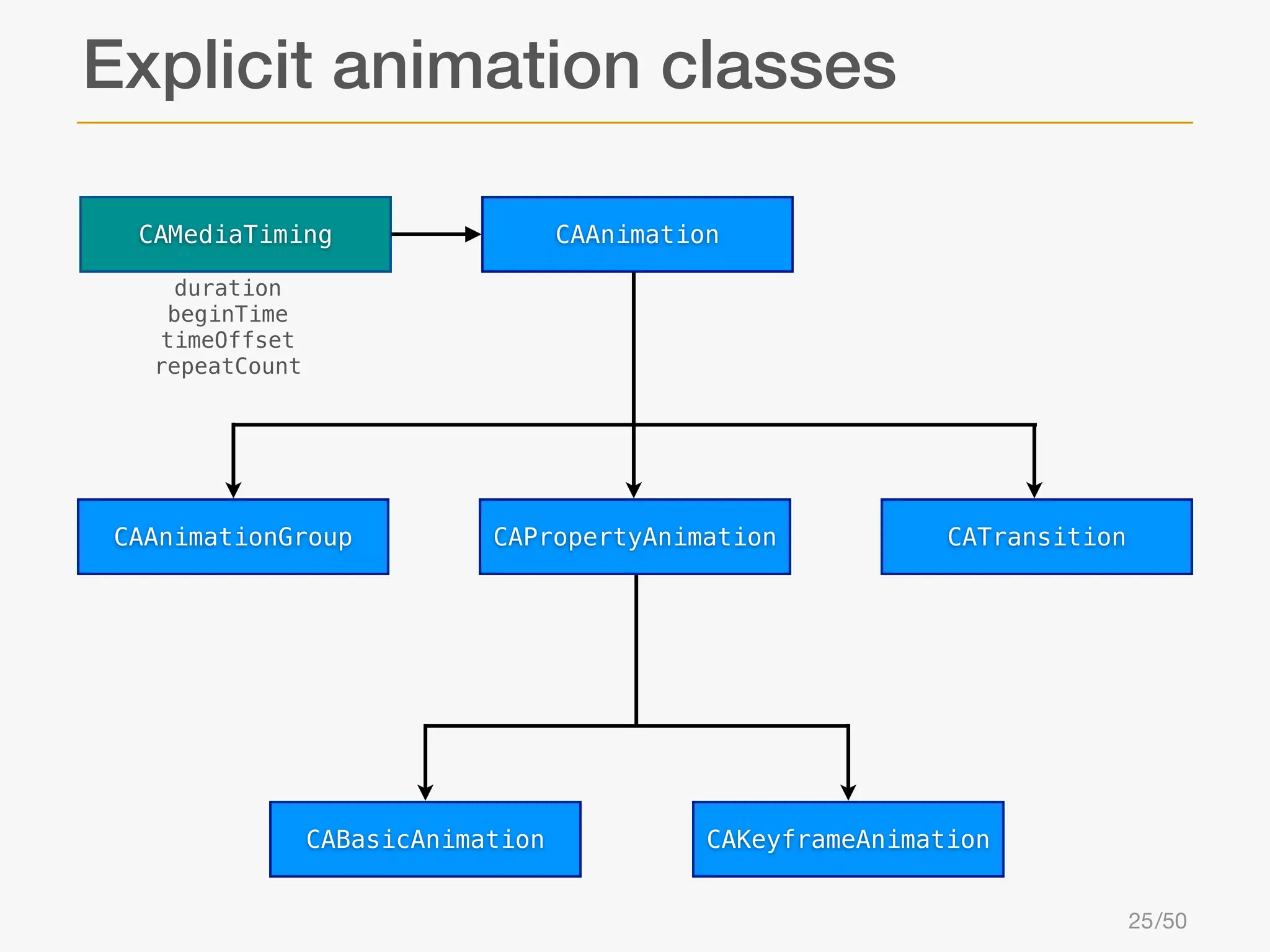

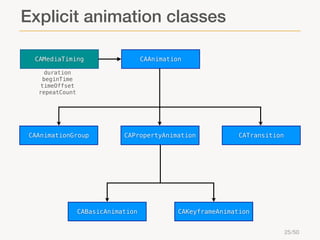

25. Explicit animation classes
CAMediaTiming
CAAnimation
duration
beginTime
timeOffset
repeatCount
CAAnimationGroup
CAPropertyAnimation
CABasicAnimation
CATransition
CAKeyframeAnimation
25 /50

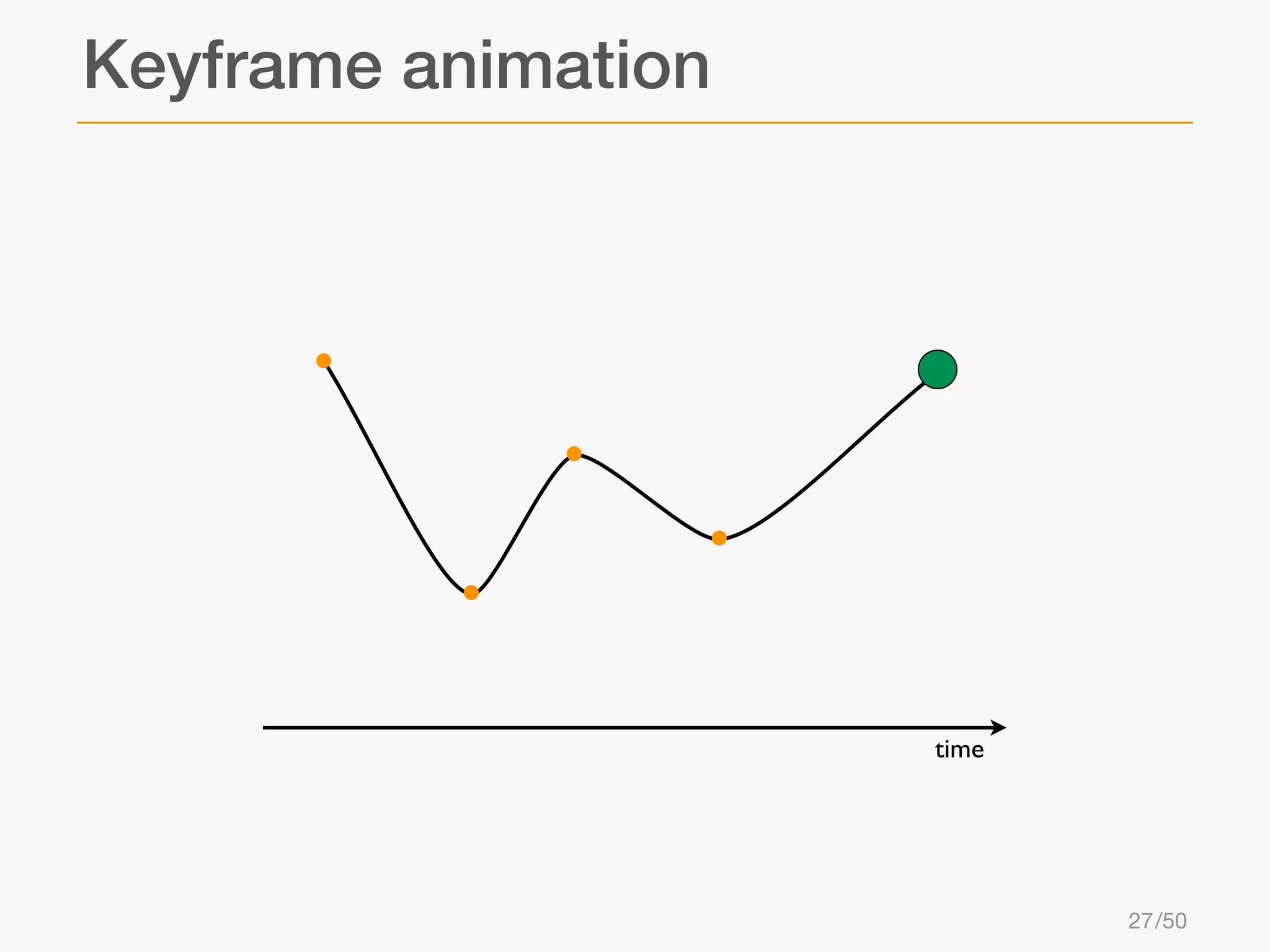

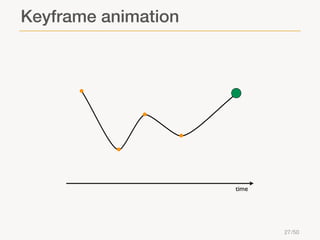

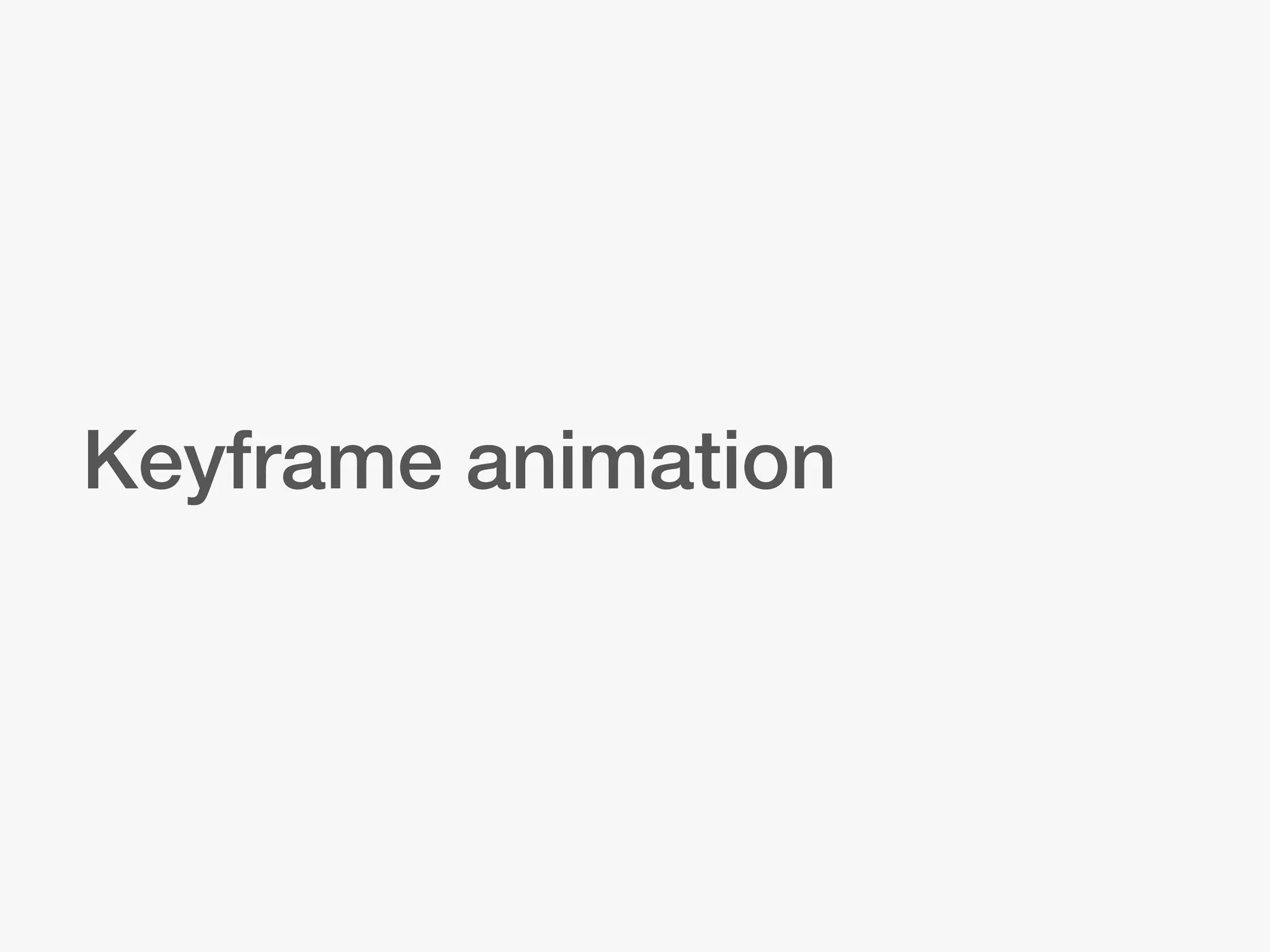

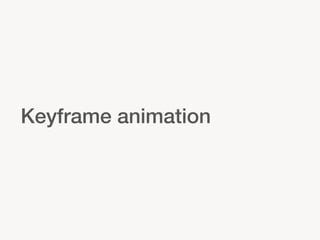

26. Keyframe animation

27. Keyframe animation
time
27 /50

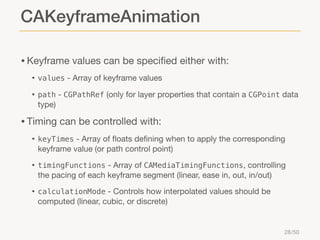

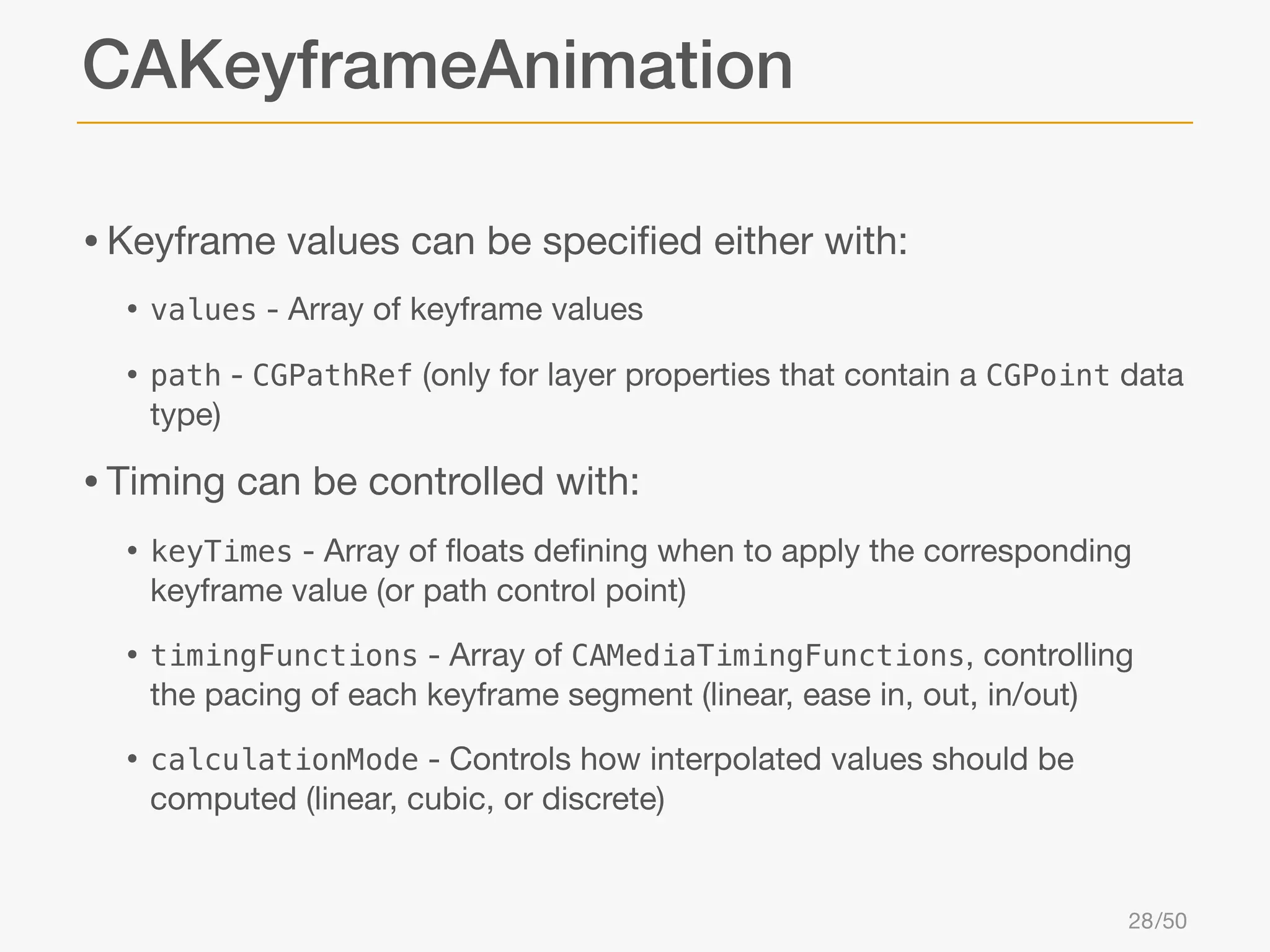

28. CAKeyframeAnimation
• Keyframe values can be specified either with:
• values - Array of keyframe values
• path - CGPathRef (only for layer properties that contain a CGPoint data
type)
• Timing can be controlled with:
• keyTimes - Array of floats defining when to apply the corresponding
keyframe value (or path control point)
• timingFunctions - Array of CAMediaTimingFunctions, controlling
the pacing of each keyframe segment (linear, ease in, out, in/out)
• calculationMode - Controls how interpolated values should be
computed (linear, cubic, or discrete)
28 /50

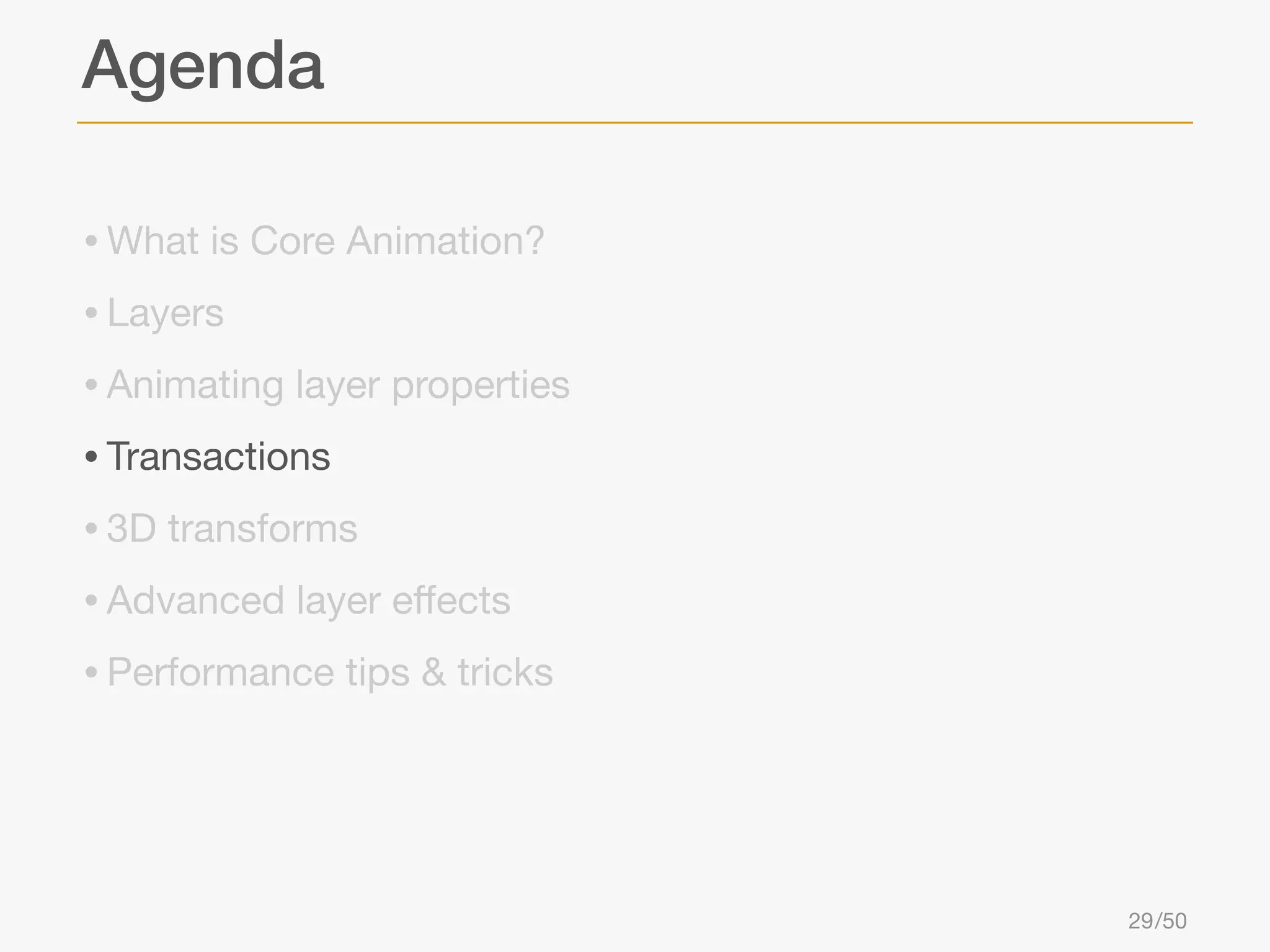

29. Agenda
• What is Core Animation?
• Layers
• Animating layer properties
• Transactions
• 3D transforms
• Advanced layer effects
• Performance tips & tricks
29 /50

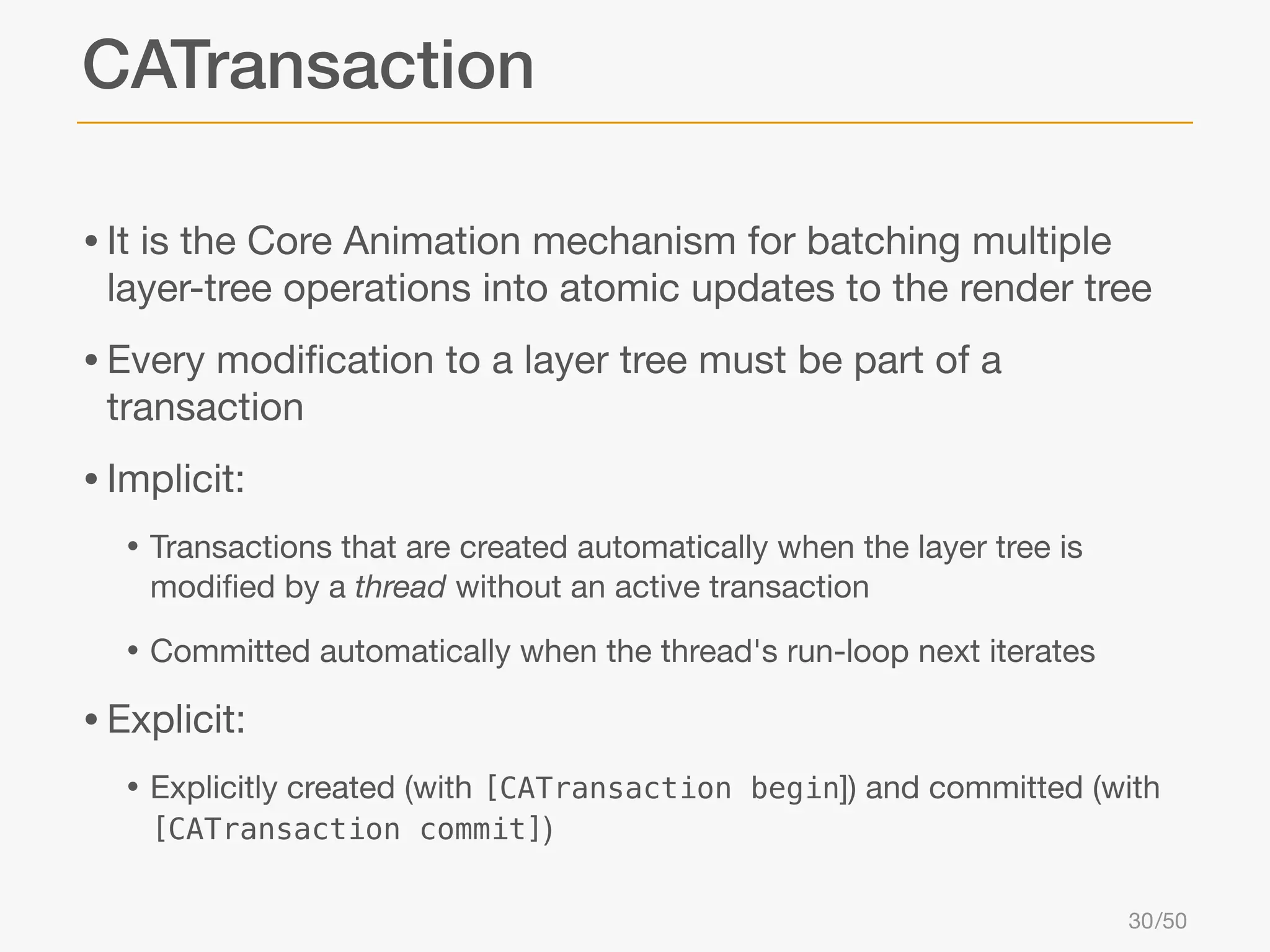

30. CATransaction
• It is the Core Animation mechanism for batching multiple
layer-tree operations into atomic updates to the render tree
• Every modification to a layer tree must be part of a
transaction
• Implicit:
• Transactions that are created automatically when the layer tree is
modified by a thread without an active transaction
• Committed automatically when the thread's run-loop next iterates
• Explicit:
• Explicitly created (with [CATransaction
begin]) and committed (with
[CATransaction commit])
30 /50

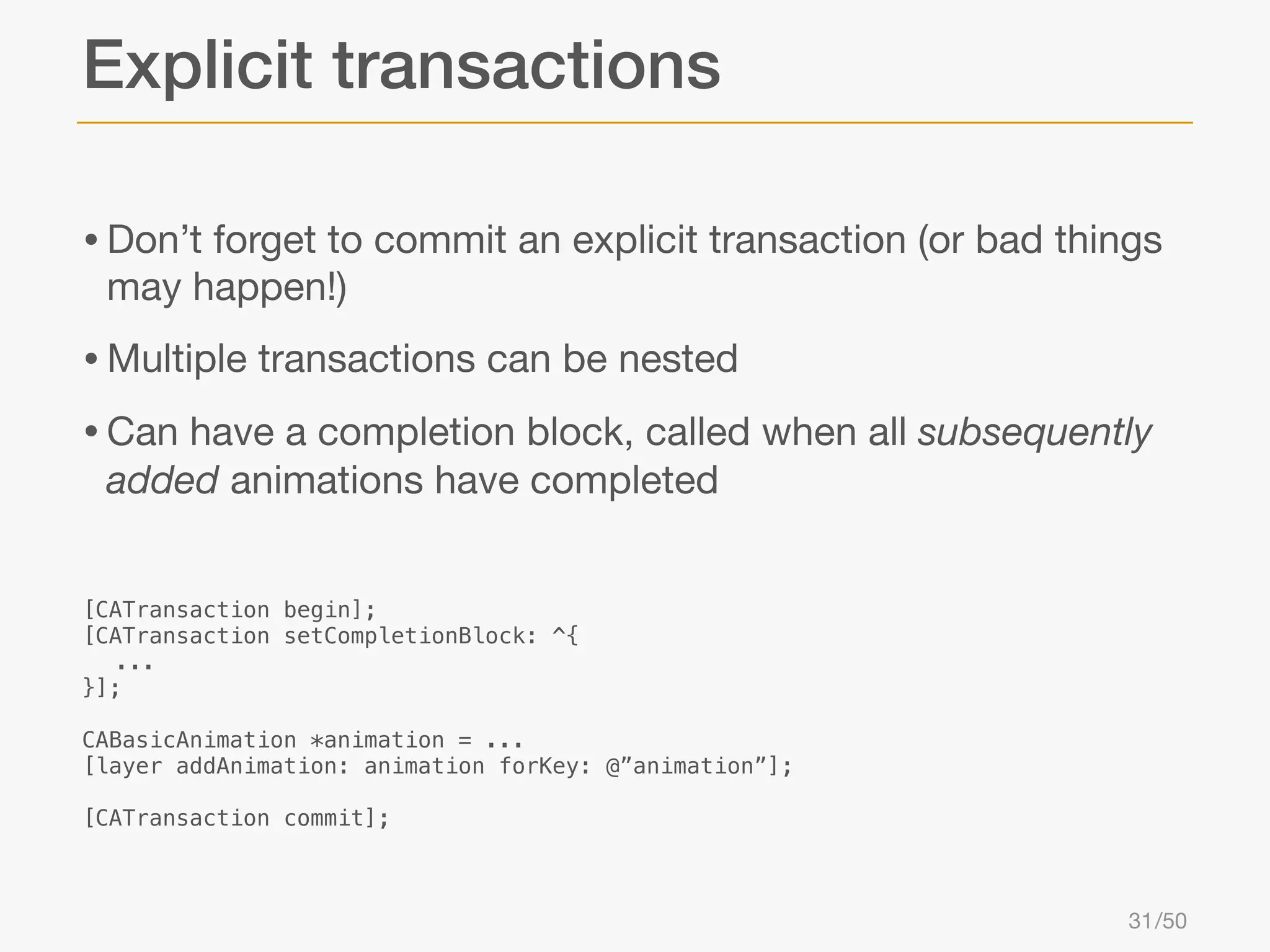

31. Explicit transactions
• Don’t forget to commit an explicit transaction (or bad things
may happen!)
• Multiple transactions can be nested
• Can have a completion block, called when all subsequently
added animations have completed
[CATransaction begin];
[CATransaction setCompletionBlock: ^{
...
}];
CABasicAnimation *animation = ...
[layer addAnimation: animation forKey: @”animation”];
[CATransaction commit];
31 /50

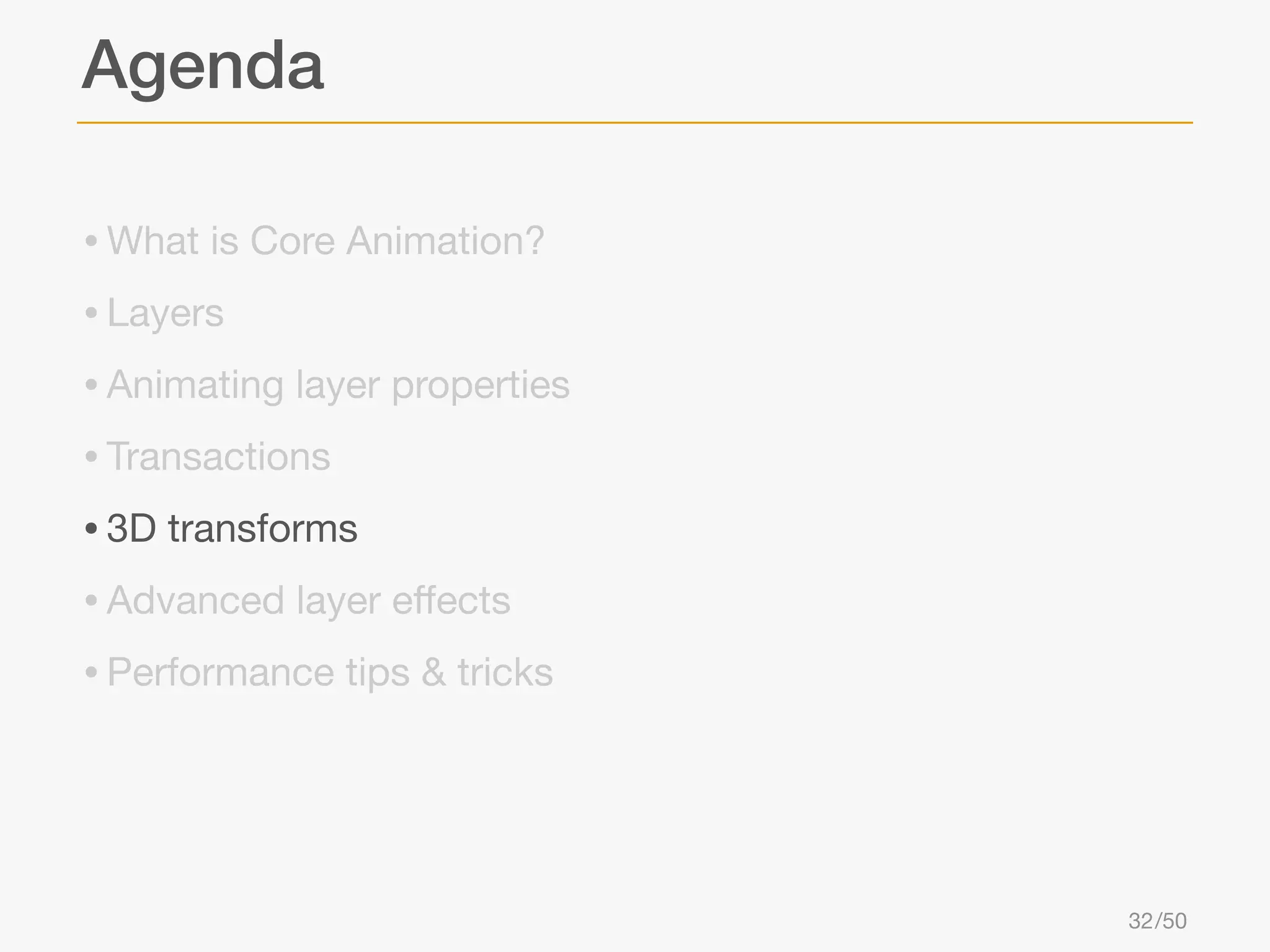

32. Agenda
• What is Core Animation?
• Layers
• Animating layer properties
• Transactions
• 3D transforms
• Advanced layer effects
• Performance tips & tricks
32 /50

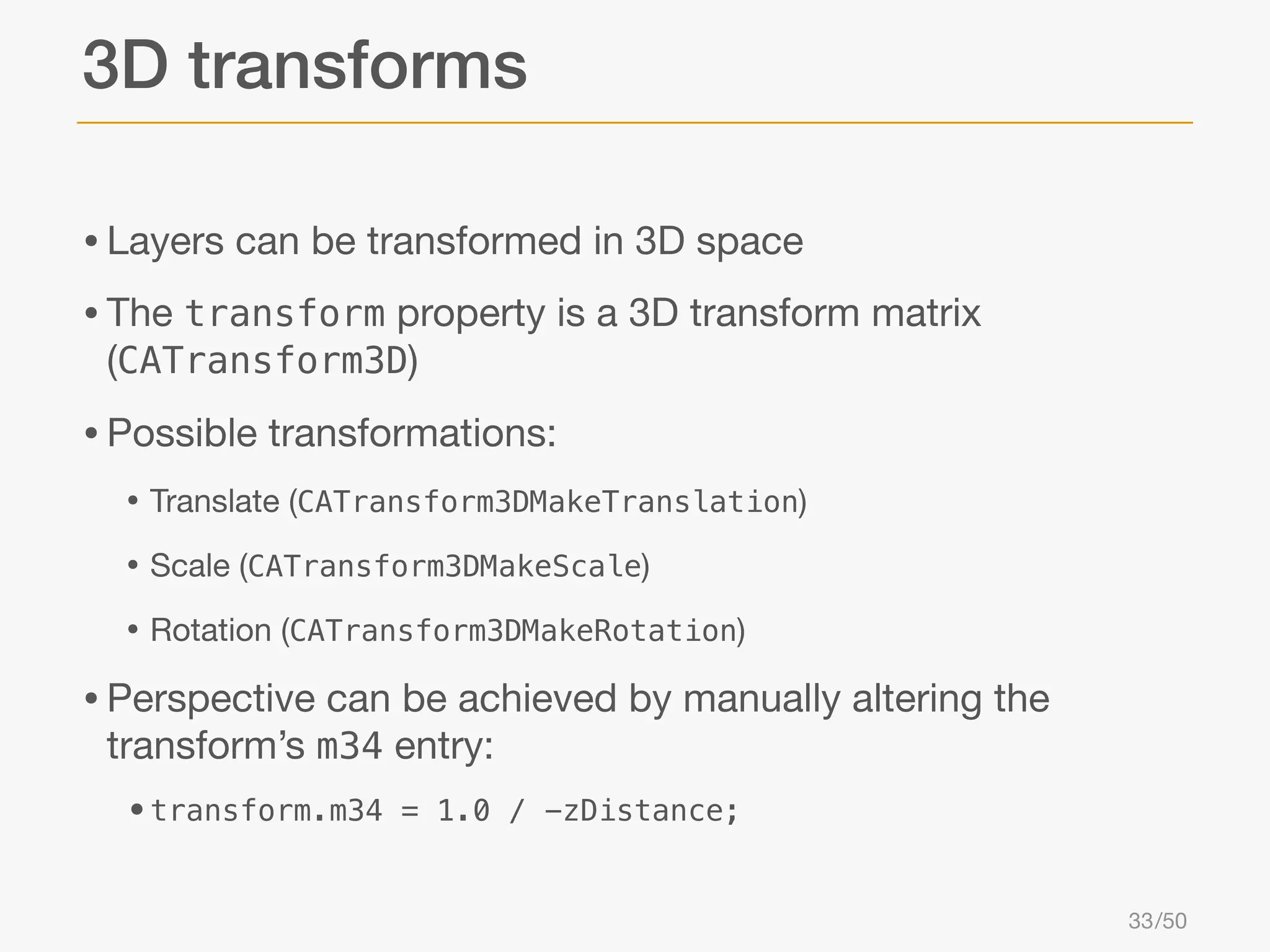

33. 3D transforms
• Layers can be transformed in 3D space
• The transform property is a 3D transform matrix
(CATransform3D)
• Possible transformations:
• Translate (CATransform3DMakeTranslation)
• Scale (CATransform3DMakeScale)
• Rotation (CATransform3DMakeRotation)
• Perspective can be achieved by manually altering the
transform’s m34 entry:
• transform.m34
= 1.0 / -zDistance;
33 /50

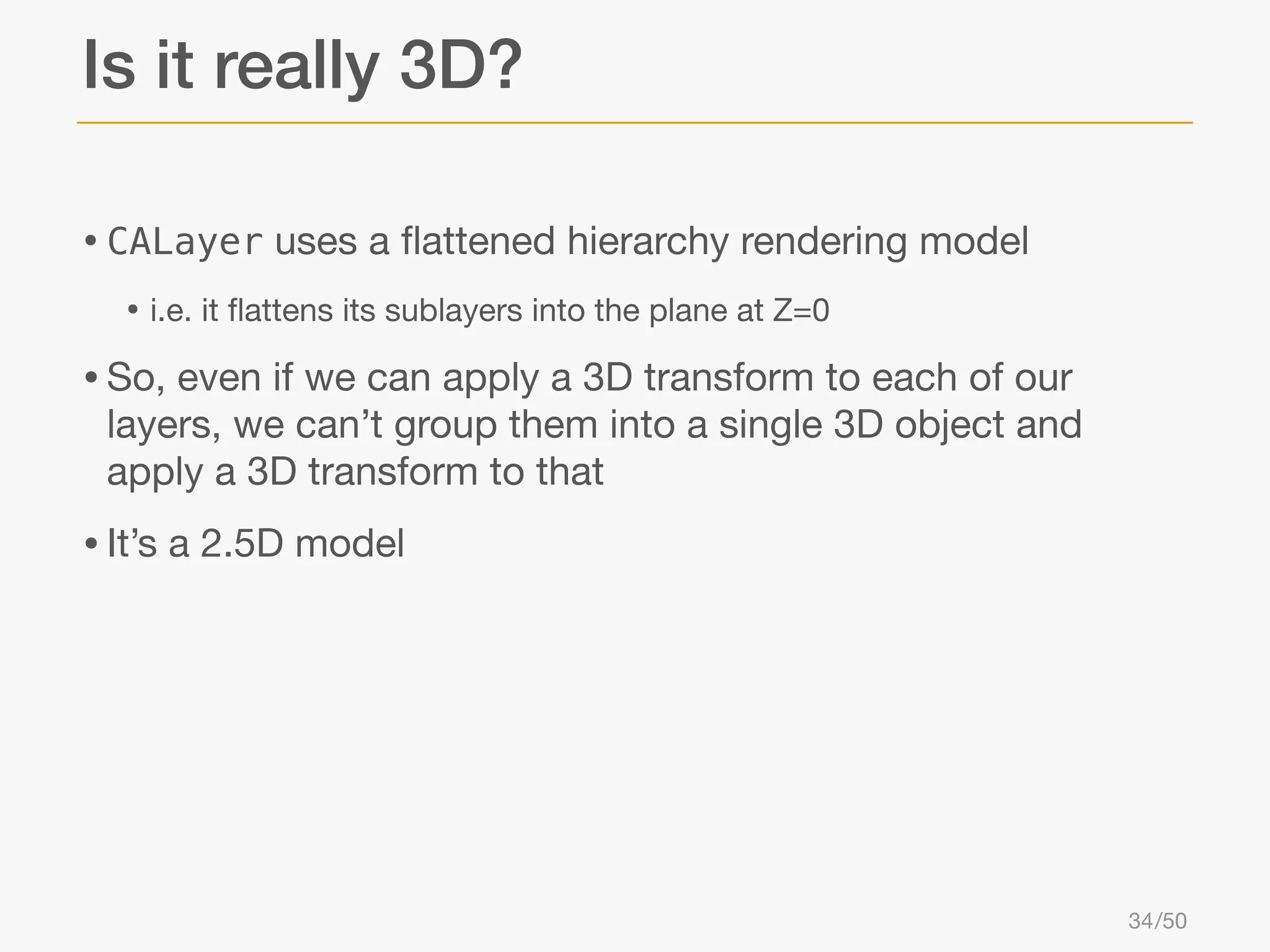

34. Is it really 3D?
• CALayer uses a flattened hierarchy rendering model
• i.e. it flattens its sublayers into the plane at Z=0
• So, even if we can apply a 3D transform to each of our
layers, we can’t group them into a single 3D object and
apply a 3D transform to that
• It’s a 2.5D model
34 /50

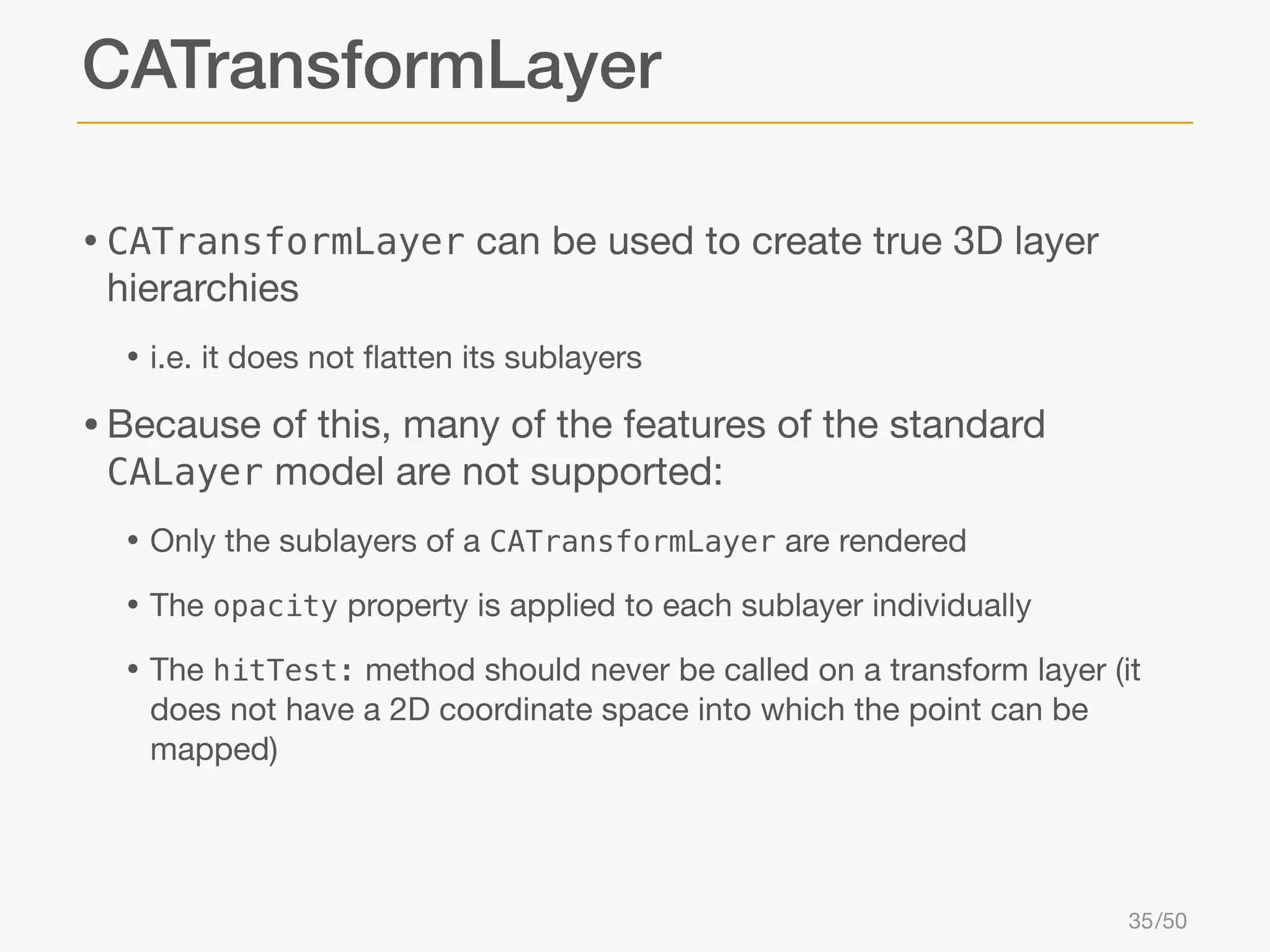

35. CATransformLayer
• CATransformLayer can be used to create true 3D layer
hierarchies
• i.e. it does not flatten its sublayers
• Because of this, many of the features of the standard
CALayer model are not supported:
• Only the sublayers of a CATransformLayer are rendered
• The opacity property is applied to each sublayer individually
• The hitTest: method should never be called on a transform layer (it
does not have a 2D coordinate space into which the point can be
mapped)
35 /50

36. Demo

37. Agenda
• What is Core Animation?
• Layers
• Animating layer properties
• Transactions
• 3D transforms
• Advanced layer effects
• Performance tips & tricks
37 /50

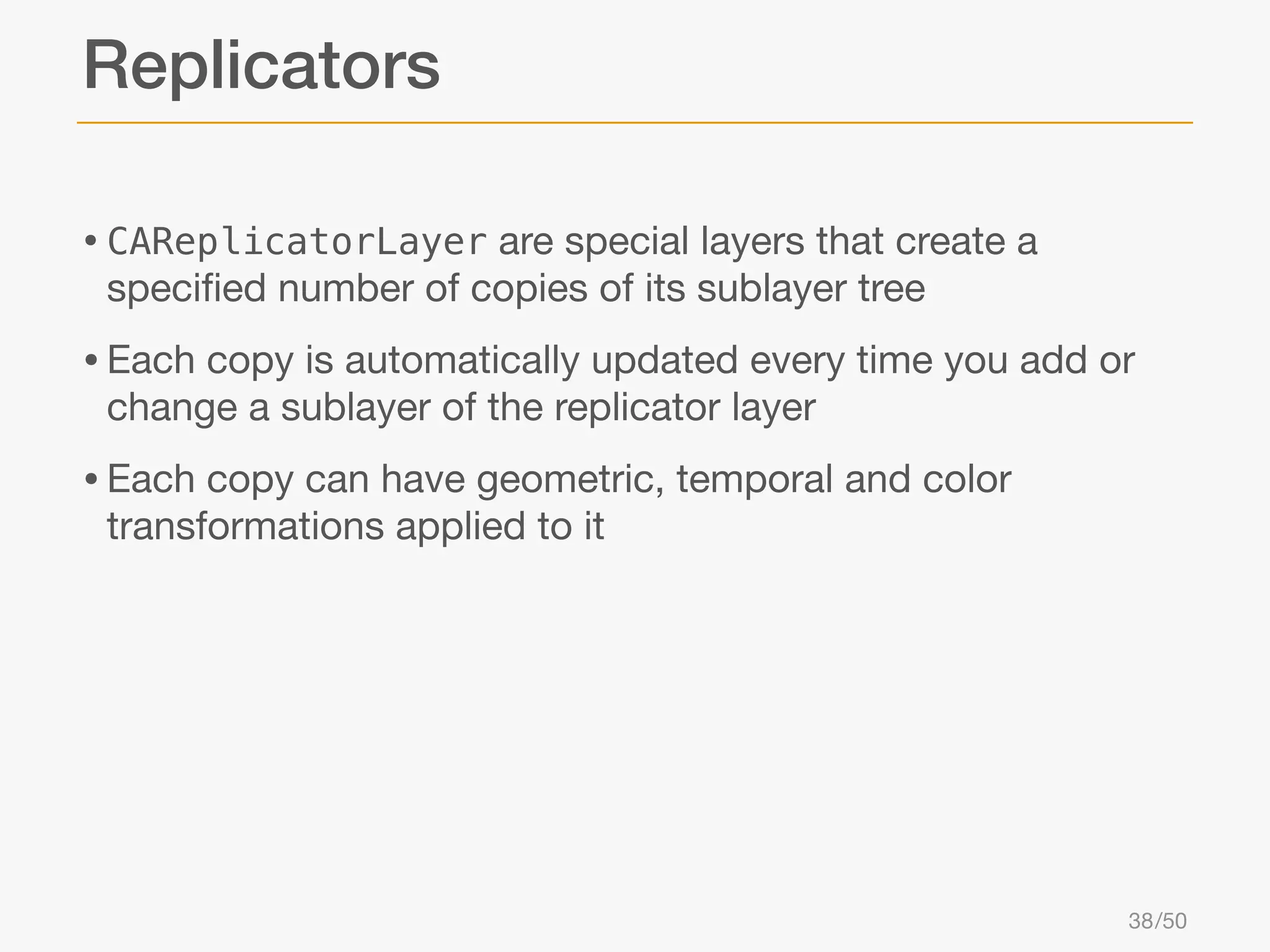

38. Replicators
• CAReplicatorLayer are special layers that create a
specified number of copies of its sublayer tree
• Each copy is automatically updated every time you add or
change a sublayer of the replicator layer
• Each copy can have geometric, temporal and color
transformations applied to it
38 /50

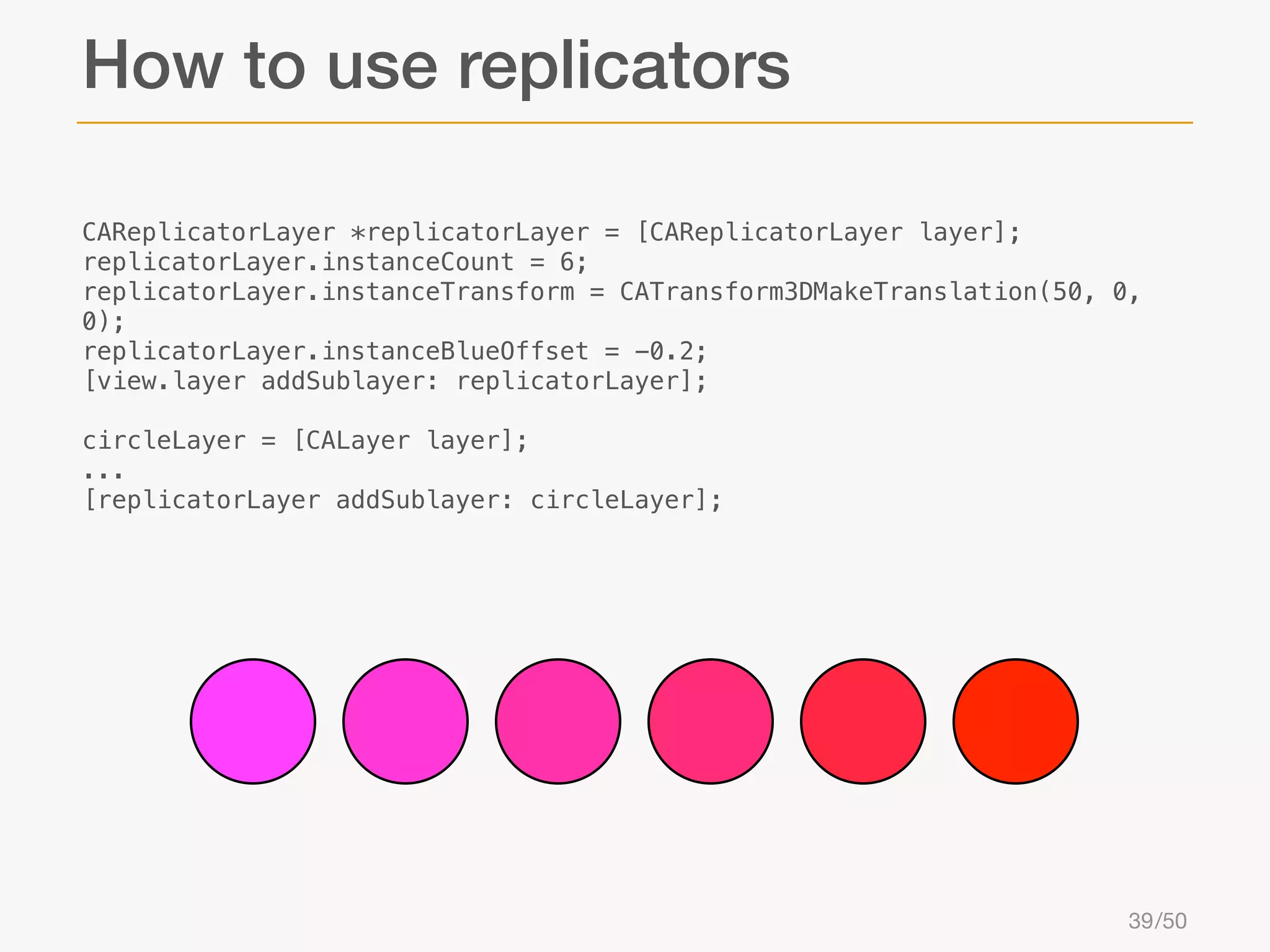

39. How to use replicators
CAReplicatorLayer *replicatorLayer = [CAReplicatorLayer layer];
replicatorLayer.instanceCount = 6;
replicatorLayer.instanceTransform = CATransform3DMakeTranslation(50, 0,
0);
replicatorLayer.instanceBlueOffset = -0.2;
[view.layer addSublayer: replicatorLayer];
circleLayer = [CALayer layer];
...
[replicatorLayer addSublayer: circleLayer];
39 /50

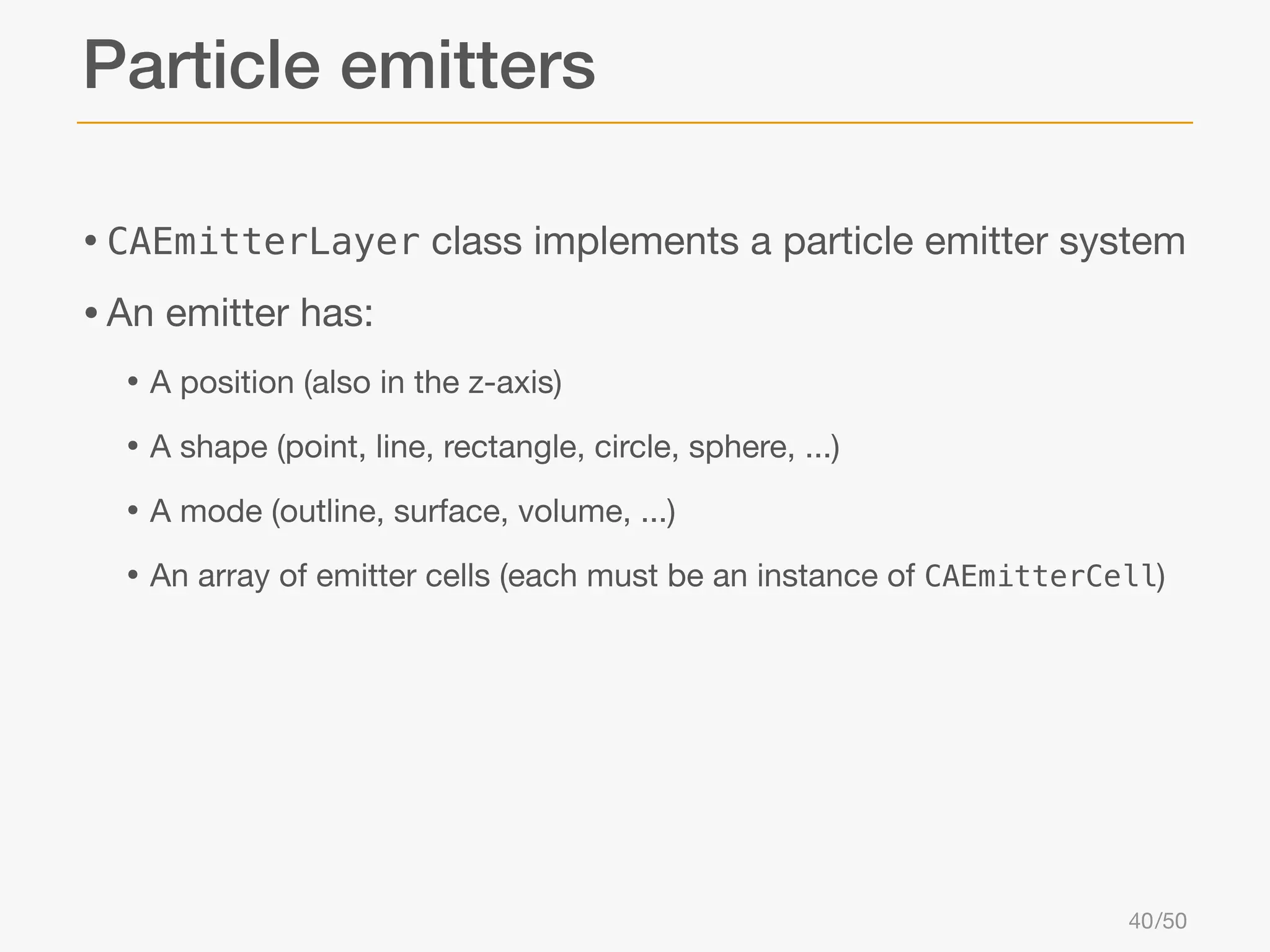

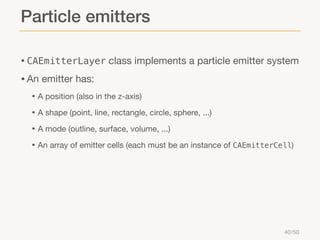

40. Particle emitters
• CAEmitterLayer class implements a particle emitter system
• An emitter has:
• A position (also in the z-axis)
• A shape (point, line, rectangle, circle, sphere, ...)
• A mode (outline, surface, volume, ...)
• An array of emitter cells (each must be an instance of CAEmitterCell)
40 /50

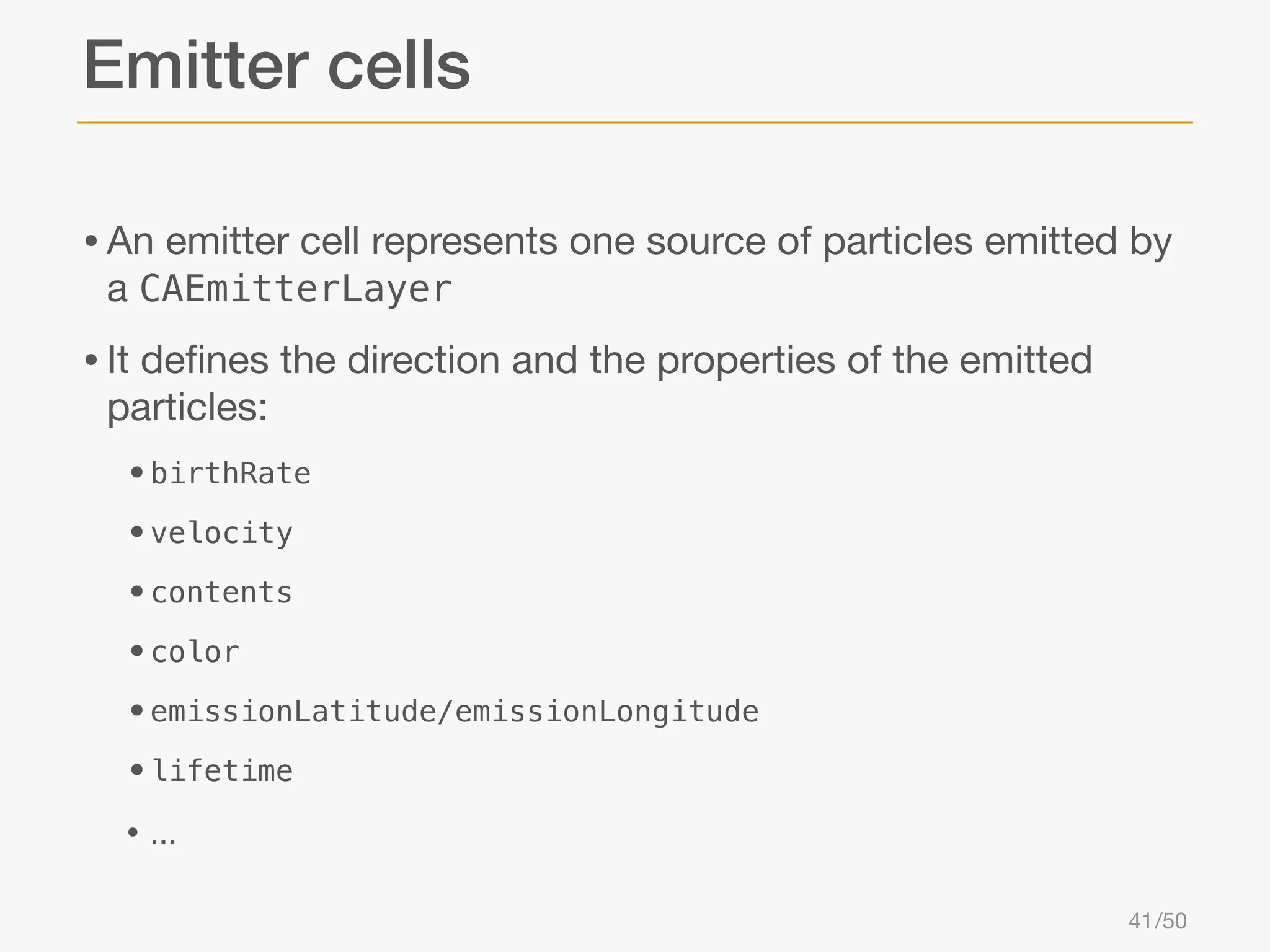

41. Emitter cells
• An emitter cell represents one source of particles emitted by
a CAEmitterLayer
• It defines the direction and the properties of the emitted
particles:
• birthRate
• velocity
• contents
• color
• emissionLatitude/emissionLongitude
• lifetime
• ...
41 /50

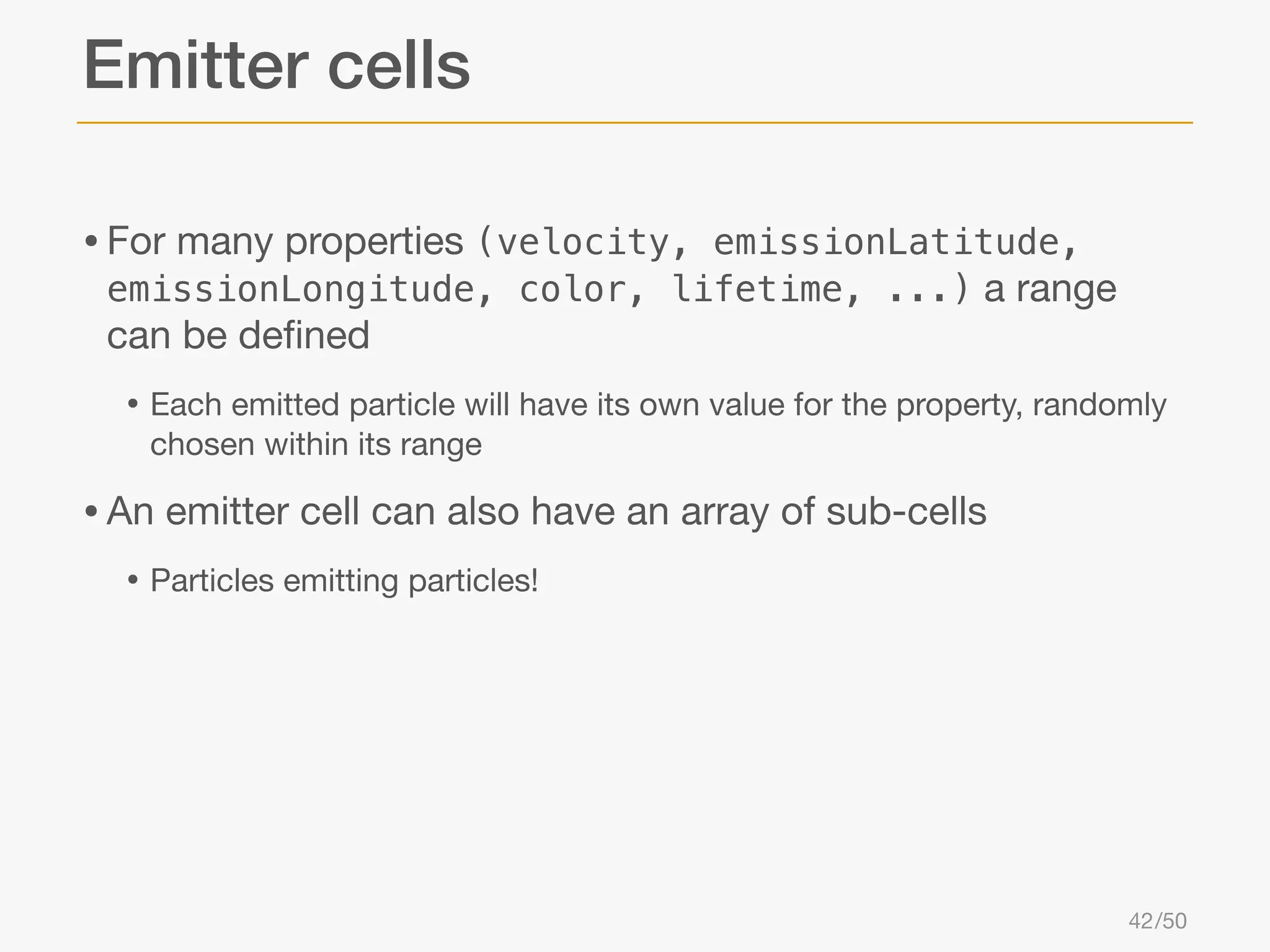

42. Emitter cells
• For many properties (velocity,
emissionLatitude,
emissionLongitude, color, lifetime, ...) a range
can be defined
• Each emitted particle will have its own value for the property, randomly
chosen within its range
• An emitter cell can also have an array of sub-cells
• Particles emitting particles!
42 /50

43. Demo

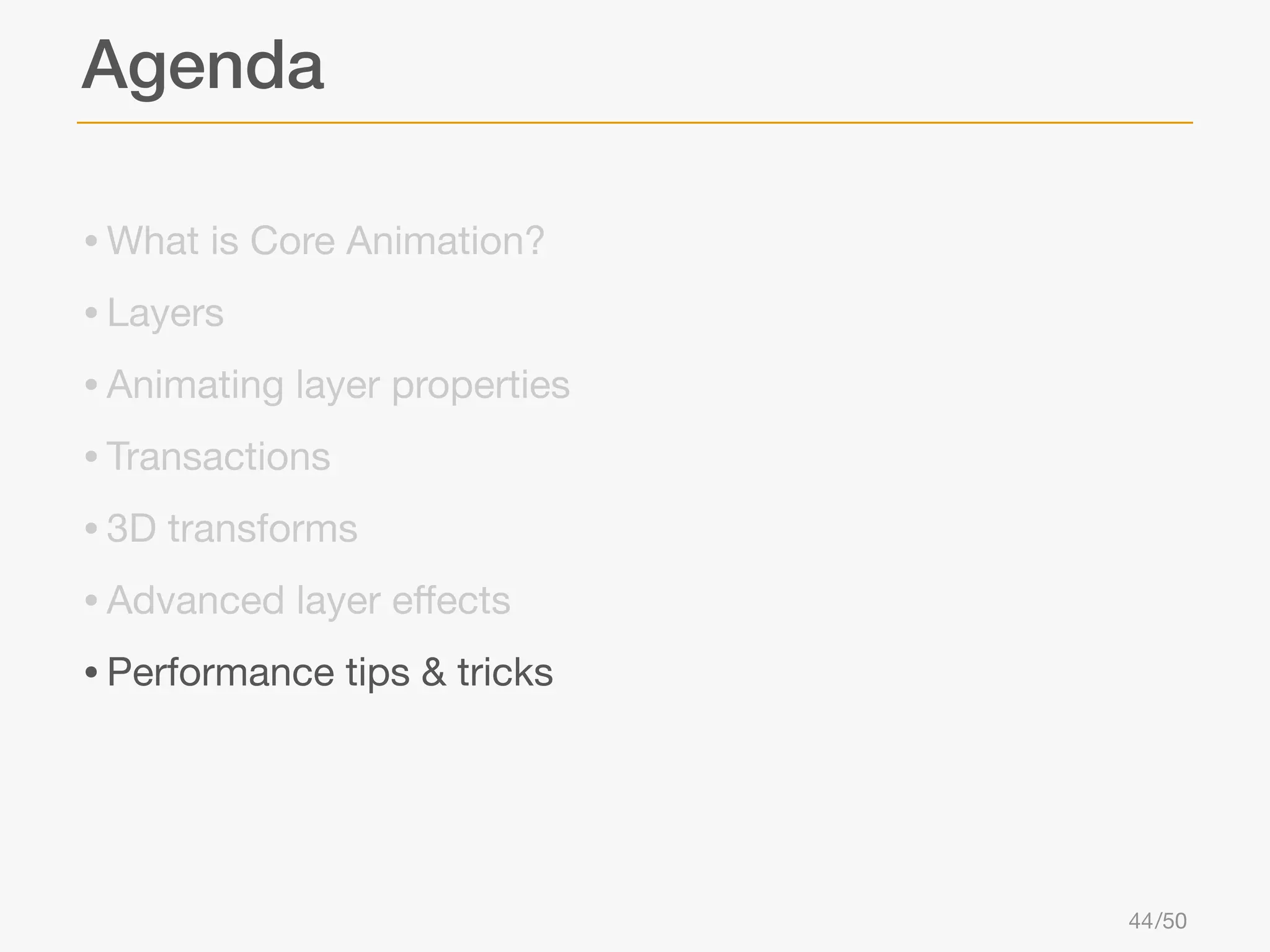

44. Agenda
• What is Core Animation?
• Layers
• Animating layer properties
• Transactions
• 3D transforms
• Advanced layer effects
• Performance tips & tricks
44 /50

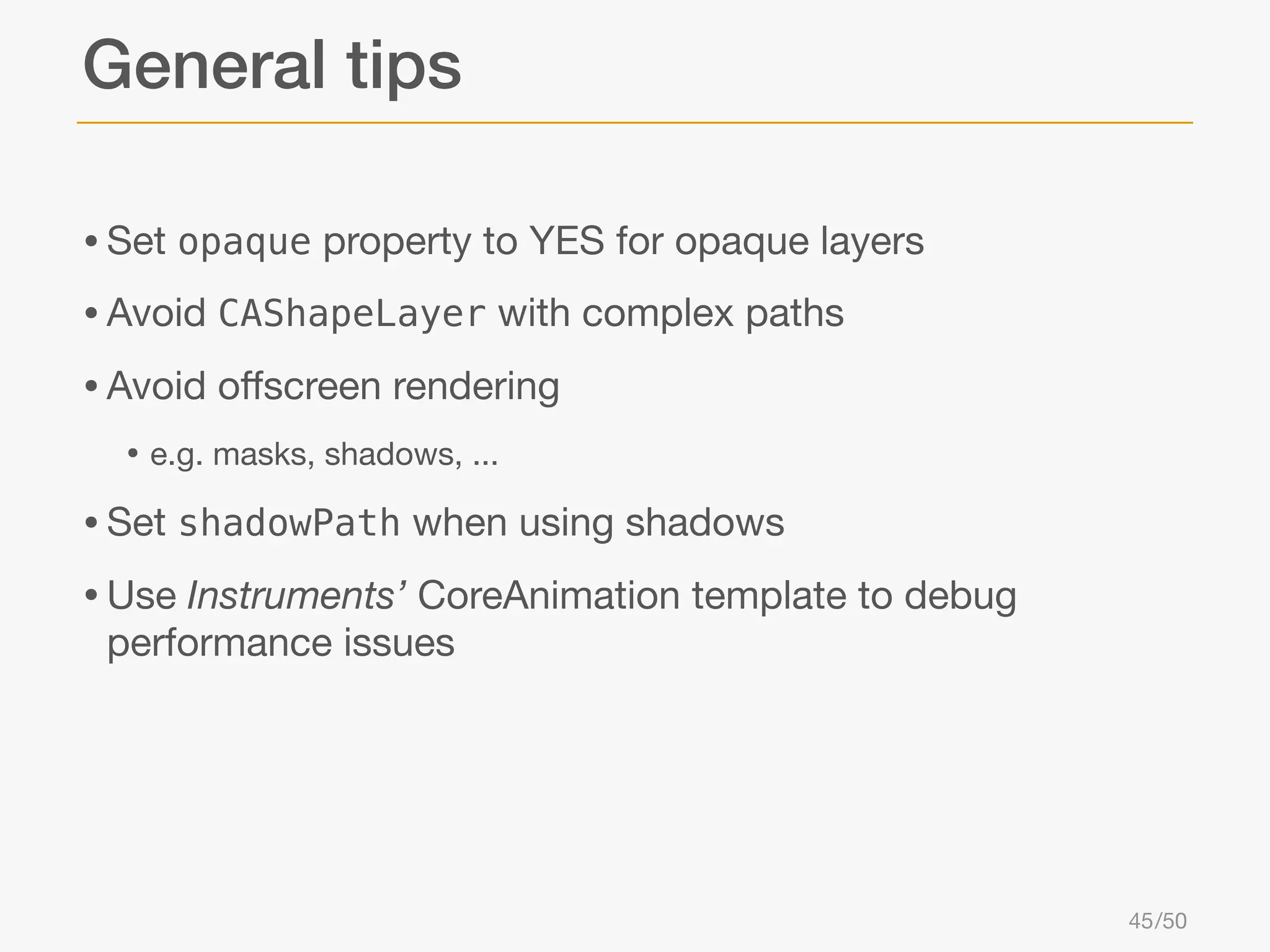

45. General tips
• Set opaque property to YES for opaque layers
• Avoid CAShapeLayer with complex paths
• Avoid offscreen rendering
• e.g. masks, shadows, ...
• Set shadowPath when using shadows
• Use Instruments’ CoreAnimation template to debug
performance issues
45 /50

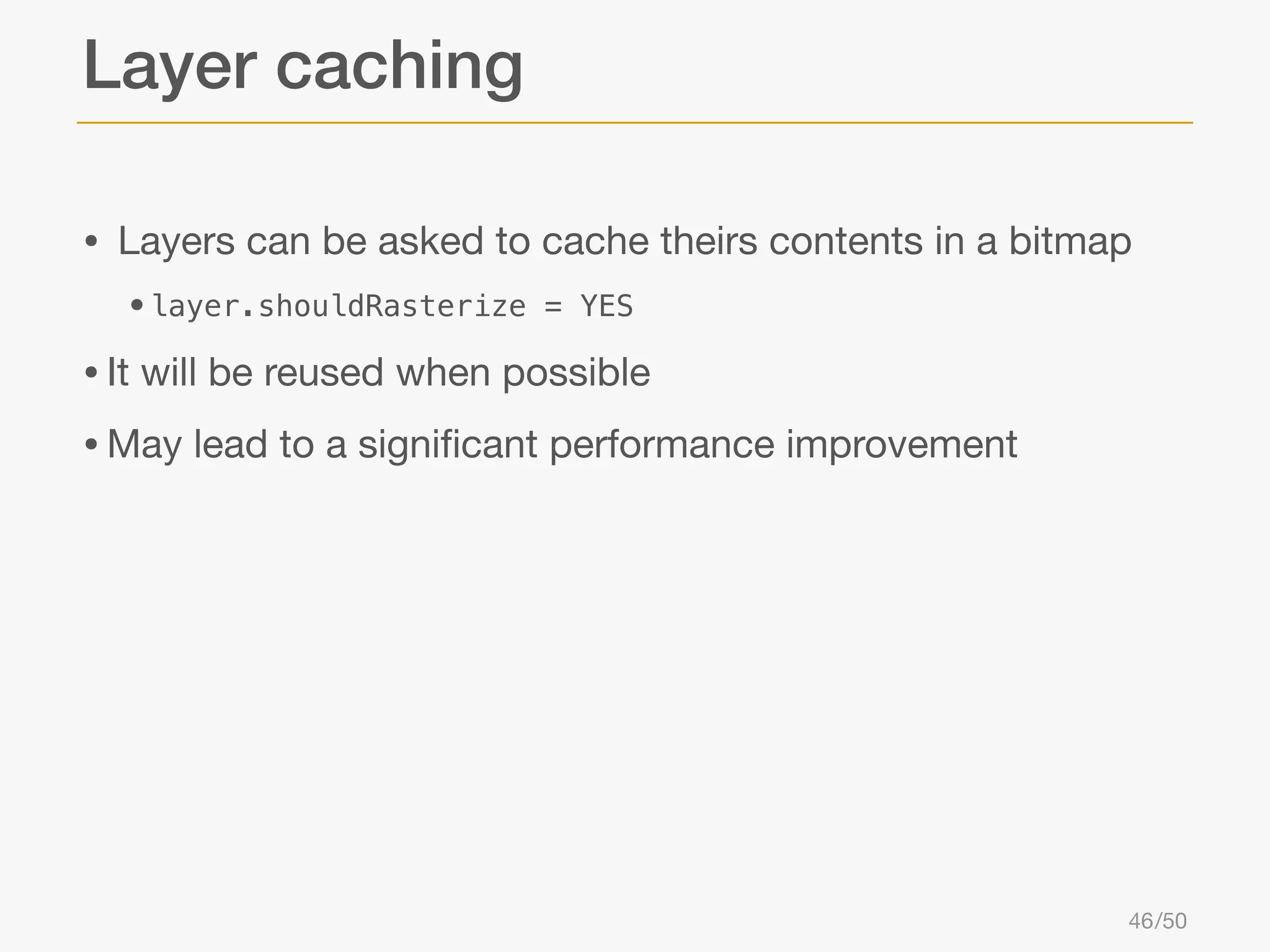

46. Layer caching
•
Layers can be asked to cache theirs contents in a bitmap
• layer.shouldRasterize
= YES
• It will be reused when possible
• May lead to a significant performance improvement
46 /50

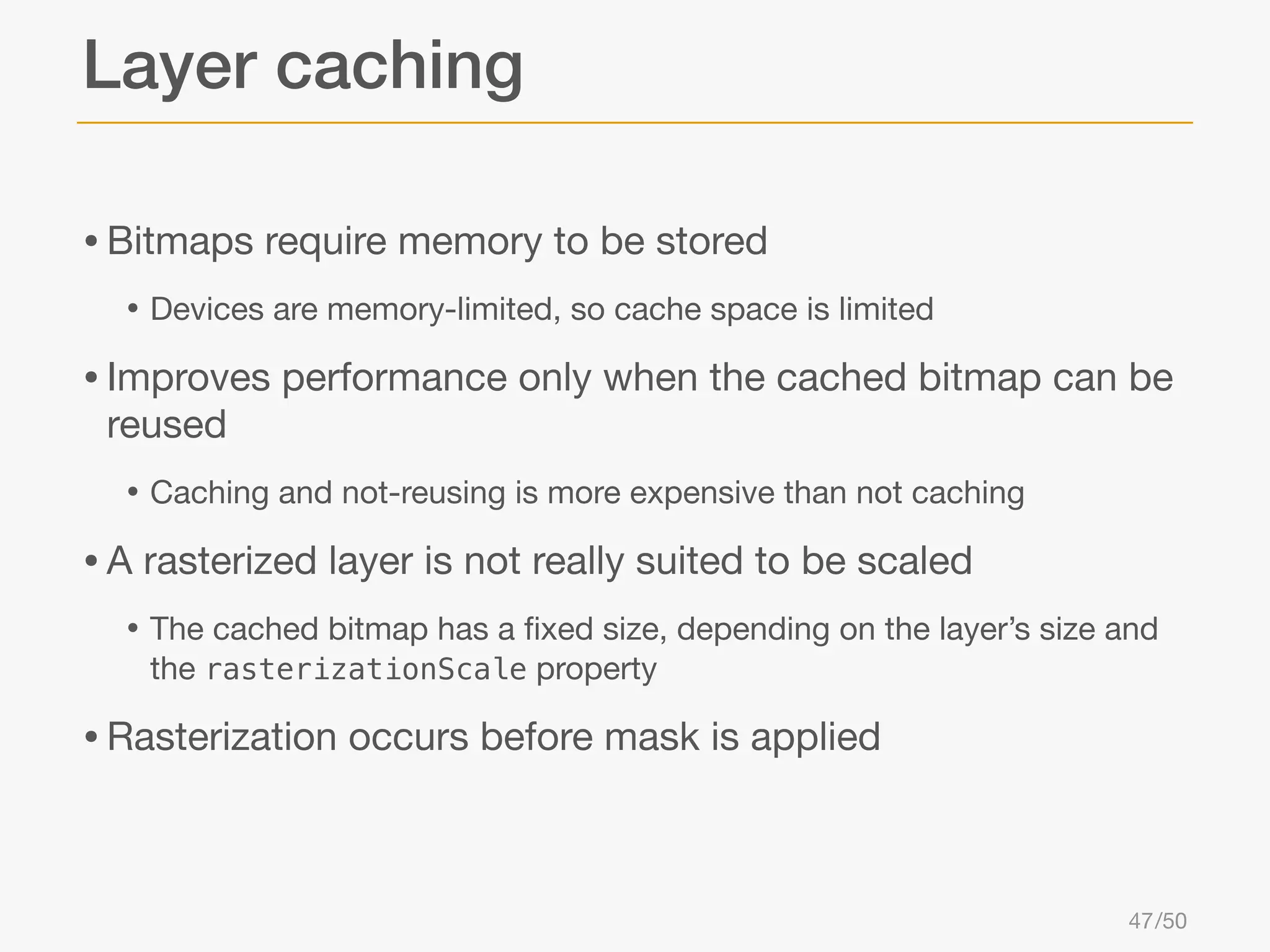

47. Layer caching
• Bitmaps require memory to be stored
• Devices are memory-limited, so cache space is limited
• Improves performance only when the cached bitmap can be
reused
• Caching and not-reusing is more expensive than not caching
• A rasterized layer is not really suited to be scaled
• The cached bitmap has a fixed size, depending on the layer’s size and
the rasterizationScale property
• Rasterization occurs before mask is applied
47 /50

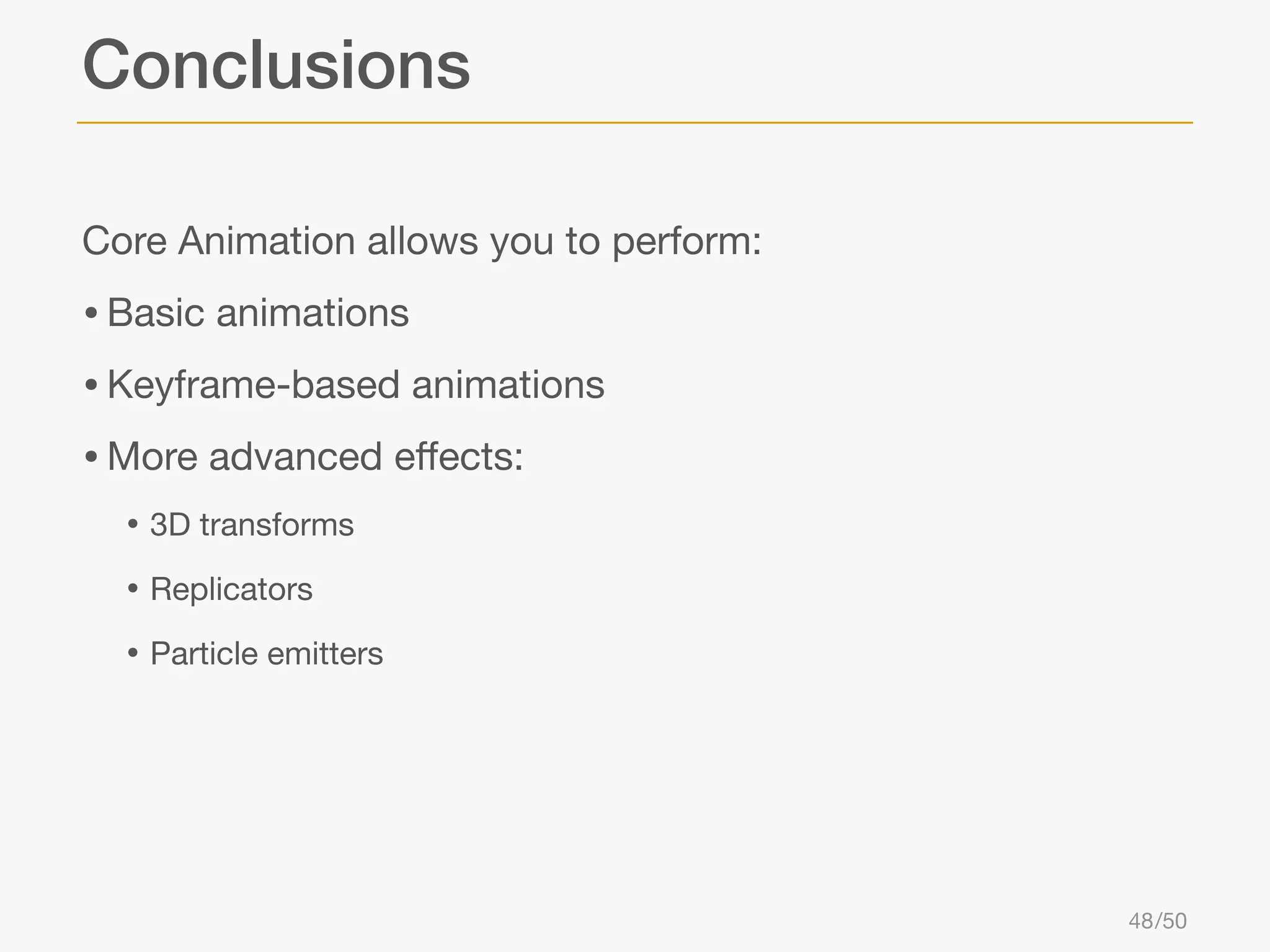

48. Conclusions
Core Animation allows you to perform:
• Basic animations
• Keyframe-based animations
• More advanced effects:
• 3D transforms
• Replicators
• Particle emitters
48 /50

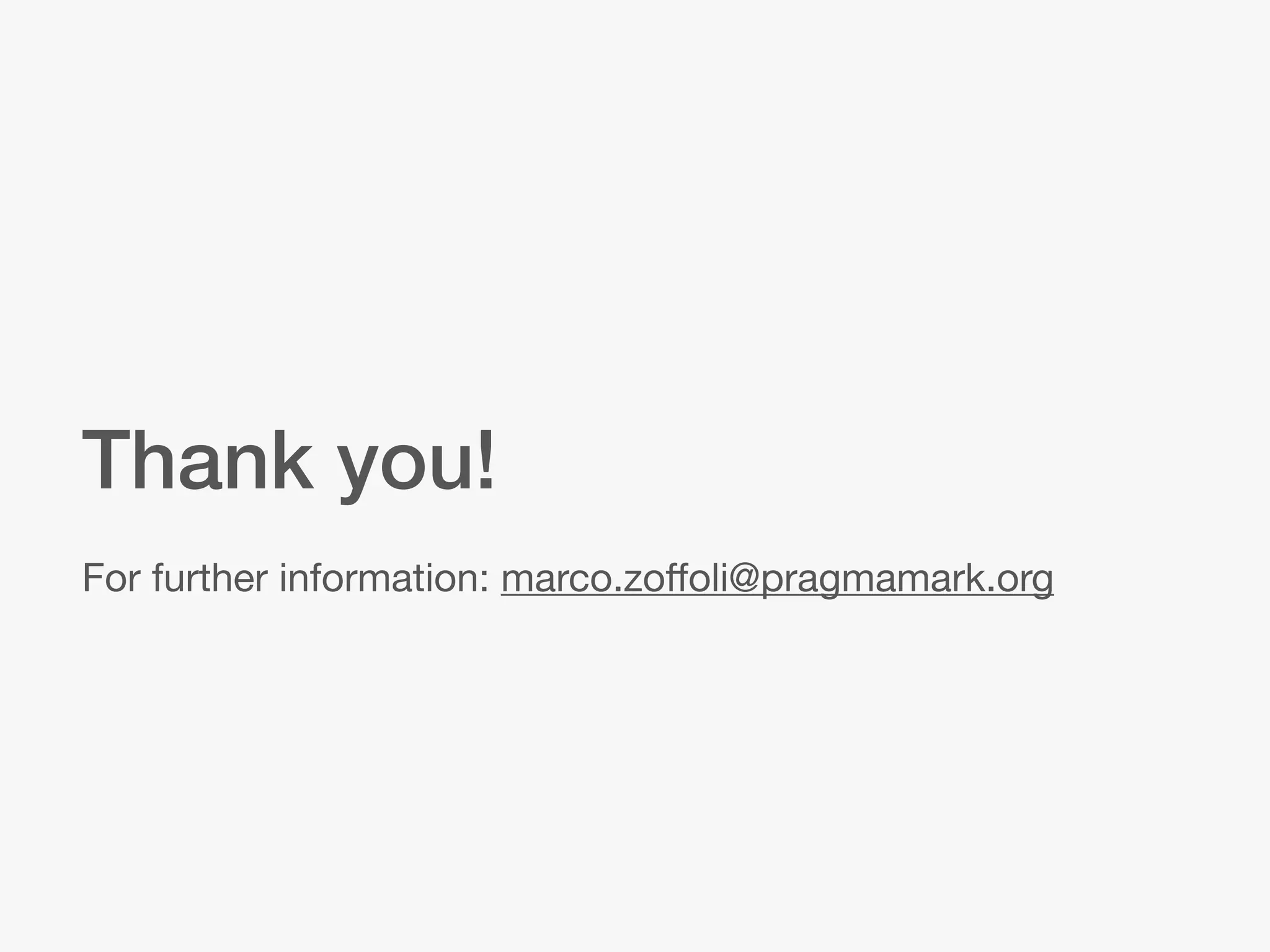

49. Q&A

50. Thank you!
For further information: marco.zoffoli@pragmamark.org
