This document summarizes an animation workshop in Swift. It introduces UIView animation using blocks, options, and completion handlers. It demonstrates animating properties like color and frame. Core Animation is covered with examples of animating corner radius and affine transforms. Finally, UIKit Dynamics is introduced for physics-based animation using behaviors like gravity and collision.

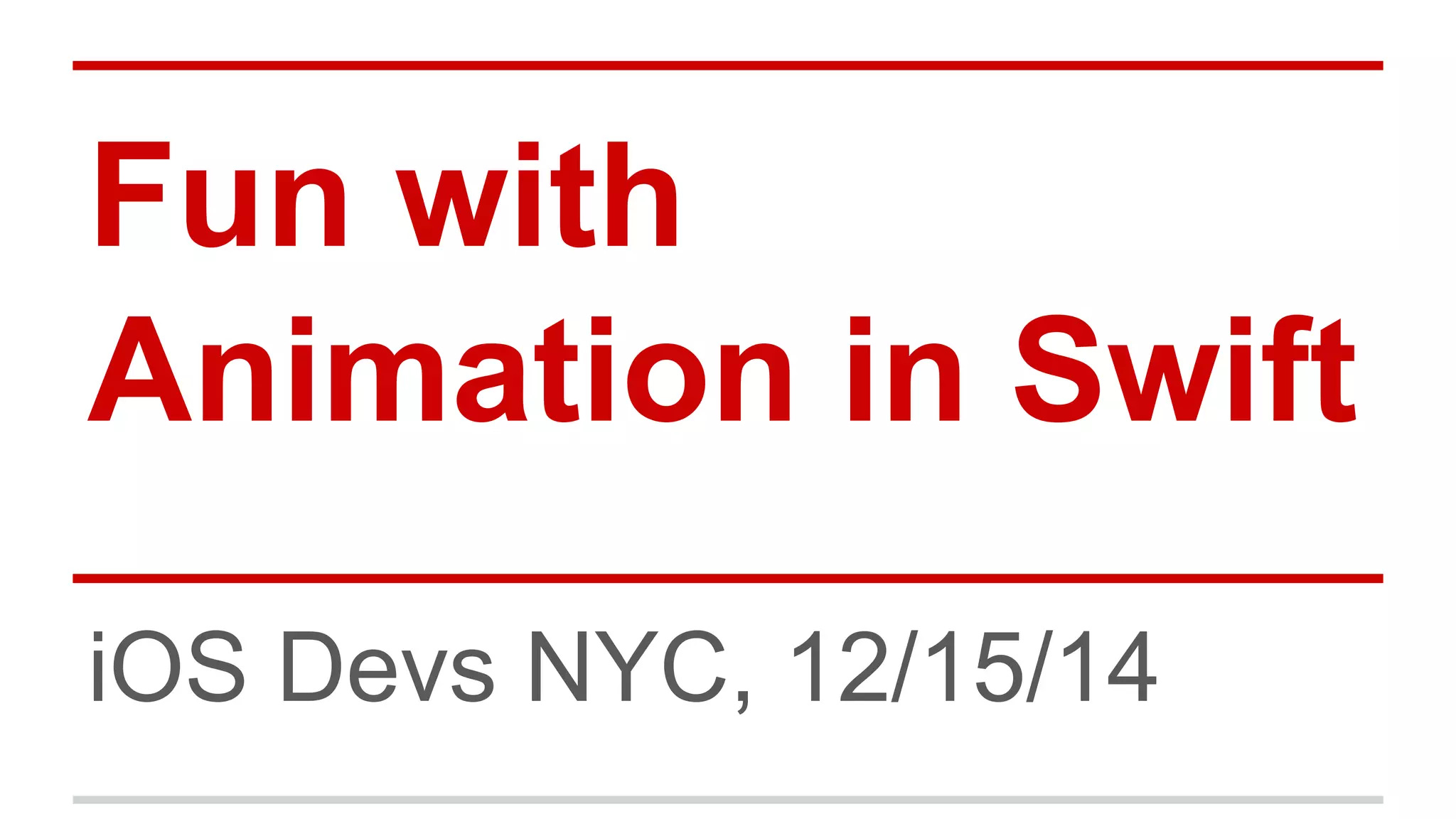

1. Fun with
Animation in Swift
iOS Devs NYC, 12/15/14

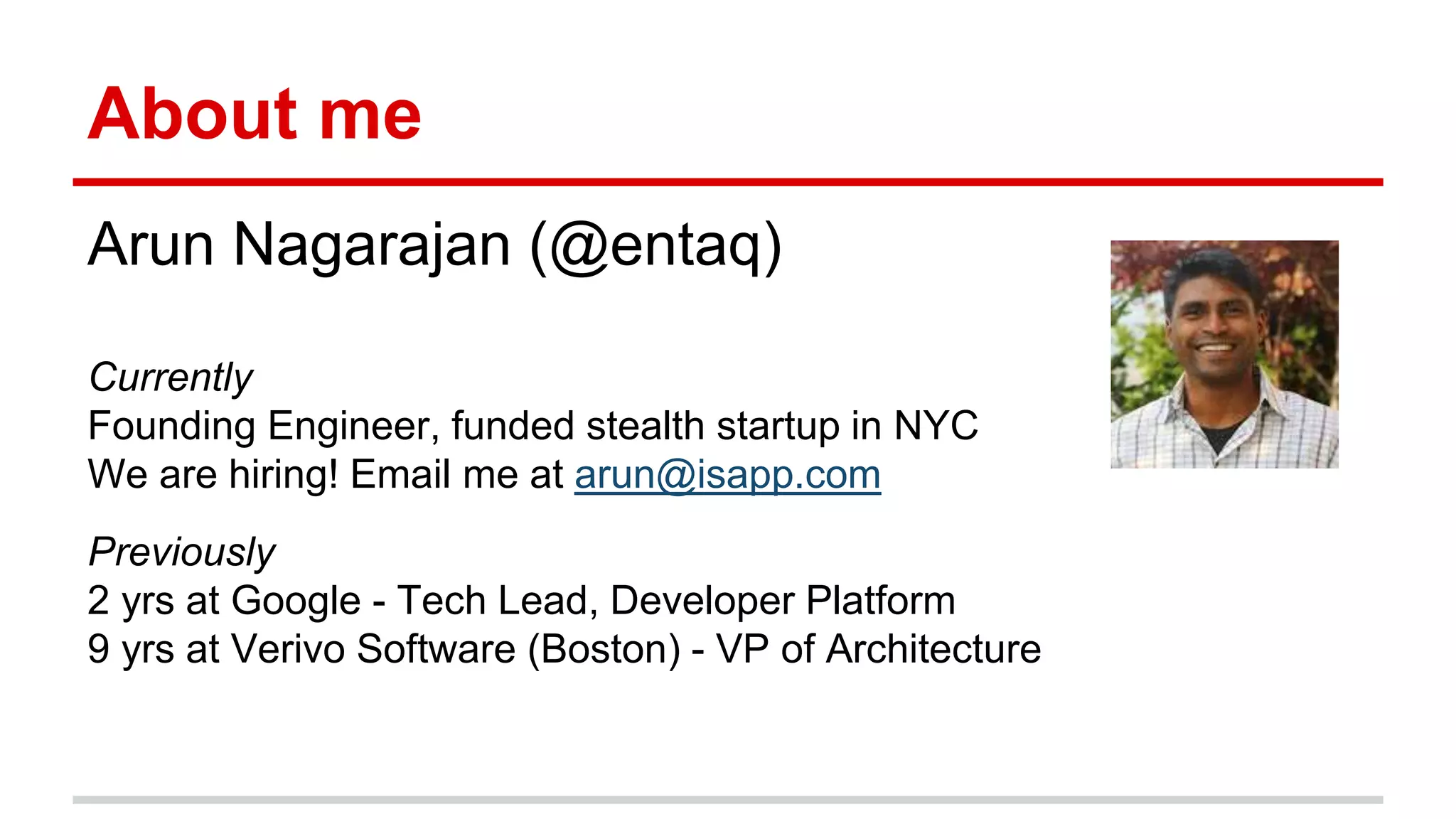

2. About me
Arun Nagarajan (@entaq)
Currently
Founding Engineer, funded stealth startup in NYC
We are hiring! Email me at arun@isapp.com
Previously
2 yrs at Google - Tech Lead, Developer Platform
9 yrs at Verivo Software (Boston) - VP of Architecture

3. Lets get started
● Swift
o Awesome new language with power of Cocoa Touch
● XCode 6
o Playground is brand new feature to try out code

4. Animation/Graphics Stack

5. UIView Animation calls
● Block based class methods started in iOS 4
● Waaaay cleaner than beginAnimations: and commitAnimations:
● iOS 7 added the Physics engine and Sprite Kit.
○ We’ll cover a bit of the Physics engine

6. UIView animatable properties

7. Animations in Playground
Caution: Playgrounds are pretty flaky. Might have to restart
simulator a lot :)

8. Run Playground as needed

9. Animations in Playground - code
import UIKit
import XCPlayground
let view = UIView()
//YOUR CODE HERE
XCPShowView("Container", view)

10. Simple property animation
let blueBox = UIView(frame: CGRect(x: 0, y: 20, width: 50, height: 50))
blueBox.backgroundColor = UIColor.blueColor()
view.addSubview(blueBox)
UIView.animateWithDuration(2, animations: {
blueBox.backgroundColor = UIColor.redColor()
blueBox.frame = CGRectMake(250, 20, 50, 100)
}, completion: { animationFinished in
}
)

11. Animation options
let options = UIViewAnimationOptions.Autoreverse |
UIViewAnimationOptions.Repeat |
UIViewAnimationOptions.CurveEaseInOut
UIView.animateWithDuration(2, delay: 0, options: options, animations: {
blueBox.backgroundColor = UIColor.redColor()
blueBox.frame = CGRectMake(250, 20, 50, 100)
}, completion: { animationFinished in
}
)
● Useful for specifying animation curves
● Also helpful for basic auto reversing and repetition

12. Completion block
● Useful for cleanup and sequencing
● Note, system animation option below. Only “Delete” is available for now
UIView.animateWithDuration(2, delay: 0, options: nil, animations: {
blueBox.backgroundColor = UIColor.redColor()
blueBox.frame = CGRectMake(250, 20, 50, 100)
}, completion: { animationFinished in
blueBox.removeFromSuperview()
//UIView.performSystemAnimation(UISystemAnimation.Delete, onViews:
[blueBox], options: nil , animations: nil, completion: nil)
}
)

13. Randomizing and looping
for i in 0...10 {
let blueBox = UIView(frame: CGRect(x: 0, y: 200, width: 60, height: 60))
blueBox.backgroundColor = UIColor.blueColor()
let duration = 3.0
let delay = NSTimeInterval( (Int(rand() % 900)+100) / 1000)
let options = UIViewAnimationOptions.CurveEaseInOut
let size : CGFloat = CGFloat( Int(rand()) % 40) + 20.0
let yPosition : CGFloat = CGFloat(Int(rand()) % 200) + 20.0
UIView.animateWithDuration(duration, delay: delay, options: options, animations: {
blueBox.backgroundColor = UIColor.redColor()
blueBox.frame = CGRectMake(320, yPosition, size, size)
}, completion: { animationFinished in
blueBox.removeFromSuperview()
})
view.addSubview(blueBox)
}

14. Views vs. Layers -
● Layers are more low level
● 3D animations need to happen here

15. Core Animation example
let blueBox = UIView(frame: CGRect(x: 120, y: 120, width: 50, height: 50))
blueBox.backgroundColor = UIColor.blueColor()
view.addSubview(blueBox)
UIView.animateWithDuration(2, animations: {
var anim = CABasicAnimation(keyPath: "cornerRadius")
anim.timingFunction = CAMediaTimingFunction(name: kCAMediaTimingFunctionLinear)
anim.fromValue = 0
anim.toValue = 20
anim.duration = 2
blueBox.layer.cornerRadius = 20
blueBox.layer.addAnimation(anim, forKey: nil)
}
)

16. Core Animation - Affine Transform
func shake(view: UIView, times: Int, direction: CGFloat, currentCount: Int, delta: CGFloat, duration:
NSTimeInterval){
UIView.animateWithDuration(duration, animations: {
view.layer.setAffineTransform(CGAffineTransformMakeTranslation(delta * direction, 0))
}, completion: { animationFinished in
if(currentCount >= times){
UIView.animateWithDuration(duration, animations:
{view.layer.setAffineTransform(CGAffineTransformIdentity)})
return
}
shake(view, times-1, direction * -1, currentCount+1, delta, duration)
})
}
var greenBox = UIView(frame:CGRect(x: 30,y: 40,width: 100,height: 100))
greenBox.backgroundColor = UIColor.greenColor()
view.addSubview(greenBox)
shake(greenBox, 10,1,0, 10,0.05)

17. UIKit Dynamics
var animator:UIDynamicAnimator? = nil
let gravity = UIGravityBehavior()
let collider = UICollisionBehavior()
func setupAnimator() {
let box = UIView(frame: CGRectMake(100, 100, 30, 30))
box.backgroundColor = UIColor.redColor()
view.addSubview(box)
animator = UIDynamicAnimator(referenceView:view);
gravity.addItem(box);
gravity.gravityDirection = CGVectorMake(-0.1, 0.8)
animator?.addBehavior(gravity);
collider.addItem(box)
collider.translatesReferenceBoundsIntoBoundary = true
animator?.addBehavior(collider)
}

18. Recap
● UIView animation
o Options, completion, fun with randomization
● Core Animation sample
o Radius, shadows etc.
o Affine Transform
● UIKit physics/dynamics

19. Thanks
Questions?
Arun Nagarajan
arun@isapp.com
