Building a Messaging Framework on
the Salesforce1 Platform
Anup Jadhav
Manager of Mobility / Technical Architect
@anup
Anup Jadhav
Manager of Mobility / Technical Architect
@anup
OVERVIEW

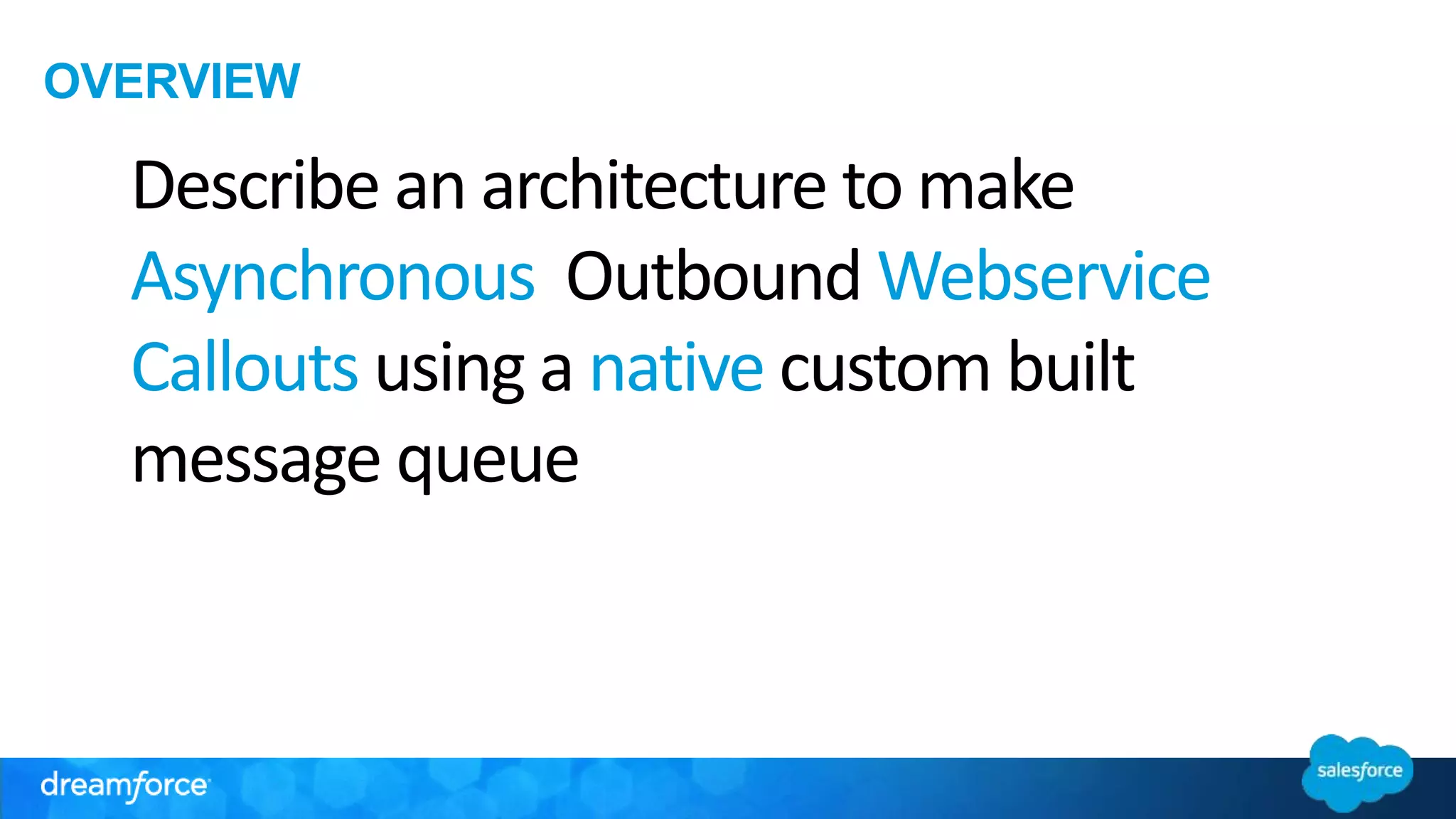

OVERVIEW

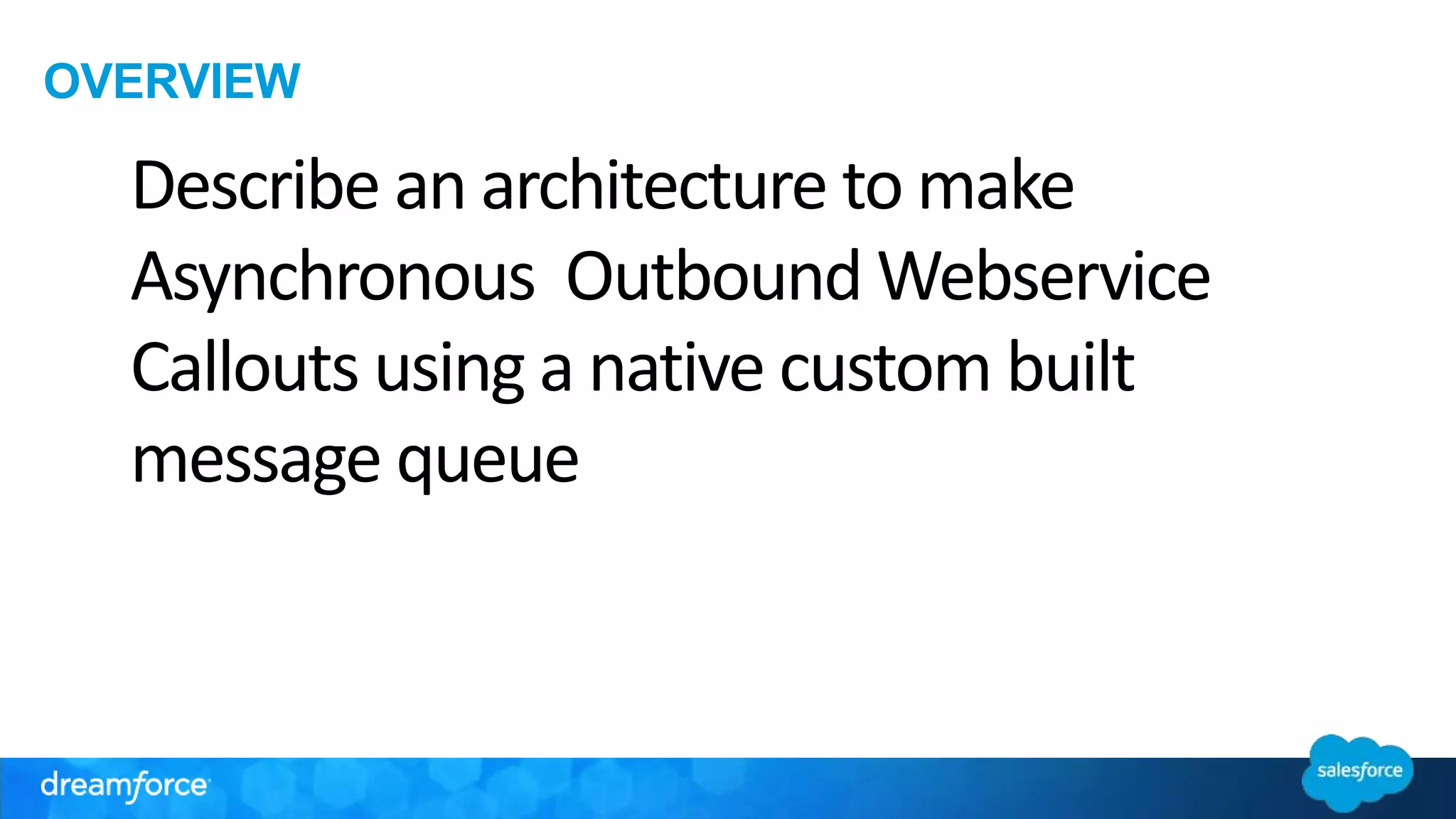

Describe an architecture to make
Asynchronous Outbound Webservice
Callouts using a native custom built
message queue
OVERVIEW
Describe an architecture to make
Asynchronous Outbound Webservice
Callouts using a native custom built
message queue
OVERVIEW
Describe an architecture to make
Asynchronous Outbound Webservice
Callouts using a native custom built
message queue
OVERVIEW
Describe an architecture to make
Asynchronous Outbound Webservice
Callouts using a native custom built
message queue
OVERVIEW
Describe an architecture to make
Asynchronous Outbound Webservice
Callouts using a native custom built
message queue
OVERVIEW
Message Queue Pattern
OVERVIEW
Message Queue Pattern
OVERVIEW
Message Queue Pattern
OVERVIEW
Message Queue Pattern
REQUIREMENTS
REQUIREMENTS
• Automated Retry Capability
• Allow SF Admin to Re-Submit Failed Request
• Ability to view Webservice Request/Response Payload content
• Ability to proactively alert Sys Admins if large no of Webservice Callouts are failing
• Turn off particular type of Interface on-demand
• Define Operation Hours
• Metrics – response time, no.of failures, message volume per day etc
ARCHITECTURE
ARCHITECTURE
Using a middleware (MQ system not ETL)
• Complex to implement
• Expensive
• In-House skillset
ARCHITECTURE
Outbound Messaging
• Supports single sObjects only
• Enforce interface contract that the receiver should adhere to
• Remote listener (end point) would need to handle request in an idempotent fashion
• Can only be used with Workflow rules
• You cannot build an audit trail using OM
ARCHITECTURE
Bespoke solution
Build something native on Force.com platform that
 Can retry webservice callouts
 Allows manual re-submission of callouts
 Stores request and response payload
 Alerts sys admins if an interface is down
 Provides analytics around webservice callouts
ARCHITECTURE
ARCHITECTURE
Message Queue
 Used to hold web service messages
 Each message can be retried
automatically/manually
 Messages contain service handler
information
 Contains Request and Response
payload content
ARCHITECTURE
Batch Job
 Apex batch class : responsible for
processing messages from Message
Queue
 Can process one message at a time
 Invokes the Service Handler
ARCHITECTURE
Scheduler
 Acts like a Batch Job manager
 Is responsible for scheduling batch jobs
in a round robin fashion
ARCHITECTURE
Service Handler
 Does the actual Webservice callout
 Updates the message and also updates
other sObjects if required
ARCHITECTURE
Webservice Log
 Log webservice requests and response
in this table
 Can be used in reports/dashboards
 Determine num of success, failures,
average response time
LIMITATIONS
LIMITATIONS
 Complex to implement
 Only supports asynchronous webservice callouts
 Be wary of callout, batch job and scheduler limitations
 Does not guarantee order or sequence of callouts
 Testing can be tricky
Demo
Questions
