1. Describing Kafka security in AsyncAPI
Dale Lane, IBM

2. 1. encryption
2. authentication

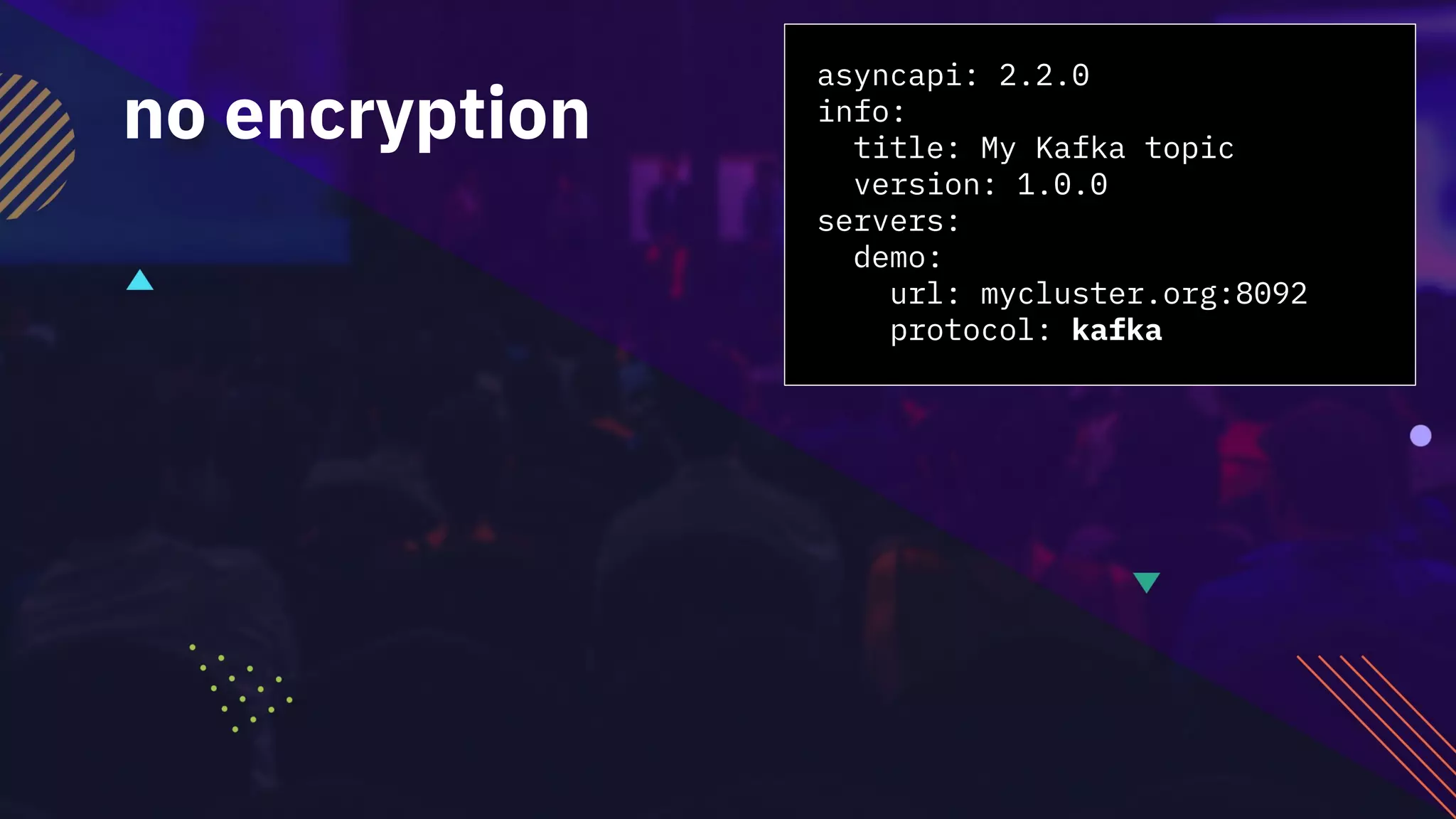

5. asyncapi: 2.2.0
info:
title: My Kafka topic
version: 1.0.0
servers:
demo:
url: mycluster.org:8092
protocol: kafka
no encryption

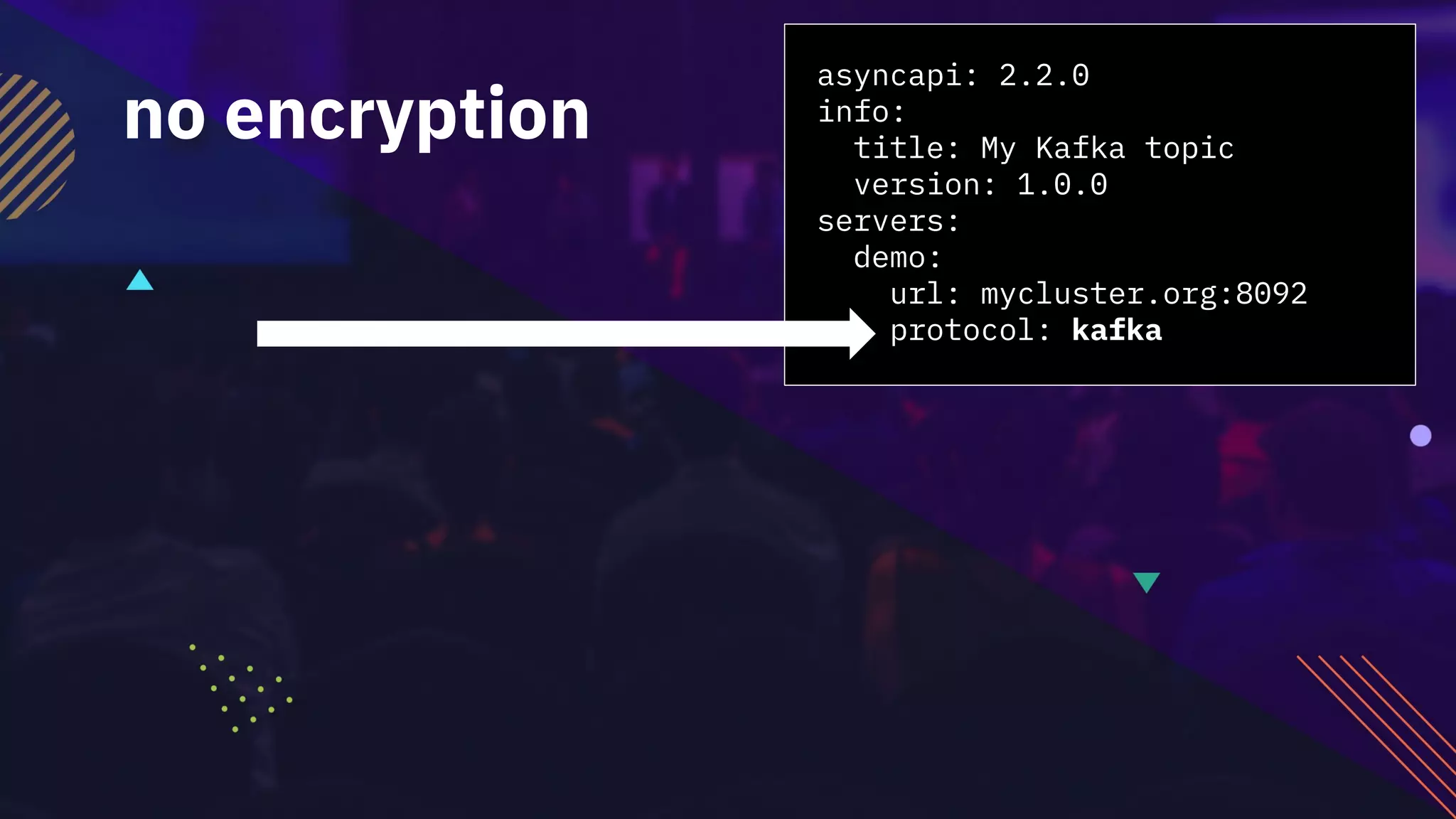

6. asyncapi: 2.2.0
info:
title: My Kafka topic
version: 1.0.0
servers:
demo:
url: mycluster.org:8092
protocol: kafka
no encryption

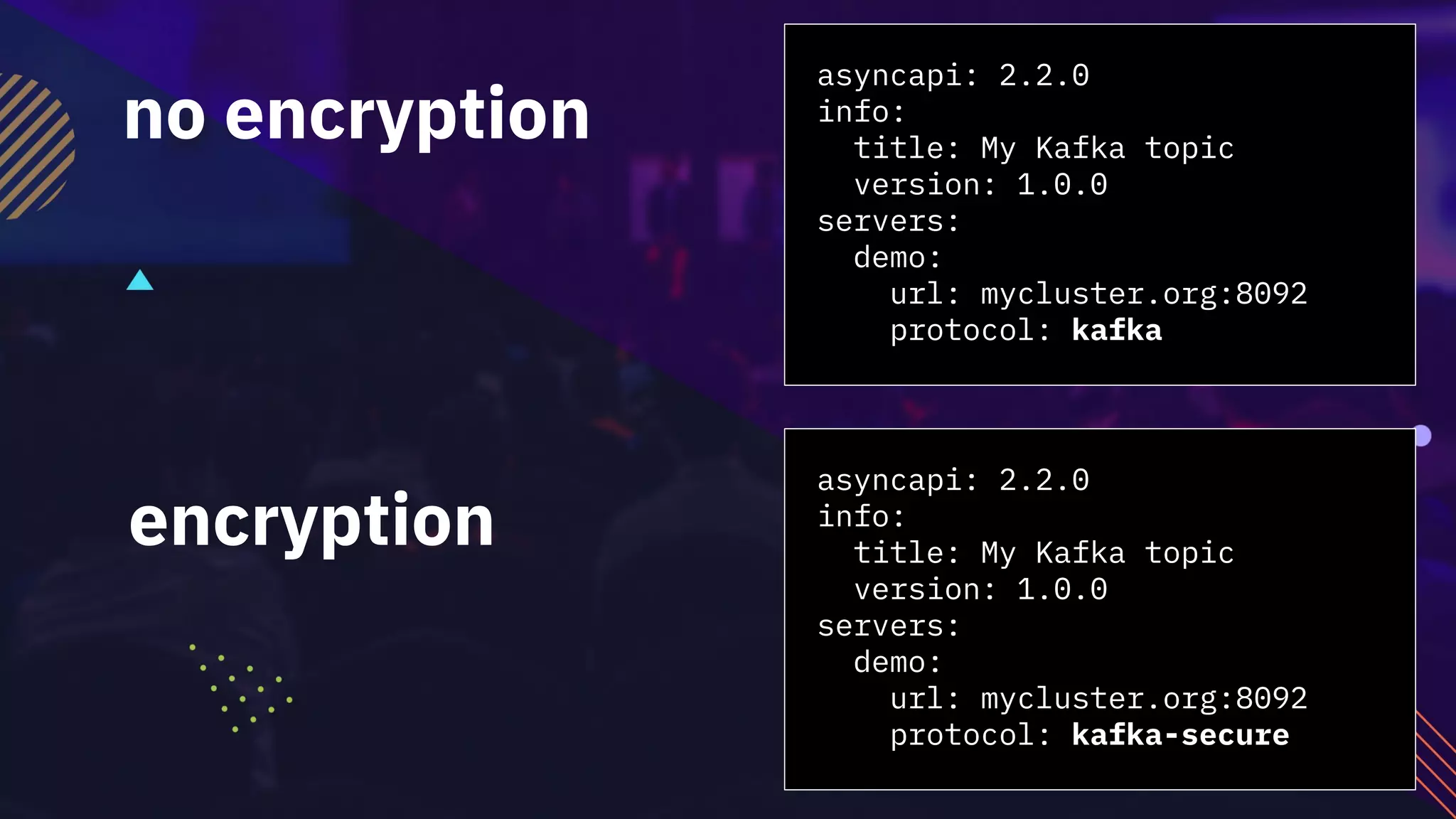

7. asyncapi: 2.2.0
info:
title: My Kafka topic
version: 1.0.0
servers:
demo:
url: mycluster.org:8092
protocol: kafka
asyncapi: 2.2.0
info:
title: My Kafka topic
version: 1.0.0
servers:
demo:
url: mycluster.org:8092
protocol: kafka-secure
no encryption
encryption

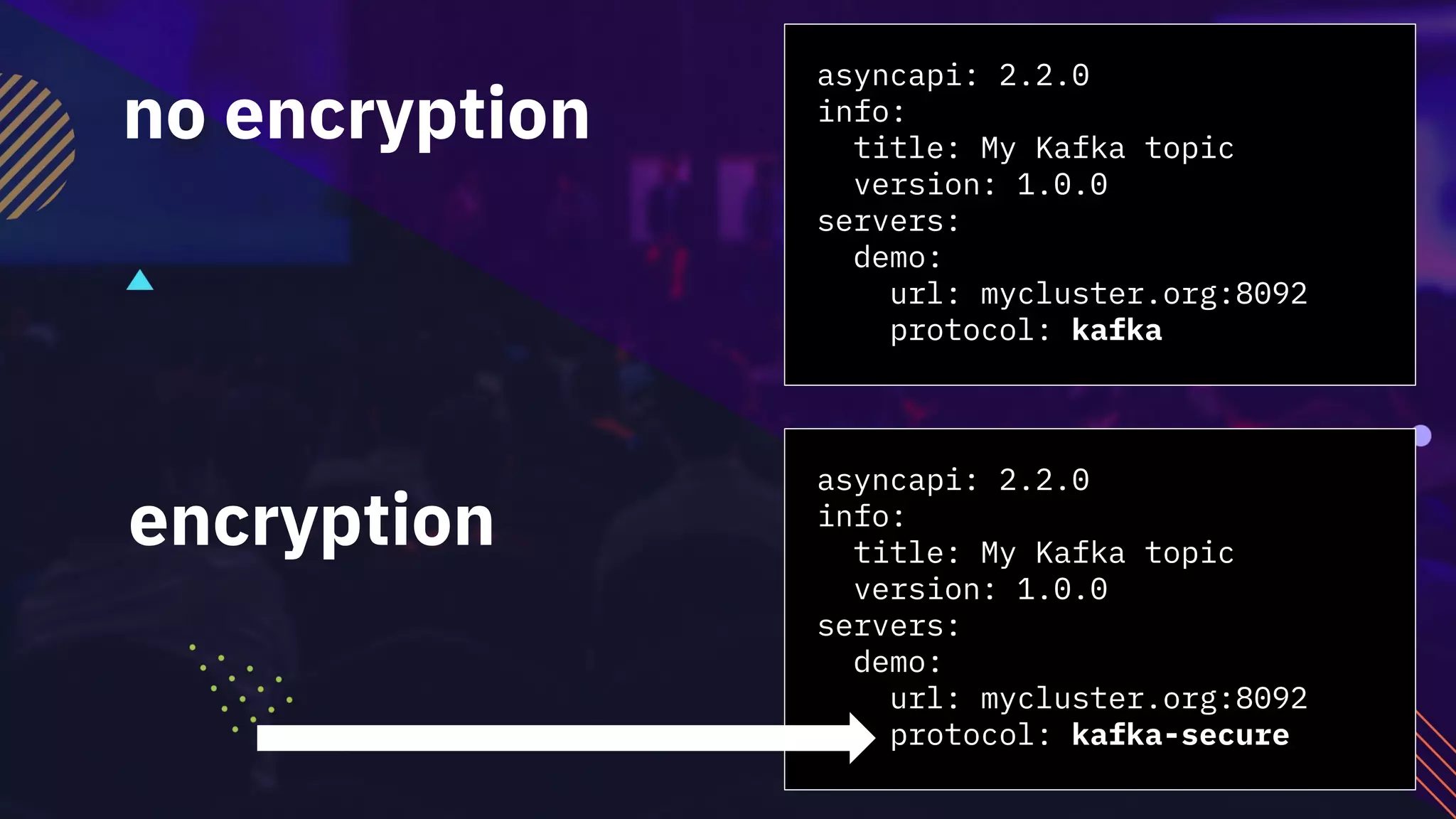

8. asyncapi: 2.2.0
info:
title: My Kafka topic
version: 1.0.0
servers:
demo:
url: mycluster.org:8092
protocol: kafka
asyncapi: 2.2.0
info:
title: My Kafka topic
version: 1.0.0
servers:
demo:
url: mycluster.org:8092
protocol: kafka-secure
no encryption
encryption

9. asyncapi: 2.2.0
info:
title: My Kafka topic
version: 1.0.0
servers:
demo:
url: mycluster.org:8092
protocol: kafka
asyncapi: 2.2.0
info:
title: My Kafka topic
version: 1.0.0
servers:
demo:
url: mycluster.org:8092
protocol: kafka-secure
no encryption
encryption

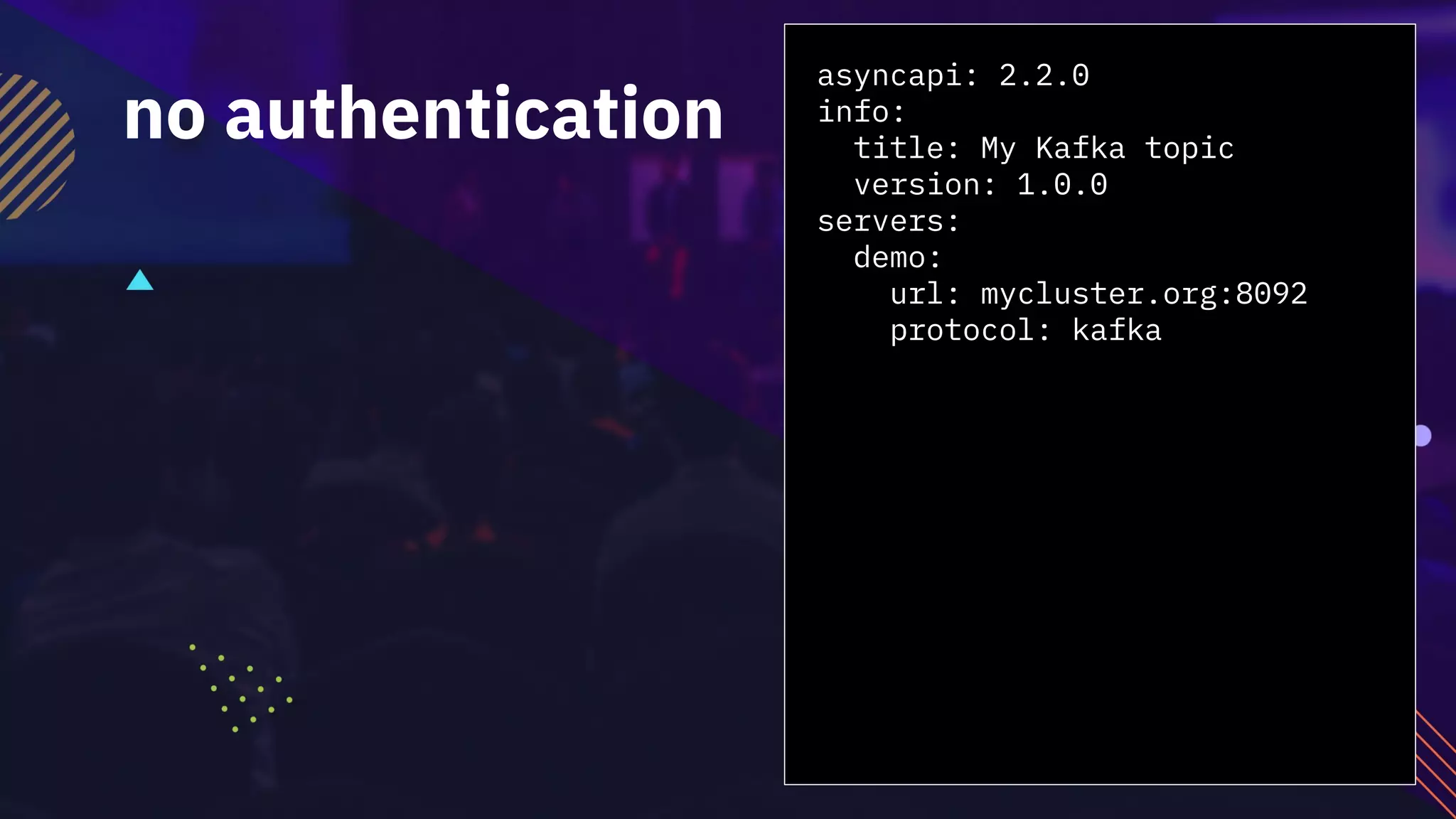

11. asyncapi: 2.2.0
info:
title: My Kafka topic
version: 1.0.0
servers:
demo:
url: mycluster.org:8092
protocol: kafka
no authentication

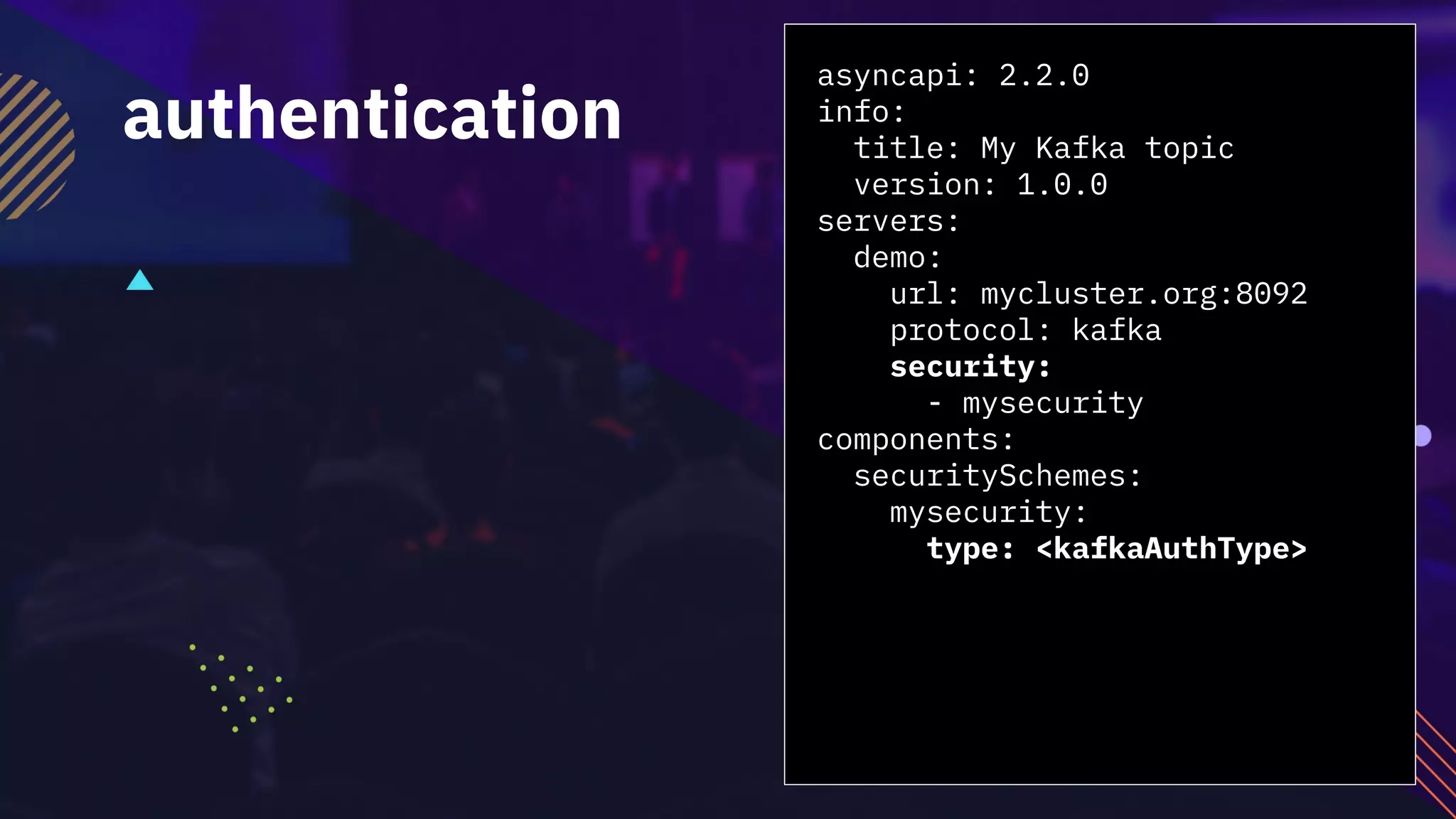

12. asyncapi: 2.2.0
info:
title: My Kafka topic
version: 1.0.0
servers:
demo:
url: mycluster.org:8092
protocol: kafka
security:
- mysecurity
components:
securitySchemes:
mysecurity:
type: <kafkaAuthType>
authentication

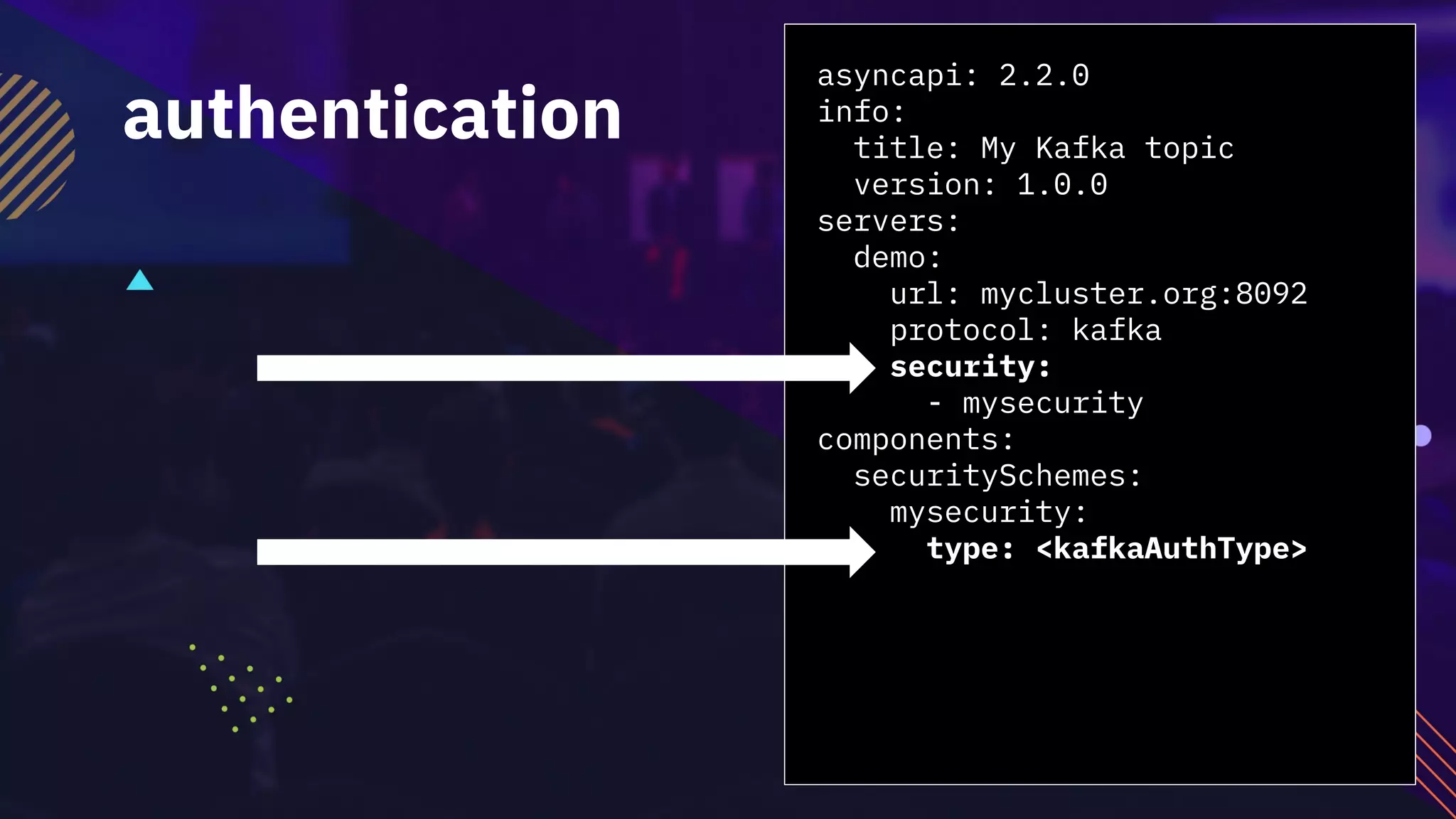

13. asyncapi: 2.2.0
info:
title: My Kafka topic
version: 1.0.0
servers:
demo:
url: mycluster.org:8092
protocol: kafka
security:
- mysecurity
components:
securitySchemes:
mysecurity:
type: <kafkaAuthType>
authentication

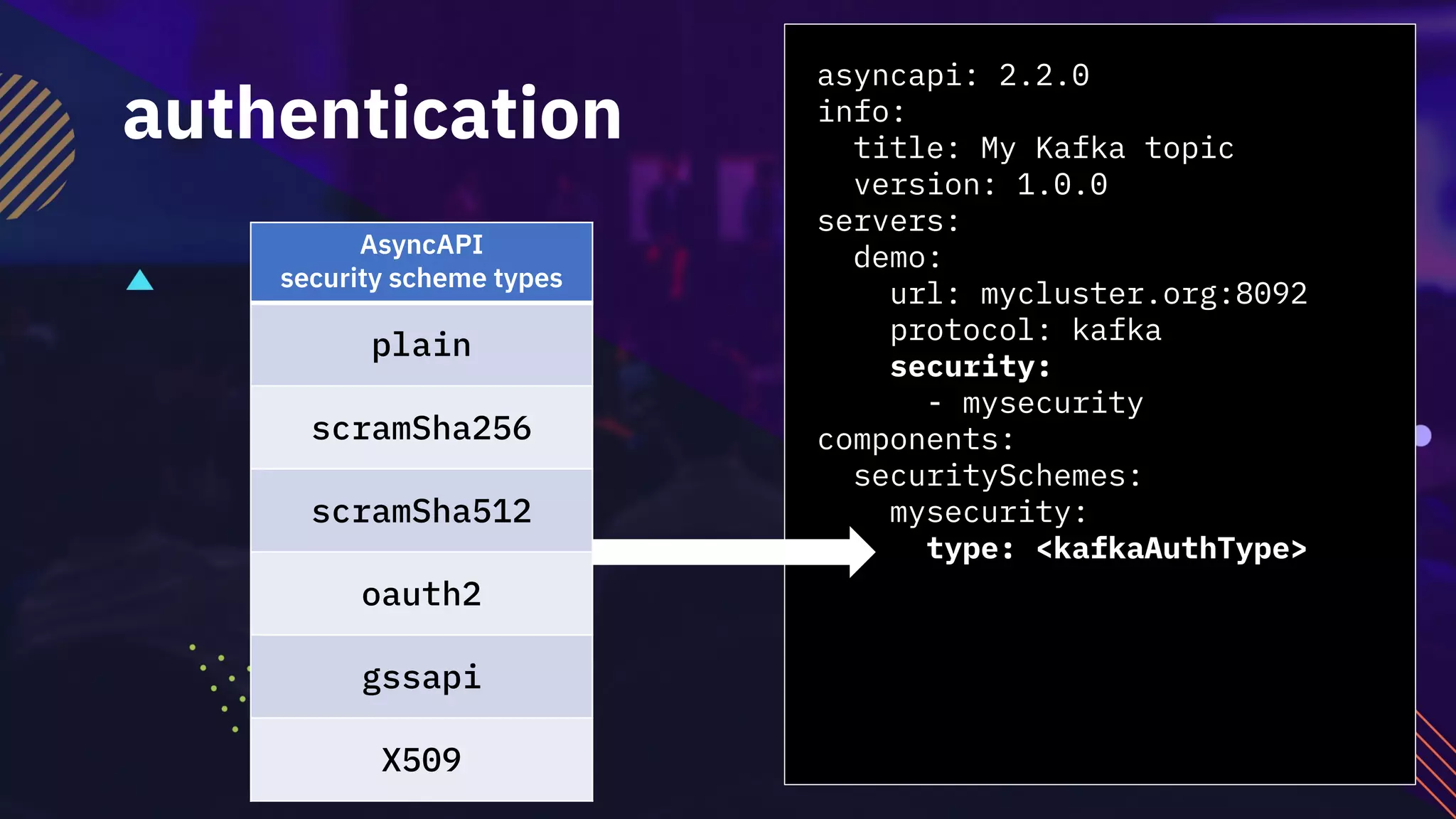

14. asyncapi: 2.2.0
info:
title: My Kafka topic
version: 1.0.0
servers:
demo:
url: mycluster.org:8092
protocol: kafka
security:
- mysecurity
components:
securitySchemes:
mysecurity:
type: <kafkaAuthType>
authentication
AsyncAPI
security scheme types
plain
scramSha256
scramSha512
oauth2
gssapi
X509

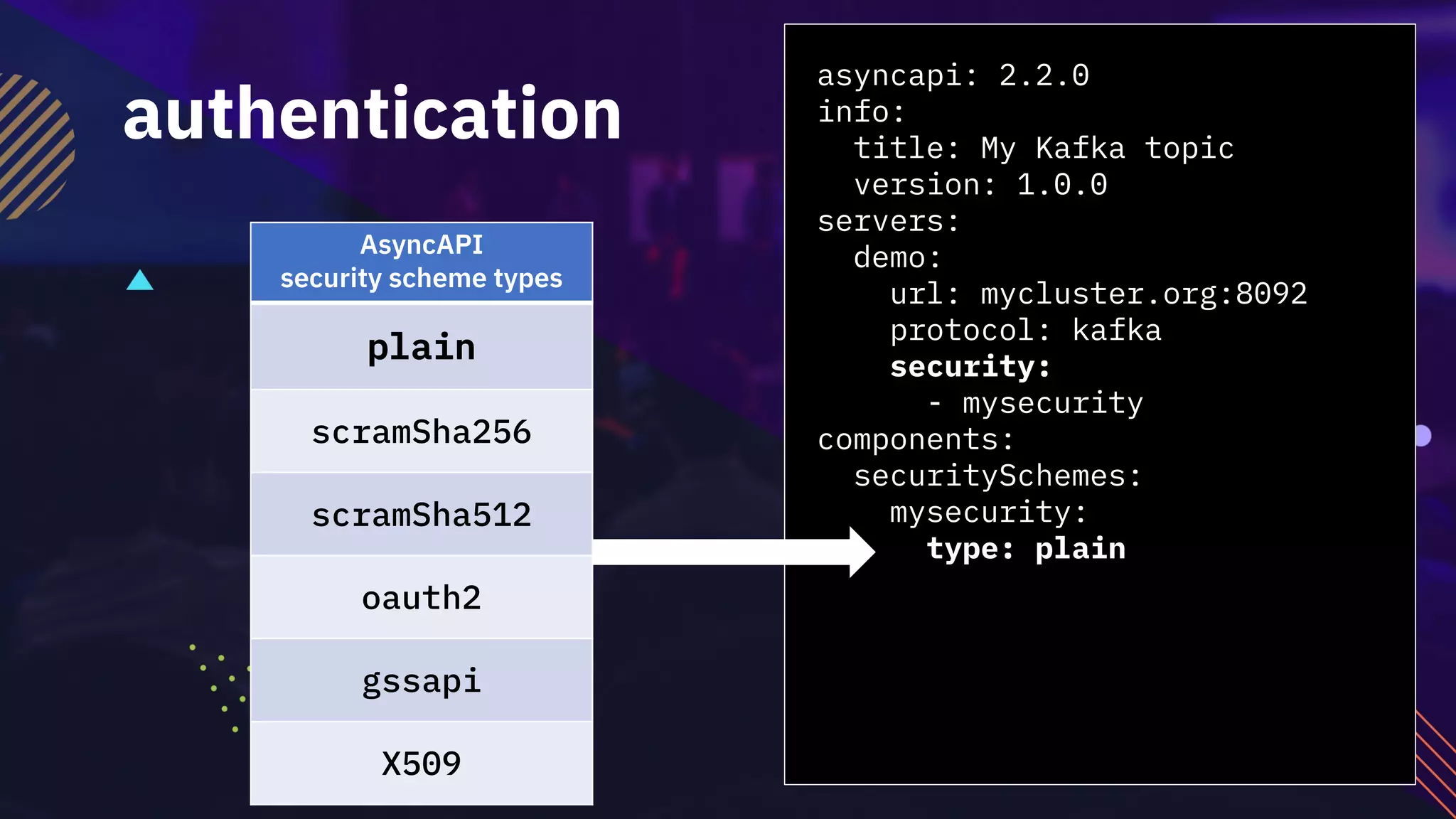

15. asyncapi: 2.2.0
info:
title: My Kafka topic
version: 1.0.0
servers:
demo:
url: mycluster.org:8092
protocol: kafka
security:
- mysecurity
components:
securitySchemes:
mysecurity:
type: plain
authentication
AsyncAPI
security scheme types
plain
scramSha256
scramSha512
oauth2
gssapi
X509

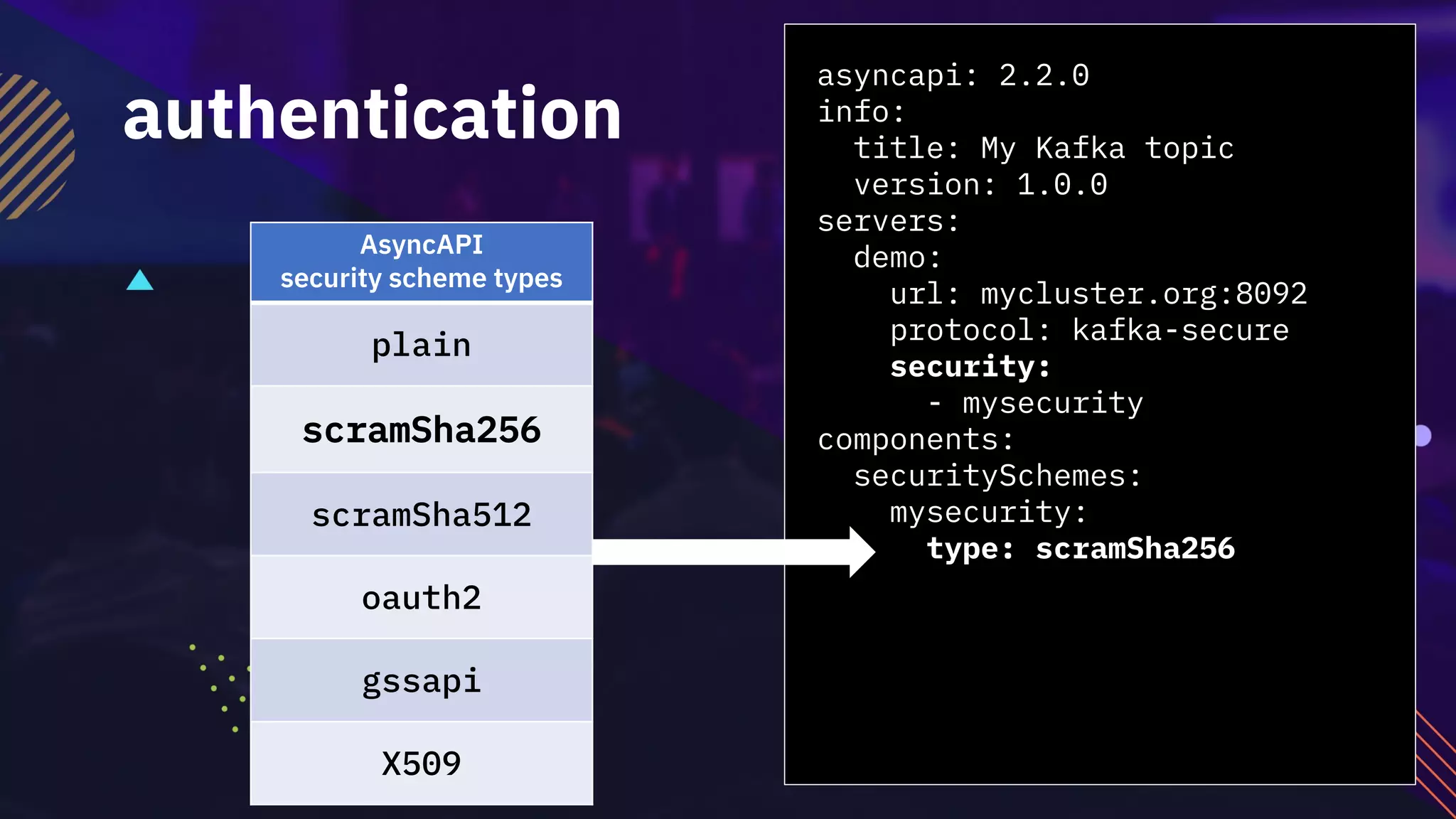

16. asyncapi: 2.2.0
info:
title: My Kafka topic
version: 1.0.0
servers:
demo:
url: mycluster.org:8092
protocol: kafka-secure
security:
- mysecurity
components:
securitySchemes:
mysecurity:
type: scramSha256
authentication
AsyncAPI
security scheme types
plain
scramSha256
scramSha512
oauth2
gssapi
X509

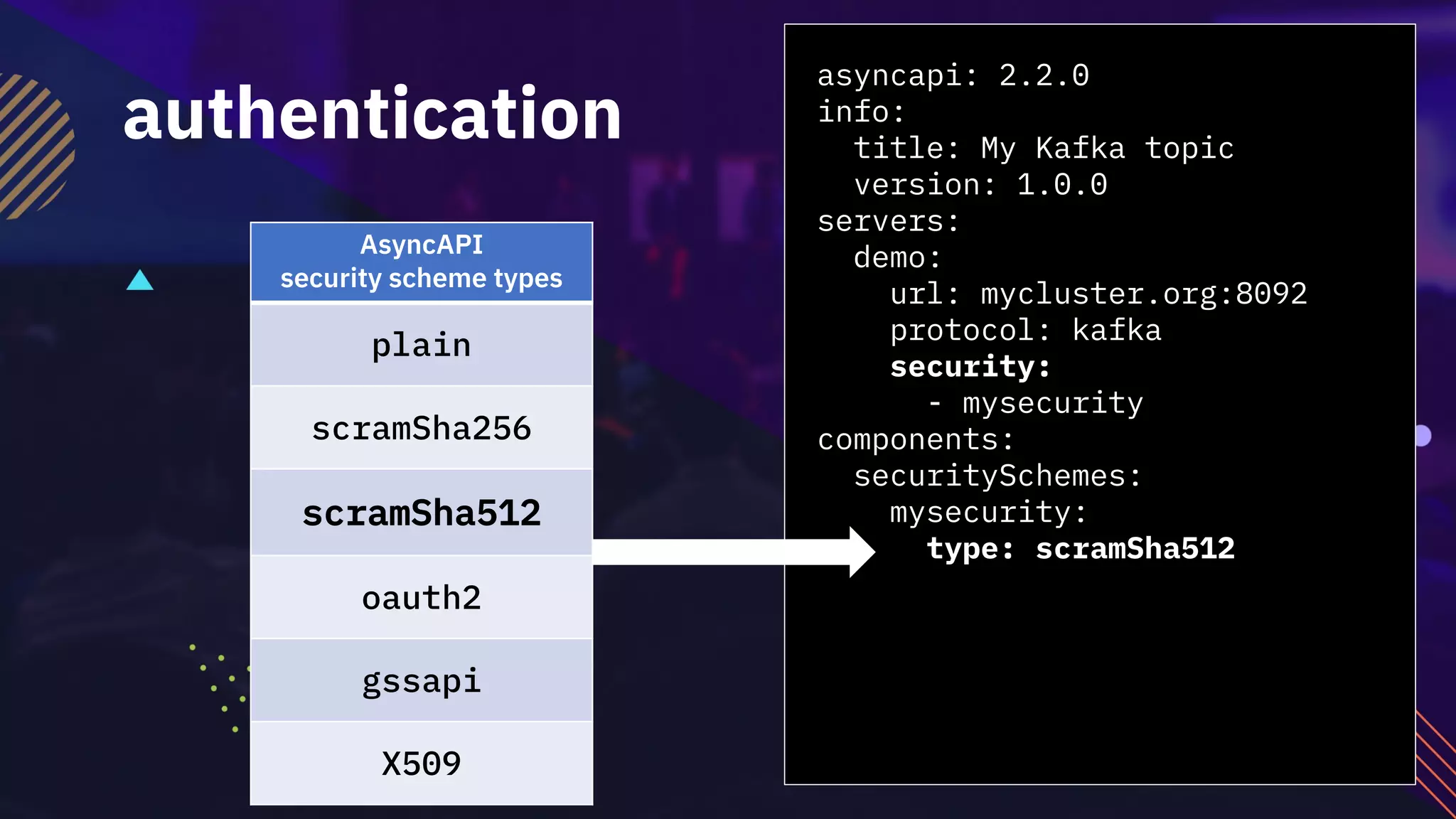

17. asyncapi: 2.2.0
info:
title: My Kafka topic
version: 1.0.0
servers:
demo:
url: mycluster.org:8092
protocol: kafka
security:
- mysecurity
components:
securitySchemes:
mysecurity:
type: scramSha512
authentication
AsyncAPI
security scheme types
plain
scramSha256
scramSha512
oauth2
gssapi
X509

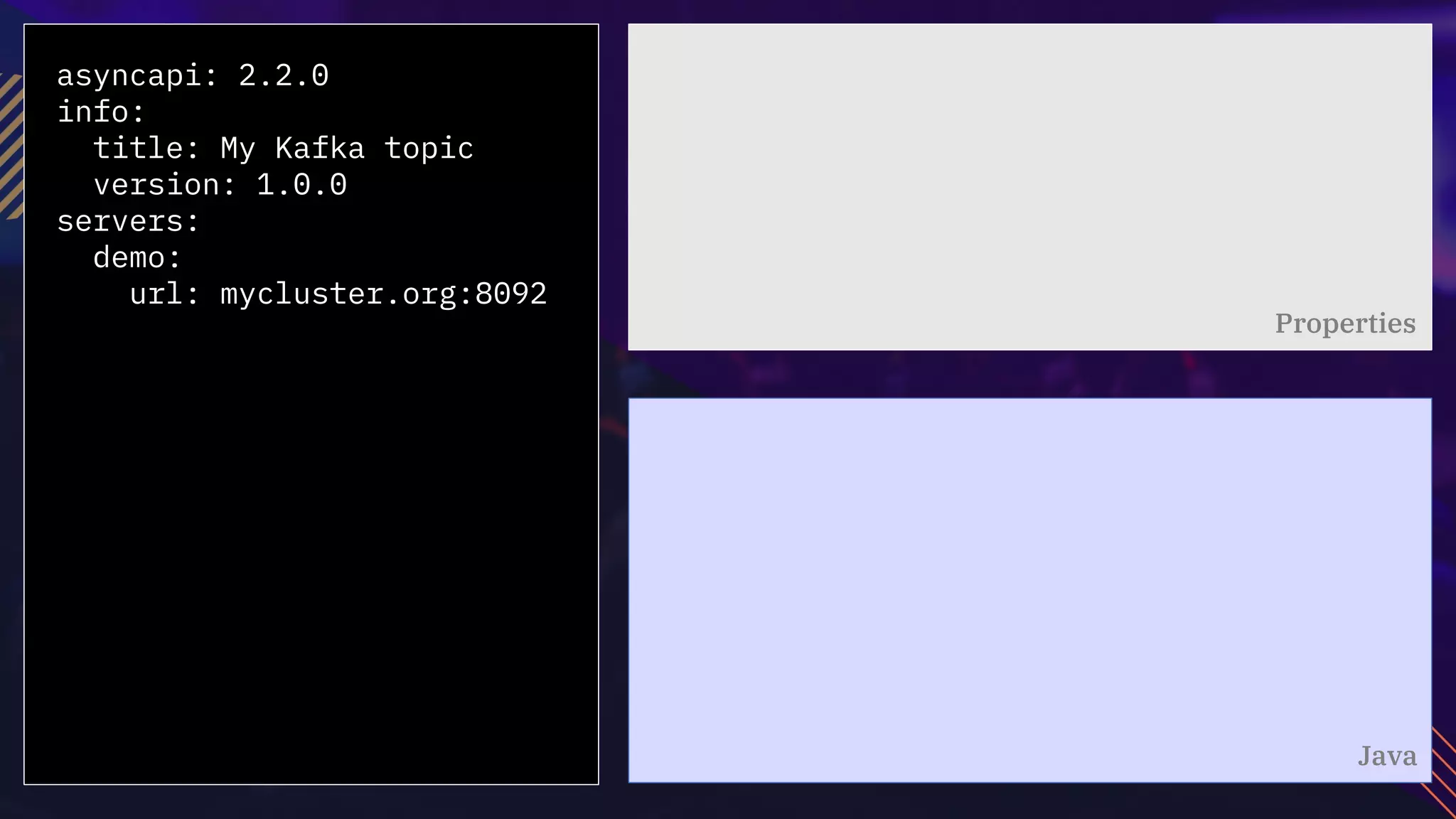

20. asyncapi: 2.2.0
info:
title: My Kafka topic
version: 1.0.0
servers:
demo:
url: mycluster.org:8092
Properties
Java

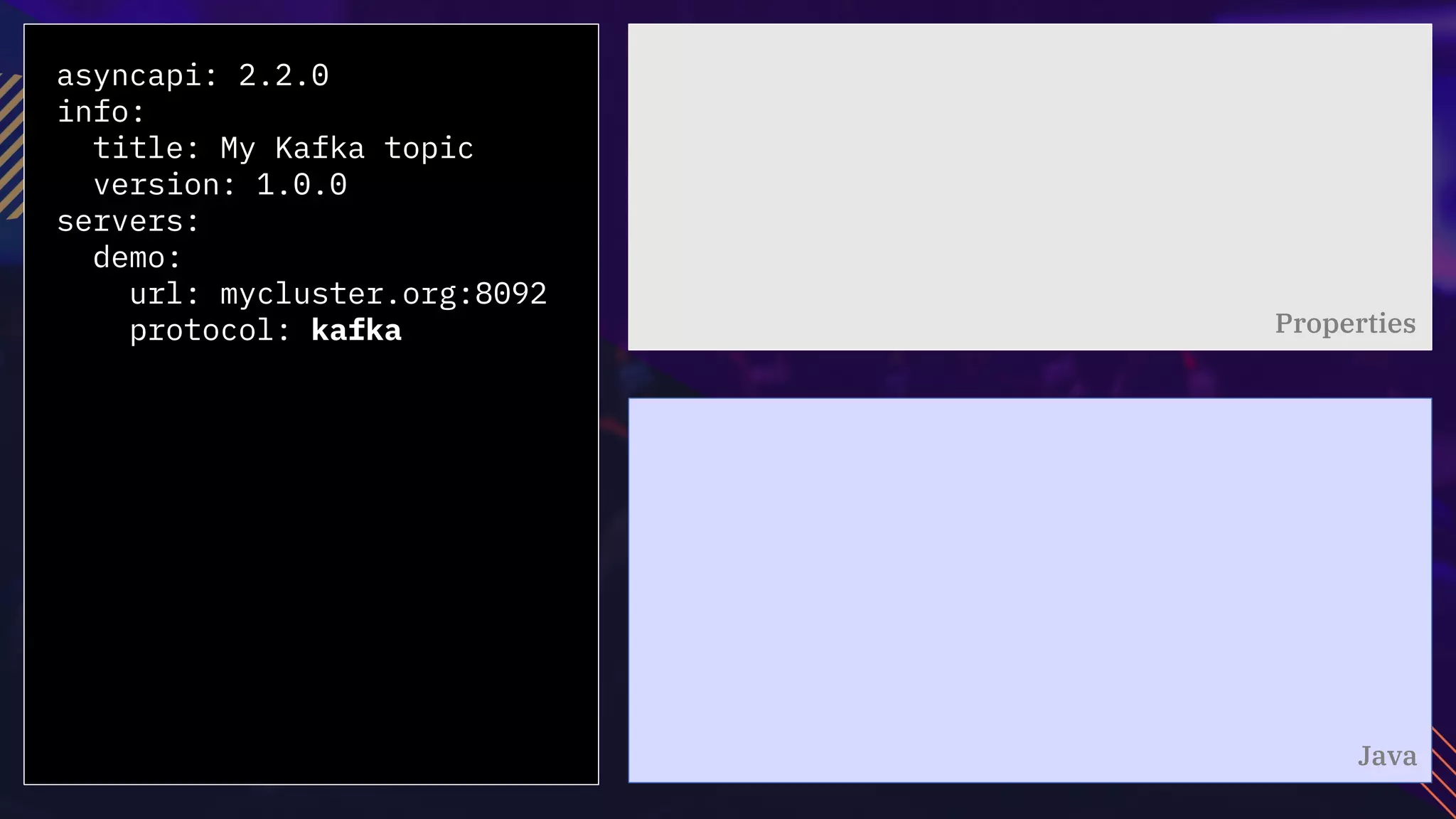

21. asyncapi: 2.2.0
info:
title: My Kafka topic
version: 1.0.0
servers:
demo:
url: mycluster.org:8092
protocol: kafka Properties
Java

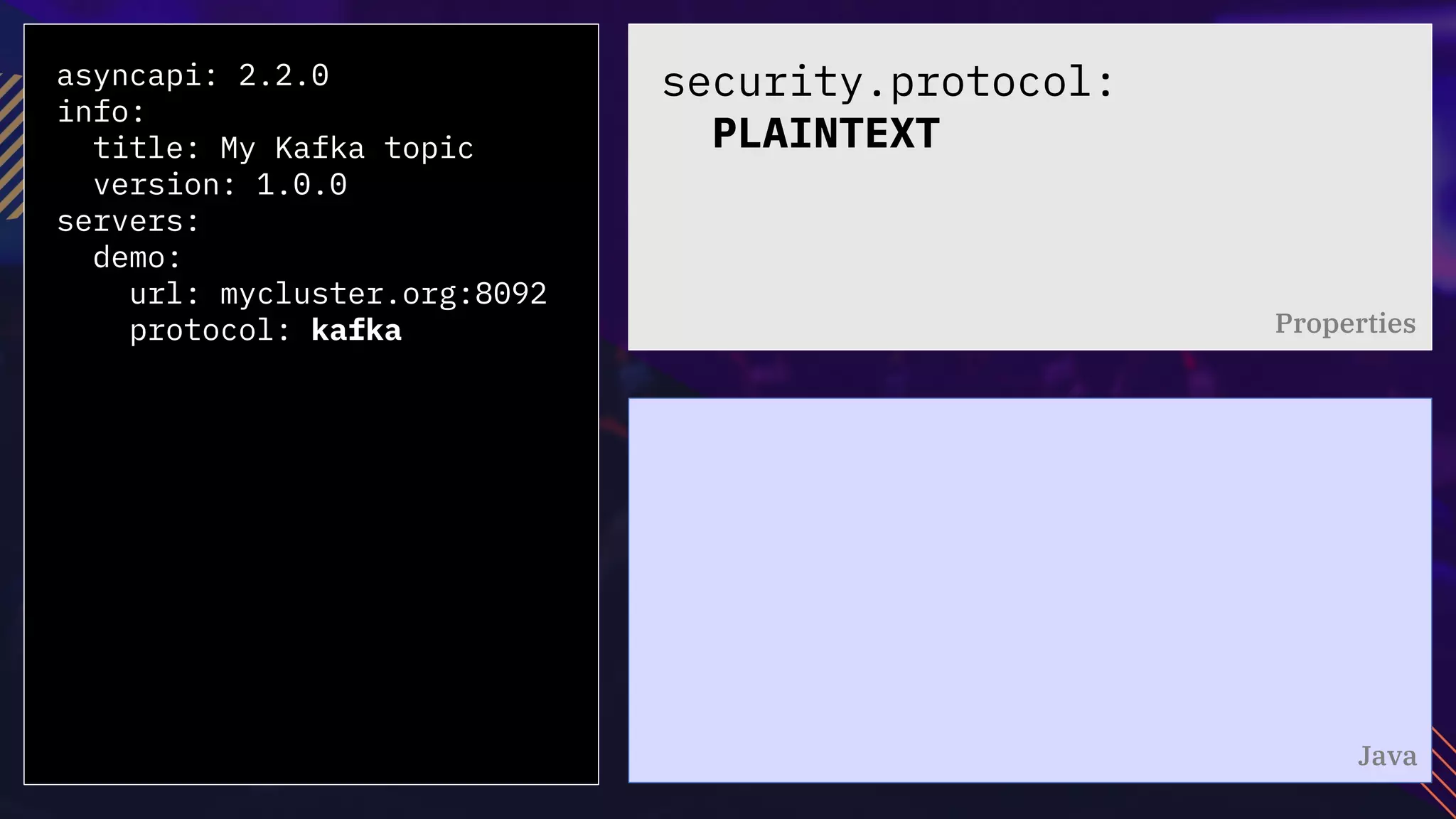

22. asyncapi: 2.2.0
info:
title: My Kafka topic
version: 1.0.0
servers:
demo:
url: mycluster.org:8092
protocol: kafka
security.protocol:
PLAINTEXT
Properties
Java

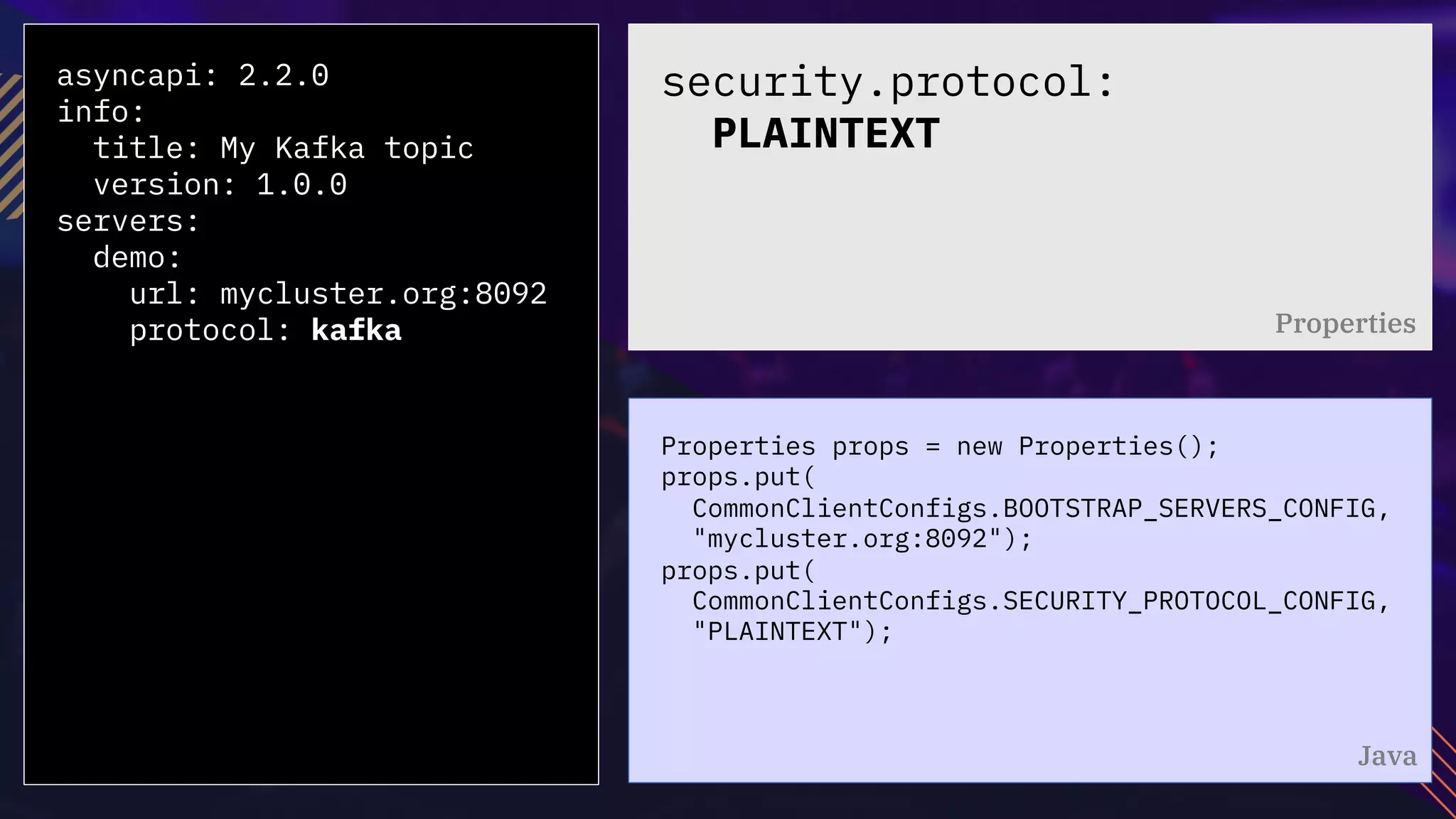

23. asyncapi: 2.2.0
info:
title: My Kafka topic
version: 1.0.0
servers:
demo:
url: mycluster.org:8092
protocol: kafka
Properties props = new Properties();
props.put(
CommonClientConfigs.BOOTSTRAP_SERVERS_CONFIG,
"mycluster.org:8092");
props.put(
CommonClientConfigs.SECURITY_PROTOCOL_CONFIG,
"PLAINTEXT");
security.protocol:
PLAINTEXT
Properties
Java

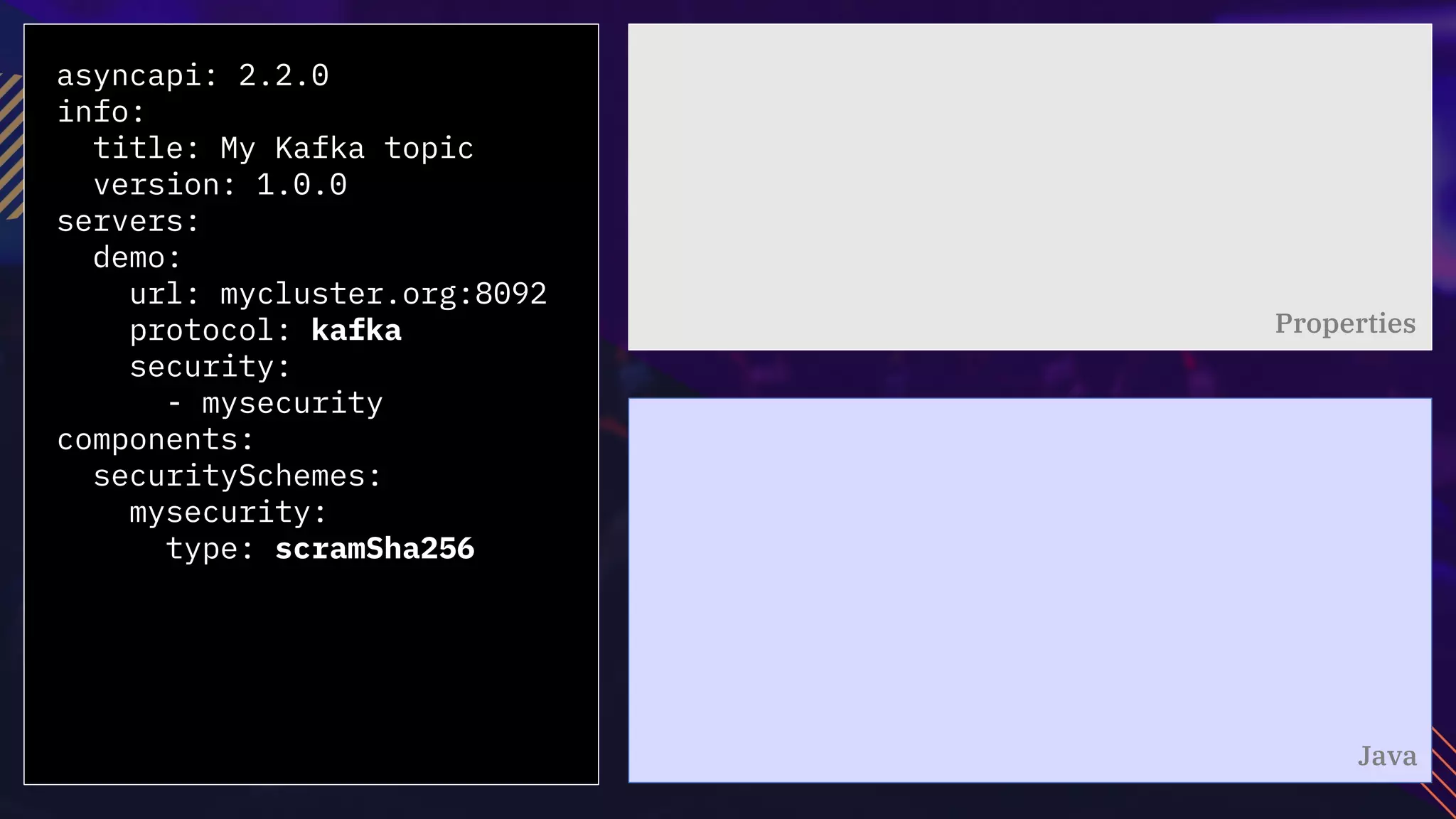

24. asyncapi: 2.2.0
info:
title: My Kafka topic
version: 1.0.0
servers:
demo:
url: mycluster.org:8092
protocol: kafka
security:
- mysecurity
components:
securitySchemes:
mysecurity:
type: scramSha256
Properties
Java

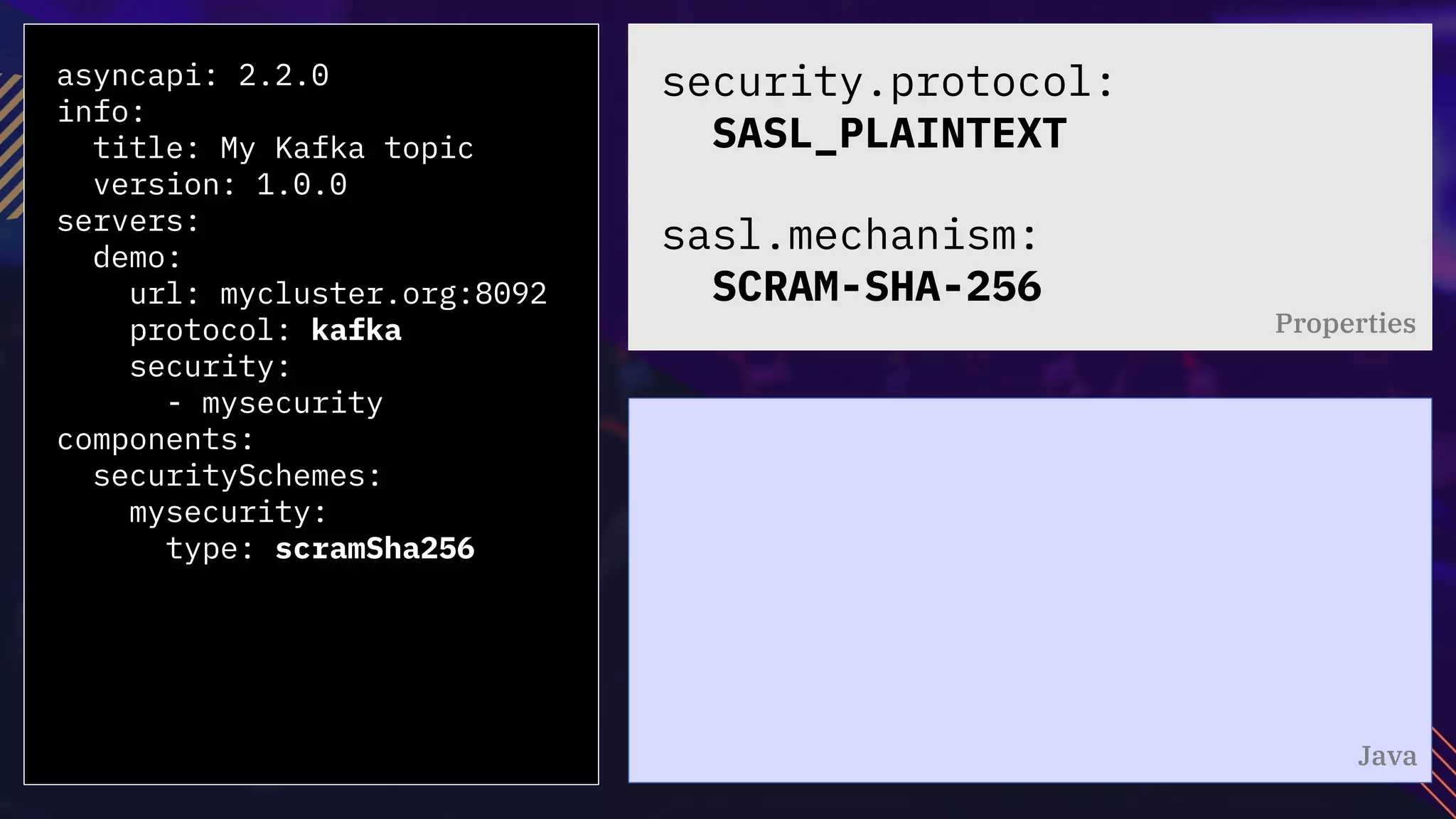

25. asyncapi: 2.2.0
info:
title: My Kafka topic
version: 1.0.0
servers:
demo:
url: mycluster.org:8092
protocol: kafka
security:
- mysecurity
components:
securitySchemes:
mysecurity:
type: scramSha256
security.protocol:
SASL_PLAINTEXT
sasl.mechanism:
SCRAM-SHA-256
Properties
Java

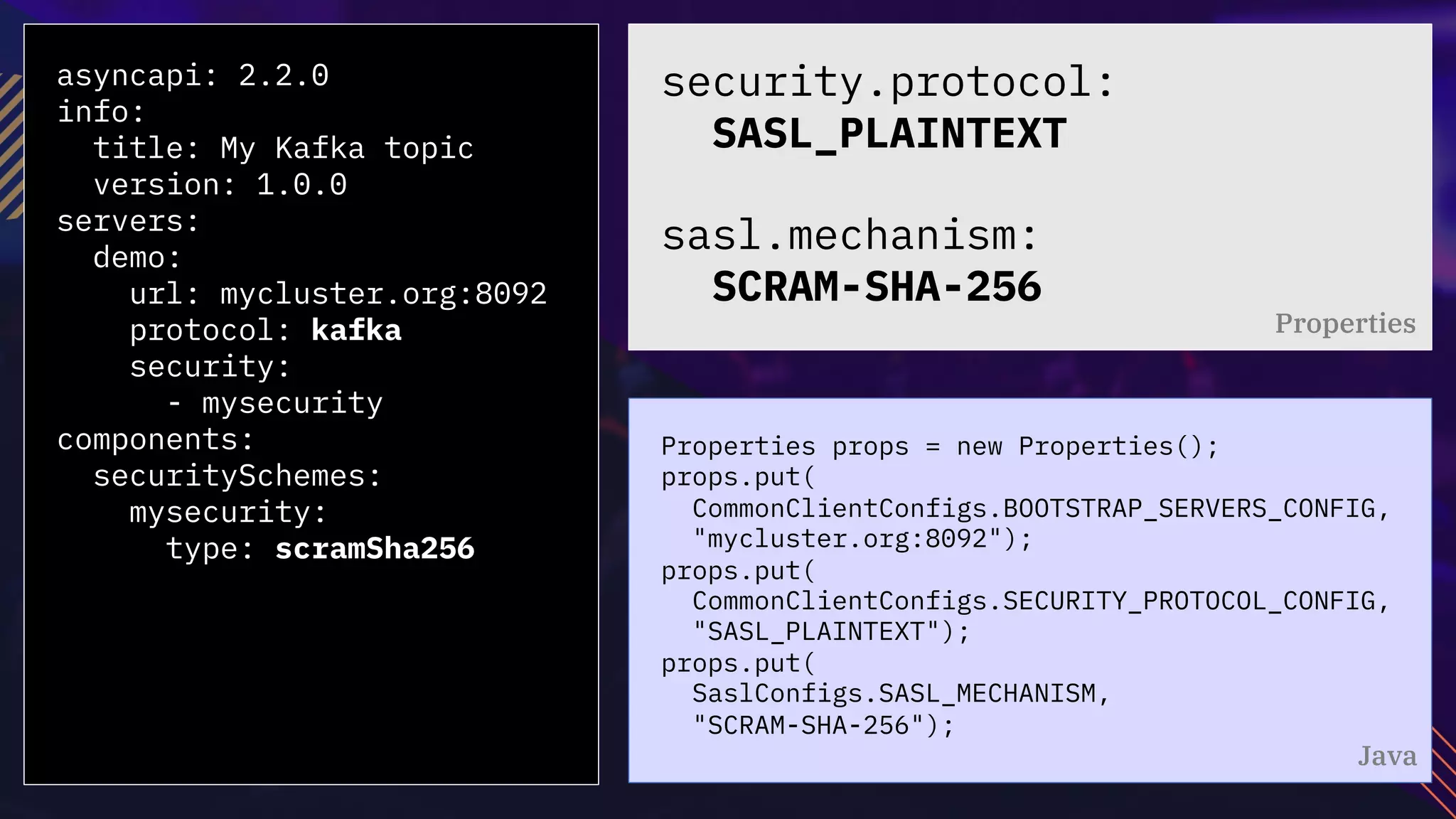

26. asyncapi: 2.2.0
info:
title: My Kafka topic
version: 1.0.0
servers:
demo:
url: mycluster.org:8092
protocol: kafka
security:
- mysecurity
components:
securitySchemes:
mysecurity:
type: scramSha256
Properties props = new Properties();
props.put(
CommonClientConfigs.BOOTSTRAP_SERVERS_CONFIG,
"mycluster.org:8092");
props.put(
CommonClientConfigs.SECURITY_PROTOCOL_CONFIG,
"SASL_PLAINTEXT");
props.put(
SaslConfigs.SASL_MECHANISM,
"SCRAM-SHA-256");
security.protocol:
SASL_PLAINTEXT
sasl.mechanism:
SCRAM-SHA-256
Properties
Java

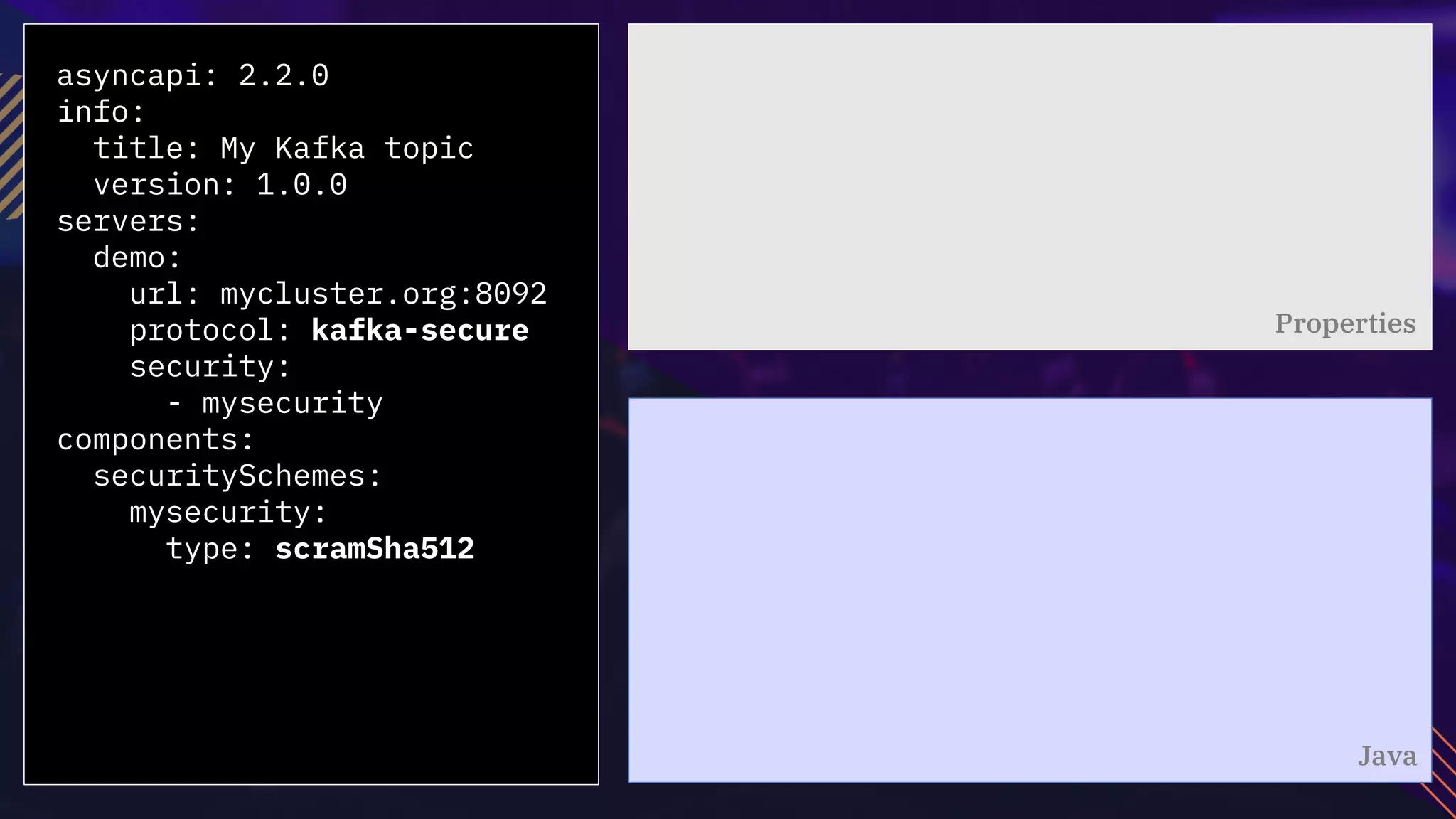

27. asyncapi: 2.2.0
info:
title: My Kafka topic
version: 1.0.0
servers:
demo:
url: mycluster.org:8092
protocol: kafka-secure
security:
- mysecurity
components:
securitySchemes:
mysecurity:
type: scramSha512
Properties
Java

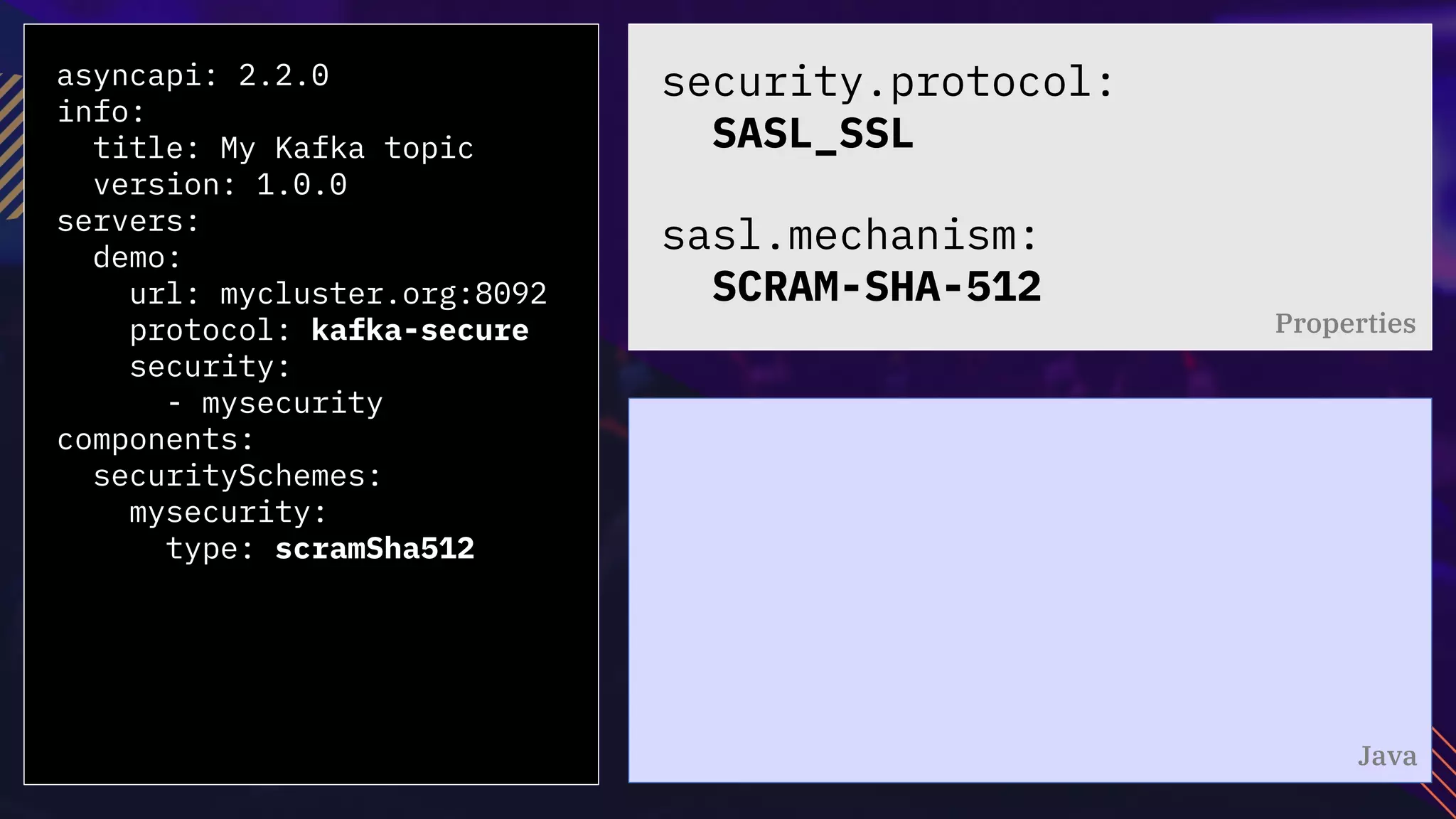

28. asyncapi: 2.2.0
info:
title: My Kafka topic
version: 1.0.0
servers:
demo:
url: mycluster.org:8092
protocol: kafka-secure
security:
- mysecurity
components:
securitySchemes:
mysecurity:
type: scramSha512
security.protocol:
SASL_SSL
sasl.mechanism:
SCRAM-SHA-512
Properties
Java

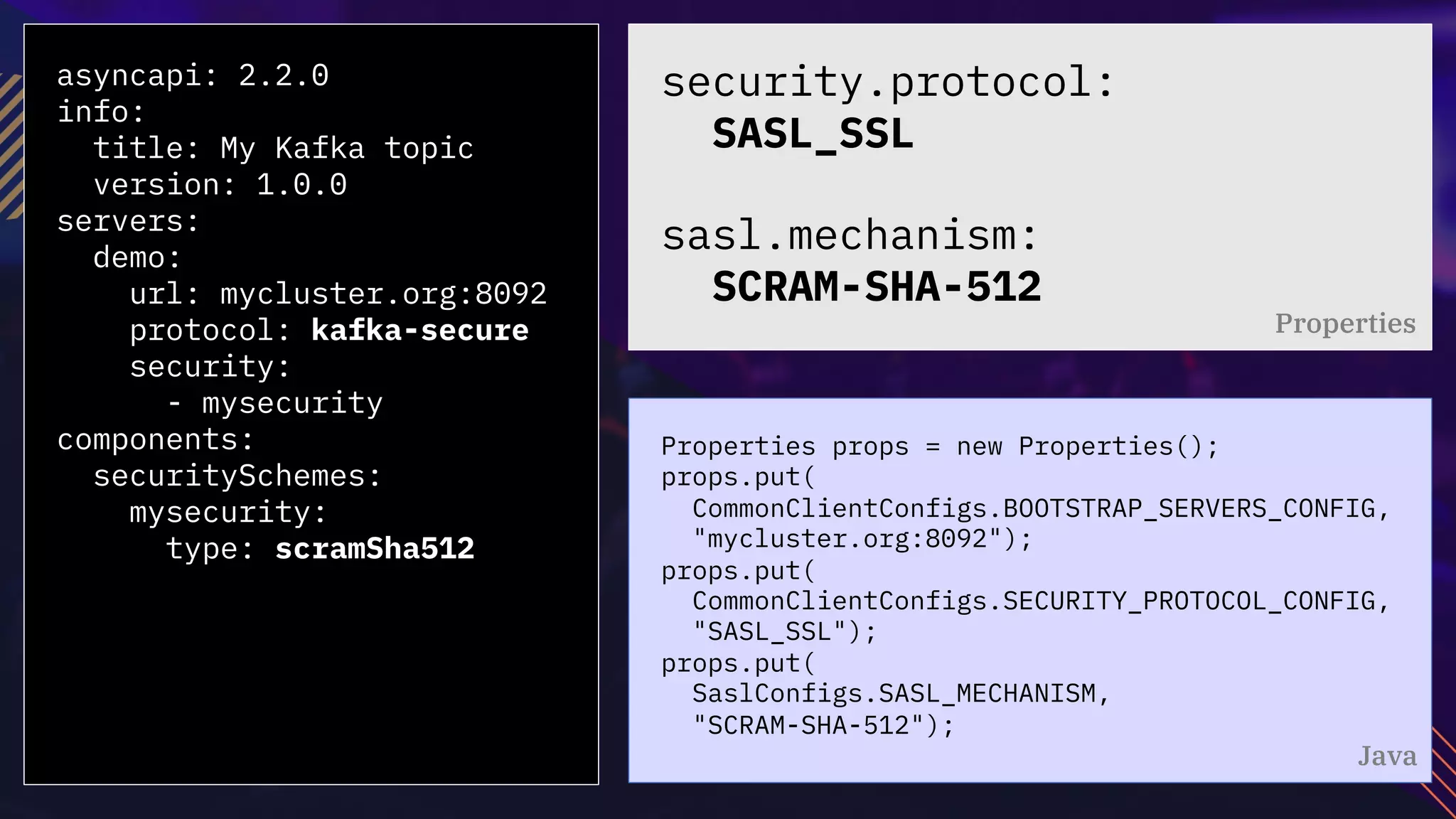

29. asyncapi: 2.2.0
info:
title: My Kafka topic
version: 1.0.0
servers:
demo:
url: mycluster.org:8092
protocol: kafka-secure
security:
- mysecurity
components:
securitySchemes:
mysecurity:
type: scramSha512
Properties props = new Properties();
props.put(
CommonClientConfigs.BOOTSTRAP_SERVERS_CONFIG,
"mycluster.org:8092");
props.put(
CommonClientConfigs.SECURITY_PROTOCOL_CONFIG,
"SASL_SSL");
props.put(
SaslConfigs.SASL_MECHANISM,
"SCRAM-SHA-512");
security.protocol:
SASL_SSL
sasl.mechanism:
SCRAM-SHA-512
Properties
Java

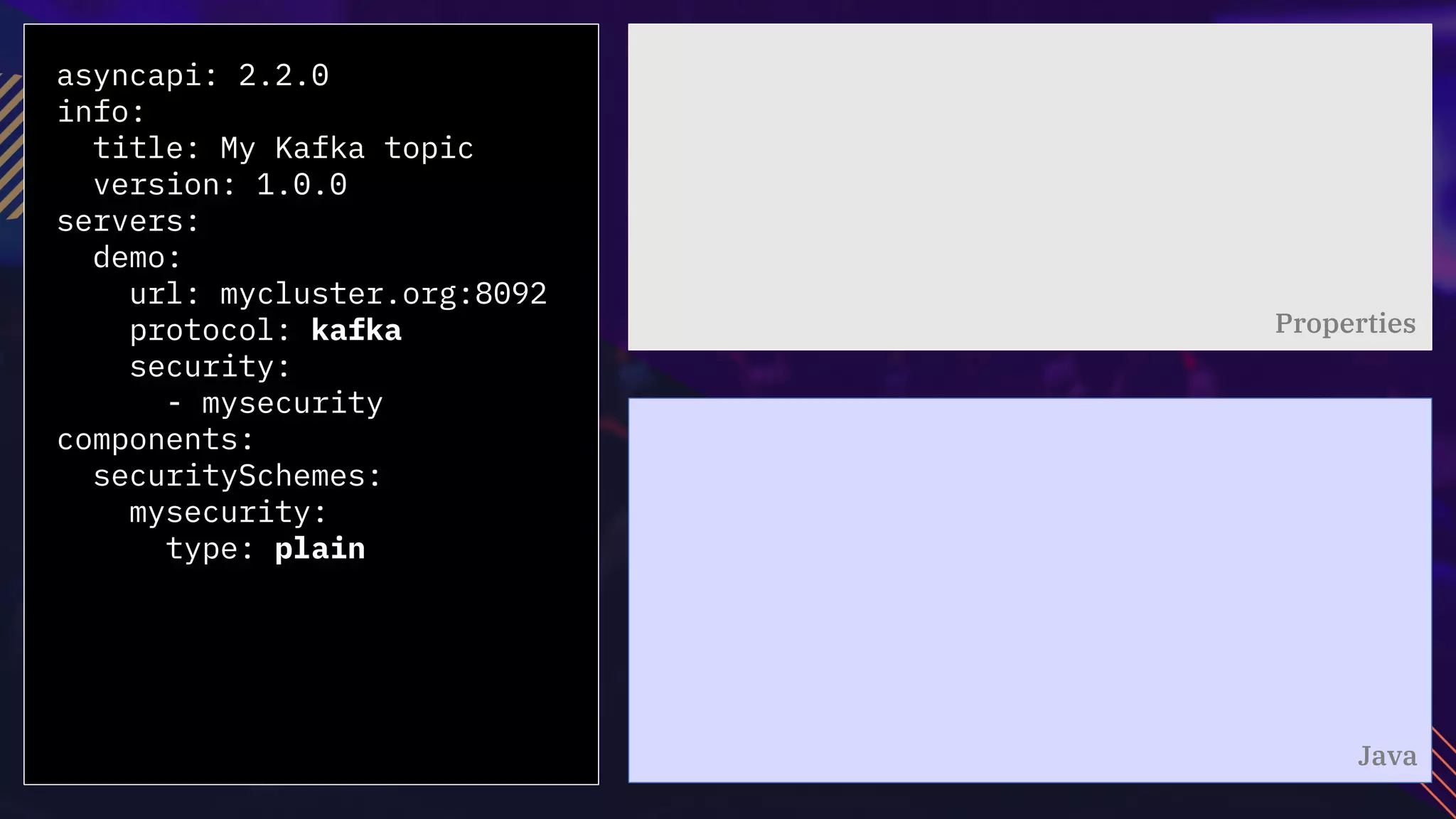

30. asyncapi: 2.2.0
info:
title: My Kafka topic
version: 1.0.0
servers:
demo:
url: mycluster.org:8092
protocol: kafka
security:
- mysecurity
components:
securitySchemes:
mysecurity:
type: plain
Properties
Java

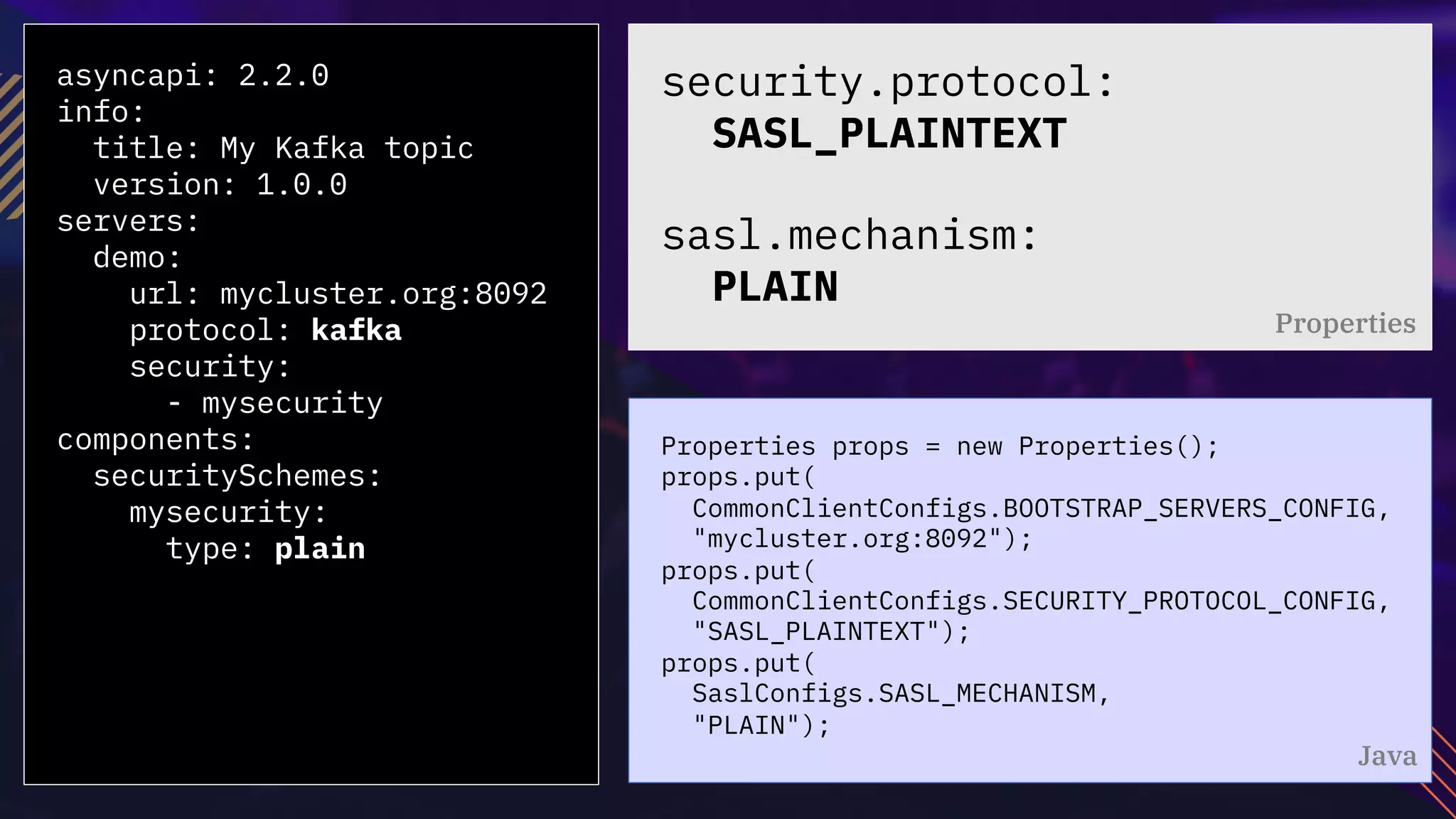

31. asyncapi: 2.2.0
info:
title: My Kafka topic
version: 1.0.0
servers:
demo:
url: mycluster.org:8092
protocol: kafka
security:
- mysecurity
components:
securitySchemes:
mysecurity:
type: plain
Properties props = new Properties();
props.put(
CommonClientConfigs.BOOTSTRAP_SERVERS_CONFIG,
"mycluster.org:8092");
props.put(
CommonClientConfigs.SECURITY_PROTOCOL_CONFIG,
"SASL_PLAINTEXT");
props.put(
SaslConfigs.SASL_MECHANISM,
"PLAIN");
security.protocol:
SASL_PLAINTEXT
sasl.mechanism:
PLAIN
Properties
Java

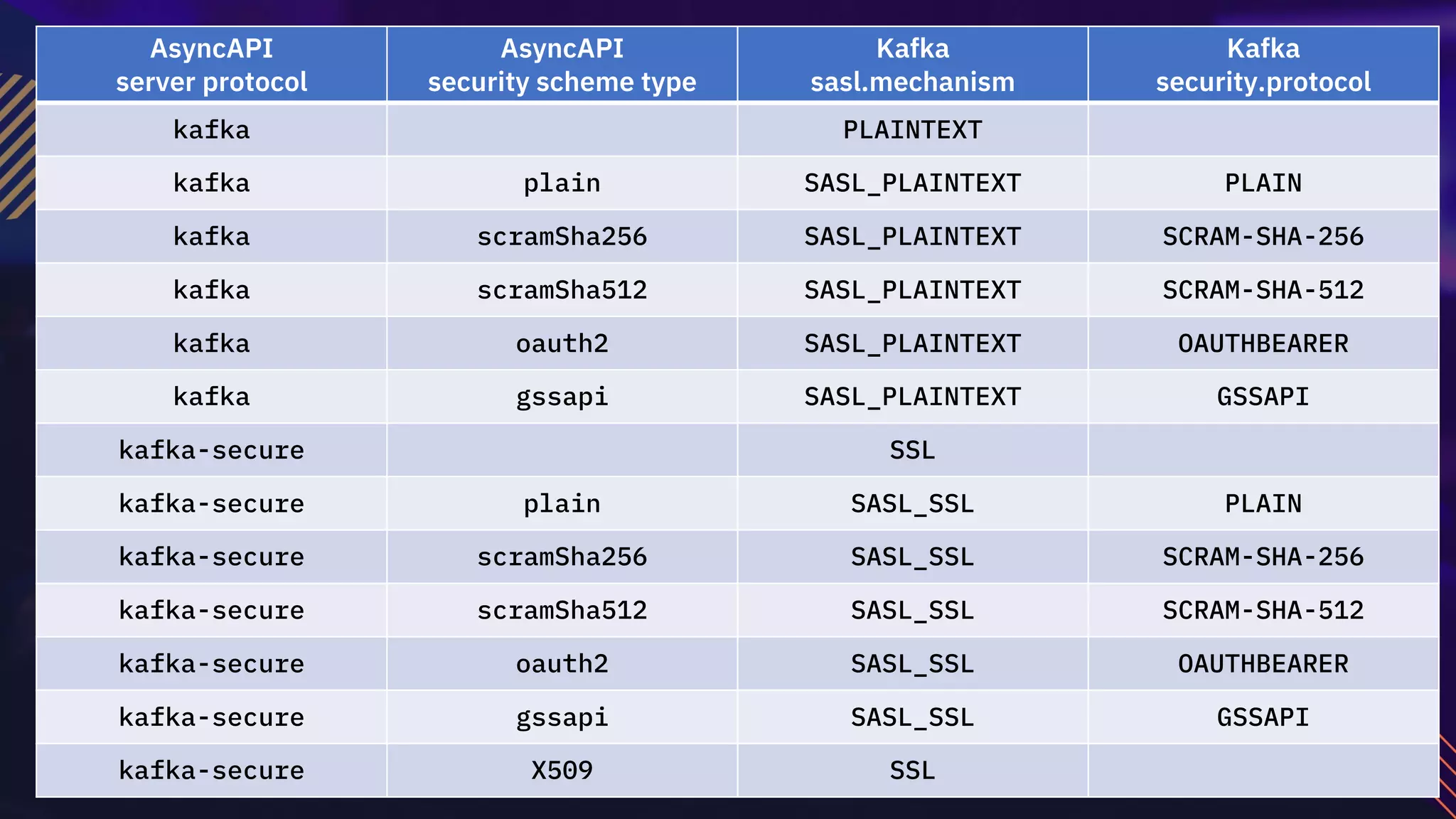

32. AsyncAPI
server protocol
AsyncAPI
security scheme type
Kafka
sasl.mechanism
Kafka
security.protocol
kafka PLAINTEXT
kafka plain SASL_PLAINTEXT PLAIN
kafka scramSha256 SASL_PLAINTEXT SCRAM-SHA-256
kafka scramSha512 SASL_PLAINTEXT SCRAM-SHA-512
kafka oauth2 SASL_PLAINTEXT OAUTHBEARER
kafka gssapi SASL_PLAINTEXT GSSAPI
kafka-secure SSL
kafka-secure plain SASL_SSL PLAIN
kafka-secure scramSha256 SASL_SSL SCRAM-SHA-256
kafka-secure scramSha512 SASL_SSL SCRAM-SHA-512
kafka-secure oauth2 SASL_SSL OAUTHBEARER
kafka-secure gssapi SASL_SSL GSSAPI
kafka-secure X509 SSL

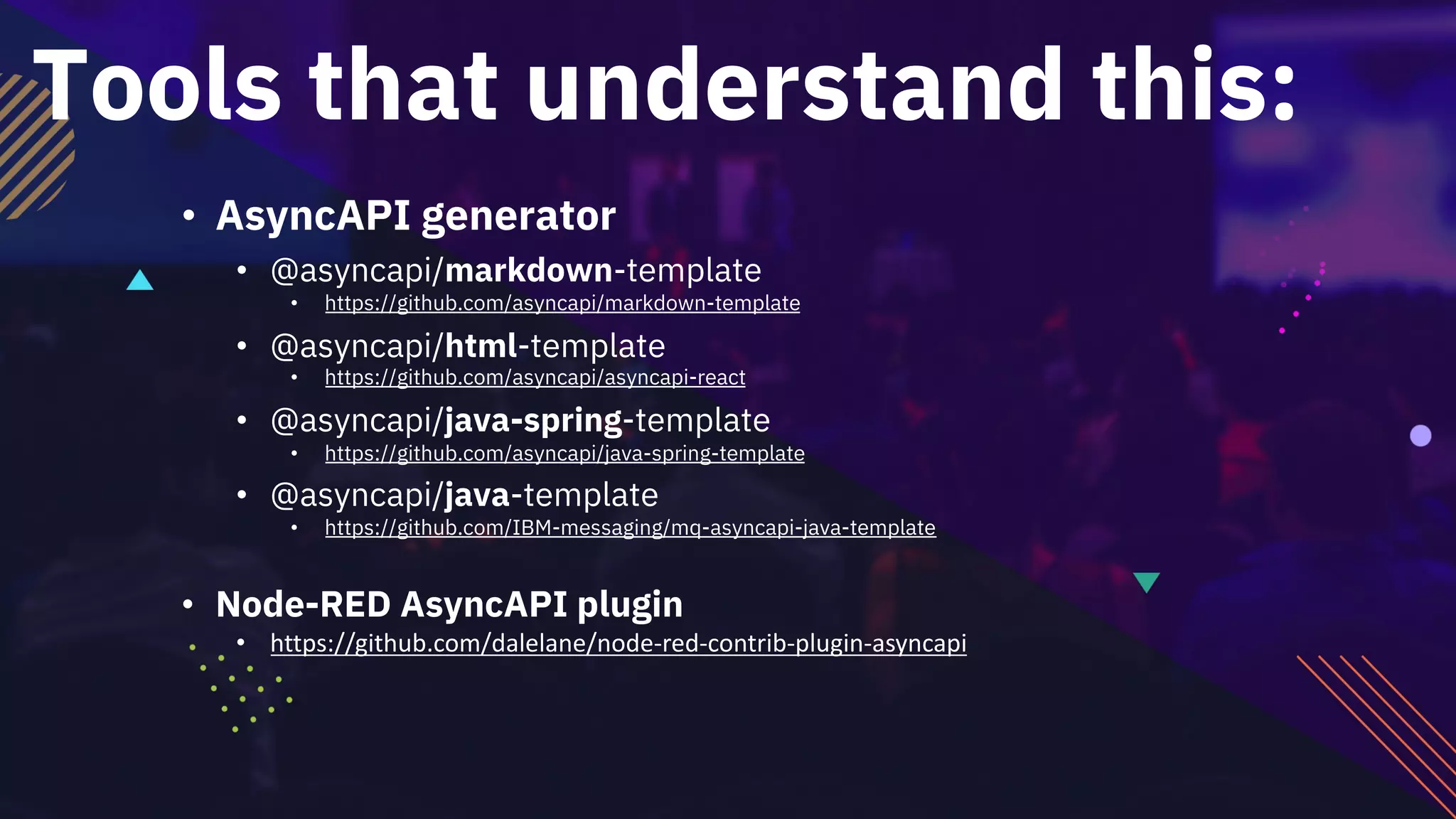

33. Tools that understand this:
• AsyncAPI generator
• @asyncapi/markdown-template
• https://github.com/asyncapi/markdown-template
• @asyncapi/html-template
• https://github.com/asyncapi/asyncapi-react
• @asyncapi/java-spring-template
• https://github.com/asyncapi/java-spring-template
• @asyncapi/java-template
• https://github.com/IBM-messaging/mq-asyncapi-java-template
• Node-RED AsyncAPI plugin
• https://github.com/dalelane/node-red-contrib-plugin-asyncapi
