Build a RESTful API with the Serverless Framework
The document discusses how to build a RESTful API using the Serverless framework on AWS. It introduces the Amazon API Gateway for creating API endpoints and AWS Lambda for hosting backend functions. The Serverless framework simplifies deploying Lambda functions by packaging code and dependencies, testing functions locally, and deploying with a single command. It also addresses challenges like installing Python libraries and supporting non-Python modules through Docker.
More Related Content
Similar to Build a RESTful API with the Serverless Framework
Build a RESTful API with the Serverless Framework

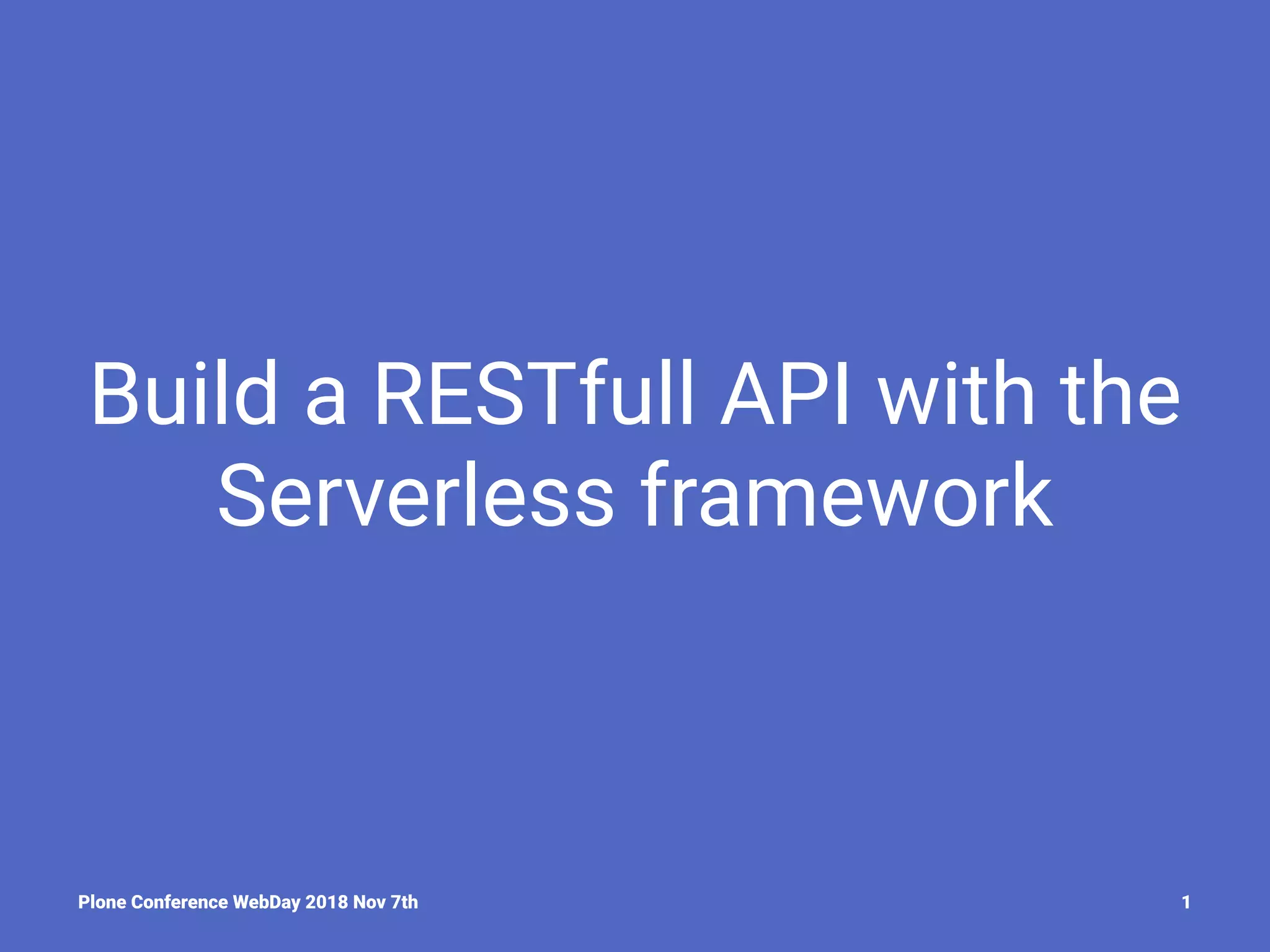

- 1. Build a RESTfullAPI with the Serverless framework Plone Conference WebDay 2018 Nov 7th 1
- 2. Introduction 1. Introduce myself 2.perpose of this presentation Plone Conference WebDay 2018 Nov 7th 2

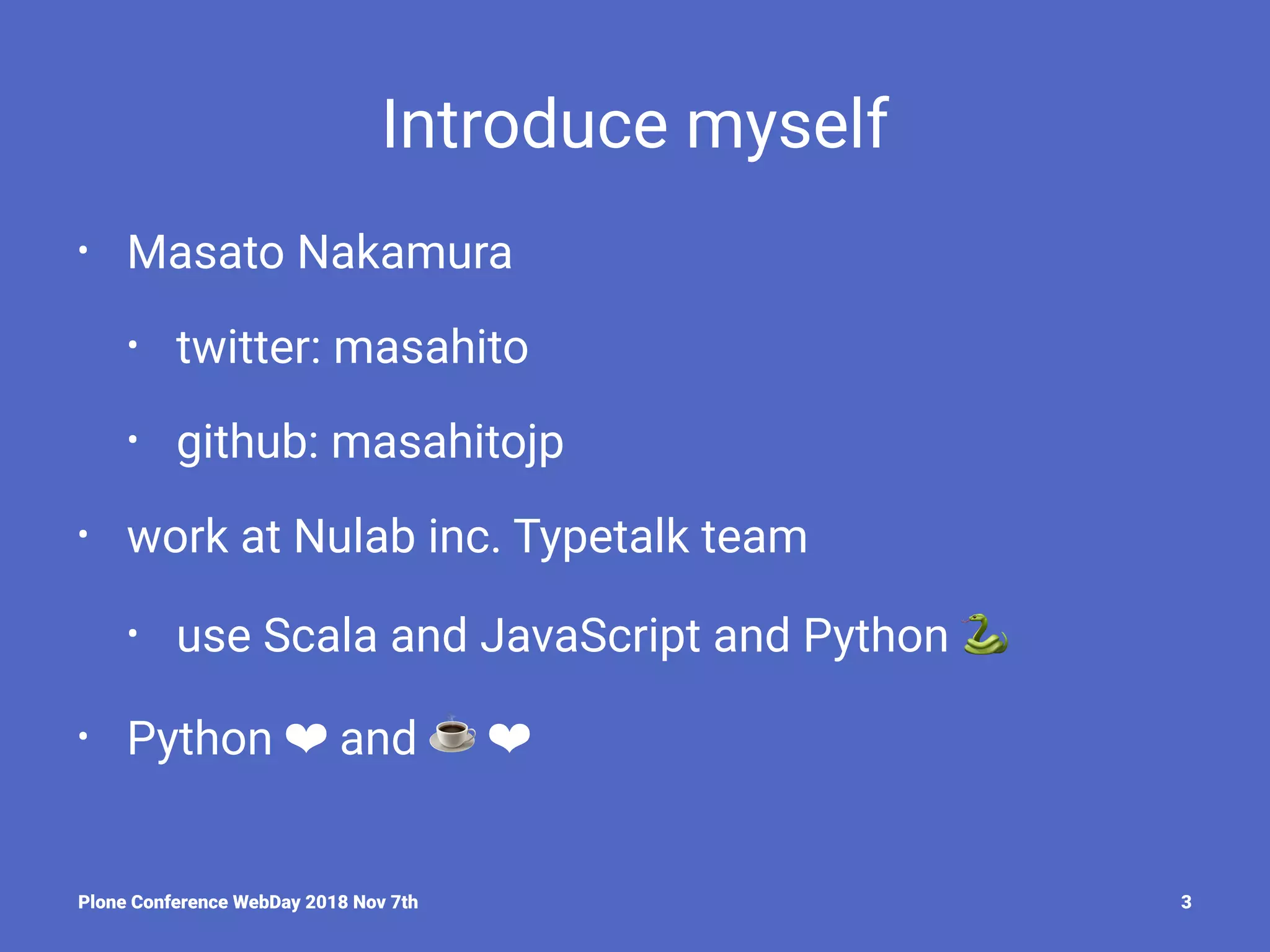

- 3. Introduce myself • MasatoNakamura • twitter: masahito • github: masahitojp • work at Nulab inc. Typetalk team • use Scala and JavaScript and Python • Python ❤ and ☕ ❤ Plone Conference WebDay 2018 Nov 7th 3
- 4. Perpose of thispresentation • You can understand buid a REST API with the Serverless Framework • I will talk especially for the AWS services Plone Conference WebDay 2018 Nov 7th 4

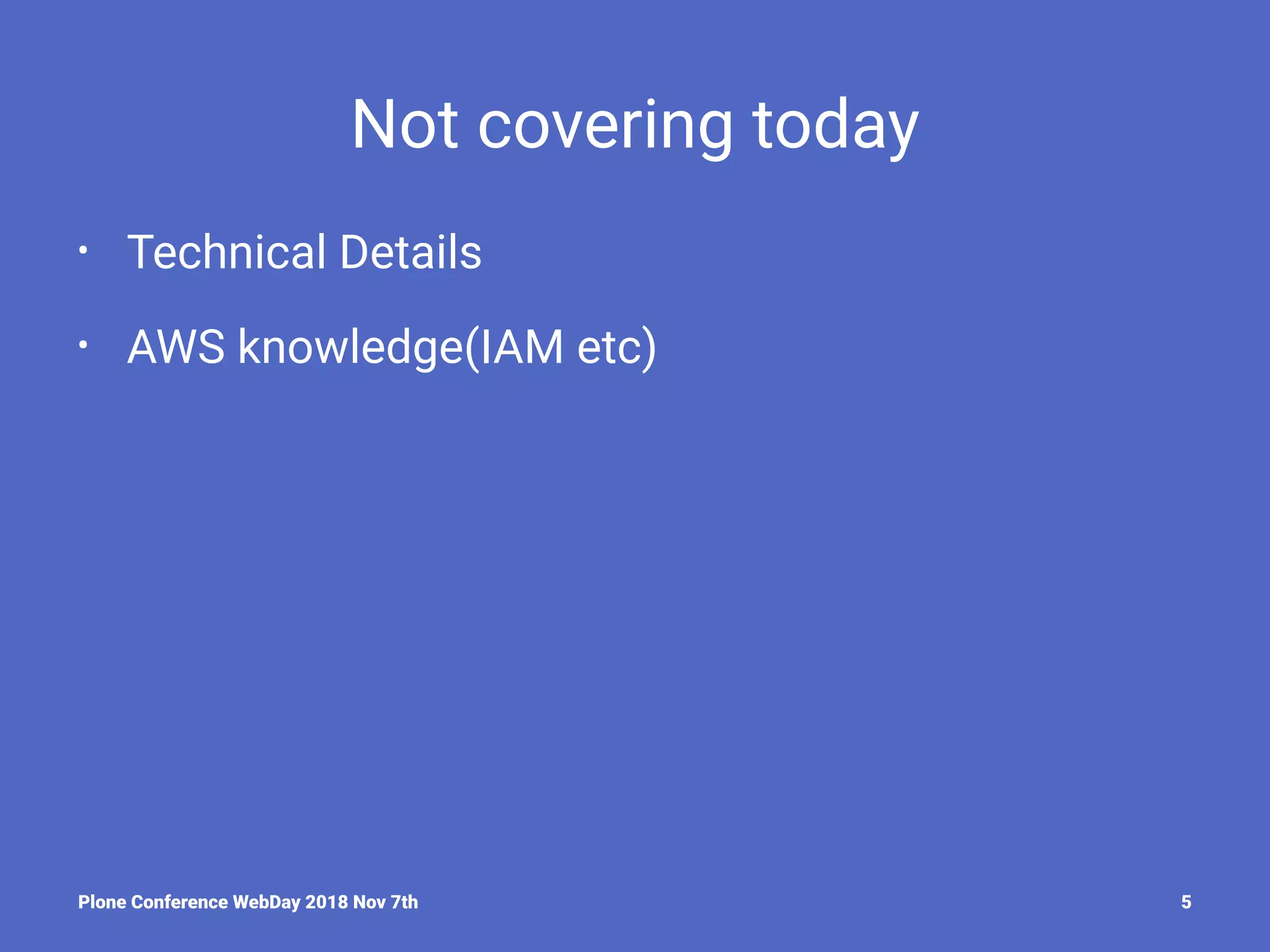

- 5. Not covering today •Technical Details • AWS knowledge(IAM etc) Plone Conference WebDay 2018 Nov 7th 5

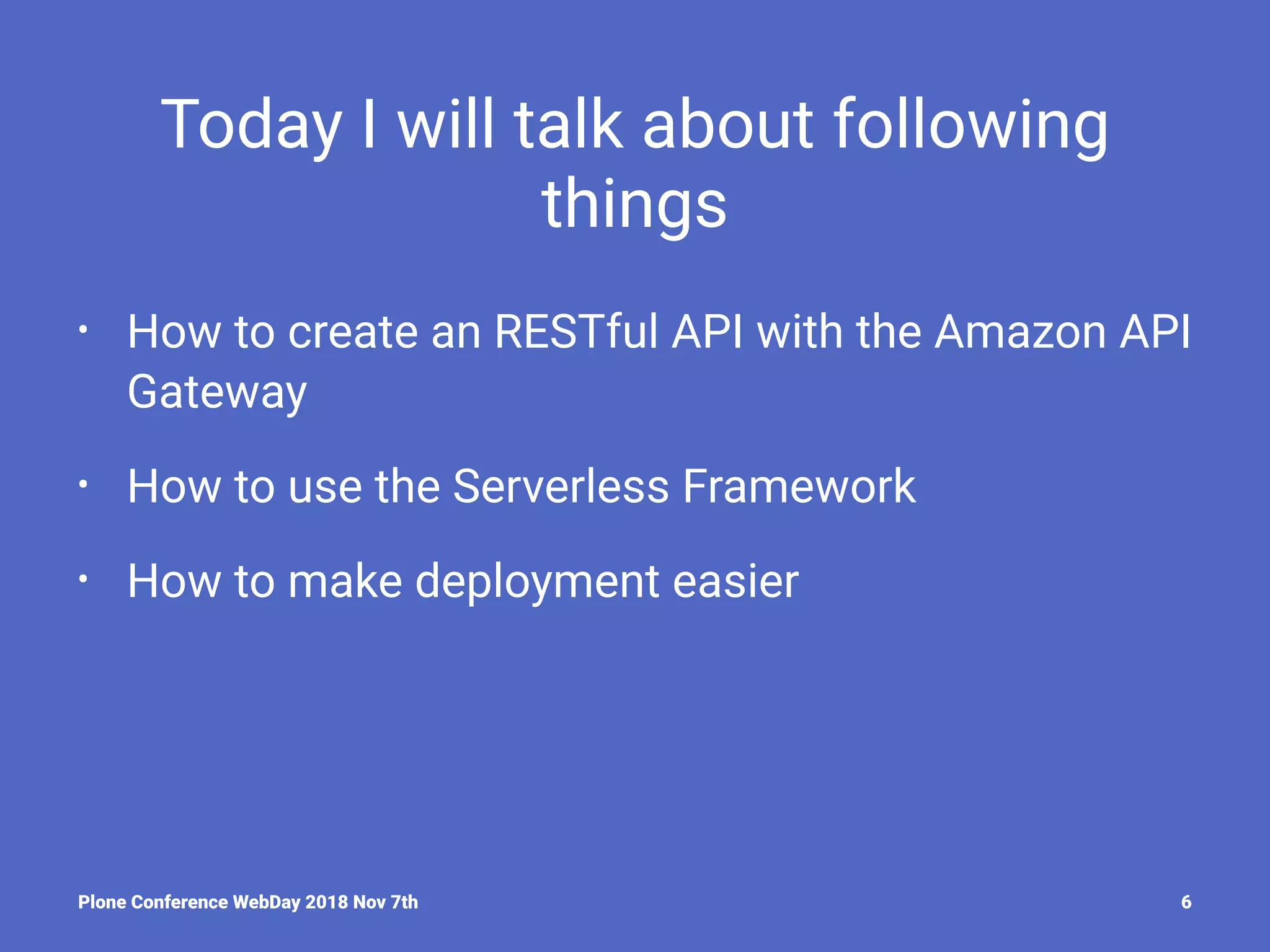

- 6. Today I willtalk about following things • How to create an RESTful API with the Amazon API Gateway • How to use the Serverless Framework • How to make deployment easier Plone Conference WebDay 2018 Nov 7th 6

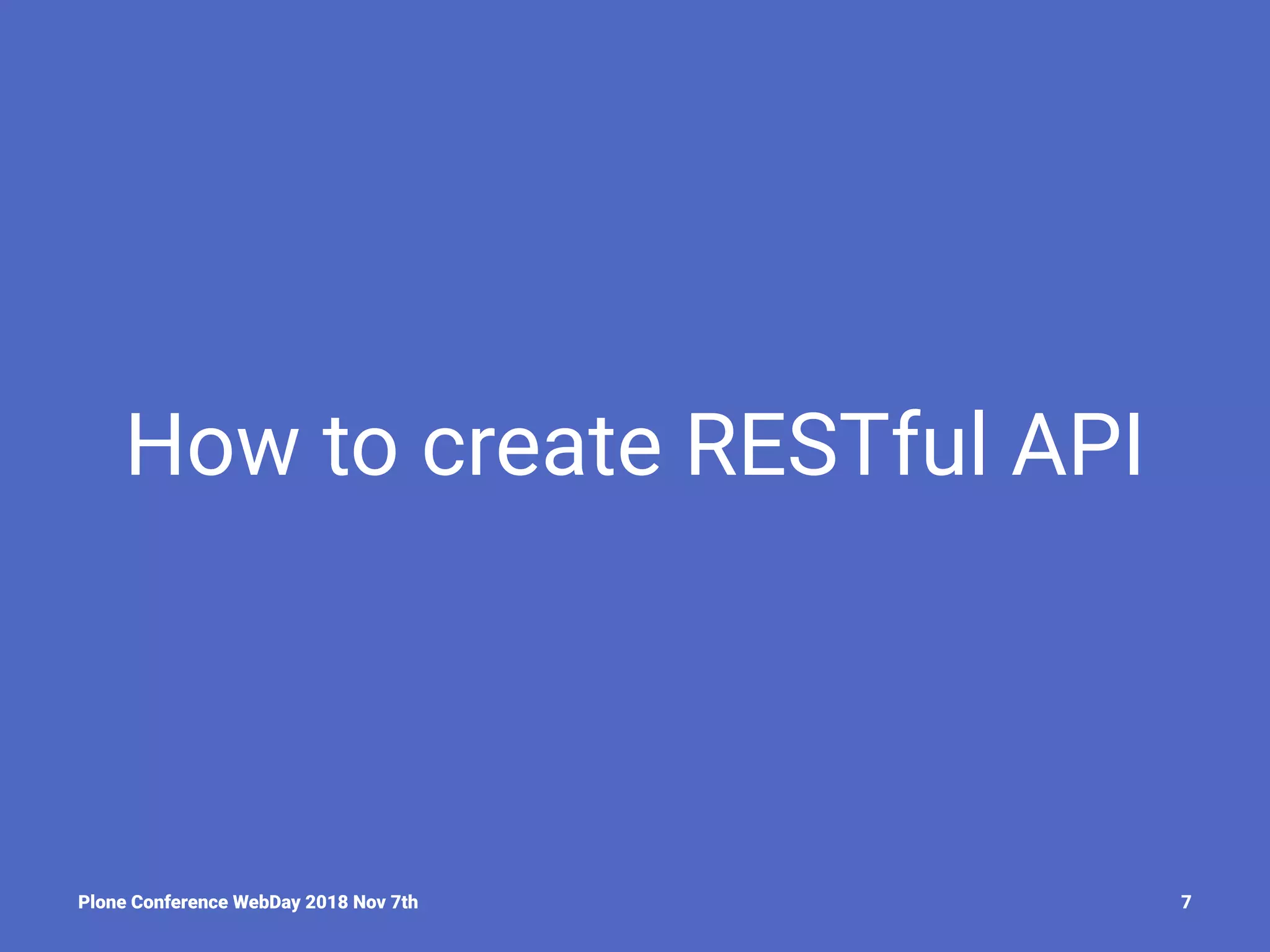

- 7. How to createRESTful API Plone Conference WebDay 2018 Nov 7th 7

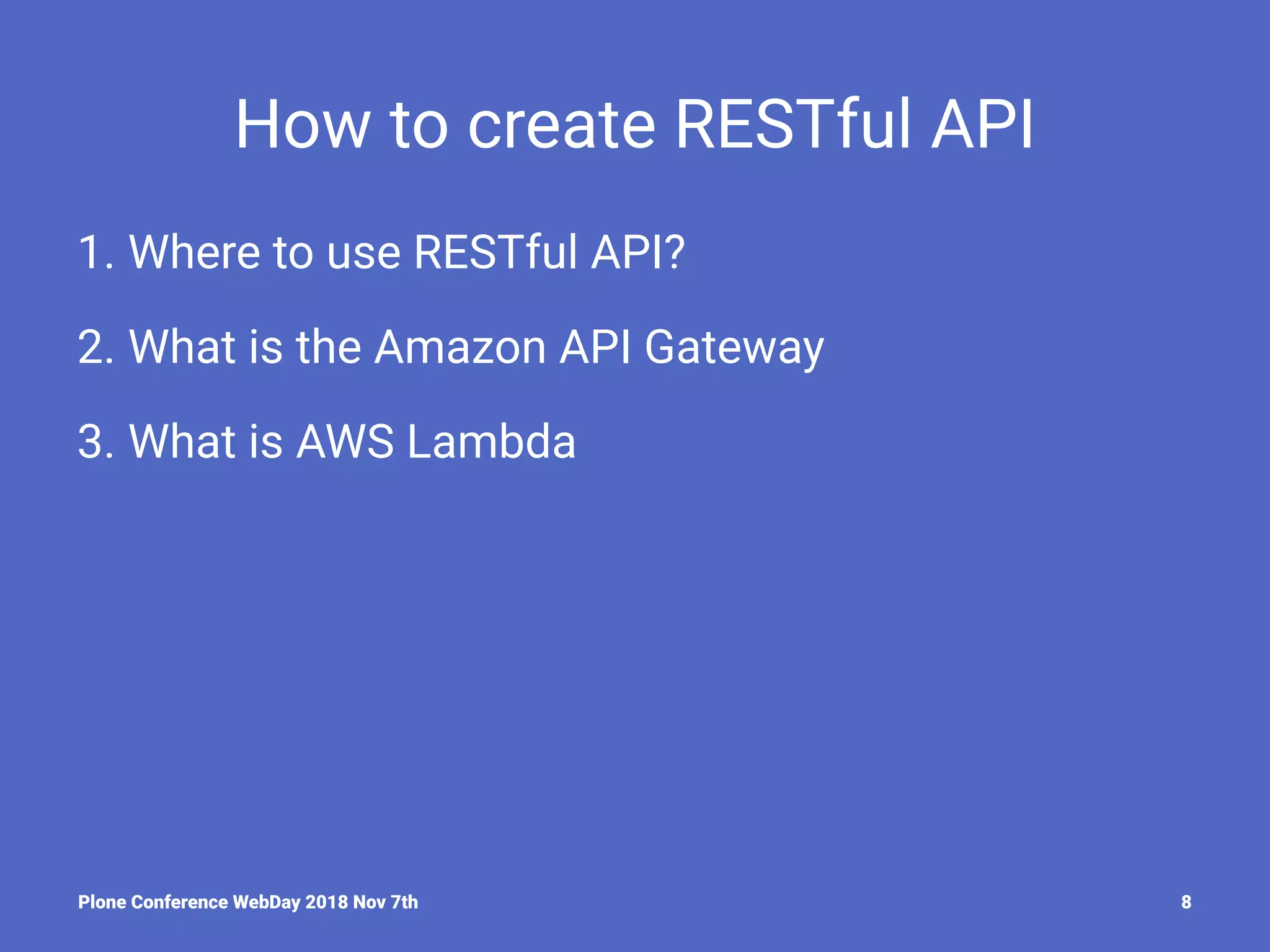

- 8. How to createRESTful API 1. Where to use RESTful API? 2. What is the Amazon API Gateway 3. What is AWS Lambda Plone Conference WebDay 2018 Nov 7th 8

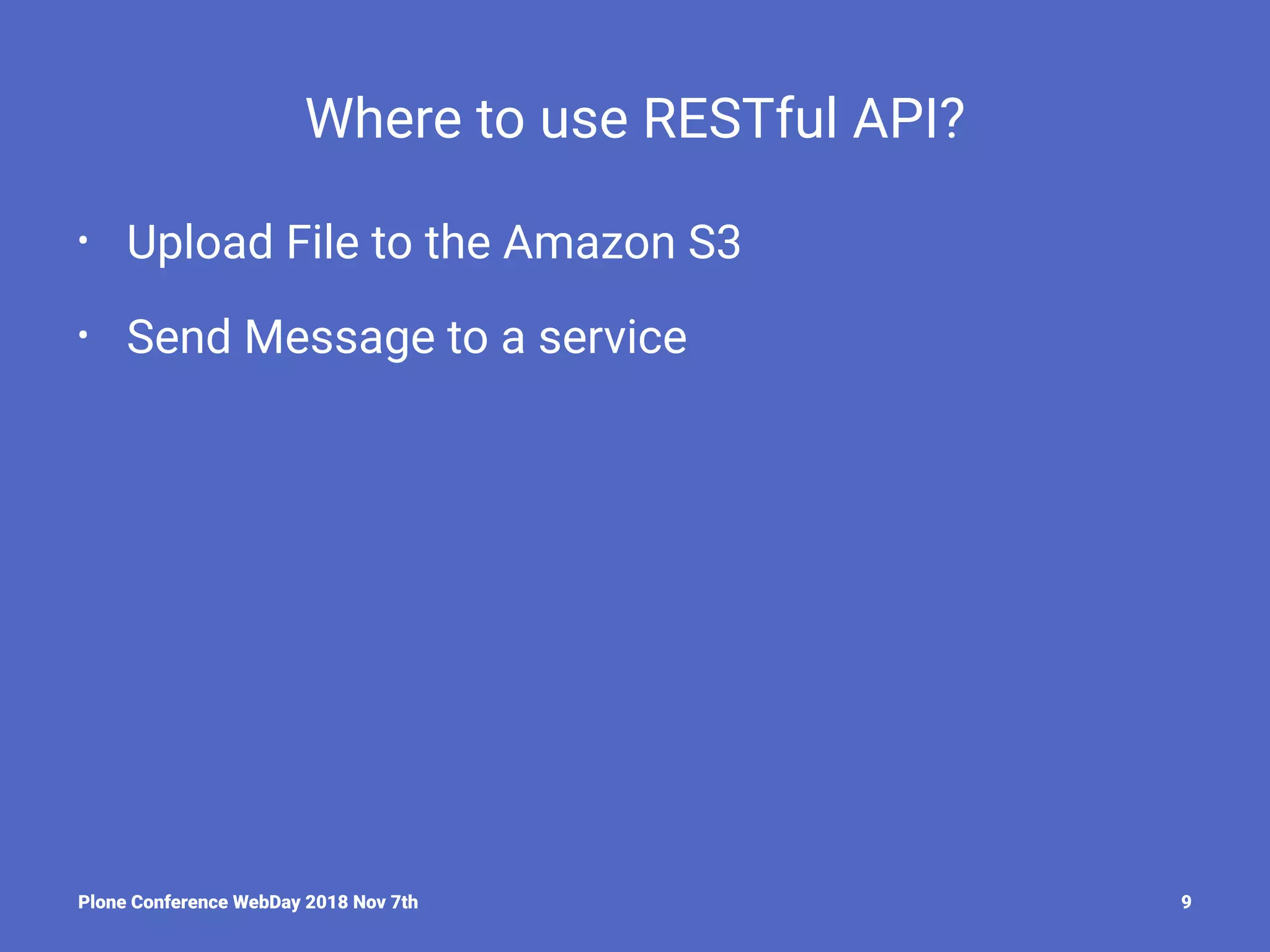

- 9. Where to useRESTful API? • Upload File to the Amazon S3 • Send Message to a service Plone Conference WebDay 2018 Nov 7th 9

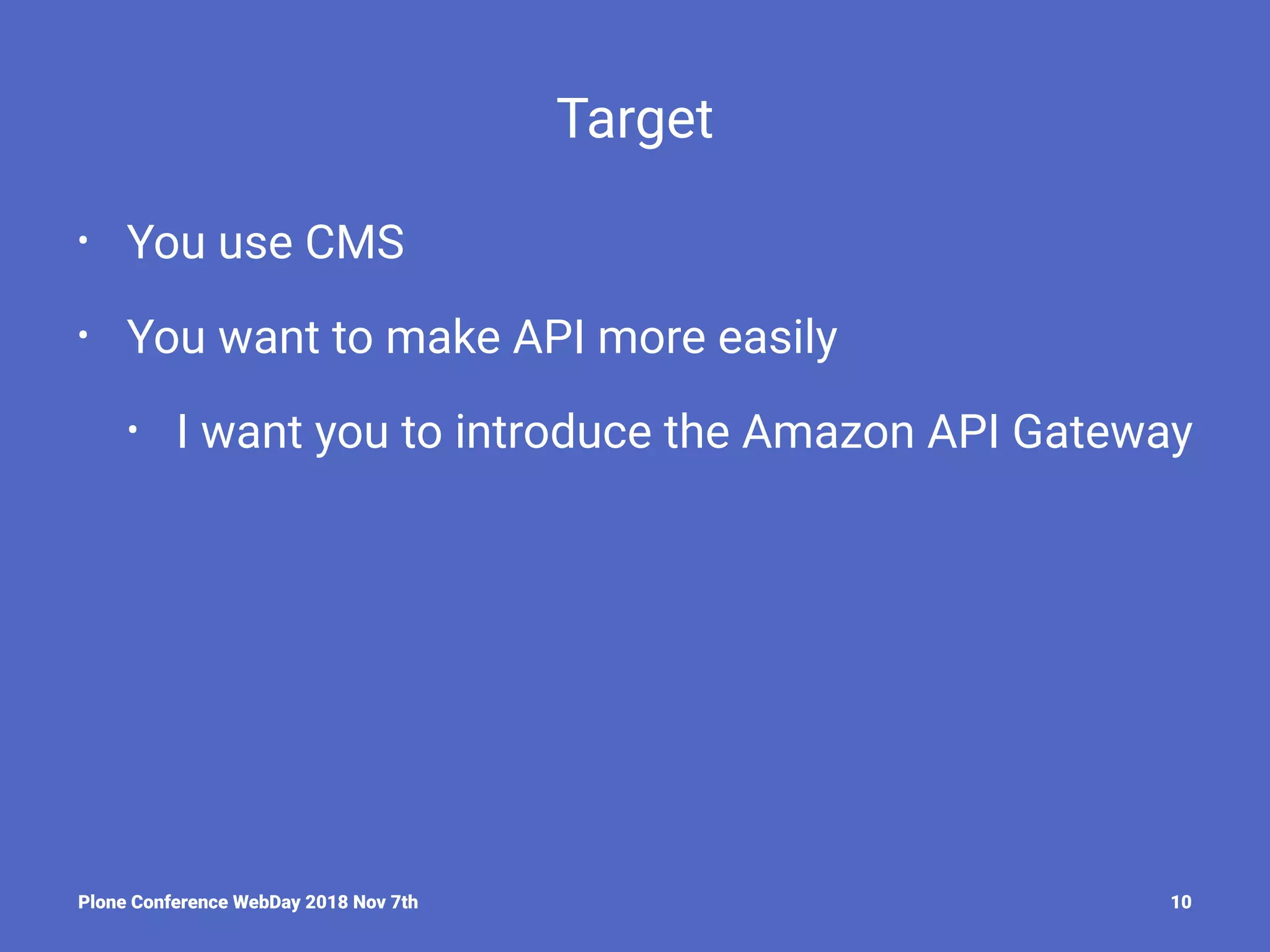

- 10. Target • You useCMS • You want to make API more easily • I want you to introduce the Amazon API Gateway Plone Conference WebDay 2018 Nov 7th 10

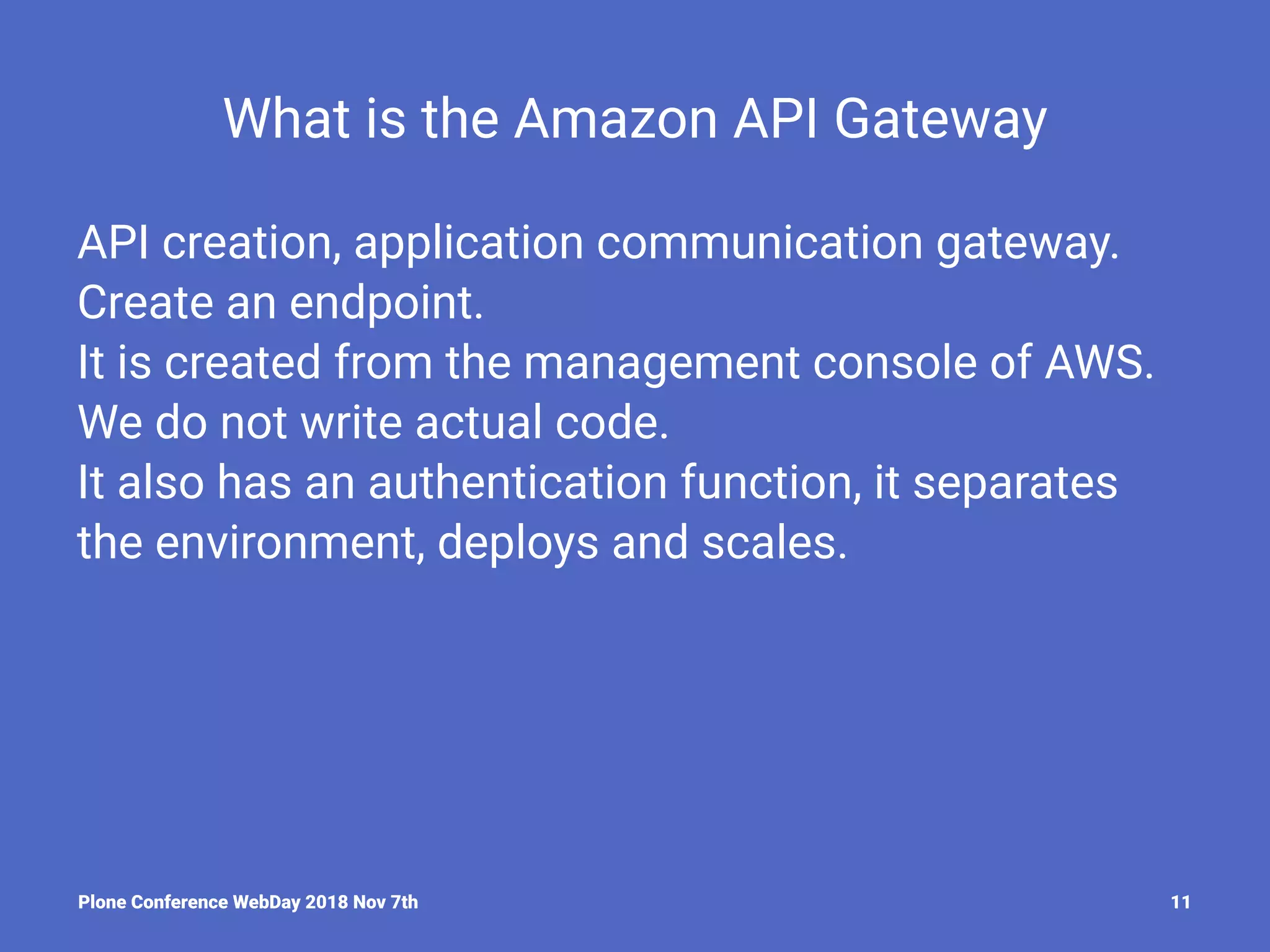

- 11. What is theAmazon API Gateway API creation, application communication gateway. Create an endpoint. It is created from the management console of AWS. We do not write actual code. It also has an authentication function, it separates the environment, deploys and scales. Plone Conference WebDay 2018 Nov 7th 11

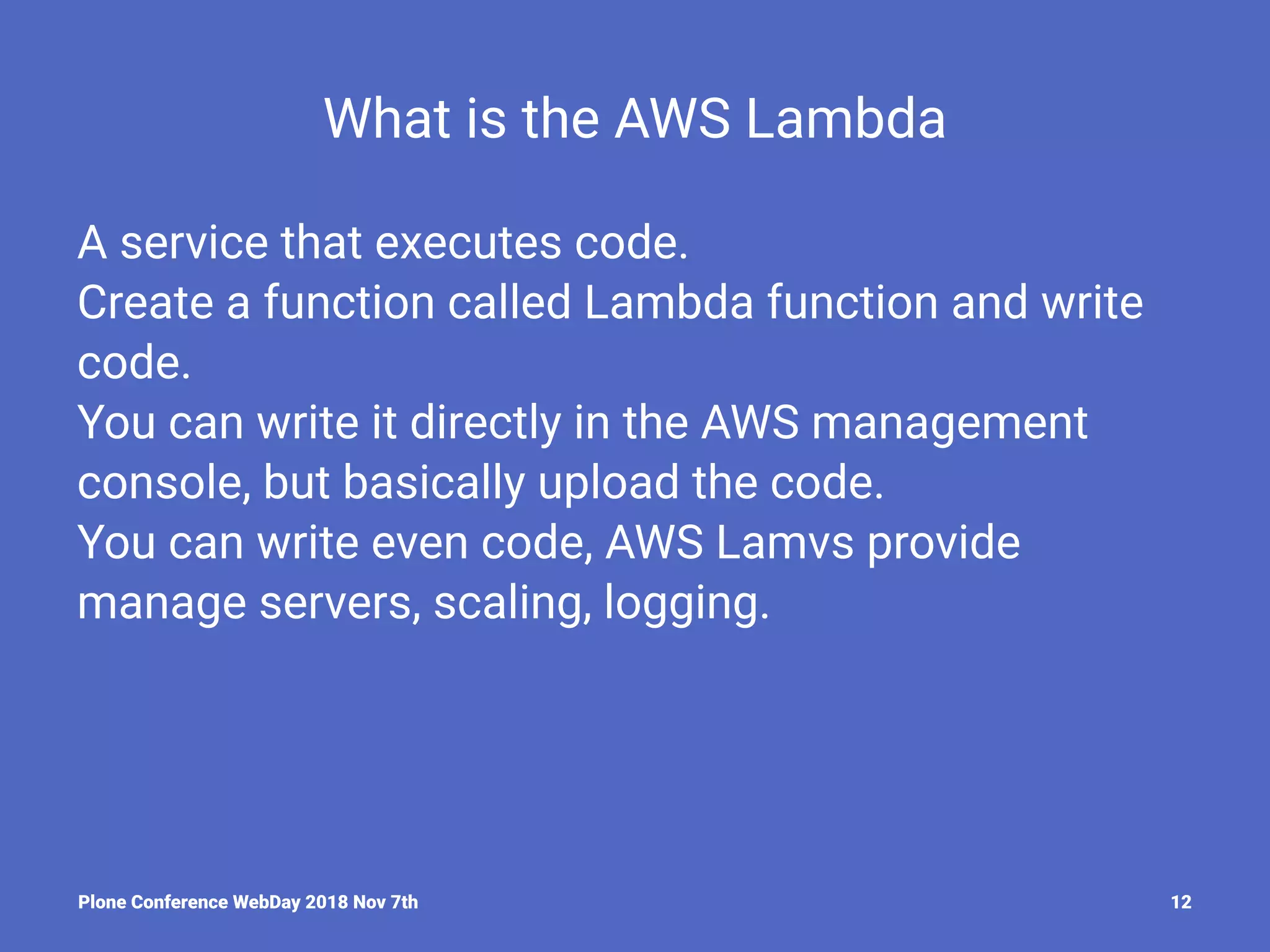

- 12. What is theAWS Lambda A service that executes code. Create a function called Lambda function and write code. You can write it directly in the AWS management console, but basically upload the code. You can write even code, AWS Lamvs provide manage servers, scaling, logging. Plone Conference WebDay 2018 Nov 7th 12

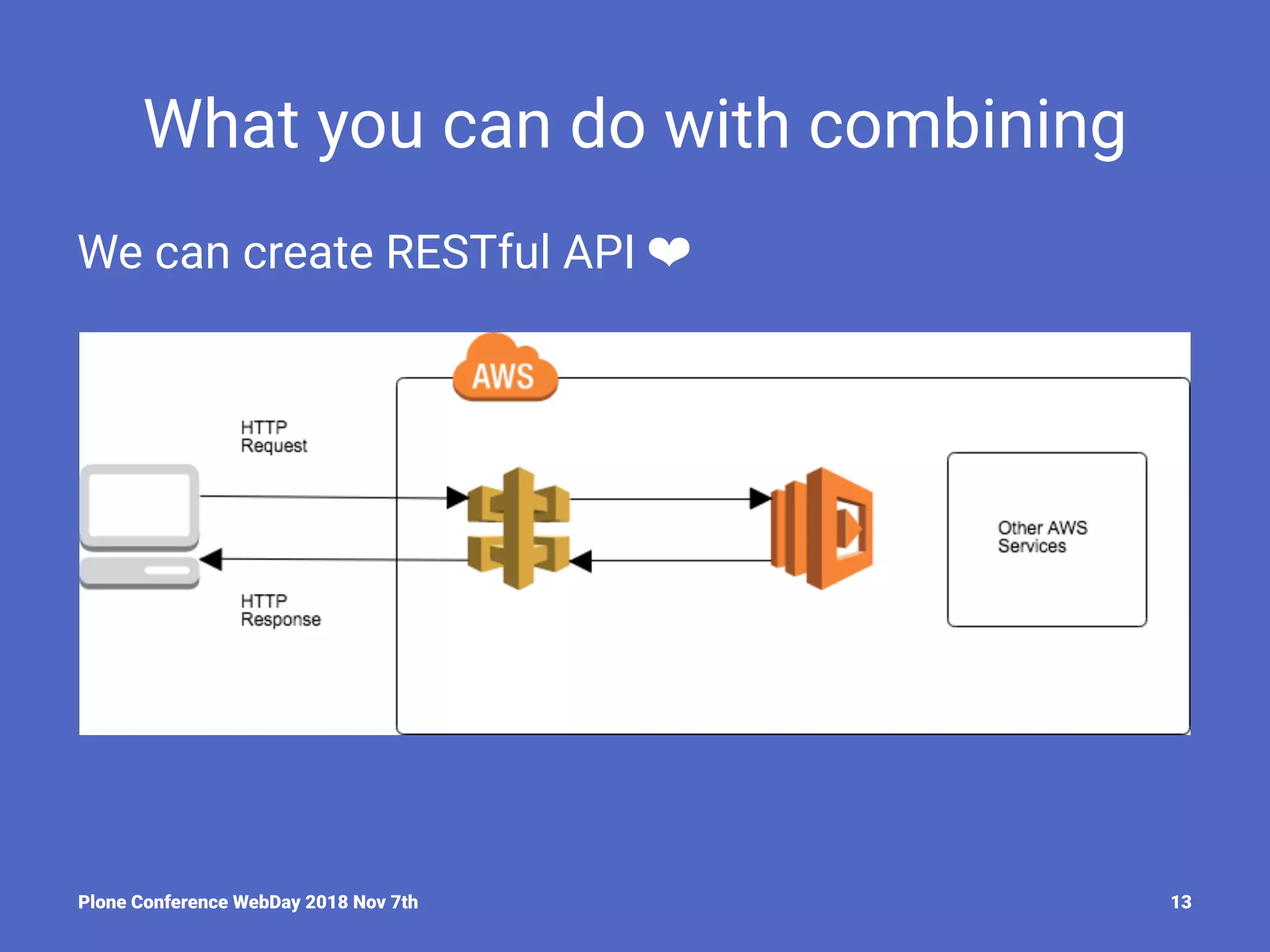

- 13. What you cando with combining We can create RESTful API ❤ Plone Conference WebDay 2018 Nov 7th 13

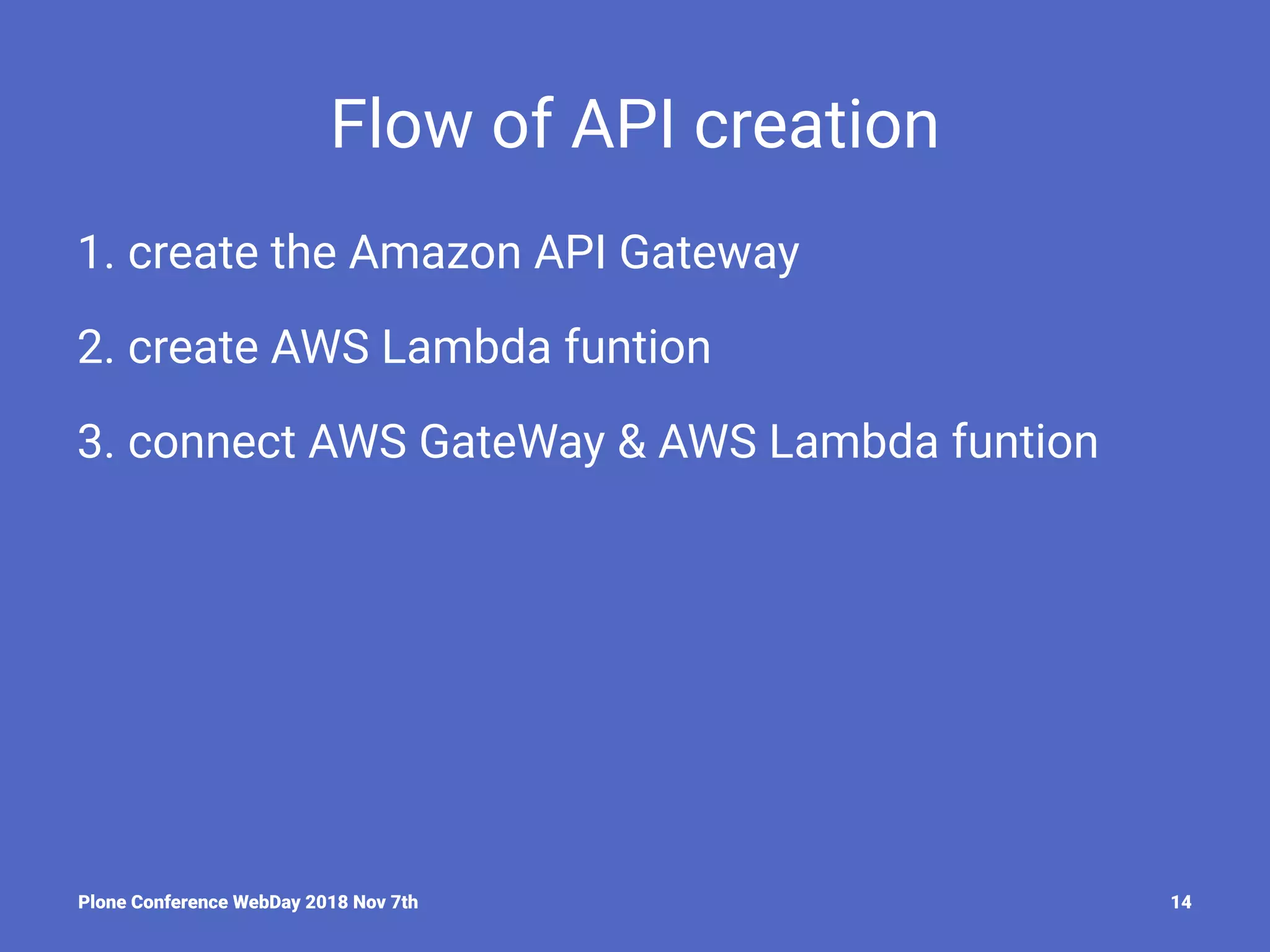

- 14. Flow of APIcreation 1. create the Amazon API Gateway 2. create AWS Lambda funtion 3. connect AWS GateWay & AWS Lambda funtion Plone Conference WebDay 2018 Nov 7th 14

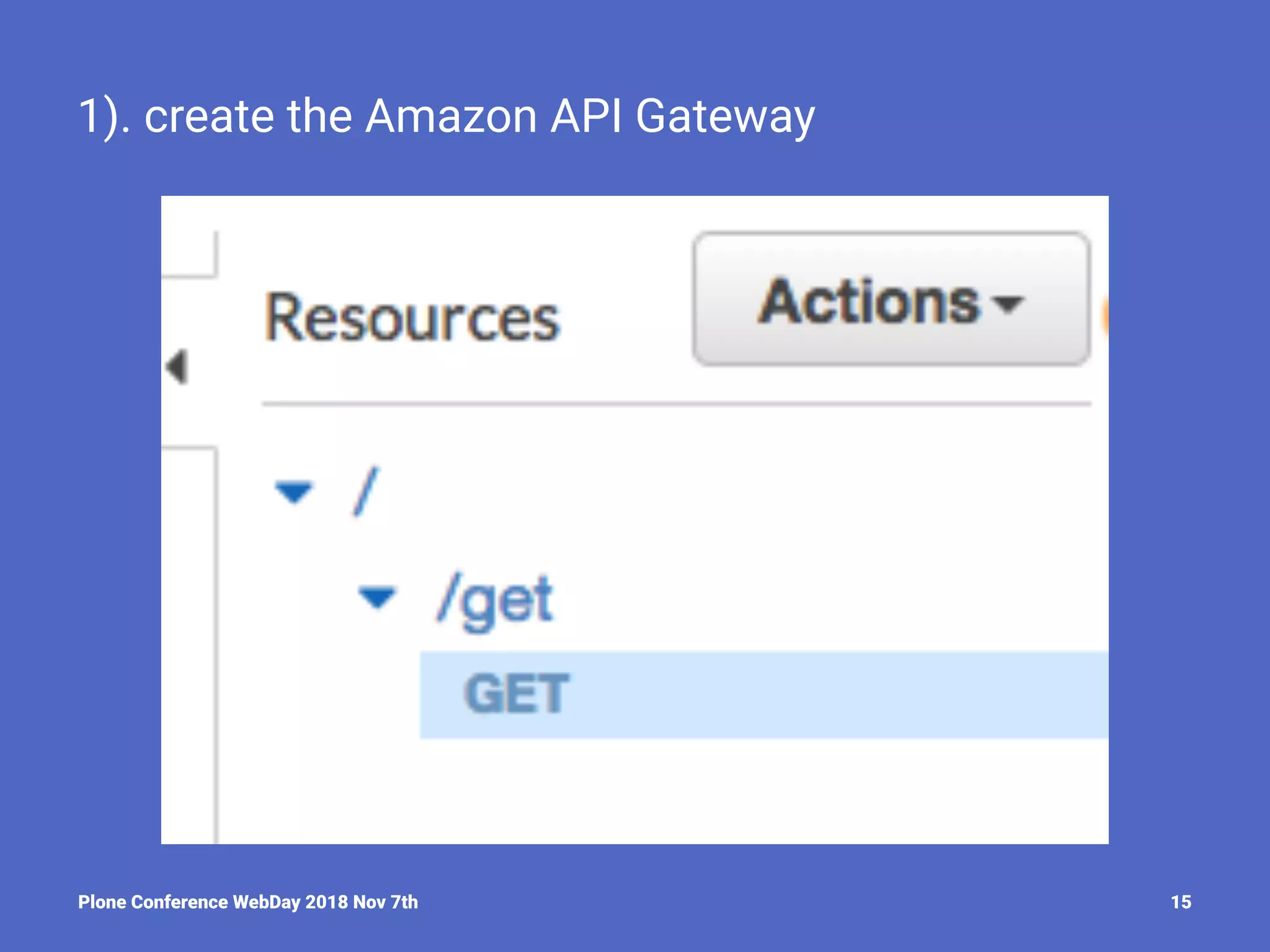

- 15. 1). create theAmazon API Gateway Plone Conference WebDay 2018 Nov 7th 15

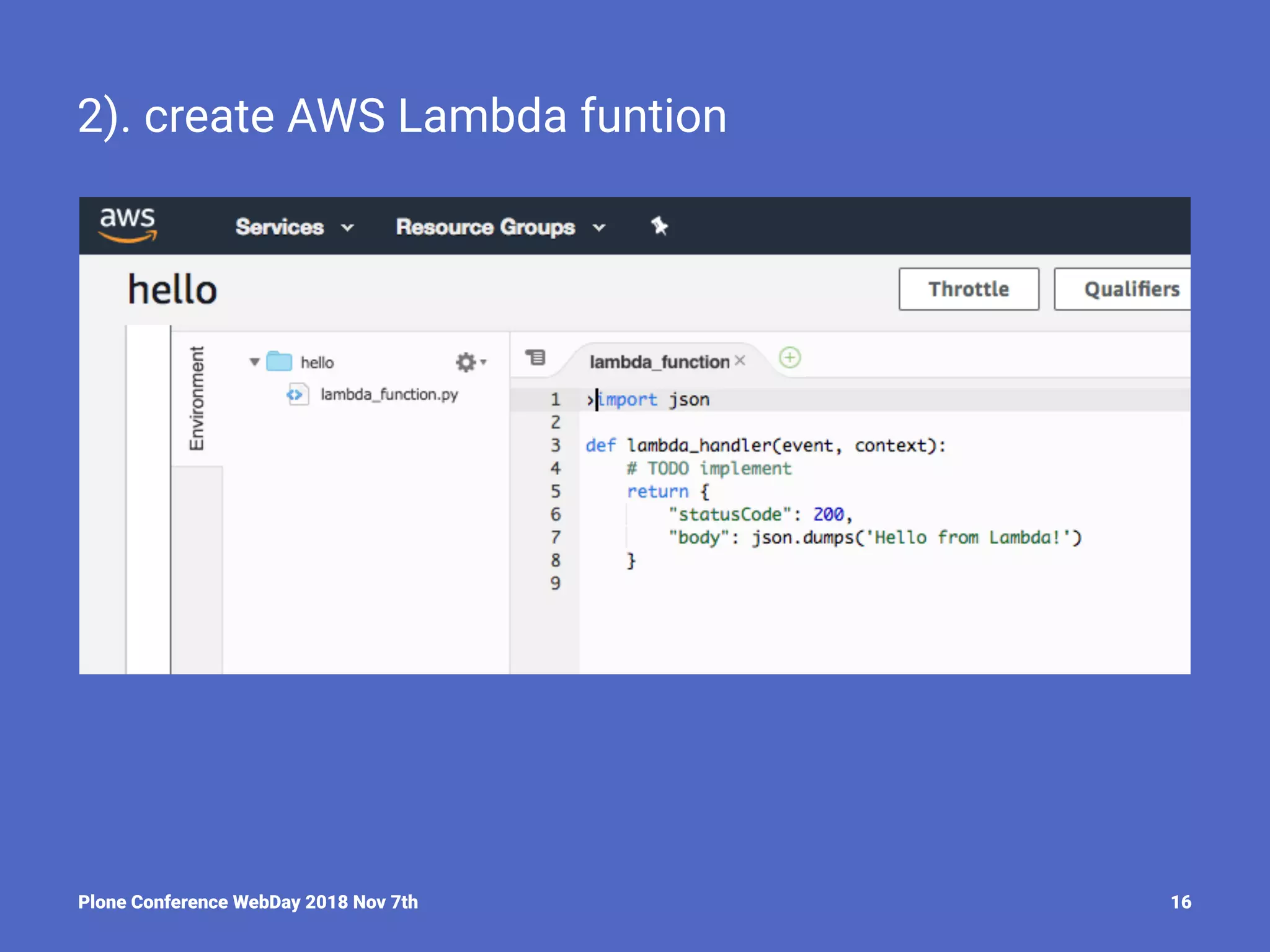

- 16. 2). create AWSLambda funtion Plone Conference WebDay 2018 Nov 7th 16

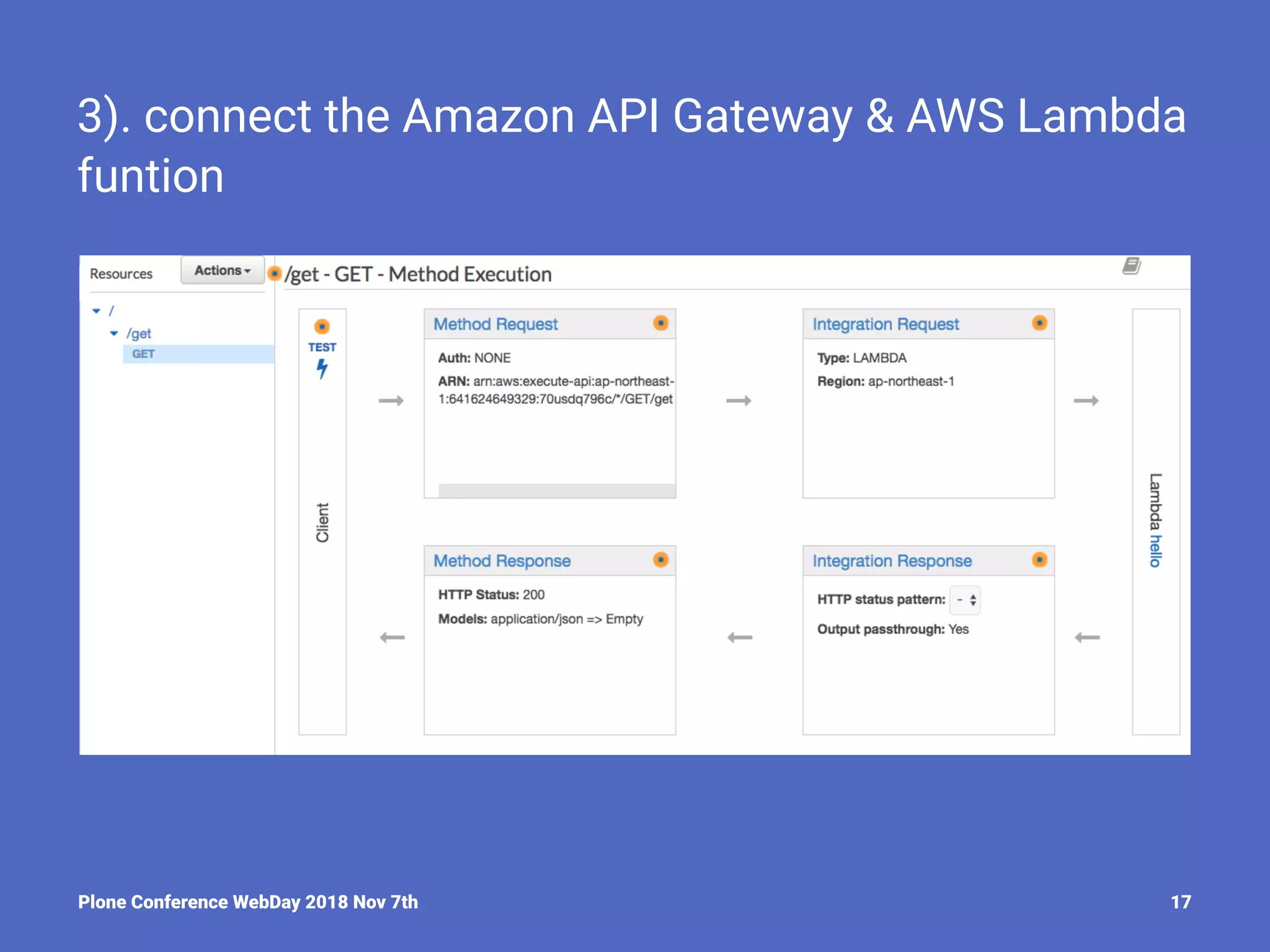

- 17. 3). connect theAmazon API Gateway & AWS Lambda funtion Plone Conference WebDay 2018 Nov 7th 17

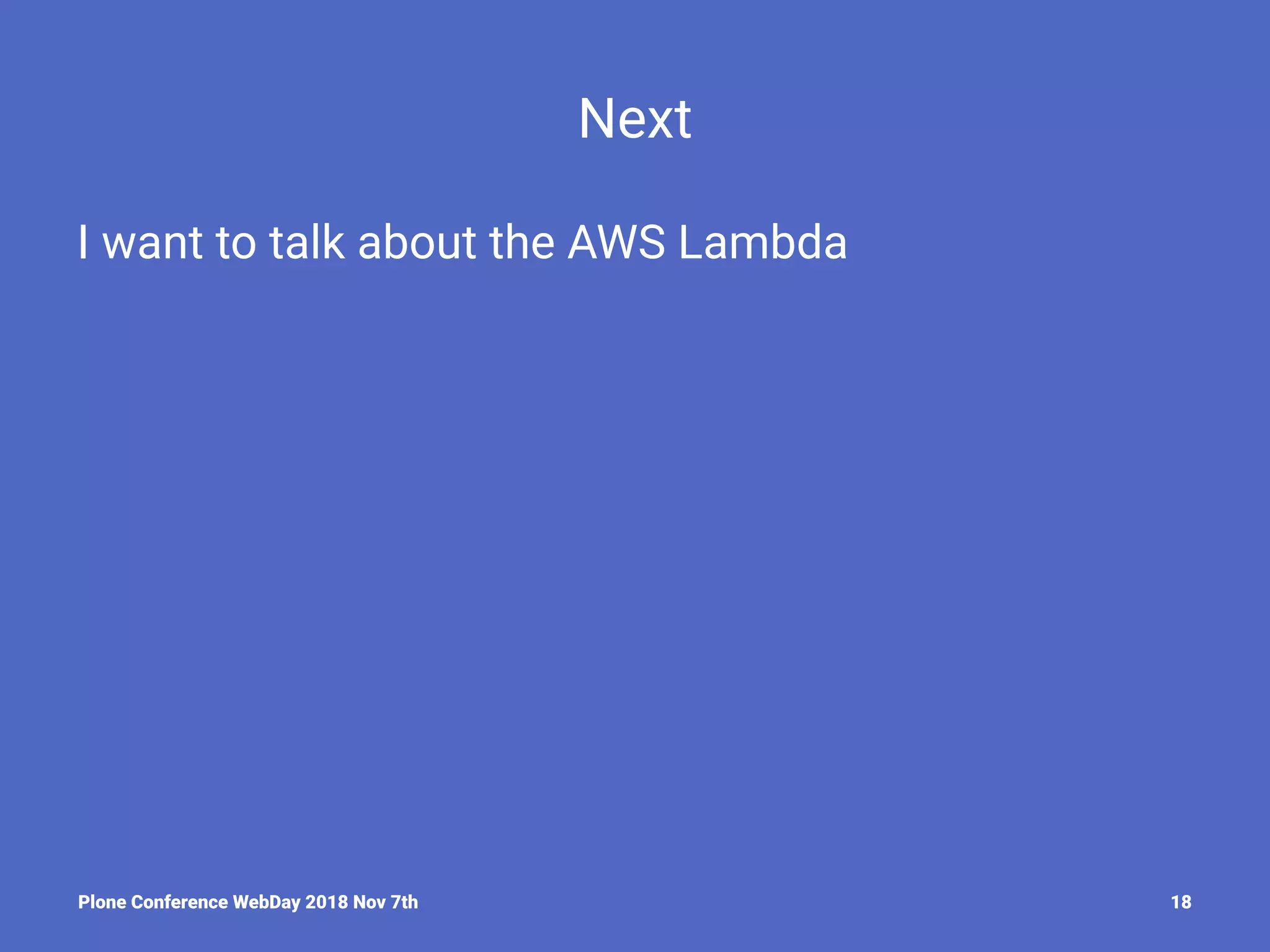

- 18. Next I want totalk about the AWS Lambda Plone Conference WebDay 2018 Nov 7th 18

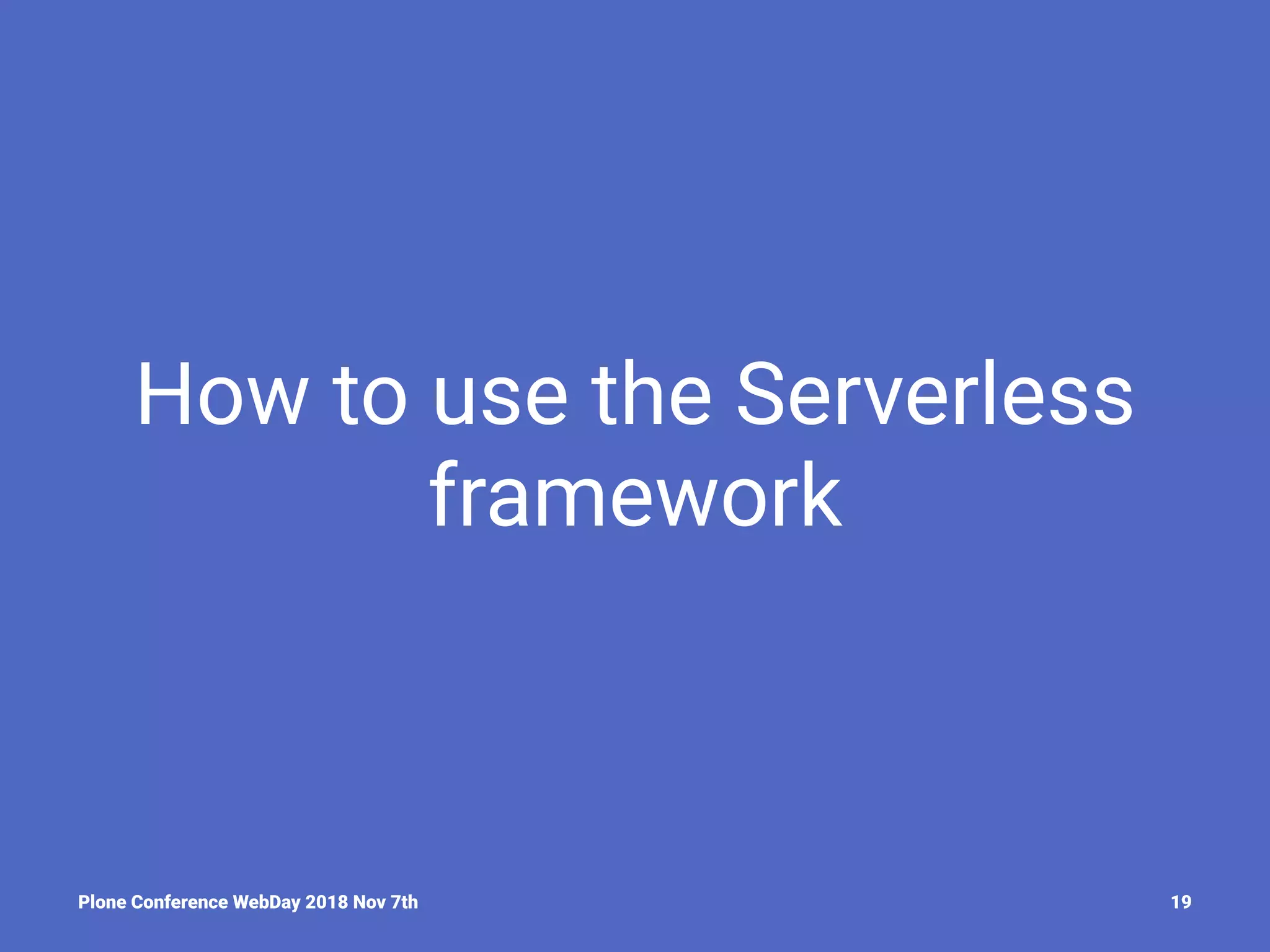

- 19. How to usethe Serverless framework Plone Conference WebDay 2018 Nov 7th 19

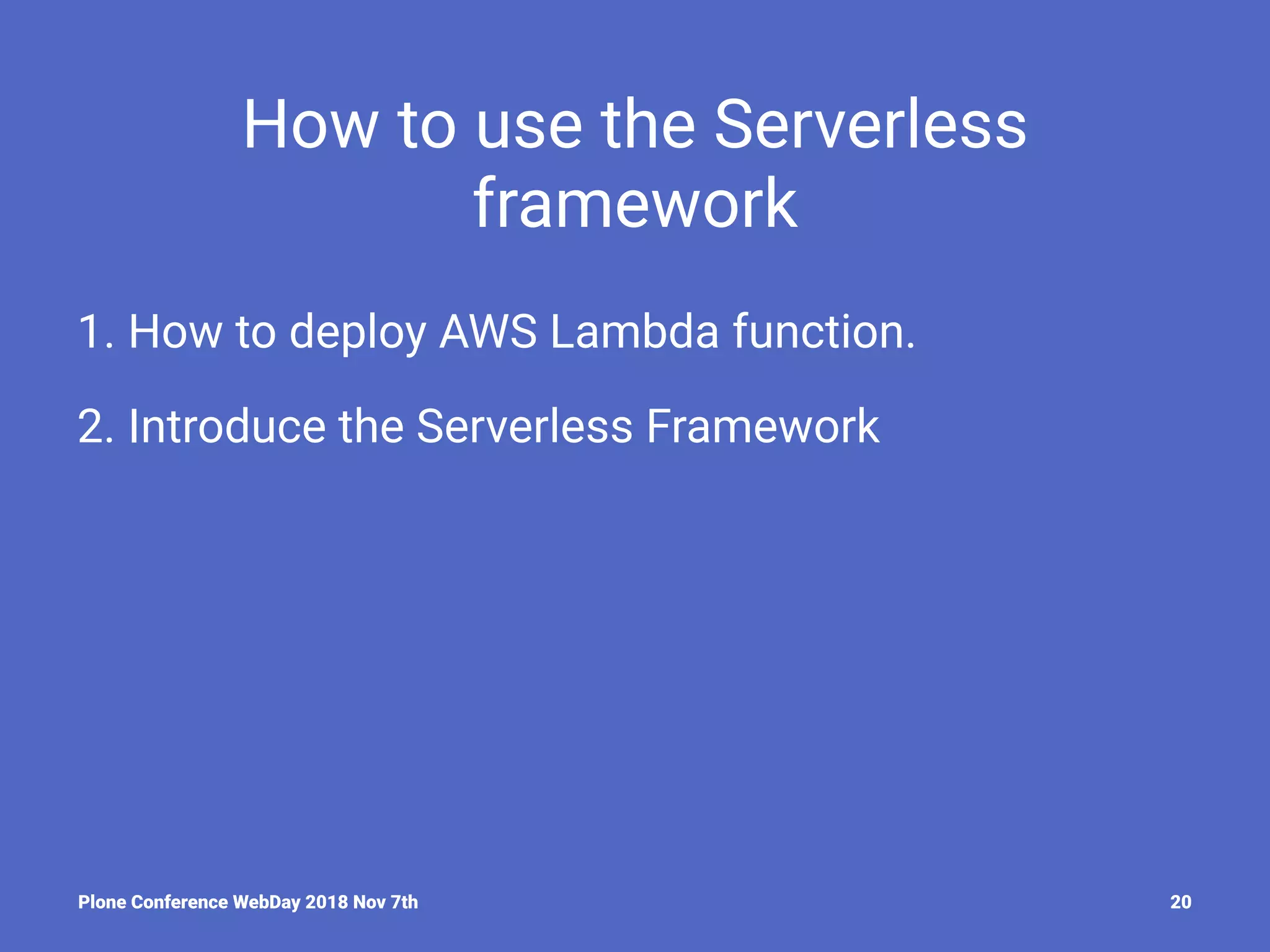

- 20. How to usethe Serverless framework 1. How to deploy AWS Lambda function. 2. Introduce the Serverless Framework Plone Conference WebDay 2018 Nov 7th 20

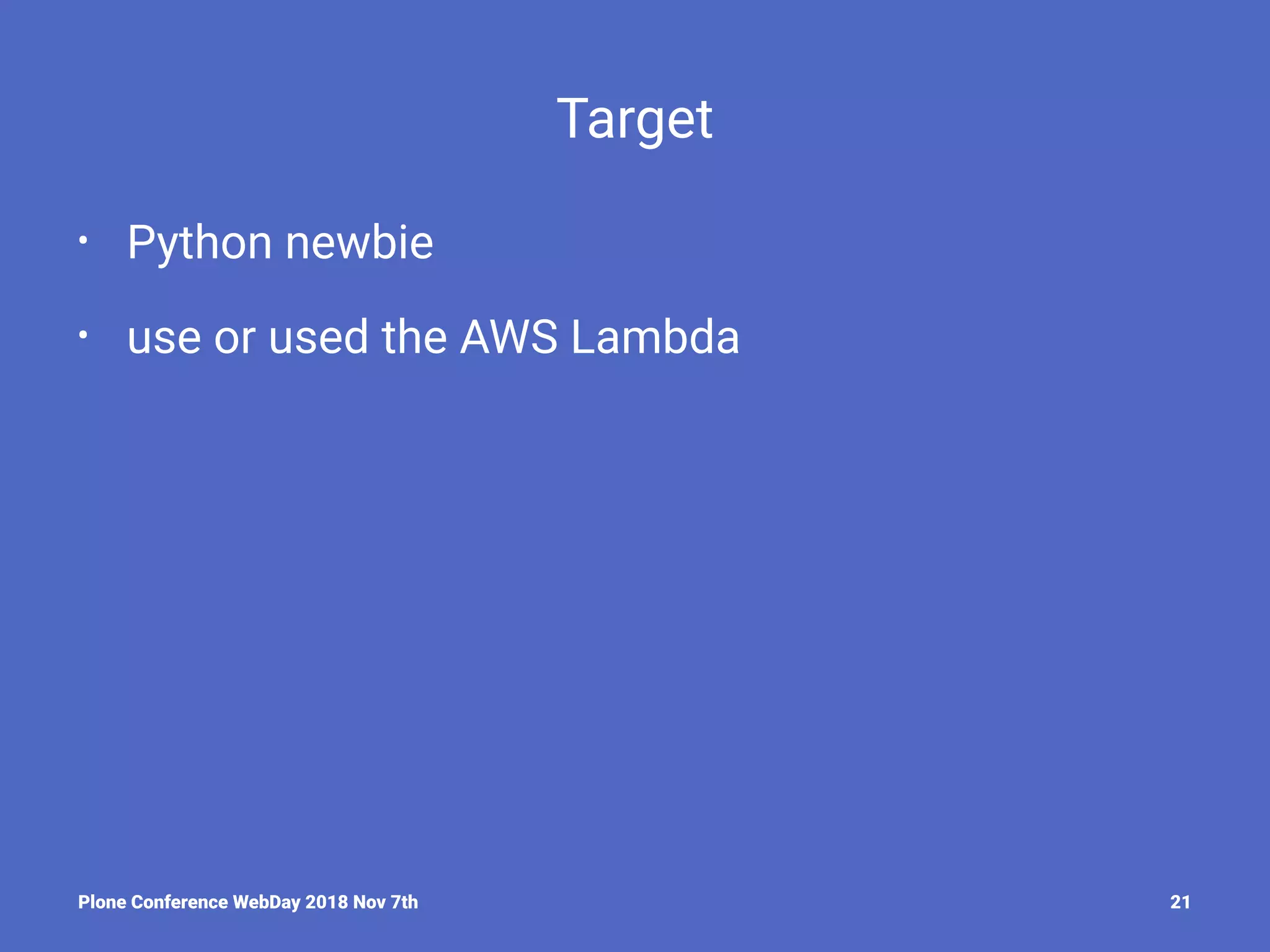

- 21. Target • Python newbie •use or used the AWS Lambda Plone Conference WebDay 2018 Nov 7th 21

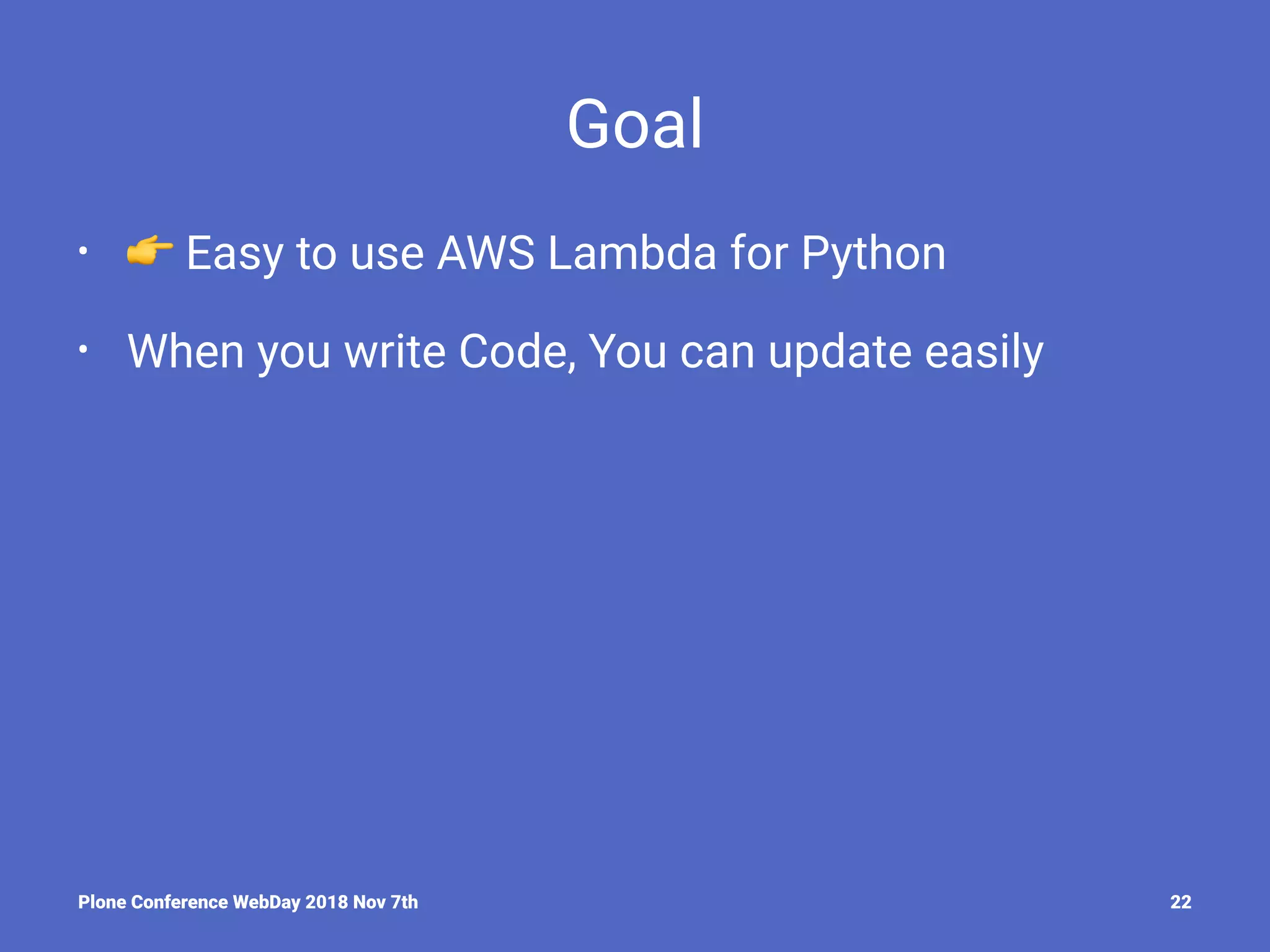

- 22. Goal • ! Easy to useAWS Lambda for Python • When you write Code, You can update easily Plone Conference WebDay 2018 Nov 7th 22

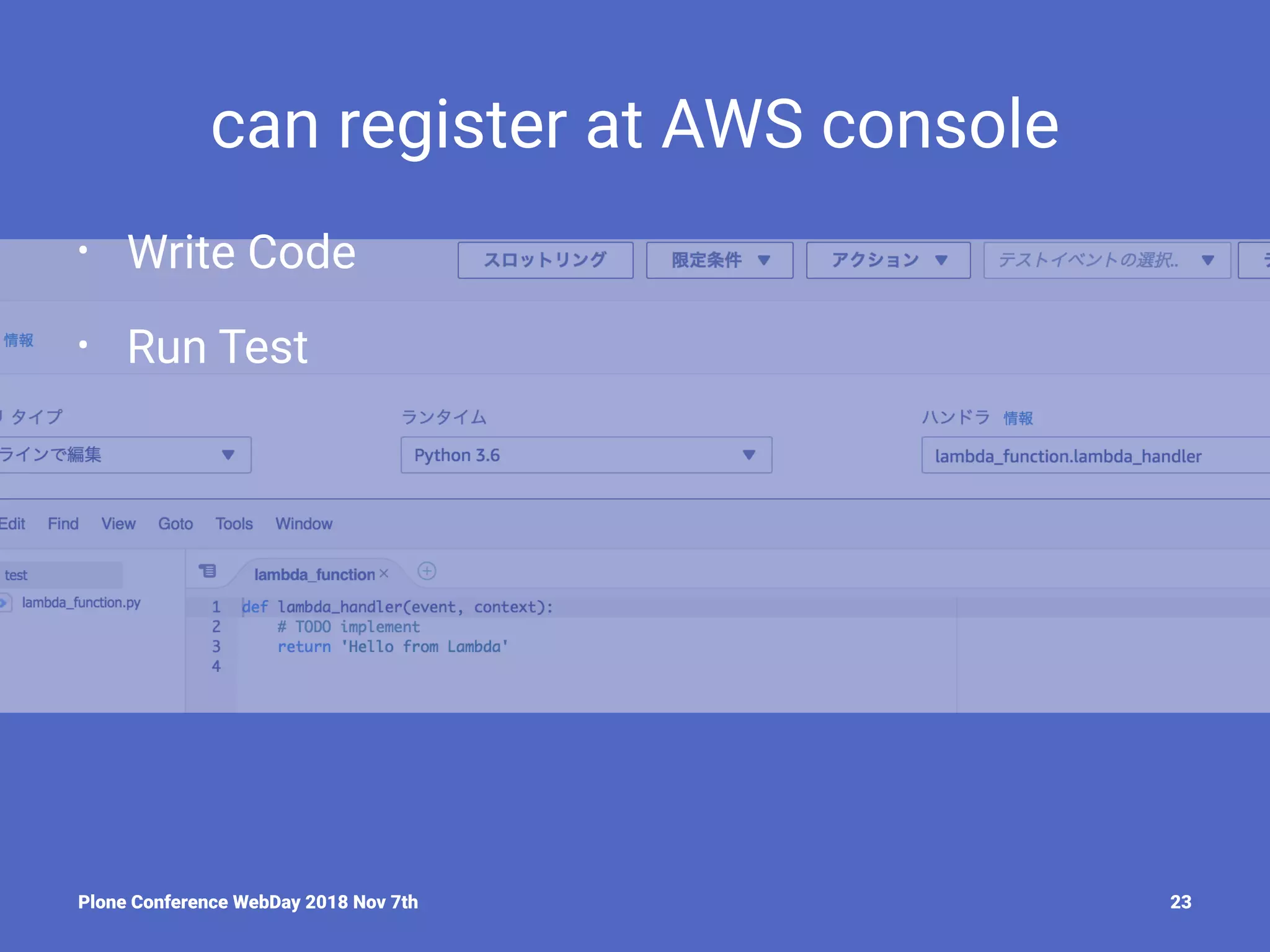

- 23. can register atAWS console • Write Code • Run Test Plone Conference WebDay 2018 Nov 7th 23

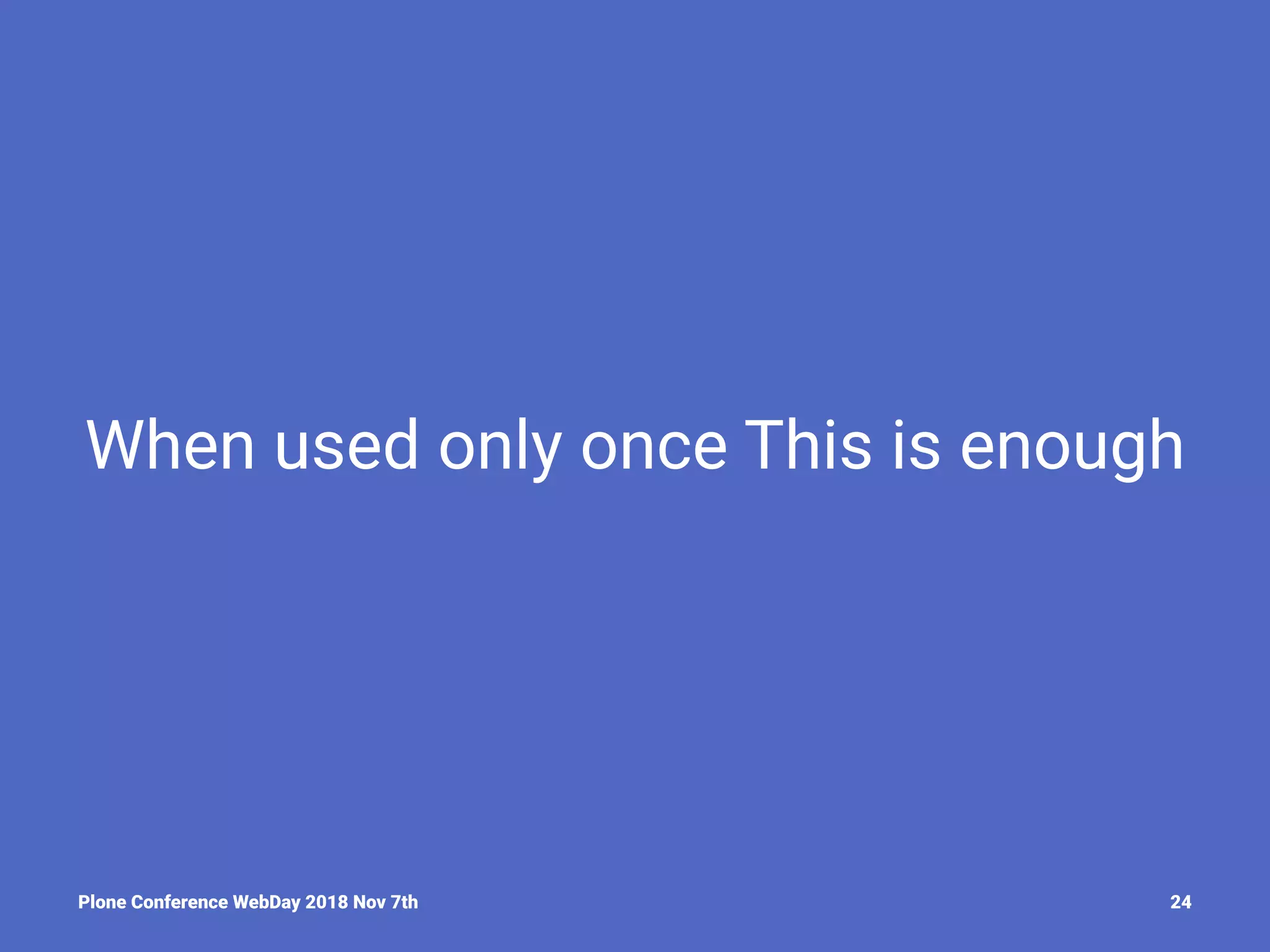

- 24. When used onlyonce This is enough Plone Conference WebDay 2018 Nov 7th 24

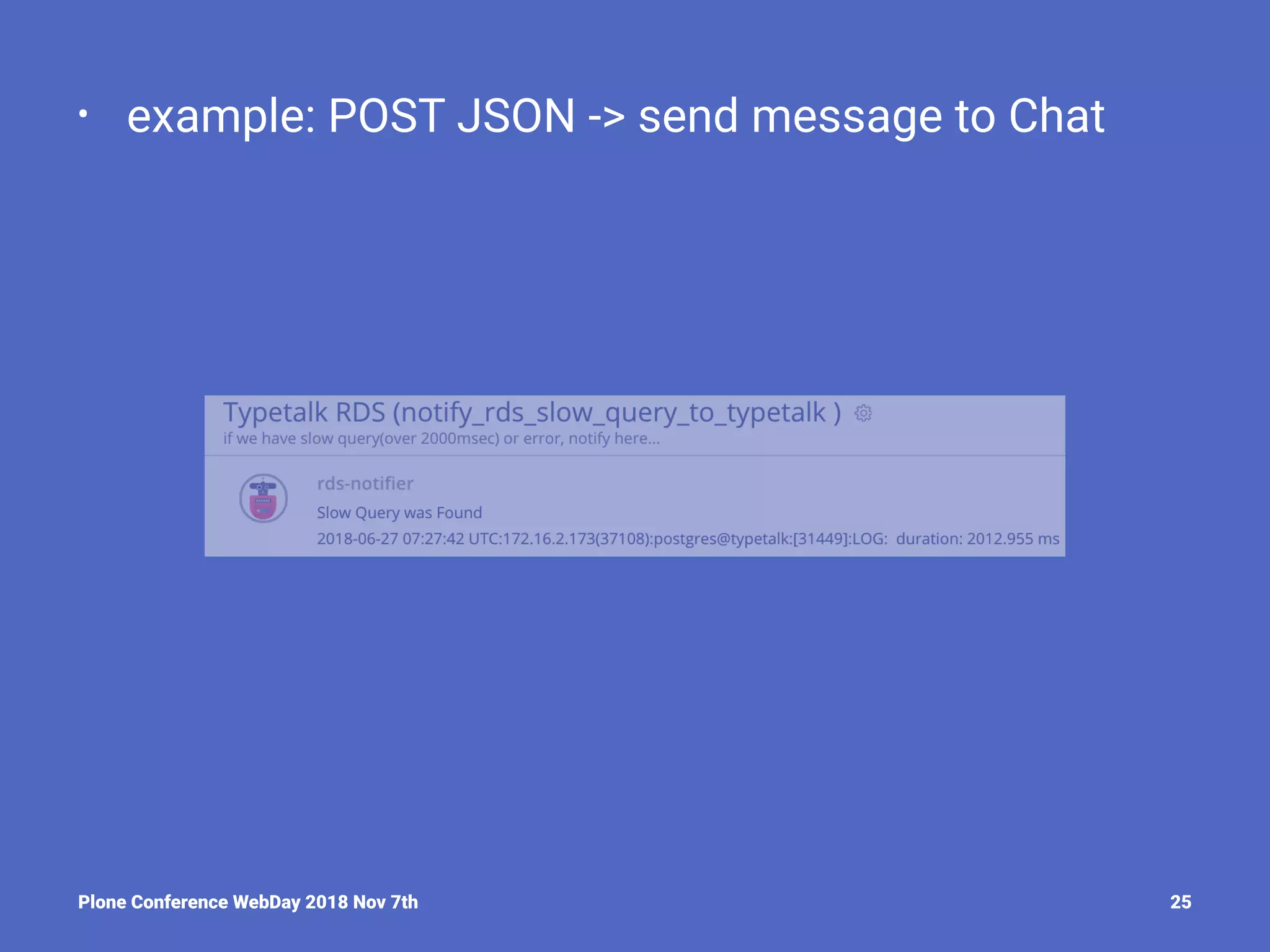

- 25. • example: POSTJSON -> send message to Chat Plone Conference WebDay 2018 Nov 7th 25

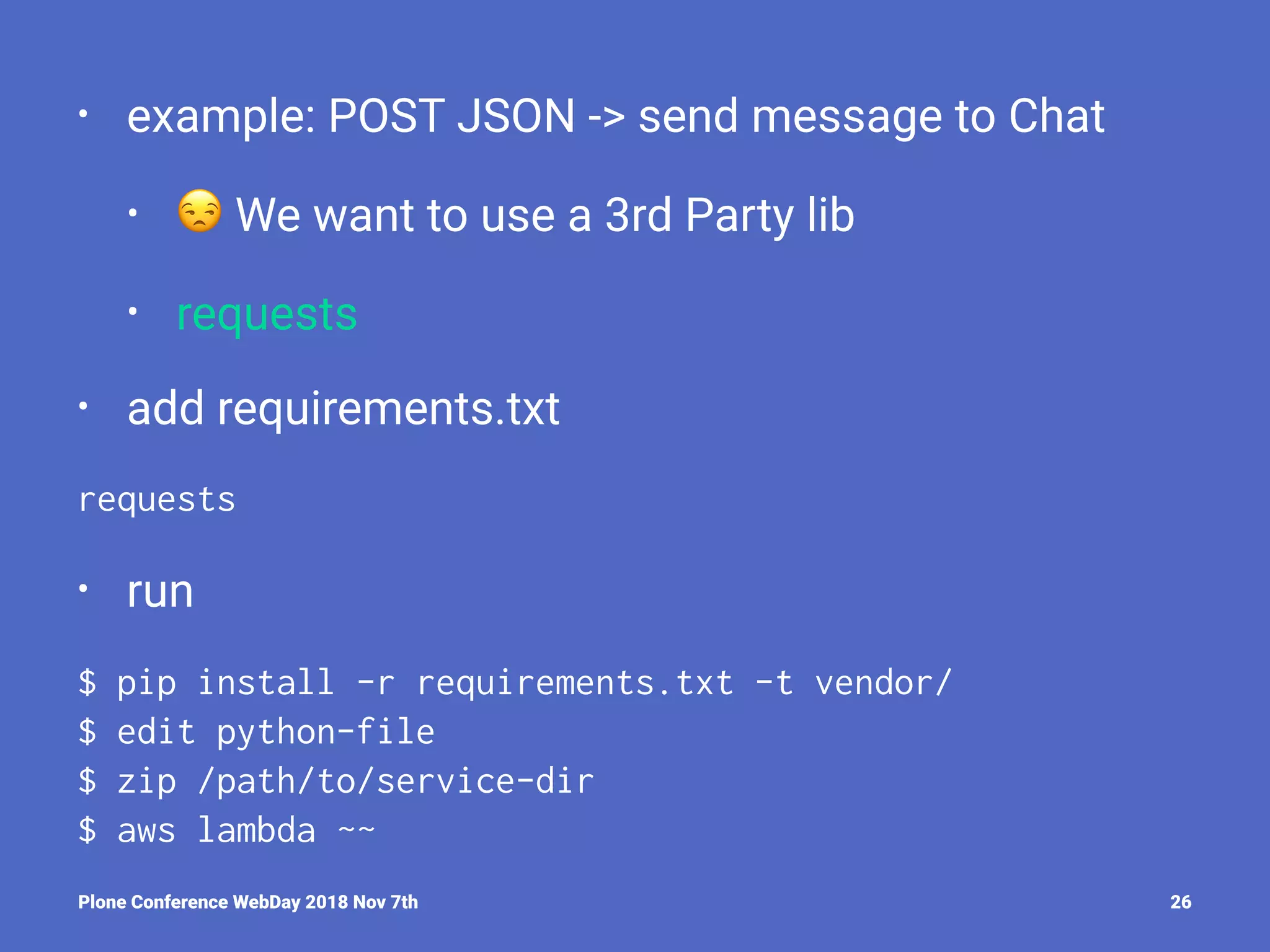

- 26. • example: POSTJSON -> send message to Chat • ! We want to use a 3rd Party lib • requests • add requirements.txt requests • run $ pip install -r requirements.txt -t vendor/ $ edit python-file $ zip /path/to/service-dir $ aws lambda ~~ Plone Conference WebDay 2018 Nov 7th 26

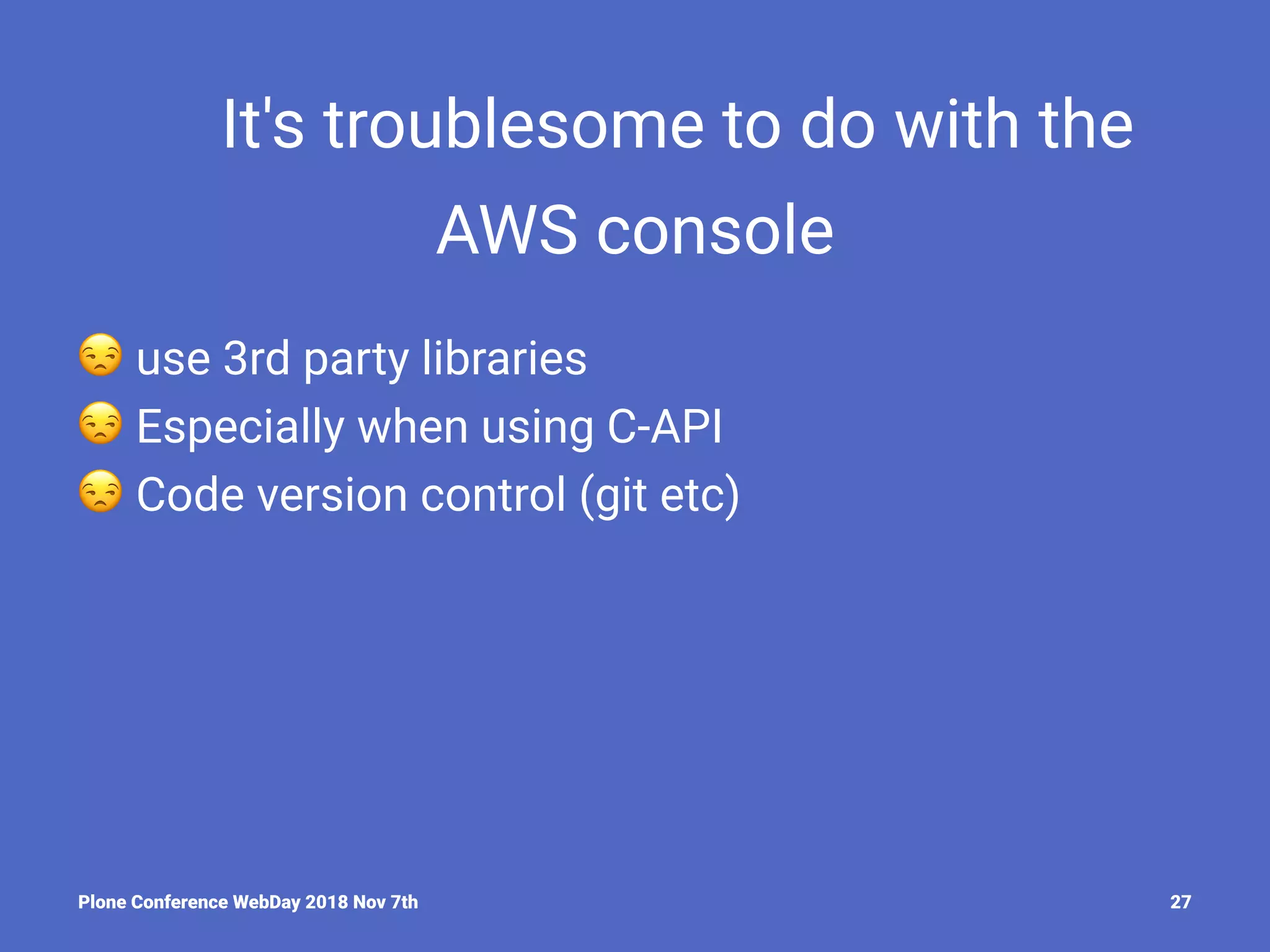

- 27. It's troublesometo do with the AWS console ! use 3rd party libraries ! Especially when using C-API ! Code version control (git etc) Plone Conference WebDay 2018 Nov 7th 27

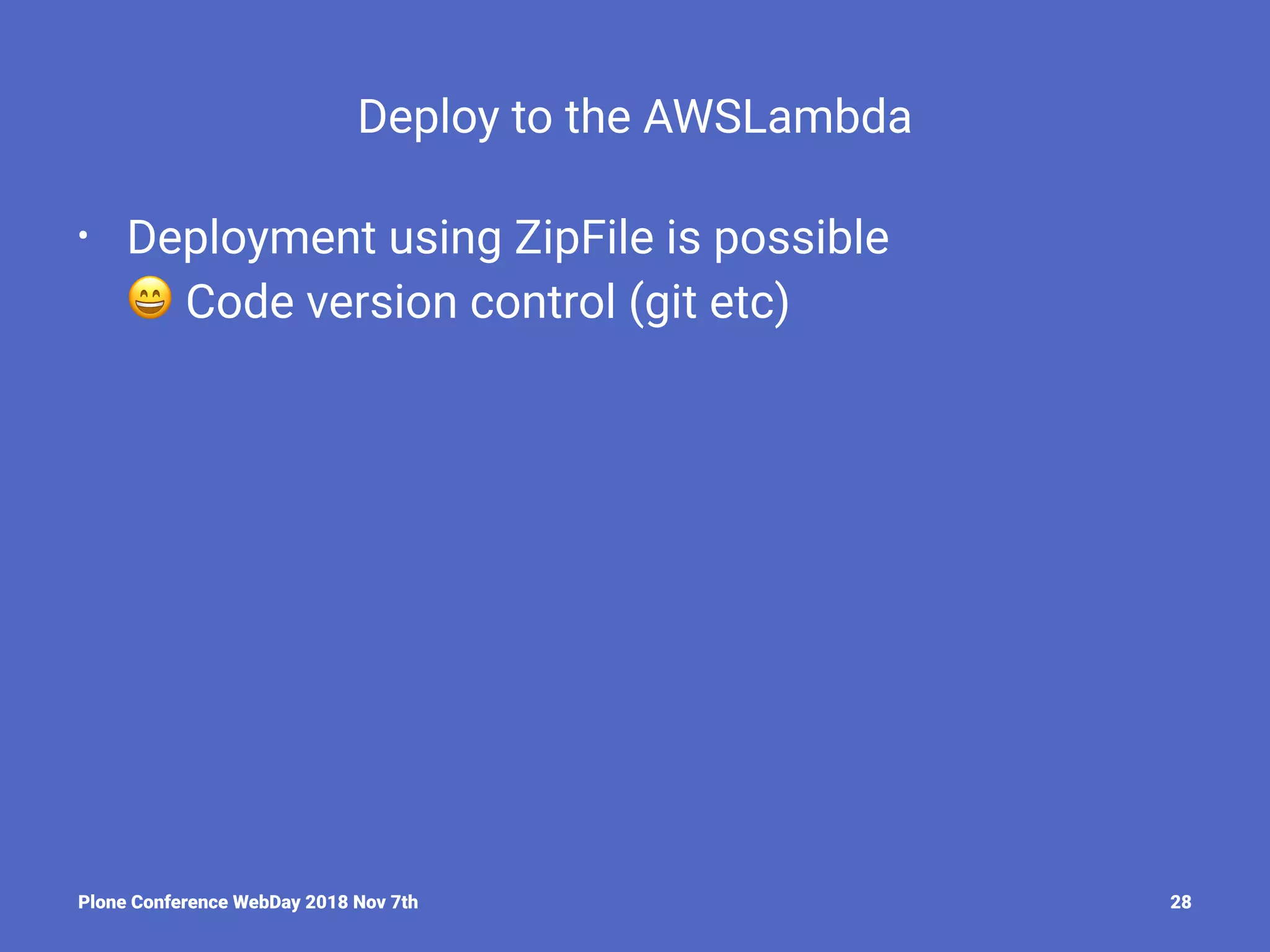

- 28. Deploy to theAWSLambda • Deployment using ZipFile is possible ! Code version control (git etc) Plone Conference WebDay 2018 Nov 7th 28

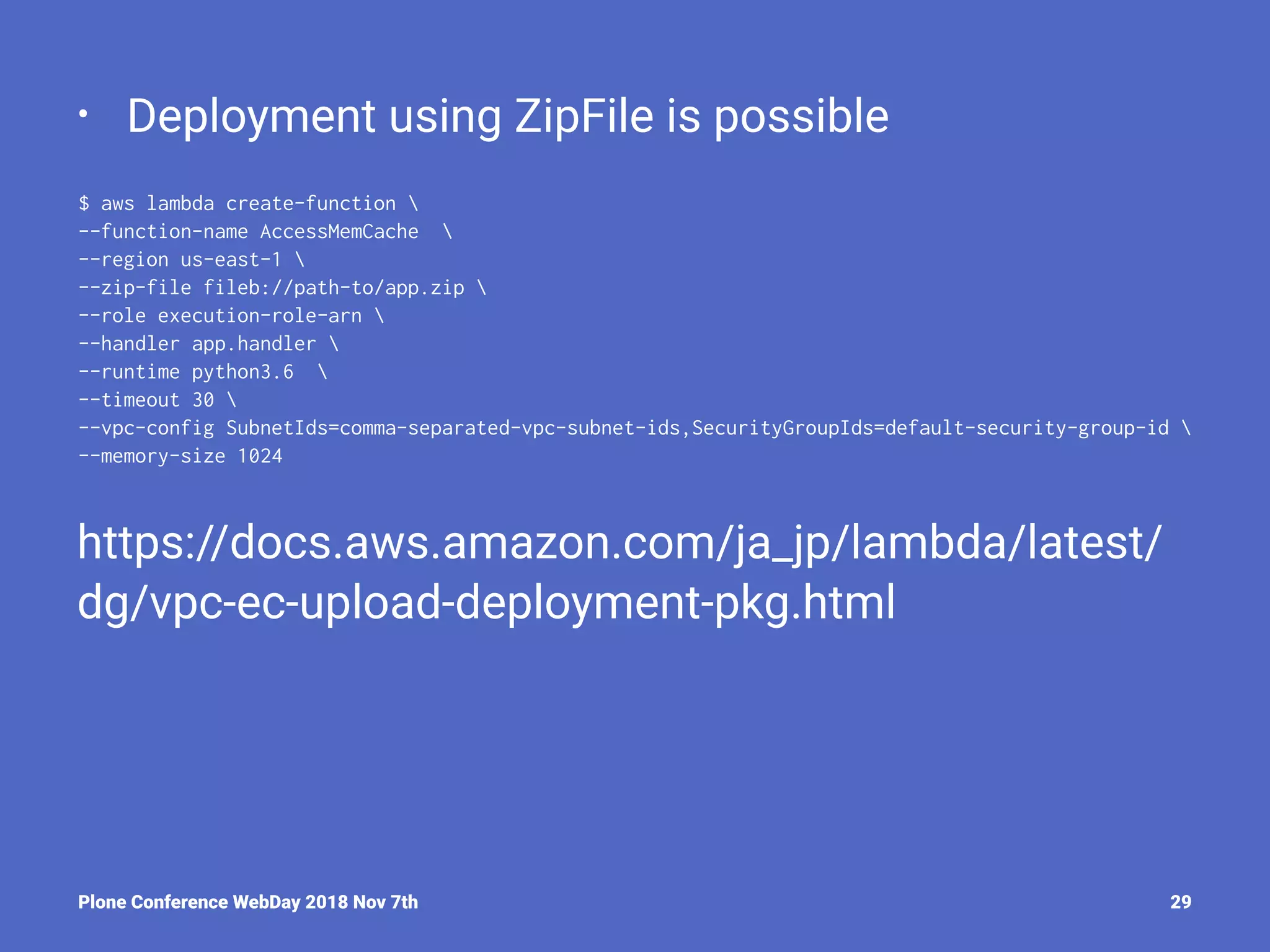

- 29. • Deployment usingZipFile is possible $ aws lambda create-function --function-name AccessMemCache --region us-east-1 --zip-file fileb://path-to/app.zip --role execution-role-arn --handler app.handler --runtime python3.6 --timeout 30 --vpc-config SubnetIds=comma-separated-vpc-subnet-ids,SecurityGroupIds=default-security-group-id --memory-size 1024 https://docs.aws.amazon.com/ja_jp/lambda/latest/ dg/vpc-ec-upload-deployment-pkg.html Plone Conference WebDay 2018 Nov 7th 29

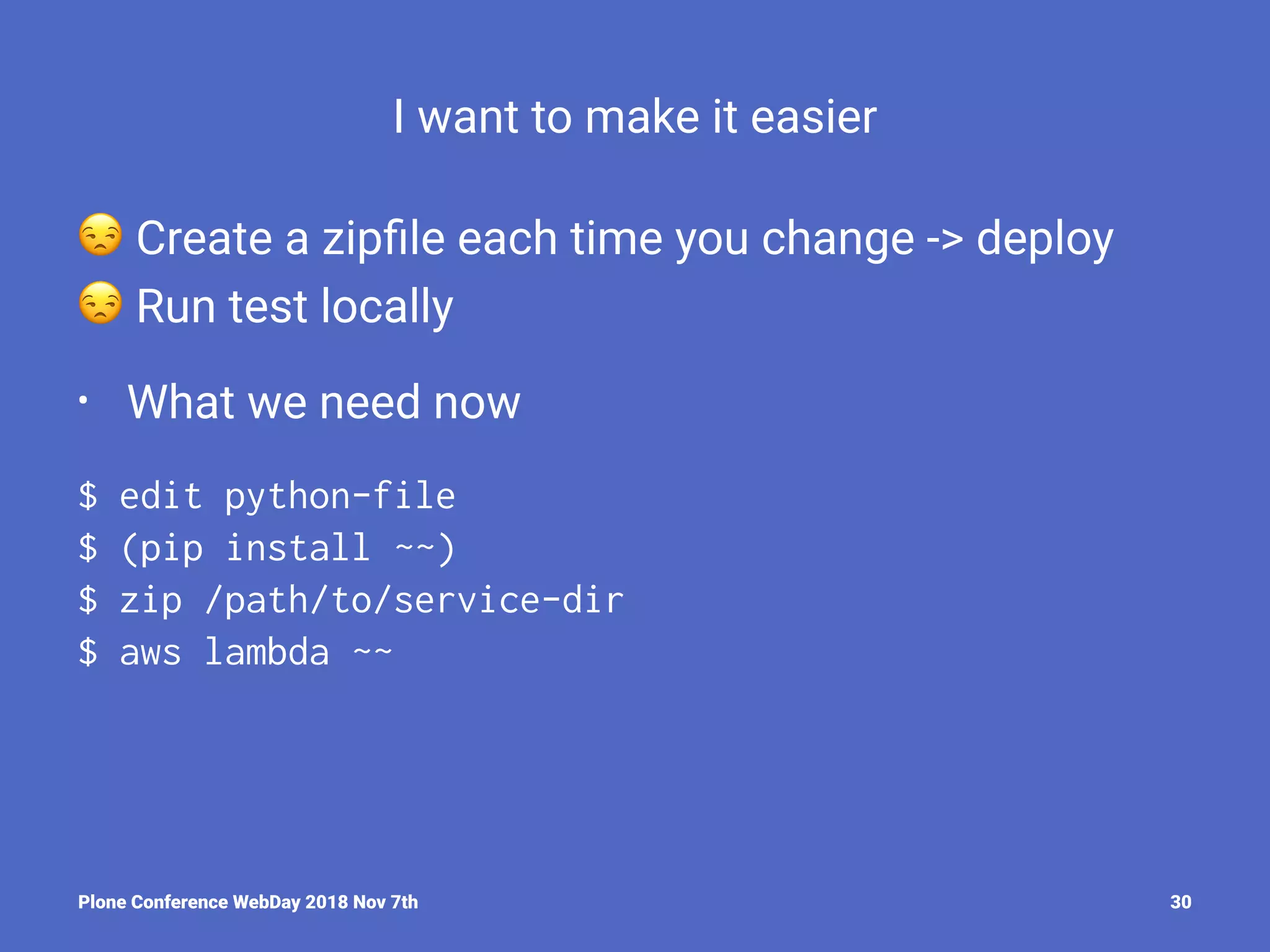

- 30. I want tomake it easier ! Create a zipfile each time you change -> deploy ! Run test locally • What we need now $ edit python-file $ (pip install ~~) $ zip /path/to/service-dir $ aws lambda ~~ Plone Conference WebDay 2018 Nov 7th 30

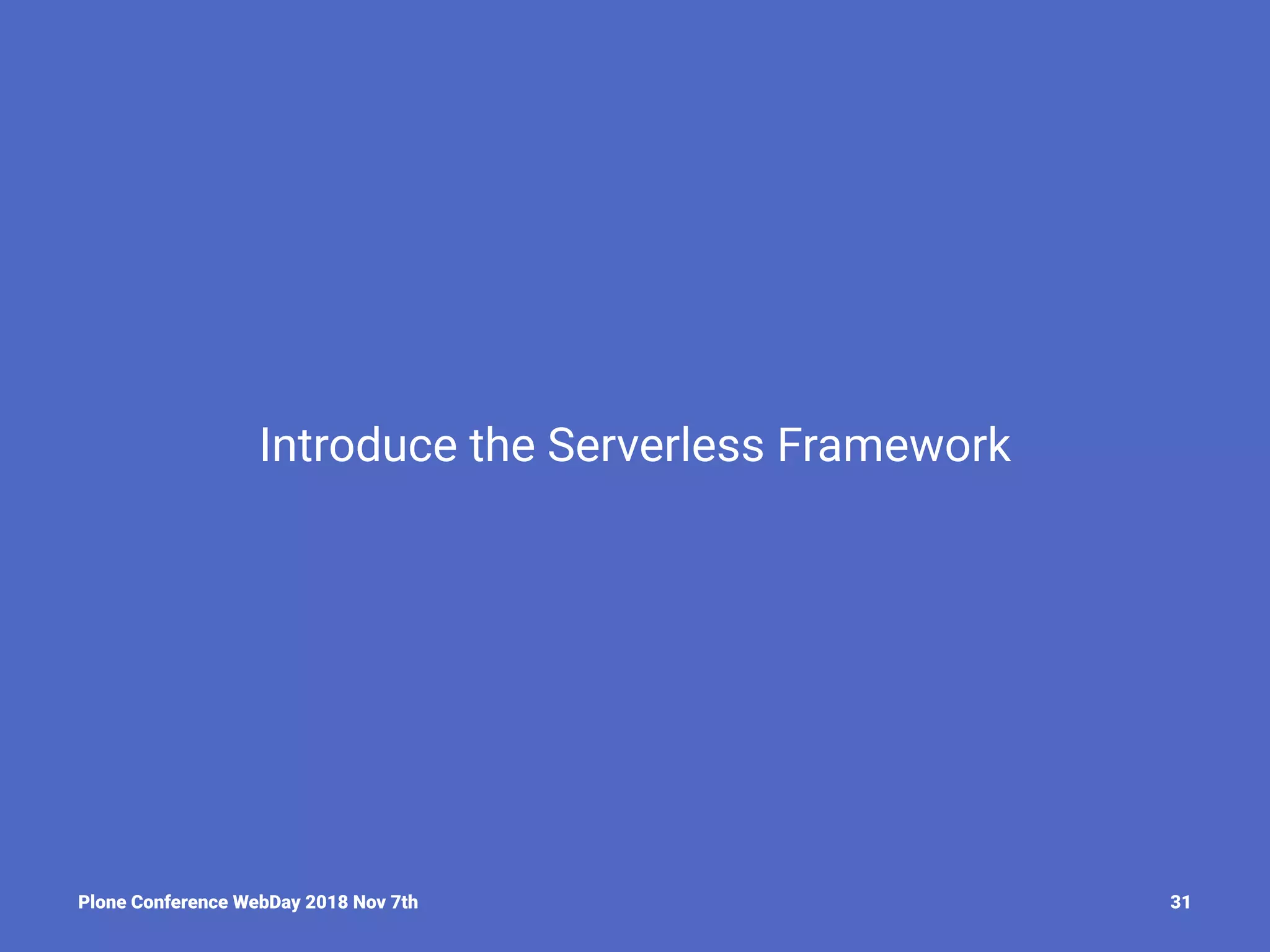

- 31. Introduce the ServerlessFramework Plone Conference WebDay 2018 Nov 7th 31

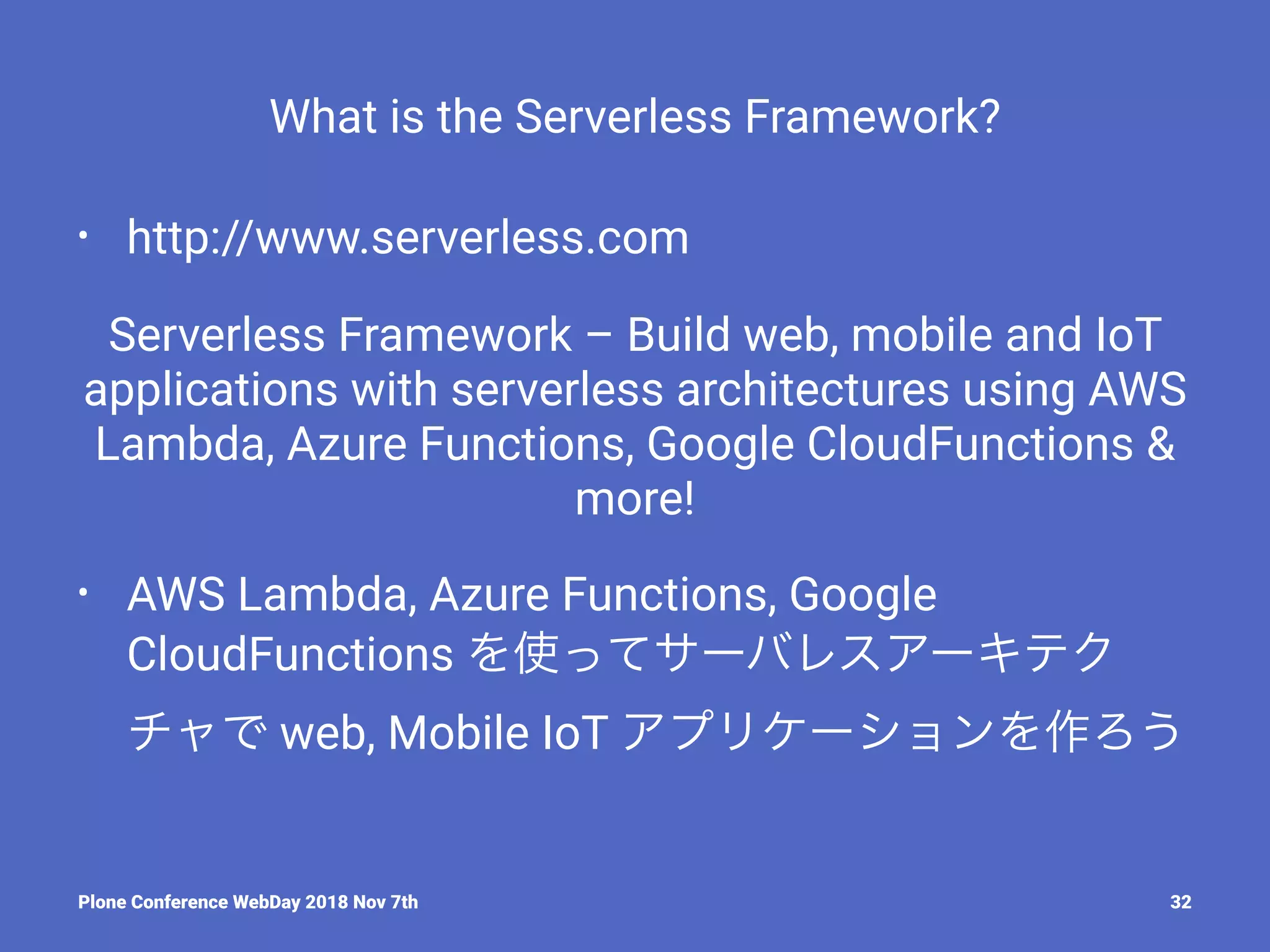

- 32. What is theServerless Framework? • http://www.serverless.com Serverless Framework – Build web, mobile and IoT applications with serverless architectures using AWS Lambda, Azure Functions, Google CloudFunctions & more! • AWS Lambda, Azure Functions, Google CloudFunctions を使ってサーバレスアーキテク チャで web, Mobile IoT アプリケーションを作ろう Plone Conference WebDay 2018 Nov 7th 32

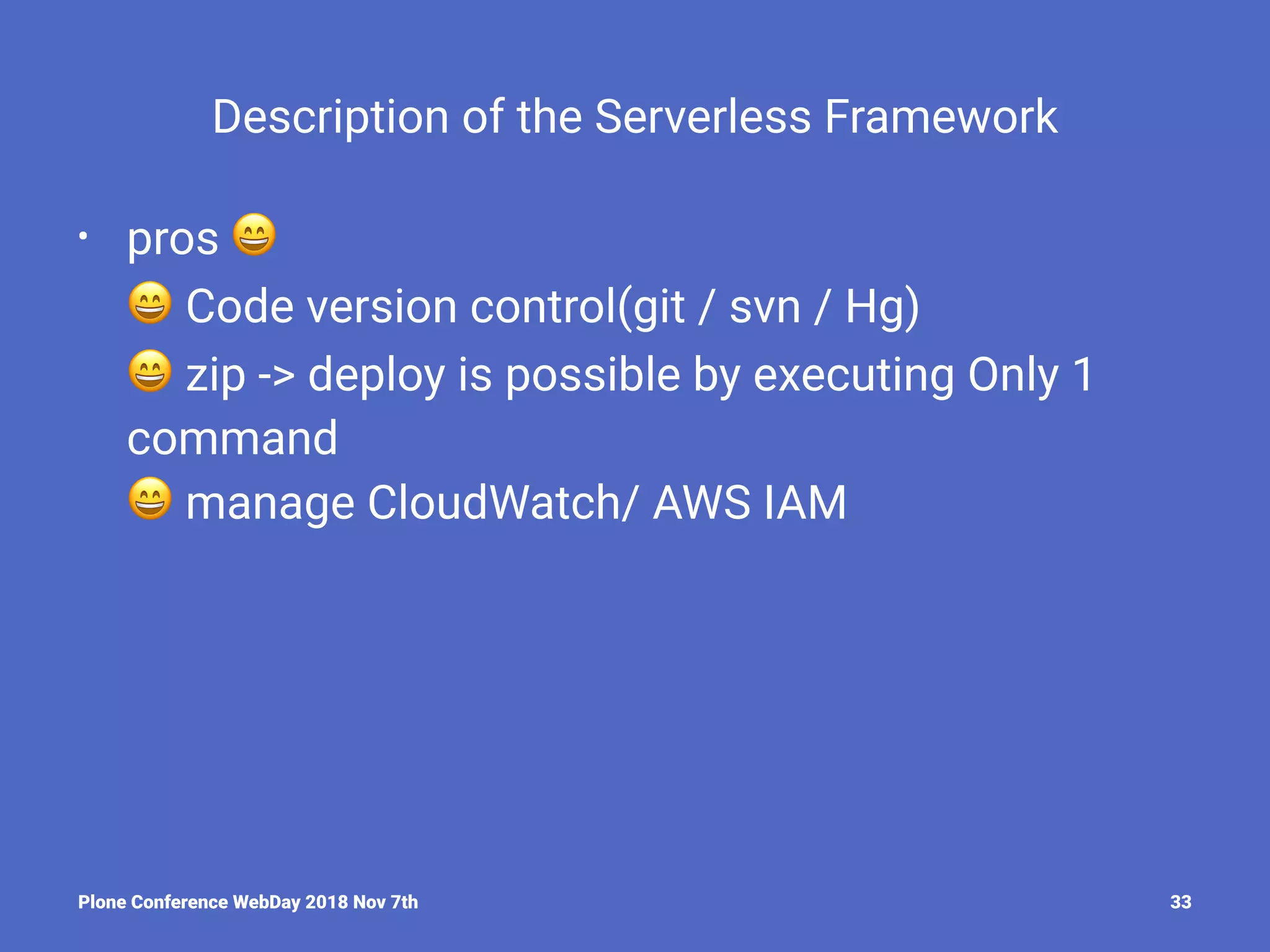

- 33. Description of theServerless Framework • pros !! Code version control(git / svn / Hg) ! zip -> deploy is possible by executing Only 1 command ! manage CloudWatch/ AWS IAM Plone Conference WebDay 2018 Nov 7th 33

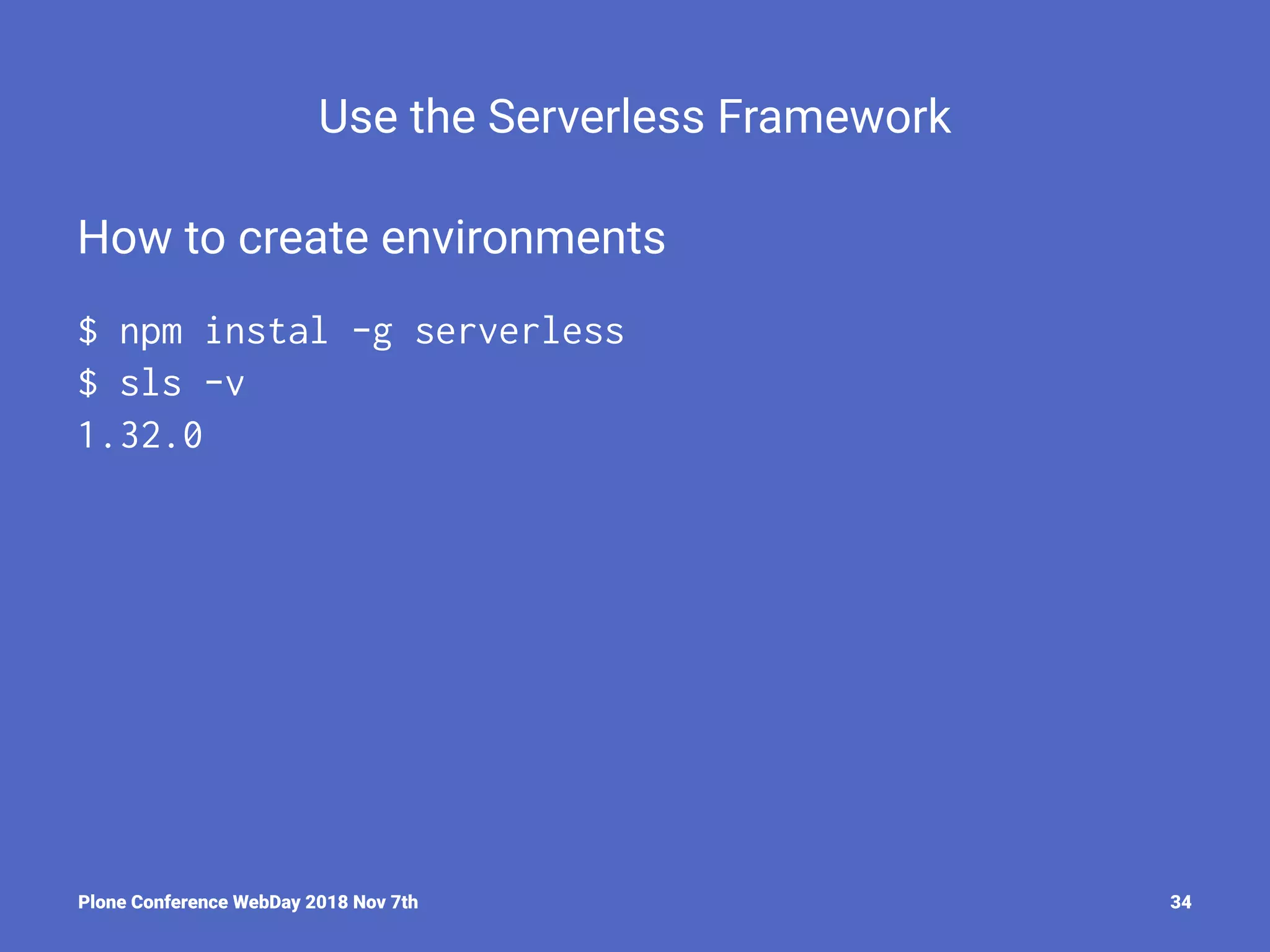

- 34. Use the ServerlessFramework How to create environments $ npm instal -g serverless $ sls -v 1.32.0 Plone Conference WebDay 2018 Nov 7th 34

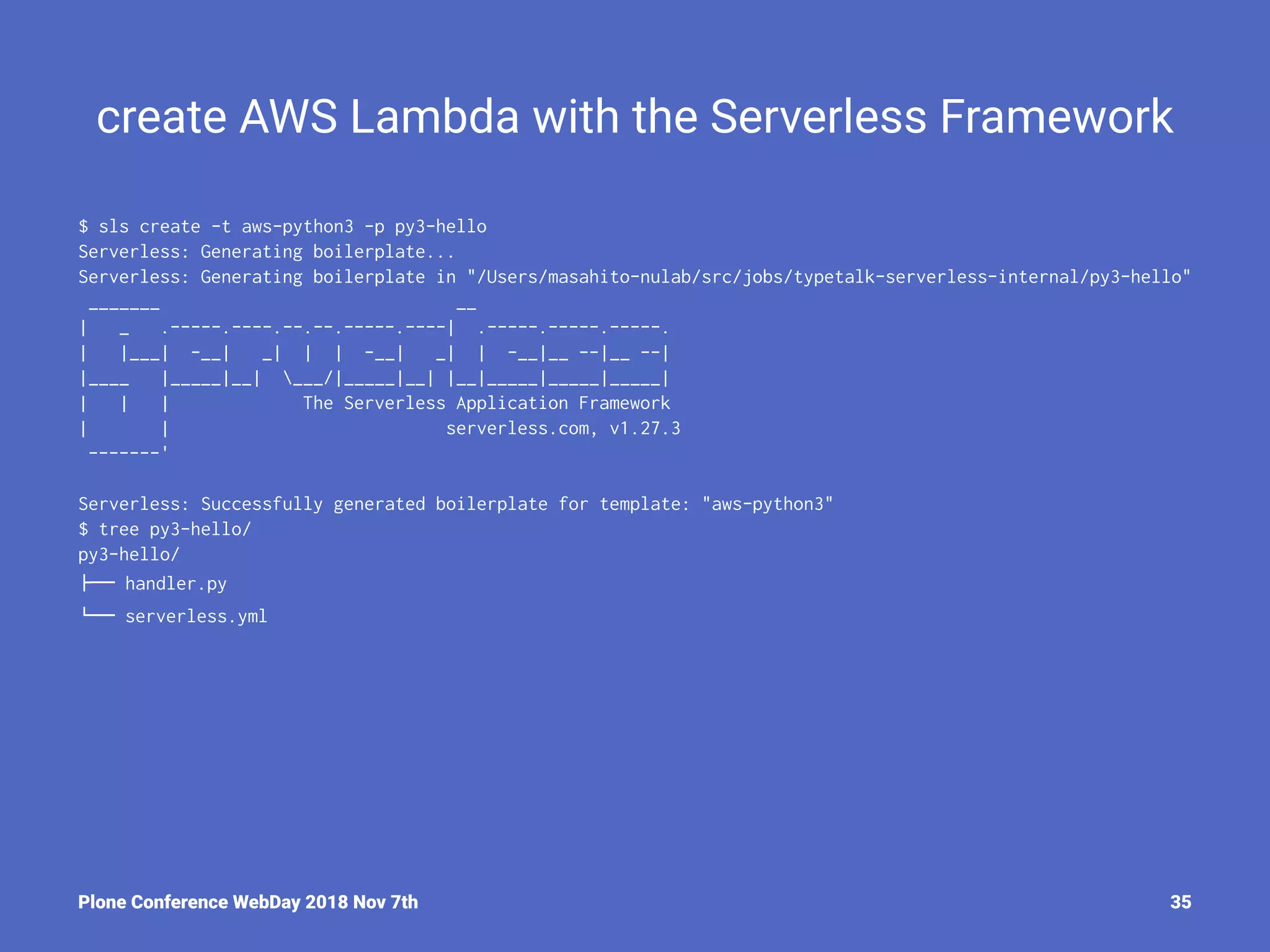

- 35. create AWS Lambdawith the Serverless Framework $ sls create -t aws-python3 -p py3-hello Serverless: Generating boilerplate... Serverless: Generating boilerplate in "/Users/masahito-nulab/src/jobs/typetalk-serverless-internal/py3-hello" _______ __ | _ .-----.----.--.--.-----.----| .-----.-----.-----. | |___| -__| _| | | -__| _| | -__|__ --|__ --| |____ |_____|__| ___/|_____|__| |__|_____|_____|_____| | | | The Serverless Application Framework | | serverless.com, v1.27.3 -------' Serverless: Successfully generated boilerplate for template: "aws-python3" $ tree py3-hello/ py3-hello/ !"" handler.py #"" serverless.yml Plone Conference WebDay 2018 Nov 7th 35

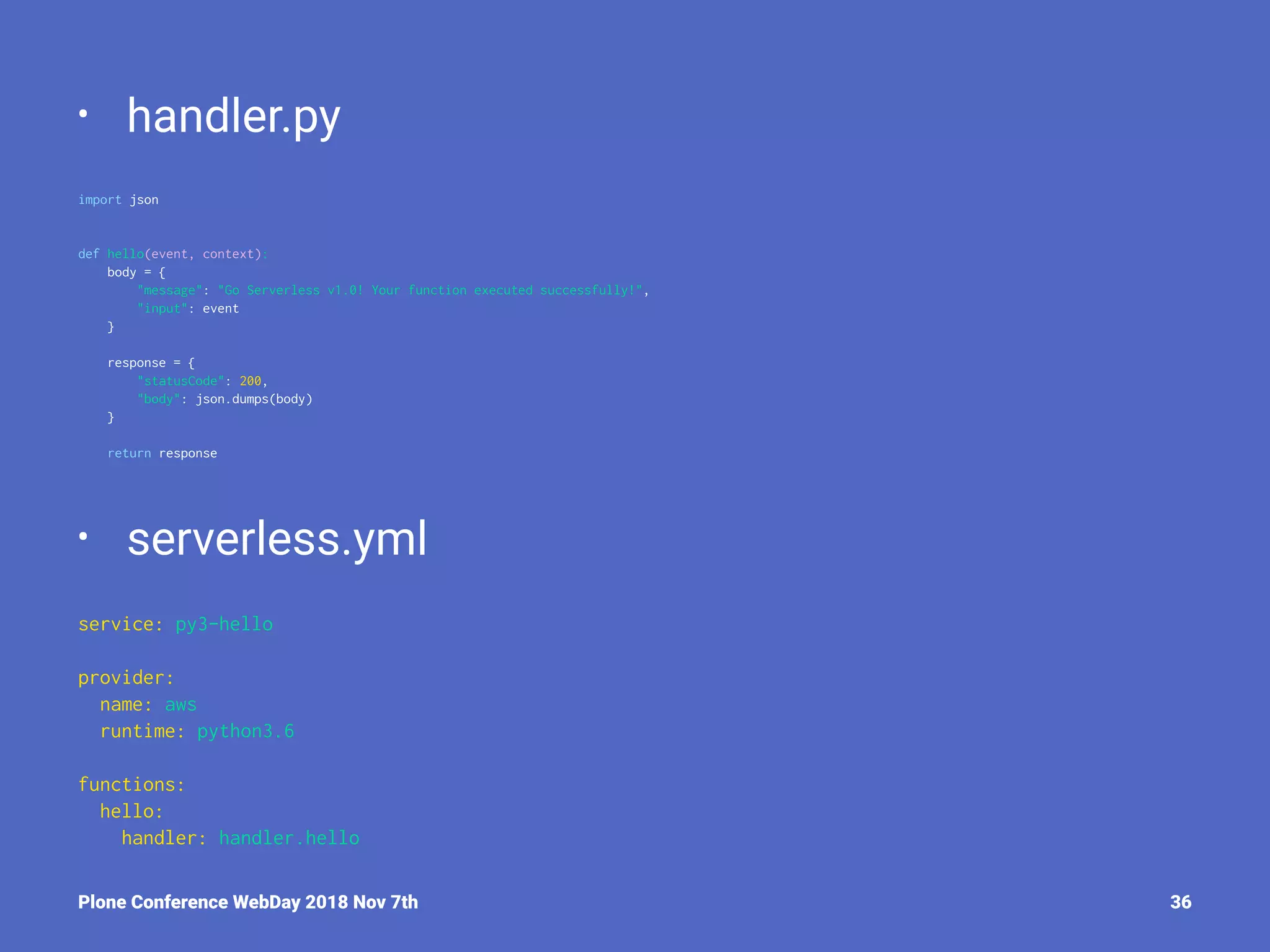

- 36. • handler.py import json defhello(event, context): body = { "message": "Go Serverless v1.0! Your function executed successfully!", "input": event } response = { "statusCode": 200, "body": json.dumps(body) } return response • serverless.yml service: py3-hello provider: name: aws runtime: python3.6 functions: hello: handler: handler.hello Plone Conference WebDay 2018 Nov 7th 36

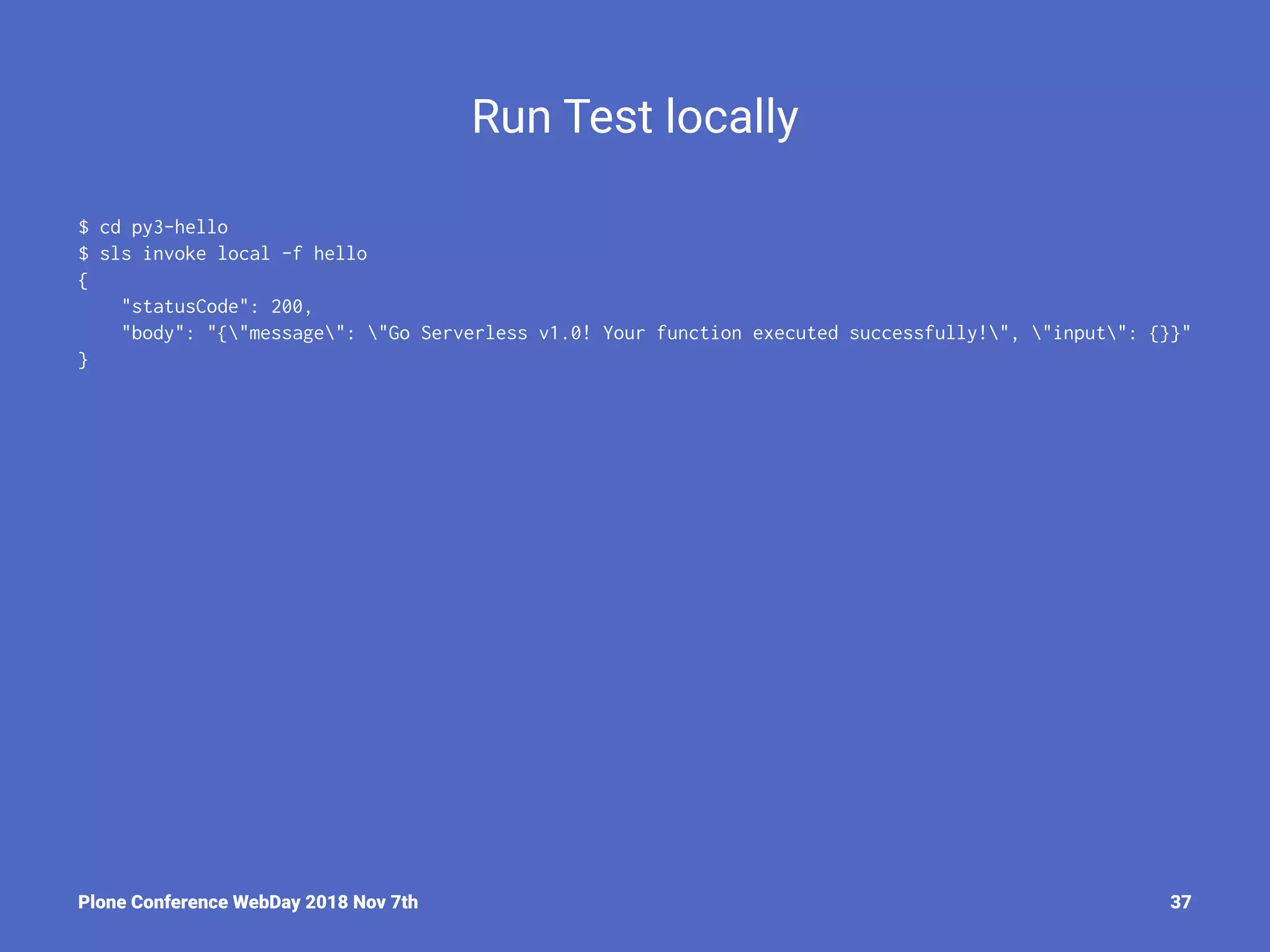

- 37. Run Test locally $cd py3-hello $ sls invoke local -f hello { "statusCode": 200, "body": "{"message": "Go Serverless v1.0! Your function executed successfully!", "input": {}}" } Plone Conference WebDay 2018 Nov 7th 37

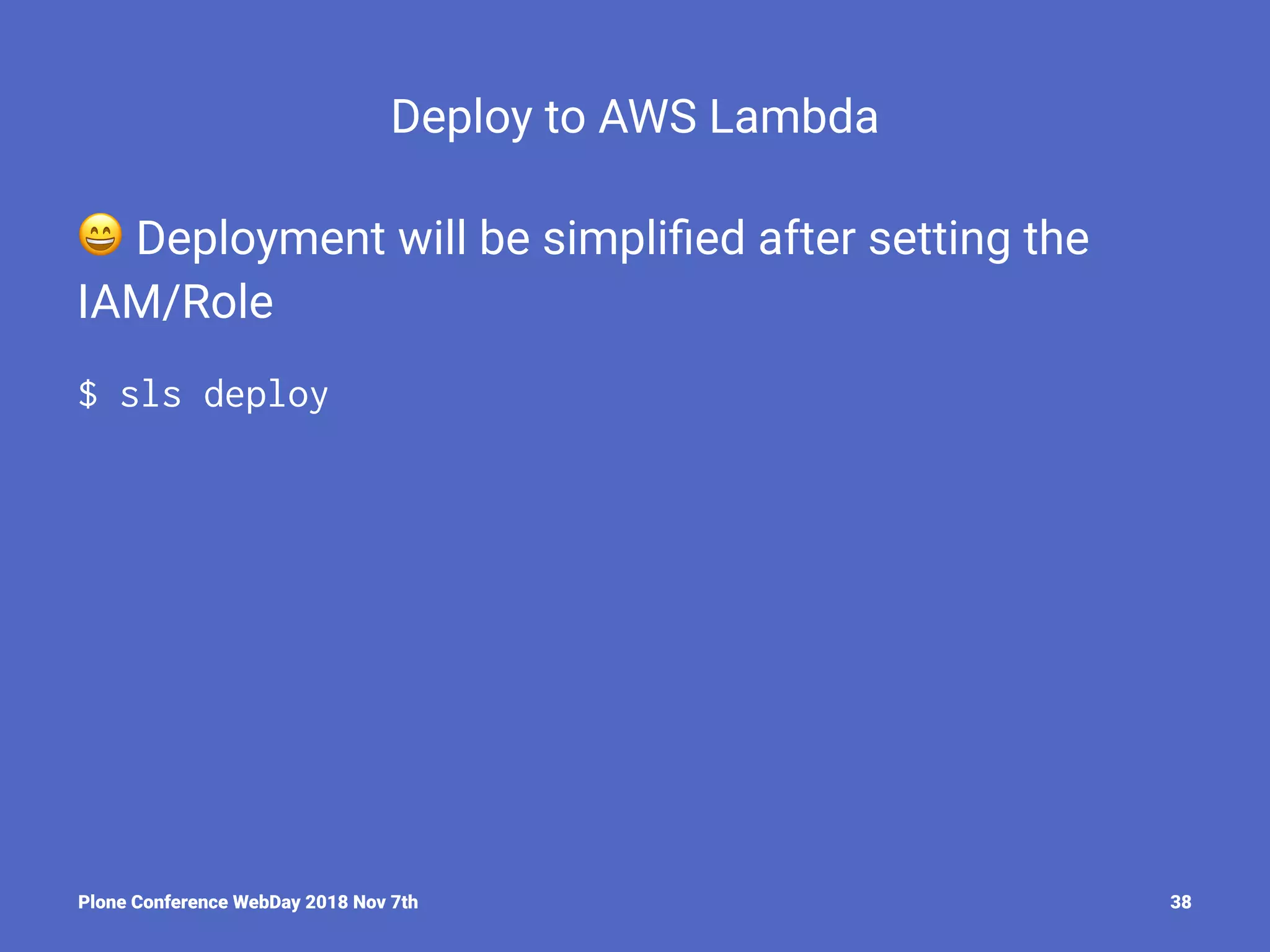

- 38. Deploy to AWSLambda ! Deployment will be simplified after setting the IAM/Role $ sls deploy Plone Conference WebDay 2018 Nov 7th 38

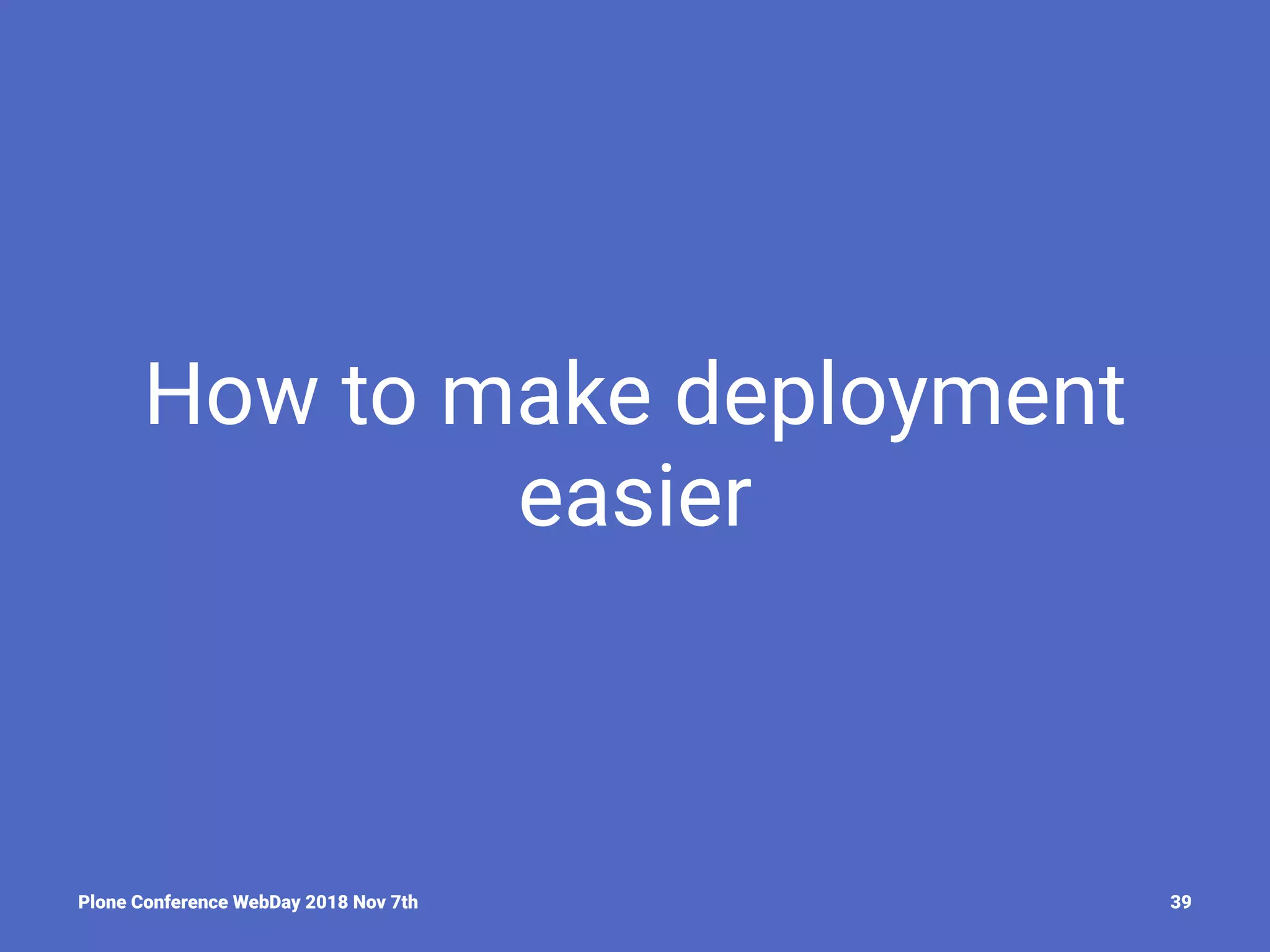

- 39. How to makedeployment easier Plone Conference WebDay 2018 Nov 7th 39

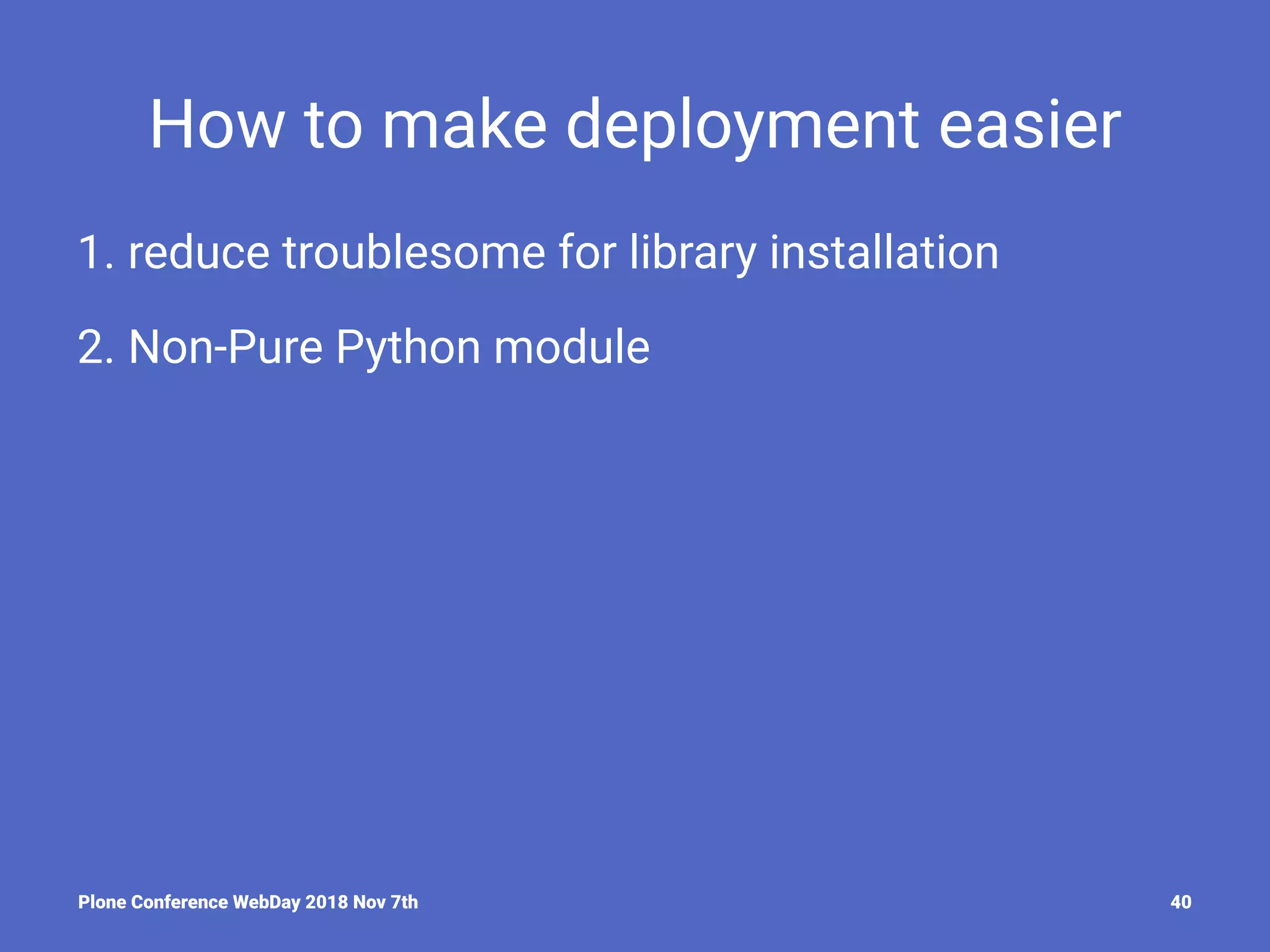

- 40. How to makedeployment easier 1. reduce troublesome for library installation 2. Non-Pure Python module Plone Conference WebDay 2018 Nov 7th 40

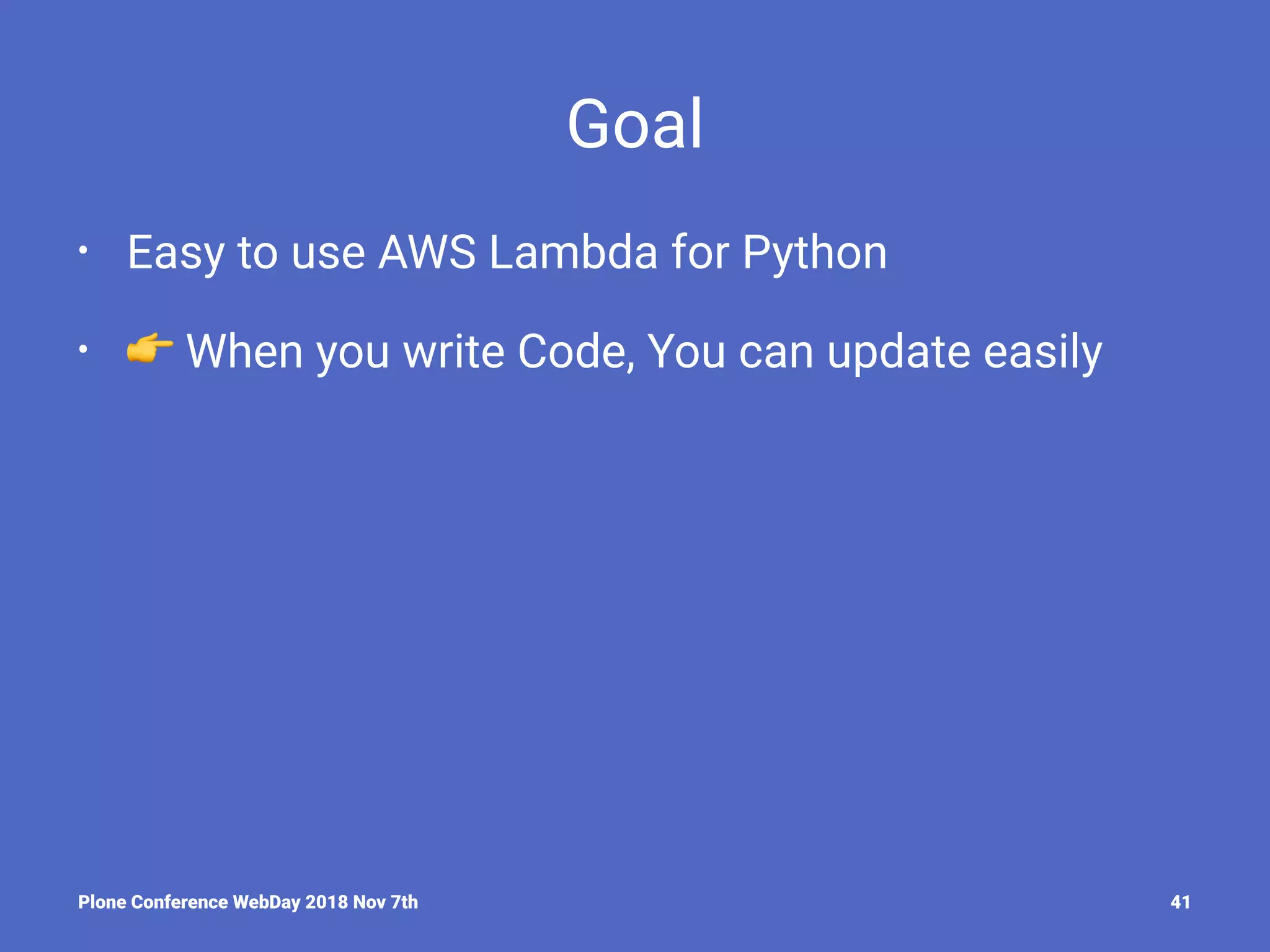

- 41. Goal • Easy touse AWS Lambda for Python • ! When you write Code, You can update easily Plone Conference WebDay 2018 Nov 7th 41
- 42. Plone Conference WebDay2018 Nov 7th 42

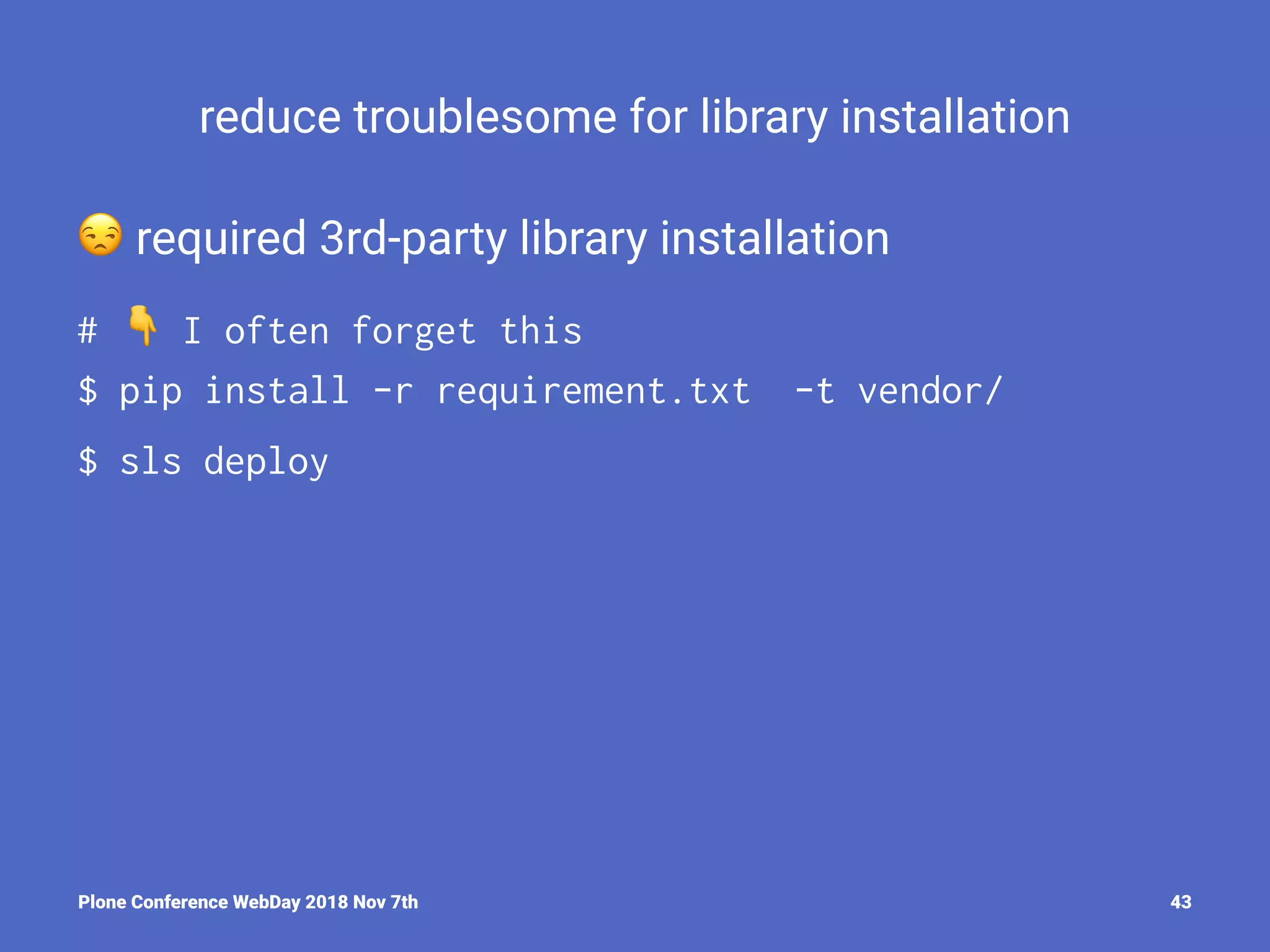

- 43. reduce troublesome forlibrary installation ! required 3rd-party library installation # ! I often forget this $ pip install -r requirement.txt -t vendor/ $ sls deploy Plone Conference WebDay 2018 Nov 7th 43

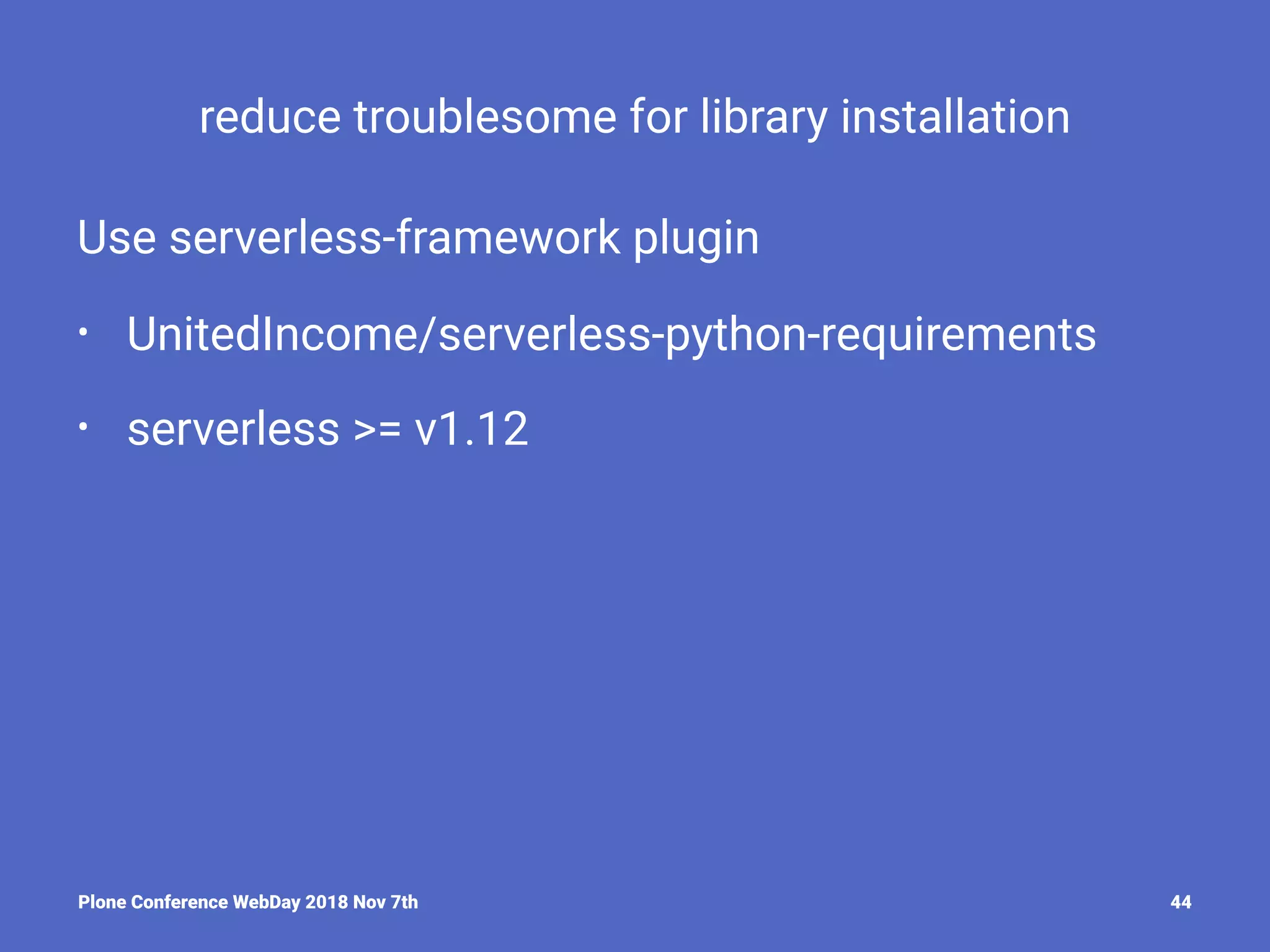

- 44. reduce troublesome forlibrary installation Use serverless-framework plugin • UnitedIncome/serverless-python-requirements • serverless >= v1.12 Plone Conference WebDay 2018 Nov 7th 44

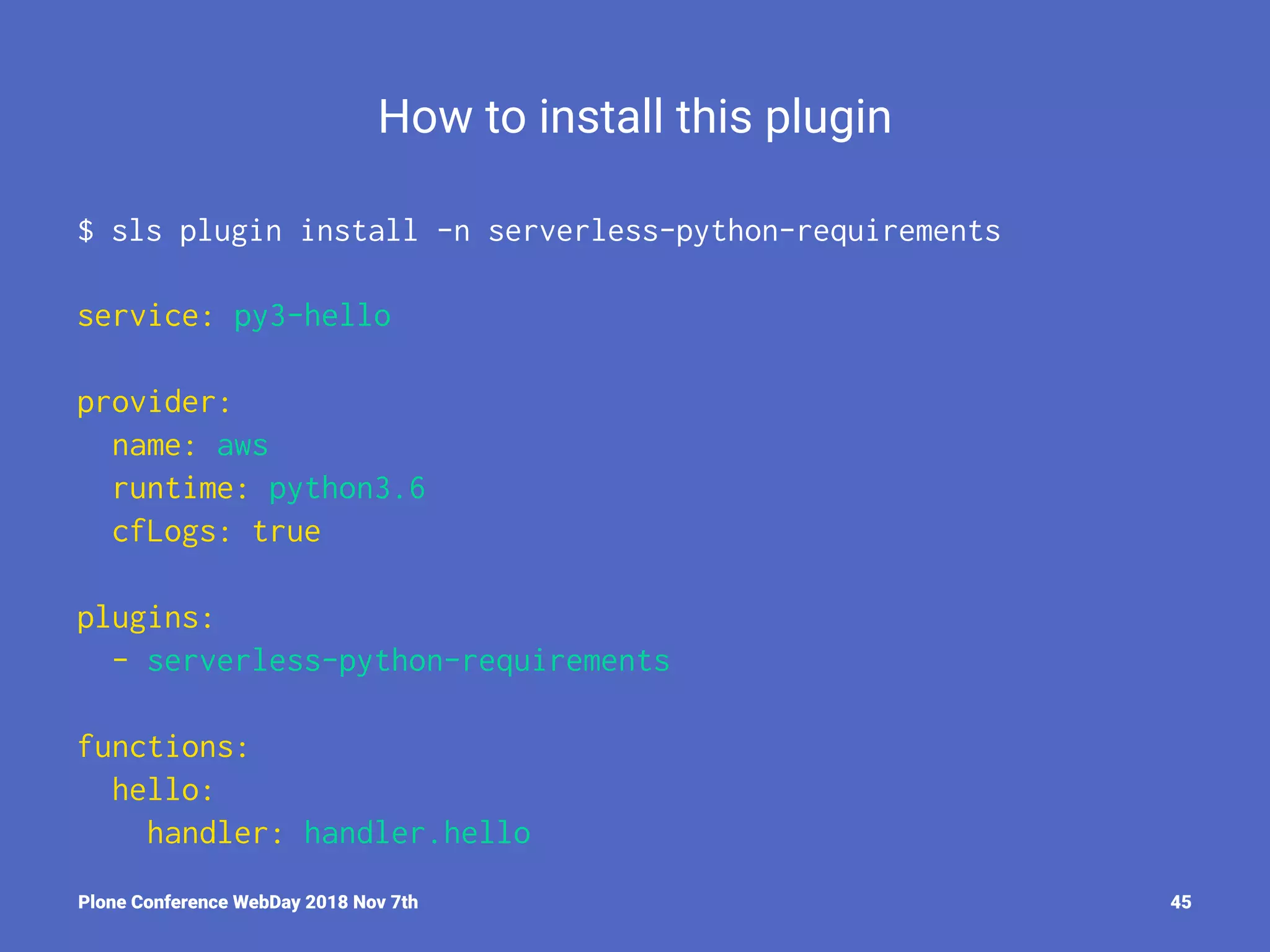

- 45. How to installthis plugin $ sls plugin install -n serverless-python-requirements service: py3-hello provider: name: aws runtime: python3.6 cfLogs: true plugins: - serverless-python-requirements functions: hello: handler: handler.hello Plone Conference WebDay 2018 Nov 7th 45

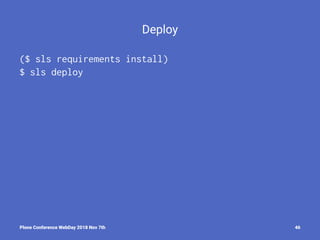

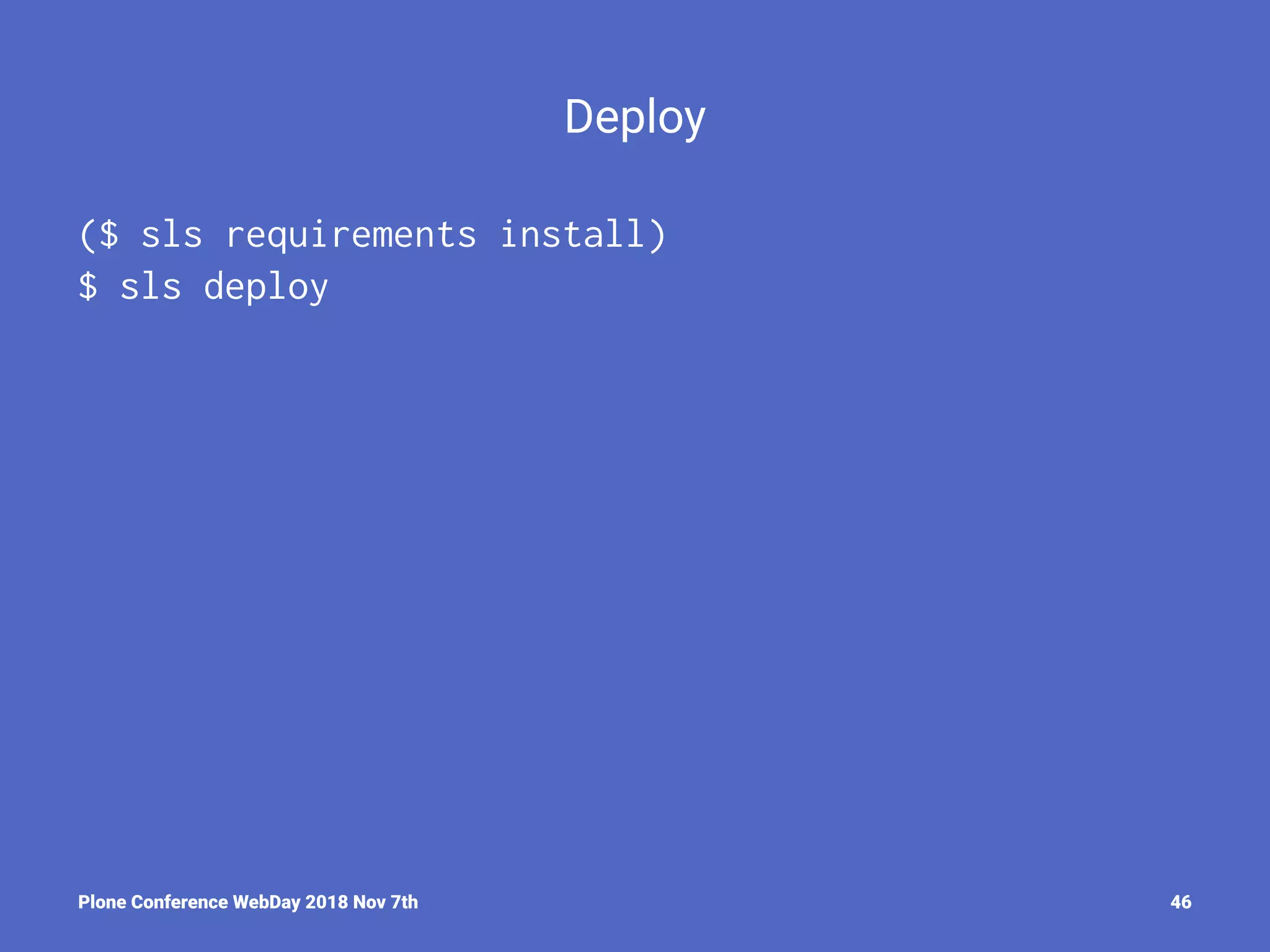

- 46. Deploy ($ sls requirementsinstall) $ sls deploy Plone Conference WebDay 2018 Nov 7th 46

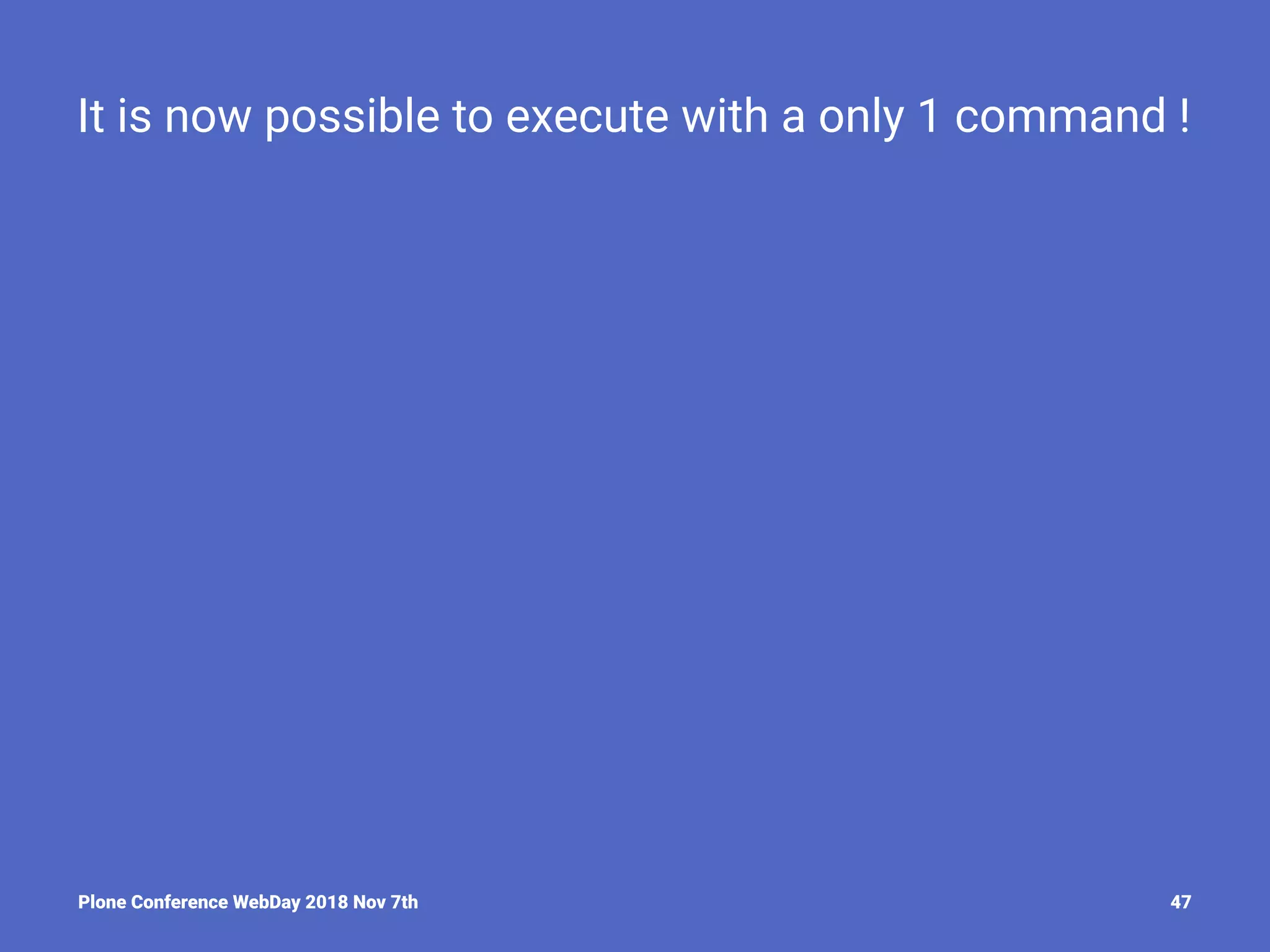

- 47. It is nowpossible to execute with a only 1 command ! Plone Conference WebDay 2018 Nov 7th 47

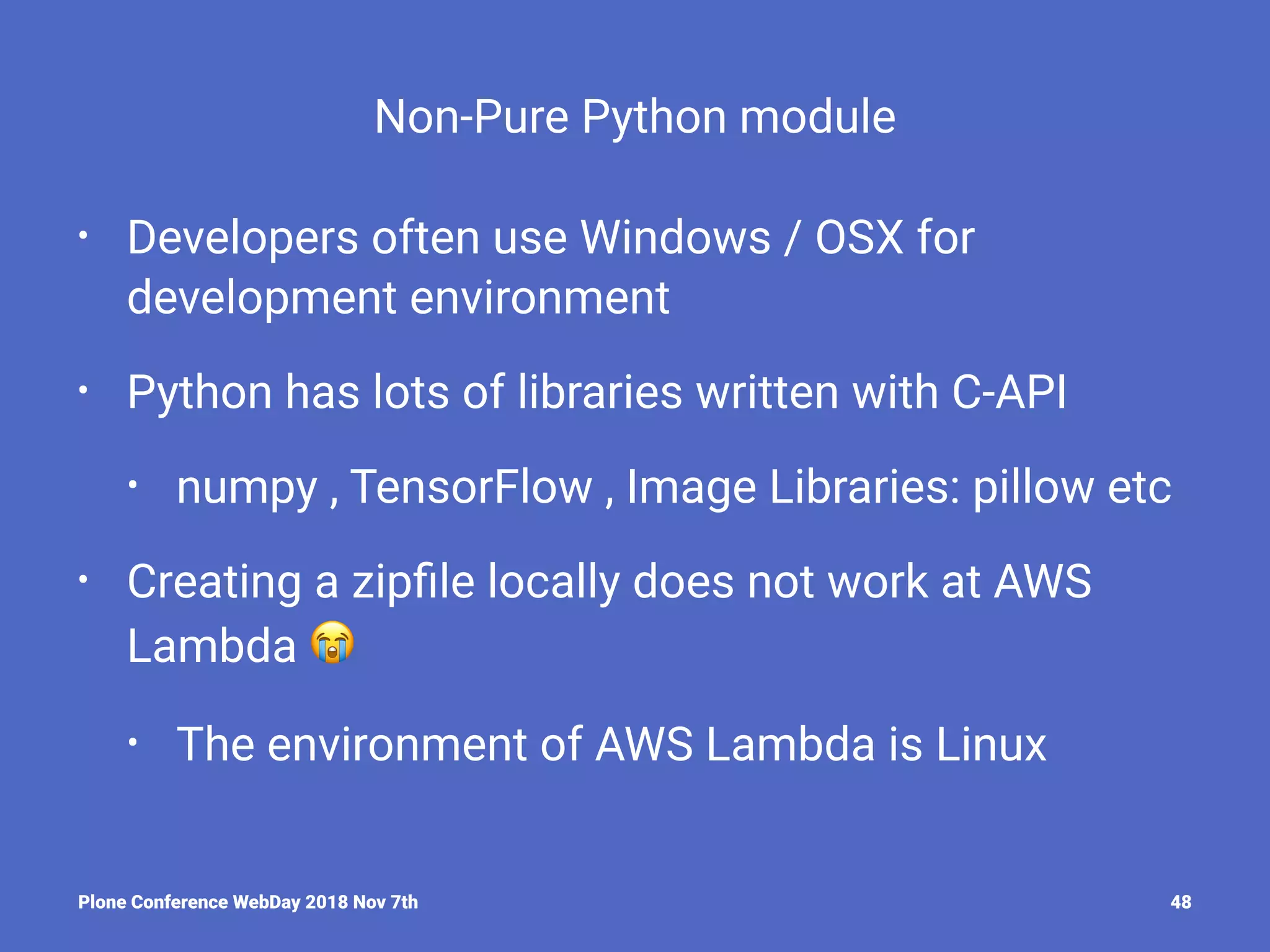

- 48. Non-Pure Python module •Developers often use Windows / OSX for development environment • Python has lots of libraries written with C-API • numpy , TensorFlow , Image Libraries: pillow etc • Creating a zipfile locally does not work at AWS Lambda ! • The environment of AWS Lambda is Linux Plone Conference WebDay 2018 Nov 7th 48

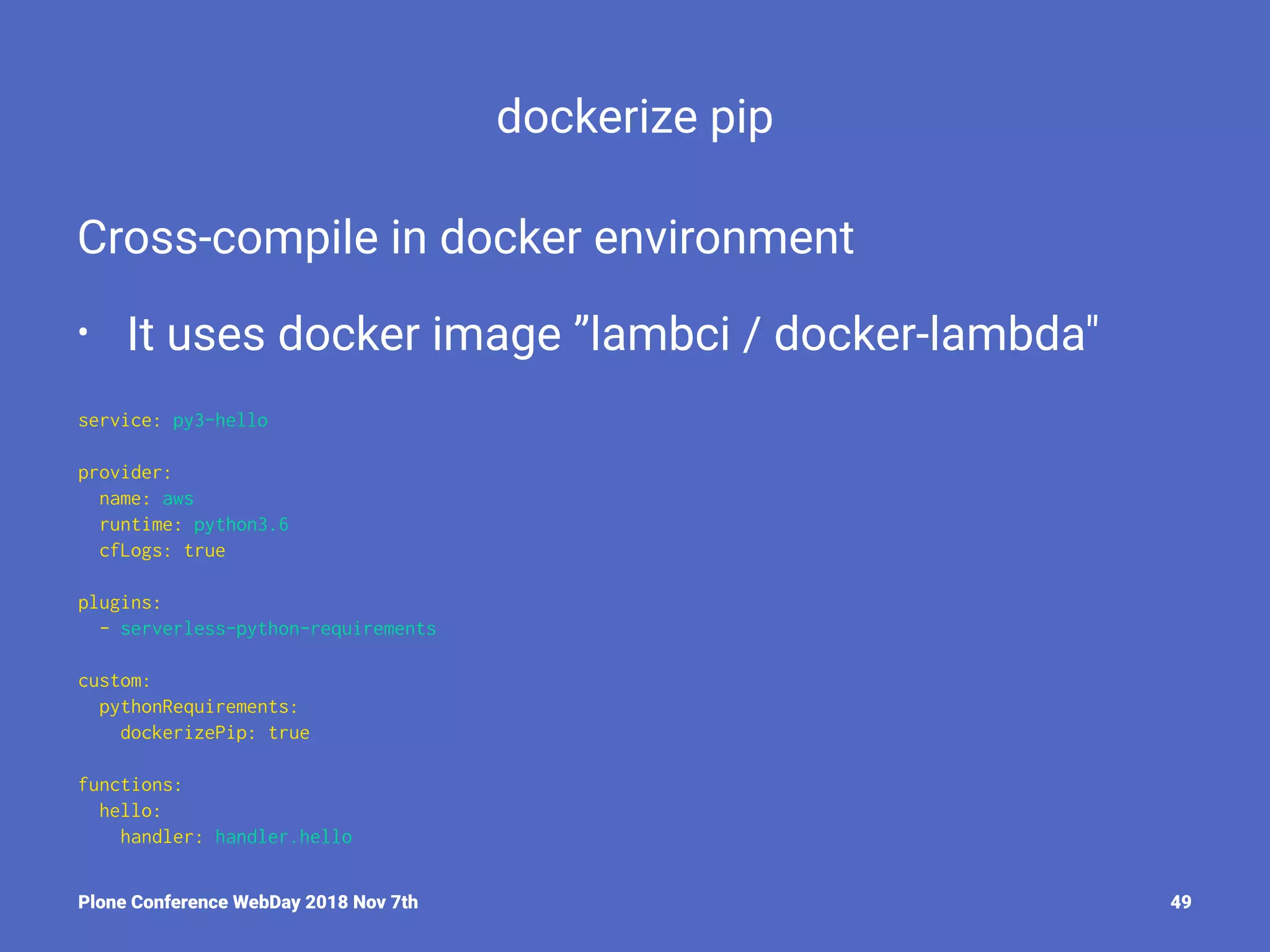

- 49. dockerize pip Cross-compile indocker environment • It uses docker image ”lambci / docker-lambda" service: py3-hello provider: name: aws runtime: python3.6 cfLogs: true plugins: - serverless-python-requirements custom: pythonRequirements: dockerizePip: true functions: hello: handler: handler.hello Plone Conference WebDay 2018 Nov 7th 49

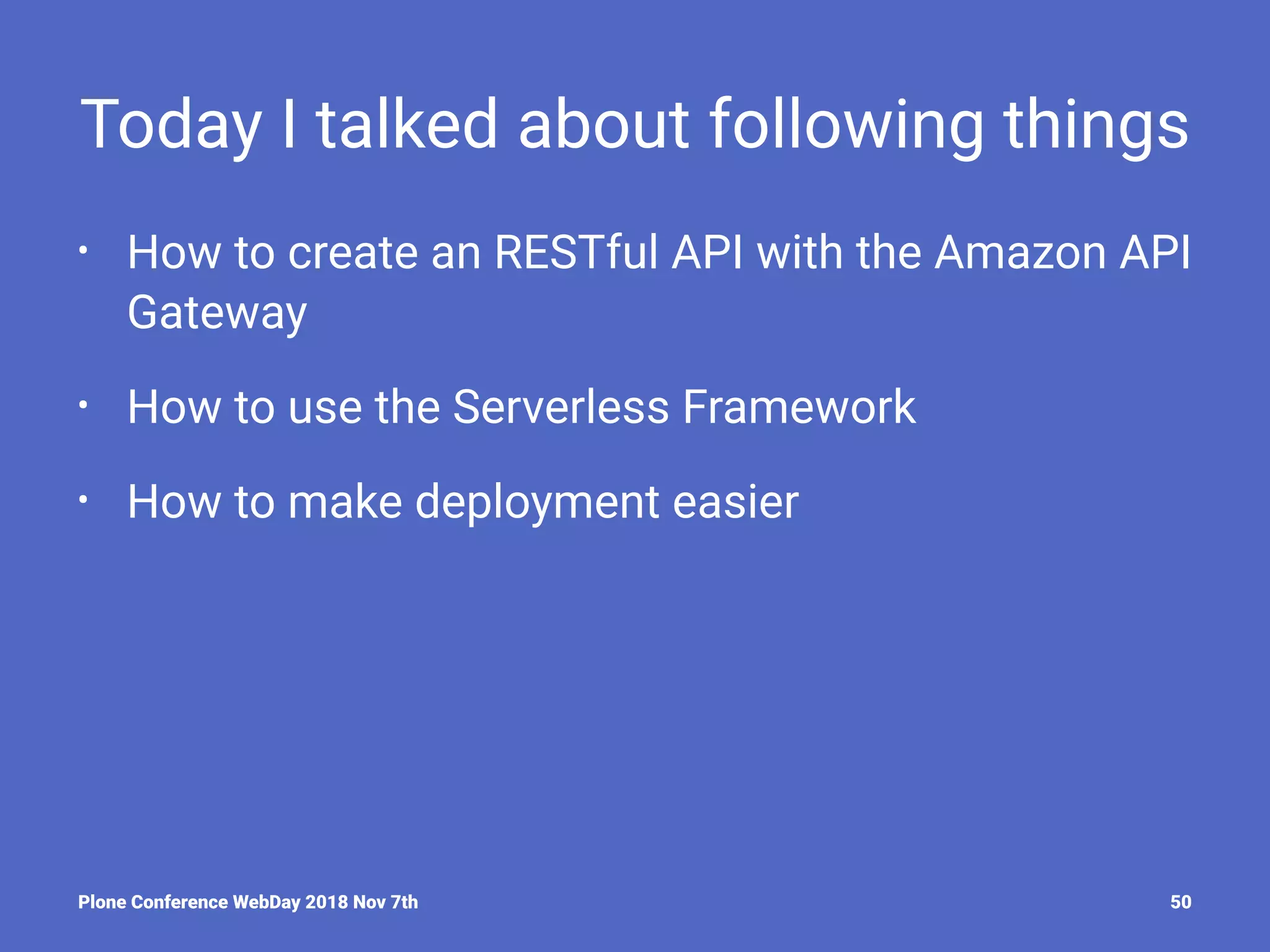

- 50. Today I talkedabout following things • How to create an RESTful API with the Amazon API Gateway • How to use the Serverless Framework • How to make deployment easier Plone Conference WebDay 2018 Nov 7th 50

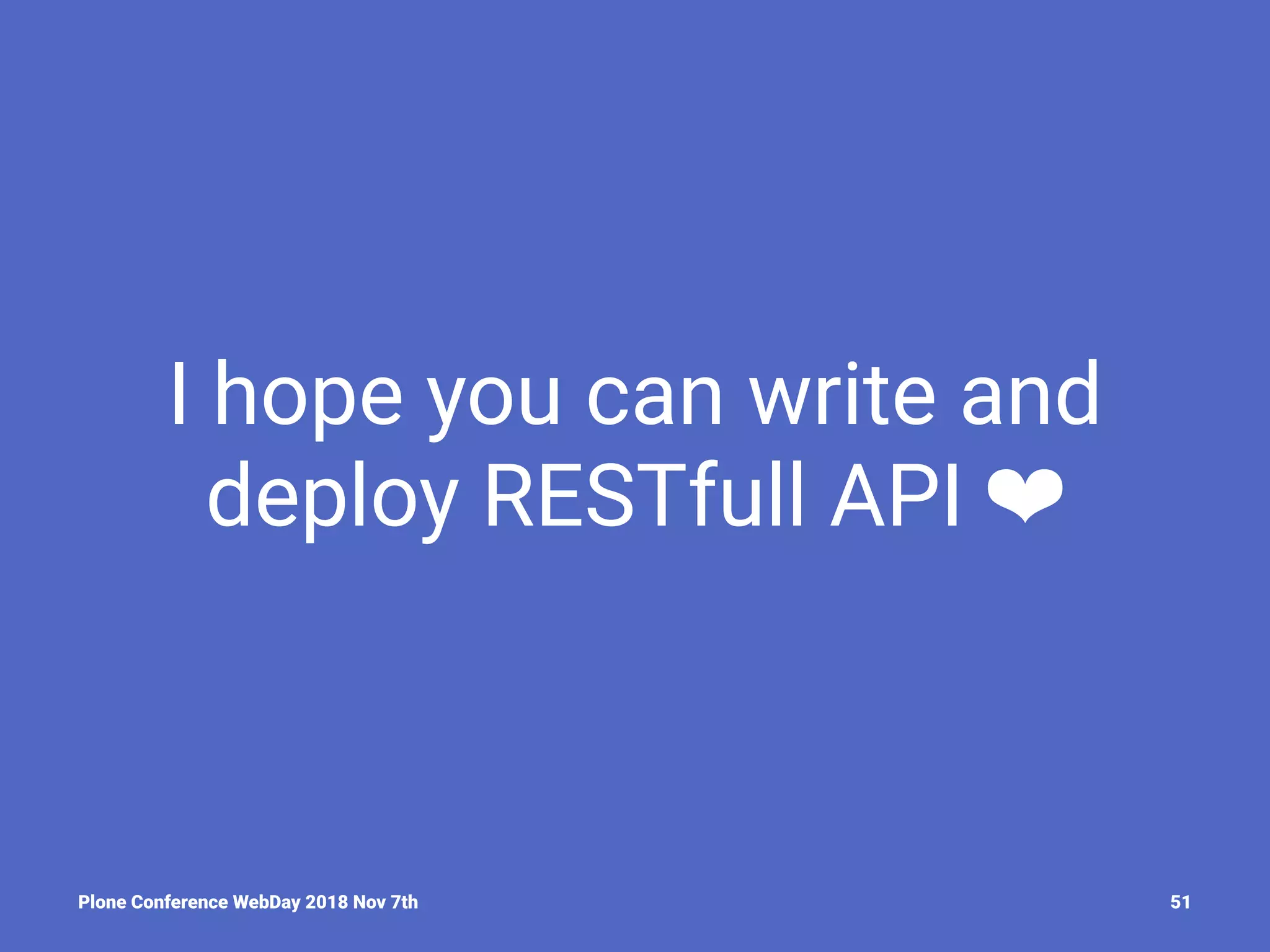

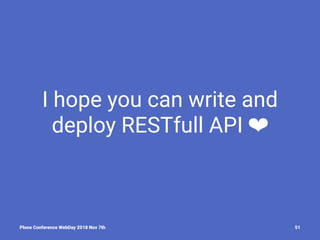

- 51. I hope youcan write and deploy RESTfull API ❤ Plone Conference WebDay 2018 Nov 7th 51

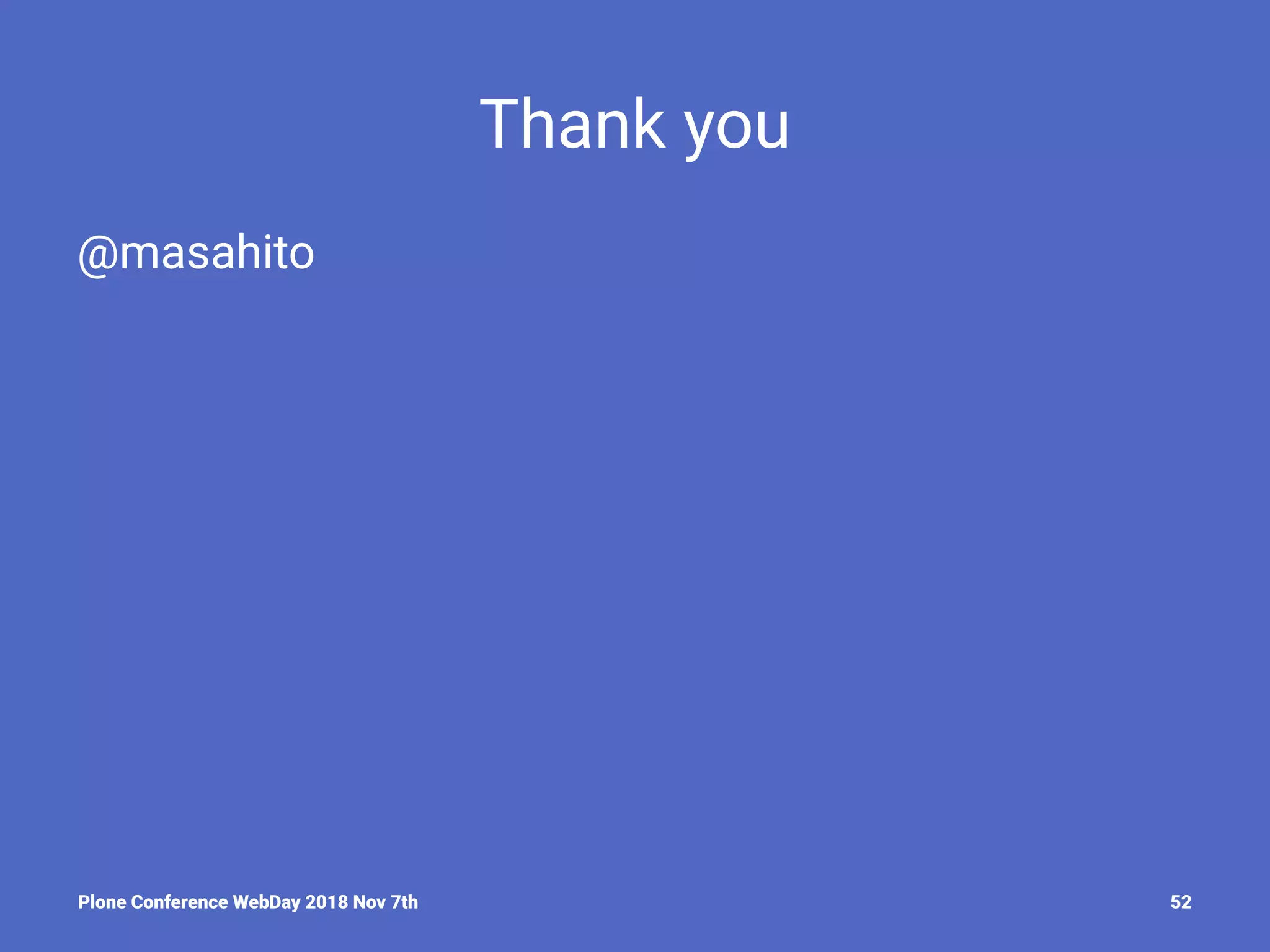

- 52. Thank you @masahito Plone ConferenceWebDay 2018 Nov 7th 52

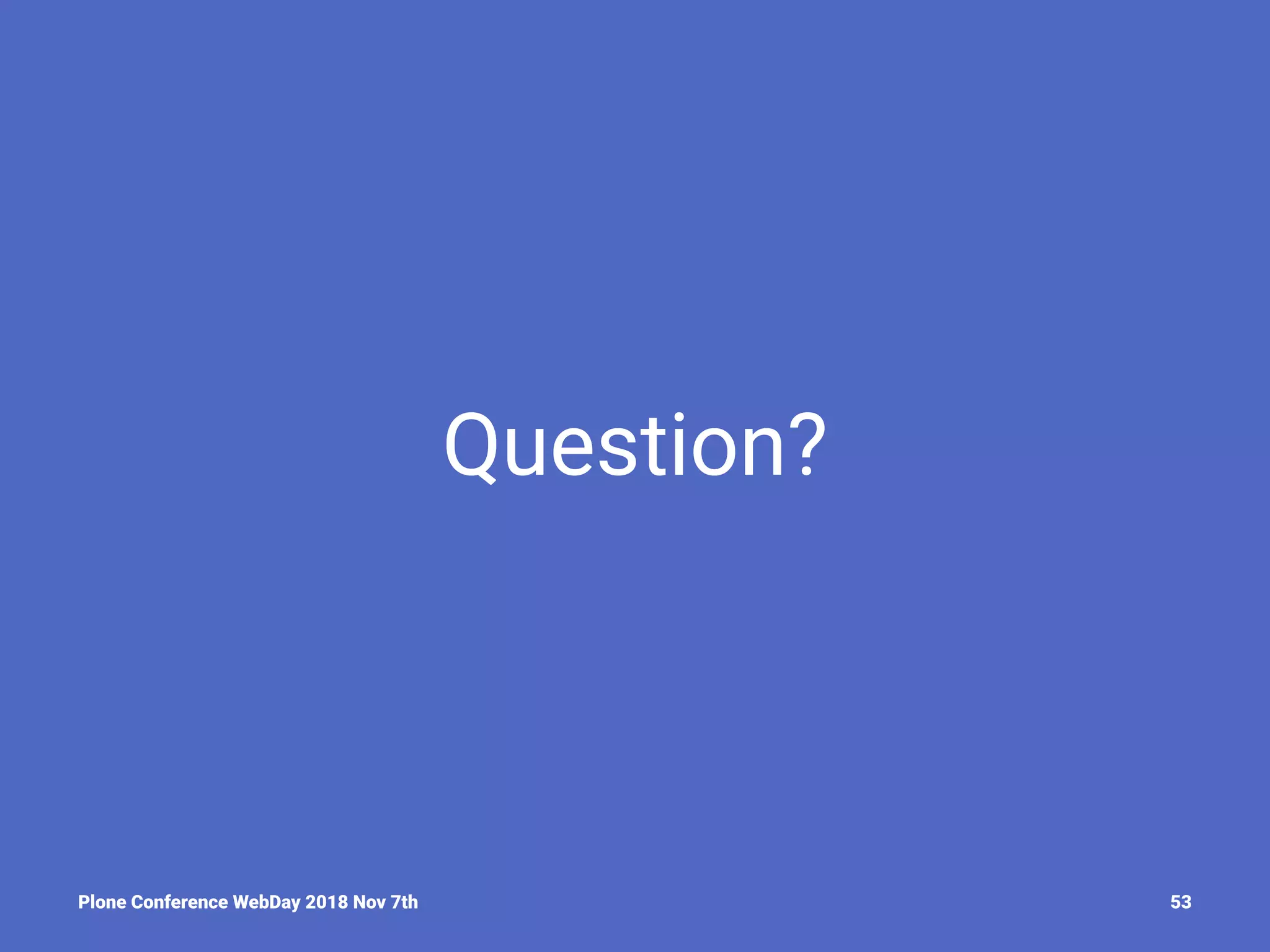

- 53. Question? Plone Conference WebDay2018 Nov 7th 53
