2020.02.15 DelEx - CI/CD in AWS Cloud
Peter Salnikov discusses continuous integration and continuous delivery (CI/CD) workflows in AWS using CodePipeline, CodeBuild, and CodeDeploy. CodePipeline can be used to automate multi-stage pipelines including source control, building, testing, and deploying serverless applications. CodeBuild is used to build and test Lambda functions. CodeDeploy is then used to deploy updated Lambda functions and API Gateway/DynamoDB resources by updating CloudFormation stacks.
More Related Content
Similar to 2020.02.15 DelEx - CI/CD in AWS Cloud
2020.02.15 DelEx - CI/CD in AWS Cloud
- 1. Peter Salnikov /AWS Architect & DevOps Expert / www.salnikov.cc CI/CD in AWS Cloud

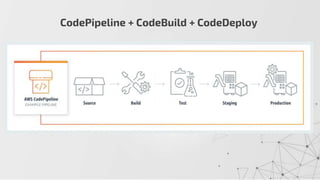

- 2. CodePipeline + CodeBuild+ CodeDeploy

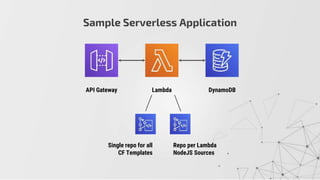

- 3. Sample Serverless Application APIGateway Lambda DynamoDB Repo per Lambda NodeJS Sources Single repo for all CF Templates
- 4. Pipeline = Source+ Build + Deploy CodePipeline: - Watch for CodeCommit Git Repos - Combine CodeBuild + CodeDeploy CodeBuild: - Prepare JSON with input parameters for CloudFormation - Validate, Test and Pack Lambda Package CodeDeploy: - Update CloudFormation Stack using Input parameters and Lambda package

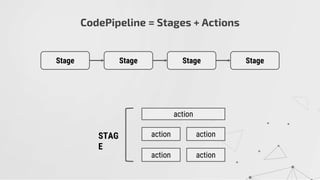

- 5. CodePipeline = Stages+ Actions action actionSTAG E action action action Stage Stage Stage Stage

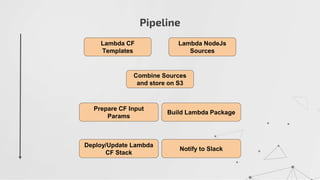

- 6. Pipeline Lambda CF Templates Lambda NodeJs Sources CombineSources and store on S3 Prepare CF Input Params Build Lambda Package Deploy/Update Lambda CF Stack Notify to Slack

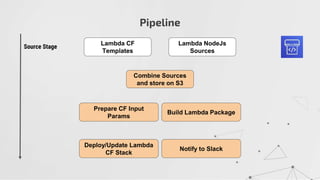

- 7. Pipeline Source Stage Lambda CF Templates LambdaNodeJs Sources Combine Sources and store on S3 Prepare CF Input Params Build Lambda Package Deploy/Update Lambda CF Stack Notify to Slack

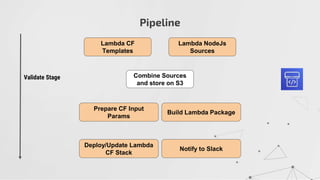

- 8. Pipeline Validate Stage Lambda CF Templates LambdaNodeJs Sources Combine Sources and store on S3 Prepare CF Input Params Build Lambda Package Deploy/Update Lambda CF Stack Notify to Slack

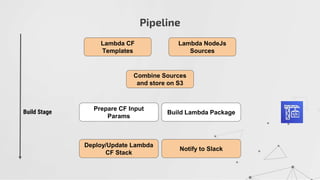

- 9. Pipeline Build Stage Lambda CF Templates LambdaNodeJs Sources Combine Sources and store on S3 Prepare CF Input Params Build Lambda Package Deploy/Update Lambda CF Stack Notify to Slack

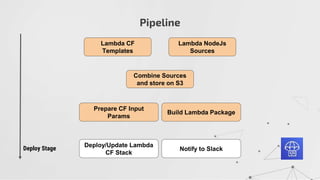

- 10. Pipeline Deploy Stage Lambda CF Templates LambdaNodeJs Sources Combine Sources and store on S3 Prepare CF Input Params Build Lambda Package Deploy/Update Lambda CF Stack Notify to Slack
- 11.

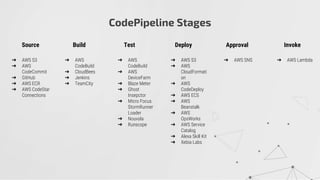

- 12. CodePipeline Stages Source BuildTest Deploy Approval Invoke ➔ AWS S3 ➔ AWS CodeCommit ➔ GitHub ➔ AWS ECR ➔ AWS CodeStar Connections ➔ AWS CodeBuild ➔ CloudBees ➔ Jenkins ➔ TeamCity ➔ AWS CodeBuild ➔ AWS DeviceFarm ➔ Blaze Meter ➔ Ghost Insepctor ➔ Micro Focus StormRunner Loader ➔ Nouvola ➔ Runscope ➔ AWS S3 ➔ AWS CloudFormati on ➔ AWS CodeDeploy ➔ AWS ECS ➔ AWS Beanstalk ➔ AWS OpsWorks ➔ AWS Service Catalog ➔ Alexa Skill Kit ➔ Xebia Labs ➔ AWS SNS ➔ AWS Lambda
- 13. CodePipeline Triggering AWS Lambda AWSCloudWatch Event Manual WebHooks AWS CodeCommit/GitHub Polling AWS CodePipeline

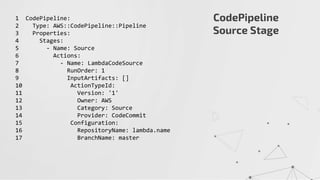

- 14. CodePipeline Source Stage 1 CodePipeline: 2Type: AWS::CodePipeline::Pipeline 3 Properties: 4 Stages: 5 - Name: Source 6 Actions: 7 - Name: LambdaCodeSource 8 RunOrder: 1 9 InputArtifacts: [] 10 ActionTypeId: 11 Version: '1' 12 Owner: AWS 13 Category: Source 14 Provider: CodeCommit 15 Configuration: 16 RepositoryName: lambda.name 17 BranchName: master
- 15.

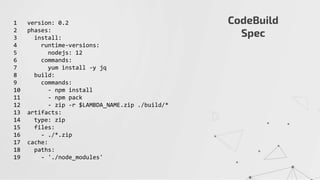

- 16. CodeBuild Spec 1 version: 0.2 2phases: 3 install: 4 runtime-versions: 5 nodejs: 12 6 commands: 7 yum install -y jq 8 build: 9 commands: 10 - npm install 11 - npm pack 12 - zip -r $LAMBDA_NAME.zip ./build/* 13 artifacts: 14 type: zip 15 files: 16 - ./*.zip 17 cache: 18 paths: 19 - './node_modules'
- 17.

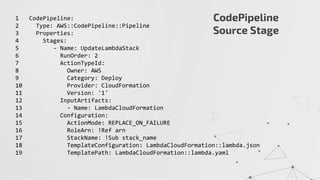

- 18. CodePipeline Source Stage 1 CodePipeline: 2Type: AWS::CodePipeline::Pipeline 3 Properties: 4 Stages: 5 - Name: UpdateLambdaStack 6 RunOrder: 2 7 ActionTypeId: 8 Owner: AWS 9 Category: Deploy 10 Provider: CloudFormation 11 Version: '1' 12 InputArtifacts: 13 - Name: LambdaCloudFormation 14 Configuration: 15 ActionMode: REPLACE_ON_FAILURE 16 RoleArn: !Ref arn 17 StackName: !Sub stack_name 18 TemplateConfiguration: LambdaCloudFormation::lambda.json 19 TemplatePath: LambdaCloudFormation::lambda.yaml

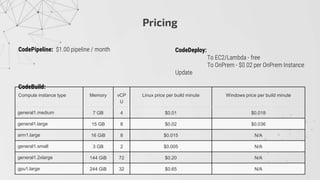

- 19. Pricing CodePipeline: $1.00 pipeline/ month CodeBuild: Compute instance type Memory vCP U Linux price per build minute Windows price per build minute general1.medium 7 GB 4 $0.01 $0.018 general1.large 15 GB 8 $0.02 $0.036 arm1.large 16 GiB 8 $0.015 N/A general1.small 3 GB 2 $0.005 N/A general1.2xlarge 144 GiB 72 $0.20 N/A gpu1.large 244 GiB 32 $0.65 N/A CodeDeploy: To EC2/Lambda - free To OnPrem - $0.02 per OnPrem Instance Update
- 20. THANK YOU Does anyonehave any questions? peter@salnikov.cc t.me/PeterSalnikov fb.me/peter.salnikov www.salnikov.cc
