1. Adventures in Building a Database
or
Abstraction is All We Have
Alex Scotti
Bloomberg LP

2. • Comdb2 is
• A Highly Available Clustered Relational
Database System
• Developed at Bloomberg
• Uses much open source, portions of
BerkeleyDB, SQLite, others
• Much custom code
• Stores 95% of all the data in Bloomberg

3. • Looking back on what made Comdb2 a success at
Bloomberg, I saw 4 big abstractions that we got
right
• Interestingly enough, I see only 1 of these
abstractions is common place in every system
today
• We started building a system to meet the goals I’ll
be referring to today as abstractions
• With the larger goal of letting application code be
simpler, faster to write, and more reliable

4. Abstraction is key
• Raise the level of abstraction as much as possible
(before performance becomes absolutely
unacceptable)
• Theres always a ‘different way’ to solve any problem
• Try to be in a spot where 95% of applications don't
need that different way
• Inflection point - system can never be fast enough for
everything. Chasing last percent involves usability
sacrifices making things worse for other 99!

5. Abstraction 1: Relational
Model
• We started off in 2004 building what would now
be recognized as a NoSQL system
• It had no schemas
• It had no data types
• It had almost nothing, aside from High Availability
• Clients could store anything, very “flexible”

6. • “Flexible” quickly becomes a euphemism for
“fragile” or “dangerous” or “a huge mess”
• Programs are storing binary data in the database?
• Do they all agree on how it’s encoded?
• Did the app writers understand endian issues?
• What about alignment issues?
• How do they change things when the apps are all
so tightly coupled now?

7. • How do you query your data?
• Write programs to navigate through the data row
by row using explicit indexes
• That’s hard
• Also fragile. What if we change the index
structure?
• That’s also slow. Lots of round trips to a remote
server

8. • We quickly realized the abstraction provided by
SQL was not to be ignored! (To be fair, all the
NoSQL systems are now realizing this also)
• Applications could be written with 1 line of code
expressing the same logic as what took hundreds
before
• Without errors!
• Without fragile coupling to database layout!
• With improved performance!

9. • “Rigid” schemas are a GOOD THING
• Some will have you believe “rigid” means “inflexible”
but it’s actually the opposite!
• Having strong typing and well defined schemas
allows for safe, flexible changes to running systems
without breaking things or downtime
• Pervasive type conversion whenever possible is key
• View “data types” as just another form of “constraint”
- The type has nothing to do with the data

10. • Abstract away the representation of data as
much as possible (Codd rules 8,9)
• Abstract away the physical locations of data as
much as possible (Codd rule 11)
• Support online schema changes for ALL
POSSIBLE CHANGES
• Don’t ever make a table unavailable, or read
only

11. Abstraction 2: Perfect
Availability
• What does it mean to be highly available?
• Let’s start by understanding what it means to not
be highly available
• What things do we take for granted working with
“non distributed systems?”
• Let’s imagine the world’s worst programming
language

12. INTEGER I
I=5
PRINT I 0

13. INTEGER I
ASSIGN: I=5
RC = GETASSIGNMENTRC()
IF (RC = 0)
PRINT I
ELSE
GOTO ASSIGN
5

14. INTEGER I, J
ASSIGN: I = 4
RC = GETASSIGNMENTRC()
IF (RC = 0)
J = I * 3
ELSE
GOTO ASSIGN
PRINT J
8

15. INTEGER I, J
ASSIGN: I = 4
RC = GETASSIGNMENTRC()
IF (RC = 0)
MULT: J = I * 3
RC2 = GETMULTRC()
IF RC2 != 0
GOTO MULT
ELSE
GOTO ASSIGN
PRINT J
Now we loop forever…
Looks like multiplication
is down again

16. INTEGER I, J
ASSIGN: I = 4
RC = GETASSIGNMENTRC()
IF (RC = 0)
MULT: J = I * 3
RC2 = GETMULTRC()
IF RC2 != 0
RETRY++
IF (RETRY < 10)
GOTO MULT // RETRY IT
ELSE
// IT’S DOWN LET’S DO BY HAND
X = 0
WHILE (X < 3)
J = J + I
X++
ENDWHILE
ELSE
GOTO ASSIGN
PRINT J
Oh jeez..
I hope loops are
working today.
I forgot to check

17. • This is silly
• Nobody would use such a terrible language!
• Yet this is exactly what programs that use
unreliable services start to look like
• Not even exaggerating
• Error handling and “fall back strategies”
dominate even the simplest applications if they
need to be “robust.”

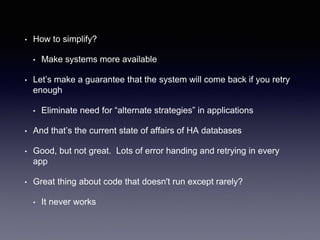

18. • How to simplify?
• Make systems more available
• Let’s make a guarantee that the system will come back if you retry
enough
• Eliminate need for “alternate strategies” in applications
• And that’s the current state of affairs of HA databases
• Good, but not great. Lots of error handing and retrying in every
app
• Great thing about code that doesn't run except rarely?
• It never works

19. • HA Database contract
• When you get a good return code from commit,
your data is stored ‘durably.’ (hopefully in more
than one place)
• If the server you are talking to goes down,
another one should be available (soon or now)
for you to connect to and hopefully you should
still find your data there

20. • Let’s simply it further
• What if we transparently reconnect to other
servers when one fails and guarantee that the
data will be there?
• We just simplified the apps even more.
• Now they get occasional bad return codes and
call some database ‘retry’
• Still ugly code, but harder to screw up

21. • Can we do better?
• The “perfect availability” abstraction!
• Delete all the error handing and retrying from
your applications, let’s assume the DB is as
reliable as multiplication
• DB won’t give you an unexpected error from
server failure anymore (even when the server
fails)

22. • HA SQL
• Client transparently negotiates point in time when it
connects
• Client transparently reconnects to other node on
failure, using point in time to get back to exactly
where it was
• Client transparently requests in flight SQL (SELECT)
to be resumed after the EXACT ROW last delivered
• Client transparently re-issues writes (INSERT, etc)

23. • No bad return code back to the application from
any possible state of a transaction
• If in the middle of running a query
• If uncommitted writes
• If packet lost on COMMIT request/response
• No HA SQL database currently able to do this,
aside from Comdb2

24. • ACID
• What does the D mean?
• After you COMMIT you “cant lose the data.”
• Are you “durable” if you need to wait for the system to
come back after a crash?
• What if you need to “swing” to a backup server?
• What if the data center exploded? Did you lose the
data?
• HA really is just another way of looking at D.

25. Abstraction 3: No
Concurrency
• Concurrency causes many problems for
applications
• Very hard to reason about, very easy to make
errors
• The ideal system to program to (not the fastest!)
is one with no concurrency at all

26. • Serializability Theory
• We want to have concurrency in our database for
performance reasons
• We don’t want to have concurrency problems
• Systems that don't have concurrency by definition
have no concurrency problems
• If we can show a system that has concurrency to be
somehow “equivalent” to the one with no concurrency
then it too has no concurrency problems!

27. • Equivalent Histories
• Consider the “output” of the database a “history”
• A system with no concurrency can only produce a limited set of
possible histories from a given set of input
• Why more than one?
• Concurrent requests to the system may execute in non
deterministic order even though one at a time
• If the system WITH concurrency produces one of those histories, it
runs that workload with no concurrency problems
• If the system with concurrency produces a history that could have
come from the non concurrent system for ALL POSSIBLE INPUTS
then the concurrent system has no concurrency problems!

28. • A system like that is called “serializable”
• The system is concurrent but to the application
(user) acts like a system that has no
concurrency
• The abstraction is the system has no
concurrency

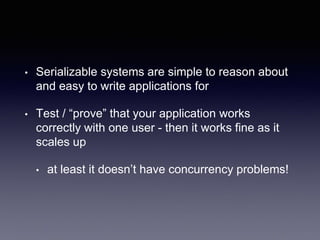

29. • Serializable systems are simple to reason about
and easy to write applications for
• Test / “prove” that your application works
correctly with one user - then it works fine as it
scales up
• at least it doesn’t have concurrency problems!

30. UPDATE dots SET color =
‘black’ WHERE color =
‘white’
UPDATE dots SET color =
‘white’ WHERE color =
‘black’
black white black white black white
black black black black black black
white white white white white white
OR
white black white black white black
VS

31. • Comdb2 not the only serializable SQL DB
• However…
• In a cluster of PostrgreSQL, not serializable on
any nodes other than “master.”
• In a cluster of Percona MySQL, not serializable
on any node
• Full read/write serializability for any app
connected to any node in a Comdb2 cluster

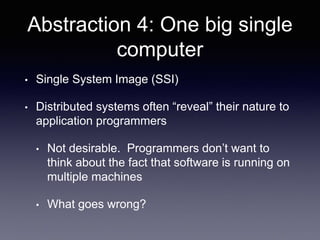

32. Abstraction 4: One big single
computer
• Single System Image (SSI)
• Distributed systems often “reveal” their nature to
application programmers
• Not desirable. Programmers don’t want to
think about the fact that software is running on
multiple machines
• What goes wrong?

33. • X=3
• Write X=4
Read X
• Do you get 4?
• What if your read happened on a different
machine?
• What if you told someone else to do that read?
• What if they did that read on a different machine?

34. • Not going to torture you again with WORLDS
WORST PROGRAMMING LANGUAGE
• but you can guess where this would go
• digresses into insanity quickly

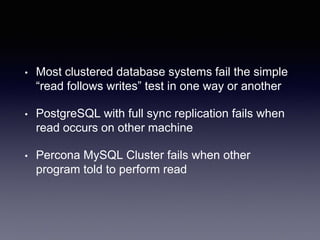

35. • Most clustered database systems fail the simple
“read follows writes” test in one way or another
• PostgreSQL with full sync replication fails when
read occurs on other machine
• Percona MySQL Cluster fails when other
program told to perform read

36. • Comdb2 passes
• Clusterwide coherency model ensures that
after commit, data will always be visible to any
process on any computer
• How?

37. • On commit, wait for LSN to be acked by all nodes in
cluster
• Only ack an LSN after
• You have received the data
• You have processed lock list in the commit record
• Obtained all the locks needed to ensure that no
external observer can prove that this transaction
was NOT COMMITTED
• Racing reads will block on locks

38. • The data was NOT committed
• The btrees in memory containing the data were
NOT updated
• The log records containing the descriptions of the
changes to these btrees were NOT even
processed
• We ack back immediately after grabbing the
locks which are listed in the commit record

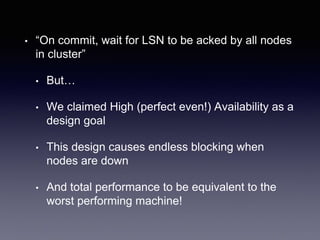

39. • “On commit, wait for LSN to be acked by all nodes
in cluster”
• But…
• We claimed High (perfect even!) Availability as a
design goal
• This design causes endless blocking when
nodes are down
• And total performance to be equivalent to the
worst performing machine!

40. • Coherency Algorithm:
• Wait for Commit LSN to be acked by all nodes
• But don’t wait forever
• Just wait longer than heartbeat time
• Get back first ack.. get back more acks..
• Use each time each node took so far in a heuristic to calculate how
long this should take in total
• Cull the outliers, don’t wait for them
• Drop connection to them!
• Mark them ‘incoherent’ and don’t wait for them when in this state

41. • On node that lost connection:
• Mark yourself as ‘incoherent’
• Refuse to serve ANY requests
• not read only - no service
• “read only” tempting but wrong
• write followed by read gets stale data when the read ends up
on node that just got marked incoherent!
• If you’re crashed - well you are crashed, you don't do anything
• If you're alive, get back into the cluster. Follow protocol to
become coherent and serve requests again

42. • Becoming coherent
• Same protocol used when a node starts cold or when it
recovers from being marked incoherent (transient
timeout)
• Watch the LSNs the cluster is up to on the nodes
• When your LSN is getting ‘close’, request other node to
‘loop back’ an internal transaction, waiting for the LSN to
be acked
• If that succeeds (without timeout!) then you can be
marked coherent (you are processing live data) and you
now can service requests

43. 4 Great Abstractions
• Physical / Logical Independence (Relational
Model)
• Perfect Availability (HA SQL)
• No Concurrency (serializable)
• One single computer (SSI)
• Allows for simplified application logic, more
reliable applications, faster deployment
