1. Web Push Notification
Yulia Oletskaya / Konstantin Reido

2. Web
Push
Notification?

3. Advantages
Timely and relevant
Easy to access
Go straight to the details
Full control
● More visitors

4. Google Chrome

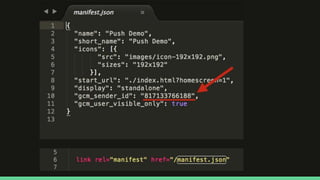

5. What is Web
App Manifest?
JSON file that intended to be a
centralized place to put
metadata associated with a web
application
This includes, but is not limited to:
the web application's name
links to icons
the preferred URL to open when a
user launches the web
application
a default orientation for web
application
display mode for the application
(e.g., in fullscreen)

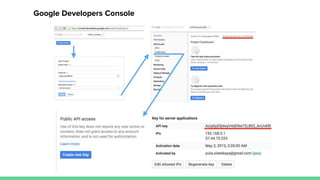

7. Google Developers Console

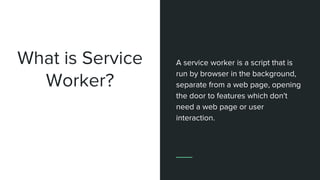

8. What is Service
Worker?
A service worker is a script that is
run by browser in the background,
separate from a web page, opening
the door to features which don't
need a web page or user
interaction.

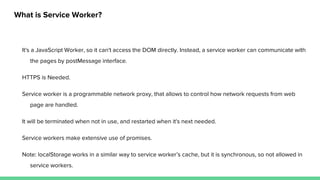

9. What is Service Worker?
It's a JavaScript Worker, so it can't access the DOM directly. Instead, a service worker can communicate with
the pages by postMessage interface.
HTTPS is Needed.
Service worker is a programmable network proxy, that allows to control how network requests from web
page are handled.
It will be terminated when not in use, and restarted when it's next needed.
Service workers make extensive use of promises.
Note: localStorage works in a similar way to service worker’s cache, but it is synchronous, so not allowed in
service workers.

10. Service Worker Use Cases
Background data synchronization
Prefetching and/or caching data for later use
Code syntax highlighting or other real-time text formatting
Hooks for background services
Spell checker
Analyzing video or audio data
Background I/O or polling of webservices
Processing large arrays or humungous JSON responses

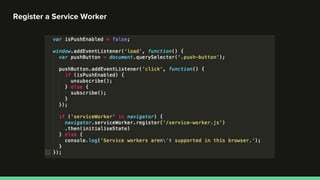

11. Register a Service Worker

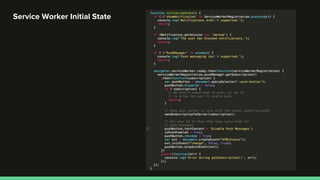

12. Service Worker Initial State

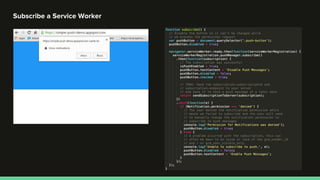

13. Subscribe a Service Worker

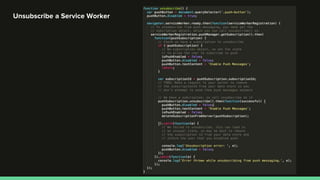

14. Unsubscribe a Service Worker

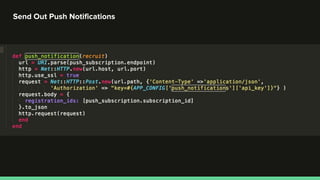

15. Send Out Push Notifications

16. Service Worker Example

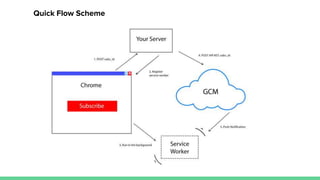

17. Quick Flow Scheme

18. Safari

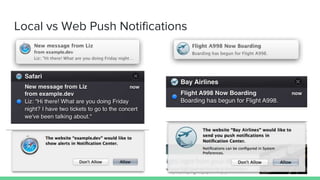

19. Local vs Web Push Notifications

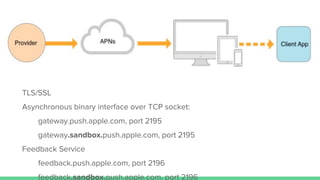

20. TLS/SSL

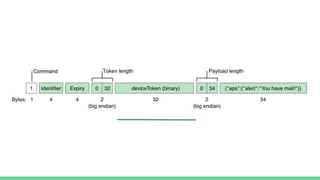

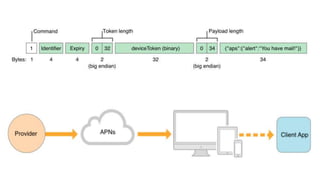

Asynchronous binary interface over TCP socket:
gateway.push.apple.com, port 2195
gateway.sandbox.push.apple.com, port 2195
Feedback Service
feedback.push.apple.com, port 2196
feedback.sandbox.push.apple.com, port 2196

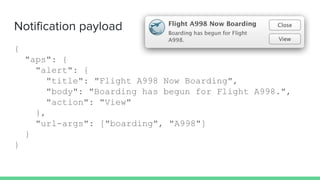

23. Notification payload
{
"aps": {
"alert": {
"title": "Flight A998 Now Boarding",
"body": "Boarding has begun for Flight A998.",
"action": "View"
},
"url-args": ["boarding", "A998"]
}
}

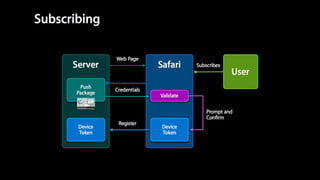

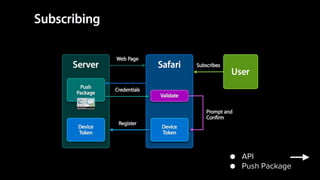

26. ● API

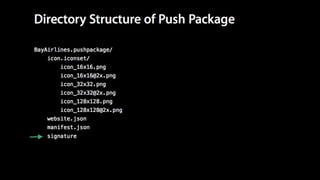

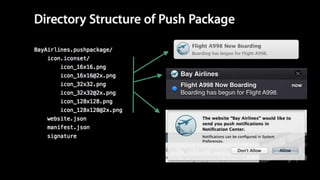

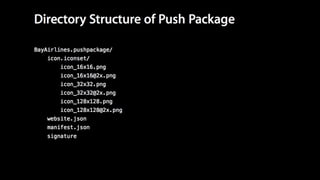

● Push Package

29. {
"websiteName": "Bay Airlines",
"websitePushID": "web.com.domain",
"allowedDomains": ["http://domain.com"],
"urlFormatString": "http://domain.com/%@/?flight=%@",
"authenticationToken": "19f8d7a6e9fb8a7f6d9330dabe",
"webServiceURL": "https://domain.com/push"
}

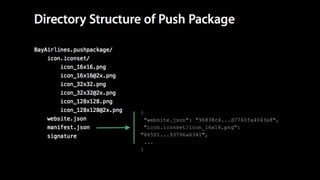

30. {
"website.json": "96838c4...d7760fa4043a8",
"icon.iconset/icon_16x16.png":
"865f1...93796a6341",
...
}

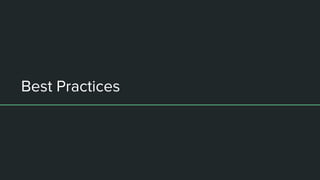

34. Best Practices

35. rpush
The push notification service for Ruby

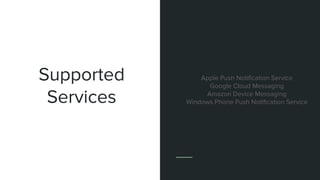

36. Supported
Services
Apple Push Notification Service
Google Cloud Messaging
Amazon Device Messaging
Windows Phone Push Notification Service

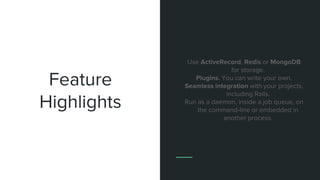

37. Feature
Highlights
Use ActiveRecord, Redis or MongoDB
for storage.
Plugins. You can write your own.
Seamless integration with your projects,
including Rails.
Run as a daemon, inside a job queue, on
the command-line or embedded in
another process.

38. Feature
Highlights
Scales vertically (threading) and
horizontally (multiple processes).
Designed for uptime - new apps are
loaded automatically, signal HUP to
update running apps.
Hooks for fine-grained instrumentation
and error handling (Reflection API).
Works with MRI, JRuby and Rubinius.

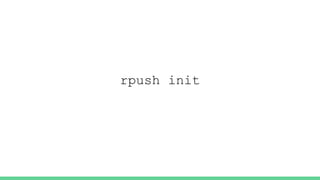

39. rpush init

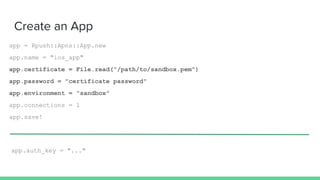

40. Create an App
app = Rpush::Apns::App.new
app.name = "ios_app"
app.certificate = File.read("/path/to/sandbox.pem")
app.password = "certificate password"
app.environment = "sandbox"
app.connections = 1
app.save!
app.auth_key = "..."

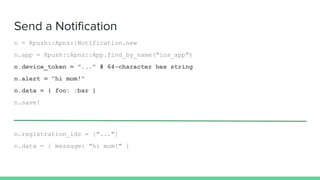

41. Send a Notification
n = Rpush::Apns::Notification.new
n.app = Rpush::Apns::App.find_by_name("ios_app")
n.device_token = "..." # 64-character hex string
n.alert = "hi mom!"
n.data = { foo: :bar }
n.save!
n.registration_ids = ["..."]
n.data = { message: "hi mom!" }
