The document provides an overview of the User Notifications Framework in iOS, which provides a unified API for handling both local and remote notifications. It discusses registration and requesting authorization, content including title, subtitle and body, triggers including time intervals and locations, management of notifications, actions that can be attached, and media attachments. Service extensions and the notification user interface are also briefly covered.

1. Notification Framework
DMI Internal Tech Talk
Sokna Ly
Associate Software Engineer, iOS

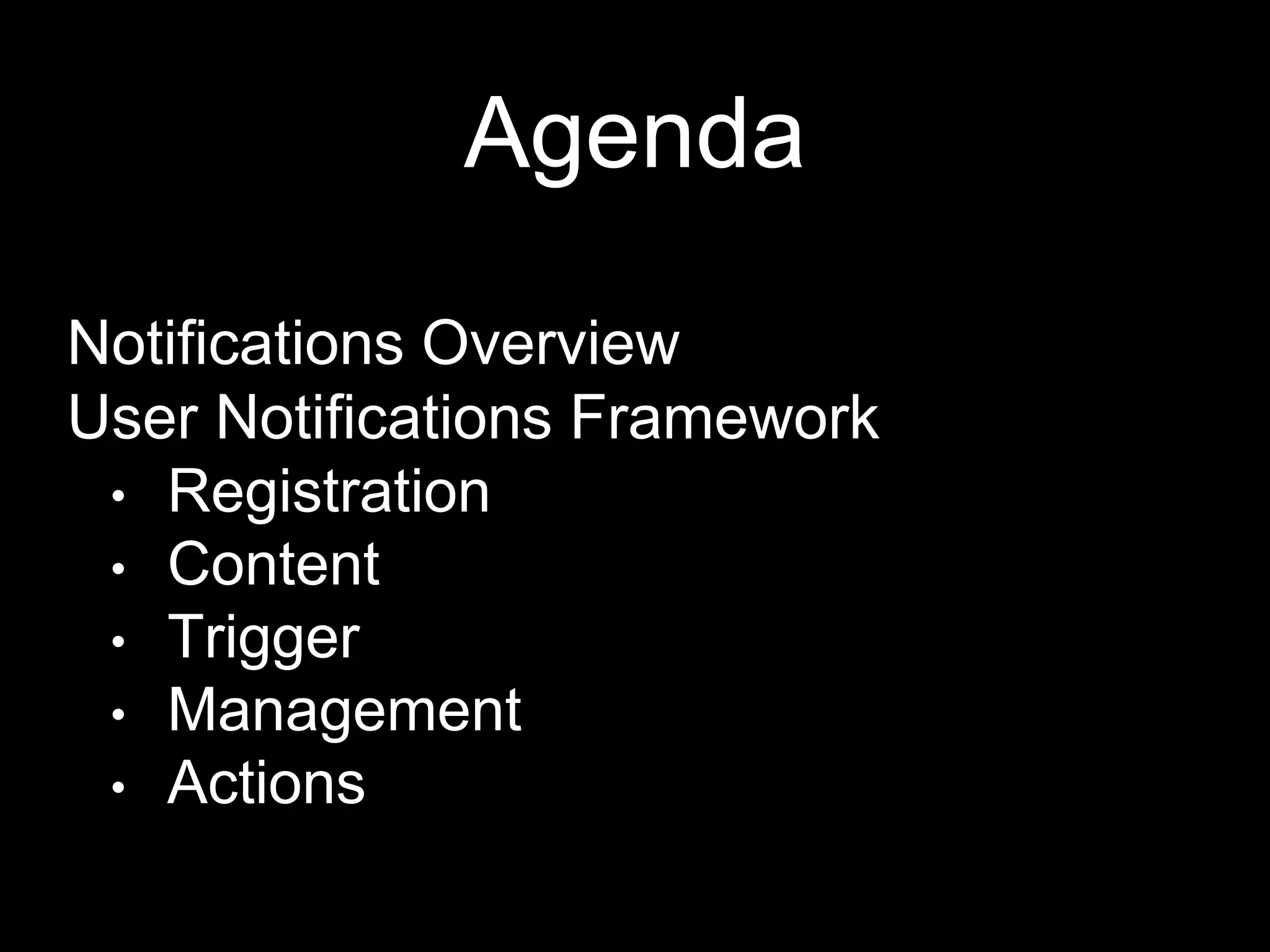

2. Agenda
Notifications Overview
User Notifications Framework
• Registration
• Content
• Trigger
• Management
• Actions

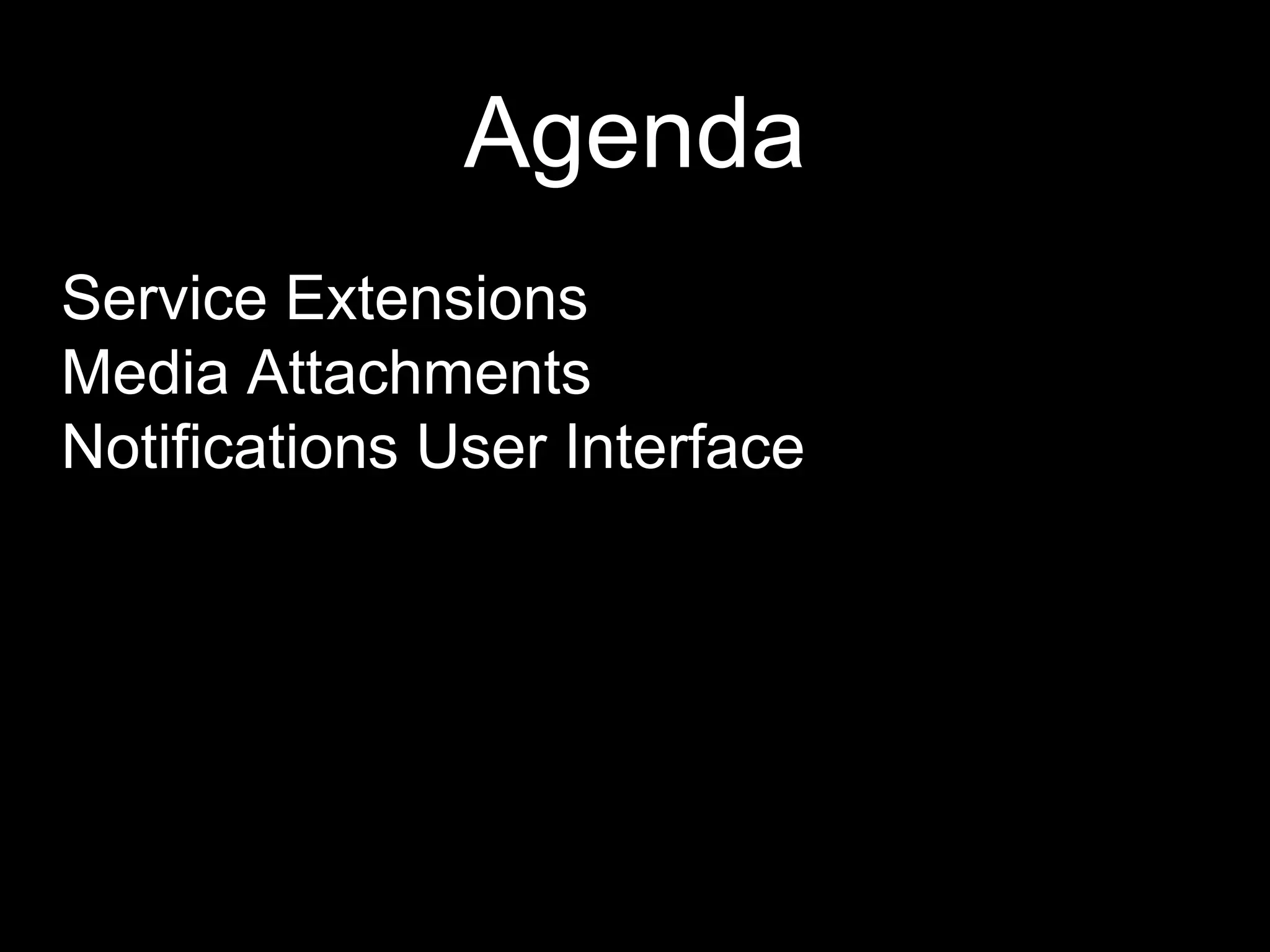

3. Agenda
Service Extensions
Media Attachments
Notifications User Interface

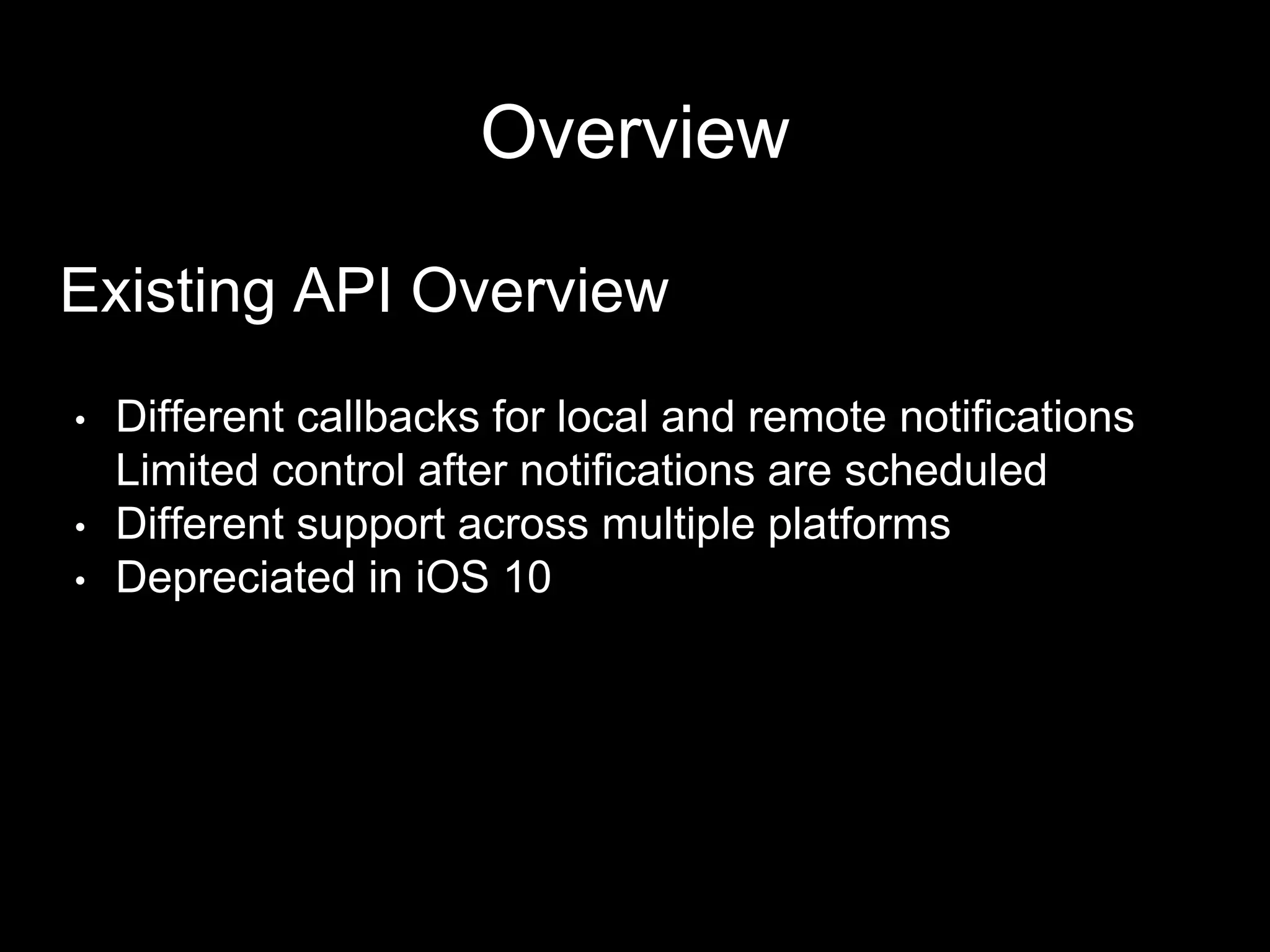

4. Overview
Existing API Overview
• Different callbacks for local and remote notifications
Limited control after notifications are scheduled
• Different support across multiple platforms
• Depreciated in iOS 10

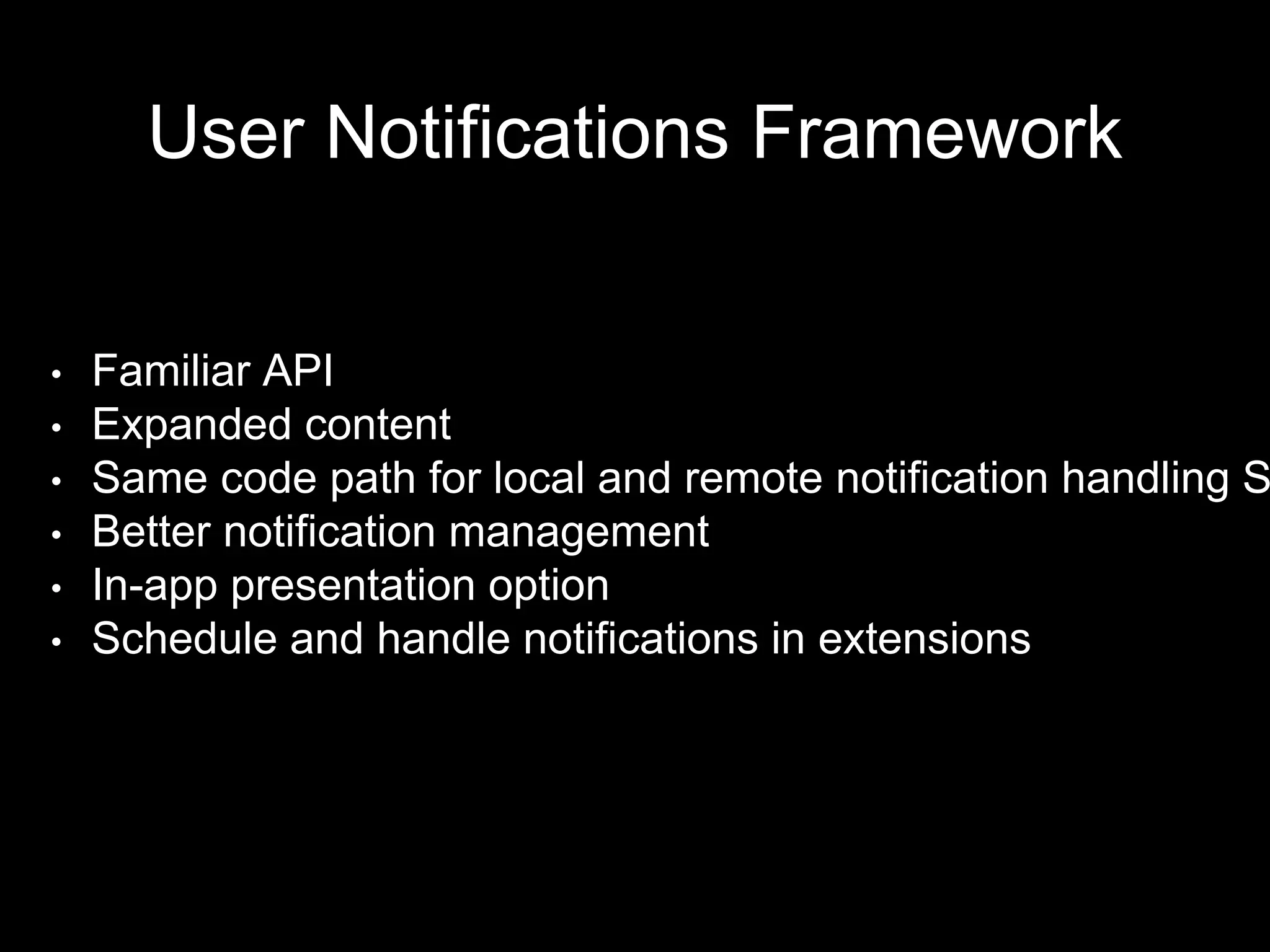

5. User Notifications Framework
• Familiar API
• Expanded content
• Same code path for local and remote notification handling S
• Better notification management
• In-app presentation option
• Schedule and handle notifications in extensions

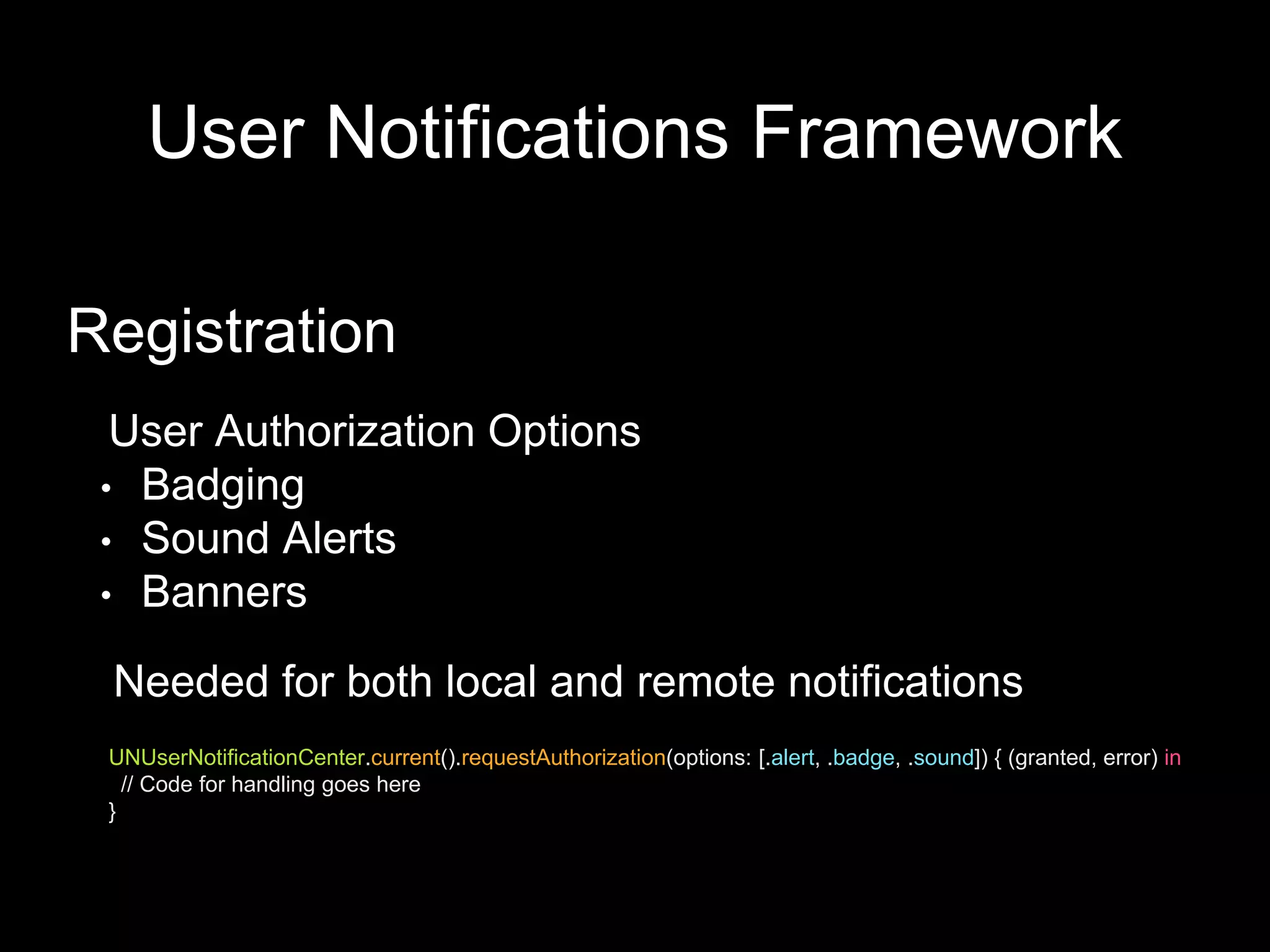

6. User Notifications Framework
Registration
User Authorization Options
• Badging
• Sound Alerts
• Banners
UNUserNotificationCenter.current().requestAuthorization(options: [.alert, .badge, .sound]) { (granted, error) in
// Code for handling goes here
}
Needed for both local and remote notifications

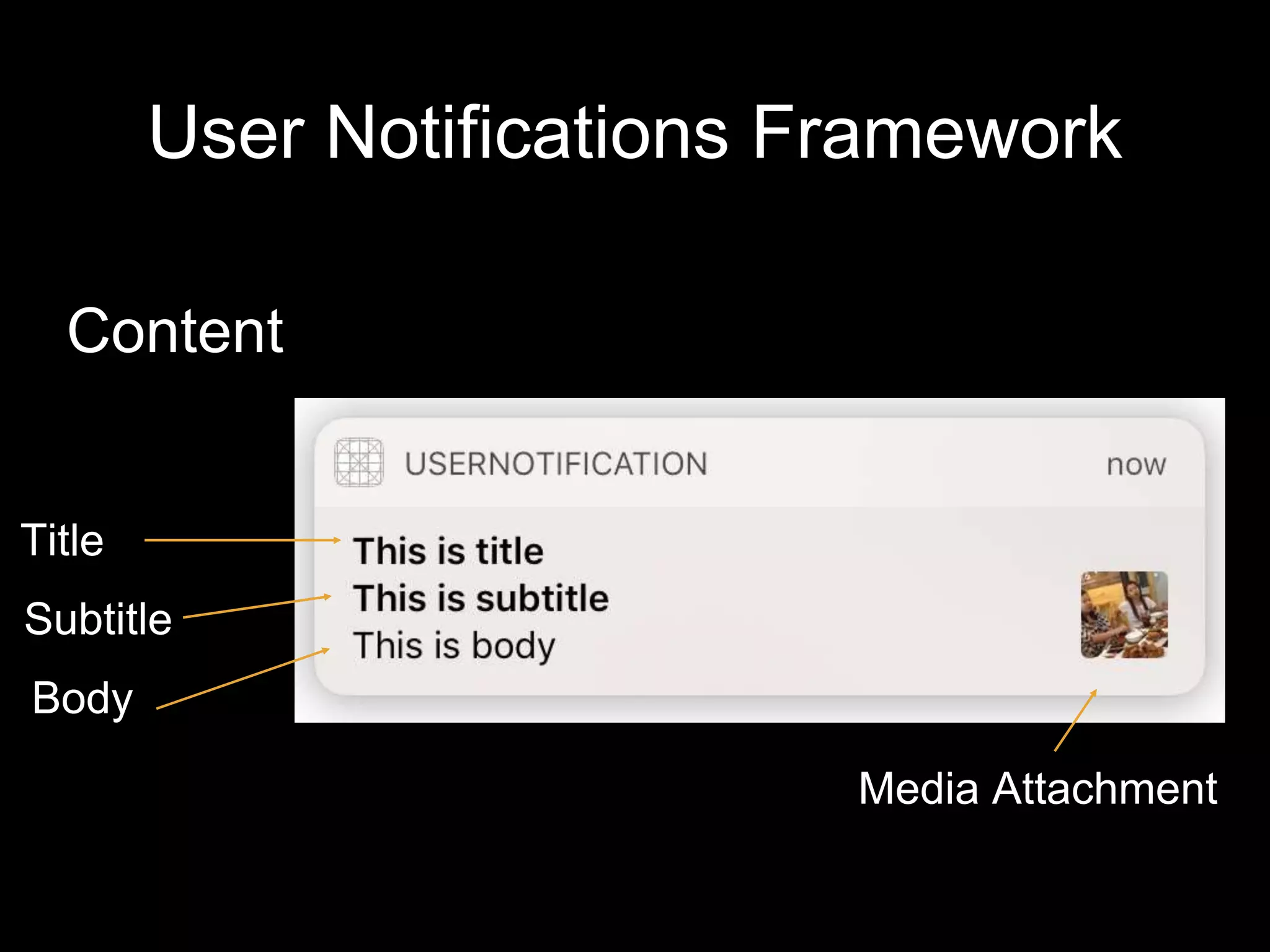

7. User Notifications Framework
Content
Title
Subtitle
Body
Media Attachment

8. User Notifications Framework
let content = UNMutableNotificationContent()
content.title = “This is title"
content.subtitle = “This is subtitle"
content.body = “I’m body…wahooo!”
content.badge = 1
Local Notification
Remote Notification
{
"aps": {
"alert": {
"title": "This is title",
"subtitle": "This is subtitle",
"body": "I'm body...wahooo!"
},
"badge": 1
}
}

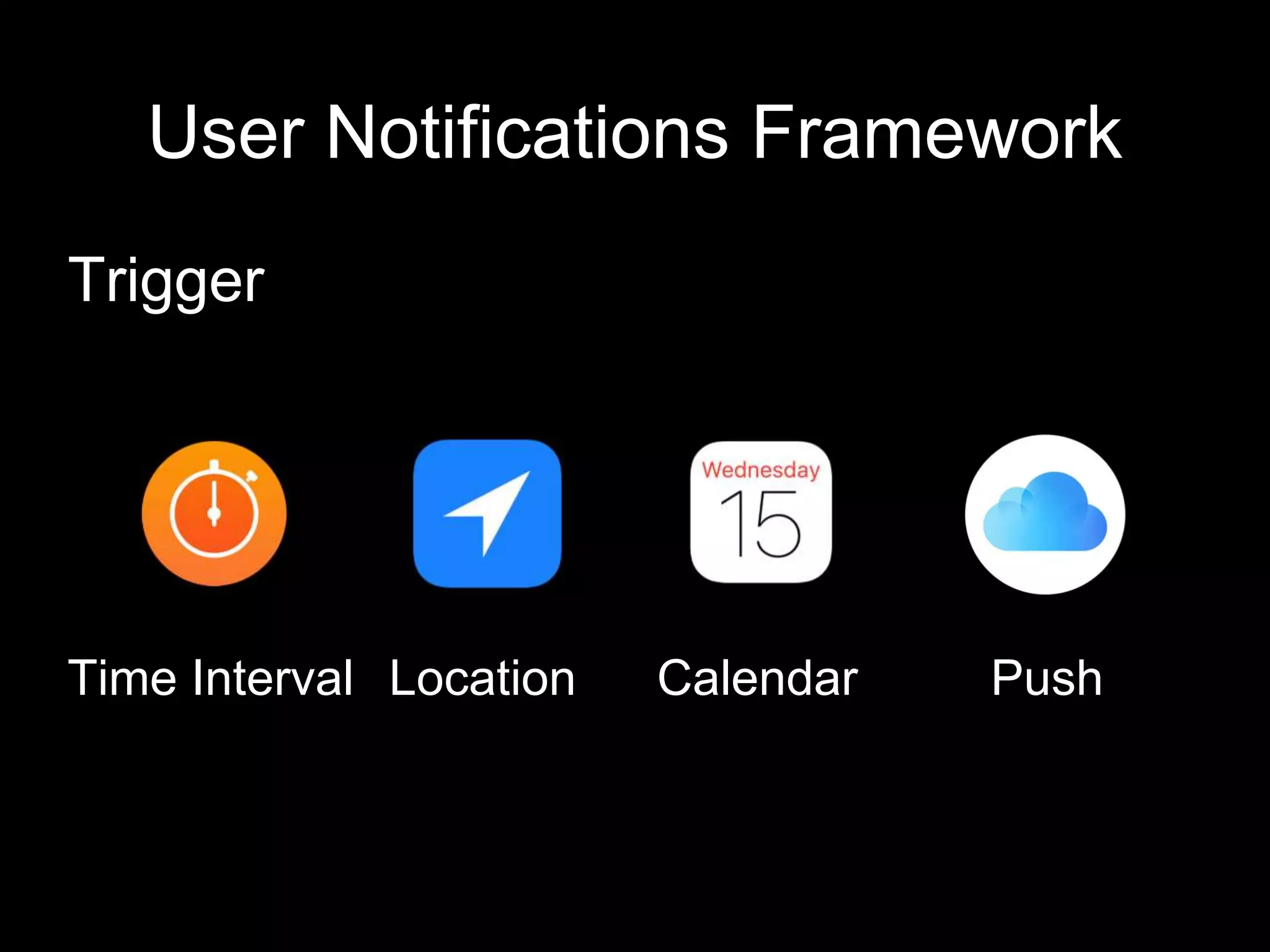

9. User Notifications Framework
Trigger
Time Interval CalendarLocation Push

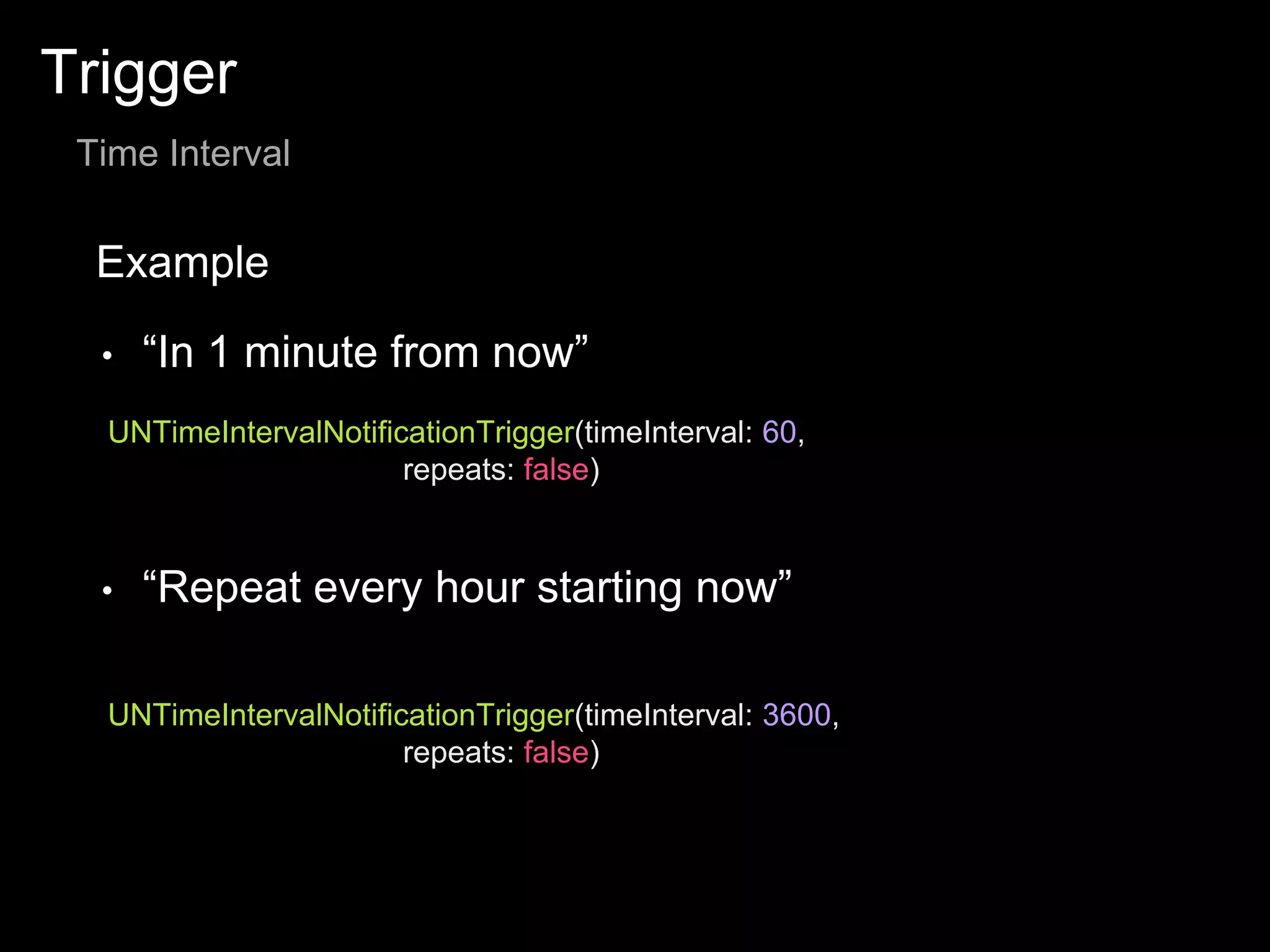

10. Trigger
Time Interval
Example
UNTimeIntervalNotificationTrigger(timeInterval: 60,
repeats: false)
• “In 1 minute from now”
• “Repeat every hour starting now”
UNTimeIntervalNotificationTrigger(timeInterval: 3600,
repeats: false)

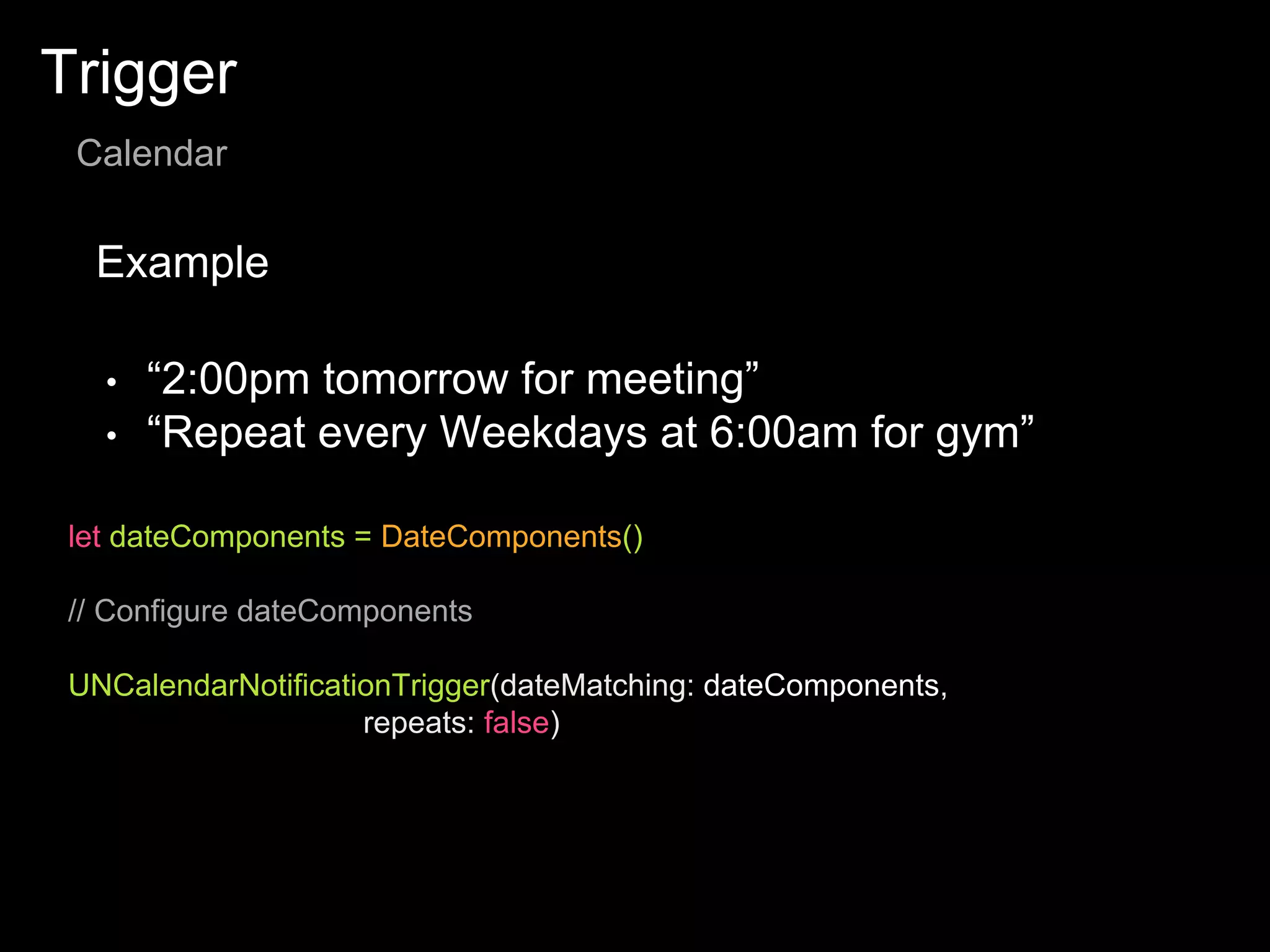

11. Trigger
Calendar
Example
let dateComponents = DateComponents()
// Configure dateComponents
UNCalendarNotificationTrigger(dateMatching: dateComponents,
repeats: false)
• “2:00pm tomorrow for meeting”
• “Repeat every Weekdays at 6:00am for gym”

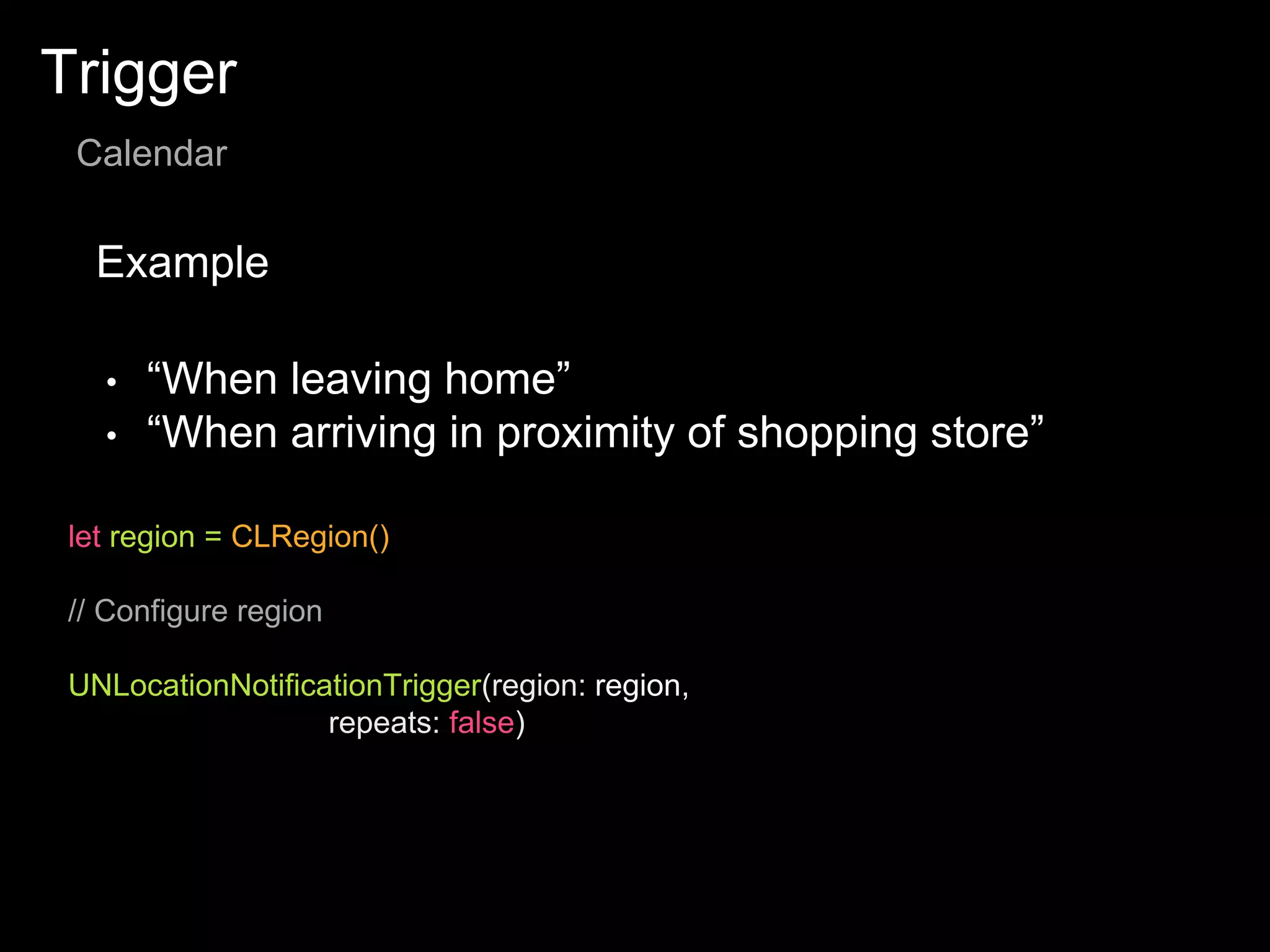

12. Trigger
Calendar
Example
let region = CLRegion()
// Configure region
UNLocationNotificationTrigger(region: region,
repeats: false)
• “When leaving home”
• “When arriving in proximity of shopping store”

13. User Notifications Framework
Management
Add notification request
Update and promote Notifications
Remove Notifications (Pending, Delivered)

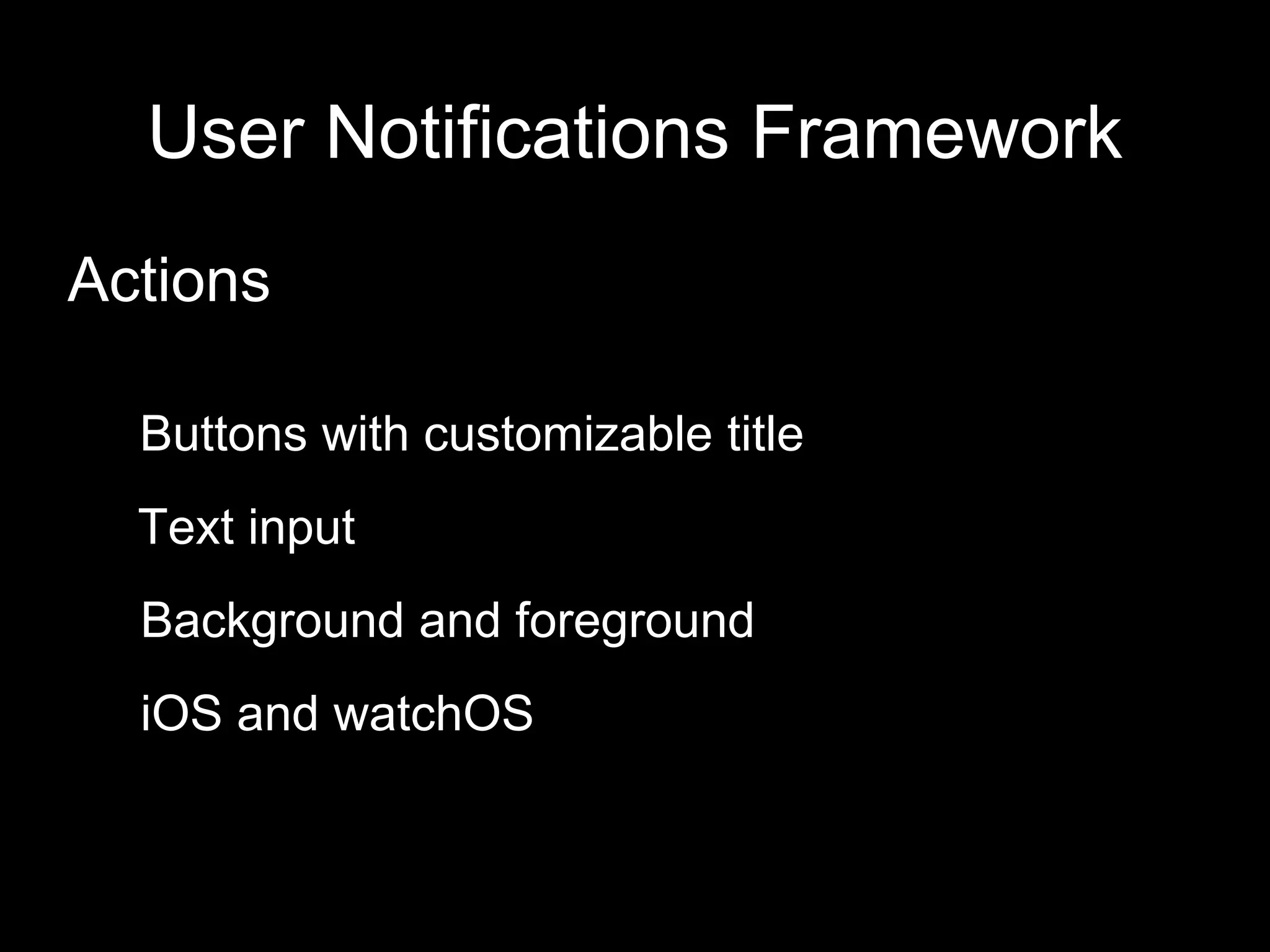

14. User Notifications Framework
Actions
Buttons with customizable title
Background and foreground
Text input
iOS and watchOS

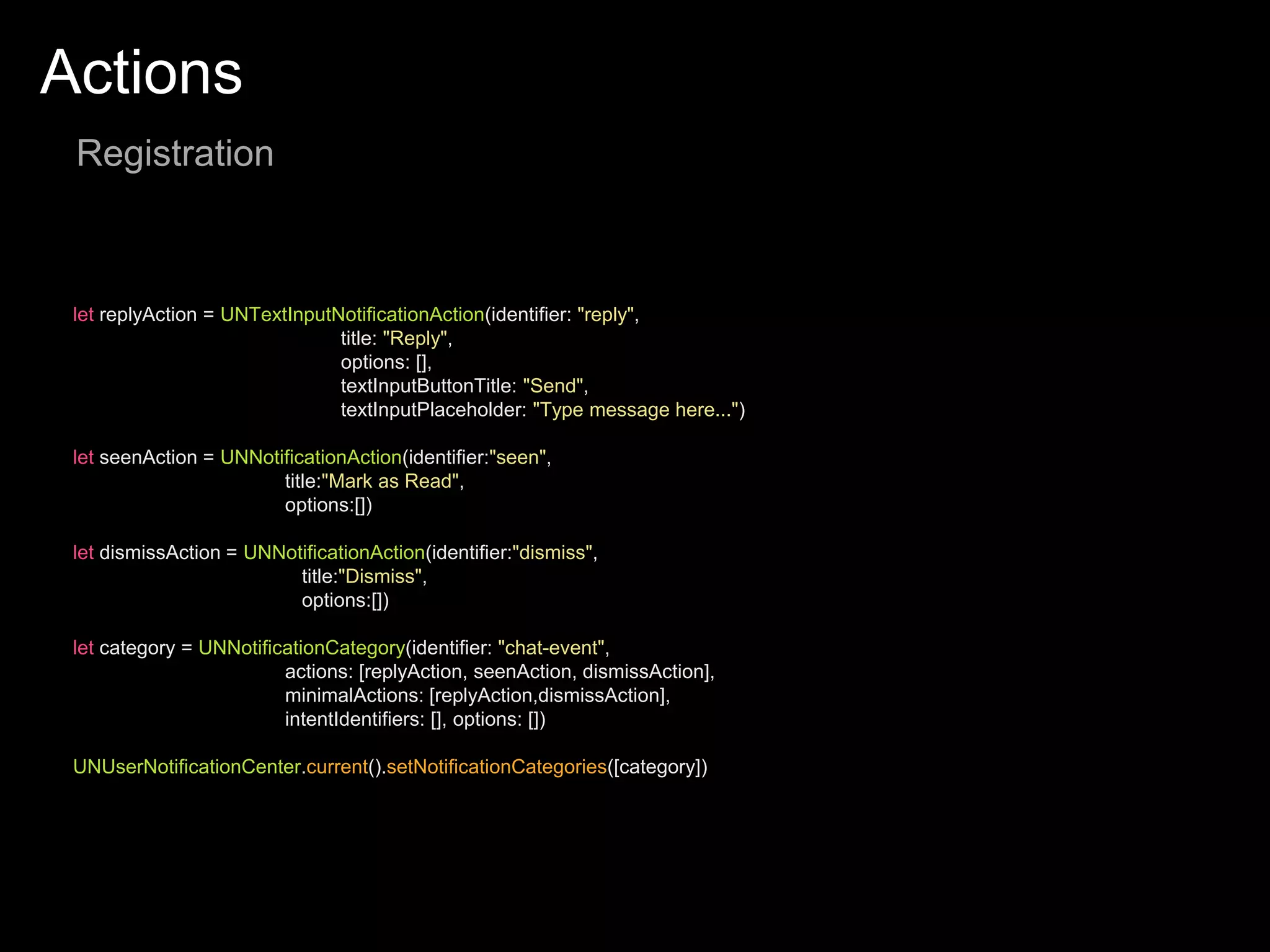

15. Actions
Registration
let replyAction = UNTextInputNotificationAction(identifier: "reply",
title: "Reply",
options: [],
textInputButtonTitle: "Send",
textInputPlaceholder: "Type message here...")
let seenAction = UNNotificationAction(identifier:"seen",
title:"Mark as Read",
options:[])
let dismissAction = UNNotificationAction(identifier:"dismiss",
title:"Dismiss",
options:[])
let category = UNNotificationCategory(identifier: "chat-event",
actions: [replyAction, seenAction, dismissAction],
minimalActions: [replyAction,dismissAction],
intentIdentifiers: [], options: [])
UNUserNotificationCenter.current().setNotificationCategories([category])

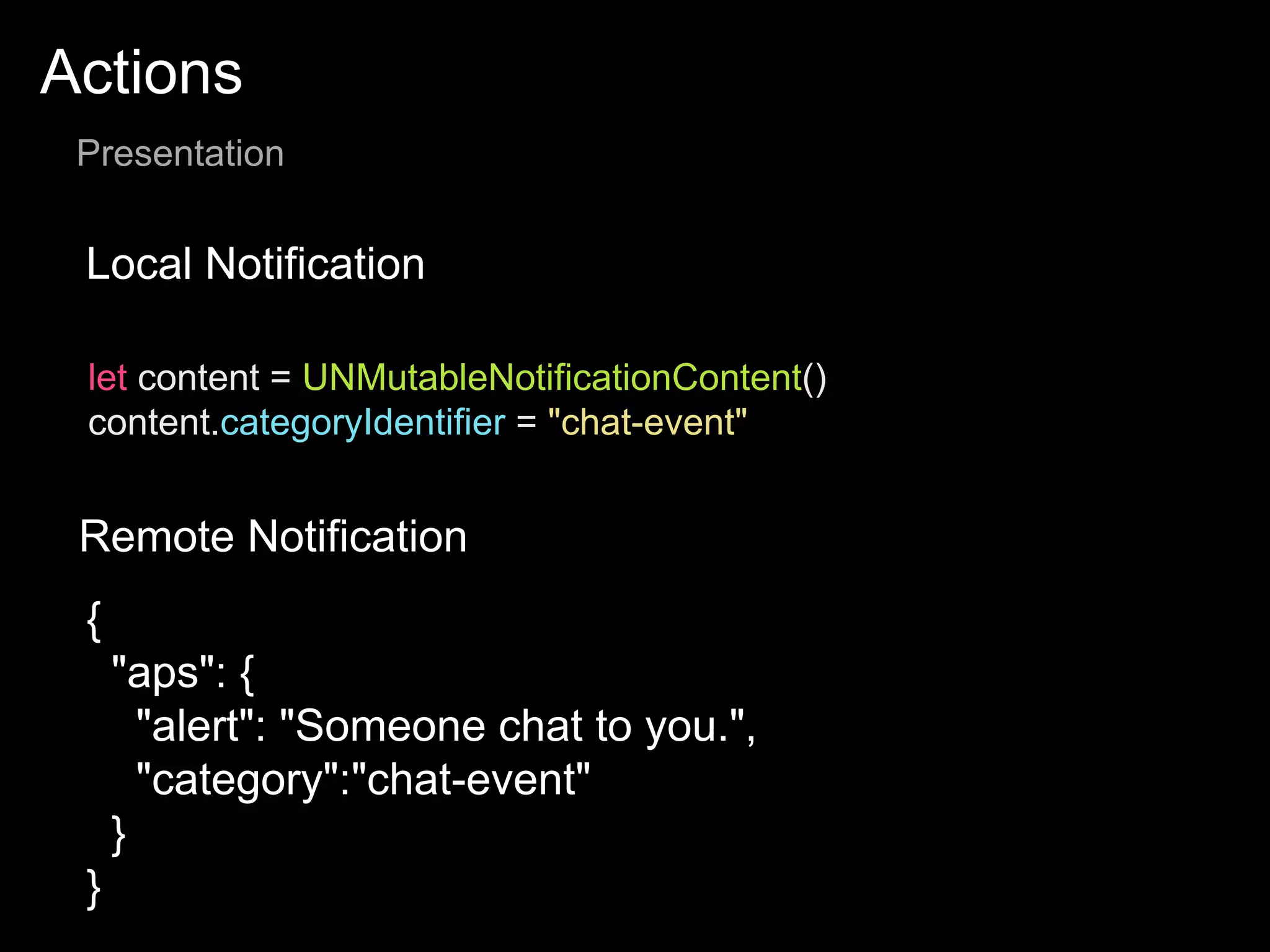

16. Actions
Presentation
Local Notification
Remote Notification
let content = UNMutableNotificationContent()
content.categoryIdentifier = "chat-event"
{
"aps": {
"alert": "Someone chat to you.",
"category":"chat-event"
}
}

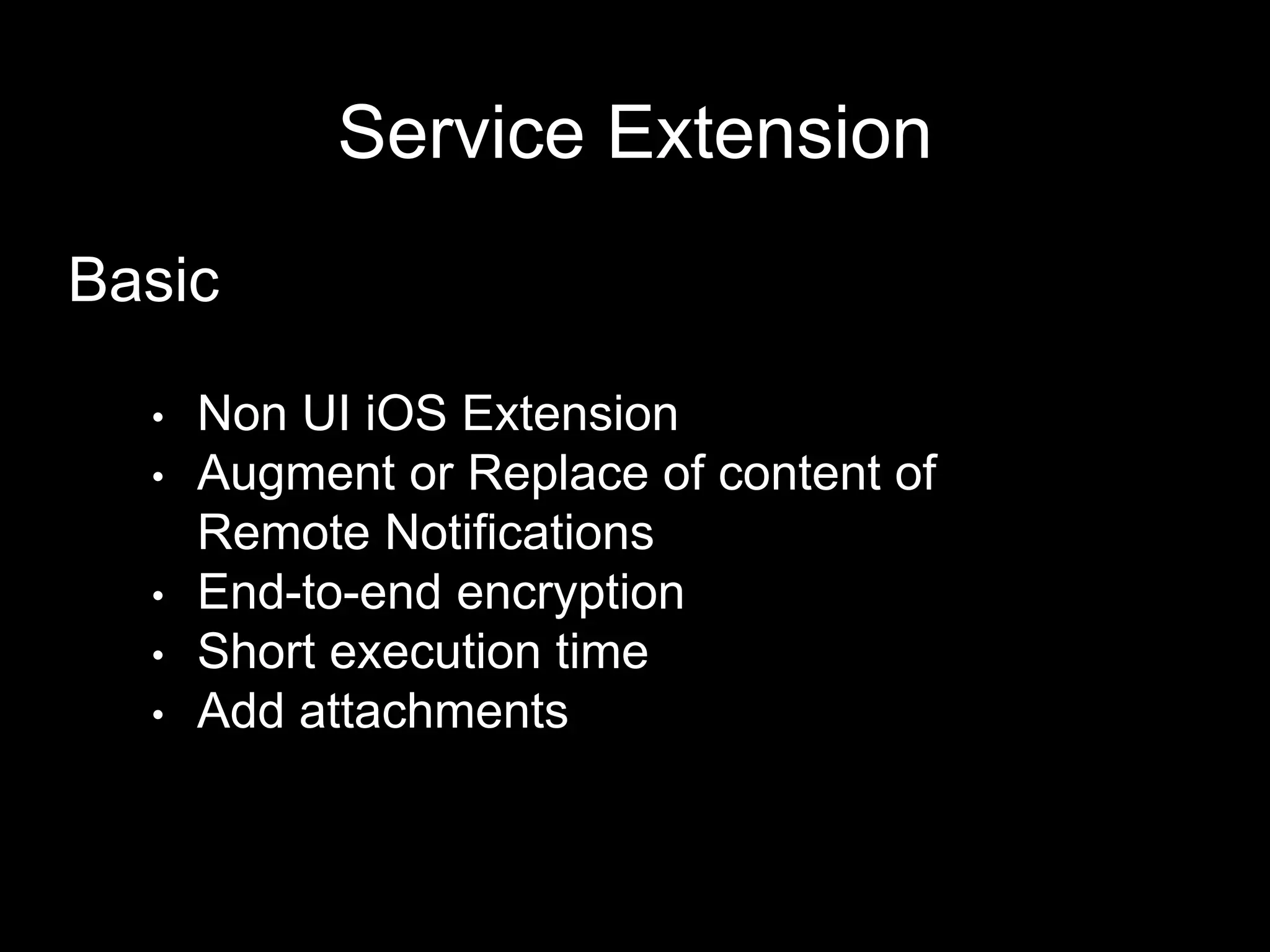

17. Service Extension
Basic
• Non UI iOS Extension
• Augment or Replace of content of
Remote Notifications
• End-to-end encryption
• Short execution time
• Add attachments

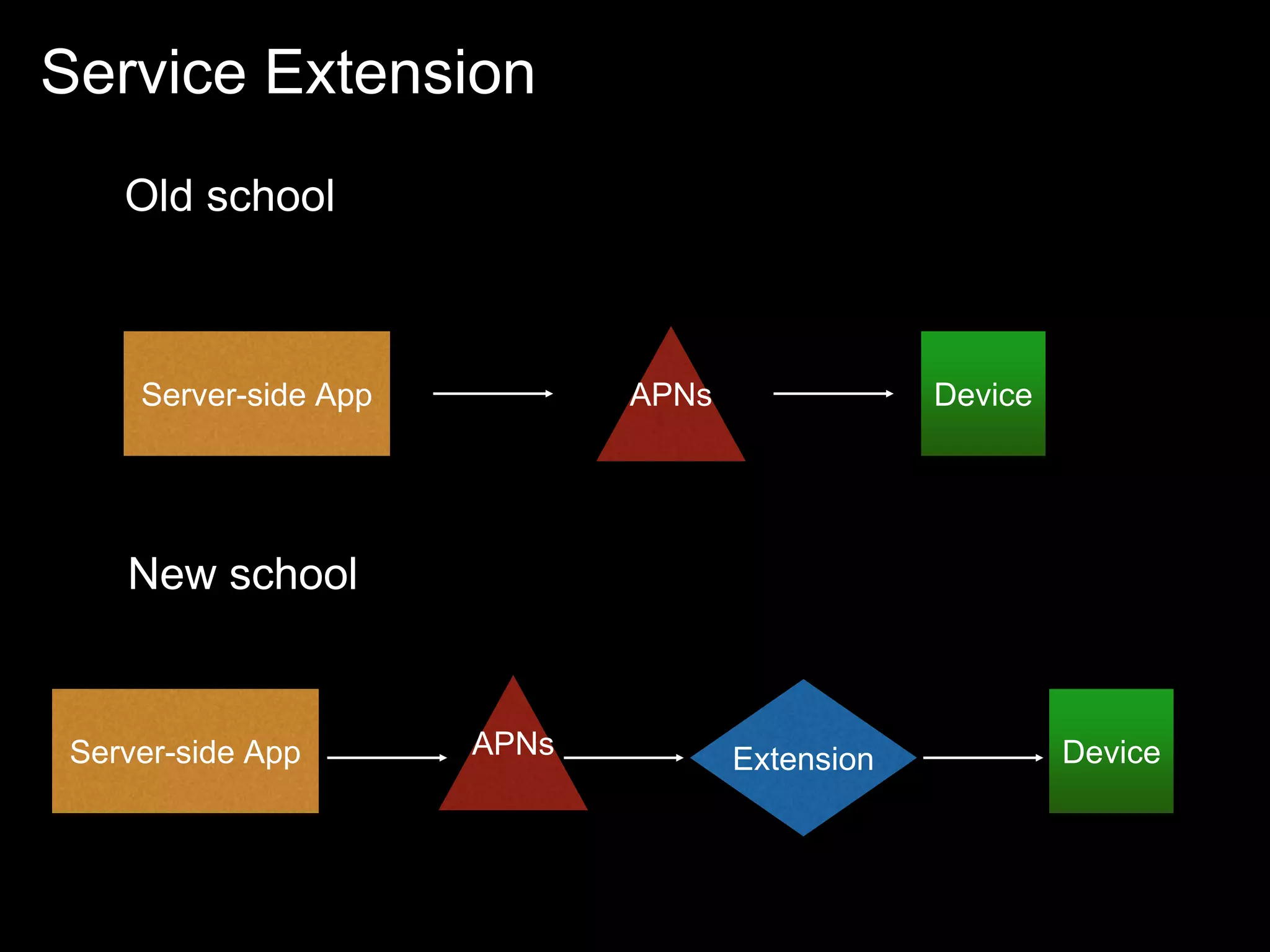

18. Service Extension
Old school
Server-side App APNs Device
New school
Server-side App APNs DeviceExtension

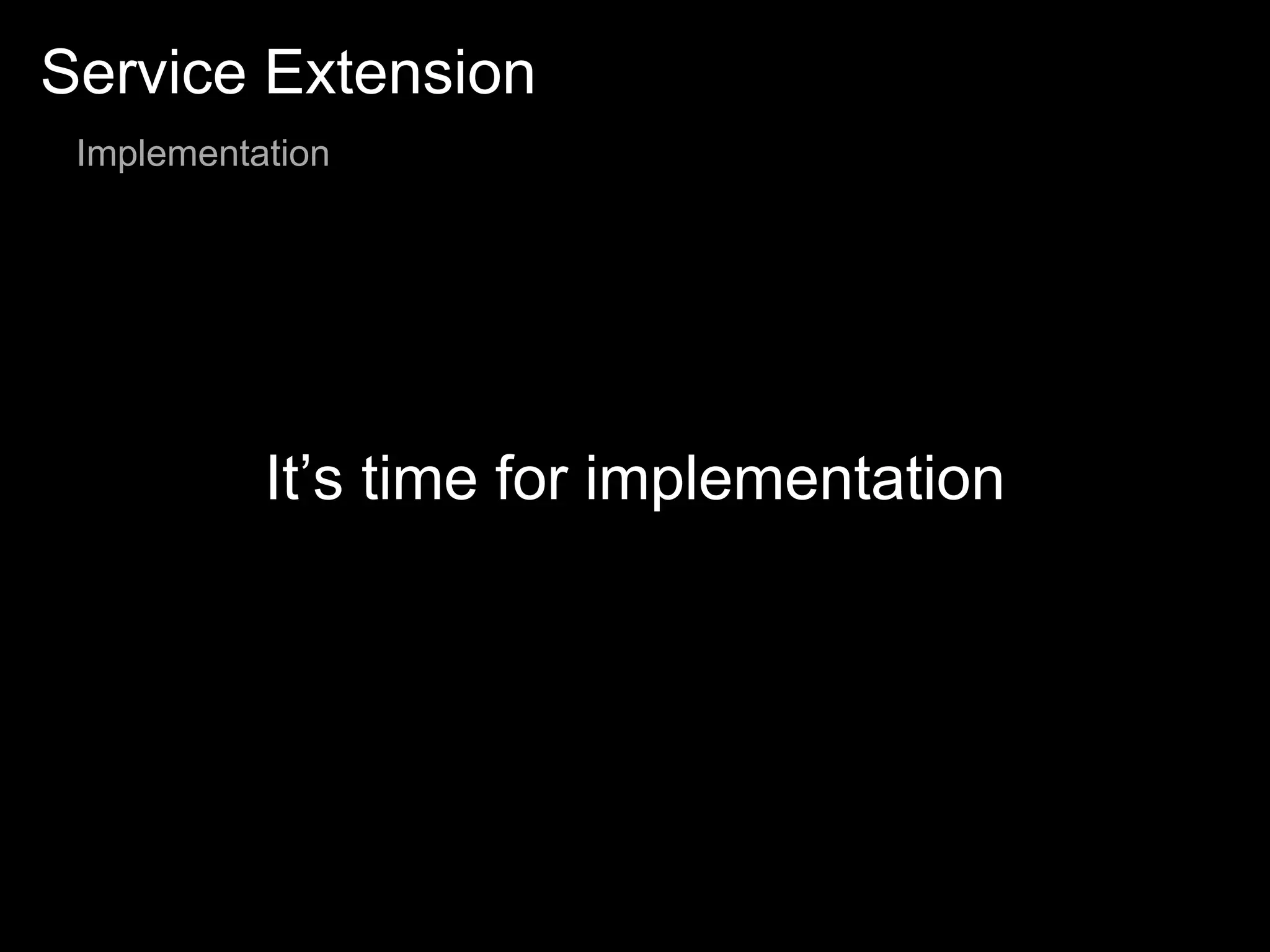

19. Service Extension
Implementation
It’s time for implementation

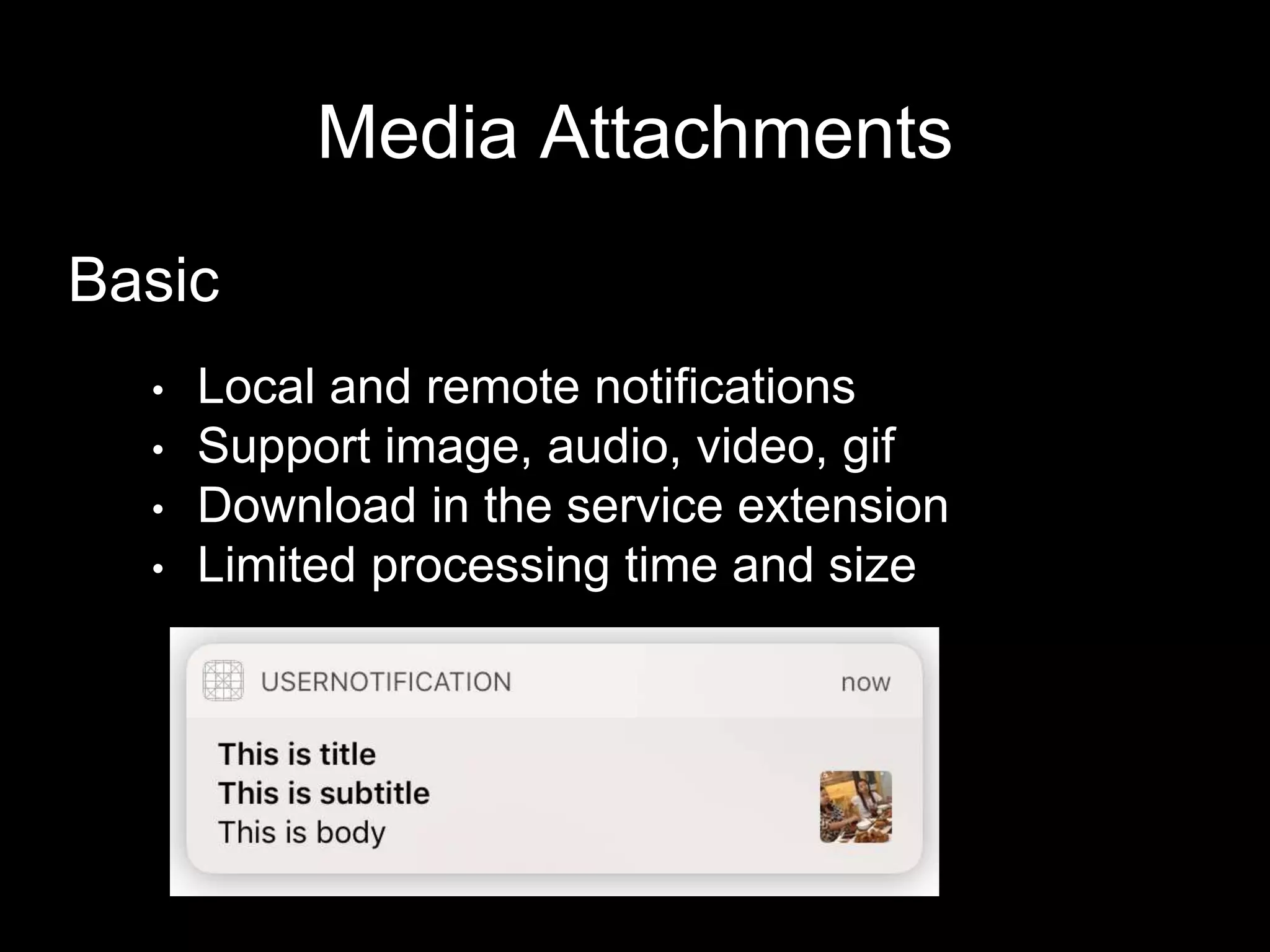

20. Media Attachments
Basic
• Local and remote notifications
• Support image, audio, video, gif
• Download in the service extension
• Limited processing time and size

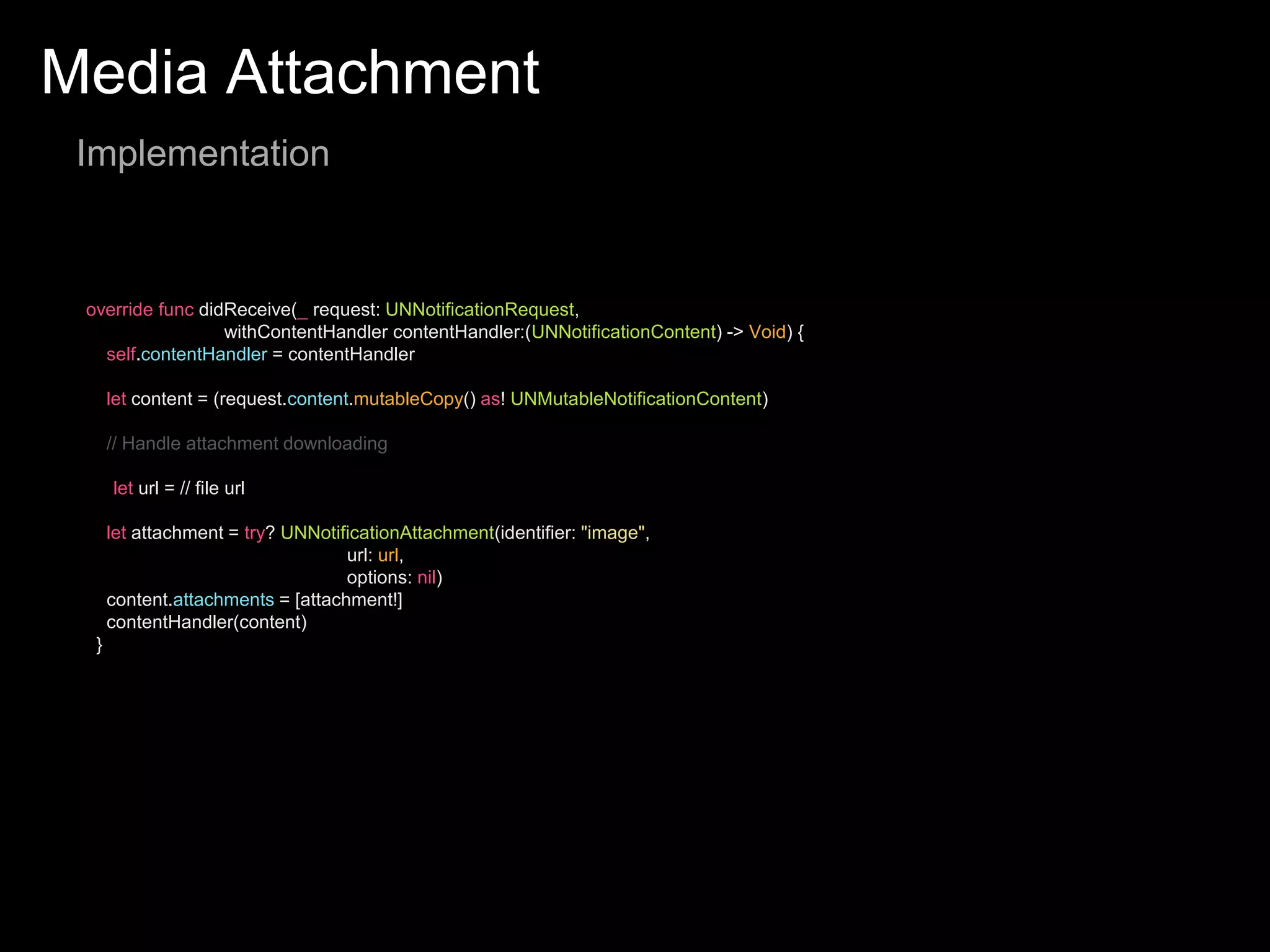

21. Media Attachment
Implementation
override func didReceive(_ request: UNNotificationRequest,
withContentHandler contentHandler:(UNNotificationContent) -> Void) {
self.contentHandler = contentHandler
let content = (request.content.mutableCopy() as! UNMutableNotificationContent)
// Handle attachment downloading
let url = // file url
let attachment = try? UNNotificationAttachment(identifier: "image",
url: url,
options: nil)
content.attachments = [attachment!]
contentHandler(content)
}

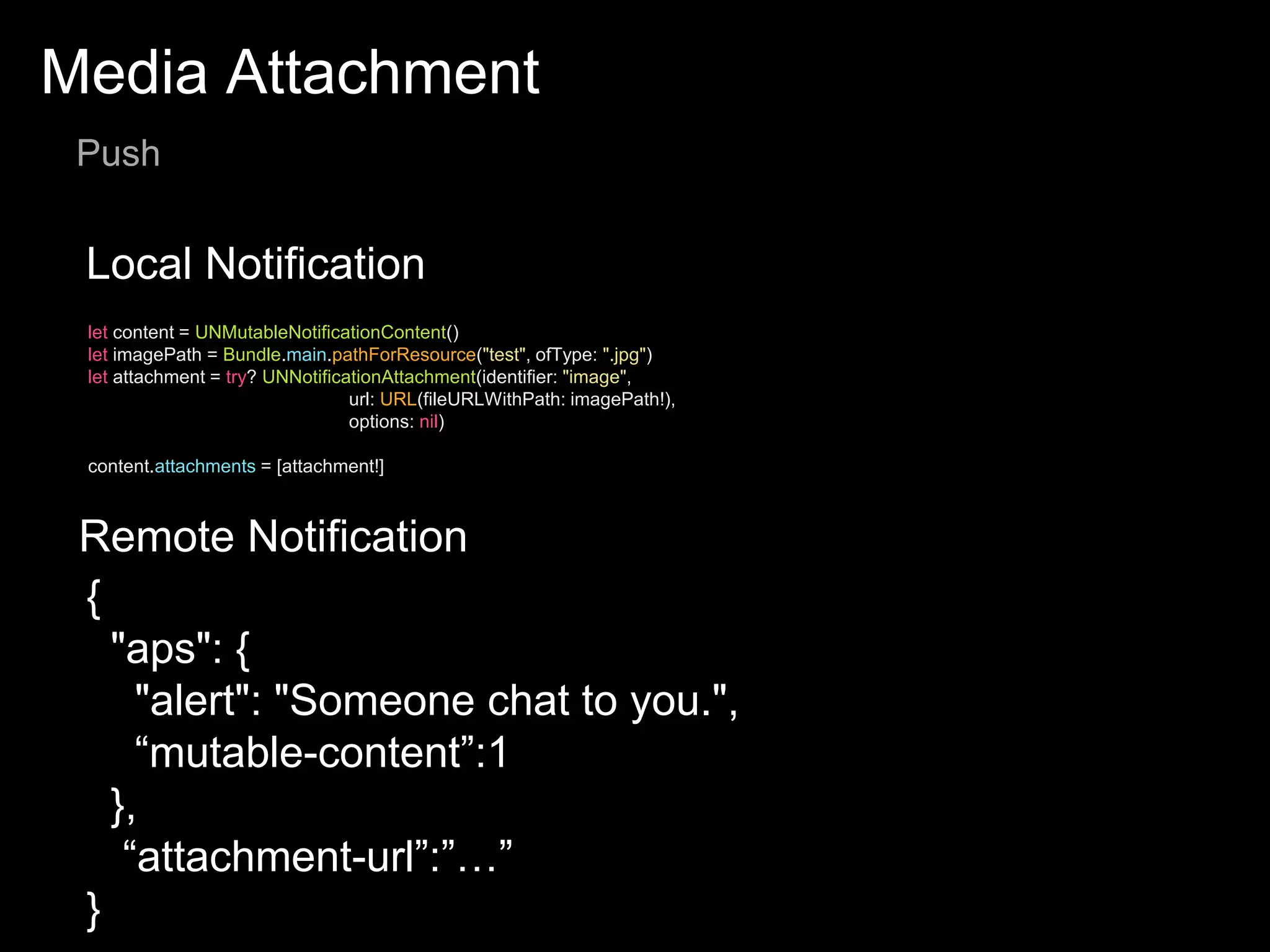

22. Media Attachment
Push
Local Notification
Remote Notification
let content = UNMutableNotificationContent()
let imagePath = Bundle.main.pathForResource("test", ofType: ".jpg")
let attachment = try? UNNotificationAttachment(identifier: "image",
url: URL(fileURLWithPath: imagePath!),
options: nil)
content.attachments = [attachment!]
{
"aps": {
"alert": "Someone chat to you.",
“mutable-content”:1
},
“attachment-url”:”…”
}

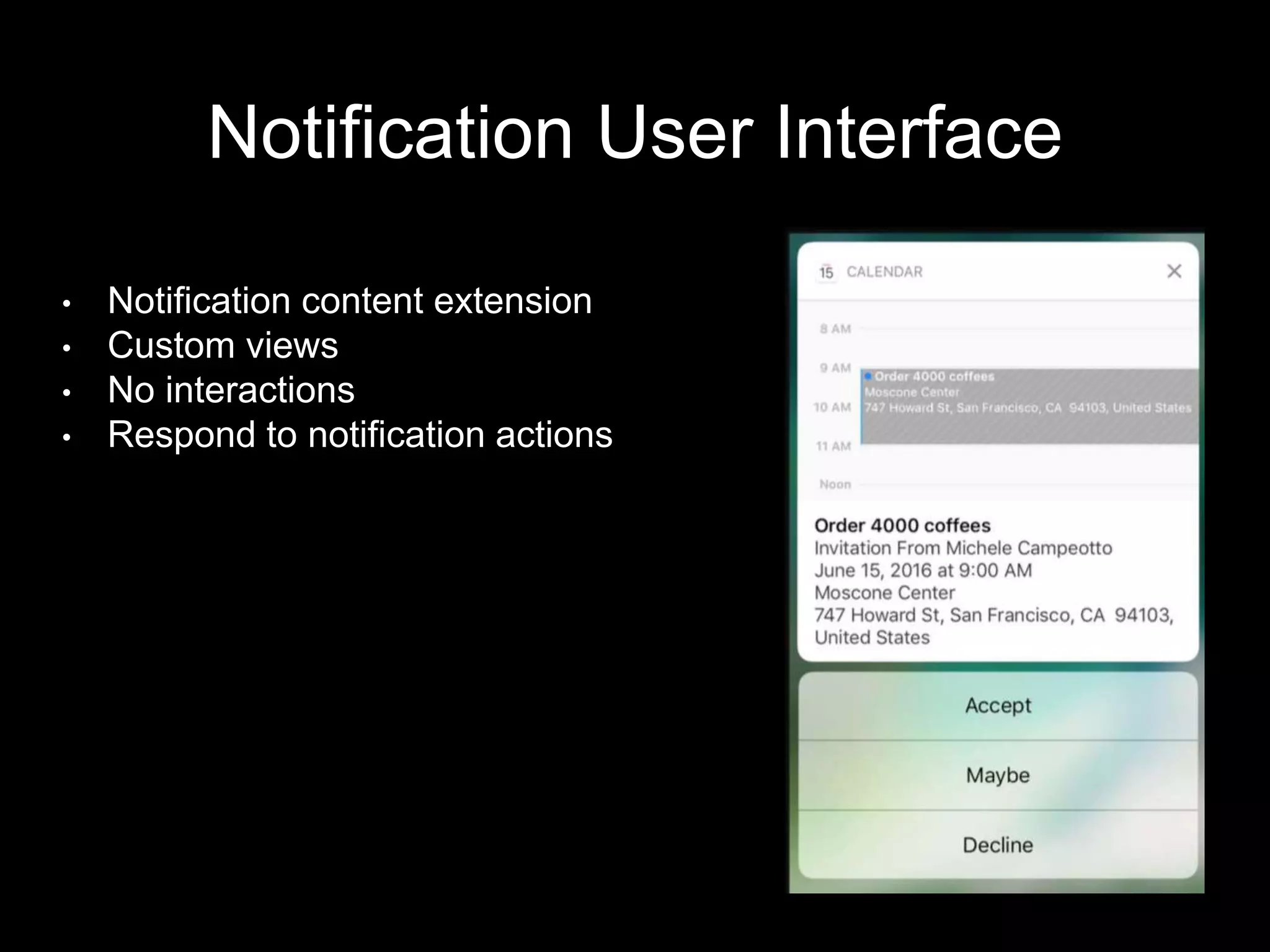

23. Notification User Interface
• Notification content extension
• Custom views
• No interactions
• Respond to notification actions

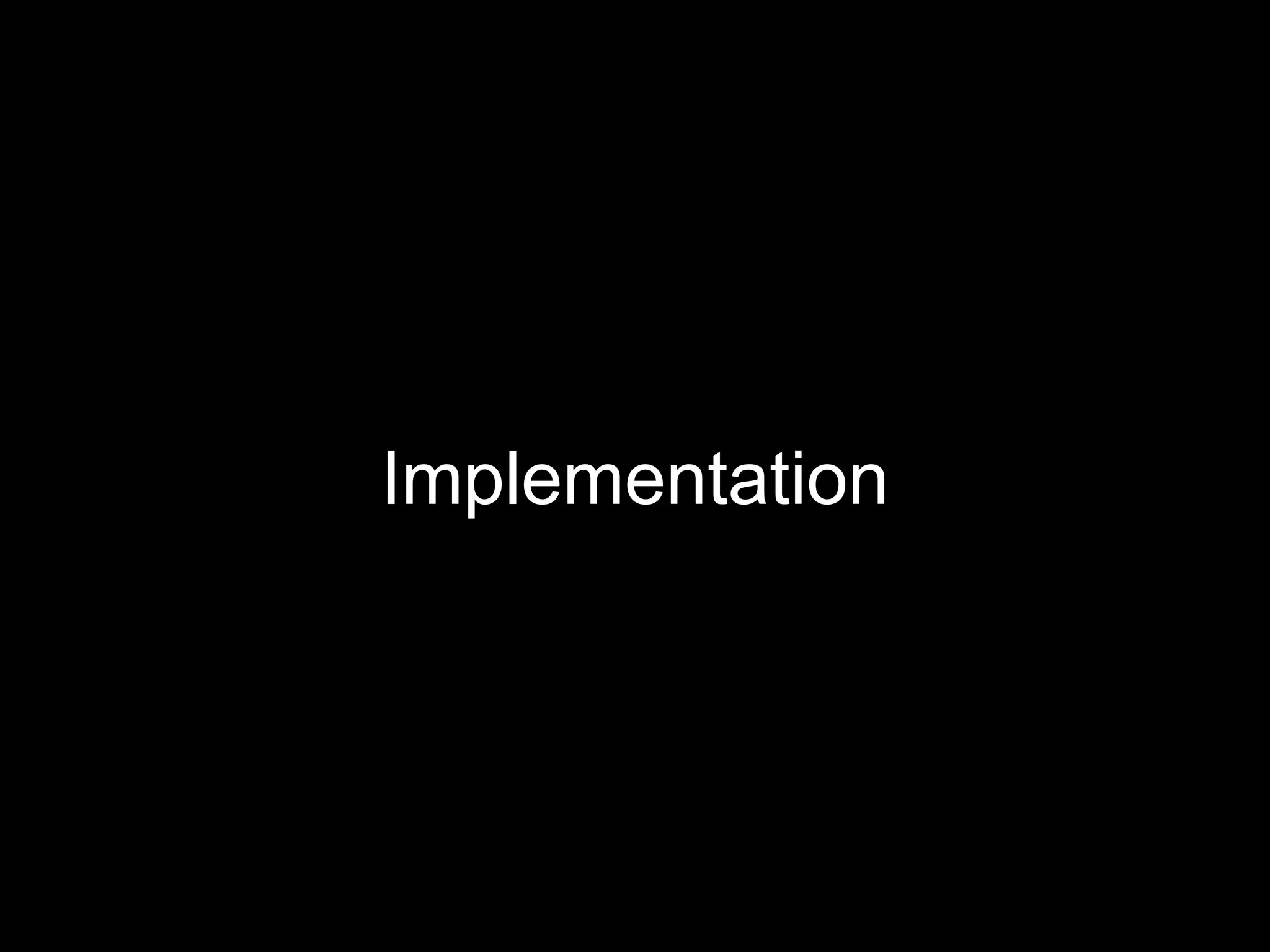

24. Implementation

25. Thanks
