1. IMPACT Interoperability and Evaluation Framework Clemens Neudecker, National Library of the Netherlands IMPACT Demo Day, Biblioteca Nacional de España

2. OCR: A multitude of challenges… I. OCR challenges (gothic fonts, bleed-through, warping, etc.)

3. OCR: A multitude of challenges… II. Language challenges (spelling variants, inflection, and many more!) Example: historical variants of the Dutch word ‘wereld’ (world): werelt weerelt wereld weerelds wereldt werelden weereld werrelts waerelds weerlyt wereldts vveerelts waereld weerelden waerelden weerlt werlt werelds sweerels zwerlys swarels swerelts werelts swerrels weirelts tsweerelds werret vverelt werlts werrelt worreld werlden wareld weirelt weireld waerelt werreld werld vvereld weerelts werlde tswerels werreldts weereldt wereldje waereldje weurlt wald we ë led

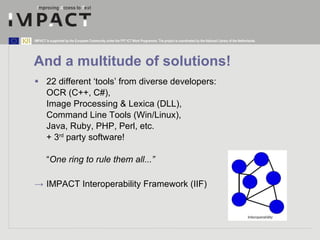

4. And a multitude of solutions! 22 different ‘tools’ from diverse developers: OCR (C++, C#), Image Processing & Lexica (DLL), Command Line Tools (Win/Linux), Java, Ruby, PHP, Perl, etc. + 3 rd party software! “ One ring to rule them all...” -> IMPACT Interoperability Framework (IIF)

5. Main requirements Behavioural: Minimize integration effort Minimize deployment effort Maximize usability Maximize scalability Functional: Modular Transparent Expandable Open source Platform independent

6. Architecture IMPACT Interoperability Framework: Technologies - Java 6 - Generic Web Service Wrapper - Apache Ant/Maven - Apache Tomcat/httpd - Apache Axis2 - Apache Synapse - Taverna Workflow Engine IMPACT Evaluation Framework: Dataset - approx. 5 TB raw data (images, text files, metadata) and growing - Ground truth transcriptions - Evaluation modules

7. Components I: IIF Enterprise Service Bus receives (SOAP) requests from users and distributes the load to the available worker nodes Main effect: Process parallelization, Load distribution, Fail over

8. Framework integration Easy to use generic command line wrapper (open source)

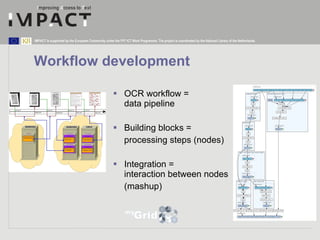

9. Workflow development OCR workflow = data pipeline Building blocks = processing steps (nodes) Integration = interaction between nodes (mashup)

10. Workflow management Web 2.0 style registry: myExperiment Local client: Taverna Workbench Web client: project website API: SOAP/REST

11. Community Web2.0 style workflow registry Community of experts Sharing of resources Knowledge exchange A central meeting point for users and researchers

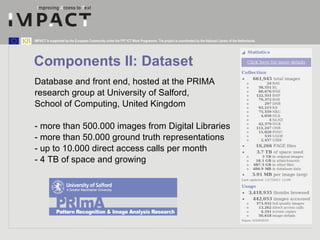

12. Components II: Dataset Database and front end, hosted at the PRIMA research group at University of Salford, School of Computing, United Kingdom - more than 500.000 images from Digital Libraries - more than 50.000 ground truth representations - up to 10.000 direct access calls per month - 4 TB of space and growing

13. Dataset Access to a representative and annotated dataset of significant size, with metadata, ground truth and search facilities

14. Evaluation features Text based comparison of result with ground truth, using Levenshtein distance method Layout based comparison of result with ground truth, using the Page Analysis And Ground Truth Elements Framework Example:

15. The PAGE Format Framework Two-level architecture: root structure task specific sub-formats Separate XML Schema definitions Format identification via Namespaces Mapping of dependencies process chains alternative processing steps Linking via IDs Processing results or ground truth (e.g. binarisation, dewarping, page content)

16. Ground-Truthing Tools Aletheia FineReader PAGE Exporter GT Validator GT Normalizer

17. Profile ‘Full Text Recognition’ Evaluation for general text recognition Measure Weights Region Type Weights Merge Text Allowable Merge Image Split Graphic Allowable Split Chart Miss Table Partial Miss Separator Misclassification Maths False Detection Noise 1.5 1.0 2.0 2.0 1.0 1.0 1.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.5 0.5

18. Partial Miss Miss Merge Measures – Segmentation Errors Split Ground Truth Segmentation Result Mis-classi-fication Paragraph Caption

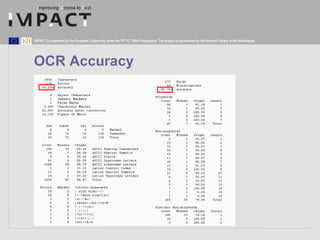

19. OCR Accuracy

20. Thank you! Questions?
