1. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023
ANTERIOR
CRUCIATE
LIGAMENT
Suryo Saputra Perdana | MSc. Physiotherapy

2. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023

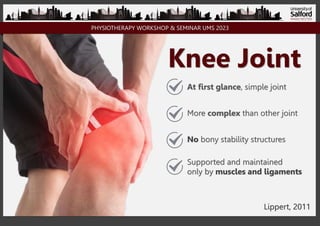

Knee Joint
At first glance, simple joint
More complex than other joint
No bony stability structures
Supported and maintained
only by muscles and ligaments
Lippert, 2011

3. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023

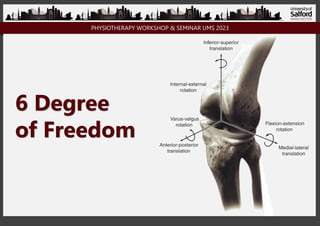

6 Degree
of Freedom

4. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023

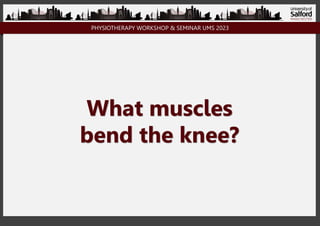

What muscles
bend the knee?

5. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023

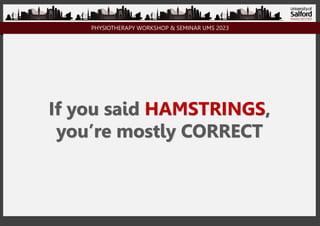

If you said HAMSTRINGS,
you’re mostly CORRECT

6. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023

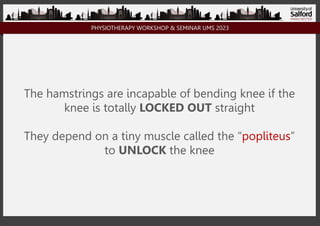

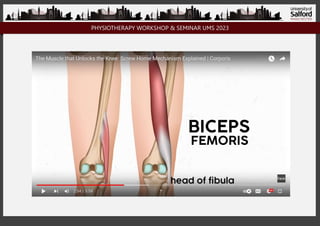

The hamstrings are incapable of bending knee if the
knee is totally LOCKED OUT straight

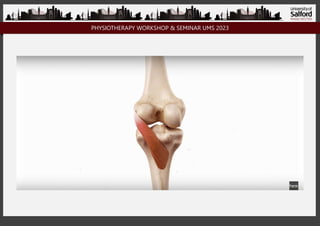

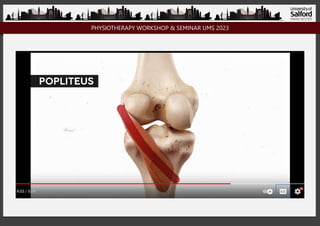

They depend on a tiny muscle called the “popliteus”
to UNLOCK the knee

7. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023

8. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023

9. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023

10. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023

11. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023

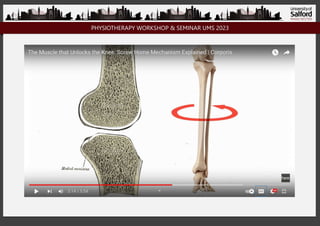

Screw-home
Mechanism
External Rotate in
last 20-degree extension knee
Moesley, 2010
Internal Rotate in
early 20-degree flexion knee
Open Chain

12. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023

13. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023

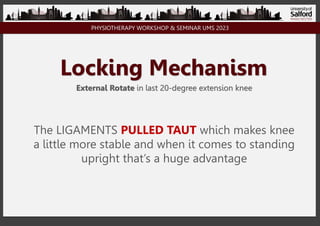

Locking Mechanism
External Rotate in last 20-degree extension knee
The LIGAMENTS PULLED TAUT which makes knee
a little more stable and when it comes to standing
upright that’s a huge advantage

14. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023

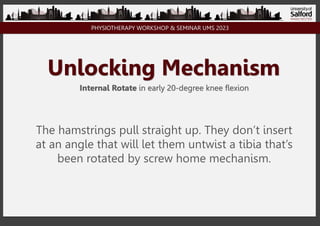

Unlocking Mechanism
Internal Rotate in early 20-degree knee flexion
The hamstrings pull straight up. They don’t insert
at an angle that will let them untwist a tibia that’s
been rotated by screw home mechanism.

15. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023

16. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023

17. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023

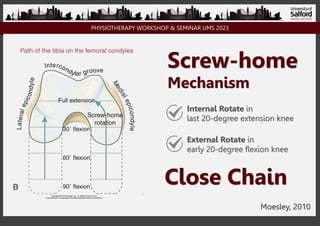

Screw-home
Mechanism
Internal Rotate in
last 20-degree extension knee
Moesley, 2010
External Rotate in
early 20-degree flexion knee
Close Chain

18. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023

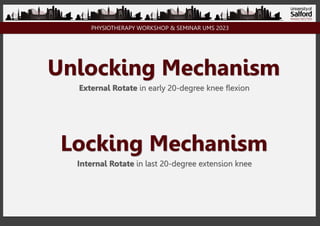

Unlocking Mechanism
External Rotate in early 20-degree knee flexion
Locking Mechanism
Internal Rotate in last 20-degree extension knee

19. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023

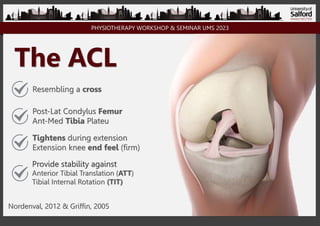

The ACL
Resembling a cross
Post-Lat Condylus Femur
Ant-Med Tibia Plateu
Provide stability against
Anterior Tibial Translation (ATT)
Tibial Internal Rotation (TIT)
Tightens during extension
Extension knee end feel (firm)
Nordenval, 2012 & Griffin, 2005

20. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023

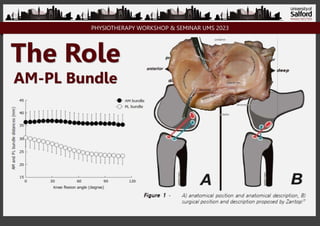

The Role
AM-PL Bundle

21. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023
ACL Injury
The frequent injury mechanism
Non-contact combined
valgus and internal rotation
Less knee flexed
More knee valgus
Tibia Internal Rotation
Excessive
anterior tibial translation

22. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023

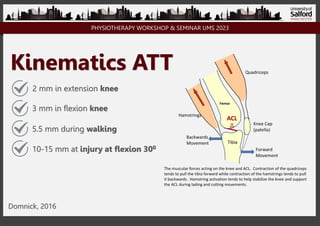

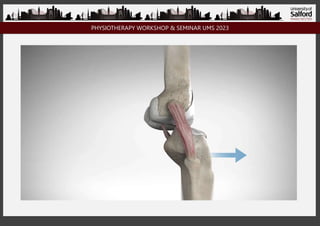

Kinematics ATT
2 mm in extension knee
3 mm in flexion knee
5.5 mm during walking
Domnick, 2016
10-15 mm at injury at flexion 300

23. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023

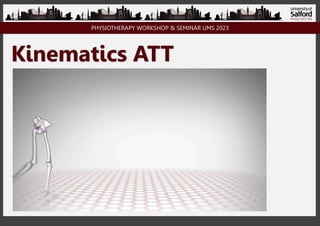

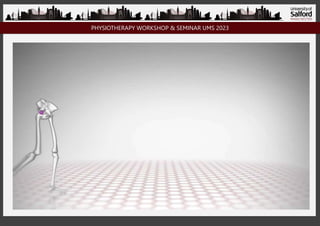

Kinematics ATT

24. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023

25. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023

26. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023

27. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023

28. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023

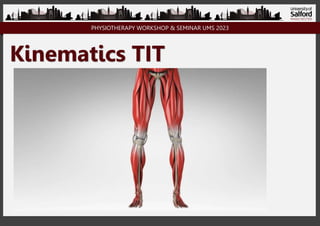

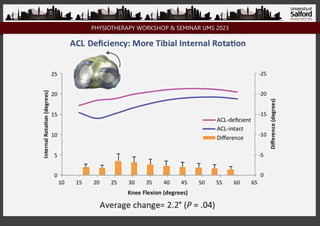

Kinematics TIT

29. PHYSIOTHERAPY WORKSHOP & SEMINAR UMS 2023
