1. Biomass:
The energy growing
around us
Grant Hauber

2. Biomass is any living plant matter
Biomass energy is
energy made from something
that is or once was plant matter

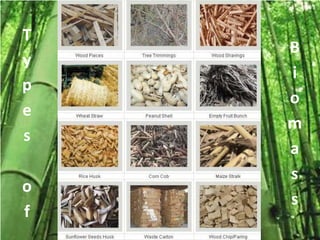

3. T
B
y
i
p
o
e
m
s
a
s
o
s
f

4. Biomass is the oldest source of energy

5. As a fire burns down, it gets hotter

6. Heat can be used to cook, boil water

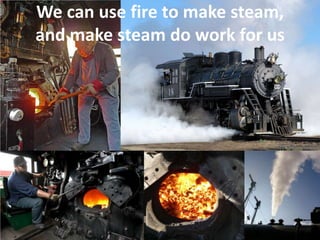

7. We can use fire to make steam,
and make steam do work for us

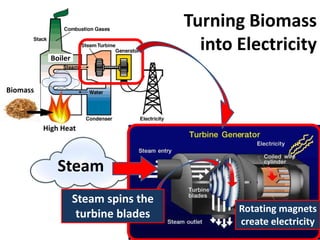

8. Turning Biomass
into Electricity
Boiler
Biomass
High Heat
Steam
Steam spins the
Rotating magnets
turbine blades
create electricity

9. Inside a biomass steam boiler
Pipes filled with water are
heated to make steam
Fire heats
the water

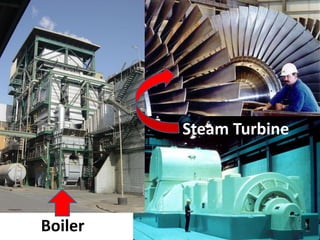

10. Steam Turbine
Boiler

11. What biomass can you burn
to make fire?

12. T
B
y
i
p
o
e
m
s
a
s
o
s
f

13. What is this?
How much of this do you eat?

14. Rice

15. Rice husk
1 bowl = 1000 grains of rice
1 bowl per day
x 365 days per year
= 365,000 grains of rice per year
365,000 grains of rice
Rice husk mountain!
36,500 grains per kg
= 10 kg per year per person
13,000,000 people in Manila
x 10 kg per person
= 130,000,000 kg

16. Farmers often burn their
crop waste to get rid of it

17. How can we stop this?
Biomass Power!

18. Grown Biomass
= Energy Crops

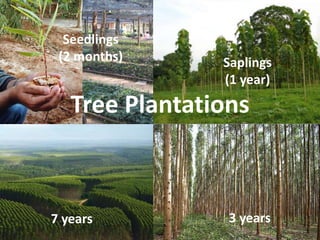

19. Seedlings
(2 months) Saplings
(1 year)
Tree Plantations
7 years 3 years

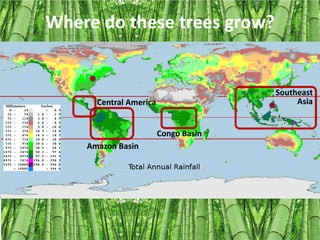

20. Where do these trees grow?
Southeast
Central America Asia
Congo Basin
Amazon Basin

21. Forest Products
From Lumber Logs From Pulp Logs

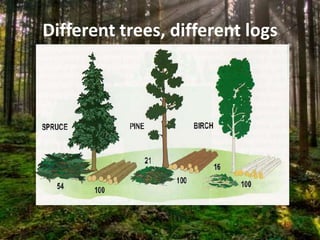

22. Different trees, different logs

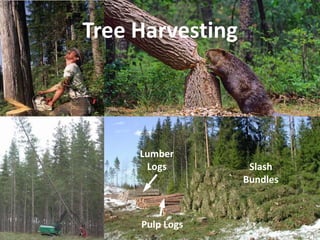

23. Tree Harvesting
Lumber
Logs Slash
Bundles
Pulp Logs

24. Cutting Sorting
Hauling Loading

25. Wood Chipping Machine
Chipping

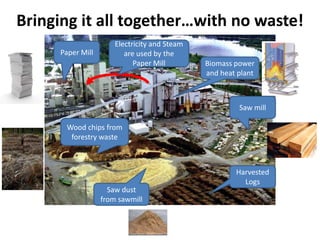

26. Bringing it all together…with no waste!
Electricity and Steam
Paper Mill are used by the
Paper Mill Biomass power
and heat plant
Saw mill
Wood chips from
forestry waste
Harvested
Logs
Saw dust
from sawmill

27. If I cut a tree, is it dead?
No, it can
Coppice
This tree is about 400 years old!

28. Where is this?
Pasay Road, Dasmariñas Village

30. Biogas
from Poop to Power

31. Farms can be dirty places

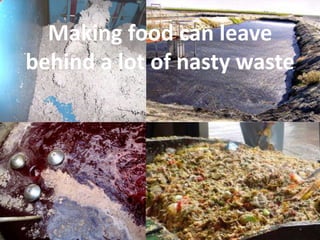

32. Making food can leave
behind a lot of nasty waste

33. Food or animal
waste ferments in
the pond, releasing
methane gas
Methane is
highly
flammable!!

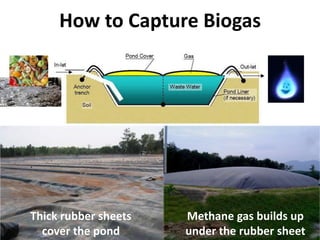

34. How to Capture Biogas
Thick rubber sheets Methane gas builds up
cover the pond under the rubber sheet

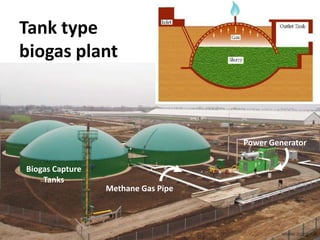

35. Tank type
biogas plant
Power Generator
Biogas Capture
Tanks
Methane Gas Pipe

36. Humans also generate lots of waste!
Covered landfills capture methane like a
balloon
This methane can be used to generate electricity

38. Thank You!
