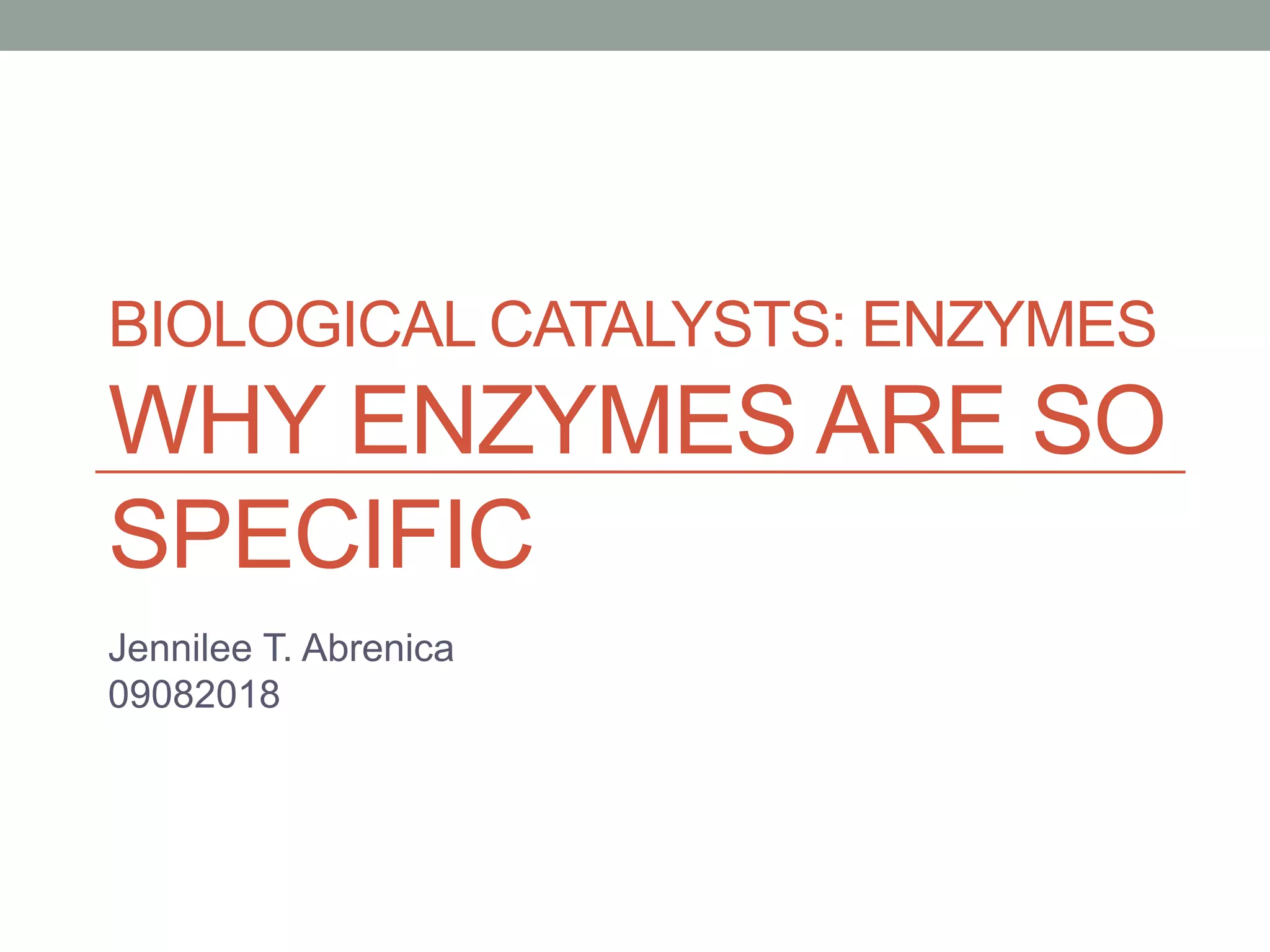

BIOLOGICAL CATALYSTS: ENZYMES
WHY ENZYMES ARE SO
SPECIFIC
Jennilee T. Abrenica
09082018

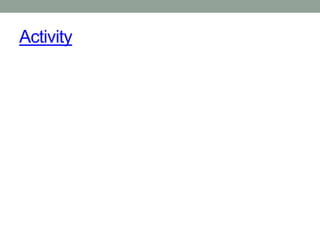

Activity

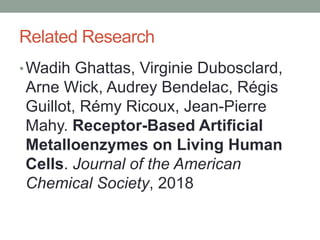

Related Research
•Wadih Ghattas, Virginie Dubosclard,
Arne Wick, Audrey Bendelac, Régis
Guillot, Rémy Ricoux, Jean-Pierre
Mahy. Receptor-Based Artificial
Metalloenzymes on Living Human
Cells. Journal of the American
Chemical Society, 2018
Related Research
• Artificial enzymes perform reactions on
living cells
• Date:July 26, 2018
• Source:American Chemical Society
• Summary: Researchers have designed
artificial enzymes that sit on the surfaces of
living cells and drive reactions that could
someday target drug therapies to specific
organs.

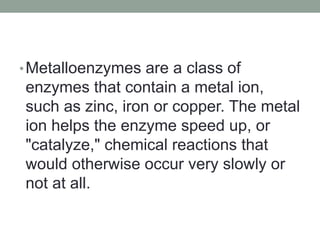

•Metalloenzymes are a class of
enzymes that contain a metal ion,
such as zinc, iron or copper. The metal
ion helps the enzyme speed up, or
"catalyze," chemical reactions that
would otherwise occur very slowly or
not at all.

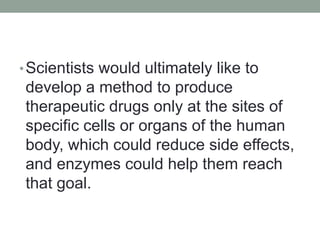

•Scientists would ultimately like to
develop a method to produce
therapeutic drugs only at the sites of
specific cells or organs of the human
body, which could reduce side effects,
and enzymes could help them reach
that goal.

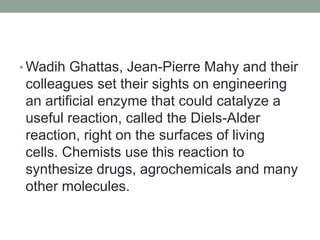

• Wadih Ghattas, Jean-Pierre Mahy and their
colleagues set their sights on engineering
an artificial enzyme that could catalyze a
useful reaction, called the Diels-Alder
reaction, right on the surfaces of living
cells. Chemists use this reaction to
synthesize drugs, agrochemicals and many
other molecules.

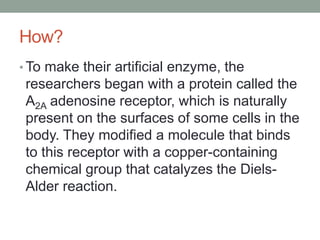

How?
• To make their artificial enzyme, the
researchers began with a protein called the
A2A adenosine receptor, which is naturally
present on the surfaces of some cells in the
body. They modified a molecule that binds
to this receptor with a copper-containing
chemical group that catalyzes the Diels-
Alder reaction.

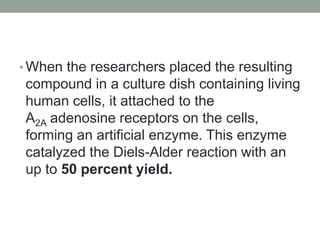

• When the researchers placed the resulting
compound in a culture dish containing living
human cells, it attached to the
A2A adenosine receptors on the cells,
forming an artificial enzyme. This enzyme
catalyzed the Diels-Alder reaction with an
up to 50 percent yield.

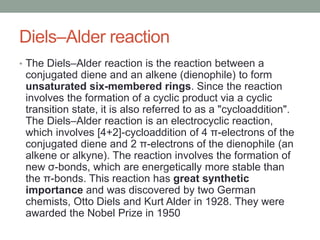

Diels–Alder reaction
• The Diels–Alder reaction is the reaction between a
conjugated diene and an alkene (dienophile) to form
unsaturated six-membered rings. Since the reaction
involves the formation of a cyclic product via a cyclic
transition state, it is also referred to as a "cycloaddition".
The Diels–Alder reaction is an electrocyclic reaction,
which involves [4+2]-cycloaddition of 4 π-electrons of the
conjugated diene and 2 π-electrons of the dienophile (an
alkene or alkyne). The reaction involves the formation of
new σ-bonds, which are energetically more stable than
the π-bonds. This reaction has great synthetic
importance and was discovered by two German
chemists, Otto Diels and Kurt Alder in 1928. They were
awarded the Nobel Prize in 1950

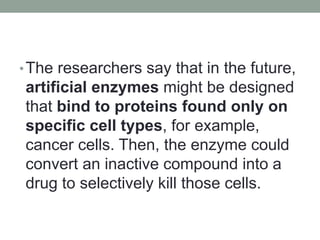

•The researchers say that in the future,
artificial enzymes might be designed
that bind to proteins found only on
specific cell types, for example,
cancer cells. Then, the enzyme could
convert an inactive compound into a
drug to selectively kill those cells.
• Retrieved from:
https://www.google.com.ph/search?biw=1366&bih=613&tbm=isch&sa=1&ei=uWiKWe_McOZ8QWM7pjICQ&q=enzymes+&oq=enzymes+&gs_l=img.3..0i19
k1l10.1568.1568.0.2352.1.1.0.0.0.0.327.327.3 1.1.0....0...1c.1.64.img..0.1.325....0.rCQ6lpPVW1Y#imgrc=FsraNGgVtnETmM:

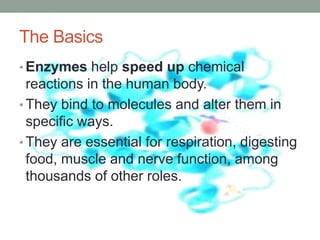

The Basics
• Enzymes help speed up chemical
reactions in the human body.
• They bind to molecules and alter them in
specific ways.
• They are essential for respiration, digesting
food, muscle and nerve function, among
thousands of other roles.

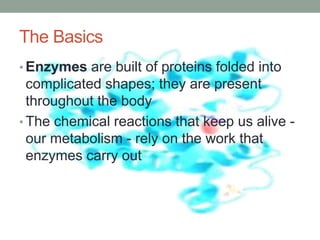

The Basics
• Enzymes are built of proteins folded into
complicated shapes; they are present
throughout the body
• The chemical reactions that keep us alive -
our metabolism - rely on the work that
enzymes carry out

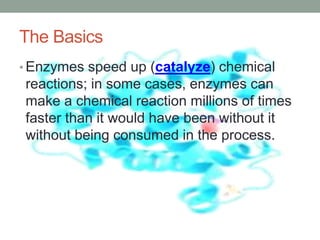

The Basics
• Enzymes speed up (catalyze) chemical
reactions; in some cases, enzymes can
make a chemical reaction millions of times
faster than it would have been without it
without being consumed in the process.

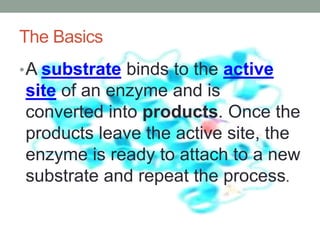

The Basics

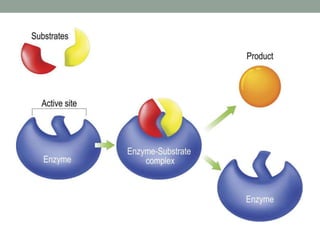

•A substrate binds to the active
site of an enzyme and is
converted into products. Once the
products leave the active site, the
enzyme is ready to attach to a new
substrate and repeat the process.

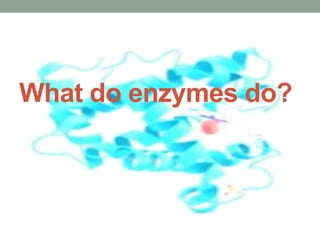

What do enzymes do?
What do enzymes do?
•The digestive system - enzymes
help the body break down larger
complex molecules into smaller
molecules, such as glucose, so
that the body can use them as
fuel.

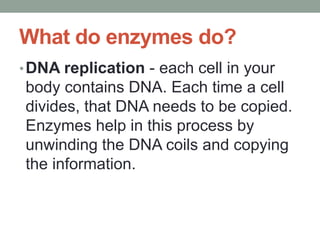

What do enzymes do?
•DNA replication - each cell in your
body contains DNA. Each time a cell
divides, that DNA needs to be copied.
Enzymes help in this process by
unwinding the DNA coils and copying
the information.

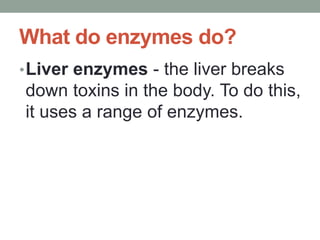

What do enzymes do?
•Liver enzymes - the liver breaks
down toxins in the body. To do this,
it uses a range of enzymes.

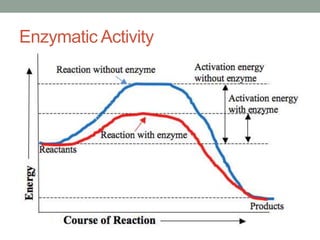

Enzymatic Activity

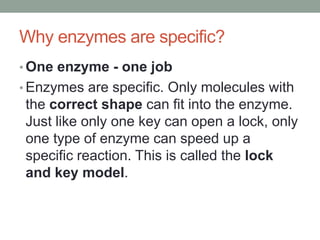

Why enzymes are specific?
• One enzyme - one job
• Enzymes are specific. Only molecules with
the correct shape can fit into the enzyme.
Just like only one key can open a lock, only
one type of enzyme can speed up a
specific reaction. This is called the lock
and key model.

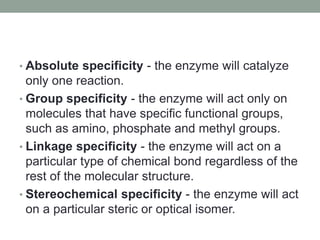

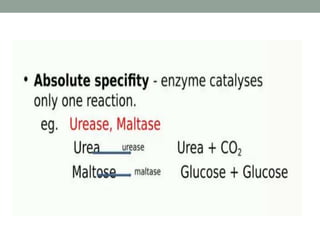

• Absolute specificity - the enzyme will catalyze
only one reaction.

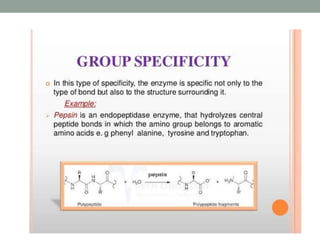

• Group specificity - the enzyme will act only on
molecules that have specific functional groups,
such as amino, phosphate and methyl groups.

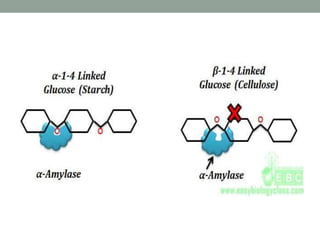

• Linkage specificity - the enzyme will act on a
particular type of chemical bond regardless of the
rest of the molecular structure.
• Stereochemical specificity - the enzyme will act
on a particular steric or optical isomer.
• Absolute specificity - the enzyme will catalyze
only one reaction.
• Group specificity - the enzyme will act only on
molecules that have specific functional groups,
such as amino, phosphate and methyl groups.
• Linkage specificity - the enzyme will act on a
particular type of chemical bond regardless of the
rest of the molecular structure.
• Stereochemical specificity - the enzyme will act
on a particular steric or optical isomer.
• Absolute specificity - the enzyme will catalyze
only one reaction.
• Group specificity - the enzyme will act only on
molecules that have specific functional groups,
such as amino, phosphate and methyl groups.
• Linkage specificity - the enzyme will act on a
particular type of chemical bond regardless of the
rest of the molecular structure.
• Stereochemical specificity - the enzyme will act
on a particular steric or optical isomer.
References
• American Chemical Society. "Artificial enzymes perform
reactions on living cells." ScienceDaily. ScienceDaily, 26
July 2018.
<www.sciencedaily.com/releases/2018/07/180726085732.
htm>. Retrieved from
https://www.sciencedaily.com/releases/2018/07/18072608
5732.htm
• https://www.sigmaaldrich.com/technical-
documents/articles/chemistry/diels-alder-reaction.html

More Related Content

What's hot

Relationship between antioxidant and nadph
Relationship between antioxidant and nadphRelationship between antioxidant and nadph
Relationship between antioxidant and nadph
Mahmoud Abdulla

Biochem p3 g6
Biochem p3 g6Biochem p3 g6
Biochem p3 g6
JoannaField5

Unit 5: Life and Purpose
Unit 5: Life and PurposeUnit 5: Life and Purpose
Unit 5: Life and Purpose
Big History Project

Unit i (homeostatis)
Unit i (homeostatis)Unit i (homeostatis)
Unit i (homeostatis)
QORYANI

Homeostasis
Homeostasis Homeostasis
2-4: Chemical Reactions and Enzymes
2-4: Chemical Reactions and Enzymes2-4: Chemical Reactions and Enzymes
2-4: Chemical Reactions and Enzymes
petruccis

IB Biology 2.1 Slides: Molecules to Metabolism
IB Biology 2.1 Slides: Molecules to MetabolismIB Biology 2.1 Slides: Molecules to Metabolism
IB Biology 2.1 Slides: Molecules to Metabolism
Jacob Cedarbaum

Enzymes and digestion2
Enzymes and digestion2Enzymes and digestion2
Enzymes and digestion2
clairebloom

Enzymes
EnzymesEnzymes
Enzymes
Tina Hinds

Final Poster
Final PosterFinal Poster
Final Poster
Keighley Reisenauer

Che452 Chapter 1
Che452 Chapter 1Che452 Chapter 1
Che452 Chapter 1
doddssb

LYCOZEN-GT A SUPER ANTI-OXIDANT MULTIVITAMIN
LYCOZEN-GT A SUPER ANTI-OXIDANT MULTIVITAMINLYCOZEN-GT A SUPER ANTI-OXIDANT MULTIVITAMIN
LYCOZEN-GT A SUPER ANTI-OXIDANT MULTIVITAMIN
pharmaindexing

Chapter06 metabolism
Chapter06 metabolismChapter06 metabolism
Chapter06 metabolism
Vedpal Yadav

Igcse biology edexcel 2.1 2.16
Igcse biology edexcel 2.1   2.16Igcse biology edexcel 2.1   2.16
Igcse biology edexcel 2.1 2.16
Marc Rodriguez

Introduction to Biochemistry
Introduction to Biochemistry Introduction to Biochemistry
Introduction to Biochemistry
Saurabh Shrivastava

Presentation1 chemistry
Presentation1 chemistryPresentation1 chemistry
Presentation1 chemistry
WoodWork2

Antioxidants and Fertility in The Common Fruit Fly
Antioxidants and Fertility in The Common Fruit FlyAntioxidants and Fertility in The Common Fruit Fly
Antioxidants and Fertility in The Common Fruit Fly
Weily Lang

Biology study
Biology studyBiology study
Biology study
Perry the Platypus

Physiol 02 central themes in physiology 1
Physiol 02 central themes in physiology 1Physiol 02 central themes in physiology 1
Physiol 02 central themes in physiology 1
Saba Butt

2 4 10
2 4 102 4 10

What's hot (20)

Relationship between antioxidant and nadph
Relationship between antioxidant and nadphRelationship between antioxidant and nadph
Relationship between antioxidant and nadph

Biochem p3 g6
Biochem p3 g6Biochem p3 g6
Biochem p3 g6

Unit 5: Life and Purpose
Unit 5: Life and PurposeUnit 5: Life and Purpose
Unit 5: Life and Purpose

Unit i (homeostatis)
Unit i (homeostatis)Unit i (homeostatis)
Unit i (homeostatis)

Homeostasis
Homeostasis Homeostasis
Homeostasis

2-4: Chemical Reactions and Enzymes
2-4: Chemical Reactions and Enzymes2-4: Chemical Reactions and Enzymes
2-4: Chemical Reactions and Enzymes

IB Biology 2.1 Slides: Molecules to Metabolism
IB Biology 2.1 Slides: Molecules to MetabolismIB Biology 2.1 Slides: Molecules to Metabolism
IB Biology 2.1 Slides: Molecules to Metabolism

Enzymes and digestion2
Enzymes and digestion2Enzymes and digestion2
Enzymes and digestion2

Enzymes
EnzymesEnzymes
Enzymes

Final Poster
Final PosterFinal Poster
Final Poster

Che452 Chapter 1
Che452 Chapter 1Che452 Chapter 1
Che452 Chapter 1

LYCOZEN-GT A SUPER ANTI-OXIDANT MULTIVITAMIN
LYCOZEN-GT A SUPER ANTI-OXIDANT MULTIVITAMINLYCOZEN-GT A SUPER ANTI-OXIDANT MULTIVITAMIN
LYCOZEN-GT A SUPER ANTI-OXIDANT MULTIVITAMIN

Chapter06 metabolism
Chapter06 metabolismChapter06 metabolism
Chapter06 metabolism

Igcse biology edexcel 2.1 2.16
Igcse biology edexcel 2.1   2.16Igcse biology edexcel 2.1   2.16
Igcse biology edexcel 2.1 2.16

Introduction to Biochemistry
Introduction to Biochemistry Introduction to Biochemistry
Introduction to Biochemistry

Presentation1 chemistry
Presentation1 chemistryPresentation1 chemistry
Presentation1 chemistry

Antioxidants and Fertility in The Common Fruit Fly
Antioxidants and Fertility in The Common Fruit FlyAntioxidants and Fertility in The Common Fruit Fly
Antioxidants and Fertility in The Common Fruit Fly

Biology study
Biology studyBiology study
Biology study

Physiol 02 central themes in physiology 1
Physiol 02 central themes in physiology 1Physiol 02 central themes in physiology 1
Physiol 02 central themes in physiology 1

2 4 10
2 4 102 4 10
2 4 10


Similar to Biological Catalysts: Enzymes

5. Biochemistry of enzymes edited 2024.pptx
5. Biochemistry of enzymes edited 2024.pptx5. Biochemistry of enzymes edited 2024.pptx
5. Biochemistry of enzymes edited 2024.pptx
mohammed959032

ENZYMES.pptx
ENZYMES.pptxENZYMES.pptx
ENZYMES.pptx
Perfect40

UNIT-3 BACTERIAL ETABOLISM.pptx
UNIT-3 BACTERIAL ETABOLISM.pptxUNIT-3 BACTERIAL ETABOLISM.pptx
UNIT-3 BACTERIAL ETABOLISM.pptx
AyushiSharma843565

Biochemistry lecture notes enzymes
Biochemistry lecture notes enzymesBiochemistry lecture notes enzymes
Biochemistry lecture notes enzymes
Rengesh Balakrishnan

Overview of enzyme
Overview of enzymeOverview of enzyme
Enzyme structure and Mechanism of Action
Enzyme structure and Mechanism of Action Enzyme structure and Mechanism of Action
Enzyme structure and Mechanism of Action
Swati Raysing

Enzyme substrate complex
Enzyme substrate complexEnzyme substrate complex
Enzyme substrate complex
adnan ali

6 enzymes
6 enzymes6 enzymes
6 enzymes
Siham Gritly

ENZYMES dcm.pdf
ENZYMES dcm.pdfENZYMES dcm.pdf
ENZYMES dcm.pdf
MishiSoza

Enzymes.pptx
Enzymes.pptxEnzymes.pptx
Enzymes.pptx
ABHIJIT BHOYAR

Chem 45 Biochemistry: Stoker chapter 18 Introduction – Cell Structure
Chem 45 Biochemistry: Stoker chapter 18  Introduction – Cell StructureChem 45 Biochemistry: Stoker chapter 18  Introduction – Cell Structure
Chem 45 Biochemistry: Stoker chapter 18 Introduction – Cell Structure
Shaina Mavreen Villaroza

Enzymes - A complete introduction and applications
Enzymes - A complete introduction and applicationsEnzymes - A complete introduction and applications
Enzymes - A complete introduction and applications
Indhra Yogaesh

Plant physiology ppt 1.pptx
Plant physiology ppt 1.pptxPlant physiology ppt 1.pptx
Plant physiology ppt 1.pptx
SseruwoJohnson

Enzymes definition and classification introduction .pptx
Enzymes definition and classification  introduction .pptxEnzymes definition and classification  introduction .pptx
Enzymes definition and classification introduction .pptx
PoonumTyagi

Enzymes
EnzymesEnzymes
Enzymes
EnzymesEnzymes
Enzymes
Nabeen Patra

Enzymes /certified fixed orthodontic courses by Indian dental academy
Enzymes /certified fixed orthodontic courses by Indian dental academy Enzymes /certified fixed orthodontic courses by Indian dental academy
Enzymes /certified fixed orthodontic courses by Indian dental academy
Indian dental academy

Catalysis lecture 4
Catalysis lecture 4Catalysis lecture 4
Catalysis lecture 4
Dr. Rabiul Hussain

SID_ENZYMES.pptx
SID_ENZYMES.pptxSID_ENZYMES.pptx
SID_ENZYMES.pptx
SiddarthSaini1

Enzymes-.pdf
Enzymes-.pdfEnzymes-.pdf
Enzymes-.pdf
AlodiaPastorizo


Similar to Biological Catalysts: Enzymes (20)

5. Biochemistry of enzymes edited 2024.pptx
5. Biochemistry of enzymes edited 2024.pptx5. Biochemistry of enzymes edited 2024.pptx
5. Biochemistry of enzymes edited 2024.pptx

ENZYMES.pptx
ENZYMES.pptxENZYMES.pptx
ENZYMES.pptx

UNIT-3 BACTERIAL ETABOLISM.pptx
UNIT-3 BACTERIAL ETABOLISM.pptxUNIT-3 BACTERIAL ETABOLISM.pptx
UNIT-3 BACTERIAL ETABOLISM.pptx

Biochemistry lecture notes enzymes
Biochemistry lecture notes enzymesBiochemistry lecture notes enzymes
Biochemistry lecture notes enzymes

Overview of enzyme
Overview of enzymeOverview of enzyme
Overview of enzyme

Enzyme structure and Mechanism of Action
Enzyme structure and Mechanism of Action Enzyme structure and Mechanism of Action
Enzyme structure and Mechanism of Action

Enzyme substrate complex
Enzyme substrate complexEnzyme substrate complex
Enzyme substrate complex

6 enzymes
6 enzymes6 enzymes
6 enzymes

ENZYMES dcm.pdf
ENZYMES dcm.pdfENZYMES dcm.pdf
ENZYMES dcm.pdf

Enzymes.pptx
Enzymes.pptxEnzymes.pptx
Enzymes.pptx

Chem 45 Biochemistry: Stoker chapter 18 Introduction – Cell Structure
Chem 45 Biochemistry: Stoker chapter 18  Introduction – Cell StructureChem 45 Biochemistry: Stoker chapter 18  Introduction – Cell Structure
Chem 45 Biochemistry: Stoker chapter 18 Introduction – Cell Structure

Enzymes - A complete introduction and applications
Enzymes - A complete introduction and applicationsEnzymes - A complete introduction and applications
Enzymes - A complete introduction and applications

Plant physiology ppt 1.pptx
Plant physiology ppt 1.pptxPlant physiology ppt 1.pptx
Plant physiology ppt 1.pptx

Enzymes definition and classification introduction .pptx
Enzymes definition and classification  introduction .pptxEnzymes definition and classification  introduction .pptx
Enzymes definition and classification introduction .pptx

Enzymes
EnzymesEnzymes
Enzymes

Enzymes
EnzymesEnzymes
Enzymes

Enzymes /certified fixed orthodontic courses by Indian dental academy
Enzymes /certified fixed orthodontic courses by Indian dental academy Enzymes /certified fixed orthodontic courses by Indian dental academy
Enzymes /certified fixed orthodontic courses by Indian dental academy

Catalysis lecture 4
Catalysis lecture 4Catalysis lecture 4
Catalysis lecture 4

SID_ENZYMES.pptx
SID_ENZYMES.pptxSID_ENZYMES.pptx
SID_ENZYMES.pptx

Enzymes-.pdf
Enzymes-.pdfEnzymes-.pdf
Enzymes-.pdf


Recently uploaded

molar-distalization in orthodontics-seminar.pptx
molar-distalization in orthodontics-seminar.pptxmolar-distalization in orthodontics-seminar.pptx
molar-distalization in orthodontics-seminar.pptx
Anagha Prasad

Farming systems analysis: what have we learnt?.pptx
Farming systems analysis: what have we learnt?.pptxFarming systems analysis: what have we learnt?.pptx
Farming systems analysis: what have we learnt?.pptx
Frédéric Baudron

Sciences of Europe journal No 142 (2024)
Sciences of Europe journal No 142 (2024)Sciences of Europe journal No 142 (2024)
Sciences of Europe journal No 142 (2024)
Sciences of Europe

The cost of acquiring information by natural selection
The cost of acquiring information by natural selectionThe cost of acquiring information by natural selection
The cost of acquiring information by natural selection
Carl Bergstrom

HOW DO ORGANISMS REPRODUCE?reproduction part 1
HOW DO ORGANISMS REPRODUCE?reproduction part 1HOW DO ORGANISMS REPRODUCE?reproduction part 1
HOW DO ORGANISMS REPRODUCE?reproduction part 1
Shashank Shekhar Pandey

23PH301 - Optics - Optical Lenses.pptx
23PH301 - Optics  -  Optical Lenses.pptx23PH301 - Optics  -  Optical Lenses.pptx
23PH301 - Optics - Optical Lenses.pptx
RDhivya6

ESA/ACT Science Coffee: Diego Blas - Gravitational wave detection with orbita...
ESA/ACT Science Coffee: Diego Blas - Gravitational wave detection with orbita...ESA/ACT Science Coffee: Diego Blas - Gravitational wave detection with orbita...
ESA/ACT Science Coffee: Diego Blas - Gravitational wave detection with orbita...
Advanced-Concepts-Team

(June 12, 2024) Webinar: Development of PET theranostics targeting the molecu...
(June 12, 2024) Webinar: Development of PET theranostics targeting the molecu...(June 12, 2024) Webinar: Development of PET theranostics targeting the molecu...
(June 12, 2024) Webinar: Development of PET theranostics targeting the molecu...
Scintica Instrumentation

Direct Seeded Rice - Climate Smart Agriculture
Direct Seeded Rice - Climate Smart AgricultureDirect Seeded Rice - Climate Smart Agriculture
Direct Seeded Rice - Climate Smart Agriculture
International Food Policy Research Institute- South Asia Office

11.1 Role of physical biological in deterioration of grains.pdf
11.1 Role of physical biological in deterioration of grains.pdf11.1 Role of physical biological in deterioration of grains.pdf
11.1 Role of physical biological in deterioration of grains.pdf
PirithiRaju

Applied Science: Thermodynamics, Laws & Methodology.pdf
Applied Science: Thermodynamics, Laws & Methodology.pdfApplied Science: Thermodynamics, Laws & Methodology.pdf
Applied Science: Thermodynamics, Laws & Methodology.pdf
University of Hertfordshire

Describing and Interpreting an Immersive Learning Case with the Immersion Cub...
Describing and Interpreting an Immersive Learning Case with the Immersion Cub...Describing and Interpreting an Immersive Learning Case with the Immersion Cub...
Describing and Interpreting an Immersive Learning Case with the Immersion Cub...
Leonel Morgado

Randomised Optimisation Algorithms in DAPHNE
Randomised Optimisation Algorithms in DAPHNERandomised Optimisation Algorithms in DAPHNE
Randomised Optimisation Algorithms in DAPHNE
University of Maribor

GBSN - Biochemistry (Unit 6) Chemistry of Proteins
GBSN - Biochemistry (Unit 6) Chemistry of ProteinsGBSN - Biochemistry (Unit 6) Chemistry of Proteins
GBSN - Biochemistry (Unit 6) Chemistry of Proteins
Areesha Ahmad

Pests of Storage_Identification_Dr.UPR.pdf
Pests of Storage_Identification_Dr.UPR.pdfPests of Storage_Identification_Dr.UPR.pdf
Pests of Storage_Identification_Dr.UPR.pdf
PirithiRaju

Authoring a personal GPT for your research and practice: How we created the Q...
Authoring a personal GPT for your research and practice: How we created the Q...Authoring a personal GPT for your research and practice: How we created the Q...
Authoring a personal GPT for your research and practice: How we created the Q...
Leonel Morgado

Basics of crystallography, crystal systems, classes and different forms
Basics of crystallography, crystal systems, classes and different formsBasics of crystallography, crystal systems, classes and different forms
Basics of crystallography, crystal systems, classes and different forms
MaheshaNanjegowda

ESR spectroscopy in liquid food and beverages.pptx
ESR spectroscopy in liquid food and beverages.pptxESR spectroscopy in liquid food and beverages.pptx
ESR spectroscopy in liquid food and beverages.pptx
PRIYANKA PATEL

Modelo de slide quimica para powerpoint
Modelo  de slide quimica para powerpointModelo  de slide quimica para powerpoint
Modelo de slide quimica para powerpoint
Karen593256

AJAY KUMAR NIET GreNo Guava Project File.pdf
AJAY KUMAR NIET GreNo Guava Project File.pdfAJAY KUMAR NIET GreNo Guava Project File.pdf
AJAY KUMAR NIET GreNo Guava Project File.pdf
AJAY KUMAR


Recently uploaded (20)

molar-distalization in orthodontics-seminar.pptx
molar-distalization in orthodontics-seminar.pptxmolar-distalization in orthodontics-seminar.pptx
molar-distalization in orthodontics-seminar.pptx

Farming systems analysis: what have we learnt?.pptx
Farming systems analysis: what have we learnt?.pptxFarming systems analysis: what have we learnt?.pptx
Farming systems analysis: what have we learnt?.pptx

Sciences of Europe journal No 142 (2024)
Sciences of Europe journal No 142 (2024)Sciences of Europe journal No 142 (2024)
Sciences of Europe journal No 142 (2024)

The cost of acquiring information by natural selection
The cost of acquiring information by natural selectionThe cost of acquiring information by natural selection
The cost of acquiring information by natural selection

HOW DO ORGANISMS REPRODUCE?reproduction part 1
HOW DO ORGANISMS REPRODUCE?reproduction part 1HOW DO ORGANISMS REPRODUCE?reproduction part 1
HOW DO ORGANISMS REPRODUCE?reproduction part 1

23PH301 - Optics - Optical Lenses.pptx
23PH301 - Optics  -  Optical Lenses.pptx23PH301 - Optics  -  Optical Lenses.pptx
23PH301 - Optics - Optical Lenses.pptx

ESA/ACT Science Coffee: Diego Blas - Gravitational wave detection with orbita...
ESA/ACT Science Coffee: Diego Blas - Gravitational wave detection with orbita...ESA/ACT Science Coffee: Diego Blas - Gravitational wave detection with orbita...
ESA/ACT Science Coffee: Diego Blas - Gravitational wave detection with orbita...

(June 12, 2024) Webinar: Development of PET theranostics targeting the molecu...
(June 12, 2024) Webinar: Development of PET theranostics targeting the molecu...(June 12, 2024) Webinar: Development of PET theranostics targeting the molecu...
(June 12, 2024) Webinar: Development of PET theranostics targeting the molecu...

Direct Seeded Rice - Climate Smart Agriculture
Direct Seeded Rice - Climate Smart AgricultureDirect Seeded Rice - Climate Smart Agriculture
Direct Seeded Rice - Climate Smart Agriculture

11.1 Role of physical biological in deterioration of grains.pdf
11.1 Role of physical biological in deterioration of grains.pdf11.1 Role of physical biological in deterioration of grains.pdf
11.1 Role of physical biological in deterioration of grains.pdf

Applied Science: Thermodynamics, Laws & Methodology.pdf
Applied Science: Thermodynamics, Laws & Methodology.pdfApplied Science: Thermodynamics, Laws & Methodology.pdf
Applied Science: Thermodynamics, Laws & Methodology.pdf

Describing and Interpreting an Immersive Learning Case with the Immersion Cub...
Describing and Interpreting an Immersive Learning Case with the Immersion Cub...Describing and Interpreting an Immersive Learning Case with the Immersion Cub...
Describing and Interpreting an Immersive Learning Case with the Immersion Cub...

Randomised Optimisation Algorithms in DAPHNE
Randomised Optimisation Algorithms in DAPHNERandomised Optimisation Algorithms in DAPHNE
Randomised Optimisation Algorithms in DAPHNE

GBSN - Biochemistry (Unit 6) Chemistry of Proteins
GBSN - Biochemistry (Unit 6) Chemistry of ProteinsGBSN - Biochemistry (Unit 6) Chemistry of Proteins
GBSN - Biochemistry (Unit 6) Chemistry of Proteins

Pests of Storage_Identification_Dr.UPR.pdf
Pests of Storage_Identification_Dr.UPR.pdfPests of Storage_Identification_Dr.UPR.pdf
Pests of Storage_Identification_Dr.UPR.pdf

Authoring a personal GPT for your research and practice: How we created the Q...
Authoring a personal GPT for your research and practice: How we created the Q...Authoring a personal GPT for your research and practice: How we created the Q...
Authoring a personal GPT for your research and practice: How we created the Q...

Basics of crystallography, crystal systems, classes and different forms
Basics of crystallography, crystal systems, classes and different formsBasics of crystallography, crystal systems, classes and different forms
Basics of crystallography, crystal systems, classes and different forms

ESR spectroscopy in liquid food and beverages.pptx
ESR spectroscopy in liquid food and beverages.pptxESR spectroscopy in liquid food and beverages.pptx
ESR spectroscopy in liquid food and beverages.pptx

Modelo de slide quimica para powerpoint
Modelo  de slide quimica para powerpointModelo  de slide quimica para powerpoint
Modelo de slide quimica para powerpoint

AJAY KUMAR NIET GreNo Guava Project File.pdf
AJAY KUMAR NIET GreNo Guava Project File.pdfAJAY KUMAR NIET GreNo Guava Project File.pdf
AJAY KUMAR NIET GreNo Guava Project File.pdf


Biological Catalysts: Enzymes

  • 1. BIOLOGICAL CATALYSTS: ENZYMES WHY ENZYMES ARE SO SPECIFIC Jennilee T. Abrenica 09082018
  • 2.
  • 4. Related Research •Wadih Ghattas, Virginie Dubosclard, Arne Wick, Audrey Bendelac, Régis Guillot, Rémy Ricoux, Jean-Pierre Mahy. Receptor-Based Artificial Metalloenzymes on Living Human Cells. Journal of the American Chemical Society, 2018
  • 5. Related Research • Artificial enzymes perform reactions on living cells • Date:July 26, 2018 • Source:American Chemical Society • Summary: Researchers have designed artificial enzymes that sit on the surfaces of living cells and drive reactions that could someday target drug therapies to specific organs.
  • 6. •Metalloenzymes are a class of enzymes that contain a metal ion, such as zinc, iron or copper. The metal ion helps the enzyme speed up, or "catalyze," chemical reactions that would otherwise occur very slowly or not at all.
  • 7. •Scientists would ultimately like to develop a method to produce therapeutic drugs only at the sites of specific cells or organs of the human body, which could reduce side effects, and enzymes could help them reach that goal.
  • 8. • Wadih Ghattas, Jean-Pierre Mahy and their colleagues set their sights on engineering an artificial enzyme that could catalyze a useful reaction, called the Diels-Alder reaction, right on the surfaces of living cells. Chemists use this reaction to synthesize drugs, agrochemicals and many other molecules.
  • 9. How? • To make their artificial enzyme, the researchers began with a protein called the A2A adenosine receptor, which is naturally present on the surfaces of some cells in the body. They modified a molecule that binds to this receptor with a copper-containing chemical group that catalyzes the Diels- Alder reaction.
  • 10. • When the researchers placed the resulting compound in a culture dish containing living human cells, it attached to the A2A adenosine receptors on the cells, forming an artificial enzyme. This enzyme catalyzed the Diels-Alder reaction with an up to 50 percent yield.
  • 11. Diels–Alder reaction • The Diels–Alder reaction is the reaction between a conjugated diene and an alkene (dienophile) to form unsaturated six-membered rings. Since the reaction involves the formation of a cyclic product via a cyclic transition state, it is also referred to as a "cycloaddition". The Diels–Alder reaction is an electrocyclic reaction, which involves [4+2]-cycloaddition of 4 π-electrons of the conjugated diene and 2 π-electrons of the dienophile (an alkene or alkyne). The reaction involves the formation of new σ-bonds, which are energetically more stable than the π-bonds. This reaction has great synthetic importance and was discovered by two German chemists, Otto Diels and Kurt Alder in 1928. They were awarded the Nobel Prize in 1950
  • 12. •The researchers say that in the future, artificial enzymes might be designed that bind to proteins found only on specific cell types, for example, cancer cells. Then, the enzyme could convert an inactive compound into a drug to selectively kill those cells.
  • 13.
  • 14.
  • 16. The Basics • Enzymes help speed up chemical reactions in the human body. • They bind to molecules and alter them in specific ways. • They are essential for respiration, digesting food, muscle and nerve function, among thousands of other roles.
  • 17. The Basics • Enzymes are built of proteins folded into complicated shapes; they are present throughout the body • The chemical reactions that keep us alive - our metabolism - rely on the work that enzymes carry out
  • 18. The Basics • Enzymes speed up (catalyze) chemical reactions; in some cases, enzymes can make a chemical reaction millions of times faster than it would have been without it without being consumed in the process.
  • 19. The Basics •A substrate binds to the active site of an enzyme and is converted into products. Once the products leave the active site, the enzyme is ready to attach to a new substrate and repeat the process.
  • 20.
  • 22.
  • 23. What do enzymes do? •The digestive system - enzymes help the body break down larger complex molecules into smaller molecules, such as glucose, so that the body can use them as fuel.
  • 24.
  • 25. What do enzymes do? •DNA replication - each cell in your body contains DNA. Each time a cell divides, that DNA needs to be copied. Enzymes help in this process by unwinding the DNA coils and copying the information.
  • 26.
  • 27. What do enzymes do? •Liver enzymes - the liver breaks down toxins in the body. To do this, it uses a range of enzymes.

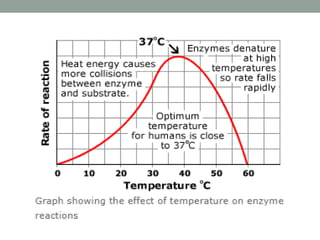

  • 29.
  • 30. Why enzymes are specific? • One enzyme - one job • Enzymes are specific. Only molecules with the correct shape can fit into the enzyme. Just like only one key can open a lock, only one type of enzyme can speed up a specific reaction. This is called the lock and key model.
  • 31. • Absolute specificity - the enzyme will catalyze only one reaction. • Group specificity - the enzyme will act only on molecules that have specific functional groups, such as amino, phosphate and methyl groups. • Linkage specificity - the enzyme will act on a particular type of chemical bond regardless of the rest of the molecular structure. • Stereochemical specificity - the enzyme will act on a particular steric or optical isomer.
  • 32.
  • 33. • Absolute specificity - the enzyme will catalyze only one reaction. • Group specificity - the enzyme will act only on molecules that have specific functional groups, such as amino, phosphate and methyl groups. • Linkage specificity - the enzyme will act on a particular type of chemical bond regardless of the rest of the molecular structure. • Stereochemical specificity - the enzyme will act on a particular steric or optical isomer.
  • 34.
  • 35. • Absolute specificity - the enzyme will catalyze only one reaction. • Group specificity - the enzyme will act only on molecules that have specific functional groups, such as amino, phosphate and methyl groups. • Linkage specificity - the enzyme will act on a particular type of chemical bond regardless of the rest of the molecular structure. • Stereochemical specificity - the enzyme will act on a particular steric or optical isomer.
  • 36.
  • 37.
  • 38.
  • 39.
  • 40. References • American Chemical Society. "Artificial enzymes perform reactions on living cells." ScienceDaily. ScienceDaily, 26 July 2018. <www.sciencedaily.com/releases/2018/07/180726085732. htm>. Retrieved from https://www.sciencedaily.com/releases/2018/07/18072608 5732.htm • https://www.sigmaaldrich.com/technical- documents/articles/chemistry/diels-alder-reaction.html
