The document discusses Breadth First Search (BFS) and Depth First Search (DFS) graph traversal algorithms. BFS uses a queue data structure and explores neighbor nodes level-wise, starting from a source node. Its time and space complexity is O(V+E) and O(V) respectively. DFS uses a stack and explores nodes by going deeper first until reaching a dead end, then backtracks. Its complexity is O(V+E) for adjacency lists and O(V^2) for adjacency matrices. Both algorithms are used for path finding, cycle detection and other graph applications.

1. Breadth First Search
&
Depth First Search
Ritesh Thakur
Vishal Thoke
Utsav Patel
Sushant Vaidkar
Vedant Valsangkar

2. Stack
► Stack is a linear data structure which follows a particular order in which the
operations are performed. The order may be LIFO(Last In First Out) or
FILO(First In Last Out).
► Mainly the following three basic operations are performed in the stack:
Push: Adds an item in the stack. If the stack is full, then it is said to be an
Overflow condition.
Pop: Removes an item from the stack. The items are popped in the reversed order
in which they are pushed. If the stack is empty, then it is said to be an Underflow
condition.
Peek or Top: Returns top element of stack.
isEmpty: Returns true if stack is empty, else false.

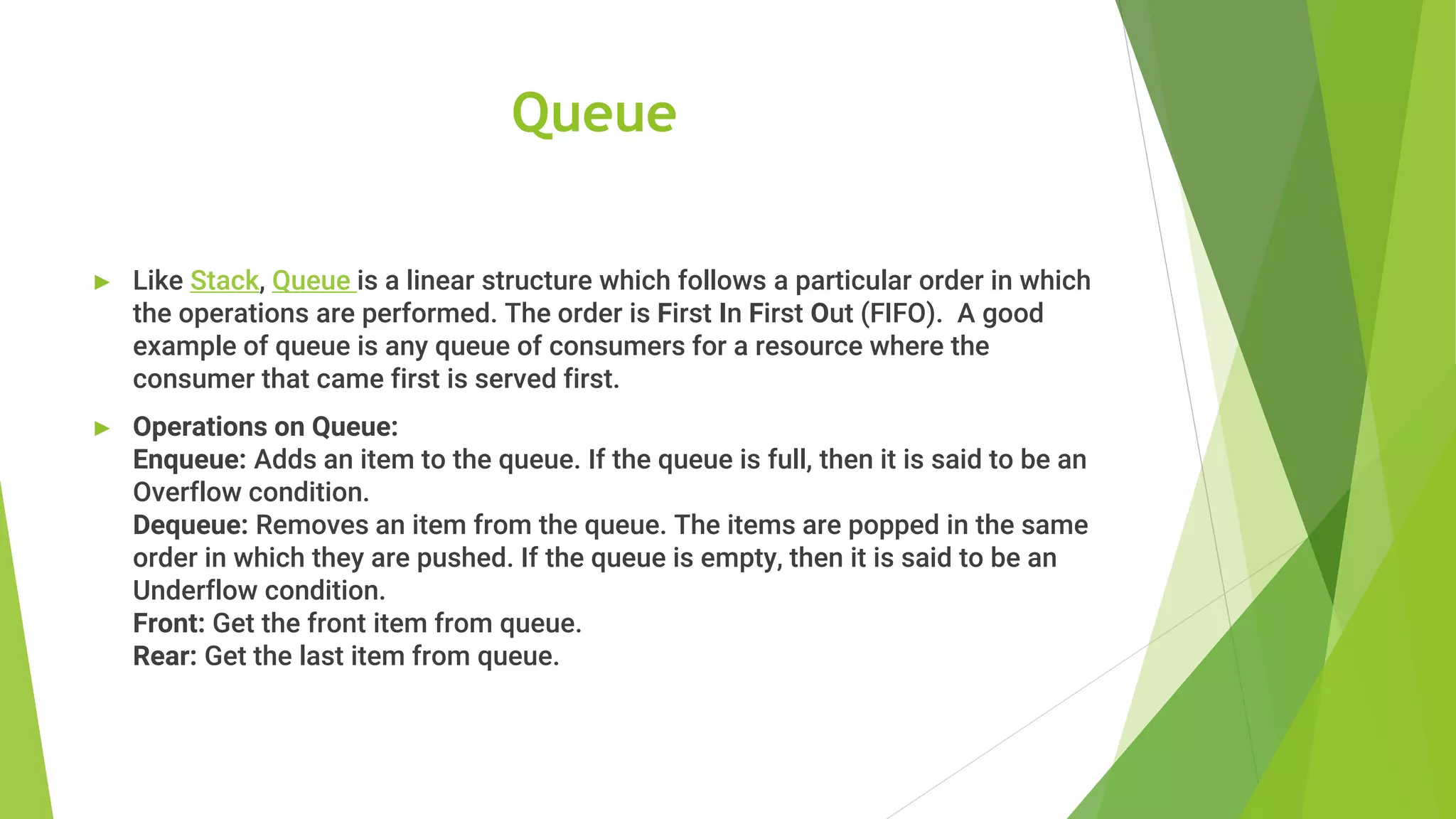

3. Queue
► Like Stack, Queue is a linear structure which follows a particular order in which
the operations are performed. The order is First In First Out (FIFO). A good
example of queue is any queue of consumers for a resource where the
consumer that came first is served first.
► Operations on Queue:
Enqueue: Adds an item to the queue. If the queue is full, then it is said to be an
Overflow condition.
Dequeue: Removes an item from the queue. The items are popped in the same
order in which they are pushed. If the queue is empty, then it is said to be an
Underflow condition.
Front: Get the front item from queue.
Rear: Get the last item from queue.

4. Graph Traversal
Breadth First Search
● Start several paths at a time, and advance in each one
step at a time.
● The Breadth first search uses the FIFO Queue.
Depth First Search
● Once a possible path is found, continue the search
until the end of the path.
● The Depth first search uses the LIFO stack.

5. Breadth First Search
BFS is a traversing algorithm where you
should start traversing from a selected node
(source or starting node) and traverse the
graph layerwise thus exploring the neighbour
nodes (nodes which are directly connected to
source node). You must then move towards
the next-level neighbour nodes.

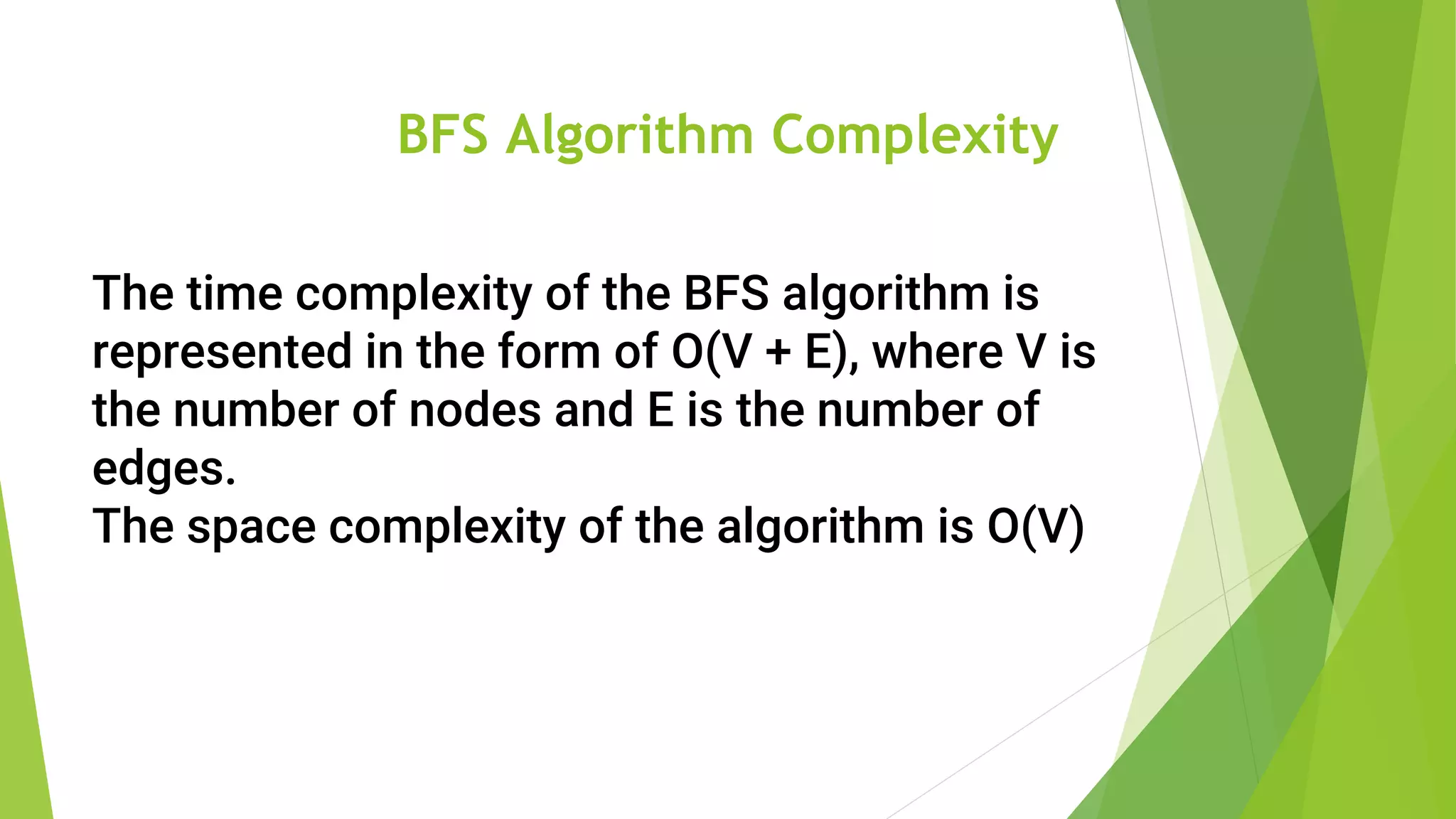

6. BFS Algorithm Complexity
The time complexity of the BFS algorithm is
represented in the form of O(V + E), where V is
the number of nodes and E is the number of
edges.
The space complexity of the algorithm is O(V)

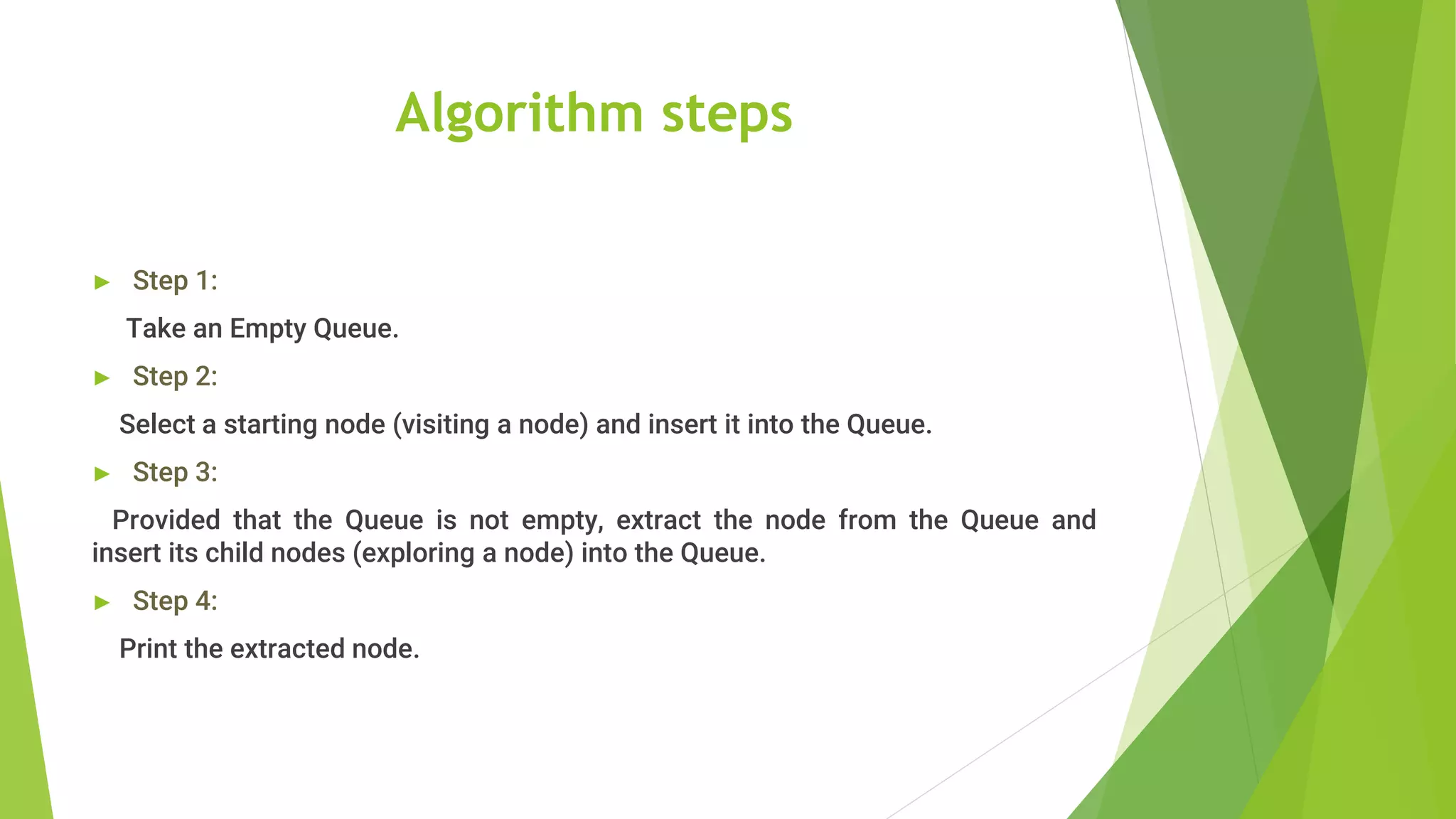

7. Algorithm steps
► Step 1:
Take an Empty Queue.
► Step 2:
Select a starting node (visiting a node) and insert it into the Queue.
► Step 3:
Provided that the Queue is not empty, extract the node from the Queue and
insert its child nodes (exploring a node) into the Queue.
► Step 4:
Print the extracted node.

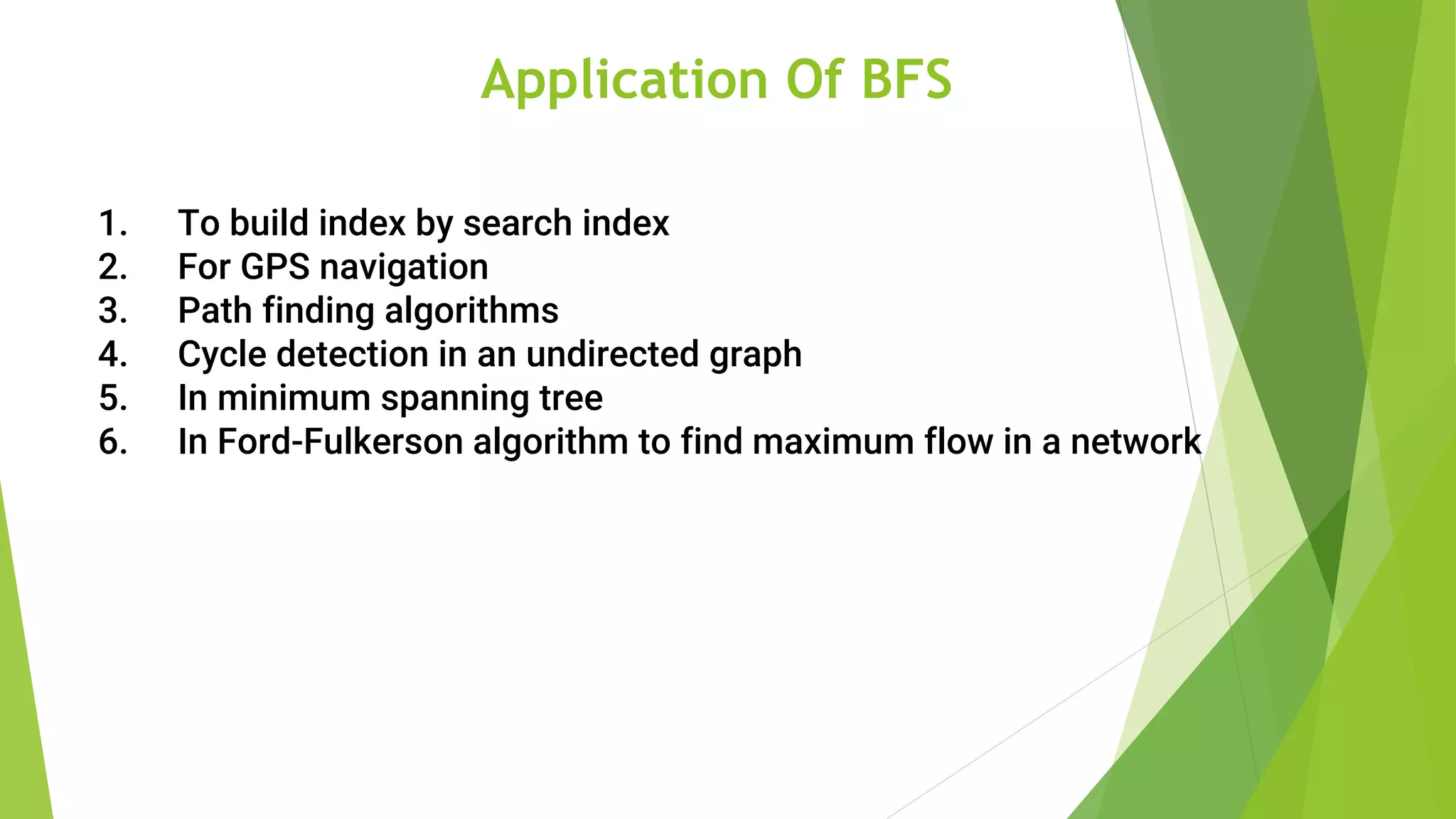

9. Application Of BFS
1. To build index by search index
2. For GPS navigation
3. Path finding algorithms
4. Cycle detection in an undirected graph
5. In minimum spanning tree
6. In Ford-Fulkerson algorithm to find maximum flow in a network

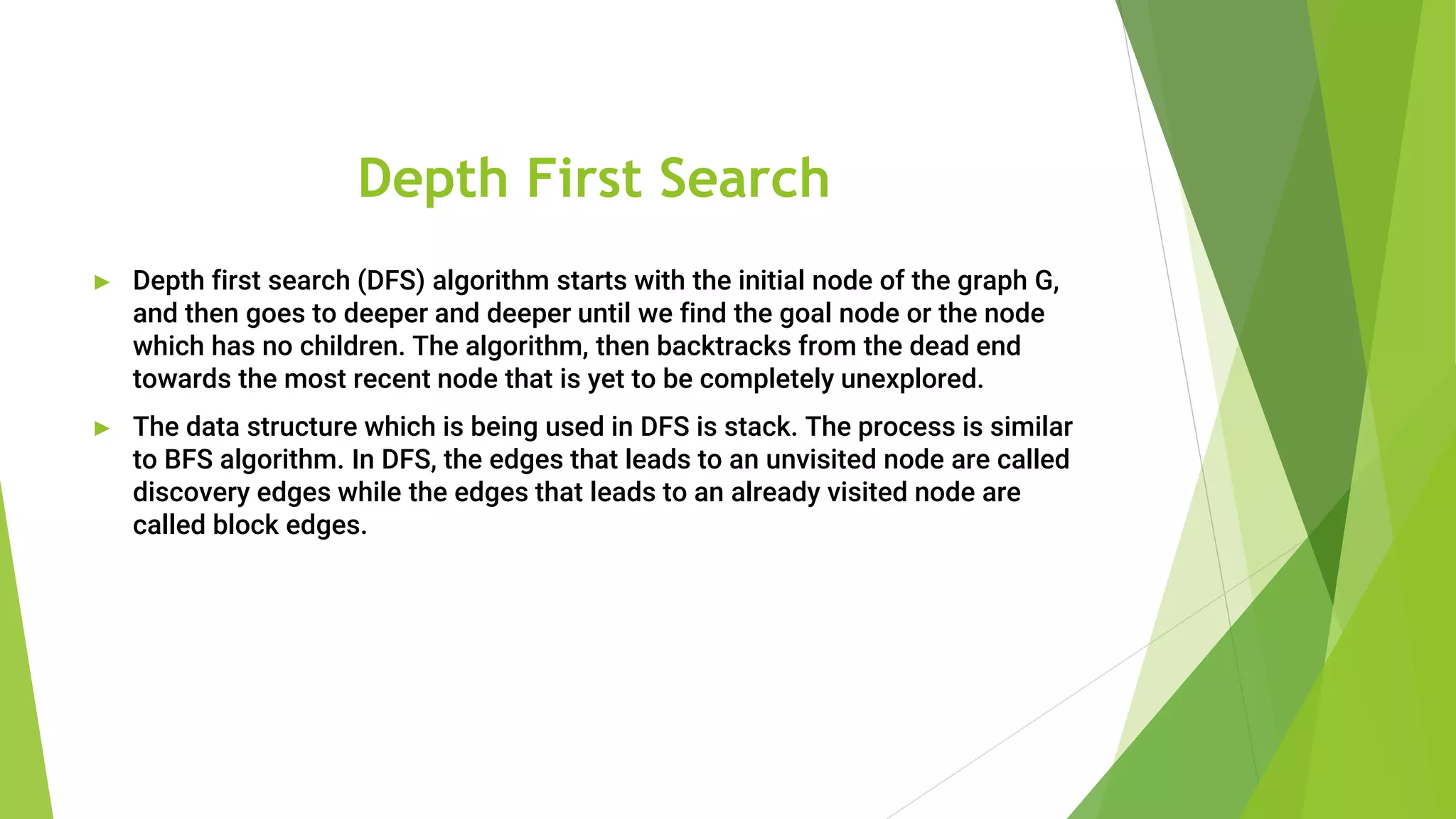

10. Depth First Search
► Depth first search (DFS) algorithm starts with the initial node of the graph G,
and then goes to deeper and deeper until we find the goal node or the node
which has no children. The algorithm, then backtracks from the dead end
towards the most recent node that is yet to be completely unexplored.
► The data structure which is being used in DFS is stack. The process is similar
to BFS algorithm. In DFS, the edges that leads to an unvisited node are called
discovery edges while the edges that leads to an already visited node are
called block edges.

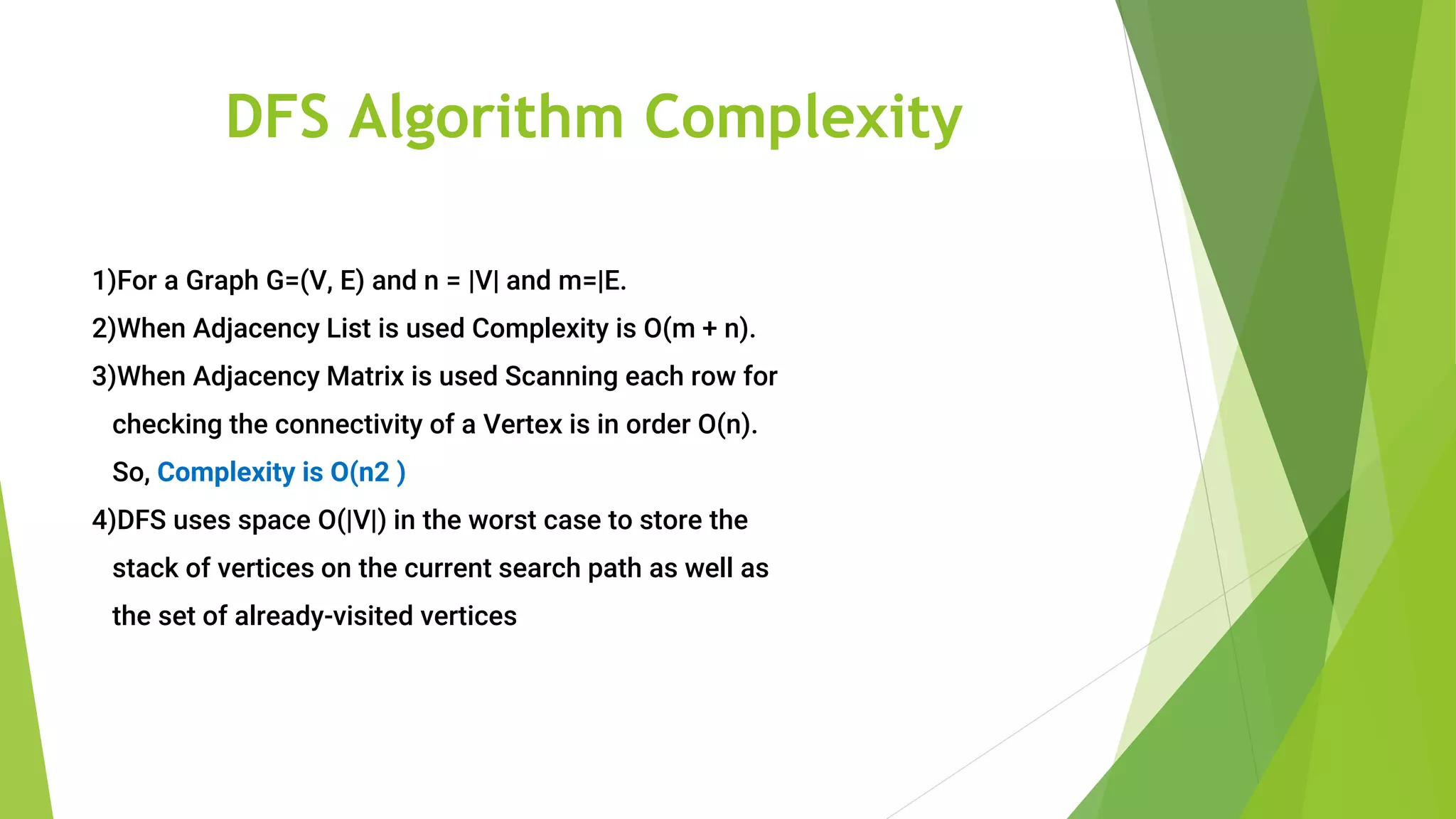

11. DFS Algorithm Complexity
1)For a Graph G=(V, E) and n = |V| and m=|E.
2)When Adjacency List is used Complexity is O(m + n).
3)When Adjacency Matrix is used Scanning each row for
checking the connectivity of a Vertex is in order O(n).
So, Complexity is O(n2 )
4)DFS uses space O(|V|) in the worst case to store the
stack of vertices on the current search path as well as
the set of already-visited vertices

12. Algorithm steps
► Step 1
Push the root node in stack.
► Step 2
Loop until stack is empty.
► Step 3
Peek the node of the stack.
► Step 4
If the node has unvisited child nodes get the unvisited
child node mark it has travers and push it on stack.

14. Application Of DFS
1.For finding the path
2.To test if the graph is bipartite
3.For finding the strongly connected components of a
graph
4.For detecting cycles in a graph
