1. Basic Networking Concepts
A Comprehensive Overview of
Network Devices and Configuration

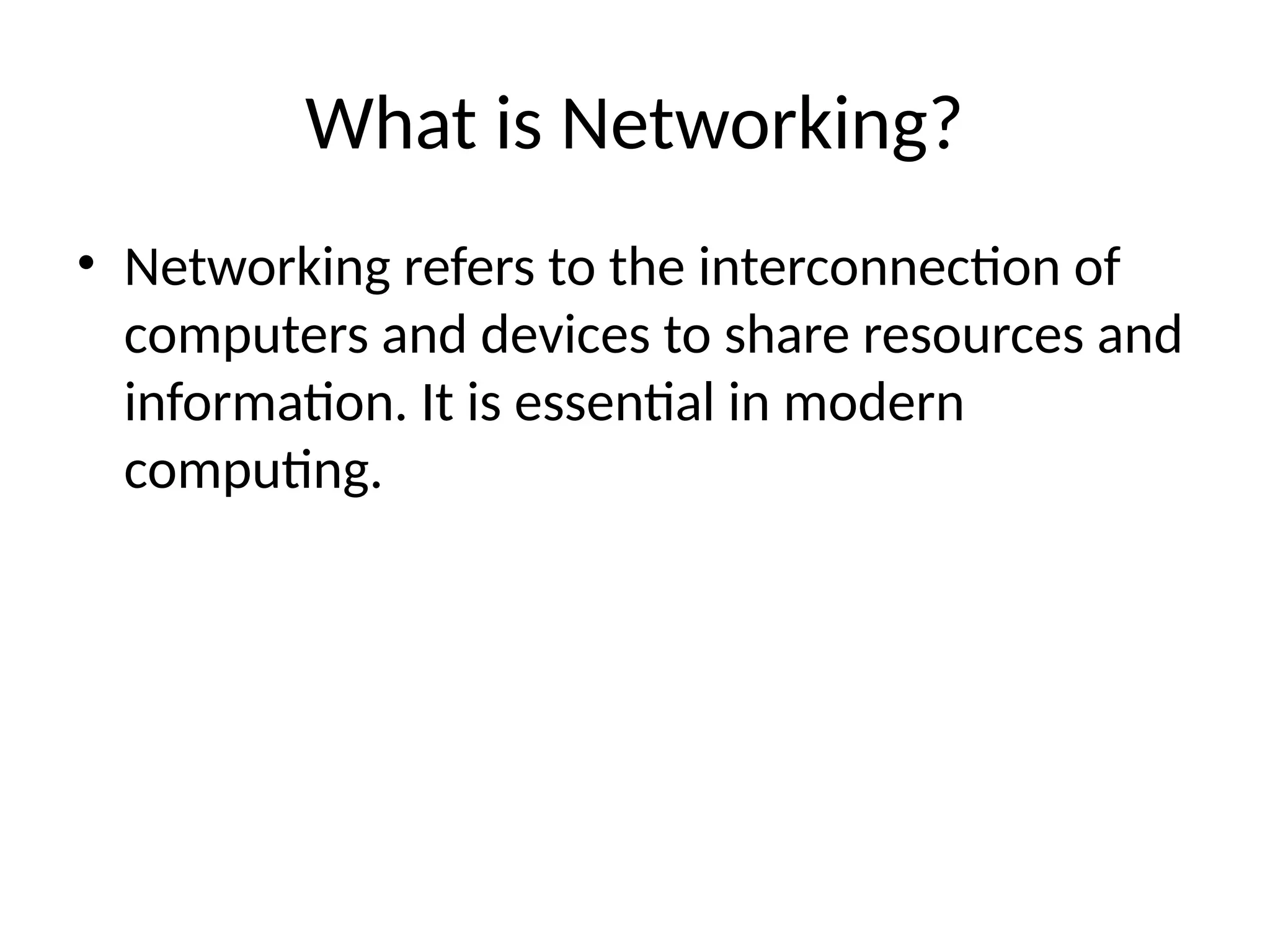

2. What is Networking?
• Networking refers to the interconnection of
computers and devices to share resources and
information. It is essential in modern
computing.

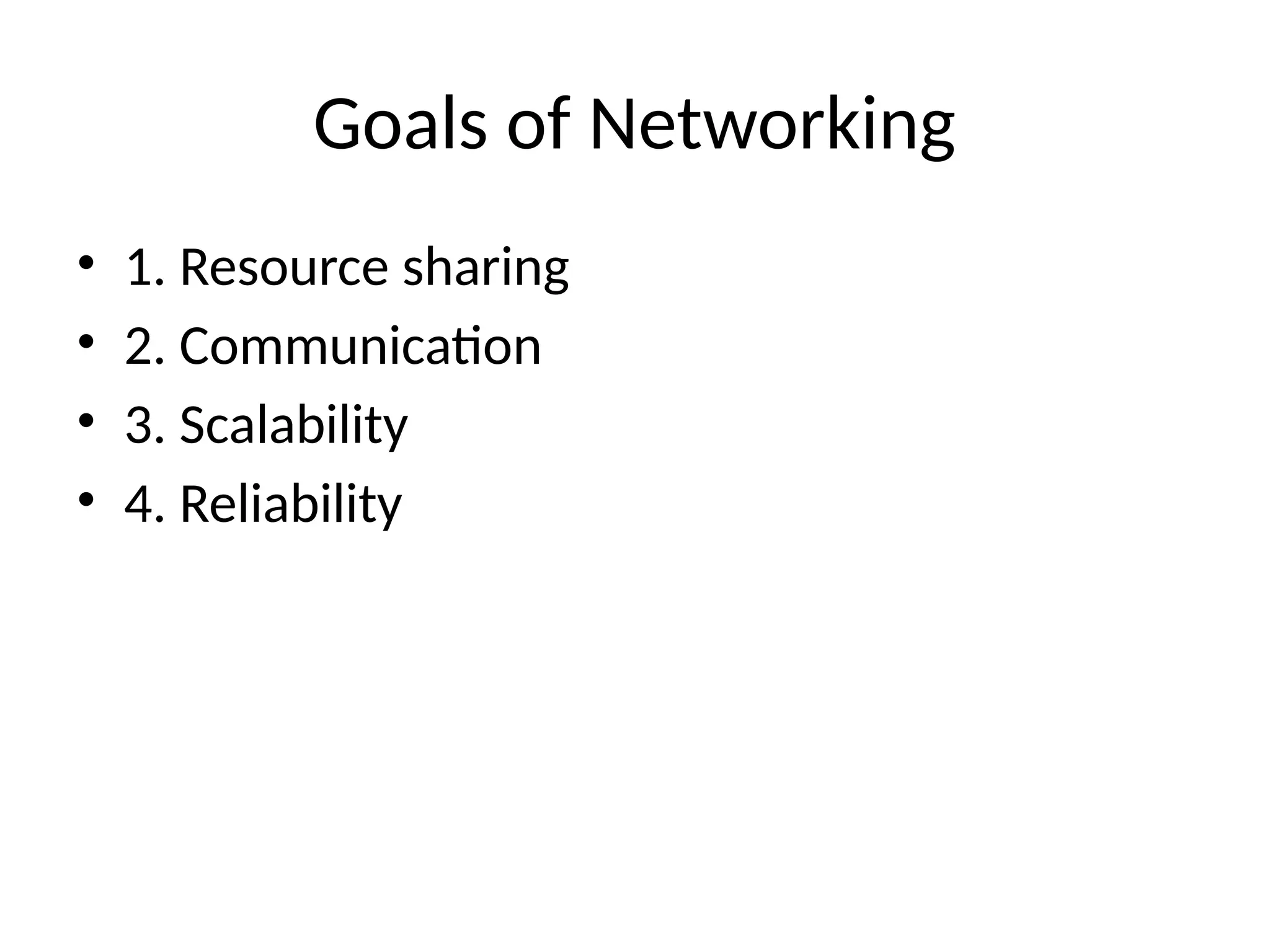

3. Goals of Networking
• 1. Resource sharing
• 2. Communication
• 3. Scalability
• 4. Reliability

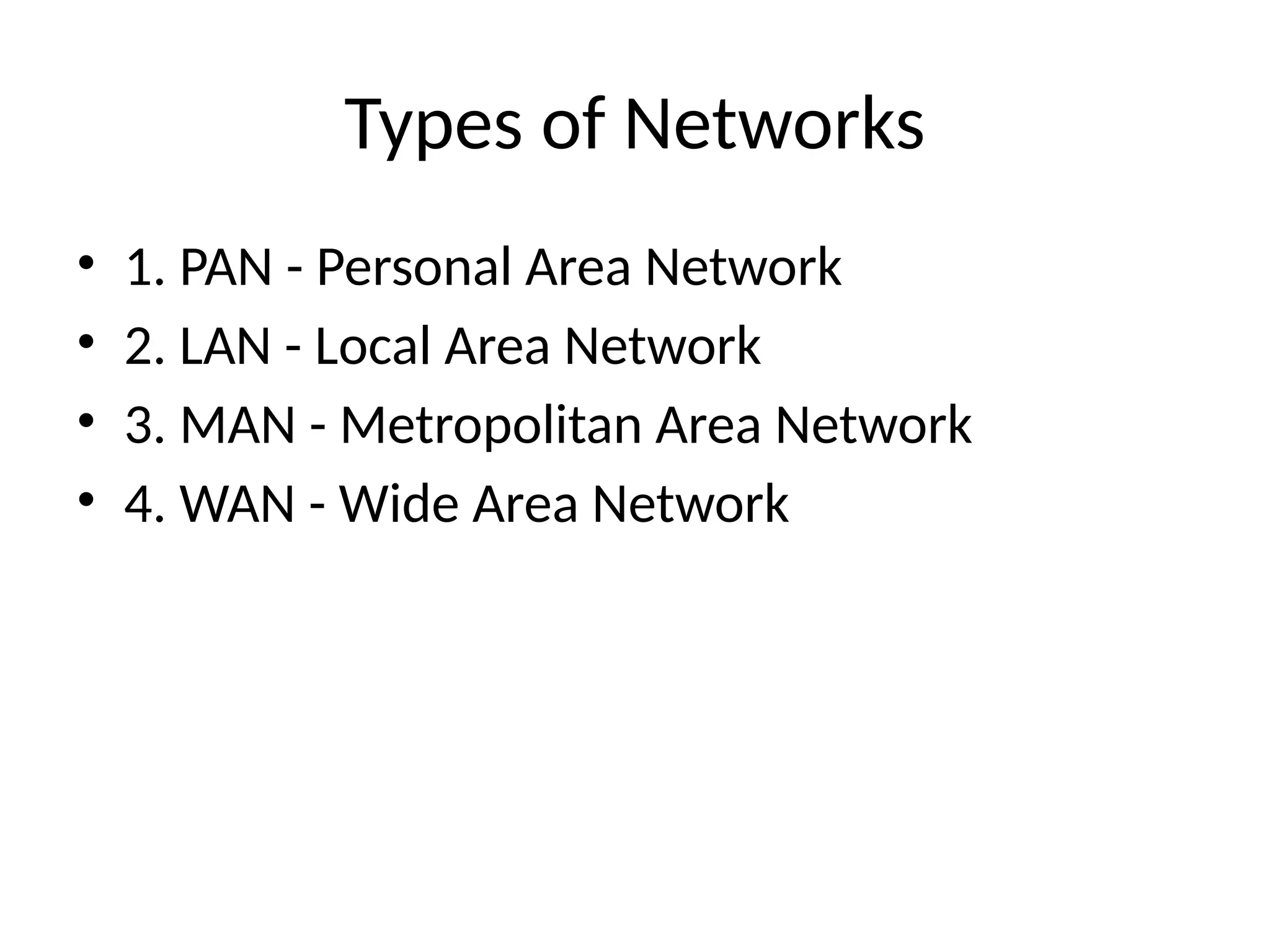

4. Types of Networks
• 1. PAN - Personal Area Network
• 2. LAN - Local Area Network
• 3. MAN - Metropolitan Area Network
• 4. WAN - Wide Area Network

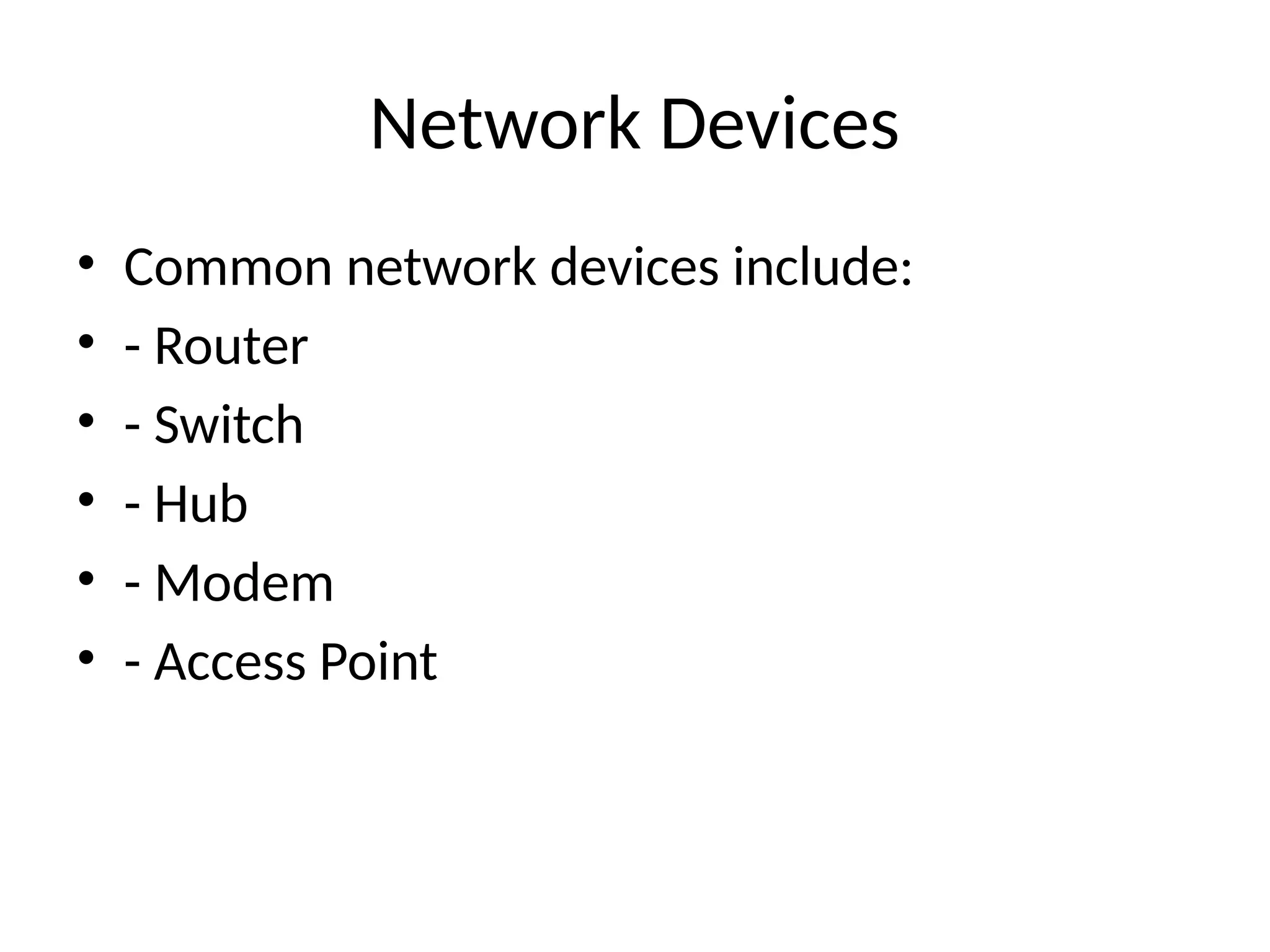

5. Network Devices
• Common network devices include:
• - Router
• - Switch
• - Hub
• - Modem
• - Access Point

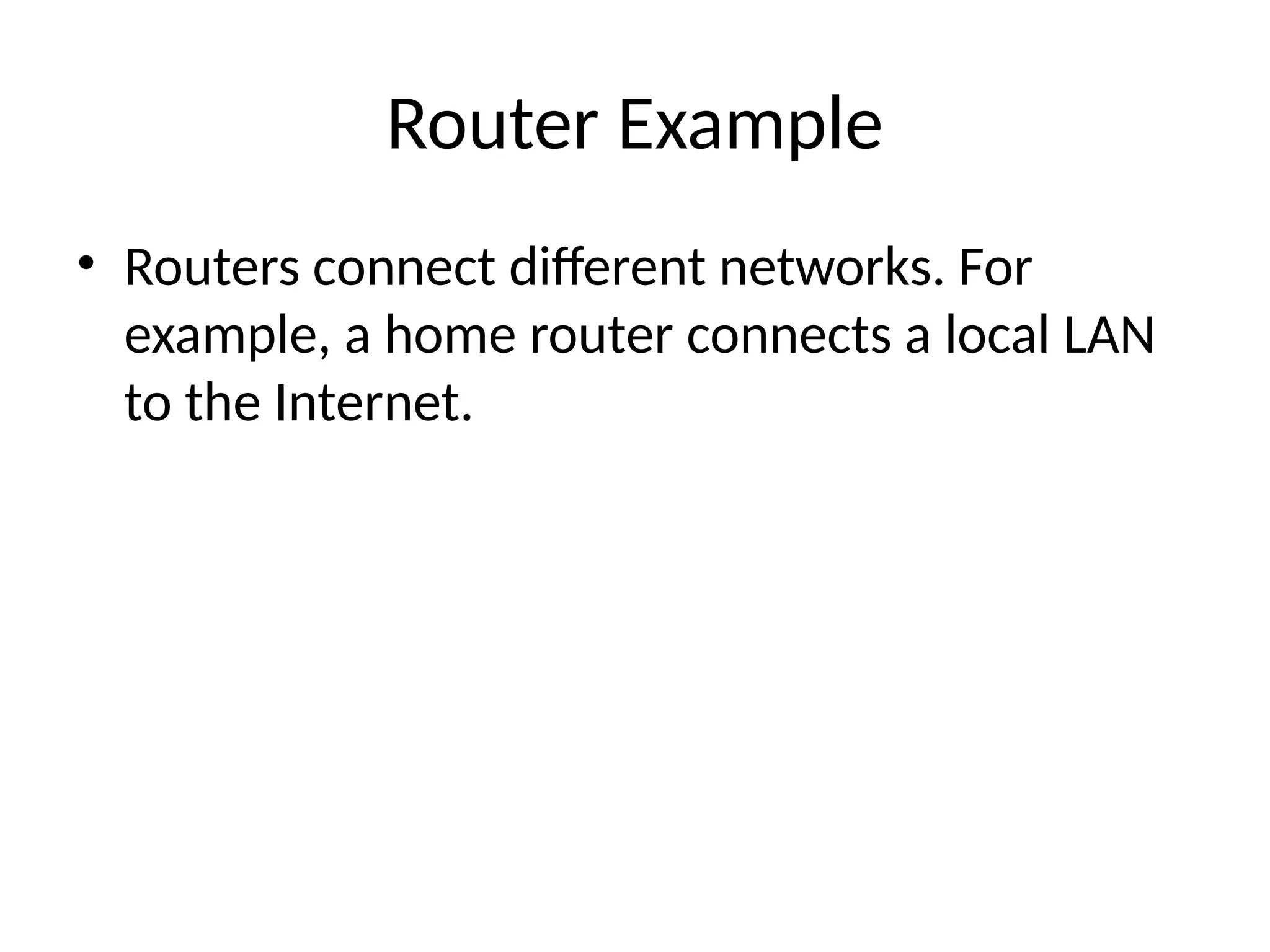

6. Router Example
• Routers connect different networks. For
example, a home router connects a local LAN
to the Internet.

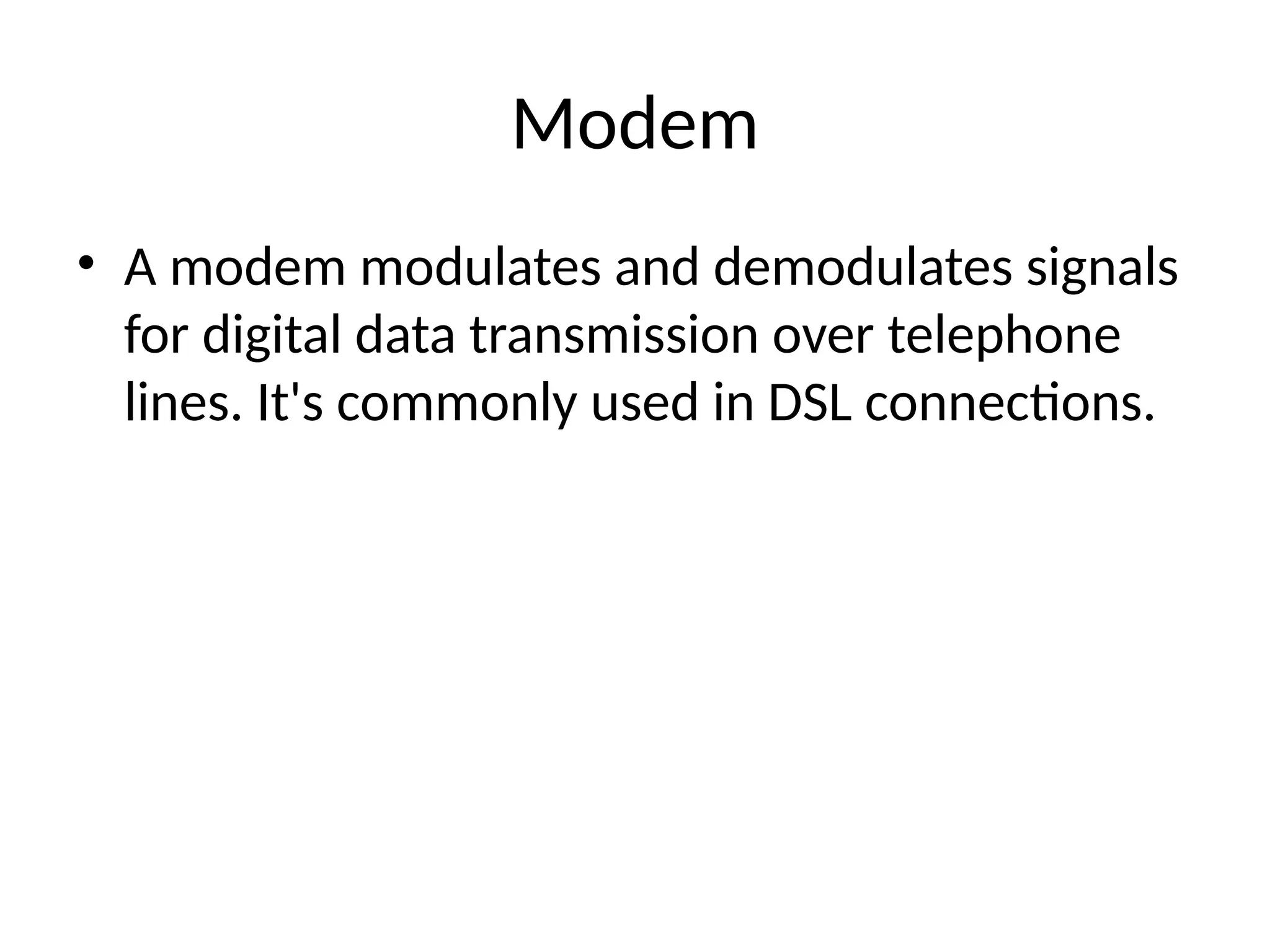

7. Modem
• A modem modulates and demodulates signals
for digital data transmission over telephone
lines. It's commonly used in DSL connections.

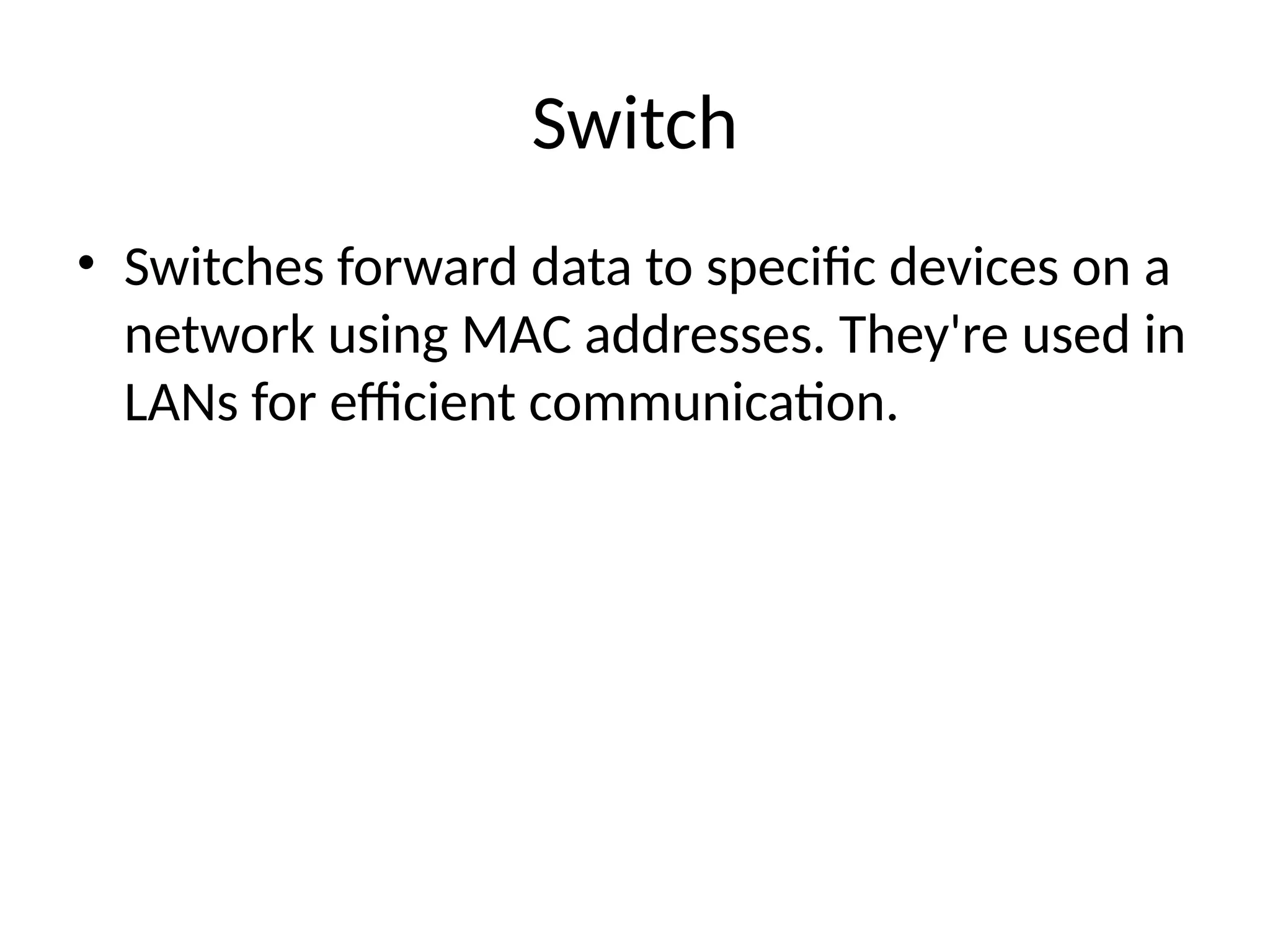

8. Switch
• Switches forward data to specific devices on a
network using MAC addresses. They're used in
LANs for efficient communication.

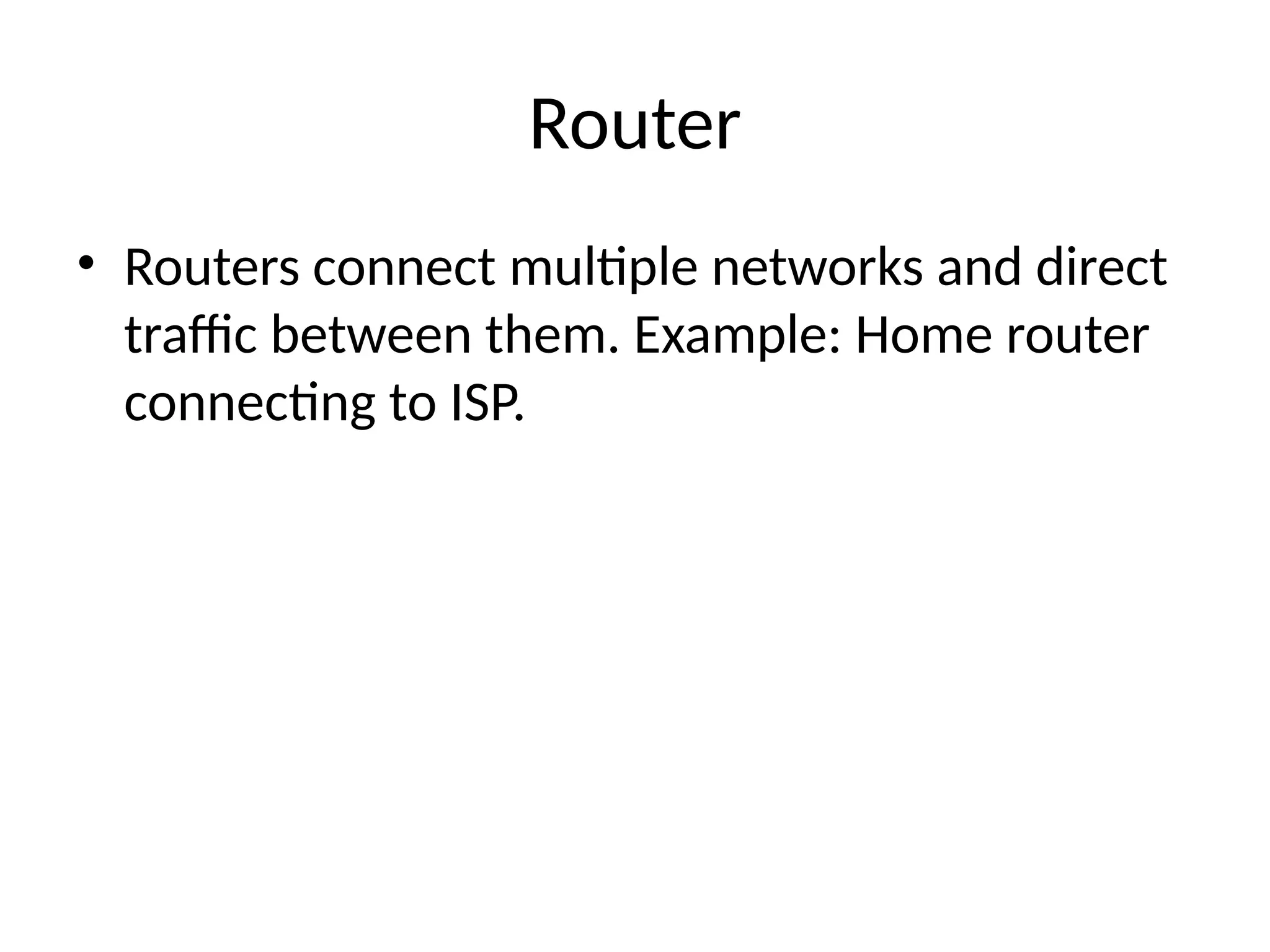

9. Router
• Routers connect multiple networks and direct
traffic between them. Example: Home router
connecting to ISP.

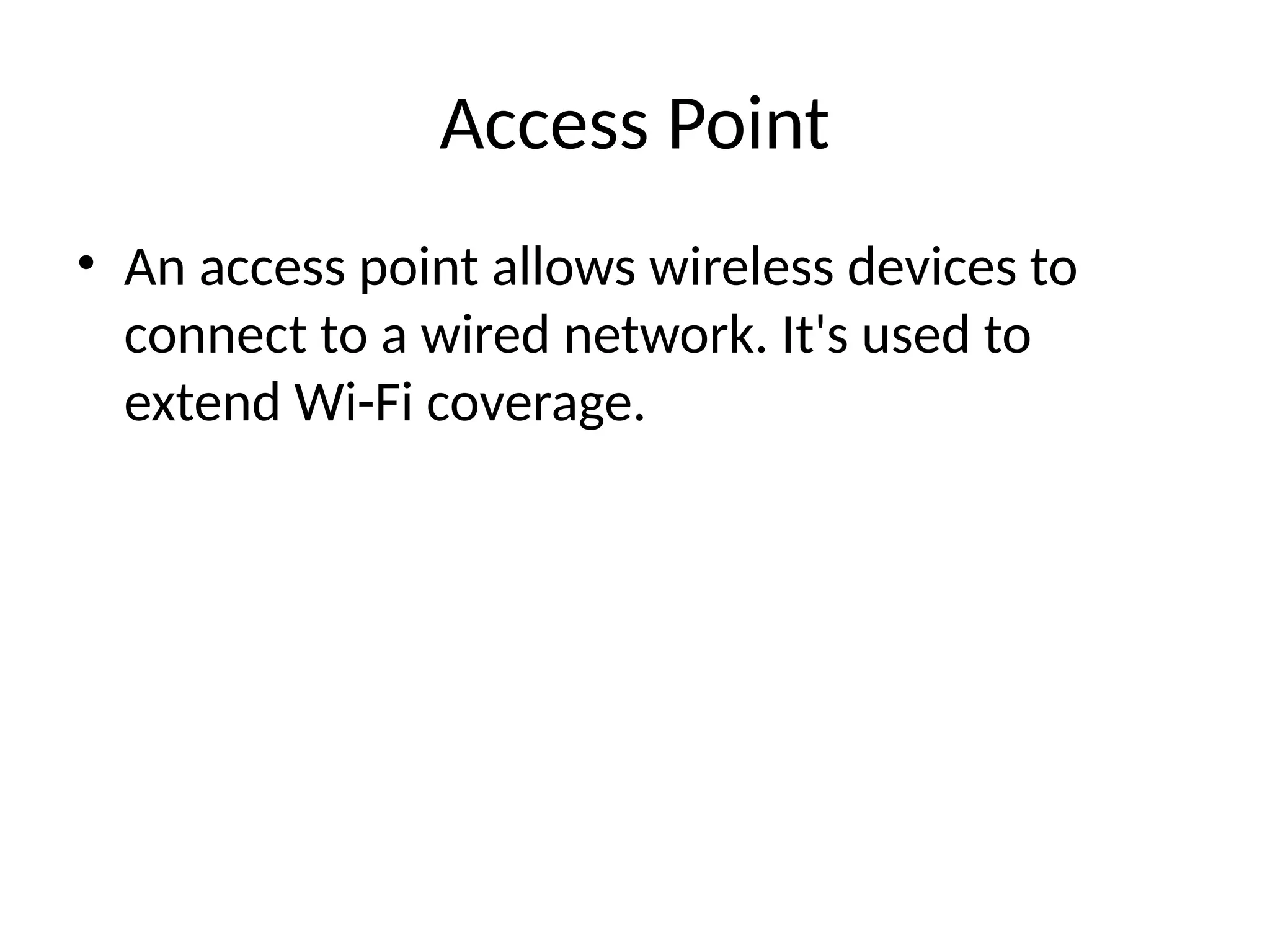

10. Access Point
• An access point allows wireless devices to
connect to a wired network. It's used to
extend Wi-Fi coverage.

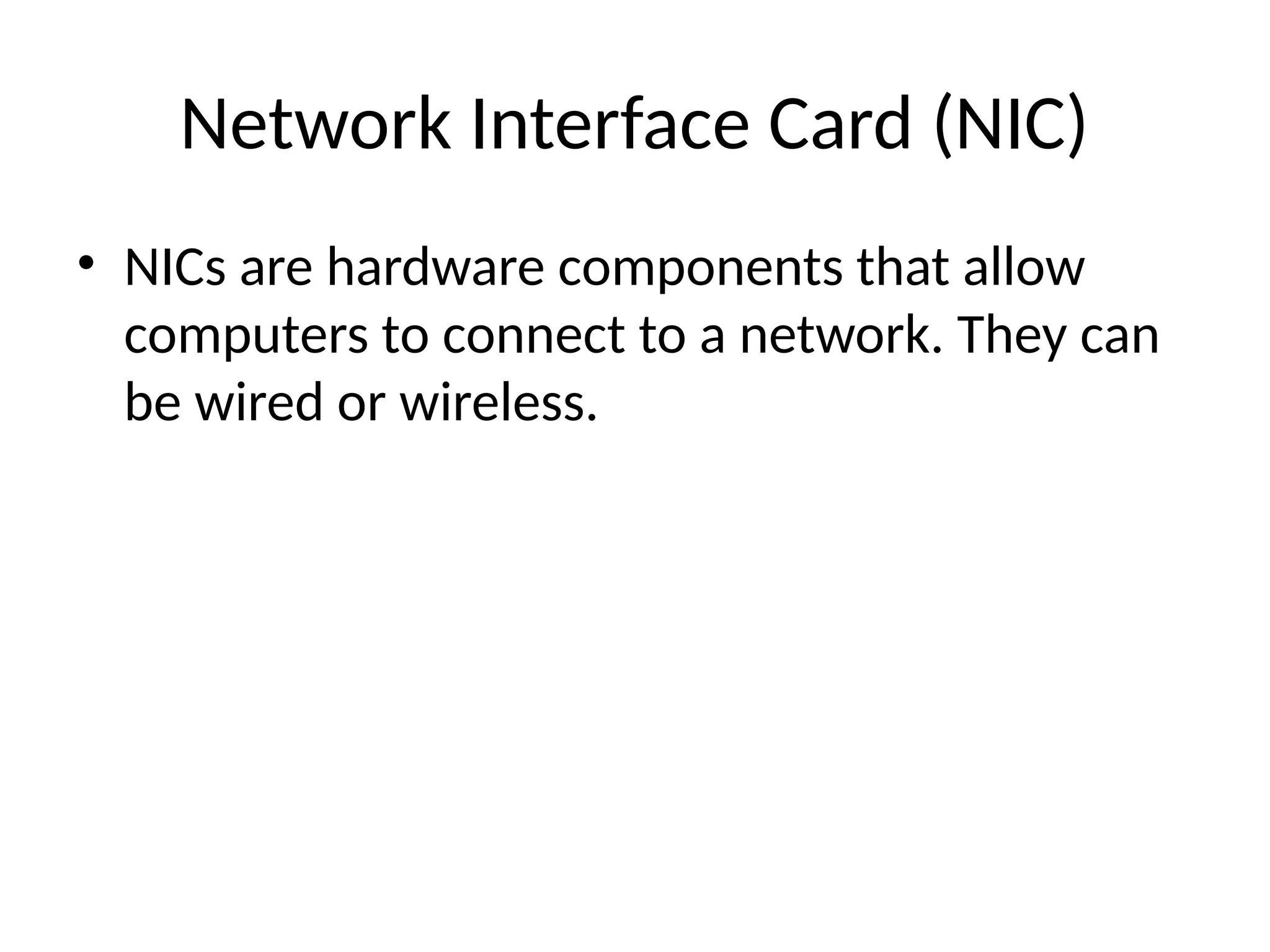

11. Network Interface Card (NIC)
• NICs are hardware components that allow
computers to connect to a network. They can
be wired or wireless.

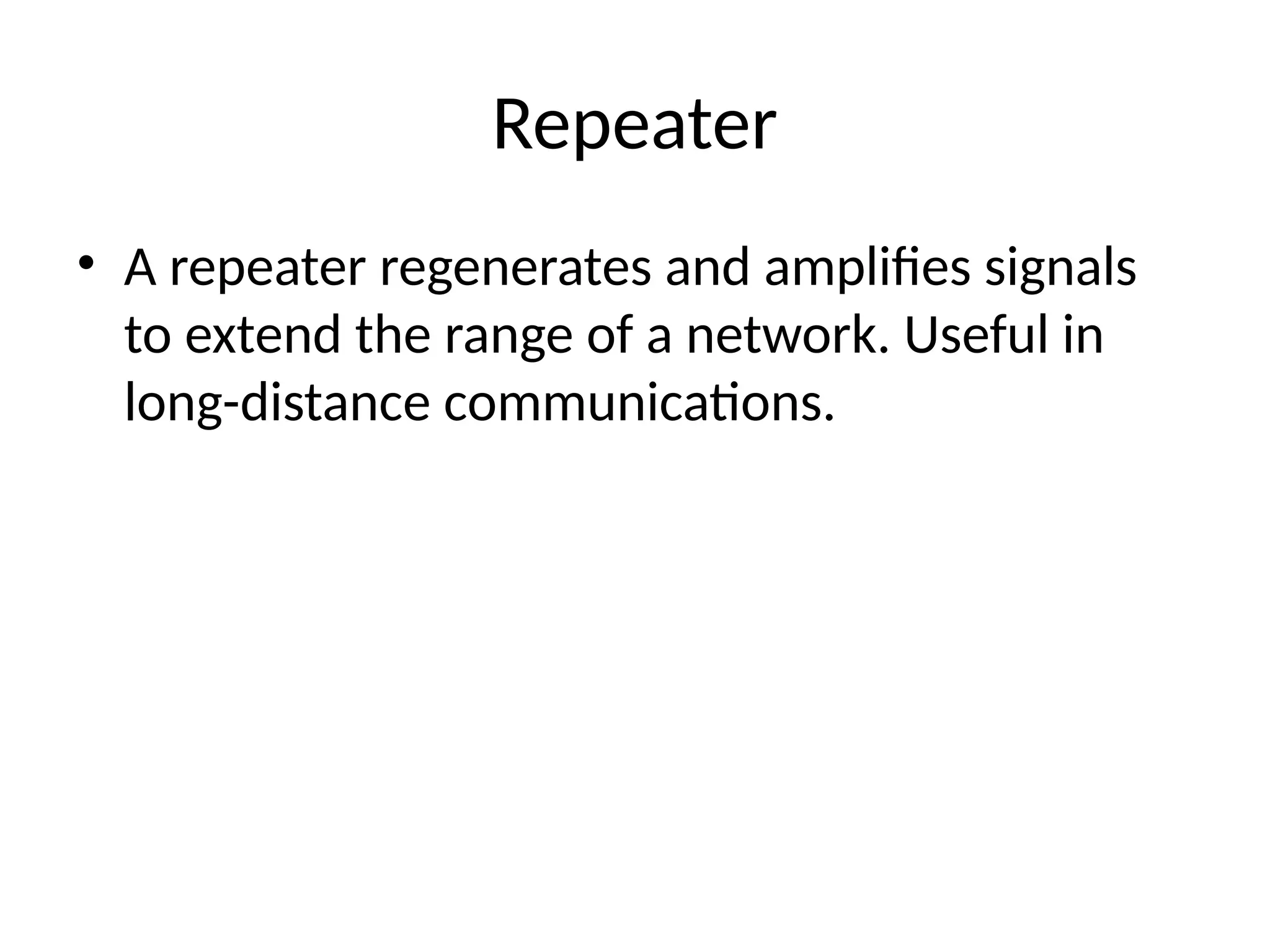

12. Repeater
• A repeater regenerates and amplifies signals
to extend the range of a network. Useful in
long-distance communications.

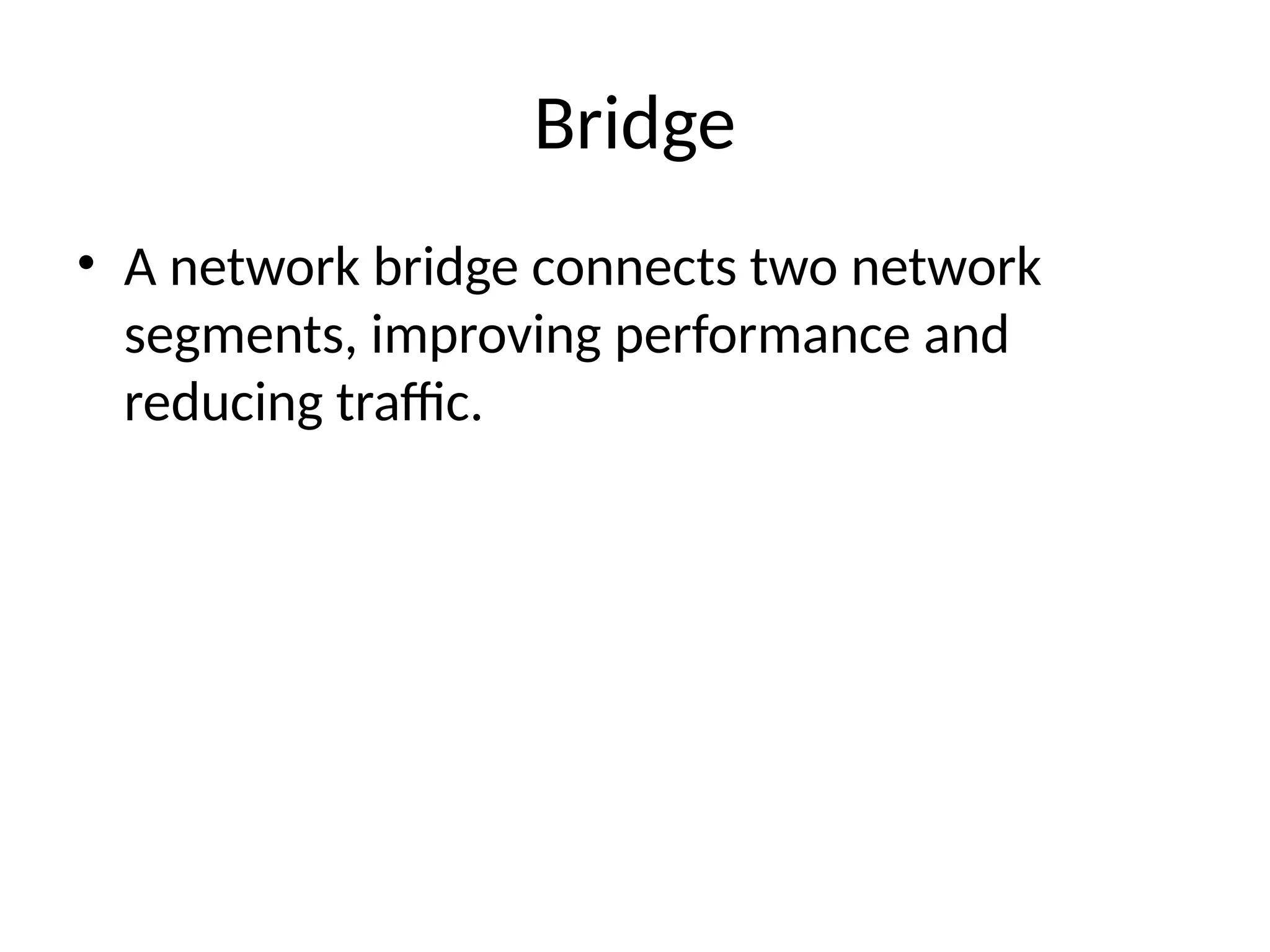

13. Bridge
• A network bridge connects two network
segments, improving performance and
reducing traffic.

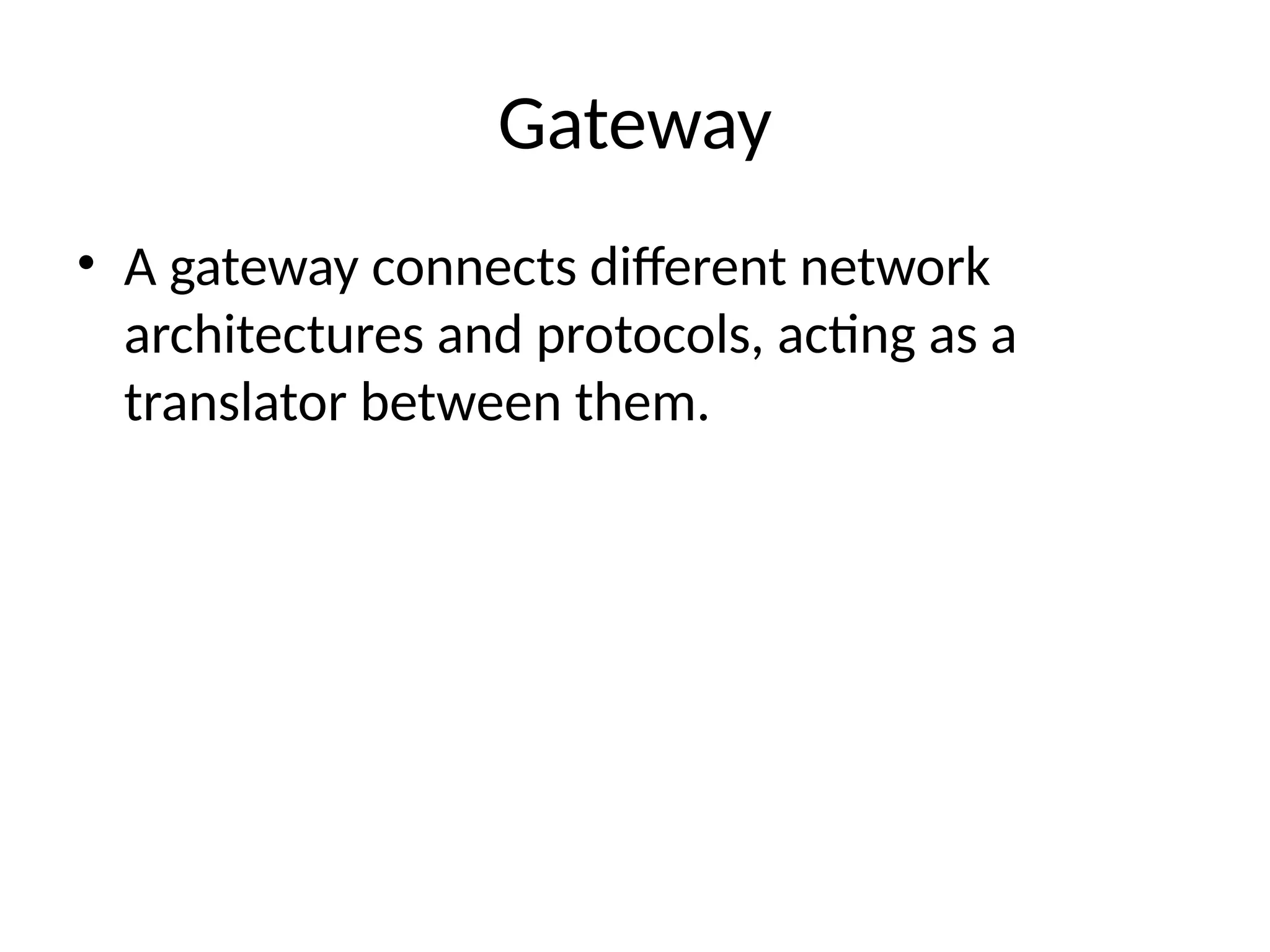

14. Gateway
• A gateway connects different network
architectures and protocols, acting as a
translator between them.

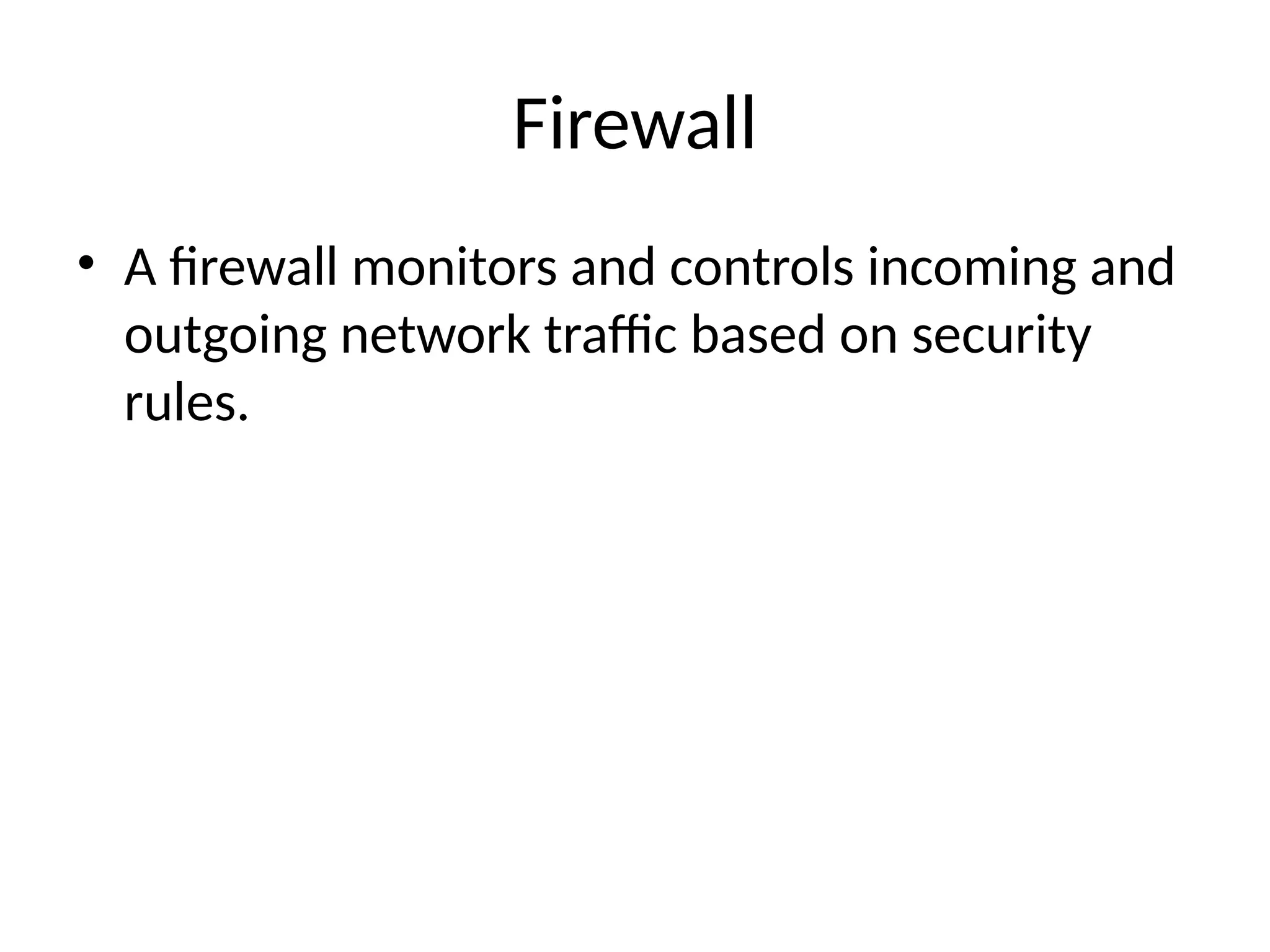

15. Firewall
• A firewall monitors and controls incoming and
outgoing network traffic based on security
rules.

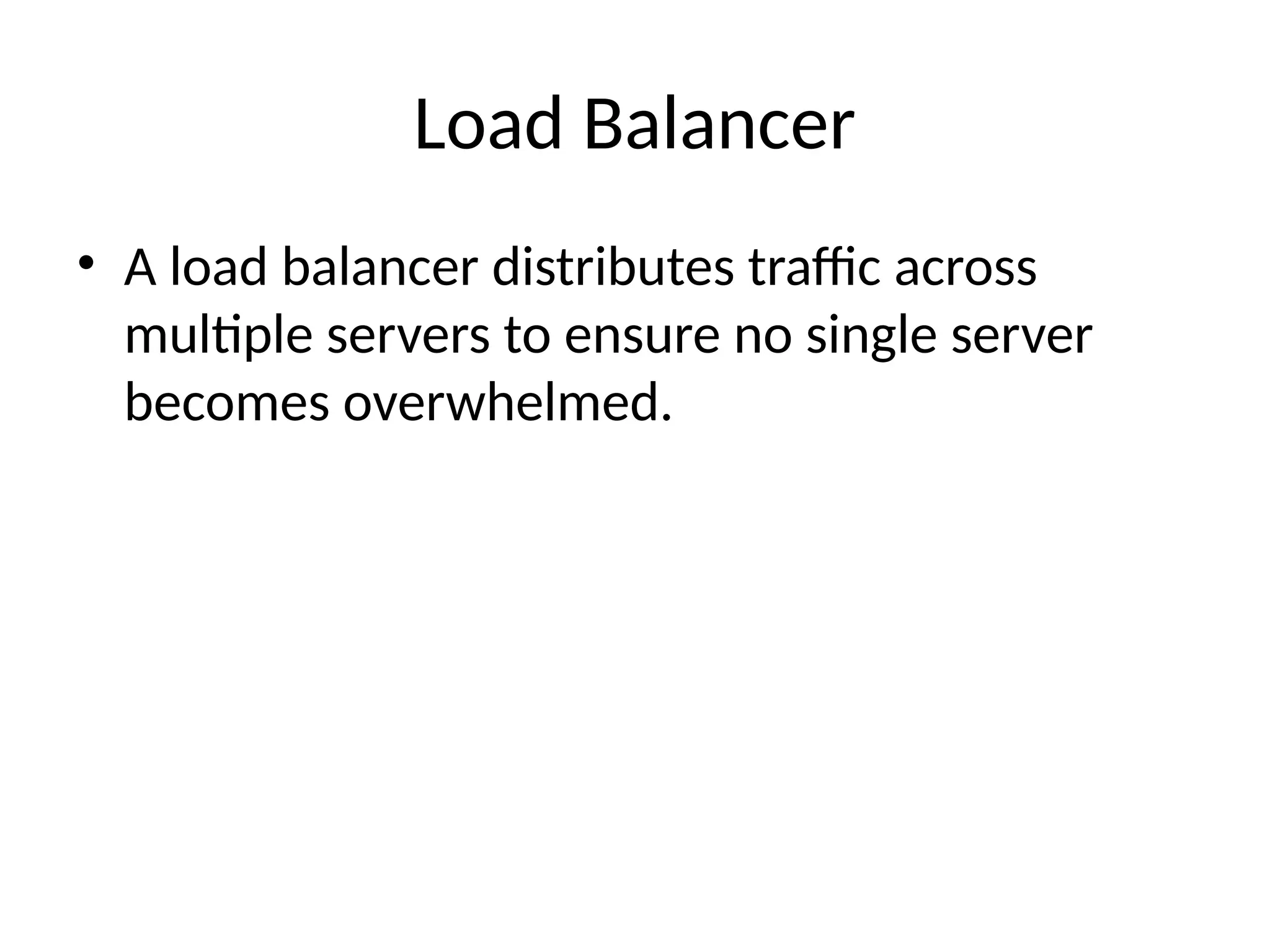

16. Load Balancer
• A load balancer distributes traffic across
multiple servers to ensure no single server
becomes overwhelmed.

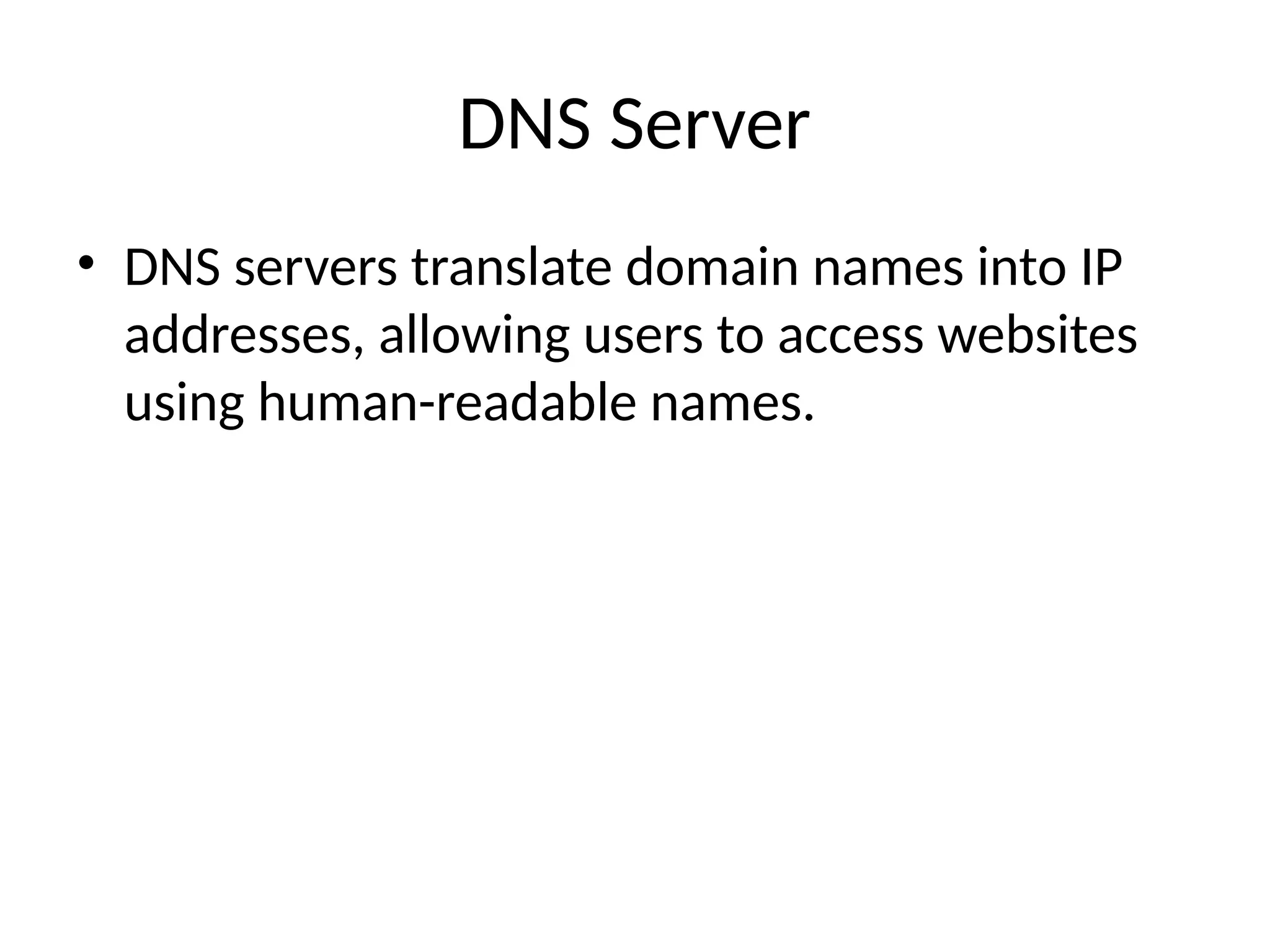

17. DNS Server
• DNS servers translate domain names into IP
addresses, allowing users to access websites
using human-readable names.

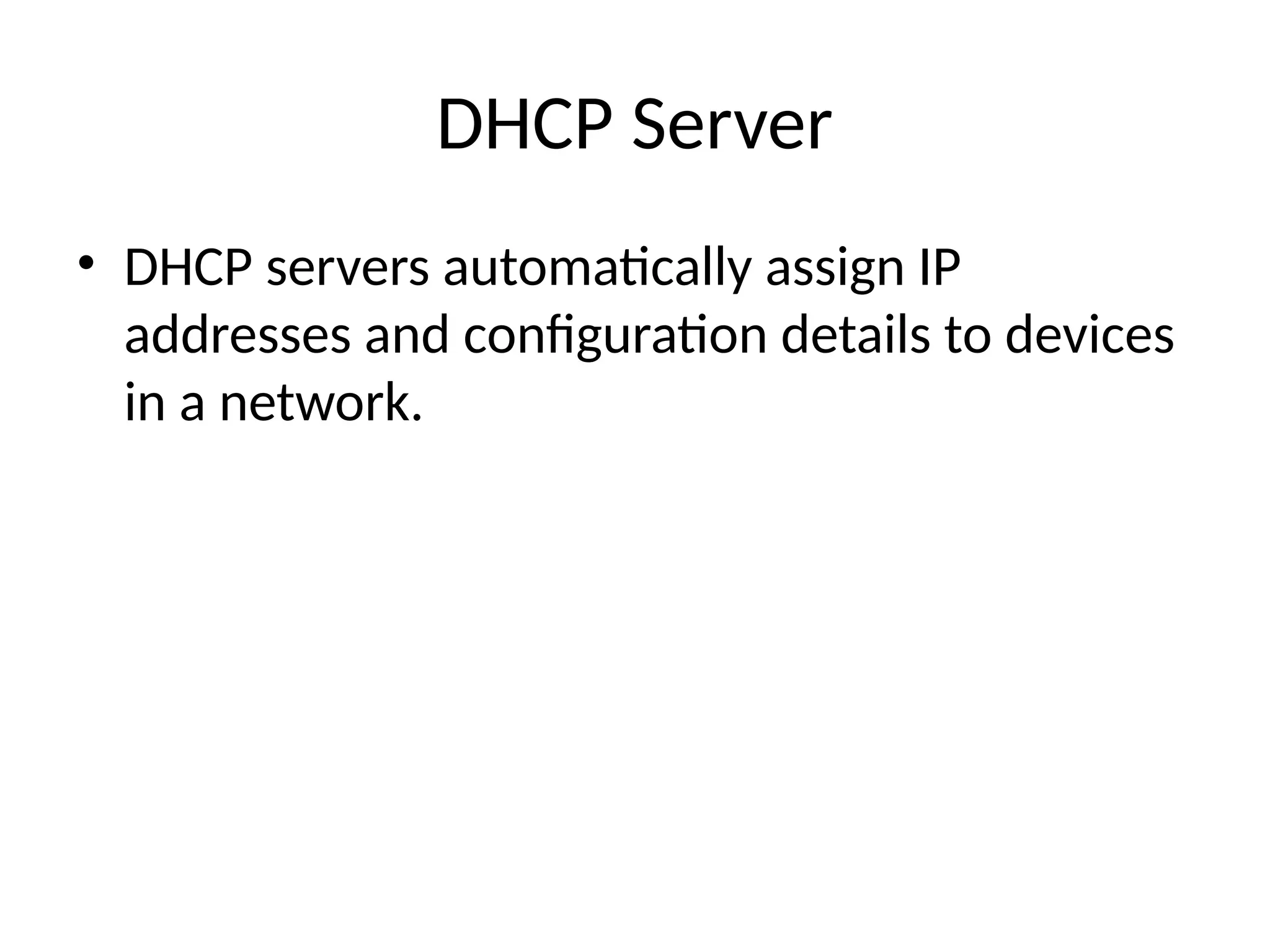

18. DHCP Server
• DHCP servers automatically assign IP
addresses and configuration details to devices
in a network.

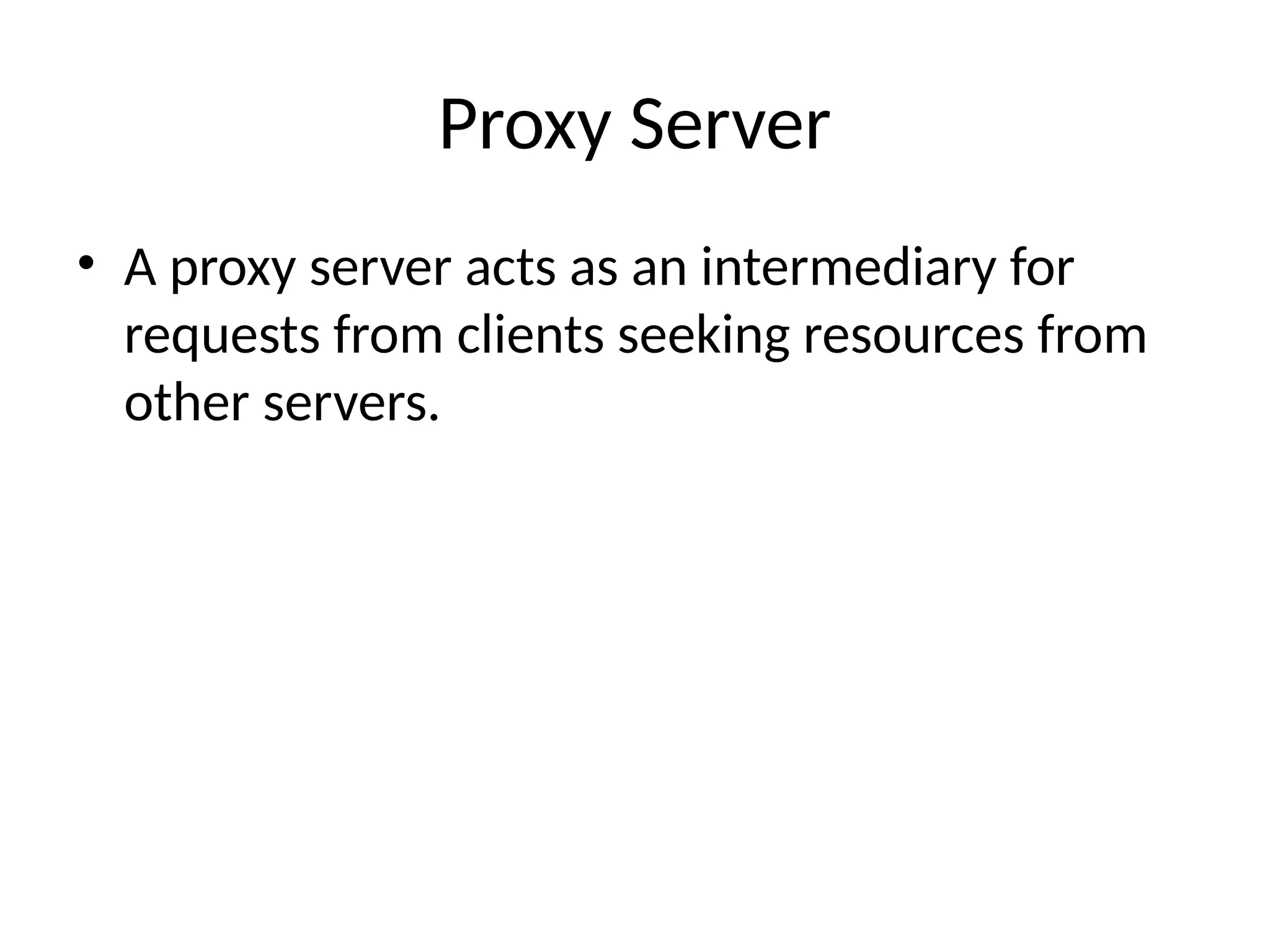

19. Proxy Server
• A proxy server acts as an intermediary for
requests from clients seeking resources from
other servers.

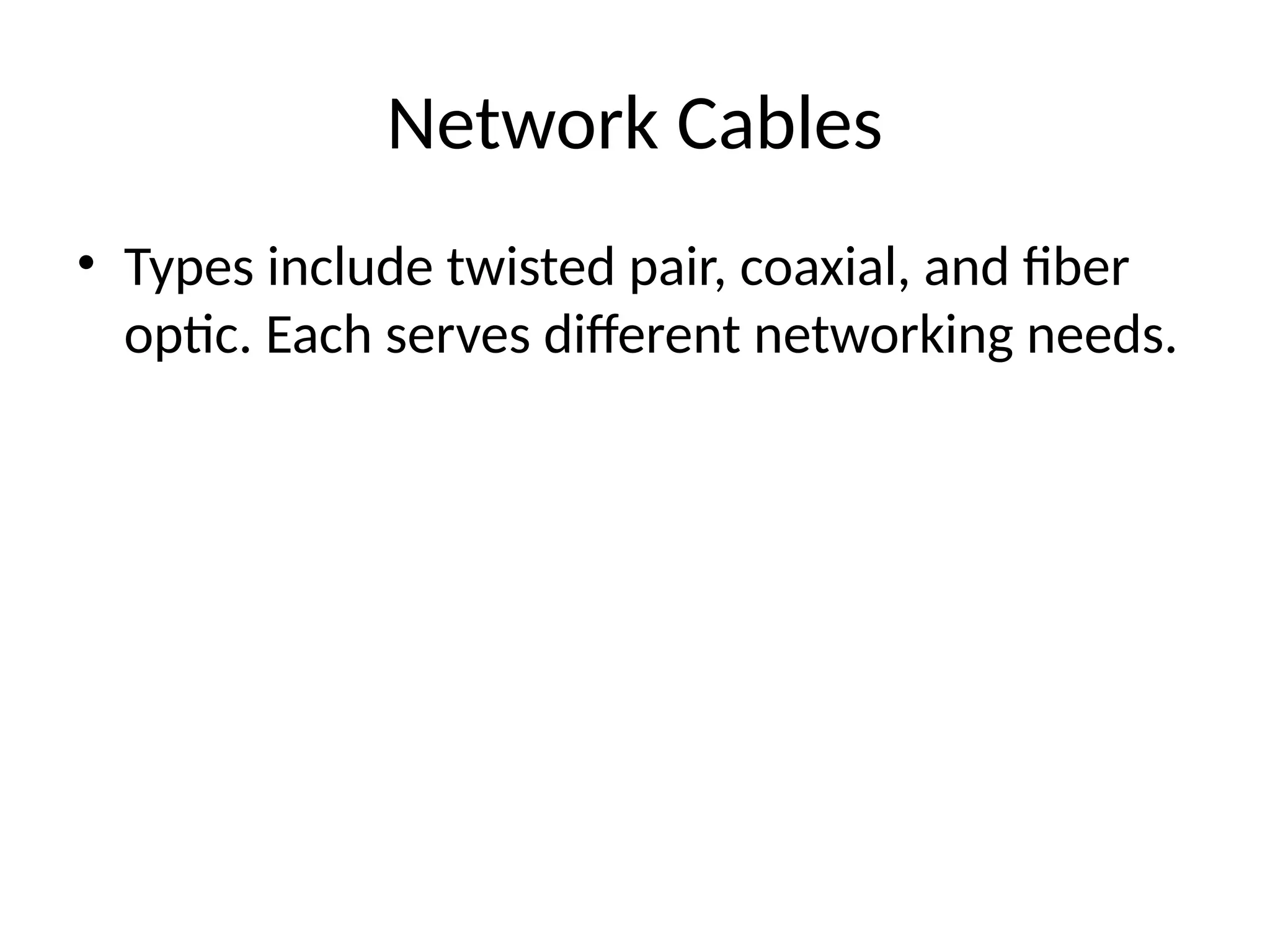

20. Network Cables
• Types include twisted pair, coaxial, and fiber
optic. Each serves different networking needs.

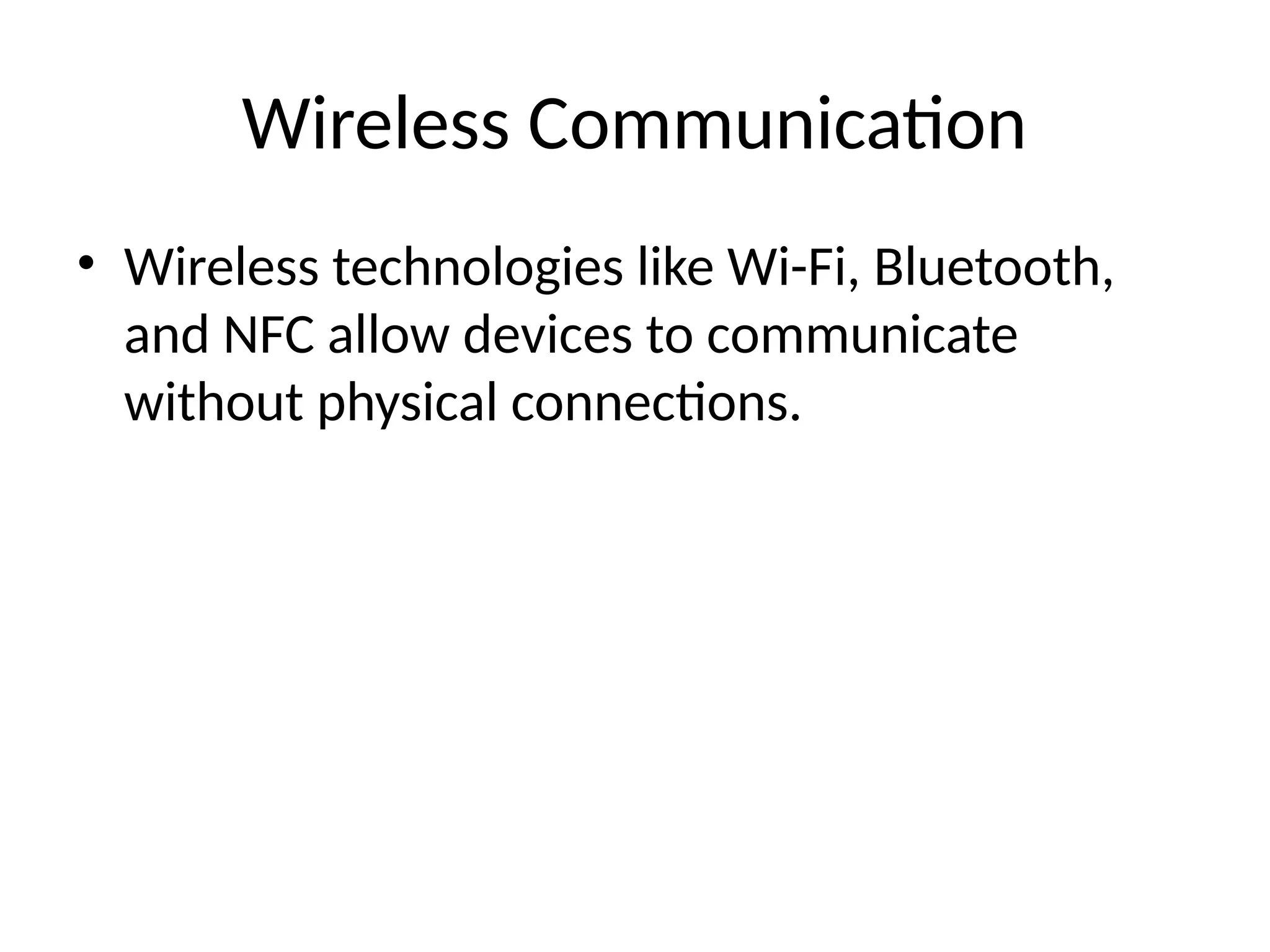

21. Wireless Communication
• Wireless technologies like Wi-Fi, Bluetooth,
and NFC allow devices to communicate
without physical connections.

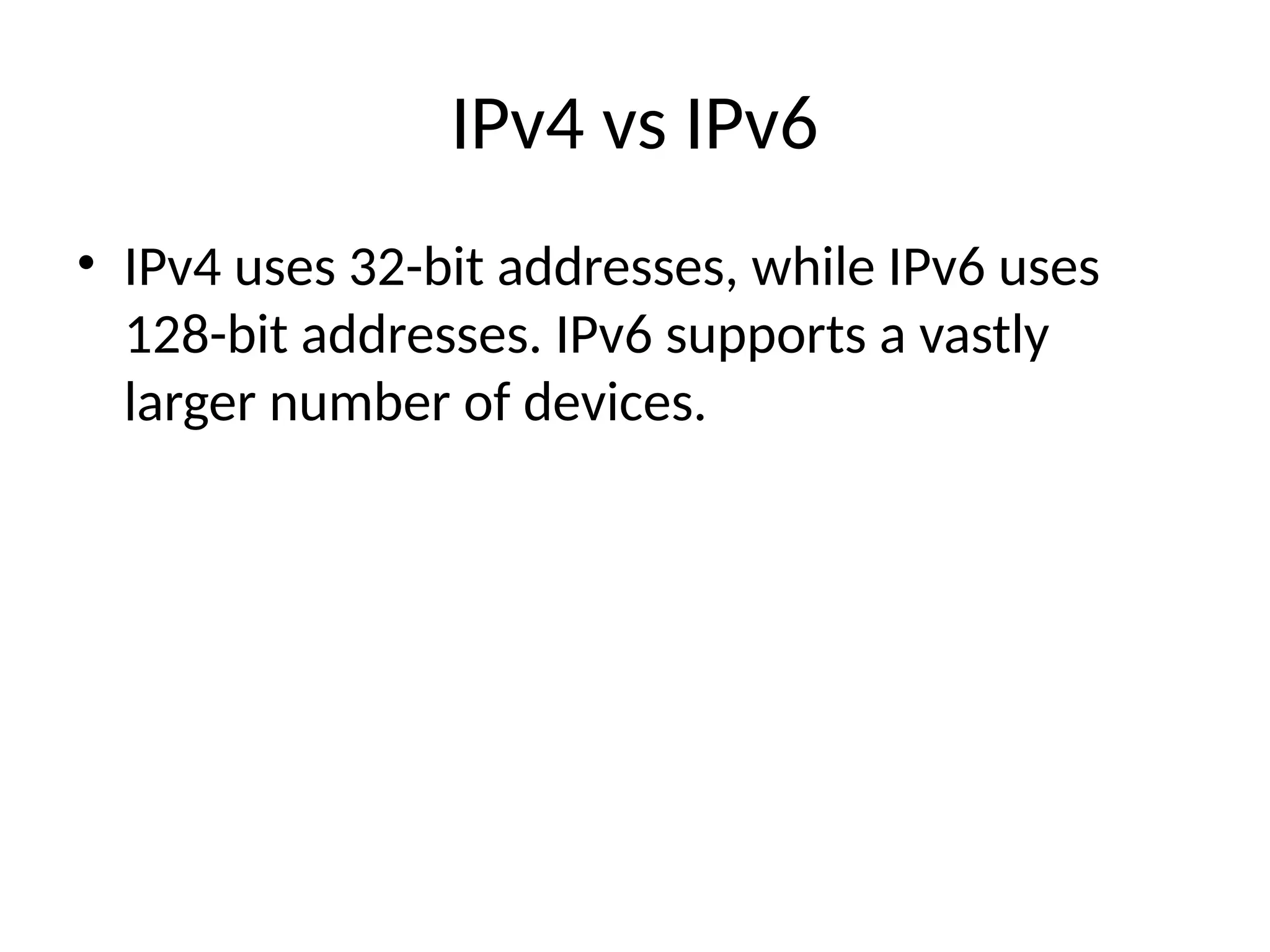

22. IPv4 vs IPv6
• IPv4 uses 32-bit addresses, while IPv6 uses
128-bit addresses. IPv6 supports a vastly
larger number of devices.

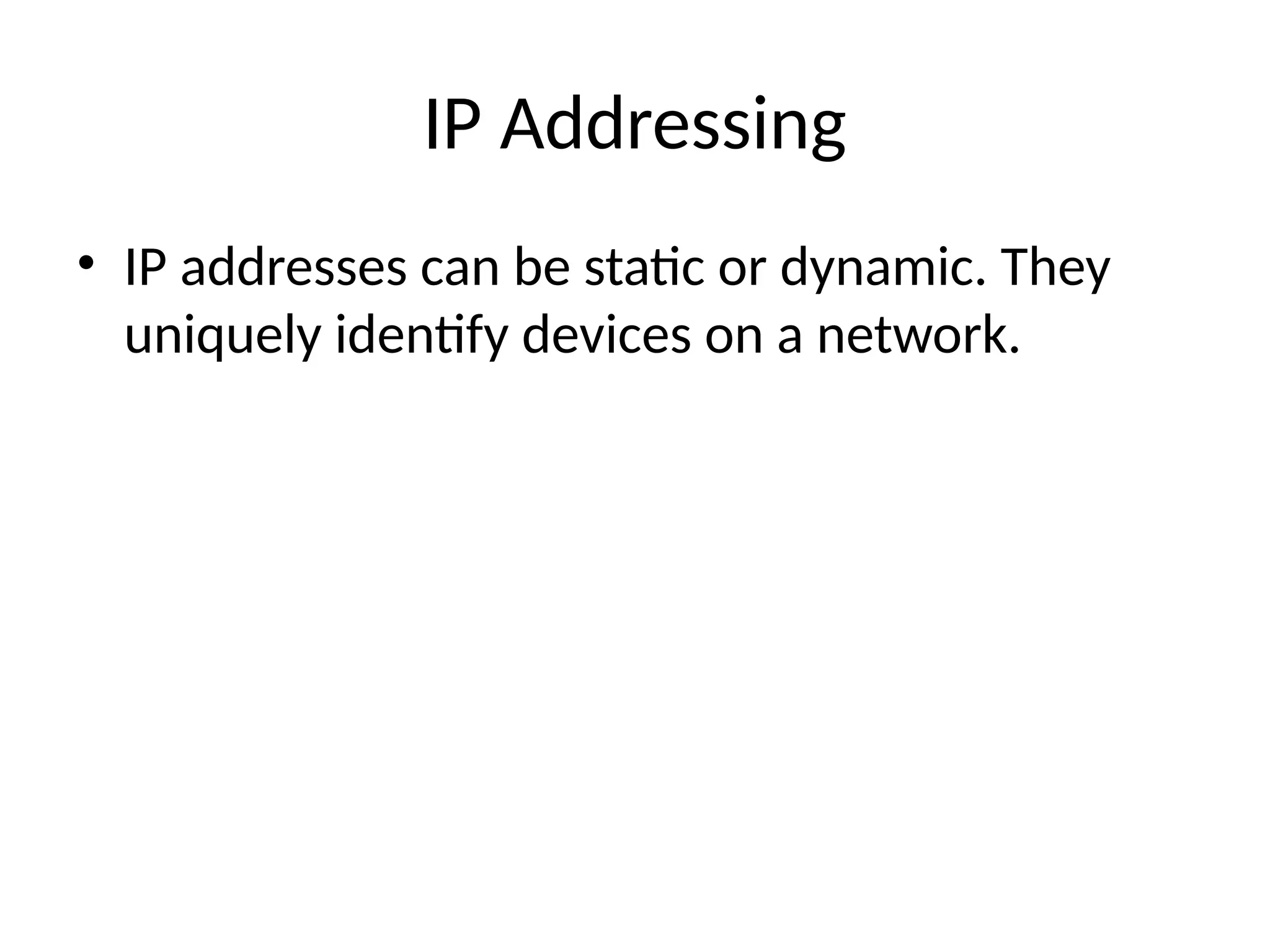

23. IP Addressing
• IP addresses can be static or dynamic. They
uniquely identify devices on a network.

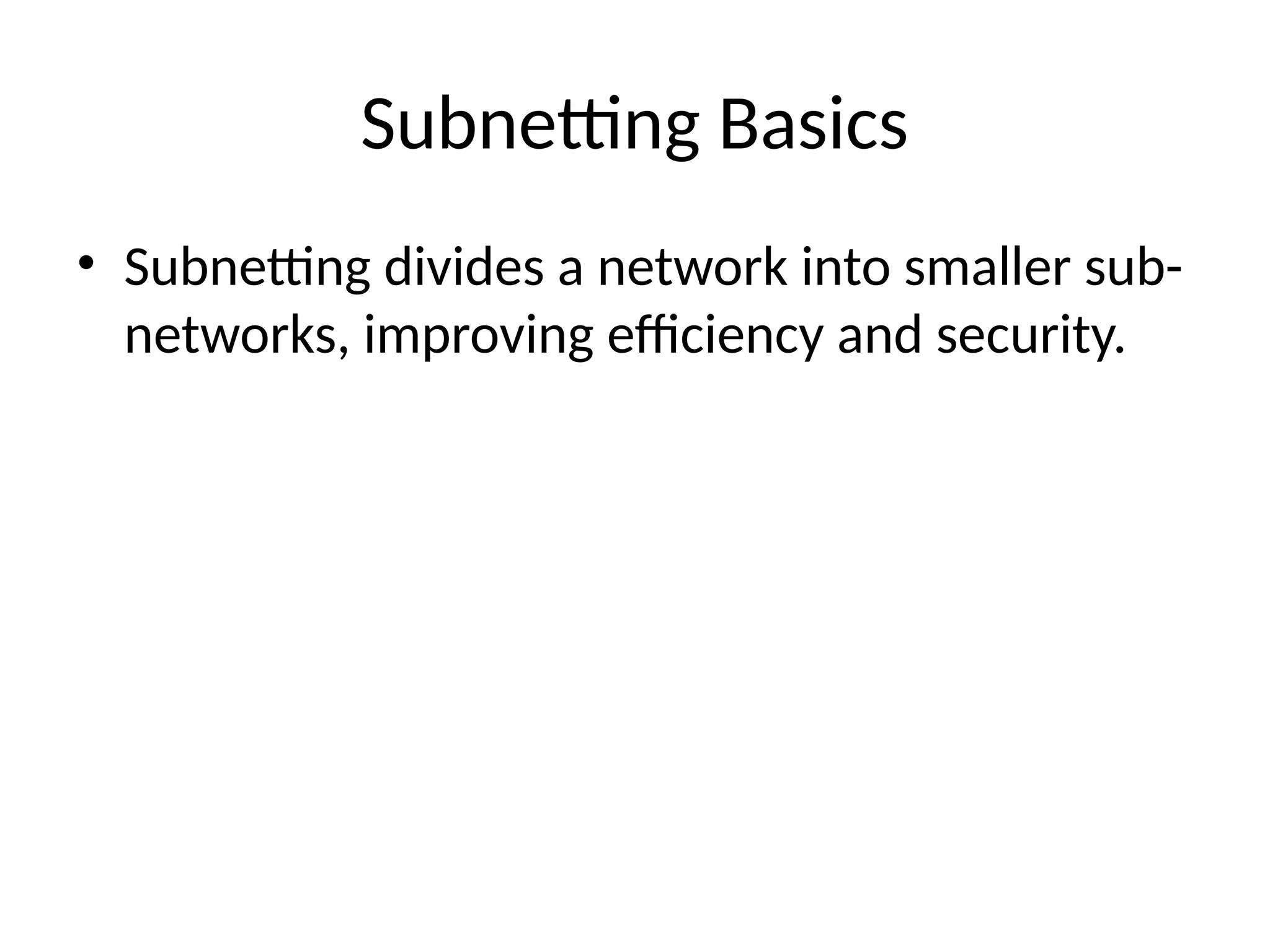

24. Subnetting Basics
• Subnetting divides a network into smaller sub-
networks, improving efficiency and security.

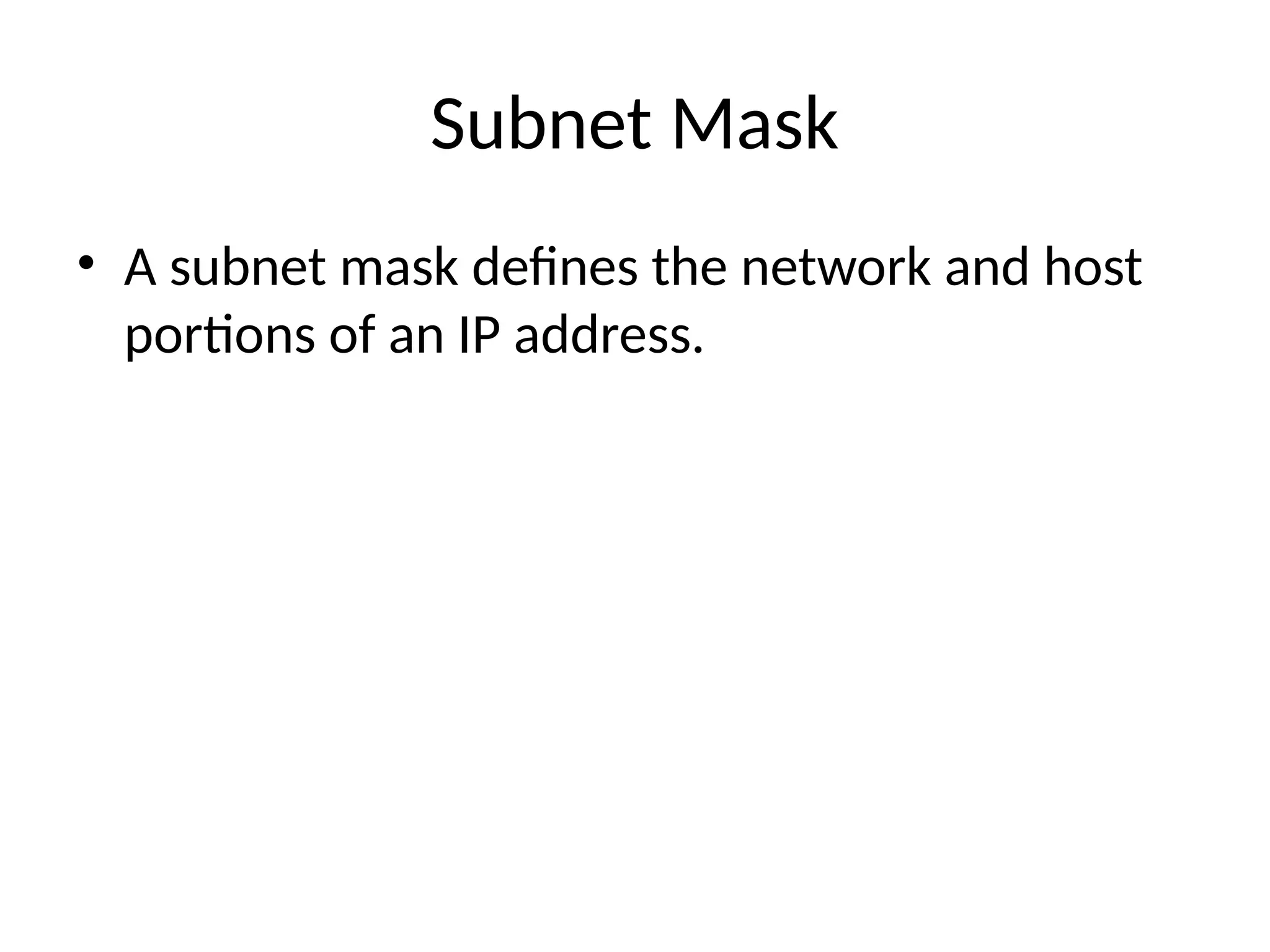

25. Subnet Mask
• A subnet mask defines the network and host
portions of an IP address.

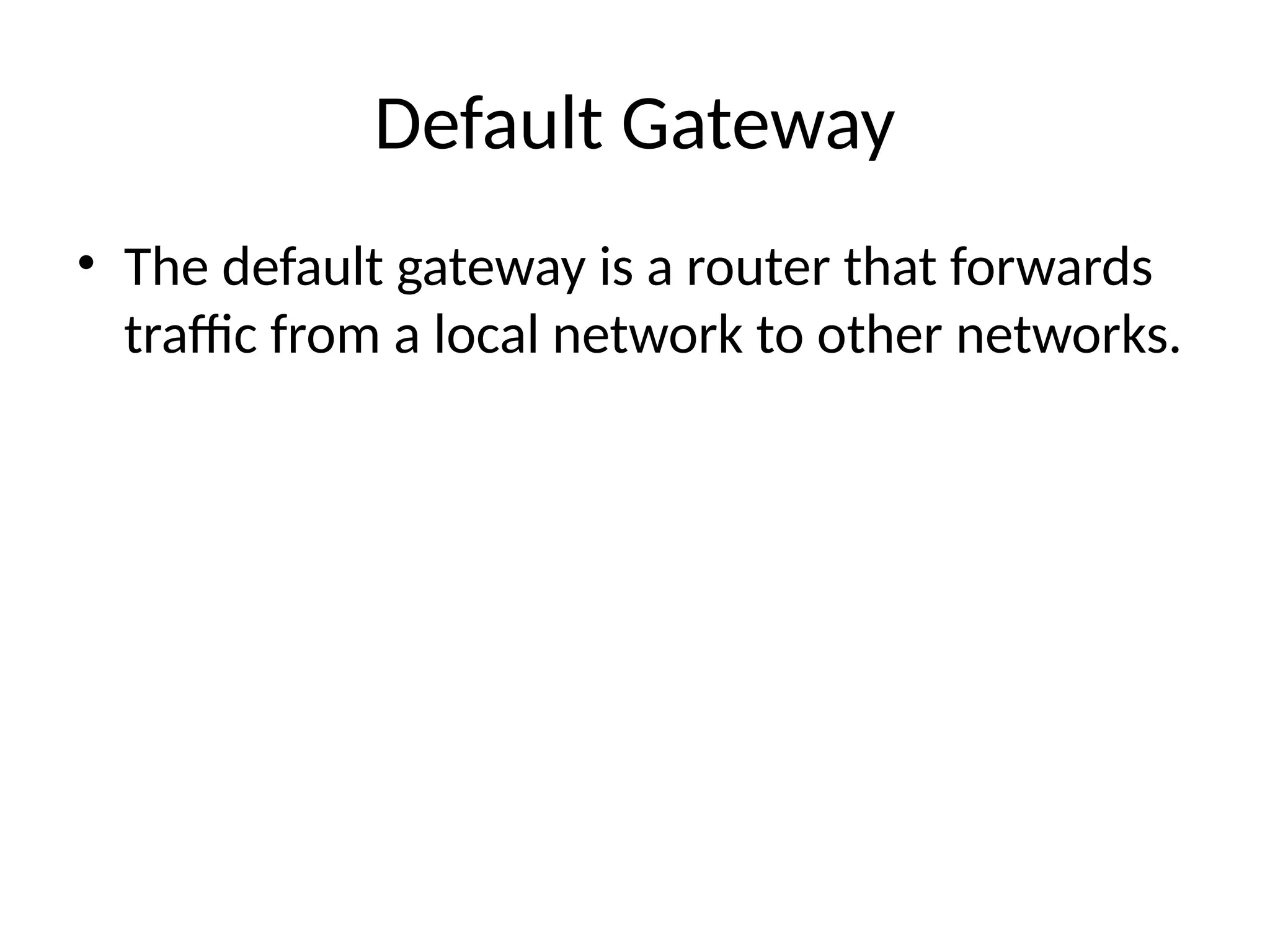

26. Default Gateway
• The default gateway is a router that forwards
traffic from a local network to other networks.

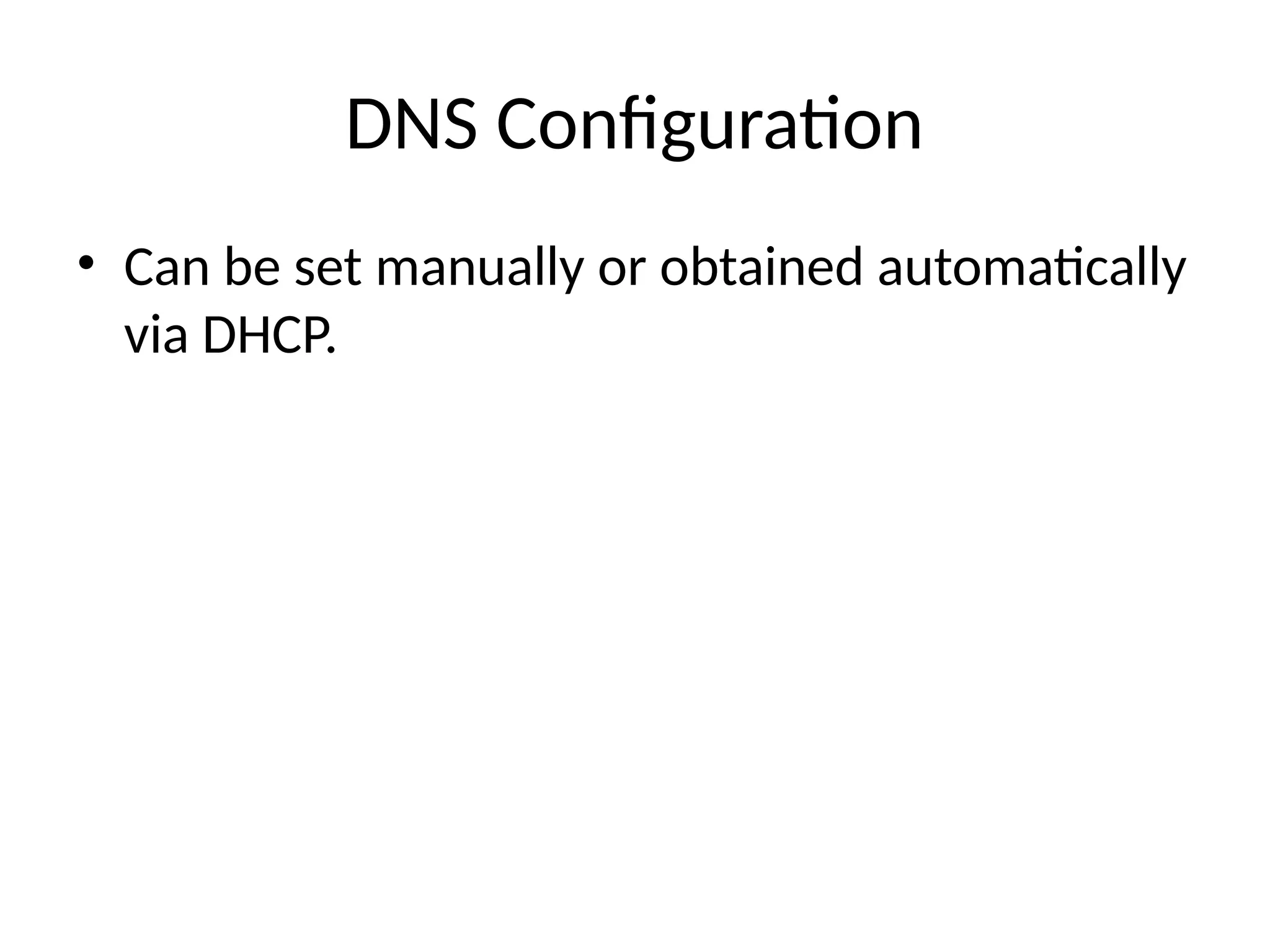

27. DNS Configuration
• Can be set manually or obtained automatically
via DHCP.

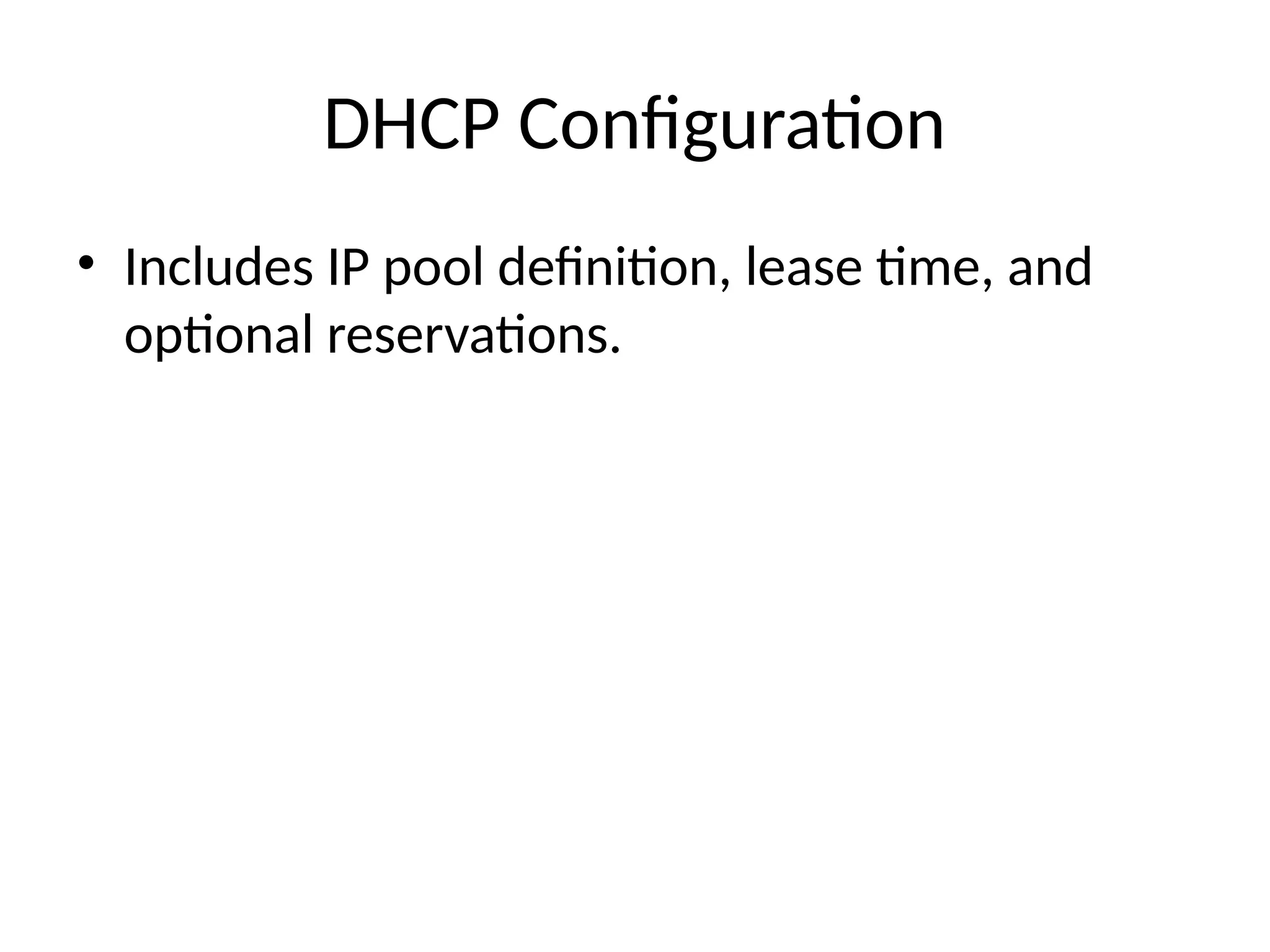

28. DHCP Configuration
• Includes IP pool definition, lease time, and
optional reservations.

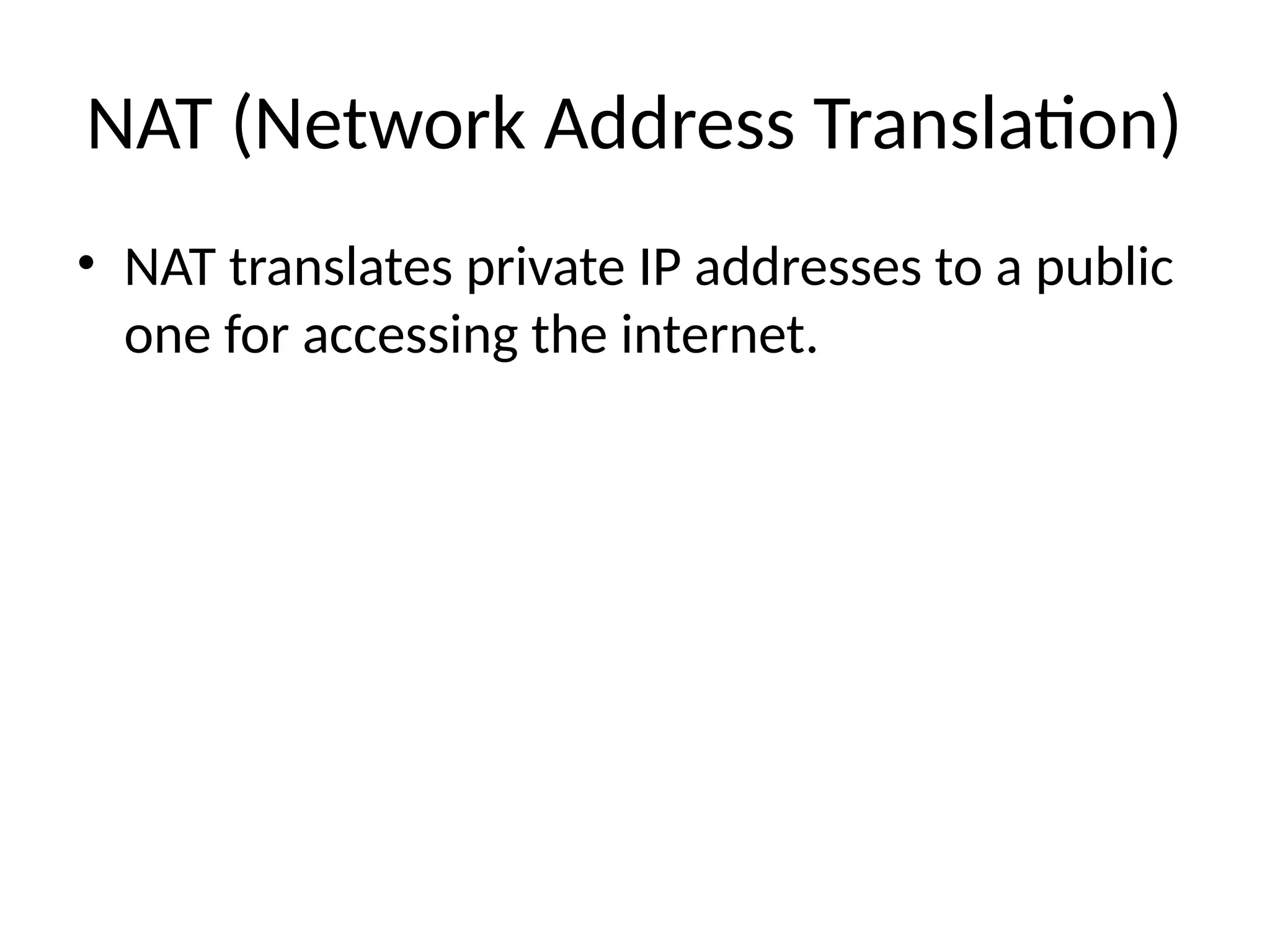

29. NAT (Network Address Translation)
• NAT translates private IP addresses to a public
one for accessing the internet.

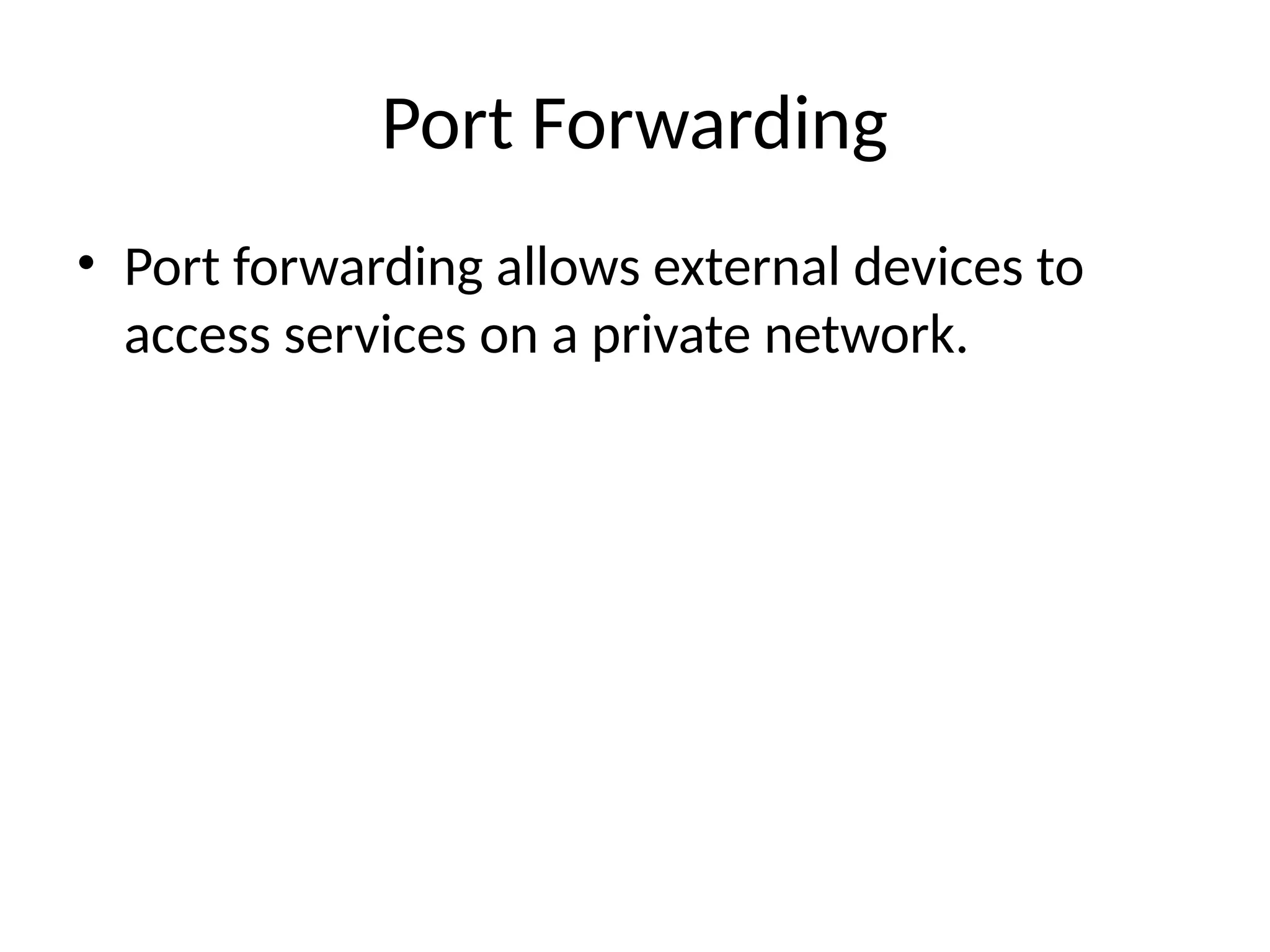

30. Port Forwarding
• Port forwarding allows external devices to
access services on a private network.

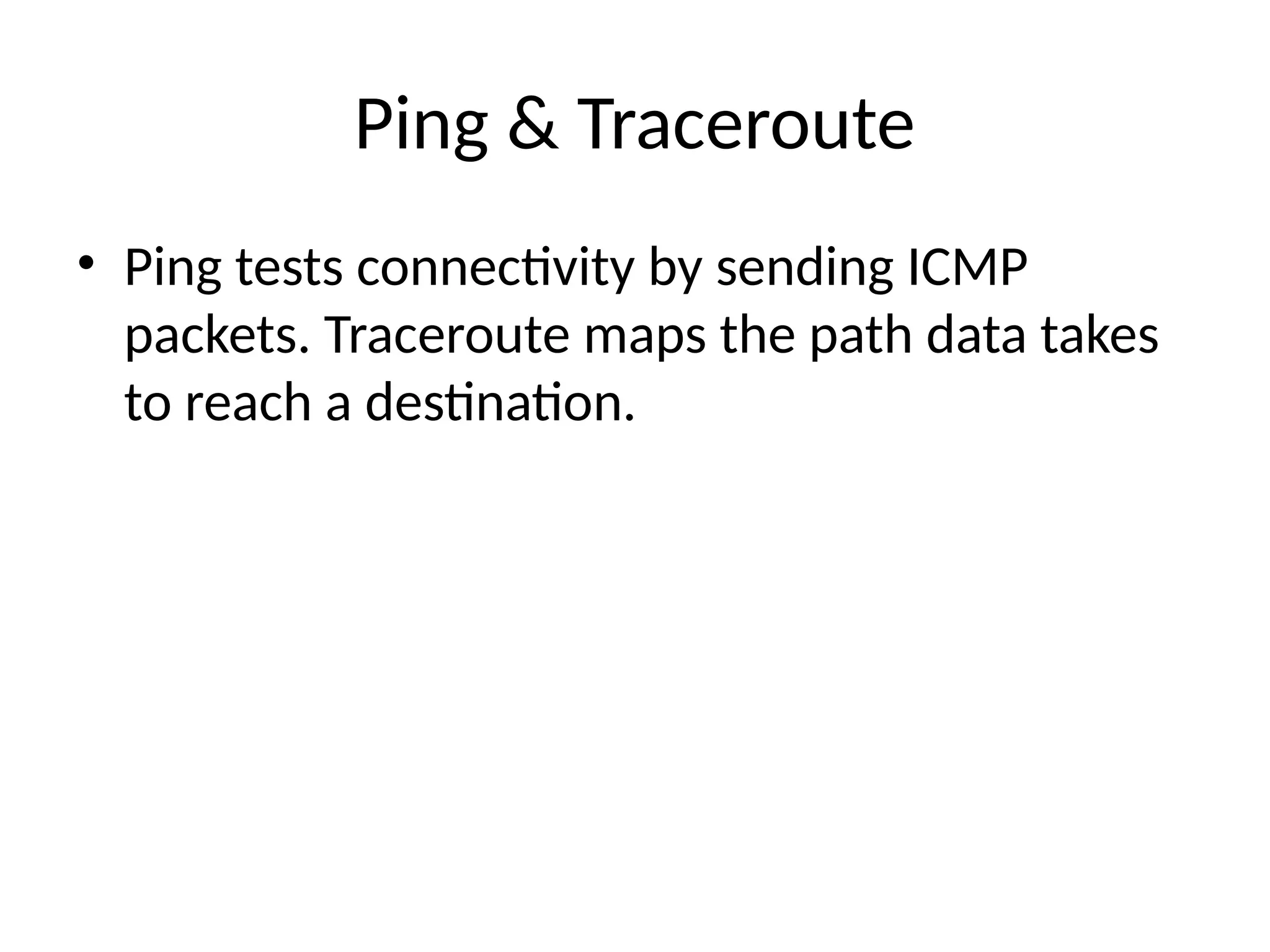

31. Ping & Traceroute
• Ping tests connectivity by sending ICMP
packets. Traceroute maps the path data takes
to reach a destination.

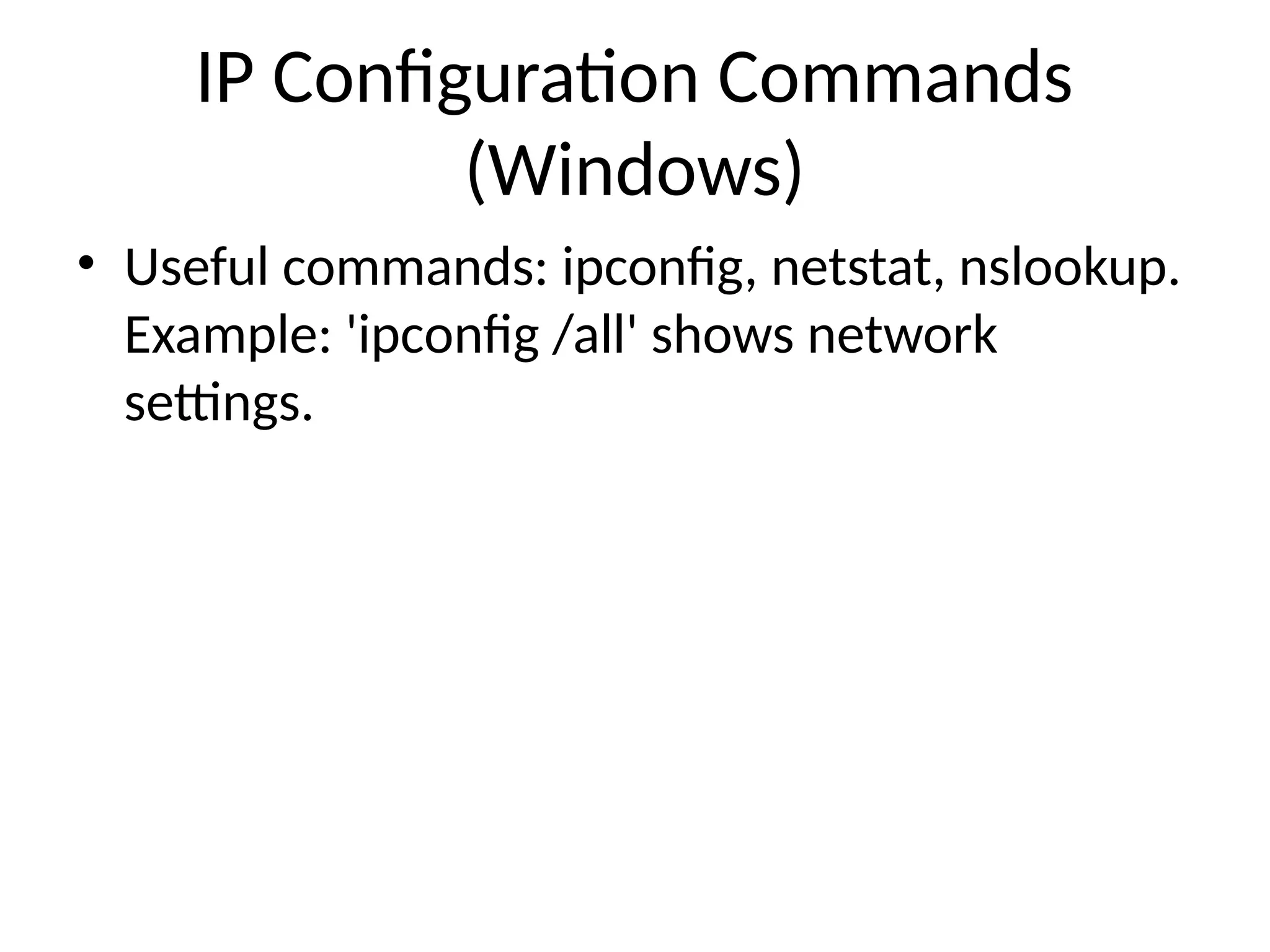

32. IP Configuration Commands
(Windows)
• Useful commands: ipconfig, netstat, nslookup.
Example: 'ipconfig /all' shows network
settings.

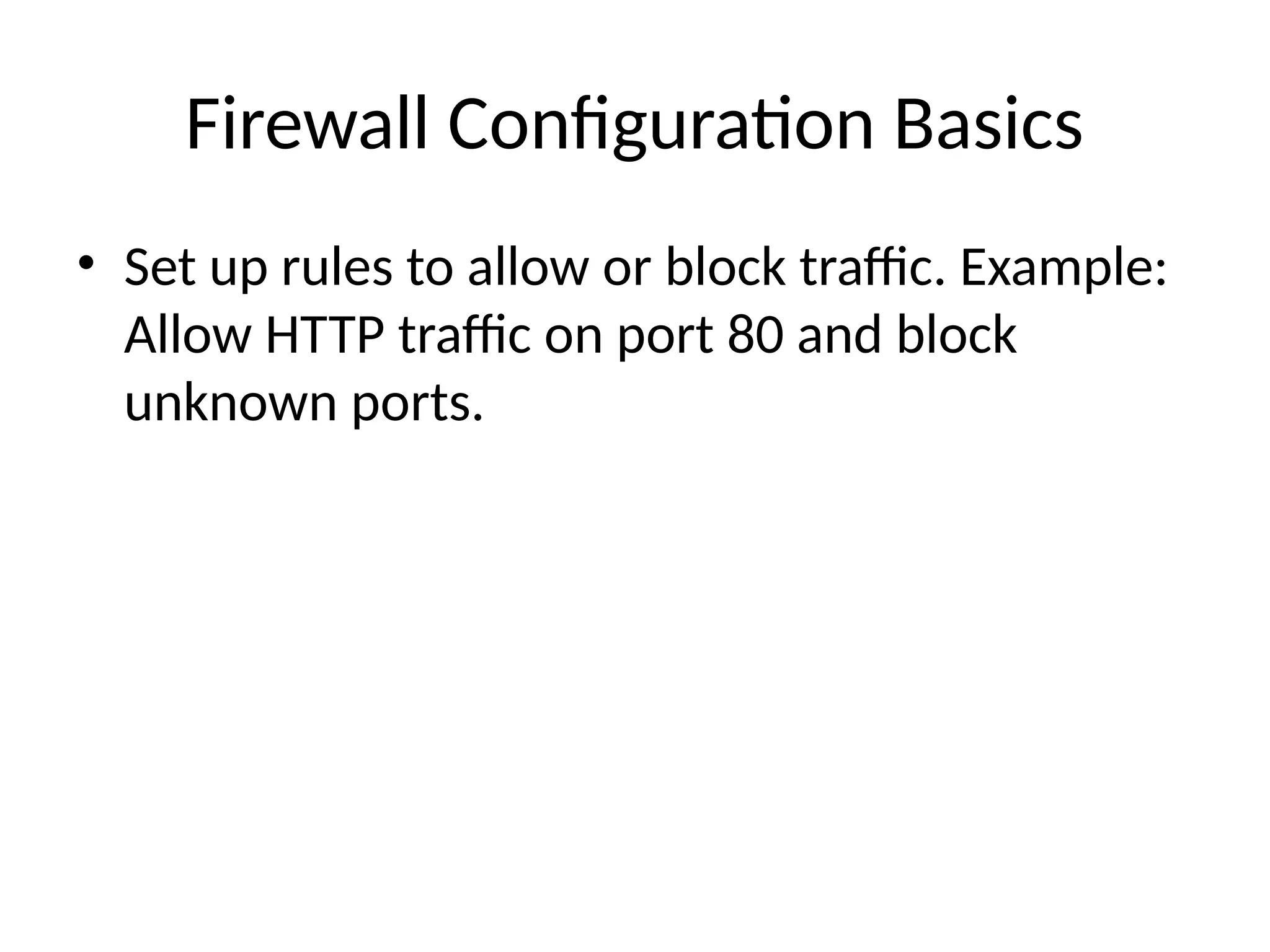

33. Firewall Configuration Basics
• Set up rules to allow or block traffic. Example:
Allow HTTP traffic on port 80 and block
unknown ports.

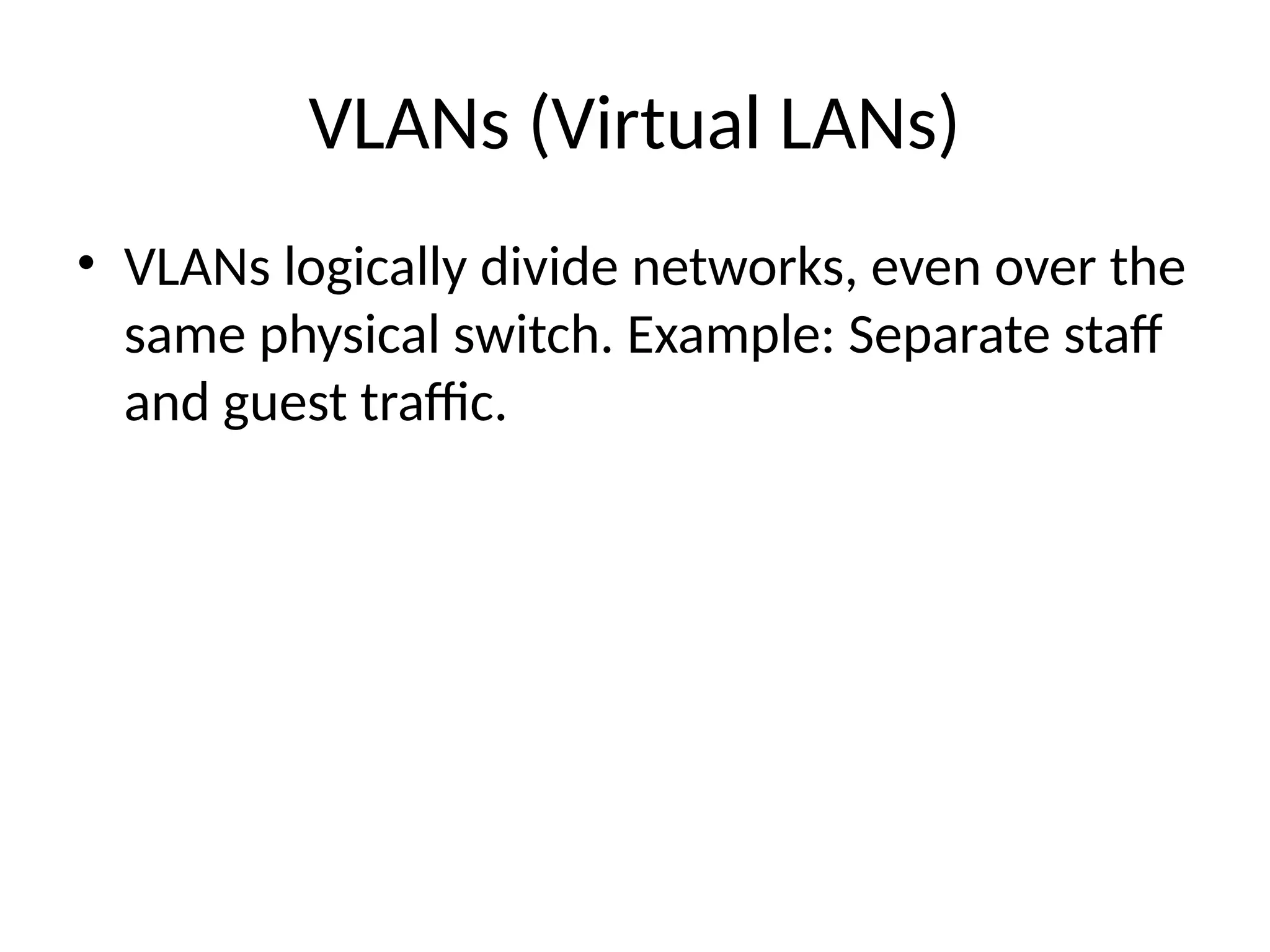

34. VLANs (Virtual LANs)
• VLANs logically divide networks, even over the
same physical switch. Example: Separate staff
and guest traffic.

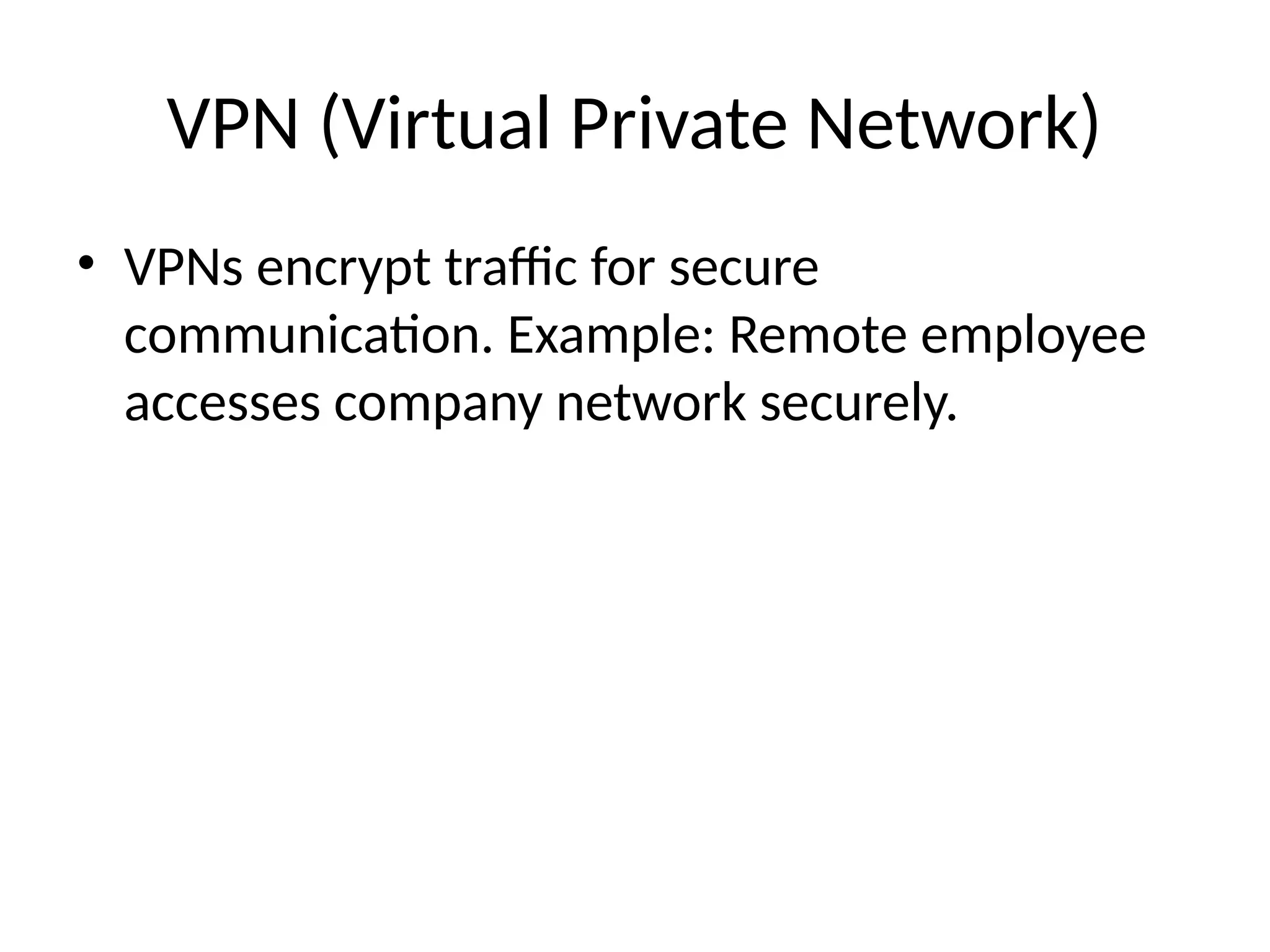

35. VPN (Virtual Private Network)
• VPNs encrypt traffic for secure
communication. Example: Remote employee
accesses company network securely.

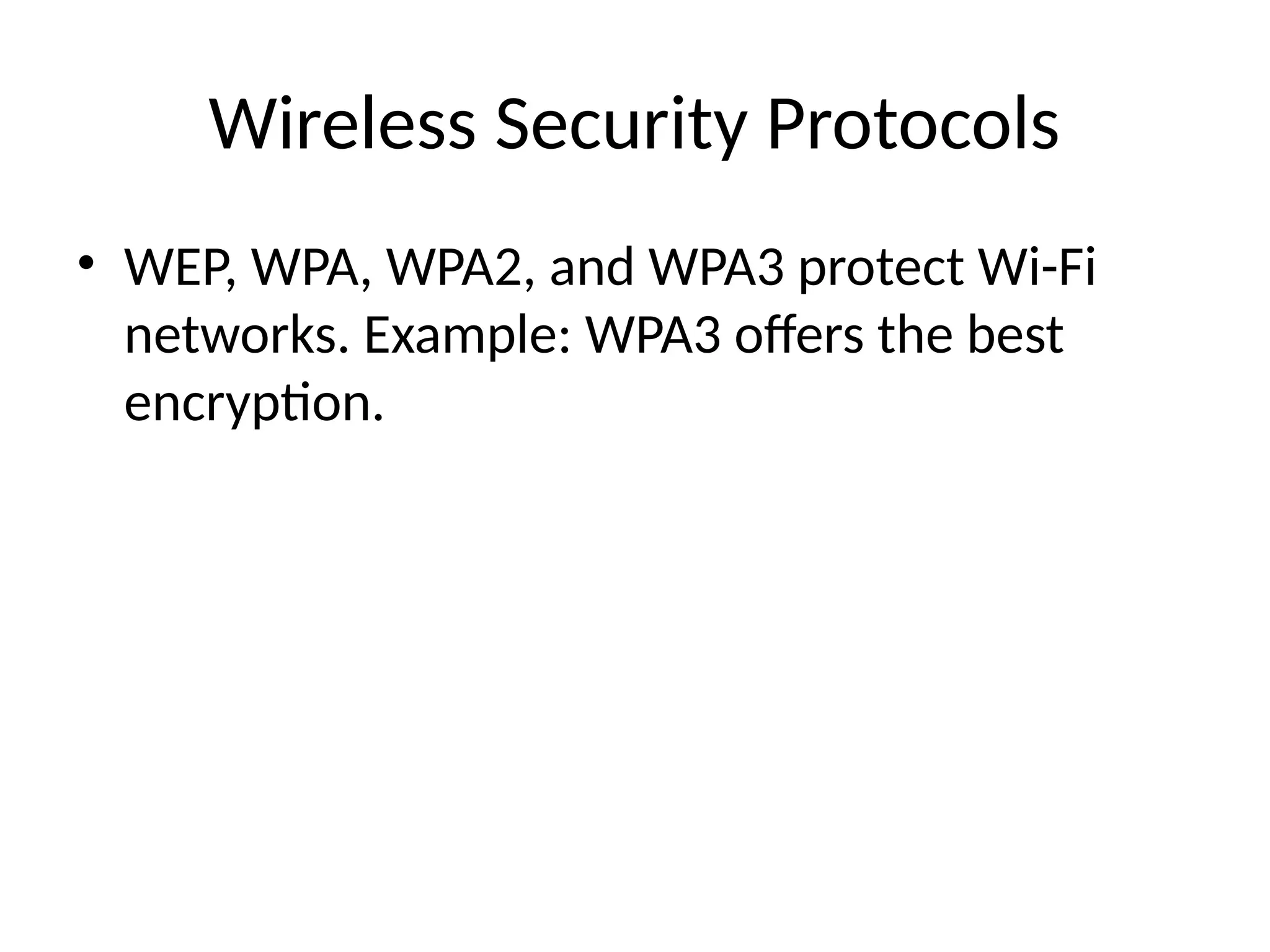

36. Wireless Security Protocols
• WEP, WPA, WPA2, and WPA3 protect Wi-Fi
networks. Example: WPA3 offers the best
encryption.

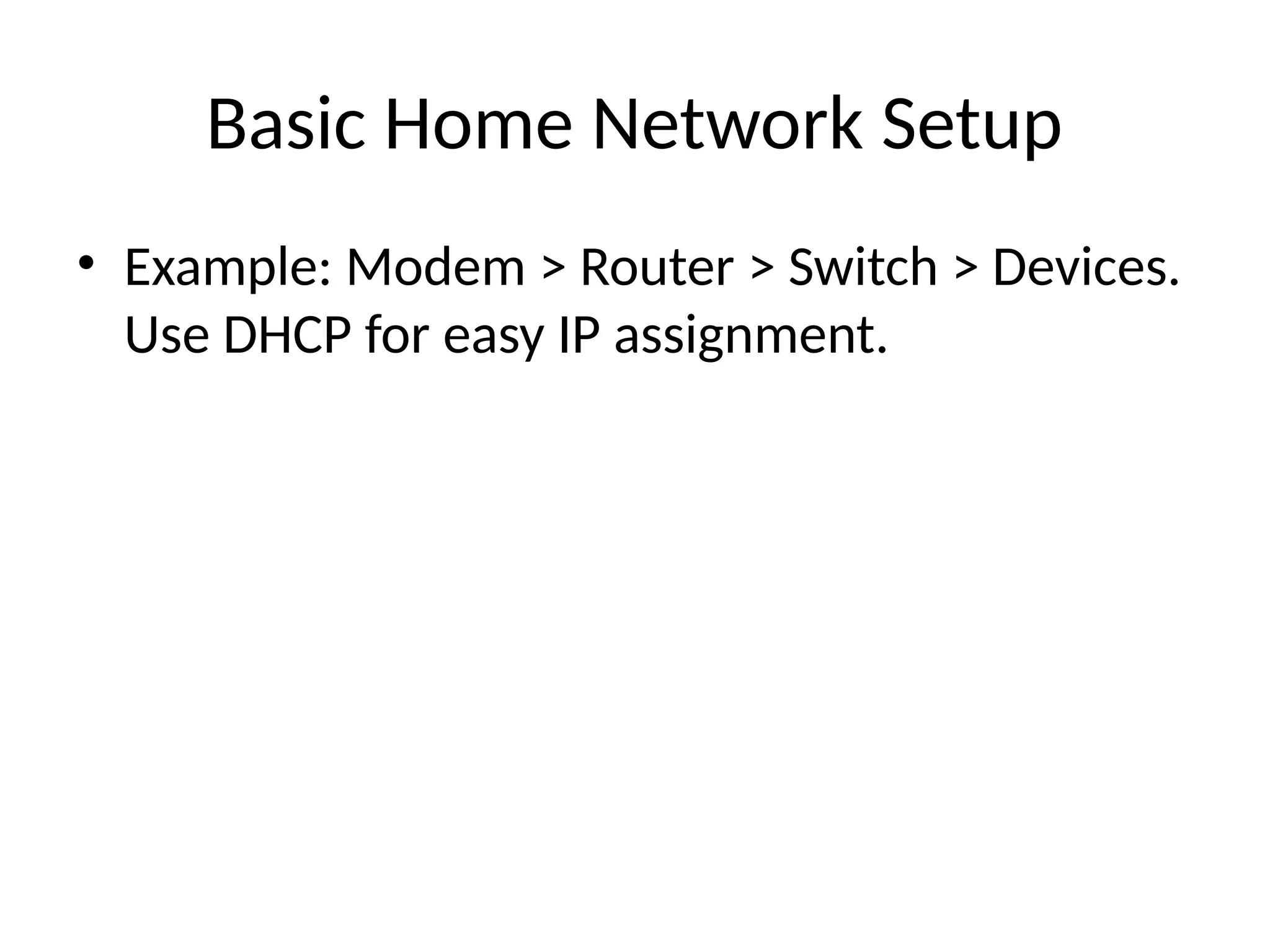

37. Basic Home Network Setup
• Example: Modem > Router > Switch > Devices.
Use DHCP for easy IP assignment.

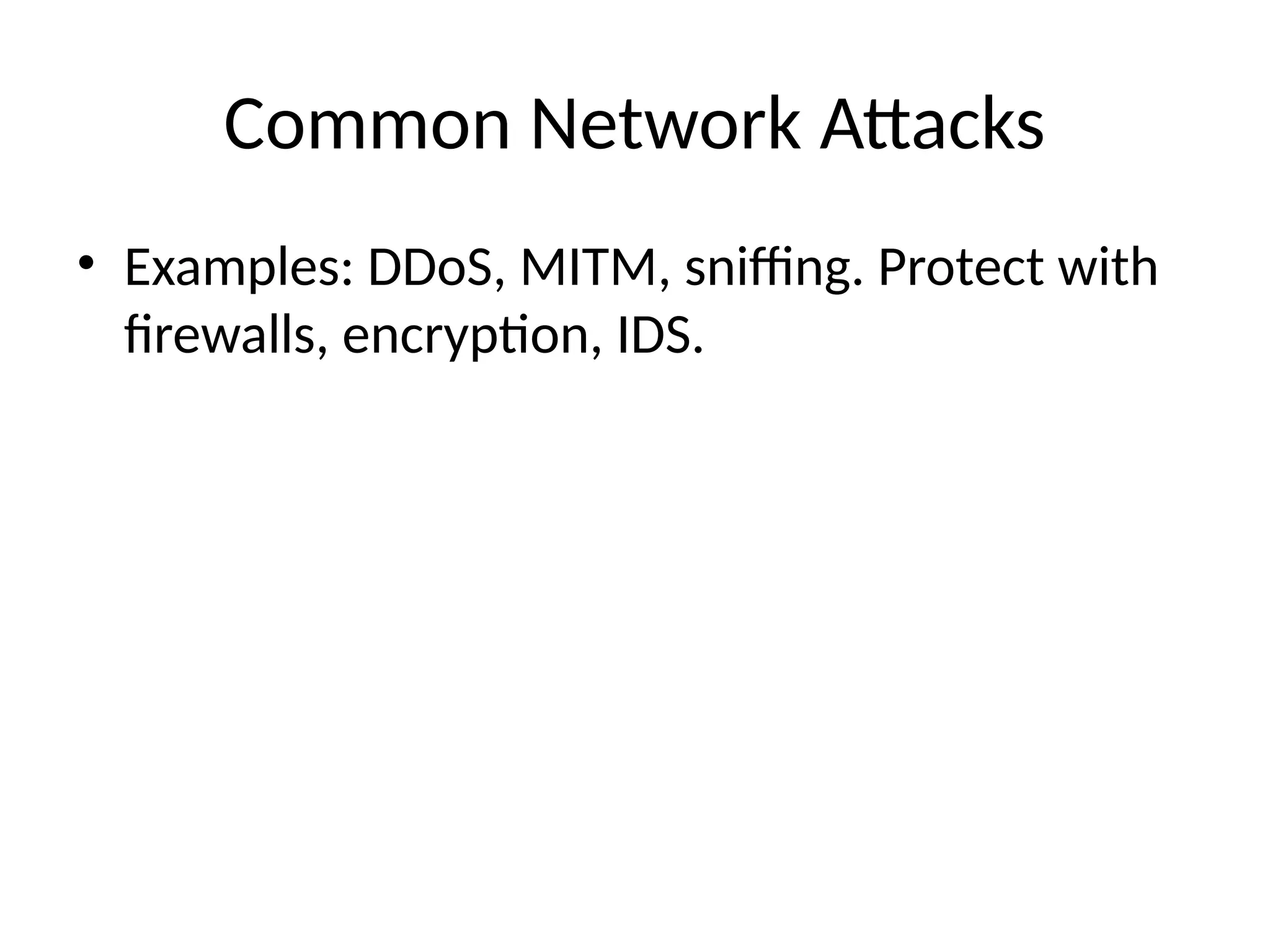

38. Common Network Attacks
• Examples: DDoS, MITM, sniffing. Protect with
firewalls, encryption, IDS.

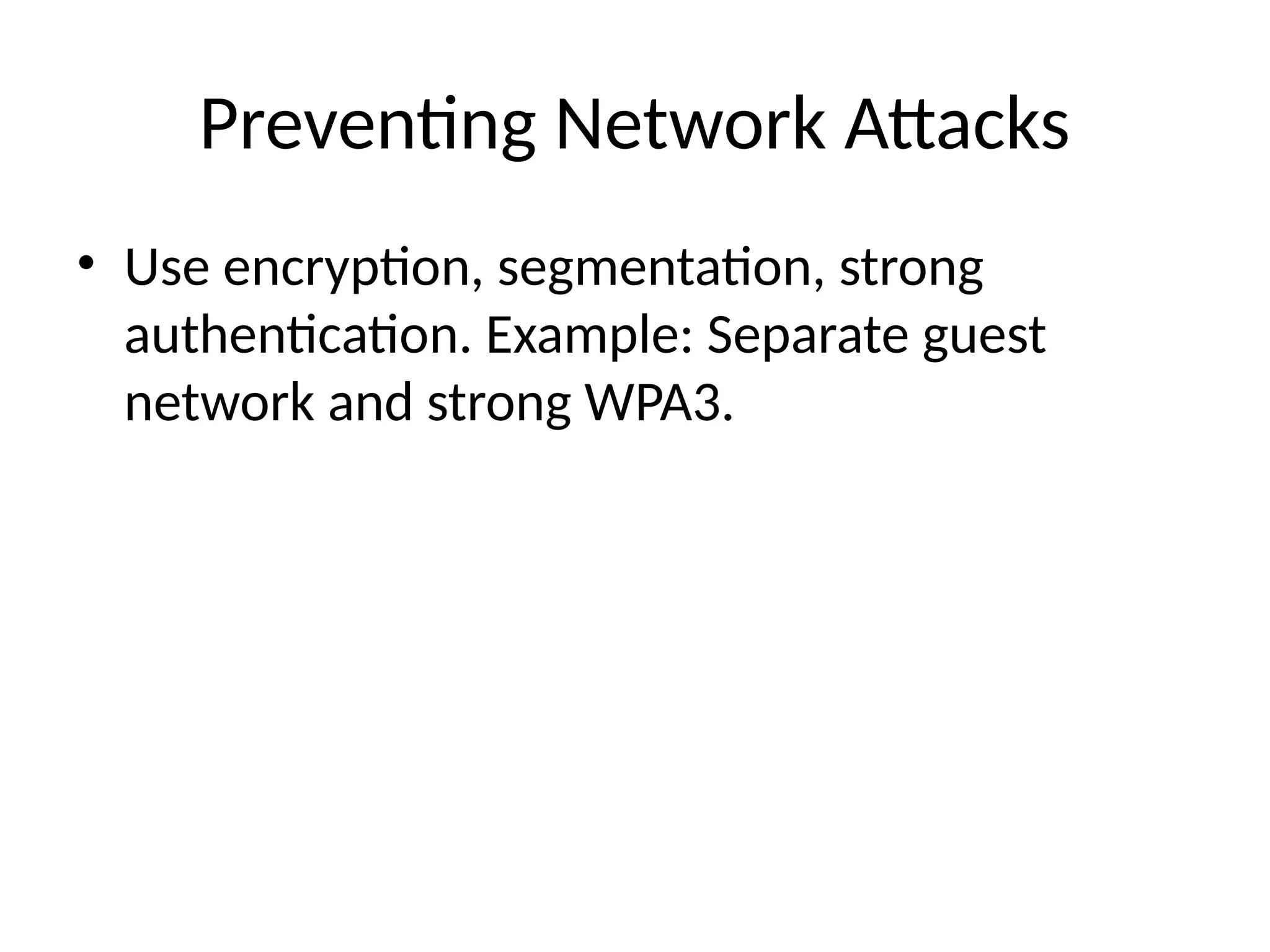

39. Preventing Network Attacks
• Use encryption, segmentation, strong
authentication. Example: Separate guest
network and strong WPA3.

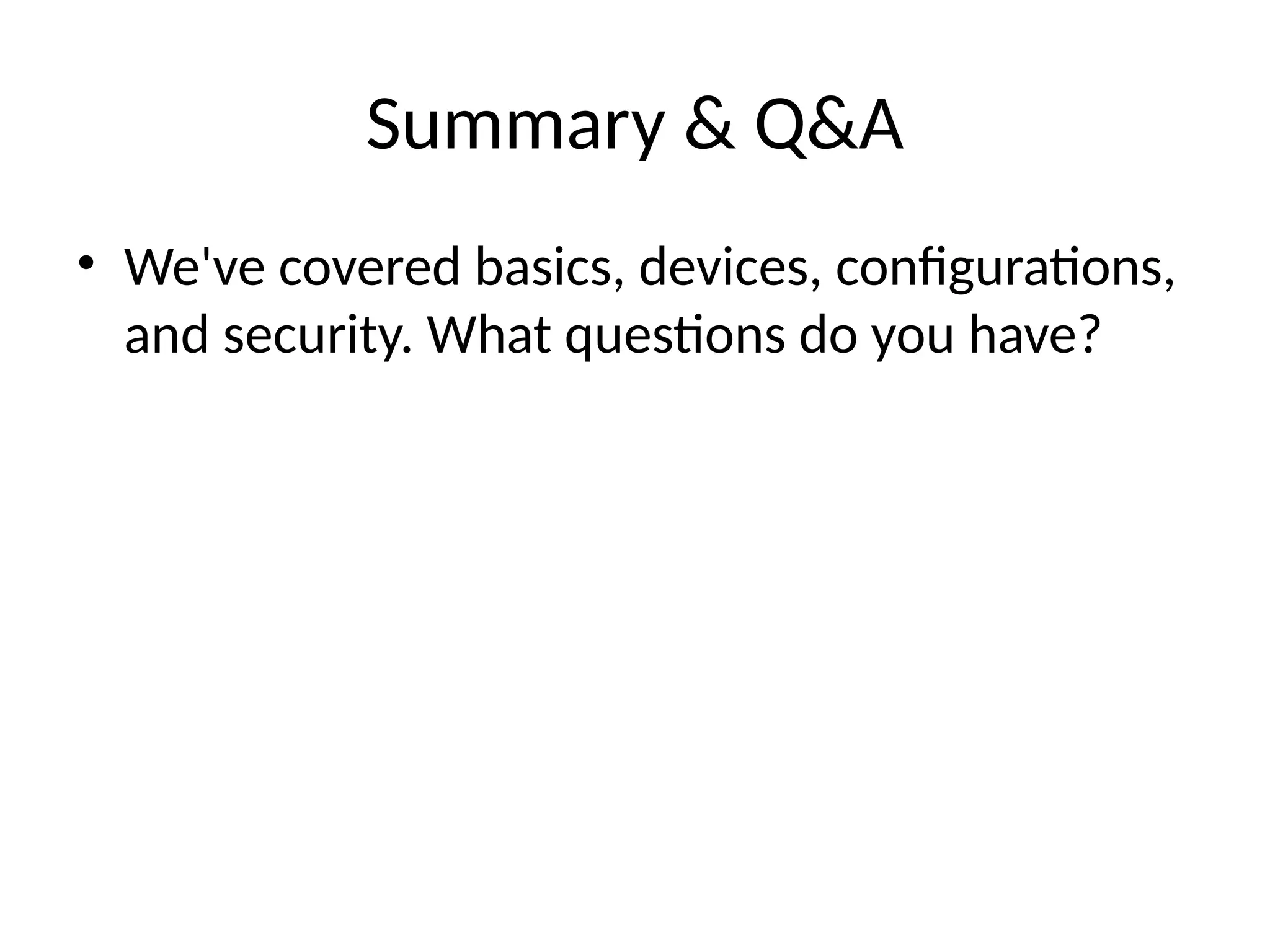

40. Summary & Q&A
• We've covered basics, devices, configurations,
and security. What questions do you have?
