Basic Requirements For Plastic Injection Molded Part Design
Plastic Part Design Basic Requirements
Unreasonable design of plastic injection molded parts often results in some inherent defects in
the product. For example, the structure of the parts is unreasonable, the parts use too much
material, etc. Here are a series of basic requirements for plastic injection molded parts design for
reference.
First, The basic content of plastic injection molded parts
Three-dimensional space content, geometric structure, size, and accuracy.
The content, marks, symbols, text, surface patterns, graphics, and roughness of the surface of the
plastic part.
Static and dynamic performance, mechanical, physical, and chemical properties.
Environment and ergonomics.
The choice of plastic.
Cost and price.
The feasibility and economic efficiency of forming molds and forming methods.
Second, Geometric structure and dimensional accuracy
The structure includes the design of the internal structure and external structure.
1.1. Shape: The shape of the plastic part should be as good as possible to ensure the principle of
forming.
1.2. Demolding slope: due to the shrinkage of the plastic part after cooling, the plastic part will

Mob & Wechat: 0086-17322110281

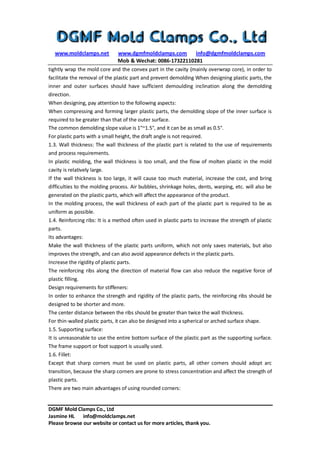

tightly wrap the mold core and the convex part in the cavity (mainly overwrap core), in order to
facilitate the removal of the plastic part and prevent demolding When designing plastic parts, the
inner and outer surfaces should have sufficient demoulding inclination along the demolding
direction.
When designing, pay attention to the following aspects:
When compressing and forming larger plastic parts, the demolding slope of the inner surface is
required to be greater than that of the outer surface.
The common demolding slope value is 1°~1.5°, and it can be as small as 0.5°.
For plastic parts with a small height, the draft angle is not required.
1.3. Wall thickness: The wall thickness of the plastic part is related to the use of requirements
and process requirements.
In plastic molding, the wall thickness is too small, and the flow of molten plastic in the mold
cavity is relatively large.
If the wall thickness is too large, it will cause too much material, increase the cost, and bring
difficulties to the molding process. Air bubbles, shrinkage holes, dents, warping, etc. will also be
generated on the plastic parts, which will affect the appearance of the product.
In the molding process, the wall thickness of each part of the plastic part is required to be as
uniform as possible.
1.4. Reinforcing ribs: It is a method often used in plastic parts to increase the strength of plastic
parts.
Its advantages:
Make the wall thickness of the plastic parts uniform, which not only saves materials, but also
improves the strength, and can also avoid appearance defects in the plastic parts.
Increase the rigidity of plastic parts.
The reinforcing ribs along the direction of material flow can also reduce the negative force of
plastic filling.
Design requirements for stiffeners:
In order to enhance the strength and rigidity of the plastic parts, the reinforcing ribs should be
designed to be shorter and more.
The center distance between the ribs should be greater than twice the wall thickness.
For thin-walled plastic parts, it can also be designed into a spherical or arched surface shape.
1.5. Supporting surface:
It is unreasonable to use the entire bottom surface of the plastic part as the supporting surface.
The frame support or foot support is usually used.
1.6. Fillet:
Except that sharp corners must be used on plastic parts, all other corners should adopt arc
transition, because the sharp corners are prone to stress concentration and affect the strength of
plastic parts.
There are two main advantages of using rounded corners:

Mob & Wechat: 0086-17322110281

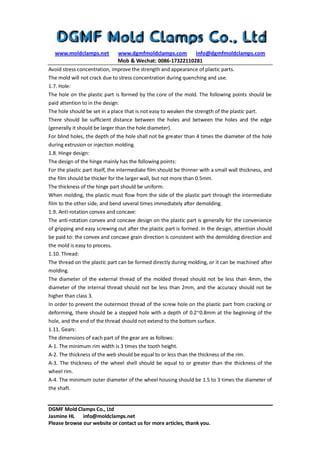

Avoid stress concentration, improve the strength and appearance of plastic parts.
The mold will not crack due to stress concentration during quenching and use.
1.7. Hole:
The hole on the plastic part is formed by the core of the mold. The following points should be
paid attention to in the design:
The hole should be set in a place that is not easy to weaken the strength of the plastic part.
There should be sufficient distance between the holes and between the holes and the edge
(generally it should be larger than the hole diameter).
For blind holes, the depth of the hole shall not be greater than 4 times the diameter of the hole
during extrusion or injection molding.
1.8. Hinge design:
The design of the hinge mainly has the following points:
For the plastic part itself, the intermediate film should be thinner with a small wall thickness, and
the film should be thicker for the larger wall, but not more than 0.5mm.
The thickness of the hinge part should be uniform.
When molding, the plastic must flow from the side of the plastic part through the intermediate
film to the other side, and bend several times immediately after demolding.
1.9. Anti-rotation convex and concave:
The anti-rotation convex and concave design on the plastic part is generally for the convenience
of gripping and easy screwing out after the plastic part is formed. In the design, attention should
be paid to: the convex and concave grain direction is consistent with the demolding direction and
the mold is easy to process.
1.10. Thread:
The thread on the plastic part can be formed directly during molding, or it can be machined after
molding.
The diameter of the external thread of the molded thread should not be less than 4mm, the
diameter of the internal thread should not be less than 2mm, and the accuracy should not be
higher than class 3.
In order to prevent the outermost thread of the screw hole on the plastic part from cracking or
deforming, there should be a stepped hole with a depth of 0.2~0.8mm at the beginning of the
hole, and the end of the thread should not extend to the bottom surface.
1.11. Gears:
The dimensions of each part of the gear are as follows:
A-1. The minimum rim width is 3 times the tooth height.
A-2. The thickness of the web should be equal to or less than the thickness of the rim.
A-3. The thickness of the wheel shell should be equal to or greater than the thickness of the
wheel rim.
A-4. The minimum outer diameter of the wheel housing should be 1.5 to 3 times the diameter of
the shaft.

Mob & Wechat: 0086-17322110281
A-5. The length of the wheel housing should be equivalent to the shaft diameter.
When designing gears, you should also pay attention to:
B-1. Try to avoid sudden changes in cross-section.
B-2. Increase the radius of fillet and arc transition as much as possible.
B-3. As far as possible, the shaft and the hole should not adopt an interference fit, but transition
fit can be adopted.
1.12. Inserts:
The purpose of the insert:
Increase the local strength, hardness, wear resistance, conductivity, and magnetic permeability of
plastic parts.
Stability of the size and shape of plasticized parts to improve accuracy.
Reduce the consumption of plastics and meet other requirements.
Surface form of insert:
Rhombus knurling, straight knurling, hexagon, cut, perforation, bending, offset, etc.
Design requirements for inserts:
3.1. In order to prevent stress cracking of plastic parts, the plastic layer around the insert should
have sufficient thickness, and the structure of the insert itself should not have sharp corners.
3.2. Plastic parts with inserts on one side, due to uneven shrinkage on both sides, cause great
internal stress, which will cause the plastic parts to bend or break.
3.3. In order to prevent displacement or deformation of the insert due to plastic flow pressure,
the insert should be firmly fixed in the mold. Welcome to follow the WeChat official account of
Micro Injection Molding.
3.4. The design of inserts should try to use non-through holes or non-through screw holes.
3.5. In order to avoid bulging, sleeve inserts should not be placed on the surface or near the edge
of the plastic part.
3.6. In order to improve the stability of the insert in the mold, when conditions permit, there
should be a flange on the insert, and it should be recessed or raised by 1.5~2mm.
3.7. When the free extension length of the insert exceeds 2 times the diameter of the support of
the insert, the insert perpendicular to the compression molding direction should have a
supporting column.
3.8. When the insert is a screw, the mating part of the polished rod part and the mold should
have a clearance fit with IT9 accuracy.
3.9. In order to connect the insert and the plastic part firmly, the surface of the insert should
have a stop part to prevent the insert from moving.
