Harsha Filters manufactures bag filters for a variety of industrial applications. Bag filters use filtration to separate dust particles from gases and are constructed of a filter housing, bags, internal cage, sealing arrangement, and connections. They are designed for optimum filtration performance across a broad range of fluid applications in industries such as automotive, paint, water treatment, chemicals, and food processing.

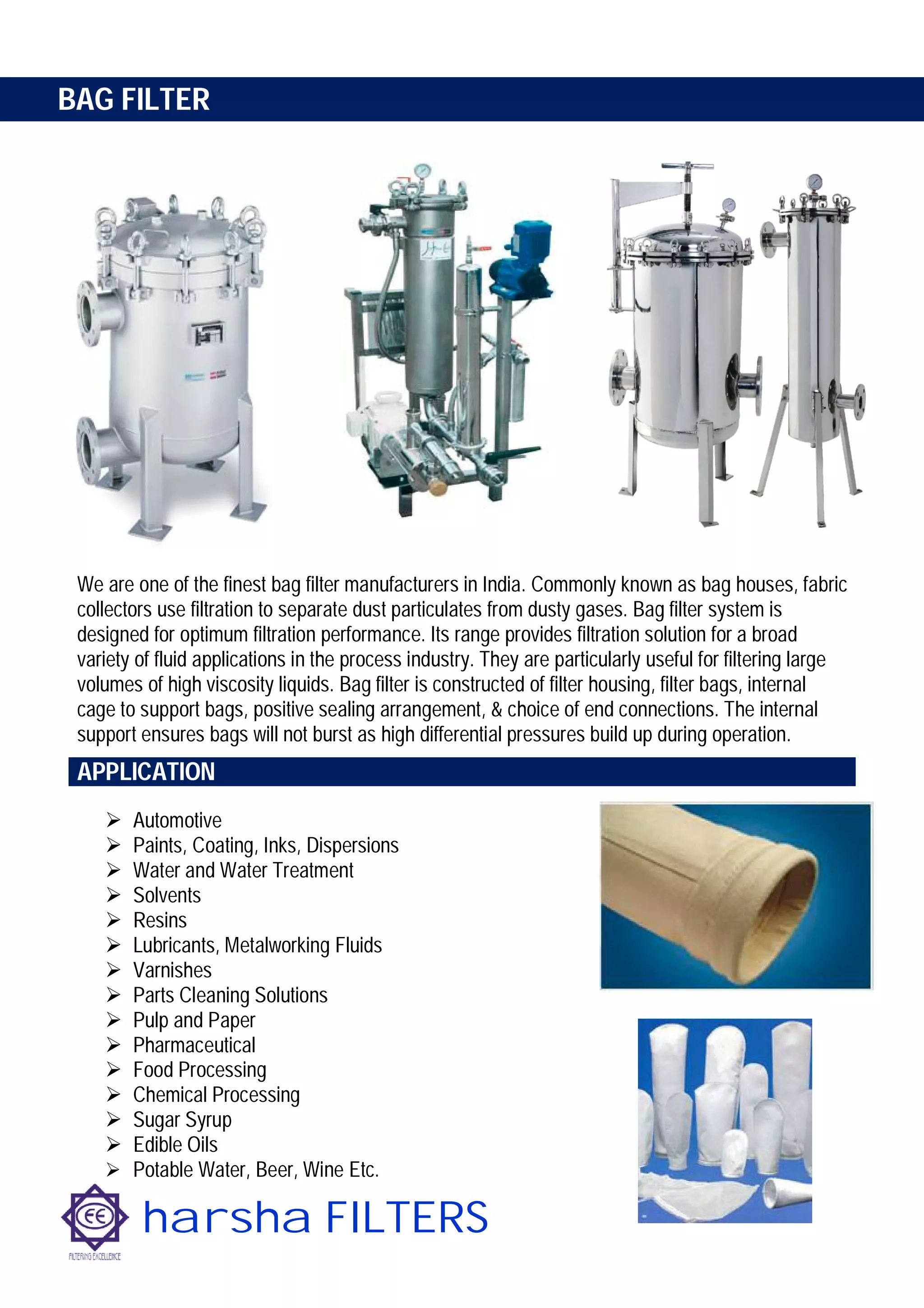

1. harsha FILTERS
BAG FILTER
We are one of the finest bag filter manufacturers in India. Commonly known as bag houses, fabric
collectors use filtration to separate dust particulates from dusty gases. Bag filter system is
designed for optimum filtration performance. Its range provides filtration solution for a broad
variety of fluid applications in the process industry. They are particularly useful for filtering large
volumes of high viscosity liquids. Bag filter is constructed of filter housing, filter bags, internal
cage to support bags, positive sealing arrangement, & choice of end connections. The internal
support ensures bags will not burst as high differential pressures build up during operation.
 Automotive
 Paints, Coating, Inks, Dispersions
 Water and Water Treatment
 Solvents
 Resins
 Lubricants, Metalworking Fluids
 Varnishes
 Parts Cleaning Solutions
 Pulp and Paper
 Pharmaceutical
 Food Processing
 Chemical Processing
 Sugar Syrup
 Edible Oils
 Potable Water, Beer, Wine Etc.
APPLICATIONS

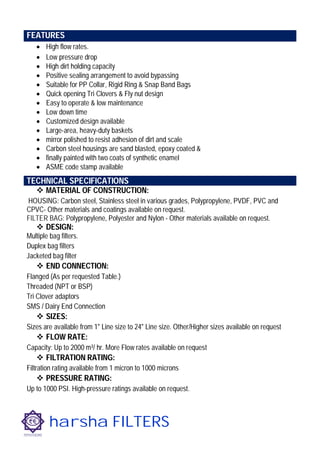

2. harsha FILTERS
 High flow rates.
 Low pressure drop
 High dirt holding capacity
 Positive sealing arrangement to avoid bypassing
 Suitable for PP Collar, Rigid Ring & Snap Band Bags
 Quick opening Tri Clovers & Fly nut design
 Easy to operate & low maintenance
 Low down time
 Customized design available
 Large-area, heavy-duty baskets
 mirror polished to resist adhesion of dirt and scale
 Carbon steel housings are sand blasted, epoxy coated &
 finally painted with two coats of synthetic enamel
 ASME code stamp available
 MATERIAL OF CONSTRUCTION:
HOUSING: Carbon steel, Stainless steel in various grades, Polypropylene, PVDF, PVC and
CPVC- Other materials and coatings available on request.
FILTER BAG: Polypropylene, Polyester and Nylon - Other materials available on request.
 DESIGN:
Multiple bag filters.
Duplex bag filters
Jacketed bag filter
 END CONNECTION:
Flanged (As per requested Table.)
Threaded (NPT or BSP)
Tri Clover adaptors
SMS / Dairy End Connection
 SIZES:
Sizes are available from 1" Line size to 24" Line size. Other/Higher sizes available on request
 FLOW RATE:
Capacity: Up to 2000 m³/ hr. More Flow rates available on request
 FILTRATION RATING:
Filtration rating available from 1 micron to 1000 microns
 PRESSURE RATING:
Up to 1000 PSI. High-pressure ratings available on request.
FEATURES
TECHNICAL SPECIFICATIONS
