This document provides an overview of Filtrex, a company that supplies filtration products and services. It describes Filtrex's experience and the industries it serves. The document also includes details on Filtrex's various ventilation filter products such as panel filters, bag filters, HEPA filters, and activated carbon filters. It provides information on Filtrex's fluid filtration products, dust control products, and air handling and extraction systems. Finally, it outlines Filtrex's services including plant maintenance, ductwork cleaning, and testing/reporting.

1. O V E R V I E WO V E R V I E WO V E R V I E W

2. TEL: 01279 457590 EMAIL: sales@filtrex.co.uk www.filtrex.co.uk

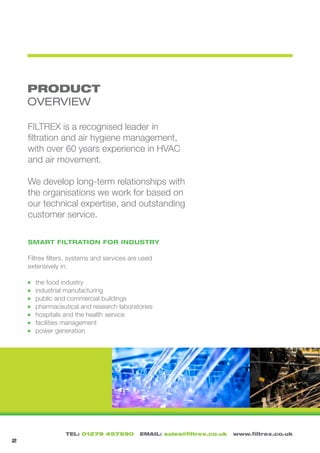

PRODUCT
OVERVIEW
2
SMART FILTRATION FOR INDUSTRY
Filtrex filters, systems and services are used
extensively in:
■■ the food industry
■■ industrial manufacturing
■■ public and commercial buildings
■■ pharmaceutical and research laboratories
■■ hospitals and the health service
■■ facilities management
■■ power generation
FILTREX is a recognised leader in
filtration and air hygiene management,
with over 60 years experience in HVAC
and air movement.
We develop long-term relationships with
the organisations we work for based on
our technical expertise, and outstanding
customer service.

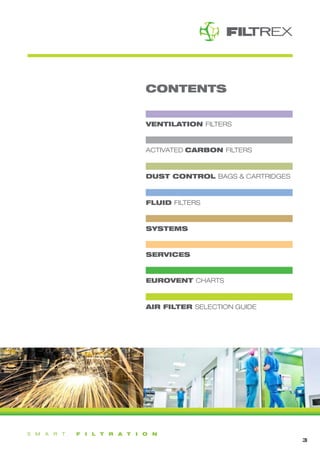

3. CONTENTS
1
VENTILATION FILTERS
SYSTEMS
DUST CONTROL BAGS & CARTRIDGES
EUROVENT CHARTS
FLUID FILTERS

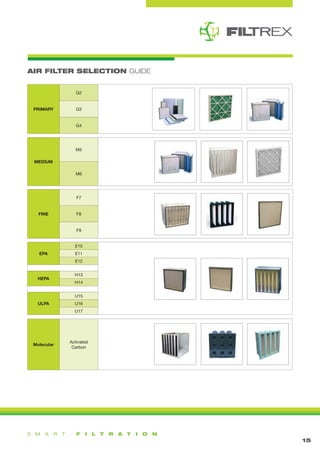

AIR FILTER SELECTION GUIDE
ACTIVATED CARBON FILTERS
SERVICES
3

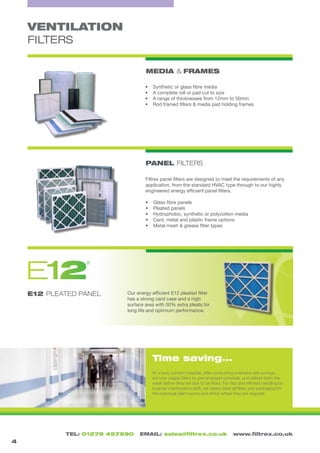

4. TEL: 01279 457590 EMAIL: sales@filtrex.co.uk www.filtrex.co.uk
PANEL FILTERS
E12 PLEATED PANEL
VENTILATION
FILTERS
At a busy London hospital, after conducting extensive site surveys,
we now supply filters by pre-arranged schedule, and deliver them the
week before they are due to be fitted. For fast and efficient handling by
hospital maintenance staff, we clearly label all filters and packaging for
the individual plant rooms and AHUs where they are required.
MEDIA & FRAMES
4
Our energy efficient E12 pleated filter
has a strong card case and a high
surface area with 50% extra pleats for
long life and optimum performance.
Filtrex panel filters are designed to meet the requirements of any
application, from the standard HVAC type through to our highly
engineered energy efficient panel filters.
• Glass fibre panels
• Pleated panels
• Hydrophobic, synthetic or polycotton media
• Card, metal and plastic frame options
• Metal mesh & grease filter types
• Synthetic or glass fibre media
• A complete roll or pad cut to size
• A range of thicknesses from 12mm to 50mm
• Rod framed filters & media pad holding frames
Time saving...
E X T R A C T I O N S Y S T E M S
F I L T R E X
21EP L E A T E D P A N E L
F I L T R E X
®
®
®

5. RIGID POCKET FILTERS
“We used to spend hours sorting through a massive filter delivery. Now they come in as and
when we need them, and are fitted without disruption.”
Filtrex PVC framed rigid pocket filters enclose a series of mini
pleat glass fibre media packs, providing a large surface area with
a much higher capacity than standard bag filters and excellent
energy performance. For use in medium to fine grade applications
with HEPA grade options available.
E-FLOW S BAG FILTER
A superior quality synthetic bag filter, made
from a fine grade media with sealed internal
spacer stitching to prevent pocket ballooning;
suitable for medium to fine grade applications
where a non-glass fibre element is preferred.
Filtrex bag filters cover all applications and environments, from the
low grade hi-loft synthetic type through to our highly engineered
glass/synthetic dual layer filter.
• High loft synthetic – Grades G3 – M5
• Synthetic fine grade media – Grades M5 – F9
• Glass fibre – Grades M5 – F9
• Metal, plastic & wood header options
BAG FILTERS
Customer Talk
5

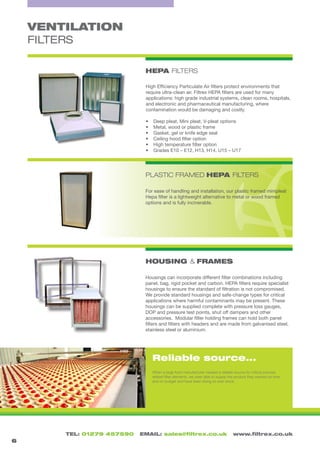

6. TEL: 01279 457590 EMAIL: sales@filtrex.co.uk www.filtrex.co.uk
PLASTIC FRAMED HEPA FILTERS
HOUSING & FRAMES
VENTILATION
FILTERS
HEPA FILTERS
Reliable source...
6
High Efficiency Particulate Air filters protect environments that
require ultra-clean air. Filtrex HEPA filters are used for many
applications: high grade industrial systems, clean rooms, hospitals,
and electronic and pharmaceutical manufacturing, where
contamination would be damaging and costly.
• Deep pleat, Mini pleat, V-pleat options
• Metal, wood or plastic frame
• Gasket, gel or knife edge seal
• Ceiling hood filter option
• High temperature filter option
• Grades E10 – E12, H13, H14, U15 – U17
For ease of handling and installation, our plastic framed minipleat
Hepa filter is a lightweight alternative to metal or wood framed
options and is fully incinerable.
Housings can incorporate different filter combinations including
panel, bag, rigid pocket and carbon. HEPA filters require specialist
housings to ensure the standard of filtration is not compromised.
We provide standard housings and safe-change types for critical
applications where harmful contaminants may be present. These
housings can be supplied complete with pressure loss gauges,
DOP and pressure test points, shut off dampers and other
accessories. Modular filter holding frames can hold both panel
filters and filters with headers and are made from galvanised steel,
stainless steel or aluminium.
When a large food manufacturer needed a reliable source for critical process
related filter elements, we were able to supply the product they wanted on time
and on budget and have been doing so ever since.

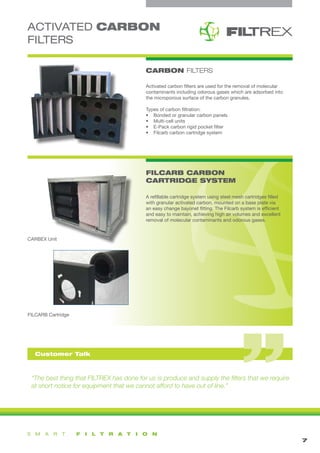

7. ACTIVATED CARBON
FILTERS
“The best thing that FILTREX has done for us is produce and supply the filters that we require
at short notice for equipment that we cannot afford to have out of line.”
FILCARB CARBON
CARTRIDGE SYSTEM
1
CARBON FILTERS
7
Activated carbon filters are used for the removal of molecular
contaminants including odorous gases which are adsorbed into
the microporous surface of the carbon granules.
Types of carbon filtration:
• Bonded or granular carbon panels
• Multi-cell units
• E-Pack carbon rigid pocket filter
• Filcarb carbon cartridge system
A refillable cartridge system using steel mesh cartridges filled
with granular activated carbon, mounted on a base plate via
an easy change bayonet fitting. The Filcarb system is efficient
and easy to maintain, achieving high air volumes and excellent
removal of molecular contaminants and odorous gases.
FILCARB Cartridge
CARBEX Unit
Customer Talk

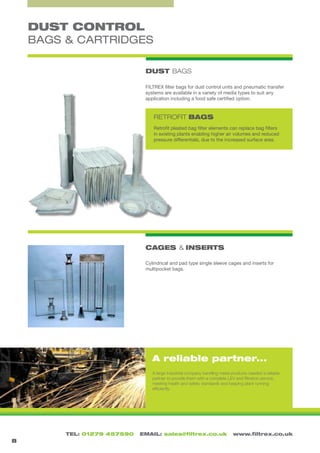

8. TEL: 01279 457590 EMAIL: sales@filtrex.co.uk www.filtrex.co.uk
DUST CONTROL
BAGS & CARTRIDGES
DUST BAGS
8
FILTREX filter bags for dust control units and pneumatic transfer
systems are available in a variety of media types to suit any
application including a food safe certified option.
RETROFIT BAGS
CAGES & INSERTS
Cylindrical and pad type single sleeve cages and inserts for
multipocket bags.
Retrofit pleated bag filter elements can replace bag filters
in existing plants enabling higher air volumes and reduced
pressure differentials, due to the increased surface area.
A reliable partner...
A large industrial company handling metal products needed a reliable
partner to provide them with a complete LEV and filtration service,
meeting health and safety standards and keeping plant running
efficiently.

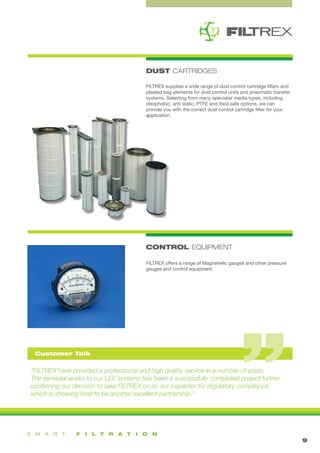

9. 1
DUST CARTRIDGES
9
FILTREX supplies a wide range of dust control cartridge filters and
pleated bag elements for dust control units and pneumatic transfer
systems. Selecting from many specialist media types, including
oleophobic, anti static, PTFE and food safe options, we can
provide you with the correct dust control cartridge filter for your
application.
FILTREX offers a range of Magnehelic gauges and other pressure
gauges and control equipment.
CONTROL EQUIPMENT
“FILTREX have provided a professional and high quality service in a number of areas.
The remedial works to our LEV systems has been a successfully completed project further
confirming our decision to take FILTREX on as our inspector for regulatory compliance,
which is showing itself to be another excellent partnership.”
Customer Talk

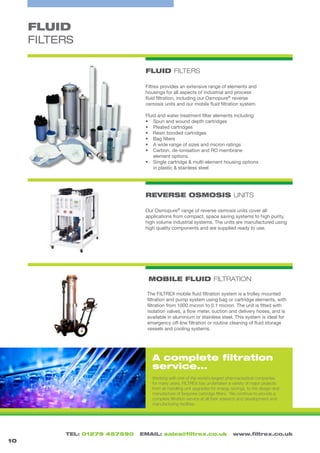

10. TEL: 01279 457590 EMAIL: sales@filtrex.co.uk www.filtrex.co.uk
FLUID
FILTERS
FLUID FILTERS
10
Filtrex provides an extensive range of elements and
housings for all aspects of industrial and process
fluid filtration, including our Osmopure®
reverse
osmosis units and our mobile fluid filtration system.
Fluid and water treatment filter elements including:
• Spun and wound depth cartridges
• Pleated cartridges
• Resin bonded cartridges
• Bag filters
• A wide range of sizes and micron ratings
• Carbon, de-ionisation and RO membrane
element options.
• Single cartridge & multi-element housing options
in plastic & stainless steel
Working with one of the world’s largest pharmaceutical companies
for many years, FILTREX has undertaken a variety of major projects
from air handling unit upgrades for energy savings, to the design and
manufacture of bespoke cartridge filters. We continue to provide a
complete filtration service at all their research and development and
manufacturing facilities.
MOBILE FLUID FILTRATION
REVERSE OSMOSIS UNITS
The FILTREX mobile fluid filtration system is a trolley mounted
filtration and pump system using bag or cartridge elements, with
filtration from 1000 micron to 0.1 micron. The unit is fitted with
isolation valves, a flow meter, suction and delivery hoses, and is
available in aluminium or stainless steel. This system is ideal for
emergency off-line filtration or routine cleaning of fluid storage
vessels and cooling systems.
Our Osmopure®
range of reverse osmosis units cover all
applications from compact, space saving systems to high purity,
high volume industrial systems. The units are manufactured using
high quality components and are supplied ready to use.
A complete filtration
service...

11. SYSTEMS
1
AHU & VENTILATION SYSTEMS
ACTIVATED CARBON
FILTER SYSTEMS
11
Filtrex activated carbon filter systems are designed to suit many
different applications.
• At food factories, the strong smells emitted during the cooking
and processing of ingredients may require filtering before the
air is discharged into the atmosphere to prevent odours from
causing distress to the surrounding neighbours.
• Vent pipes from storage silos and effluent tanks often require
filtering to remove pungent fumes and vapours.
• In public buildings such as museums and libraries, incoming air
needs purifying removing gases that would have a deteriorating
effect on priceless manuscripts and artefacts.
• Airports and buildings in city areas such as offices, hospitals
and hotels, need effective filtering of air pollutants to ensure an
enhanced Indoor Air Quality (IAQ) level for the occupants.
We offer a wide range of air handling and ventilation systems from
bespoke design and installation, through to commissioning and
after-sales service.
The Exeon range of extraction systems are suitable for the removal
of fumes, vapours and dust and are available from small mobile
units to large centralized extraction systems. Along with this, we
offer a wide range of specialist units such as powder handling
booths, downflow benches and the E-Clean suction hood for
restoration and medical use.
“All round service has been excellent again, just continue with the
high standards that we expect.”
E X T R A C T I O N S Y S T E M S
F I L T R E X
21EP L E A T E D P A N E L
F I L T R E X
®
®
®
Customer Talk

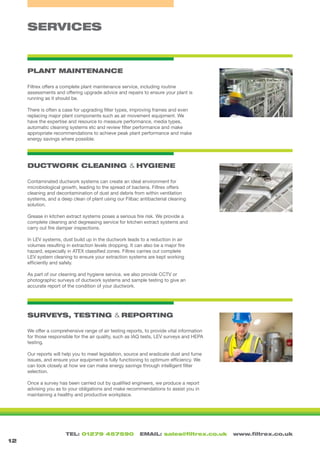

12. TEL: 01279 457590 EMAIL: sales@filtrex.co.uk www.filtrex.co.uk
SERVICES
PLANT MAINTENANCE
DUCTWORK CLEANING & HYGIENE
SURVEYS, TESTING & REPORTING
12
Filtrex offers a complete plant maintenance service, including routine
assessments and offering upgrade advice and repairs to ensure your plant is
running as it should be.
There is often a case for upgrading filter types, improving frames and even
replacing major plant components such as air movement equipment. We
have the expertise and resource to measure performance, media types,
automatic cleaning systems etc and review filter performance and make
appropriate recommendations to achieve peak plant performance and make
energy savings where possible.
Contaminated ductwork systems can create an ideal environment for
microbiological growth, leading to the spread of bacteria. Filtrex offers
cleaning and decontamination of dust and debris from within ventilation
systems, and a deep clean of plant using our Filbac antibacterial cleaning
solution.
Grease in kitchen extract systems poses a serious fire risk. We provide a
complete cleaning and degreasing service for kitchen extract systems and
carry out fire damper inspections.
In LEV systems, dust build up in the ductwork leads to a reduction in air
volumes resulting in extraction levels dropping. It can also be a major fire
hazard, especially in ATEX classified zones. Filtrex carries out complete
LEV system cleaning to ensure your extraction systems are kept working
efficiently and safely.
As part of our cleaning and hygiene service, we also provide CCTV or
photographic surveys of ductwork systems and sample testing to give an
accurate report of the condition of your ductwork.
We offer a comprehensive range of air testing reports, to provide vital information
for those responsible for the air quality, such as IAQ tests, LEV surveys and HEPA
testing.
Our reports will help you to meet legislation, source and eradicate dust and fume
issues, and ensure your equipment is fully functioning to optimum efficiency. We
can look closely at how we can make energy savings through intelligent filter
selection.
Once a survey has been carried out by qualified engineers, we produce a report
advising you as to your obligations and make recommendations to assist you in
maintaining a healthy and productive workplace.

13. TRAINING & PLANT MANAGEMENT
FILTER SUPPLY & FIT
FILTRATION SERVICE RECORDS
13
The Filtration Service Record provides all the documentation
relating to the filters used on site, the change frequency and
cleaning records. This includes:
• Filter specification sheets
• Unit schedule
• Maintenance planner
• Service report sheets
• H & S documentation
Where regular maintenance and filter changing is carried out in-
house, we carry out a detailed site survey to ensure the correct
filters are being used. We produce a complete documentation and
record system for filter changing and unit servicing.
If required, we can train your on-site maintenance staff in
Compliance for Air Handling Units and Ventilation Systems.
Filtrex have successfully completed awareness training courses
for HTM03.01 Compliance for Air Handling Units and Ventilation
Systems Part A and Part B to provide crucial knowledge for
engineers with the responsibility of maintaining the plant.
For stretched maintenance teams, filter replacement is a job that can often
get put off. With filters needing to be ordered, deliveries received, filters
stored and then moved around site to the correct locations, filter replacement
can be a time consuming and labour intensive job.
With a detailed planner, showing when units are due for filter replacement, we
plan the whole change process by arranging the correct filters for the correct
units, meeting them up on site with our engineers who install the new filters
and take the old filters away for disposal. Filter change and unit condition
reports are produced, which are sent to site to be kept with the Filtration
Service Records.

14. TEL: 01279 457590 EMAIL: sales@filtrex.co.uk www.filtrex.co.uk
EUROVENT CLASSIFICATION CHART
EN779:2012
EN1822
COMMON CONTAMINANT SIZING GUIDE
14
Group Class
Final test
pressure drop
Pa
Average
arrestance
(Am)
of synthetic dust
%
Average efficiency
(E
m)
of 0.4 µm particles
%
Minimum
efficiency2)
of 0.4 µm particles
%
Coarse
G1 250 50 ≤ A­­--m
< 65 - -
G2 250 65 ≤ A­­--m
< 80 - -
G3 250 80 ≤ A­­--m
< 90 - -
G4 250 90 ≤ A­­--m
- -
Medium
M5 450 - 40 ≤ E­­--m
< 60 -
M6 450 - 60 ≤ E­­--m
< 80 -
Fine
F7 450 - 80 ≤ E­­--m
< 90 35
F8 450 - 90 ≤ E­­--m
< 95 55
F9 450 - 95 ≤ E­­--m
70
Integral Value Local Value
Filter
Class
Collection
Efficiency %
Penetration %
Collection
Efficiency %
Penetration %
E10 85 15 - -
E11 95 5 - -
E12 99.5 0.5 - -
H13 99.95 0.05 99.75 0.25
H14 99.995 0.005 99.975 0.025
U15 99.9995 0.0005 99.9975 0.0025
U16 99.99995 0.00005 99.99975 0.00025
U17 99.999995 0.000005 99.9999 0.0001
The filter class descriptions are:
EPA 10 - EPA 12: Efficiency
Particulate Air Filters
HEPA 13 - HEPA 14: High Efficiency
Particulate Air Filters
ULPA 15 - ULPA 17: Ultra Low
Penetration Air Filters
CIGARETTE SMOKE
OILY SMOKE
COAL DUST
METAL DUST & FUMES
CEMENT DUST
SEA SALT PARTICLES
CARBON BLACK
FINE COAL
PAINT PIGMENT
MILK POWDER
SPORES
DUST HARMFUL TO LUNGS
POLLEN
ATMOSPHERIC DUST
VIRUSES
BACTERIA
HYDROGEN SULPHIDE MIST
ASBESTOS FIBRE
WELDING FUMES
TOBACCO SMOKE
ATMOSPHERIC STAINING
FLY ASH
Visible by Naked Eye (Defraction) Optical Microscope Electrons
100 10 5 1.0 0.1 0.01 0.00150
1mm = 1000 Micron / 1 Micron = 0.001mm

15. 1
AIR FILTER SELECTION GUIDE
15
EPA
E10
E11
E12
HEPA
H13
H14
ULPA
U15
U16
U17
PRIMARY
G2
G3
G4
MEDIUM
M5
M6
Molecular
Activated
Carbon
FINE
F7
F8
F9

16. Unit 18
Burnt Mill Industrial Estate
Elizabeth Way
Harlow
Essex
CM20 2HS
Telephone: 01279 457590
Fax: 01279 457591
Email: sales@filtrex.co.uk
www.filtrex.co.uk
FS 563880
