The VOC 1000 methane, non-methane, and total hydrocarbon analyzer by Ecotech is designed for accurate gas measurement across a wide concentration range. It utilizes a flame ionization detector for continuous and automated analysis while offering features like programmable calibration, alarms, and an intuitive interface. Additionally, it supports a range of gases and provides various output options for flexibility in operation.

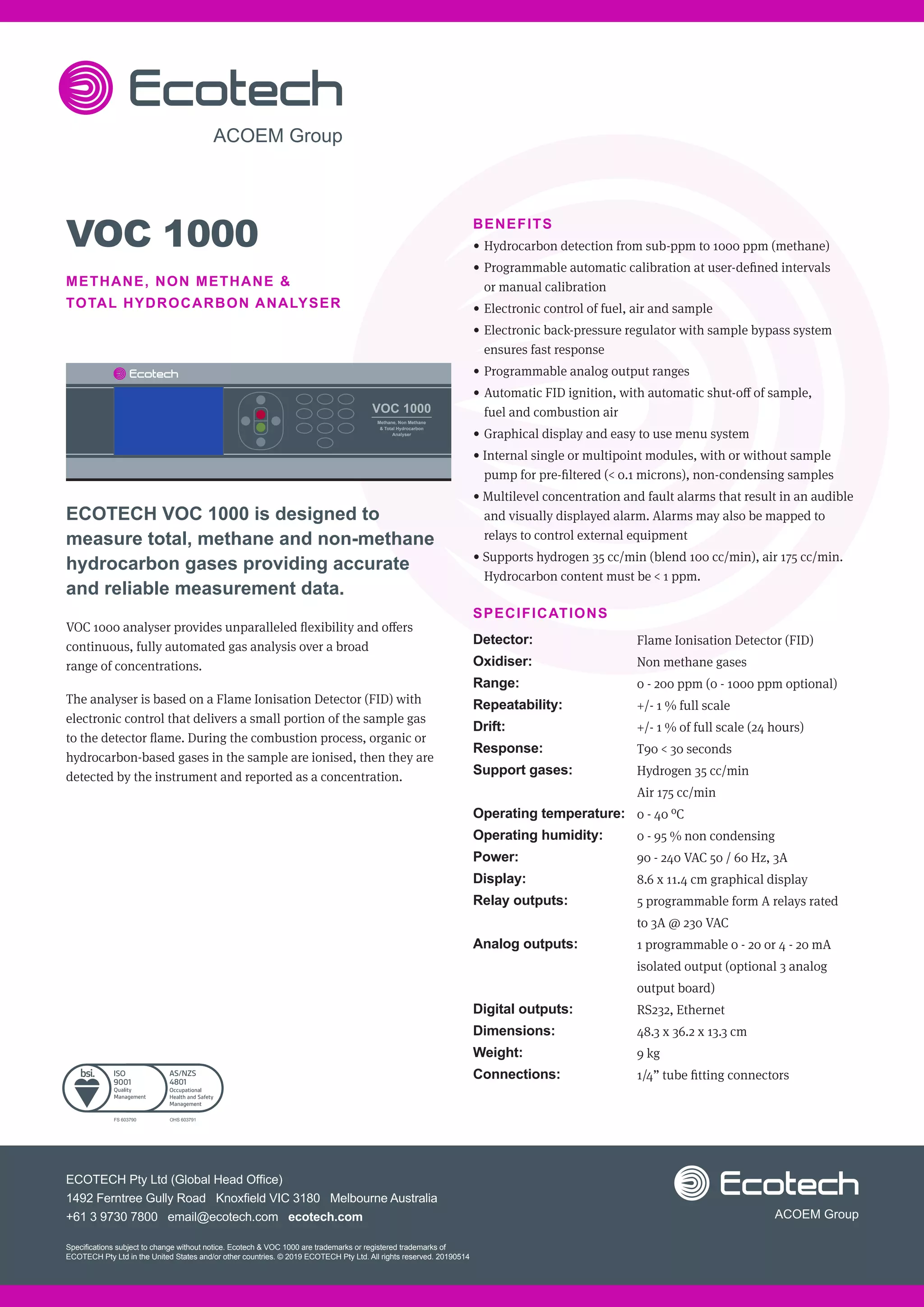

1. VOC 1000
METHANE, NON METHANE &
TOTAL HYDROCARBON ANALYSER
ECOTECH VOC 1000 is designed to
measure total, methane and non-methane
hydrocarbon gases providing accurate
and reliable measurement data.
VOC 1000 analyser provides unparalleled flexibility and offers
continuous, fully automated gas analysis over a broad
range of concentrations.
The analyser is based on a Flame Ionisation Detector (FID) with
electronic control that delivers a small portion of the sample gas
to the detector flame. During the combustion process, organic or
hydrocarbon-based gases in the sample are ionised, then they are
detected by the instrument and reported as a concentration.
Specifications subject to change without notice. Ecotech & VOC 1000 are trademarks or registered trademarks of
ECOTECH Pty Ltd in the United States and/or other countries. © 2019 ECOTECH Pty Ltd. All rights reserved. 20190514
ECOTECH Pty Ltd (Global Head Office)
1492 Ferntree Gully Road Knoxfield VIC 3180 Melbourne Australia
+61 3 9730 7800 email@ecotech.com ecotech.com
FS 603790 OHS 603791
BENEFITS
• Hydrocarbon detection from sub-ppm to 1000 ppm (methane)
• Programmable automatic calibration at user-defined intervals
or manual calibration
• Electronic control of fuel, air and sample
• Electronic back-pressure regulator with sample bypass system
ensures fast response
• Programmable analog output ranges
• Automatic FID ignition, with automatic shut-off of sample,
fuel and combustion air
• Graphical display and easy to use menu system
• Internal single or multipoint modules, with or without sample
pump for pre-filtered (< 0.1 microns), non-condensing samples
• Multilevel concentration and fault alarms that result in an audible
and visually displayed alarm. Alarms may also be mapped to
relays to control external equipment
• Supports hydrogen 35 cc/min (blend 100 cc/min), air 175 cc/min.
Hydrocarbon content must be < 1 ppm.
SPECIFICATIONS
Detector:
Oxidiser:
Range:
Repeatability:
Drift:
Response:
Support gases:
Operating temperature:
Operating humidity:
Power:
Display:
Relay outputs:
Analog outputs:
Digital outputs:
Dimensions:
Weight:
Connections:
Flame Ionisation Detector (FID)
Non methane gases
0 - 200 ppm (0 - 1000 ppm optional)
+/- 1 % full scale
+/- 1 % of full scale (24 hours)
T90 < 30 seconds
Hydrogen 35 cc/min
Air 175 cc/min
0 - 40 ºC
0 - 95 % non condensing
90 - 240 VAC 50 / 60 Hz, 3A
8.6 x 11.4 cm graphical display
5 programmable form A relays rated
to 3A @ 230 VAC
1 programmable 0 - 20 or 4 - 20 mA
isolated output (optional 3 analog
output board)
RS232, Ethernet
48.3 x 36.2 x 13.3 cm
9 kg
1/4” tube fitting connectors
Methane, Non Methane
& Total Hydrocarbon
Analyser
VOC 1000
