The document details a presentation by Bhuvaneswari Subramani on transforming to feature-driven development (FDD) using AWS services to create scalable and cost-effective feature development environments. It outlines the benefits of moving to AWS, including improved reliability, elasticity, cost optimization, and security, while emphasizing the importance of automation and environment management during the development lifecycle. Key achievements include the establishment of 250+ QA-accessible test environments and improved integration and deployment strategies for overlapping feature developments.

2. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Transforming to feature-driven development
Bhuvaneswari Subramani
D V C 1 4 - 9 9 6 7 9
Director, Engineering Operations
Infor

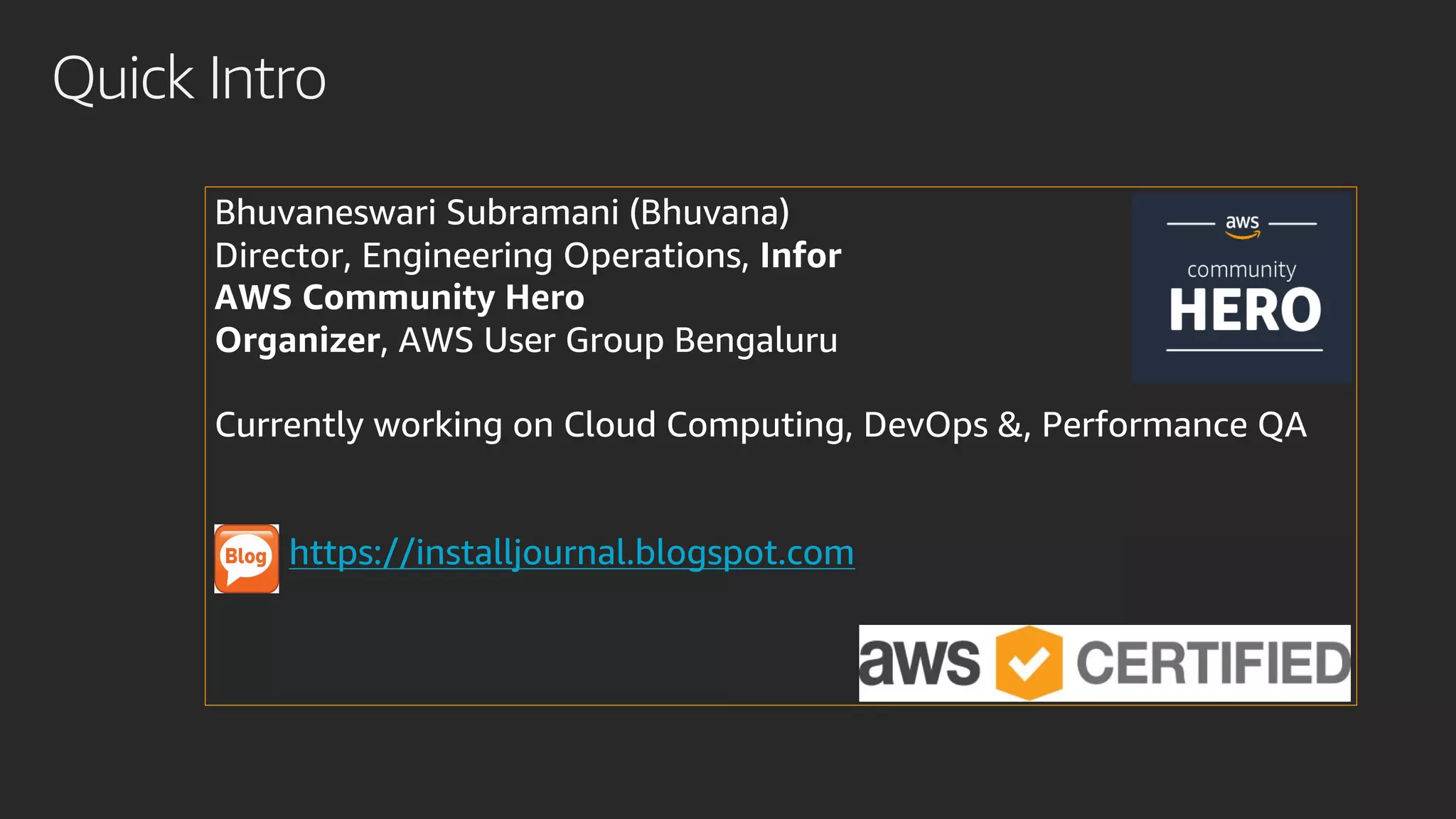

3. Quick Intro
Bhuvaneswari Subramani (Bhuvana)
Director, Engineering Operations, Infor
AWS Community Hero
Organizer, AWS User Group Bengaluru
Currently working on Cloud Computing, DevOps &, Performance QA
https://installjournal.blogspot.com

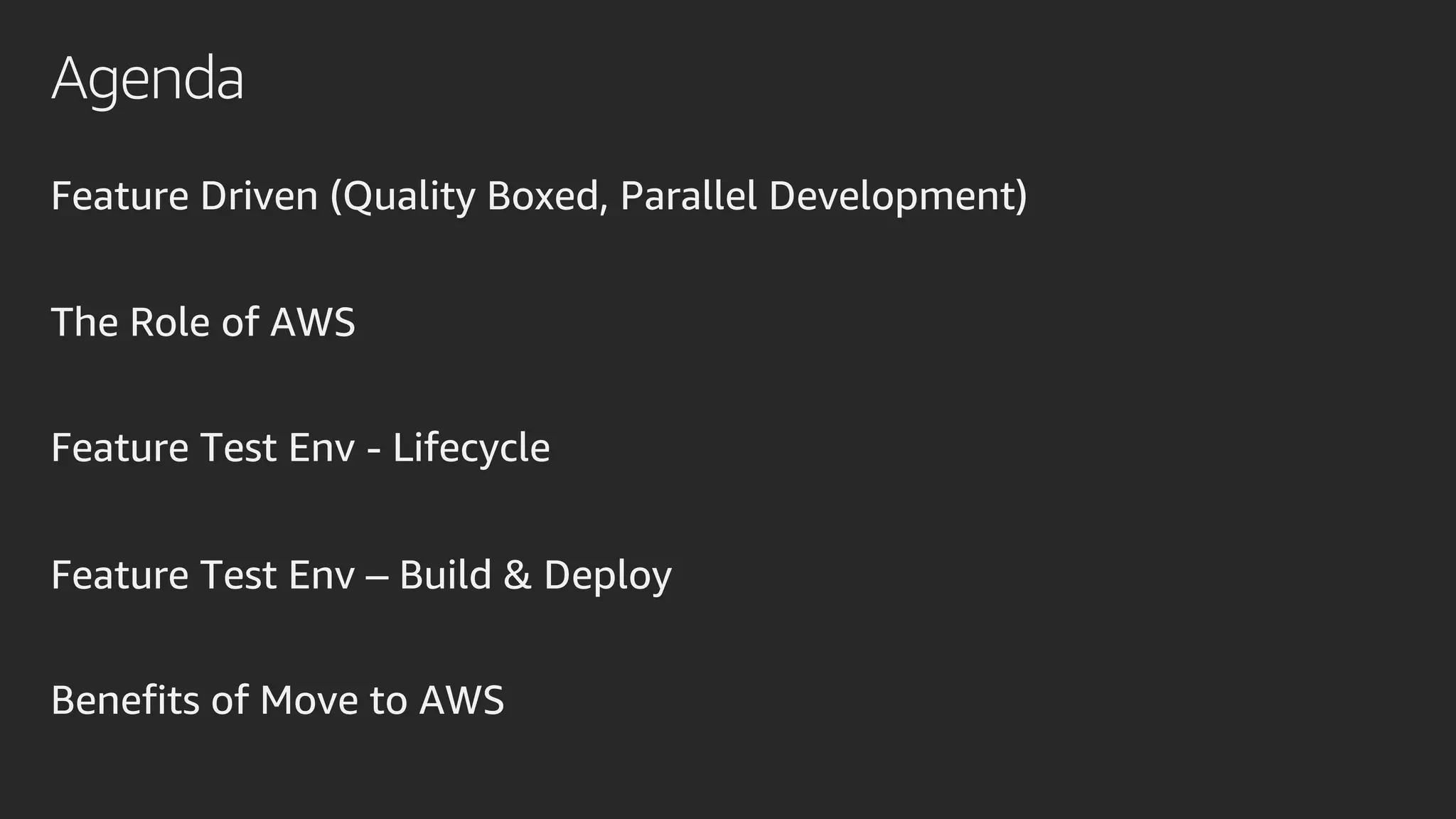

4. Agenda
Feature Driven (Quality Boxed, Parallel Development)
The Role of AWS
Feature Test Env - Lifecycle
Feature Test Env – Build & Deploy
Benefits of Move to AWS

5. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

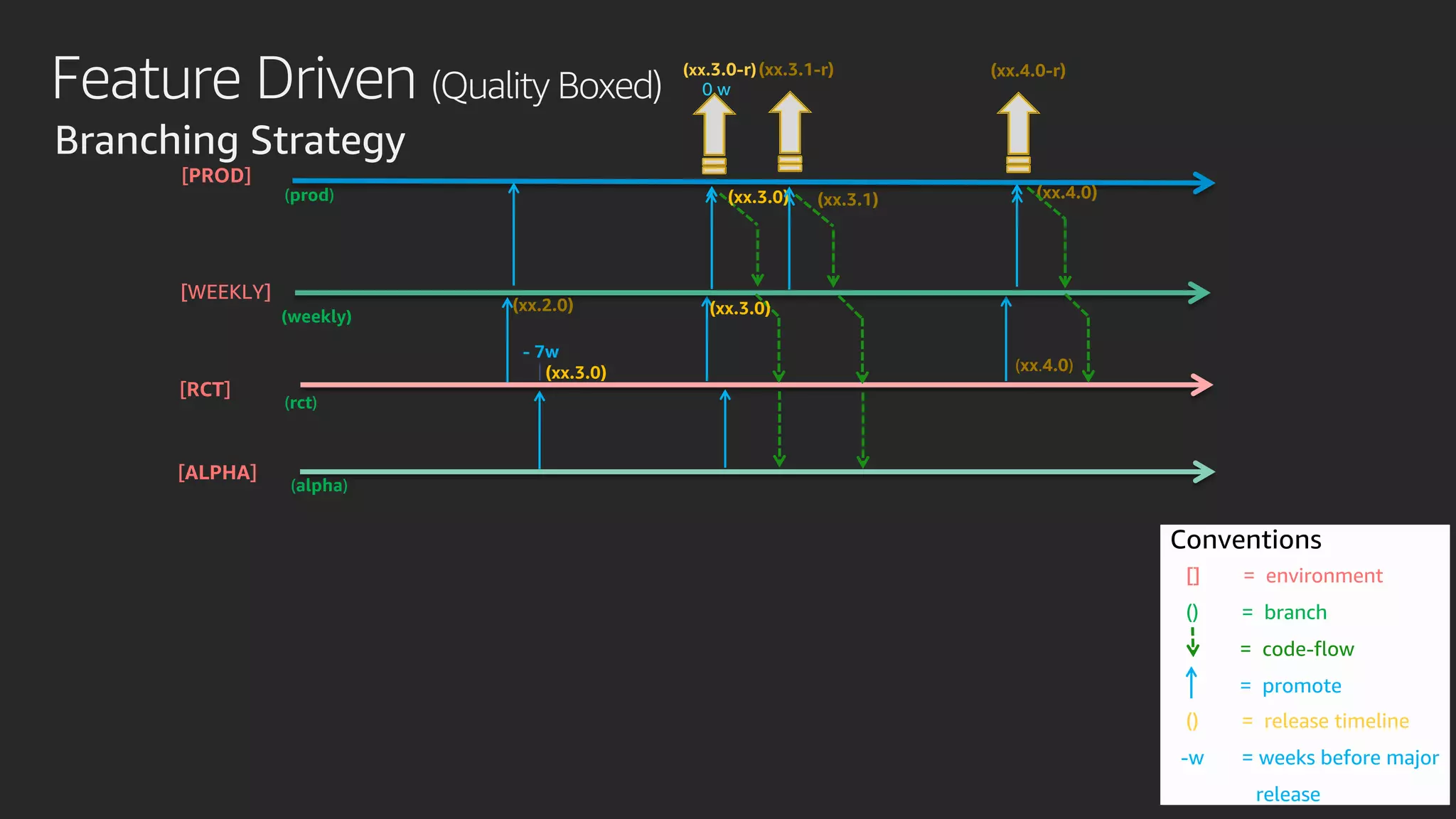

6. Feature Driven (Quality Boxed)
[ALPHA]
(xx.3.0)
(xx.3.1-r) (xx.4.0-r)
(xx.4.0)
[RCT]
[PROD]
(alpha)
(prod)
(rct)
(weekly)
[WEEKLY]
(xx.3.0-r)
(xx.3.1) (xx.4.0)(xx.3.0)
Conventions
[] = environment
() = branch
= code-flow
= promote
() = release timeline
-w = weeks before major
release
- 7w
Branching Strategy
0 w
(xx.3.0)(xx.2.0)

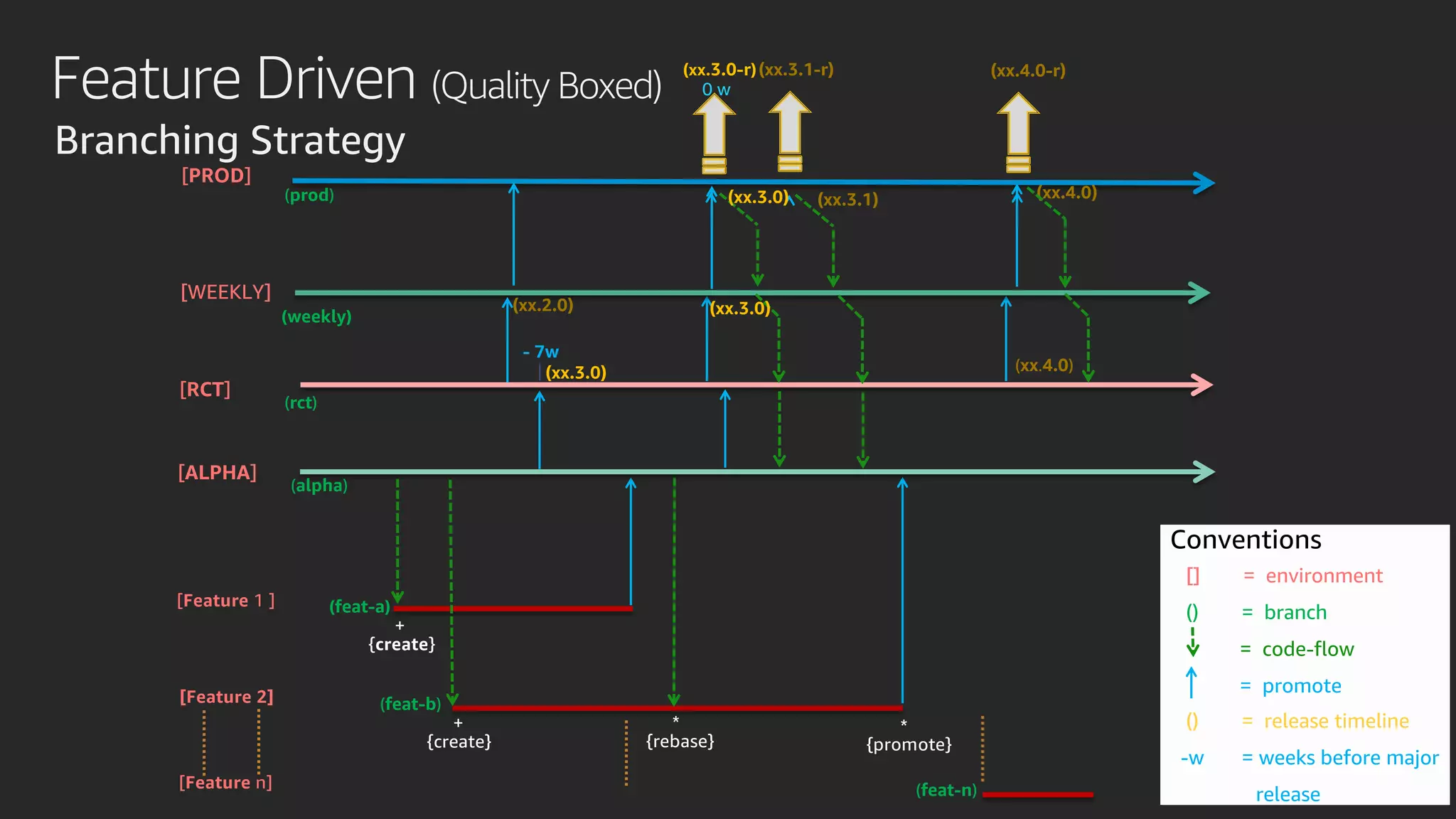

7. Feature Driven (Quality Boxed)
[ALPHA]
[Feature 2]
[Feature 1 ]
(feat-n)
(xx.3.0)
(xx.3.1-r) (xx.4.0-r)
(xx.4.0)
[RCT]
[PROD]
(feat-a)
(feat-b)
[Feature n]
(alpha)
(prod)
(rct)
(weekly)
[WEEKLY]
(xx.3.0-r)
(xx.3.1) (xx.4.0)(xx.3.0)
Conventions
[] = environment
() = branch
= code-flow
= promote
() = release timeline
-w = weeks before major
release
- 7w
Branching Strategy
0 w
{create}
+
{rebase}
*
{promote}
*
{create}
+
(xx.3.0)(xx.2.0)

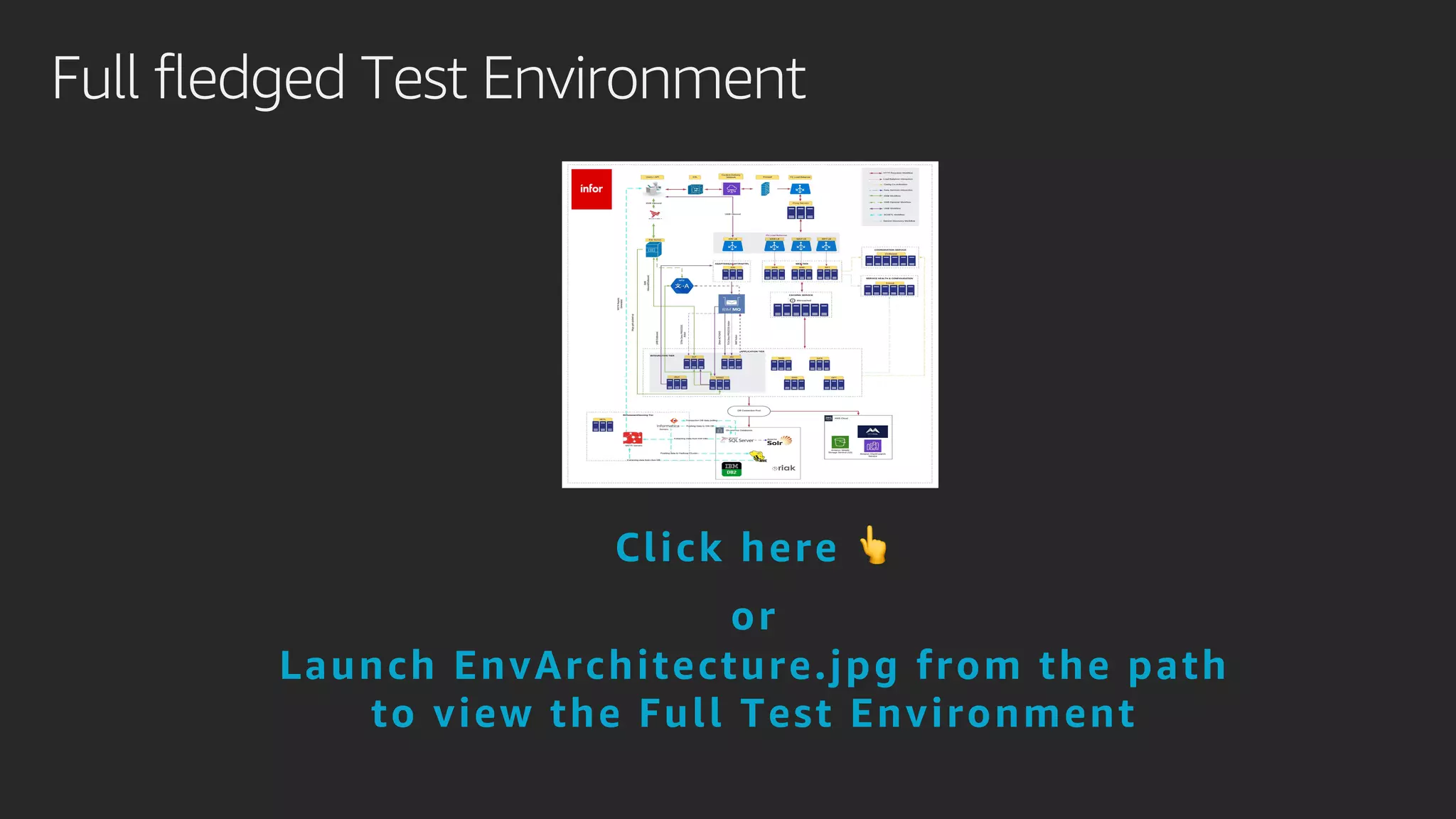

8. Full fledged Test Environment
Click here 👆
or
Launch EnvArchitecture.jpg from the path
to view the Full Test Environment

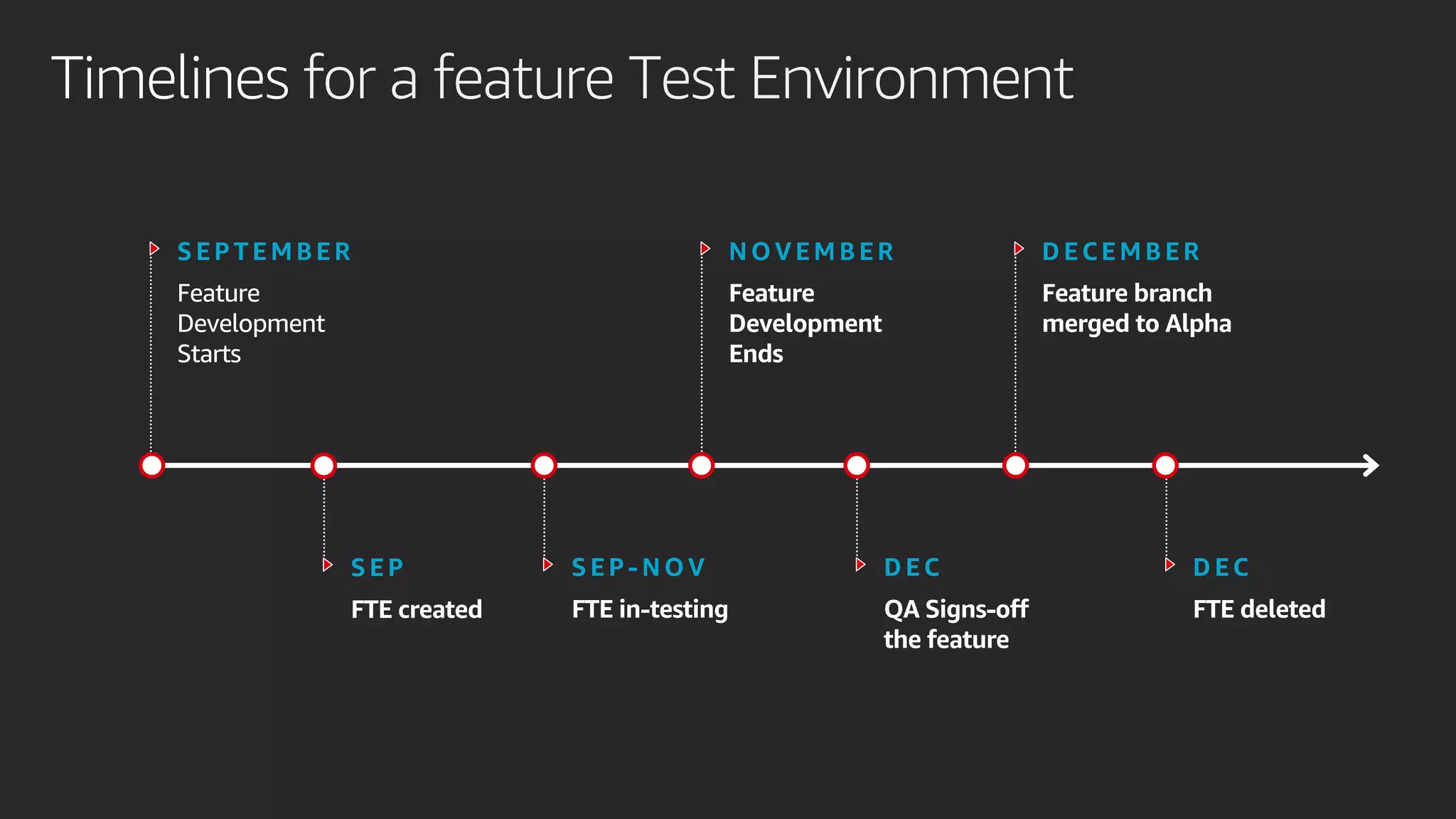

9. Timelines for a feature Test Environment
S EPTEMBER
Feature
Development
Starts
NOVEMBER
Feature
Development
Ends
D ECEMBER
Feature branch
merged to Alpha
S EP -NOV
FTE in-testing
D EC
QA Signs-off
the feature
D EC
FTE deleted
S EP
FTE created

10. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

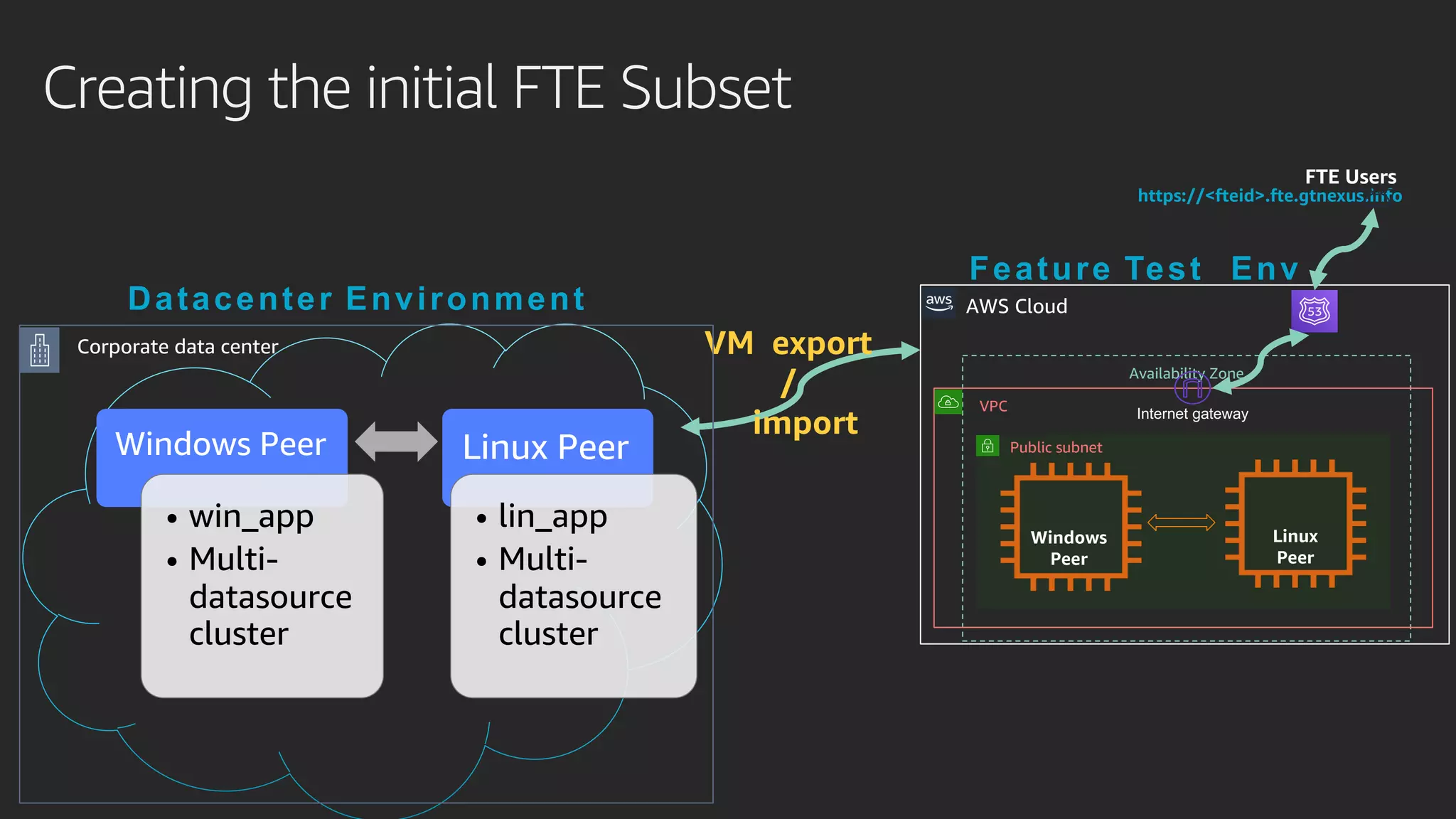

11. Creating the initial FTE Subset
VM export
/
import
Datacenter Environment
Windows Peer
• win_app
• Multi-
datasource
cluster
Linux Peer
• lin_app
• Multi-
datasource
cluster
Corporate data center
https://<fteid>.fte.gtnexus.info
AWS Cloud
Availability Zone
VPC
Public subnet
Internet gateway
Windows
Peer
Linux
Peer
Feature Test Env
FTE Users

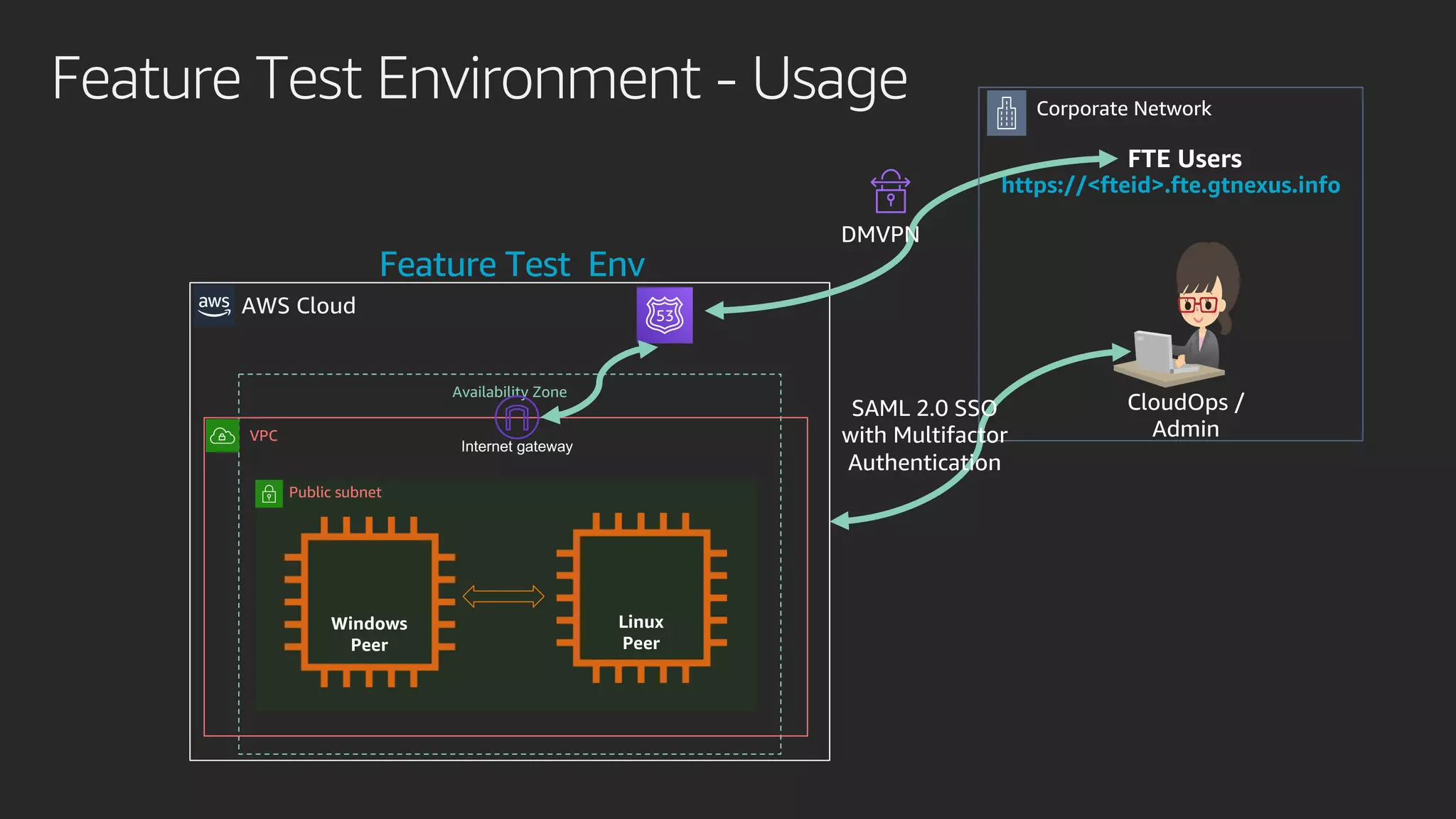

12. Feature Test Environment - Usage
https://<fteid>.fte.gtnexus.info
AWS Cloud
Availability Zone
VPC
Public subnet
Internet gateway
Windows
Peer
Linux
Peer
Feature Test Env
FTE Users
DMVPN
Corporate Network
SAML 2.0 SSO
with Multifactor
Authentication
CloudOps /
Admin

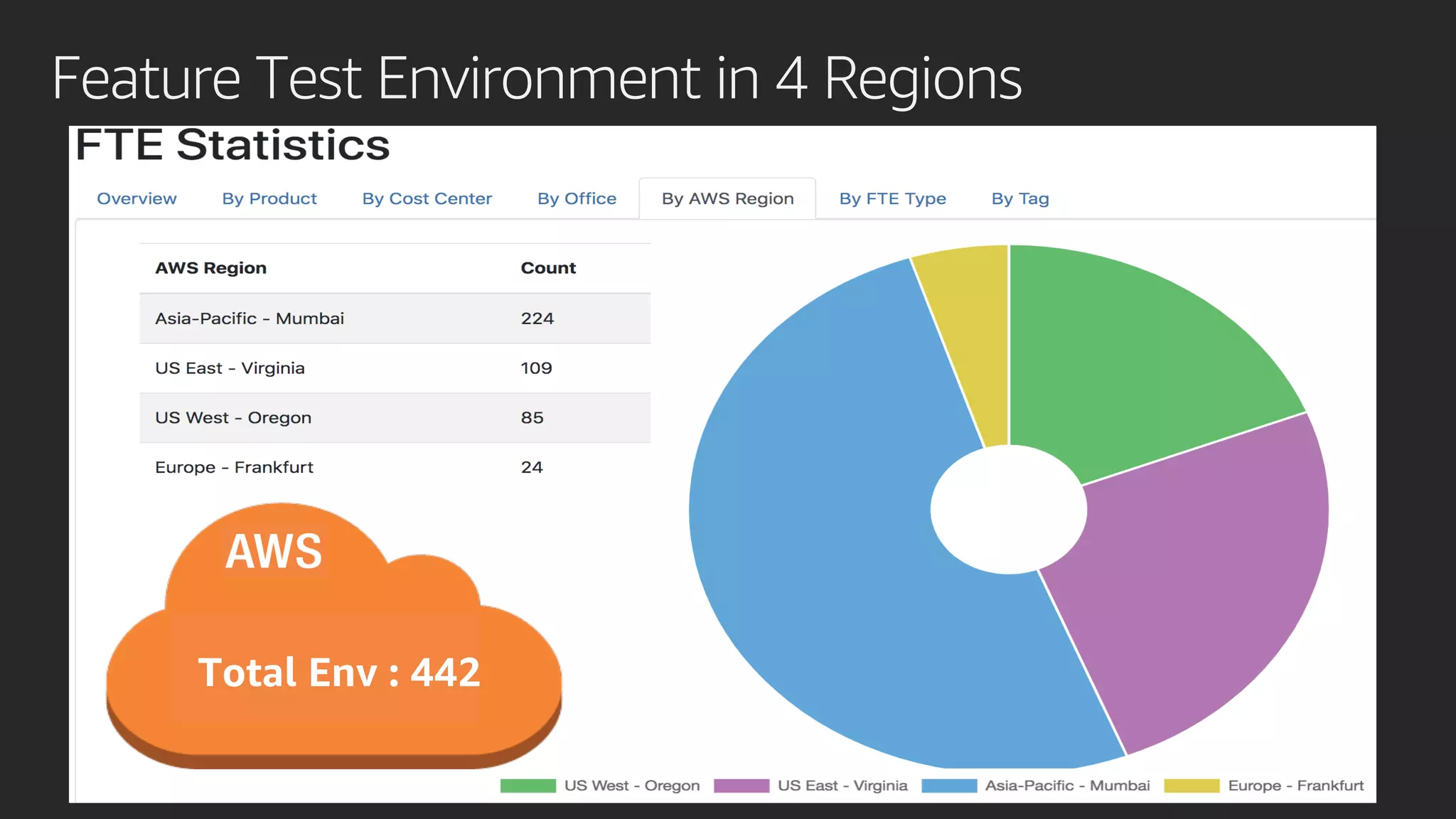

13. Feature Test Environment in 4 Regions
Total Env : 442

14. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

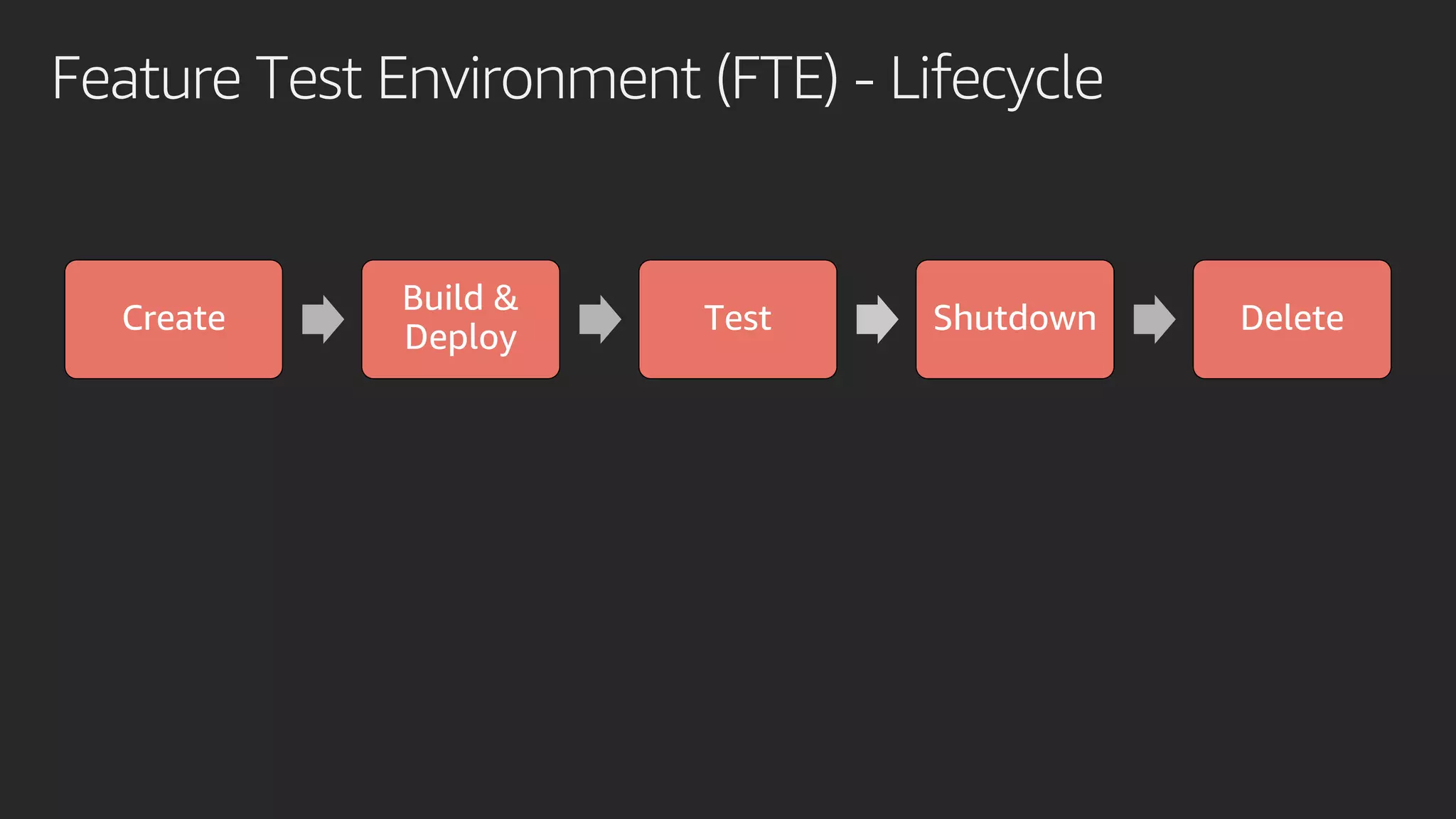

15. Feature Test Environment (FTE) - Lifecycle
Create
Build &
Deploy
Test Shutdown Delete

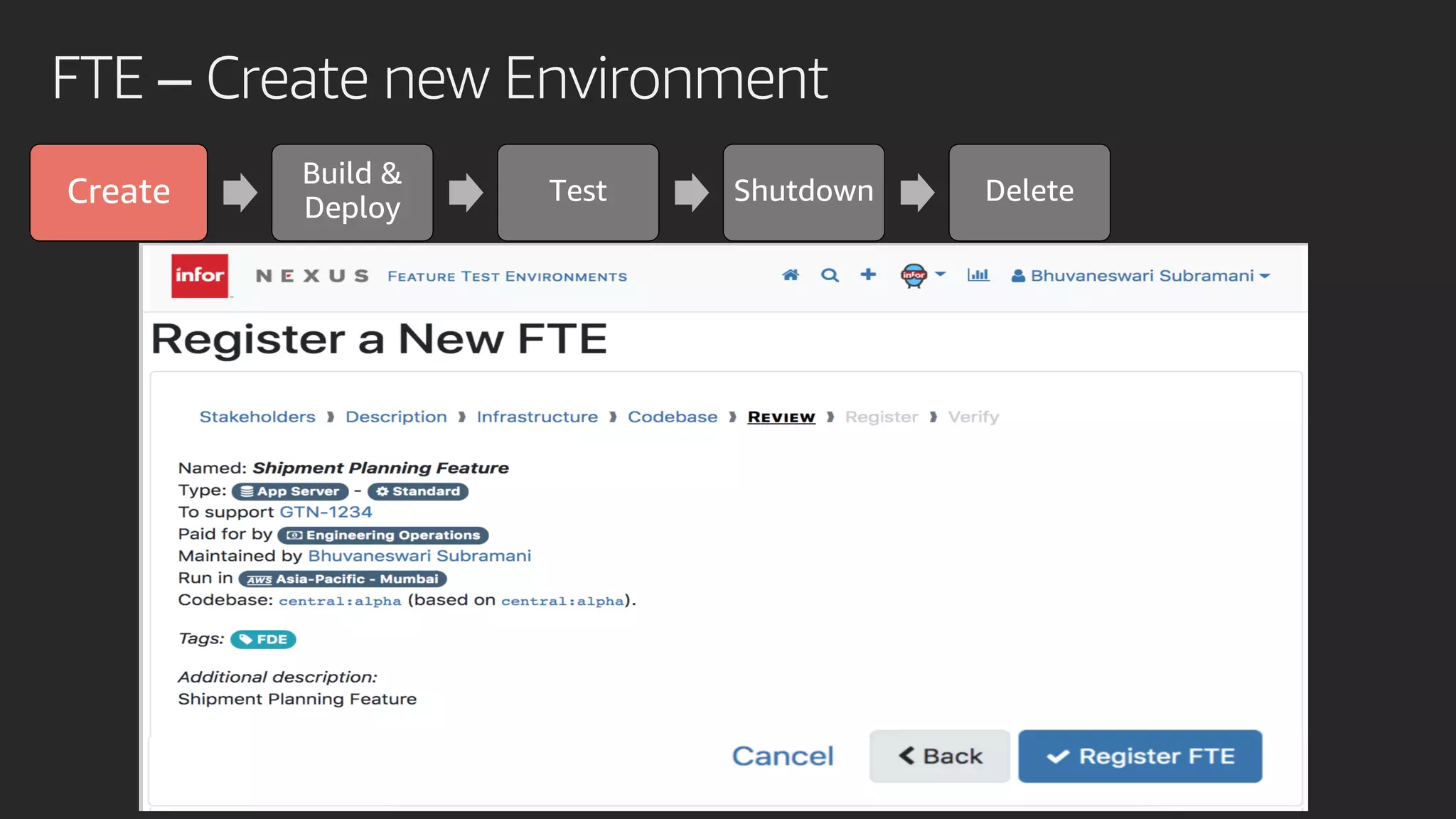

16. FTE – Create new Environment
Create
Build &
Deploy
Test Shutdown Delete
Power
Down
Launch

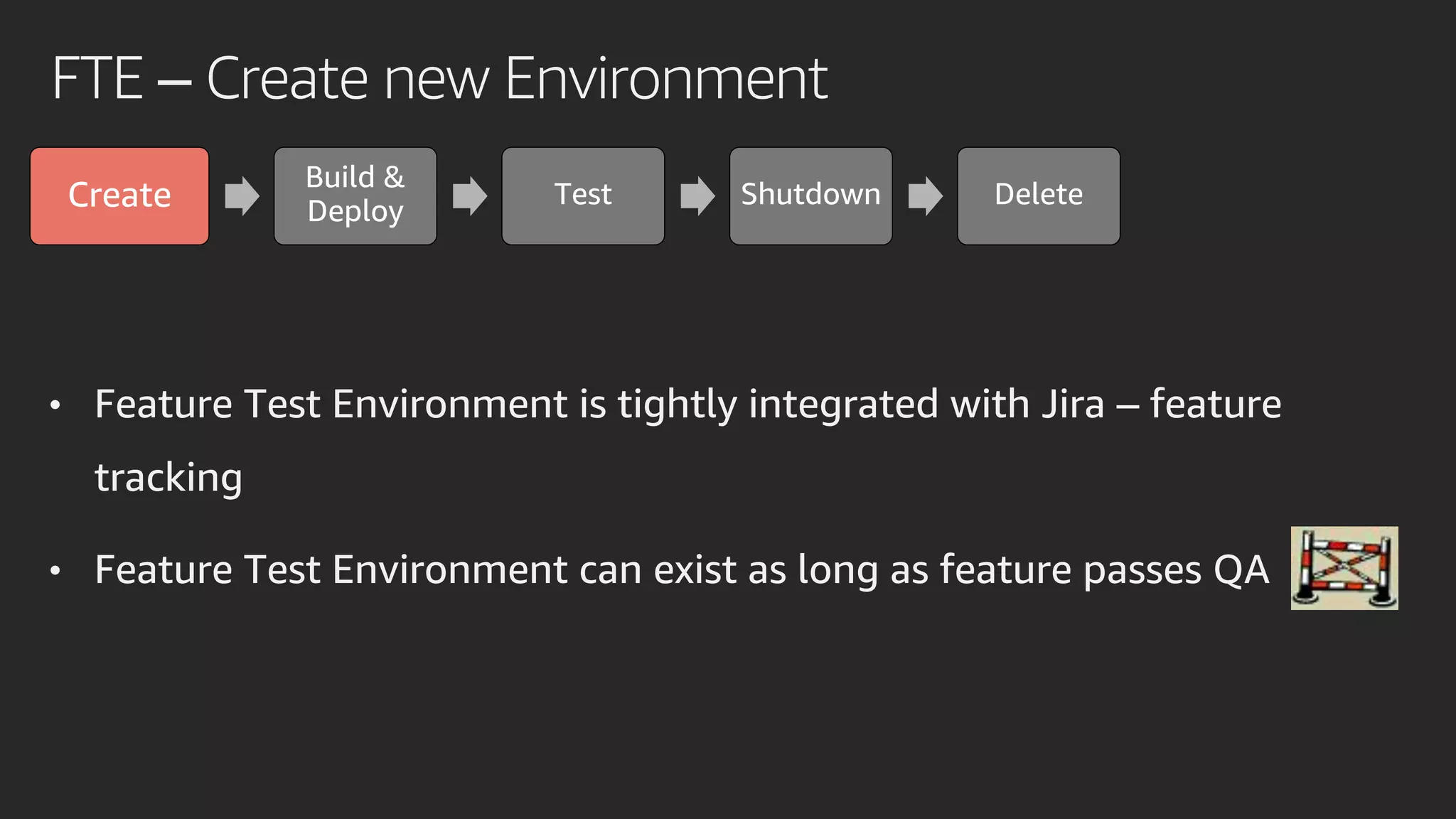

17. FTE – Create new Environment
Create
Build &
Deploy
Test Shutdown Delete
• Feature Test Environment is tightly integrated with Jira – feature
tracking
• Feature Test Environment can exist as long as feature passes QA

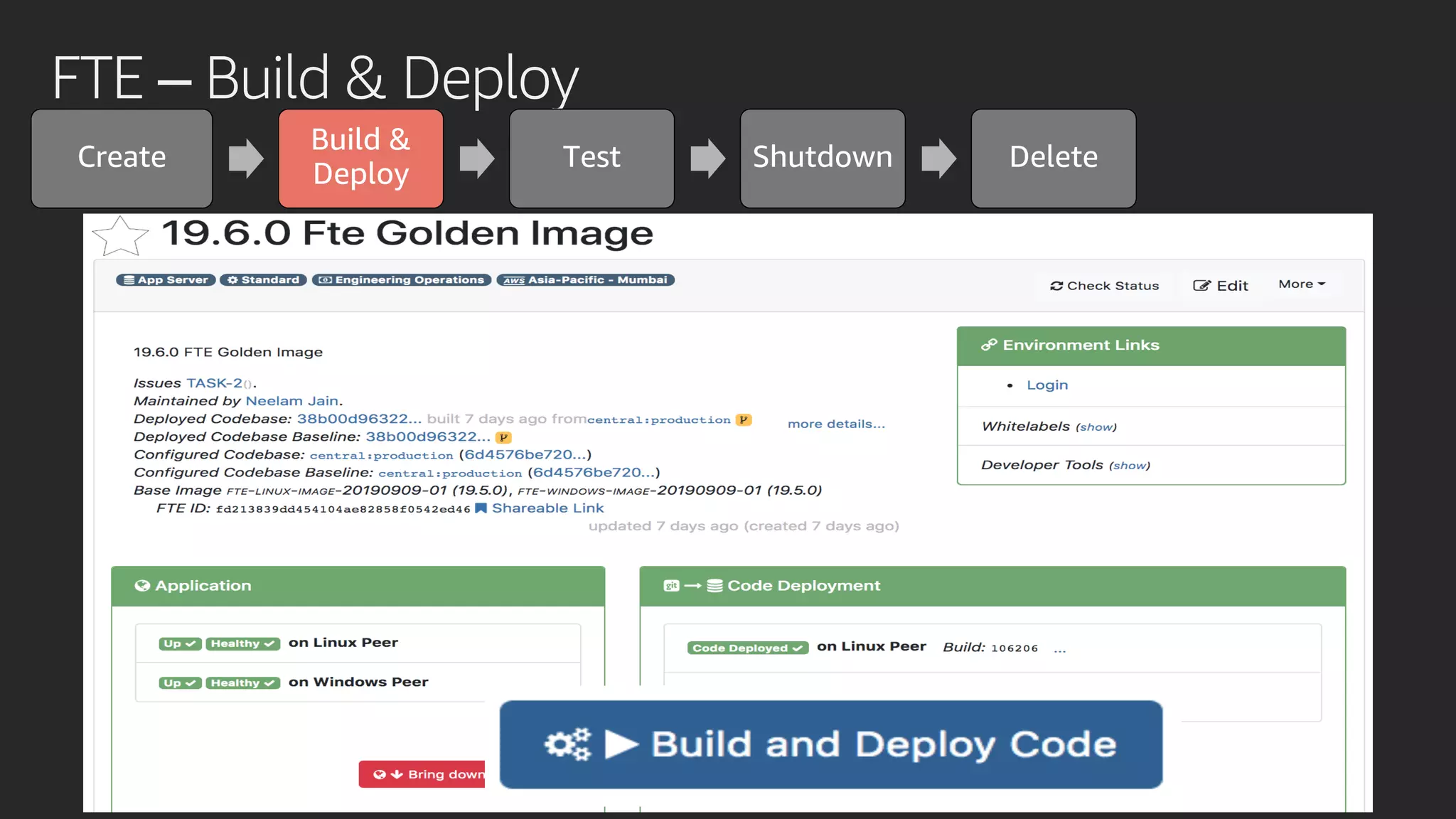

18. FTE – Build & Deploy
Create
Build &
Deploy
Test Shutdown Delete

19. Create
Build &
Deploy
Test Shutdown Delete
FTE – Built-In Test Automation

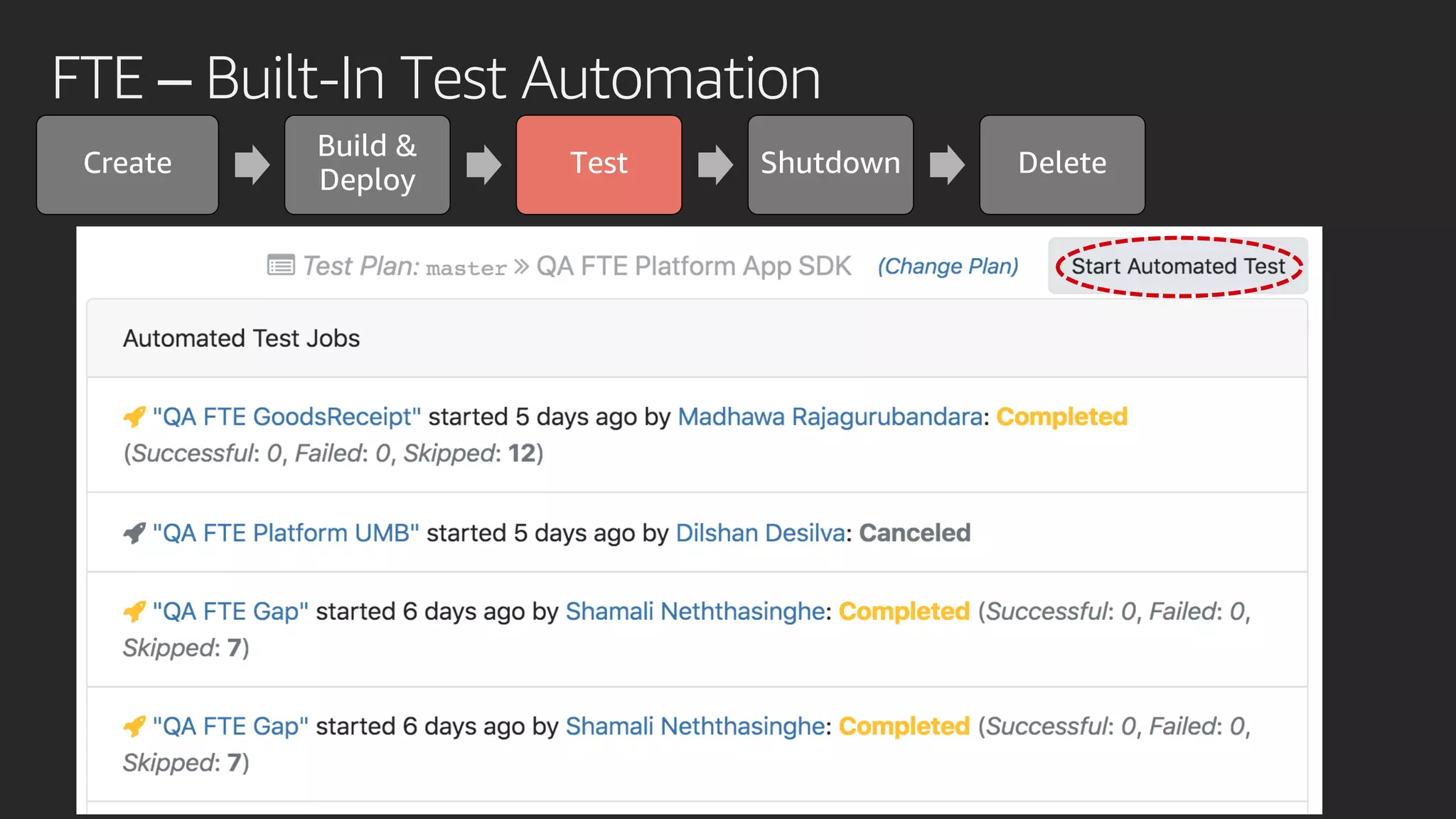

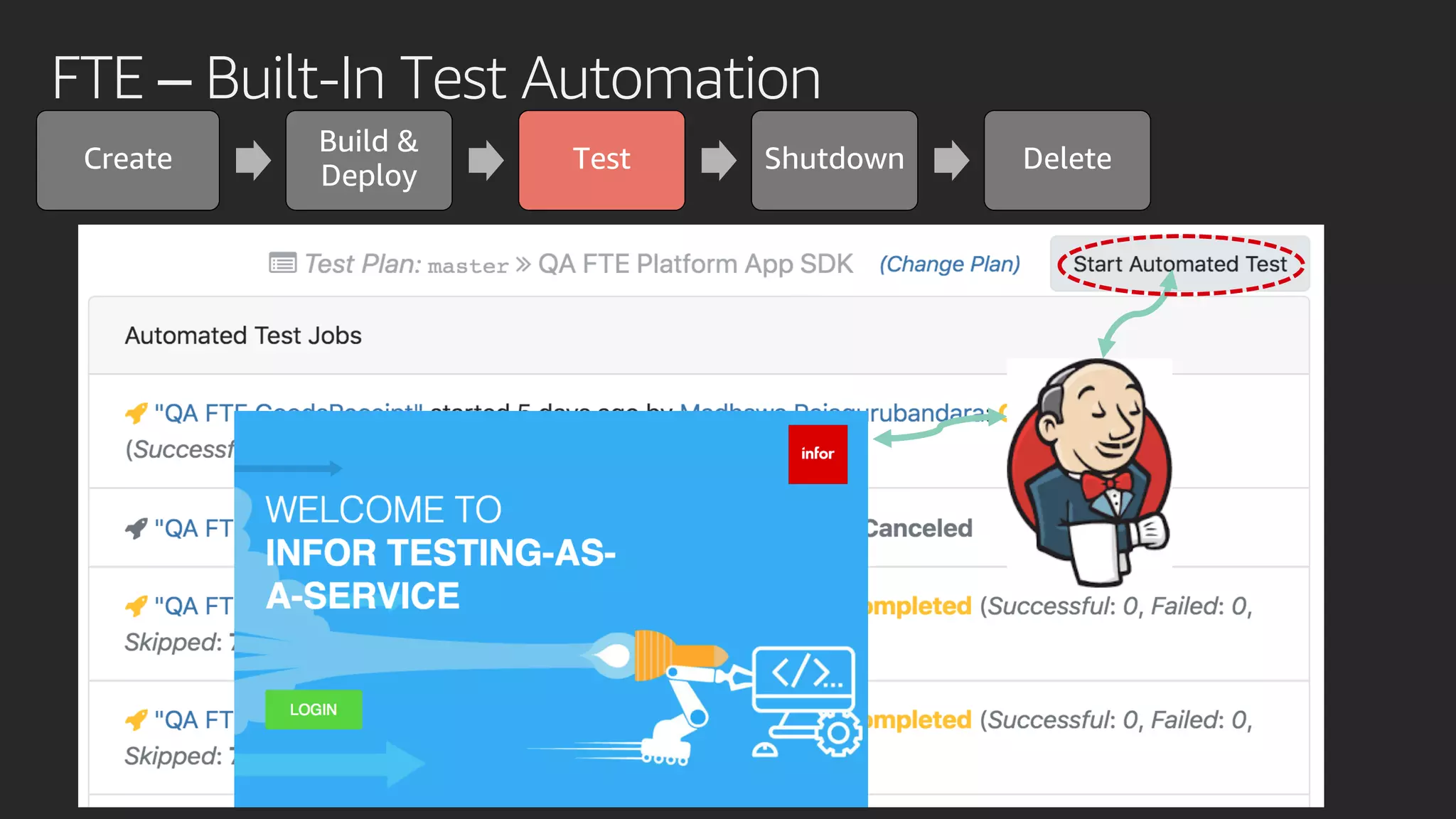

20. Create
Build &
Deploy
Test Shutdown Delete
FTE – Built-In Test Automation

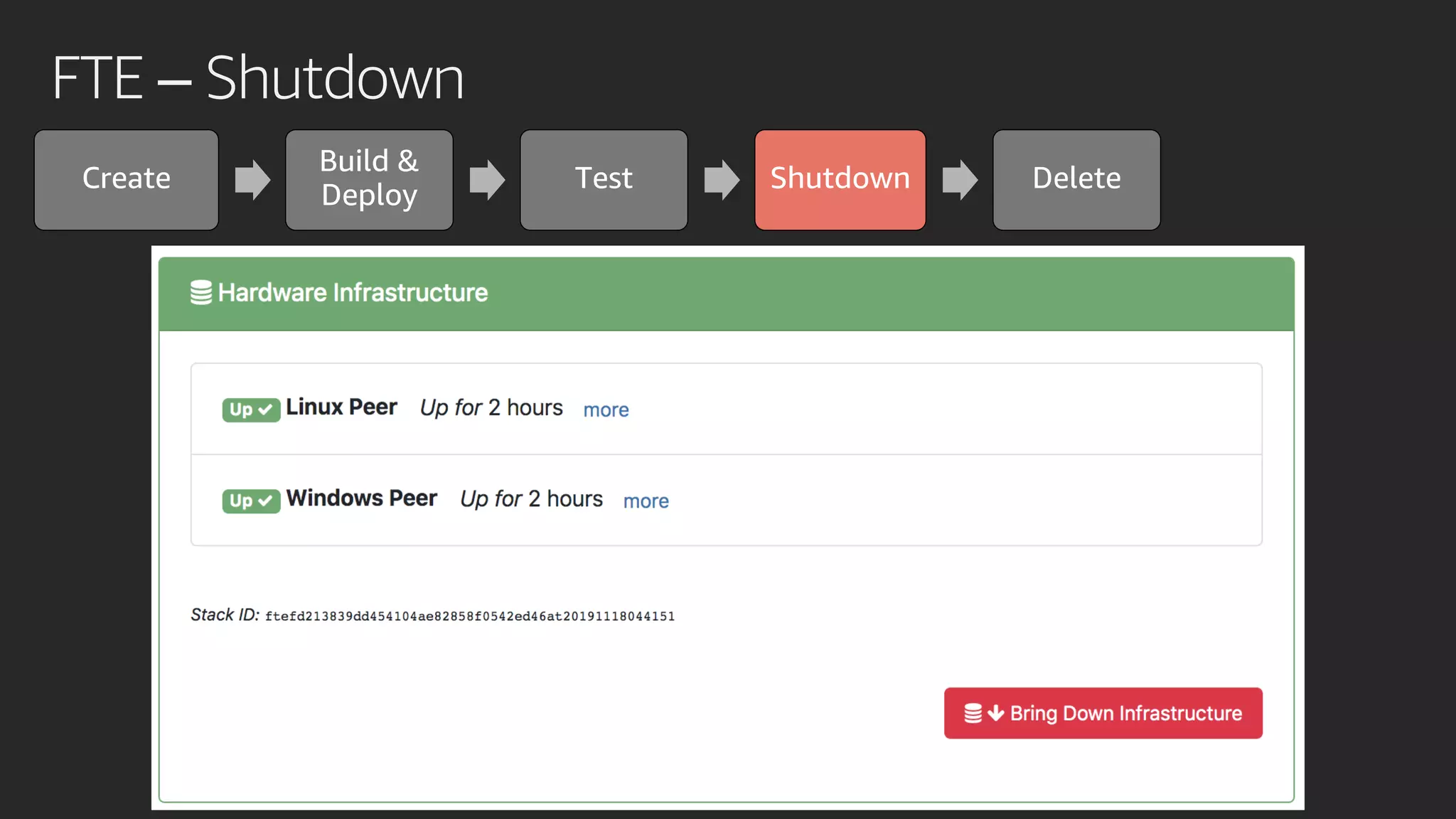

21. FTE – Shutdown
Create
Build &
Deploy
Test Shutdown Delete

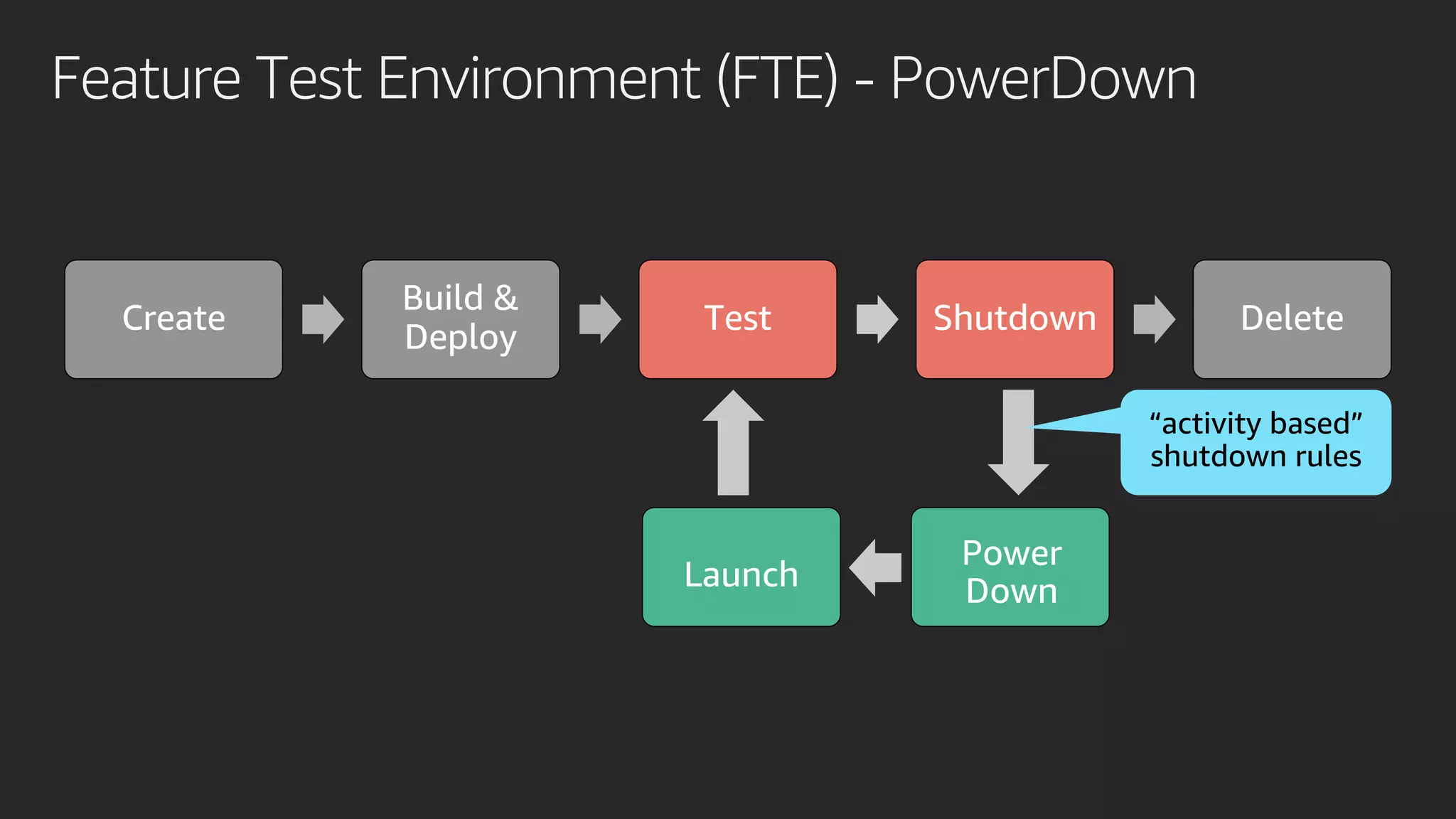

22. Feature Test Environment (FTE) - PowerDown
Create
Build &
Deploy
Test Shutdown Delete
Power
DownLaunch
“activity based”
shutdown rules

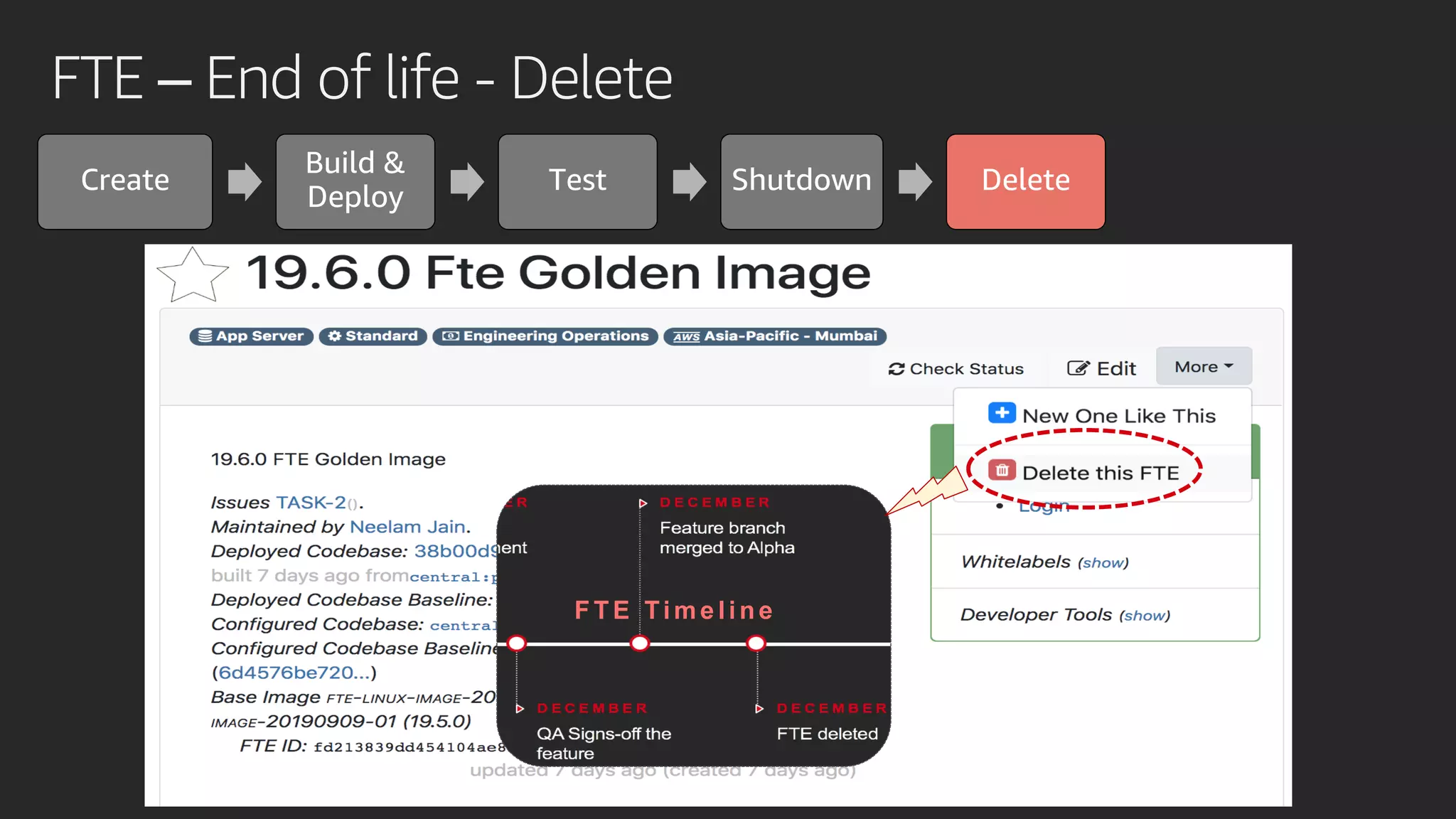

23. FTE – End of life - Delete
Create
Build &
Deploy
Test Shutdown Delete
F T E Time lin e

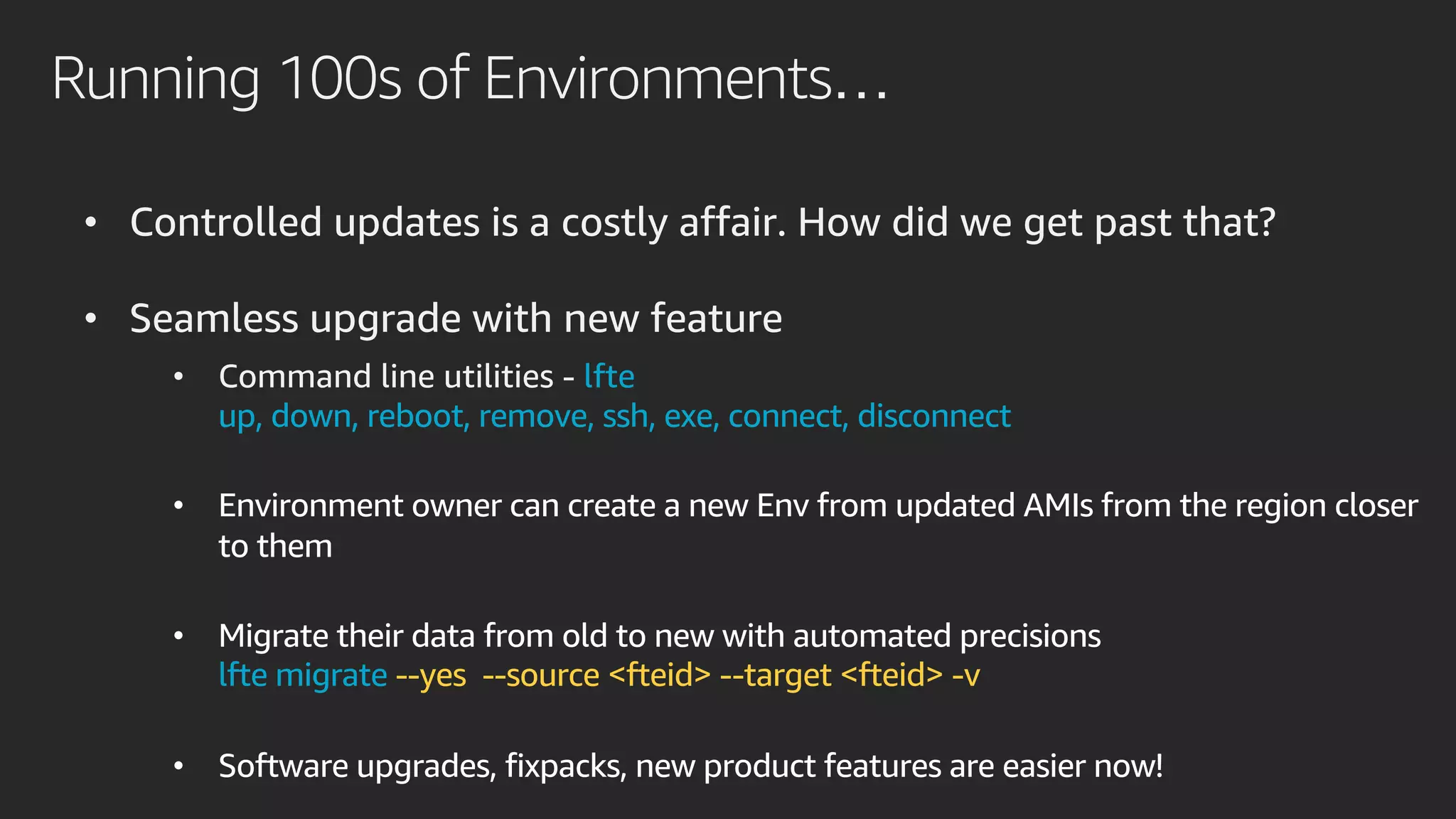

24. Running 100s of Environments…
• Controlled updates is a costly affair. How did we get past that?
• Seamless upgrade with new feature
• Command line utilities - lfte
up, down, reboot, remove, ssh, exe, connect, disconnect
• Environment owner can create a new Env from updated AMIs from the region closer
to them
• Migrate their data from old to new with automated precisions
lfte migrate --yes --source <fteid> --target <fteid> -v
• Software upgrades, fixpacks, new product features are easier now!

25. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

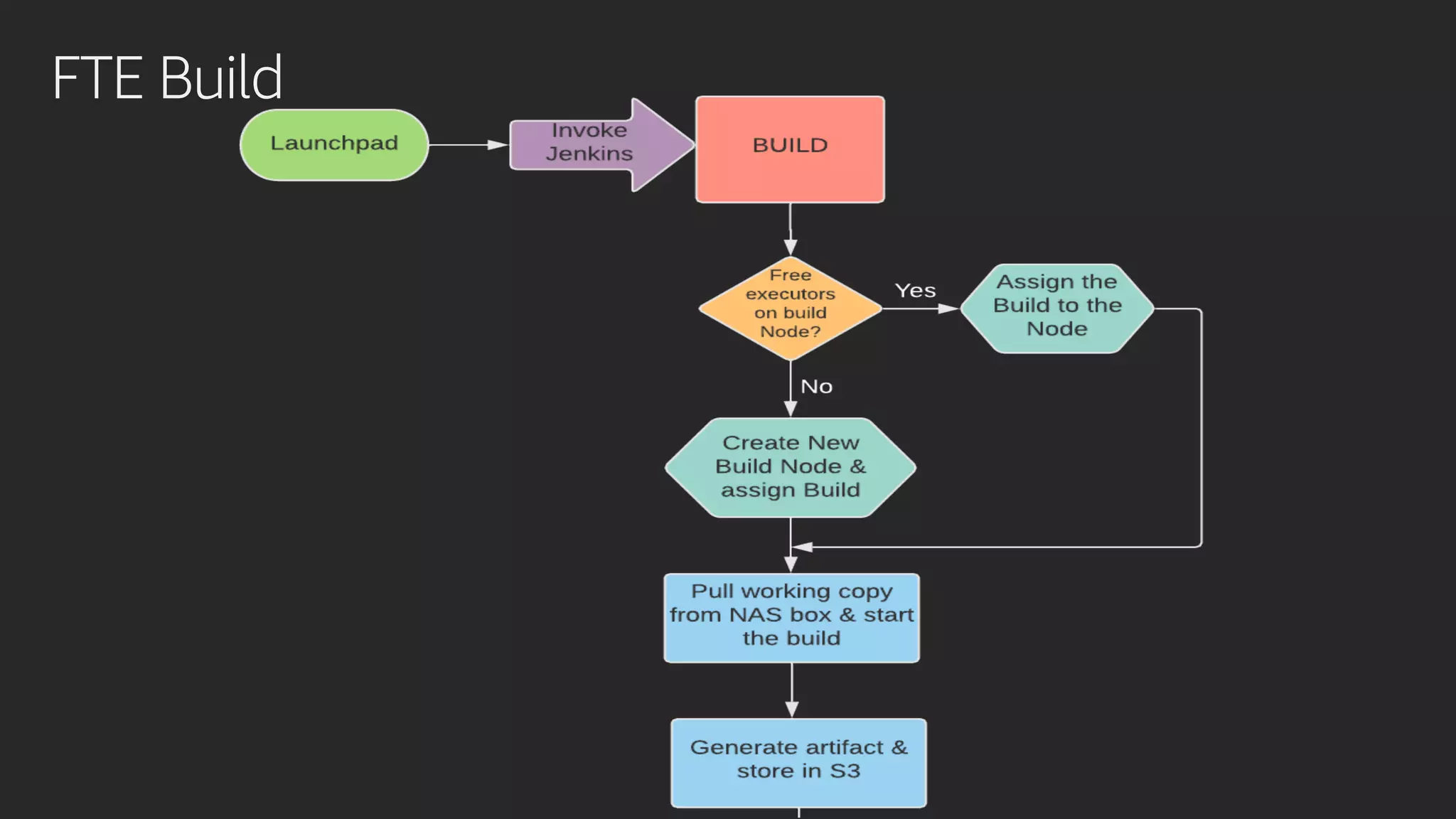

26. FTE Build

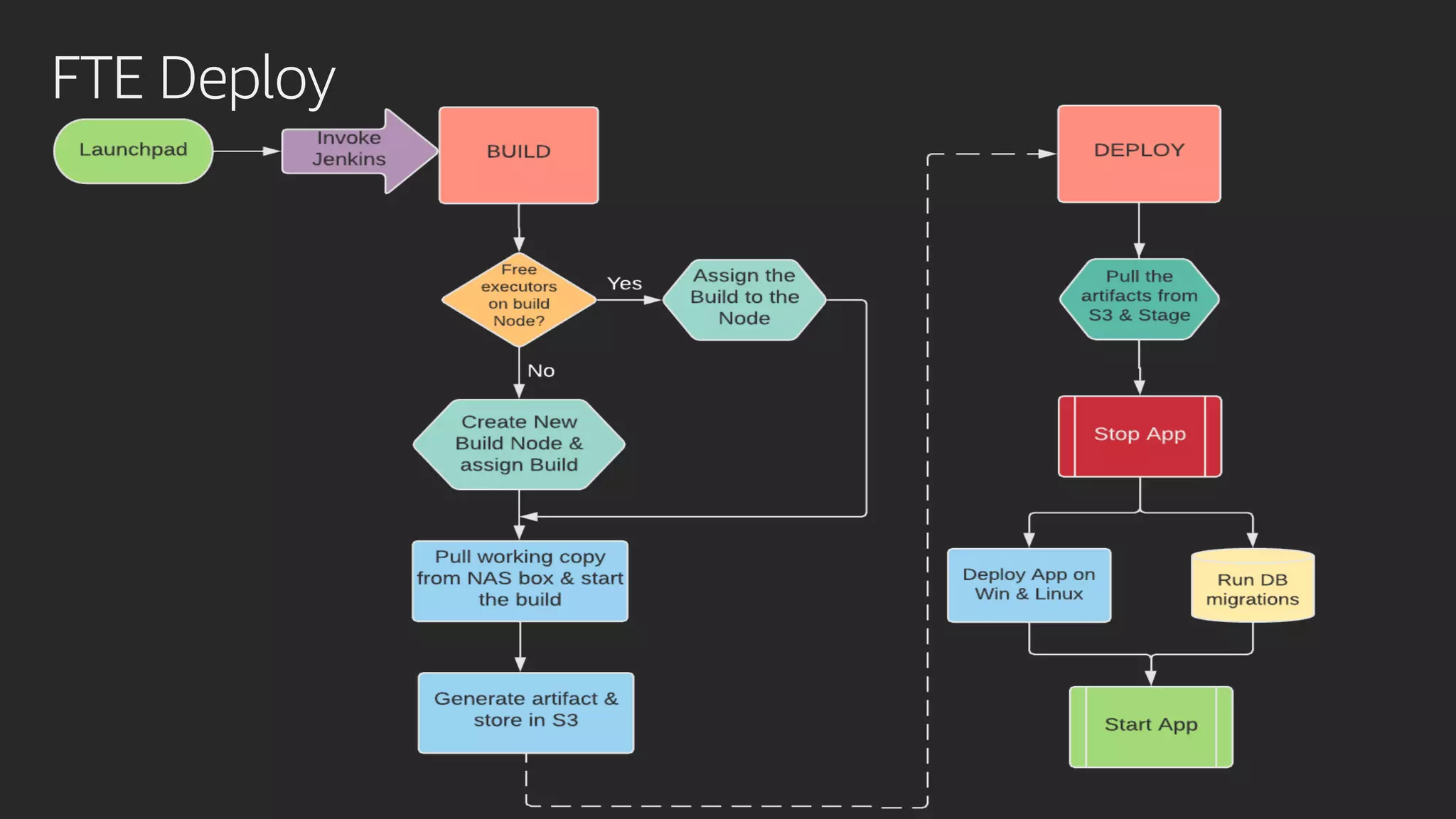

27. FTE Deploy

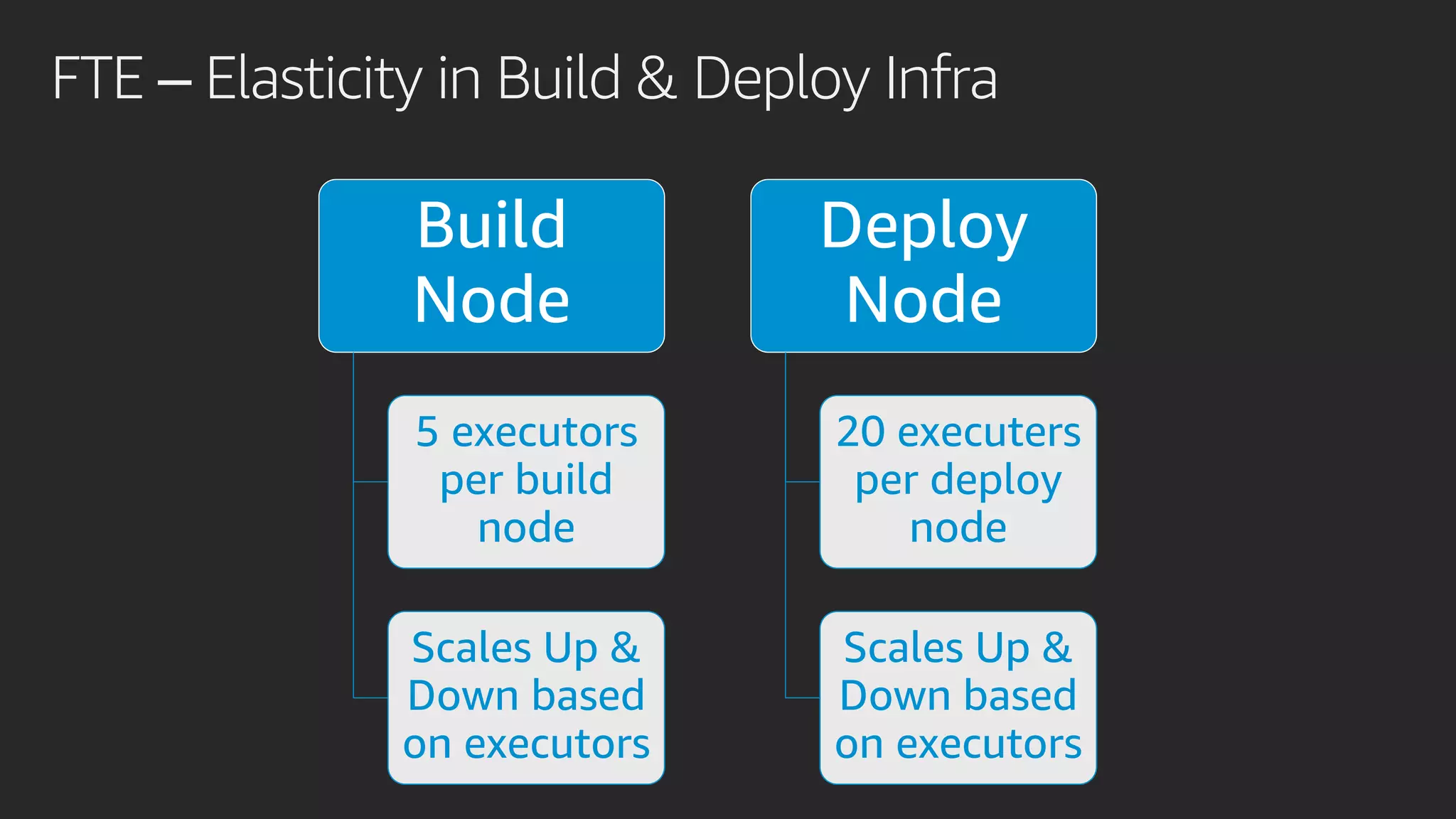

28. FTE – Elasticity in Build & Deploy Infra
Build
Node
5 executors
per build
node
Scales Up &
Down based
on executors
Deploy
Node
20 executers
per deploy
node
Scales Up &
Down based
on executors

29. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

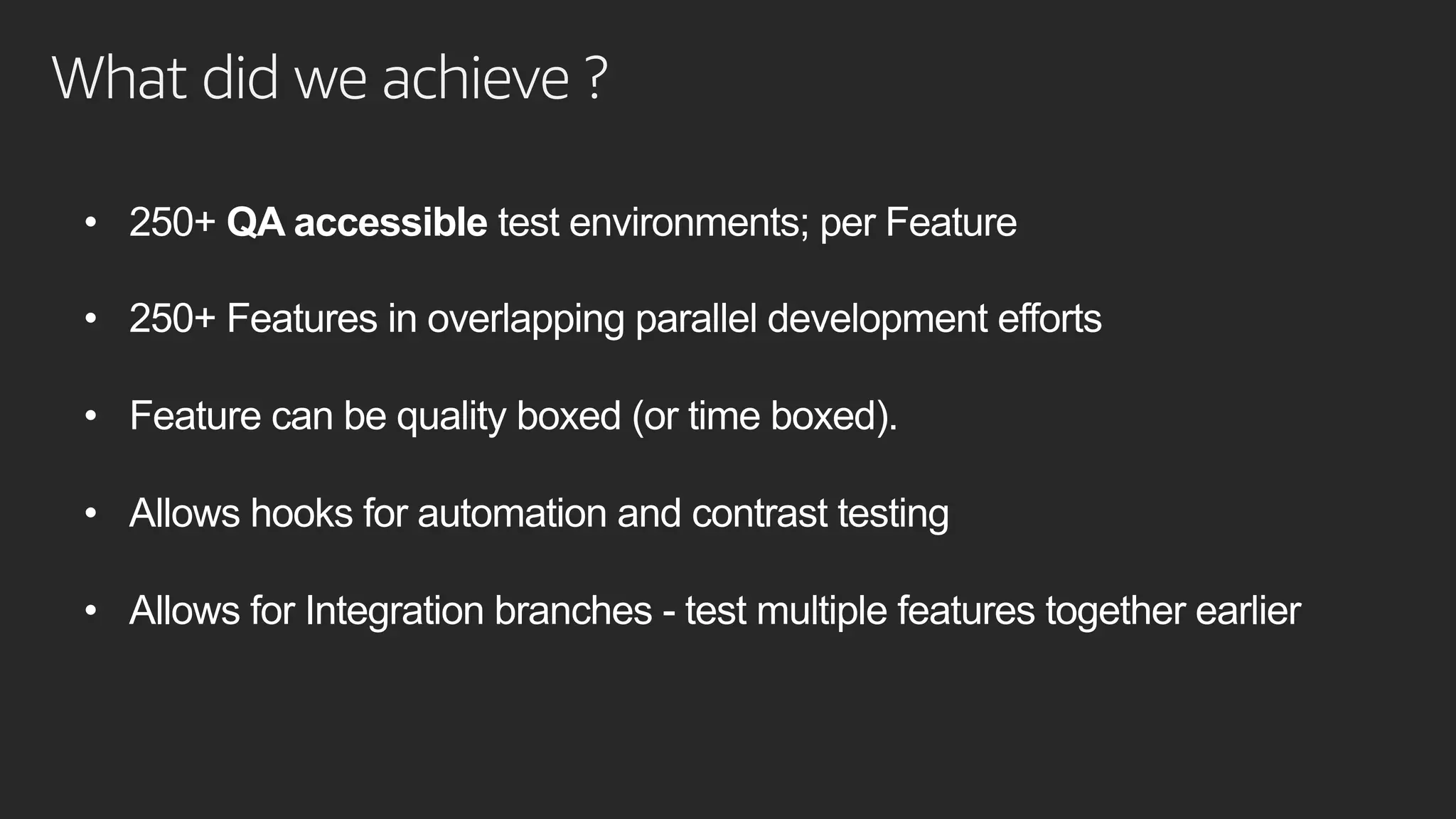

30. What did we achieve ?
• 250+ QA accessible test environments; per Feature
• 250+ Features in overlapping parallel development efforts
• Feature can be quality boxed (or time boxed).
• Allows hooks for automation and contrast testing
• Allows for Integration branches - test multiple features together earlier

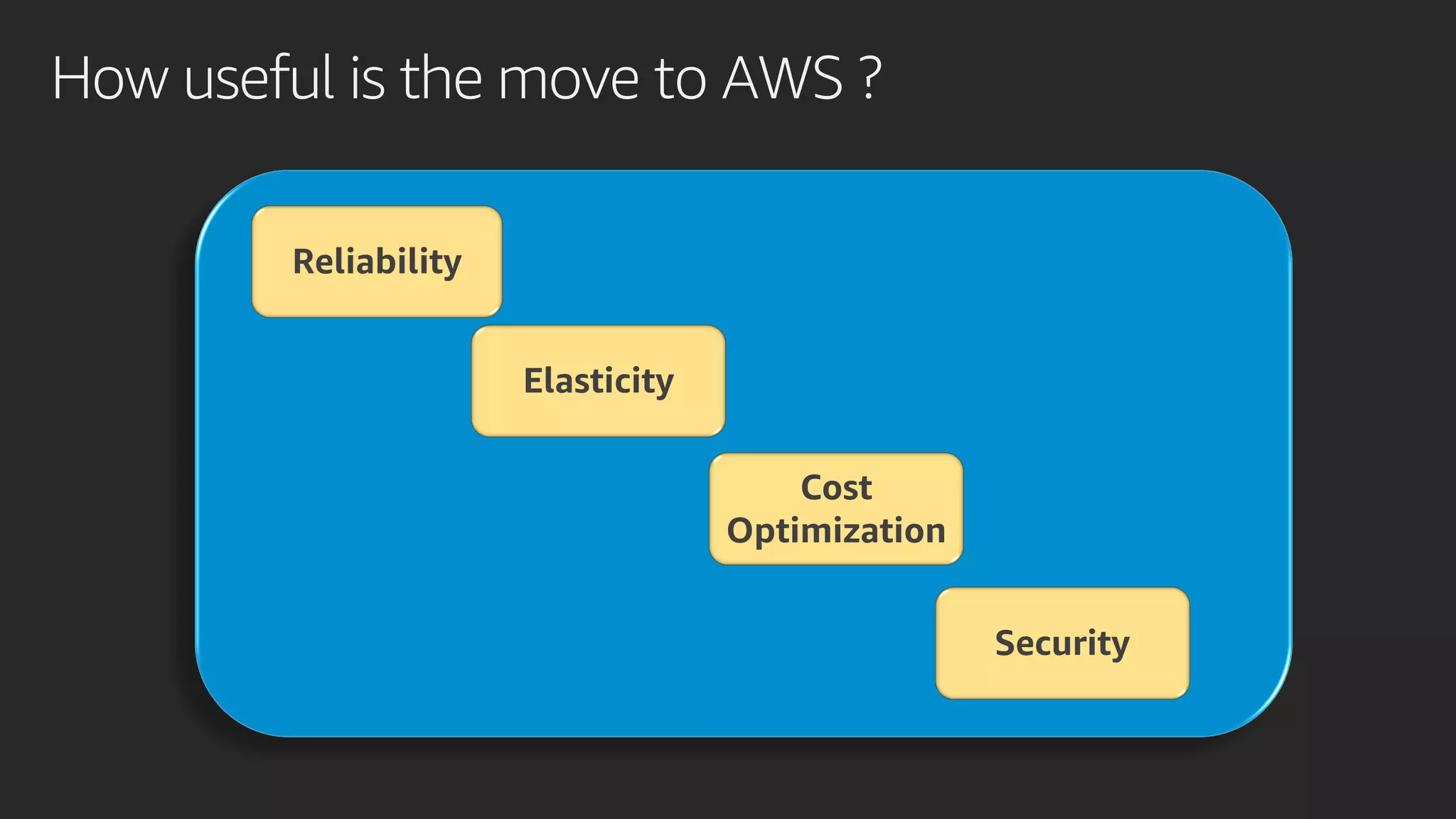

31. How useful is the move to AWS ?
Reliability
Elasticity
Cost
Optimization
Security

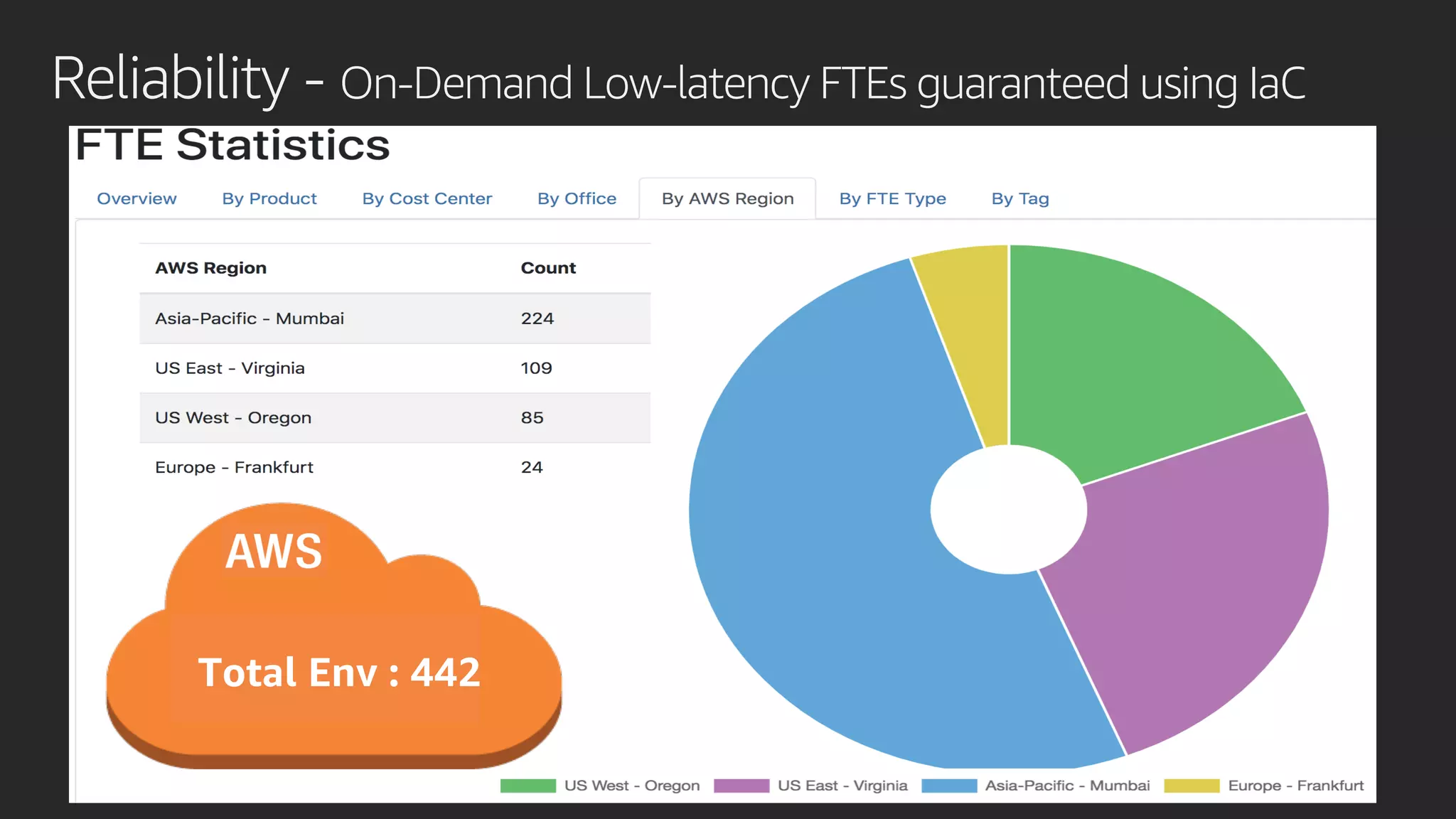

32. Reliability - On-Demand Low-latency FTEs guaranteed using IaC
Total Env : 442

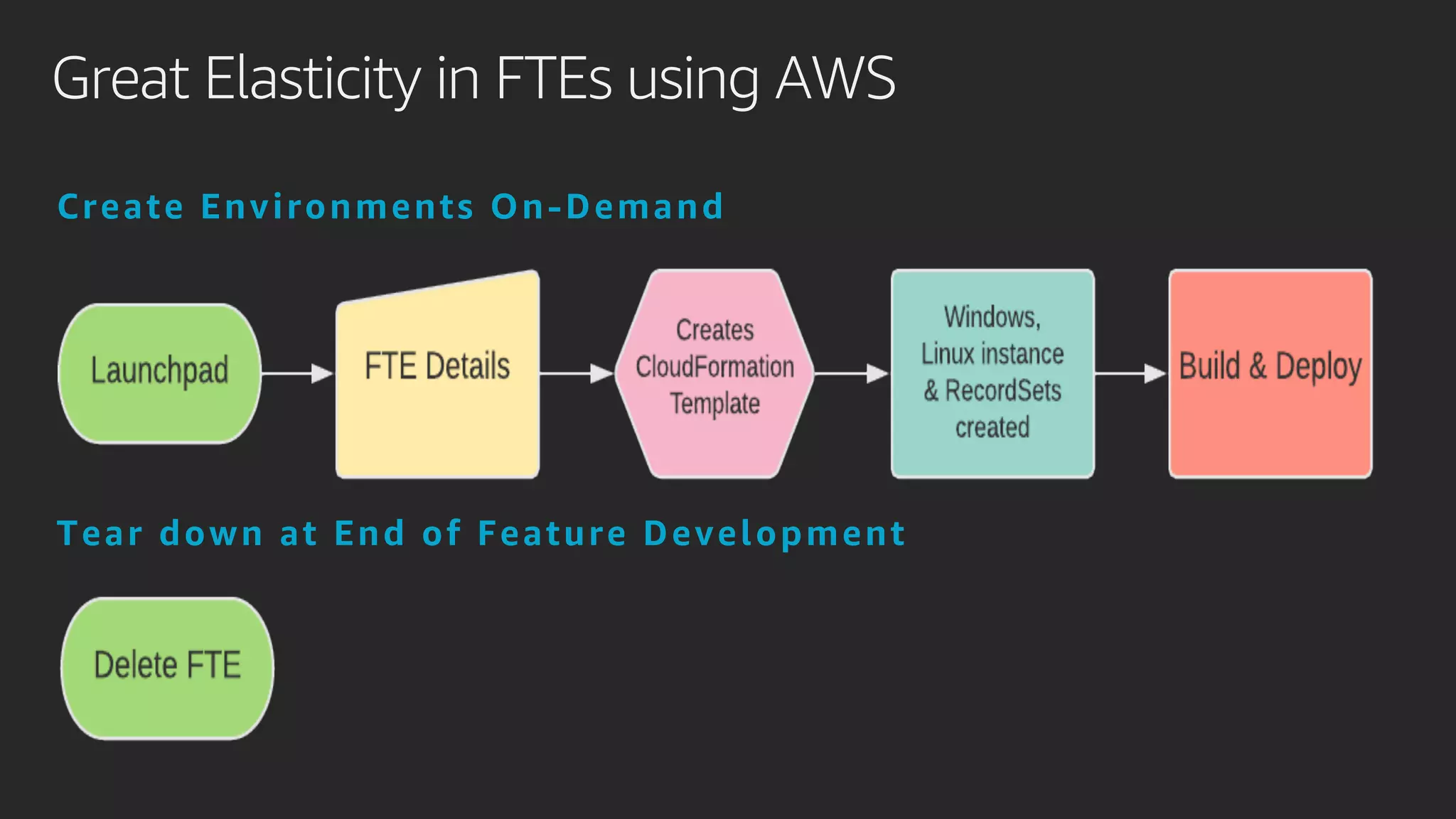

33. Great Elasticity in FTEs using AWS
Create Environments On-Demand
Tear down at End of Feature Development

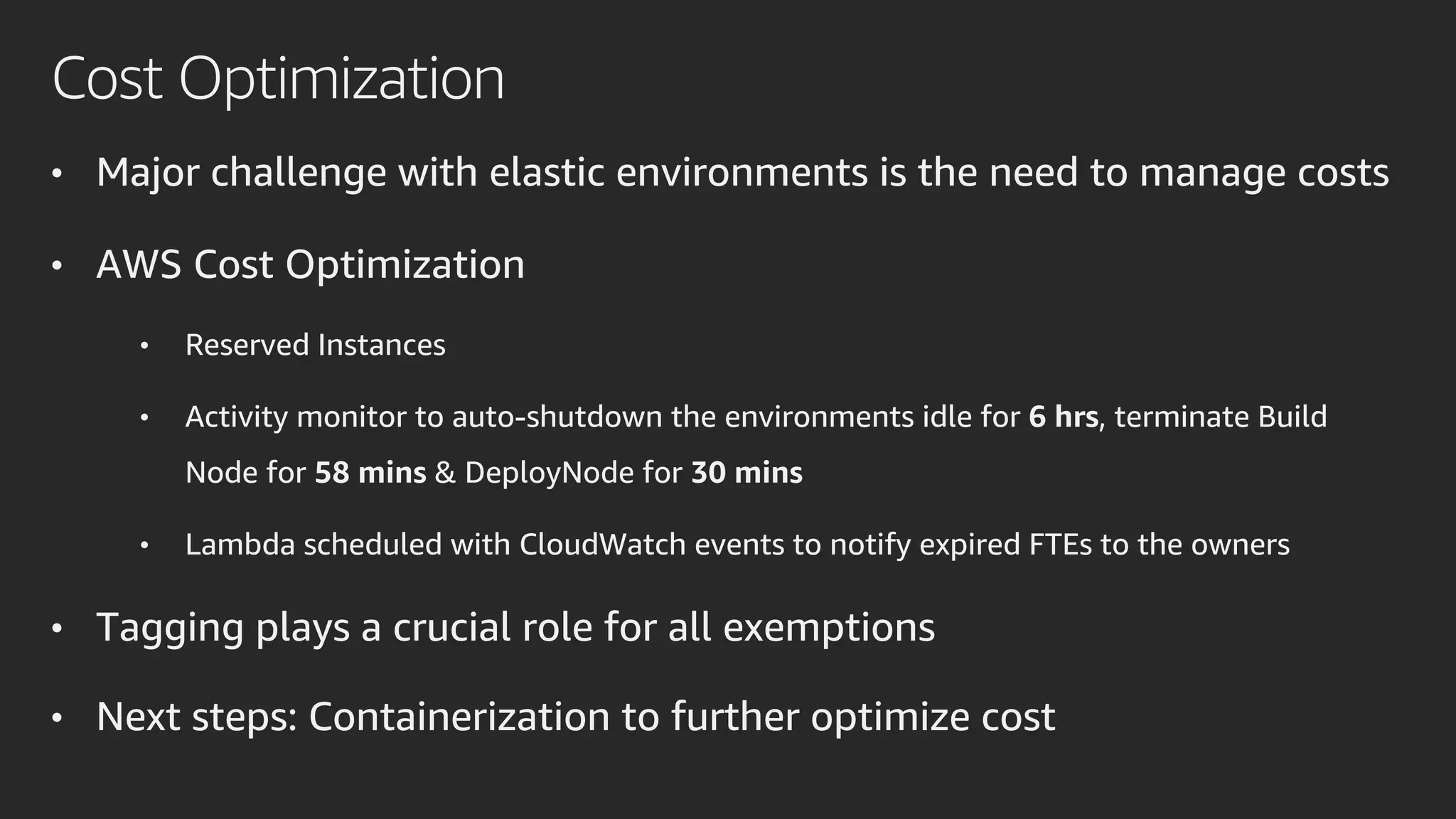

34. Cost Optimization
• Major challenge with elastic environments is the need to manage costs
• AWS Cost Optimization
• Reserved Instances
• Activity monitor to auto-shutdown the environments idle for 6 hrs, terminate Build
Node for 58 mins & DeployNode for 30 mins
• Lambda scheduled with CloudWatch events to notify expired FTEs to the owners
• Tagging plays a crucial role for all exemptions
• Next steps: Containerization to further optimize cost

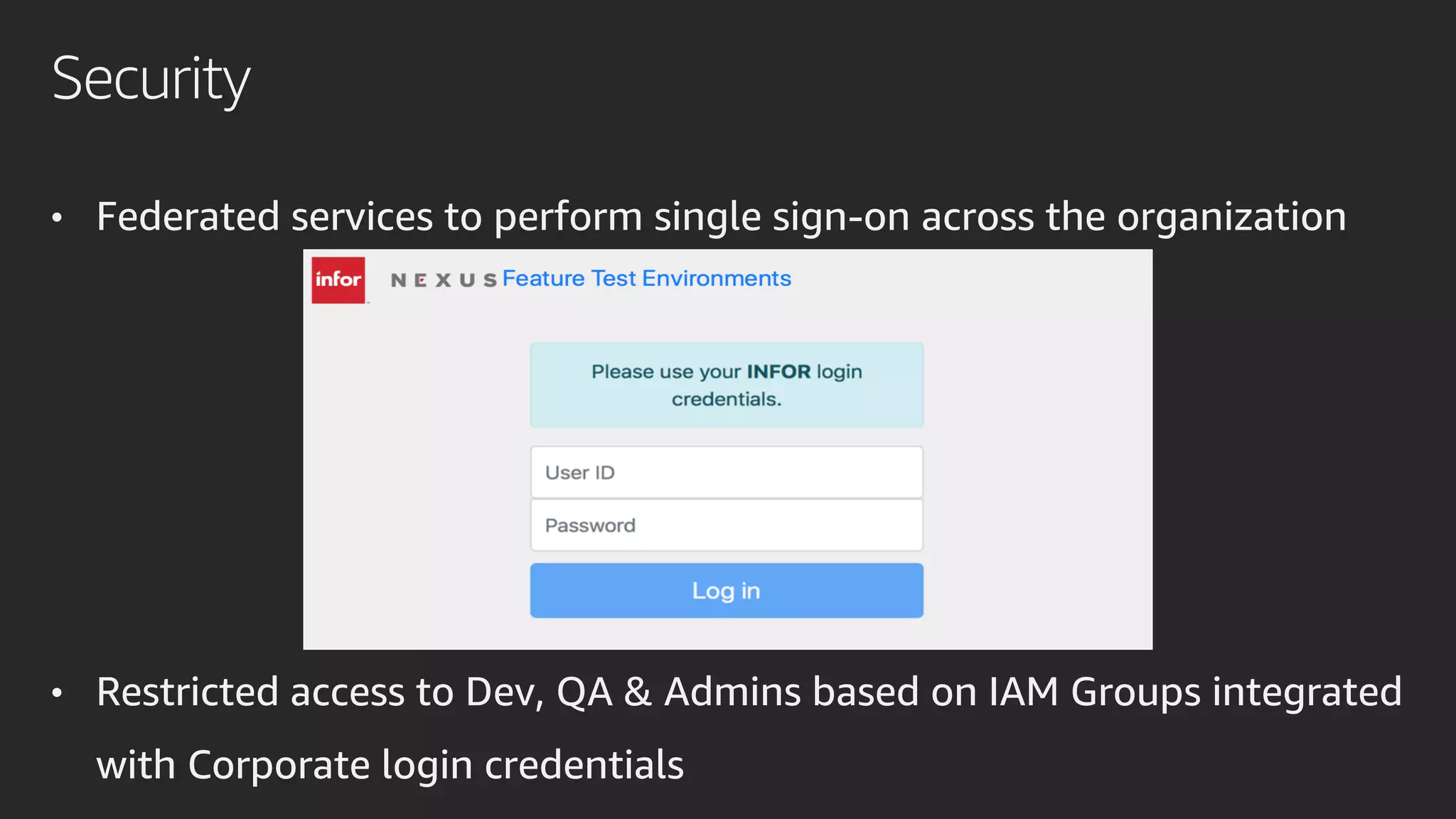

35. Security
• Federated services to perform single sign-on across the organization
• Restricted access to Dev, QA & Admins based on IAM Groups integrated
with Corporate login credentials

36. Thank you!
© 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Bhuvaneswari Subramani
https://www.linkedin.com/in/bhuvanas/
@installjournal

37. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.

38. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
v 2:00 PM - 2:30 PM
Venetian, Level 2, Hall C, Expo, Developer Lounge
When moving to Feature-Driven Development (FDD), with geographically
distributed development centers, it is customary to have a dedicated light
weight environment per feature-development effort and to have robust
automation support for the build and deploy life cycle of each feature branch
at your own will.
In this session, learn about the Feature-Driven Development transition story
of a cloud-based supply chain leader that shows how AWS services helped
provide a highly scalable, elastic, and cost-effective solution to facilitate on-
demand Feature Development Environments supported by an independent
build, deployment, and test-automation framework.
12/3 v DVC14
Transforming to feature-driven
development
Bhuvaneswari Subramani
Director, Engineering Operations
Infor
AWS Community Hero
