The document discusses Infrastructure as Code (IaC) practices on AWS, highlighting the use of tools like AWS CloudFormation, AWS SAM, and AWS CDK. It details how these tools facilitate the management and deployment of cloud infrastructure through version-controlled templates, local development environments, and CI/CD pipelines. Additionally, it emphasizes the benefits of integrating these tools for effective IaC solutions available in the AWS Marketplace.

1. Bengaluru, India
IaC on AWS
Bhuvaneswari Subramani | 21st May 2021
https://bhuvana.pro/
/bhuvanas
@installjournal

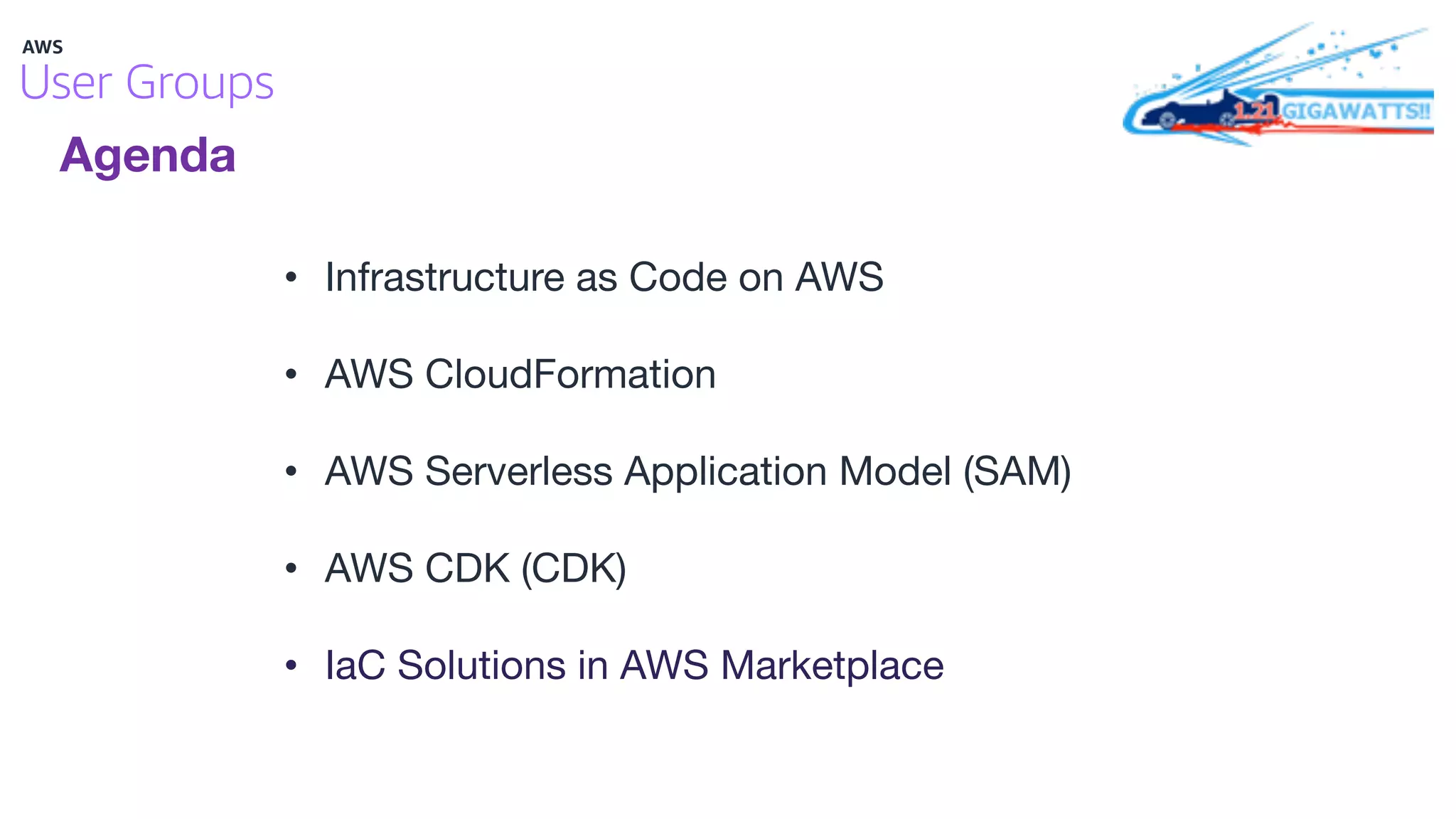

2. Agenda
• Infrastructure as Code on AWS
• AWS CloudFormation
• AWS Serverless Application Model (SAM)
• AWS CDK (CDK)
• IaC Solutions in AWS Marketplace

3. Infrastructure as Code on AWS

4. Managing Infrastructure as Code
SOURCE
Developers
commit changes
BUILD
Changes
are built
STAGING
Code is deployed and
tested
PRODUCTION
Developers commit
changes
AWS CodeCommit AWS CodeBuild Third Party Tooling AWS CodeDeploy
AWS CodePipeline
AWS CodeDeploy

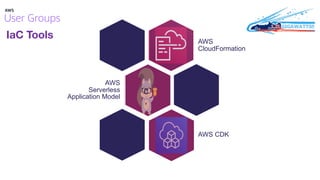

5. IaC Tools AWS
CloudFormation
AWS
Serverless
Application Model
AWS CDK
c

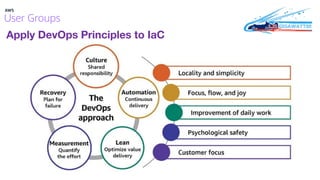

6. Apply DevOps Principles to IaC

7. AWS CloudFormation

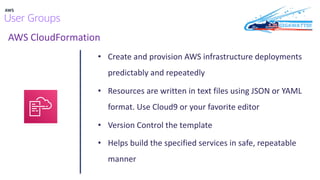

8. AWS CloudFormation
• Create and provision AWS infrastructure deployments
predictably and repeatedly
• Resources are written in text files using JSON or YAML
format. Use Cloud9 or your favorite editor
• Version Control the template
• Helps build the specified services in safe, repeatable
manner

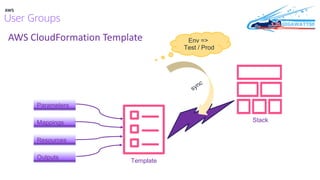

9. AWS CloudFormation Template
Stack
Parameters
Mappings
Resources
Outputs
Template
Parameter
Values
Create /
Update
sync
Env =>
Test / Prod

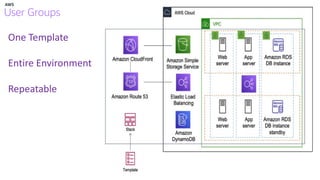

10. One Template
Entire Environment
Repeatable

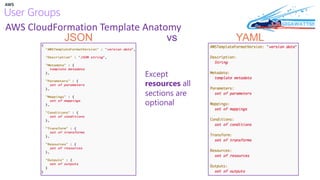

11. AWS CloudFormation Template Anatomy
JSON vs YAML
Except
resources all
sections are
optional

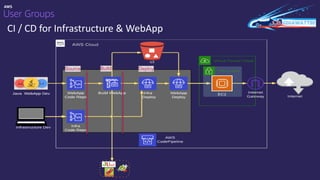

12. CI / CD for Infrastructure & WebApp
Source Build Deploy

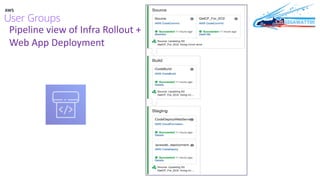

13. Pipeline view of Infra Rollout +
Web App Deployment

14. AWS Serverless Application Model
(SAM)
c

15. AWS Serverless Application Model
• AWS CloudFormation extension, optimized for serverless
• AWS SAM is supported directly by AWS CloudFormation
• YAML or JSON
• Supported Resources
• Api, Application, Function, HttpApi, LayerVersion, SimpleTable,
StateMachine
c

16. AWS SAM Template Anatomy
• Transform declaration
Transform: AWS::Serverless-2016-10-31
• Globals section
AWS::Serverless::Function, AWS::Serverless::Api, etc.
• Resources section
Combination of CloudFormation & AWS SAM resources
• Parameters section
Objects declared in Parameters section cause SAM deploy

17. AWS SAM CLI
• CLI tool for local development, debugging, testing, deploying, and monitoring of
serverless applications
• Supports API Gateway “proxy-style” and Lambda service API testing
• Response object and function logs available on your local machine
• Uses open-source docker-lambda images to mimic Lambda’s execution environment
• Can tail production logs from CloudWatch logs
• Can help you build in native dependencies

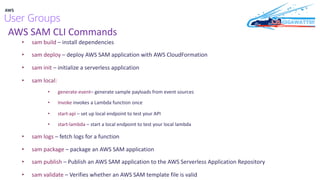

18. AWS SAM CLI Commands
• sam build – install dependencies
• sam deploy – deploy AWS SAM application with AWS CloudFormation
• sam init – initialize a serverless application
• sam local:
• generate-event– generate sample payloads from event sources
• Invoke invokes a Lambda function once
• start-api – set up local endpoint to test your API
• start-lambda – start a local endpoint to test your local lambda
• sam logs – fetch logs for a function
• sam package – package an AWS SAM application
• sam publish – Publish an AWS SAM application to the AWS Serverless Application Repository
• sam validate – Verifies whether an AWS SAM template file is valid

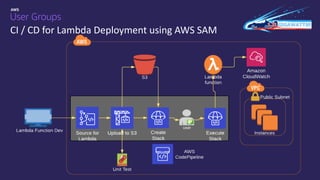

19. CI / CD for Lambda Deployment using AWS SAM

20. AWS CDK (CDK)

21. AWS CDK
• AWS CDK to define your cloud resources in a familiar
programming language
• AWS CDK supports TypeScript, JavaScript, Python, Java,
C#/.Net, and (in developer preview) Go
• Define reusable cloud components known as Constructs
• Compose Constructs together into Stacks and Apps

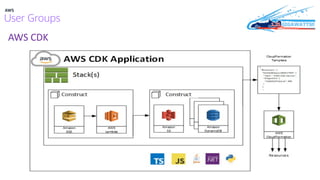

22. AWS CDK

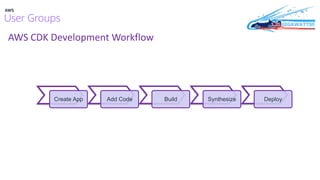

23. AWS CDK Development Workflow
Create App Add Code Build Synthesize Deploy

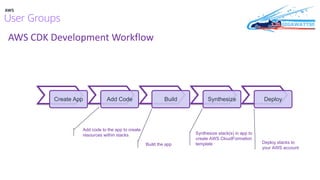

24. AWS CDK Development Workflow
Create App Add Code Build Synthesize Deploy
Add code to the app to create
resources within stacks
Build the app
Synthesize stack(s) in app to
create AWS CloudFormation
template Deploy stacks to
your AWS account

25. AWS CDK Toolkit
The AWS CDK Toolkit is a command line tool for interacting with CDK apps
• cdk lists (ls) – Lists the stacks in the app
• cdk synthesize (synth) – Synthesizes and prints the CloudFormation template for the specified
stack(s)
• cdk bootstrap – Deploys the CDK Toolkit stack
• cdk deploy - Deploys the specified stack(s)
• cdk destroy - Destroys the specified stack(s)
• cdk diff – Compares the stack with deployed or local CloudFormation template
• cdk metadata – Displays metadata about the specified stack
• cdk init – Creates a new CDK project in the current directory from a specified template
• cdk context - Manages cached context values
• cdk docs (doc) – Opens the CDK API reference in your browser
• cdk doctor - Checks your CDK project for potential problems

26. IaC Solutions in AWS Marketplace

27. IaC Solutions in AWS Marketplace

28. Key benefits of using solutions from AWS Marketplace

29. Key Take Aways AWS
CloudFormation
AWS
Serverless
Application Model
AWS CDK
c
Better together: AWS SAM and AWS CDK

30. Let’s Orchestrate IaC
