The document outlines AVReporter, an energy management software designed to enhance energy efficiency through continuous monitoring and reporting. It features real-time data visualization, complex reporting capabilities, and support for various systems, enabling organizations to reduce energy costs and emissions, comply with ISO 50001, and easily manage energy consumption data. The software is modular, scalable, and customizable, making it suitable for diverse clients from small businesses to multinational corporations.

1. www.konsys-international.com

2. What is the Energy Management?
Energy Management-
Continuous Improvement of energy efficiency
•Monitor and measure processes: collection of measurement data
•Analysis by the different departments concerned: production, maintenance,
accounting, site management, etc.
•Take actions to continually improve energy performance…etc.
AVReporter
Energy Management and
Monitoring

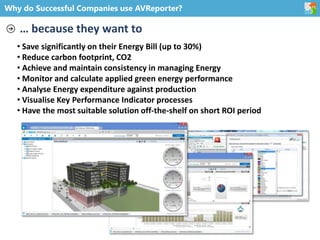

3. Why do Successful Companies use AVReporter?
… because they want to
• Save significantly on their Energy Bill (up to 30%)
• Reduce carbon footprint, CO2
• Achieve and maintain consistency in managing Energy
• Monitor and calculate applied green energy performance
• Analyse Energy expenditure against production
• Visualise Key Performance Indicator processes
• Have the most suitable solution off-the-shelf on short ROI period

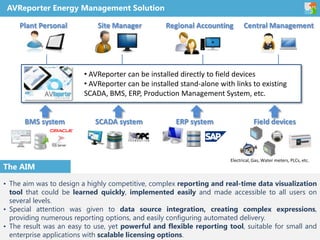

4. • The aim was to design a highly competitive, complex reporting and real-time data visualization
tool that could be learned quickly, implemented easily and made accessible to all users on
several levels.
• Special attention was given to data source integration, creating complex expressions,
providing numerous reporting options, and easily configuring automated delivery.
• The result was an easy to use, yet powerful and flexible reporting tool, suitable for small and
enterprise applications with scalable licensing options.
AVReporter Energy Management Solution
The AIM
SCADA systemBMS system ERP system Field devices
Electrical, Gas, Water meters, PLCs, etc.
• AVReporter can be installed directly to field devices
• AVReporter can be installed stand-alone with links to existing
SCADA, BMS, ERP, Production Management System, etc.
Plant Personal Site Manager Regional Accounting Central Management

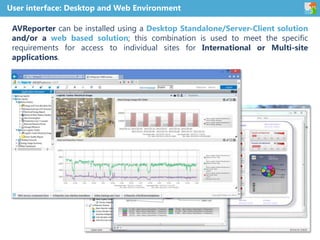

5. AVReporter can be installed using a Desktop Standalone/Server-Client solution
and/or a web based solution; this combination is used to meet the specific
requirements for access to individual sites for International or Multi-site
applications.
User interface: Desktop and Web Environment

6. • there are rigid IT restrictions
• energy management system network is separated from company network
• standalone application is used
User interface: Desktop solution is advised for customers where…
Typical Example

7. • multinational companies, where users create dashboards and reports that can
be scheduled to share with other users
• Multi-User and Security Access Level Management are necessary, each user
with a unique login name and password that manage their access to menus and
features
• where there are lot of clients and users, therefore the complete applications
installation and management would be too difficult

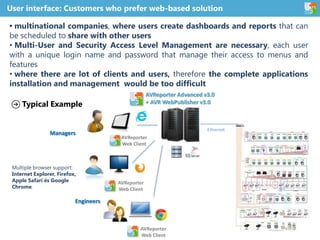

User interface: Customers who prefer web-based solution
Typical Example
Managers
AVReporter
Web Client
AVReporter
Web Client
AVReporter
Web Client
AVReporter Advanced v3.0
+ AVR WebPublisher v3.0
Ethernet
Engineers
Multiple browser support:
Internet Explorer, Firefox,
Apple Safari és Google
Chrome.

8. User interface: web-based visualisation examples

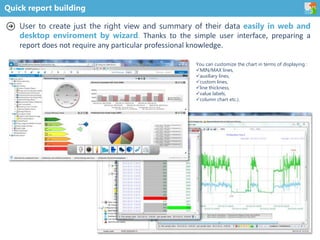

9. Quick report building
User to create just the right view and summary of their data easily in web and
desktop enviroment by wizard. Thanks to the simple user interface, preparing a
report does not require any particular professional knowledge.
You can customize the chart in terms of displaying :
MIN/MAX lines,
auxiliary lines,
custom lines,
line thickness,
value labels,
column chart etc.).

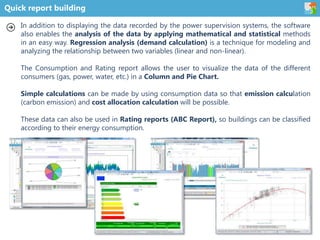

10. Quick report building
In addition to displaying the data recorded by the power supervision systems, the software
also enables the analysis of the data by applying mathematical and statistical methods
in an easy way. Regression analysis (demand calculation) is a technique for modeling and
analyzing the relationship between two variables (linear and non-linear).
The Consumption and Rating report allows the user to visualize the data of the different
consumers (gas, power, water, etc.) in a Column and Pie Chart.
Simple calculations can be made by using consumption data so that emission calculation
(carbon emission) and cost allocation calculation will be possible.
These data can also be used in Rating reports (ABC Report), so buildings can be classified
according to their energy consumption.

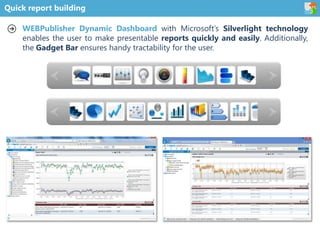

11. Quick report building
WEBPublisher Dynamic Dashboard with Microsoft’s Silverlight technology
enables the user to make presentable reports quickly and easily. Additionally,
the Gadget Bar ensures handy tractability for the user.

12. Template Report and Dashboard Library
•AVReporter includes a host of built-in reports and dashboards
•Comprehensive Template Library minimize the need for custom reports and
additional engineering fees and installation.
• Minimizing the need for additional costs, increasing the solution’s overall
competitiveness.
• Registered customers can download report package from KONsys’ website

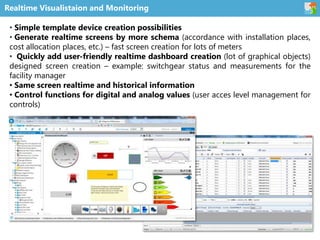

13. Realtime Visualistaion and Monitoring
• Simple template device creation possibilities
• Generate realtime screens by more schema (accordance with installation places,
cost allocation places, etc.) – fast screen creation for lots of meters
• Quickly add user-friendly realtime dashboard creation (lot of graphical objects)
designed screen creation – example: switchgear status and measurements for the
facility manager
• Same screen realtime and historical information
• Control functions for digital and analog values (user acces level management for
controls)

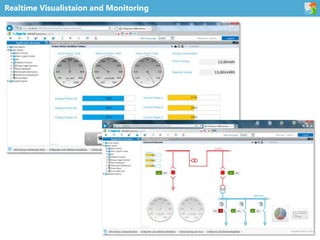

14. Realtime Visualistaion and Monitoring

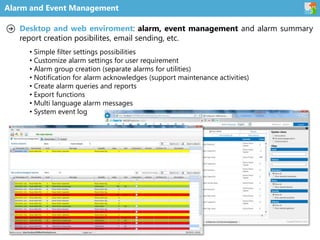

15. Alarm and Event Management
Desktop and web enviroment: alarm, event management and alarm summary
report creation posibilites, email sending, etc.
• Simple filter settings possibilities
• Customize alarm settings for user requirement
• Alarm group creation (separate alarms for utilities)
• Notification for alarm acknowledges (support maintenance activities)
• Create alarm queries and reports
• Export functions
• Multi language alarm messages
• System event log

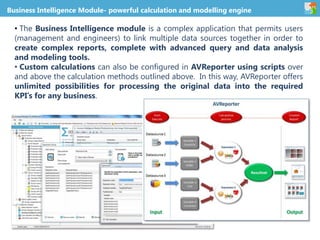

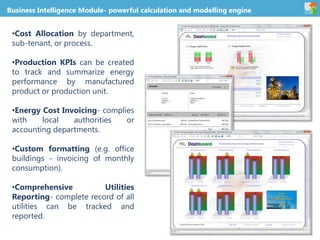

16. Business Intelligence Module- powerful calculation and modelling engine
• The Business Intelligence module is a complex application that permits users
(management and engineers) to link multiple data sources together in order to
create complex reports, complete with advanced query and data analysis
and modeling tools.
• Custom calculations can also be configured in AVReporter using scripts over
and above the calculation methods outlined above. In this way, AVReporter offers
unlimited possibilities for processing the original data into the required
KPI’s for any business.

17. Business Intelligence Module- powerful calculation and modelling engine
•Cost Allocation by department,
sub-tenant, or process.
•Production KPIs can be created
to track and summarize energy
performance by manufactured
product or production unit.
•Energy Cost Invoicing- complies
with local authorities or
accounting departments.
•Custom formatting (e.g. office
buildings - invoicing of monthly
consumption).
•Comprehensive Utilities
Reporting- complete record of all
utilities can be tracked and
reported.

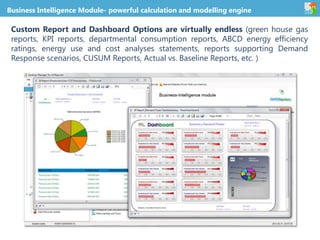

18. Business Intelligence Module- powerful calculation and modelling engine
Custom Report and Dashboard Options are virtually endless (green house gas
reports, KPI reports, departmental consumption reports, ABCD energy efficiency
ratings, energy use and cost analyses statements, reports supporting Demand
Response scenarios, CUSUM Reports, Actual vs. Baseline Reports, etc. )

19. Cost Allocation and Billing Creation

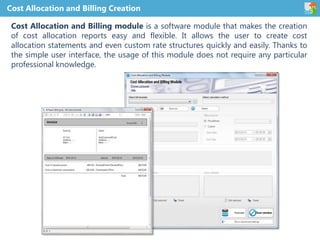

Cost Allocation and Billing module is a software module that makes the creation
of cost allocation reports easy and flexible. It allows the user to create cost
allocation statements and even custom rate structures quickly and easily. Thanks to
the simple user interface, the usage of this module does not require any particular
professional knowledge.

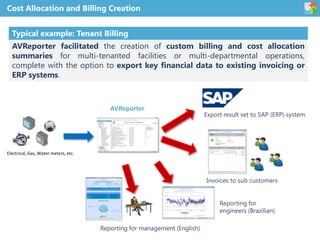

20. AVReporter facilitated the creation of custom billing and cost allocation
summaries for multi-tenanted facilities or multi-departmental operations,
complete with the option to export key financial data to existing invoicing or
ERP systems.
Typical example: Tenant Billing
Export result set to SAP (ERP) system
Invoices to sub customers
Reporting for management (English)
Reporting for
engineers (Brazilian)
AVReporter
Cost Allocation and Billing Creation
Electrical, Gas, Water meters, etc.

21. Energy Policy
Internal Audit
Corrective and
preventive action
Monitoring,
Measurement and
Analysis = AVReporter
Management Review
Energy Planning
Adapting,
Implementing and
Operating
Checking
Continous
Development

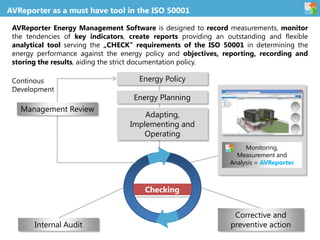

AVReporter as a must have tool in the ISO 50001
AVReporter Energy Management Software is designed to record measurements, monitor
the tendencies of key indicators, create reports providing an outstanding and flexible
analytical tool serving the „CHECK” requirements of the ISO 50001 in determining the
energy performance against the energy policy and objectives, reporting, recording and
storing the results, aiding the strict documentation policy.

22. AVReporter and ISO 50001 Benefits
•Works from large to small organizations across diverse commercial, industrial
and public sectors
•Improved cost savings
•Helps to achieve energy efficiency & compliance
•Reduced environmental impact – carbon & GHG
•Coordinating energy programs (Energy Efficiency, Energy Production,
Renewable Energy and Alternative Energy)
•Facilitates external financial incentives (Electric utility, third party financing, tax
benefits and others)
•Builds energy management into business practices
•Optimize energy-consuming assets
•Improves operations and capital cost decisions
•Facilitates energy management best practices
•Improves the ability to benchmark, measure and report energy intensity
improvements
•Improves transparency and communication on the management of energy
resources
•Helps in evaluating and prioritizing new energy-efficient technologies
•Framework for promoting energy efficiency throughout the supply chain

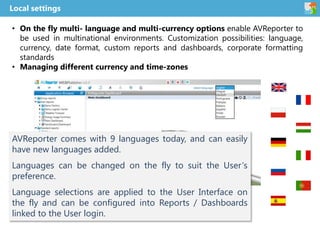

23. • On the fly multi- language and multi-currency options enable AVReporter to
be used in multinational environments. Customization possibilities: language,
currency, date format, custom reports and dashboards, corporate formatting
standards
• Managing different currency and time-zones
Local settings
AVReporter comes with 9 languages today, and can easily
have new languages added.
Languages can be changed on the fly to suit the User‘s
preference.
Language selections are applied to the User Interface on
the fly and can be configured into Reports / Dashboards
linked to the User login.

24. Modular Structure – flexible extension possibilities
• AVReporter software provides a scalable solution that can be applied to small,
medium and even global applications. Your first installation of AVReporter at
one site can easily be expanded without loss of time or expense. The system
can then be expanded according to your schedule and budget.
• AVReporter has modules designed for specific users, such as energy managers,
that greatly facilitate their reporting and data analysis needs. Additional
modules are planned and can easily be added as required without any
modifications to your existing installation.

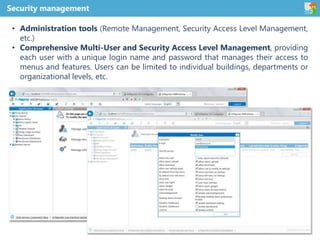

25. • Administration tools (Remote Management, Security Access Level Management,
etc.)
• Comprehensive Multi-User and Security Access Level Management, providing
each user with a unique login name and password that manages their access to
menus and features. Users can be limited to individual buildings, departments or
organizational levels, etc.
Security management

26. Thank You!
QUESTIONS?
www.konsys-international.com
