Auxiliary memory Computer Architecture, Computer Organization

1. Auxiliary
Memory
Presented by:
Nazir Ahmad 110215
Shaakir Mozzam 110222
Junaid Javeed 110229
Presented to:
Mr. Aafaq Alam Khan

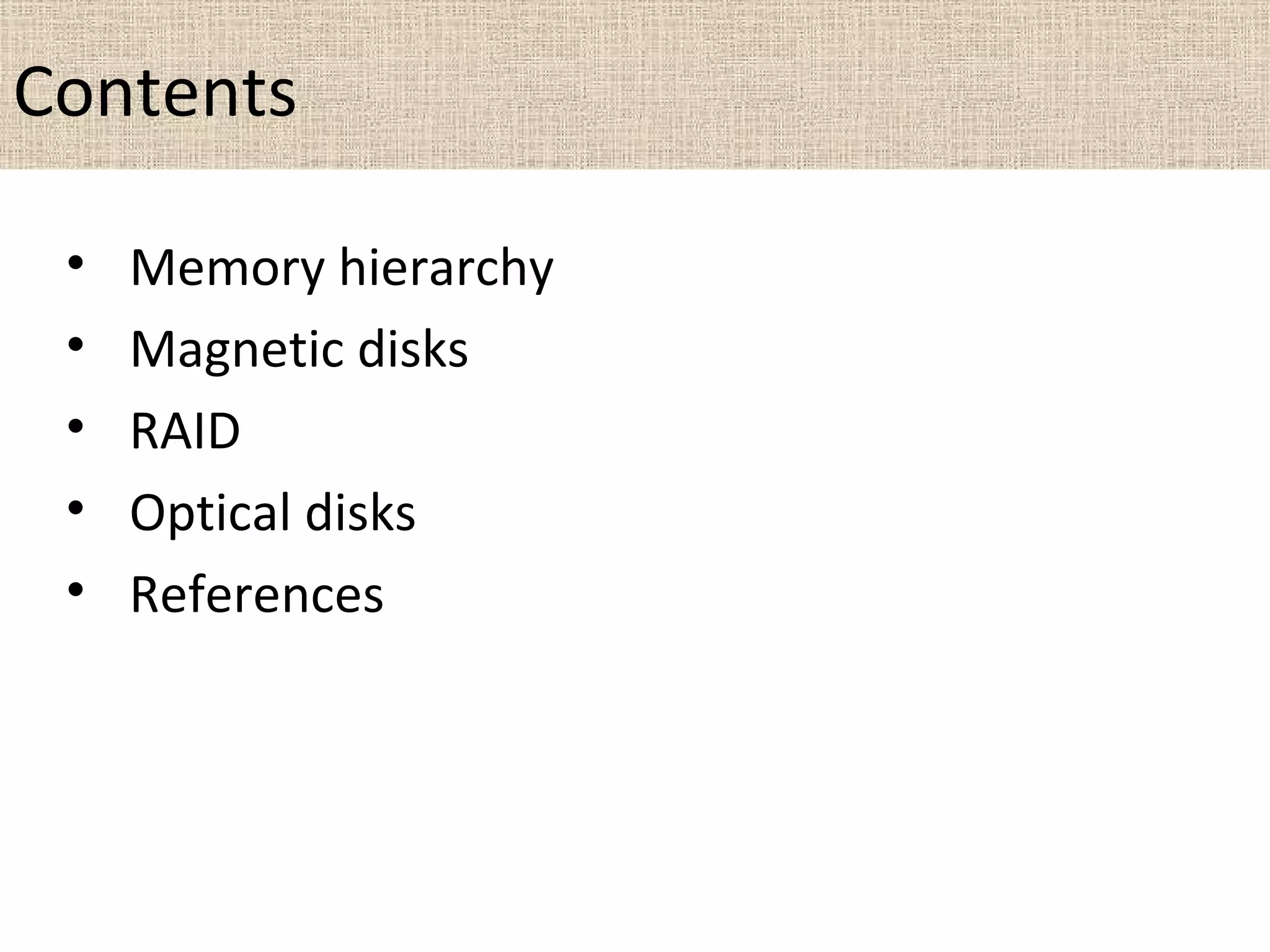

2. Contents
• Memory hierarchy
• Magnetic disks
• RAID
• Optical disks
• References

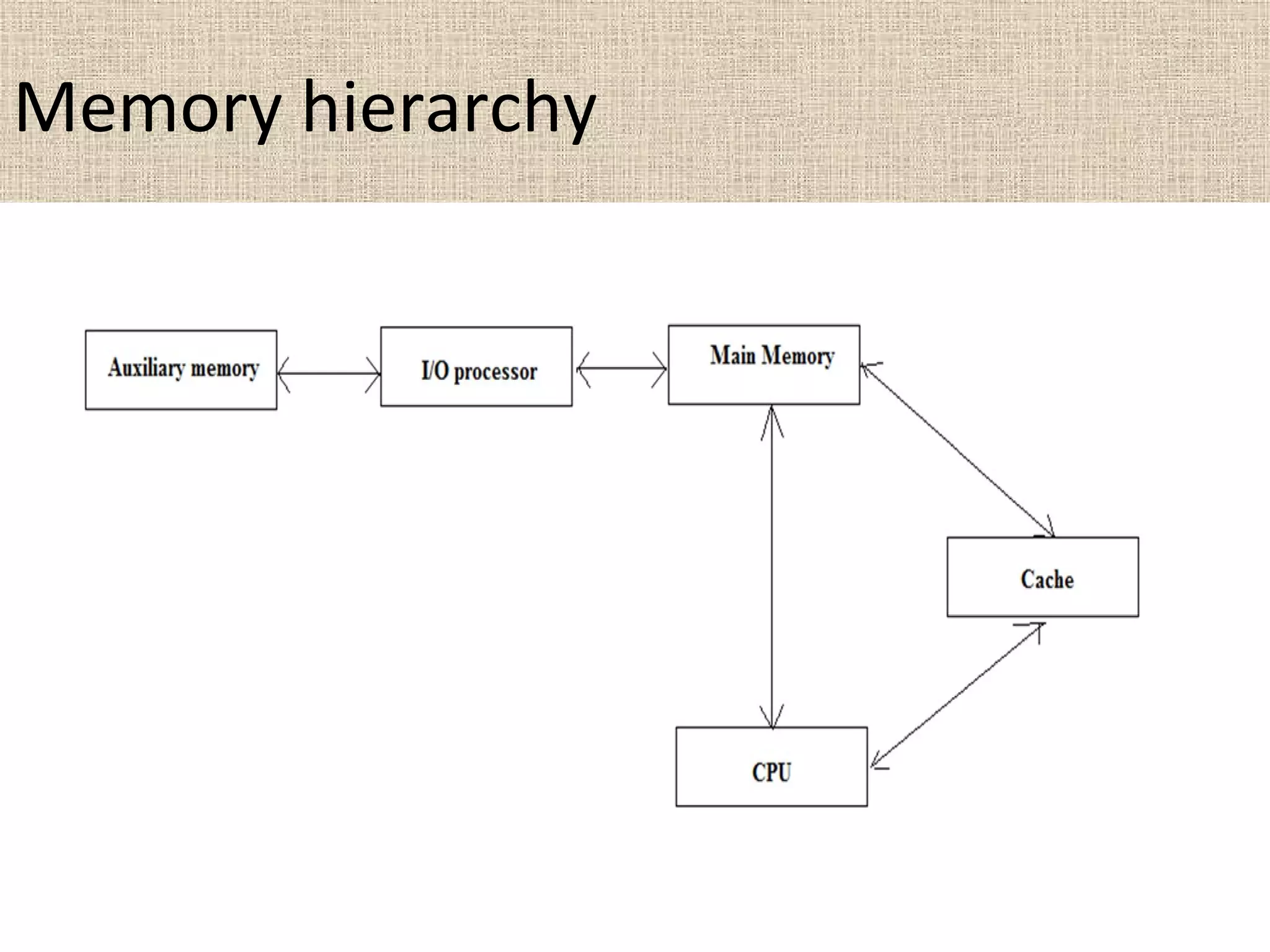

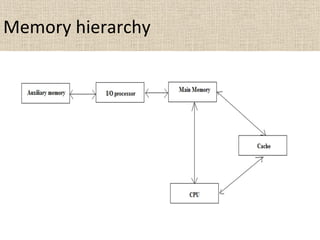

3. Memory hierarchy

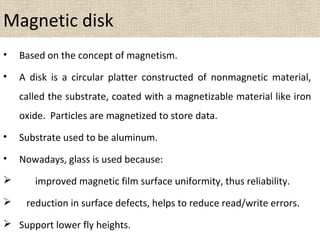

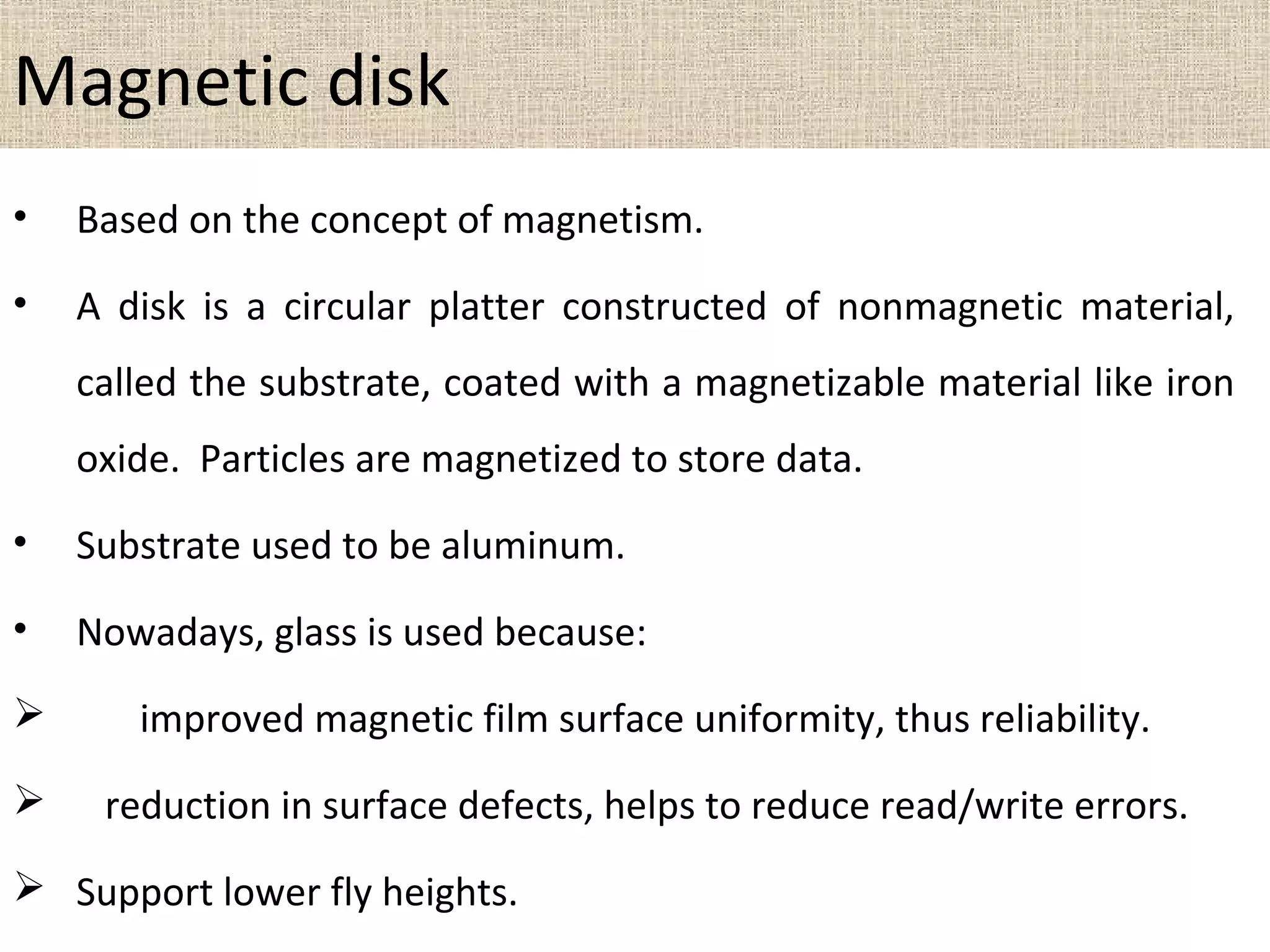

4. Magnetic disk
• Based on the concept of magnetism.
• A disk is a circular platter constructed of nonmagnetic material,
called the substrate, coated with a magnetizable material like iron
oxide. Particles are magnetized to store data.
• Substrate used to be aluminum.
• Nowadays, glass is used because:
 improved magnetic film surface uniformity, thus reliability.
 reduction in surface defects, helps to reduce read/write errors.
 Support lower fly heights.

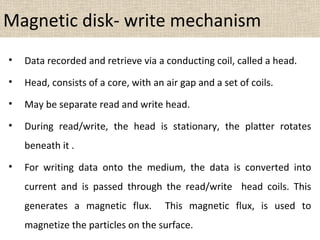

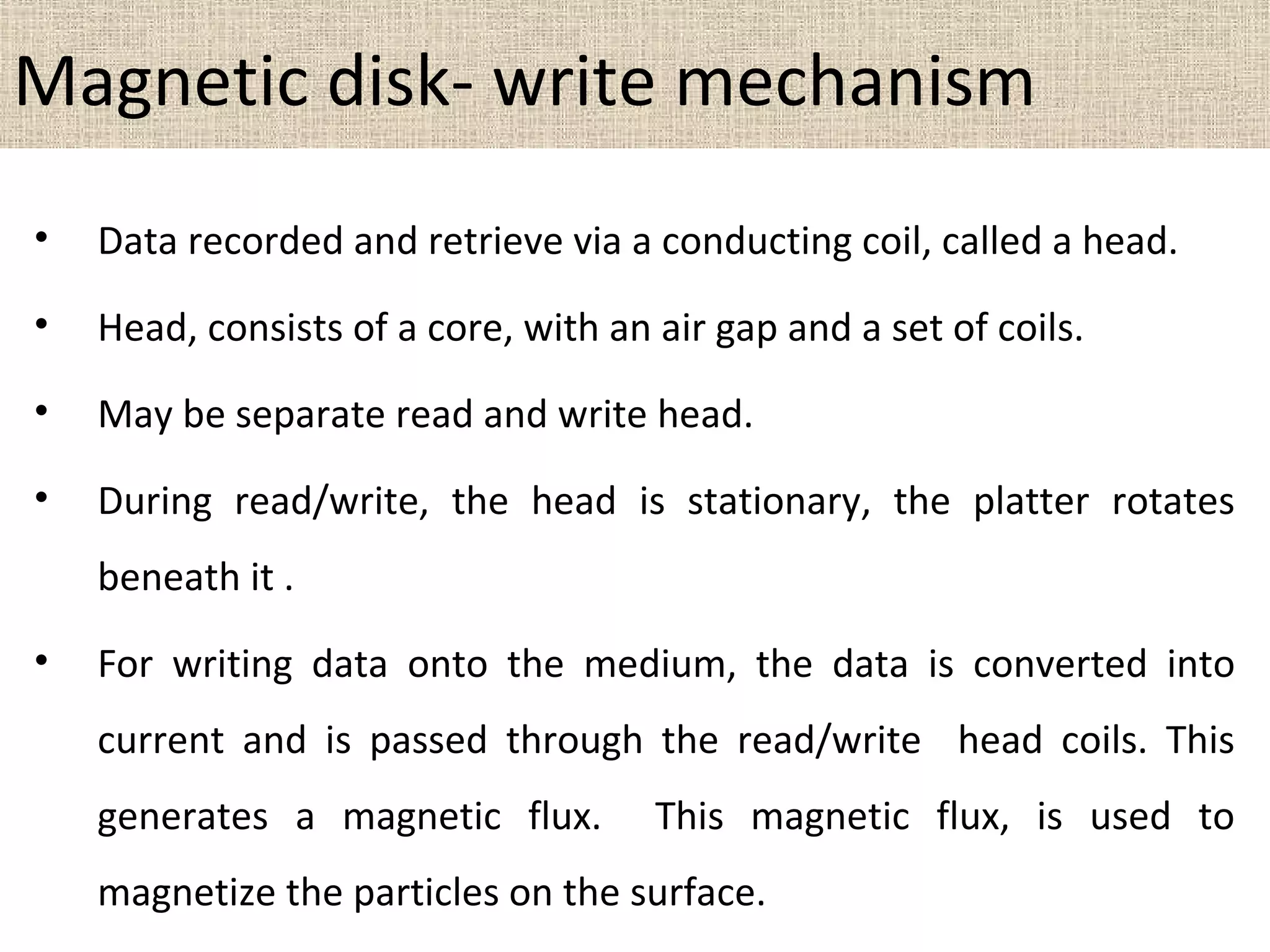

5. Magnetic disk- write mechanism
• Data recorded and retrieve via a conducting coil, called a head.
• Head, consists of a core, with an air gap and a set of coils.
• May be separate read and write head.
• During read/write, the head is stationary, the platter rotates
beneath it .
• For writing data onto the medium, the data is converted into
current and is passed through the read/write head coils. This
generates a magnetic flux. This magnetic flux, is used to
magnetize the particles on the surface.

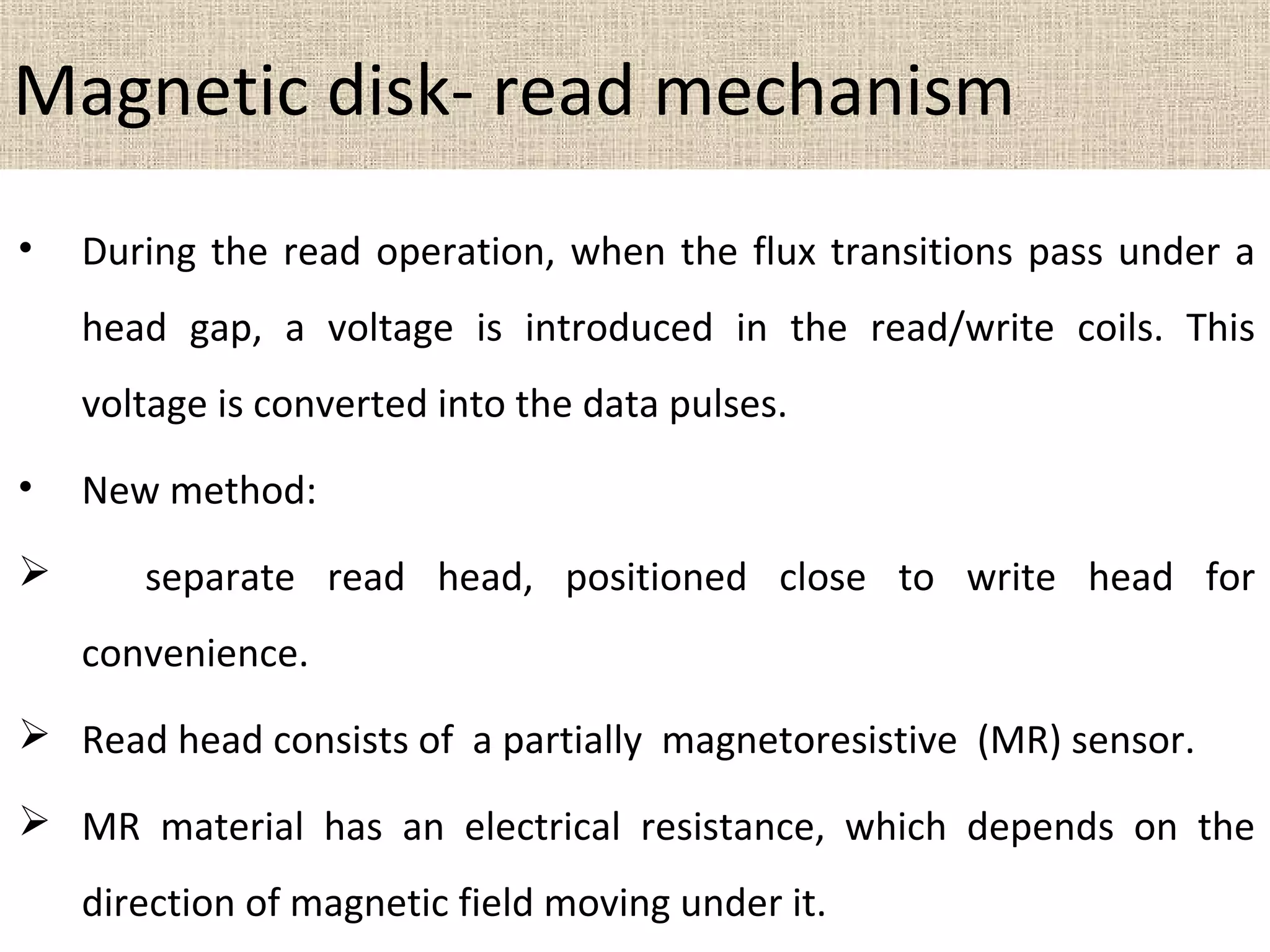

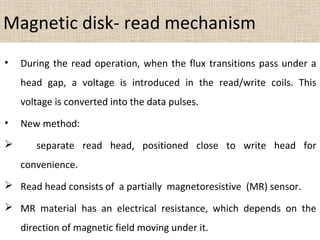

7. Magnetic disk- read mechanism
• During the read operation, when the flux transitions pass under a
head gap, a voltage is introduced in the read/write coils. This
voltage is converted into the data pulses.

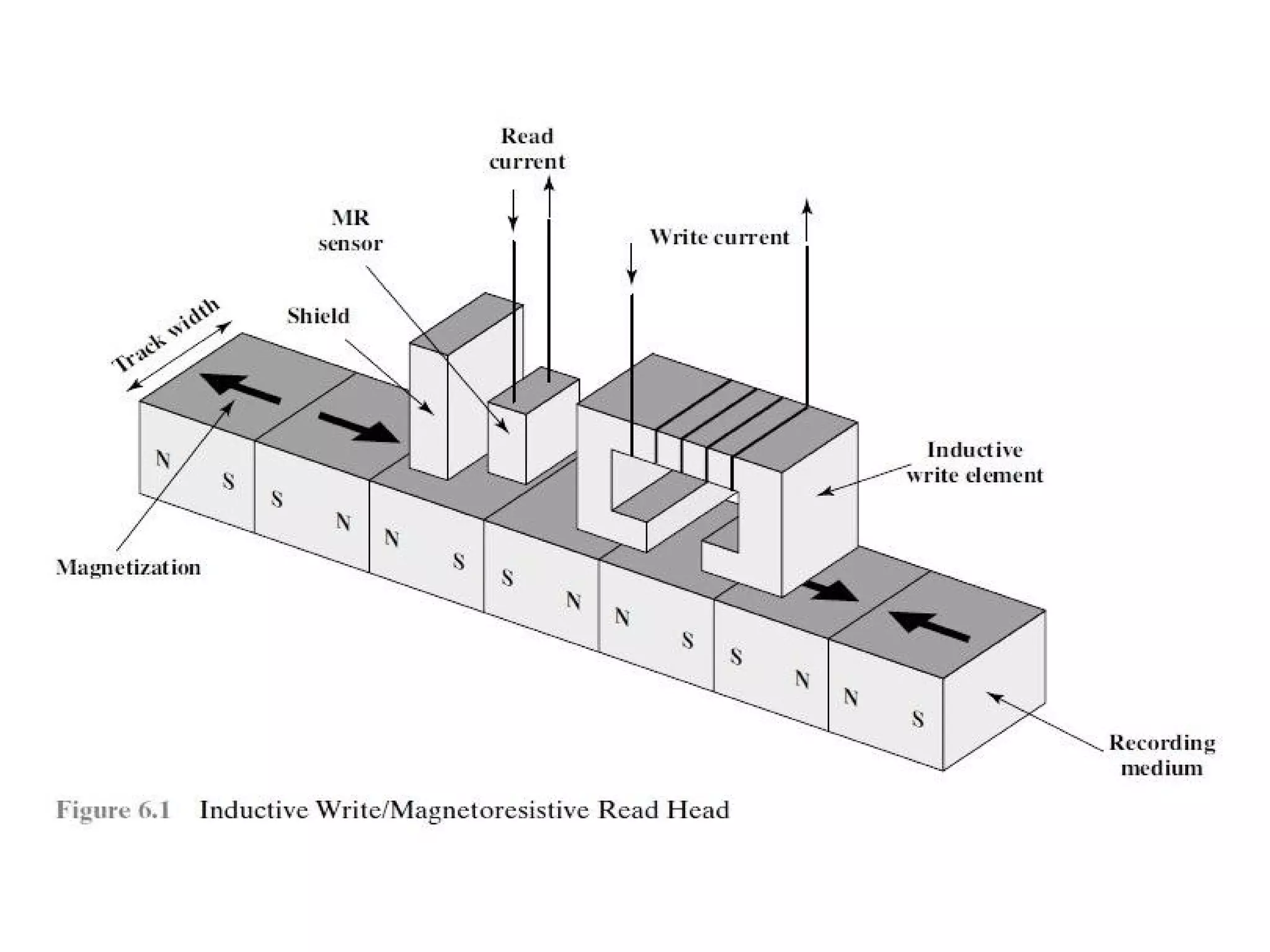

• New method:
 separate read head, positioned close to write head for
convenience.
 Read head consists of a partially magnetoresistive (MR) sensor.
 MR material has an electrical resistance, which depends on the
direction of magnetic field moving under it.

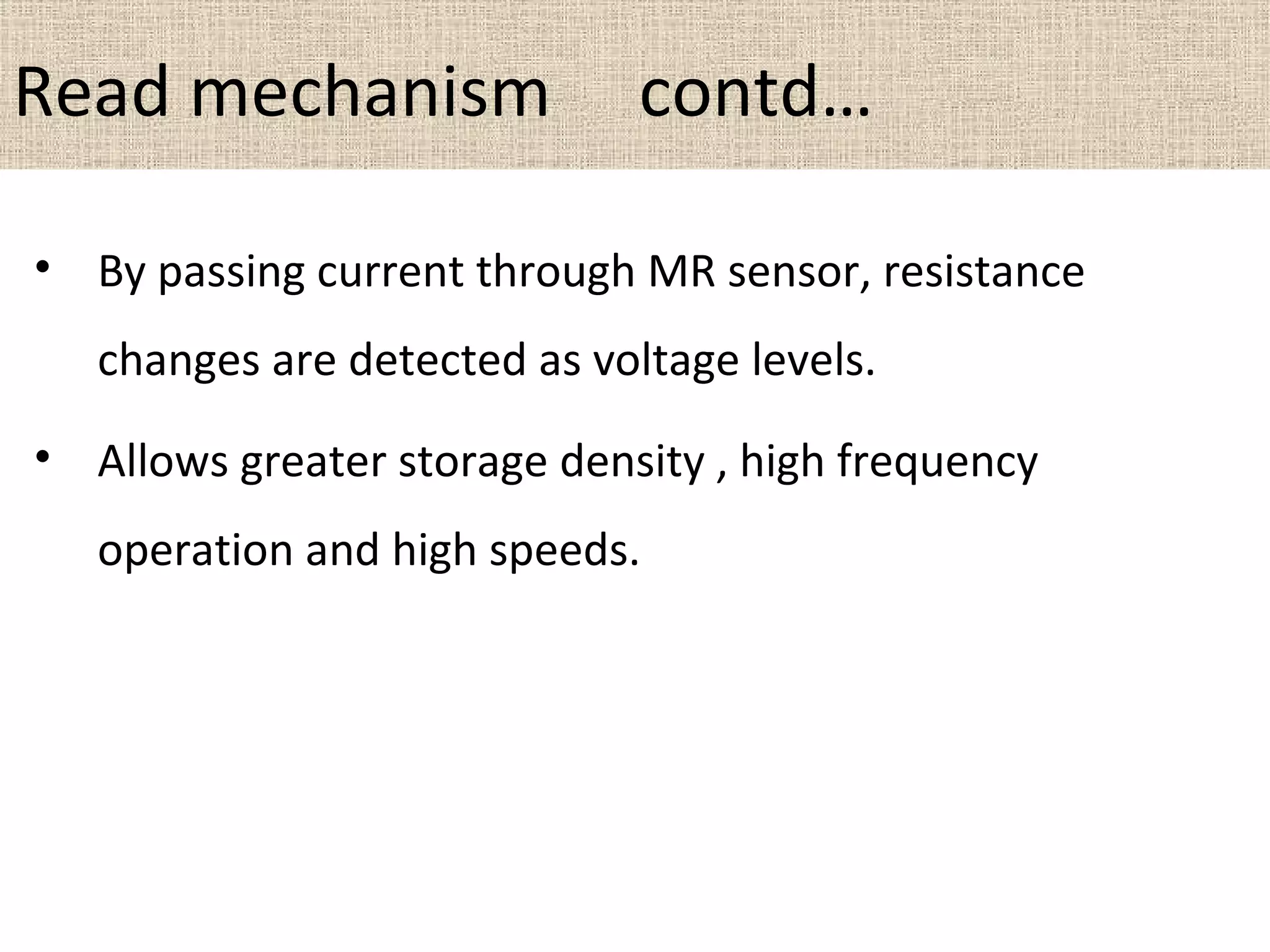

8. Read mechanism contd…
• By passing current through MR sensor, resistance
changes are detected as voltage levels.
• Allows greater storage density , high frequency
operation and high speeds.

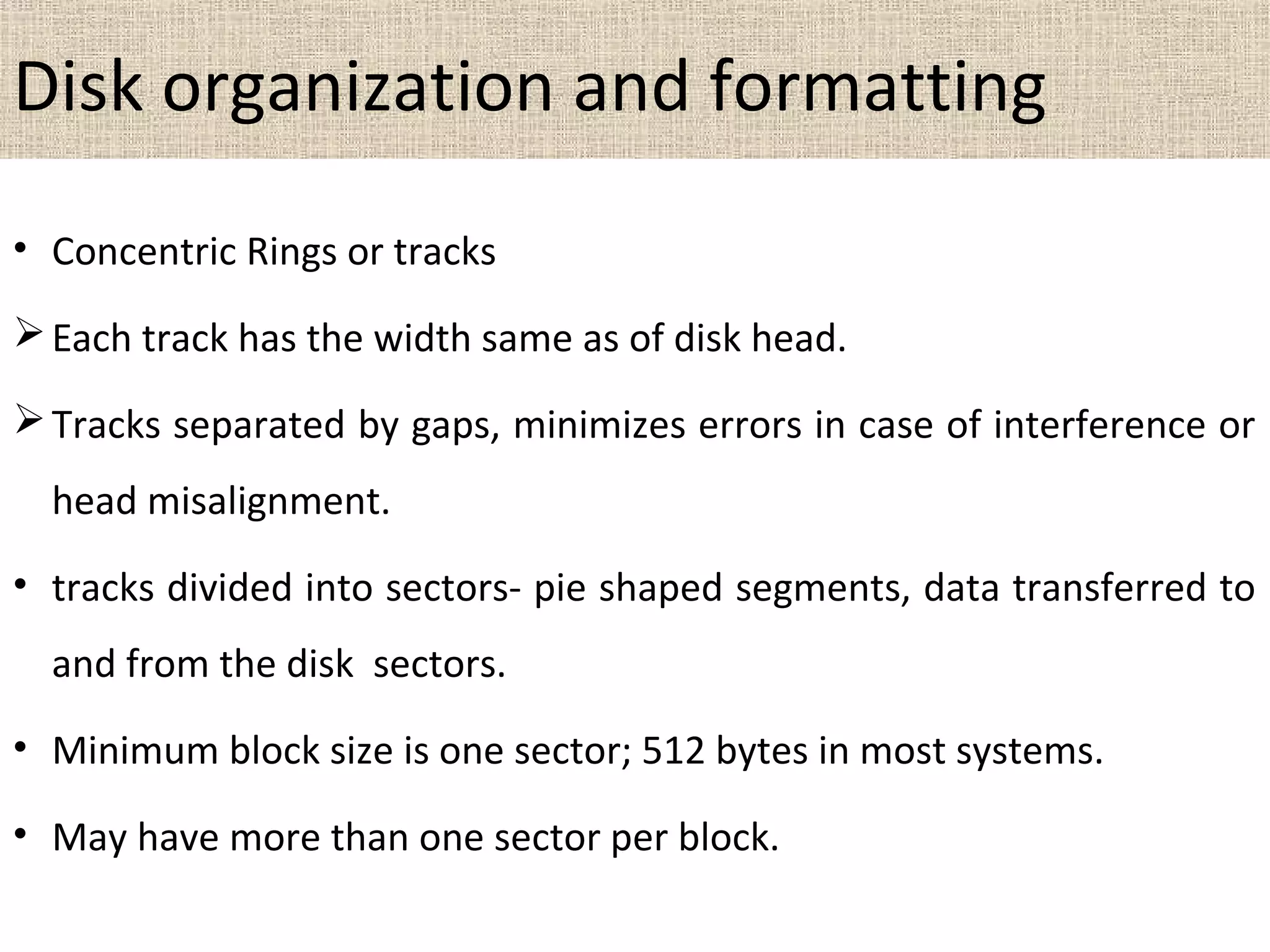

9. Disk organization and formatting
• Concentric Rings or tracks
Each track has the width same as of disk head.
Tracks separated by gaps, minimizes errors in case of interference or
head misalignment.
• tracks divided into sectors- pie shaped segments, data transferred to
and from the disk sectors.
• Minimum block size is one sector; 512 bytes in most systems.
• May have more than one sector per block.

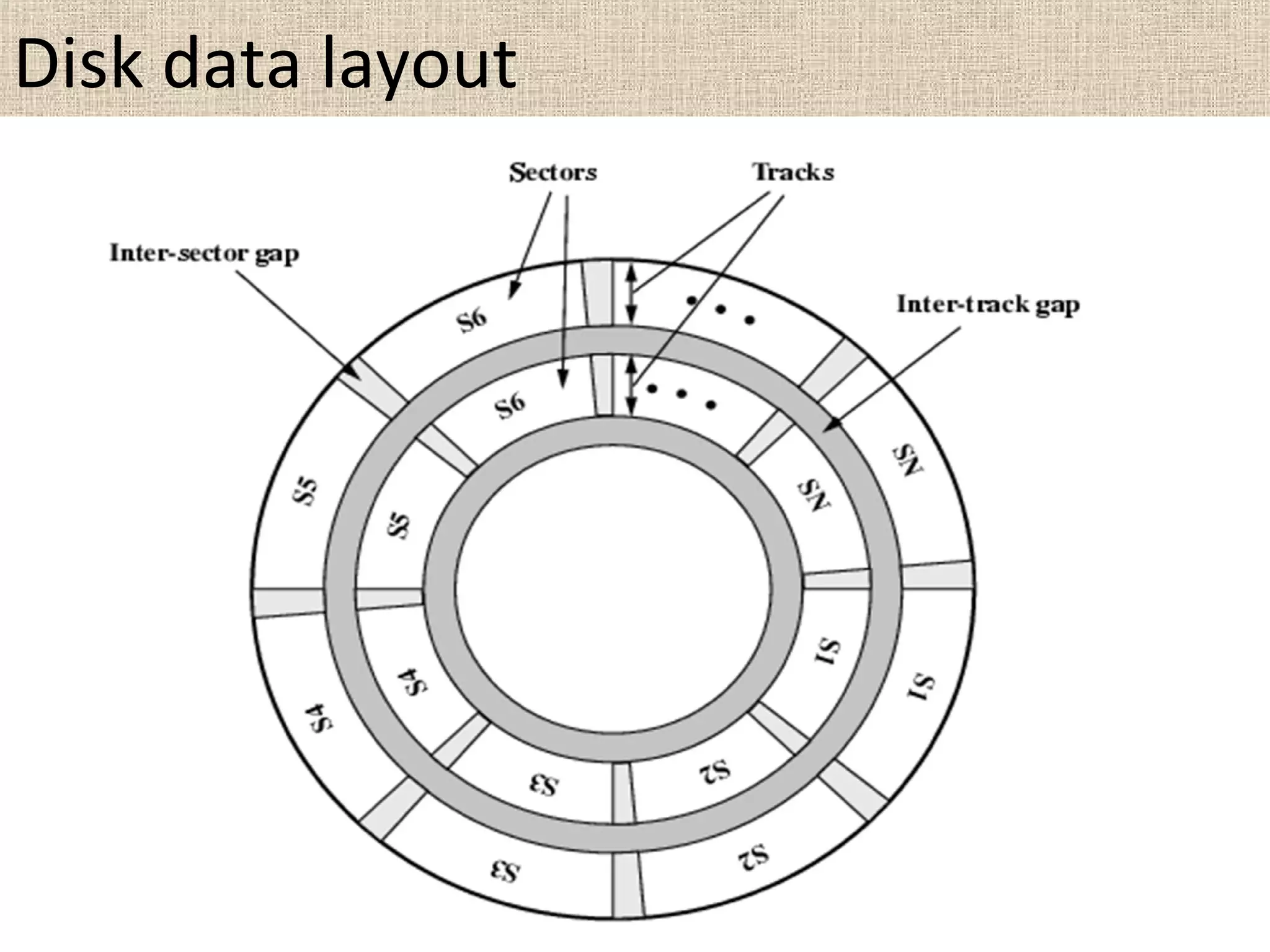

10. Disk data layout

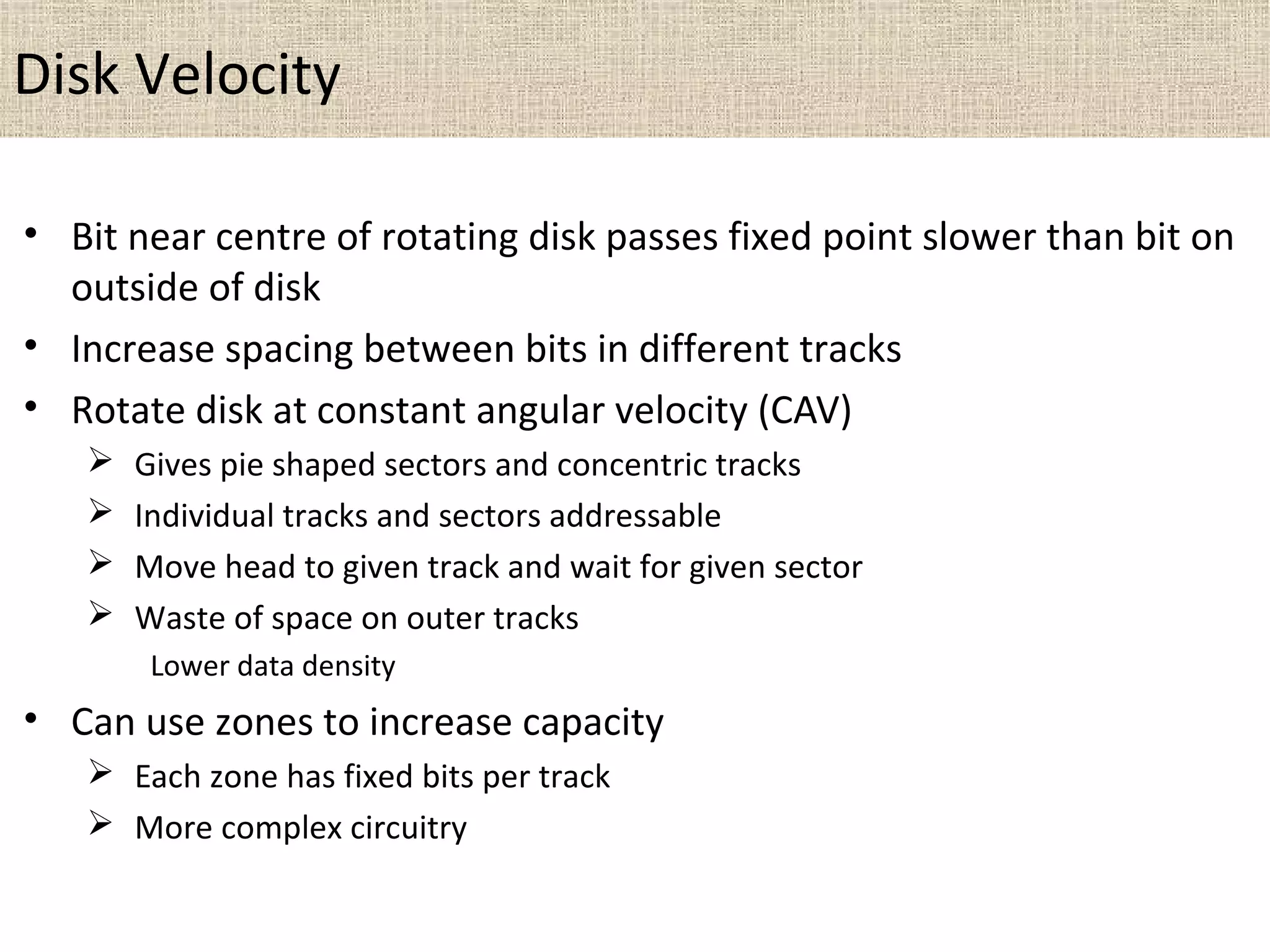

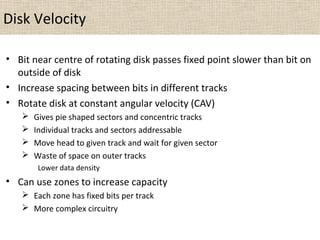

11. Disk Velocity
• Bit near centre of rotating disk passes fixed point slower than bit on
outside of disk
• Increase spacing between bits in different tracks
• Rotate disk at constant angular velocity (CAV)
 Gives pie shaped sectors and concentric tracks
 Individual tracks and sectors addressable
 Move head to given track and wait for given sector
 Waste of space on outer tracks
Lower data density
• Can use zones to increase capacity
 Each zone has fixed bits per track
 More complex circuitry

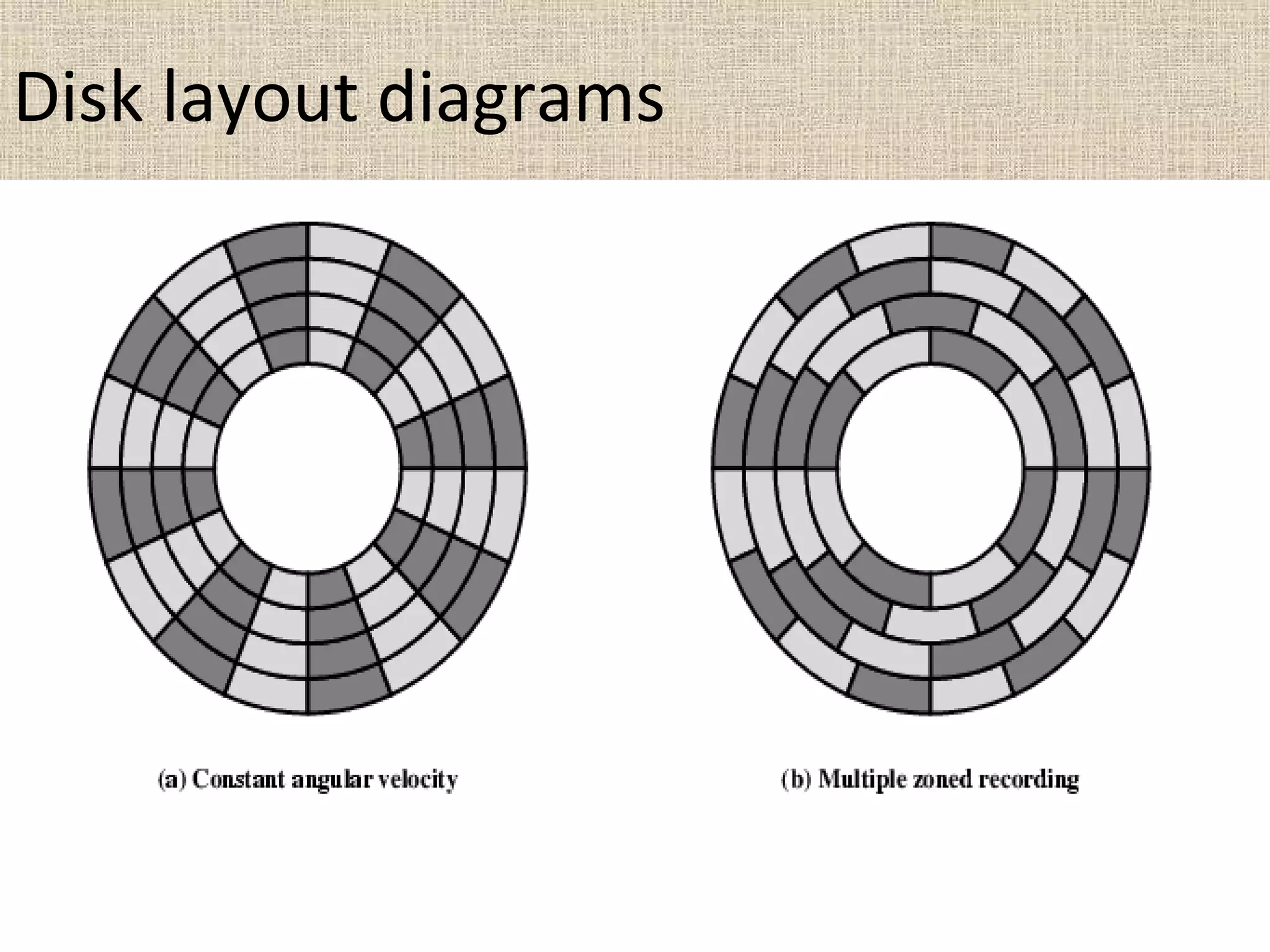

12. Disk layout diagrams

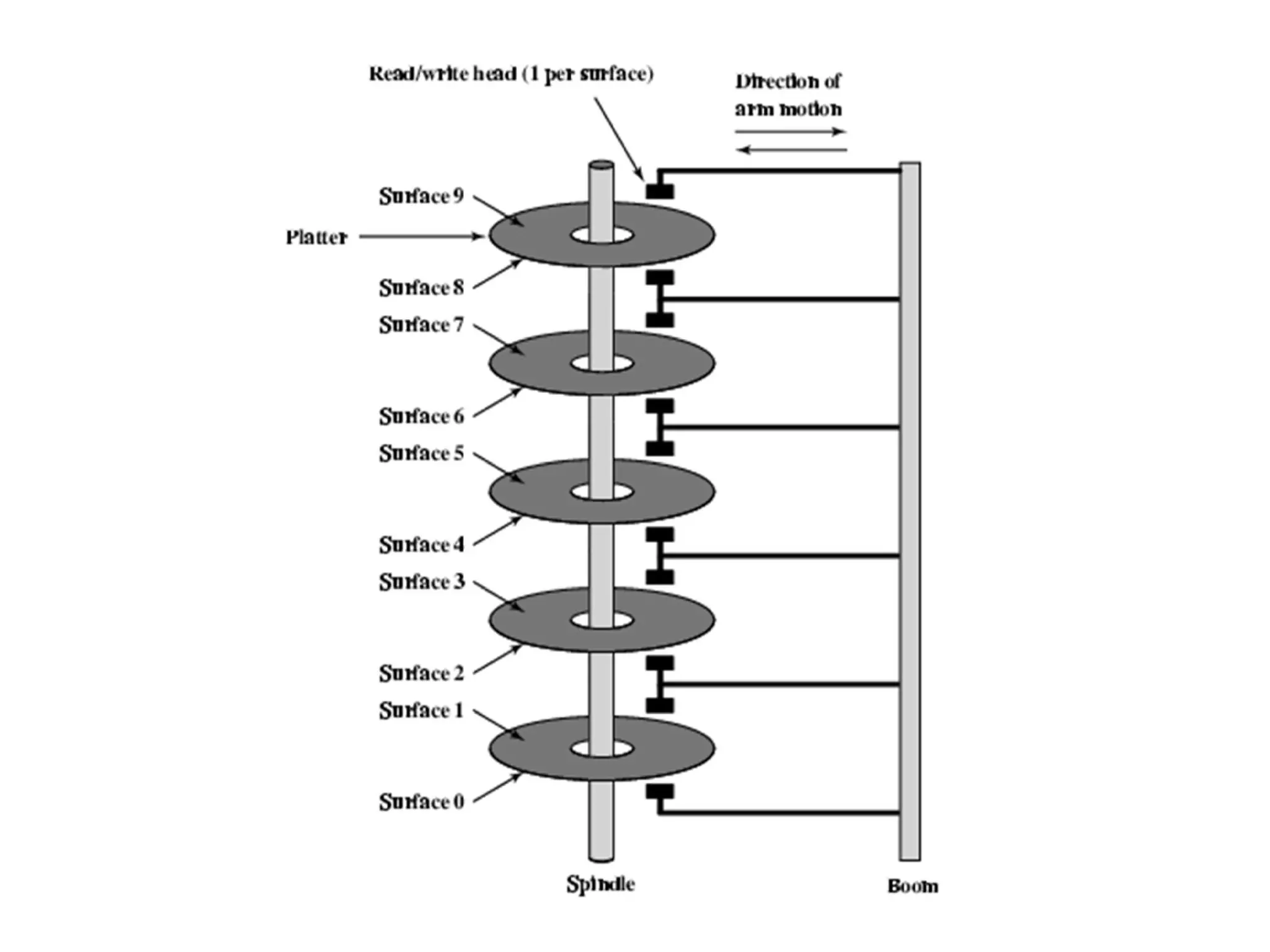

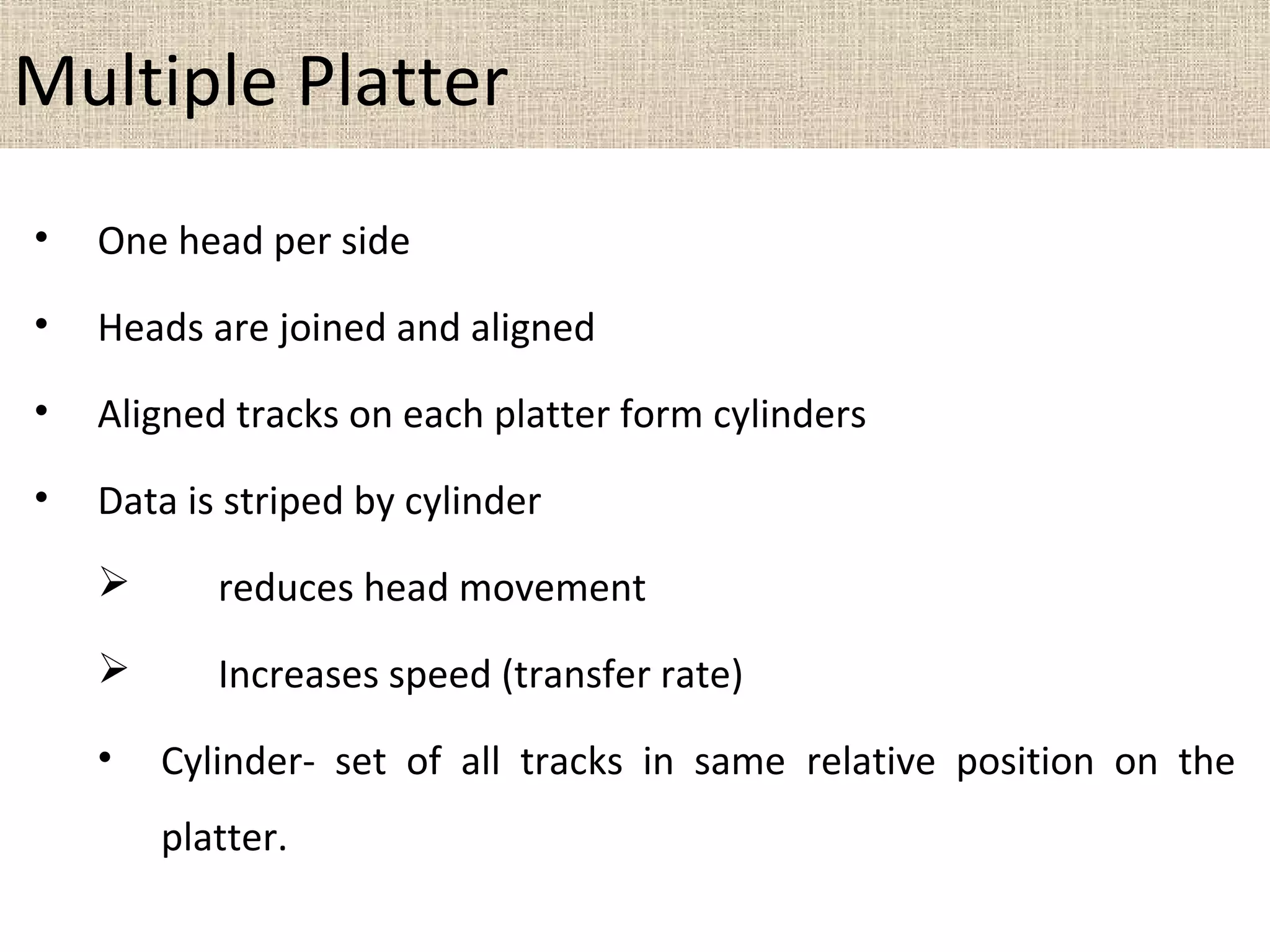

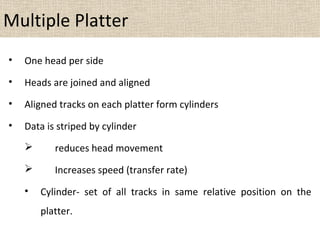

13. Multiple Platter
• One head per side
• Heads are joined and aligned
• Aligned tracks on each platter form cylinders
• Data is striped by cylinder
 reduces head movement
 Increases speed (transfer rate)
• Cylinder- set of all tracks in same relative position on the
platter.

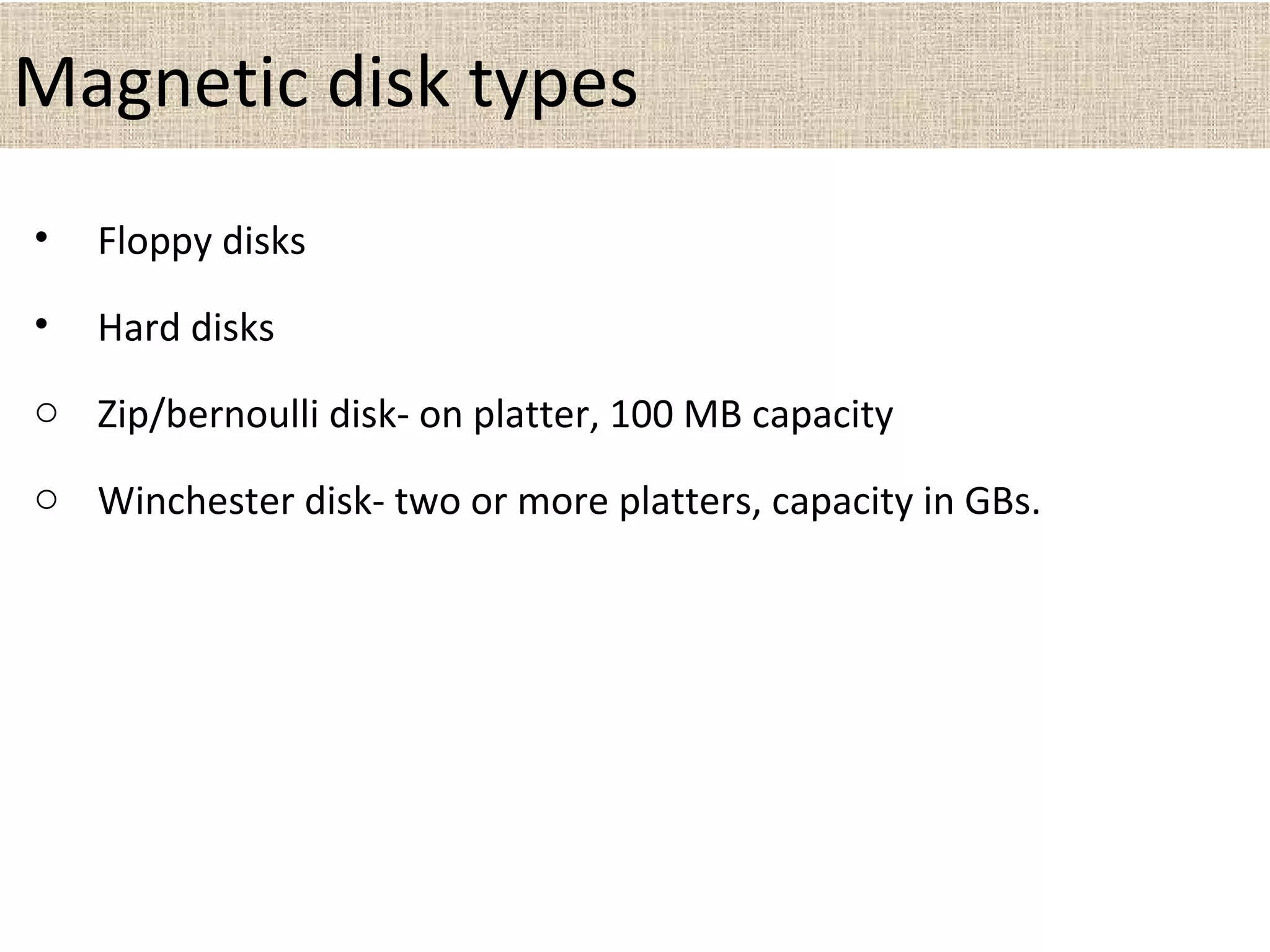

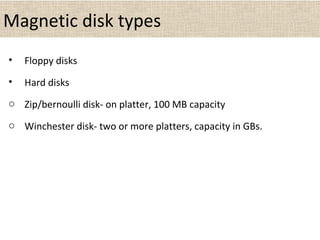

15. Magnetic disk types
• Floppy disks
• Hard disks
o Zip/bernoulli disk- on platter, 100 MB capacity
o Winchester disk- two or more platters, capacity in GBs.

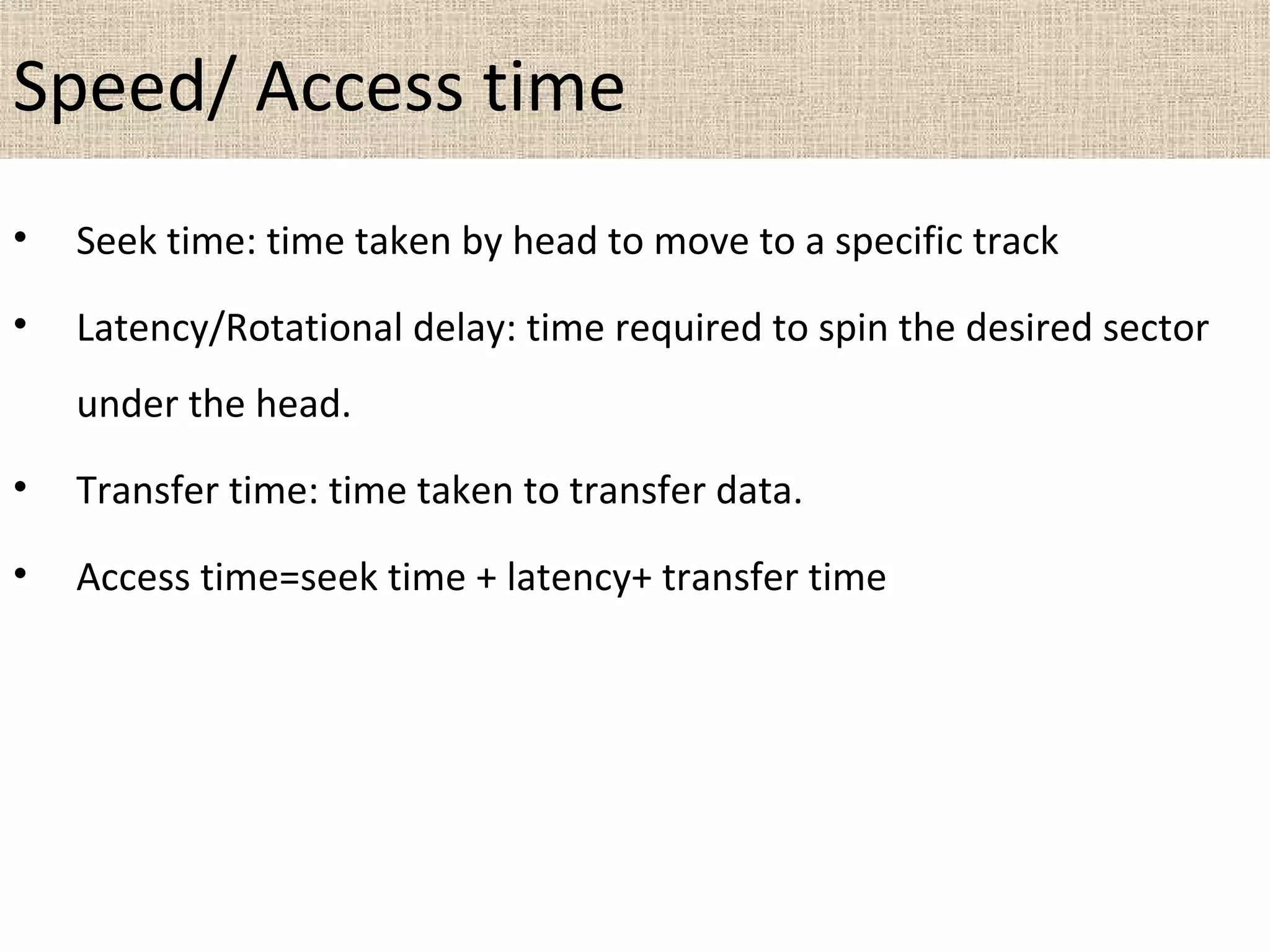

16. Speed/ Access time
• Seek time: time taken by head to move to a specific track
• Latency/Rotational delay: time required to spin the desired sector
under the head.
• Transfer time: time taken to transfer data.
• Access time=seek time + latency+ transfer time

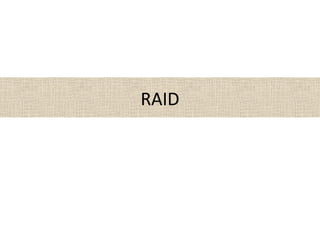

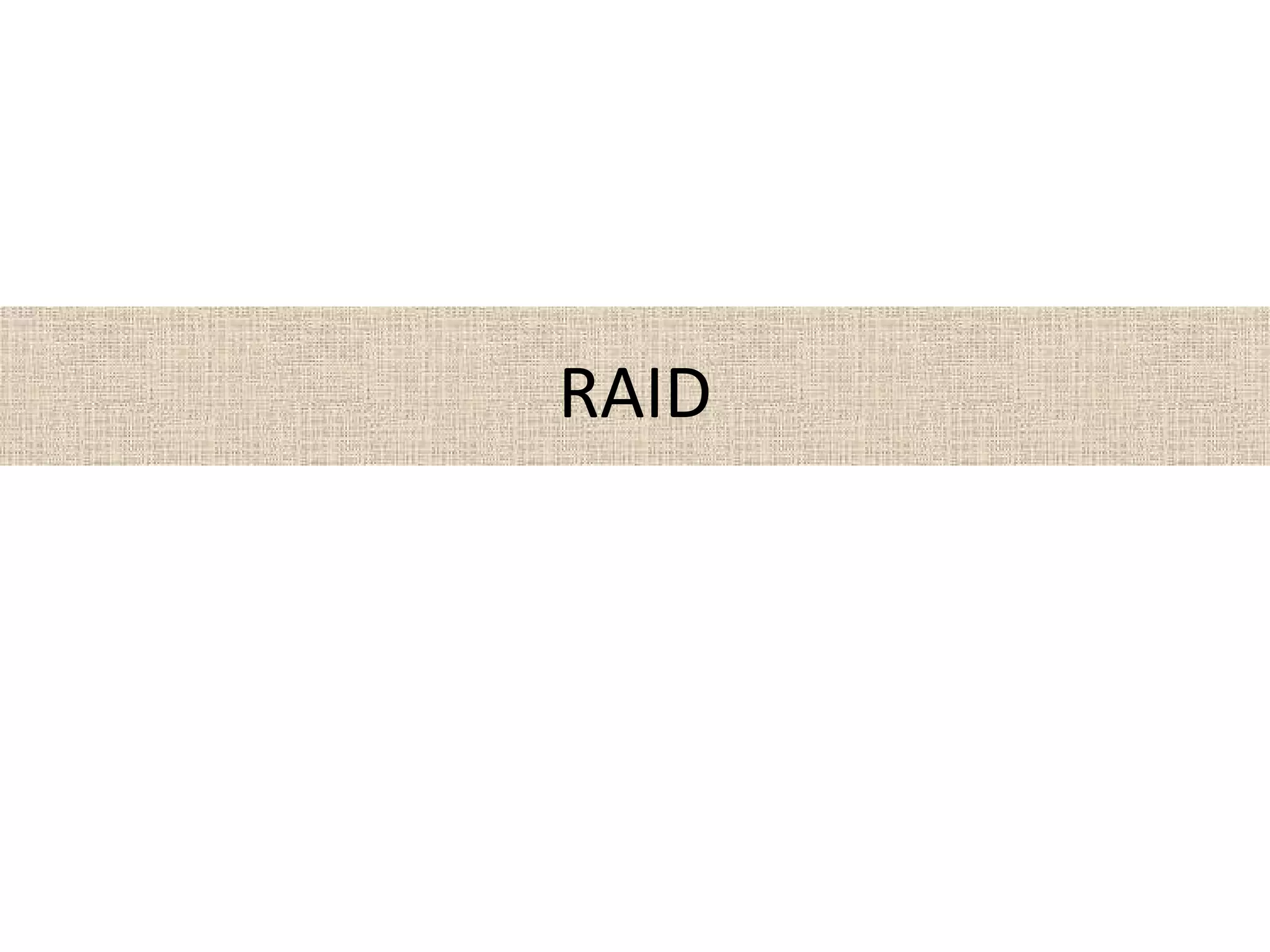

17. RAID

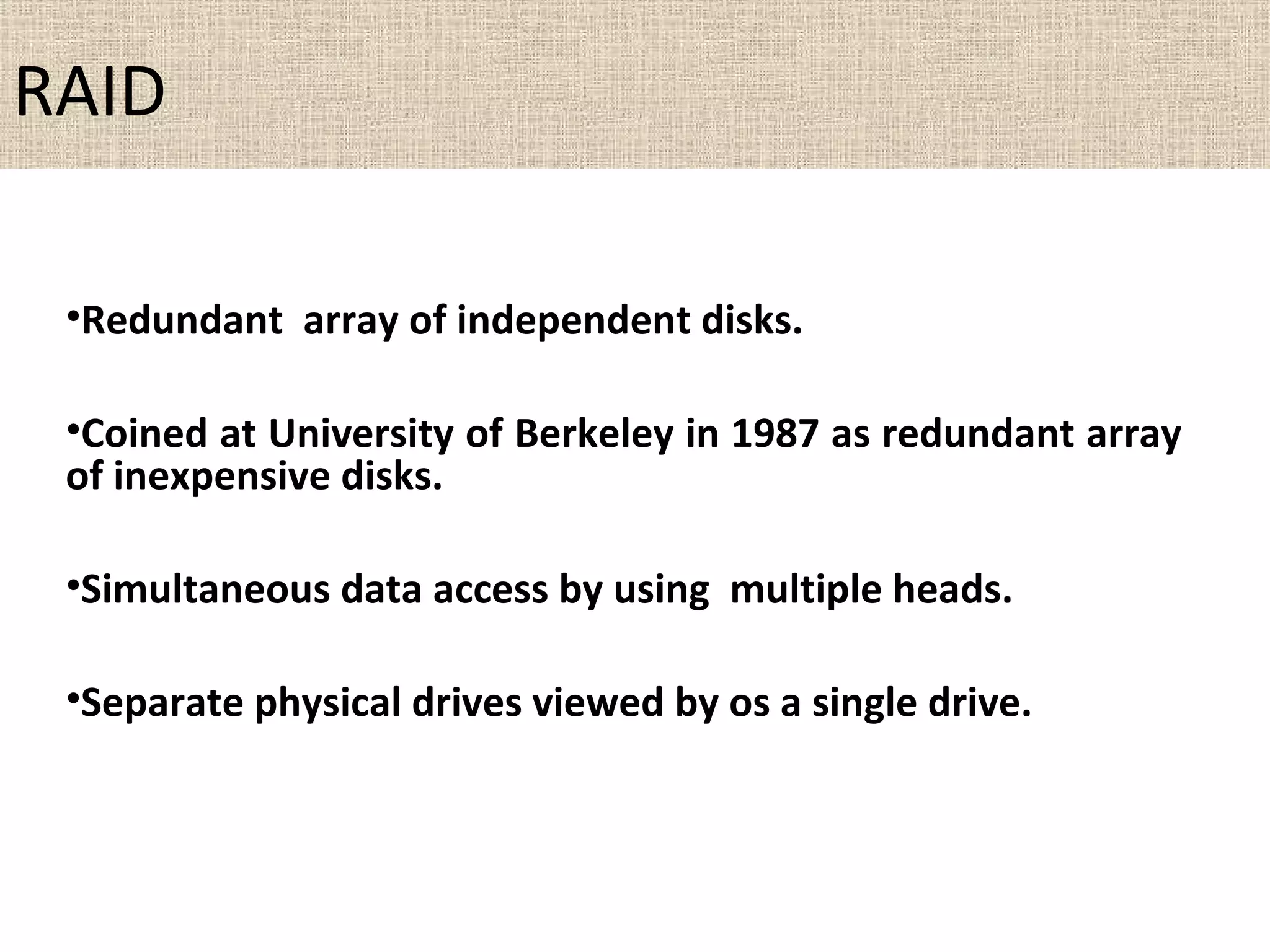

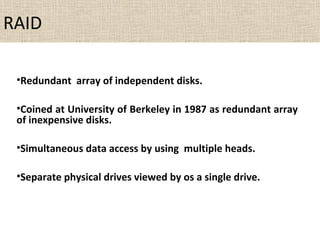

18. RAID
•Redundant array of independent disks.
•Coined at University of Berkeley in 1987 as redundant array
of inexpensive disks.
•Simultaneous data access by using multiple heads.
•Separate physical drives viewed by os a single drive.

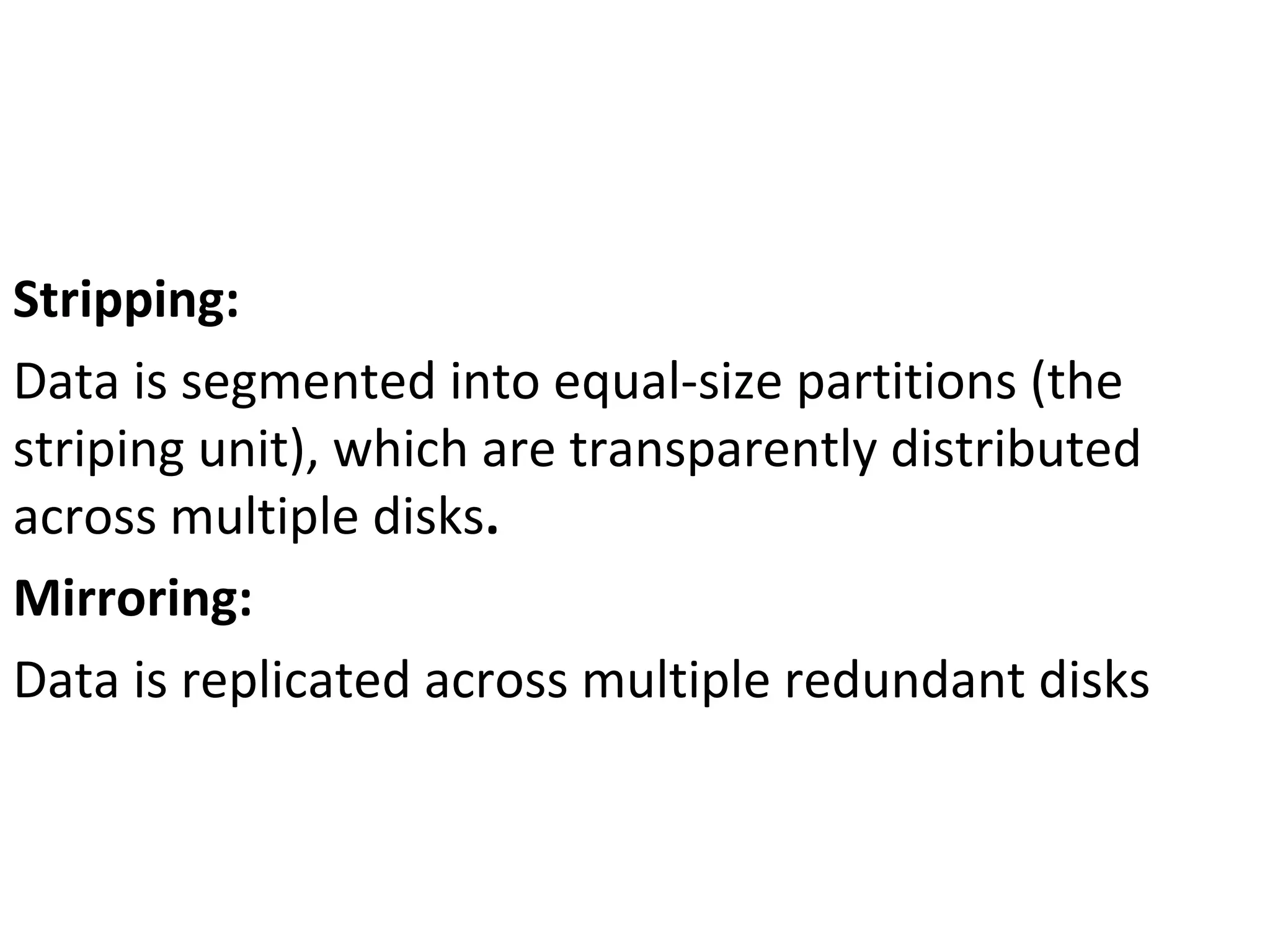

19. Stripping:
Data is segmented into equal-size partitions (the
striping unit), which are transparently distributed
across multiple disks.
Mirroring:
Data is replicated across multiple redundant disks

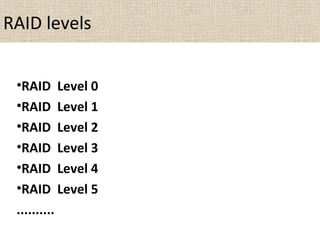

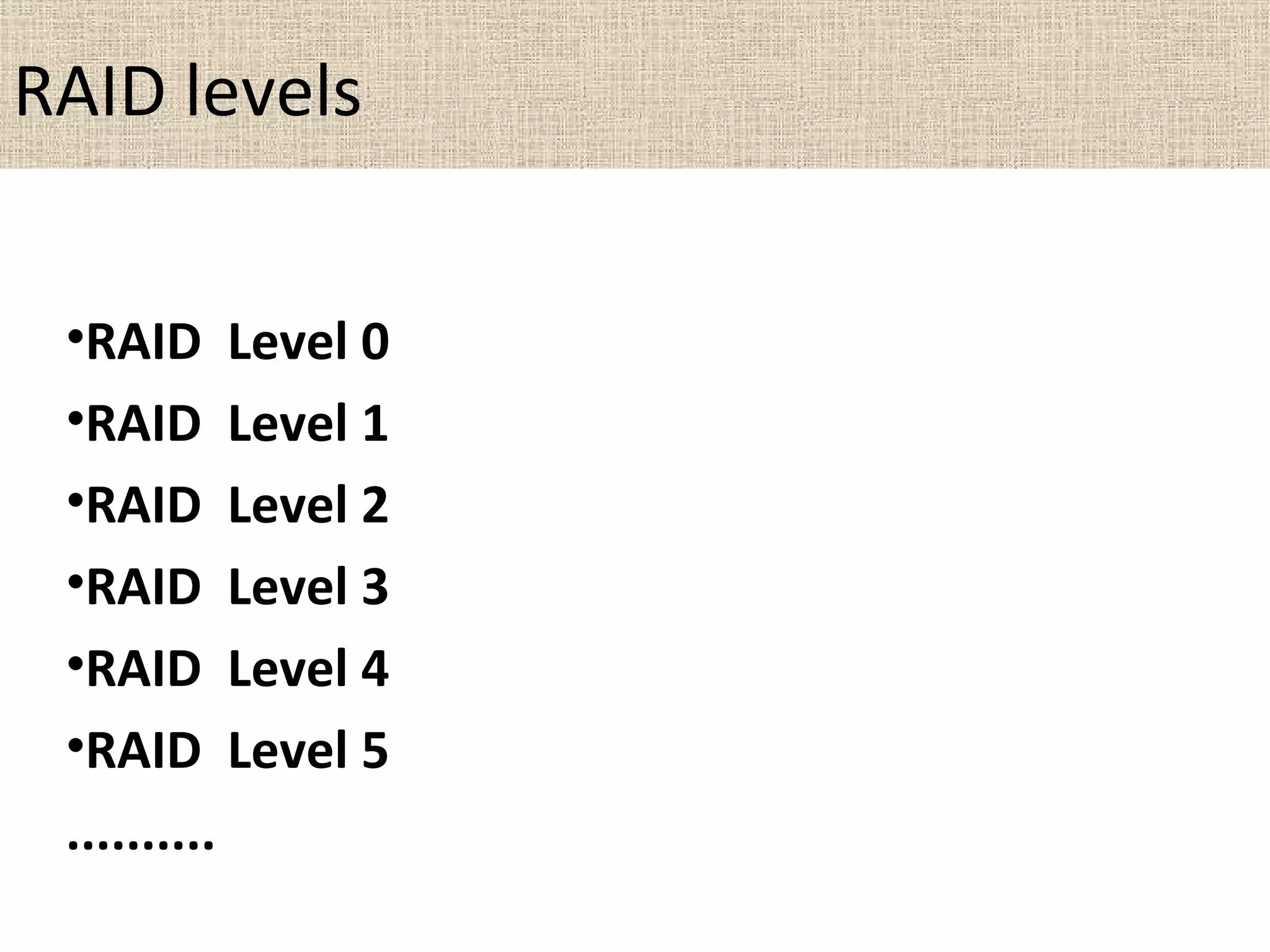

20. RAID levels
•RAID Level 0
•RAID Level 1
•RAID Level 2
•RAID Level 3
•RAID Level 4
•RAID Level 5
..........

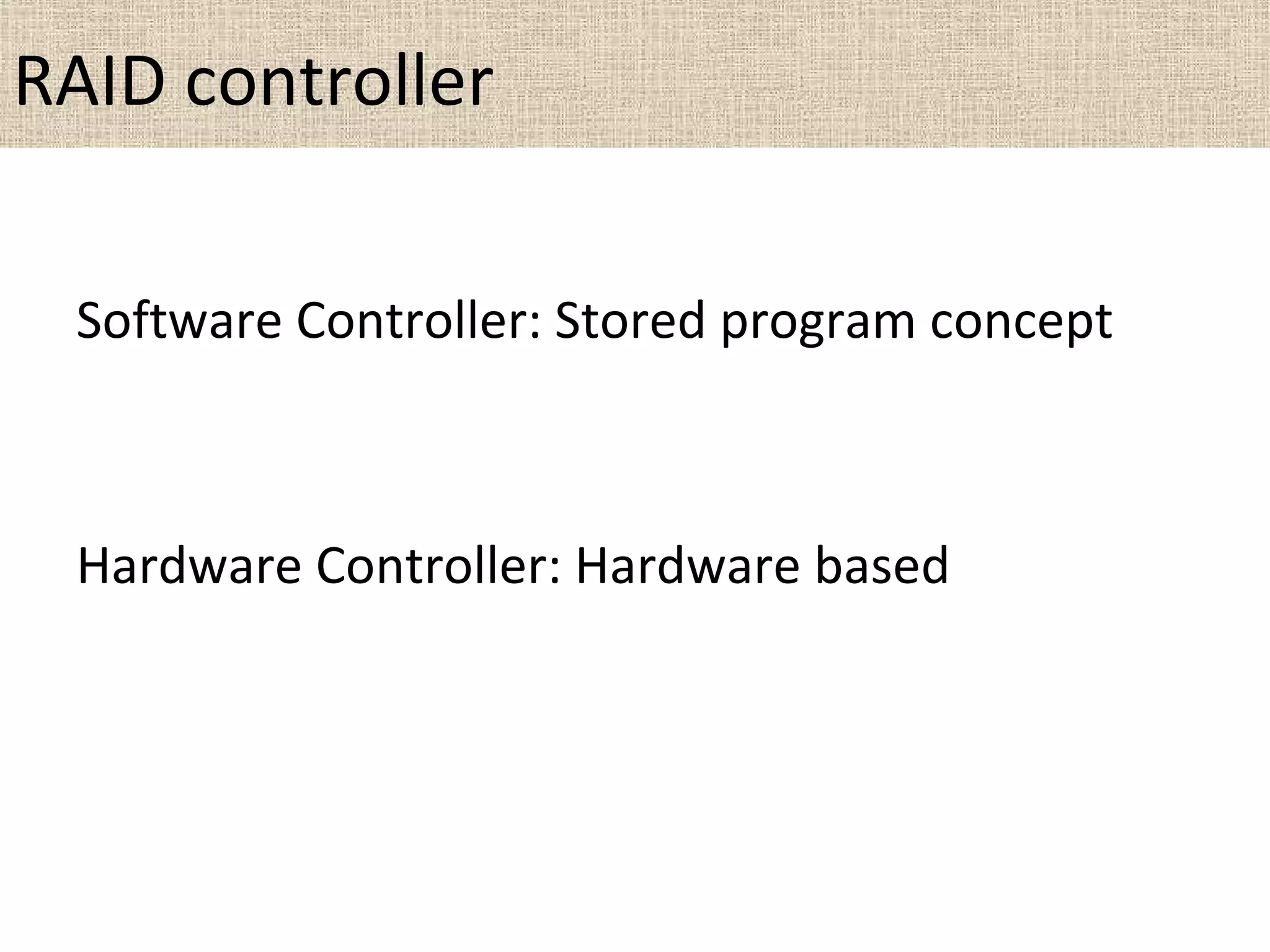

21. RAID controller
Software Controller: Stored program concept
Hardware Controller: Hardware based

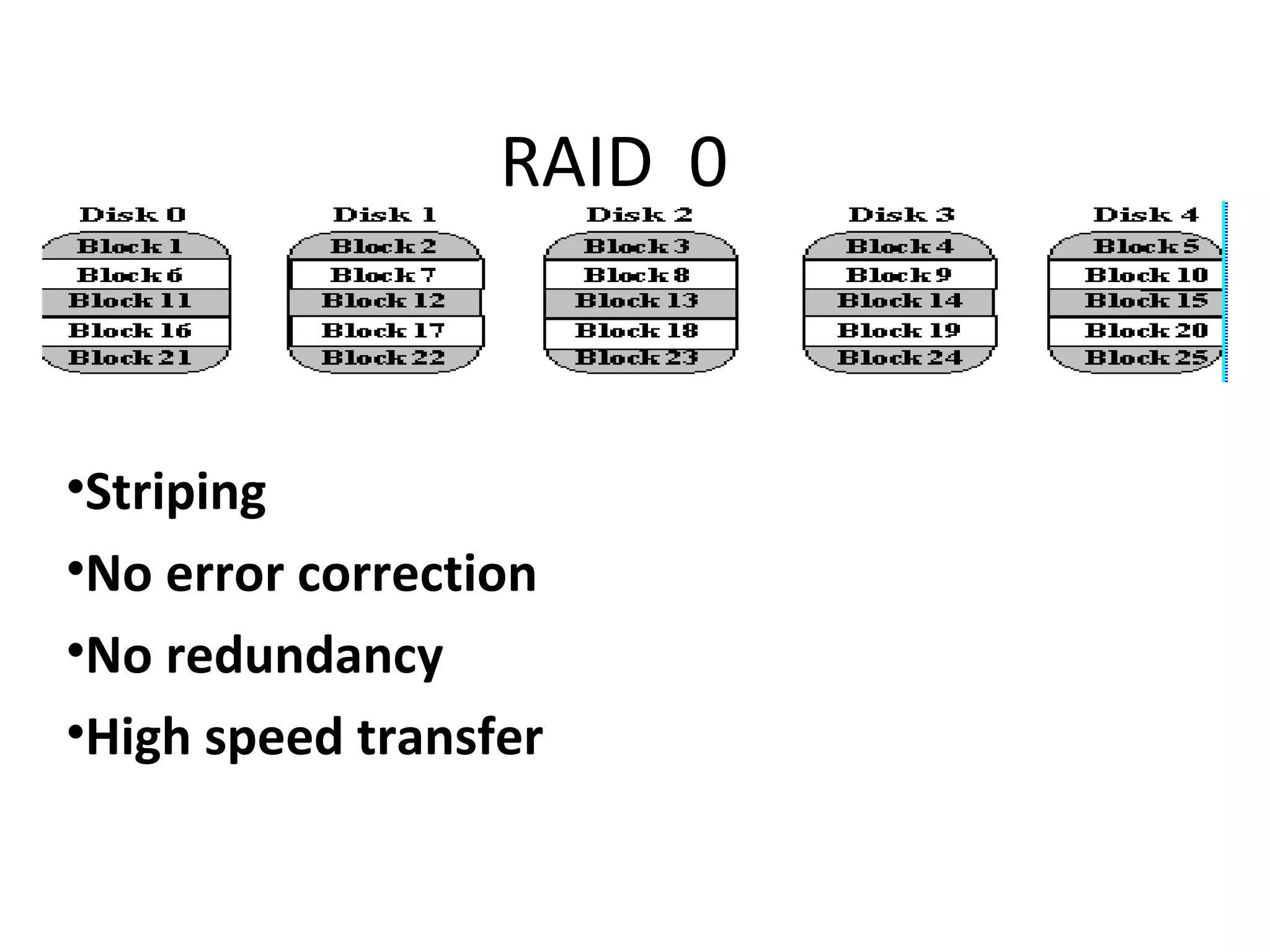

22. RAID 0
•Striping
•No error correction
•No redundancy
•High speed transfer

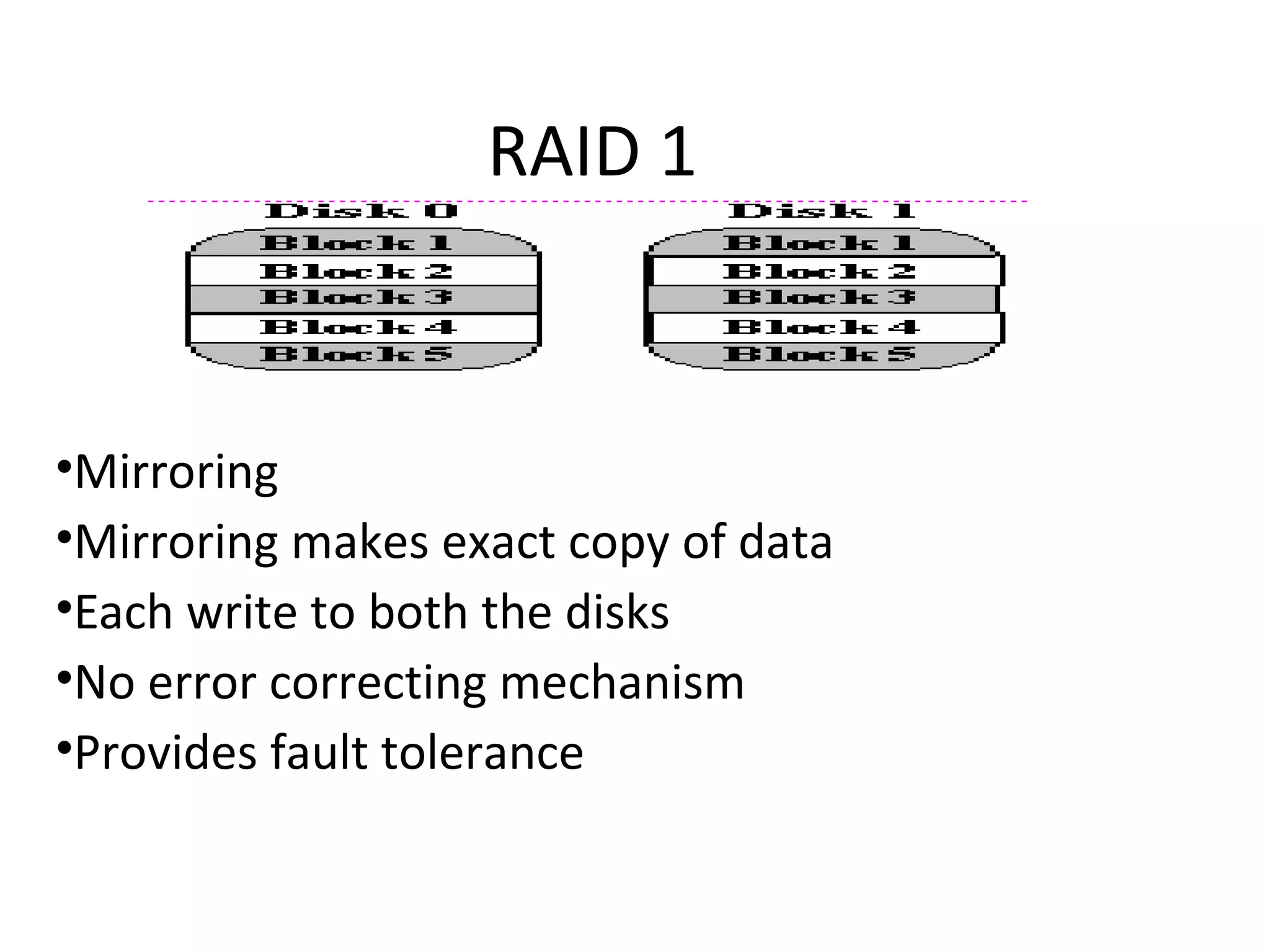

23. RAID 1
•Mirroring
•Mirroring makes exact copy of data
•Each write to both the disks
•No error correcting mechanism
•Provides fault tolerance

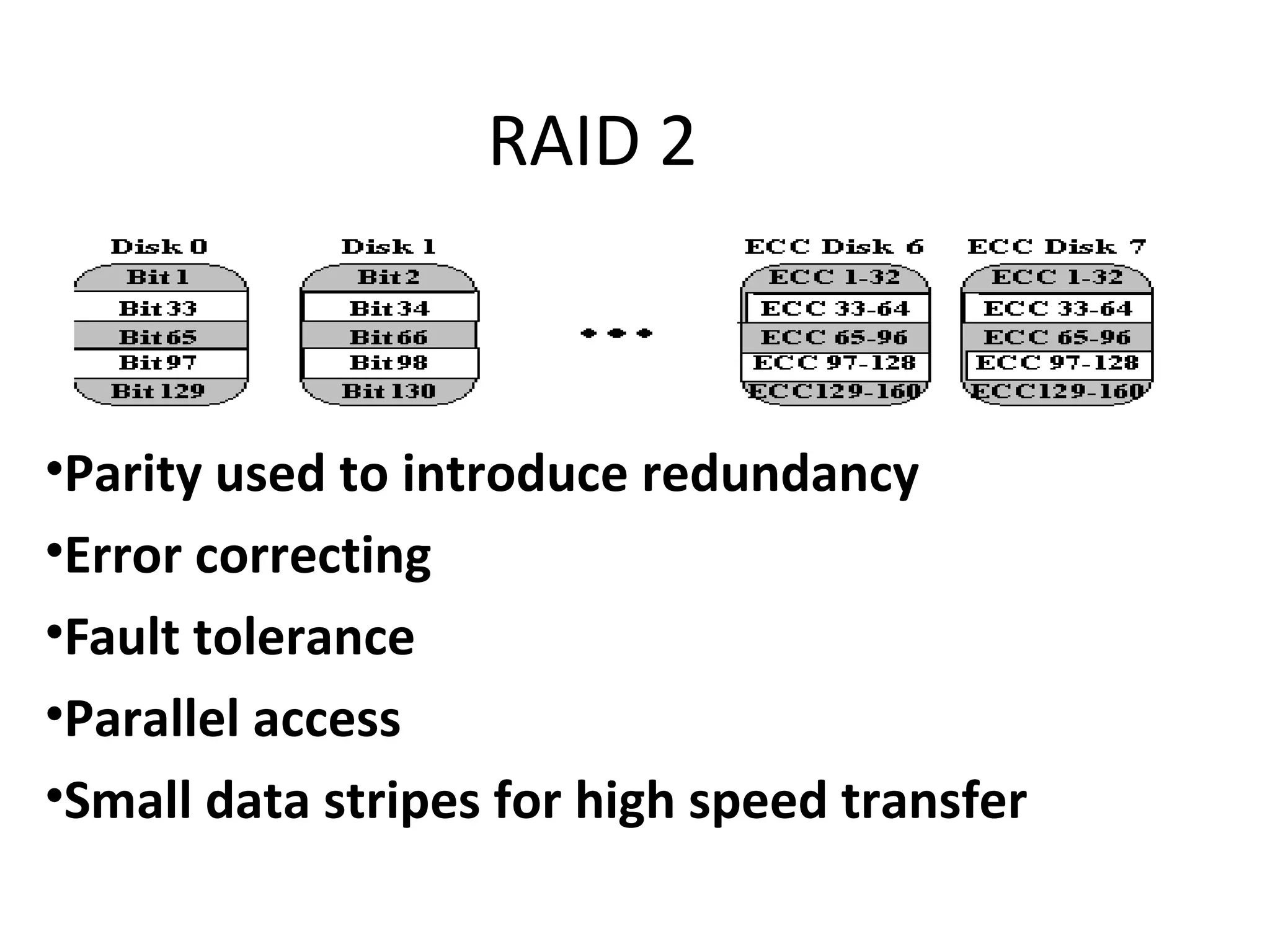

24. RAID 2
•Parity used to introduce redundancy
•Error correcting
•Fault tolerance
•Parallel access
•Small data stripes for high speed transfer

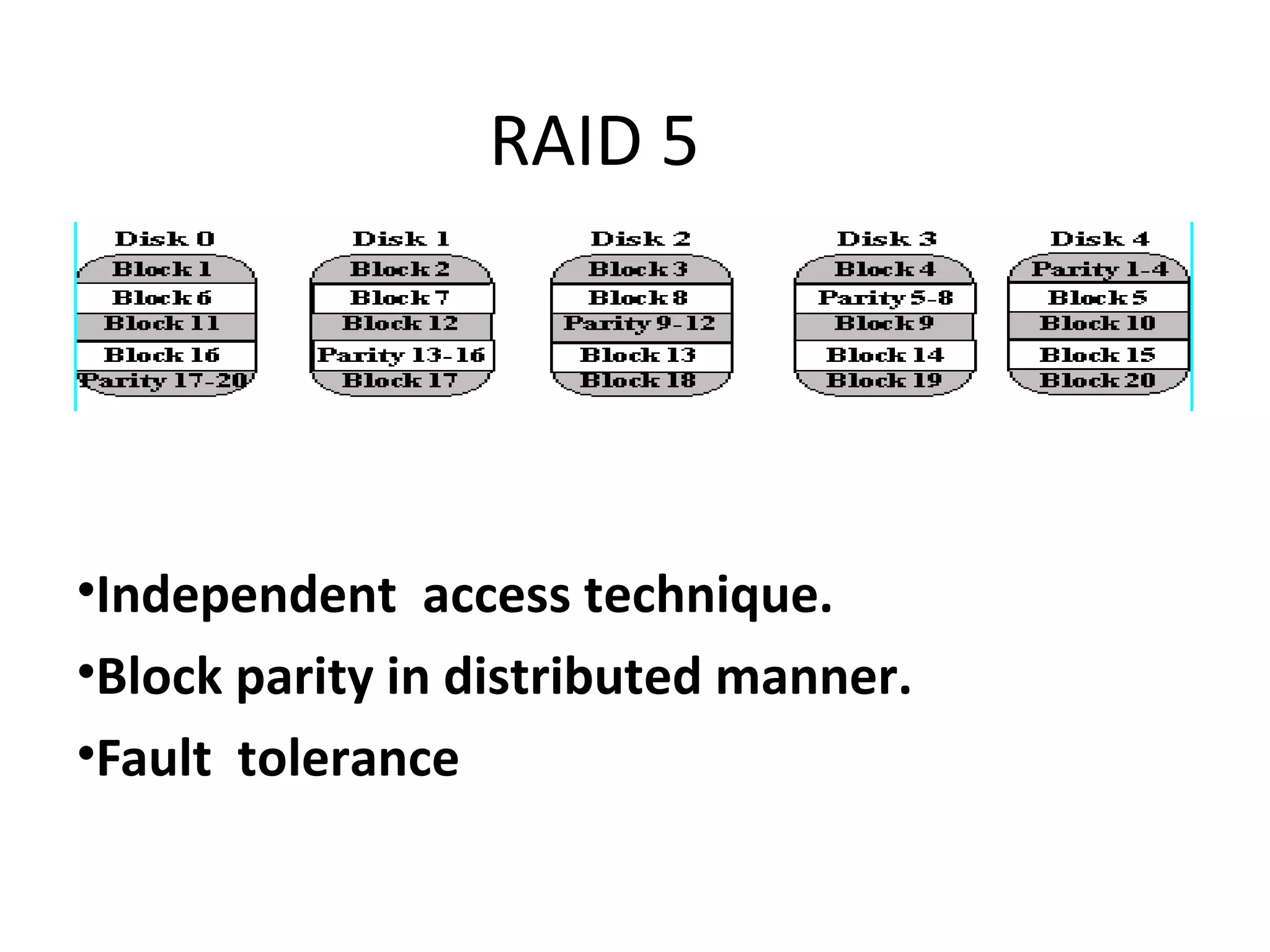

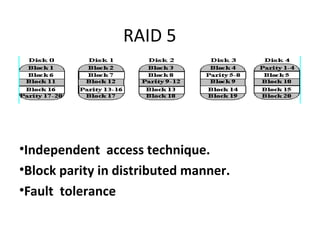

25. RAID 5
•Independent access technique.
•Block parity in distributed manner.
•Fault tolerance

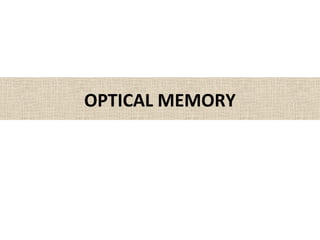

26. OPTICAL MEMORY

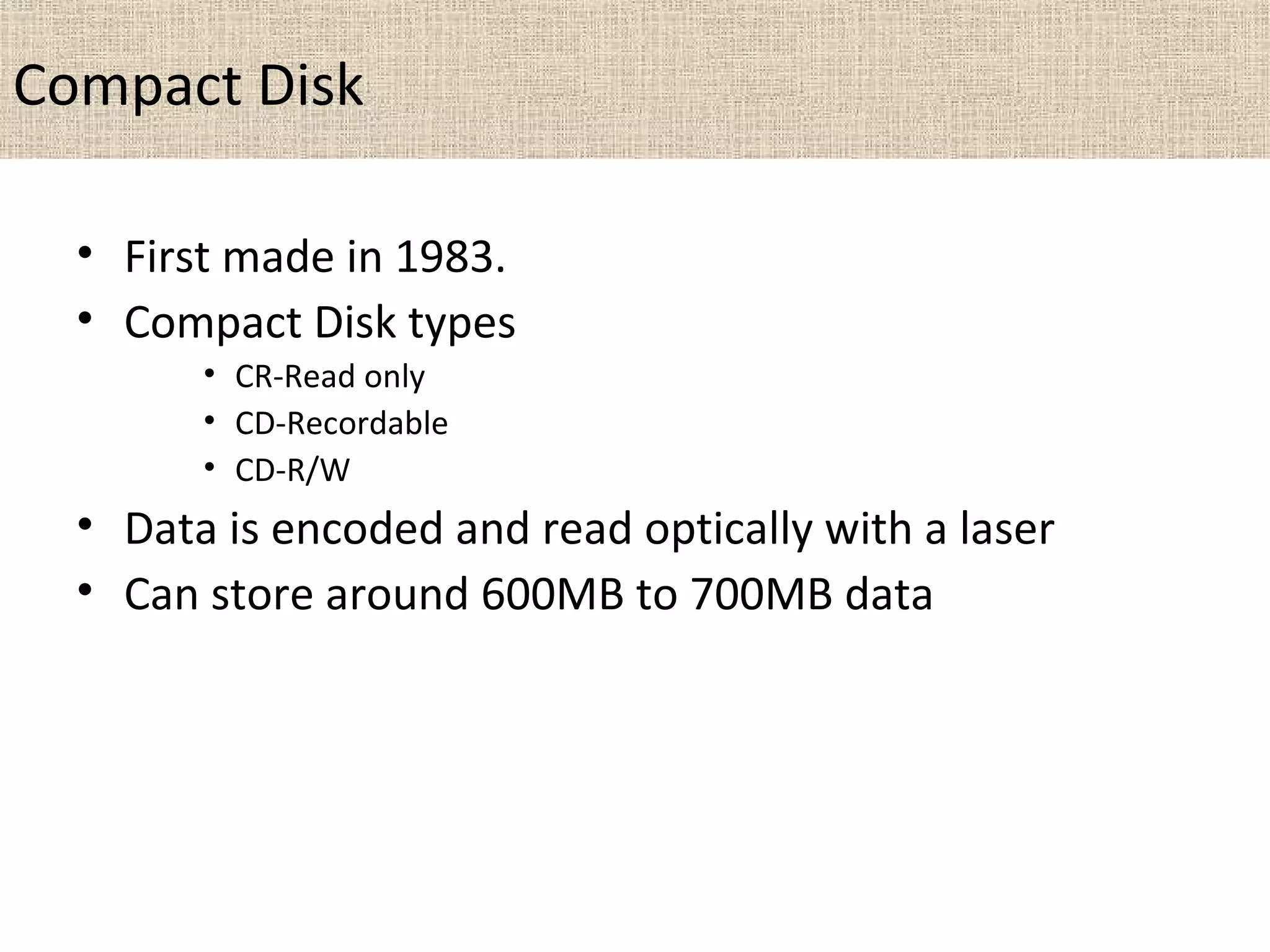

27. Compact Disk
• First made in 1983.
• Compact Disk types
• CR-Read only
• CD-Recordable
• CD-R/W
• Data is encoded and read optically with a laser
• Can store around 600MB to 700MB data

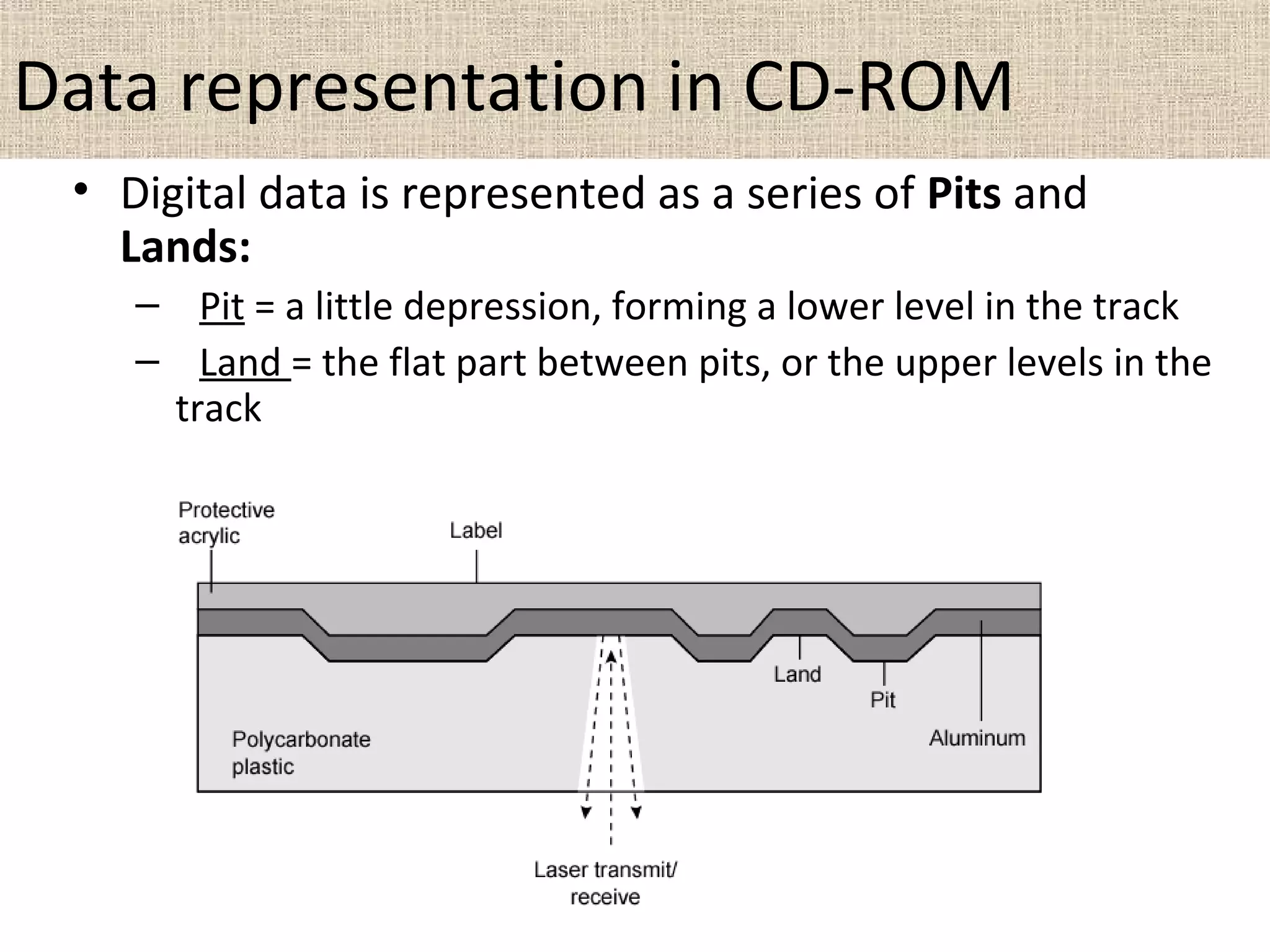

28. Data representation in CD-ROM
• Digital data is represented as a series of Pits and
Lands:
– Pit = a little depression, forming a lower level in the track
– Land = the flat part between pits, or the upper levels in the
track

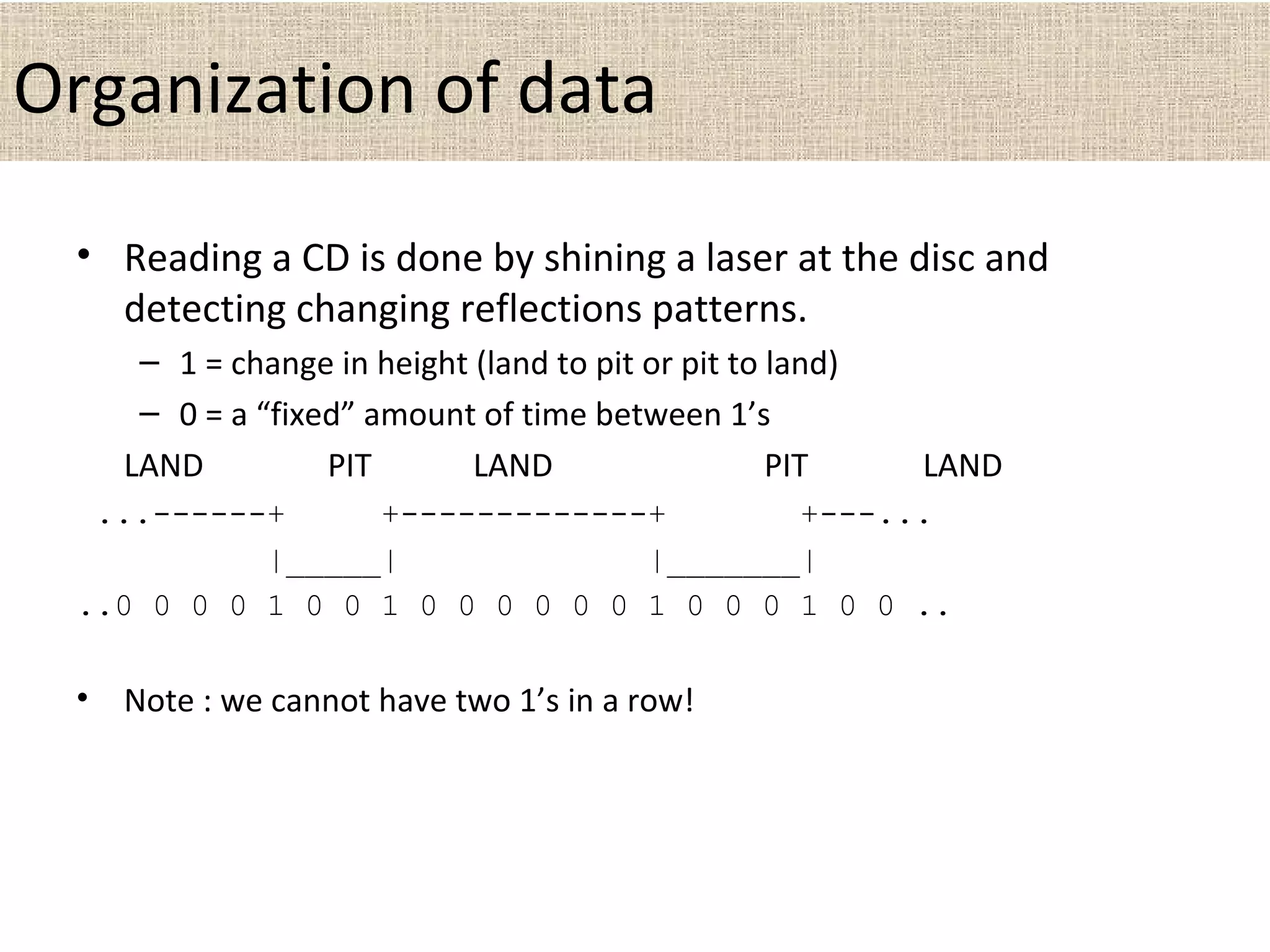

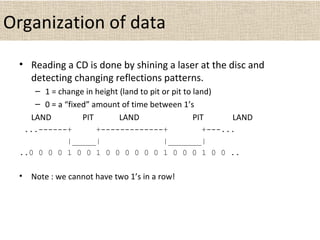

29. Organization of data
• Reading a CD is done by shining a laser at the disc and
detecting changing reflections patterns.
– 1 = change in height (land to pit or pit to land)
– 0 = a “fixed” amount of time between 1’s
LAND PIT LAND PIT LAND
...------+ +-------------+ +---...
|_____| |_______|
..0 0 0 0 1 0 0 1 0 0 0 0 0 0 1 0 0 0 1 0 0 ..
• Note : we cannot have two 1’s in a row!

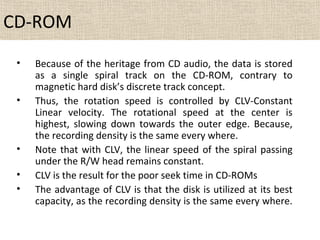

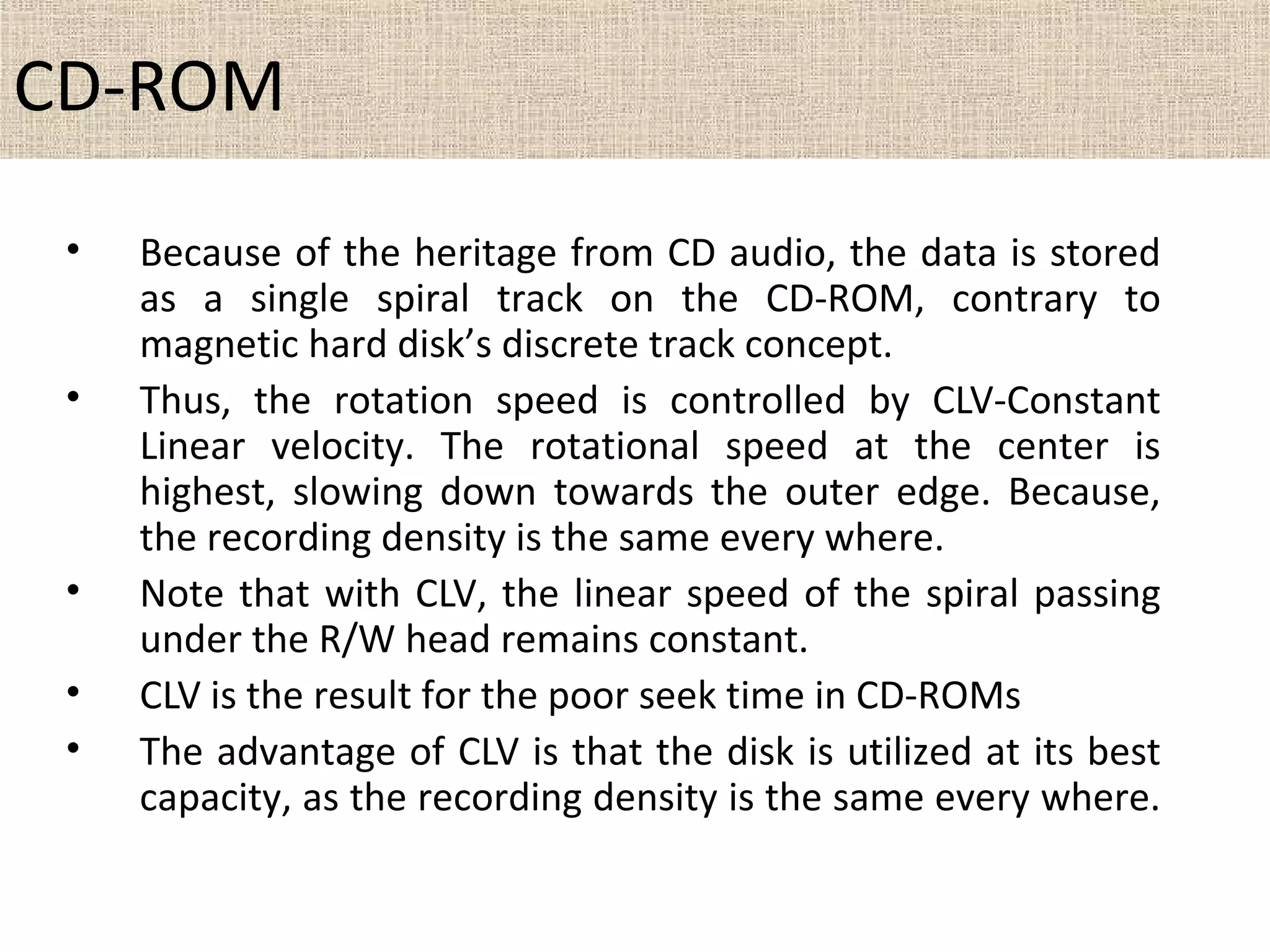

30. CD-ROM
• Because of the heritage from CD audio, the data is stored
as a single spiral track on the CD-ROM, contrary to
magnetic hard disk’s discrete track concept.
• Thus, the rotation speed is controlled by CLV-Constant
Linear velocity. The rotational speed at the center is
highest, slowing down towards the outer edge. Because,
the recording density is the same every where.
• Note that with CLV, the linear speed of the spiral passing
under the R/W head remains constant.
• CLV is the result for the poor seek time in CD-ROMs
• The advantage of CLV is that the disk is utilized at its best
capacity, as the recording density is the same every where.

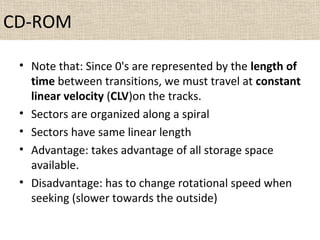

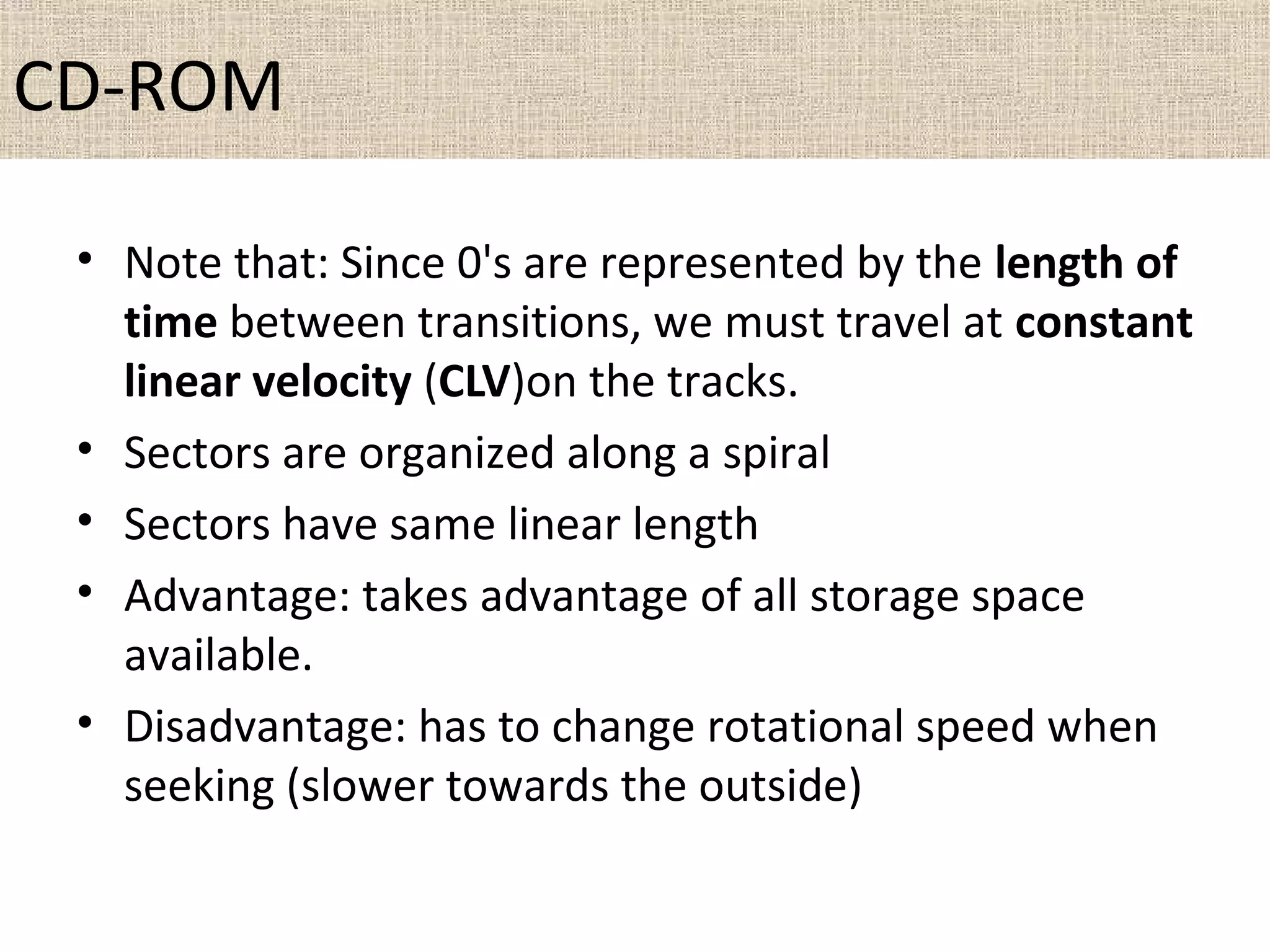

31. CD-ROM
• Note that: Since 0's are represented by the length of
time between transitions, we must travel at constant
linear velocity (CLV)on the tracks.
• Sectors are organized along a spiral
• Sectors have same linear length
• Advantage: takes advantage of all storage space
available.
• Disadvantage: has to change rotational speed when
seeking (slower towards the outside)

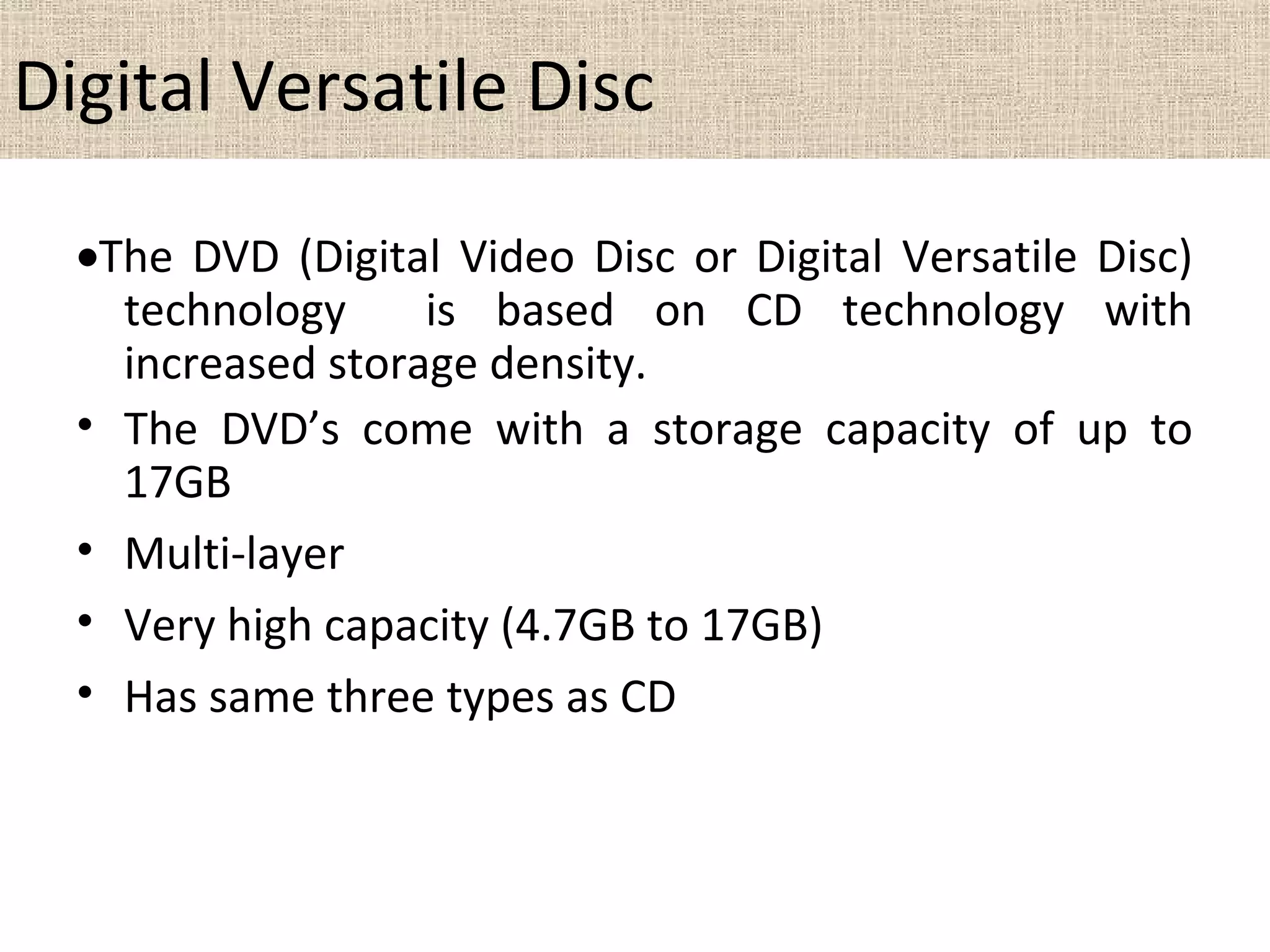

32. Digital Versatile Disc
•The DVD (Digital Video Disc or Digital Versatile Disc)
technology is based on CD technology with
increased storage density.
• The DVD’s come with a storage capacity of up to
17GB
• Multi-layer
• Very high capacity (4.7GB to 17GB)
• Has same three types as CD

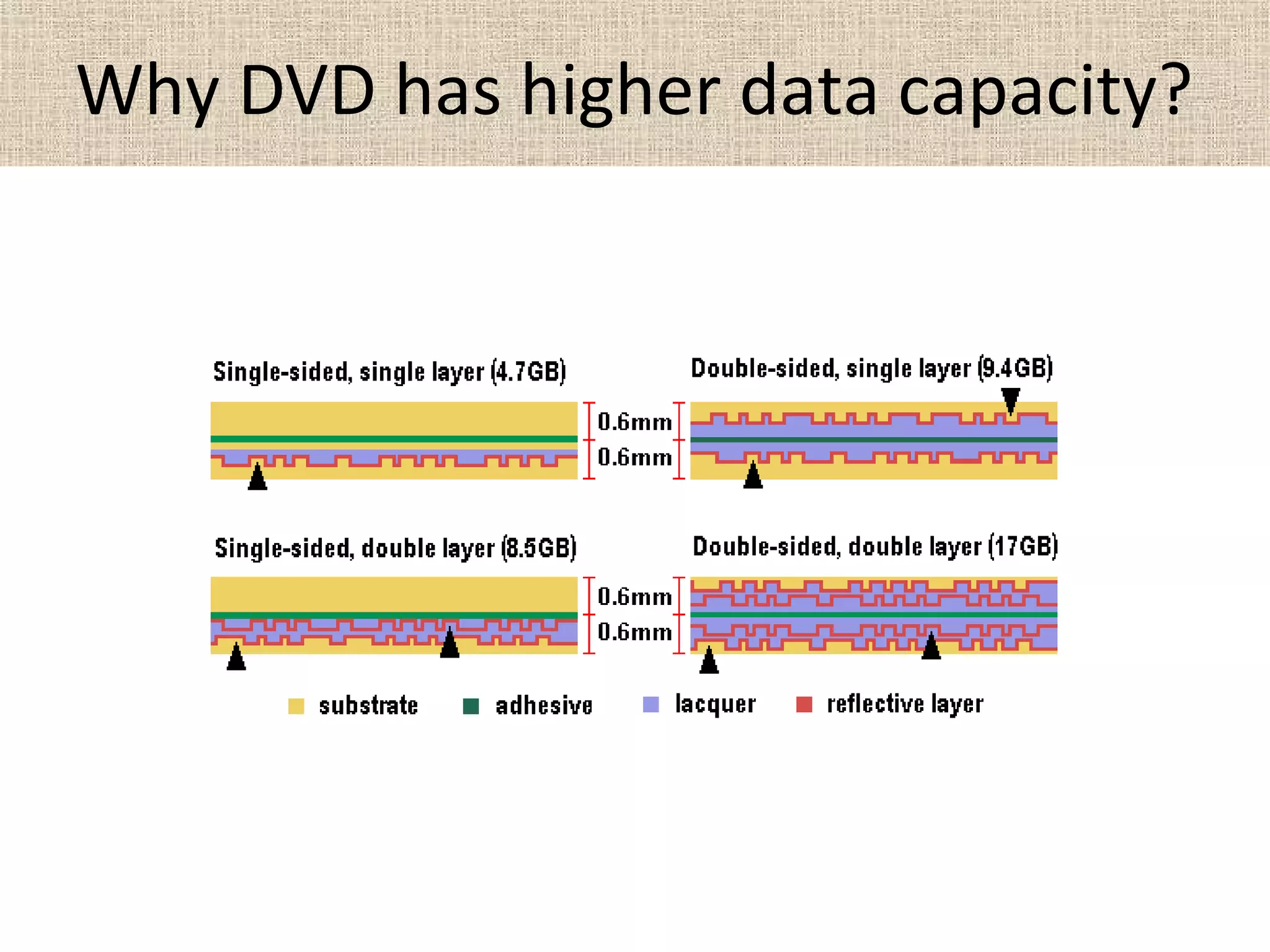

33. Why DVD has higher data capacity?

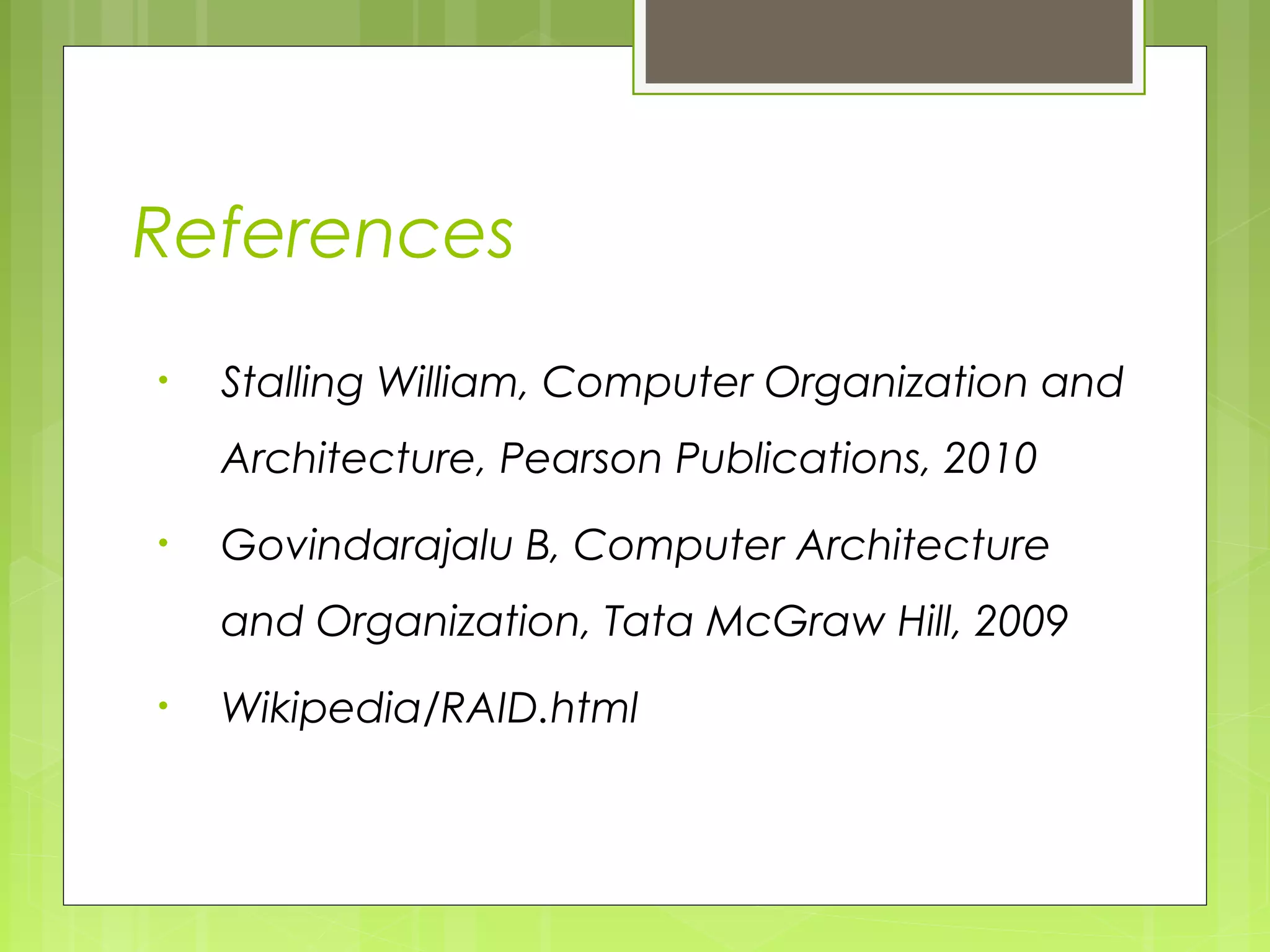

34. References
• Stalling William, Computer Organization and
Architecture, Pearson Publications, 2010
• Govindarajalu B, Computer Architecture
and Organization, Tata McGraw Hill, 2009
• Wikipedia/RAID.html
