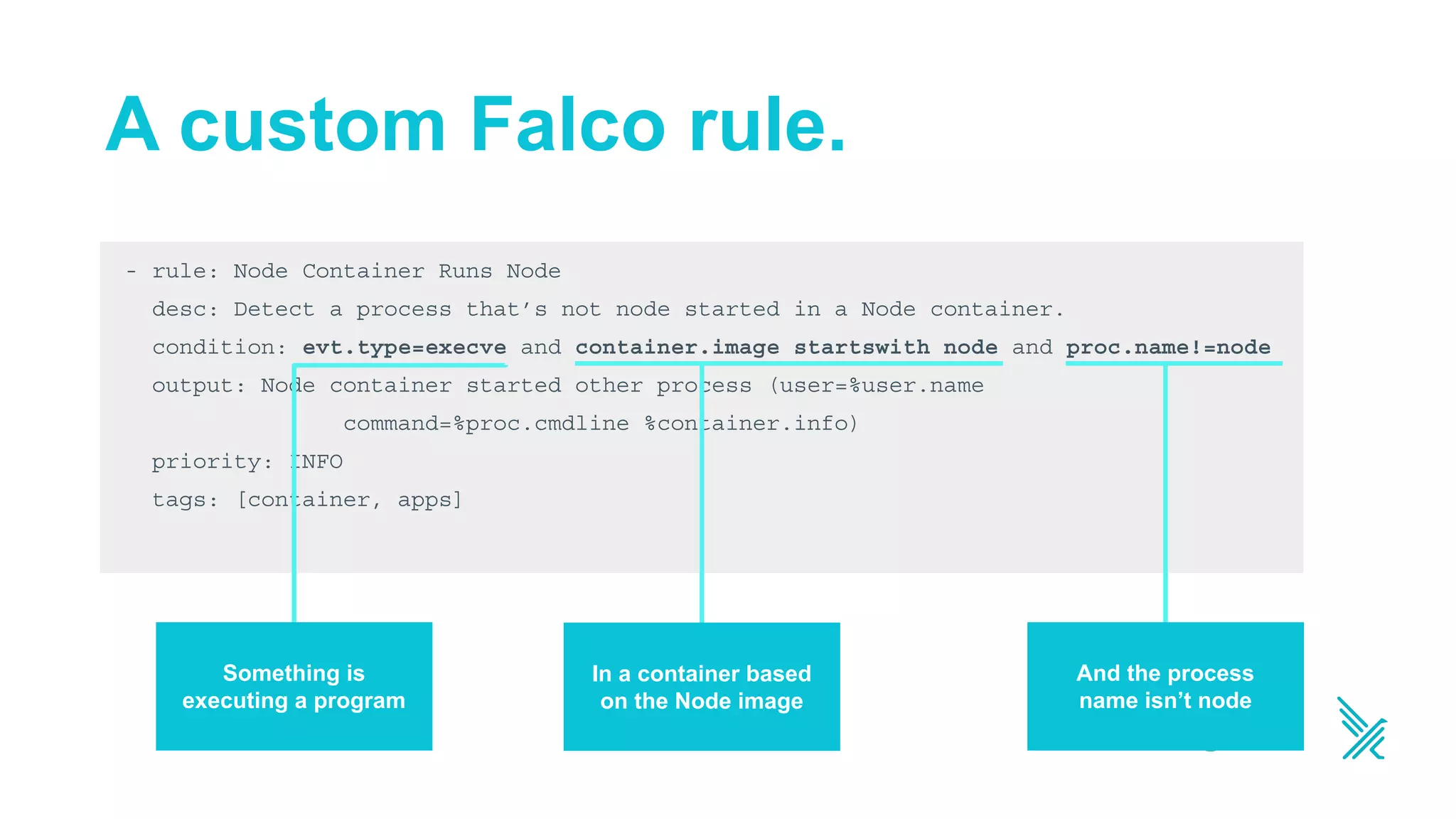

![@mfdii
- rule: Node Container Runs Node
desc: Detect a process that’s not node started in a Node container.
condition: evt.type=execve and container.image startswith node and proc.name!=node
output: Node container started other process (user=%user.name
command=%proc.cmdline %container.info)
priority: INFO
tags: [container, apps]
A custom Falco rule.
Something is
executing a program
In a container based
on the Node image
And the process
name isn’t node](https://image.slidesharecdn.com/automatingsecurityresponsewithserverless-200204104115/85/Automating-Security-Response-with-Serverless-31-320.jpg)
![@mfdii
- macro: contains_private_credentials
condition: >
(ka.req.configmap.obj contains "aws_access_key_id" or
ka.req.configmap.obj contains "aws_s3_access_key_id" or
ka.req.configmap.obj contains “password")
- macro: configmap
condition: ka.target.resource=configmaps
- macro: modify
condition: (ka.verb in (create,update,patch))
- rule: Create/Modify Configmap With Private Credentials
desc: Detect creating/modifying a configmap containing a private credential
(aws key, password, etc.)
condition: configmap and modify and contains_private_credentials
output: K8s configmap with private credential (user=%ka.user.name
verb=%ka.verb name=%ka.req.configmap.name
configmap=%ka.req.configmap.name config=%ka.req.configmap.obj)
priority: WARNING
source: k8s_audit
tags: [k8s]
K8s audit log rule example.](https://image.slidesharecdn.com/automatingsecurityresponsewithserverless-200204104115/85/Automating-Security-Response-with-Serverless-32-320.jpg)
Uploaded byMichael Ducy
Automating Security Response with Serverless
This document discusses using serverless technologies for automating security response. It provides an overview of serverless computing benefits and design patterns. Examples of open source serverless platforms like Knative and Kubeless are described. The document also discusses using MLGuard, Falco, and security playbooks with serverless functions to detect anomalies and automate security response actions like killing offending pods.
More Related Content
Similar to Automating Security Response with Serverless
Automating Security Response with Serverless
- 1. Automating Security Response with Serverless MichaelDucy, Red Hat
- 2. @mfdii About me. Michael Ducy CloudNative Security & Transformation, Red Hat Past: Sysdig, Chef, Orbitz WW DevOpsDays Columbus Organizer Cloud Native Security Day Organizer https://events.linuxfoundation.org/cloud-native-security-day/ @mfdii @mfdii

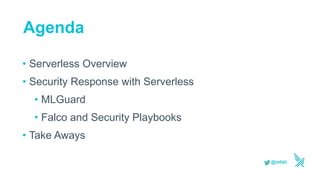

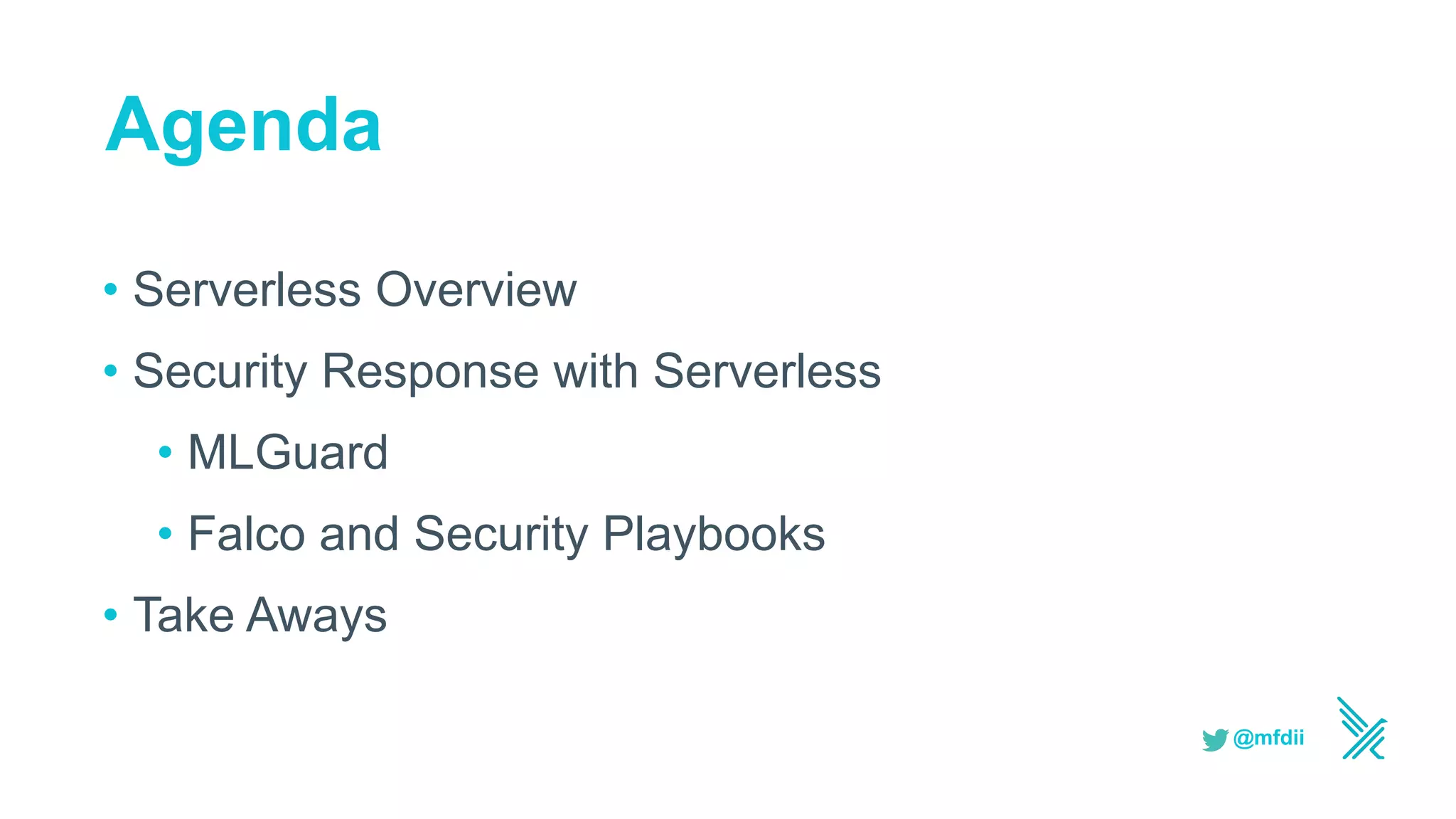

- 3. @mfdii • Serverless Overview •Security Response with Serverless • MLGuard • Falco and Security Playbooks • Take Aways Agenda

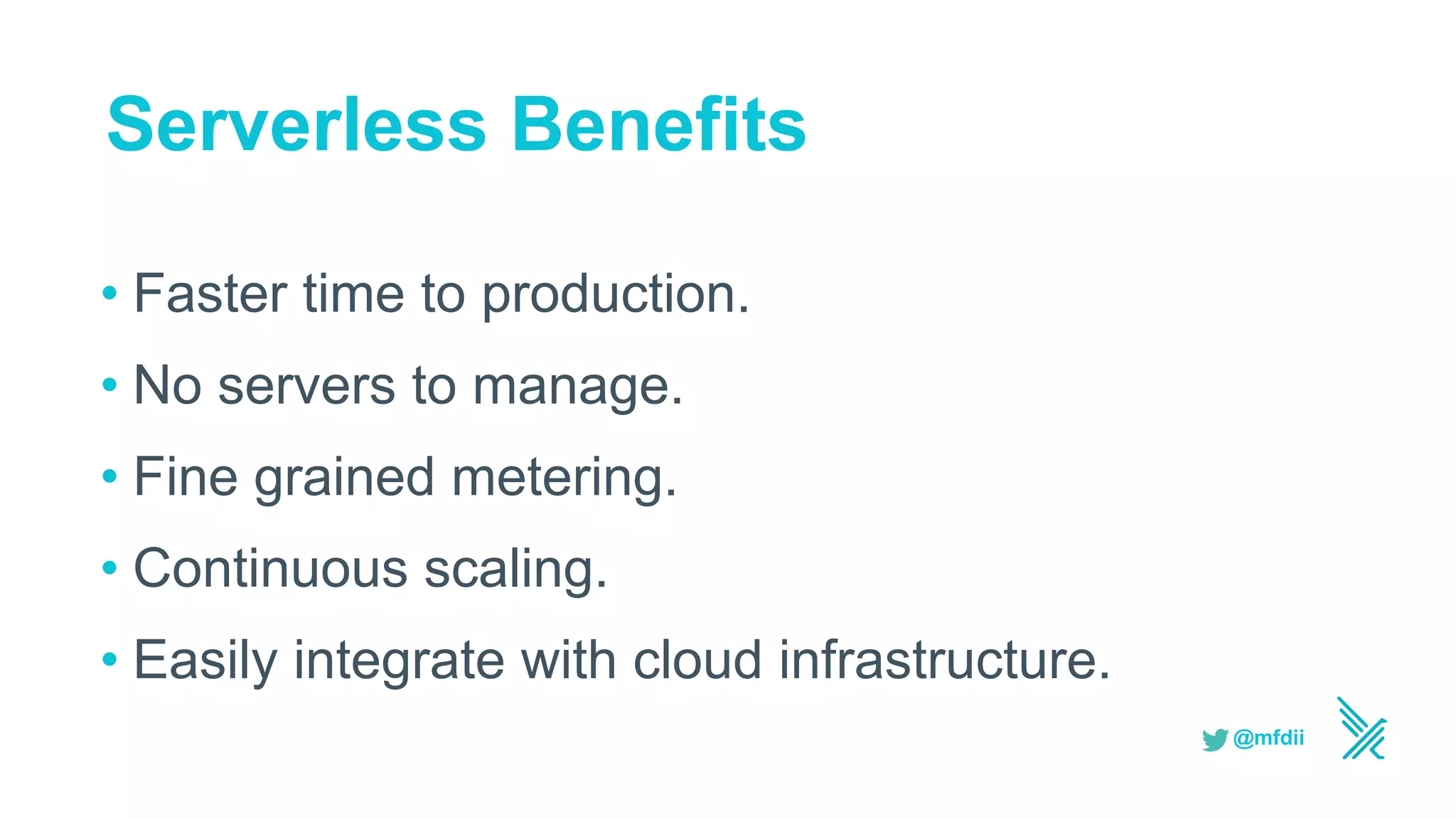

- 4. @mfdii • Faster timeto production. • No servers to manage. • Fine grained metering. • Continuous scaling. • Easily integrate with cloud infrastructure. Serverless Benefits

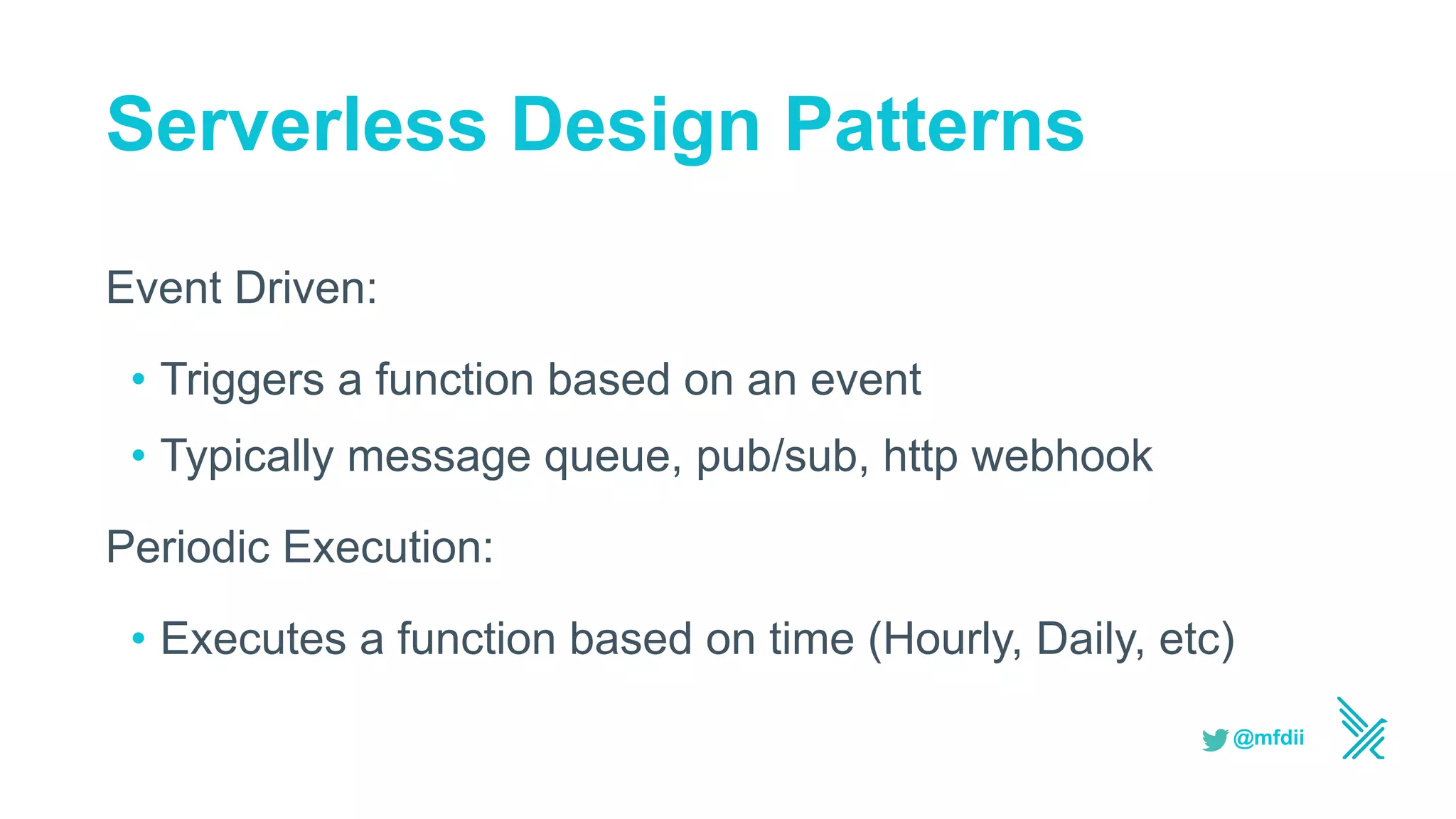

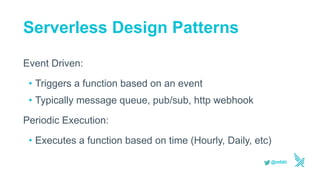

- 5. @mfdii Event Driven: • Triggersa function based on an event • Typically message queue, pub/sub, http webhook Periodic Execution: • Executes a function based on time (Hourly, Daily, etc) Serverless Design Patterns

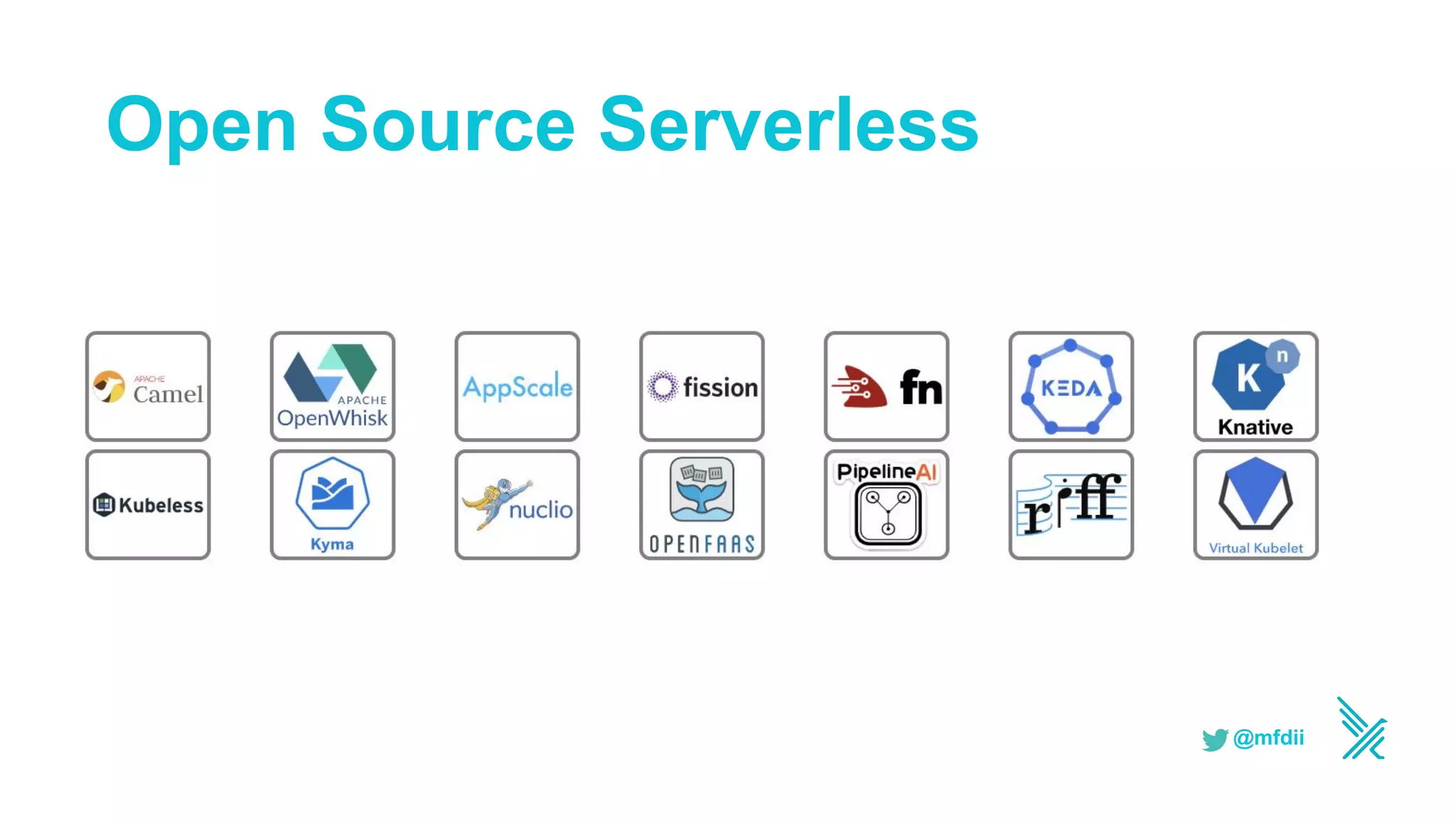

- 6.

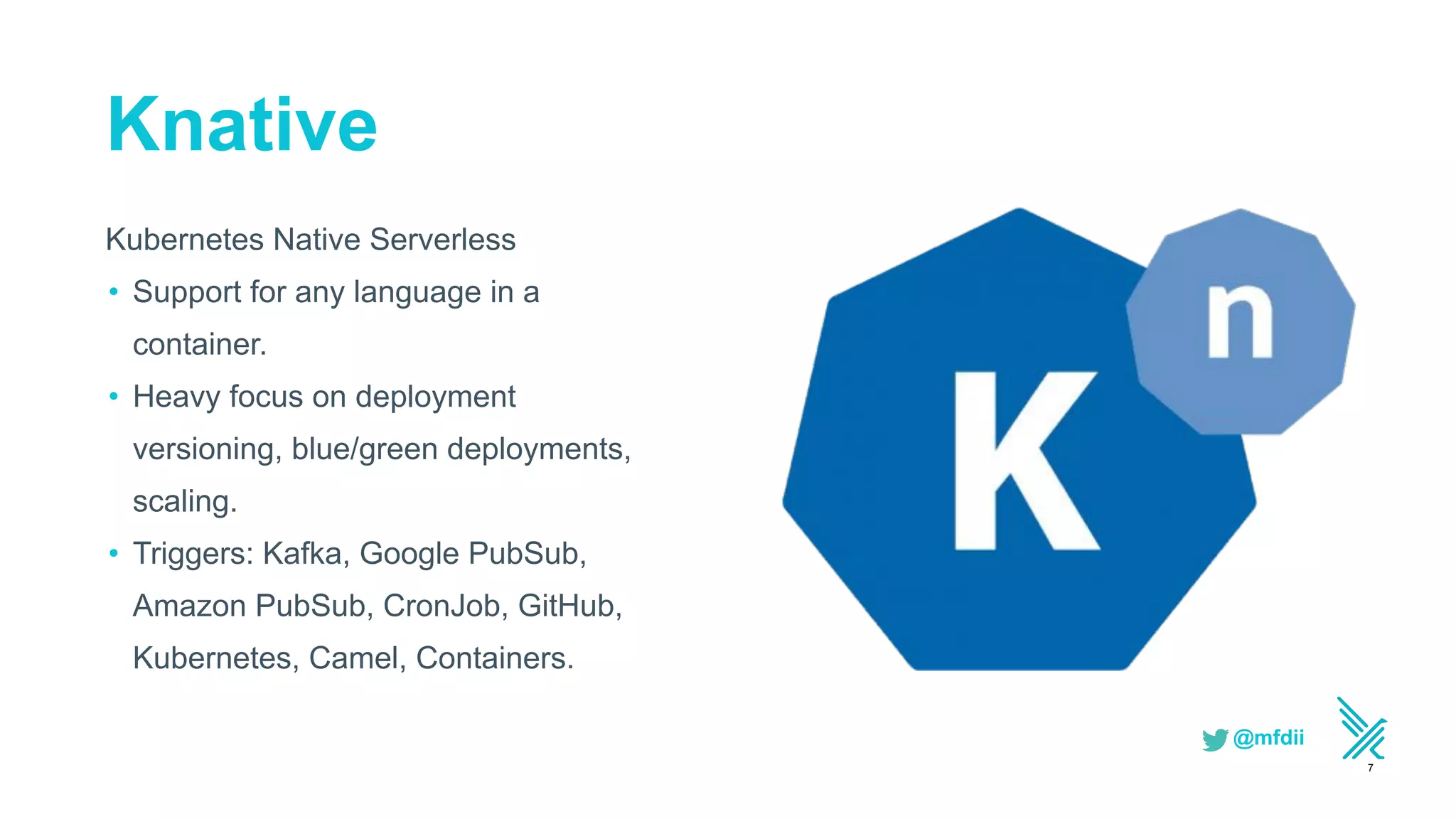

- 7. @mfdii Knative Kubernetes Native Serverless •Support for any language in a container. • Heavy focus on deployment versioning, blue/green deployments, scaling. • Triggers: Kafka, Google PubSub, Amazon PubSub, CronJob, GitHub, Kubernetes, Camel, Containers. 7

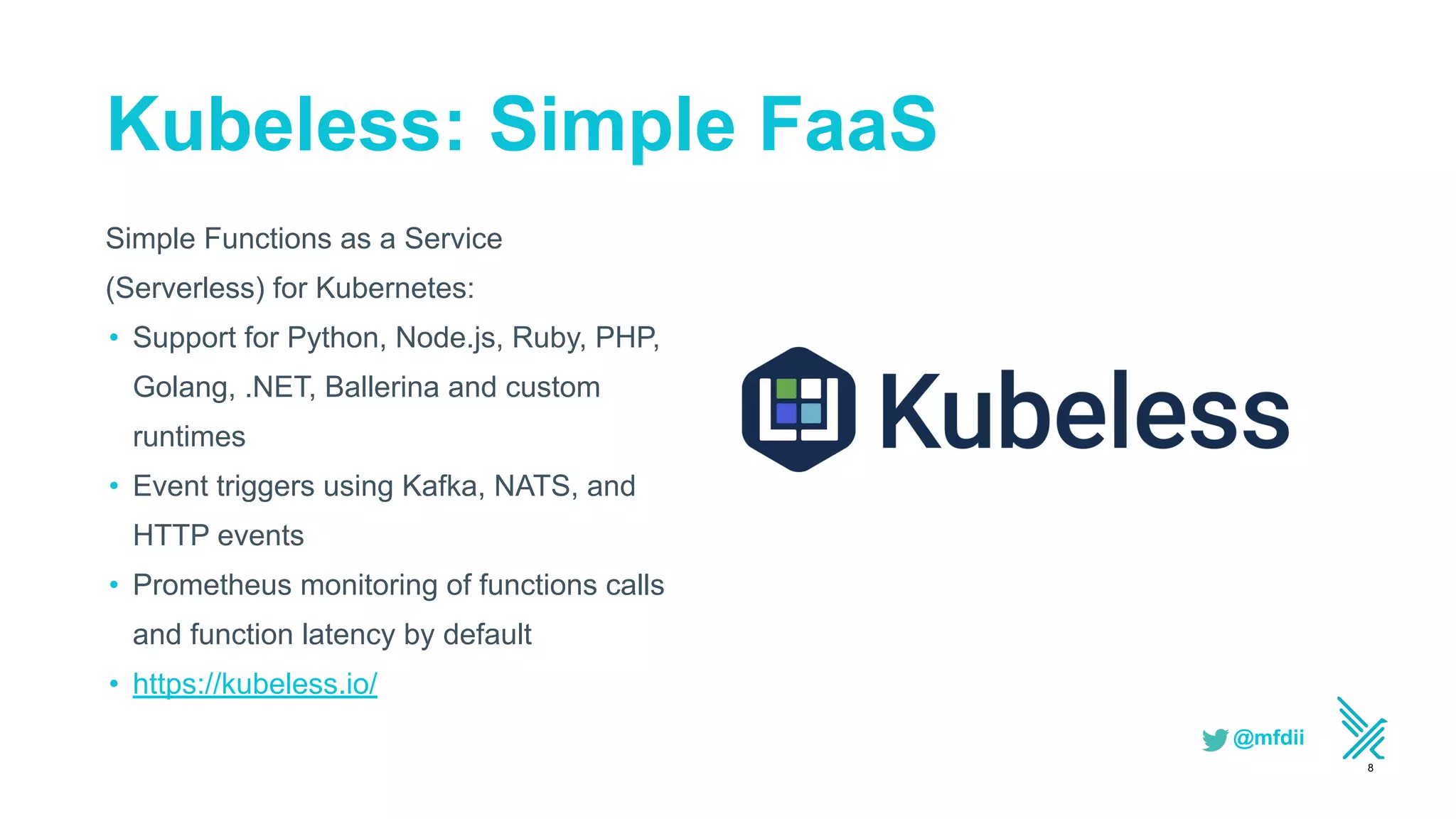

- 8. @mfdii Kubeless: Simple FaaS SimpleFunctions as a Service (Serverless) for Kubernetes: • Support for Python, Node.js, Ruby, PHP, Golang, .NET, Ballerina and custom runtimes • Event triggers using Kafka, NATS, and HTTP events • Prometheus monitoring of functions calls and function latency by default • https://kubeless.io/ 8

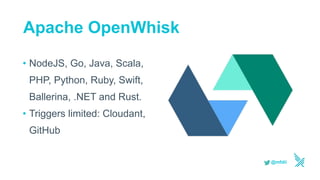

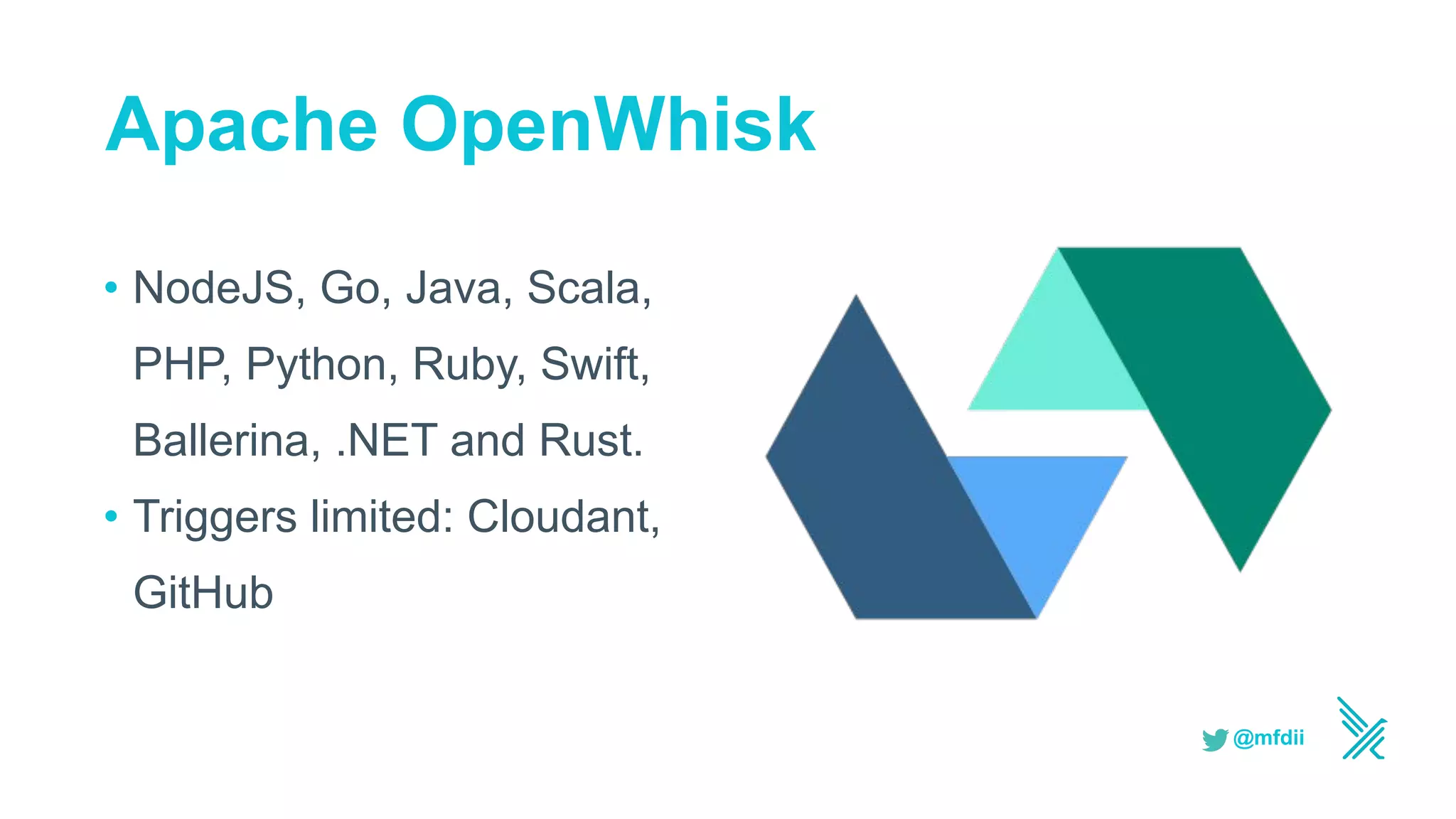

- 9. @mfdii • NodeJS, Go,Java, Scala, PHP, Python, Ruby, Swift, Ballerina, .NET and Rust. • Triggers limited: Cloudant, GitHub Apache OpenWhisk
- 10.
- 11.
- 12.

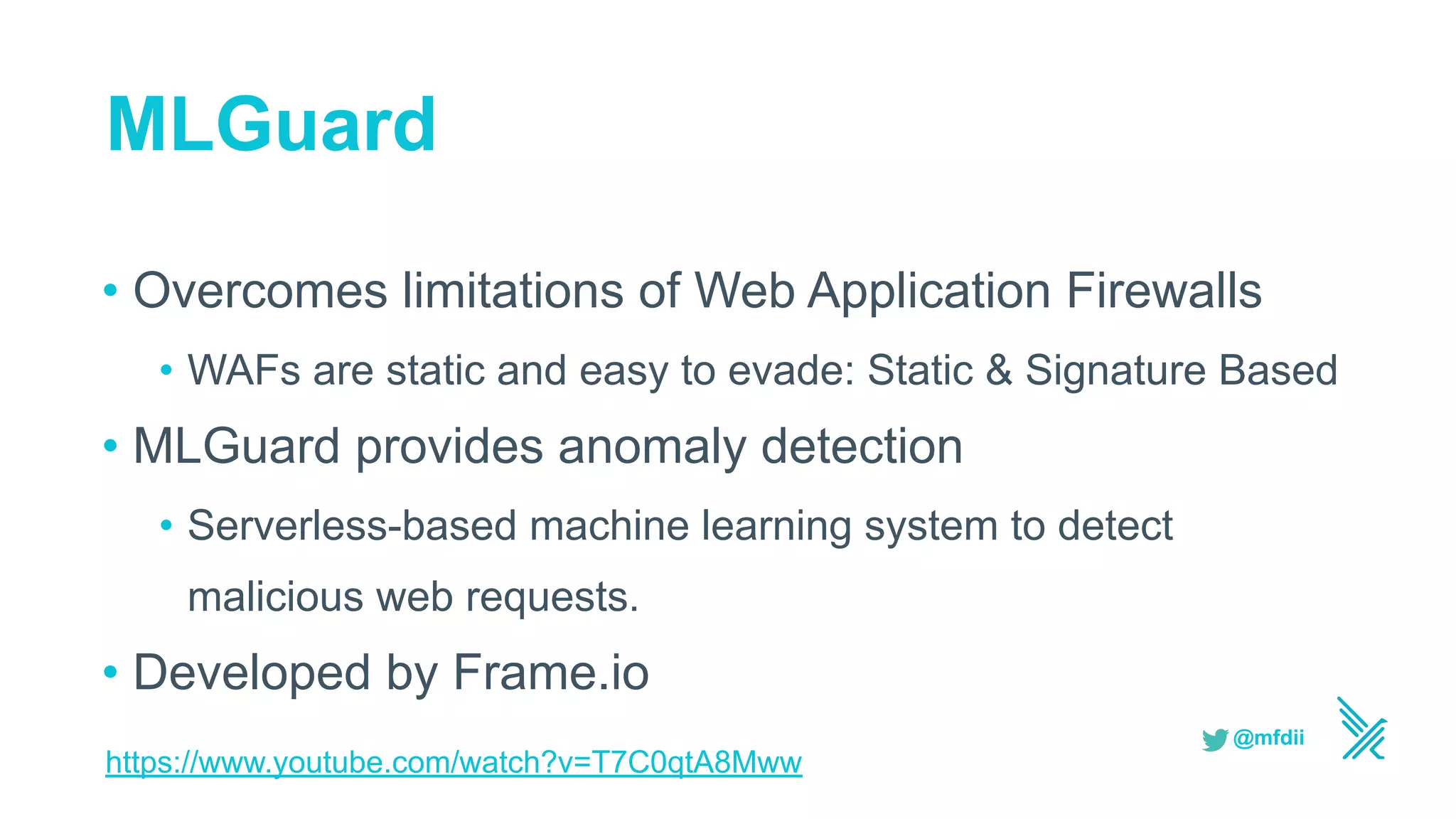

- 13. @mfdii MLGuard • Overcomes limitationsof Web Application Firewalls • WAFs are static and easy to evade: Static & Signature Based • MLGuard provides anomaly detection • Serverless-based machine learning system to detect malicious web requests. • Developed by Frame.io https://www.youtube.com/watch?v=T7C0qtA8Mww

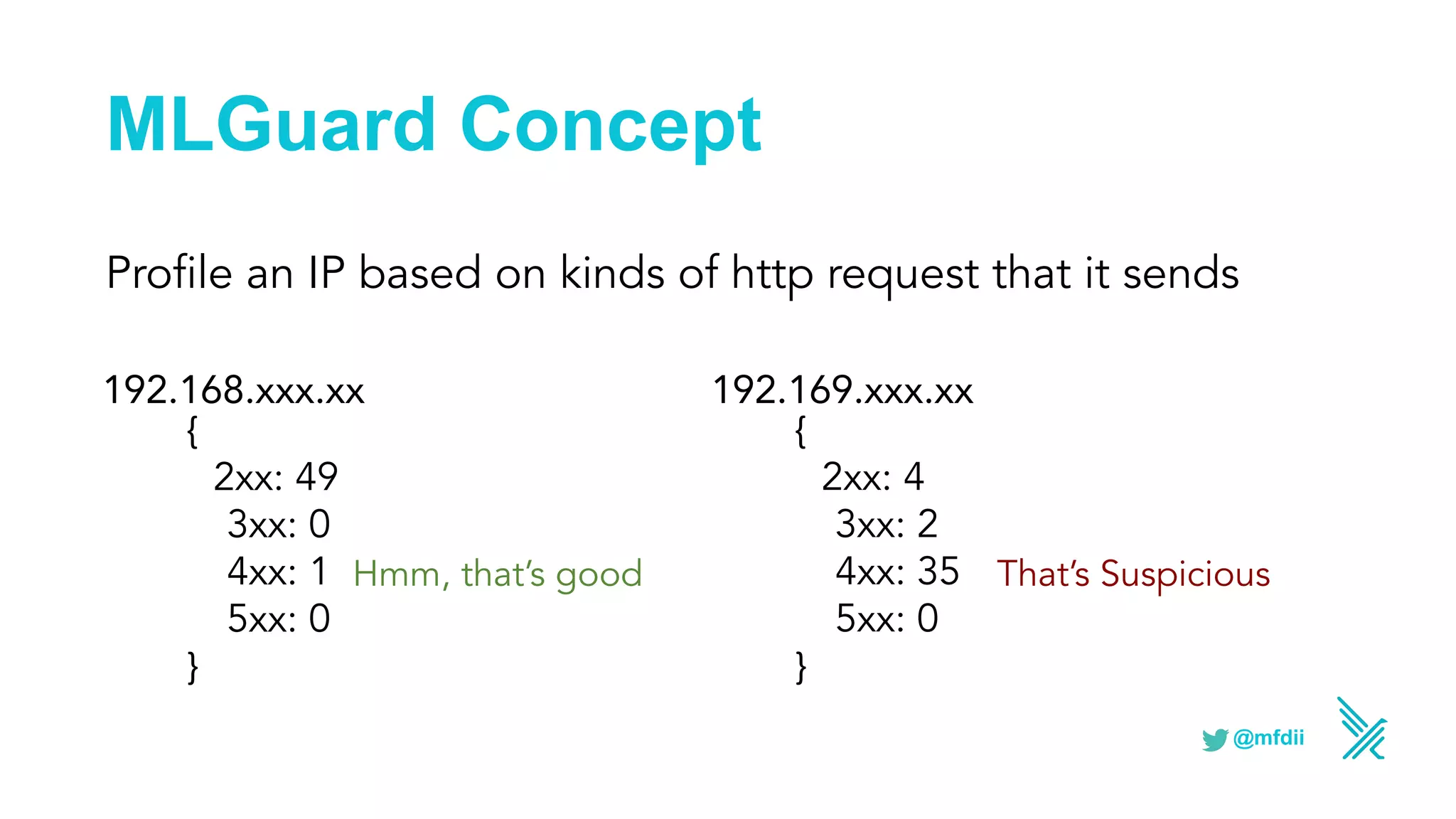

- 14. @mfdii Profile an IPbased on kinds of http request that it sends MLGuard Concept 192.168.xxx.xx { 2xx: 49 3xx: 0 4xx: 1 5xx: 0 } 192.169.xxx.xx { 2xx: 4 3xx: 2 4xx: 35 5xx: 0 } Hmm, that’s good That’s Suspicious

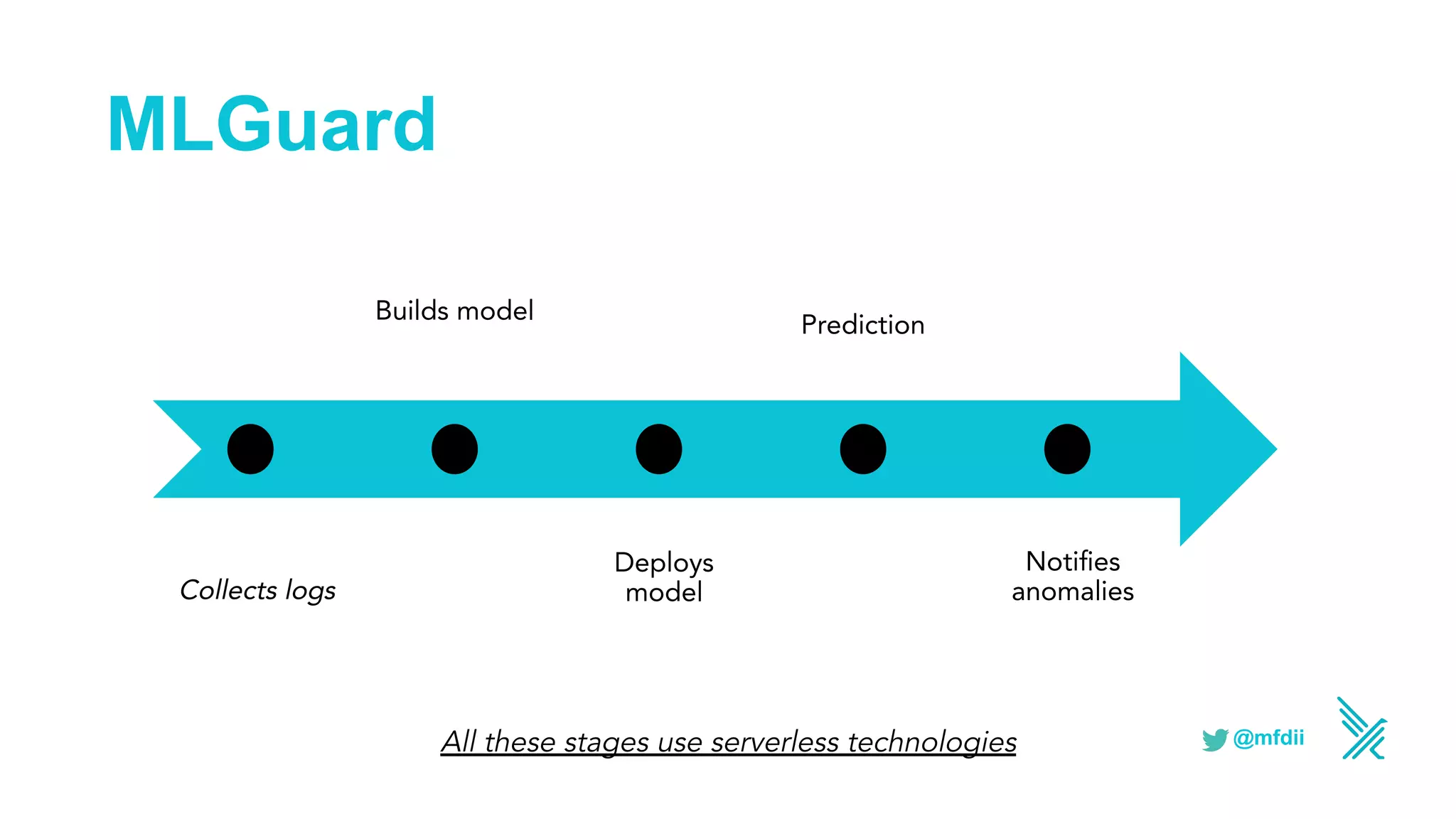

- 15. @mfdii MLGuard Collects logs Builds model Deploys model Prediction Notifies anomalies Allthese stages use serverless technologies

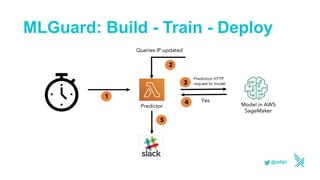

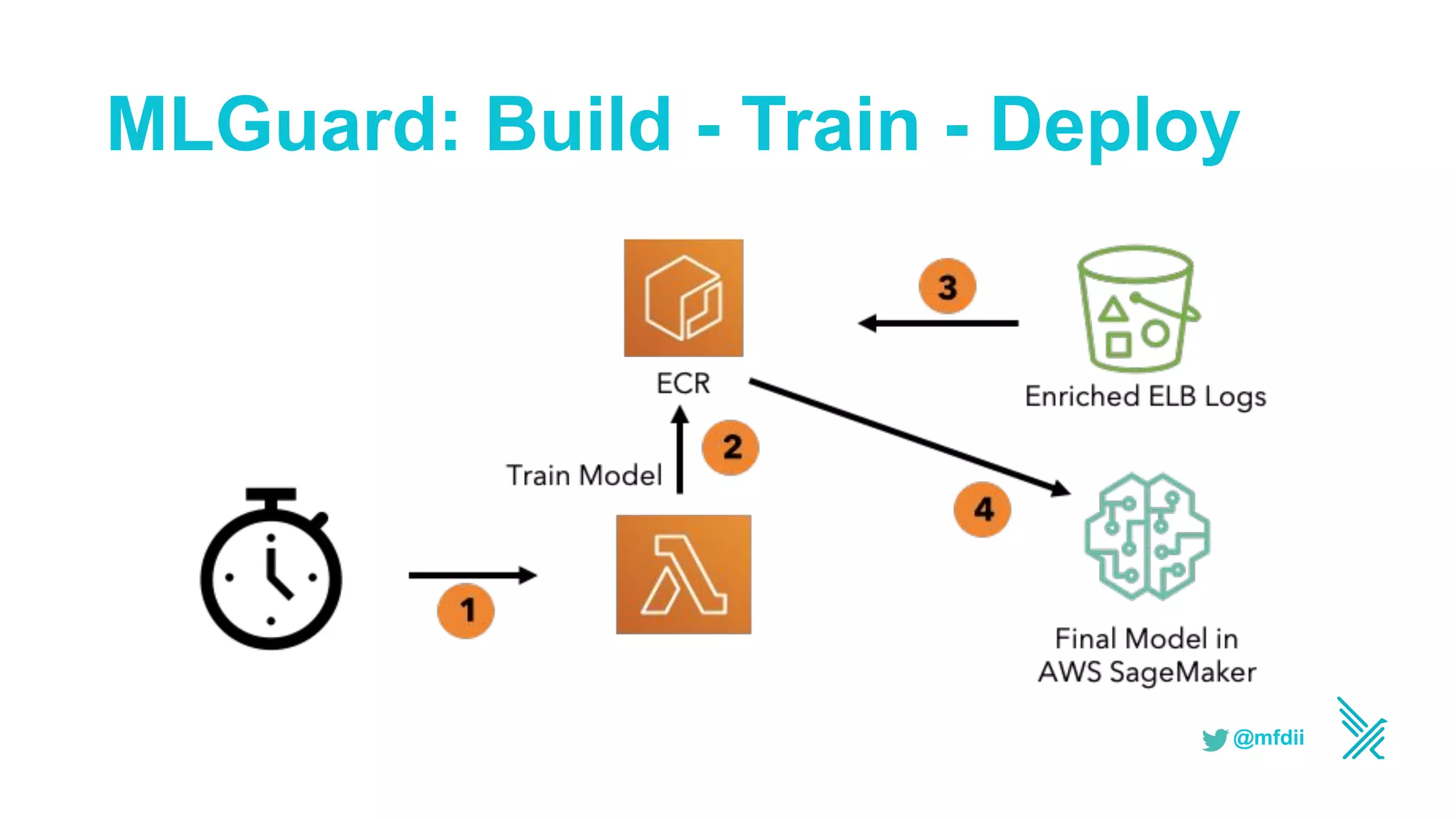

- 16. @mfdii MLGuard: Build -Train - Deploy

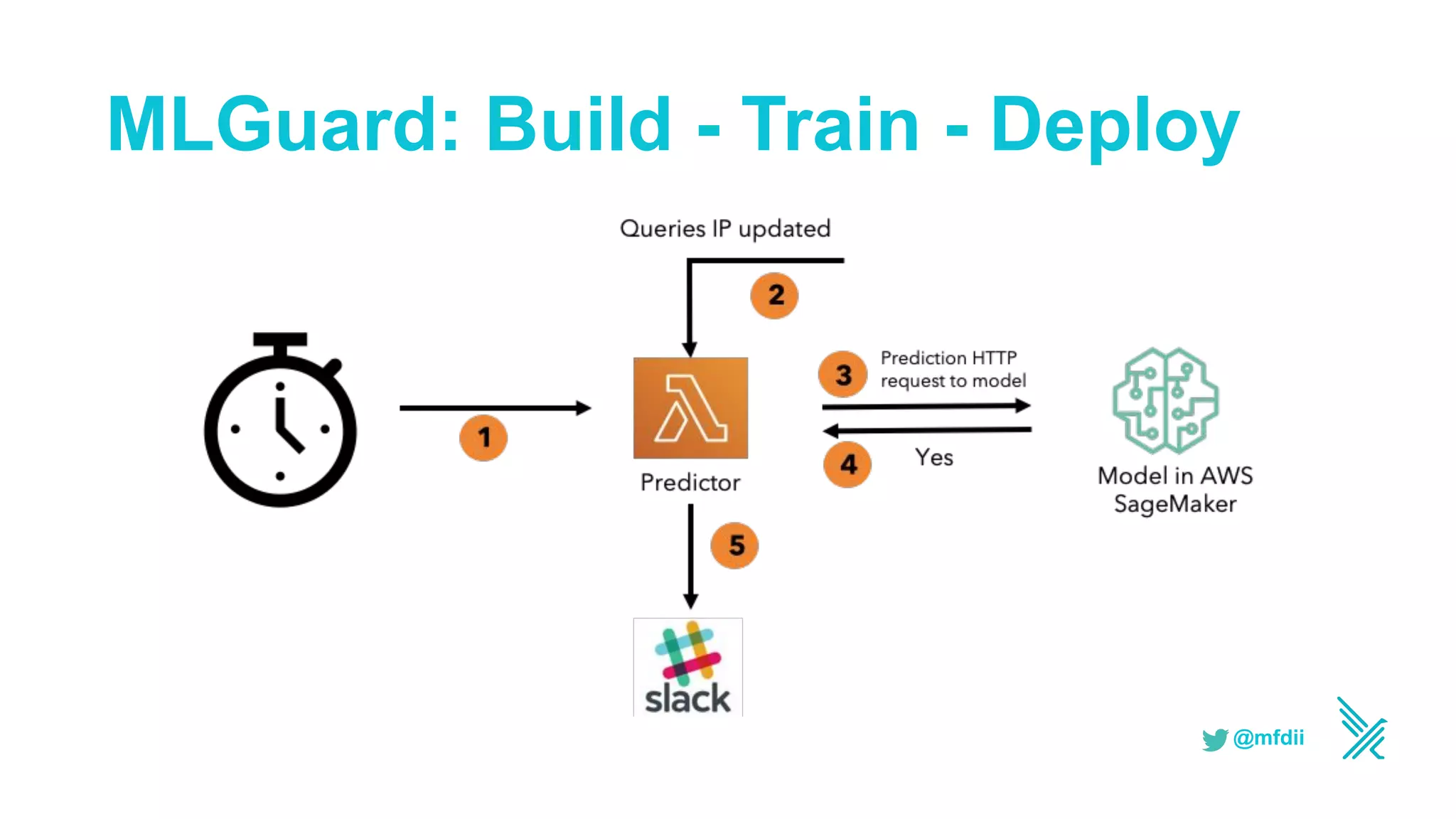

- 17. @mfdii MLGuard: Build -Train - Deploy
- 18.
- 19.
- 20. Falco & Serverless SecurityResponse

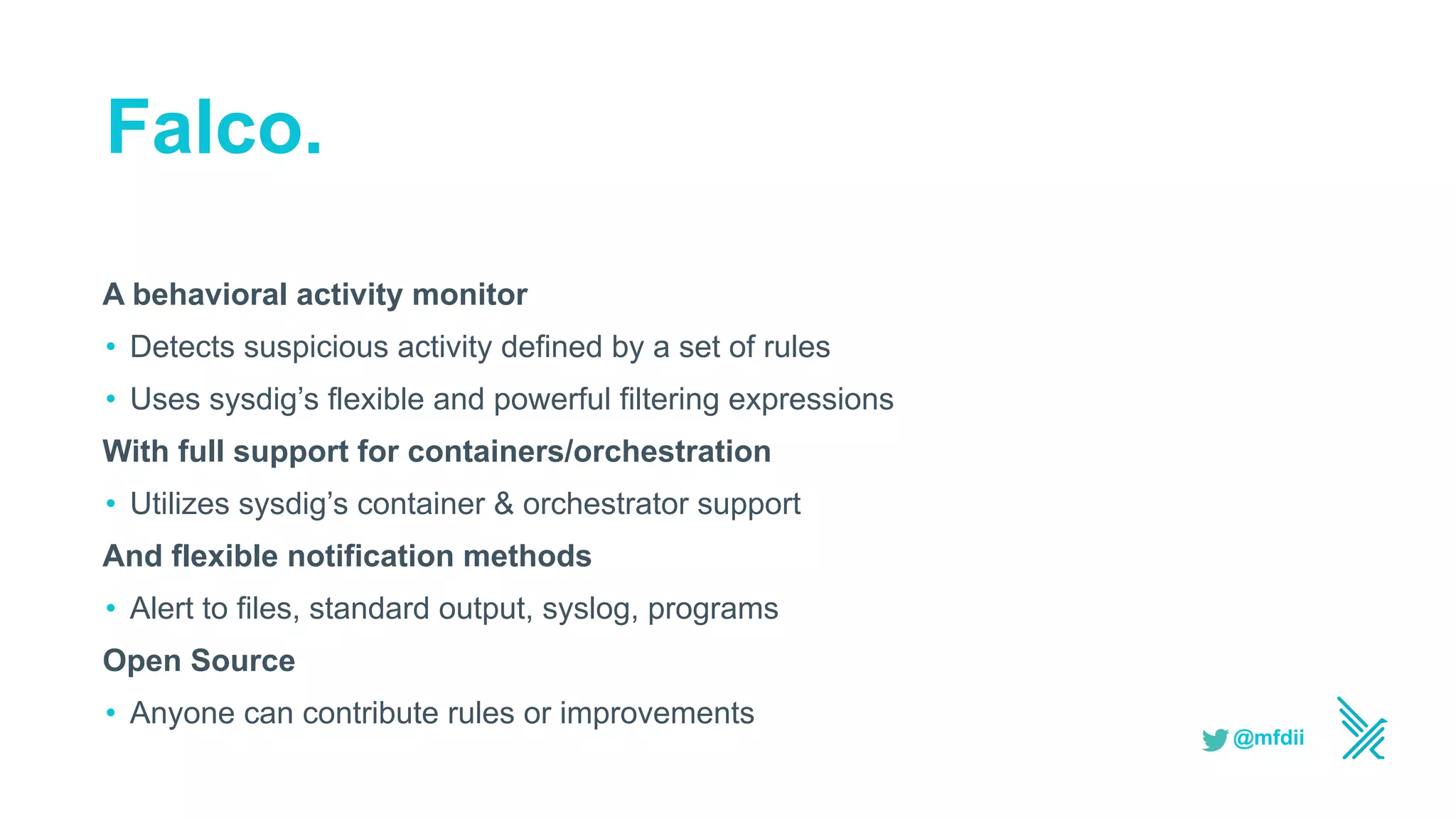

- 21. @mfdii A behavioral activitymonitor • Detects suspicious activity defined by a set of rules • Uses sysdig’s flexible and powerful filtering expressions With full support for containers/orchestration • Utilizes sysdig’s container & orchestrator support And flexible notification methods • Alert to files, standard output, syslog, programs Open Source • Anyone can contribute rules or improvements Falco.

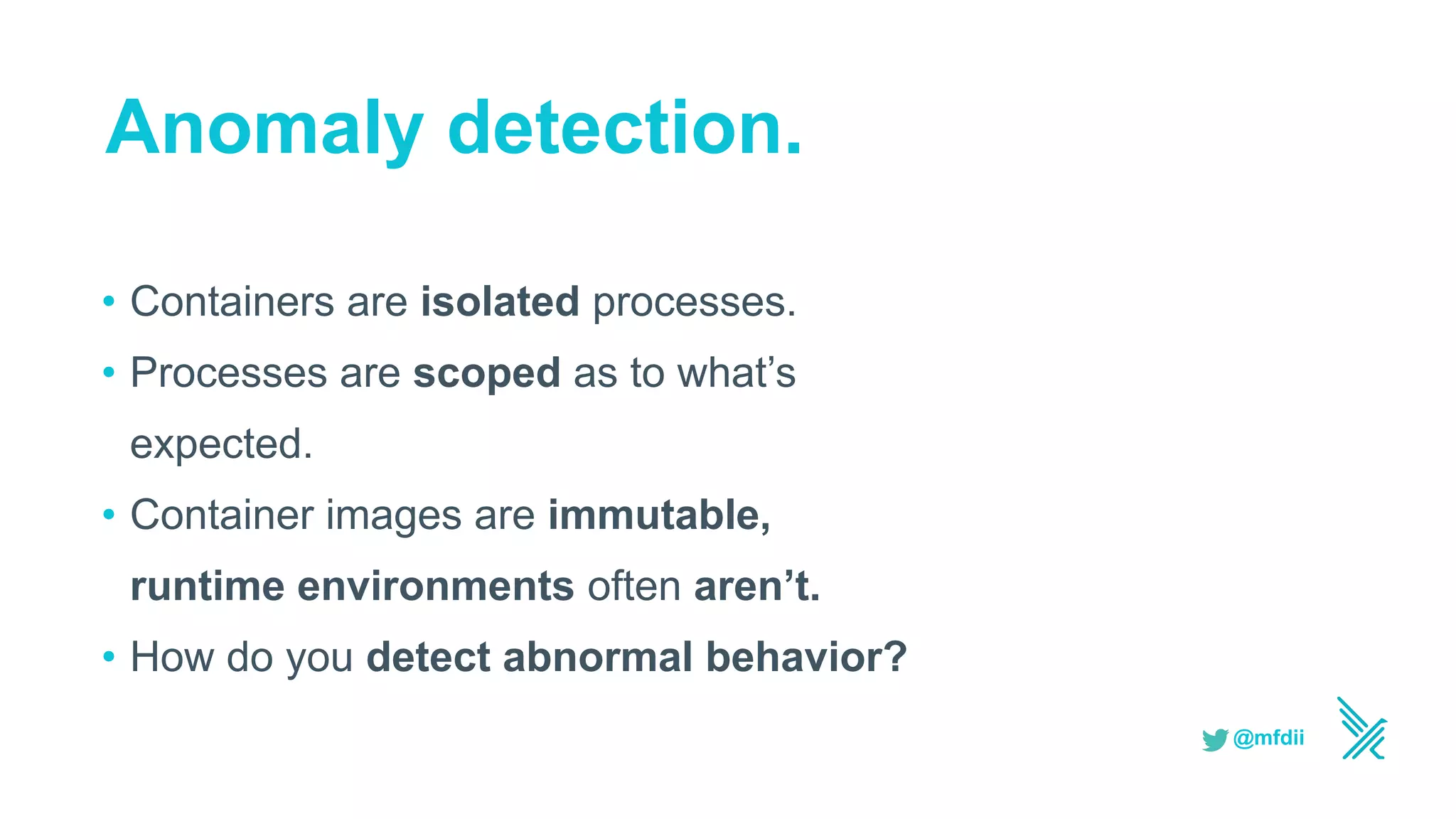

- 22. @mfdii • Containers areisolated processes. • Processes are scoped as to what’s expected. • Container images are immutable, runtime environments often aren’t. • How do you detect abnormal behavior? Anomaly detection.
- 23.

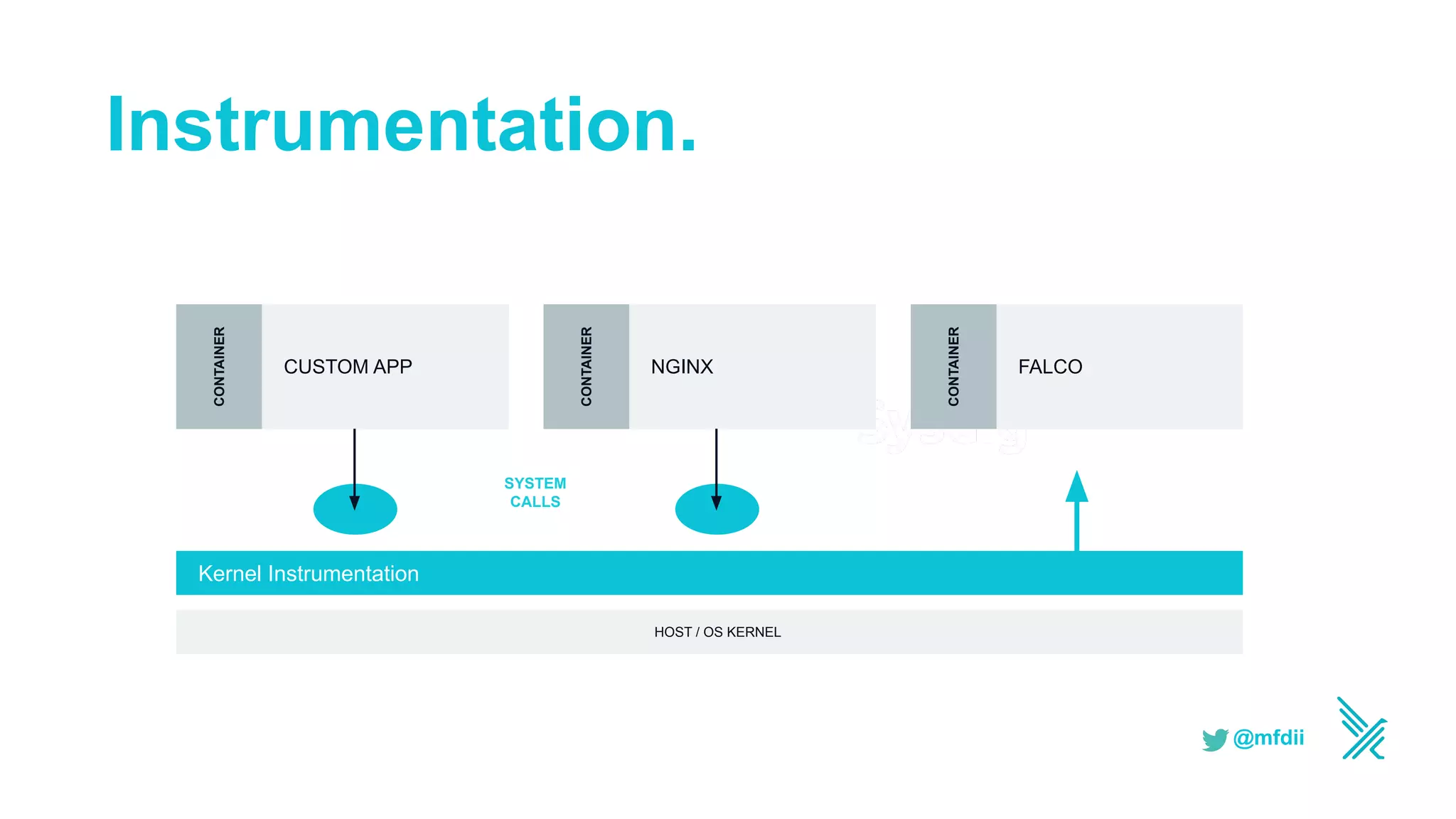

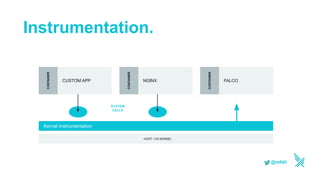

- 24. @mfdii CUSTOM APP CONTAINER NGINX CONTAINER FALCO CONTAINER Kernel Instrumentation HOST/ OS KERNEL SYSTEM CALLS Instrumentation.

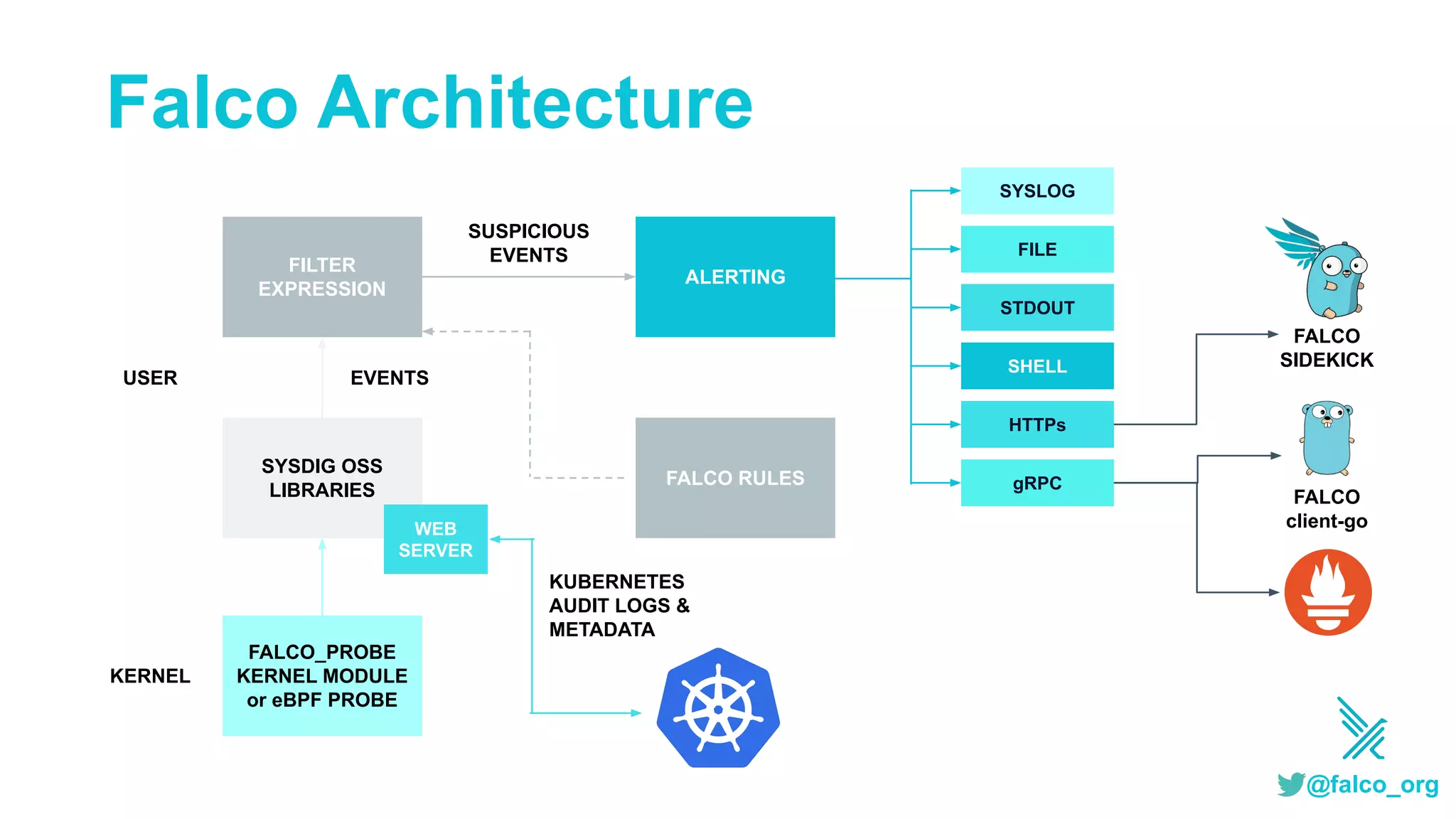

- 25. @falco_org Falco Architecture FILTER EXPRESSION SYSDIG OSS LIBRARIES FALCO_PROBE KERNELMODULE or eBPF PROBE ALERTING FALCO RULES WEB SERVER USER KERNEL EVENTS SUSPICIOUS EVENTS SHELL STDOUT FILE SYSLOG HTTPs gRPC KUBERNETES AUDIT LOGS & METADATA FALCO client-go FALCO SIDEKICK
- 26.

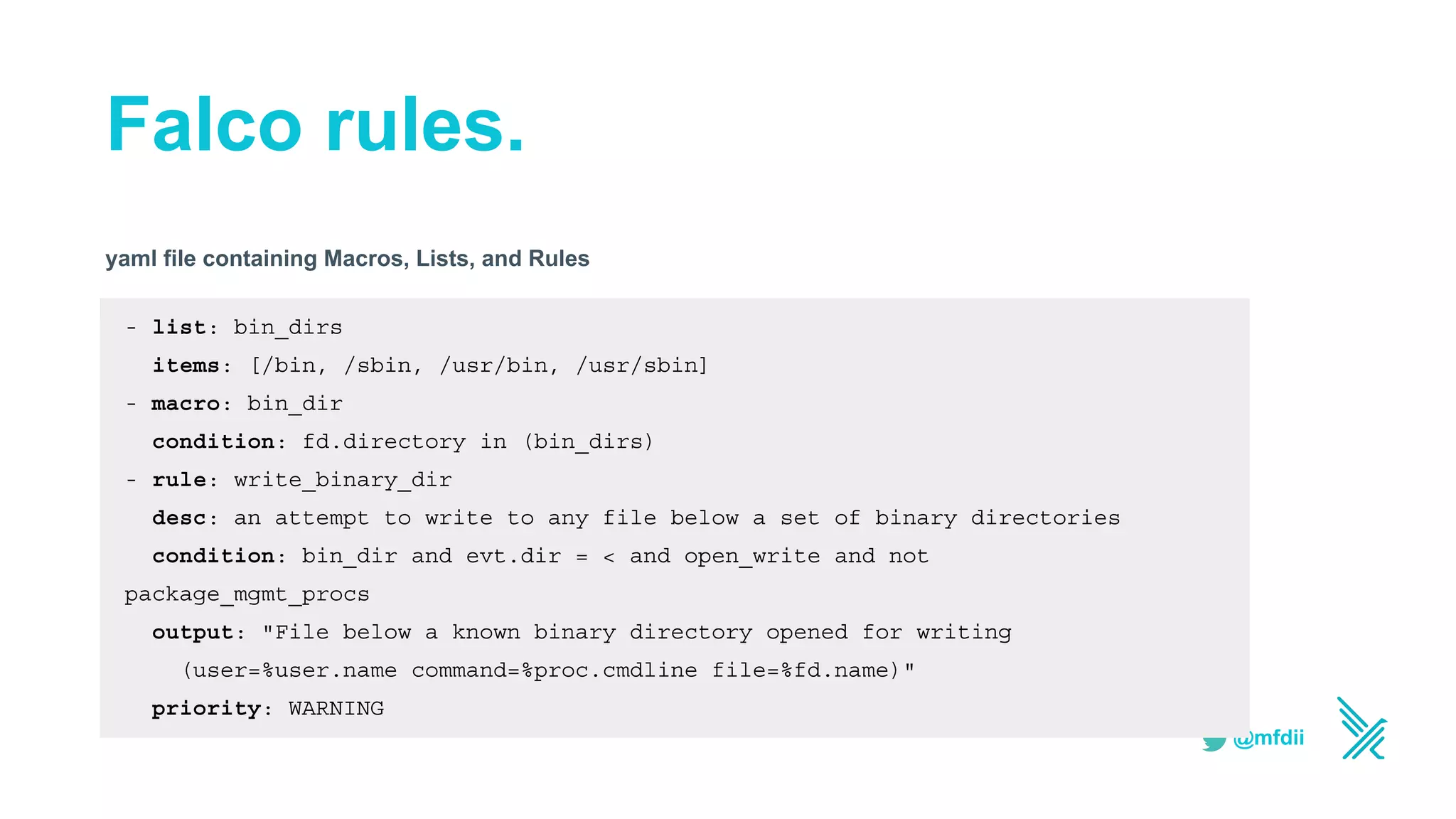

- 27. @mfdii - list: bin_dirs items:[/bin, /sbin, /usr/bin, /usr/sbin] - macro: bin_dir condition: fd.directory in (bin_dirs) - rule: write_binary_dir desc: an attempt to write to any file below a set of binary directories condition: bin_dir and evt.dir = < and open_write and not package_mgmt_procs output: "File below a known binary directory opened for writing (user=%user.name command=%proc.cmdline file=%fd.name)" priority: WARNING yaml file containing Macros, Lists, and Rules Falco rules.

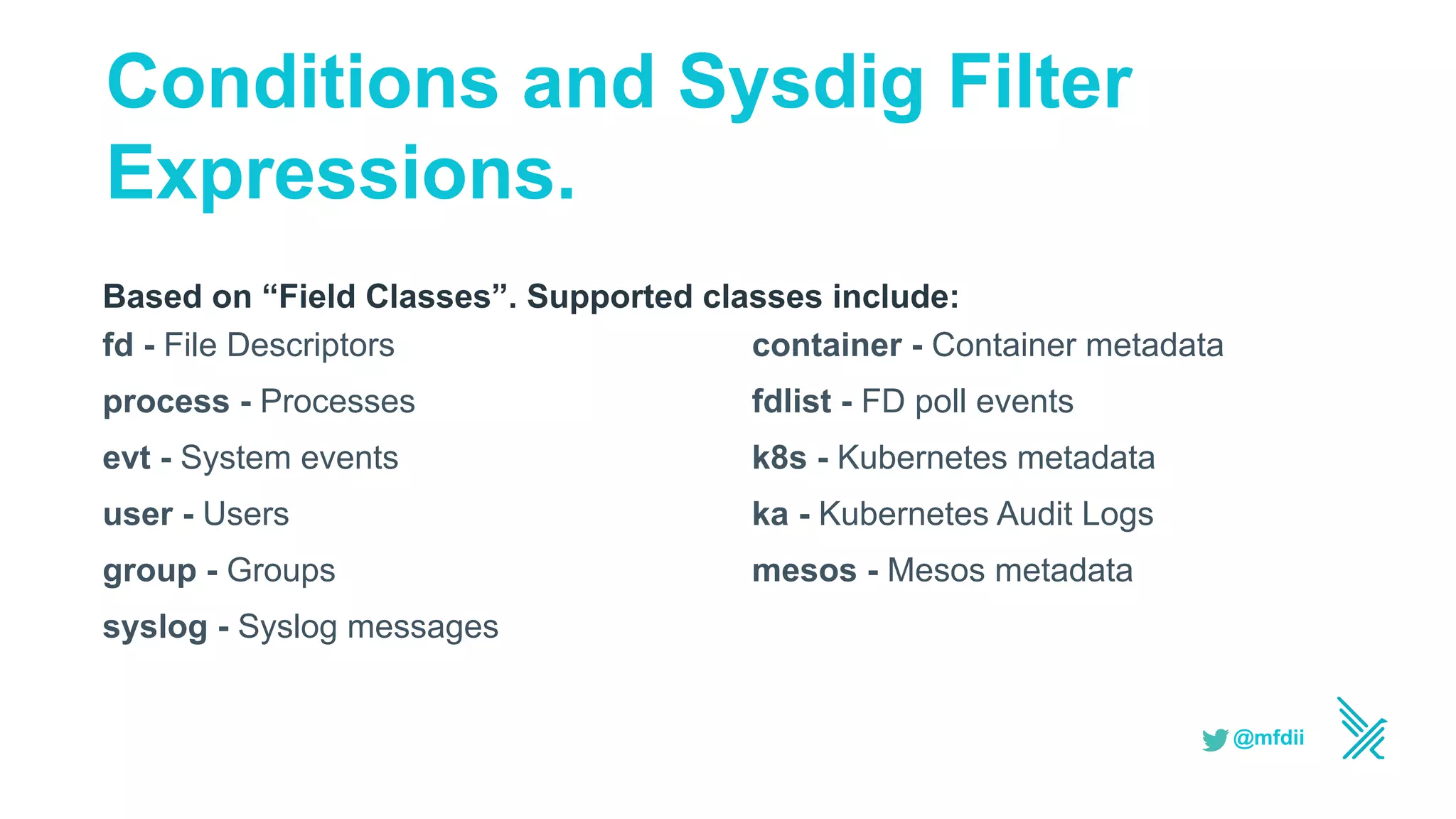

- 28. @mfdii fd - FileDescriptors process - Processes evt - System events user - Users group - Groups syslog - Syslog messages Based on “Field Classes”. Supported classes include: container - Container metadata fdlist - FD poll events k8s - Kubernetes metadata ka - Kubernetes Audit Logs mesos - Mesos metadata Conditions and Sysdig Filter Expressions.

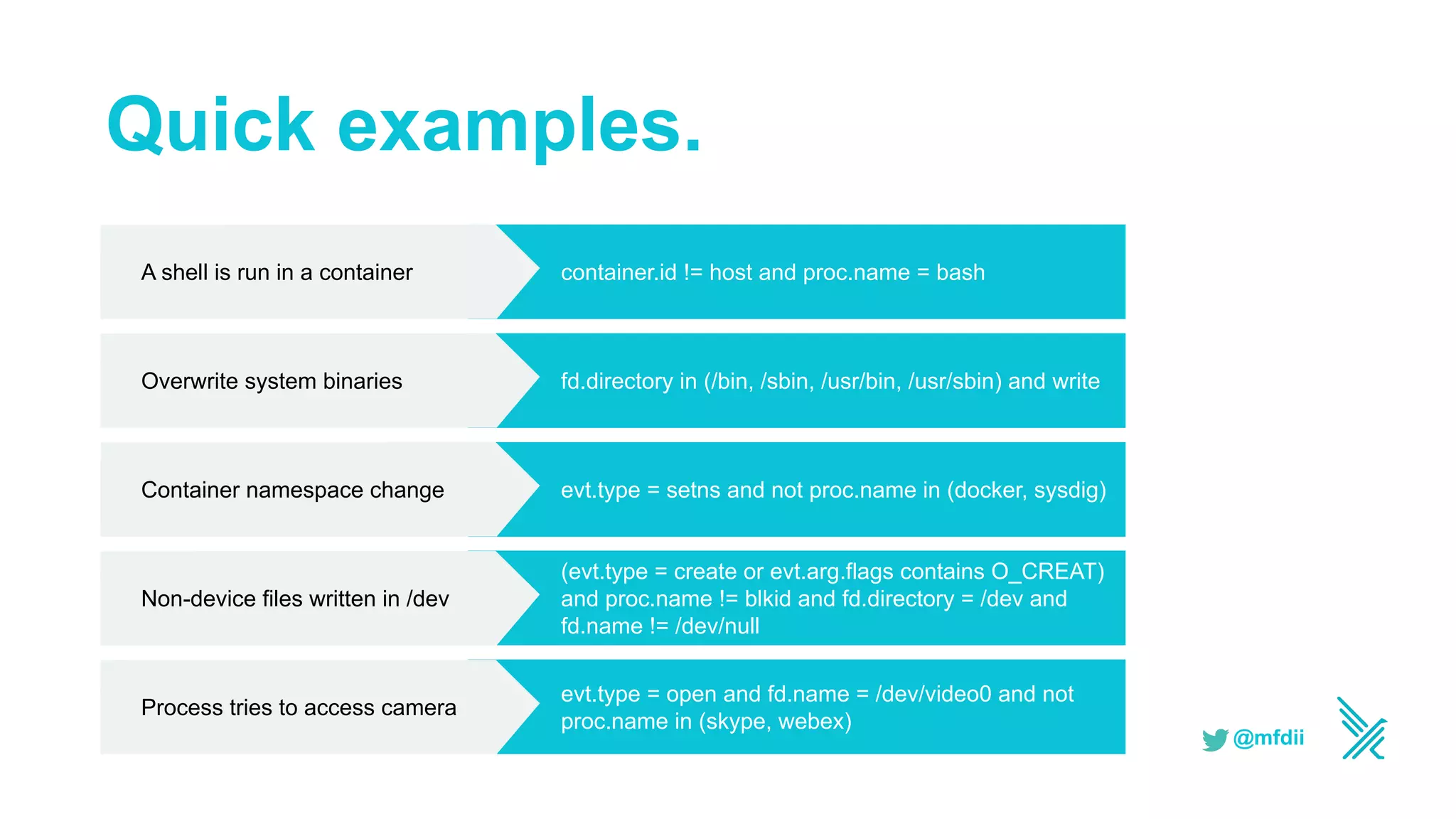

- 29. @mfdii Quick examples. evt.type =setns and not proc.name in (docker, sysdig) fd.directory in (/bin, /sbin, /usr/bin, /usr/sbin) and write container.id != host and proc.name = bash evt.type = open and fd.name = /dev/video0 and not proc.name in (skype, webex) (evt.type = create or evt.arg.flags contains O_CREAT) and proc.name != blkid and fd.directory = /dev and fd.name != /dev/null A shell is run in a container Overwrite system binaries Container namespace change Non-device files written in /dev Process tries to access camera

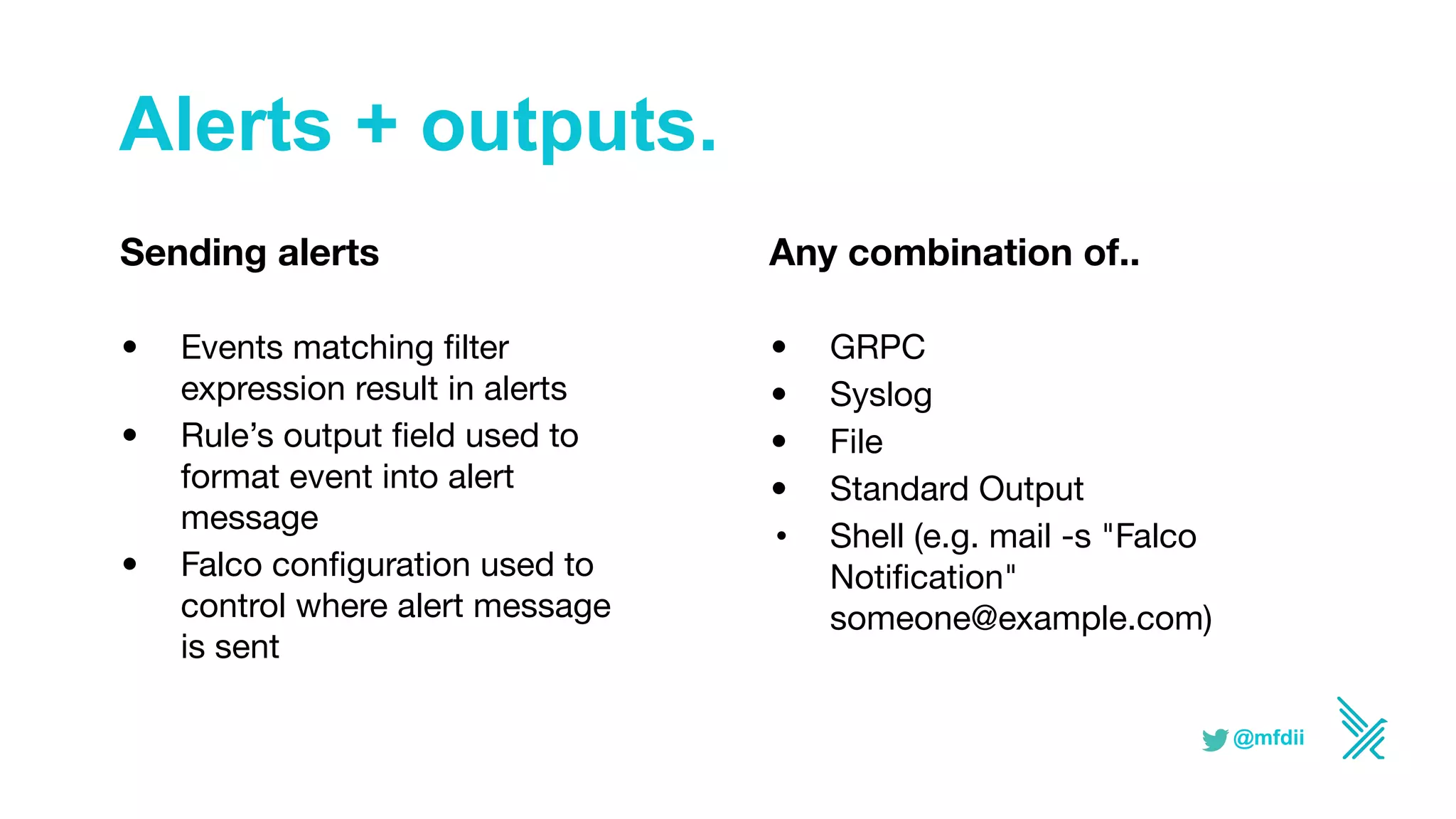

- 30. @mfdii Sending alerts • Eventsmatching filter expression result in alerts • Rule’s output field used to format event into alert message • Falco configuration used to control where alert message is sent Any combination of.. • GRPC • Syslog • File • Standard Output • Shell (e.g. mail -s "Falco Notification" someone@example.com) Alerts + outputs.

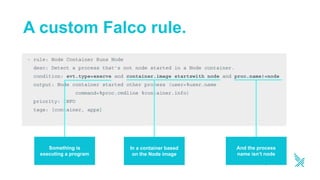

- 31. @mfdii - rule: NodeContainer Runs Node desc: Detect a process that’s not node started in a Node container. condition: evt.type=execve and container.image startswith node and proc.name!=node output: Node container started other process (user=%user.name command=%proc.cmdline %container.info) priority: INFO tags: [container, apps] A custom Falco rule. Something is executing a program In a container based on the Node image And the process name isn’t node

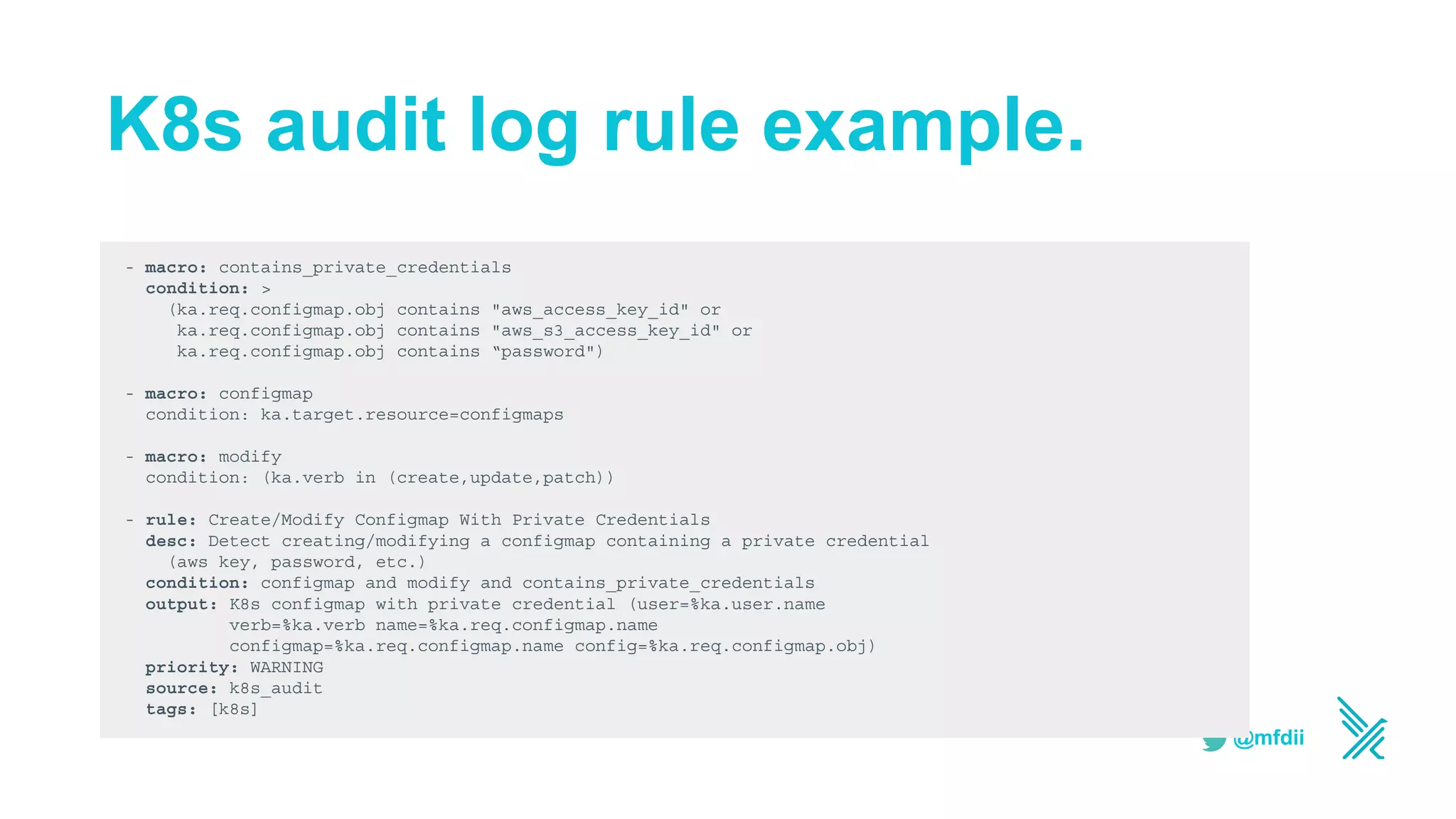

- 32. @mfdii - macro: contains_private_credentials condition:> (ka.req.configmap.obj contains "aws_access_key_id" or ka.req.configmap.obj contains "aws_s3_access_key_id" or ka.req.configmap.obj contains “password") - macro: configmap condition: ka.target.resource=configmaps - macro: modify condition: (ka.verb in (create,update,patch)) - rule: Create/Modify Configmap With Private Credentials desc: Detect creating/modifying a configmap containing a private credential (aws key, password, etc.) condition: configmap and modify and contains_private_credentials output: K8s configmap with private credential (user=%ka.user.name verb=%ka.verb name=%ka.req.configmap.name configmap=%ka.req.configmap.name config=%ka.req.configmap.obj) priority: WARNING source: k8s_audit tags: [k8s] K8s audit log rule example.
- 33.

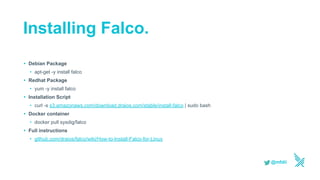

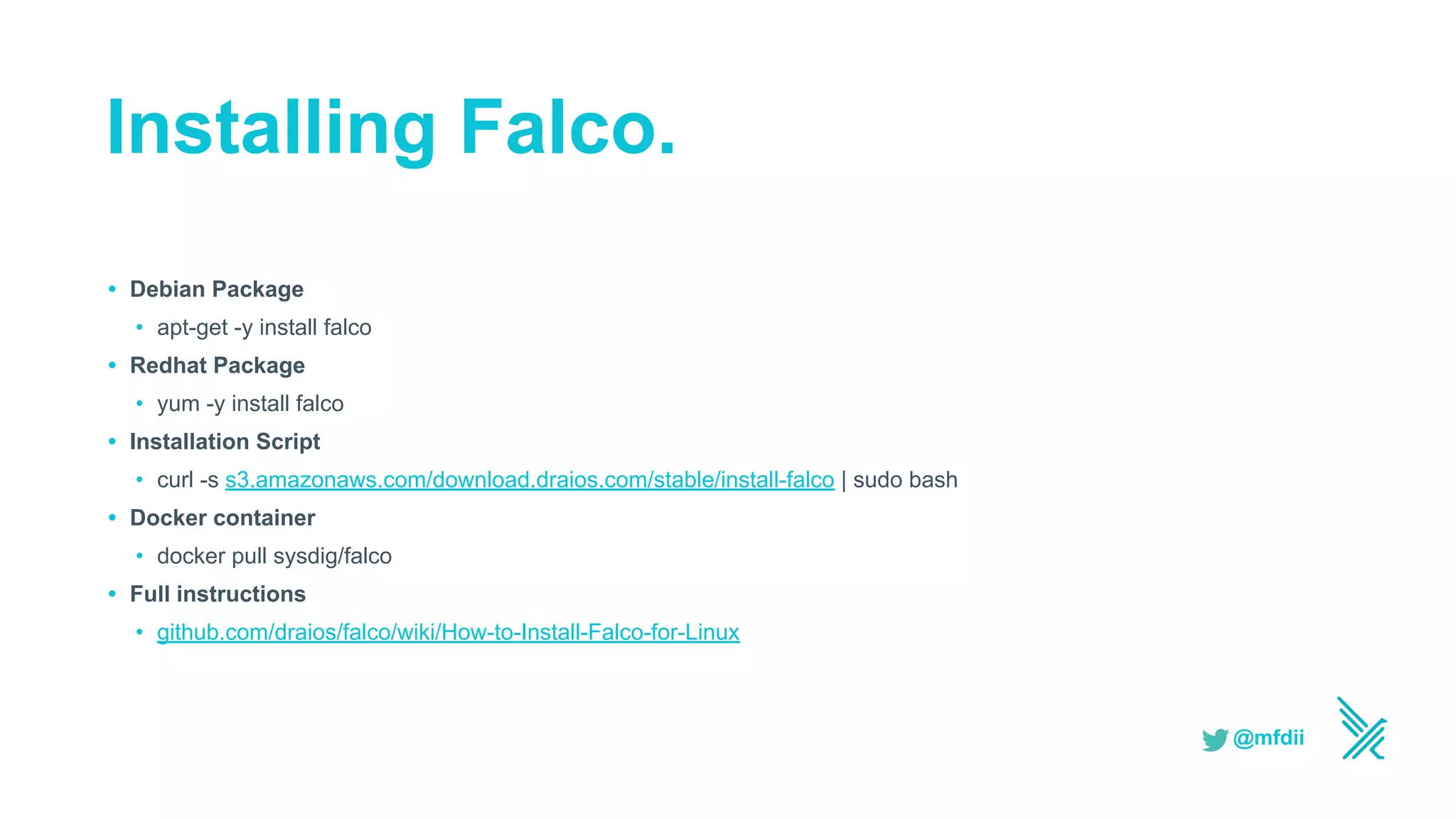

- 34. @mfdii Installing Falco. • DebianPackage • apt-get -y install falco • Redhat Package • yum -y install falco • Installation Script • curl -s s3.amazonaws.com/download.draios.com/stable/install-falco | sudo bash • Docker container • docker pull sysdig/falco • Full instructions • github.com/draios/falco/wiki/How-to-Install-Falco-for-Linux

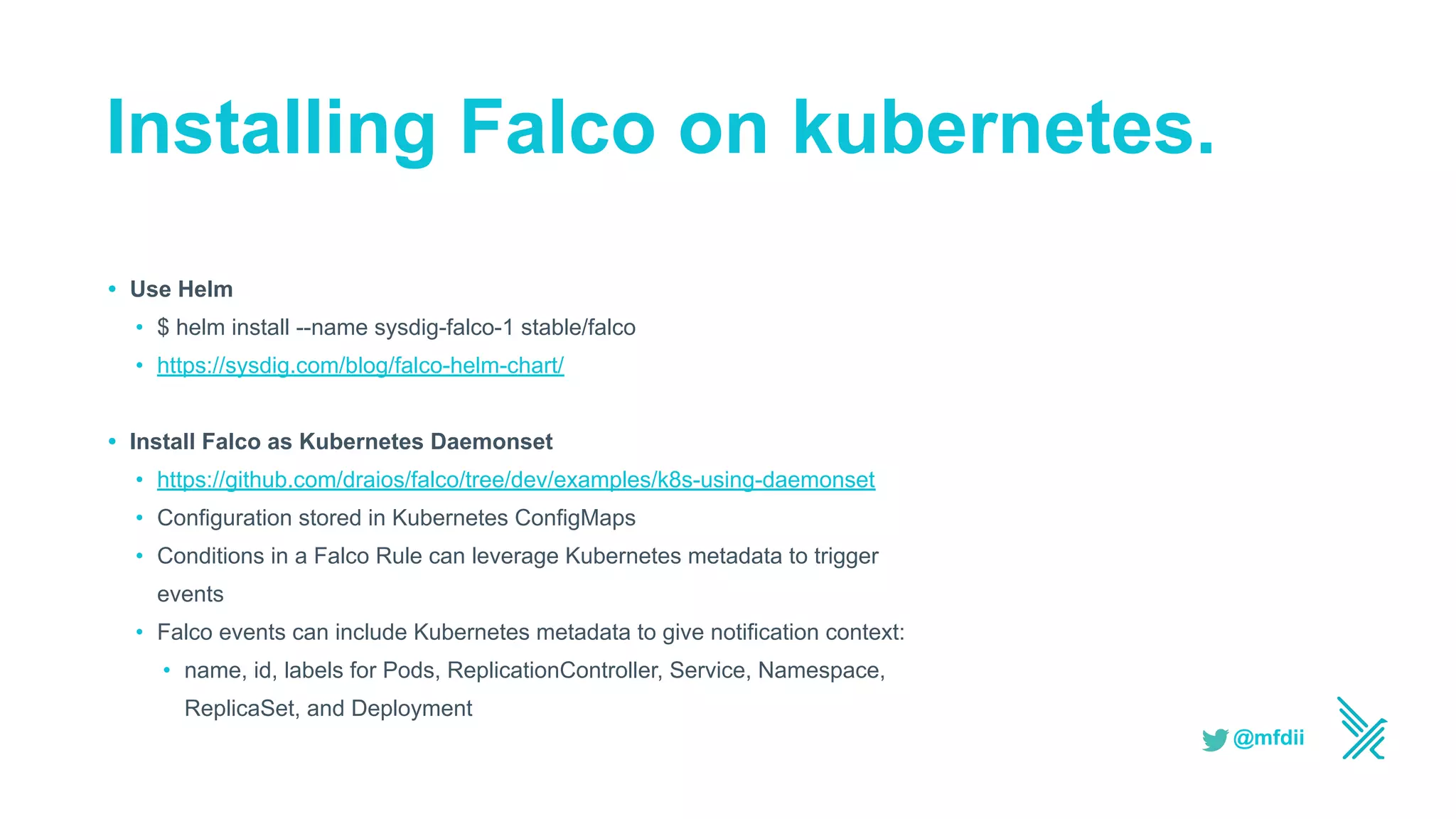

- 35. @mfdii • Use Helm •$ helm install --name sysdig-falco-1 stable/falco • https://sysdig.com/blog/falco-helm-chart/ • Install Falco as Kubernetes Daemonset • https://github.com/draios/falco/tree/dev/examples/k8s-using-daemonset • Configuration stored in Kubernetes ConfigMaps • Conditions in a Falco Rule can leverage Kubernetes metadata to trigger events • Falco events can include Kubernetes metadata to give notification context: • name, id, labels for Pods, ReplicationController, Service, Namespace, ReplicaSet, and Deployment Installing Falco on kubernetes.

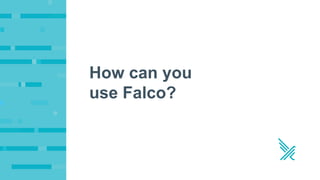

- 36. How can you useFalco?

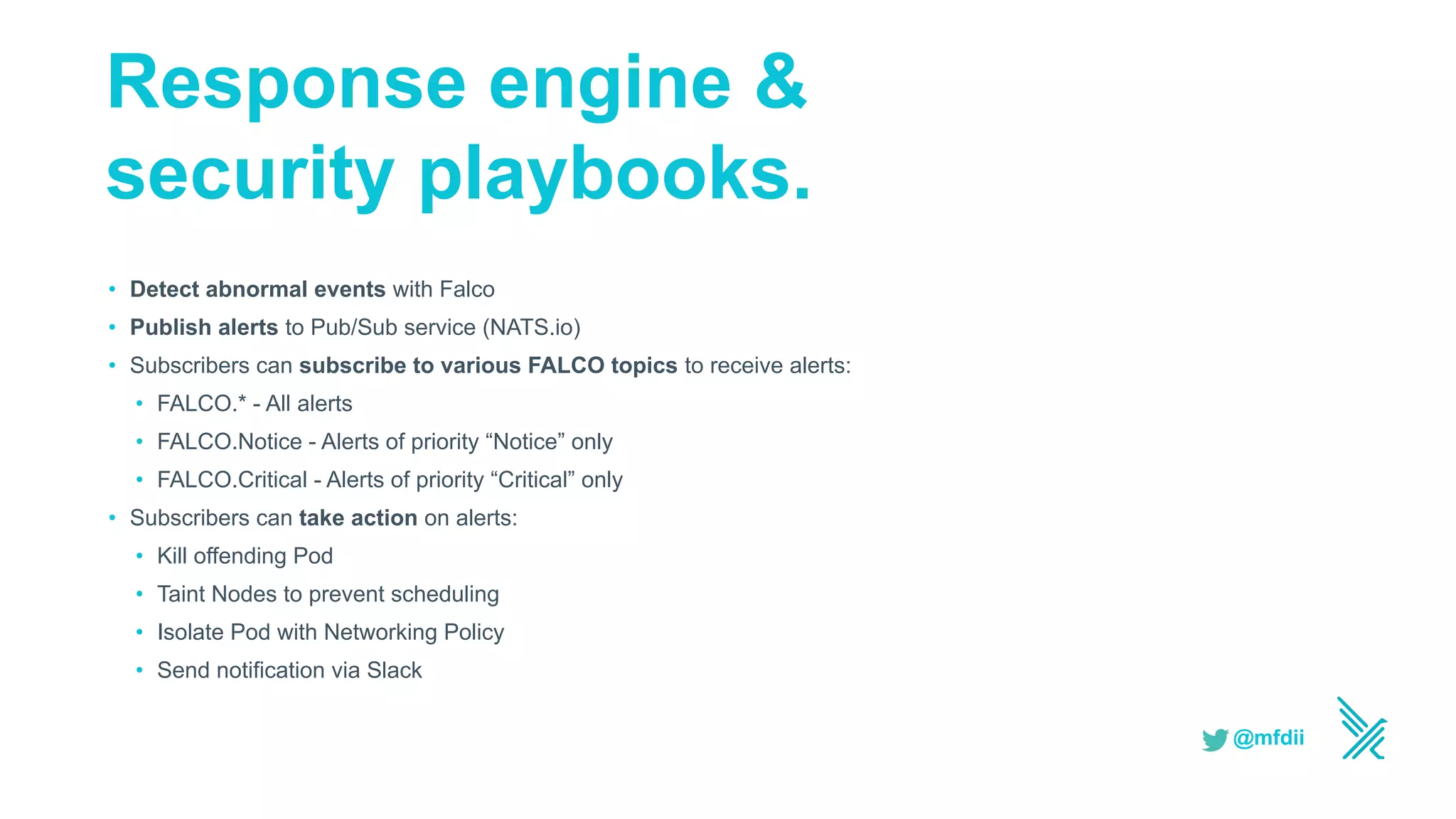

- 37. @mfdii • Detect abnormalevents with Falco • Publish alerts to Pub/Sub service (NATS.io) • Subscribers can subscribe to various FALCO topics to receive alerts: • FALCO.* - All alerts • FALCO.Notice - Alerts of priority “Notice” only • FALCO.Critical - Alerts of priority “Critical” only • Subscribers can take action on alerts: • Kill offending Pod • Taint Nodes to prevent scheduling • Isolate Pod with Networking Policy • Send notification via Slack Response engine & security playbooks.

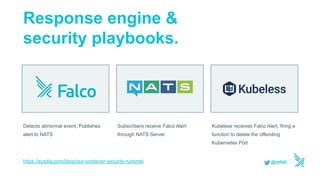

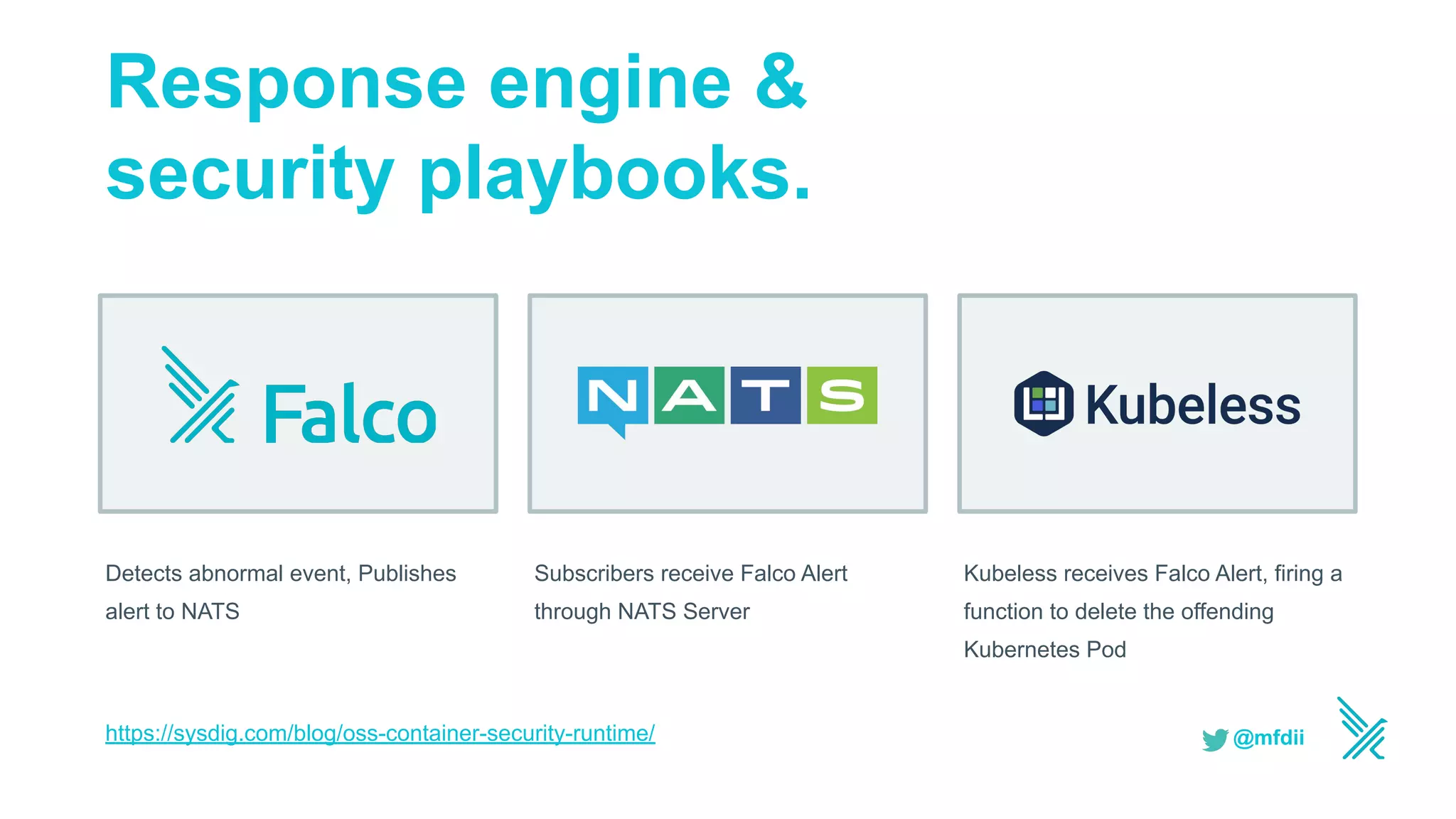

- 38. @mfdii Image Placeholder Insert imageand use this box for sizing Image Placeholder Insert image and use this box for sizing Image Placeholder Insert image and use this box for sizing Detects abnormal event, Publishes alert to NATS Subscribers receive Falco Alert through NATS Server Kubeless receives Falco Alert, firing a function to delete the offending Kubernetes Pod https://sysdig.com/blog/oss-container-security-runtime/ Response engine & security playbooks.

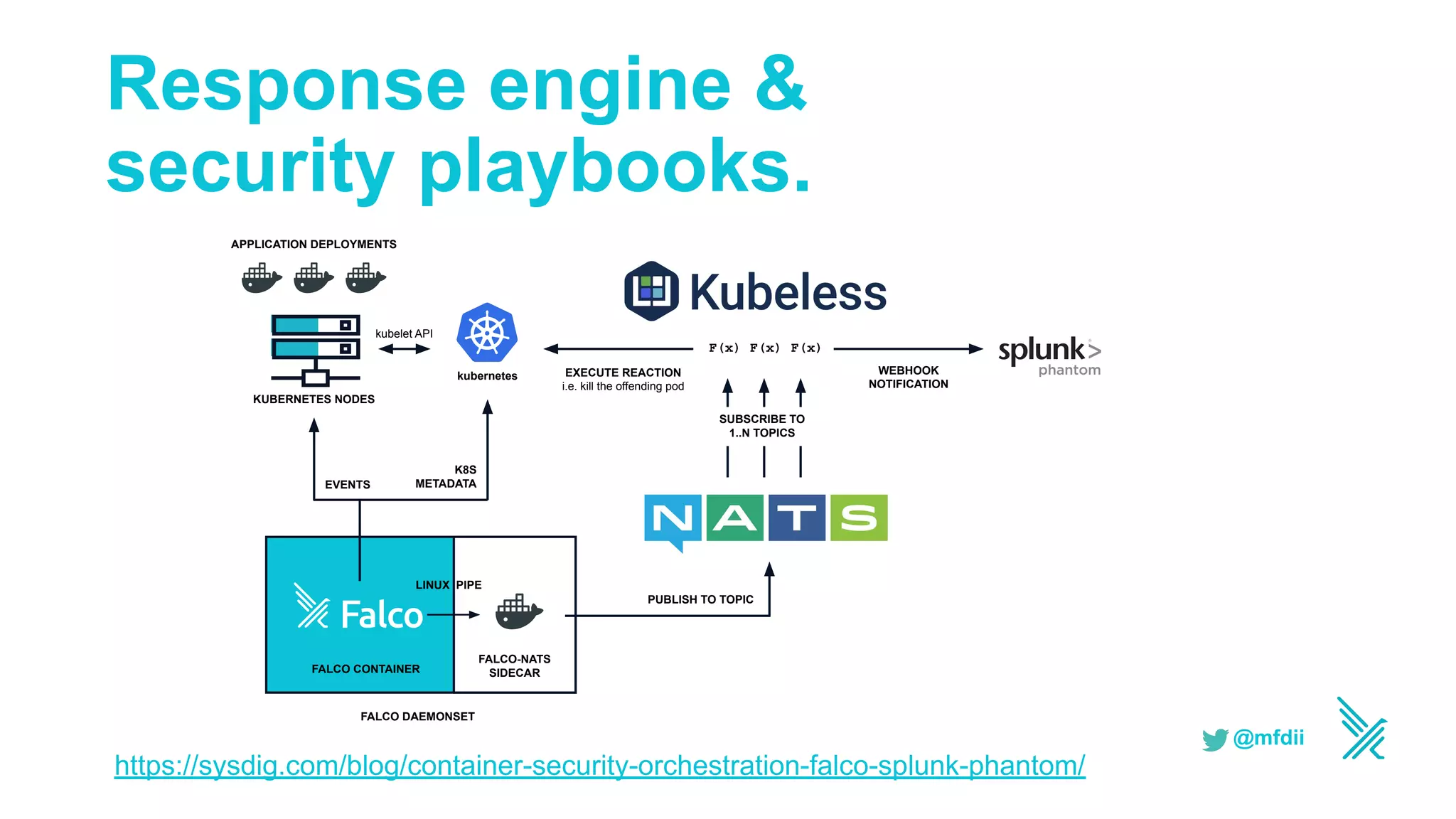

- 39. @mfdii Response engine & securityplaybooks. https://sysdig.com/blog/container-security-orchestration-falco-splunk-phantom/ PUBLISH TO TOPIC FALCO-NATS SIDECAR LINUX PIPE FALCO CONTAINER FALCO DAEMONSET EVENTS K8S METADATA KUBERNETES NODES kubelet API APPLICATION DEPLOYMENTS EXECUTE REACTION i.e. kill the offending pod F(x) F(x) F(x) WEBHOOK NOTIFICATION SUBSCRIBE TO 1..N TOPICS kubernetes

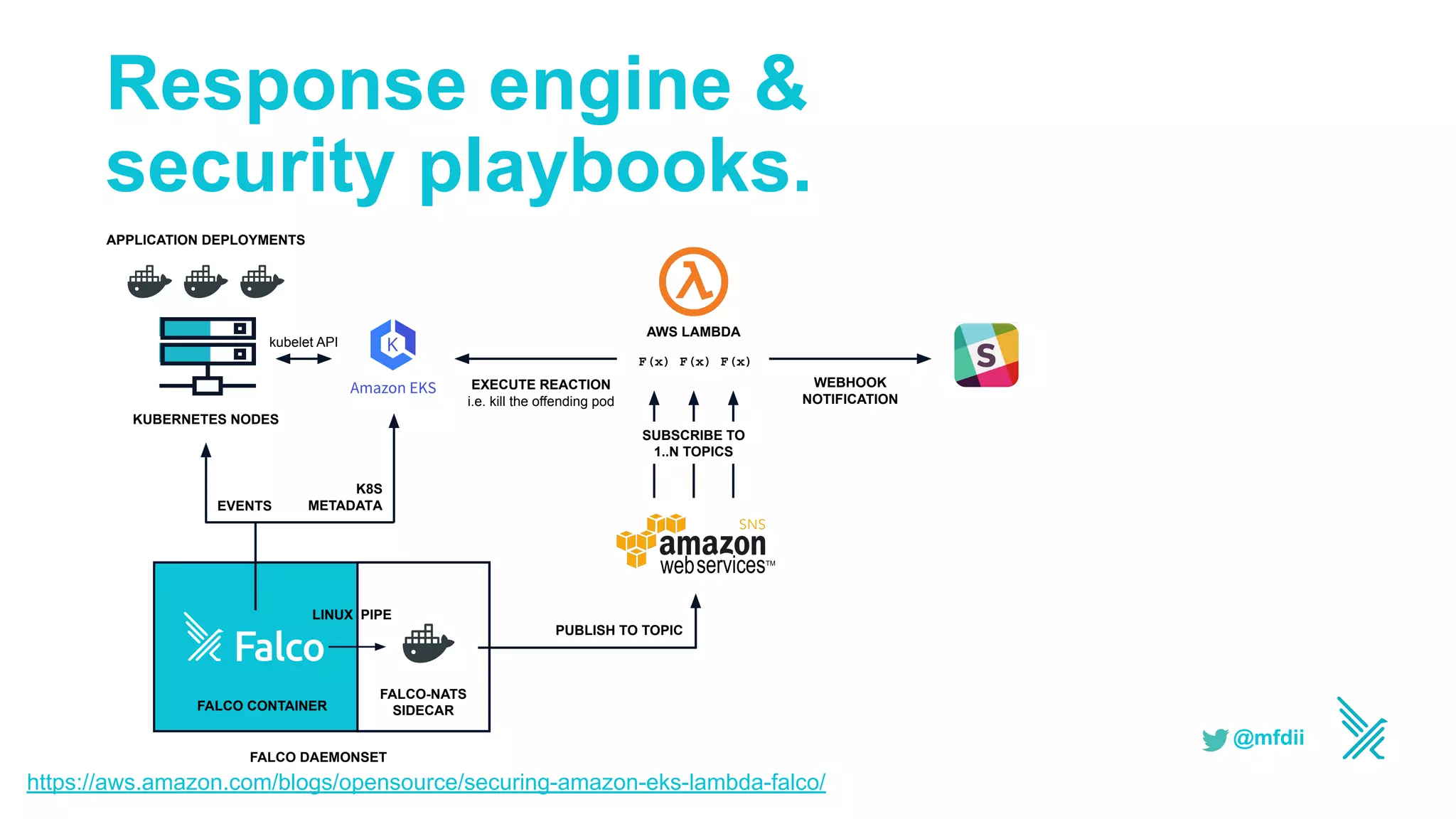

- 40. @mfdii Response engine & securityplaybooks. PUBLISH TO TOPIC FALCO-NATS SIDECAR LINUX PIPE FALCO CONTAINER FALCO DAEMONSET EVENTS K8S METADATA KUBERNETES NODES kubelet API APPLICATION DEPLOYMENTS EXECUTE REACTION i.e. kill the offending pod F(x) F(x) F(x) WEBHOOK NOTIFICATION SUBSCRIBE TO 1..N TOPICS AWS LAMBDA https://aws.amazon.com/blogs/opensource/securing-amazon-eks-lambda-falco/

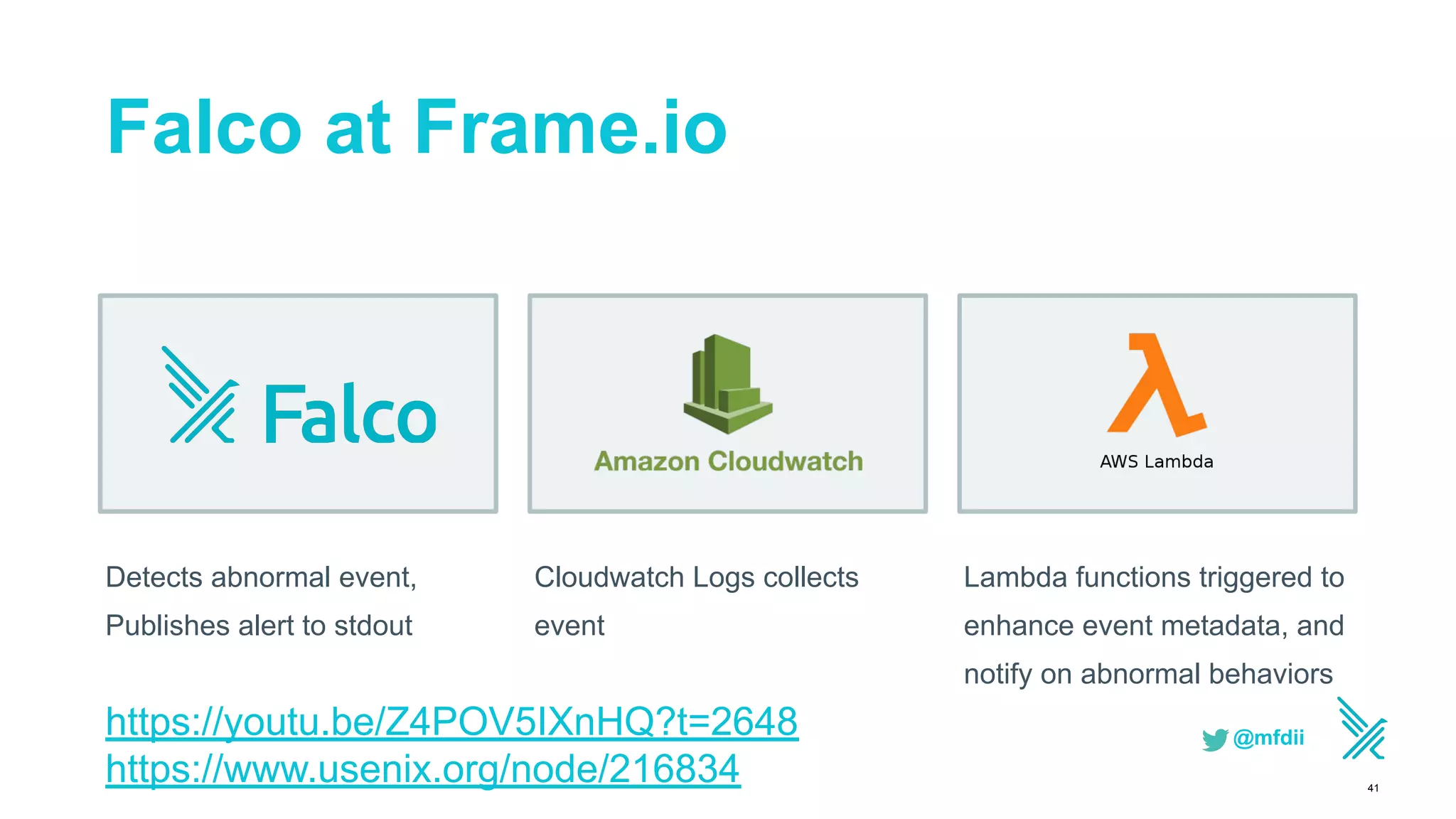

- 41. @mfdii Image Placeholder Insert imageand use this box for sizing Image Placeholder Insert image and use this box for sizing Image Placeholder Insert image and use this box for sizing Detects abnormal event, Publishes alert to stdout Cloudwatch Logs collects event Lambda functions triggered to enhance event metadata, and notify on abnormal behaviors Falco at Frame.io 41 https://youtu.be/Z4POV5IXnHQ?t=2648 https://www.usenix.org/node/216834

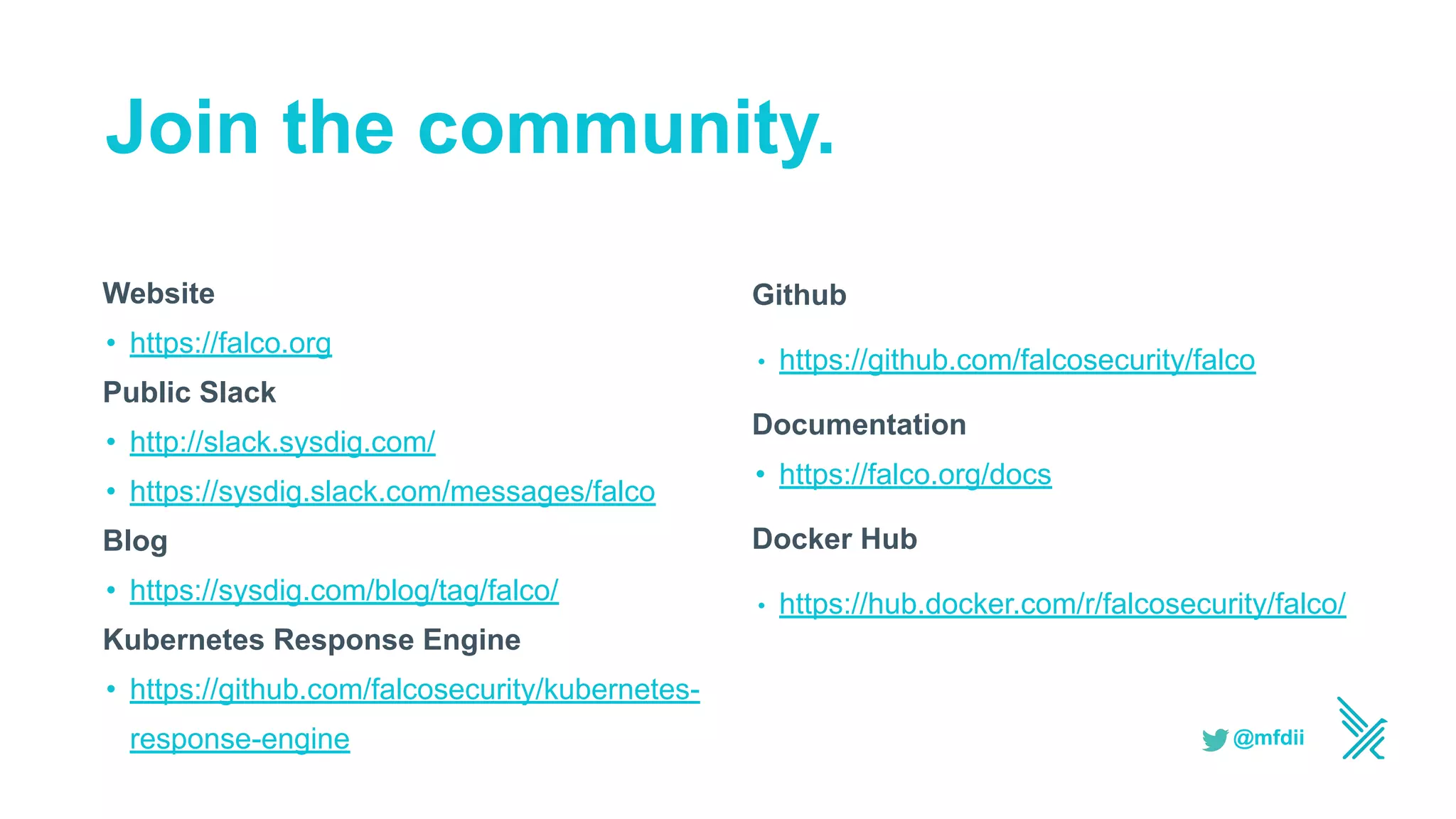

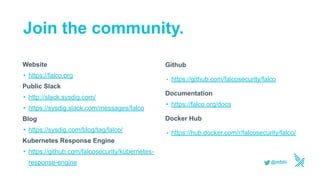

- 42. @mfdii Join the community. Website •https://falco.org Public Slack • http://slack.sysdig.com/ • https://sysdig.slack.com/messages/falco Blog • https://sysdig.com/blog/tag/falco/ Kubernetes Response Engine • https://github.com/falcosecurity/kubernetes- response-engine Github • https://github.com/falcosecurity/falco Documentation • https://falco.org/docs Docker Hub • https://hub.docker.com/r/falcosecurity/falco/
- 43.

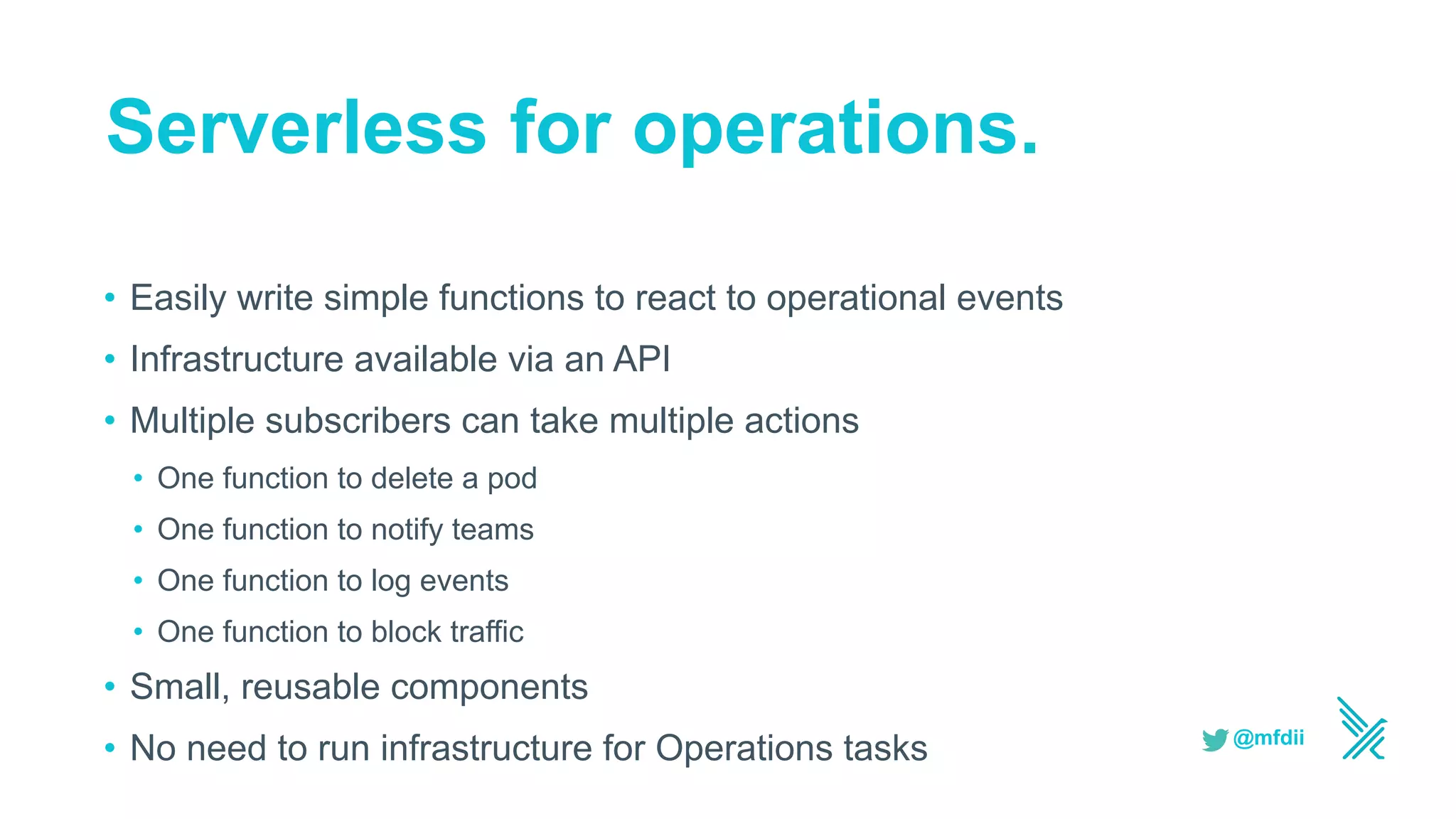

- 44. @mfdii • Easily writesimple functions to react to operational events • Infrastructure available via an API • Multiple subscribers can take multiple actions • One function to delete a pod • One function to notify teams • One function to log events • One function to block traffic • Small, reusable components • No need to run infrastructure for Operations tasks Serverless for operations.

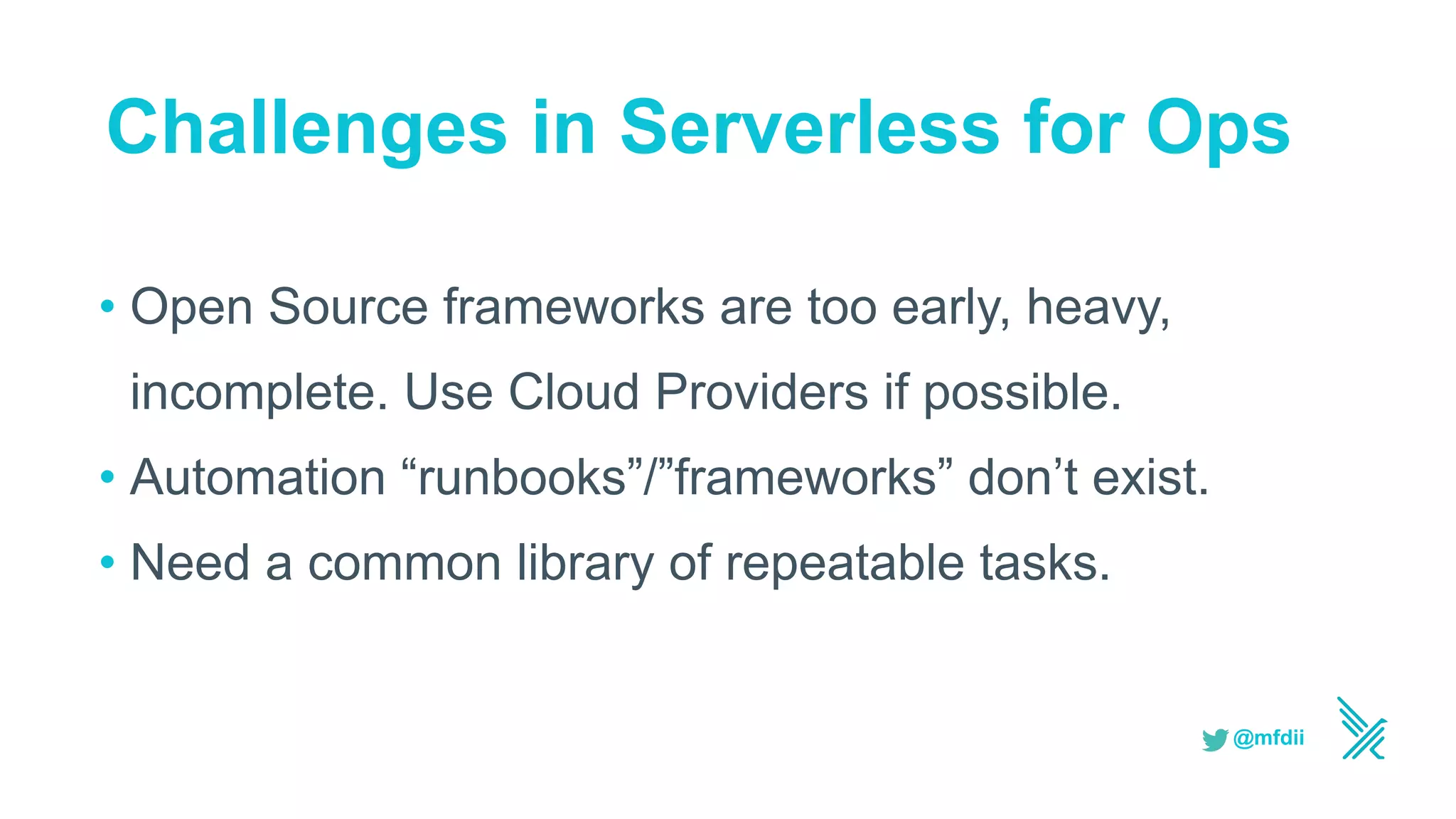

- 45. @mfdii • Open Sourceframeworks are too early, heavy, incomplete. Use Cloud Providers if possible. • Automation “runbooks”/”frameworks” don’t exist. • Need a common library of repeatable tasks. Challenges in Serverless for Ops
