This document discusses automating the renewal of Puppet certificates for both the Puppet CA certificate and agent certificates. It describes using the puppetlabs-certregen module to regenerate the CA certificate before expiration and generating unique renewal tokens to securely automate approval of agent certificate signing requests. It also discusses integrating certificate extensions to provision roles and environments based on the certificate and tying the renewal process to trusted facts for security.

1. Automating Puppet Certificates Renewal
Raphaël Pinson

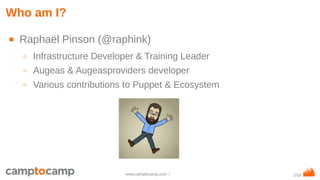

2. 2/18www.camptocamp.com /
Who am I?
■ Raphaël Pinson (@raphink)
○ Infrastructure Developer & Training Leader
○ Augeas & Augeasproviders developer
○ Various contributions to Puppet & Ecosystem

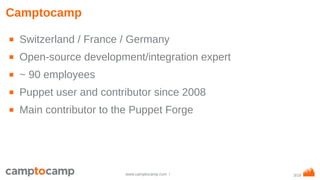

3. 3/18www.camptocamp.com /
Camptocamp
■ Switzerland / France / Germany
■ Open-source development/integration expert
■ ~ 90 employees
■ Puppet user and contributor since 2008
■ Main contributor to the Puppet Forge

4. 4/18www.camptocamp.com /
CA cert has expired

5. 5/18www.camptocamp.com /
CA renewal options
NEWCAKEY
PAIR
NEWCACERT
FROMKEYPAIR
AUTOMATECA
CERTDEPLOYMENT
AUTOMATEAGENT
CERTDEPLOYMENT

6. 6/18www.camptocamp.com /

7. 7/18www.camptocamp.com /
puppetlabs/certgen
■ Install from Puppet Forge
mod 'puppetlabs-certregen', '0.2.0'
■ Regenerate CA cert
$ sudo puppet certregen ca ca_serial 01–ca_serial 01
■ Deploy new CA cert (before it expires!)
include certregen::client

8. 8/18www.camptocamp.com /
How about agent certificates?

9. 9/18www.camptocamp.com /
Certificate autosign
■ autosign.conf
○ Insecure by design
○ Don't use
■ Autosign policy
○ (possibly) secure autosigning
○ Use psk, unique tokens, etc.
○ See also danieldreier/puppet-autosign

10. 10/18www.camptocamp.com /
The puppet_certificate type
■ Automate Puppet
certificate generation
■ Manage with Puppet
manifests

11. 11/18www.camptocamp.com /
Cleaning certificats on CA
■ Required before new certificate
can be generated
■ Requires to tune the CA API in auth.conf
{
name: "Allow nodes to delete their own certificates",
match-request: {
path: "^/puppet-ca/v1/certificate(_status|_request)?/([^/]+)$"
type: regex
method: [delete]
},
Allow: "$2",
sort-order: 500
}

12. 12/18www.camptocamp.com /
Unique renewal tokens
■ Use hashed token incl. unchangeable trusted facts
■ Sample hashing function (compatible with Terraform's
base64sha256 builtin function)
■ Generate unique token per node in Puppet manifest:
Puppet::Parser::Functions.newfunction(:base64_sha256, :arity => 1, :type => :rvalue) do |args|
Digest::SHA256.base64digest(args[0])
end
# $psk is a secret parameter (e.g. from hiera)
# $certname comes from trusted facts
$token = base64_sha256("${psk}/${certname}")

13. 13/18www.camptocamp.com /
Adapt autosign script
#!/usr/bin/env ruby
require 'openssl'
request = STDIN.read
csr = OpenSSL::X509::Request.new(request)
# Don't you love OpenSSL's nested values?
challenge = csr.attributes.select { |a| a.oid == "challengePassword" }.first.value.value.first.value
exit 3 if challenge.nil?
certname = ARGV[0]
hash = Digest::SHA256.base64digest("#{autosign_psk}/#{certname}")
if challenge == hash
exit 0
end
exit 1

14. 14/18www.camptocamp.com /
Throw in certificate extensions
def get_ext(csr, name)
Puppet::SSL::Oids.register_puppet_oids
# Some more OpenSSL nested values
exts = csr.attributes.select{ |a| a.oid == "extReq" }[0].value.value[0].value
# Turtles all the way down
val = exts.select { |e| e.value[0].short_name == name }[0].value[1].value
OpenSSL::ASN1.decode(val).value
end
pp_role = get_ext(csr, 'pp_role')
pp_environment = get_ext(csr, 'pp_environment')
hash = Digest::SHA256.base64digest("#{autosign_psk}/#{certname}/#{pp_role}/#{pp_environment}")
■ Lock token to specific trusted facts

15. 15/18www.camptocamp.com /

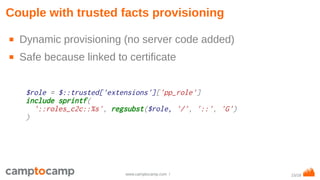

Couple with trusted facts provisioning
$role = $::trusted['extensions']['pp_role']
include sprintf(
'::roles_c2c::%s', regsubst($role, '/', '::', 'G')
)
■ Dynamic provisioning (no server code added)
■ Safe because linked to certificate

16. 16/18www.camptocamp.com /
Put it all together!
# csr_attributes.yaml
---
custom_attributes:
1.2.840.113549.1.9.7: '$
{token}'
# in common Puppet profile
puppet_certificate { $certname:
ensure => valid,
waitforcert => 60,
renewal_grace_period => 20,
clean => true,
}

17. 17/18www.camptocamp.com /
