有天我們想要研究Crash Log，也就是.crash檔，來修正bug 但是內容沒有轉譯完全，所以不知道是哪個view controller或method發生問題 這時候可以考慮方法：Symbolicate Crash

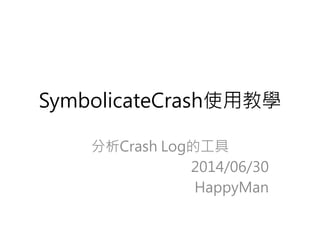

1. SymbolicateCrash使用教學
分析Crash Log的工具
2014/06/30
HappyMan

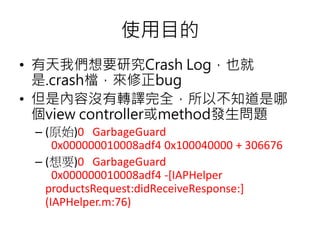

2. 使用目的
• 有天我們想要研究Crash Log，也就
是.crash檔，來修正bug
• 但是內容沒有轉譯完全，所以不知道是哪
個view controller或method發生問題
– (原始)0 GarbageGuard
0x000000010008adf4 0x100040000 + 306676
– (想要)0 GarbageGuard
0x000000010008adf4 -[IAPHelper
productsRequest:didReceiveResponse:]
(IAPHelper.m:76)

3. 步驟
• 在桌面建立一個crash資料夾（方便操作）
• Xcode->Window->Organize找到
Archives找到App－右擊－Show in Finder
• 尋找產生.crash檔案的源頭.iap檔

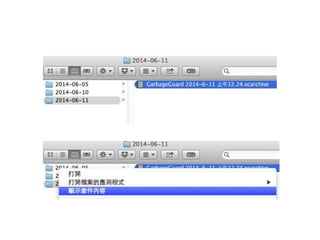

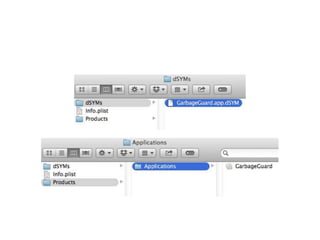

• 複製.app和.app.dSYM到crash夾文件－右
擊－xcarchive文件->顯示套件內容

4. Submitted的.ipa檔

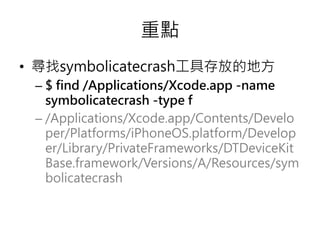

7. 重點
• 尋找symbolicatecrash工具存放的地方
– $ find /Applications/Xcode.app -name
symbolicatecrash -type f
– /Applications/Xcode.app/Contents/Develo
per/Platforms/iPhoneOS.platform/Develop
er/Library/PrivateFrameworks/DTDeviceKit
Base.framework/Versions/A/Resources/sym
bolicatecrash

8. • 將symbolicatecrash拷貝到crash資料夾
– $ cp
/Applications/Xcode.app/Contents/Devel
oper/Platforms/iPhoneOS.platform/Devel
oper/Library/PrivateFrameworks/DTDevic
eKitBase.framework/Versions/A/Resource
s/symbolicatecrash
/Users/Jason/Desktop/crash

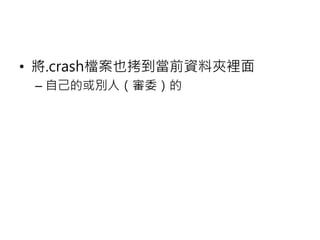

9. • 將.crash檔案也拷到當前資料夾裡面
– 自己的或別人（審委）的

10. 執行symbolicatecrash
• 將終端機移至crash資料夾
– $ cd
– $ cd /Users/Jason/Desktop/crash
• 查看crash資料夾有哪些檔案（4個）
– $ ls
– GarbageGuard.app GarbageGuard.app.dSYM
symbolicatecrash test.crash

11. 執行symbolicatecrash
• 執行關鍵指令
– $ ./symbolicatecrash test.crash
GarbageGuard.app.dSYM >
GarbageGuard_symbol.crash
• 可能會發生
– Error: "DEVELOPER_DIR" is not defined
at ./symbolicatecrash line 60.
• 執行此行解決它
– $ export
DEVELOPER_DIR="/Applications/XCode.app/Content
s/Developer”
• 再次執行關鍵指令
– $ ./symbolicatecrash test.crash
GarbageGuard.app.dSYM >
GarbageGuard_symbol.crash

12. Crash資料夾
• 生成_symbol.crash

13. 原始.crash（節錄）
• Thread 0 name: Dispatch queue: com.apple.main-thread
• Thread 0 Crashed:
• 0 GarbageGuard 0x000000010008adf4 0x100040000 + 306676
• 1 StoreKit 0x0000000186ce0fac __34-[SKProductsRequest
_handleReply:]_block_invoke + 508
• 2 libdispatch.dylib 0x0000000190d5c010 _dispatch_call_block_and_release + 20
• 3 libdispatch.dylib 0x0000000190d5bfd0 _dispatch_client_callout + 12
• 4 libdispatch.dylib 0x0000000190d5f1d8 _dispatch_main_queue_callback_4CF +
332
• 5 CoreFoundation 0x0000000183d66c28
__CFRUNLOOP_IS_SERVICING_THE_MAIN_DISPATCH_QUEUE__ + 8
• 6 CoreFoundation 0x0000000183d64f68 __CFRunLoopRun + 1448
• 7 CoreFoundation 0x0000000183ca5c1c CFRunLoopRunSpecific + 448
• 8 GraphicsServices 0x0000000189945c08 GSEventRunModal + 164
• 9 UIKit 0x0000000186dd6fd8 UIApplicationMain + 1152
• 10 GarbageGuard 0x0000000100059064 0x100040000 + 102500
• 11 libdyld.dylib 0x0000000190d77a9c start + 0

14. 生成.crash（節錄）
• Thread 0 name: Dispatch queue: com.apple.main-thread
• Thread 0 Crashed:
• 0 GarbageGuard 0x000000010008adf4 -[IAPHelper
productsRequest:didReceiveResponse:] (IAPHelper.m:76)
• 1 StoreKit 0x0000000186ce0fac __34-[SKProductsRequest
_handleReply:]_block_invoke + 508
• 2 libdispatch.dylib 0x0000000190d5c010 _dispatch_call_block_and_release + 20
• 3 libdispatch.dylib 0x0000000190d5bfd0 _dispatch_client_callout + 12
• 4 libdispatch.dylib 0x0000000190d5f1d8 _dispatch_main_queue_callback_4CF +
332
• 5 CoreFoundation 0x0000000183d66c28
__CFRUNLOOP_IS_SERVICING_THE_MAIN_DISPATCH_QUEUE__ + 8
• 6 CoreFoundation 0x0000000183d64f68 __CFRunLoopRun + 1448
• 7 CoreFoundation 0x0000000183ca5c1c CFRunLoopRunSpecific + 448
• 8 GraphicsServices 0x0000000189945c08 GSEventRunModal + 164
• 9 UIKit 0x0000000186dd6fd8 UIApplicationMain + 1152
• 10 GarbageGuard 0x0000000100059064 main (main.m:16)
• 11 libdyld.dylib 0x0000000190d77a9c start + 0

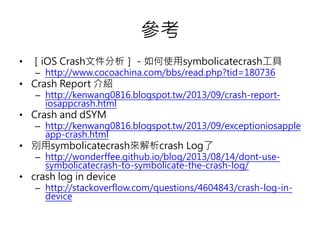

15. 參考
• ［iOS Crash文件分析］－如何使用symbolicatecrash工具
– http://www.cocoachina.com/bbs/read.php?tid=180736
• Crash Report 介紹
– http://kenwang0816.blogspot.tw/2013/09/crash-report-
iosappcrash.html
• Crash and dSYM
– http://kenwang0816.blogspot.tw/2013/09/exceptioniosapple
app-crash.html
• 別用symbolicatecrash來解析crash Log了
– http://wonderffee.github.io/blog/2013/08/14/dont-use-
symbolicatecrash-to-symbolicate-the-crash-log/
• crash log in device
– http://stackoverflow.com/questions/4604843/crash-log-in-
device
