Auto scaling websites in the cloud
This document discusses auto-scaling in the cloud and provides a case study on MediaHub, a media sharing application. It describes MediaHub's architecture, which uses various AWS services like EC2, RDS, S3, CloudFront, and Elastic Beanstalk. It then provides best practices for developing applications in the cloud, such as automating infrastructure, controlling permissions, automating configuration, and designing for redundancy and parallelism. The document concludes that the cloud is not suitable for all applications and that applications must be designed for cloud-scale to reduce costs.
More Related Content
Similar to Auto scaling websites in the cloud
Auto scaling websites in the cloud
- 1. Auto-scaling in thecloud: a case study 2013-11-29 David Veksler

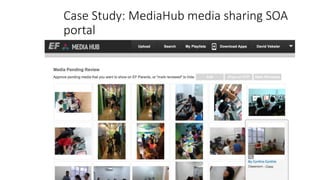

- 2. Case Study: MediaHubmedia sharing SOA portal

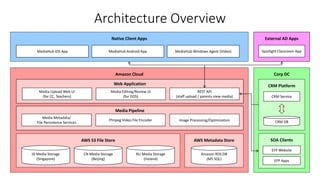

- 3. Architecture Overview Amazon Cloud NativeClient Apps MediaHub iOS App External AD Apps Spotlight Classroom AppMediaHub Android App MediaHub Windows Agent (Video) Web Application REST API (staff upload / parents view media) Media Editing/Review UI (for DOS) Media Upload Web UI (for CC, Teachers) AWS Metadata Store Amazon RDS DB (MS SQL) AWS S3 File Store CN Media Storage (Beijing) RU Media Storage (Ireland) ID Media Storage (Singapore) Corp DC CRM Platform CRM Service CRM DB SOA Clients EFP Website EFP Apps Media Pipeline Ffmpeg Video File Encoder Image Processing/Optimization Media Metadata/ File Persistence Services

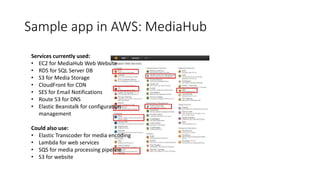

- 4. Sample app inAWS: MediaHub Services currently used: • EC2 for MediaHub Web Website • RDS for SQL Server DB • S3 for Media Storage • CloudFront for CDN • SES for Email Notifications • Route 53 for DNS • Elastic Beanstalk for configuration management Could also use: • Elastic Transcoder for media encoding • Lambda for web services • SQS for media processing pipeline • S3 for website

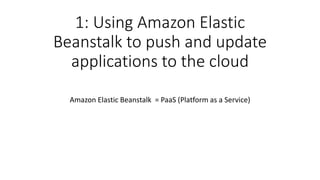

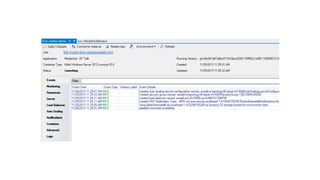

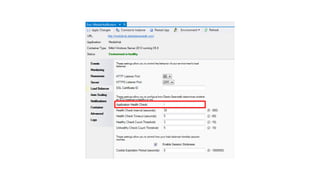

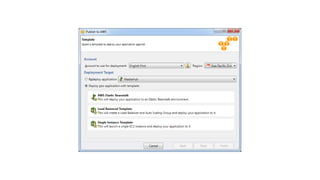

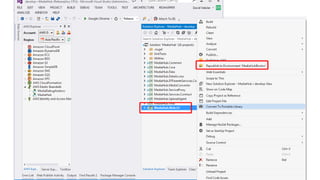

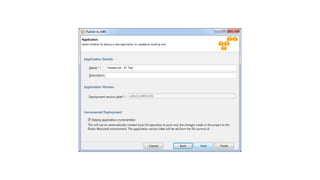

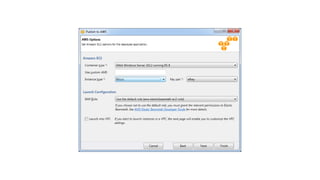

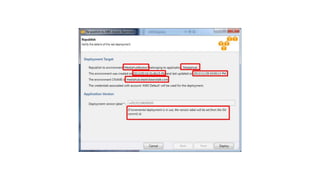

- 5. 1: Using AmazonElastic Beanstalk to push and update applications to the cloud Amazon Elastic Beanstalk = PaaS (Platform as a Service)
- 28.
- 44. How not todo cloud

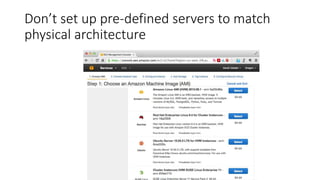

- 46. Don’t set uppre-defined servers to match physical architecture

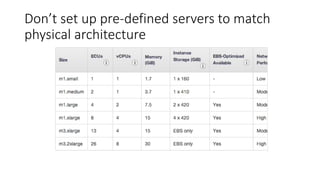

- 47. Don’t set uppre-defined servers to match physical architecture

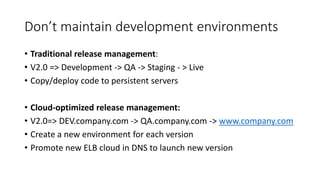

- 48. Don’t maintain developmentenvironments • Traditional release management: • V2.0 => Development -> QA -> Staging - > Live • Copy/deploy code to persistent servers • Cloud-optimized release management: • V2.0=> DEV.company.com -> QA.company.com -> www.company.com • Create a new environment for each version • Promote new ELB cloud in DNS to launch new version

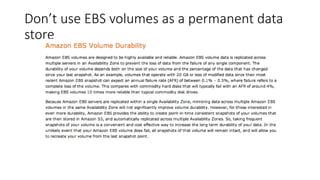

- 49. Don’t use EBSvolumes as a permanent data store

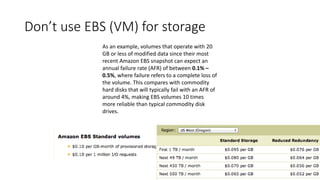

- 50. Don’t use EBS(VM) for storage As an example, volumes that operate with 20 GB or less of modified data since their most recent Amazon EBS snapshot can expect an annual failure rate (AFR) of between 0.1% – 0.5%, where failure refers to a complete loss of the volume. This compares with commodity hard disks that will typically fail with an AFR of around 4%, making EBS volumes 10 times more reliable than typical commodity disk drives.
- 51. Don’t set updedicated VMs if a cloud service exists

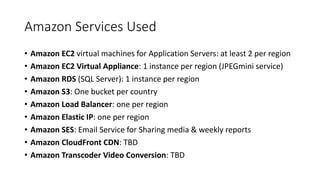

- 52. Amazon Services Used •Amazon EC2 virtual machines for Application Servers: at least 2 per region • Amazon EC2 Virtual Appliance: 1 instance per region (JPEGmini service) • Amazon RDS (SQL Server): 1 instance per region • Amazon S3: One bucket per country • Amazon Load Balancer: one per region • Amazon Elastic IP: one per region • Amazon SES: Email Service for Sharing media & weekly reports • Amazon CloudFront CDN: TBD • Amazon Transcoder Video Conversion: TBD
- 53. How to docloud

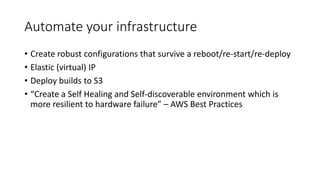

- 54. Automate your infrastructure •Create robust configurations that survive a reboot/re-start/re-deploy • Elastic (virtual) IP • Deploy builds to S3 • “Create a Self Healing and Self-discoverable environment which is more resilient to hardware failure” – AWS Best Practices

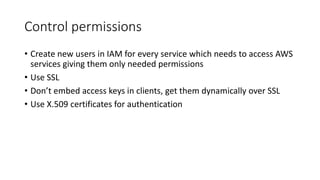

- 55. Control permissions • Createnew users in IAM for every service which needs to access AWS services giving them only needed permissions • Use SSL • Don’t embed access keys in clients, get them dynamically over SSL • Use X.509 certificates for authentication
- 56.
- 57. Design for redundancyand parallelism • Multi-thread your Amazon S3 requests as detailed in Best practices paper • Multi-thread your Amazon SimpleDB GET and BATCHPUT requests • Create a JobFlow using the Amazon Elastic MapReduce Service for each of your daily batch processes • (indexing, log analysis etc.) which will compute the job in parallel and save time. • Use the Elastic Load Balancing service and spread your load across multiple web app servers dynamically

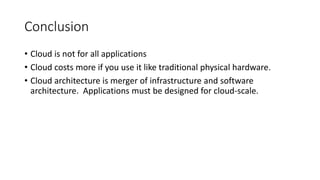

- 58. Conclusion • Cloud isnot for all applications • Cloud costs more if you use it like traditional physical hardware. • Cloud architecture is merger of infrastructure and software architecture. Applications must be designed for cloud-scale.
