1. What is Cloud Computing?
Sébastien Stormacq— Senior Technical Trainer
stormacq@amazon.lu
@sebsto

2. Learning about Cloud Computing with AWS
What is Cloud Computing and what are its benefits?
Who is using AWS and what are they using it for?
What are AWS’s services and how do I use them to run my workloads?

3. What is Cloud Computing?
A broad and deep platform that helps customers
build sophisticated, scalable applications

4. Why are companies adopting cloud
computing and AWS so quickly?

5. #1: Agility
The primary reason businesses are
moving so quickly to AWS and the cloud

6. Convert CAPEX to OPEX
Lower Total Cost
No Need to Guess Capacity
No Undifferentiated Heavy Lifting
Go Global in Minutes

7. A Culture of Innovation: Experiment Often & Fail Without Risk

8. Who is using AWS and what are
they using it for?

9. Startups on AWS
http://aws.amazon.com/solutions/case-studies/

11. 150,000"
people are hosted "
on any given night

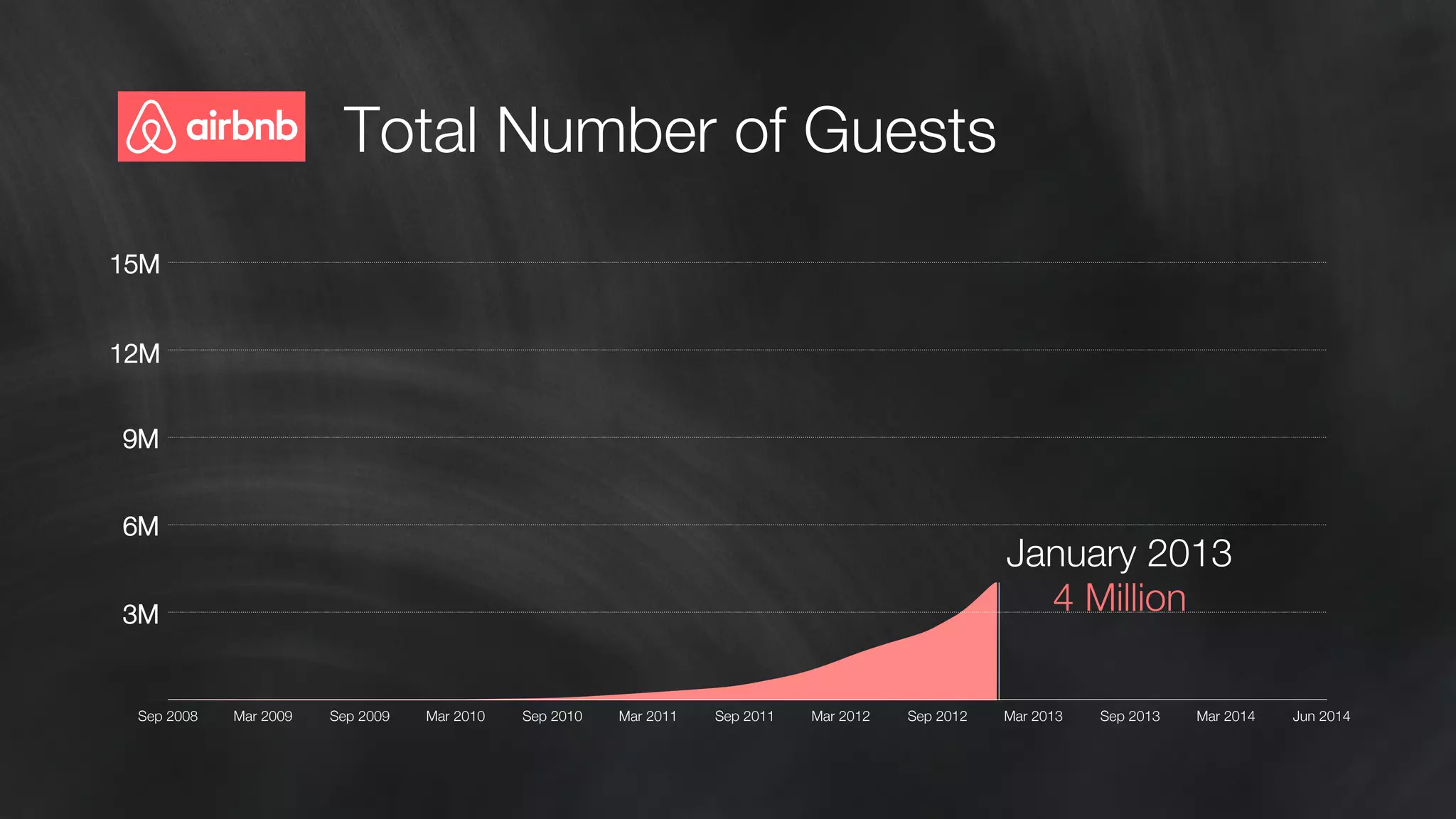

12. Total Number of Guests
January 2013
4 Million
15M
12M
9M
3M
Sep 2008
Mar 2009
Sep 2009
Mar 2010
Sep 2010Mar 2011
Sep 2011
Mar 2012
Sep 2012
Mar 2013
Sep 2013
Mar 2014
Jun 2014
6M

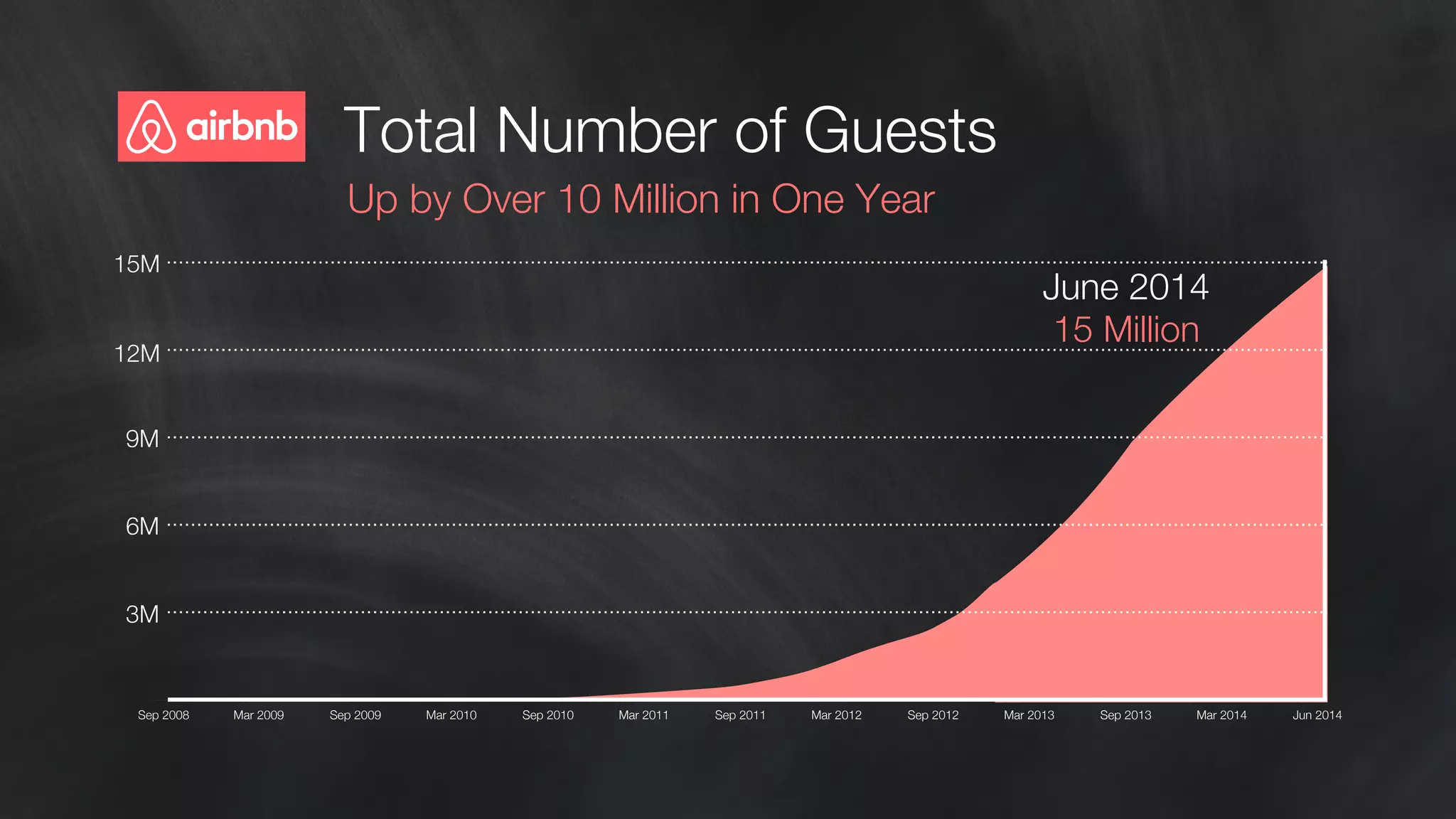

13. June 2014
15 Million
Total Number of Guests
Up by Over 10 Million in One Year
15M
12M
9M
3M
Sep 2008
Mar 2009
Sep 2009
Mar 2010
Sep 2010Mar 2011
Sep 2011
Mar 2012
Sep 2012
Mar 2013
Sep 2013
Mar 2014
Jun 2014
6M

14. 1,400
1,050
700
350
0
24
48
432
2010
2014
1,300
Total Number of EC2 instances

15. Why AWS?

16. We have a 5 person
operations team.
AWS allows us to devote our resources
and mindshare to the core business.
“
”

17. Enterprises on AWS
http://aws.amazon.com/solutions/case-studies/

18. Sharepoint and SAP
SAP
70% reduction in"
operational costs
#1: Development and Testing
Do more dev and
test work, faster
Oracle
Reduced dev and test
environment costs

19. #2: New Workloads
Product prototyping
& design
Audience
management &
creative design
Hotel booking
engine
Biological data
research
Global deals
engine
Video streaming
App streaming
Firmware
SIM card credit
News distribution
upgrades
Mobile musicMobile games
discovery

20. #3: Supplement Existing Workloads with the Cloud!
Analytics
Export operational data to
Amazon Redshift for analysis
2X faster queries at 1/2 the cost
Equipment
leasing app
Disaster recovery SSAE 16-
compliant to restore all data
within 2 hours
Operational
applications
Export data to AWS for
analytics processing

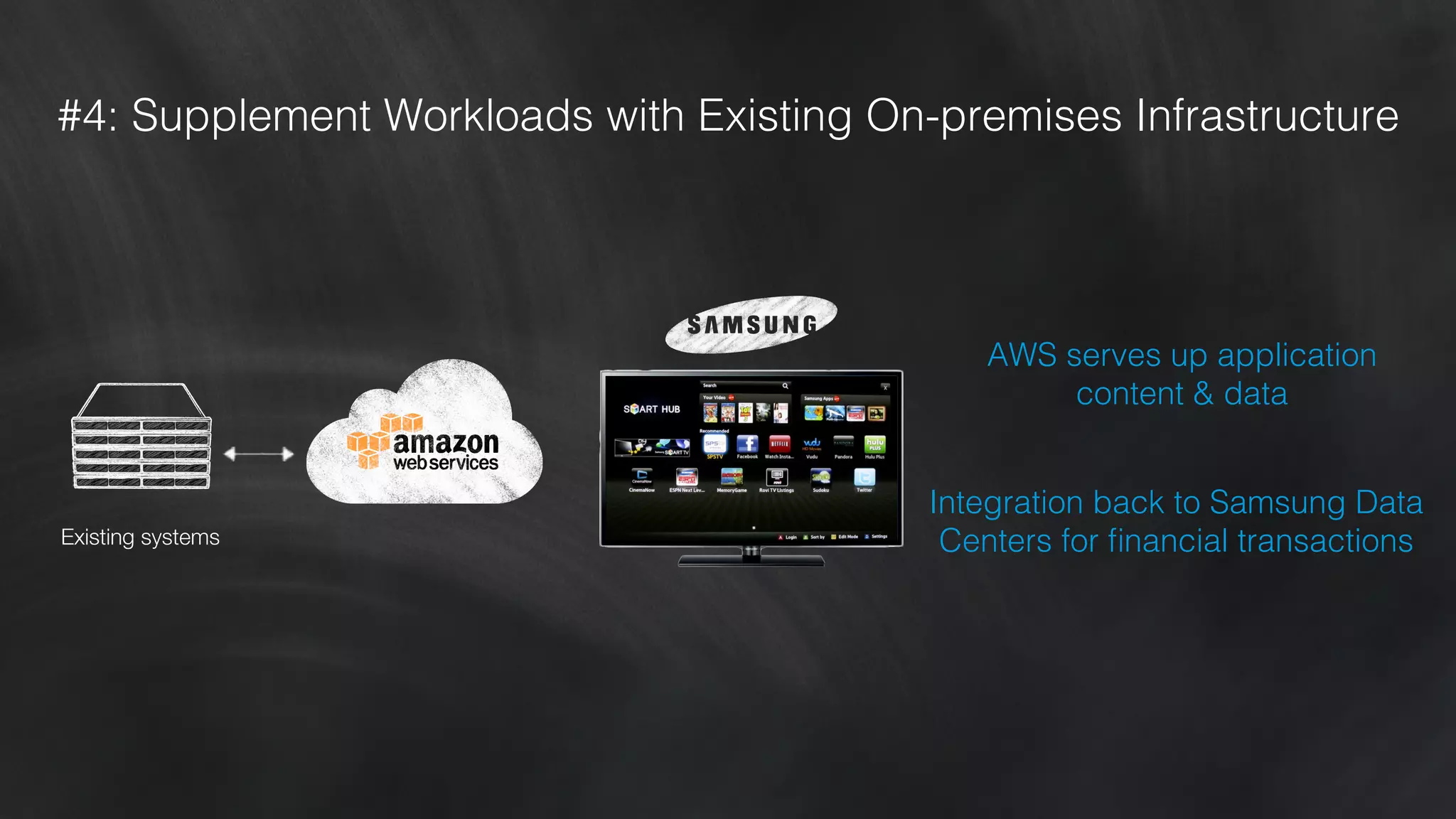

21. #4: Supplement Workloads with Existing On-premises Infrastructure!
AWS serves up application
content & data!
Integration back to Samsung Data
Existing systemsCenters for financial transactions!

22. #5: Migrating Existing Applications
Migrated 500 web
properties in 5 months!
1,700 web properties
New product websites in 2 days
vs. 2 weeks
Migrated clinical trials
simulations platform!
Simulations in 1.2hrs vs. 60hrs
64% reduction in costs

23. #6: Data Center Migration
From 40 data centers, down to 6
9X increase in AWS
usage
APIs help govern usage
and control cost
Enabling global
collaboration
3,000 applications
by January 2015

24. #7: All-in — IT Entirely in the Cloud
“We have to be great at a
number of things…!
operating data centers is not
one of those things” !
“We are a hospitality
management organization, not
an IT services company”!
2000 applications migrating !
to AWS in 18 months!

25. Amazon EC2!
Amazon EBS!
AWS Import!
!
& Export!
AWS Identity !
!
& Access !
!
Management!
Amazon SNS!
Elastic Load!
!
Balancing!
Auto Scaling!
Amazon VPC!
Amazon RDS!
Amazon EMR!
Amazon !
!
CloudWatch!
GovCloud!
AWS Direct !
!
Connect!
AWS Elastic!
!
Beanstalk!
AWS !
!
CloudFormation!
Amazon !
!
ElastiCache!
Amazon SES!
2008! 2009! 2010! 2011!
Amazon EC2!
Amazon !
!
CloudSearch!
Amazon !
!
Dynamo DB!
Amazon Glacier!
Amazon Redshift!
Amazon Route 53!
AWS Storage!
!
Gateway!
Amazon SWF!
Amazon !
!
AppStream!
Amazon Elastic!
!
Transcoder!
Amazon Kinesis!
AWS OpsWorks!
Amazon !
!
CloudHSM!
Amazon !
!
CloudTrail!
AWS Data !
!
Pipeline!
Amazon !
!
WorkSpaces!

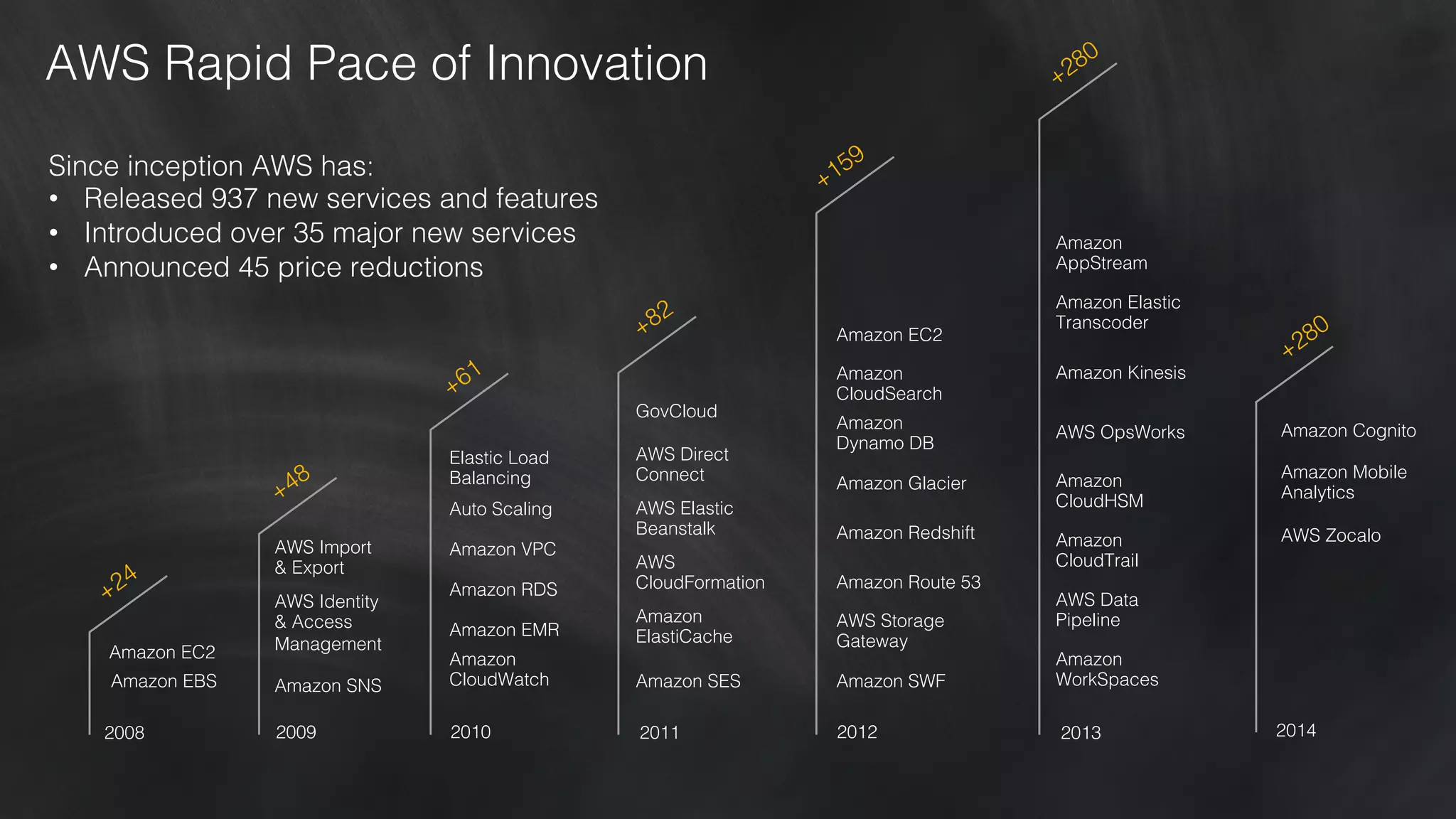

AWS Rapid Pace of Innovation!
2012!2013!
Since inception AWS has:!
• Released 937 new services and features !
• Introduced over 35 major new services!
• Announced 45 price reductions!
Amazon Cognito!
Amazon Mobile!
!
Analytics!
AWS Zocalo!
2014!

26. Every New Feature and Service Arrives Ready to Use
On-premises infrastructure
Upgrades are your responsibility
Now available
to all
customers
Upgrades happen automatically

27. How should I design my app to
scale in the cloud ?

28. Building and Managing Scalable
Applications on AWS:
1 to 500K users

29. WARNING:
NOT A MARKETING
PRESENTATION

30. So how do we scale?

31. Some Basics

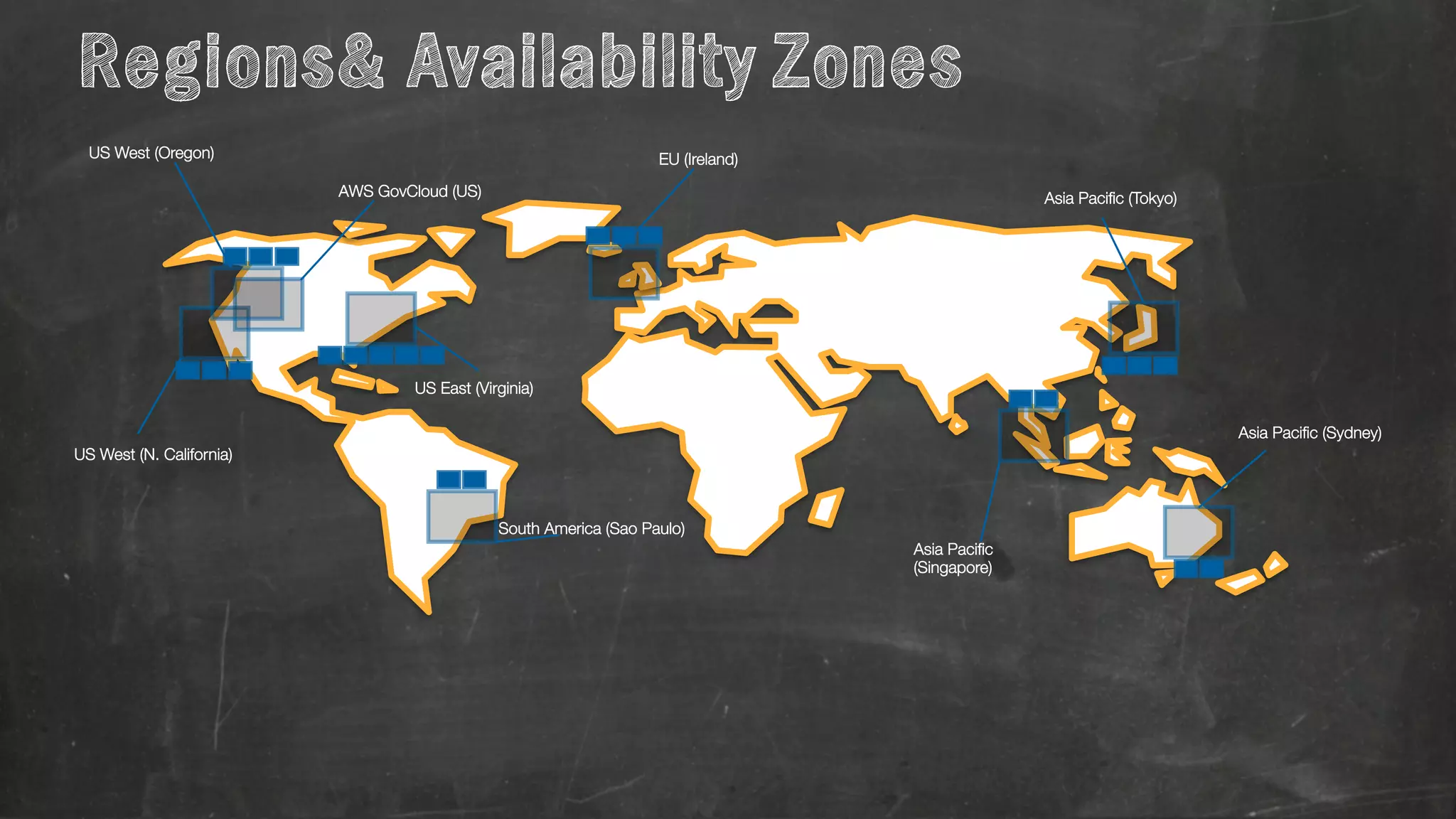

32. Regions& Availability Zones
US West (Oregon)
EU (Ireland)
Asia Pacific (Tokyo)
US West (N. California)
AWS GovCloud (US)
US East (Virginia)
Asia Pacific (Sydney)
Asia Pacific
(Singapore)
South America (Sao Paulo)

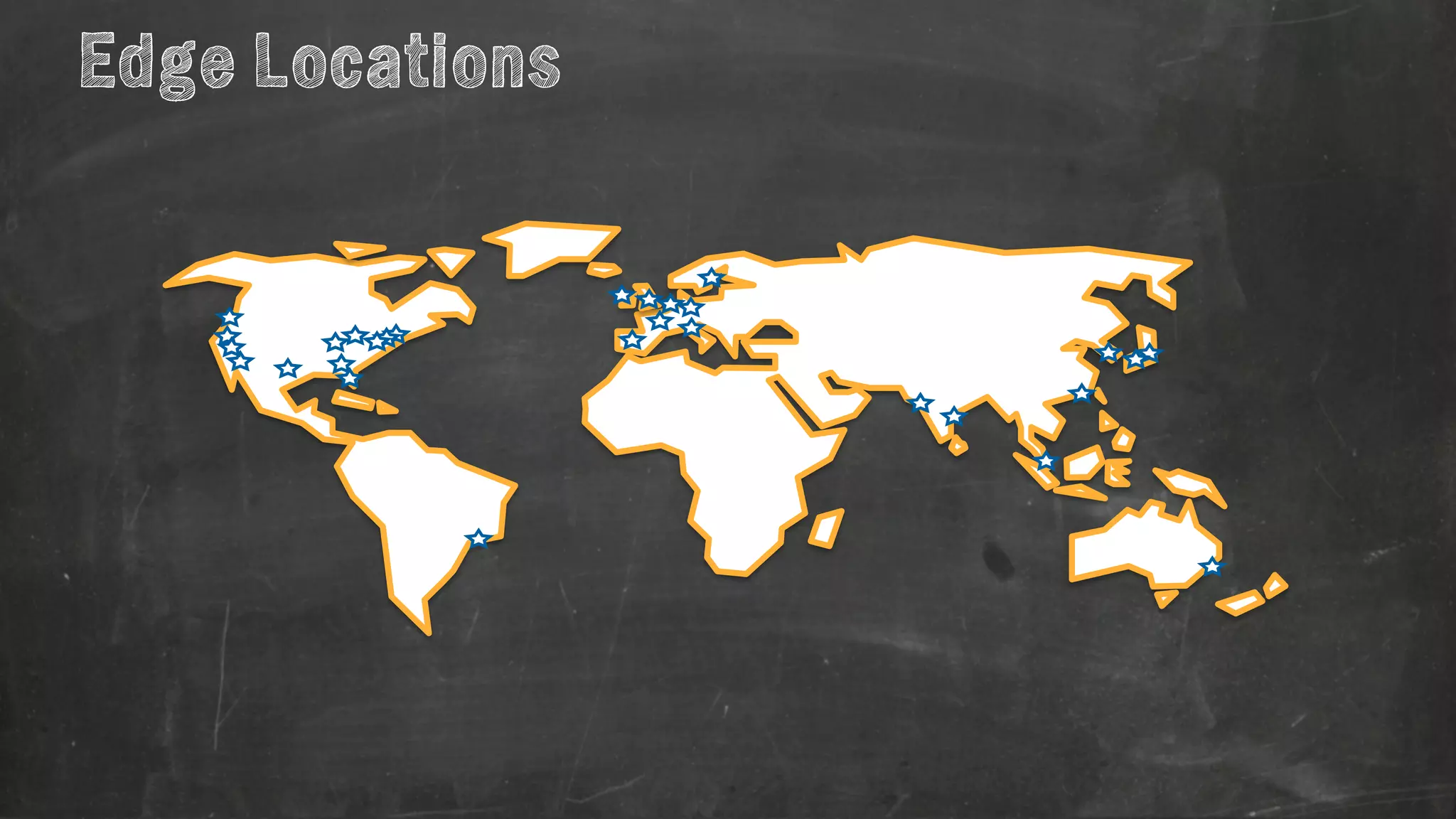

33. Edge Locations

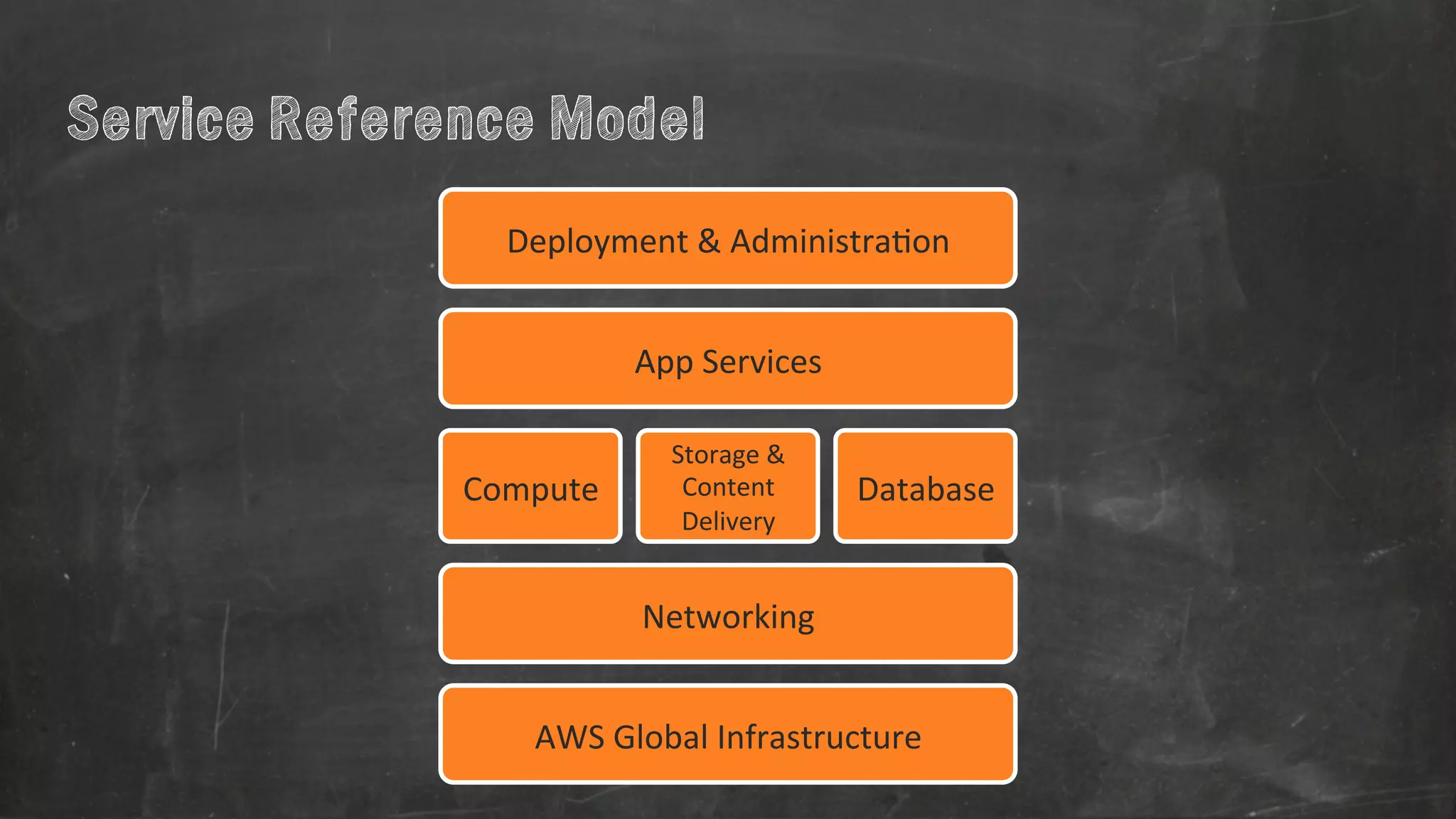

34. Service Reference Model
Deployment
&
Administra=on
Compute
App
Services
Storage
&
Content
Delivery
Database
Networking
AWS
Global
Infrastructure

35. Amazon
CloudWatch
AWS IAM AWS
CloudFormation
AWS Elastic
Beanstalk
Deployment
&
Administra=on
Compute
App
Services
Storage
&
Content
Delivery
Database
Networking
AWS
Global
Infrastructure
AWS Data
Pipeline
AWS
OpsWorks
Amazon
CloudSearch
Amazon
SQS
Amazon
SNS
Amazon Elastic
Transcoder
Amazon Amazon SWF
SES
Amazon
DynamoDB
Amazon
RDS
Amazon
ElastiCache
Amazon
RedShift
AWS Storage
Gateway
Amazon S3
Amazon
Glacier
Amazon
Amazon Amazon
Amazon
CloudFront
EC2
EMR
VPC
Amazon
Route 53
AWS
Direct Connect

36. So let’s start from day one,
user one ( you )

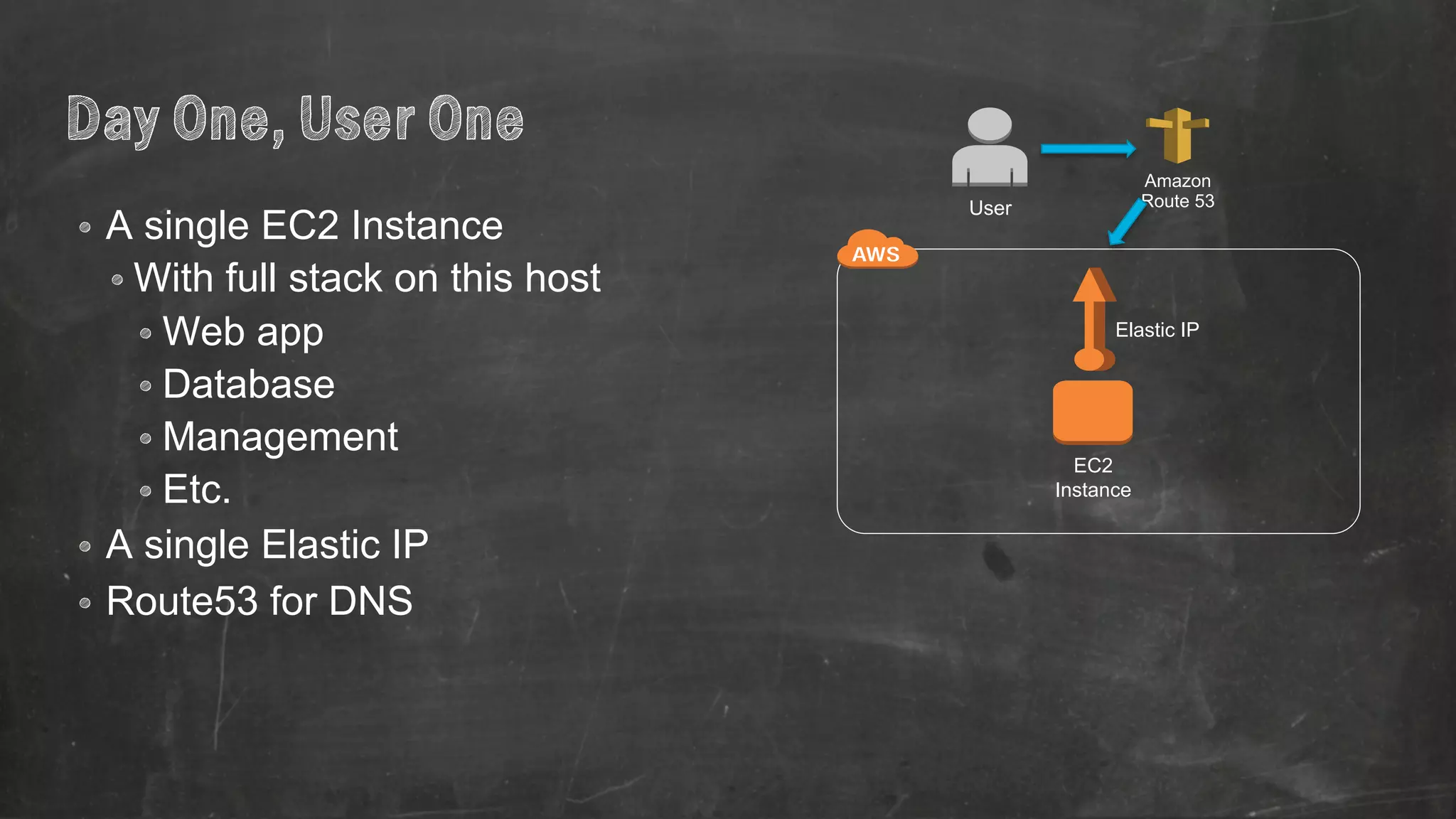

37. Day One, User One
• A single EC2 Instance
• With full stack on this host
• Web app
• Database
• Management
• Etc.
• A single Elastic IP
• Route53 for DNS
Elastic IP
EC2
Instance
Amazon
User Route 53

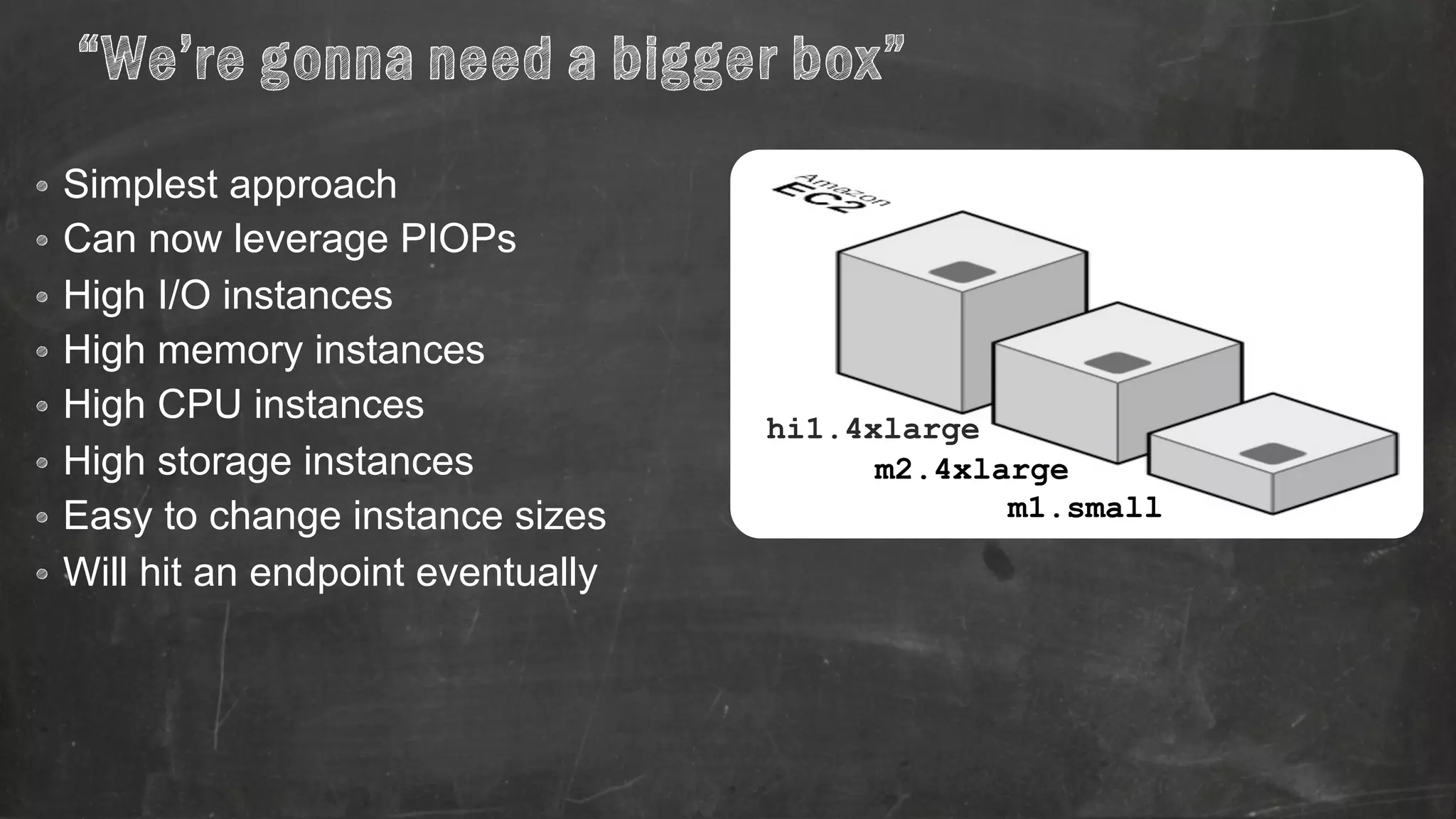

38. “We’re gonna need a bigger box”
• Simplest approach
• Can now leverage PIOPs
• High I/O instances
• High memory instances
• High CPU instances
• High storage instances
• Easy to change instance sizes
• Will hit an endpoint eventually
hi1.4xlarge
m2.4xlarge
m1.small

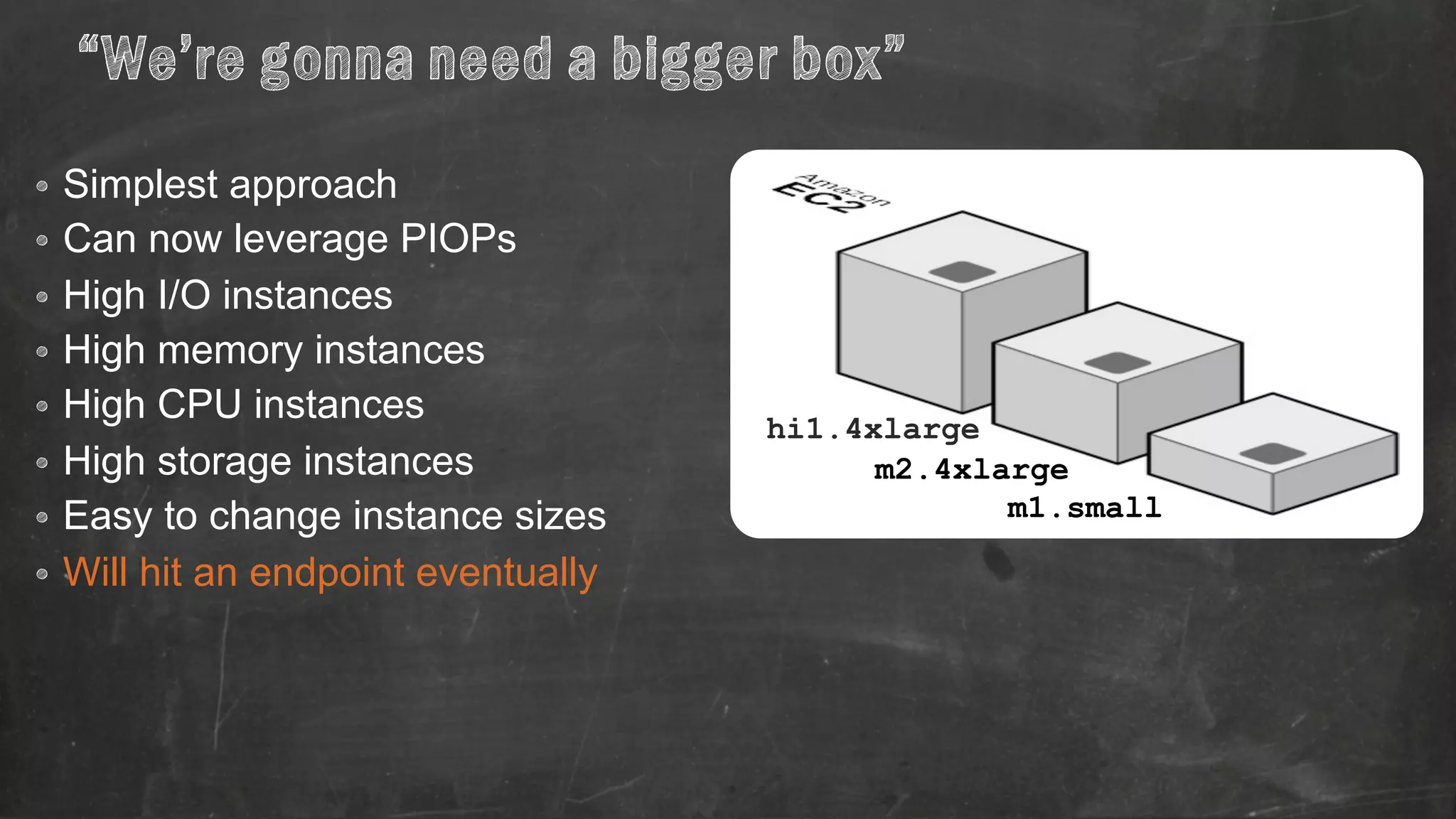

39. “We’re gonna need a bigger box”
• Simplest approach
• Can now leverage PIOPs
• High I/O instances
• High memory instances
• High CPU instances
• High storage instances
• Easy to change instance sizes
• Will hit an endpoint eventually
hi1.4xlarge
m2.4xlarge
m1.small

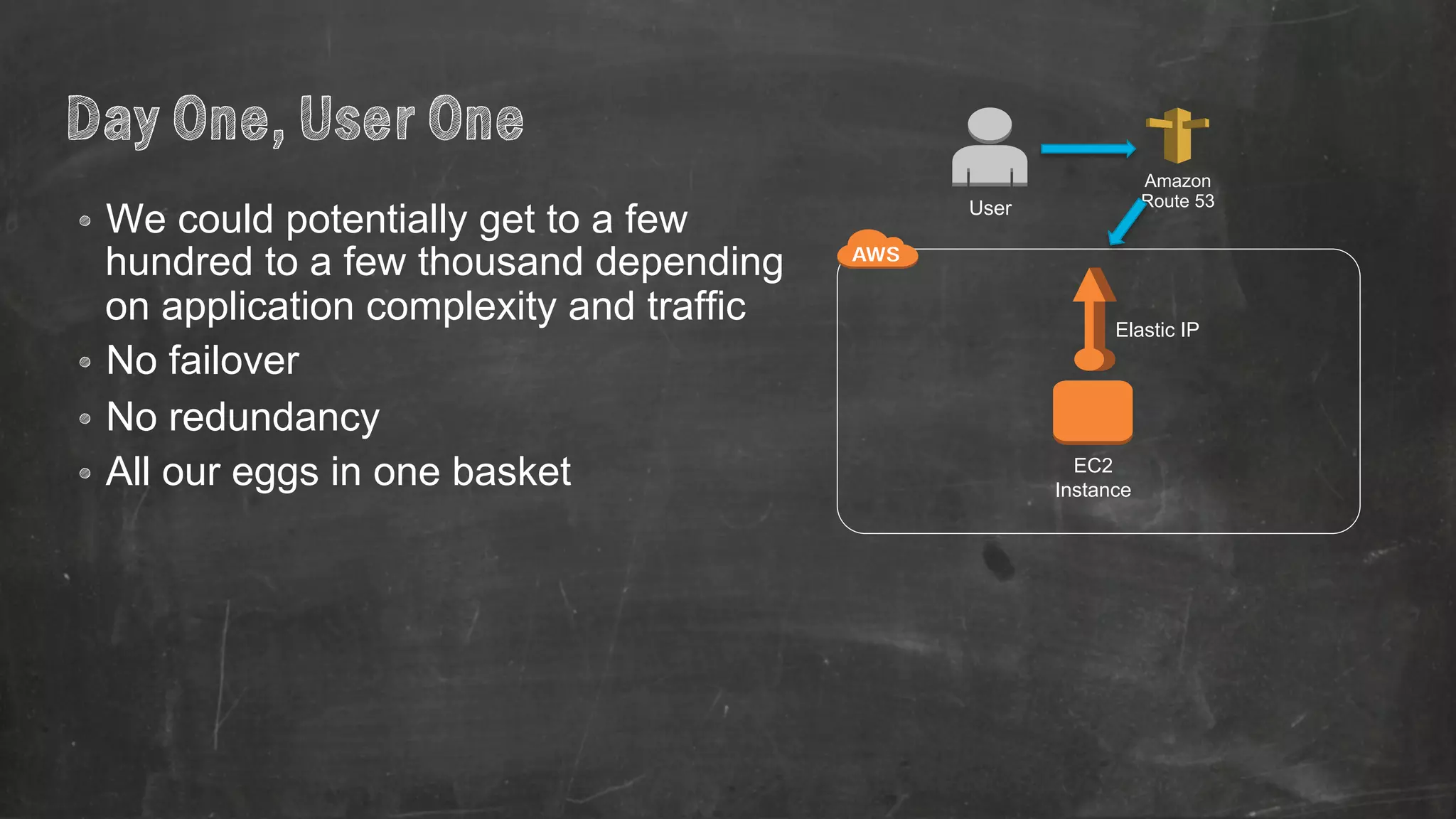

40. Day One, User One
• We could potentially get to a few
hundred to a few thousand depending
on application complexity and traffic
• No failover
• No redundancy
• All our eggs in one basket EC2
Elastic IP
Instance
Amazon
User Route 53

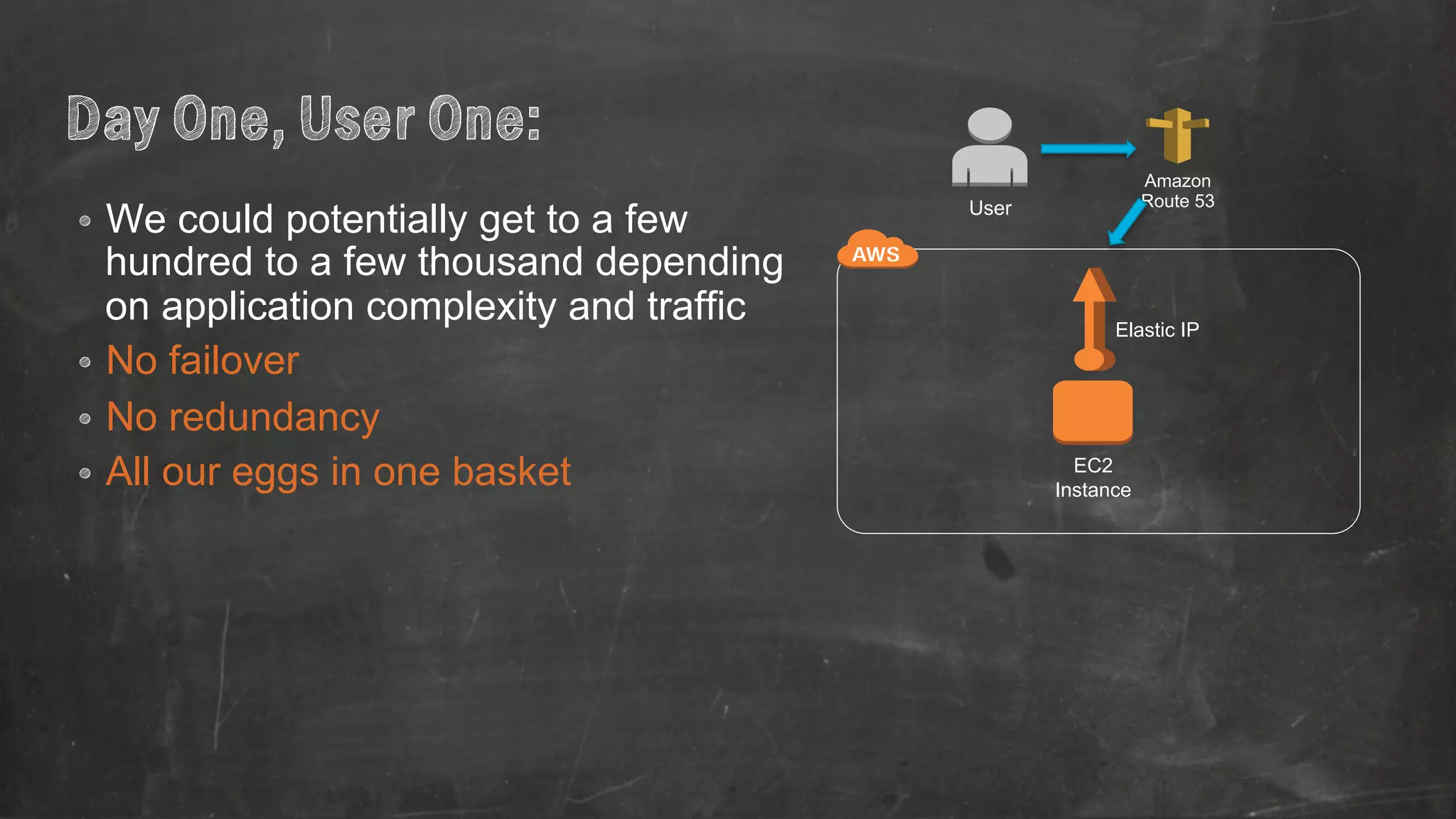

41. Day One, User One:
• We could potentially get to a few
hundred to a few thousand depending
on application complexity and traffic
• No failover
• No redundancy
• All our eggs in one basket EC2
Elastic IP
Instance
Amazon
User Route 53

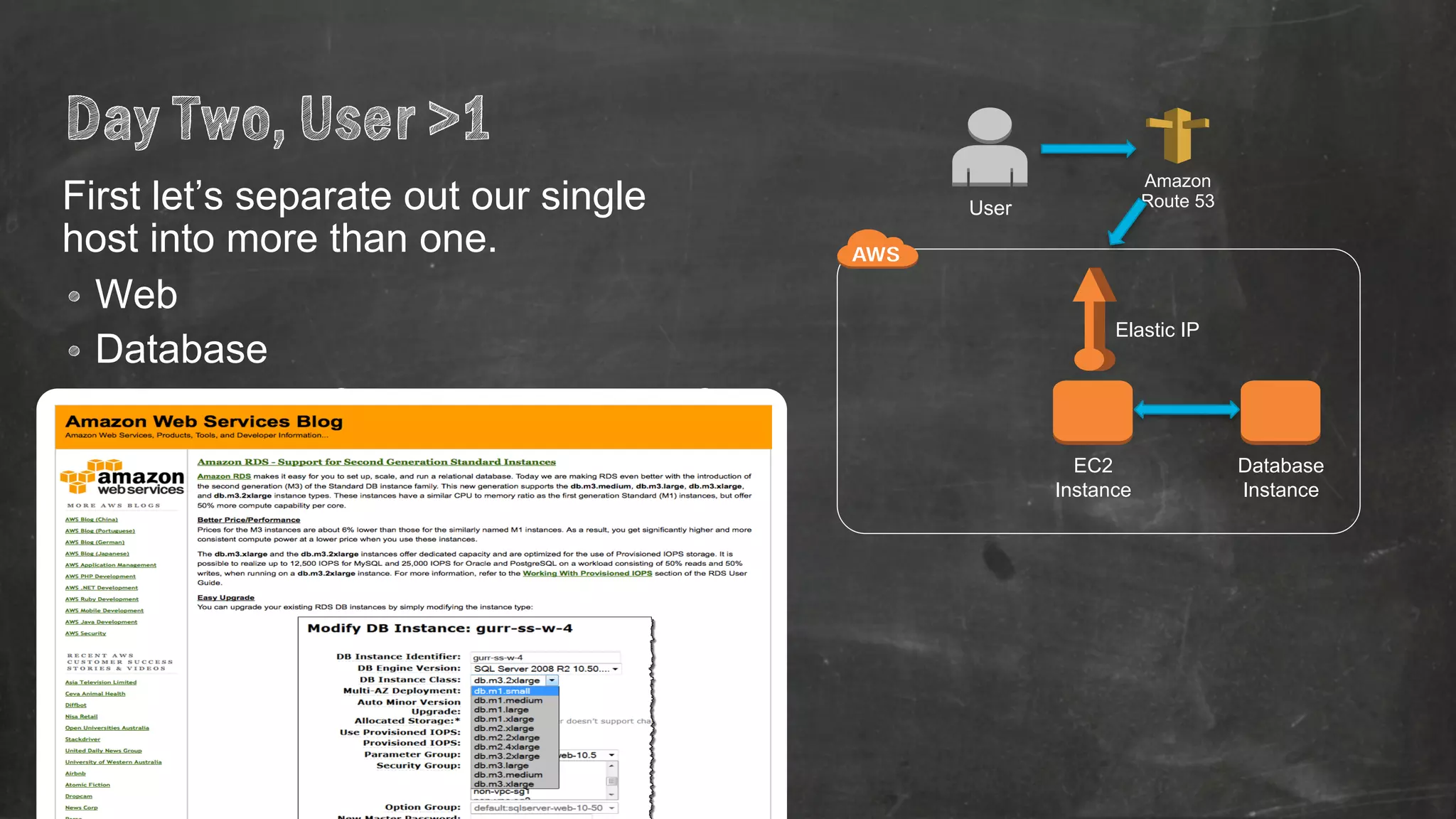

42. Day Two, User >1
First let’s separate out our single
host into more than one.
• Web
• Database
• Make use of a database service?
Database
Instance
Elastic IP
EC2
Instance
Amazon
User Route 53

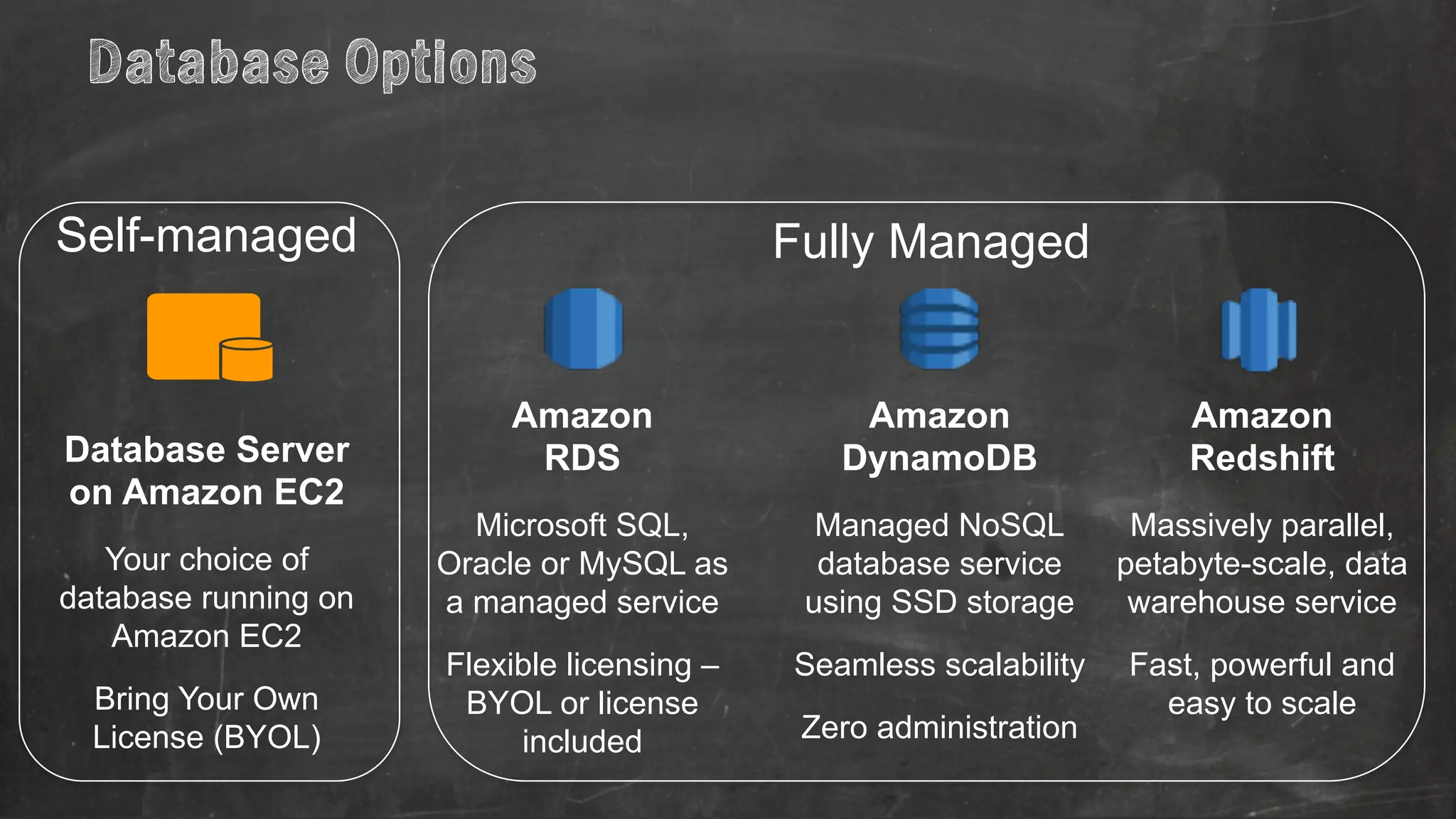

43. Self-managed Fully Managed
Database Server
on Amazon EC2
Your choice of
database running on
Amazon EC2
Bring Your Own
License (BYOL)
Amazon
DynamoDB
Managed NoSQL
database service
using SSD storage
Seamless scalability
Zero administration
Amazon
RDS
Microsoft SQL,
Oracle or MySQL as
a managed service
Flexible licensing –
BYOL or license
included
Amazon
Redshift
Massively parallel,
petabyte-scale, data
warehouse service
Fast, powerful and
easy to scale
Database Options

44. But how do I choose what
DB technology I need?
SQL? NoSQL?
Not a binary decision!

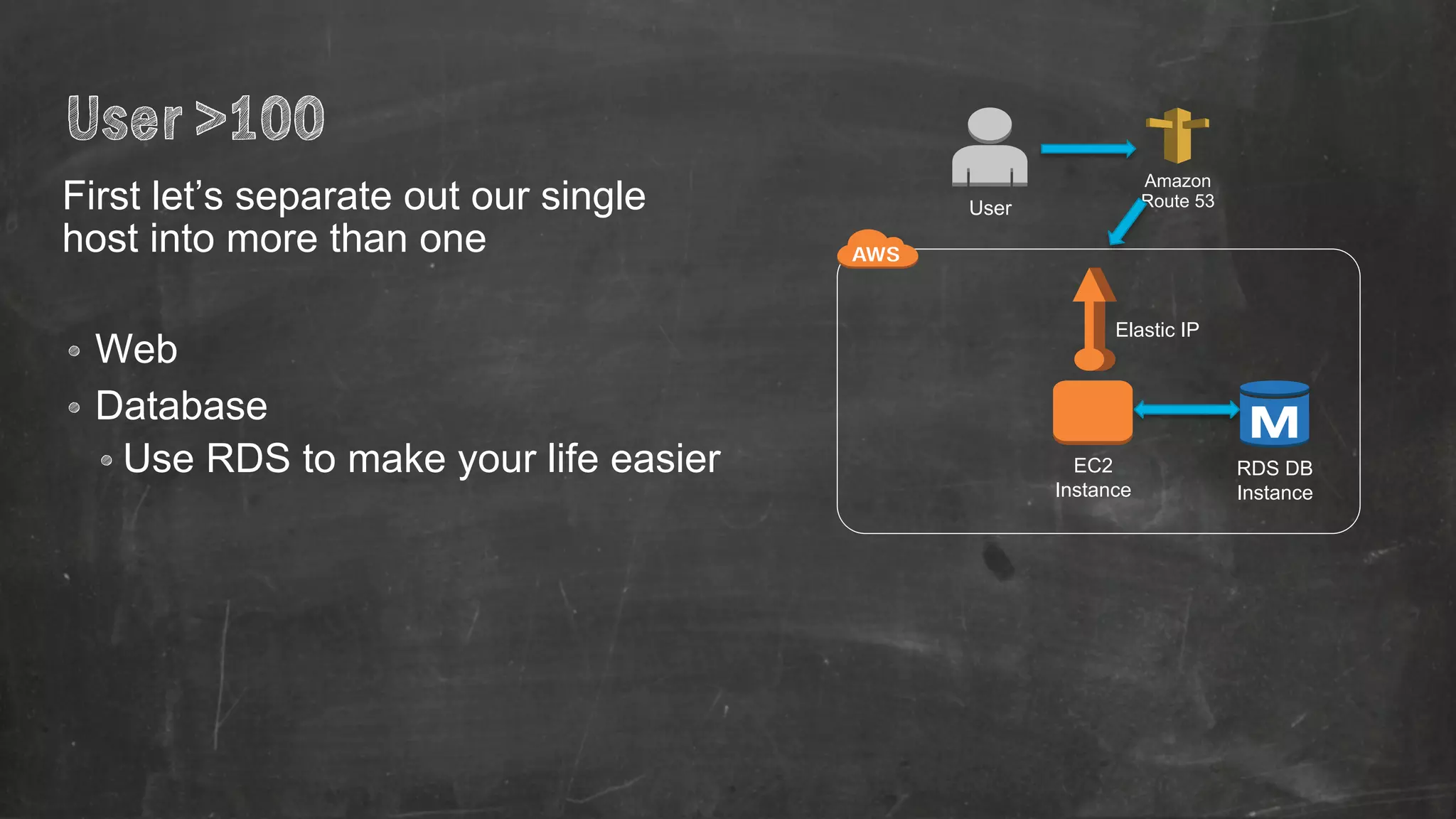

45. User >100
First let’s separate out our single
host into more than one
Elastic IP
• Web
• Database
• Use RDS to make your life easier RDS DB
Instance
EC2
Instance
Amazon
User Route 53

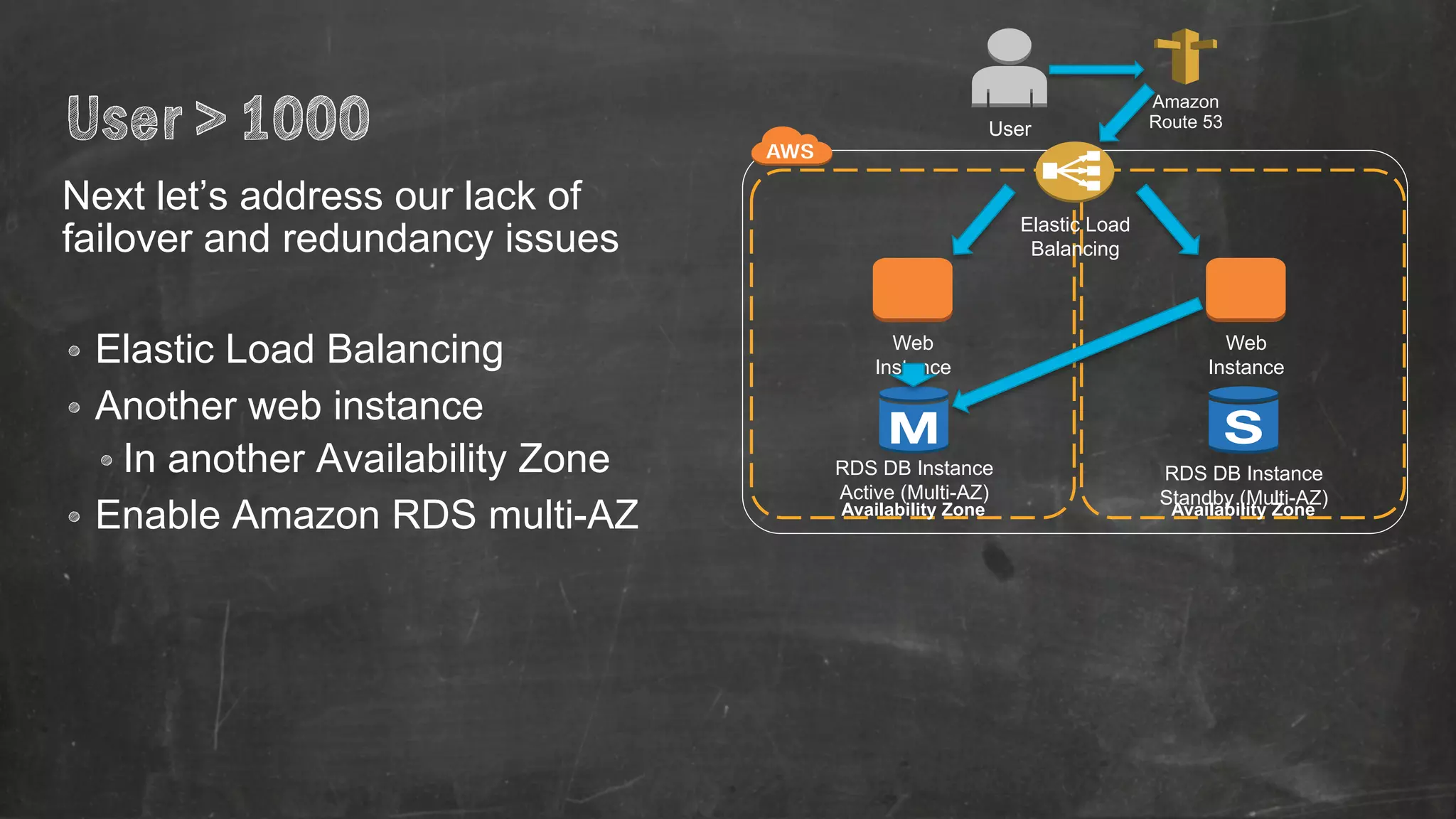

46. User > 1000
Next let’s address our lack of
failover and redundancy issues
• Elastic Load Balancing
• Another web instance
• In another Availability Zone
• Enable Amazon RDS multi-AZ
Web
Instance
Web
Instance
RDS DB Instance
Active (Multi-AZ)
Availability Zone Availability Zone
RDS DB Instance
Standby (Multi-AZ)
Elastic Load
Balancing
Amazon
User Route 53

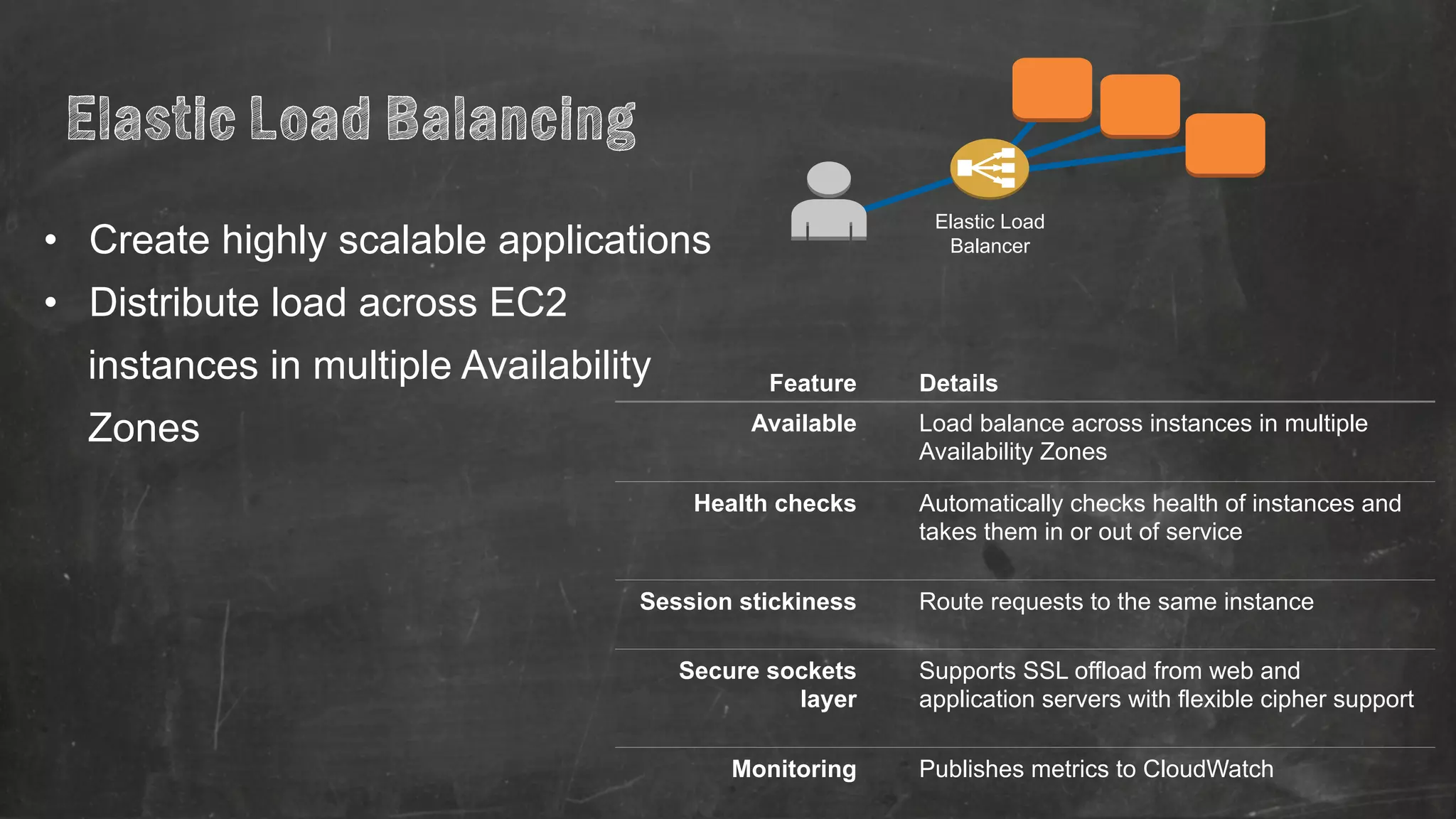

47. • Create highly scalable applications
• Distribute load across EC2
instances in multiple Availability
Zones
Elastic Load
Balancer
Feature Details
Available Load balance across instances in multiple
Availability Zones
Health checks Automatically checks health of instances and
takes them in or out of service
Session stickiness Route requests to the same instance
Secure sockets
layer
Supports SSL offload from web and
application servers with flexible cipher support
Monitoring Publishes metrics to CloudWatch
Elastic Load Balancing

48. Scaling this horizontally and
vertically will get us pretty
far
(10s-100s of thousands)

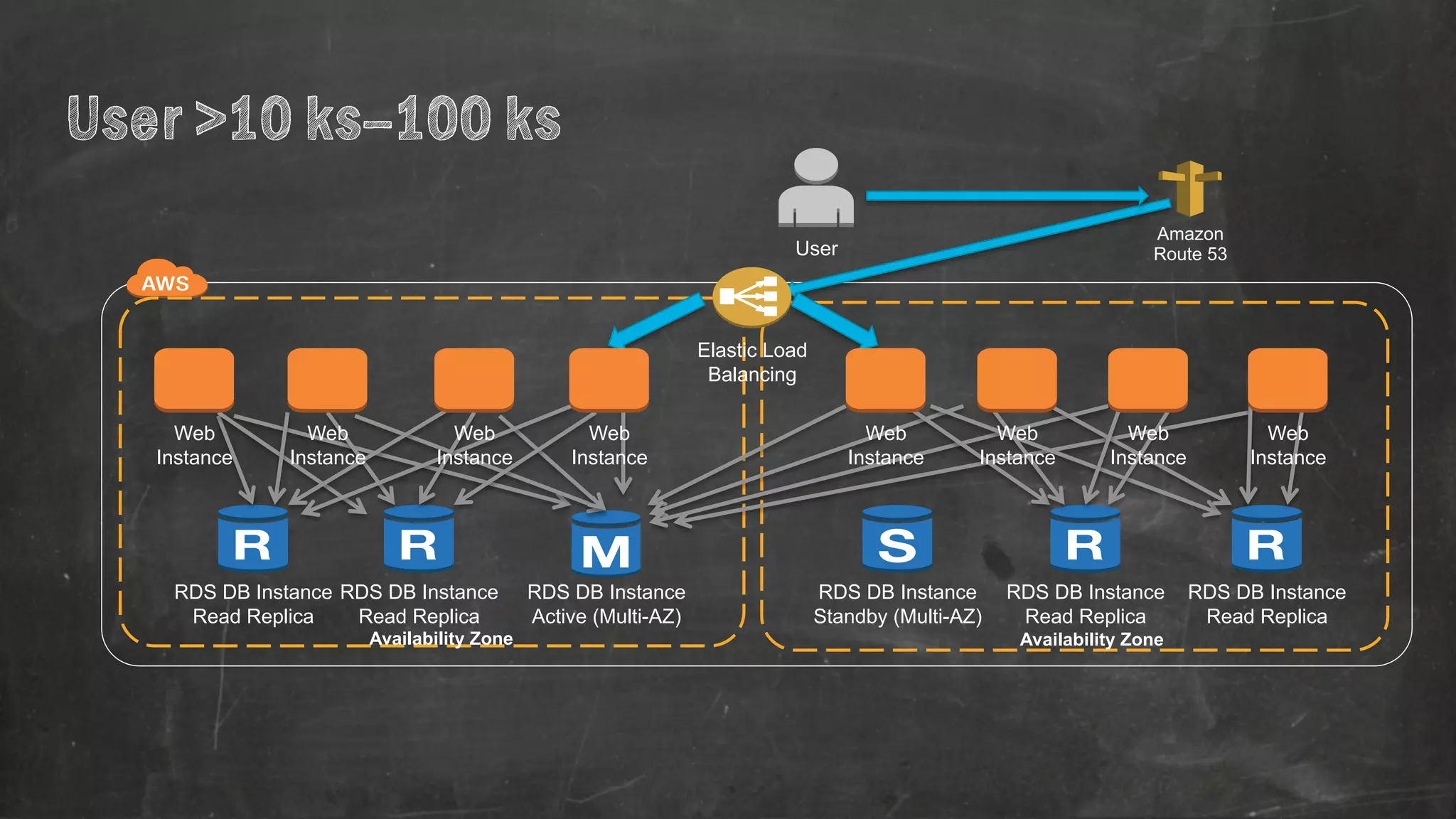

49. User >10 ks–100 ks
RDS DB Instance
Active (Multi-AZ)
RDS DB Instance
Standby (Multi-AZ)
Elastic Load
Balancing
RDS DB Instance
Read Replica
Availability Zone Availability Zone
RDS DB Instance
Read Replica
RDS DB Instance
Read Replica
RDS DB Instance
Read Replica
Web
Instance
Web
Instance
Web
Instance
Web
Instance
Web
Instance
Web
Instance
Web
Instance
Web
Instance
Amazon
User Route 53

50. This will take us pretty far
honestly, but we care about
performance and efficiency, so
let’s clean this up a bit

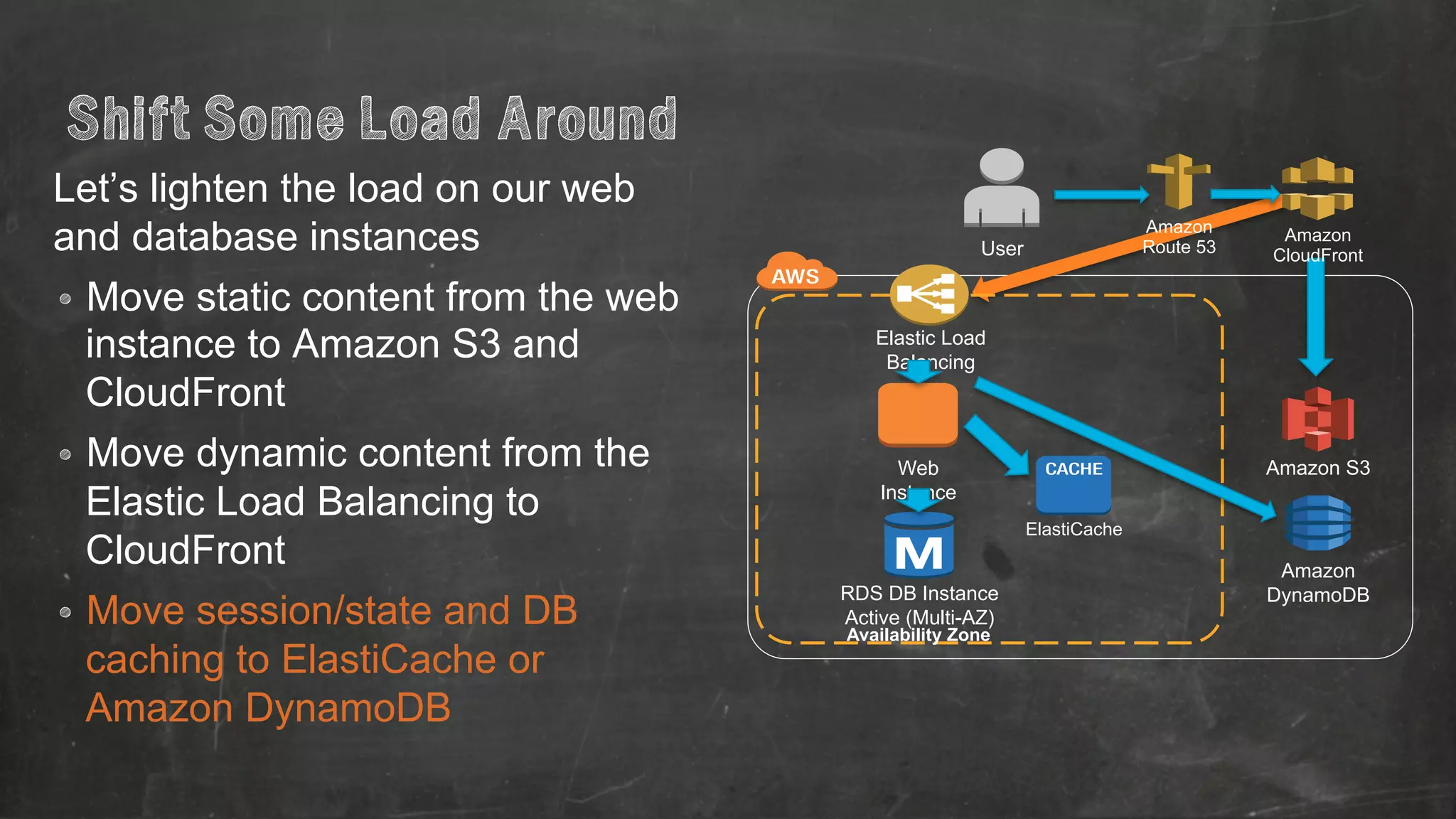

51. Shift Some Load Around
Let’s lighten the load on our
web and database instances:
• Move static content from the web
Instance to Amazon S3 and
CloudFront
• Move dynamic content from the
Elastic Load Balancing to
CloudFront
• Move session/state and DB
caching to ElastiCache or Amazon
DynamoDB
Elastic Load
Balancer
Web
Instance
RDS DB Instance
Active (Multi-AZ)
Availability Zone
Amazon
CloudFront
Amazon S3
Amazon
User Route 53
ElastiCache
Amazon
DynamoDB

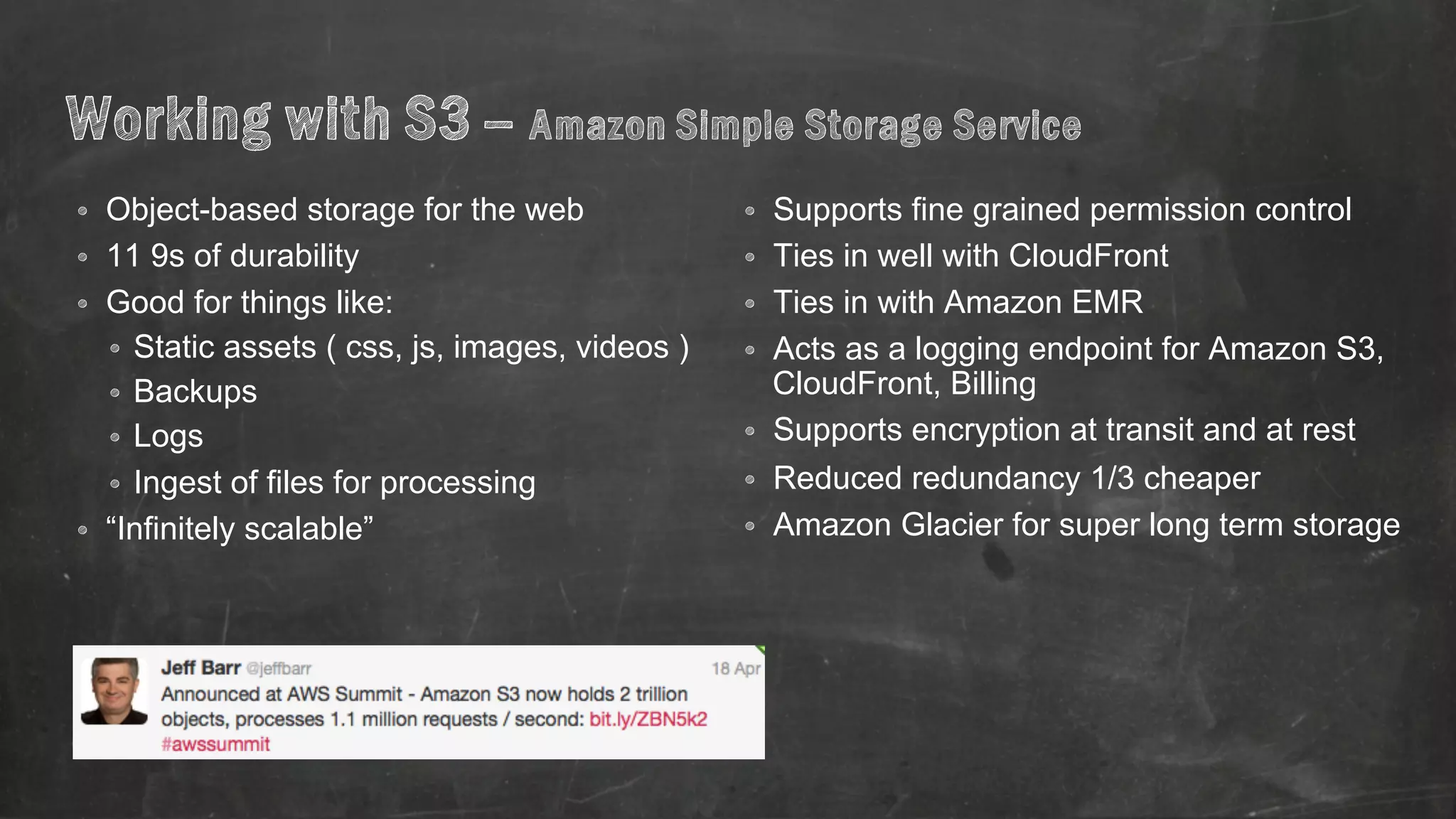

52. Working with S3 – Amazon Simple Storage Service
• Object-based storage for the web
• 11 9s of durability
• Good for things like:
• Static assets ( css, js, images, videos )
• Backups
• Logs
• Ingest of files for processing
• “Infinitely scalable”
• Supports fine grained permission control
• Ties in well with CloudFront
• Ties in with Amazon EMR
• Acts as a logging endpoint for Amazon S3,
CloudFront, Billing
• Supports encryption at transit and at rest
• Reduced redundancy 1/3 cheaper
• Amazon Glacier for super long term storage

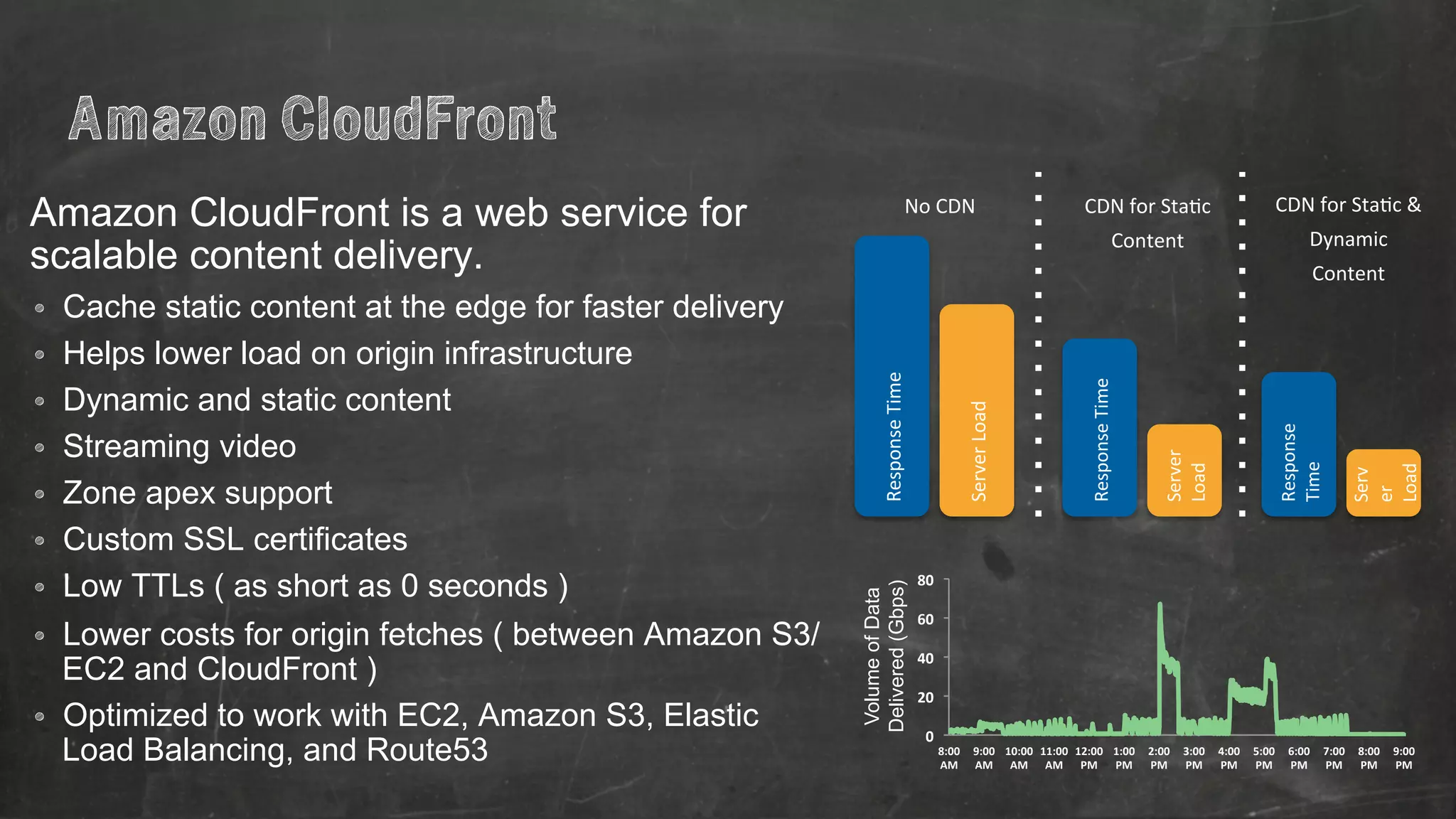

53. Amazon CloudFront is a web service for
scalable content delivery.
• Cache static content at the edge for faster delivery
• Helps lower load on origin infrastructure
• Dynamic and static content
• Streaming video
• Zone apex support
• Custom SSL certificates
• Low TTLs ( as short as 0 seconds )
• Lower costs for origin fetches ( between Amazon S3/
EC2 and CloudFront )
• Optimized to work with EC2, Amazon S3, Elastic
Load Balancing, and Route53
Response
Time
Server
Load
Response
Time
Server
Load
Response
Time
Serv
er
Load
No
CDN
CDN
for
Sta=c
Content
CDN
for
Sta=c
&
Dynamic
Content
80
60
40
20
0
8:00
AM
9:00
AM
10:00
AM
11:00
AM
12:00
PM
1:00
PM
2:00
PM
3:00
PM
4:00
PM
5:00
PM
6:00
PM
7:00
PM
8:00
PM
9:00
PM
Volume of Data
Delivered (Gbps)
Amazon CloudFront

54. Shift Some Load Around
Let’s lighten the load on our web
and database instances
• Move static content from the web
instance to Amazon S3 and
CloudFront
• Move dynamic content from the
Elastic Load Balancing to
CloudFront
• Move session/state and DB
caching to ElastiCache or
Amazon DynamoDB
Elastic Load
Balancing
Web
Instance
RDS DB Instance
Active (Multi-AZ)
Availability Zone
Amazon S3
Amazon
Route 53
ElastiCache
Amazon
DynamoDB
User
Amazon
CloudFront

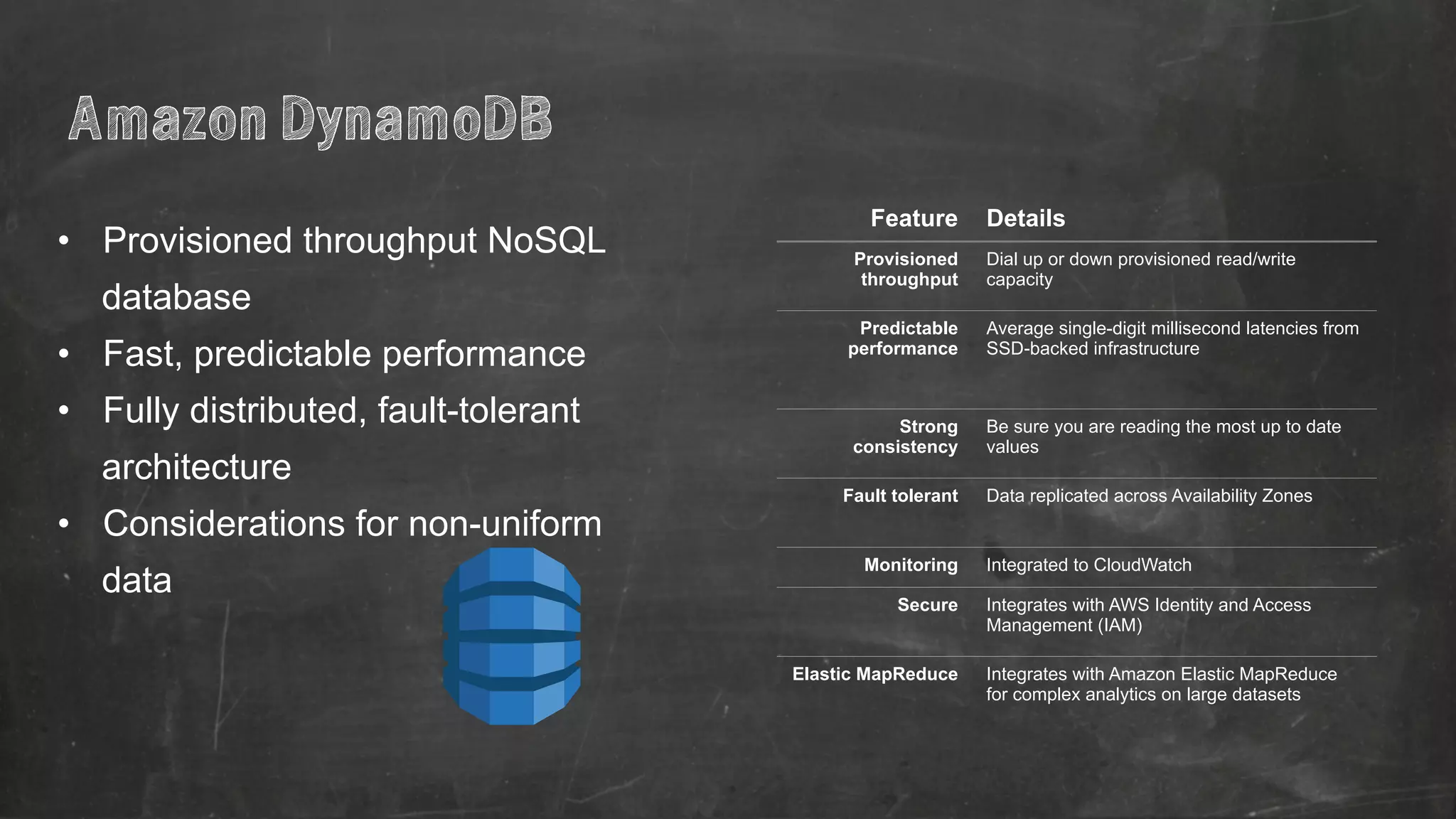

55. • Provisioned throughput NoSQL
database
• Fast, predictable performance
• Fully distributed, fault-tolerant
architecture
• Considerations for non-uniform
data
Feature Details
Provisioned
throughput
Dial up or down provisioned read/write
capacity
Predictable
performance
Average single-digit millisecond latencies from
SSD-backed infrastructure
Strong
consistency
Be sure you are reading the most up to date
values
Fault tolerant Data replicated across Availability Zones
Monitoring Integrated to CloudWatch
Secure Integrates with AWS Identity and Access
Management (IAM)
Elastic MapReduce Integrates with Amazon Elastic MapReduce
for complex analytics on large datasets
Amazon DynamoDB

56. Now that our Web tier is much
more lightweight, we can revisit
the beginning of our talk…

57. Auto Scaling!

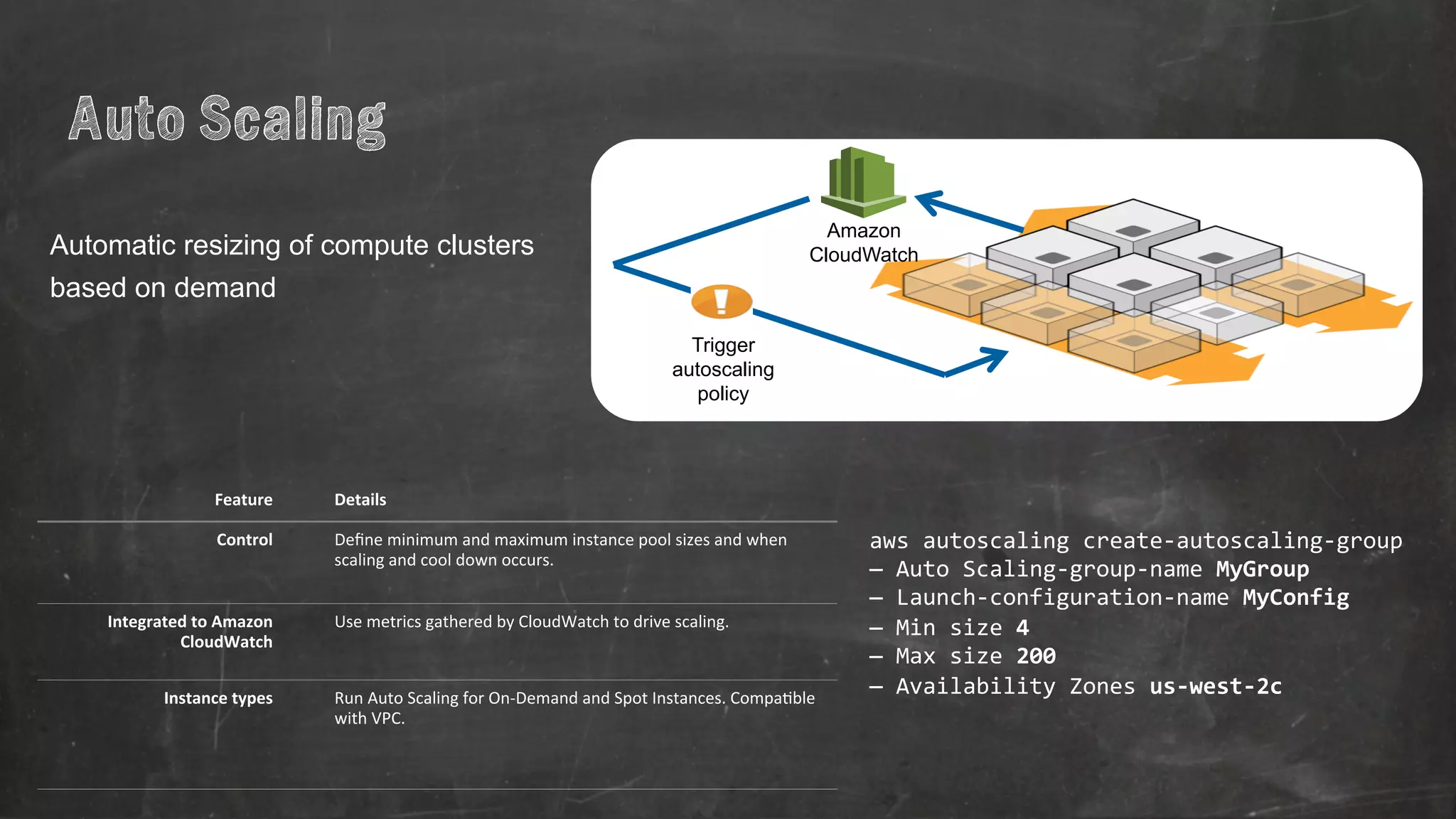

58. Automatic resizing of compute clusters
based on demand
Feature
Details
Control
Define
minimum
and
maximum
instance
pool
sizes
and
when
scaling
and
cool
down
occurs.
Integrated
to
Amazon
CloudWatch
Use
metrics
gathered
by
CloudWatch
to
drive
scaling.
Instance
types
Run
Auto
Scaling
for
On-­‐Demand
and
Spot
Instances.
Compa=ble
with
VPC.
aws
autoscaling
create-­‐autoscaling-­‐group
—
Auto
Scaling-­‐group-­‐name
MyGroup
—
Launch-­‐configuration-­‐name
MyConfig
—
Min
size
4
—
Max
size
200
—
Availability
Zones
us-­‐west-­‐2c
Auto Scaling
Trigger
autoscaling
policy
Amazon
CloudWatch

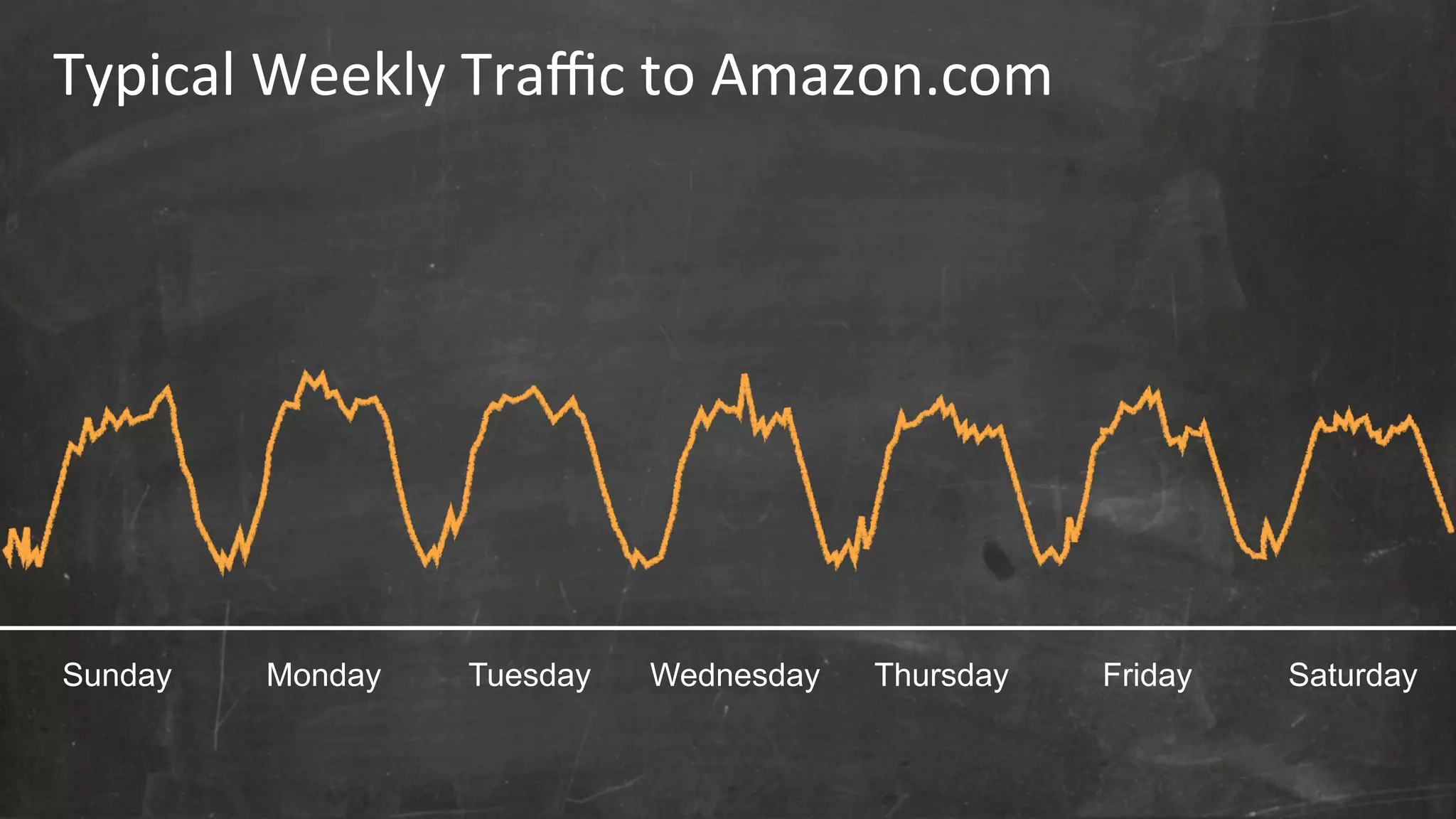

59. Typical
Weekly
Traffic
to
Amazon.com
Sunday Monday Tuesday Wednesday Thursday Friday Saturday

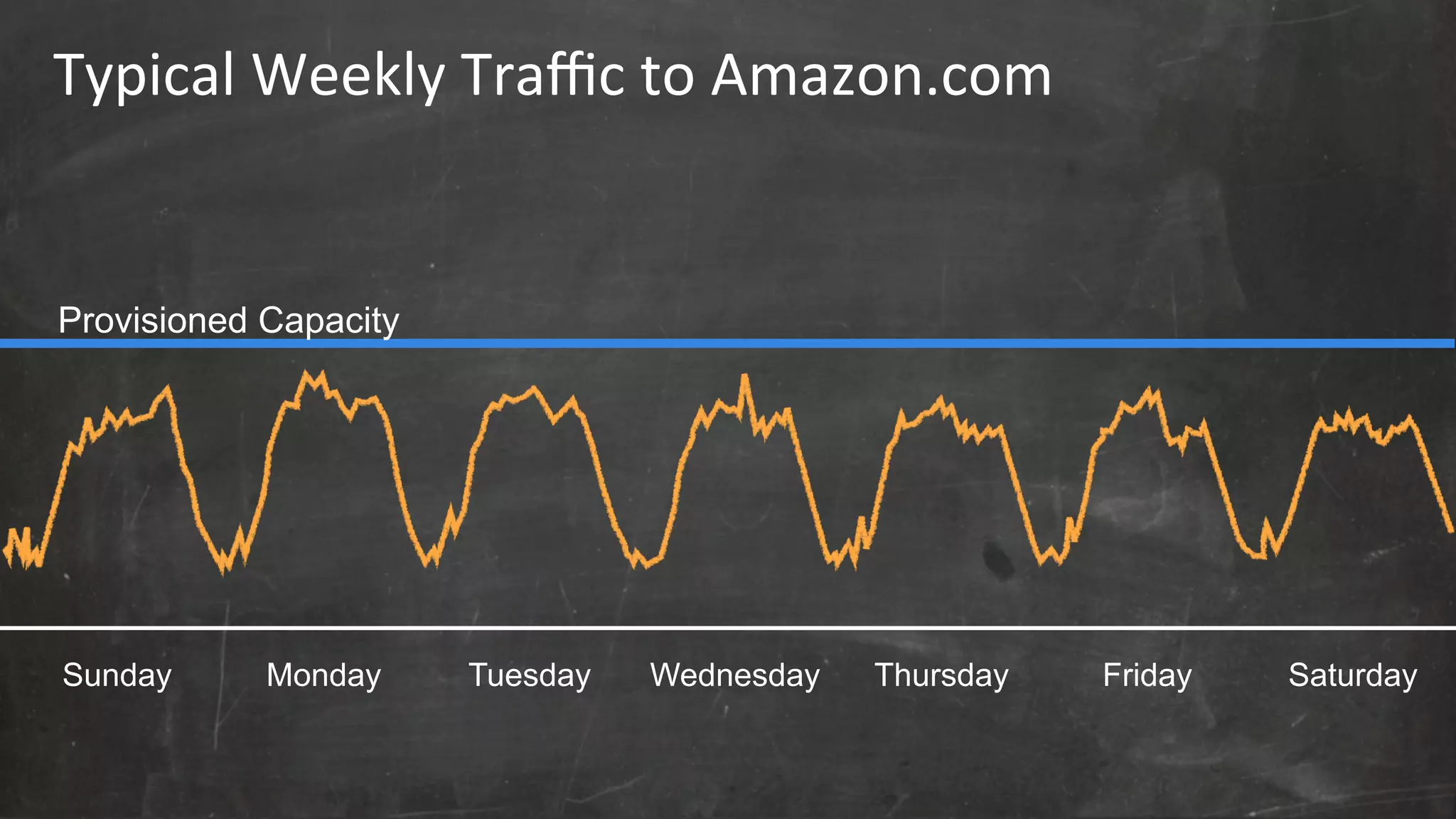

60. Typical
Weekly
Traffic
to
Amazon.com
Provisioned Capacity
Sunday Monday Tuesday Wednesday Thursday Friday Saturday

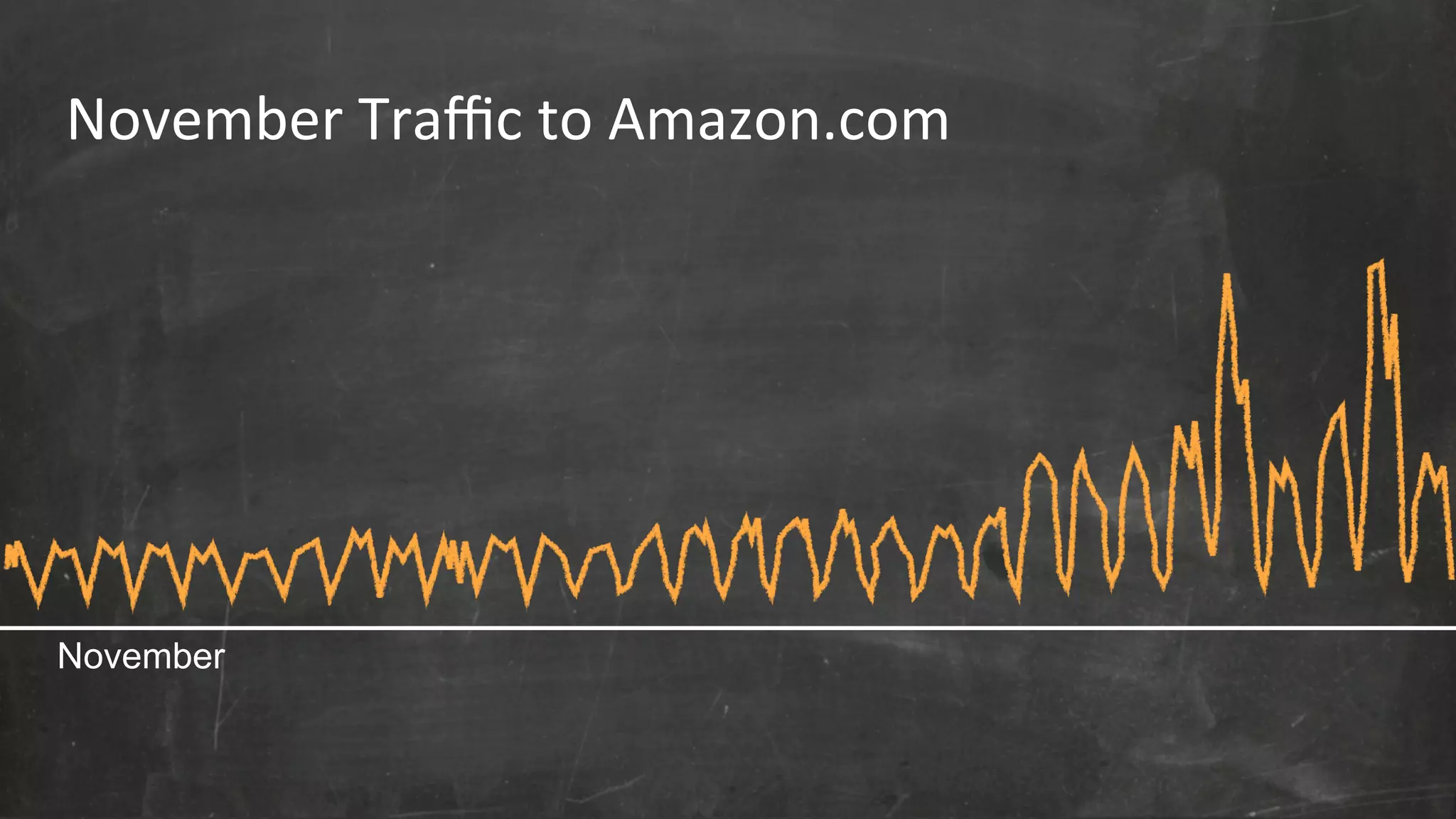

61. November
Traffic
to
Amazon.com
November

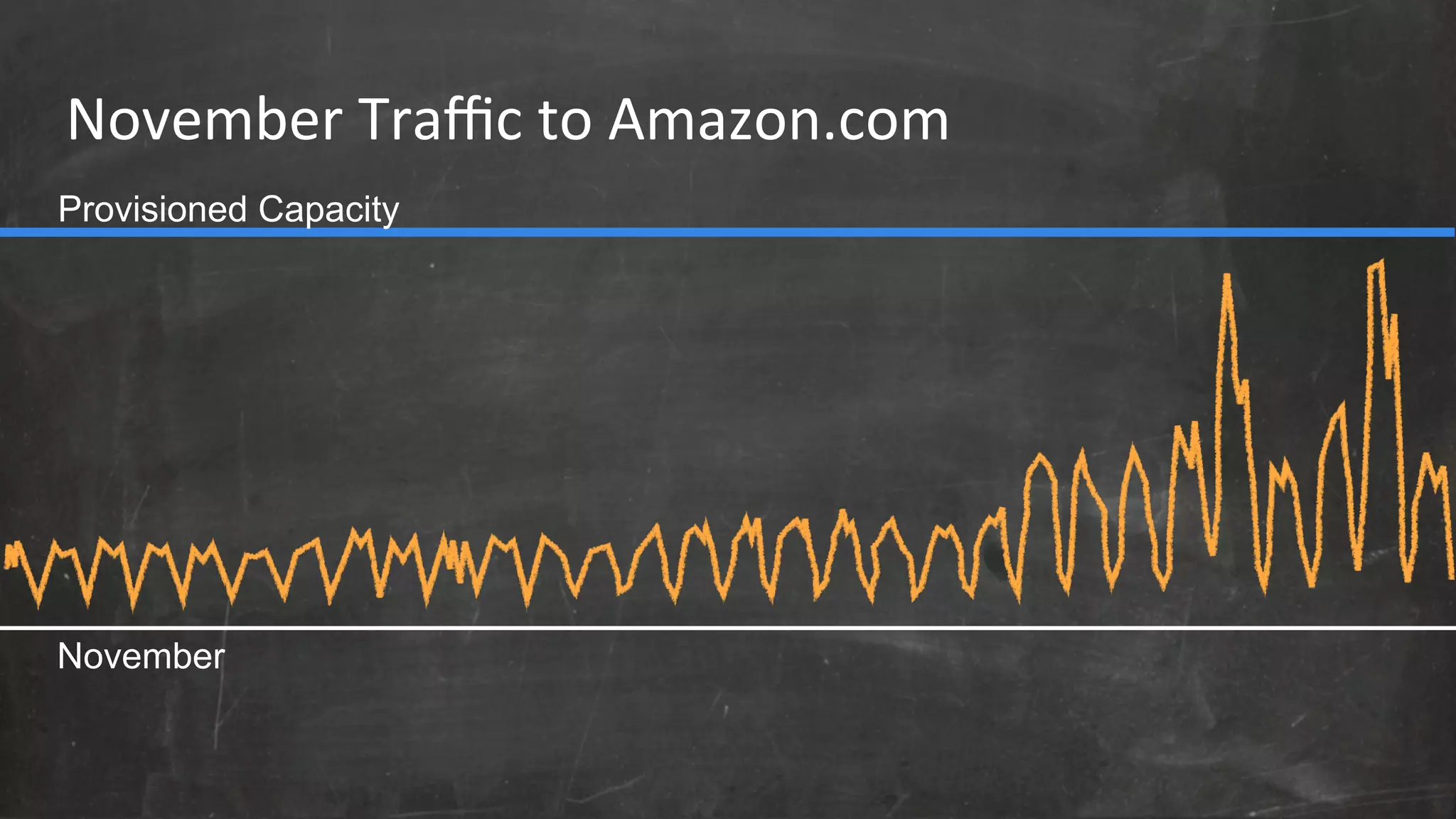

62. November
Traffic
to
Amazon.com
Provisioned Capacity
November

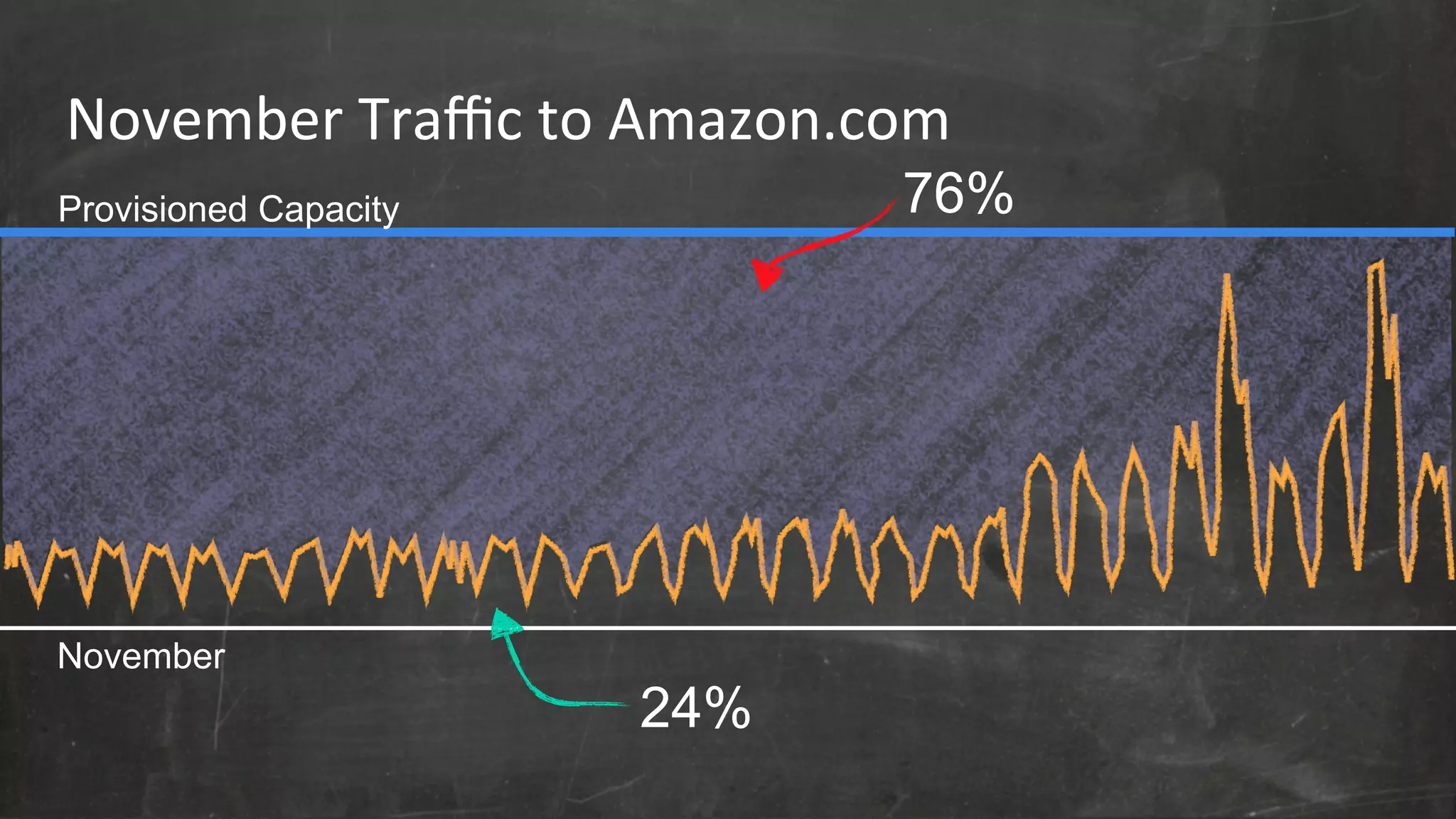

63. November
Traffic
to
Amazon.com
76%
24%
Provisioned Capacity
November

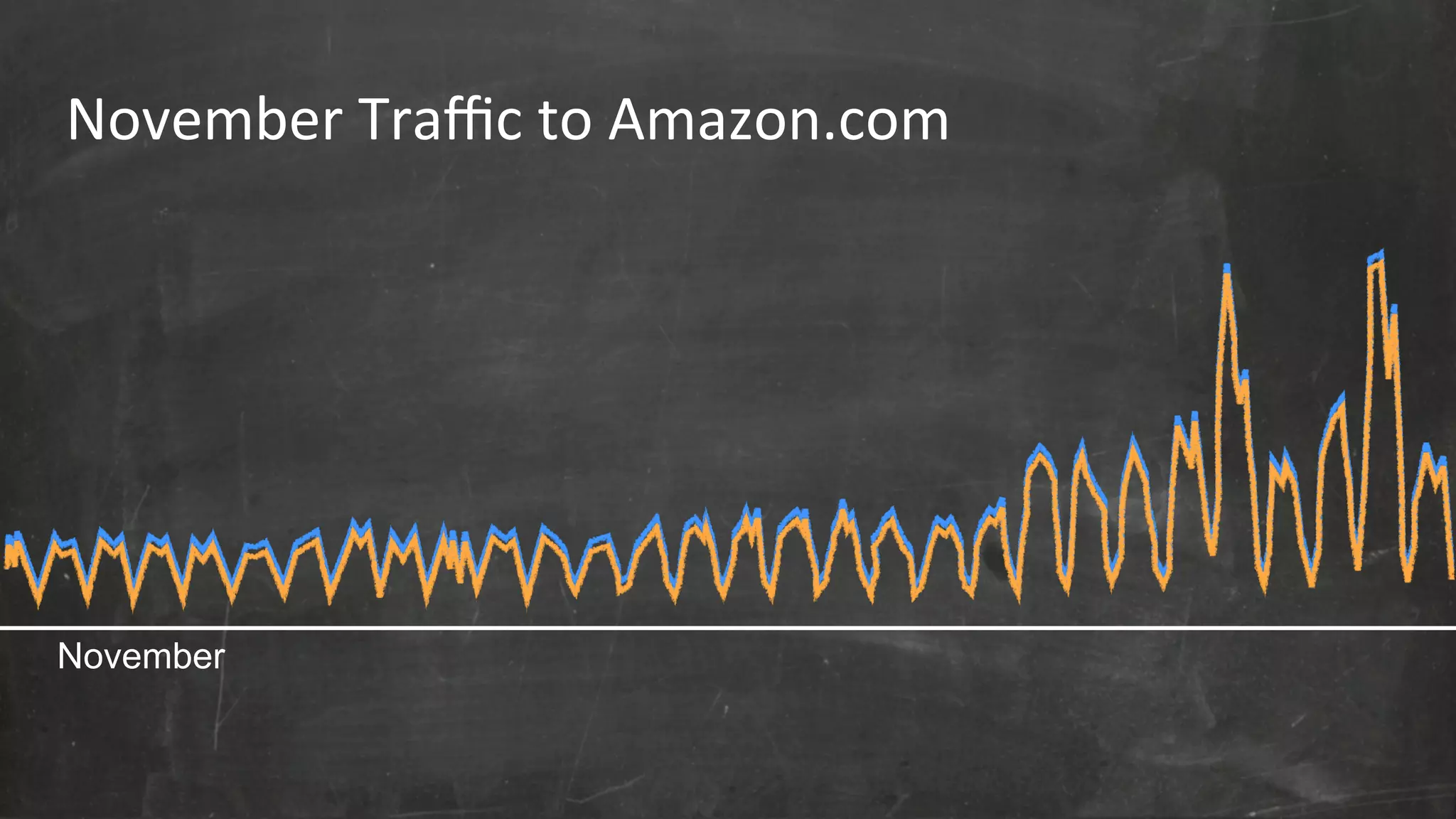

64. November
Traffic
to
Amazon.com
November

65. Auto Scaling lets you do this!

66. User >500k+
Availability Zone
Amazon
User Route 53
Amazon S3
Amazon
Cloudfront
Web
Instance
Availability Zone
Elastic Load
Balancing
DynamoDB
Web
Instance
RDS DB Instance
Read Replica
Web
Instance
Web
Instance
ElastiCache RDS DB Instance
Read Replica
Web
Instance
Web
Instance
RDS DB Instance ElastiCache
Standby (Multi-AZ)
RDS DB Instance
Active (Multi-AZ)

67. Want to go beyond 500K users?

68. What is the next step and
how do I take it?

69. AWS Free Tier
To help you get started with the AWS Cloud, the
AWS Free Tier allows you to gain hands-on
experience with a broad selection of AWS
products and services.
http://aws.amazon.com/free/

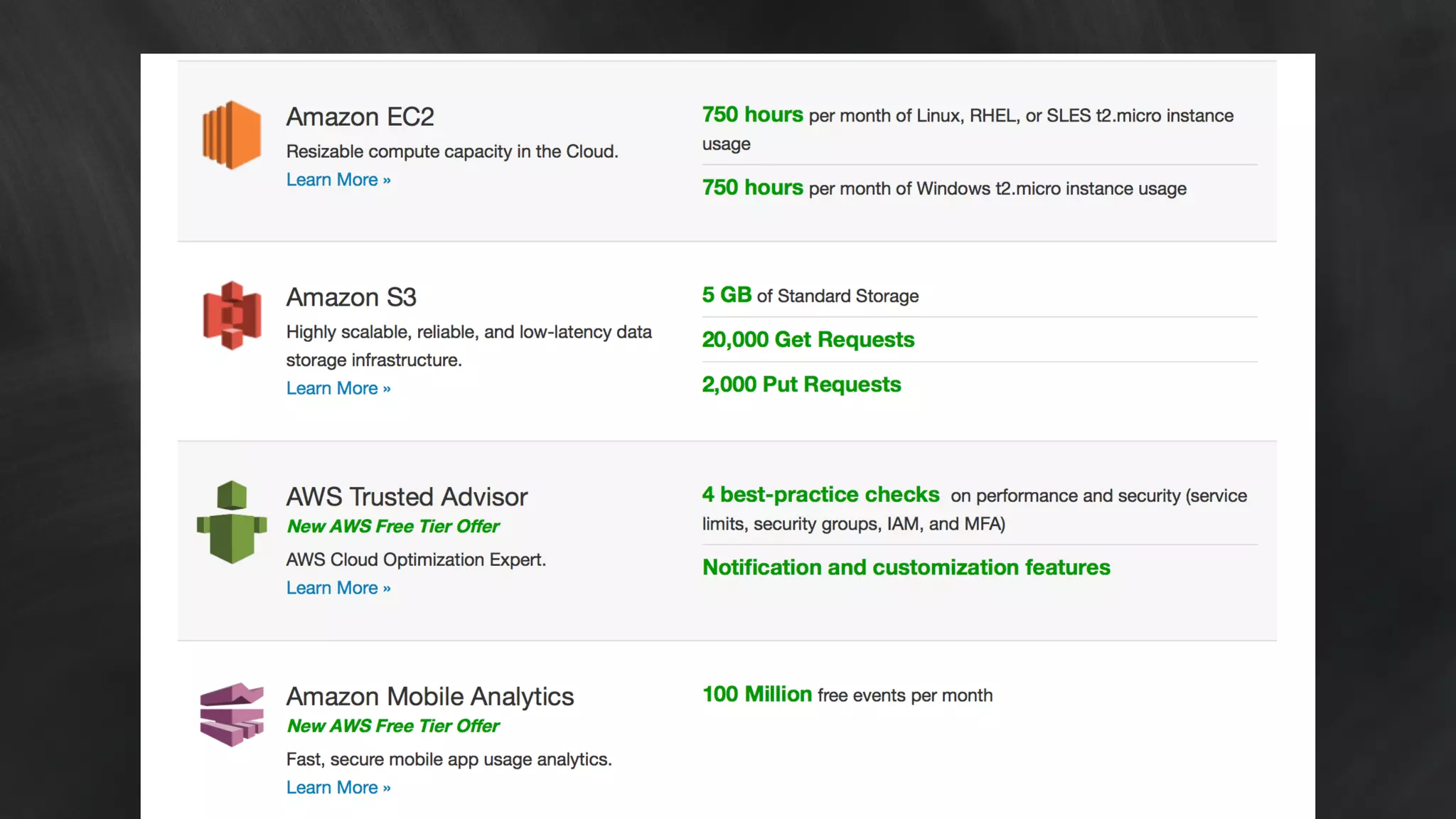

70. AWS Free Tier
To help you get started with the AWS Cloud, the
AWS Free Tier allows you to gain hands-on
experience with a broad selection of AWS
products and services.

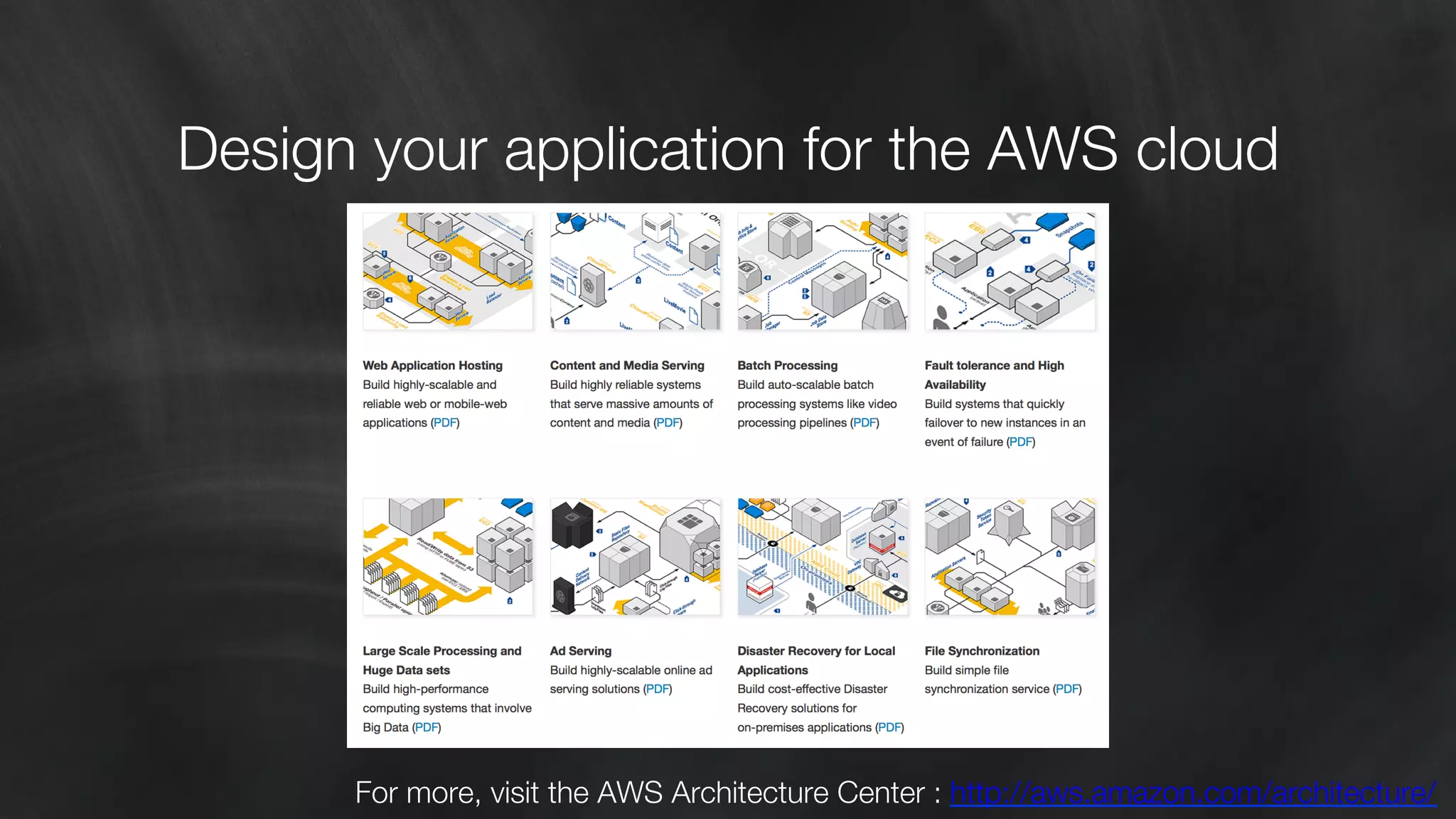

71. Design your application for the AWS cloud
For more, visit the AWS Architecture Center : http://aws.amazon.com/architecture/

72. System Integrators on AWS

73. ISVs on AWS

74. AWS Training & Certification
Demonstrate your skills,
knowledge, and expertise
with the AWS platform
aws.amazon.com/certification
Try products, gain new
skills, and get hands-on
practice working with AWS
technologies
aws.amazon.com/training/"
self-paced-labs
Skill up and gain confidence
to design, develop, deploy
and manage your applications
on AWS
aws.amazon.com/training

75. Sébastien Stormacq
Senior Technical Trainer
@sebsto
Read!
• aws.amazon.com/documentation
• aws.amazon.com/architecture
• aws.amazon.com/start-ups
Listen!
• aws.amazon.com/podcast
