1. Attack Graph Generation for
Microservices Architecture
By
Abdul Qadir
Saad Siddiqui

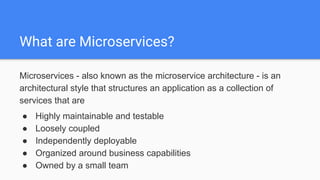

2. What are Microservices?
Microservices - also known as the microservice architecture - is an
architectural style that structures an application as a collection of
services that are
● Highly maintainable and testable
● Loosely coupled
● Independently deployable
● Organized around business capabilities
● Owned by a small team

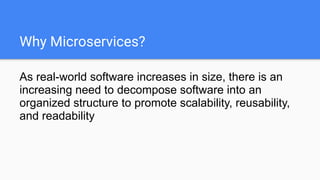

3. Why Microservices?
As real-world software increases in size, there is an
increasing need to decompose software into an
organized structure to promote scalability, reusability,
and readability

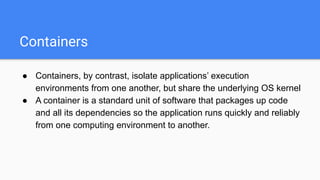

4. Containers
● Containers, by contrast, isolate applications’ execution
environments from one another, but share the underlying OS kernel
● A container is a standard unit of software that packages up code
and all its dependencies so the application runs quickly and reliably
from one computing environment to another.

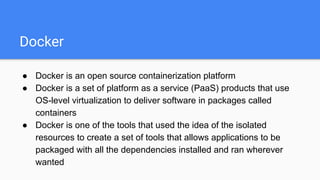

5. Docker
● Docker is an open source containerization platform
● Docker is a set of platform as a service (PaaS) products that use
OS-level virtualization to deliver software in packages called
containers
● Docker is one of the tools that used the idea of the isolated
resources to create a set of tools that allows applications to be
packaged with all the dependencies installed and ran wherever
wanted

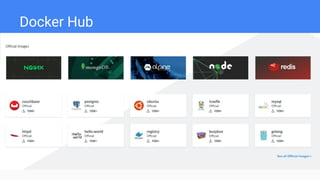

6. Docker Hub

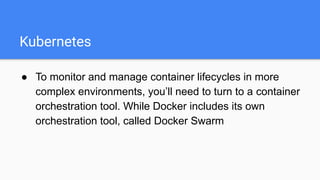

7. Kubernetes
● To monitor and manage container lifecycles in more
complex environments, you’ll need to turn to a container
orchestration tool. While Docker includes its own
orchestration tool, called Docker Swarm

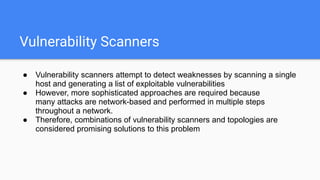

8. Vulnerability Scanners
● Vulnerability scanners attempt to detect weaknesses by scanning a single
host and generating a list of exploitable vulnerabilities
● However, more sophisticated approaches are required because
many attacks are network-based and performed in multiple steps
throughout a network.
● Therefore, combinations of vulnerability scanners and topologies are
considered promising solutions to this problem

9. Attack Graphs
● Attack graphs are a popular way to examine network security weaknesses.
● The definition of an attack graph may vary, however, it is essentially a directed graph
comprising nodes and edges with various representations.
● It basically shows all the paths and vulnerability that can be exploited to comprise
the target asset.

10. Attack Graph Generator System

11. Attack Graphs

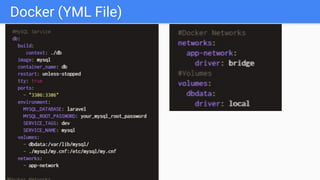

12. Docker (YML File)

13. Docker (YML File)

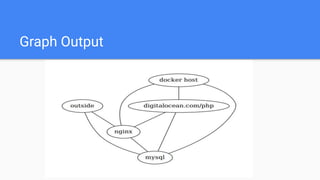

14. Graph Output

15. Thank You

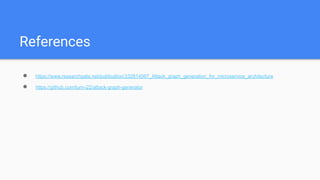

16. References
