How is it difficult to create a robust distributed system in our time? Do we really need to develop own communication protocols and take care about fault tolerance? With such frameworks as Atomix an answer is NO. Atomix are already taking care of all the necessary parts of distributed systems, you just need to use it correctly. In this talk you will get acquainted with Atomix Framework and will see how easy it is to build non-blocking distributed system.

1. Atomix
Distributed Fighters

2. Me
!2
Senior Software Engineer
Program Committee Member
andriyrav@gmail.com
Andriy Rymar
@AndriyRymar Morning@Lohika
Lviv Java Club Co-founder
https://github.com/lvivJavaClub

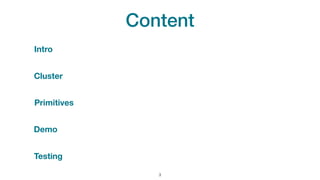

3. Content
!3
Cluster
Intro
Demo
Testing
Primitives

4. #jeeconf_atomix
!4
#jeeconf_atomix

5. !5
#jeeconf_atomix
Intro

6. !6
#jeeconf_atomix
Atomix
A reactive Java framework
for building fault-tolerant
distributed systems
What?

7. !7
#jeeconf_atomix
Analogy
Spring MVC
Spring Web Services
GWT
MVC
SOAP
UI

8. !8
#jeeconf_atomix
Atomix
systems
Build
distributed

9. !9
#jeeconf_atomix

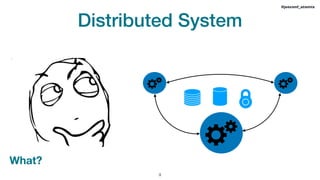

Distributed System
What?

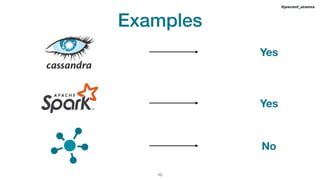

10. !10
#jeeconf_atomix
Examples
Yes
Yes
No

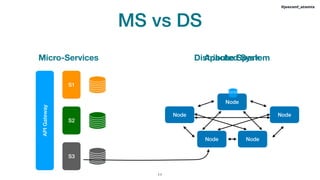

11. MS vs DS
!11
#jeeconf_atomix
S1
S2
S3
Micro-Services Distributed System
Node Node
Node Node
Node
S1
S2
S3
Apache Spark
APIGateway

12. Distributed System
!12
#jeeconf_atomix
Why?
Scalability
Speed
Reliability

13. Distributed System
!13
#jeeconf_atomix
Examples?
Big Data processing
Multi-task execution

14. Distributed System
!14
#jeeconf_atomix
How?
What is the first letter
in English alphabet?
A: C
C: A
B: D
D: B

15. Distributed System
!15
#jeeconf_atomix

16. Distributed System
!16
https://giphy.com/gifs/filmeditor-interested-airplane-movie-l4FARHkIFJReGSy2c
#jeeconf_atomix

17. Distributed System
!17
https://giphy.com/gifs/jNcGVJueKi51u
#jeeconf_atomix

18. Issues
!18
#jeeconf_atomix
Scalability
Fault tolerance
Coordination
etc.

19. !19
#jeeconf_atomix
Atomix

20. !20
#jeeconf_atomix

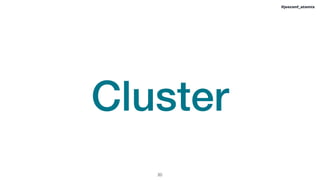

Cluster

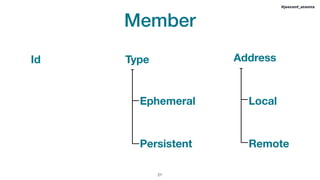

21. Ephemeral
Member
!21
#jeeconf_atomix
Id Type Address
Persistent
Local
Remote

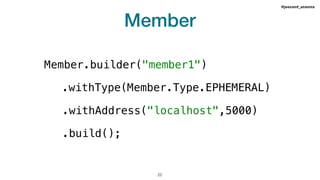

22. Member
!22
#jeeconf_atomix
Member.builder("member1")
.build();
.withAddress("localhost",5000)
.withType(Member.Type.EPHEMERAL)

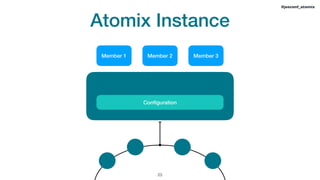

23. Atomix Instance
!23
#jeeconf_atomix
Member 1 Member 2 Member 3
Configuration

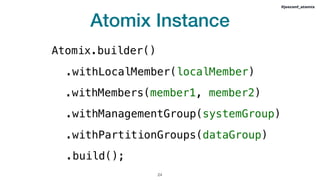

24. Atomix Instance
!24
#jeeconf_atomix
.withMembers(member1, member2)
Atomix.builder()
.withLocalMember(localMember)
.withManagementGroup(systemGroup)
.withPartitionGroups(dataGroup)
.build();

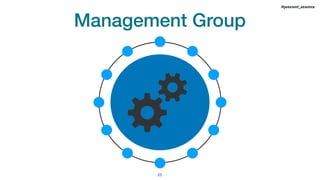

25. Management Group
!25
#jeeconf_atomix

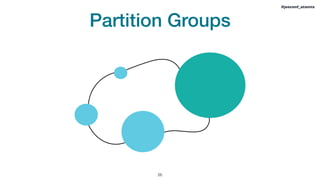

26. Partition Groups
!26
#jeeconf_atomix

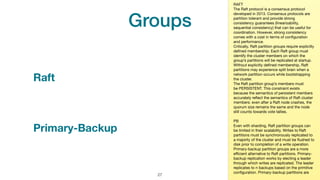

27. Groups
!27
#jeeconf_atomix
Raft
RAFT
The Raft protocol is a consensus protocol
developed in 2013. Consensus protocols are
partition tolerant and provide strong
consistency guarantees (linearizability,
sequential consistency) that can be useful for
coordination. However, strong consistency
comes with a cost in terms of configuration
and performance.
Critically, Raft partition groups require explicitly
defined membership. Each Raft group must
identify the cluster members on which the
group’s partitions will be replicated at startup.
Without explicitly defined membership, Raft
partitions may experience split brain when a
network partition occurs while bootstrapping
the cluster.
The Raft partition group’s members must
be PERSISTENT. This constraint exists
because the semantics of persistent members
accurately reflect the semantics of Raft cluster
members: even after a Raft node crashes, the
quorum size remains the same and the node
still counts towards vote tallies.
PB
Even with sharding, Raft partition groups can
be limited in their scalability. Writes to Raft
partitions must be synchronously replicated to
a majority of the cluster and must be flushed to
disk prior to completion of a write operation.
Primary-backup partition groups are a more
efficient alternative to Raft partitions. Primary-
backup replication works by electing a leader
through which writes are replicated. The leader
replicates to n backups based on the primitive
configuration. Primary-backup partitions are
Primary-Backup

28. !28
#jeeconf_atomix
Primitives

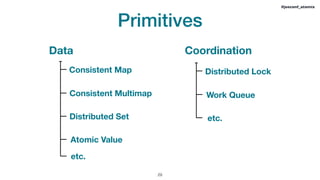

29. Primitives
!29
#jeeconf_atomix
Consistent Map
Consistent Multimap
Distributed Set
Atomic Value
etc.
Distributed Lock
Work Queue
etc.
Data Coordination

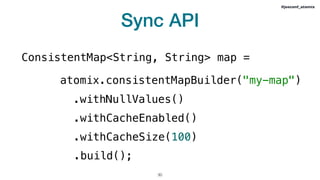

30. Sync API
!30
#jeeconf_atomix
ConsistentMap<String, String> map =
atomix.consistentMapBuilder("my-map")
.withNullValues()
.withCacheEnabled()
.withCacheSize(100)
.build();

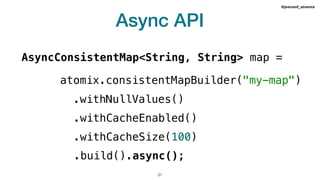

31. Async API
!31
#jeeconf_atomix
AsyncConsistentMap<String, String> map =
atomix.consistentMapBuilder("my-map")
.withNullValues()
.withCacheEnabled()
.withCacheSize(100)
.build().async();

32. Custom Primitives
!32
#jeeconf_atomix

33. !33
#jeeconf_atomix
Demo

34. !34
#jeeconf_atomix
Fight
http://www.pngmart.com/image/10875 http://ru.mortalkombat.wikia.com/wiki/Файл:MKX_Sub-Zero.png
Member 1 Member 2

35. Description
!35 http://www.mortalkombatwarehouse.com/mk/scorpion/http://www.mortalkombatwarehouse.com/mk/subzero/
https://www.toyshow.com.br/colecionaveis/action-figures/boneco-shao-kahn-mortal-kombat-classic-special-edition-112-storm-collectibles
3
1
2
Module : Judge
Module : Fighter 1 Module : Fighter 2
#jeeconf_atomix

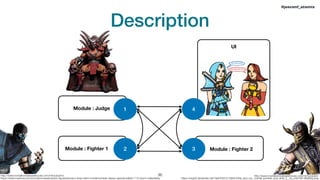

36. Description
!36 http://www.mortalkombatwarehouse.com/mk/scorpion/http://www.mortalkombatwarehouse.com/mk/subzero/
https://www.toyshow.com.br/colecionaveis/action-figures/boneco-shao-kahn-mortal-kombat-classic-special-edition-112-storm-collectibles https://orig00.deviantart.net/18ef/f/2015/108/b/3/fire_and_ice__mortal_kombat_and_dota_2__by_mfp189-d8q8l2p.png
3
1
2
Module : Judge
Module : Fighter 1 Module : Fighter 2
UI
#jeeconf_atomix
4

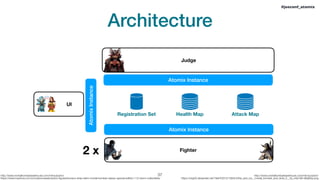

37. Architecture
!37 http://www.mortalkombatwarehouse.com/mk/scorpion/http://www.mortalkombatwarehouse.com/mk/subzero/
https://www.toyshow.com.br/colecionaveis/action-figures/boneco-shao-kahn-mortal-kombat-classic-special-edition-112-storm-collectibles https://orig00.deviantart.net/18ef/f/2015/108/b/3/fire_and_ice__mortal_kombat_and_dota_2__by_mfp189-d8q8l2p.png
Judge
UI
Fighter
Atomix Instance
Atomix Instance
2 x
Registration Set Health Map Attack Map
#jeeconf_atomix
AtomixInstance

38. Lets GO!
!38 http://www.mortalkombatwarehouse.com/mk/scorpion/http://www.mortalkombatwarehouse.com/mk/subzero/
#jeeconf_atomix

39. !39
#jeeconf_atomix
Hope it was interesting
https://www.catersnews.com/wp-content/uploads/2014/12/CATERS_Puss_In_Boots_03-457x773.jpeg

40. !40
#jeeconf_atomix
https://www.catersnews.com/wp-content/uploads/2014/12/CATERS_Puss_In_Boots_03-457x773.jpeg

41. !41
#jeeconf_atomix
https://www.catersnews.com/wp-content/uploads/2014/12/CATERS_Puss_In_Boots_03-457x773.jpeg

42. !42
#jeeconf_atomix
КОжен раз коли робите Коміт /
Пуш
https://www.catersnews.com/wp-content/uploads/2014/12/CATERS_Puss_In_Boots_03-457x773.jpeg

43. !43
#jeeconf_atomix
Testing

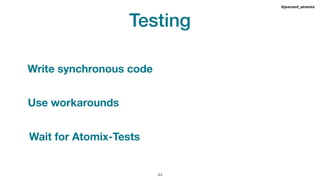

44. Testing
!44
#jeeconf_atomix
Write synchronous code
Use workarounds
Wait for Atomix-Tests

45. !45
#jeeconf_atomix
Out of scope

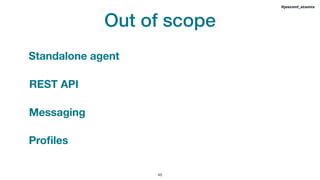

46. Out of scope
!46
#jeeconf_atomix
Standalone agent
REST API
Messaging
Profiles

47. !47
#jeeconf_atomix
Summary

48. Summary
!48
#jeeconf_atomix
Easy
Flexible
Young

49. Meet
!49
#jeeconf_atomix
Jordan Halterman
2) How Atomix resolve conflicts?
1) Which parts of CAP theorem Atomix supports
4) Who use Atomix in production
5) Atomix best-practices
3) What are the closest competitors to Atomix?
Atomix Founder

50. Interview
!50
#jeeconf_atomix
Jordan Halterman
Atomix Founder https://youtu.be/qJ4DOuLLryc

51. !51
Thank You!
https://thumbs.gfycat.com/DefiantGrandEmeraldtreeskink-size_restricted.gif

52. Questions
!52
#jeeconf_atomix
andriyrav@gmail.com
Andriy Rymar
@AndriyRymar
