2. OVERVIEW
ABLETECH ENGINEERING |2
Our Foundation
• Our success is based on the technical strengths and capabilities of our
people, the quality and diversity of our products, and our relentless
pursuit to meet and exceed your expectations.
Our Vision
• To ensure our company's genuine contribution to further development of
efficient and sustainable energy systems and their integration into the
global economy.
Our Mission
•We value our clients.
•Our operating principles revolve around building and nurturing strong
relationships with our clients, throug being responsive and attentive to your
requirements.
•We aspire to be your single source supplier of a wide range of technically
advanced products, from single units to complete heat transfer solutions.
• Our focus on providing high quality, innovative products, and our continuous
development of efficient methods of manufacturing those products, is our
constant endeavor to create solutions of high value for you.
3. OUR COMPANY
ABLETECH ENGINEERING (ATE) is a highly progressive and technologically advanced company with local
and international experiences in providing professional technical services for solving thermal engineering problems
in process industries. We entered the Indian market in year 2005 as manufacturer of Industrial Process Equipments.
We are specialized in design and fabrication of heat exchangers for a wide range of industries using gas-to-gas,
gas-to-liquid, and liquid-liquid applications.
We help our customers to maximize energy efficiency and reduce operating costs, minimize waste, and recover
precious resources from waste energy.
Our products are being designed by well qualified and trained engineers having professional engineering licenses.
The manufacturing facilities also hold an ISO 9001:2008 Certification.
ABLETECH ENGINEERING |3

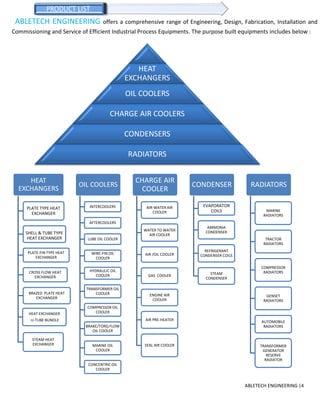

4. ABLETECH ENGINEERING offers a comprehensive range of Engineering, Design, Fabrication, Installation and
Commissioning and Service of Efficient Industrial Process Equipments. The purpose built equipments includes below :
ABLETECH ENGINEERING |4
HEAT
EXCHANGERS
OIL COOLERS
CHARGE AIR COOLERS
CONDENSERS
RADIATORS
HEAT
EXCHANGERS
PLATE TYPE HEAT
EXCHANGER
SHELL & TUBE TYPE
HEAT EXCHANGER
PLATE-FIN TYPE HEAT
EXCHANGER
CROSS FLOW HEAT
EXCHANGER
BRAZED PLATE HEAT
EXCHANGER
HEAT EXCHANGER
U-TUBE BUNDLE
STEAM HEAT
EXCHANGER
OIL COOLERS
INTERCOOLERS
AFTERCOOLERS
LUBE OIL COOLER
WIRE-FIN OIL
COOLER
HYDRAULIC OIL
COOLER
TRANSFORMER OIL
COOLER
COMPRESSOR OIL
COOLER
BRAKE/TORQ FLOW
OIL COOLER
MARINE OIL
COOLER
CONCENTRIC OIL
COOLER
CHARGE AIR
COOLER
AIR-WATER AIR
COOLER
WATER TO WATER
AIR COOLER
AIR /OIL COOLER
GAS COOLER
ENGINE AIR
COOLER
AIR PRE-HEATER
SEAL AIR COOLER
CONDENSER
EVAPORATOR
COILS
AMMONIA
CONDENSER
REFRIGERANT
CONDENSER COILS
STEAM
CONDENSER
RADIATORS
MARINE
RADIATORS
TRACTOR
RADIATORS
COMPRESSOR
RADIATORS
GENSET
RADIATORS
AUTOMOBILE
RADIATORS
TRANSFORMER
GENERATOR
RESERVE
RADIATOR

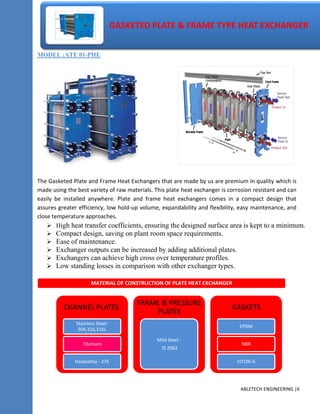

6. MODEL :ATE 01-PHE
The Gasketed Plate and Frame Heat Exchangers that are made by us are premium in quality which is
made using the best variety of raw materials. This plate heat exchanger is corrosion resistant and can
easily be installed anywhere. Plate and frame heat exchangers comes in a compact design that
assures greater efficiency, low hold-up volume, expandability and flexibility, easy maintenance, and
close temperature approaches.
High heat transfer coefficients, ensuring the designed surface area is kept to a minimum.
Compact design, saving on plant room space requirements.
Ease of maintenance.
Exchanger outputs can be increased by adding additional plates.
Exchangers can achieve high cross over temperature profiles.
Low standing losses in comparison with other exchanger types.
ABLETECH ENGINEERING |6
GASKETED PLATE & FRAME TYPE HEAT EXCHANGER
MATERIAL OF CONSTRUCTION OF PLATE HEAT EXCHANGER
CHANNEL PLATES
Stainless Steel-
304,316,316L
Titanium
Hastealloy - 276
FRAME & PRESSURE
PLATES
Mild Steel -
IS 2062
GASKETS
EPDM
NBR
VITON-G
7. MODEL :ATE 02-STHX
The Shell and Tube (U-tube) is the most common type of heat exchanger used in the process, petroleum, chemical and
HVAC industries, it contains a number of parallel U tubes inside a shell. Shell Tube heat exchangers are used when a process
requires large amounts of fluid to be heated or cooled. Due to their design, shell tube heat exchangers offer a large heat
transfer area and provide high heat transfer efficiency.
ATE Shell and Tube Heat Exchangers are designed to meet various process requirements. Shell and Tube heat exchangers
can provide steady heat transfer by utilizing multiple passes of one or both fluids. ATE shell and tube heat exchangers come
in two (2) and four (4) pass models standard, and multi-pass custom models.Shell and Tube heat exchangers use baffles on
the shell-side fluid to accomplished mixing or turbulence.
Design Code : IS-4503, IS-2825, AMSE SEC. VIII, TEMA
Type : Fixed Tube Sheet, Removable tube Bundle, U-Tube, Coil in Tank, Double Pipe
Capacity Range : As per client's requirement.
Shell Diameter : 4" to 125"
Tube Length : 4' to 40'
Tubes : Plain, Finned or U-Tube
ABLETECH ENGINEERING|7
SHELL AND TUBE HEAT EXCHANGER
MATERIAL OF CONSTRUCTION OF SHELL & TUBE TYPE HEAT EXCHANGER
TUBES
Carbon Steel
SS-304,316,316 L
Copper
Admirality Brass
Titanium
Tantalum
Alu-Brass
Cupro-Nickel 90/10 or 70/30
SHELL
Carbon Steel - IS 2062
Stainless Steel
Aluminium
Brass
CHANNELS
Carbon Steel
Stainless Steel
Gun Metal
Cast Iron
Brass
8. We are one of the largest Wire Wound Fin, Strip Wound Fin and Extruded Finned Tube Manufacturers
in India .
Wire Wound Fin Tube or Pin Fin Tube
Wire wound tube or pin fin as it is otherwise known is made from one continuous piece of wire, wound
helically over the tube with root soldering on every foot of every loop.This is our main product because of
its superior efficiency. It consists of wire loops wound that are Solder bonded to the external surface of a
round tube.The variable density of wire loops allows for optimal thermal selection. With our flexible
manufacturing process these tube are now very cost effective for both small and large volume applications.
Other manufacturing range are as follows:
ABLETECH ENGINEERING|8
FINNED TUBES-STRIP WOUND /WIRE WOUND/INTEGRAL
LOW FINS/EXTRUDED FINNED TUBES
EXTRUDED FINS
MOC: BASE TUBE: CS,SS, COPPER
MOC: FIN : ALUMINIUM / COPPER
TUBE SIZE: 10 MM~38 MM
INTEGRAL LOW FINS
MOC: CS, SS-304,304 L,316,316 L,
COPPER
TUBE SIZE: 12.7 / 15.8 / 19.05 and
25.4 mm OD
CRIMPED FINS
MOC : CS, SS-304,304 L,316,316 L,
,BRASS,COPPER ,CU-NI
TUBE SIZE: 12.7 / 15.8 / 19.05 and
25.4 mm OD
9. The charge-air cooler and turbocharger are part of a high tech induction system that increases engine
combustion efficiency. The turbocharger uses exhaust gases to compress air before it enters the charge-air
cooler.
The compressed air going through the charge-air cooler is then cooled by the ambient air flowing
across the cooler fins. The cooled air is more dense than warm air. So when it flows into the intake side of
the engine, the increased density improves horsepower, fuel economy and reduces emissions. The
compressed charged air at the outlet of charge air cooler will have a reduced temperature of about 40 to 50
degrees Celsius from a temperature of about 600 degrees Celsius. The following illustration provides a
clear view of the components associated with the charge-air-cooler and how the air flows through the
system:
ABLETECH ENGINEERING|9
CHARGE AIR COOLERS
The charge air cooler has another advantage in that it reduces the exhaust gas temperature
It has been proven that every one degree Celsius drop in scavenge air temperature will
reduce the exhaust temperature about five to ten degree Celsius.
CAC helps the engine in maintaining at a safe working temperature.
10. AIR -COOLED CONDENSER FOR CONDENSING UNIT
Air-cooled condenser is a kind of heat exchanger used in air-condition, refrigeration and other systems. Our
products are stable and high efficient by using high quality fins and advance mechanical expand tubes
techniques. Air-cooled condenser is made up of condensing fin, axial blower, and framework. At present our
products include side-exhausted air-cooled condenser and V-shape top-exhausted air-cooled condenser. They
are perfect auxiliary products of all kinds of compressors.
Side-exhausted type air-cooled condenser with single fan, double fan, triple fan and fourfold fan. The area of
heat transfer is from 2 square meter to 180 square meter.
Top-exhausted type air-cooled condenser with double fan and triple fan. The area of heat transfer is from 80
square meters to 600 square meter.
For applications including storage, process, and comfort refrigeration
For use with all types of refrigerants including HFC's & HCFC's
All sizes, shapes, capacities, circuit patterns, fin/tube configurations
3 thru 10 rows, 4 thru 16 fins/inch
Heat is also extracted as the liquid cools to condensation temperature. Latent Heat
energy is released as the refrigerant changes from vapour to liquid.
The high pressure liquid leaves the condenser and travels to the metering
device (TXV) (CAP TUBE).
It can then begin the cycle of extracting new heat via the evaporator.
ABLETECH ENGINEERING|10
CONDENSORS & EVAPORATORS
11. An air compressor is a device that converts power (usually from an electric motor or an engine) into kinetic energy by compressing
and pressurizing air, which, on command, can be released for use elsewhere.
Often the compression takes place in two stages.
The process of compression produces energy which is manifested as heat. The heat is removed before use (or further
compression), hence the introduction of INTERCOOLER and AFTERCOOLER.
INTERCOOLERS:
Situated between the first and second stages of an air compressor, the intercooler cools the compressed air before it is further
compressed.
ATE uses technology similar to its diesel engine turbo-charged air coolers for this process. Water cooled with fins on the airside.
ATE can provide just the intercooler element OR the entire unit including the outer casing. Series production for OM requirements
is already carried out for leading compressor makers, but we are also able to design and build for bespoke special requirements.
AFTERCOOLERS:
Situated on an air compressor immediately after the air is compressed, the after cooler reduces air temperature
before it is used for the end purpose.
ATE uses technology similar to its diesel engine turbo-charged air coolers for this process. Water cooled with
fins on the airside.
ATE can provide just the after cooler element OR the entire unit including the outer casing. Series production
for OM requirements is already carried out for leading compressor makers, but we are also able to design and
build for bespoke special requirements.
ABLETECH ENGINEERING|11
INTER /AFTER COOLERS
12. MODEL : ATE24-GENAC
This products have been widely used in wind power generators in India. The special arrangement of tubes
lowers the internal wind-resistance, improves the cooling flow of the generator and increase the efficiency.ATE
offers efficient Water Cooled ( CACW ), Air Cooled ( CACA ) for AC & DC Motors, alternators, hydro-
generators and turbo generators, Air cooling system for rectifier. Hence our equipment can cool heavy duty
turbine ,alternator and AC/DC Motor.These Air Coolers are durable,sturdy in construction,light in weight and
corrosion resistant.
Use and applications:
Air Coolers for Electric-Motors and Generators
Air Coolers for Overcharged Diesel Engines
Air coolers for Alternators
Hydrogen Coolers for High Power Alternators
Air Coolers for Electrical converter plants
Air pre heating powered by exhaust or waste air
Air Coolers for Heat recovery plants for process engineering
Depending on the operating conditions, the following tube materials can be used:
• Aluminium Alloy
• Brass
• Cupro nickel
• Steel or Stainless Steel
ABLETECH ENGINEERING|12
WIND GENERTOR AC/DC ELECTRIC
MOTOR AIR-AIR COOLER
A
B
L
E
T
E
C
H
E
N
G
I
N
E
E
R
I
N
G
