1. Artificial Neural Networks
Ildar Nurgaliev

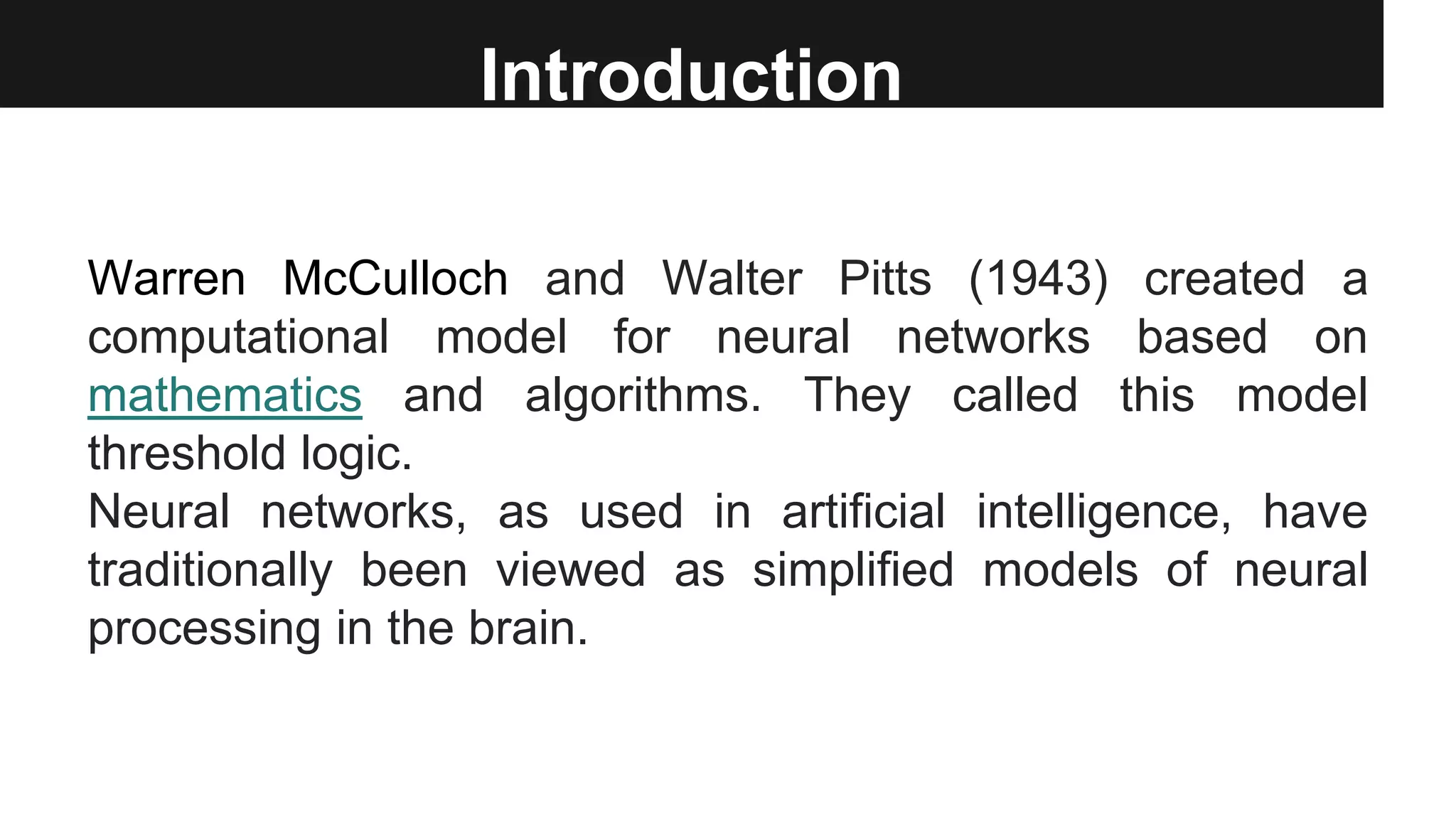

2. Warren McCulloch and Walter Pitts (1943) created a
computational model for neural networks based on
mathematics and algorithms. They called this model
threshold logic.
Neural networks, as used in artificial intelligence, have
traditionally been viewed as simplified models of neural
processing in the brain.
Introduction

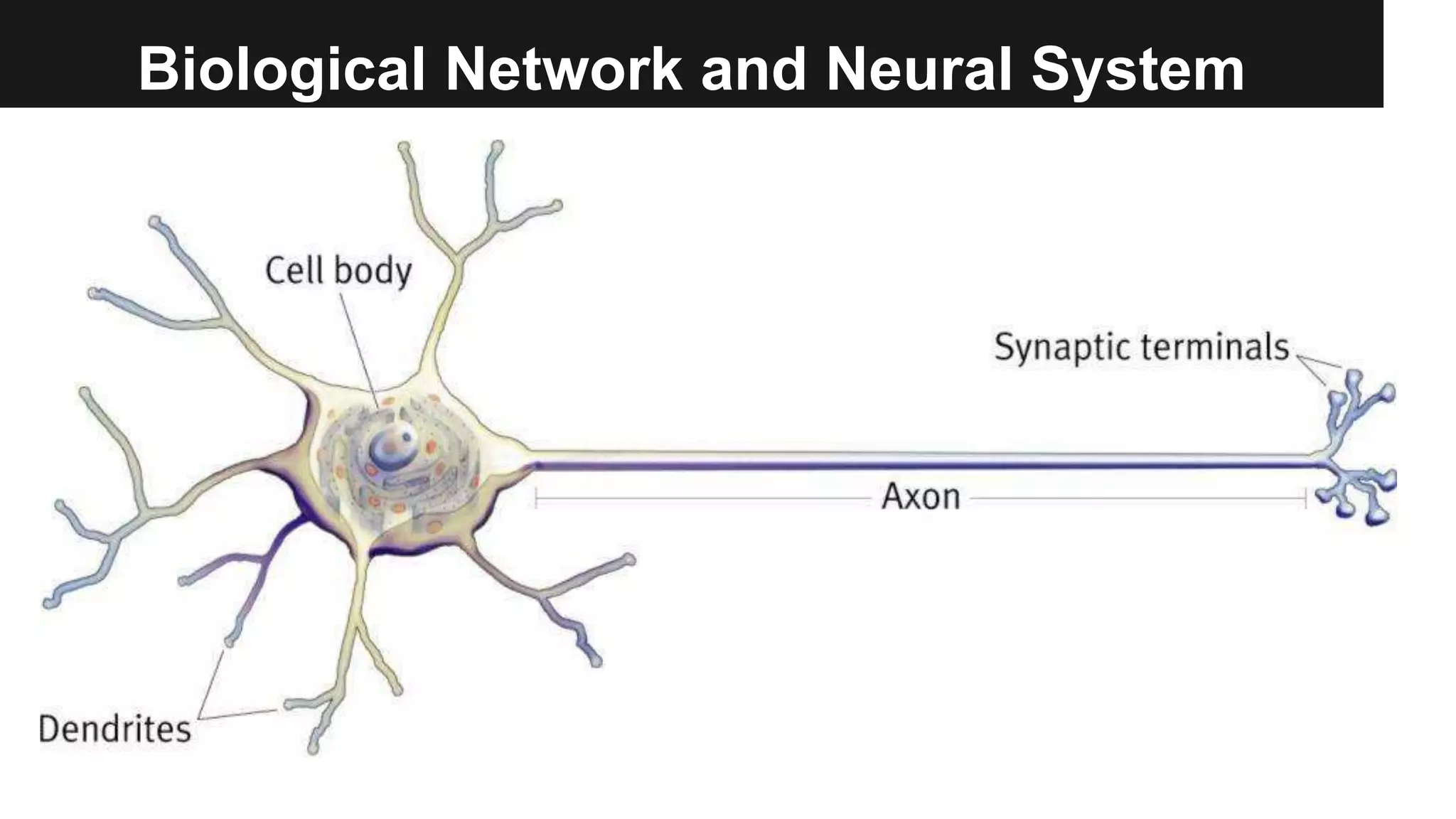

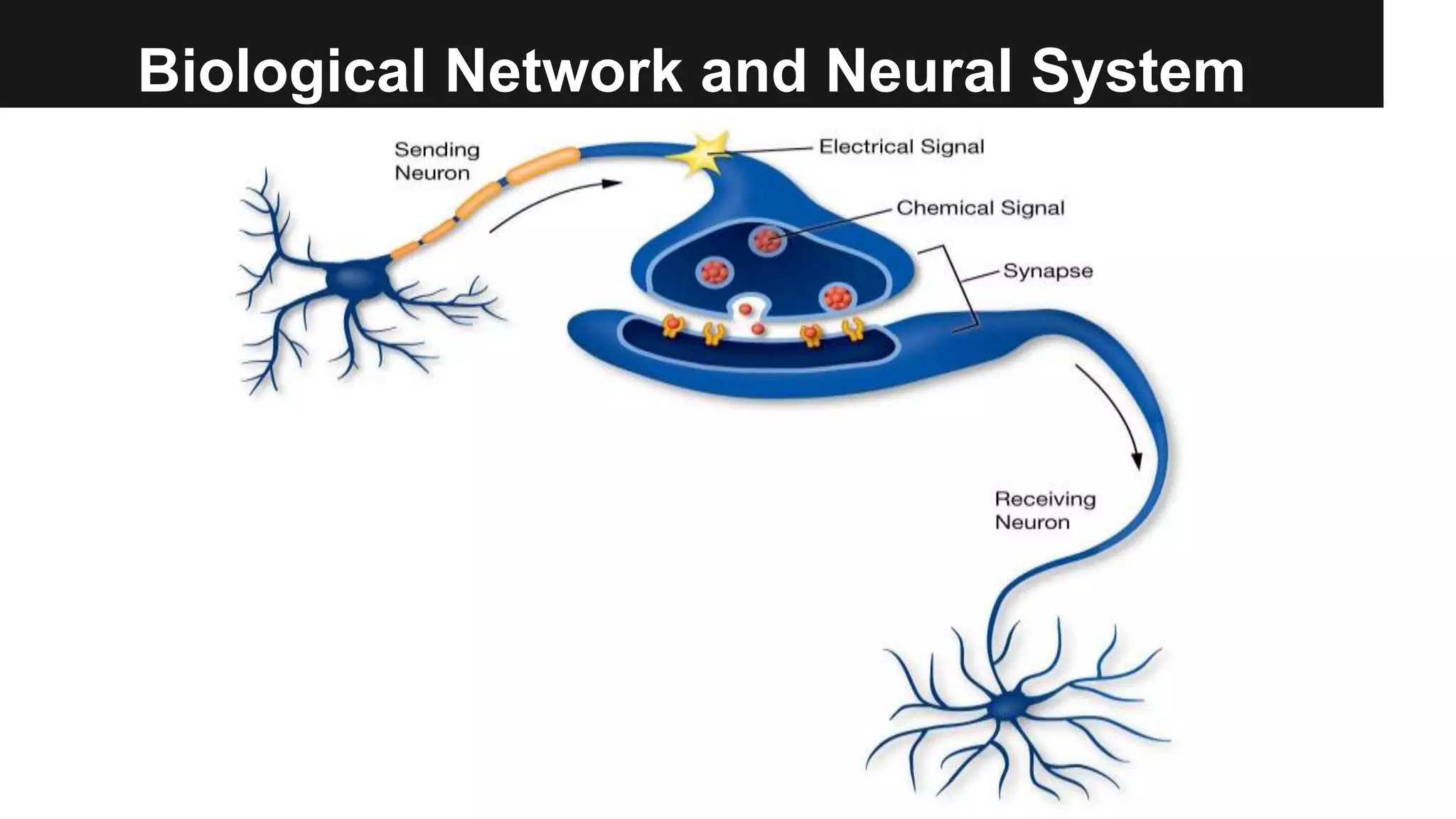

3. Biological Network and Neural System

4. Biological Network and Neural System

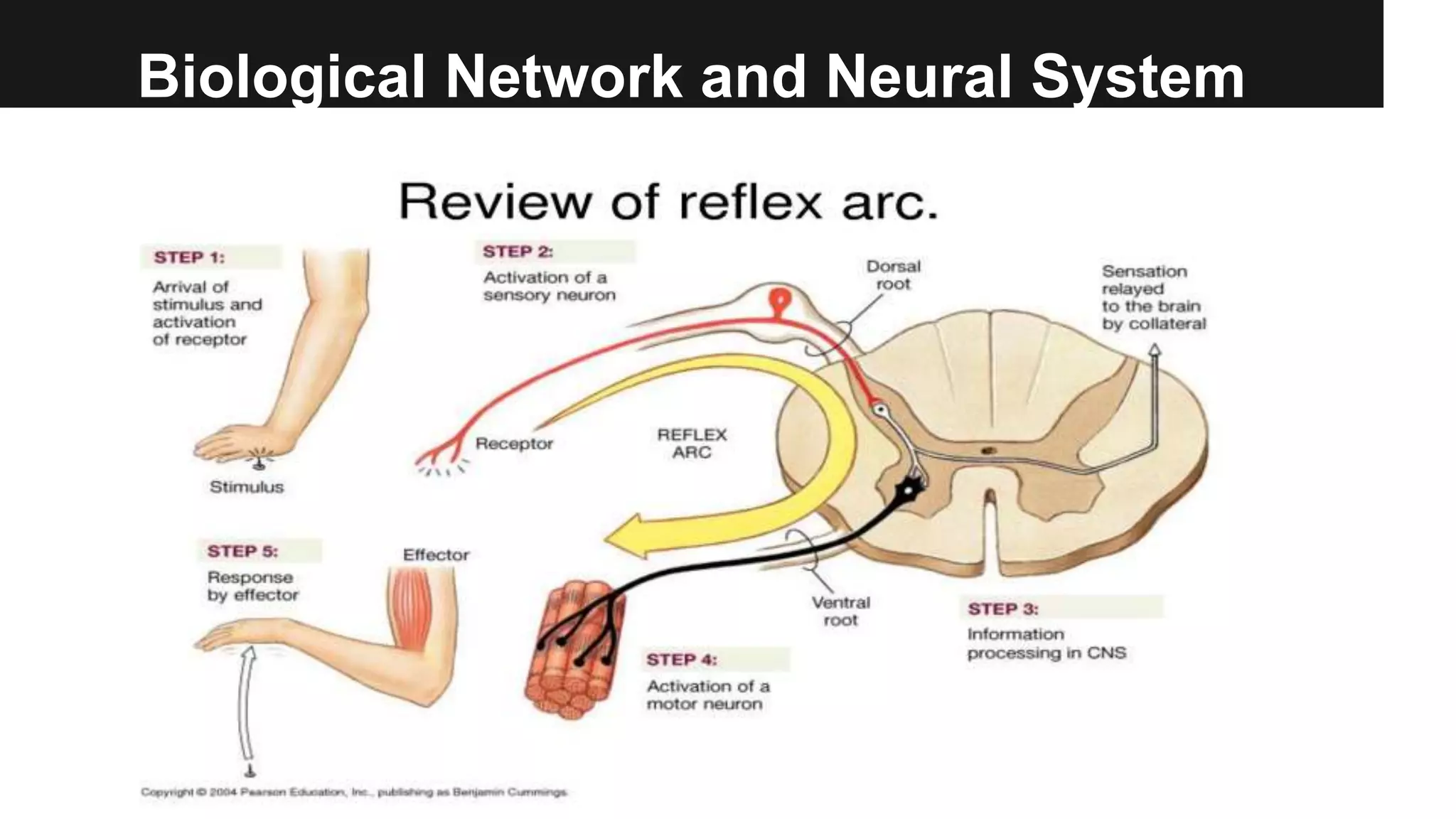

5. Biological Network and Neural System

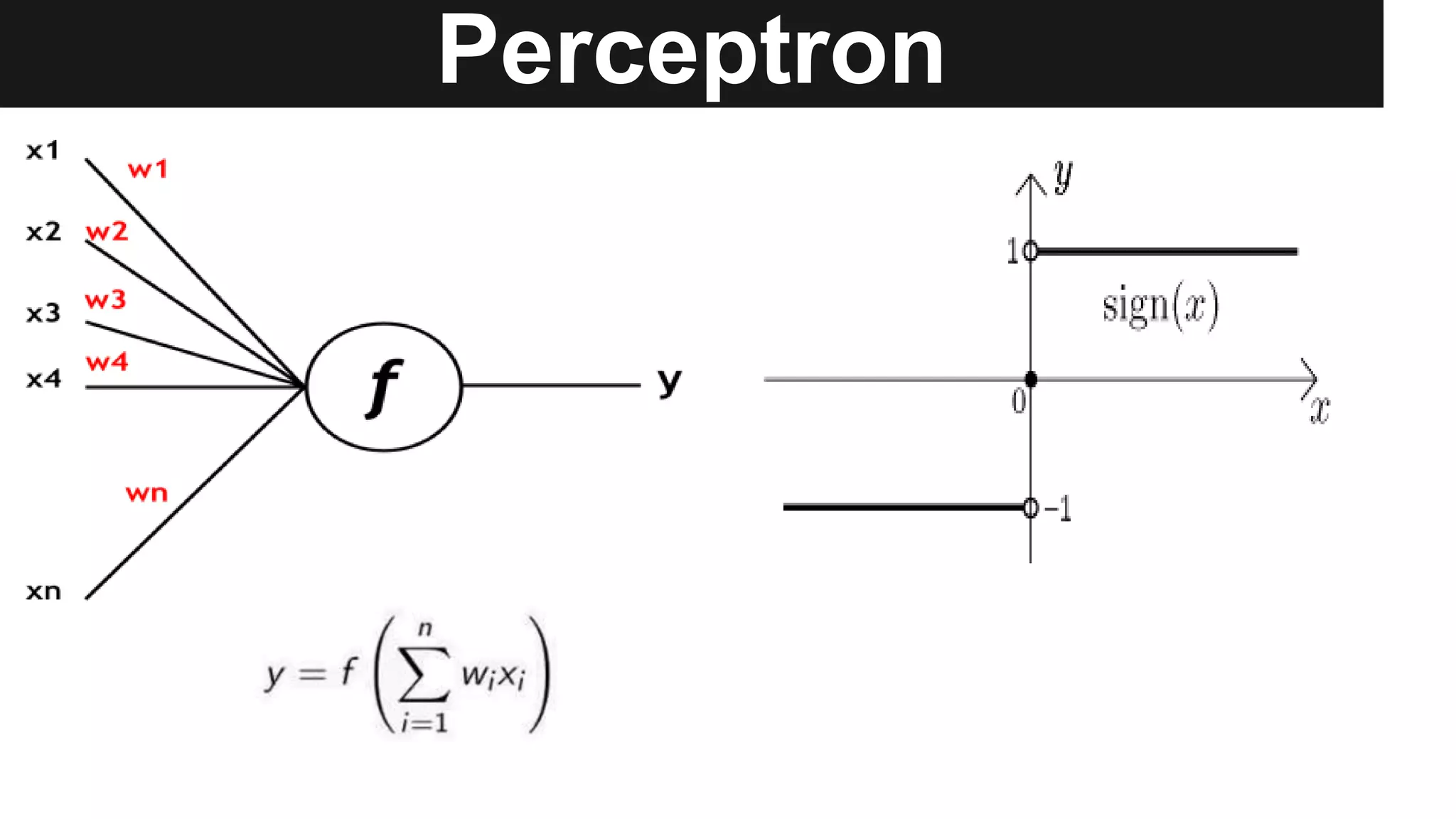

6. Perceptron

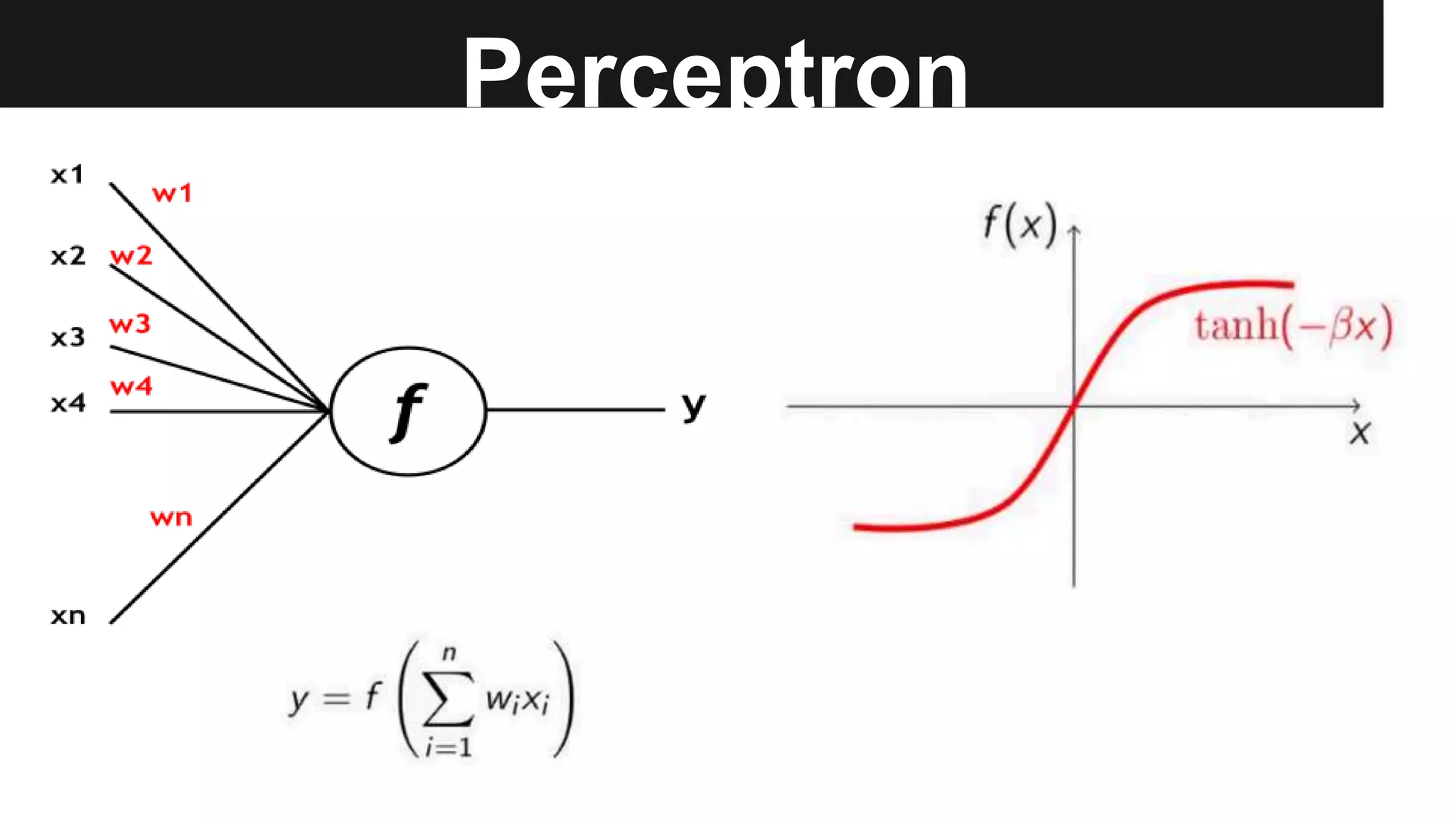

7. Perceptron

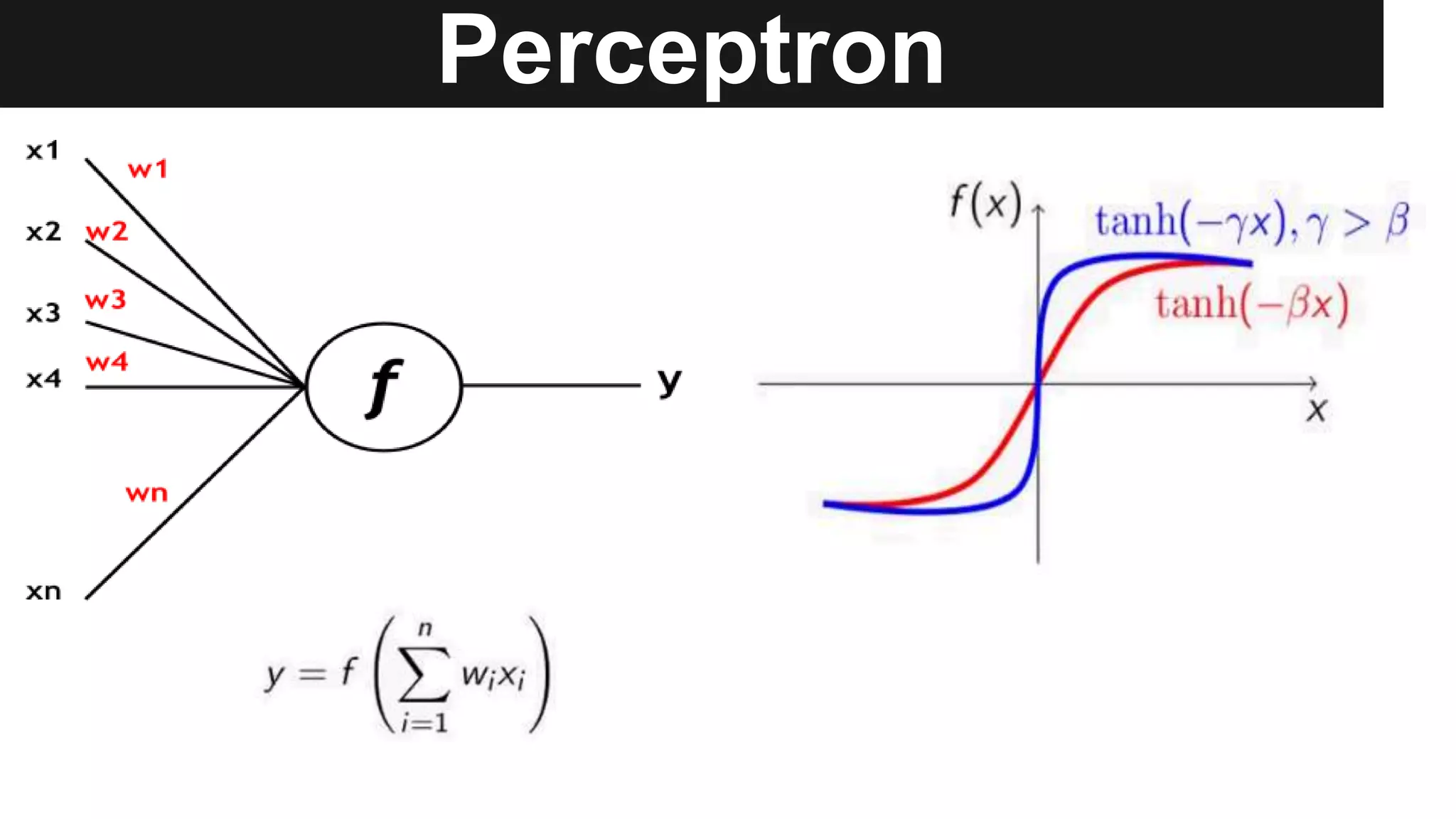

8. Perceptron

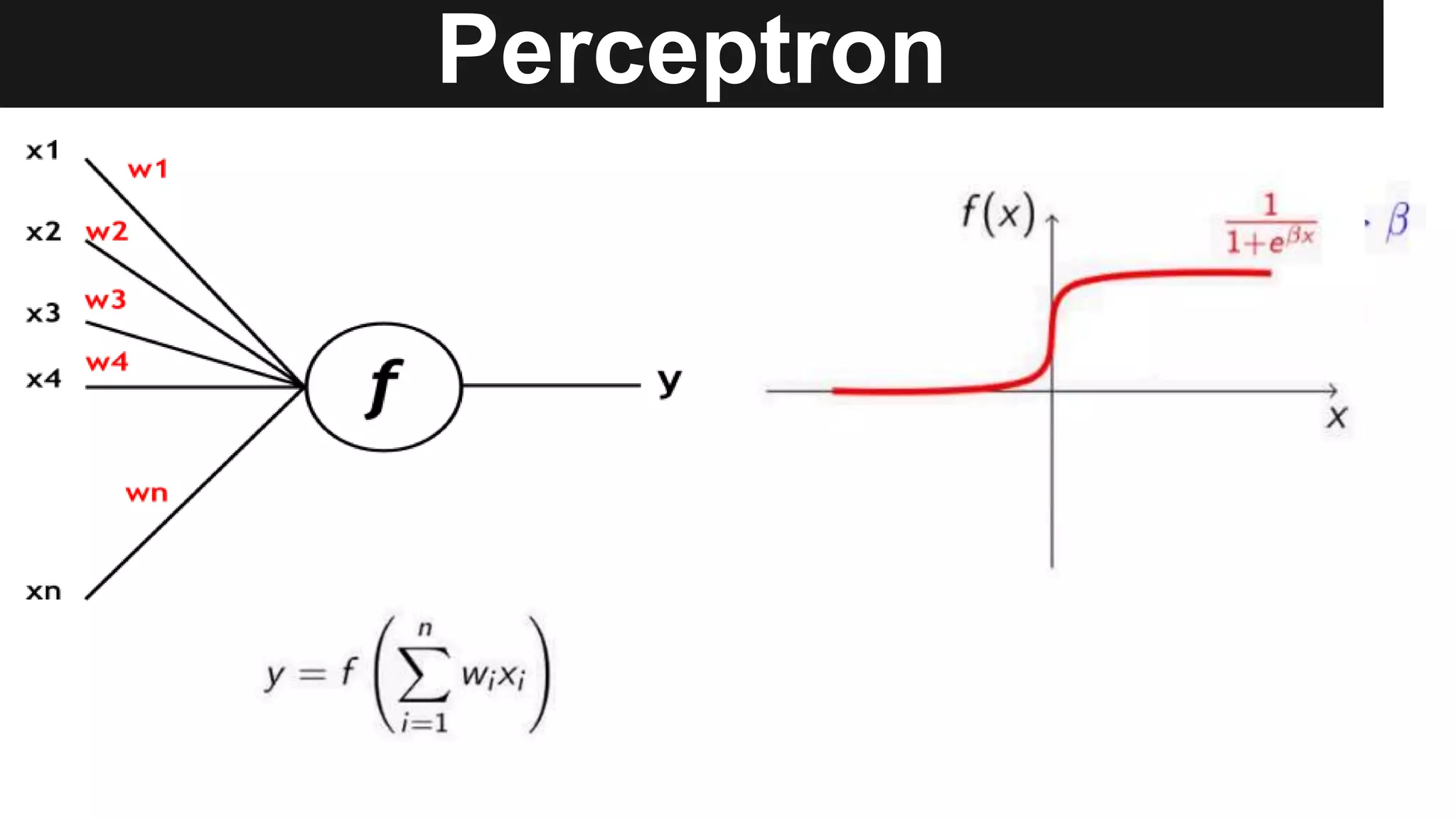

9. Perceptron

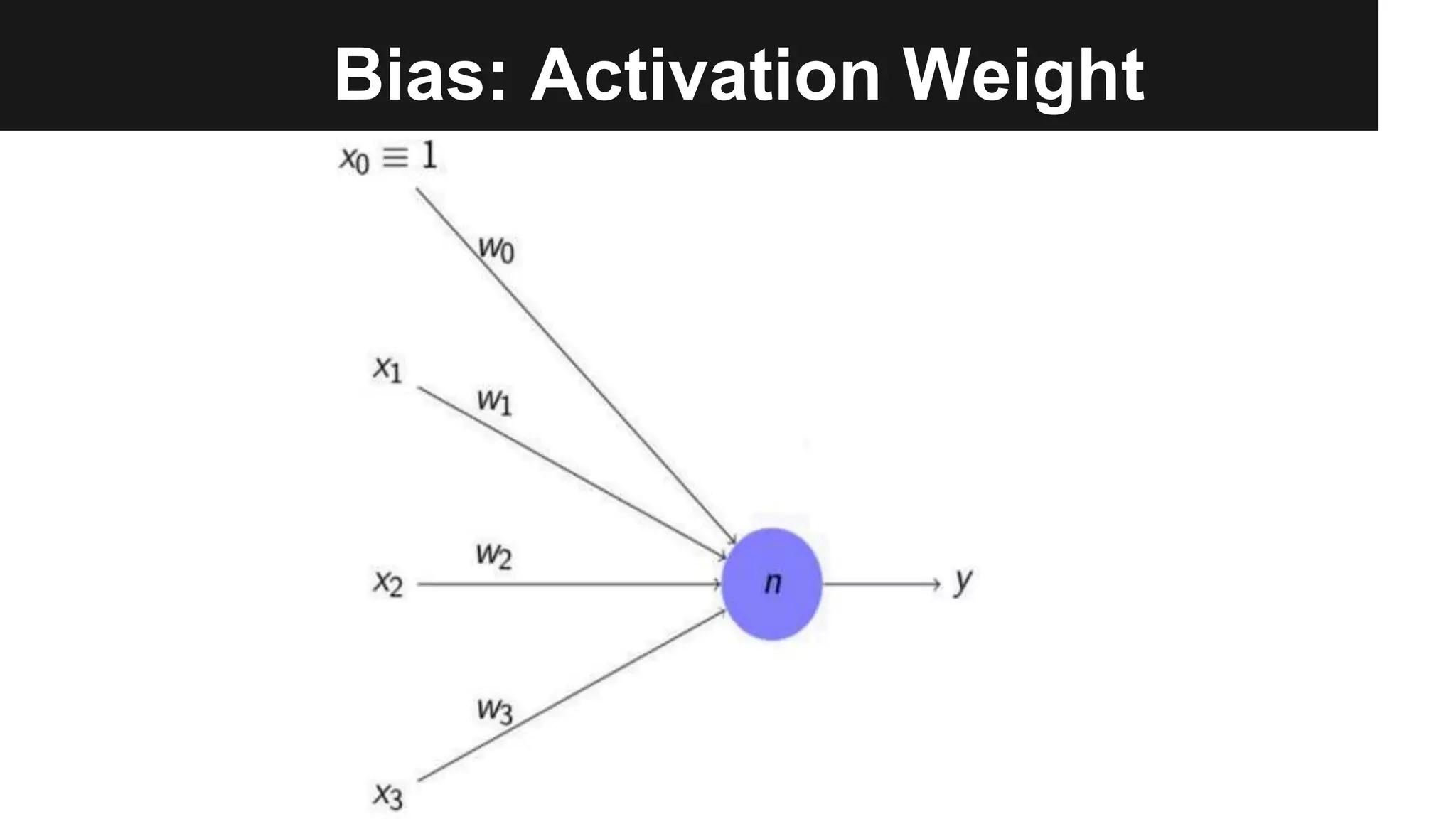

10. Bias: Activation Weight

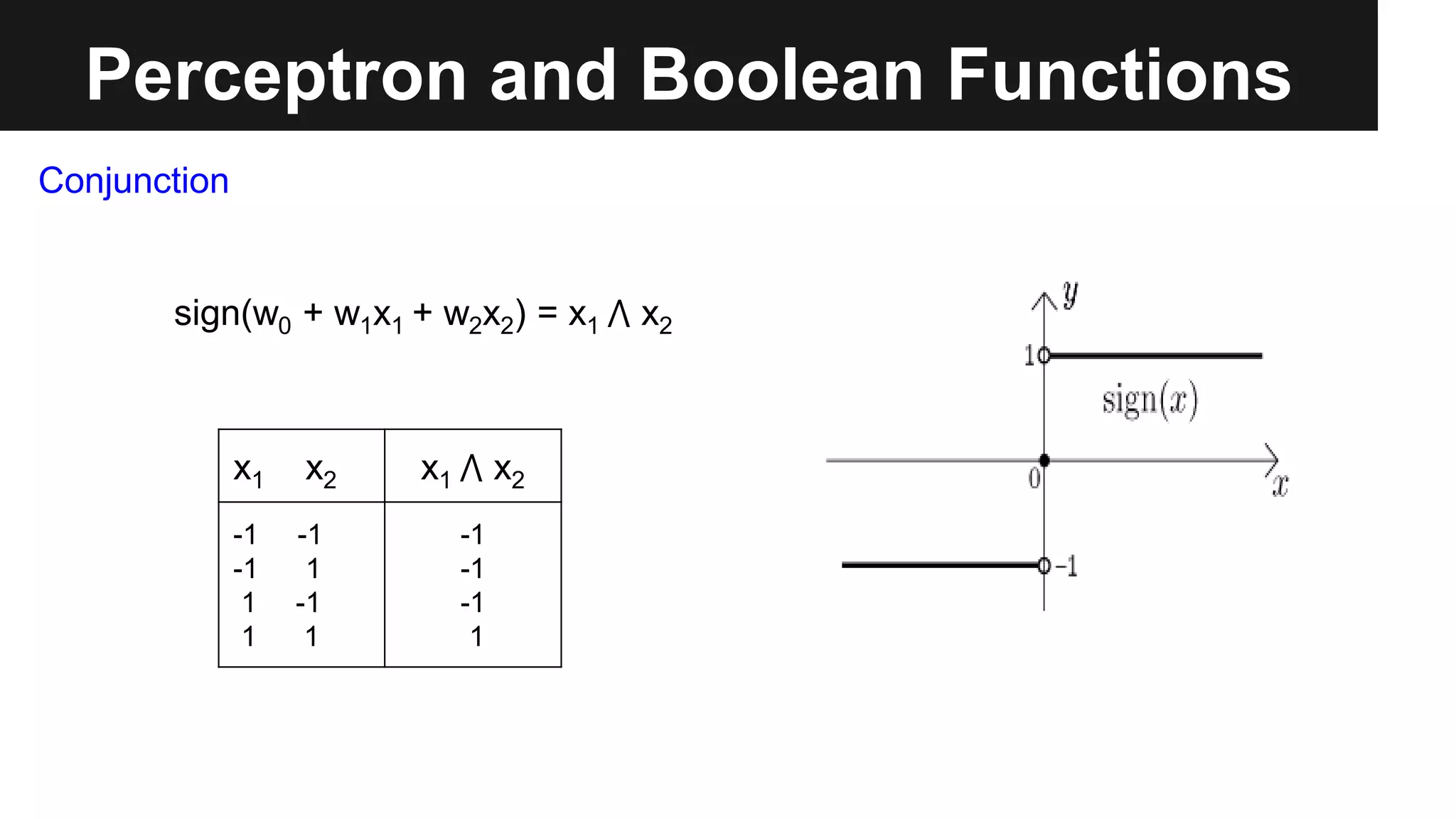

11. Perceptron and Boolean Functions
x1 x2 x1 ⋀ x2
-1 -1
-1 1
1 -1
1 1
-1
-1
-1
1
sign(w0 + w1x1 + w2x2) = x1 ⋀ x2
Conjunction

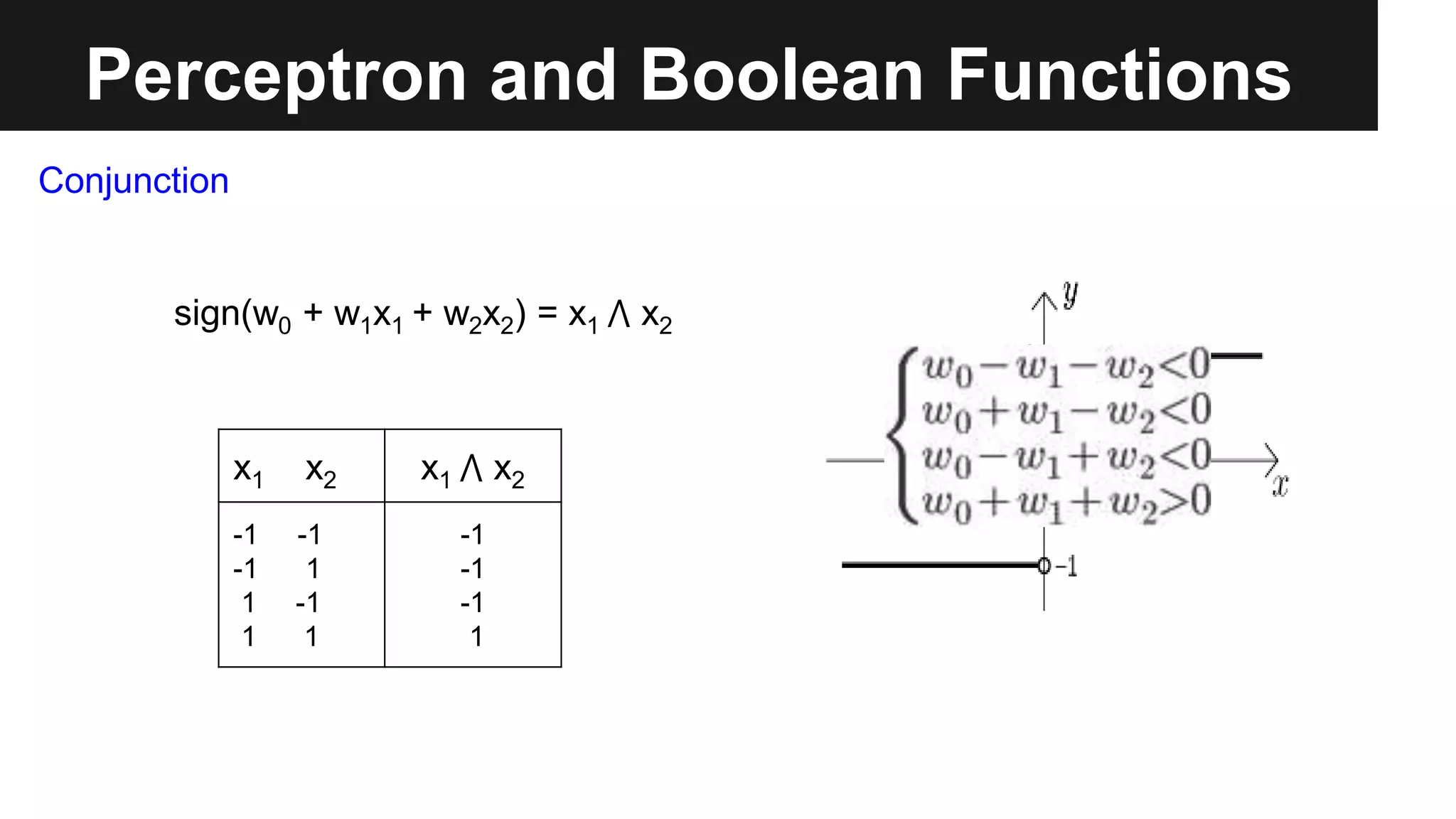

12. Perceptron and Boolean Functions
x1 x2 x1 ⋀ x2
-1 -1
-1 1
1 -1
1 1
-1
-1
-1
1
sign(w0 + w1x1 + w2x2) = x1 ⋀ x2
Conjunction

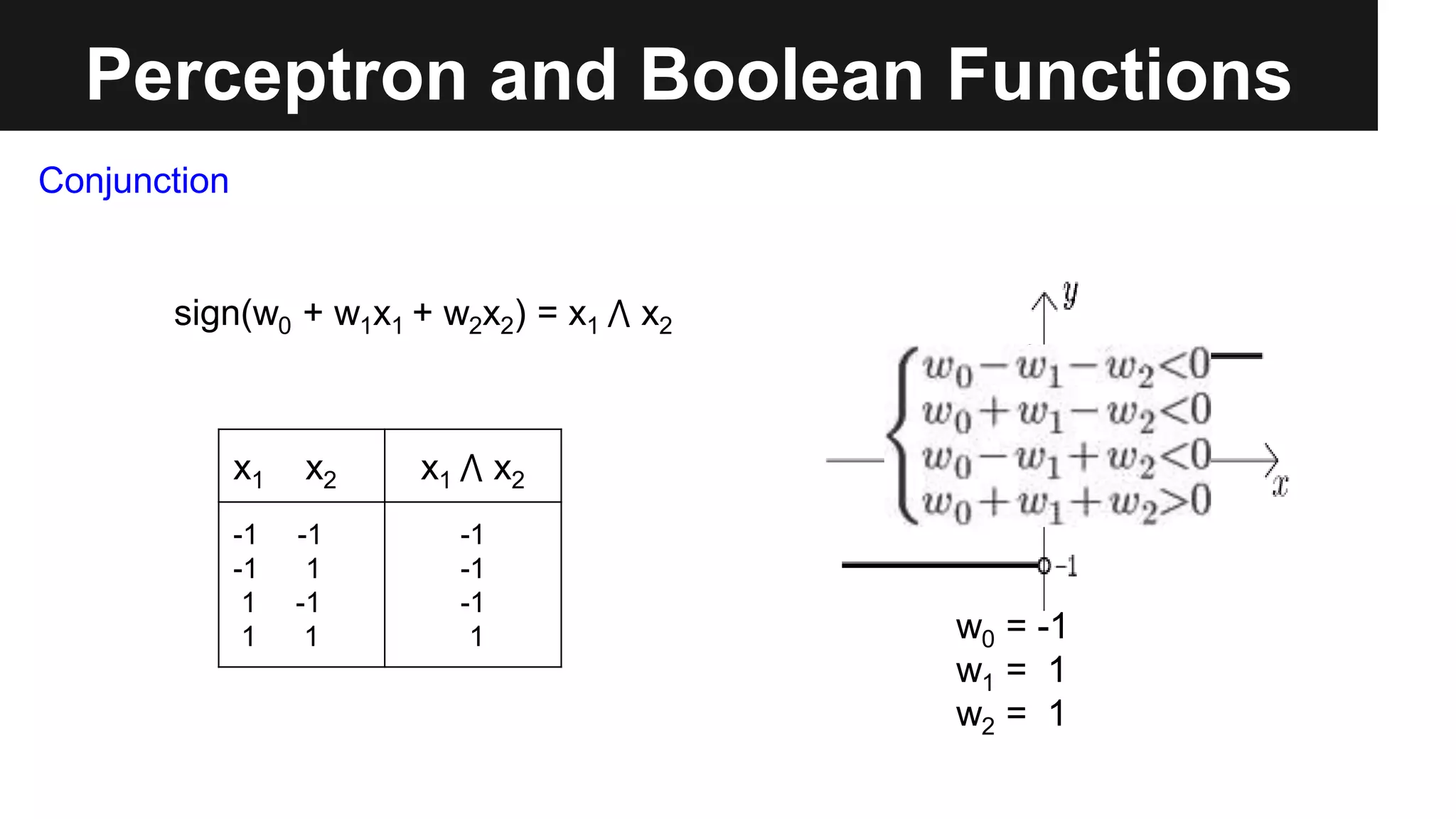

13. Perceptron and Boolean Functions
x1 x2 x1 ⋀ x2
-1 -1
-1 1
1 -1
1 1
-1
-1
-1
1
sign(w0 + w1x1 + w2x2) = x1 ⋀ x2
w0 = -1
w1 = 1
w2 = 1
Conjunction

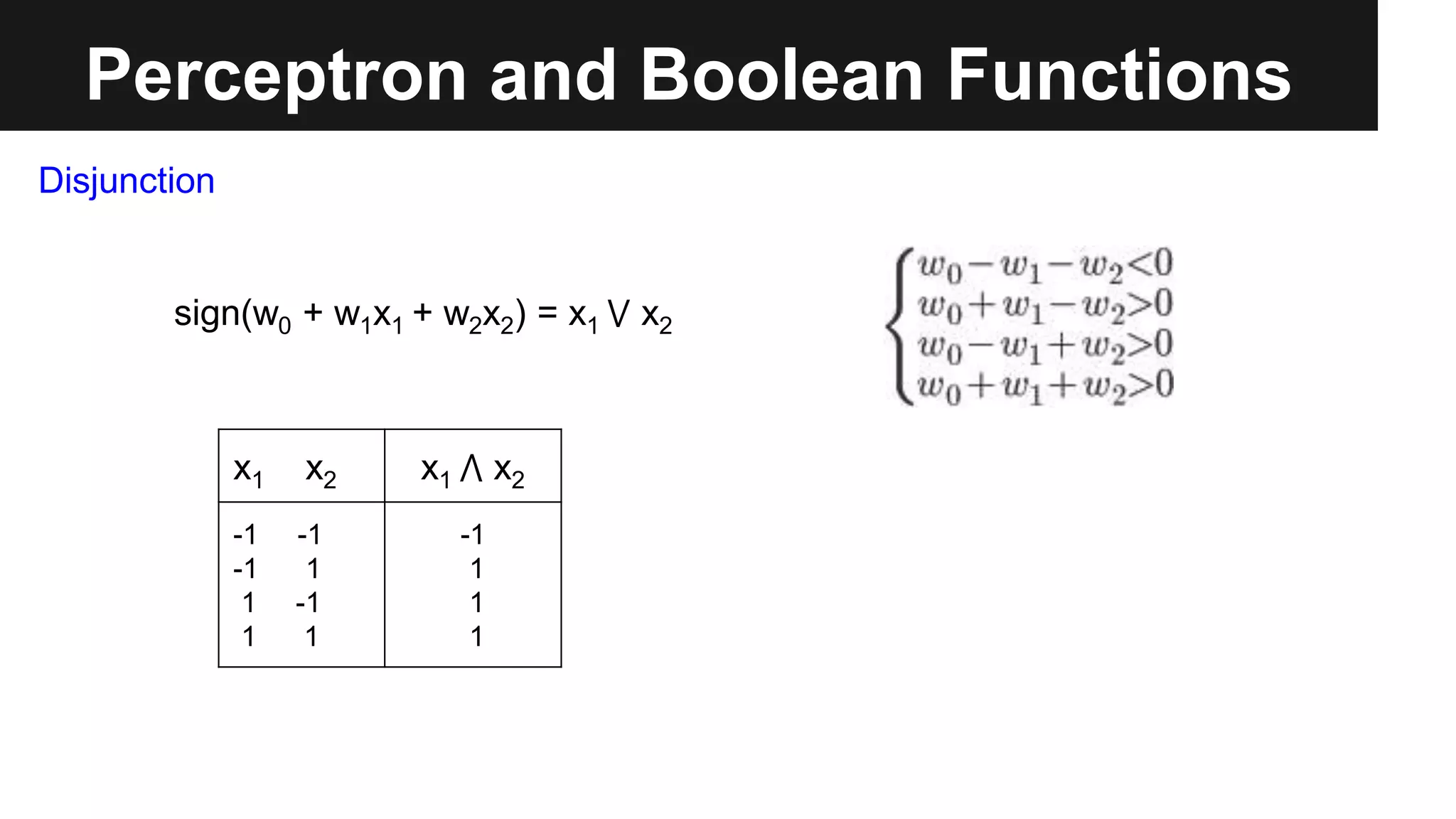

14. Perceptron and Boolean Functions
x1 x2 x1 ⋀ x2
-1 -1
-1 1
1 -1
1 1
-1
1
1
1
sign(w0 + w1x1 + w2x2) = x1 ⋁ x2
Disjunction

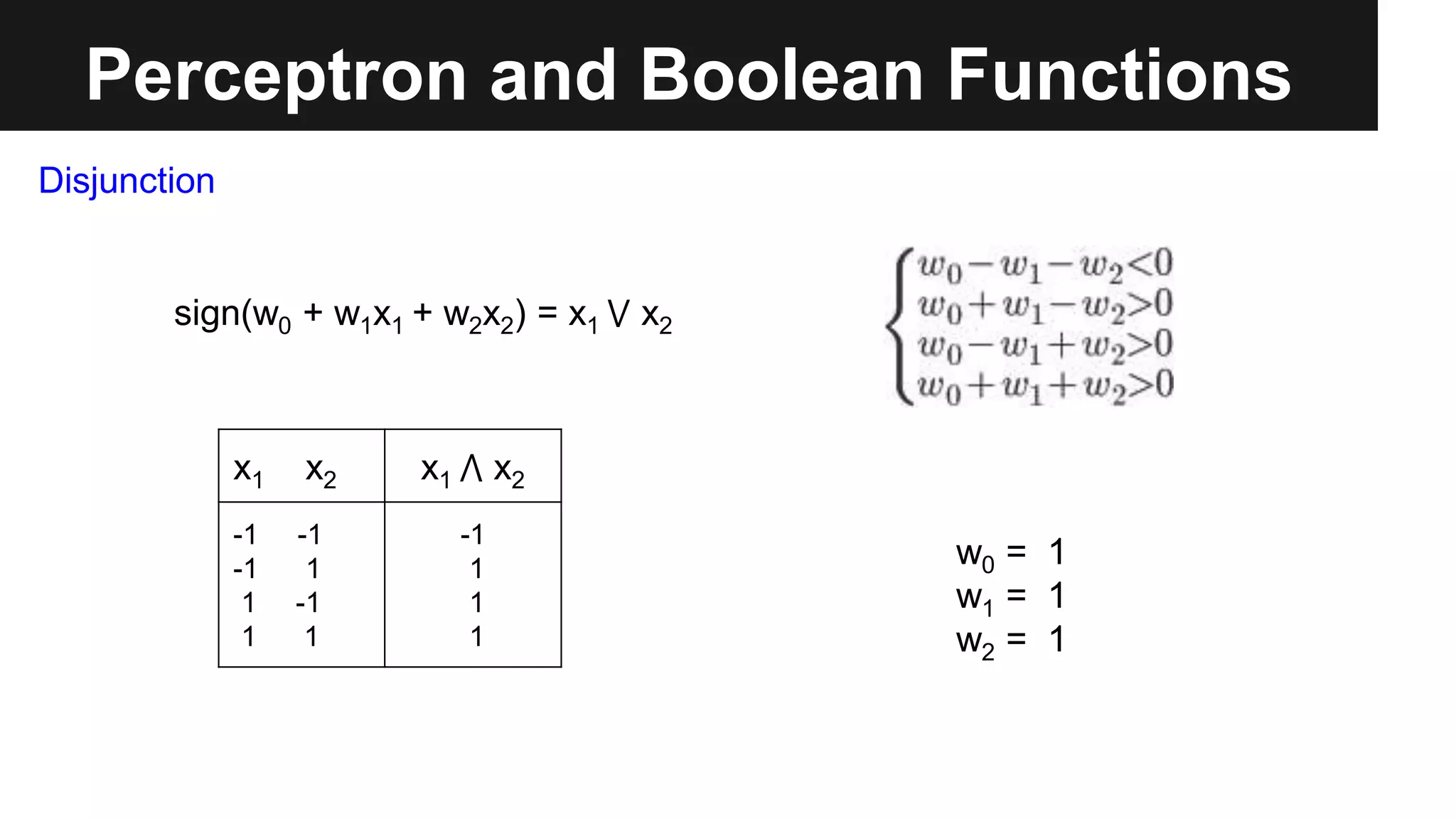

15. Perceptron and Boolean Functions
x1 x2 x1 ⋀ x2
-1 -1
-1 1
1 -1
1 1
-1
1
1
1
sign(w0 + w1x1 + w2x2) = x1 ⋁ x2
Disjunction
w0 = 1
w1 = 1
w2 = 1

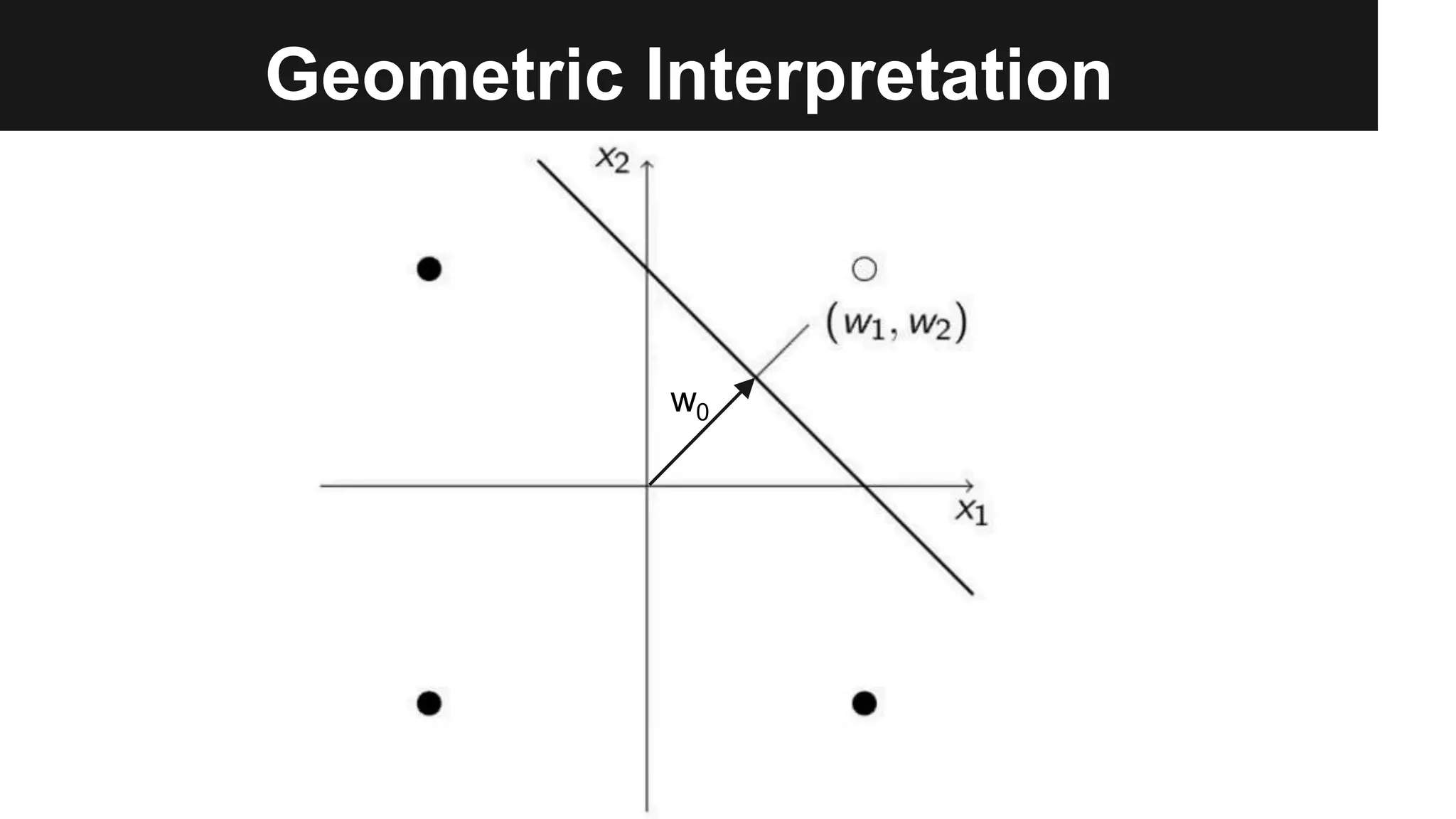

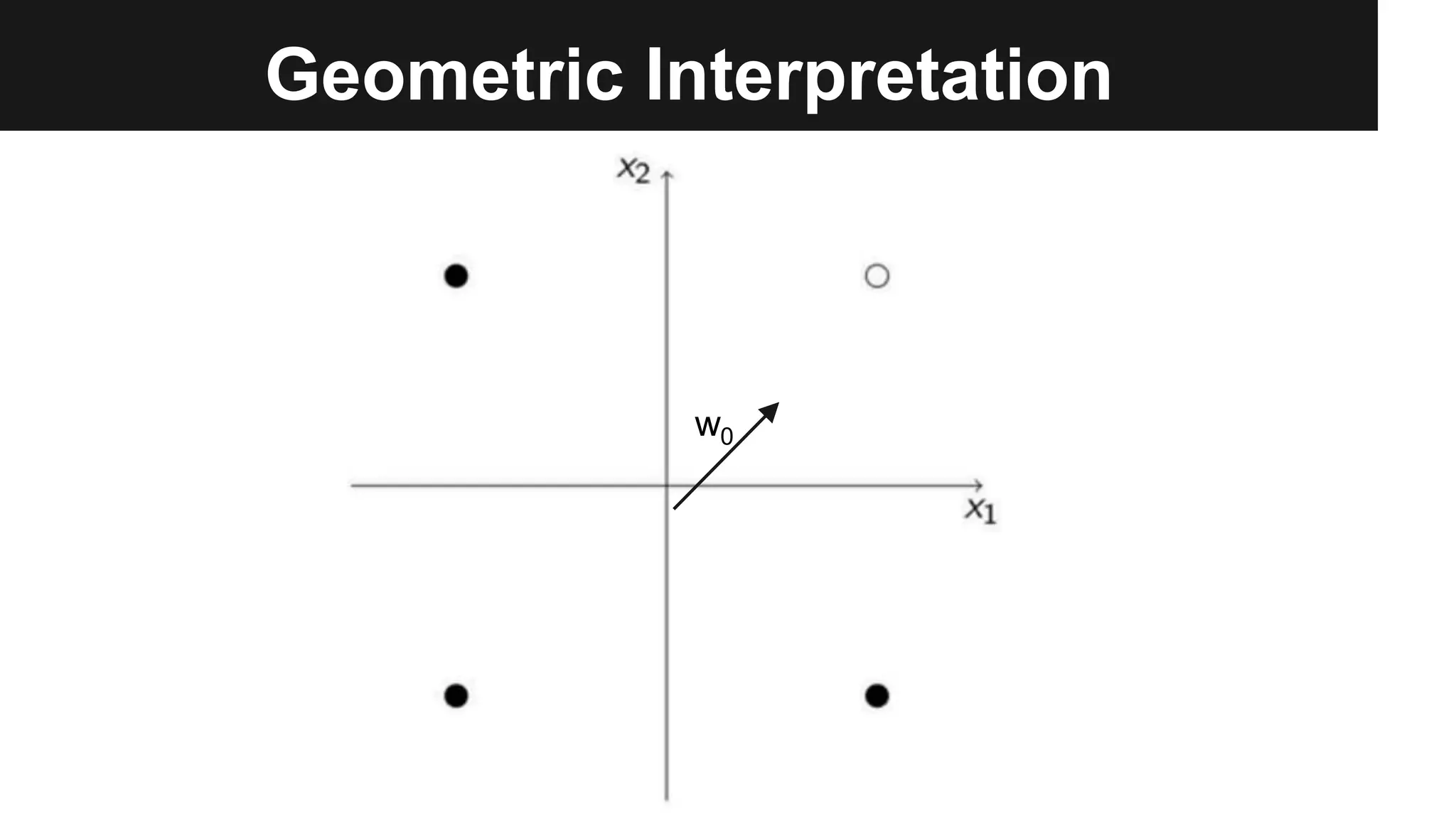

16. Geometric Interpretation
w0

17. Geometric Interpretation
w0

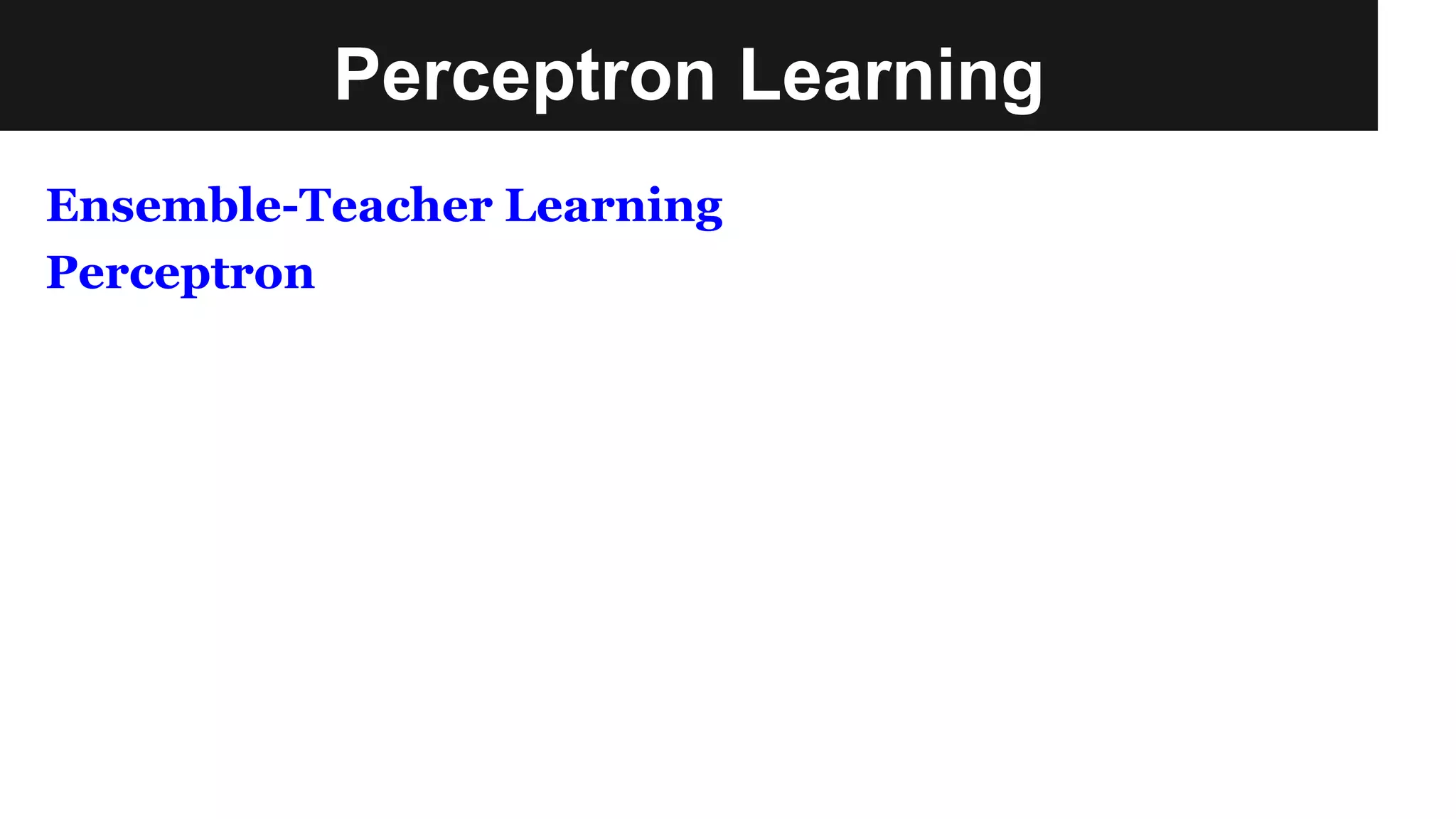

18. Perceptron Learning
Ensemble-Teacher Learning
Perceptron

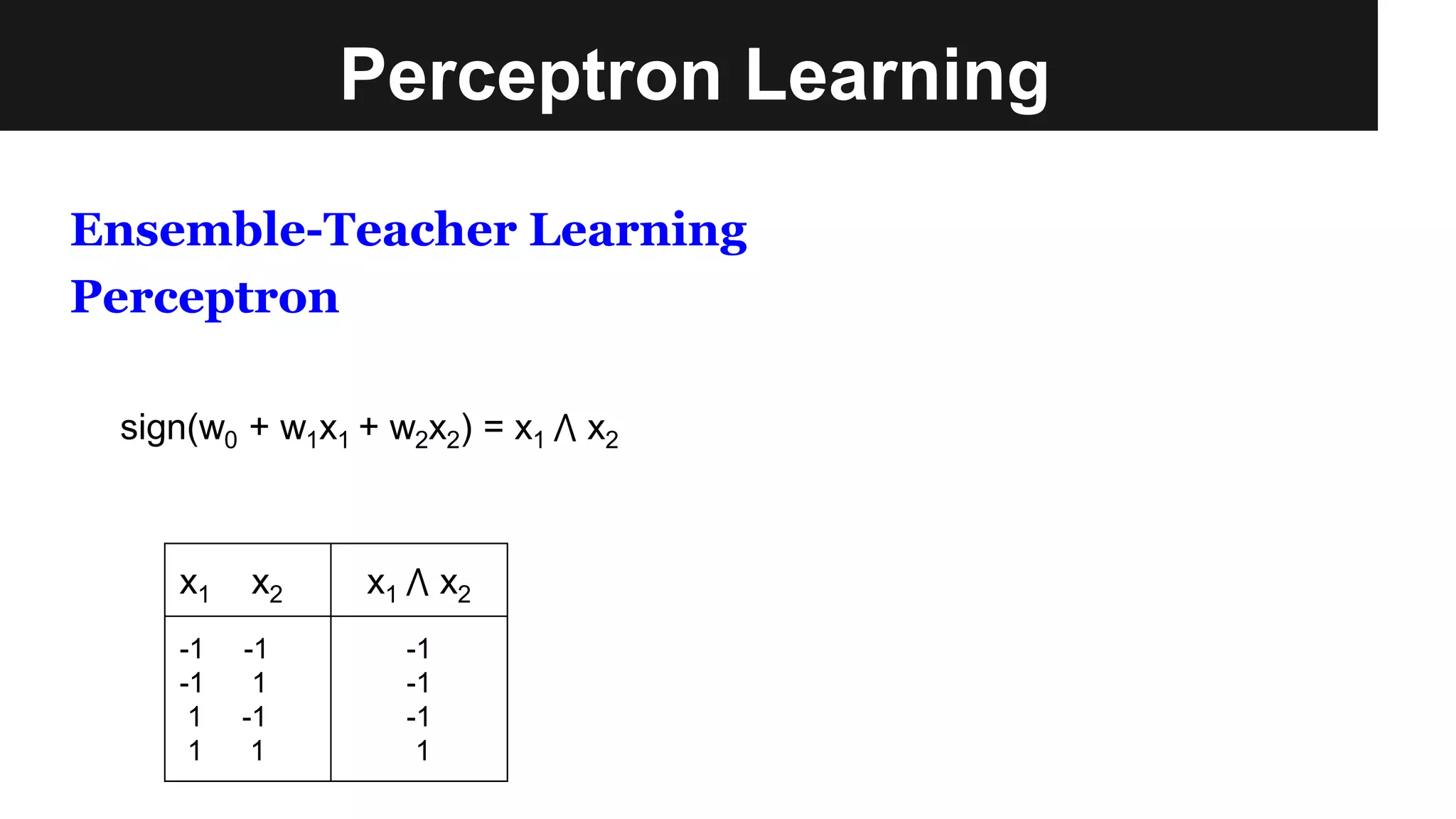

19. Perceptron Learning
Ensemble-Teacher Learning
Perceptron
x1 x2 x1 ⋀ x2
-1 -1
-1 1
1 -1
1 1
-1
-1
-1
1
sign(w0 + w1x1 + w2x2) = x1 ⋀ x2

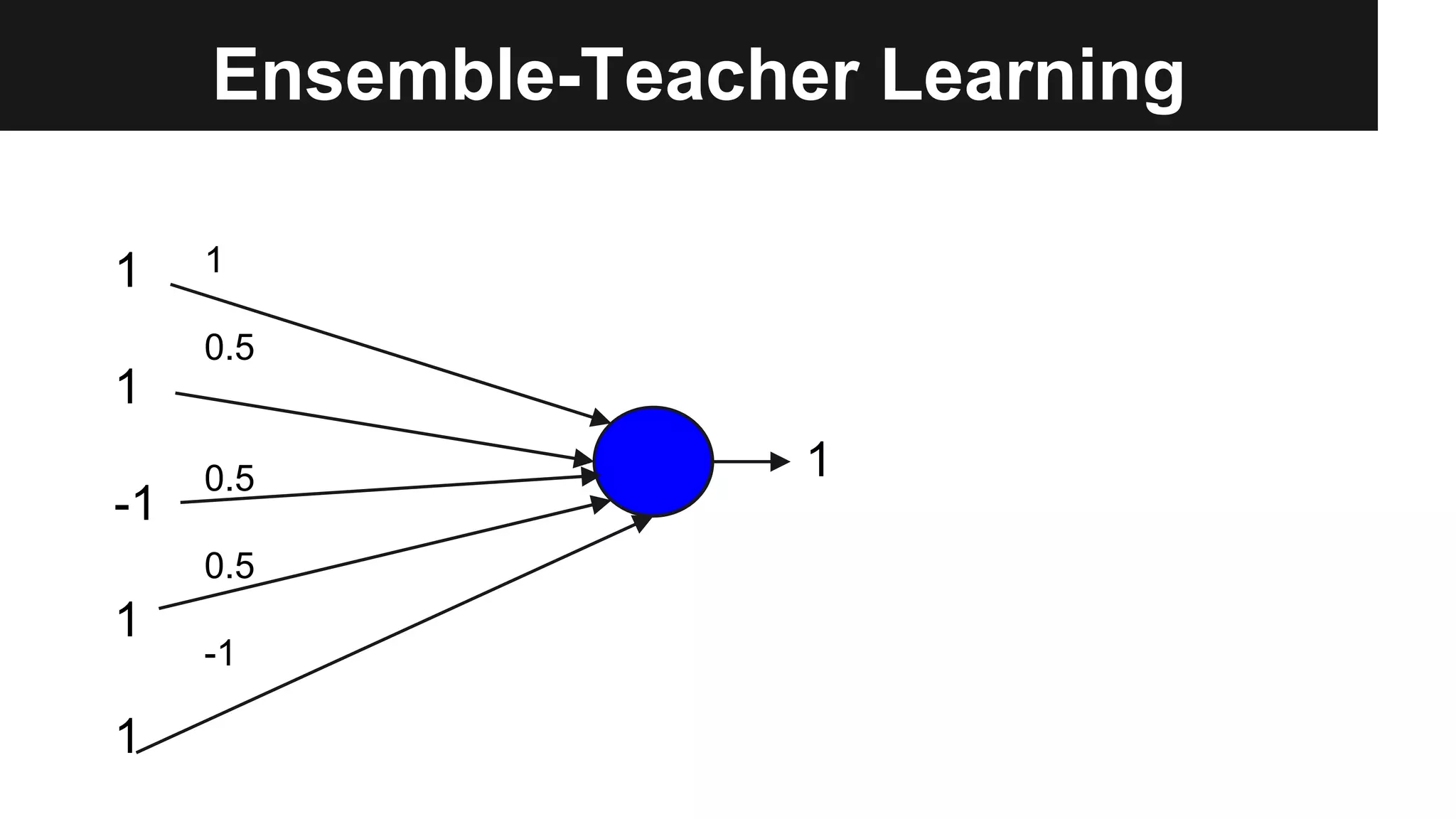

20. Ensemble-Teacher Learning
1
1
-1
1
1
1
0.5
0.5
0.5
-1
1

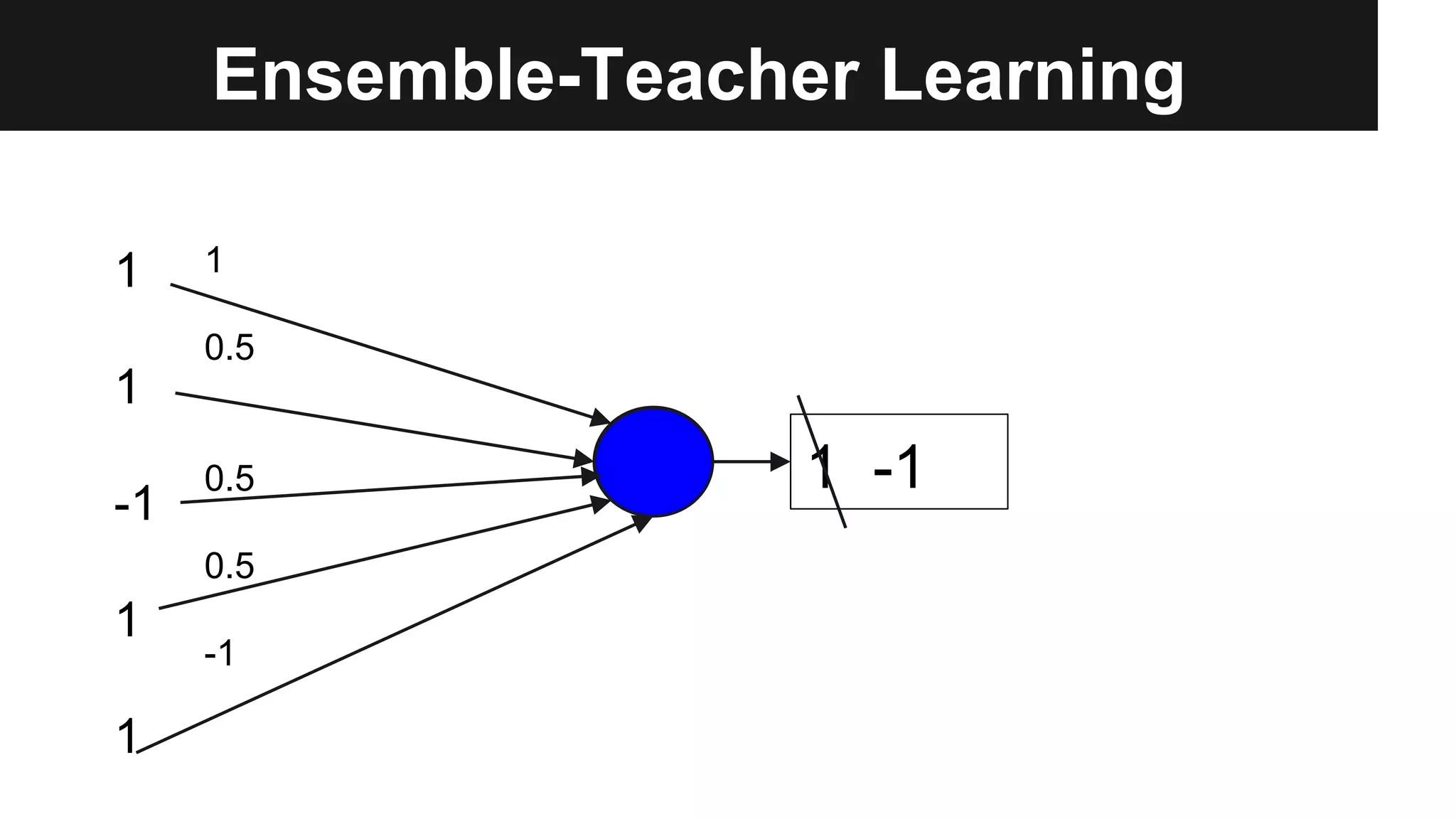

21. Ensemble-Teacher Learning
1
1
-1
1
1
1
0.5
0.5
0.5
-1
1 -1

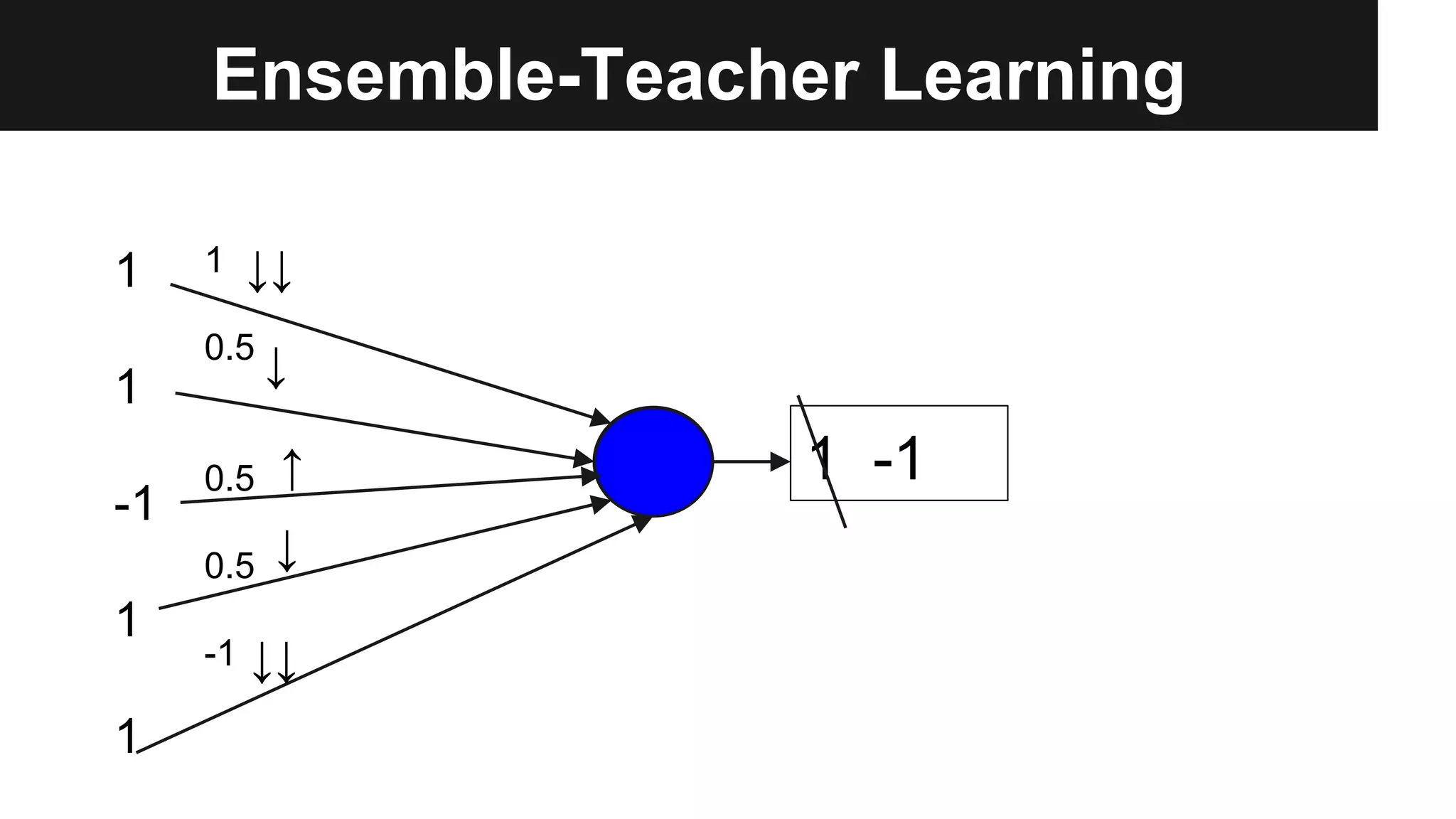

22. Ensemble-Teacher Learning
1
1
-1
1
1
1
0.5
0.5
0.5
-1
1 -1
↓↓
↓
↓
↓↓
↑

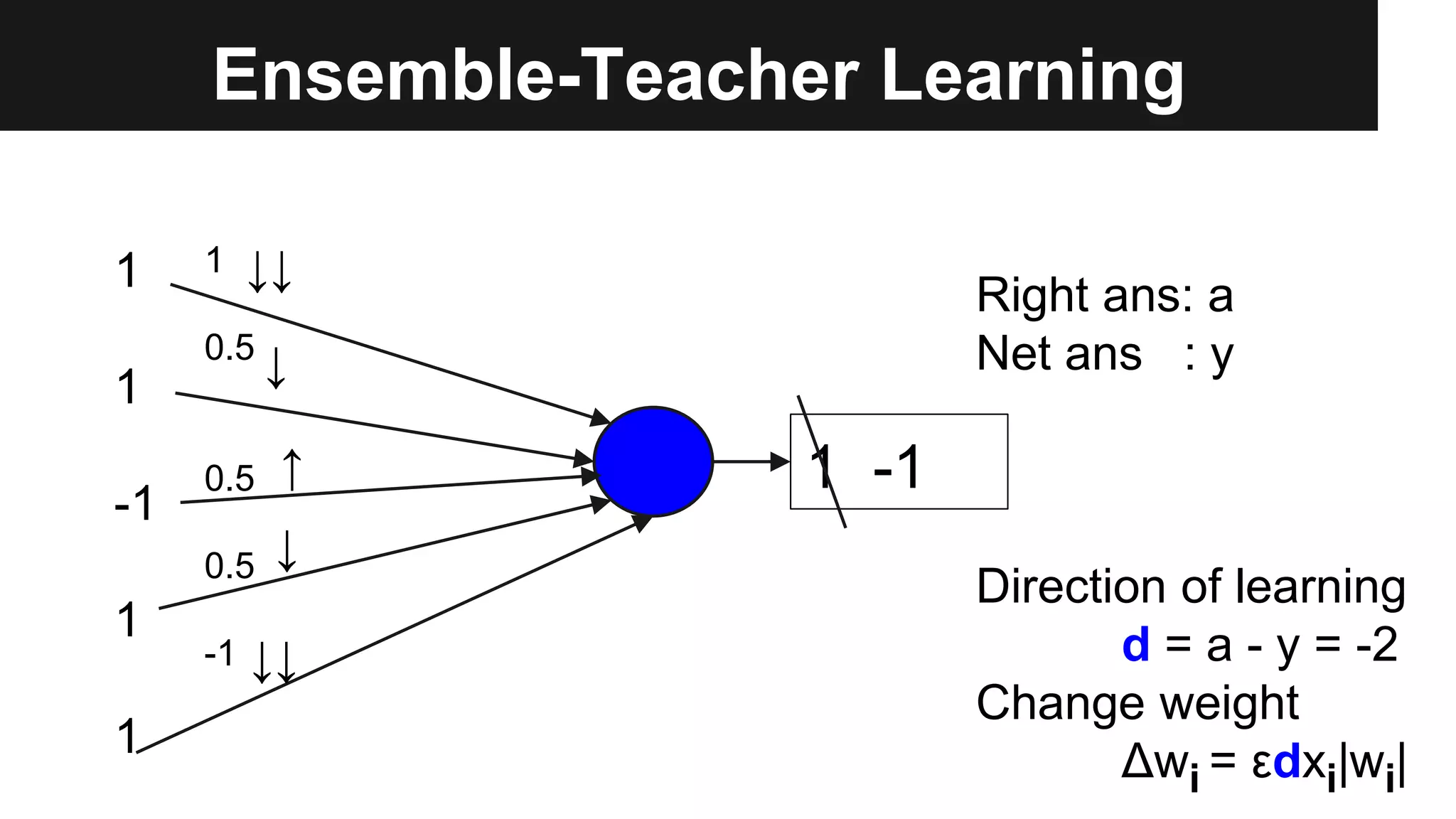

23. Ensemble-Teacher Learning
1
1
-1
1
1
1
0.5
0.5
0.5
-1
1 -1
↓↓
↓
↓
↓↓
↑
Right ans: a
Net ans : y
Direction of learning
d = a - y = -2
Change weight
Δwi = εdxi|wi|

24. Ensemble-Teacher Learning
1
1
-1
1
1
0.5
0.2
0.7
0
-1.5
11 -1
Right ans: a
Net ans : y
Direction of learning
d = a - y = -2
Change weight
Δwi = εdxi|wi|

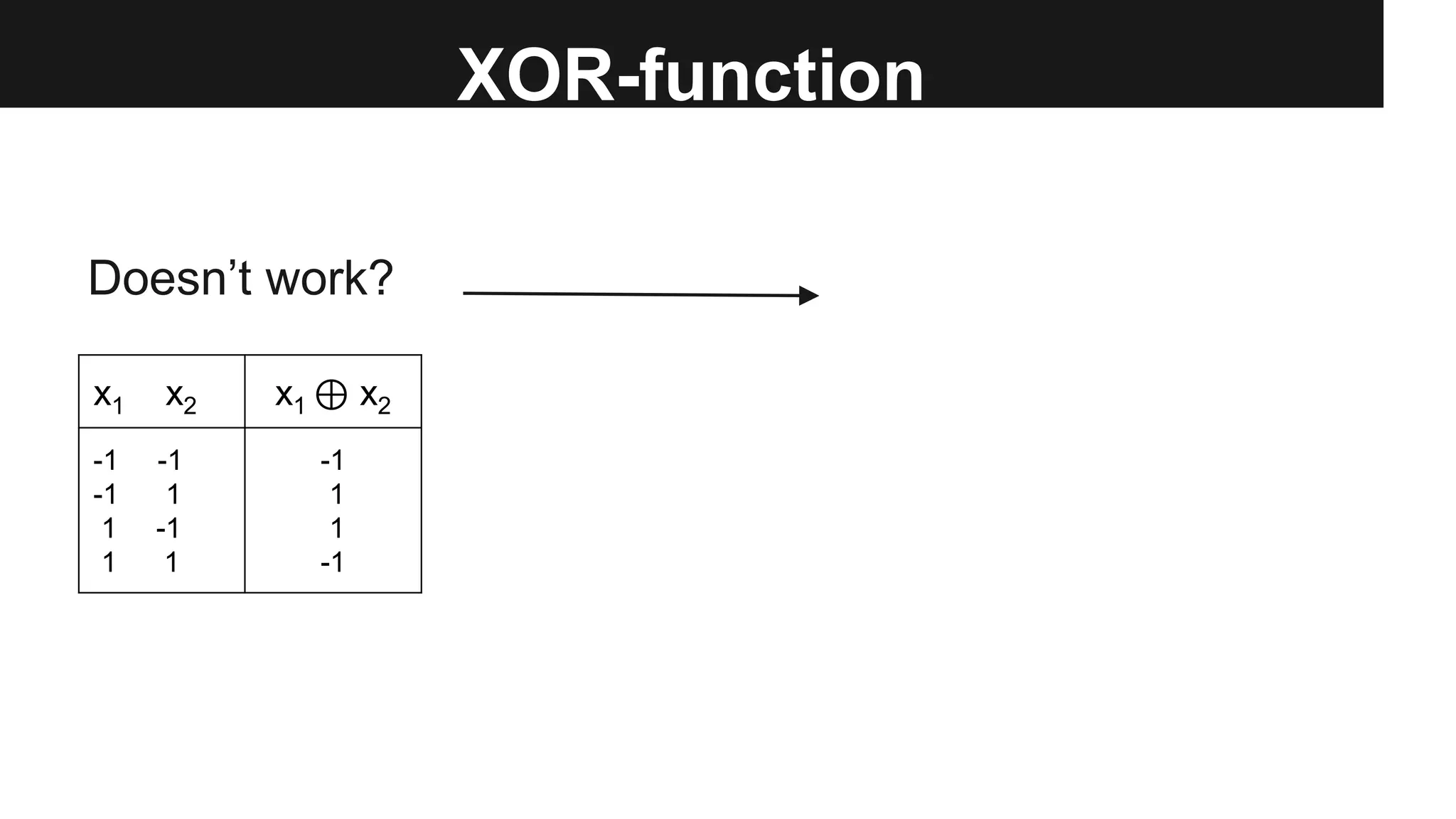

25. XOR-function
Doesn’t work?
x1 x2 x1 ⊕ x2
-1 -1
-1 1
1 -1
1 1
-1
1
1
-1

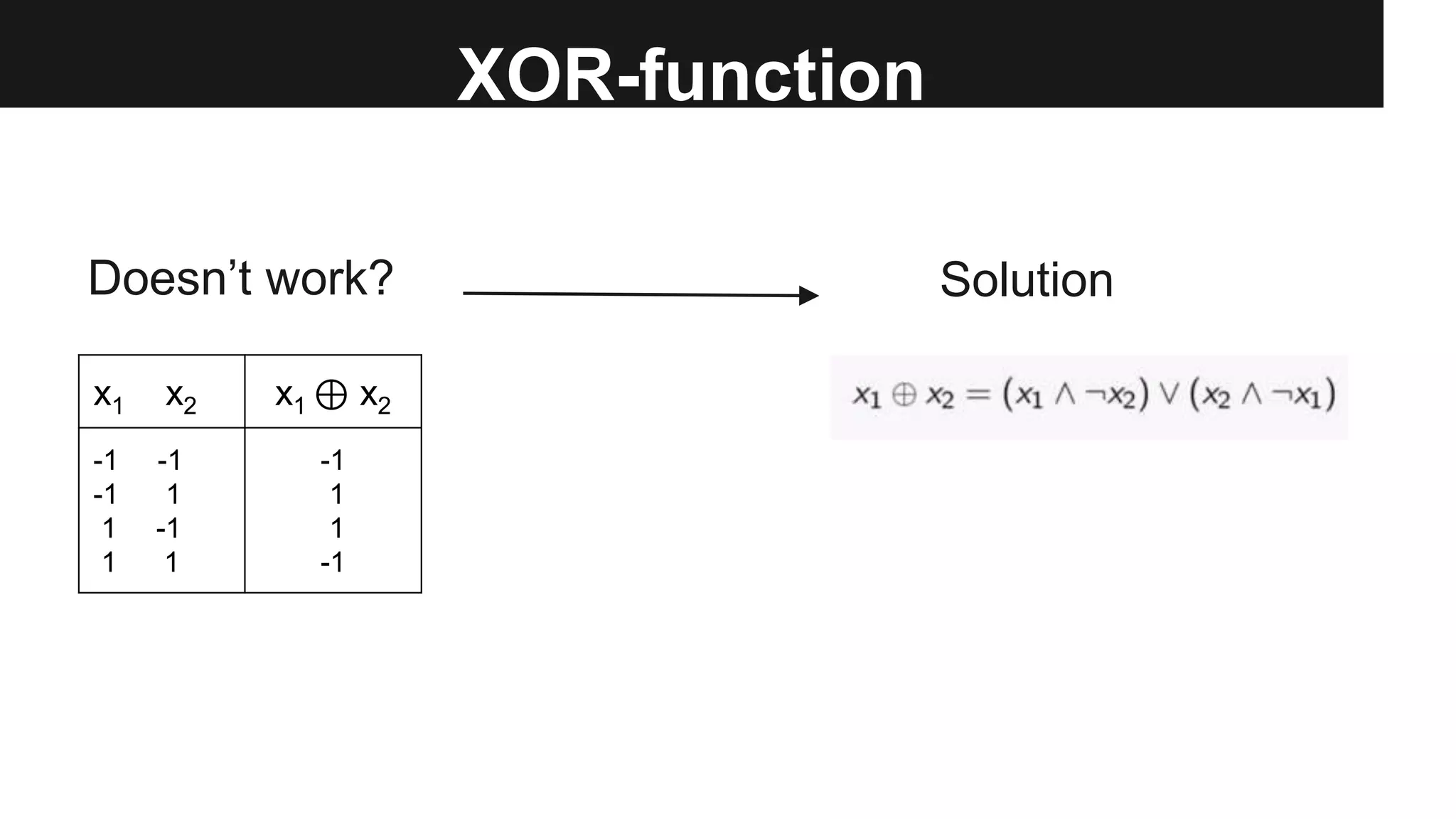

26. XOR-function
Doesn’t work?
x1 x2 x1 ⊕ x2
-1 -1
-1 1
1 -1
1 1
-1
1
1
-1
Solution

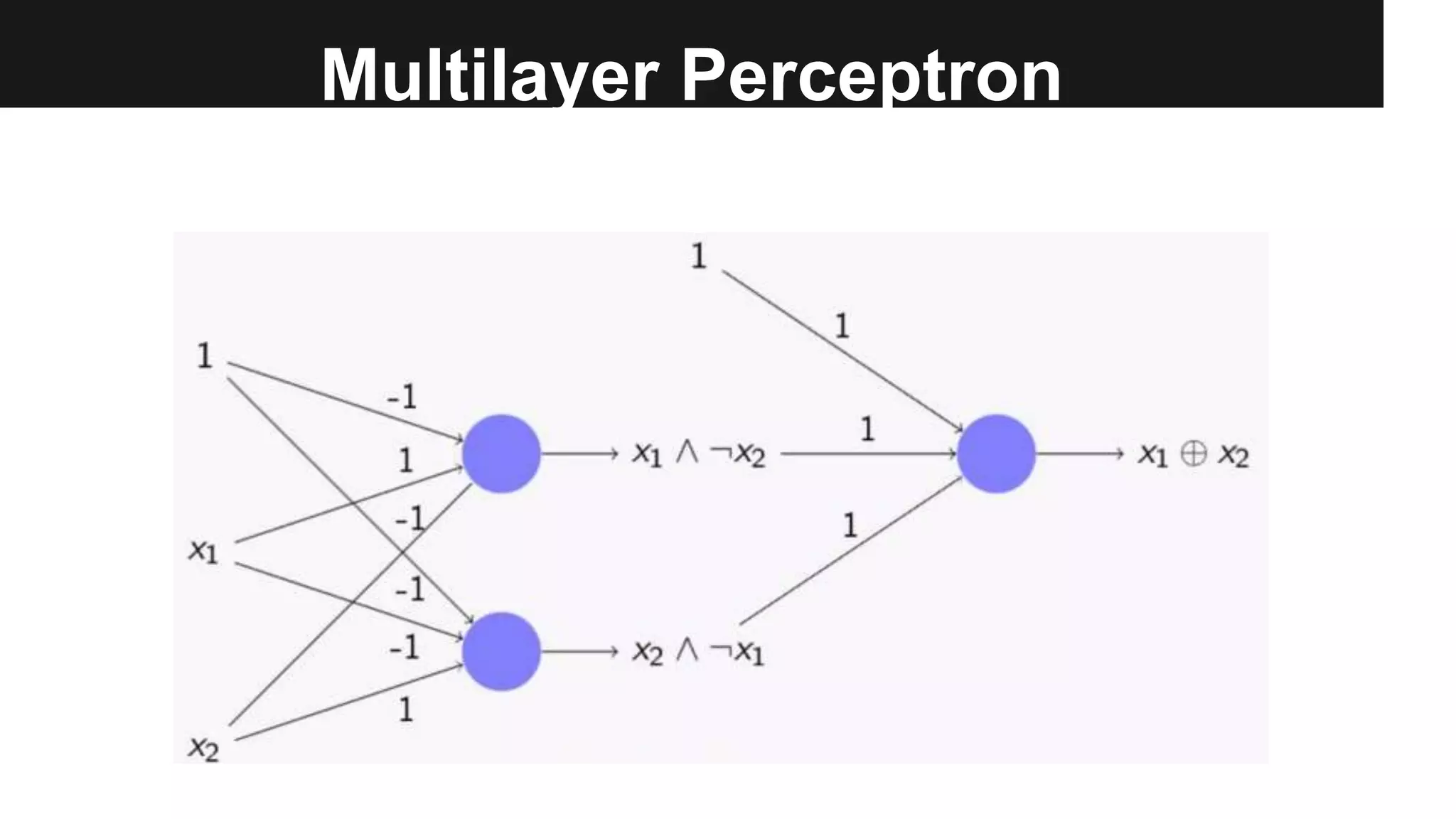

27. Multilayer Perceptron

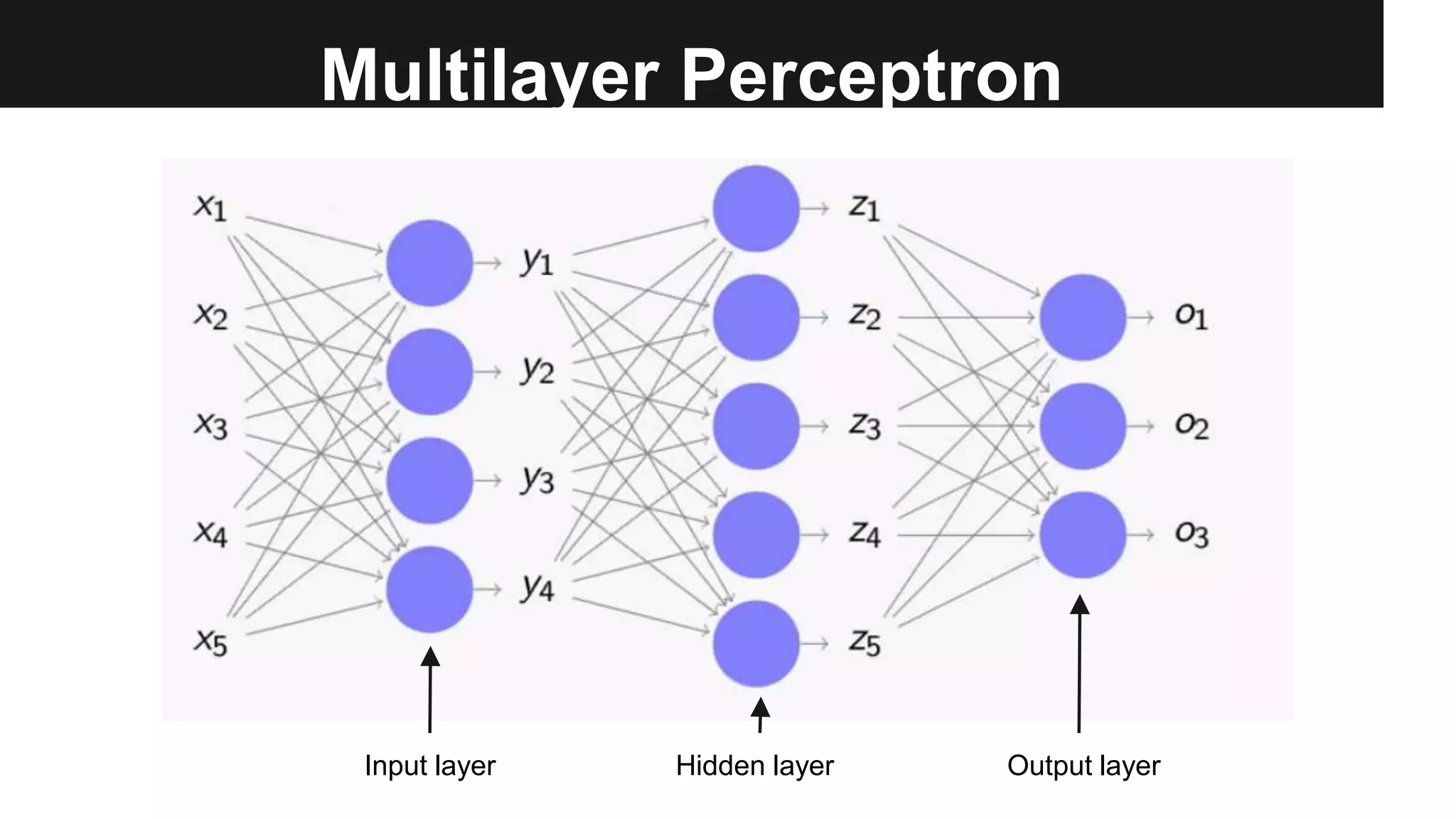

28. Multilayer Perceptron
Input layer Hidden layer Output layer

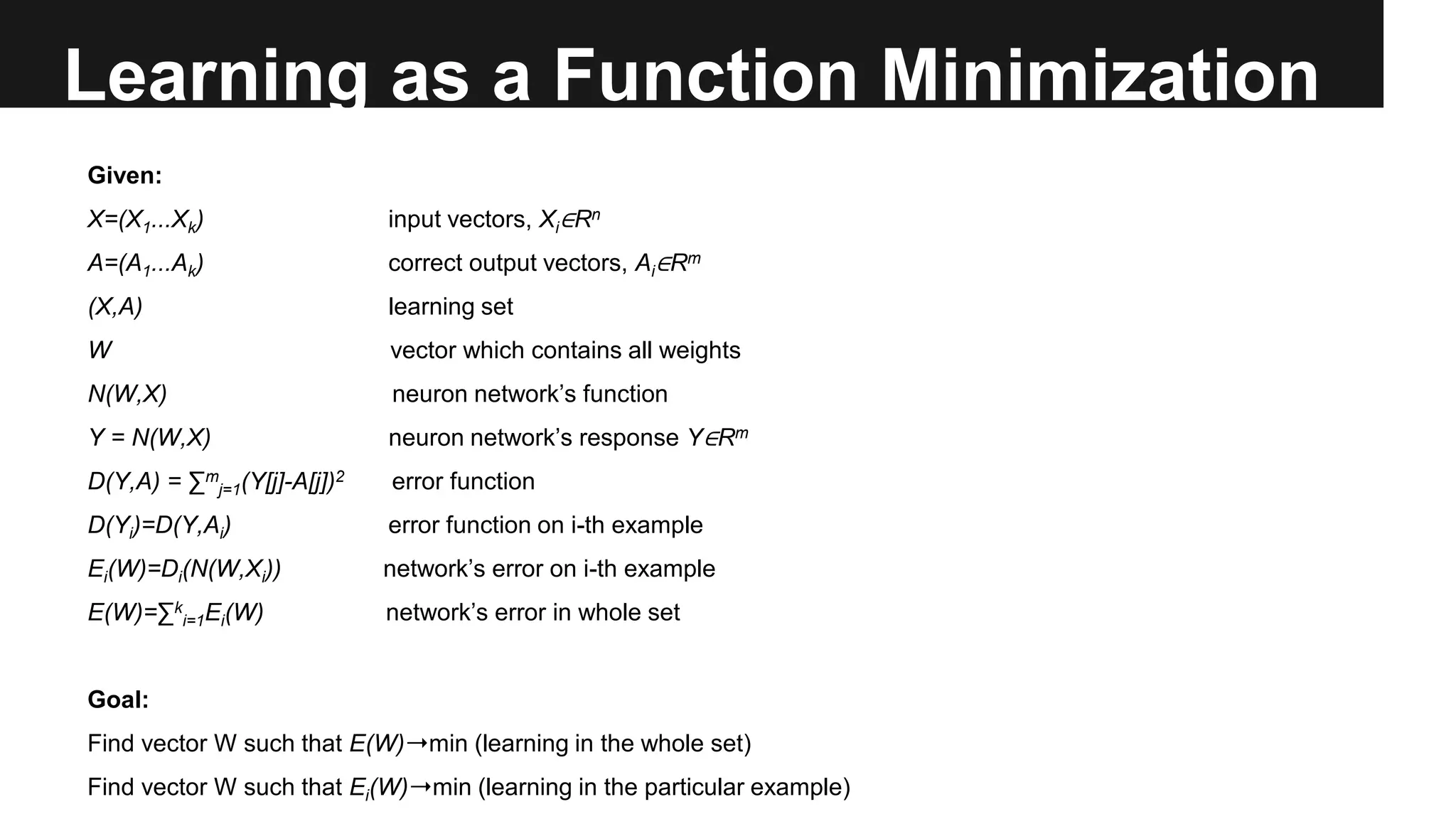

29. Learning as a Function Minimization
Given:
X=(X1...Xk) input vectors, Xi∈Rn
A=(A1...Ak) correct output vectors, Ai∈Rm
(X,A) learning set
W vector which contains all weights
N(W,X) neuron network’s function
Y = N(W,X) neuron network’s response Y∈Rm
D(Y,A) = ∑m
j=1(Y[j]-A[j])2 error function
D(Yi)=D(Y,Ai) error function on i-th example
Ei(W)=Di(N(W,Xi)) network’s error on i-th example
E(W)=∑k
i=1Ei(W) network’s error in whole set
Goal:
Find vector W such that E(W)➝min (learning in the whole set)
Find vector W such that Ei(W)➝min (learning in the particular example)

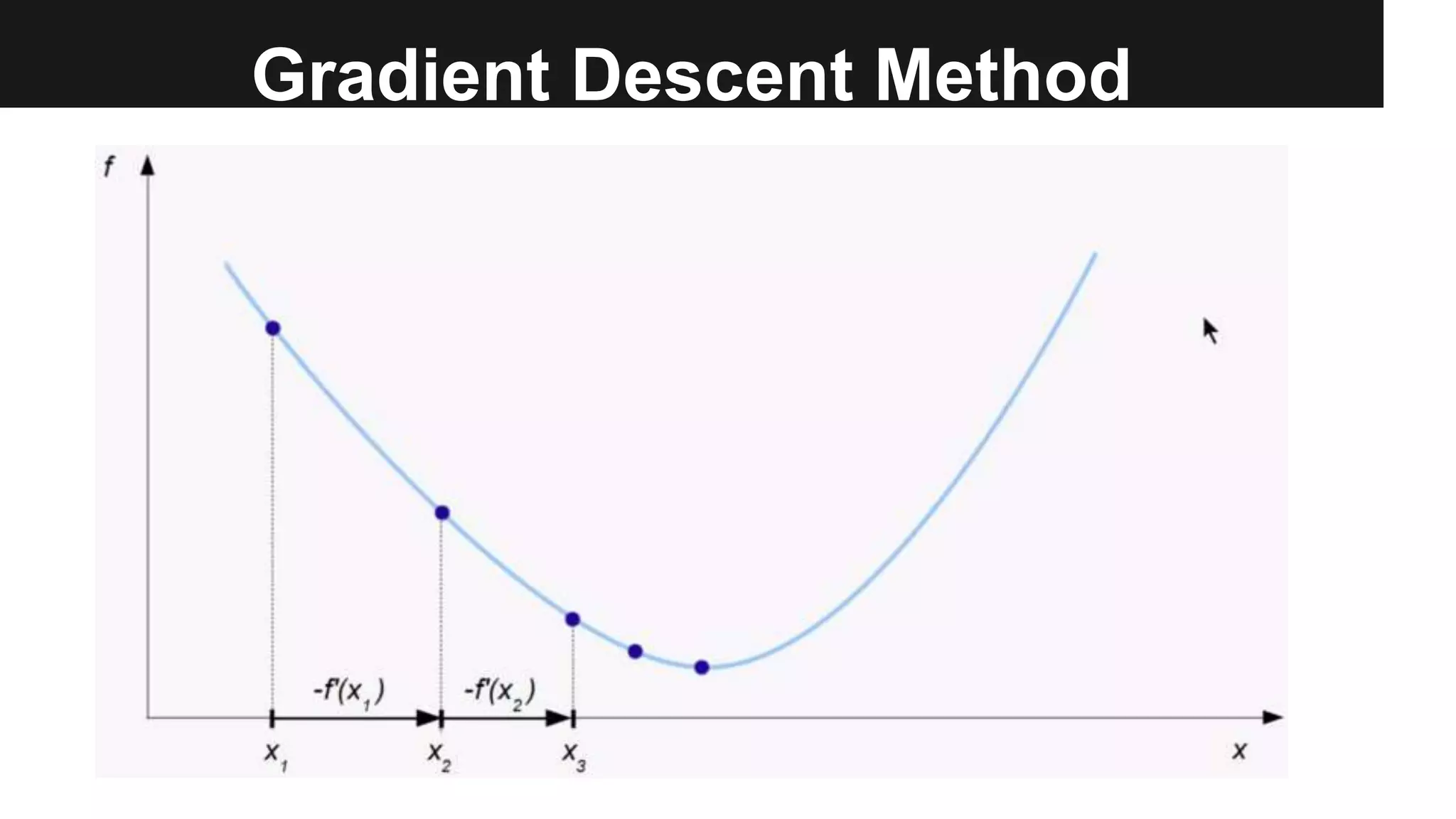

30. Gradient Descent Method

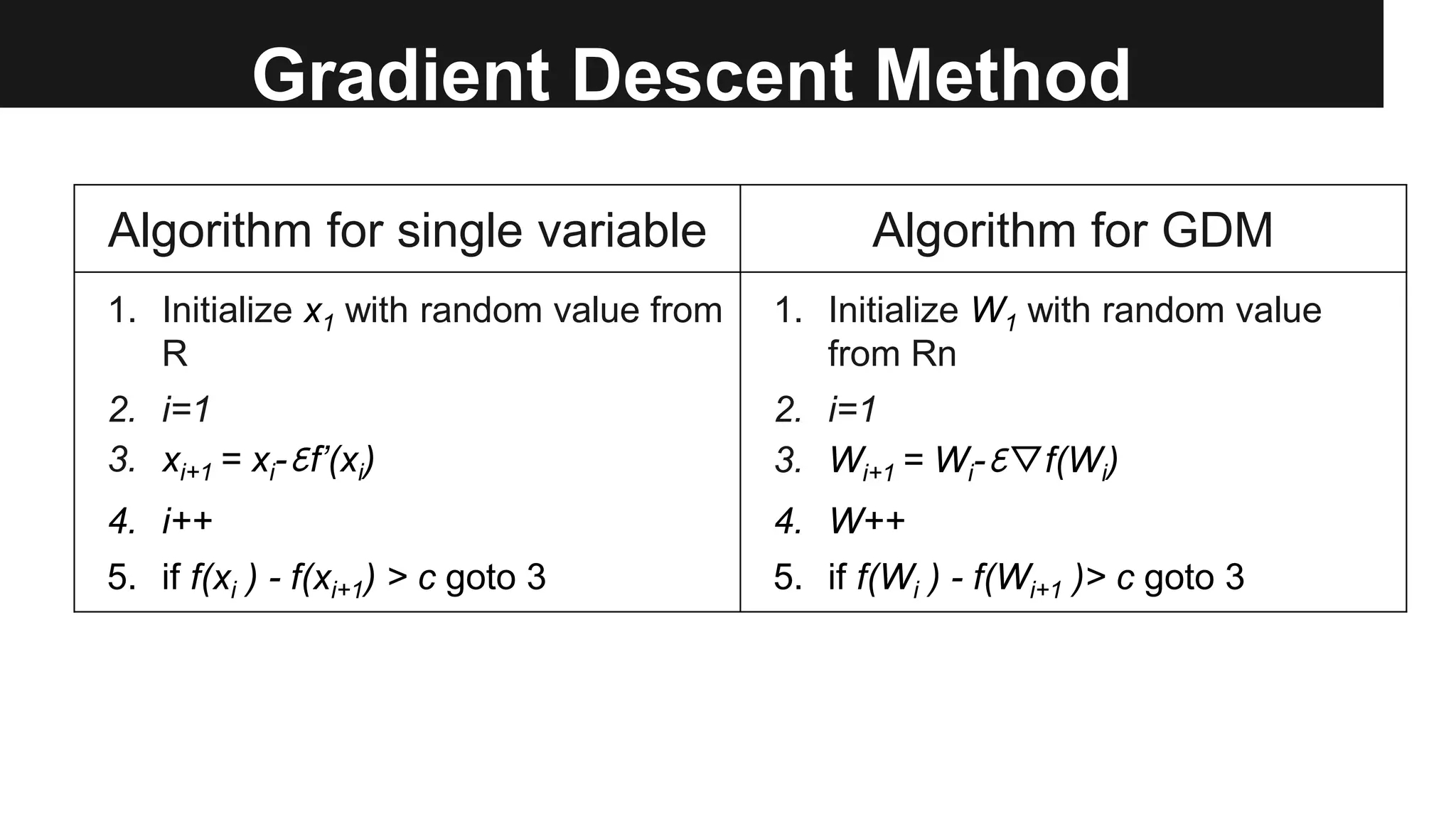

31. Gradient Descent Method
Algorithm for single variable Algorithm for GDM
1. Initialize x1 with random value from
R
2. i=1
3. xi+1 = xi-દf’(xi)
4. i++
5. if f(xi ) - f(xi+1) > c goto 3
1. Initialize W1 with random value
from Rn
2. i=1
3. Wi+1 = Wi-દ▽f(Wi)
4. W++
5. if f(Wi ) - f(Wi+1 )> c goto 3

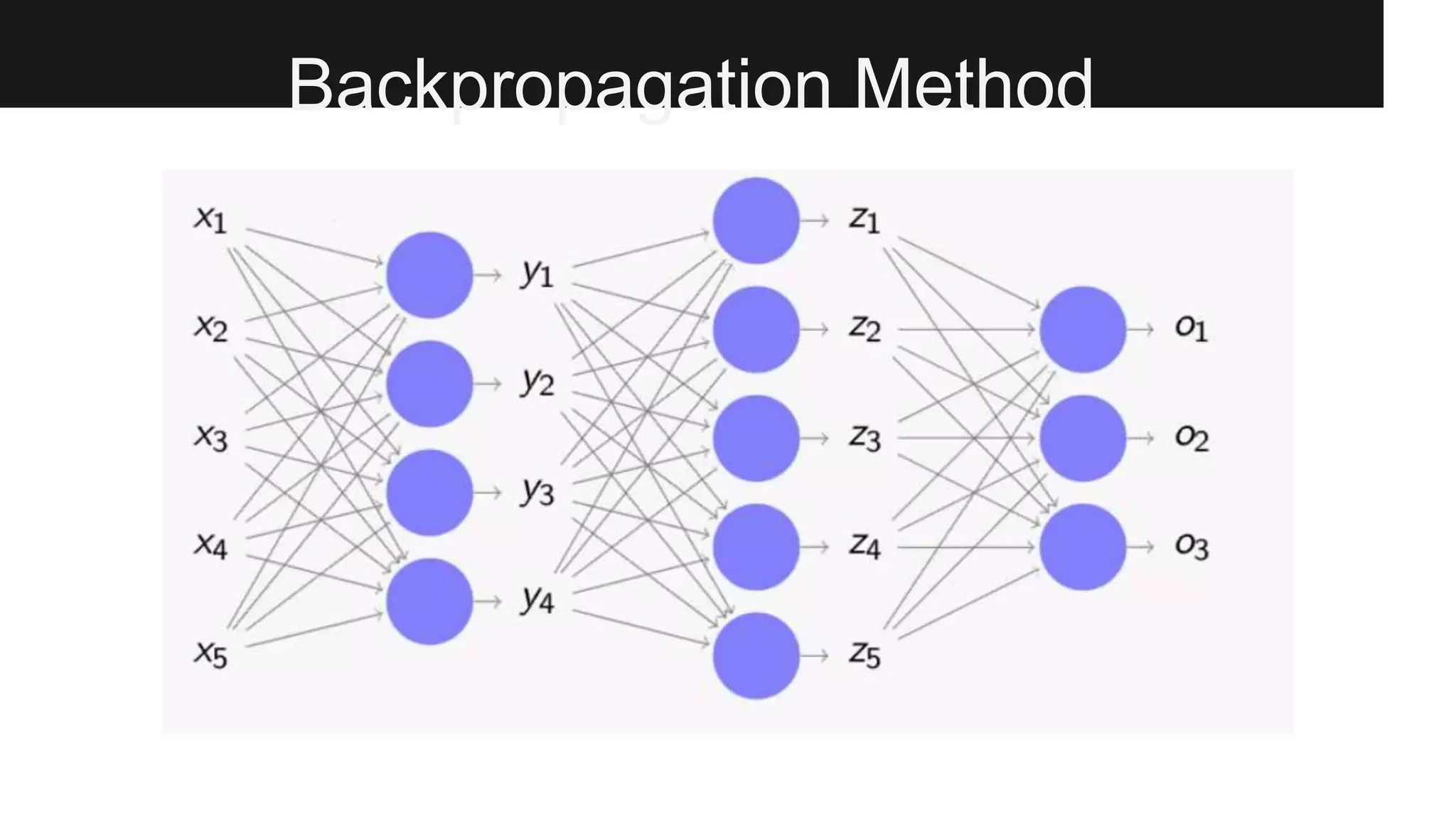

32. Backpropagation Method

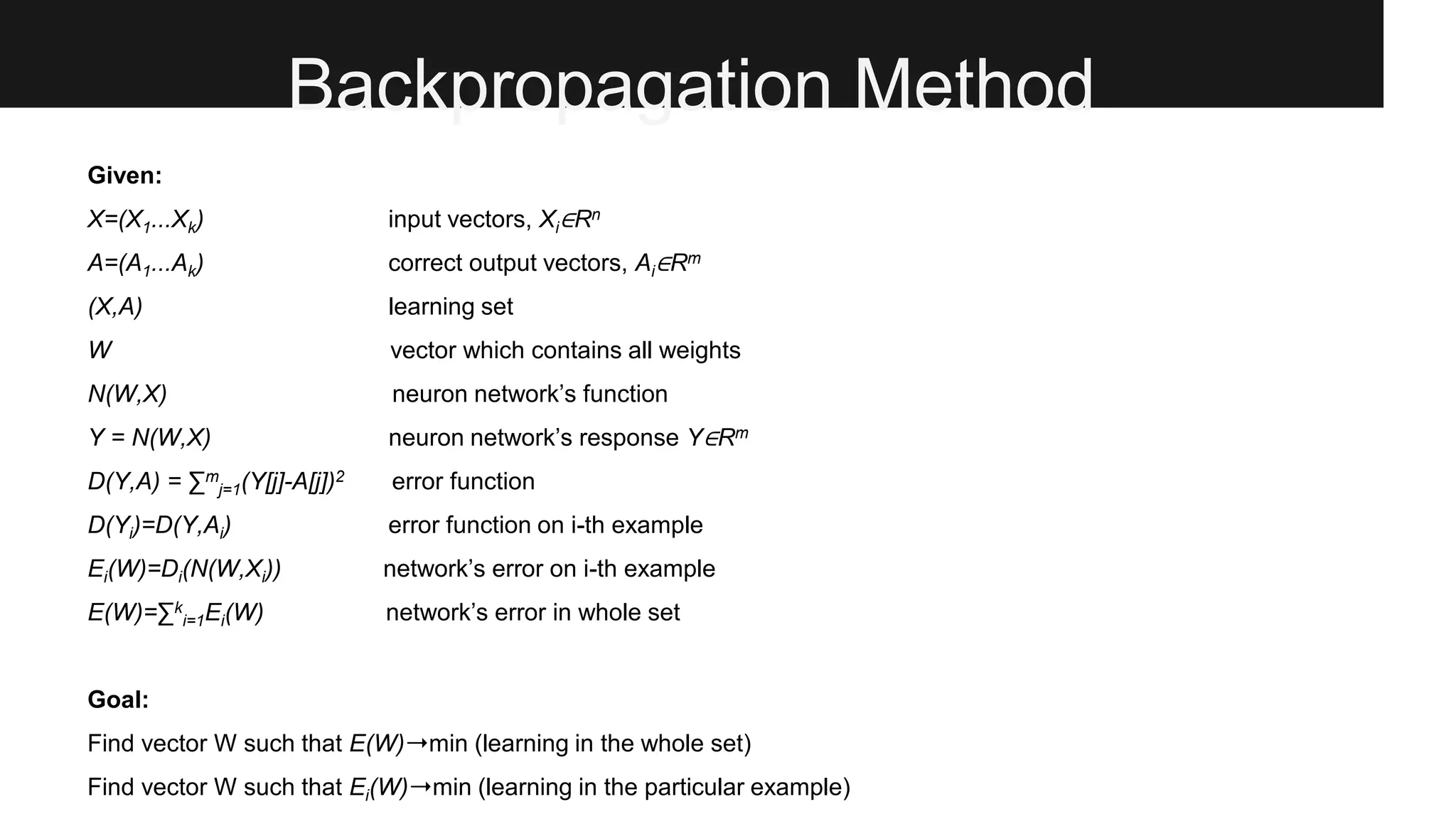

33. Backpropagation Method
Given:
X=(X1...Xk) input vectors, Xi∈Rn
A=(A1...Ak) correct output vectors, Ai∈Rm
(X,A) learning set
W vector which contains all weights
N(W,X) neuron network’s function
Y = N(W,X) neuron network’s response Y∈Rm
D(Y,A) = ∑m
j=1(Y[j]-A[j])2 error function
D(Yi)=D(Y,Ai) error function on i-th example
Ei(W)=Di(N(W,Xi)) network’s error on i-th example
E(W)=∑k
i=1Ei(W) network’s error in whole set
Goal:
Find vector W such that E(W)➝min (learning in the whole set)
Find vector W such that Ei(W)➝min (learning in the particular example)

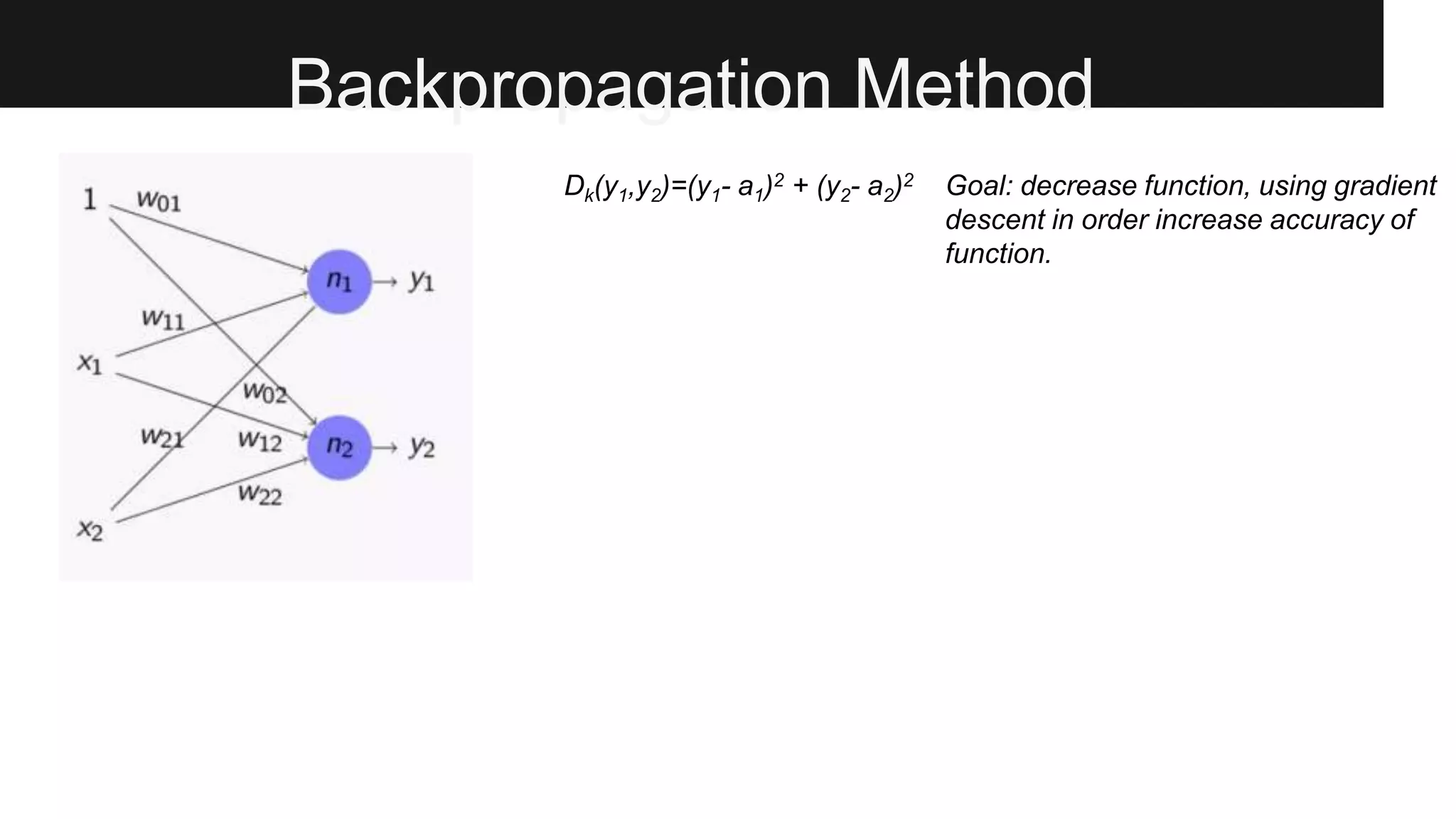

34. Backpropagation Method
Dk(y1,y2)=(y1- a1)2 + (y2- a2)2 Goal: decrease function, using gradient
descent in order increase accuracy of
function.

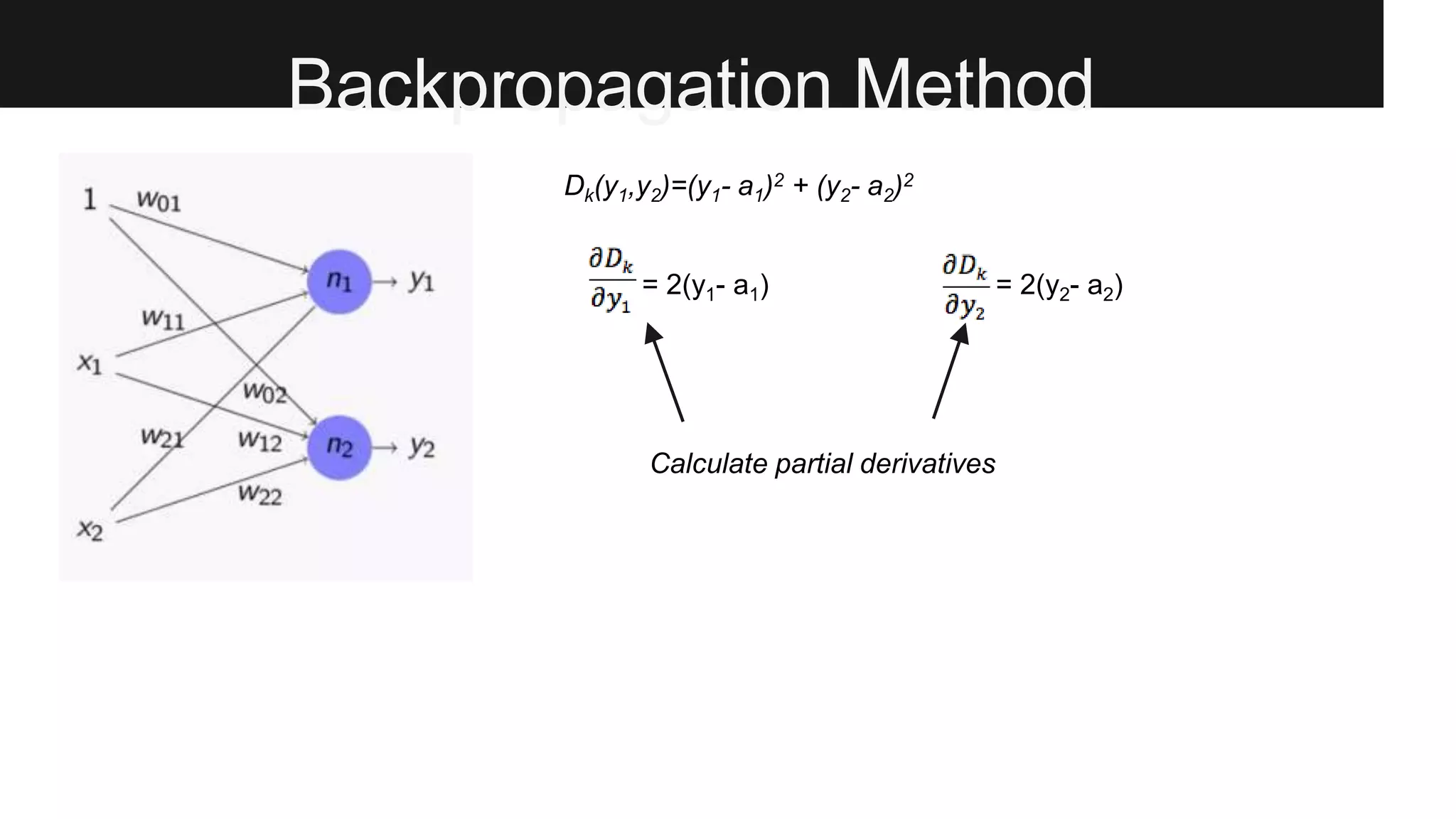

35. Backpropagation Method
Dk(y1,y2)=(y1- a1)2 + (y2- a2)2
= 2(y1- a1) = 2(y2- a2)
Calculate partial derivatives

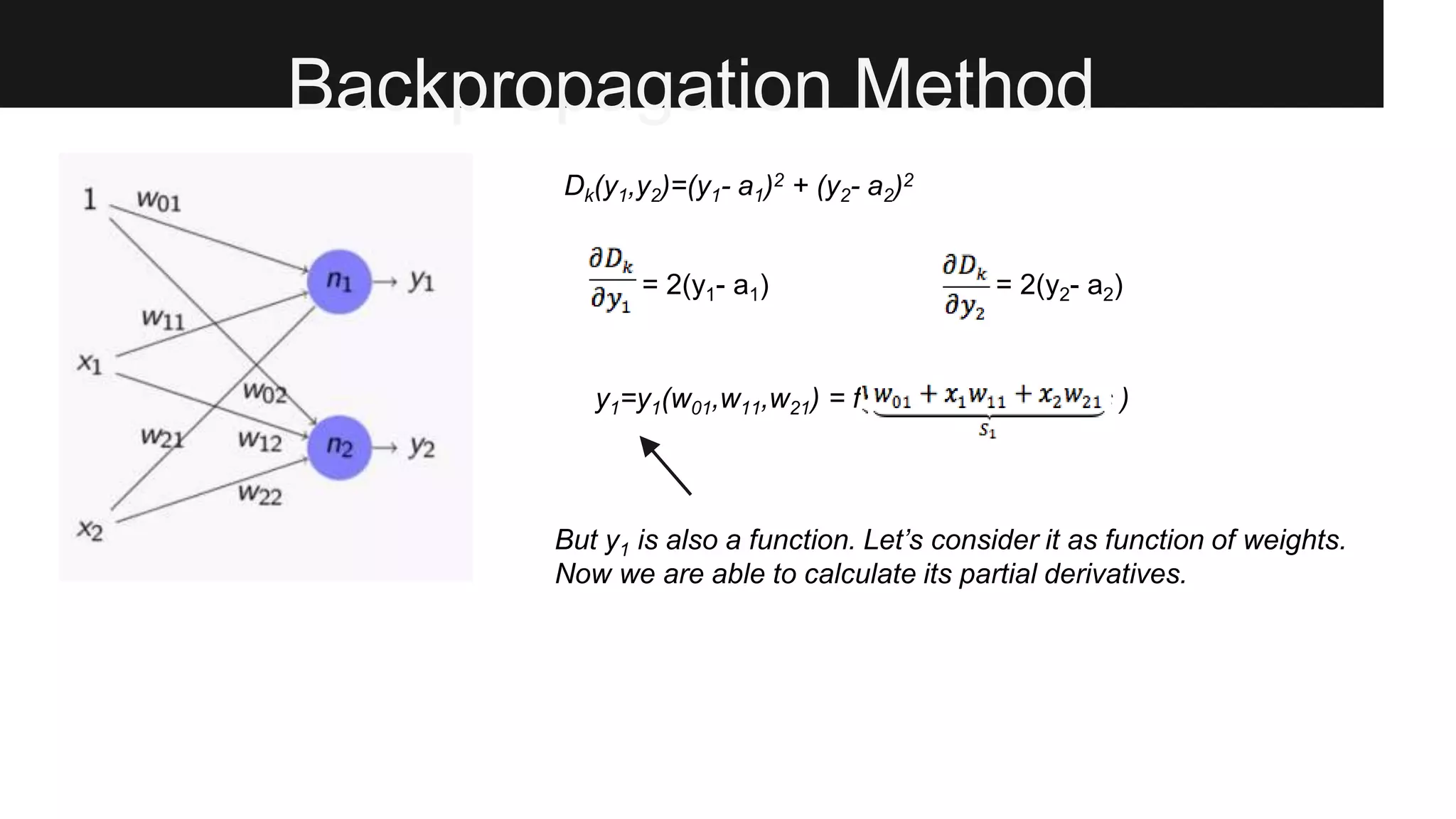

36. Backpropagation Method
Dk(y1,y2)=(y1- a1)2 + (y2- a2)2
= 2(y1- a1) = 2(y2- a2)
y1=y1(w01,w11,w21) = f( sssssssssss )
But y1 is also a function. Let’s consider it as function of weights.
Now we are able to calculate its partial derivatives.

37. Backpropagation Method
Dk(y1,y2)=(y1- a1)2 + (y2- a2)2
= 2(y1- a1) = 2(y1- a1)
y1=y1(w01,w11,w21) = f( ssssssssss )
= f’(S1) x2
= 2(y1- a1) = 2(y2- a2)
For example

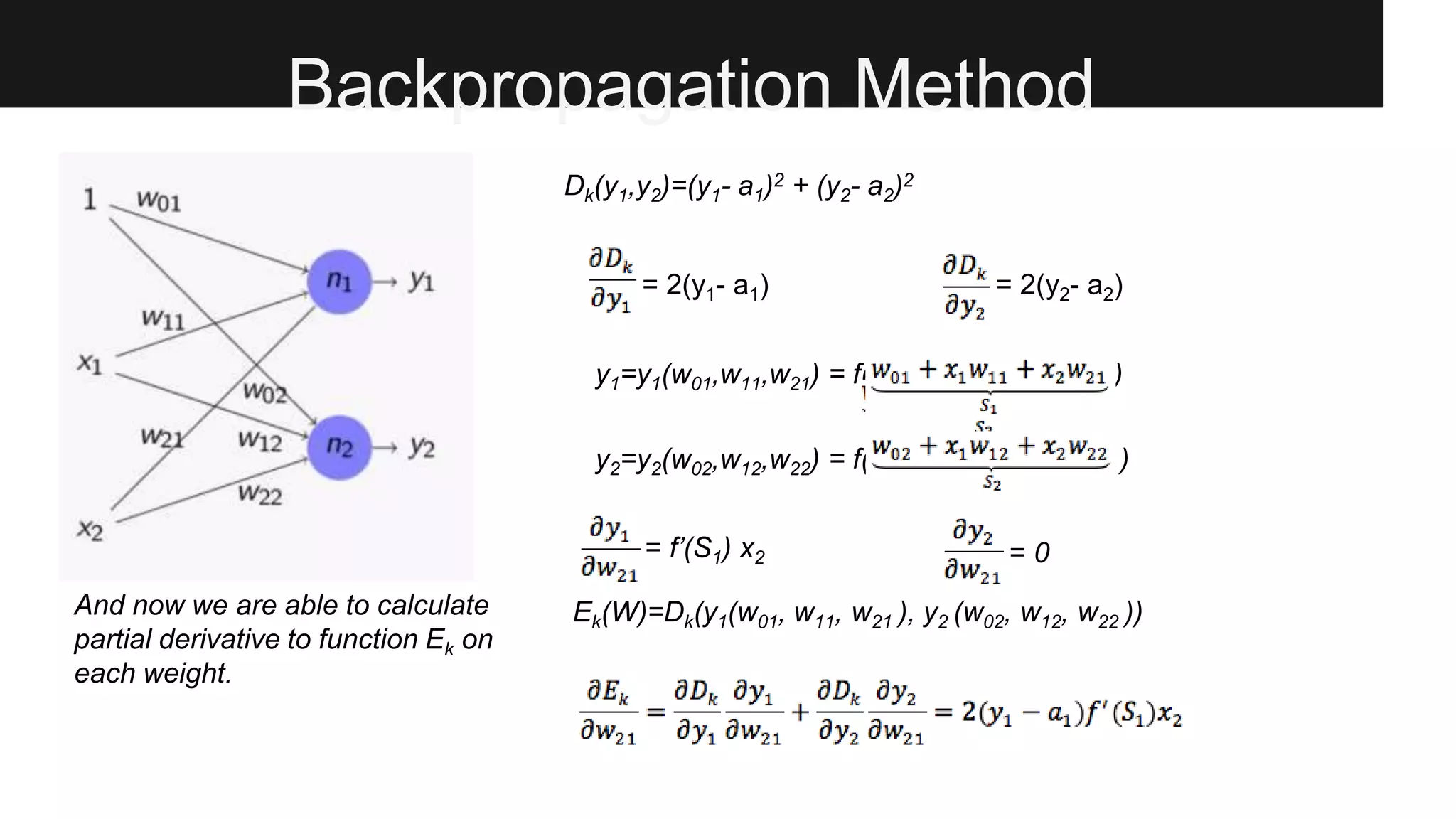

38. Backpropagation Method
Dk(y1,y2)=(y1- a1)2 + (y2- a2)2
= 2(y1- a1) = 2(y2- a2)
y1=y1(w01,w11,w21) = f( ssssssssss )
= f’(S1) x2 = 0
Ek(W)=Dk(y1(w01, w11, w21 ), y2 (w02, w12, w22 ))
y2=y2(w02,w12,w22) = f( sssssssssss )
And now we are able to calculate
partial derivative to function Ek on
each weight.

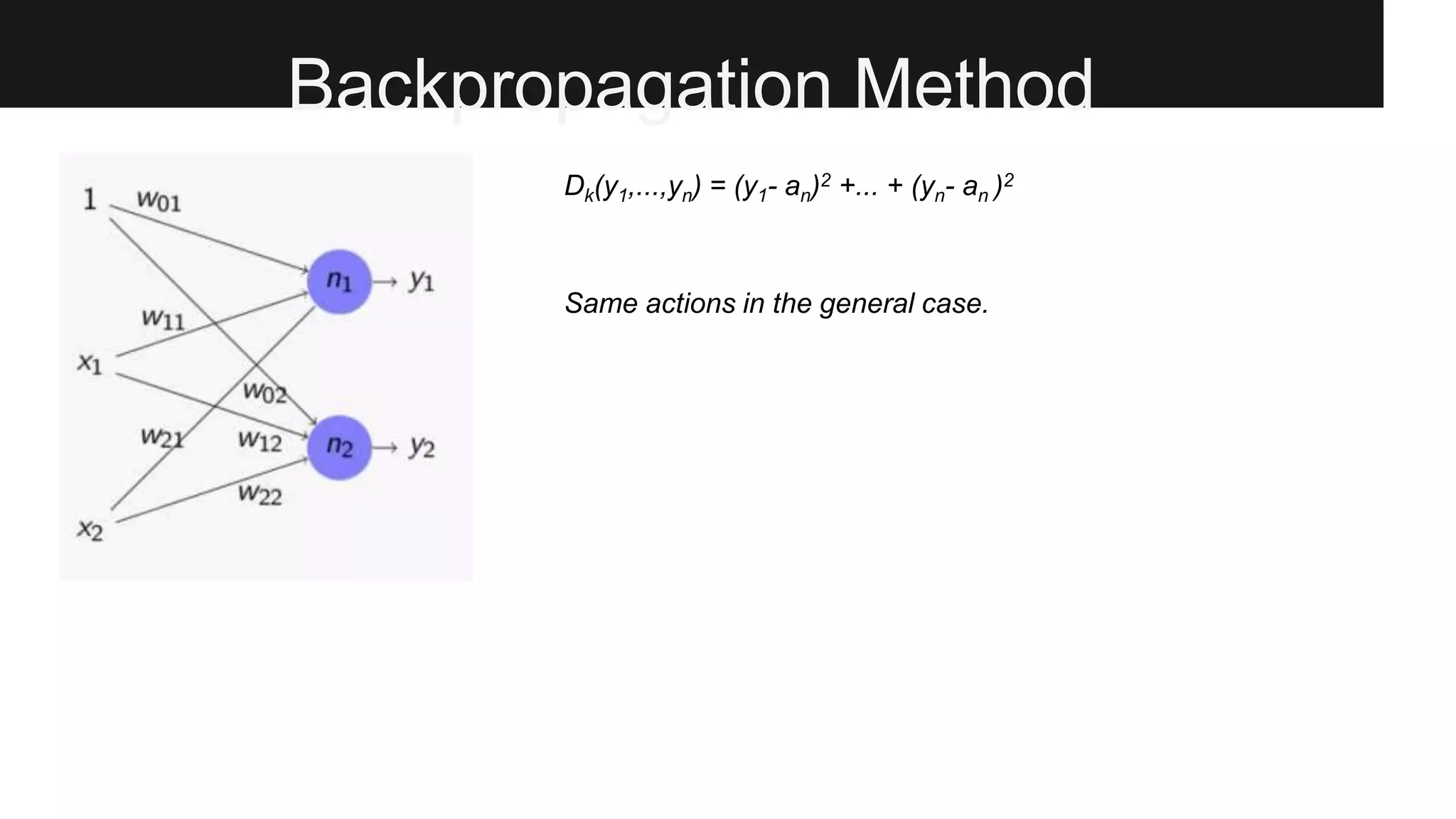

39. Backpropagation Method
Dk(y1,...,yn) = (y1- an)2 +... + (yn- an )2
Same actions in the general case.

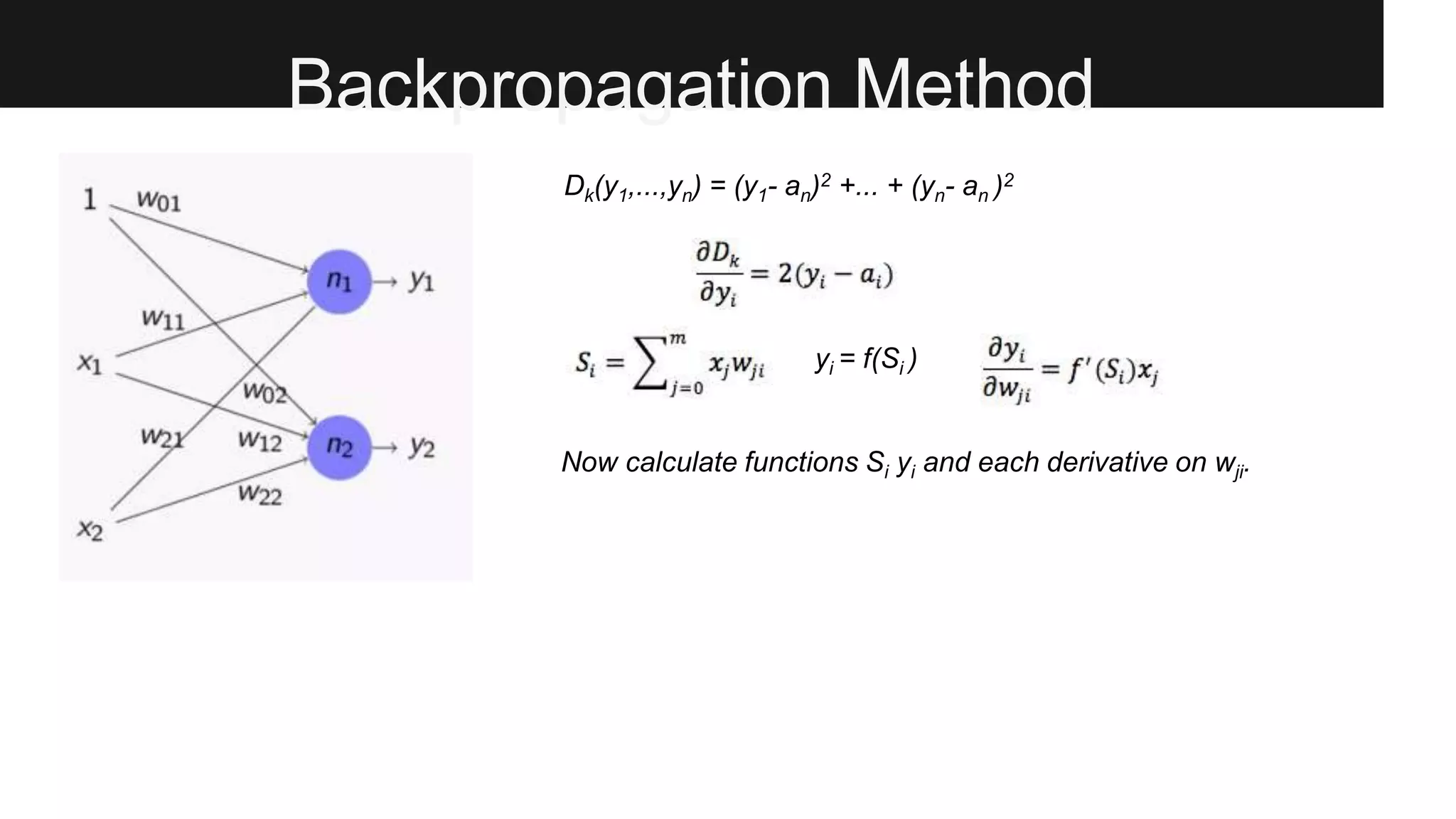

40. Backpropagation Method
Dk(y1,...,yn) = (y1- an)2 +... + (yn- an )2
yi = f(Si )
Now calculate functions Si yi and each derivative on wji.

41. Backpropagation Method
Dk(y1,...,yn) = (y1- an)2 +... + (yn- an )2
yi = f(Si )

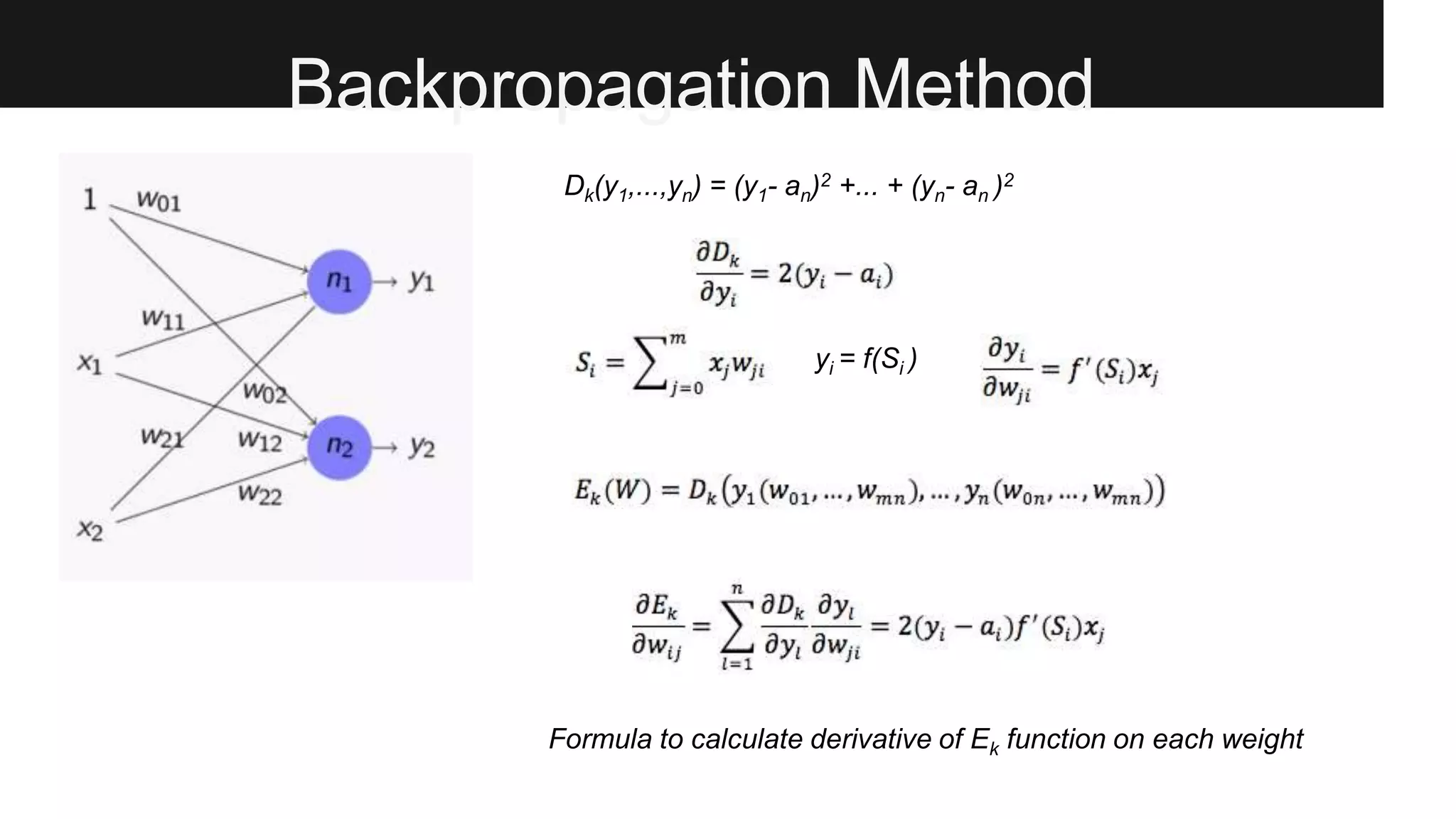

42. Backpropagation Method
Dk(y1,...,yn) = (y1- an)2 +... + (yn- an )2
yi = f(Si )
Formula to calculate derivative of Ek function on each weight

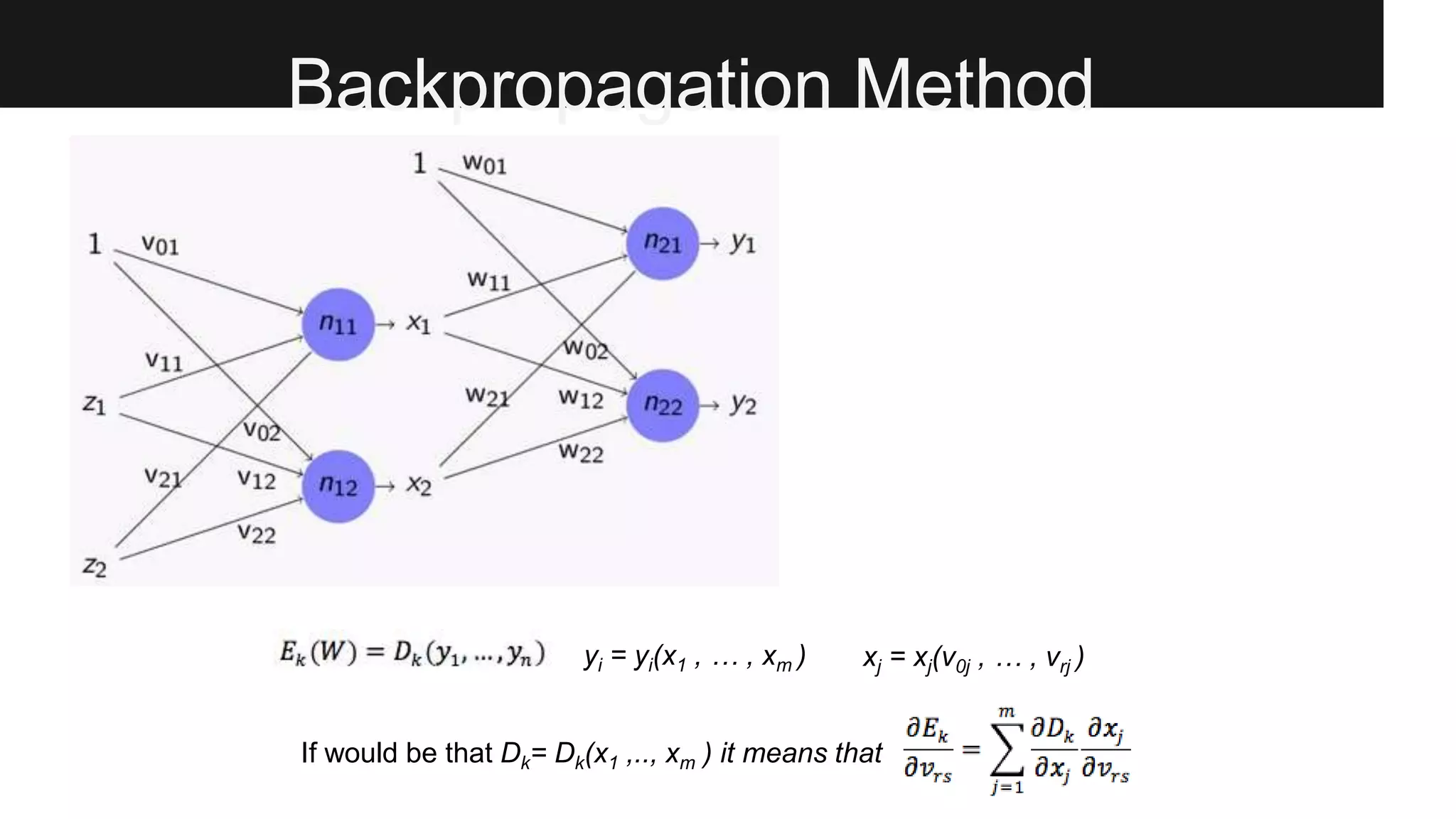

43. Backpropagation Method
yi = yi(x1 , … , xm ) xj = xj(v0j , … , vrj )
If would be that Dk= Dk(x1 ,.., xm ) it means that

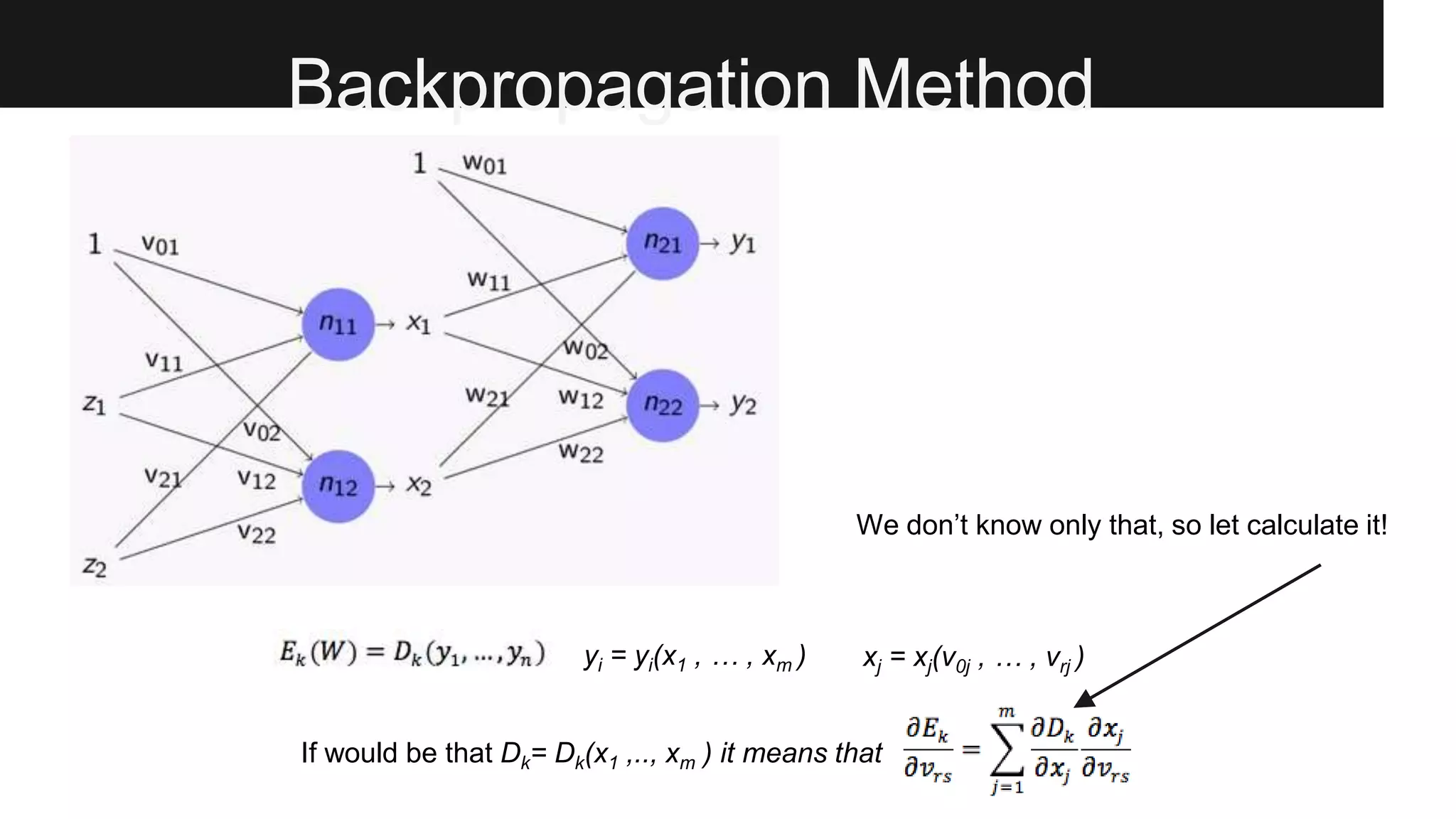

44. Backpropagation Method
yi = yi(x1 , … , xm ) xj = xj(v0j , … , vrj )
If would be that Dk= Dk(x1 ,.., xm ) it means that
We don’t know only that, so let calculate it!

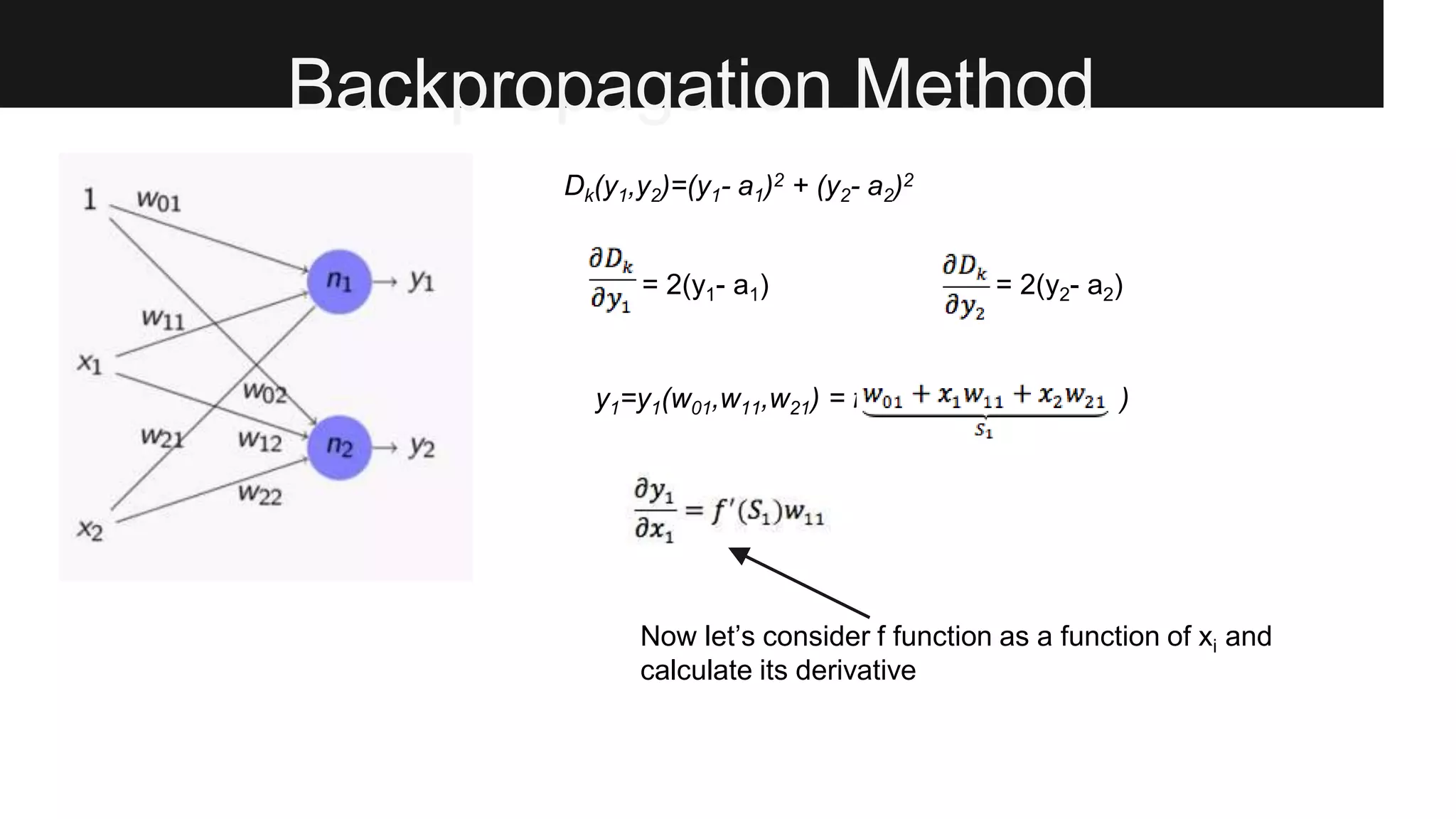

45. Backpropagation Method
Dk(y1,y2)=(y1- a1)2 + (y2- a2)2
= 2(y1- a1) = 2(y2- a2)
y1=y1(w01,w11,w21) = f( sssssssssss )
Now let’s consider f function as a function of xi and
calculate its derivative

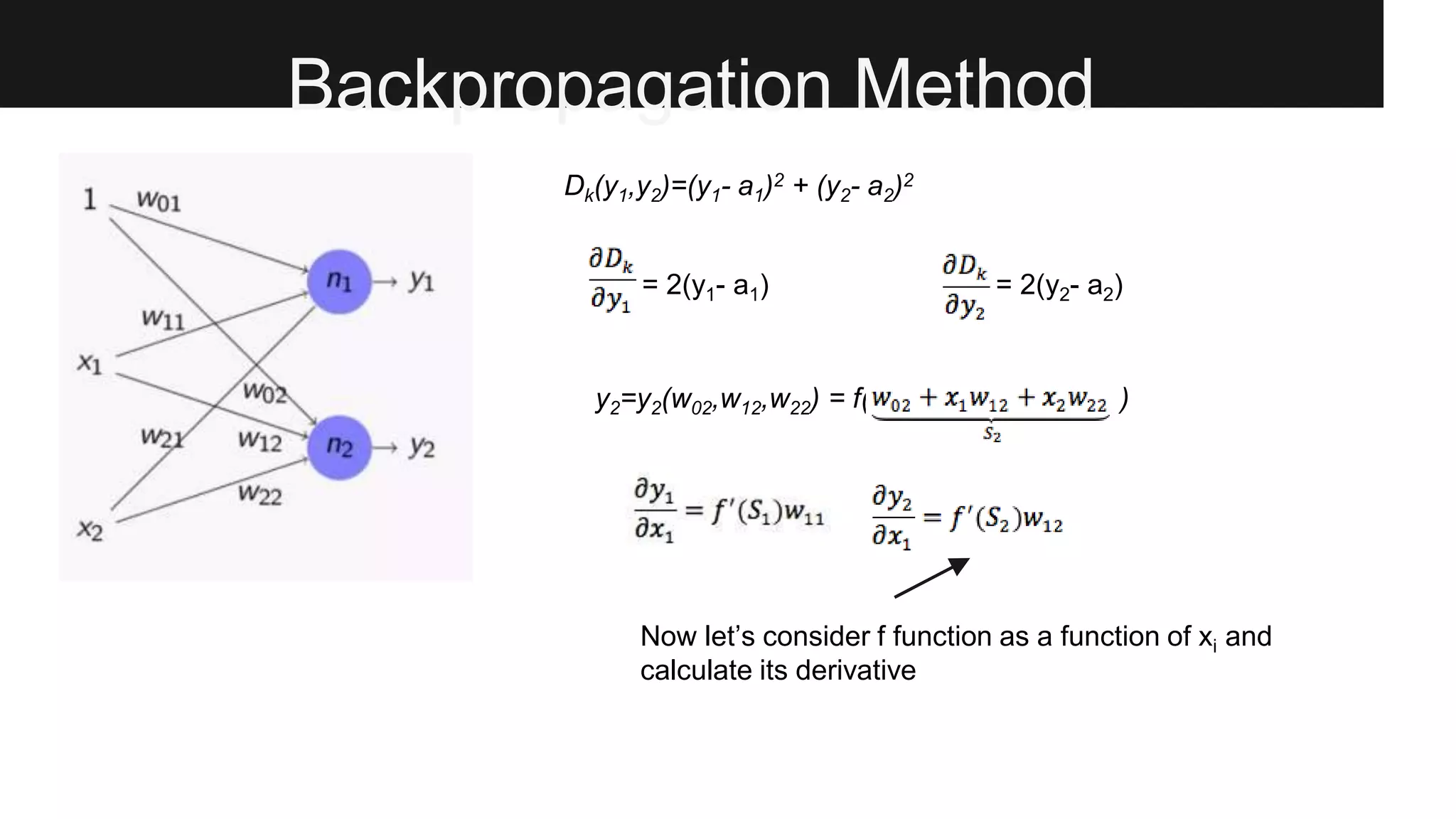

46. Backpropagation Method
Dk(y1,y2)=(y1- a1)2 + (y2- a2)2
= 2(y1- a1) = 2(y2- a2)
y2=y2(w02,w12,w22) = f( sssssssssss )
Now let’s consider f function as a function of xi and
calculate its derivative

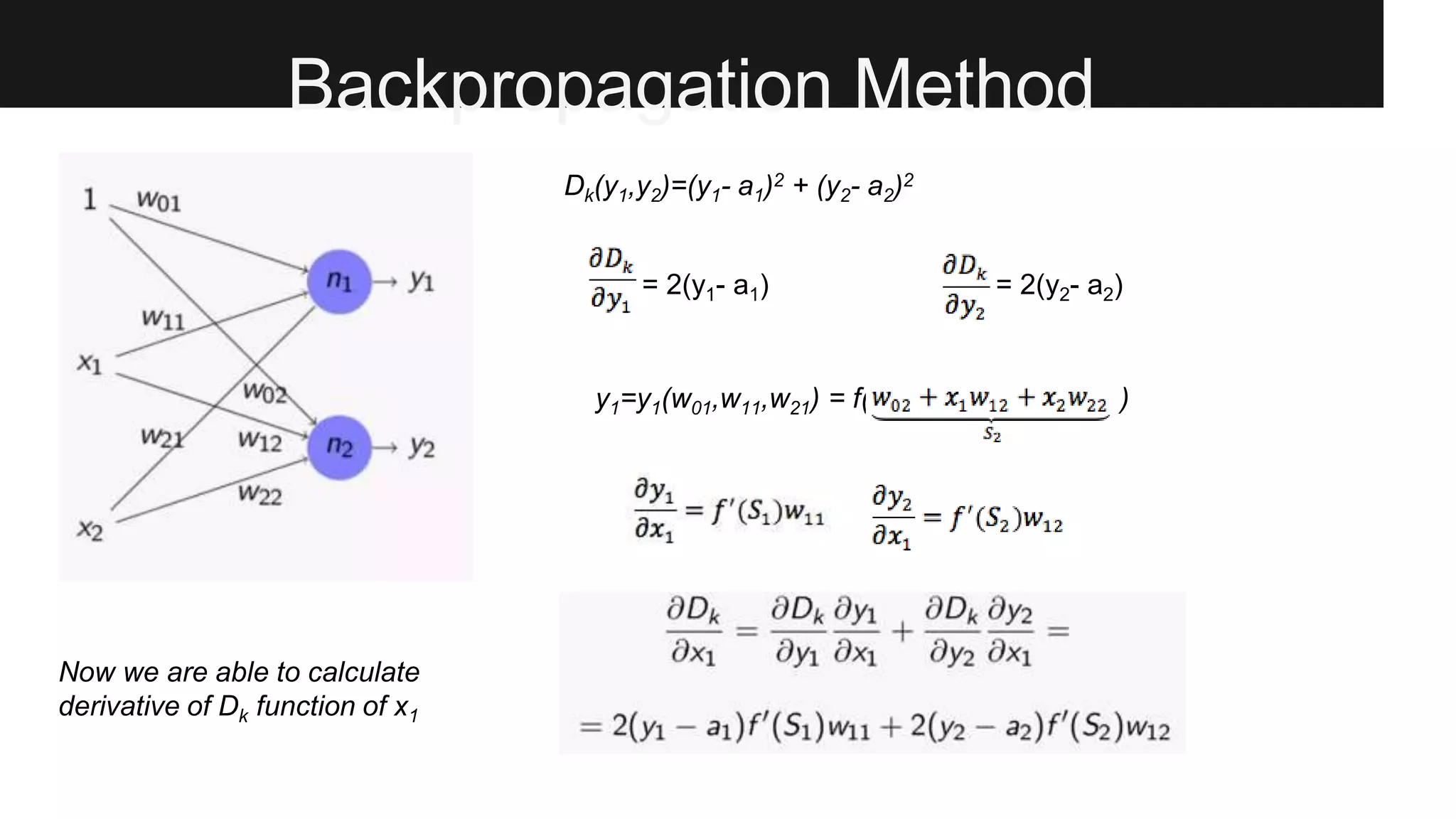

47. Backpropagation Method
Dk(y1,y2)=(y1- a1)2 + (y2- a2)2
= 2(y1- a1) = 2(y2- a2)
y1=y1(w01,w11,w21) = f( sssssssssss )
Now we are able to calculate
derivative of Dk function of x1

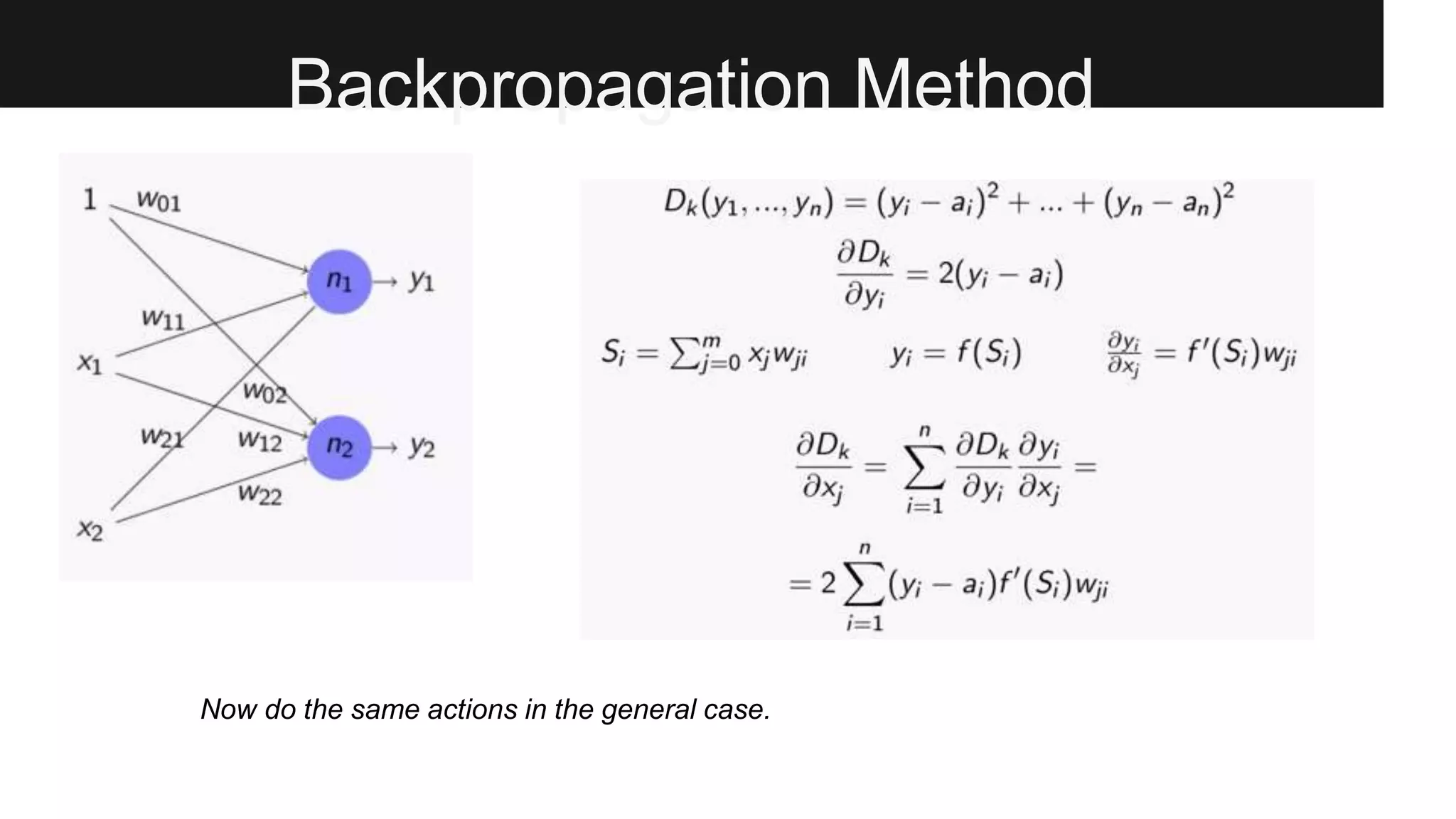

48. Backpropagation Method
Now do the same actions in the general case.

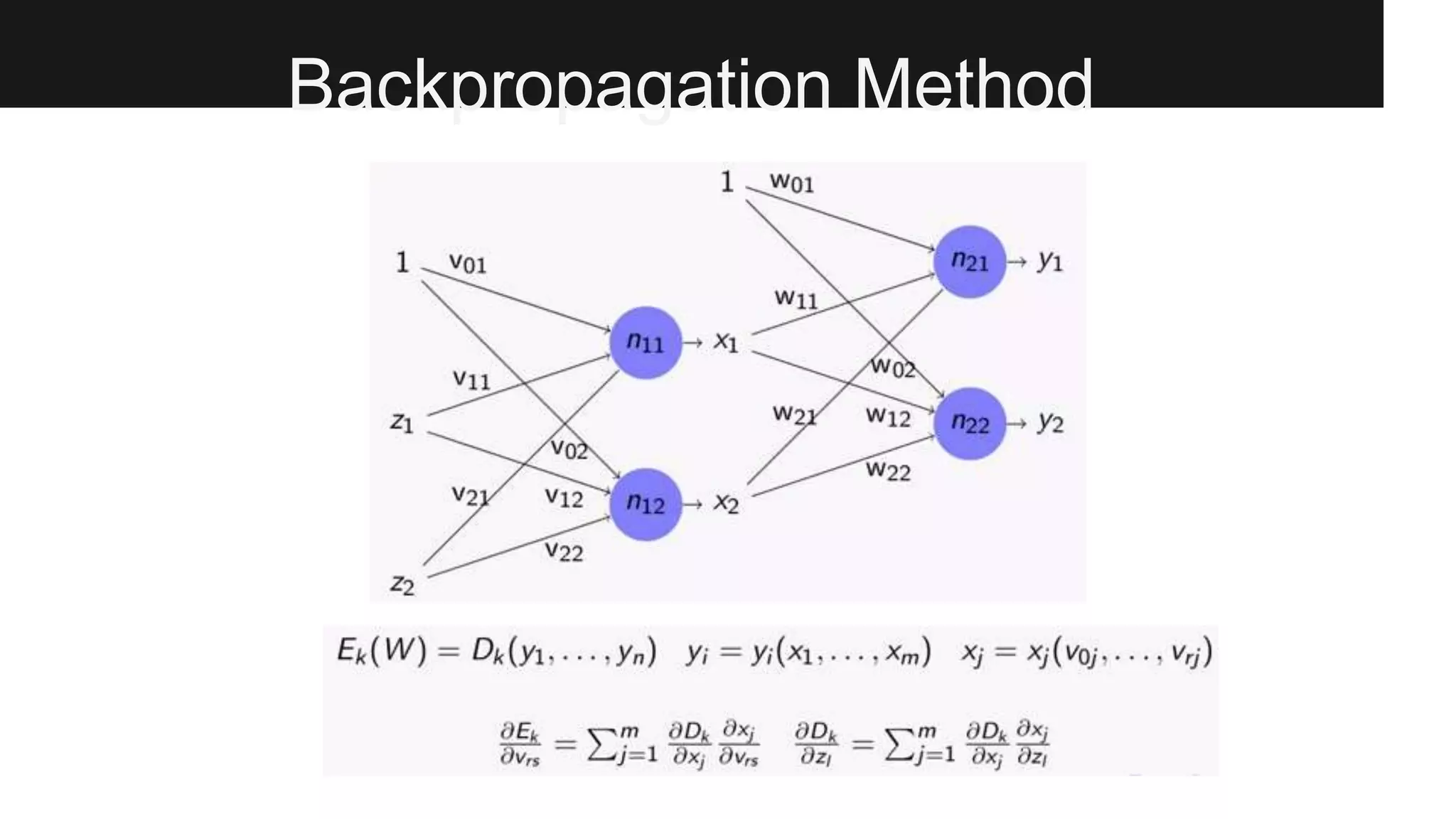

49. Backpropagation Method

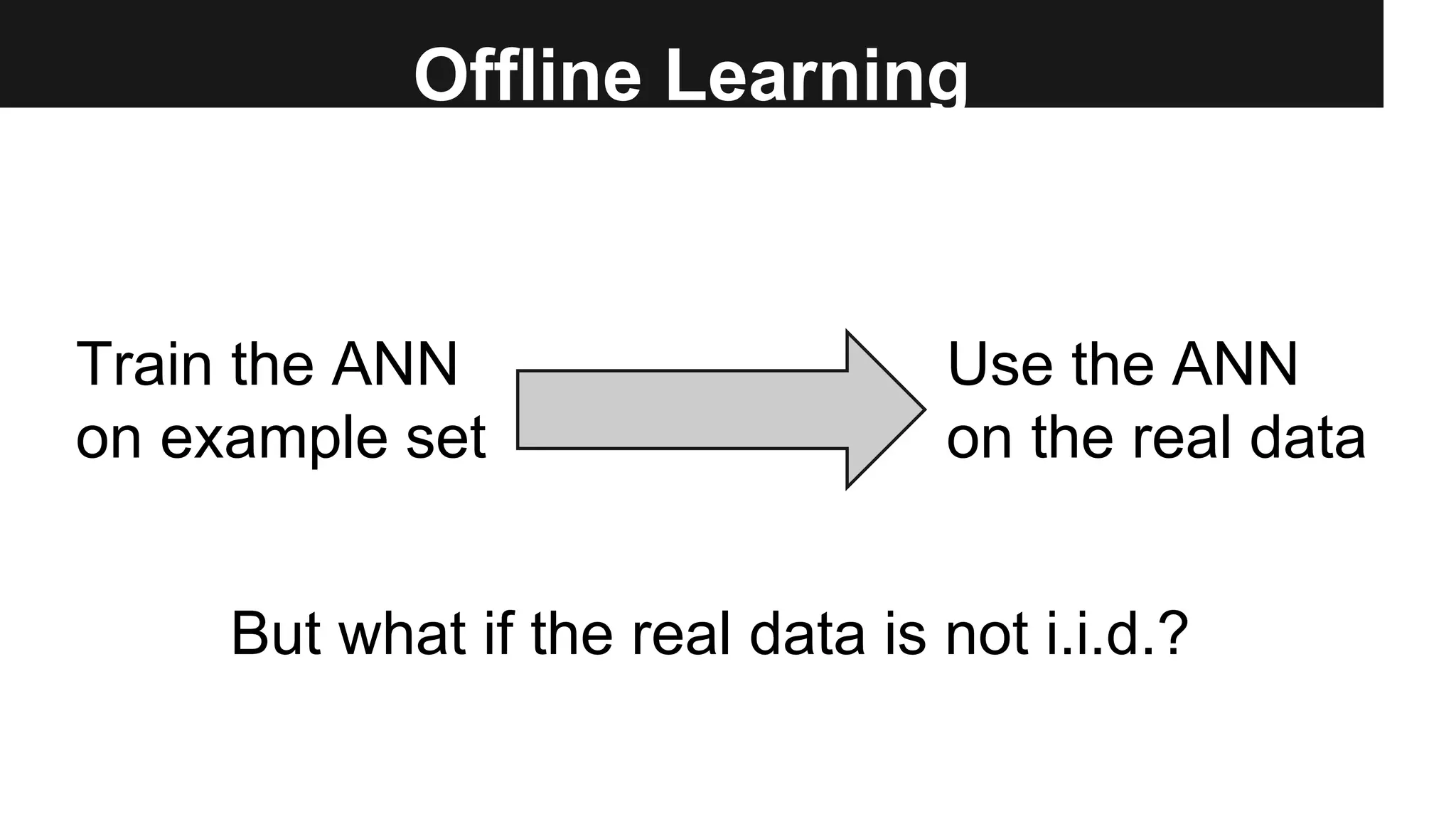

50. Offline Learning
Train the ANN
on example set
Use the ANN
on the real data
But what if the real data is not i.i.d.?

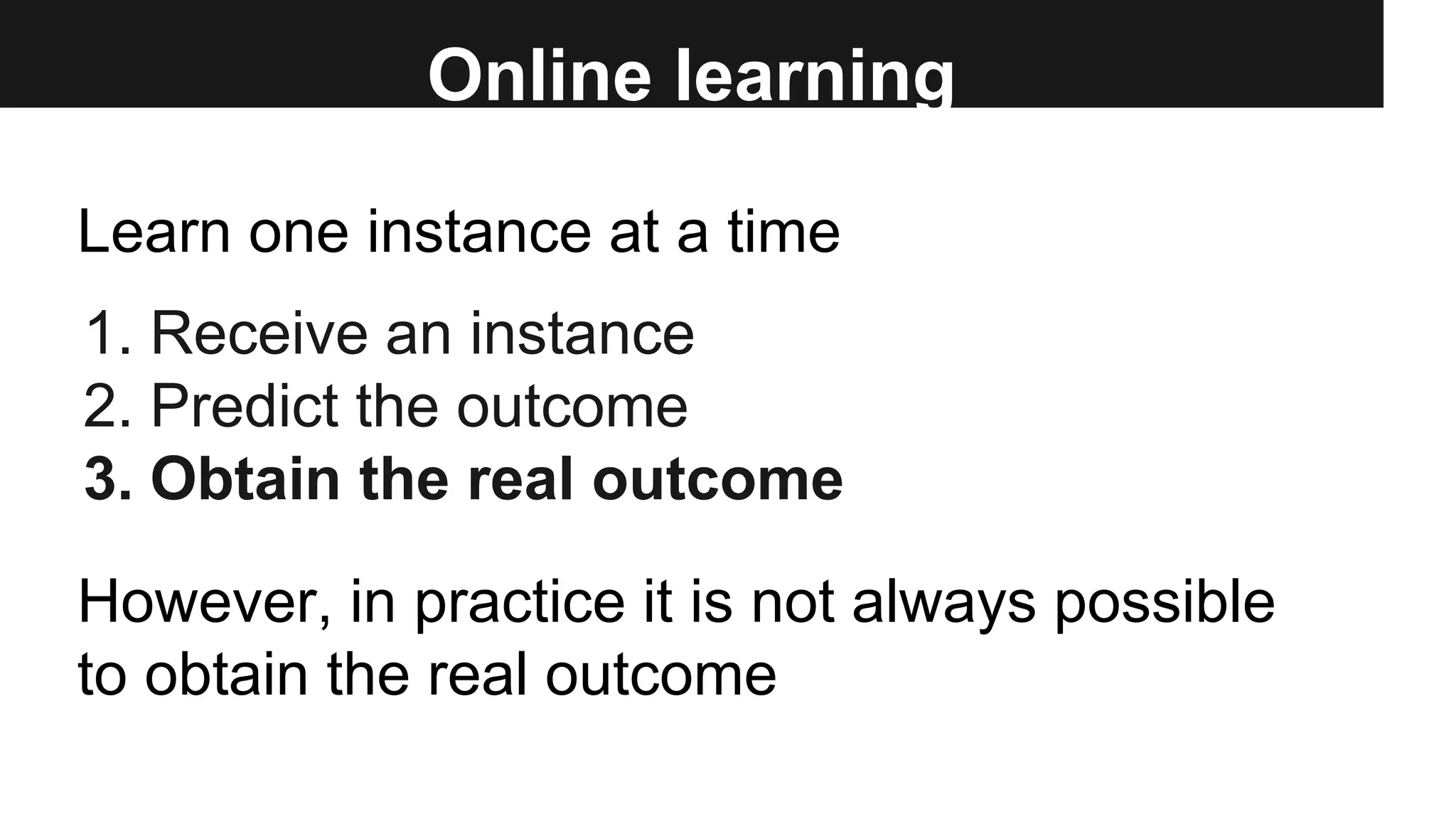

51. Online learning
1. Receive an instance
2. Predict the outcome
3. Obtain the real outcome
Learn one instance at a time
However, in practice it is not always possible
to obtain the real outcome

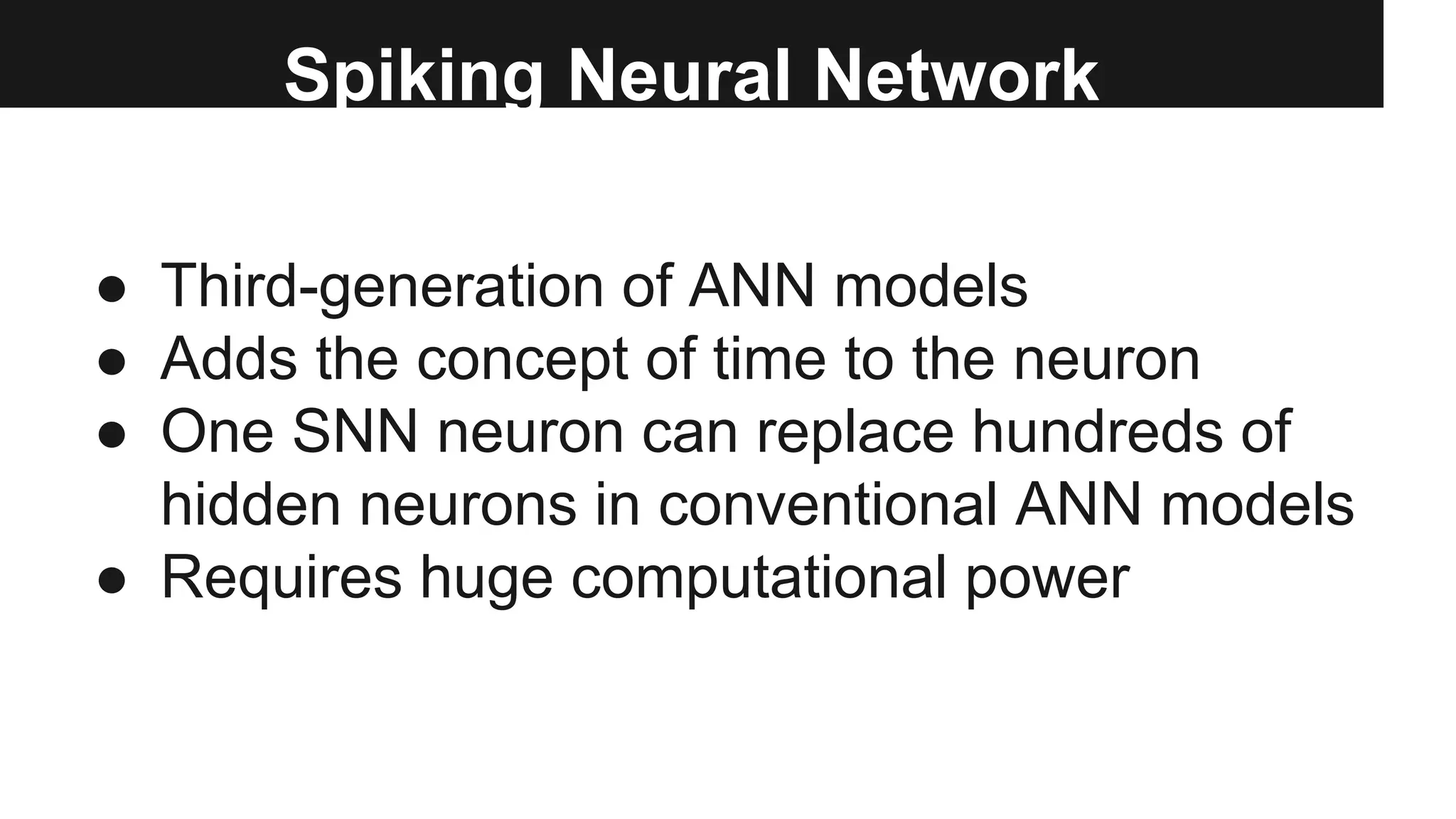

52. Spiking Neural Network
● Third-generation of ANN models
● Adds the concept of time to the neuron
● One SNN neuron can replace hundreds of
hidden neurons in conventional ANN models
● Requires huge computational power

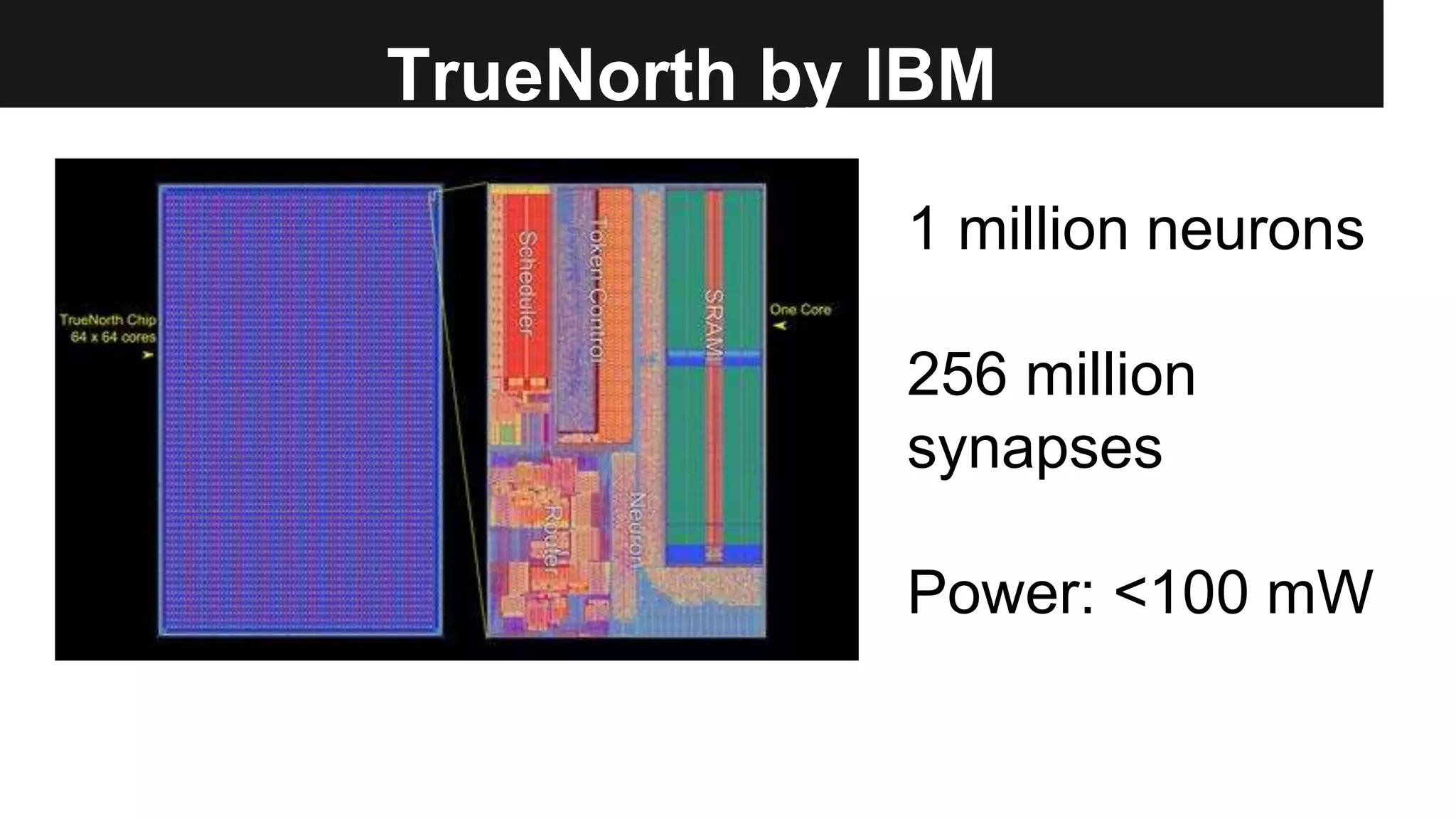

53. TrueNorth by IBM
1 million neurons
256 million
synapses
Power: <100 mW
