1. The following is intended to outline our general
product direction. It is intended for information
purposes only, and may not be incorporated into any
contract. It is not a commitment to deliver any
material, code, or functionality, and should not be
relied upon in making purchasing decisions.
The development, release, and timing of any
features or functionality described for Oracle’s
products remains at the sole discretion of Oracle.
1

2. Oracle Exalogic Elastic Cloud
Fran Navarro
Oracle Sales Specialist

3. Typical Platform TCO Breakdown
Standardization and Consolidation
• Server, storage, network,
application administration
• Facilities management
• 3rd party consulting and services
• In-house R&D
• Test/QA
3

4. Designed, Optimized, Integrated to Work Together
Complete, High Performing Application-to-Storage Solutions
Engineered Systems
HIGHER
Oracle’s Optimized Solutions
Reference Configurations
EFFICIENCY
Compute, storage,
network, software
MANAGEABILITY& SIMPLICITY HIGHER
4

5. Fundamental Value of Engineered Systems
Easy, Predictable, Performance, Redundant
Storage Network
100’s of Components 1 Machine
1000’s of Hours 1 Day
5

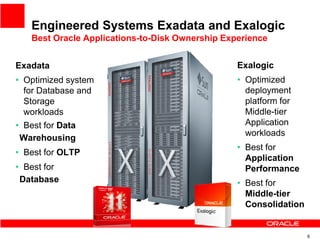

6. Engineered Systems Exadata and Exalogic
Best Oracle Applications-to-Disk Ownership Experience
Exadata Exalogic
• Optimized system • Optimized
for Database and deployment
Storage platform for
workloads Middle-tier
• Best for Data Application
workloads
Warehousing
• Best for
• Best for OLTP
Application
• Best for Performance
Database • Best for
Consolidation Middle-tier
Consolidation
6

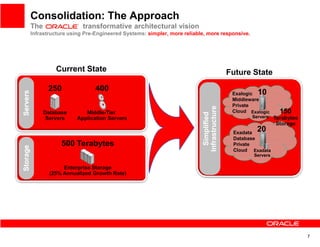

7. Consolidation: The Approach
The transformative architectural vision
Infrastructure using Pre-Engineered Systems: simpler, more reliable, more responsive.
Current State Future State
250 400 10
Servers
Exalogic
Middleware
Private
Infrastructure
Database Middle-Tier Cloud Exalogic 150
Simplified
Servers Application Servers Servers Terabytes
Storage
Exadata
20
Database
500 Terabytes Private
Storage
Cloud Exadata
Servers
Enterprise Storage
(25% Annualized Growth Rate)
7

8. End to End Patch Management
My Oracle Support
Application
WebLogic
JVM
OS
Exalogic X2-2
Hypervisor Full-stack tested
patch set
Firmware
• Full-stack patches tested together prior to delivery
• Enterprise Manager pro-actively monitors, alerts
and automates patch and upgrade procedures
8

9. Standardized and Easy to Manage
All Exalogic Machines are built the same
Delivered Tested and Ready-to-Run
All Exalogic Machines are configured the
same
No unique configuration issues
All Exalogic Machines are patched and
upgraded consistently
Firmware, OS, Java VM, Middleware patches
All Exalogic Machines “Phone Home”
Remote Telemetry alerts Oracle of problems
All Exalogic Machines are monitored and
managed from Applications to Disk
9

10. Use Case 1 Re-Platform: WebLogic 2 Exalogic
+ Performance
Reliability
Integration
Business Need: Reduce Cost & Complexity to meet SLAs
Oracle Value: Mainframe QoS, Xtreme Speed, low TCO
Targets: WebLogic Apps, Enterprise Java Apps
Unleashing the Power of Oracle Technology 10

11. Use Case 2 Datacenter Consolidation
Custom
App
IBM
Consolidation
Exalogic Elastic Cloud
Exalogic X2-2
Business Need: Cost Savings, Simplification
Oracle Value: 50%+ less Cost, faster Time to Value
Targets: Generic Datacenter
Unleashing the Power of Oracle Technology 11

12. Use Case 3 ExaCloud: Own The Private Cloud
Fusion Applications
3rd Party
Applications
Business Need: Transformation to IT-As-A-Service
Oracle Value: Pre-built, low-TCO “Private Cloud in a Box”
Targets: Enterprises with Cloud Initiatives
Unleashing the Power of Oracle Technology 12

13. Oracle Engineered Systems
Foundation for Application and Database Grids
Exadata Exalogic
Components Components
• Up to 8 DB and • Up to 30 server
14 storage Enterprise nodes
server nodes Manager • 40 TB ZFS
• Up to 336 TB of (Single Mgmt. storage
storage Framework appliance
for HW/SW)
• Up to 2 TB of • Up to 3.8 TB of
RAM RAM, plus flash
• 5.3 TB Flash memory
Oracle Linux and/or Solaris
• Runs DB, RAC, • Runs all Oracle
(optimized for underlying hardware)
DB options, software,
optimized 40 Gb/sec InfiniBand Fabric, optimized
storage 10 GigE Datacenter connectivity middleware
software
13

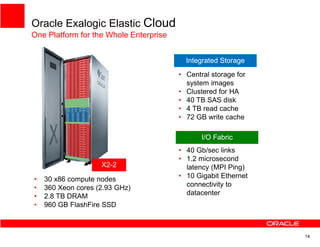

14. Oracle Exalogic Elastic Cloud
One Platform for the Whole Enterprise
Integrated Storage
• Central storage for
system images
• Clustered for HA
• 40 TB SAS disk
• 4 TB read cache
• 72 GB write cache
I/O Fabric
• 40 Gb/sec links
EL X2-2
• 1.2 microsecond
X2-2
X2- latency (MPI Ping)
• 30 x86 compute nodes • 10 Gigabit Ethernet
• 360 Xeon cores (2.93 GHz) connectivity to
• 2.8 TB DRAM datacenter
• 960 GB FlashFire SSD
14

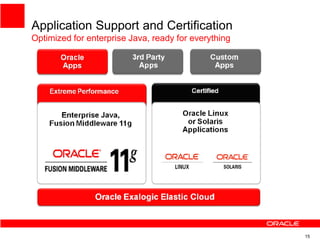

15. Application Support and Certification
Optimized for enterprise Java, ready for everything
15

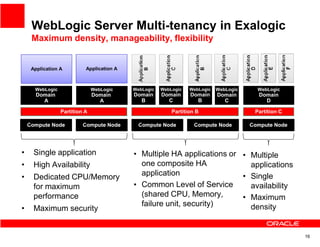

16. WebLogic Server Multi-tenancy in Exalogic
Maximum density, manageability, flexibility
Application A Application A
WebLogic WebLogic WebLogic WebLogic WebLogic WebLogic WebLogic
Domain Domain Domain Domain Domain Domain Domain
A A B C B C D
Partition A Partition B Partition C
Compute Node Compute Node Compute Node Compute Node Compute Node
• Single application • Multiple HA applications or • Multiple
• High Availability one composite HA applications
• Dedicated CPU/Memory application • Single
for maximum • Common Level of Service availability
performance (shared CPU, Memory, • Maximum
failure unit, security) density
• Maximum security
16

17. Extreme Java
The power of the Oracle Exalogic Elastic Cloud Software
450
400 (Lower latency is Better)
350
300
250
200
150
100
50
0
CreateWS Purchase Manage Browse
Standard Platform Exalogic
2-3X improvement 60% more Up to 10X faster
in Database OLTP Java Operations/sec. response time
– Run-time connection – Enhanced buffer – Cluster IPC
load balancing handling for InfiniBand multiplexing over SDP
– JDBC over SDP – Optimized multi-core – Scatter-gather IO
scheduler
17

18. InfiniBand Performance Advantage
Up to 12x Performance
• Network IO is critical
– #1 limiting factor for application
performance and scale
• Eliminate buffer copies
– From four to zero
• Use larger packet size to
reduce network overhead
– 64K instead of 4K packets
• Optimized for InfiniBand
– 3x throughput over 10 GbE
– 50% less latency via native SDP
18

19. Exalogic GridLink for Exadata
Unique Oracle RAC integration and OLTP fault tolerance
• Integrated Exalogic and Exadata clusters
• Dynamic load balancing of requests to RAC nodes
• RAC node transaction affinity for data locality
• Maximum JDBC performance with SQLNet over native
InfiniBand protocol (SDP)
• Instant load balancing and failover with RAC changes
WebLogic WebLogic WebLogic WebLogic WebLogic WebLogic
GridLink GridLink GridLink GridLink GridLink GridLink
XA
80% 20%
RAC Node Load Aware RAC Node Affinity Continuous Connections
Connection Requests For Transactions Even with RAC Changes
19

20. Oracle Exalogic and Exadata Together
Designed for Seamless Interoperability, Unmatched Performance
960 Gigabits/second
(Maximum: 24x InfiniBand QDR)
• Exclusive: direct InfiniBand integration!
• Extreme performance, reliability, security
• Simple to deploy and manage
Exalogic Exadata
Up to
3X
OLTP Performance
Active GridLink for RAC
• Resource-aware load balancing
• Instantaneous connection failover
• Transaction affinity to RAC nodes
• SQLnet optimized for InfiniBand SDP
Copyright © 2011 Oracle Corporation - Proprietary and Confidential 20

21. Scale on Demand
Start small and grow
• Field upgradable to
larger configurations
• Delivered and
installed by Oracle
EL X2-2 Quarter Rack Half Rack Full Rack
Compute Nodes 8 16 30
2.93 GHz XEON Cores 96 192 360
1333 MHz DRAM 768 GB 1.5 TB 2.9 TB
Raw Disk Storage 40TB 40TB 40TB
EL T3-1B Small Medium Large
Compute Nodes 10 20 30
1.6 GHz SPARC Cores 160 320 480
1333 MHz DRAM 1.3 TB 2.6 TB 3.8 TB
Raw Disk Storage 40TB 40TB 40TB
21

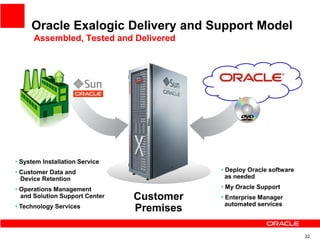

22. Oracle Exalogic Delivery and Support Model
Assembled, Tested and Delivered
http://www.oracle.com/...
Oracle Hardware
and Services Software and
• System Installation Service
Support
• Customer Data and • Deploy Oracle software
Device Retention as needed
• Operations Management • My Oracle Support
and Solution Support Center Customer • Enterprise Manager
automated services
• Technology Services Premises
22

23. Exalogic Advanced Services
Advise & Plan Design & Implement Deployment Support & Operate
Oracle Exalogic Blueprint
and Architecture Services
Transition Services
Premier Support for Oracle Exalogic
Oracle Exalogic Production Support Readiness Service
Installation & Upgrade Service
Configuration
Solutions Support Center for Oracle Exalogic
Operations Management for Oracle Exalogic
Consulting Services Advanced Customer Premier Support
(OCS) Services (ACS) for Oracle Exalogic
23

24. Primary Value Drivers for Exalogic
Eliminate 60% of Middle Tier TCO
Reduction
Reduction
Cost
Notes:
• Hardware costs include acquisition and maintenance
• Data Center costs include power, cooling and floor space
• Software costs include acquisition, maintenance and support
• Labor costs include all systems management /support personnel
24

25. Reliable? Ease of use? Speed? Security? Patching? Total Costs?
25

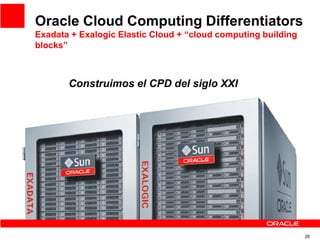

26. Oracle Cloud Computing Differentiators
Exadata + Exalogic Elastic Cloud + “cloud computing building
blocks”
Construimos el CPD del siglo XXI
26
