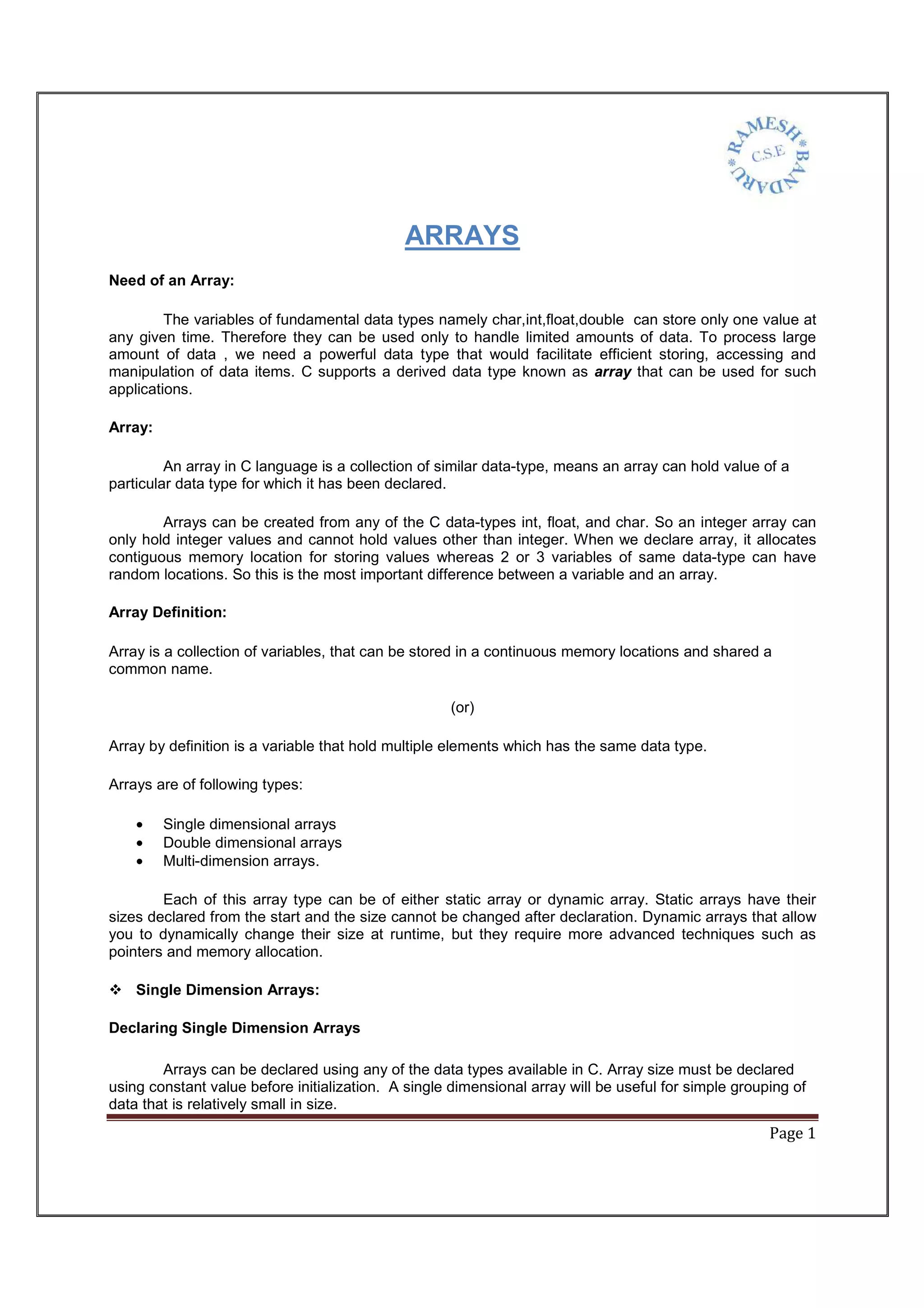

Page 1
ARRAYS
Need of an Array:
The variables of fundamental data types namely char,int,float,double can store only one value at
any given time. Therefore they can be used only to handle limited amounts of data. To process large
amount of data , we need a powerful data type that would facilitate efficient storing, accessing and
manipulation of data items. C supports a derived data type known as array that can be used for such
applications.
Array:
An array in C language is a collection of similar data-type, means an array can hold value of a
particular data type for which it has been declared.
Arrays can be created from any of the C data-types int, float, and char. So an integer array can
only hold integer values and cannot hold values other than integer. When we declare array, it allocates
contiguous memory location for storing values whereas 2 or 3 variables of same data-type can have
random locations. So this is the most important difference between a variable and an array.
Array Definition:
Array is a collection of variables, that can be stored in a continuous memory locations and shared a
common name.
(or)
Array by definition is a variable that hold multiple elements which has the same data type.
Arrays are of following types:
• Single dimensional arrays
• Double dimensional arrays
• Multi-dimension arrays.
Each of this array type can be of either static array or dynamic array. Static arrays have their
sizes declared from the start and the size cannot be changed after declaration. Dynamic arrays that allow
you to dynamically change their size at runtime, but they require more advanced techniques such as
pointers and memory allocation.
Single Dimension Arrays:
Declaring Single Dimension Arrays
Arrays can be declared using any of the data types available in C. Array size must be declared
using constant value before initialization. A single dimensional array will be useful for simple grouping of
data that is relatively small in size.

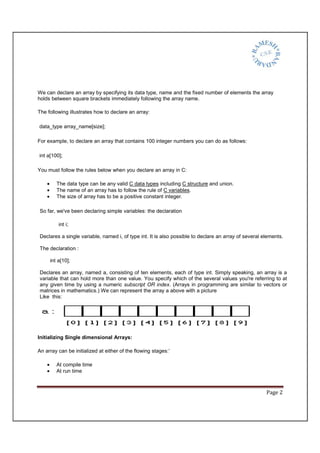

Page 2

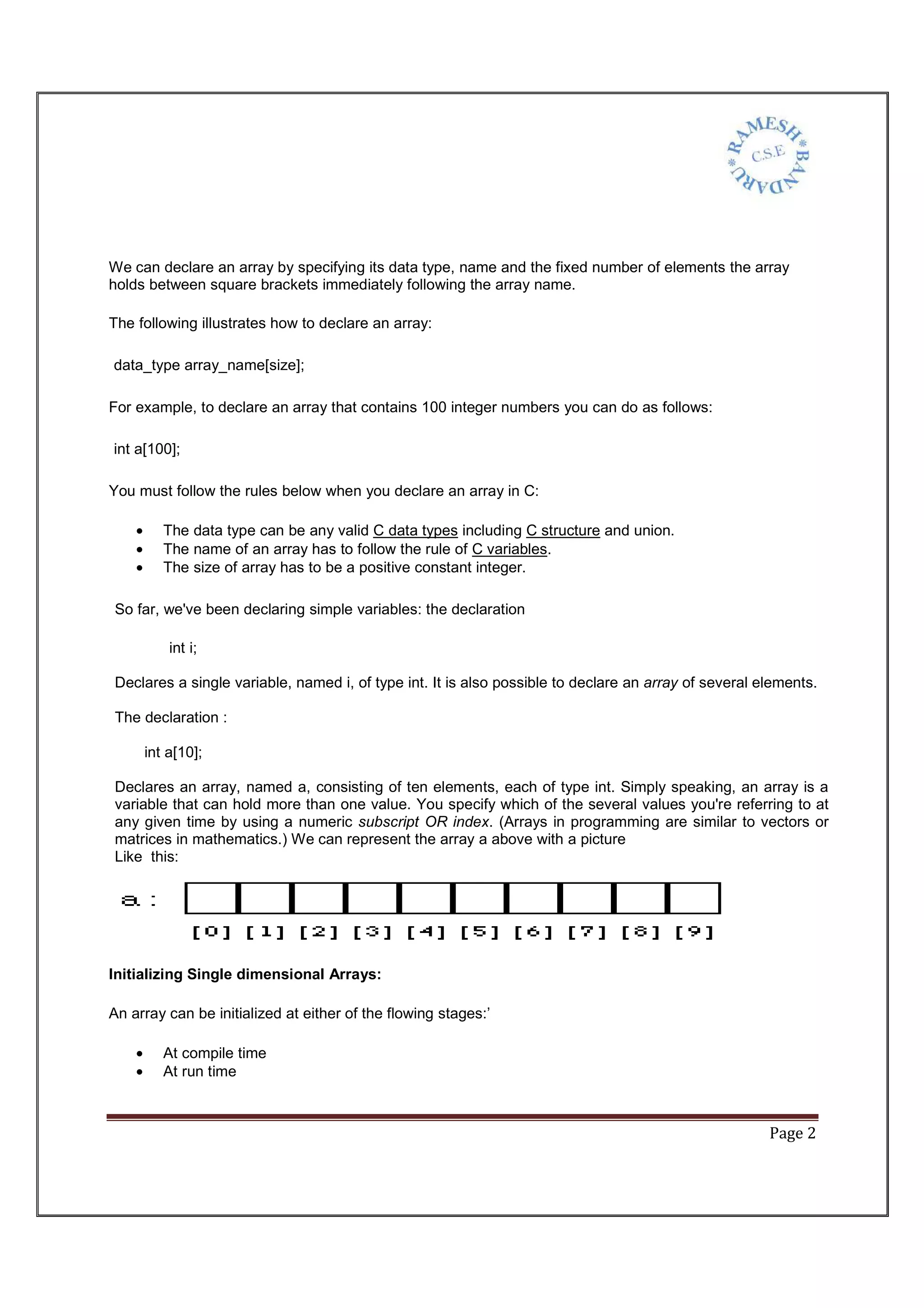

We can declare an array by specifying its data type, name and the fixed number of elements the array
holds between square brackets immediately following the array name.
The following illustrates how to declare an array:
data_type array_name[size];
For example, to declare an array that contains 100 integer numbers you can do as follows:
int a[100];
You must follow the rules below when you declare an array in C:
• The data type can be any valid C data types including C structure and union.
• The name of an array has to follow the rule of C variables.
• The size of array has to be a positive constant integer.
So far, we've been declaring simple variables: the declaration
int i;
Declares a single variable, named i, of type int. It is also possible to declare an array of several elements.
The declaration :
int a[10];
Declares an array, named a, consisting of ten elements, each of type int. Simply speaking, an array is a
variable that can hold more than one value. You specify which of the several values you're referring to at
any given time by using a numeric subscript OR index. (Arrays in programming are similar to vectors or
matrices in mathematics.) We can represent the array a above with a picture
Like this:
Initializing Single dimensional Arrays:
An array can be initialized at either of the flowing stages:’
• At compile time
• At run time

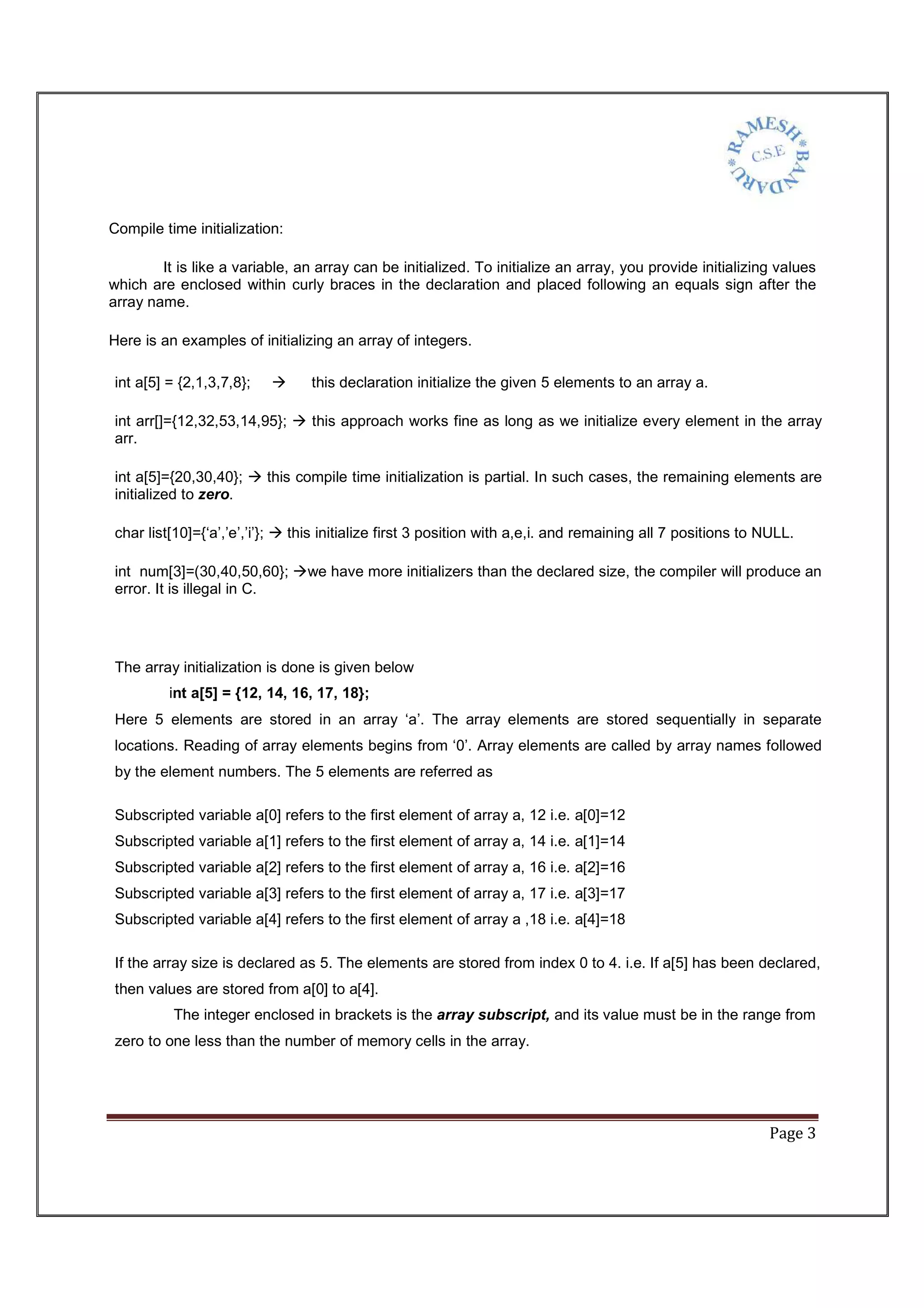

Page 3

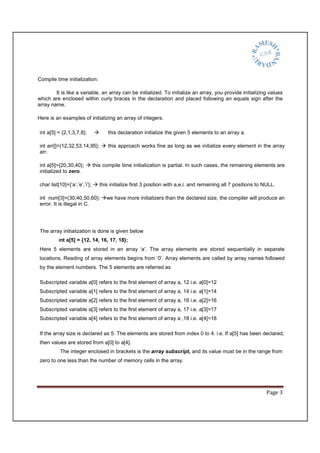

Compile time initialization:
It is like a variable, an array can be initialized. To initialize an array, you provide initializing values
which are enclosed within curly braces in the declaration and placed following an equals sign after the
array name.
Here is an examples of initializing an array of integers.
int a[5] = {2,1,3,7,8}; this declaration initialize the given 5 elements to an array a.
int arr[]={12,32,53,14,95}; this approach works fine as long as we initialize every element in the array
arr.
int a[5]={20,30,40}; this compile time initialization is partial. In such cases, the remaining elements are
initialized to zero.
char list[10]={‘a’,’e’,’i’}; this initialize first 3 position with a,e,i. and remaining all 7 positions to NULL.
int num[3]=(30,40,50,60}; we have more initializers than the declared size, the compiler will produce an
error. It is illegal in C.
The array initialization is done is given below
int a[5] = {12, 14, 16, 17, 18};
Here 5 elements are stored in an array ‘a’. The array elements are stored sequentially in separate
locations. Reading of array elements begins from ‘0’. Array elements are called by array names followed
by the element numbers. The 5 elements are referred as
Subscripted variable a[0] refers to the first element of array a, 12 i.e. a[0]=12
Subscripted variable a[1] refers to the first element of array a, 14 i.e. a[1]=14
Subscripted variable a[2] refers to the first element of array a, 16 i.e. a[2]=16
Subscripted variable a[3] refers to the first element of array a, 17 i.e. a[3]=17
Subscripted variable a[4] refers to the first element of array a ,18 i.e. a[4]=18
If the array size is declared as 5. The elements are stored from index 0 to 4. i.e. If a[5] has been declared,
then values are stored from a[0] to a[4].
The integer enclosed in brackets is the array subscript, and its value must be in the range from
zero to one less than the number of memory cells in the array.

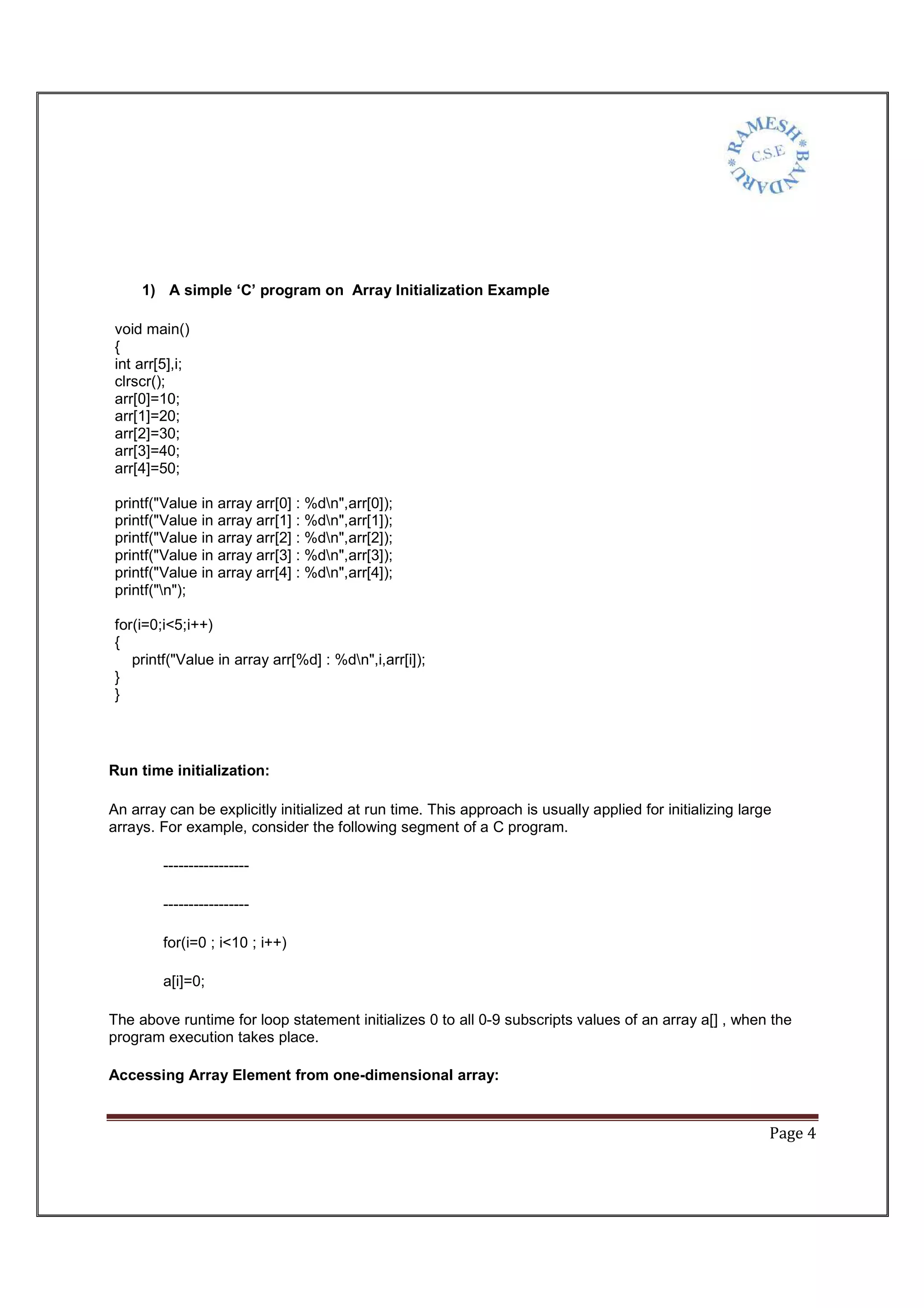

Page 4

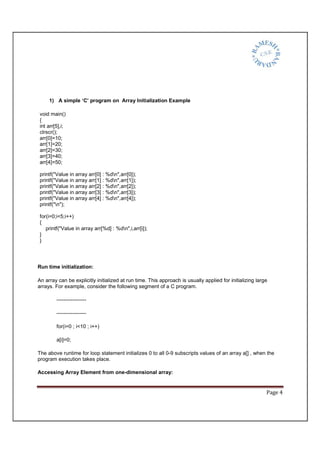

1) A simple ‘C’ program on Array Initialization Example
void main()
{
int arr[5],i;
clrscr();
arr[0]=10;
arr[1]=20;
arr[2]=30;
arr[3]=40;
arr[4]=50;
printf("Value in array arr[0] : %dn",arr[0]);
printf("Value in array arr[1] : %dn",arr[1]);
printf("Value in array arr[2] : %dn",arr[2]);
printf("Value in array arr[3] : %dn",arr[3]);
printf("Value in array arr[4] : %dn",arr[4]);
printf("n");
for(i=0;i<5;i++)
{
printf("Value in array arr[%d] : %dn",i,arr[i]);
}
}
Run time initialization:
An array can be explicitly initialized at run time. This approach is usually applied for initializing large
arrays. For example, consider the following segment of a C program.
-----------------
-----------------
for(i=0 ; i<10 ; i++)
a[i]=0;
The above runtime for loop statement initializes 0 to all 0-9 subscripts values of an array a[] , when the
program execution takes place.
Accessing Array Element from one-dimensional array:
Page 5

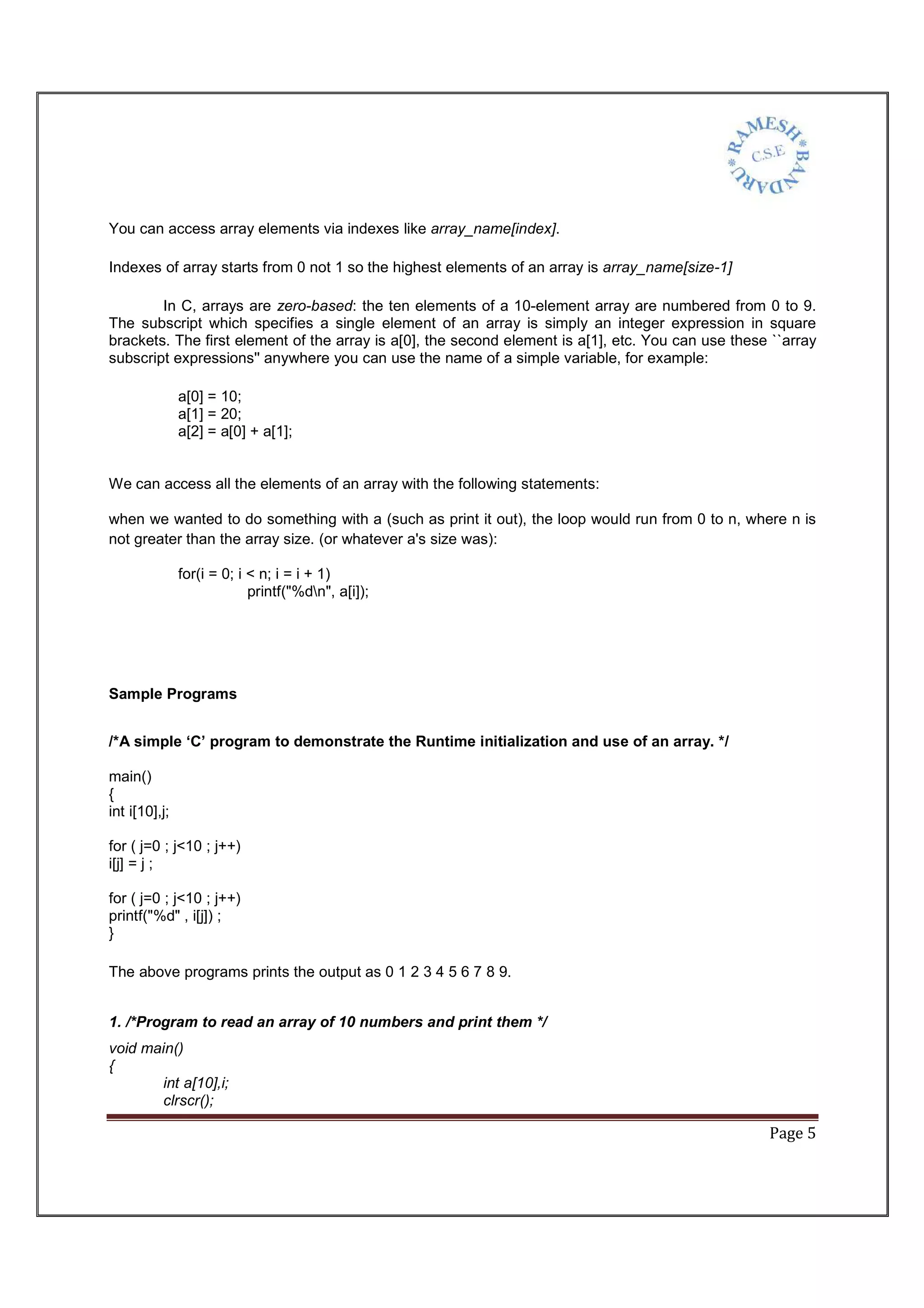

You can access array elements via indexes like array_name[index].
Indexes of array starts from 0 not 1 so the highest elements of an array is array_name[size-1]
In C, arrays are zero-based: the ten elements of a 10-element array are numbered from 0 to 9.
The subscript which specifies a single element of an array is simply an integer expression in square
brackets. The first element of the array is a[0], the second element is a[1], etc. You can use these ``array
subscript expressions'' anywhere you can use the name of a simple variable, for example:
a[0] = 10;
a[1] = 20;
a[2] = a[0] + a[1];
We can access all the elements of an array with the following statements:
when we wanted to do something with a (such as print it out), the loop would run from 0 to n, where n is
not greater than the array size. (or whatever a's size was):
for(i = 0; i < n; i = i + 1)
printf("%dn", a[i]);
Sample Programs
/*A simple ‘C’ program to demonstrate the Runtime initialization and use of an array. */
main()
{
int i[10],j;
for ( j=0 ; j<10 ; j++)
i[j] = j ;
for ( j=0 ; j<10 ; j++)
printf("%d" , i[j]) ;
}
The above programs prints the output as 0 1 2 3 4 5 6 7 8 9.
1. /*Program to read an array of 10 numbers and print them */
void main()
{
int a[10],i;
clrscr();

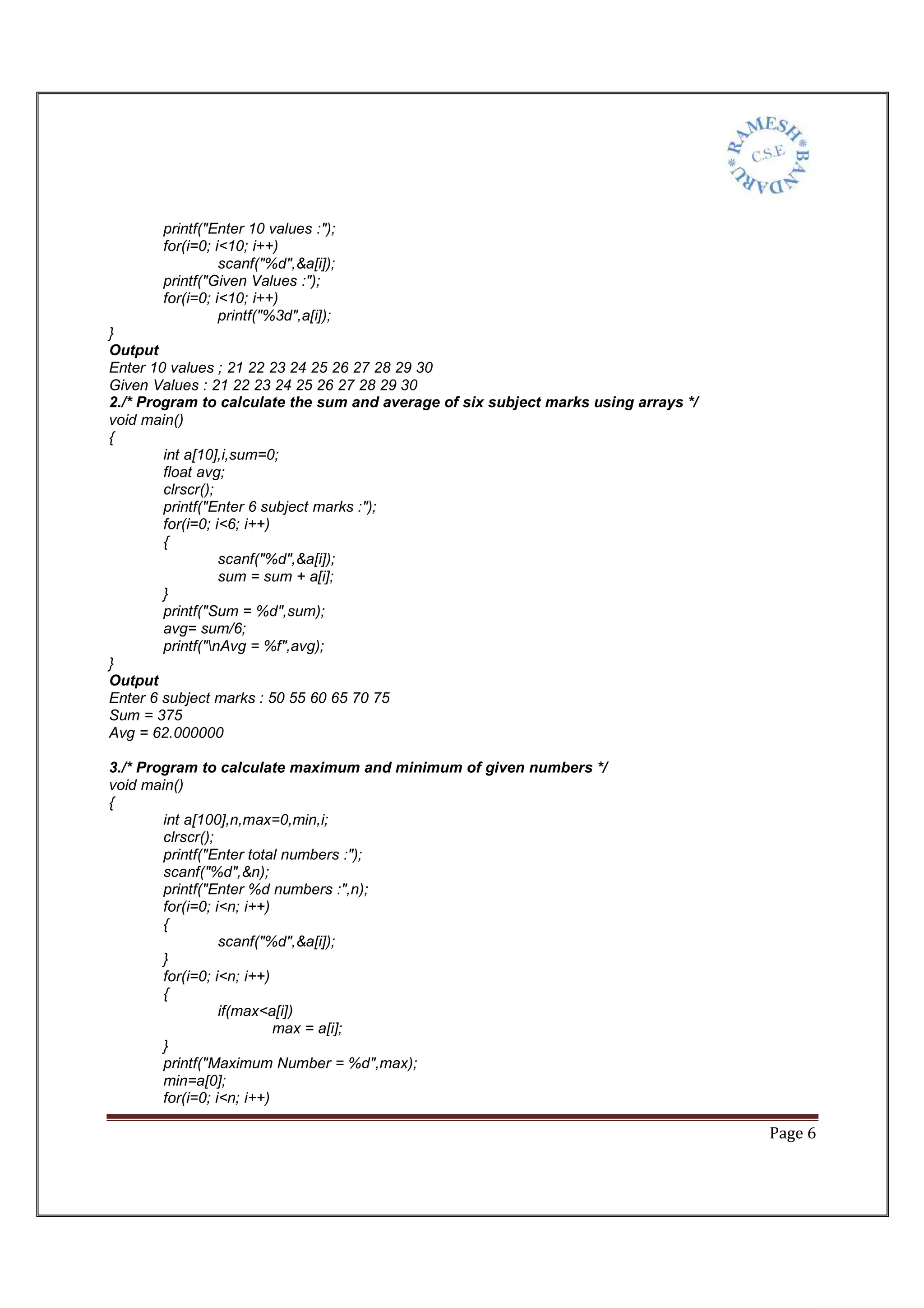

Page 6
printf("Enter 10 values :");
for(i=0; i<10; i++)
scanf("%d",&a[i]);
printf("Given Values :");
for(i=0; i<10; i++)
printf("%3d",a[i]);
}
Output
Enter 10 values ; 21 22 23 24 25 26 27 28 29 30
Given Values : 21 22 23 24 25 26 27 28 29 30
2./* Program to calculate the sum and average of six subject marks using arrays */
void main()
{
int a[10],i,sum=0;
float avg;
clrscr();
printf("Enter 6 subject marks :");
for(i=0; i<6; i++)
{
scanf("%d",&a[i]);
sum = sum + a[i];
}
printf("Sum = %d",sum);
avg= sum/6;
printf("nAvg = %f",avg);
}
Output
Enter 6 subject marks : 50 55 60 65 70 75
Sum = 375
Avg = 62.000000
3./* Program to calculate maximum and minimum of given numbers */
void main()
{
int a[100],n,max=0,min,i;
clrscr();
printf("Enter total numbers :");
scanf("%d",&n);
printf("Enter %d numbers :",n);
for(i=0; i<n; i++)
{
scanf("%d",&a[i]);
}
for(i=0; i<n; i++)
{
if(max<a[i])
max = a[i];
}
printf("Maximum Number = %d",max);
min=a[0];
for(i=0; i<n; i++)

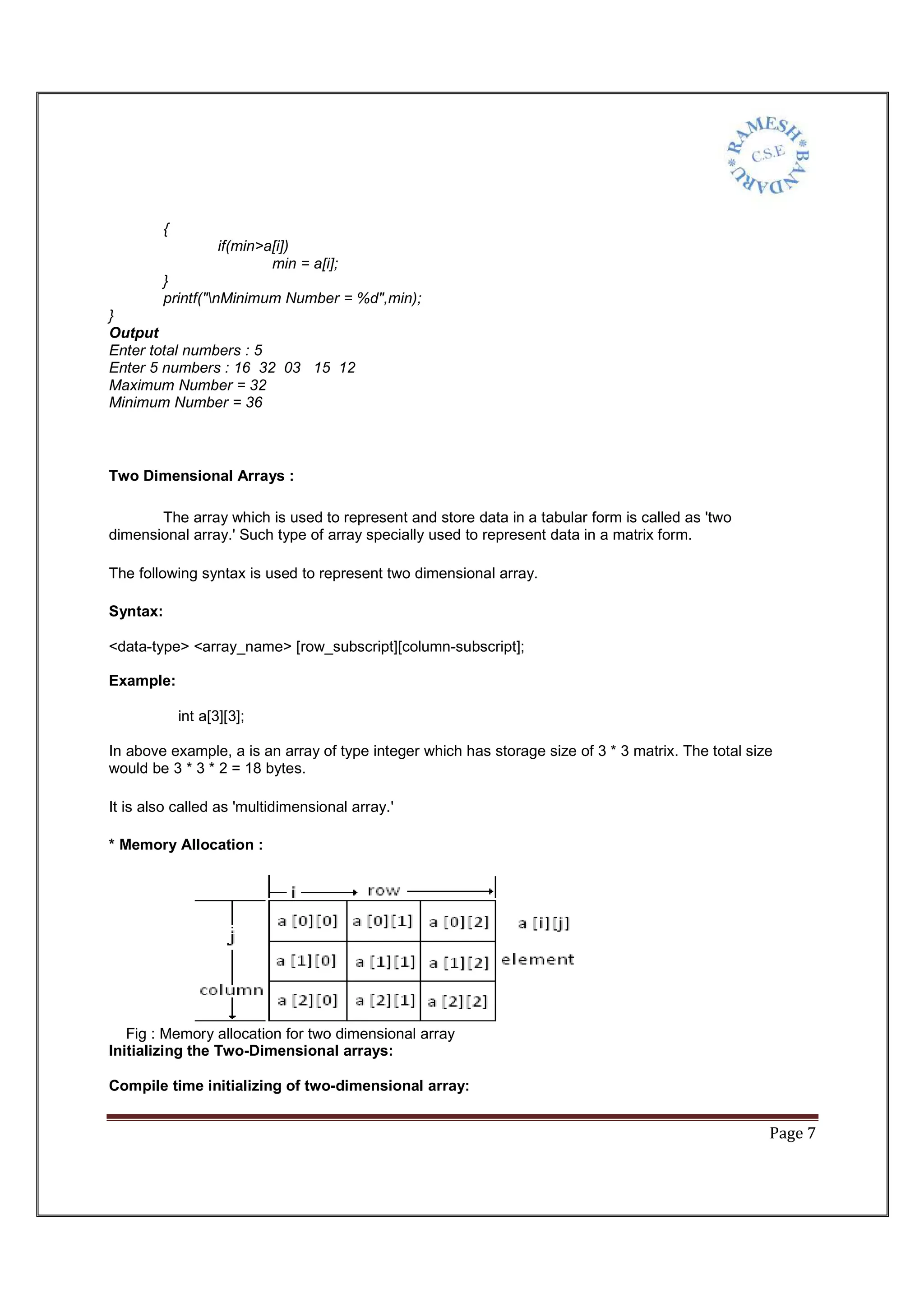

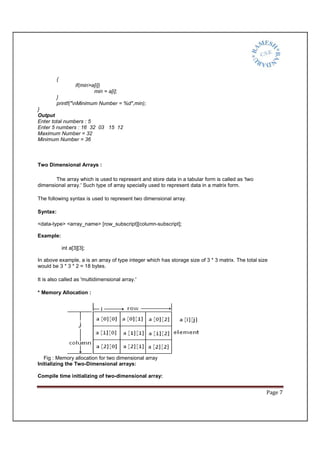

Page 7
{
if(min>a[i])
min = a[i];
}
printf("nMinimum Number = %d",min);
}
Output
Enter total numbers : 5
Enter 5 numbers : 16 32 03 15 12
Maximum Number = 32
Minimum Number = 36
Two Dimensional Arrays :
The array which is used to represent and store data in a tabular form is called as 'two
dimensional array.' Such type of array specially used to represent data in a matrix form.
The following syntax is used to represent two dimensional array.
Syntax:
<data-type> <array_name> [row_subscript][column-subscript];
Example:
int a[3][3];
In above example, a is an array of type integer which has storage size of 3 * 3 matrix. The total size
would be 3 * 3 * 2 = 18 bytes.
It is also called as 'multidimensional array.'
* Memory Allocation :
Fig : Memory allocation for two dimensional array
Initializing the Two-Dimensional arrays:
Compile time initializing of two-dimensional array:

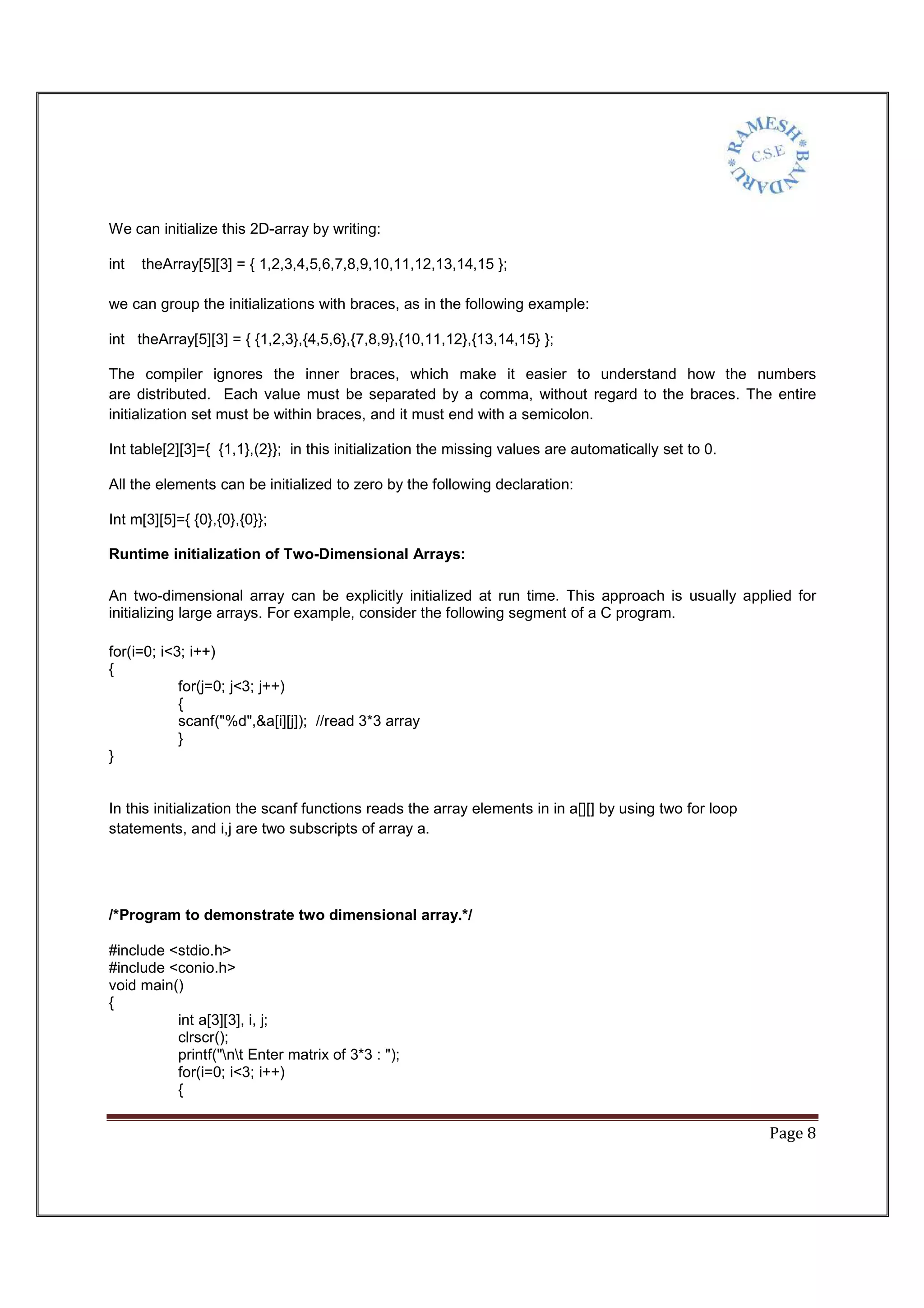

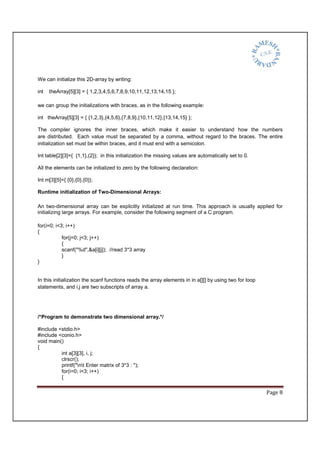

Page 8
We can initialize this 2D-array by writing:
int theArray[5][3] = { 1,2,3,4,5,6,7,8,9,10,11,12,13,14,15 };
we can group the initializations with braces, as in the following example:
int theArray[5][3] = { {1,2,3},{4,5,6},{7,8,9},{10,11,12},{13,14,15} };
The compiler ignores the inner braces, which make it easier to understand how the numbers
are distributed. Each value must be separated by a comma, without regard to the braces. The entire
initialization set must be within braces, and it must end with a semicolon.
Int table[2][3]={ {1,1},(2}}; in this initialization the missing values are automatically set to 0.
All the elements can be initialized to zero by the following declaration:
Int m[3][5]={ {0},{0},{0}};
Runtime initialization of Two-Dimensional Arrays:
An two-dimensional array can be explicitly initialized at run time. This approach is usually applied for
initializing large arrays. For example, consider the following segment of a C program.
for(i=0; i<3; i++)
{
for(j=0; j<3; j++)
{
scanf("%d",&a[i][j]); //read 3*3 array
}
}
In this initialization the scanf functions reads the array elements in in a[][] by using two for loop
statements, and i,j are two subscripts of array a.
/*Program to demonstrate two dimensional array.*/
#include <stdio.h>
#include <conio.h>
void main()
{
int a[3][3], i, j;
clrscr();
printf("nt Enter matrix of 3*3 : ");
for(i=0; i<3; i++)
{

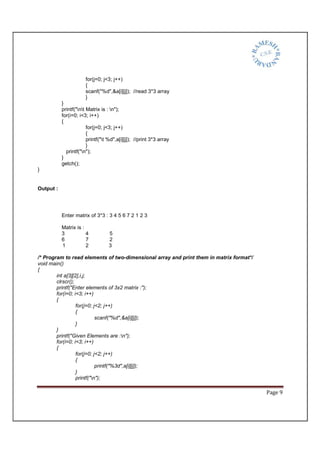

Page 9

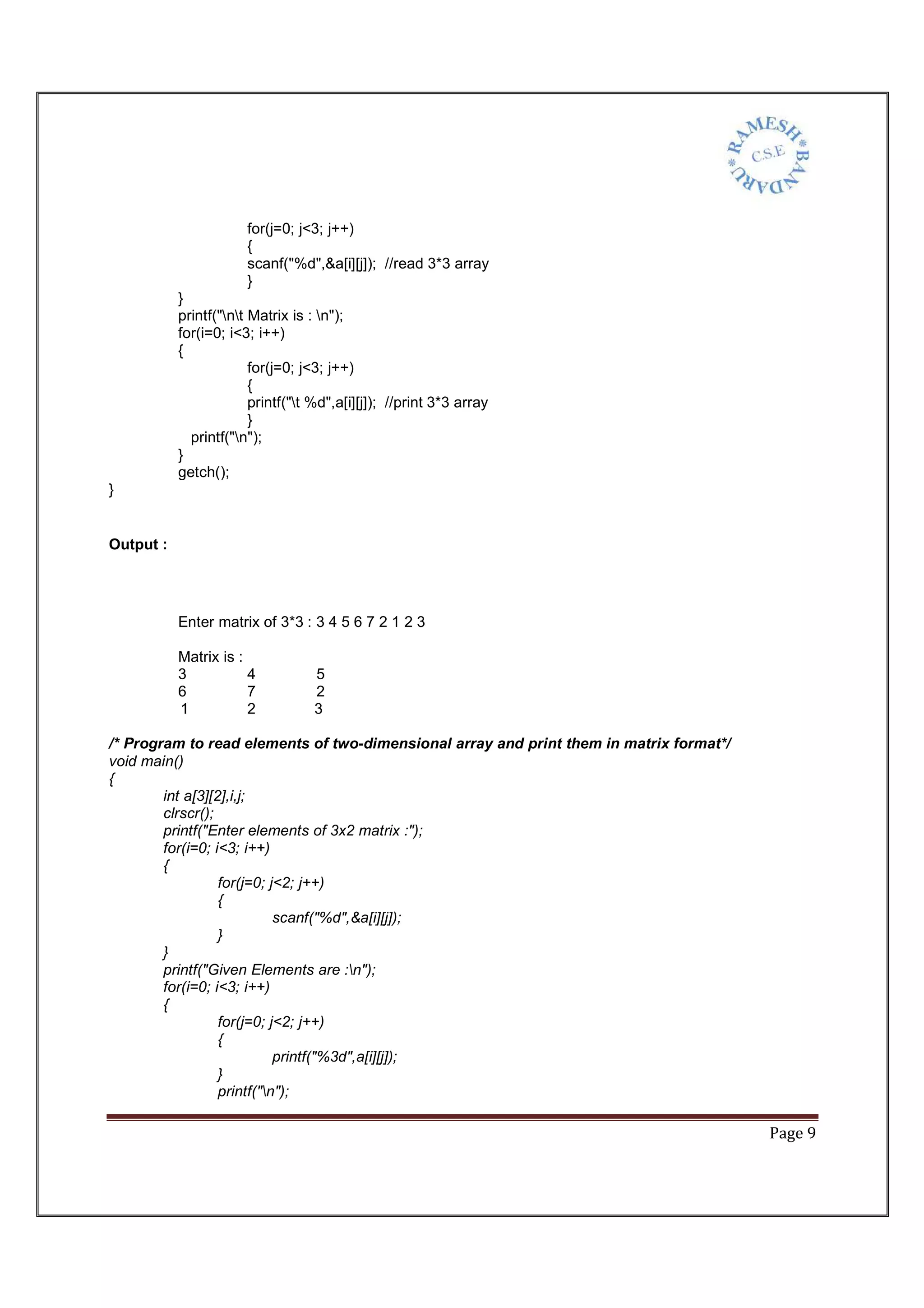

for(j=0; j<3; j++)
{
scanf("%d",&a[i][j]); //read 3*3 array
}
}
printf("nt Matrix is : n");
for(i=0; i<3; i++)
{
for(j=0; j<3; j++)
{
printf("t %d",a[i][j]); //print 3*3 array
}
printf("n");
}
getch();
}
Output :
Enter matrix of 3*3 : 3 4 5 6 7 2 1 2 3
Matrix is :
3 4 5
6 7 2
1 2 3
/* Program to read elements of two-dimensional array and print them in matrix format*/
void main()
{
int a[3][2],i,j;
clrscr();
printf("Enter elements of 3x2 matrix :");
for(i=0; i<3; i++)
{
for(j=0; j<2; j++)
{
scanf("%d",&a[i][j]);
}
}
printf("Given Elements are :n");
for(i=0; i<3; i++)
{
for(j=0; j<2; j++)
{
printf("%3d",a[i][j]);
}
printf("n");

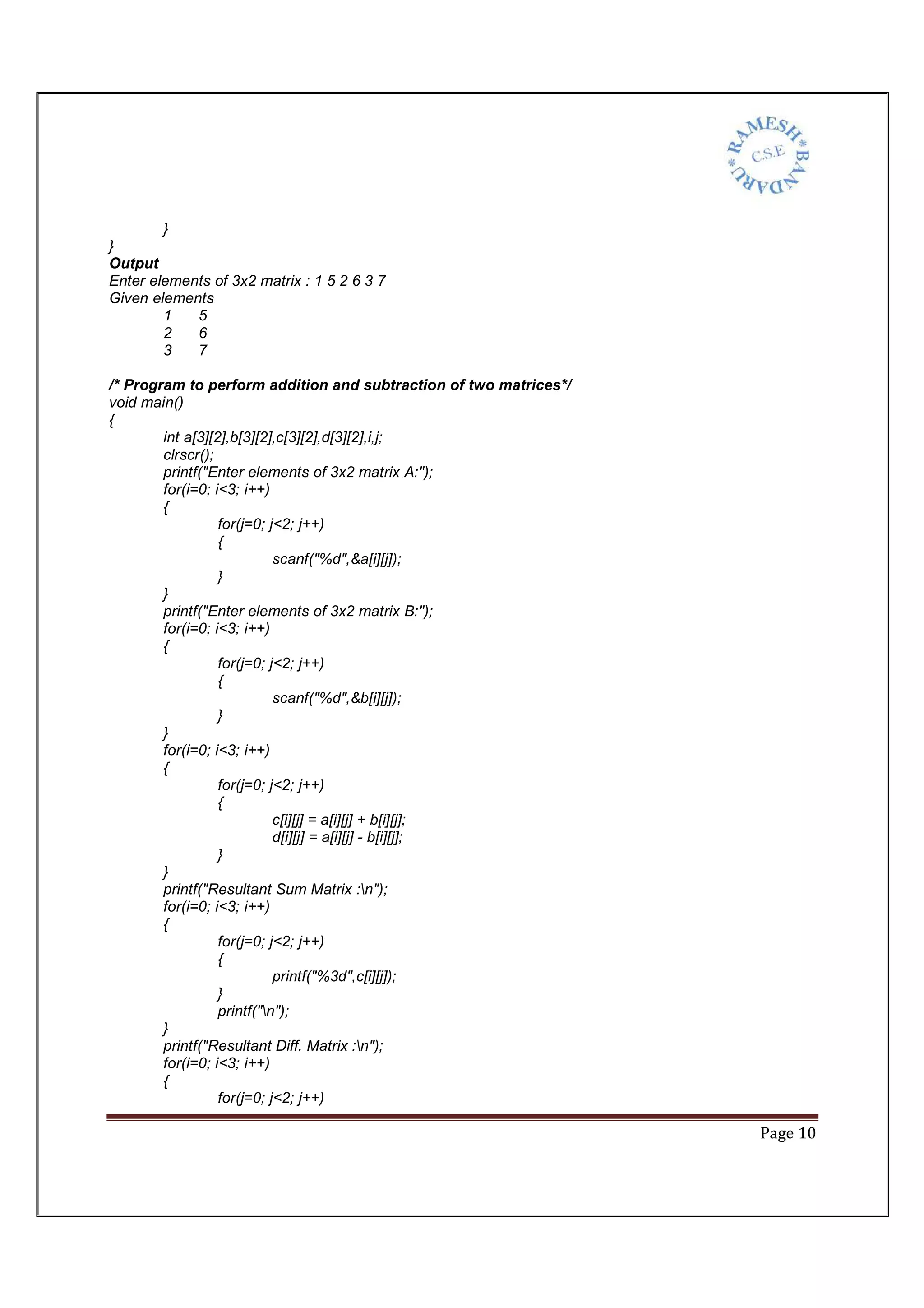

Page 10
}
}
Output
Enter elements of 3x2 matrix : 1 5 2 6 3 7
Given elements
1 5
2 6
3 7
/* Program to perform addition and subtraction of two matrices*/
void main()
{
int a[3][2],b[3][2],c[3][2],d[3][2],i,j;
clrscr();
printf("Enter elements of 3x2 matrix A:");
for(i=0; i<3; i++)
{
for(j=0; j<2; j++)
{
scanf("%d",&a[i][j]);
}
}
printf("Enter elements of 3x2 matrix B:");
for(i=0; i<3; i++)
{
for(j=0; j<2; j++)
{
scanf("%d",&b[i][j]);
}
}
for(i=0; i<3; i++)
{
for(j=0; j<2; j++)
{
c[i][j] = a[i][j] + b[i][j];
d[i][j] = a[i][j] - b[i][j];
}
}
printf("Resultant Sum Matrix :n");
for(i=0; i<3; i++)
{
for(j=0; j<2; j++)
{
printf("%3d",c[i][j]);
}
printf("n");
}
printf("Resultant Diff. Matrix :n");
for(i=0; i<3; i++)
{
for(j=0; j<2; j++)

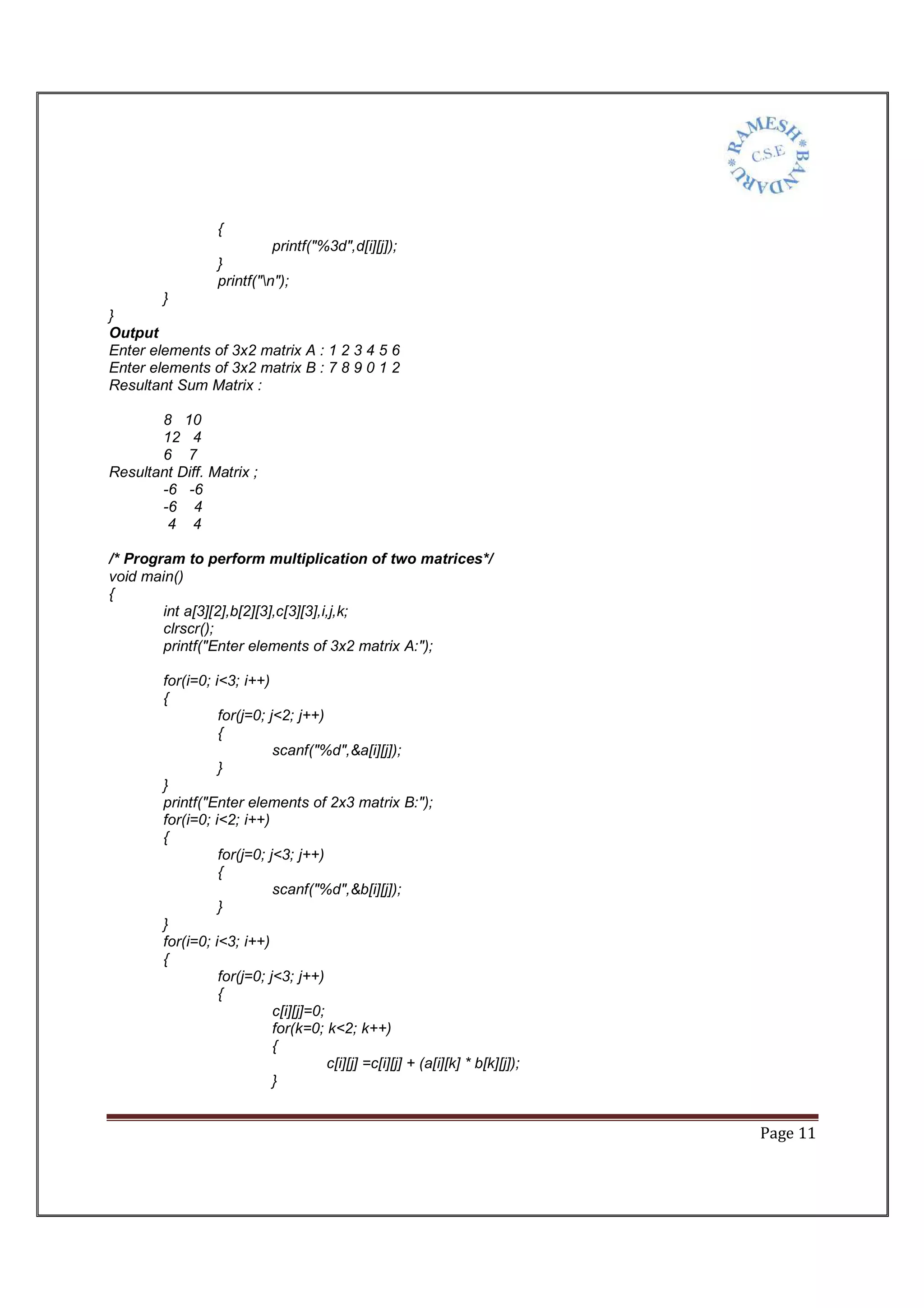

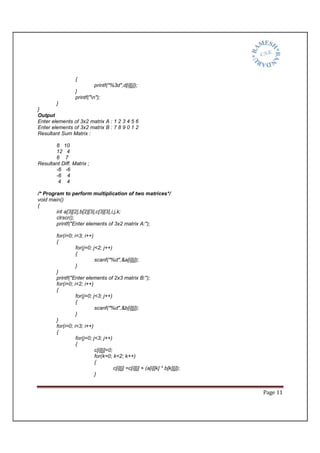

Page 11
{
printf("%3d",d[i][j]);
}
printf("n");
}
}
Output
Enter elements of 3x2 matrix A : 1 2 3 4 5 6
Enter elements of 3x2 matrix B : 7 8 9 0 1 2
Resultant Sum Matrix :
8 10
12 4
6 7
Resultant Diff. Matrix ;
-6 -6
-6 4
4 4
/* Program to perform multiplication of two matrices*/
void main()
{
int a[3][2],b[2][3],c[3][3],i,j,k;
clrscr();
printf("Enter elements of 3x2 matrix A:");
for(i=0; i<3; i++)
{
for(j=0; j<2; j++)
{
scanf("%d",&a[i][j]);
}
}
printf("Enter elements of 2x3 matrix B:");
for(i=0; i<2; i++)
{
for(j=0; j<3; j++)
{
scanf("%d",&b[i][j]);
}
}
for(i=0; i<3; i++)
{
for(j=0; j<3; j++)
{
c[i][j]=0;
for(k=0; k<2; k++)
{
c[i][j] =c[i][j] + (a[i][k] * b[k][j]);
}

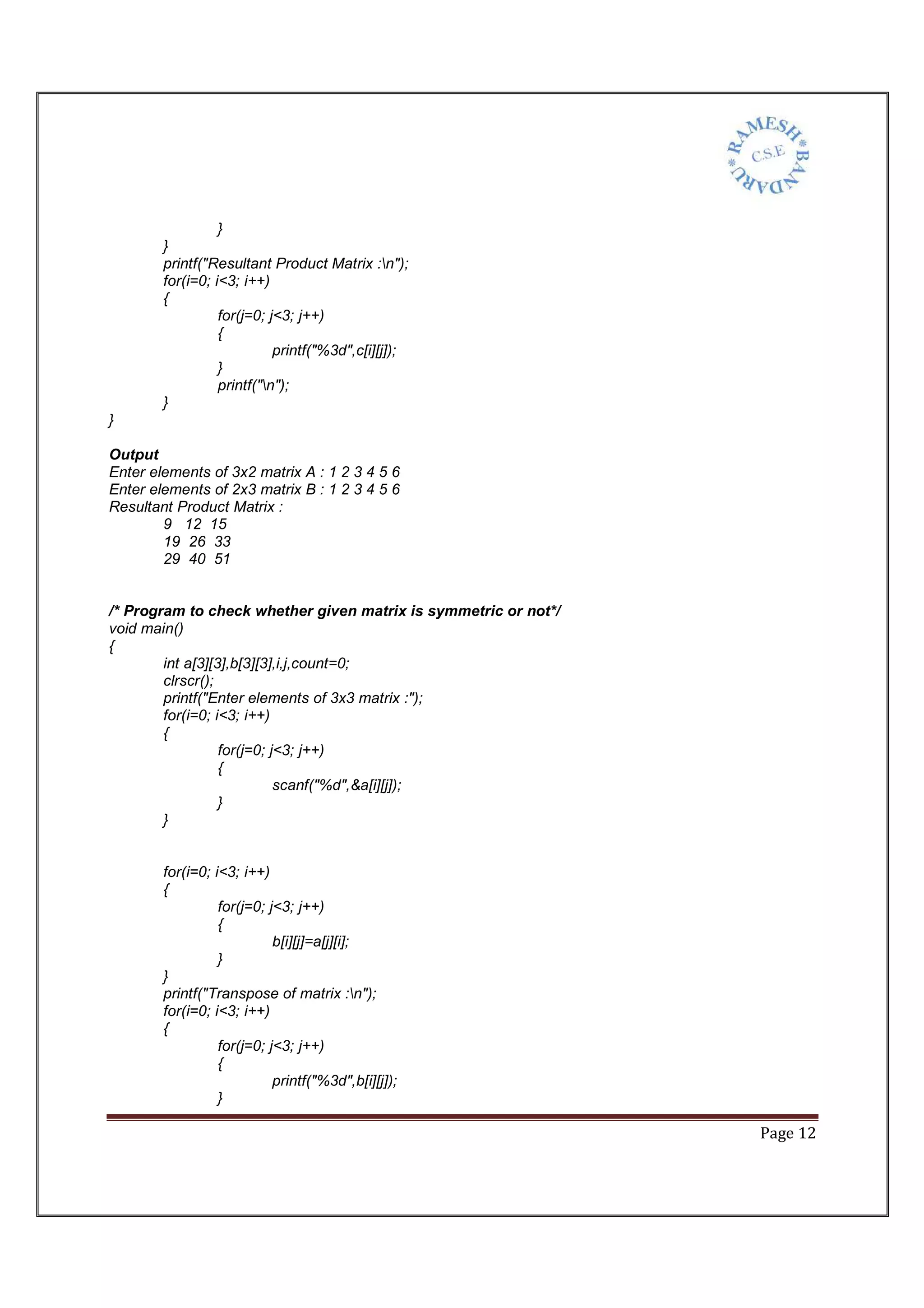

Page 12
}
}
printf("Resultant Product Matrix :n");
for(i=0; i<3; i++)
{
for(j=0; j<3; j++)
{
printf("%3d",c[i][j]);
}
printf("n");
}
}
Output
Enter elements of 3x2 matrix A : 1 2 3 4 5 6
Enter elements of 2x3 matrix B : 1 2 3 4 5 6
Resultant Product Matrix :
9 12 15
19 26 33
29 40 51
/* Program to check whether given matrix is symmetric or not*/
void main()
{
int a[3][3],b[3][3],i,j,count=0;
clrscr();
printf("Enter elements of 3x3 matrix :");
for(i=0; i<3; i++)
{
for(j=0; j<3; j++)
{
scanf("%d",&a[i][j]);
}
}
for(i=0; i<3; i++)
{
for(j=0; j<3; j++)
{
b[i][j]=a[j][i];
}
}
printf("Transpose of matrix :n");
for(i=0; i<3; i++)
{
for(j=0; j<3; j++)
{
printf("%3d",b[i][j]);
}

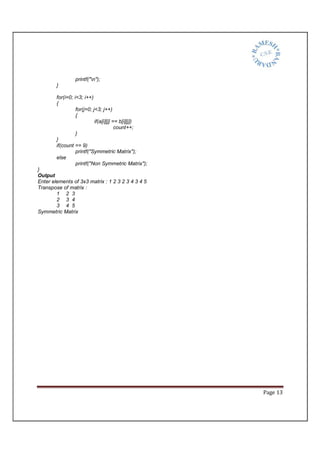

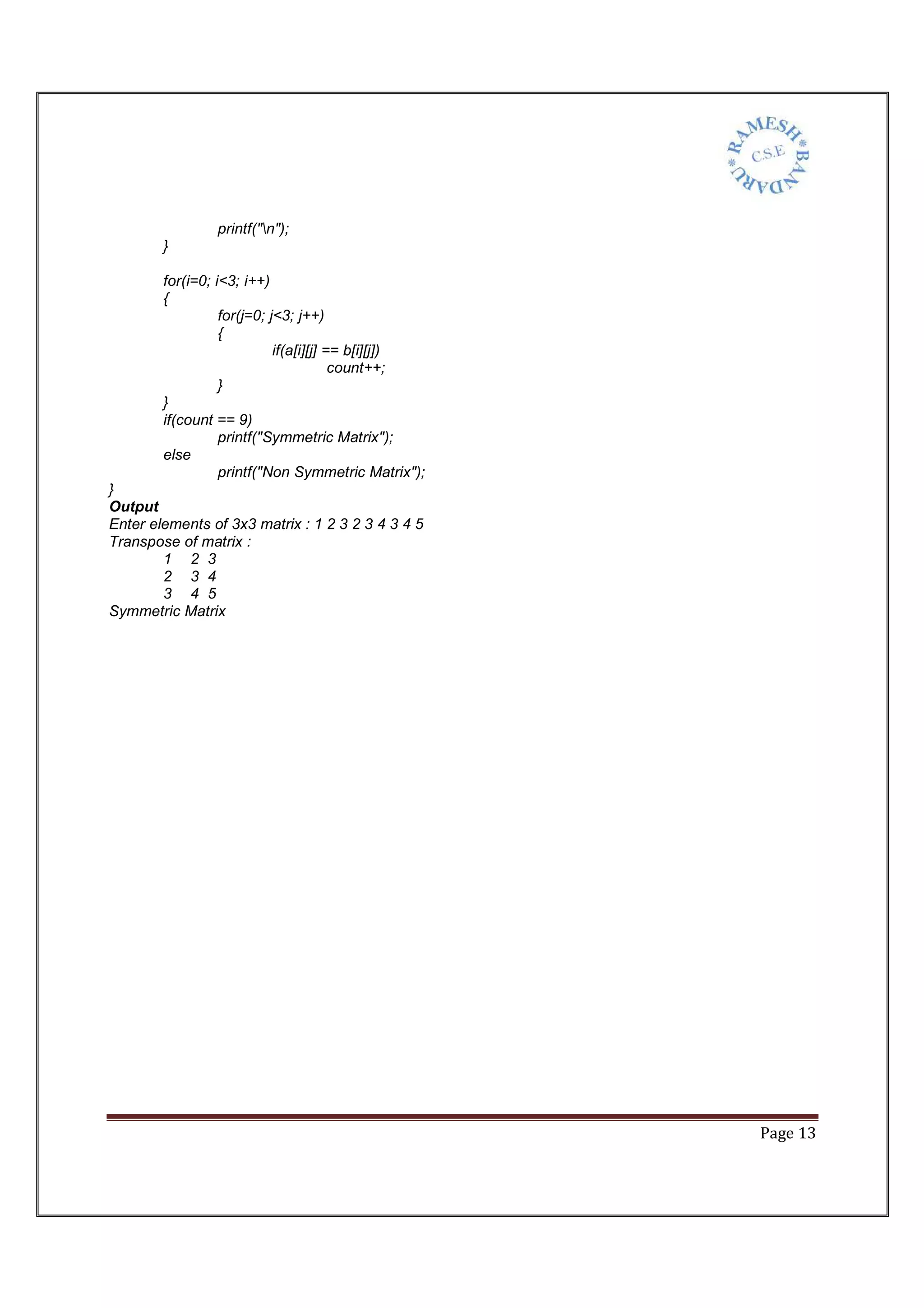

Page 13
printf("n");
}
for(i=0; i<3; i++)
{
for(j=0; j<3; j++)
{
if(a[i][j] == b[i][j])
count++;
}
}
if(count == 9)
printf("Symmetric Matrix");
else
printf("Non Symmetric Matrix");
}
Output
Enter elements of 3x3 matrix : 1 2 3 2 3 4 3 4 5
Transpose of matrix :
1 2 3
2 3 4
3 4 5
Symmetric Matrix

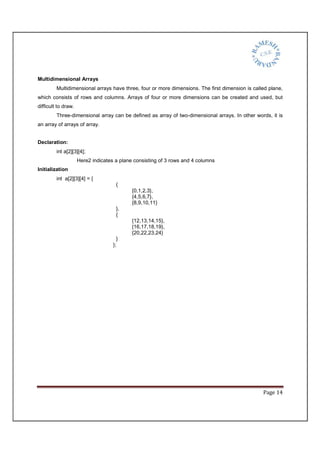

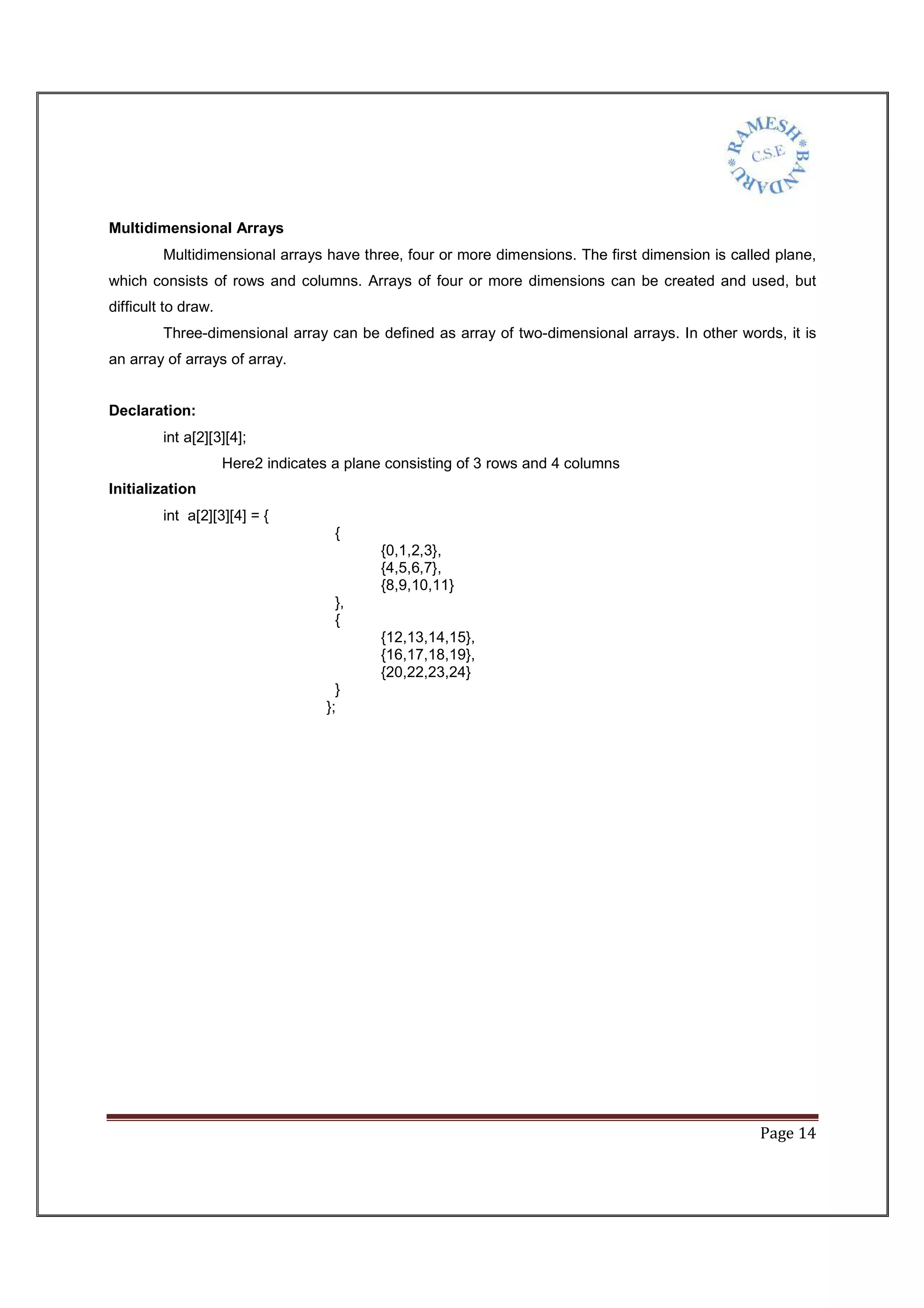

Page 14
Multidimensional Arrays
Multidimensional arrays have three, four or more dimensions. The first dimension is called plane,
which consists of rows and columns. Arrays of four or more dimensions can be created and used, but
difficult to draw.
Three-dimensional array can be defined as array of two-dimensional arrays. In other words, it is
an array of arrays of array.
Declaration:
int a[2][3][4];
Here2 indicates a plane consisting of 3 rows and 4 columns
Initialization
int a[2][3][4] = {
{
{0,1,2,3},
{4,5,6,7},
{8,9,10,11}
},
{
{12,13,14,15},
{16,17,18,19},
{20,22,23,24}
}
};

More Related Content

What's hot

arrays and pointers
arrays and pointersarrays and pointers
arrays and pointers
Samiksha Pun

Java: Introduction to Arrays
Java: Introduction to ArraysJava: Introduction to Arrays
Java: Introduction to Arrays
Tareq Hasan

Passing an Array to a Function (ICT Programming)
Passing an Array to a Function (ICT Programming)Passing an Array to a Function (ICT Programming)
Passing an Array to a Function (ICT Programming)
Fatima Kate Tanay

Array and string
Array and stringArray and string
Array and string
prashant chelani

1 D Arrays in C++
1 D Arrays in C++1 D Arrays in C++
1 D Arrays in C++
poonam.rwalia

Arrays
ArraysArrays
One dimensional arrays
One dimensional arraysOne dimensional arrays
One dimensional arrays
Satyam Soni

02 c++ Array Pointer
02 c++ Array Pointer02 c++ Array Pointer
02 c++ Array Pointer
Tareq Hasan

Array in c
Array in cArray in c
Array in c
Ravi Gelani

Arrays
ArraysArrays
Array Of Pointers
Array Of PointersArray Of Pointers
Array Of Pointers
Sharad Dubey

arrays in c
arrays in carrays in c
arrays in c
vidhi mehta

Arrays in c
Arrays in cArrays in c
Arrays in c
CHANDAN KUMAR

Arrays and Strings
Arrays and Strings Arrays and Strings
Arrays and Strings
Dr.Subha Krishna

function, storage class and array and strings
 function, storage class and array and strings function, storage class and array and strings
function, storage class and array and strings
Rai University

C++ lecture 04
C++ lecture 04C++ lecture 04
C++ lecture 04
HNDE Labuduwa Galle

Array
ArrayArray
Array
Hajar

C Programming Unit-3
C Programming Unit-3C Programming Unit-3
C Programming Unit-3
Vikram Nandini

Array
ArrayArray
Array data structure
Array data structureArray data structure
Array data structure
maamir farooq


What's hot (20)

arrays and pointers
arrays and pointersarrays and pointers
arrays and pointers

Java: Introduction to Arrays
Java: Introduction to ArraysJava: Introduction to Arrays
Java: Introduction to Arrays

Passing an Array to a Function (ICT Programming)
Passing an Array to a Function (ICT Programming)Passing an Array to a Function (ICT Programming)
Passing an Array to a Function (ICT Programming)

Array and string
Array and stringArray and string
Array and string

1 D Arrays in C++
1 D Arrays in C++1 D Arrays in C++
1 D Arrays in C++

Arrays
ArraysArrays
Arrays

One dimensional arrays
One dimensional arraysOne dimensional arrays
One dimensional arrays

02 c++ Array Pointer
02 c++ Array Pointer02 c++ Array Pointer
02 c++ Array Pointer

Array in c
Array in cArray in c
Array in c

Arrays
ArraysArrays
Arrays

Array Of Pointers
Array Of PointersArray Of Pointers
Array Of Pointers

arrays in c
arrays in carrays in c
arrays in c

Arrays in c
Arrays in cArrays in c
Arrays in c

Arrays and Strings
Arrays and Strings Arrays and Strings
Arrays and Strings

function, storage class and array and strings
 function, storage class and array and strings function, storage class and array and strings
function, storage class and array and strings

C++ lecture 04
C++ lecture 04C++ lecture 04
C++ lecture 04

Array
ArrayArray
Array

C Programming Unit-3
C Programming Unit-3C Programming Unit-3
C Programming Unit-3

Array
ArrayArray
Array

Array data structure
Array data structureArray data structure
Array data structure


Similar to Arrays-Computer programming

Introduction to Arrays in C
Introduction to Arrays in CIntroduction to Arrays in C
Introduction to Arrays in C
Thesis Scientist Private Limited

02 arrays
02 arrays02 arrays
02 arrays
Rajan Gautam

Array and its types and it's implemented programming Final.pdf
Array and its types and it's implemented programming Final.pdfArray and its types and it's implemented programming Final.pdf
Array and its types and it's implemented programming Final.pdf
ajajkhan16

Programming in c Arrays
Programming in c ArraysProgramming in c Arrays
Programming in c Arrays
janani thirupathi

Arrays
ArraysArrays
Arrays In C
Arrays In CArrays In C
Arrays In C
yndaravind

CP Handout#7
CP Handout#7CP Handout#7
CP Handout#7
trupti1976

Arrays & Strings
Arrays & StringsArrays & Strings
Arrays & Strings
Munazza-Mah-Jabeen

ARRAYS
ARRAYSARRAYS
ARRAYS
muniryaseen

Arrays
ArraysArrays
Arrays and library functions
Arrays and library functionsArrays and library functions
Arrays and library functions
Swarup Boro

Array&amp;string
Array&amp;stringArray&amp;string
Array&amp;string
chanchal ghosh

Arrays in C language
Arrays in C languageArrays in C language
Arrays in C language
Shubham Sharma

Module 4- Arrays and Strings
Module 4- Arrays and StringsModule 4- Arrays and Strings
Module 4- Arrays and Strings
nikshaikh786

Array.pptx
Array.pptxArray.pptx
Array.pptx
fixocin377

Homework Assignment – Array Technical DocumentWrite a technical .pdf
Homework Assignment – Array Technical DocumentWrite a technical .pdfHomework Assignment – Array Technical DocumentWrite a technical .pdf
Homework Assignment – Array Technical DocumentWrite a technical .pdf
aroraopticals15

Unit4 Slides
Unit4 SlidesUnit4 Slides
Unit4 Slides
Rakesh Roshan

2 arrays
2   arrays2   arrays
2 arrays
trixiacruz

Arrays_in_c++.pptx
Arrays_in_c++.pptxArrays_in_c++.pptx
Arrays_in_c++.pptx
MrMaster11

Array
ArrayArray

Similar to Arrays-Computer programming (20)

Introduction to Arrays in C
Introduction to Arrays in CIntroduction to Arrays in C
Introduction to Arrays in C

02 arrays
02 arrays02 arrays
02 arrays

Array and its types and it's implemented programming Final.pdf
Array and its types and it's implemented programming Final.pdfArray and its types and it's implemented programming Final.pdf
Array and its types and it's implemented programming Final.pdf

Programming in c Arrays
Programming in c ArraysProgramming in c Arrays
Programming in c Arrays

Arrays
ArraysArrays
Arrays

Arrays In C
Arrays In CArrays In C
Arrays In C

CP Handout#7
CP Handout#7CP Handout#7
CP Handout#7

Arrays & Strings
Arrays & StringsArrays & Strings
Arrays & Strings

ARRAYS
ARRAYSARRAYS
ARRAYS

Arrays
ArraysArrays
Arrays

Arrays and library functions
Arrays and library functionsArrays and library functions
Arrays and library functions

Array&amp;string
Array&amp;stringArray&amp;string
Array&amp;string

Arrays in C language
Arrays in C languageArrays in C language
Arrays in C language

Module 4- Arrays and Strings
Module 4- Arrays and StringsModule 4- Arrays and Strings
Module 4- Arrays and Strings

Array.pptx
Array.pptxArray.pptx
Array.pptx

Homework Assignment – Array Technical DocumentWrite a technical .pdf
Homework Assignment – Array Technical DocumentWrite a technical .pdfHomework Assignment – Array Technical DocumentWrite a technical .pdf
Homework Assignment – Array Technical DocumentWrite a technical .pdf

Unit4 Slides
Unit4 SlidesUnit4 Slides
Unit4 Slides

2 arrays
2   arrays2   arrays
2 arrays

Arrays_in_c++.pptx
Arrays_in_c++.pptxArrays_in_c++.pptx
Arrays_in_c++.pptx

Array
ArrayArray
Array


More from nmahi96

Matlab lab manual
Matlab lab manualMatlab lab manual
Matlab lab manual
nmahi96

Heat transfer(HT) lab manual
Heat transfer(HT) lab manualHeat transfer(HT) lab manual
Heat transfer(HT) lab manual
nmahi96

STSDSD
STSDSDSTSDSD
STSDSD
nmahi96

Personal Survival Techniques(PST)
Personal Survival Techniques(PST)Personal Survival Techniques(PST)
Personal Survival Techniques(PST)
nmahi96

Personal Survival and Social Responsibilities(PSSR)
Personal Survival and Social Responsibilities(PSSR)Personal Survival and Social Responsibilities(PSSR)
Personal Survival and Social Responsibilities(PSSR)
nmahi96

Fire prevention and Fire Fighting(FPFF)
Fire prevention and Fire Fighting(FPFF)Fire prevention and Fire Fighting(FPFF)
Fire prevention and Fire Fighting(FPFF)
nmahi96

Elementary First Aid(EFA)
Elementary First Aid(EFA)Elementary First Aid(EFA)
Elementary First Aid(EFA)
nmahi96

INERT GAS SYSTEM(IG)
INERT GAS SYSTEM(IG)INERT GAS SYSTEM(IG)
INERT GAS SYSTEM(IG)
nmahi96

Practical Marine Electrical Knowledge 2ed 1999
Practical Marine Electrical Knowledge 2ed 1999Practical Marine Electrical Knowledge 2ed 1999
Practical Marine Electrical Knowledge 2ed 1999
nmahi96

Sensors
SensorsSensors
Sensors
nmahi96

Graduate marine engineering(GME)important questions
Graduate marine engineering(GME)important questionsGraduate marine engineering(GME)important questions
Graduate marine engineering(GME)important questions
nmahi96

FEA intro patran_nastran
FEA intro patran_nastranFEA intro patran_nastran
FEA intro patran_nastran
nmahi96

Ansys beam problem
Ansys beam problemAnsys beam problem
Ansys beam problem
nmahi96

Ansys
Ansys Ansys
Ansys
nmahi96

Screw thread measurement
Screw thread measurementScrew thread measurement
Screw thread measurement
nmahi96

Optical measuring instruments
Optical measuring instrumentsOptical measuring instruments
Optical measuring instruments
nmahi96

Tolerance and Fits
Tolerance and FitsTolerance and Fits
Tolerance and Fits
nmahi96

Ignition system
Ignition systemIgnition system
Ignition system
nmahi96

Clutch system
Clutch systemClutch system
Clutch system
nmahi96

Braking system
Braking systemBraking system
Braking system
nmahi96


More from nmahi96 (20)

Matlab lab manual
Matlab lab manualMatlab lab manual
Matlab lab manual

Heat transfer(HT) lab manual
Heat transfer(HT) lab manualHeat transfer(HT) lab manual
Heat transfer(HT) lab manual

STSDSD
STSDSDSTSDSD
STSDSD

Personal Survival Techniques(PST)
Personal Survival Techniques(PST)Personal Survival Techniques(PST)
Personal Survival Techniques(PST)

Personal Survival and Social Responsibilities(PSSR)
Personal Survival and Social Responsibilities(PSSR)Personal Survival and Social Responsibilities(PSSR)
Personal Survival and Social Responsibilities(PSSR)

Fire prevention and Fire Fighting(FPFF)
Fire prevention and Fire Fighting(FPFF)Fire prevention and Fire Fighting(FPFF)
Fire prevention and Fire Fighting(FPFF)

Elementary First Aid(EFA)
Elementary First Aid(EFA)Elementary First Aid(EFA)
Elementary First Aid(EFA)

INERT GAS SYSTEM(IG)
INERT GAS SYSTEM(IG)INERT GAS SYSTEM(IG)
INERT GAS SYSTEM(IG)

Practical Marine Electrical Knowledge 2ed 1999
Practical Marine Electrical Knowledge 2ed 1999Practical Marine Electrical Knowledge 2ed 1999
Practical Marine Electrical Knowledge 2ed 1999

Sensors
SensorsSensors
Sensors

Graduate marine engineering(GME)important questions
Graduate marine engineering(GME)important questionsGraduate marine engineering(GME)important questions
Graduate marine engineering(GME)important questions

FEA intro patran_nastran
FEA intro patran_nastranFEA intro patran_nastran
FEA intro patran_nastran

Ansys beam problem
Ansys beam problemAnsys beam problem
Ansys beam problem

Ansys
Ansys Ansys
Ansys

Screw thread measurement
Screw thread measurementScrew thread measurement
Screw thread measurement

Optical measuring instruments
Optical measuring instrumentsOptical measuring instruments
Optical measuring instruments

Tolerance and Fits
Tolerance and FitsTolerance and Fits
Tolerance and Fits

Ignition system
Ignition systemIgnition system
Ignition system

Clutch system
Clutch systemClutch system
Clutch system

Braking system
Braking systemBraking system
Braking system


Recently uploaded

Fix Production Bugs Quickly - The Power of Structured Logging in Ruby on Rail...
Fix Production Bugs Quickly - The Power of Structured Logging in Ruby on Rail...Fix Production Bugs Quickly - The Power of Structured Logging in Ruby on Rail...
Fix Production Bugs Quickly - The Power of Structured Logging in Ruby on Rail...
John Gallagher

Updated Limitations of Simplified Methods for Evaluating the Potential for Li...
Updated Limitations of Simplified Methods for Evaluating the Potential for Li...Updated Limitations of Simplified Methods for Evaluating the Potential for Li...
Updated Limitations of Simplified Methods for Evaluating the Potential for Li...
Robert Pyke

Digital Image Processing - Module 4 Chapter 2
Digital Image Processing - Module 4 Chapter 2Digital Image Processing - Module 4 Chapter 2
Digital Image Processing - Module 4 Chapter 2
821priyankaj

# Smart Parking Management System.pptx using IOT
# Smart Parking Management System.pptx using IOT# Smart Parking Management System.pptx using IOT
# Smart Parking Management System.pptx using IOT
Yesh20

If we're running two pumps, why aren't we getting twice as much flow? v.17
If we're running two pumps, why aren't we getting twice as much flow? v.17If we're running two pumps, why aren't we getting twice as much flow? v.17
If we're running two pumps, why aren't we getting twice as much flow? v.17
Brian Gongol

AI chapter1 introduction to artificial intelligence
AI chapter1 introduction to artificial intelligenceAI chapter1 introduction to artificial intelligence
AI chapter1 introduction to artificial intelligence
GeethaAL

1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf
1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf
1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf
AsiimweJulius2

TestRigor - Element Location Rules and UI Grid system
TestRigor - Element Location Rules and UI Grid systemTestRigor - Element Location Rules and UI Grid system
TestRigor - Element Location Rules and UI Grid system
artembondar5

ANATOMY OF SOA - Thomas Erl - Service Oriented Architecture
ANATOMY OF SOA - Thomas Erl - Service Oriented ArchitectureANATOMY OF SOA - Thomas Erl - Service Oriented Architecture
ANATOMY OF SOA - Thomas Erl - Service Oriented Architecture
Divya Rajasekar

JORC_Review_presentation. 2024 código jorcpdf
JORC_Review_presentation. 2024 código jorcpdfJORC_Review_presentation. 2024 código jorcpdf
JORC_Review_presentation. 2024 código jorcpdf
WilliamsNuezEspetia

Ebara corporation introduction. looking ahead, going beyond expectation
Ebara corporation introduction. looking ahead, going beyond expectationEbara corporation introduction. looking ahead, going beyond expectation
Ebara corporation introduction. looking ahead, going beyond expectation
nanjay2

Chapter 1 Introduction to Software Engineering and Process Models.pdf
Chapter 1 Introduction to Software Engineering and Process Models.pdfChapter 1 Introduction to Software Engineering and Process Models.pdf
Chapter 1 Introduction to Software Engineering and Process Models.pdf
MeghaGupta952452

OME754 – INDUSTRIAL SAFETY - unit notes.pptx
OME754 – INDUSTRIAL SAFETY - unit notes.pptxOME754 – INDUSTRIAL SAFETY - unit notes.pptx
OME754 – INDUSTRIAL SAFETY - unit notes.pptx
shanmugamram247

Indian Railway Signalling concepts and basics.pdf
Indian Railway Signalling concepts and basics.pdfIndian Railway Signalling concepts and basics.pdf
Indian Railway Signalling concepts and basics.pdf
princeshah76

The Control of Relative Humidity & Moisture Content in The Air
The Control of Relative Humidity & Moisture Content in The AirThe Control of Relative Humidity & Moisture Content in The Air
The Control of Relative Humidity & Moisture Content in The Air
Ashraf Ismail

Protect YugabyteDB with Hashicorp Vault.pdf
Protect YugabyteDB with Hashicorp Vault.pdfProtect YugabyteDB with Hashicorp Vault.pdf
Protect YugabyteDB with Hashicorp Vault.pdf
Gwenn Etourneau

Agricultural Profitability through Resilience: Smallholder Farmers' Strategie...
Agricultural Profitability through Resilience: Smallholder Farmers' Strategie...Agricultural Profitability through Resilience: Smallholder Farmers' Strategie...
Agricultural Profitability through Resilience: Smallholder Farmers' Strategie...
IJAEMSJORNAL

Concepts of Automatic Block Signalling.ppt
Concepts of Automatic Block Signalling.pptConcepts of Automatic Block Signalling.ppt
Concepts of Automatic Block Signalling.ppt
princeshah76

System Analysis and Design in a changing world 5th edition
System Analysis and Design in a changing world 5th editionSystem Analysis and Design in a changing world 5th edition
System Analysis and Design in a changing world 5th edition
mnassar75g

UNIT 1 - INTRODUCTION ON DISASTER MANAGEMENT.ppt
UNIT 1 - INTRODUCTION ON DISASTER MANAGEMENT.pptUNIT 1 - INTRODUCTION ON DISASTER MANAGEMENT.ppt
UNIT 1 - INTRODUCTION ON DISASTER MANAGEMENT.ppt
shanmugamram247


Recently uploaded (20)

Fix Production Bugs Quickly - The Power of Structured Logging in Ruby on Rail...
Fix Production Bugs Quickly - The Power of Structured Logging in Ruby on Rail...Fix Production Bugs Quickly - The Power of Structured Logging in Ruby on Rail...
Fix Production Bugs Quickly - The Power of Structured Logging in Ruby on Rail...

Updated Limitations of Simplified Methods for Evaluating the Potential for Li...
Updated Limitations of Simplified Methods for Evaluating the Potential for Li...Updated Limitations of Simplified Methods for Evaluating the Potential for Li...
Updated Limitations of Simplified Methods for Evaluating the Potential for Li...

Digital Image Processing - Module 4 Chapter 2
Digital Image Processing - Module 4 Chapter 2Digital Image Processing - Module 4 Chapter 2
Digital Image Processing - Module 4 Chapter 2

# Smart Parking Management System.pptx using IOT
# Smart Parking Management System.pptx using IOT# Smart Parking Management System.pptx using IOT
# Smart Parking Management System.pptx using IOT

If we're running two pumps, why aren't we getting twice as much flow? v.17
If we're running two pumps, why aren't we getting twice as much flow? v.17If we're running two pumps, why aren't we getting twice as much flow? v.17
If we're running two pumps, why aren't we getting twice as much flow? v.17

AI chapter1 introduction to artificial intelligence
AI chapter1 introduction to artificial intelligenceAI chapter1 introduction to artificial intelligence
AI chapter1 introduction to artificial intelligence

1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf
1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf
1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf

TestRigor - Element Location Rules and UI Grid system
TestRigor - Element Location Rules and UI Grid systemTestRigor - Element Location Rules and UI Grid system
TestRigor - Element Location Rules and UI Grid system

ANATOMY OF SOA - Thomas Erl - Service Oriented Architecture
ANATOMY OF SOA - Thomas Erl - Service Oriented ArchitectureANATOMY OF SOA - Thomas Erl - Service Oriented Architecture
ANATOMY OF SOA - Thomas Erl - Service Oriented Architecture

JORC_Review_presentation. 2024 código jorcpdf
JORC_Review_presentation. 2024 código jorcpdfJORC_Review_presentation. 2024 código jorcpdf
JORC_Review_presentation. 2024 código jorcpdf

Ebara corporation introduction. looking ahead, going beyond expectation
Ebara corporation introduction. looking ahead, going beyond expectationEbara corporation introduction. looking ahead, going beyond expectation
Ebara corporation introduction. looking ahead, going beyond expectation

Chapter 1 Introduction to Software Engineering and Process Models.pdf
Chapter 1 Introduction to Software Engineering and Process Models.pdfChapter 1 Introduction to Software Engineering and Process Models.pdf
Chapter 1 Introduction to Software Engineering and Process Models.pdf

OME754 – INDUSTRIAL SAFETY - unit notes.pptx
OME754 – INDUSTRIAL SAFETY - unit notes.pptxOME754 – INDUSTRIAL SAFETY - unit notes.pptx
OME754 – INDUSTRIAL SAFETY - unit notes.pptx

Indian Railway Signalling concepts and basics.pdf
Indian Railway Signalling concepts and basics.pdfIndian Railway Signalling concepts and basics.pdf
Indian Railway Signalling concepts and basics.pdf

The Control of Relative Humidity & Moisture Content in The Air
The Control of Relative Humidity & Moisture Content in The AirThe Control of Relative Humidity & Moisture Content in The Air
The Control of Relative Humidity & Moisture Content in The Air

Protect YugabyteDB with Hashicorp Vault.pdf
Protect YugabyteDB with Hashicorp Vault.pdfProtect YugabyteDB with Hashicorp Vault.pdf
Protect YugabyteDB with Hashicorp Vault.pdf

Agricultural Profitability through Resilience: Smallholder Farmers' Strategie...
Agricultural Profitability through Resilience: Smallholder Farmers' Strategie...Agricultural Profitability through Resilience: Smallholder Farmers' Strategie...
Agricultural Profitability through Resilience: Smallholder Farmers' Strategie...

Concepts of Automatic Block Signalling.ppt
Concepts of Automatic Block Signalling.pptConcepts of Automatic Block Signalling.ppt
Concepts of Automatic Block Signalling.ppt

System Analysis and Design in a changing world 5th edition
System Analysis and Design in a changing world 5th editionSystem Analysis and Design in a changing world 5th edition
System Analysis and Design in a changing world 5th edition

UNIT 1 - INTRODUCTION ON DISASTER MANAGEMENT.ppt
UNIT 1 - INTRODUCTION ON DISASTER MANAGEMENT.pptUNIT 1 - INTRODUCTION ON DISASTER MANAGEMENT.ppt
UNIT 1 - INTRODUCTION ON DISASTER MANAGEMENT.ppt


Arrays-Computer programming

  • 1. Page 1 ARRAYS Need of an Array: The variables of fundamental data types namely char,int,float,double can store only one value at any given time. Therefore they can be used only to handle limited amounts of data. To process large amount of data , we need a powerful data type that would facilitate efficient storing, accessing and manipulation of data items. C supports a derived data type known as array that can be used for such applications. Array: An array in C language is a collection of similar data-type, means an array can hold value of a particular data type for which it has been declared. Arrays can be created from any of the C data-types int, float, and char. So an integer array can only hold integer values and cannot hold values other than integer. When we declare array, it allocates contiguous memory location for storing values whereas 2 or 3 variables of same data-type can have random locations. So this is the most important difference between a variable and an array. Array Definition: Array is a collection of variables, that can be stored in a continuous memory locations and shared a common name. (or) Array by definition is a variable that hold multiple elements which has the same data type. Arrays are of following types: • Single dimensional arrays • Double dimensional arrays • Multi-dimension arrays. Each of this array type can be of either static array or dynamic array. Static arrays have their sizes declared from the start and the size cannot be changed after declaration. Dynamic arrays that allow you to dynamically change their size at runtime, but they require more advanced techniques such as pointers and memory allocation. Single Dimension Arrays: Declaring Single Dimension Arrays Arrays can be declared using any of the data types available in C. Array size must be declared using constant value before initialization. A single dimensional array will be useful for simple grouping of data that is relatively small in size.
  • 2. Page 2 We can declare an array by specifying its data type, name and the fixed number of elements the array holds between square brackets immediately following the array name. The following illustrates how to declare an array: data_type array_name[size]; For example, to declare an array that contains 100 integer numbers you can do as follows: int a[100]; You must follow the rules below when you declare an array in C: • The data type can be any valid C data types including C structure and union. • The name of an array has to follow the rule of C variables. • The size of array has to be a positive constant integer. So far, we've been declaring simple variables: the declaration int i; Declares a single variable, named i, of type int. It is also possible to declare an array of several elements. The declaration : int a[10]; Declares an array, named a, consisting of ten elements, each of type int. Simply speaking, an array is a variable that can hold more than one value. You specify which of the several values you're referring to at any given time by using a numeric subscript OR index. (Arrays in programming are similar to vectors or matrices in mathematics.) We can represent the array a above with a picture Like this: Initializing Single dimensional Arrays: An array can be initialized at either of the flowing stages:’ • At compile time • At run time
  • 3. Page 3 Compile time initialization: It is like a variable, an array can be initialized. To initialize an array, you provide initializing values which are enclosed within curly braces in the declaration and placed following an equals sign after the array name. Here is an examples of initializing an array of integers. int a[5] = {2,1,3,7,8}; this declaration initialize the given 5 elements to an array a. int arr[]={12,32,53,14,95}; this approach works fine as long as we initialize every element in the array arr. int a[5]={20,30,40}; this compile time initialization is partial. In such cases, the remaining elements are initialized to zero. char list[10]={‘a’,’e’,’i’}; this initialize first 3 position with a,e,i. and remaining all 7 positions to NULL. int num[3]=(30,40,50,60}; we have more initializers than the declared size, the compiler will produce an error. It is illegal in C. The array initialization is done is given below int a[5] = {12, 14, 16, 17, 18}; Here 5 elements are stored in an array ‘a’. The array elements are stored sequentially in separate locations. Reading of array elements begins from ‘0’. Array elements are called by array names followed by the element numbers. The 5 elements are referred as Subscripted variable a[0] refers to the first element of array a, 12 i.e. a[0]=12 Subscripted variable a[1] refers to the first element of array a, 14 i.e. a[1]=14 Subscripted variable a[2] refers to the first element of array a, 16 i.e. a[2]=16 Subscripted variable a[3] refers to the first element of array a, 17 i.e. a[3]=17 Subscripted variable a[4] refers to the first element of array a ,18 i.e. a[4]=18 If the array size is declared as 5. The elements are stored from index 0 to 4. i.e. If a[5] has been declared, then values are stored from a[0] to a[4]. The integer enclosed in brackets is the array subscript, and its value must be in the range from zero to one less than the number of memory cells in the array.
  • 4. Page 4 1) A simple ‘C’ program on Array Initialization Example void main() { int arr[5],i; clrscr(); arr[0]=10; arr[1]=20; arr[2]=30; arr[3]=40; arr[4]=50; printf("Value in array arr[0] : %dn",arr[0]); printf("Value in array arr[1] : %dn",arr[1]); printf("Value in array arr[2] : %dn",arr[2]); printf("Value in array arr[3] : %dn",arr[3]); printf("Value in array arr[4] : %dn",arr[4]); printf("n"); for(i=0;i<5;i++) { printf("Value in array arr[%d] : %dn",i,arr[i]); } } Run time initialization: An array can be explicitly initialized at run time. This approach is usually applied for initializing large arrays. For example, consider the following segment of a C program. ----------------- ----------------- for(i=0 ; i<10 ; i++) a[i]=0; The above runtime for loop statement initializes 0 to all 0-9 subscripts values of an array a[] , when the program execution takes place. Accessing Array Element from one-dimensional array:
  • 5. Page 5 You can access array elements via indexes like array_name[index]. Indexes of array starts from 0 not 1 so the highest elements of an array is array_name[size-1] In C, arrays are zero-based: the ten elements of a 10-element array are numbered from 0 to 9. The subscript which specifies a single element of an array is simply an integer expression in square brackets. The first element of the array is a[0], the second element is a[1], etc. You can use these ``array subscript expressions'' anywhere you can use the name of a simple variable, for example: a[0] = 10; a[1] = 20; a[2] = a[0] + a[1]; We can access all the elements of an array with the following statements: when we wanted to do something with a (such as print it out), the loop would run from 0 to n, where n is not greater than the array size. (or whatever a's size was): for(i = 0; i < n; i = i + 1) printf("%dn", a[i]); Sample Programs /*A simple ‘C’ program to demonstrate the Runtime initialization and use of an array. */ main() { int i[10],j; for ( j=0 ; j<10 ; j++) i[j] = j ; for ( j=0 ; j<10 ; j++) printf("%d" , i[j]) ; } The above programs prints the output as 0 1 2 3 4 5 6 7 8 9. 1. /*Program to read an array of 10 numbers and print them */ void main() { int a[10],i; clrscr();
  • 6. Page 6 printf("Enter 10 values :"); for(i=0; i<10; i++) scanf("%d",&a[i]); printf("Given Values :"); for(i=0; i<10; i++) printf("%3d",a[i]); } Output Enter 10 values ; 21 22 23 24 25 26 27 28 29 30 Given Values : 21 22 23 24 25 26 27 28 29 30 2./* Program to calculate the sum and average of six subject marks using arrays */ void main() { int a[10],i,sum=0; float avg; clrscr(); printf("Enter 6 subject marks :"); for(i=0; i<6; i++) { scanf("%d",&a[i]); sum = sum + a[i]; } printf("Sum = %d",sum); avg= sum/6; printf("nAvg = %f",avg); } Output Enter 6 subject marks : 50 55 60 65 70 75 Sum = 375 Avg = 62.000000 3./* Program to calculate maximum and minimum of given numbers */ void main() { int a[100],n,max=0,min,i; clrscr(); printf("Enter total numbers :"); scanf("%d",&n); printf("Enter %d numbers :",n); for(i=0; i<n; i++) { scanf("%d",&a[i]); } for(i=0; i<n; i++) { if(max<a[i]) max = a[i]; } printf("Maximum Number = %d",max); min=a[0]; for(i=0; i<n; i++)
  • 7. Page 7 { if(min>a[i]) min = a[i]; } printf("nMinimum Number = %d",min); } Output Enter total numbers : 5 Enter 5 numbers : 16 32 03 15 12 Maximum Number = 32 Minimum Number = 36 Two Dimensional Arrays : The array which is used to represent and store data in a tabular form is called as 'two dimensional array.' Such type of array specially used to represent data in a matrix form. The following syntax is used to represent two dimensional array. Syntax: <data-type> <array_name> [row_subscript][column-subscript]; Example: int a[3][3]; In above example, a is an array of type integer which has storage size of 3 * 3 matrix. The total size would be 3 * 3 * 2 = 18 bytes. It is also called as 'multidimensional array.' * Memory Allocation : Fig : Memory allocation for two dimensional array Initializing the Two-Dimensional arrays: Compile time initializing of two-dimensional array:
  • 8. Page 8 We can initialize this 2D-array by writing: int theArray[5][3] = { 1,2,3,4,5,6,7,8,9,10,11,12,13,14,15 }; we can group the initializations with braces, as in the following example: int theArray[5][3] = { {1,2,3},{4,5,6},{7,8,9},{10,11,12},{13,14,15} }; The compiler ignores the inner braces, which make it easier to understand how the numbers are distributed. Each value must be separated by a comma, without regard to the braces. The entire initialization set must be within braces, and it must end with a semicolon. Int table[2][3]={ {1,1},(2}}; in this initialization the missing values are automatically set to 0. All the elements can be initialized to zero by the following declaration: Int m[3][5]={ {0},{0},{0}}; Runtime initialization of Two-Dimensional Arrays: An two-dimensional array can be explicitly initialized at run time. This approach is usually applied for initializing large arrays. For example, consider the following segment of a C program. for(i=0; i<3; i++) { for(j=0; j<3; j++) { scanf("%d",&a[i][j]); //read 3*3 array } } In this initialization the scanf functions reads the array elements in in a[][] by using two for loop statements, and i,j are two subscripts of array a. /*Program to demonstrate two dimensional array.*/ #include <stdio.h> #include <conio.h> void main() { int a[3][3], i, j; clrscr(); printf("nt Enter matrix of 3*3 : "); for(i=0; i<3; i++) {
  • 9. Page 9 for(j=0; j<3; j++) { scanf("%d",&a[i][j]); //read 3*3 array } } printf("nt Matrix is : n"); for(i=0; i<3; i++) { for(j=0; j<3; j++) { printf("t %d",a[i][j]); //print 3*3 array } printf("n"); } getch(); } Output : Enter matrix of 3*3 : 3 4 5 6 7 2 1 2 3 Matrix is : 3 4 5 6 7 2 1 2 3 /* Program to read elements of two-dimensional array and print them in matrix format*/ void main() { int a[3][2],i,j; clrscr(); printf("Enter elements of 3x2 matrix :"); for(i=0; i<3; i++) { for(j=0; j<2; j++) { scanf("%d",&a[i][j]); } } printf("Given Elements are :n"); for(i=0; i<3; i++) { for(j=0; j<2; j++) { printf("%3d",a[i][j]); } printf("n");
  • 10. Page 10 } } Output Enter elements of 3x2 matrix : 1 5 2 6 3 7 Given elements 1 5 2 6 3 7 /* Program to perform addition and subtraction of two matrices*/ void main() { int a[3][2],b[3][2],c[3][2],d[3][2],i,j; clrscr(); printf("Enter elements of 3x2 matrix A:"); for(i=0; i<3; i++) { for(j=0; j<2; j++) { scanf("%d",&a[i][j]); } } printf("Enter elements of 3x2 matrix B:"); for(i=0; i<3; i++) { for(j=0; j<2; j++) { scanf("%d",&b[i][j]); } } for(i=0; i<3; i++) { for(j=0; j<2; j++) { c[i][j] = a[i][j] + b[i][j]; d[i][j] = a[i][j] - b[i][j]; } } printf("Resultant Sum Matrix :n"); for(i=0; i<3; i++) { for(j=0; j<2; j++) { printf("%3d",c[i][j]); } printf("n"); } printf("Resultant Diff. Matrix :n"); for(i=0; i<3; i++) { for(j=0; j<2; j++)
  • 11. Page 11 { printf("%3d",d[i][j]); } printf("n"); } } Output Enter elements of 3x2 matrix A : 1 2 3 4 5 6 Enter elements of 3x2 matrix B : 7 8 9 0 1 2 Resultant Sum Matrix : 8 10 12 4 6 7 Resultant Diff. Matrix ; -6 -6 -6 4 4 4 /* Program to perform multiplication of two matrices*/ void main() { int a[3][2],b[2][3],c[3][3],i,j,k; clrscr(); printf("Enter elements of 3x2 matrix A:"); for(i=0; i<3; i++) { for(j=0; j<2; j++) { scanf("%d",&a[i][j]); } } printf("Enter elements of 2x3 matrix B:"); for(i=0; i<2; i++) { for(j=0; j<3; j++) { scanf("%d",&b[i][j]); } } for(i=0; i<3; i++) { for(j=0; j<3; j++) { c[i][j]=0; for(k=0; k<2; k++) { c[i][j] =c[i][j] + (a[i][k] * b[k][j]); }
  • 12. Page 12 } } printf("Resultant Product Matrix :n"); for(i=0; i<3; i++) { for(j=0; j<3; j++) { printf("%3d",c[i][j]); } printf("n"); } } Output Enter elements of 3x2 matrix A : 1 2 3 4 5 6 Enter elements of 2x3 matrix B : 1 2 3 4 5 6 Resultant Product Matrix : 9 12 15 19 26 33 29 40 51 /* Program to check whether given matrix is symmetric or not*/ void main() { int a[3][3],b[3][3],i,j,count=0; clrscr(); printf("Enter elements of 3x3 matrix :"); for(i=0; i<3; i++) { for(j=0; j<3; j++) { scanf("%d",&a[i][j]); } } for(i=0; i<3; i++) { for(j=0; j<3; j++) { b[i][j]=a[j][i]; } } printf("Transpose of matrix :n"); for(i=0; i<3; i++) { for(j=0; j<3; j++) { printf("%3d",b[i][j]); }
  • 13. Page 13 printf("n"); } for(i=0; i<3; i++) { for(j=0; j<3; j++) { if(a[i][j] == b[i][j]) count++; } } if(count == 9) printf("Symmetric Matrix"); else printf("Non Symmetric Matrix"); } Output Enter elements of 3x3 matrix : 1 2 3 2 3 4 3 4 5 Transpose of matrix : 1 2 3 2 3 4 3 4 5 Symmetric Matrix
  • 14. Page 14 Multidimensional Arrays Multidimensional arrays have three, four or more dimensions. The first dimension is called plane, which consists of rows and columns. Arrays of four or more dimensions can be created and used, but difficult to draw. Three-dimensional array can be defined as array of two-dimensional arrays. In other words, it is an array of arrays of array. Declaration: int a[2][3][4]; Here2 indicates a plane consisting of 3 rows and 4 columns Initialization int a[2][3][4] = { { {0,1,2,3}, {4,5,6,7}, {8,9,10,11} }, { {12,13,14,15}, {16,17,18,19}, {20,22,23,24} } };
