This document describes 7 Arduino projects that utilize basic electronic components like breadboards, jumper wires, batteries, LEDs, 7-segment displays, sensors, and motors. The projects include monitoring temperature and humidity with a DHT11 sensor and 7-segment display, monitoring body temperature with an LM35 sensor, 7-segment display and RGB LED, using a potentiometer to control a 7-segment display's blinking, controlling a stepper motor's speed based on temperature, activating a relay to power an appliance based on temperature readings from a DHT11, measuring AC current with an ACS712 sensor and displaying it on a 7-segment display, and measuring distance with an HCSR04 sensor and indicating the reading

1. Arduino Projects
Pengantar Rekayasa dan Desain I
2017

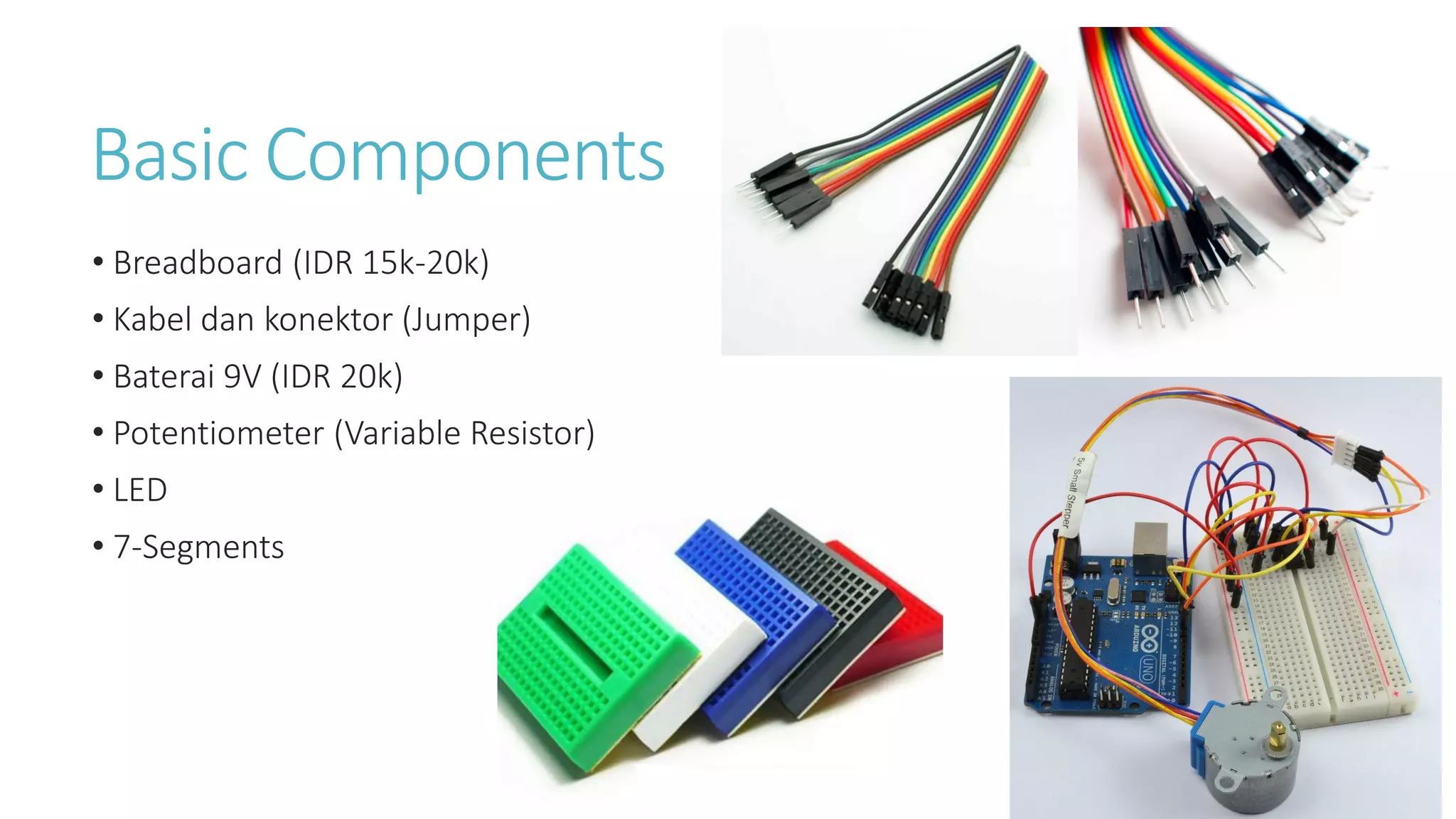

2. Basic Components
• Breadboard (IDR 15k-20k)
• Kabel dan konektor (Jumper)
• Baterai 9V (IDR 20k)
• Potentiometer (Variable Resistor)
• LED
• 7-Segments

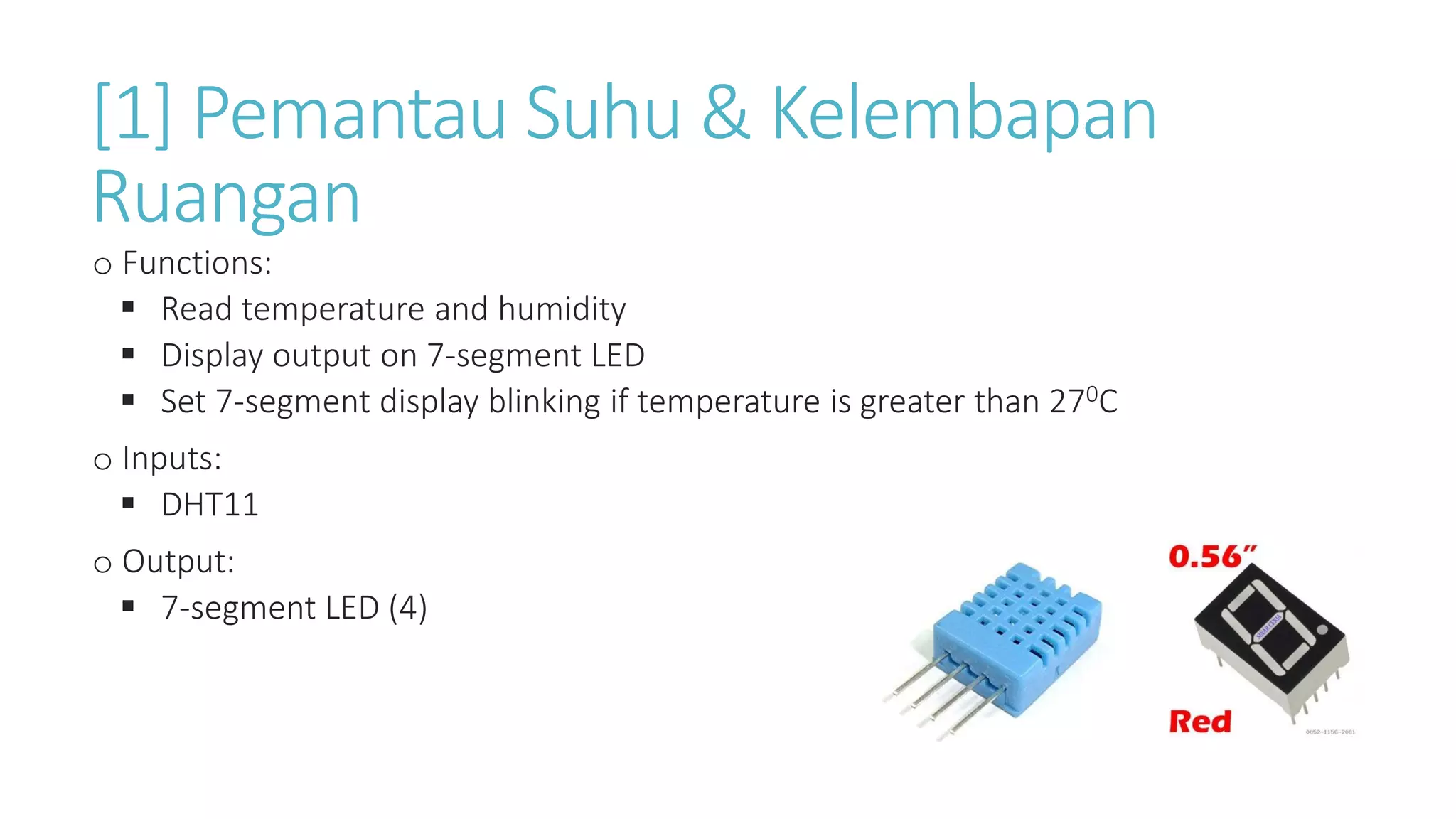

3. [1] Pemantau Suhu & Kelembapan
Ruangan
o Functions:
▪ Read temperature and humidity
▪ Display output on 7-segment LED
▪ Set 7-segment display blinking if temperature is greater than 270C
o Inputs:
▪ DHT11
o Output:
▪ 7-segment LED (4)

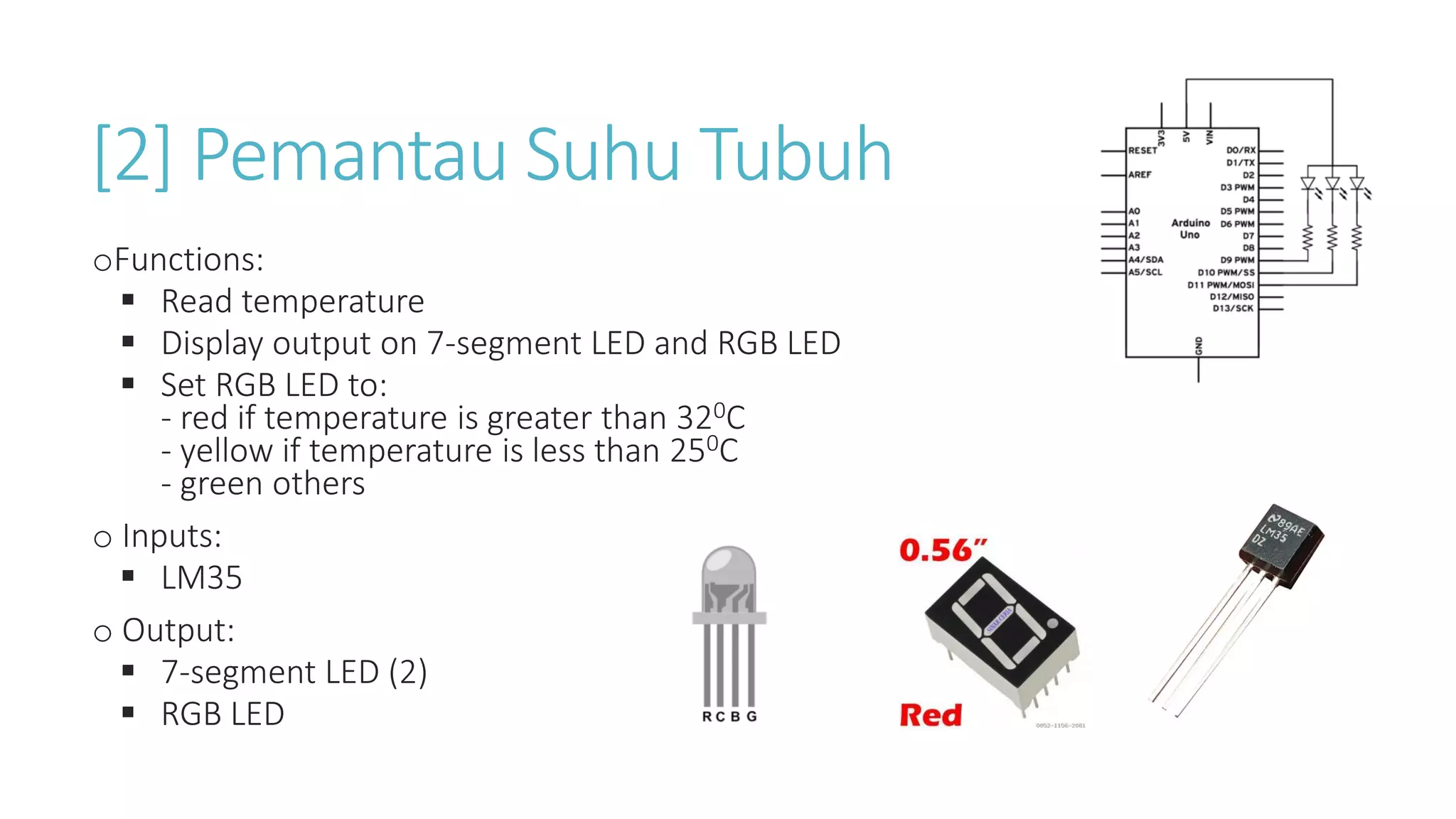

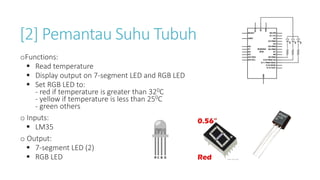

4. [2] Pemantau Suhu Tubuh
oFunctions:
▪ Read temperature
▪ Display output on 7-segment LED and RGB LED
▪ Set RGB LED to:
- red if temperature is greater than 320C
- yellow if temperature is less than 250C
- green others
o Inputs:
▪ LM35
o Output:
▪ 7-segment LED (2)
▪ RGB LED

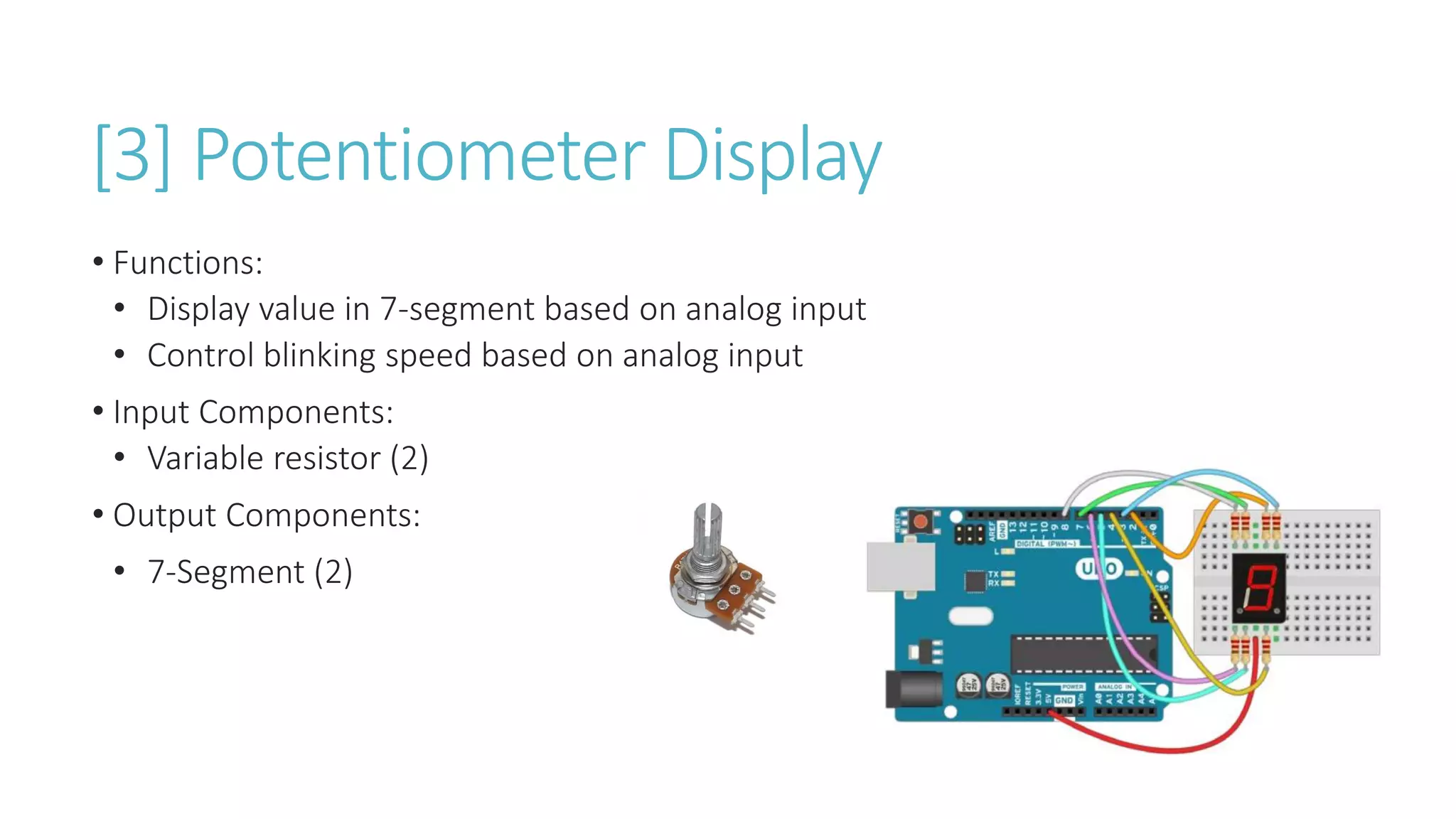

5. [3] Potentiometer Display
• Functions:
• Display value in 7-segment based on analog input
• Control blinking speed based on analog input
• Input Components:
• Variable resistor (2)
• Output Components:
• 7-Segment (2)

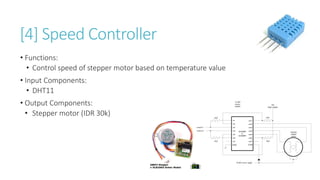

6. [4] Speed Controller
• Functions:
• Control speed of stepper motor based on temperature value
• Input Components:
• DHT11
• Output Components:
• Stepper motor (IDR 30k)

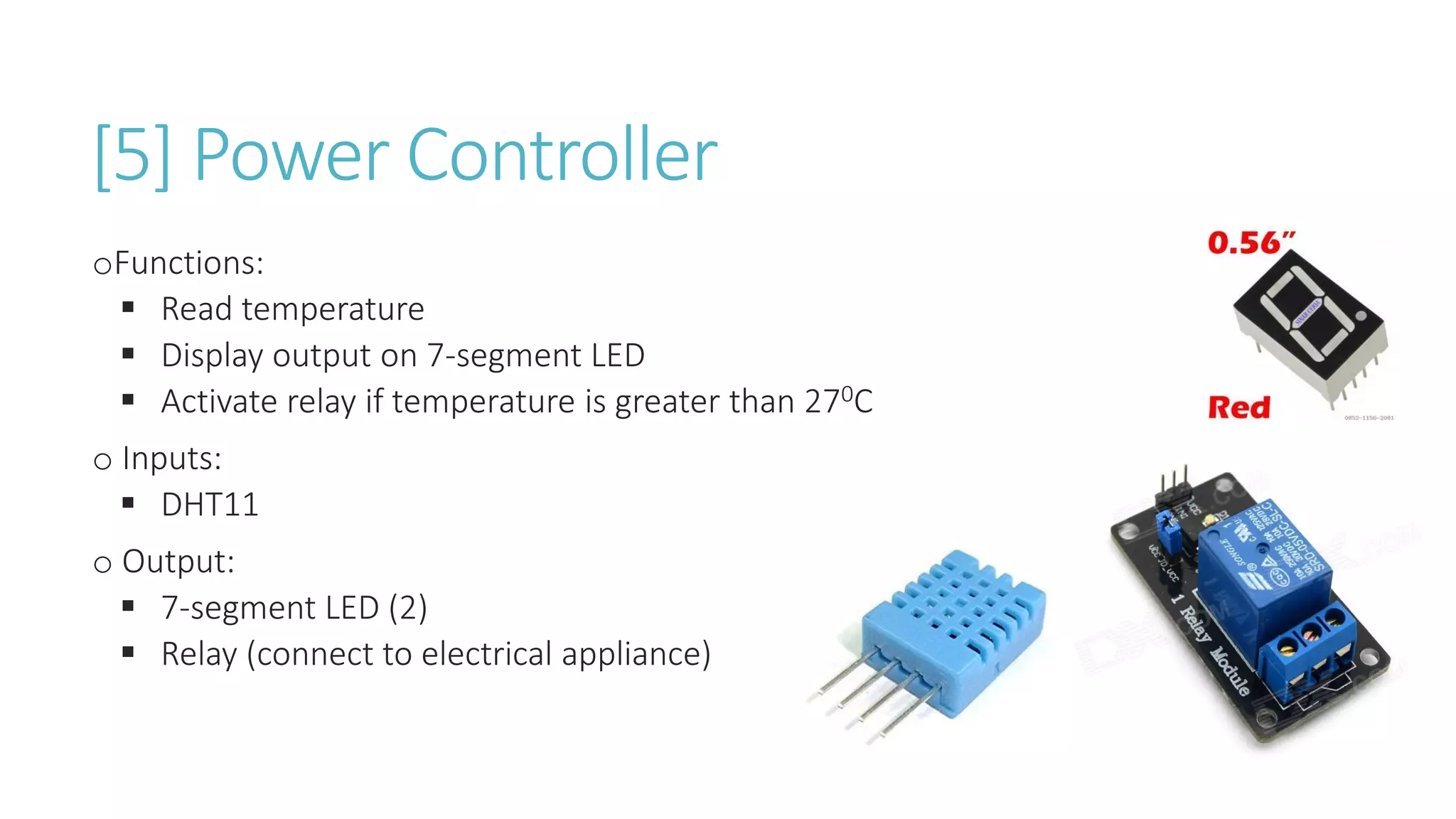

7. [5] Power Controller
oFunctions:
▪ Read temperature
▪ Display output on 7-segment LED
▪ Activate relay if temperature is greater than 270C
o Inputs:
▪ DHT11
o Output:
▪ 7-segment LED (2)
▪ Relay (connect to electrical appliance)

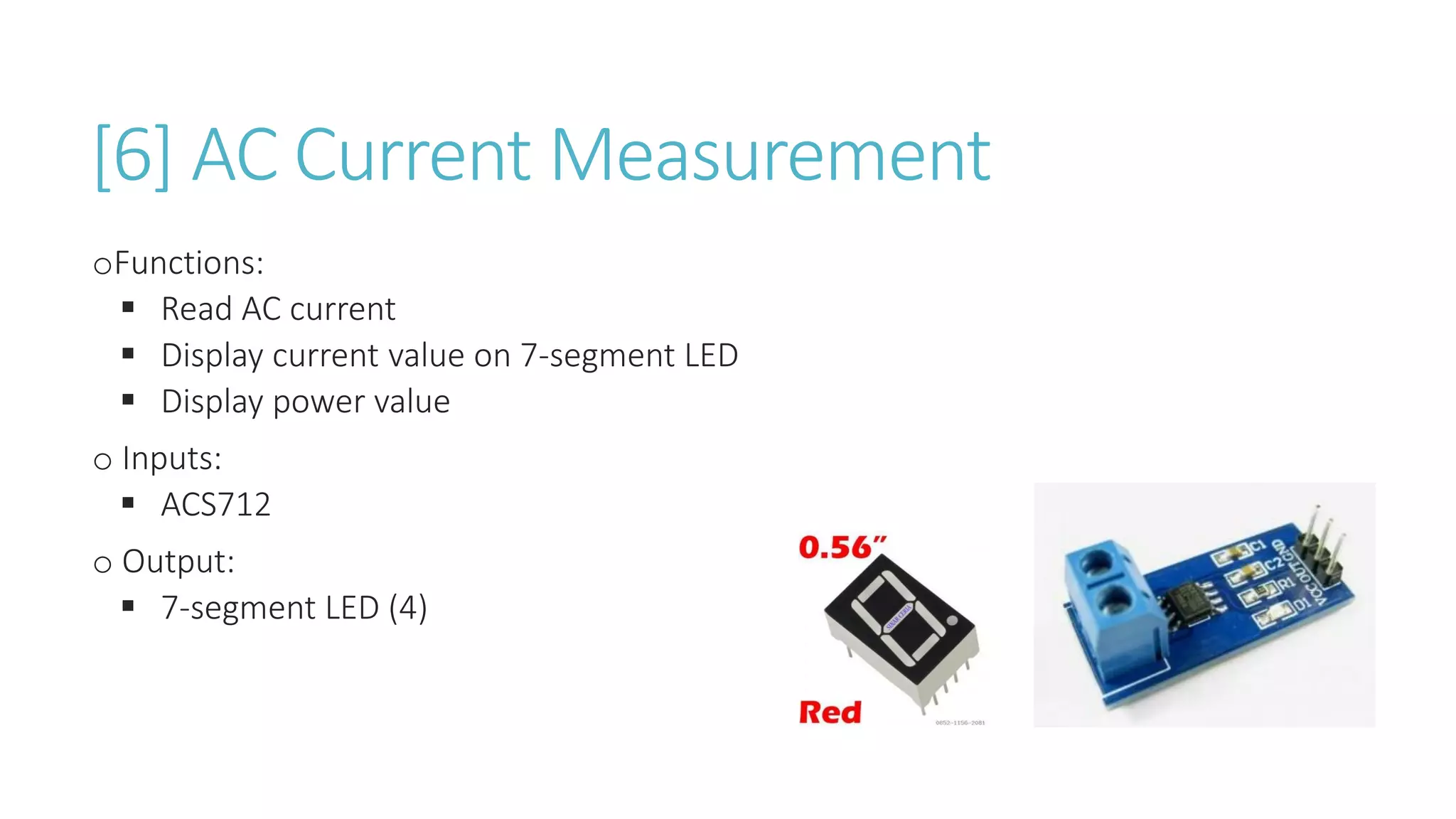

8. [6] AC Current Measurement
oFunctions:
▪ Read AC current
▪ Display current value on 7-segment LED
▪ Display power value
o Inputs:
▪ ACS712
o Output:
▪ 7-segment LED (4)

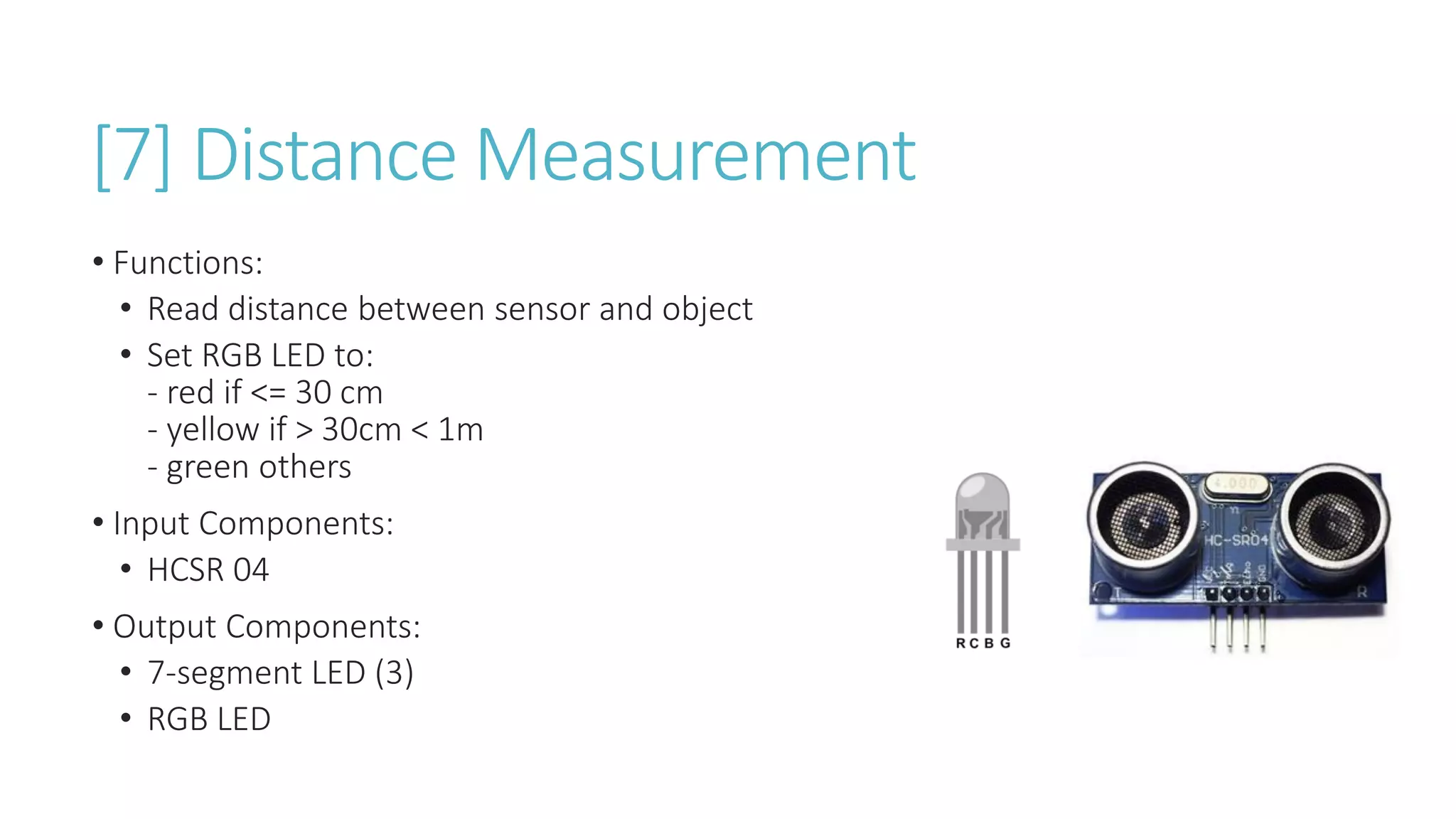

9. [7] Distance Measurement
• Functions:
• Read distance between sensor and object
• Set RGB LED to:
- red if <= 30 cm
- yellow if > 30cm < 1m
- green others
• Input Components:
• HCSR 04
• Output Components:
• 7-segment LED (3)
• RGB LED

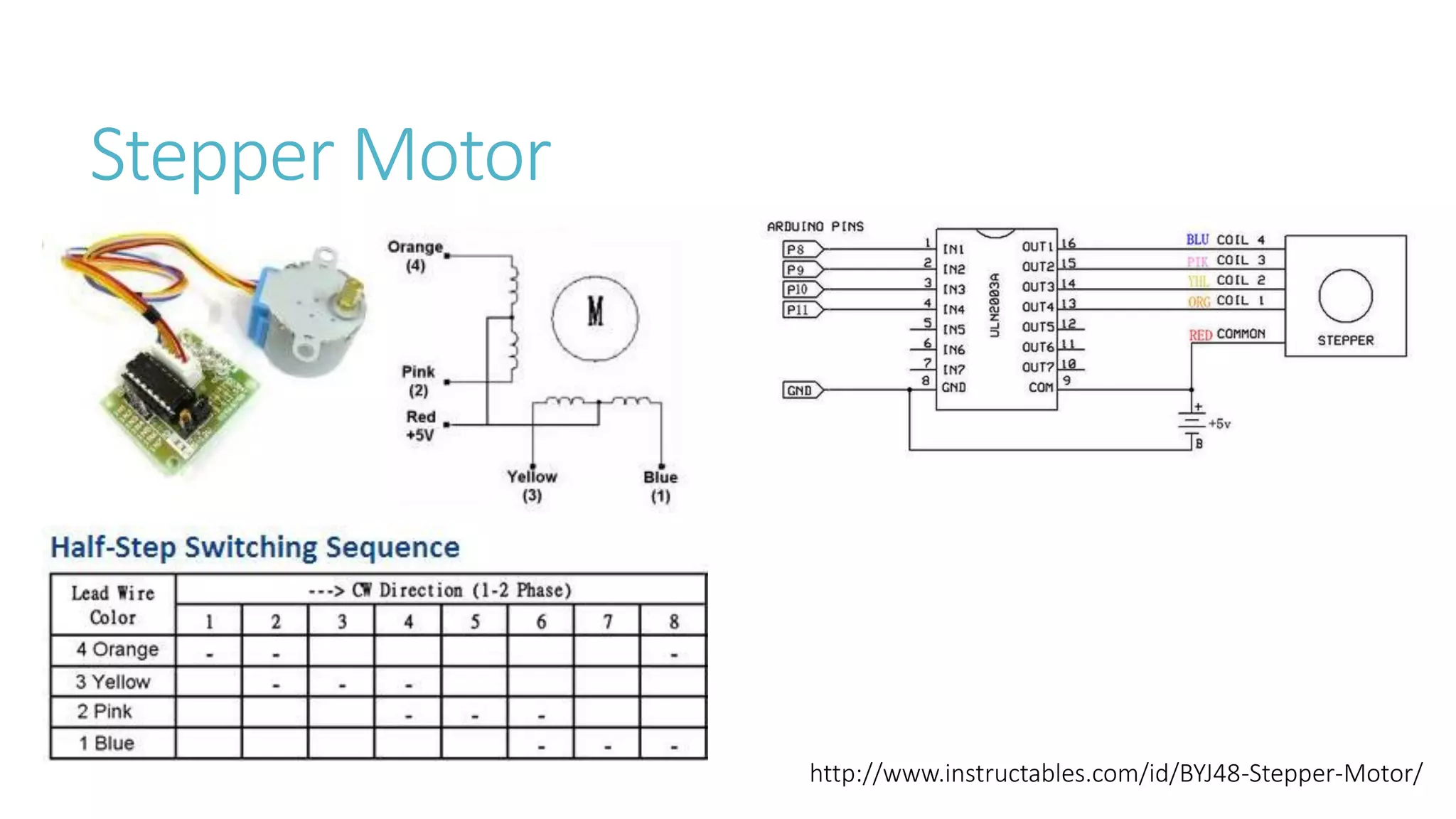

10. Stepper Motor
http://www.instructables.com/id/BYJ48-Stepper-Motor/

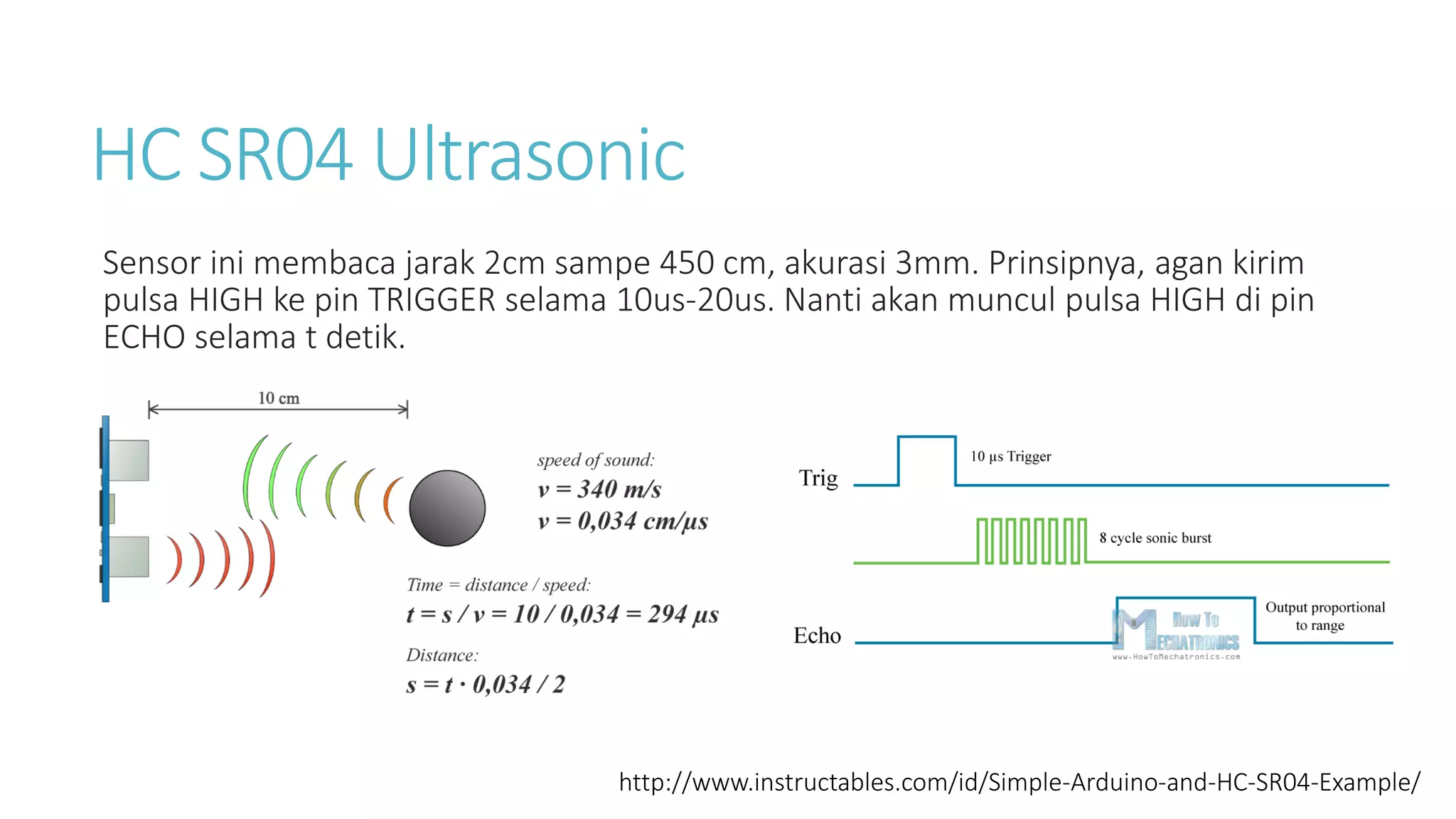

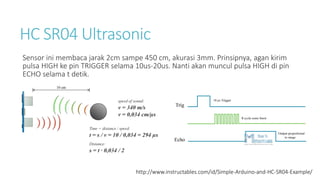

11. HC SR04 Ultrasonic
Sensor ini membaca jarak 2cm sampe 450 cm, akurasi 3mm. Prinsipnya, agan kirim
pulsa HIGH ke pin TRIGGER selama 10us-20us. Nanti akan muncul pulsa HIGH di pin
ECHO selama t detik.
http://www.instructables.com/id/Simple-Arduino-and-HC-SR04-Example/
