Architectural standards
This document contains architectural standards and dimensions for interior spaces including furniture, bathrooms, kitchens, and parking. It includes human scale drawings, different ways to draw doors and measure with hands. Sections cover interior standards for rooms like kitchens, living rooms, and bathrooms. Furniture dimensions are provided for living rooms, bedrooms, dining rooms, and other areas. Parking and television dimensions are also included along with notes on right and wrong design approaches.
More Related Content
Architectural standards

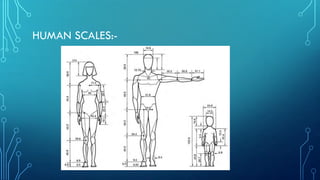

- 1. ARCHITECTURAL STANDARDS (INTERIOR- PLANS-SECTIONS- GAMES- TRUE AND FALSE WAYS OF PUTTING FURNITURE- HUMAN SCALES )
- 2.

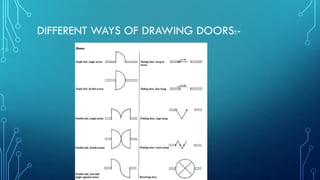

- 3. DIFFERENT WAYS OFDRAWING DOORS:-

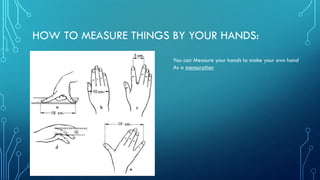

- 4. HOW TO MEASURETHINGS BY YOUR HANDS: You can Measure your hands to make your own hand As a mensuration

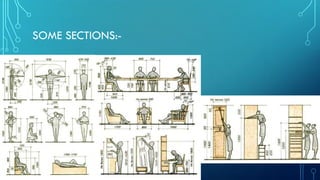

- 5.
- 6.

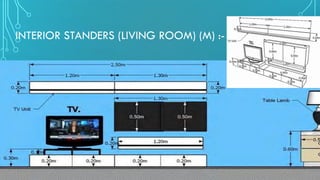

- 7. INTERIOR STANDERS (LIVINGROOM) (M) :-
- 8. INTERIOR STANDERS (LIVINGROOM) (M) :-
- 9.
- 10.

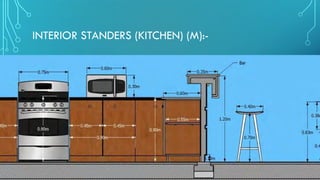

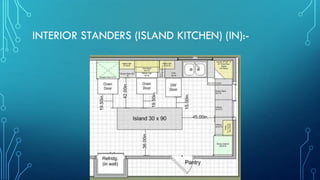

- 11. INTERIOR STANDERS (ISLANDKITCHEN) (IN):-
- 12.

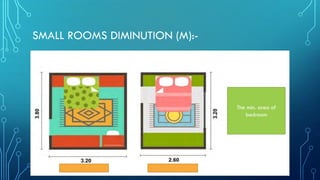

- 13. SMALL ROOMS DIMINUTION(M):- The min. area of bedroom

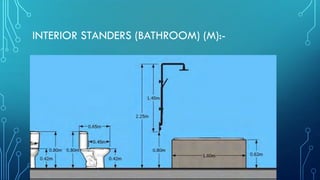

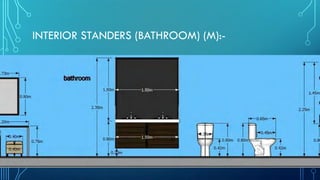

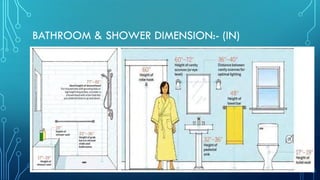

- 14. BATHROOM & SHOWERDIMENSION:- (IN)
- 15.
- 16.

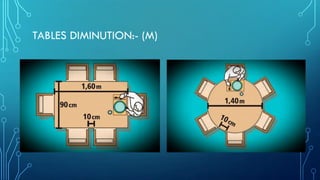

- 17.

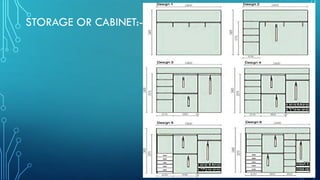

- 18.

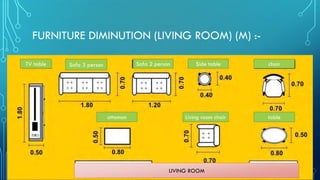

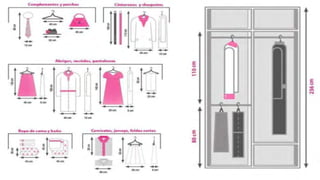

- 20. FURNITURE DIMINUTION (LIVINGROOM) (M) :- chairSide tableSofa 2 personSofa 3 personTV table table LIVING ROOM Living room chairottoman

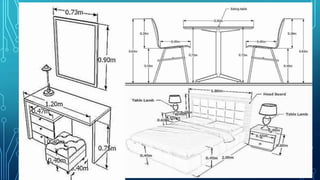

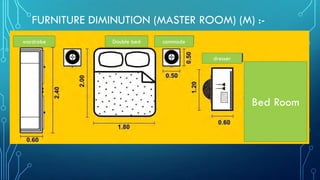

- 21. FURNITURE DIMINUTION (MASTERROOM) (M) :- Bed Room wardrobe Double bed commode dresser

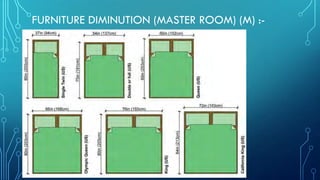

- 22. FURNITURE DIMINUTION (MASTERROOM) (M) :-

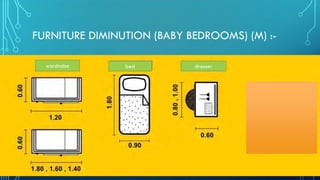

- 23. FURNITURE DIMINUTION (BABYBEDROOMS) (M) :- dresserbedwardrobe
- 24. FURNITURE STANDERS (DININGROOM) (M):- Dinning Table 4 personDinning Table 6 personDinning Table 8 person dining room cupboard Dinning room cabinet

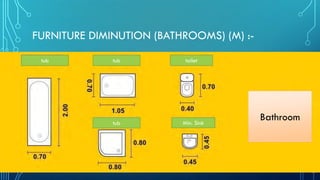

- 25. FURNITURE DIMINUTION (BATHROOMS)(M) :- Bathroom toilettub Min. Sink tub tub
- 26. FURNITURE DIMINUTION (KITCHEN)(M):- Kitchen sinkovenrefrigeratorwashing machinedishwasher

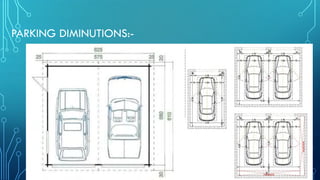

- 28.

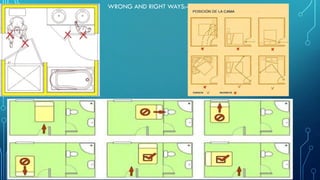

- 29. WRONG AND RIGHTWAYS:-

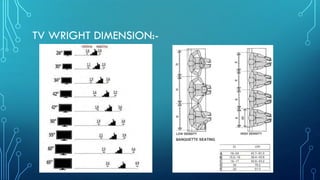

- 30.

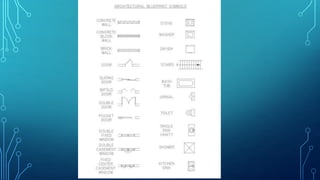

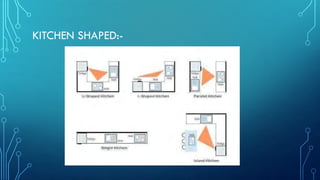

- 31.
