1. “БІЛІМ-Инновация”
Халықаралық қоғамдық қоры
PHYSICS CHAPTER 5.8
4-term Week 2-3 2019-2020
Buoyant force
Textbook page
82

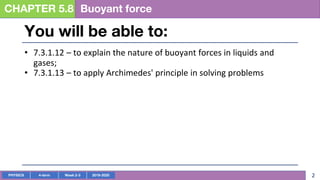

2. CHAPTER 5.8 Buoyant force
PHYSICS 4-term Week 2-3 2019-2020 2
You will be able to:
• 7.3.1.12 – to explain the nature of buoyant forces in liquids and
gases;
• 7.3.1.13 – to apply Archimedes' principle in solving problems

3. PHYSICS 4-term Week 2-3 2019-2020 3
TERMS:
• UPTHRUST
• BUOYANCY
• DENSITY
• FLOAT
• SINK
• MERCURY
• IMMERSE
- жоғары итеру / выталкивающая сила
- жүзгіштік / плавучесть
- тығыздық / плотность
- сұйықтықтың бетінде қалу / плавать на
поверхности жидкости
- бату/ тонуть
- сынап / ртуть
- батыру / погрузить
CHAPTER 5.8 Buoyant force

4. PHYSICS 4-term Week 2-3 2019-2020 4
CHAPTER 5.8 Buoyant force

5. PHYSICS 4-term Week 2-3 2019-2020 5
CHAPTER 5.8 Buoyant force

6. PHYSICS 4-term Week 2-3 2019-2020 6
CHAPTER 5.8 Buoyant force

7. PHYSICS 4-term Week 2-3 2019-2020 7
CHAPTER 5.8 Buoyant force

8. PHYSICS 4-term Week 2-3 2019-2020 8
CHAPTER 5.8 Buoyant force

9. PHYSICS 4-term Week 2-3 2019-2020 9
CHAPTER 5.8 Buoyant force

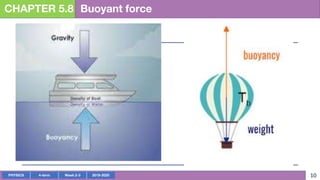

10. PHYSICS 4-term Week 2-3 2019-2020 10
CHAPTER 5.8 Buoyant force

11. PHYSICS 4-term Week 2-3 2019-2020 11
CHAPTER 5.8 Buoyant force

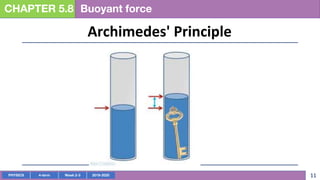

Archimedes' Principle

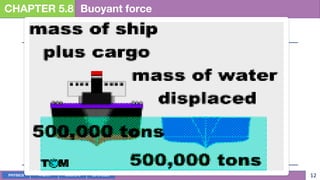

12. PHYSICS 4-term Week 2-3 2019-2020 12
CHAPTER 5.8 Buoyant force

13. PHYSICS 4-term Week 2-3 2019-2020 13
CHAPTER 5.8 Buoyant force
From Archimedes’s Principle :
Buoyant Force = Weight of fluid displaced
= mg
= ρVg (note : ρ = m )
V
Thus FB = ρ g V
Where ……
FB = Buoyant Force or Upthrust (N, Newtons)
ρ = Density of fluid (kg/m3)
V = Volume of fluid displaced or (m3)
the volume of the object that immersed in the fluid.

14. PHYSICS 4-term Week 2-3 2019-2020 14
CHAPTER 5.8 Buoyant force

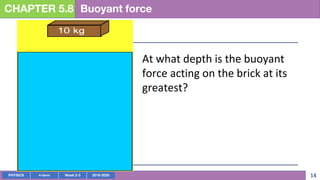

At what depth is the buoyant
force acting on the brick at its
greatest?

15. PHYSICS 4-term Week 2-3 2019-2020 15
CHAPTER 5.8 Buoyant force

16. PHYSICS 4-term Week 2-3 2019-2020 16
CHAPTER 5.8 Buoyant force

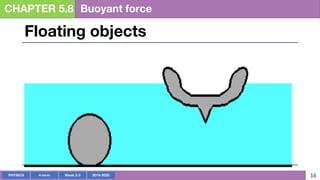

Floating objects

17. PHYSICS 4-term Week 2-3 2019-2020 17
CHAPTER 5.8 Buoyant force
lighter object heavier object too heavy
The weight of displaced
water is less than the
weight of the object

18. PHYSICS 4-term Week 2-3 2019-2020 18
CHAPTER 5.8 Buoyant force

19. PHYSICS 4-term Week 2-3 2019-2020 19
CHAPTER 5.8 Buoyant force

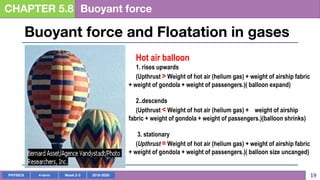

Hot air balloon
1. rises upwards
(Upthrust > Weight of hot air (helium gas) + weight of airship fabric
+ weight of gondola + weight of passengers.)( balloon expand)
2..descends
(Upthrust < Weight of hot air (helium gas) + weight of airship
fabric + weight of gondola + weight of passengers.)(balloon shrinks)
3. stationary
(Upthrust = Weight of hot air (helium gas) + weight of airship fabric
+ weight of gondola + weight of passengers.)( balloon size uncanged)
Buoyant force and Floatation in gases

20. PHYSICS 4-term Week 2-3 2019-2020 20
CHAPTER 5.8 Buoyant force

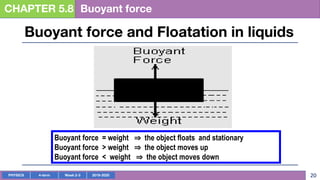

Buoyant force = weight ⇒ the object floats and stationary
Buoyant force > weight ⇒ the object moves up
Buoyant force < weight ⇒ the object moves down
Buoyant force and Floatation in liquids

21. PHYSICS 4-term Week 2-3 2019-2020 21
CHAPTER 5.8 Buoyant force

22. PHYSICS 4-term Week 2-3 2019-2020 22
CHAPTER 5.8 Buoyant force
Given:
Dimensions of change of the displaced water: a=2 m, b=3 m, c=0,12 m
Density of water = 1000 kg/m
The barge with horse floats
Find the weight of horse?
3

23. PHYSICS 4-term Week 2-3 2019-2020 23
CHAPTER 5.8 Buoyant force
Solution :
Weight of horse = Buoyant force
Given:
Dimensions of change of the displaced water: a=2 m, b=3 m, c=0,12 m
Density of water = 1000 kg/m
The barge with horse floats
Find the weight of horse?
3

24. PHYSICS 4-term Week 2-3 2019-2020 24
CHAPTER 5.8 Buoyant force
Solution :
Weight of horse = Buoyant force
Weight of horse = ρ g V = ρ g (abc)=1000*10*(2*3*0,12)=7200 N
Given:
Dimensions of change of the displaced water: a=2 m, b=3 m, c=0,12 m
Density of water = 1000 kg/m
The barge with horse floats
Find the weight of horse?
3

25. PHYSICS 4-term Week 2-3 2019-2020 25
CHAPTER 5.8 Buoyant force
Solution :
Weight of horse = Buoyant force
Weight of horse = ρ g V = ρ g (abc)=1000*10*(2*3*0,12)=7200 N
Result: Weight of horse = 7200 N or 720 kg
Given:
Dimensions of change of the displaced water: a=2 m, b=3 m, c=0,12 m
Density of water = 1000 kg/m
The barge with horse floats
Find the weight of horse?
3

26. PHYSICS 4-term Week 2-3 2019-2020 26
CHAPTER 5.8 Buoyant force

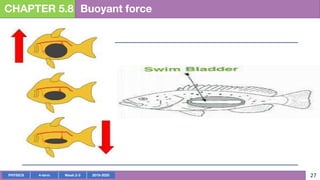

27. PHYSICS 4-term Week 2-3 2019-2020 27
CHAPTER 5.8 Buoyant force

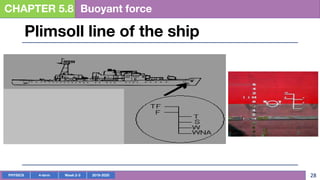

28. PHYSICS 4-term Week 2-3 2019-2020 28
CHAPTER 5.8 Buoyant force
Plimsoll line of the ship

29. PHYSICS 4-term Week 2-3 2019-2020 29
CHAPTER 5.8 Buoyant force

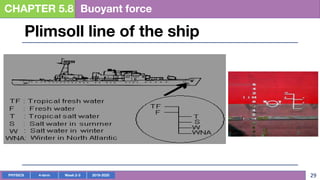

Plimsoll line of the ship

30. PHYSICS 4-term Week 2-3 2019-2020
- Physics 7 grade, Астана кітап
- https://science.howstuffworks.com/transport/engines-
equipment/submarine1.htm
- https://en.wikipedia.org/wiki/Buoyancy
- https://www.bbc.co.uk/bitesize/guides/z9ykmsg/revision/4
Resources
CHAPTER 5.8 Buoyant force
