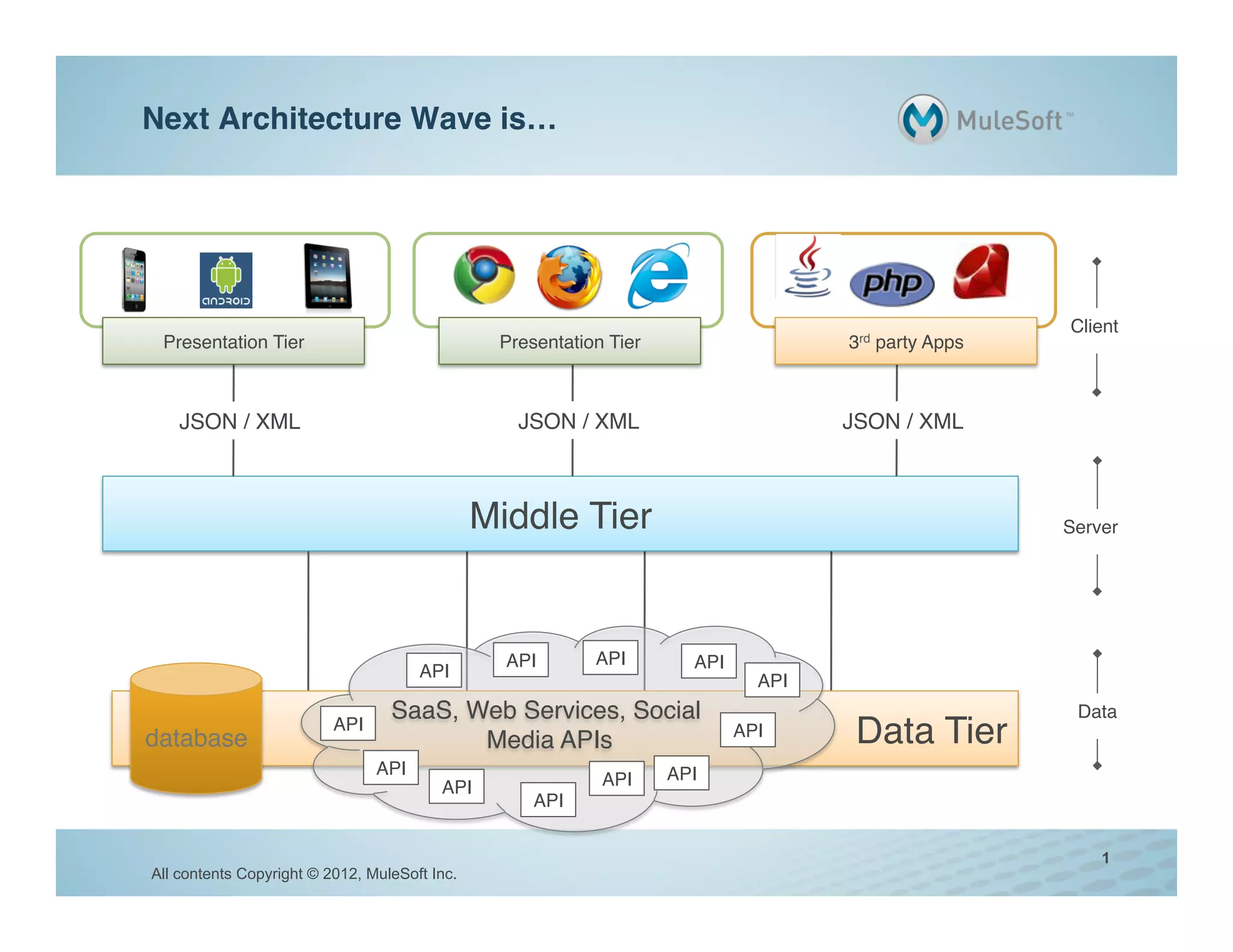

1. Next Architecture Wave is…!
Client !
Presentation Tier
! Presentation Tier
! 3rd party Apps
!
JSON / XML! JSON / XML! JSON / XML!
Middle Tier
! Server !
API
! API
! API
!
API
!
API
!
SaaS, Web Services, Social Data!
database!
API
!
Media APIs! API
! Data Tier
!
API
! API
!
API
! API
!
API
!
1
All contents Copyright © 2012, MuleSoft Inc.

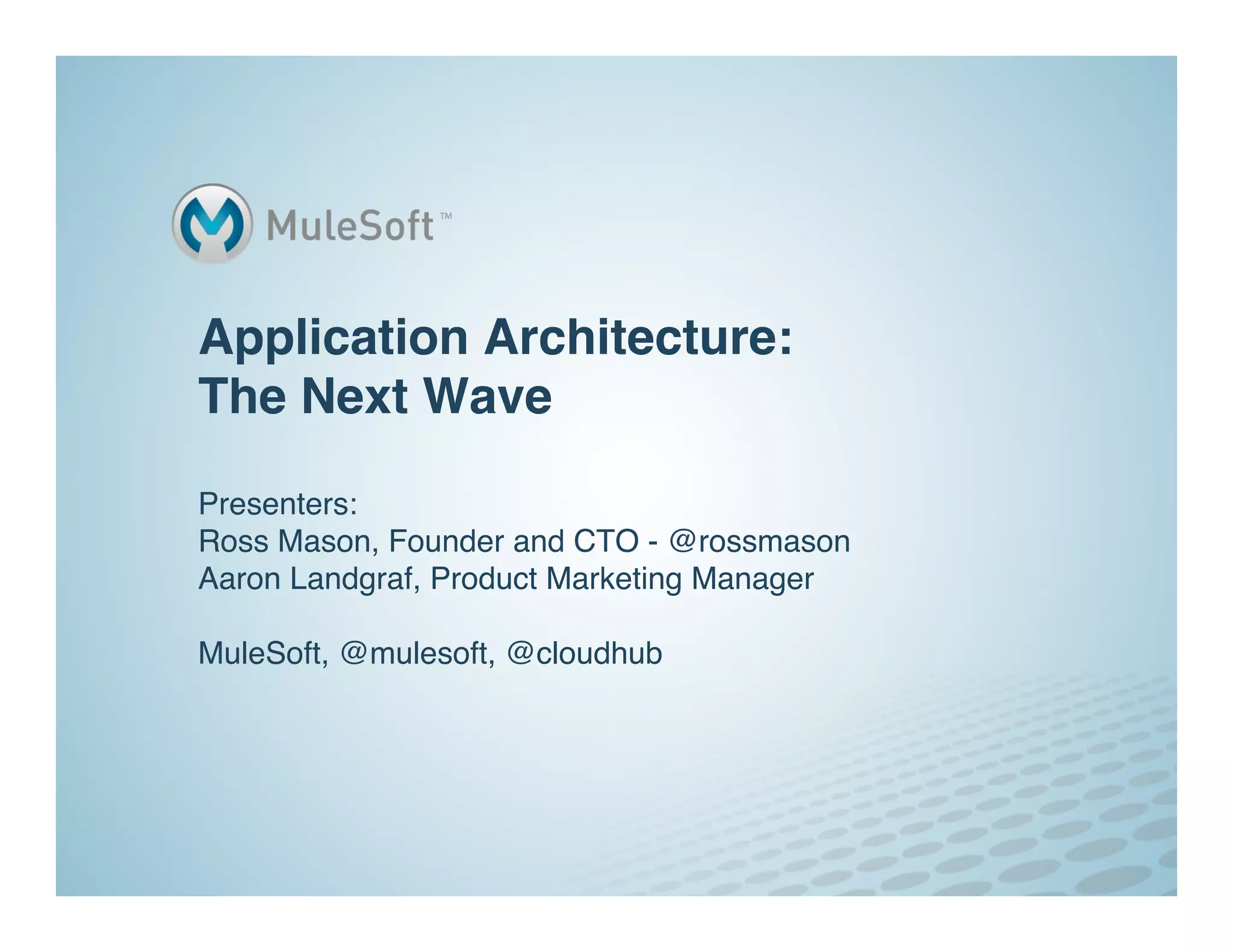

2. Application Architecture:
The Next Wave
Presenters:
Ross Mason, Founder and CTO - @rossmason
Aaron Landgraf, Product Marketing Manager
!
MuleSoft, @mulesoft, @cloudhub

3. Presenters!
Ross Mason, Founder and CTO, MuleSoft!
! Founded open source Mule project in 2003!
! Former CEO of SymphonySoft!
! Extensive experience in integration!
All contents Copyright © 2012, MuleSoft Inc. 3

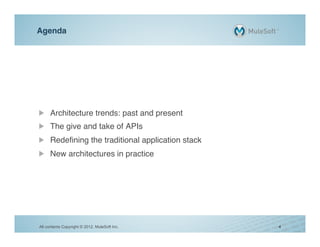

4. Agenda!
! Architecture trends: past and present!
! The give and take of APIs!
! Redefining the traditional application stack!
! New architectures in practice!
All contents Copyright © 2012, MuleSoft Inc. 4

5. Software Architecture Timeline!
Batch!
Client / Server
!
3-tier
!
1960! 1970! 1980! 1990! 2000! 2010!
OLTP! n-tier
!
Service Oriented!
All contents Copyright © 2012, MuleSoft Inc. 5

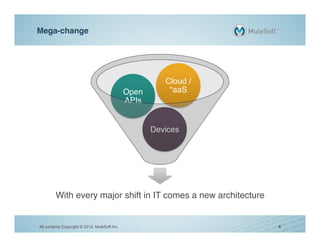

6. Mega-change !
Cloud /
Open *aaS!
APIs!
Devices!
With every major shift in IT comes a new architecture!
All contents Copyright © 2012, MuleSoft Inc. 6

7. History doesn’t repeat, it rhymes!
“I did this like 10 years ago at
WidgetCorp!”!
All contents Copyright © 2012, MuleSoft Inc. 7

8. Change shifts our perceptual thinking!
All contents Copyright © 2012, MuleSoft Inc. 8

9. The traditional 3-tier architecture!
Client!
HTML !
Presentation Tier
!
App Server!
Middle Tier
!
Database!
database! Data Tier
!
9
All contents Copyright © 2012, MuleSoft Inc.

10. …is being decomposed!
Client !
Presentation Tier
! Presentation Tier
!
JSON / XML! JSON / XML!
Middle Tier
! Server !
Data!
database! Data Tier
!
10
All contents Copyright © 2012, MuleSoft Inc.

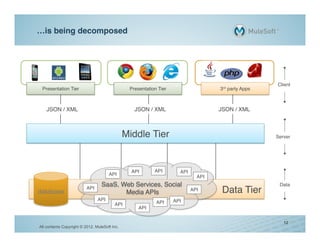

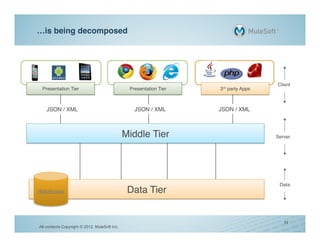

11. …is being decomposed!
Client !
Presentation Tier
! Presentation Tier
! 3rd party Apps
!
JSON / XML! JSON / XML! JSON / XML!
Middle Tier
! Server !
Data!
database! Data Tier
!
11
All contents Copyright © 2012, MuleSoft Inc.

12. …is being decomposed!
Client !
Presentation Tier
! Presentation Tier
! 3rd party Apps
!
JSON / XML! JSON / XML! JSON / XML!
Middle Tier
! Server !
API
! API
! API
!
API
!
API
!
SaaS, Web Services, Social Data!
database!
API
!
Media APIs! API
! Data Tier
!
API
! API
!
API
! API
!
API
!
12
All contents Copyright © 2012, MuleSoft Inc.

13. Middle tier needs to change!
!
!
!
!
Client !
Presentation Tier
! Presentation Tier
! 3rd party Apps
!
JSON / XML! JSON / XML! JSON / XML!
Middle Tier
! Server !
!
!
!
! API
! API
! API
!
API
!
API
!
SaaS, Web Services, Social Data!
database!
API
!
Media APIs! API
! Data Tier
!
API
! API
!
API
! API
!
API
!
13
All contents Copyright © 2012, MuleSoft Inc.

14. Platform Shift!
Traditional Application Environments!
Application!
Web/App Server
!
Database!
Operating System!
All contents Copyright © 2012, MuleSoft Inc.

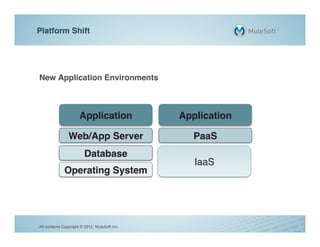

15. Platform Shift!
New Application Environments!
Application! Application!
Web/App Server
! PaaS!
Database!
IaaS!
Operating System!
All contents Copyright © 2012, MuleSoft Inc.

16. PaaS Categories: aPaaS, iPaaS!
! Application PaaS (aPaaS) — the platform for hosting and
managing individual applications
! Integration PaaS (iPaaS) — the platform for intermediation and
integration of the application services hosted and point-
managed by aPaaS
All contents Copyright © 2012, MuleSoft Inc. 16

17. PaaS Landscape!
iPaaS! cloud !
dPaaS!
integration!
aPaaS!
All contents Copyright © 2012, MuleSoft Inc. 17

18. Technology Shift!
Traditional Application Environments!
Application!
Application!
UI
!
Web/App Server
!
Security
Database! Business Logic
!
Operating System!
!
Data!
All contents Copyright © 2012, MuleSoft Inc.

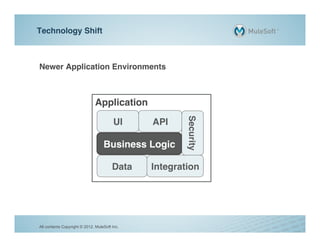

19. Technology Shift!
Newer Application Environments!
Application!
Security
UI
! API
!
Business Logic
!
!
Data! Integration!
All contents Copyright © 2012, MuleSoft Inc.

20. From stack to Open APIs!
Application Decomposition!
Application!
Security
UI
! API
!
Business Logic
! !
Data! Integration!
All contents Copyright © 2012, MuleSoft Inc.

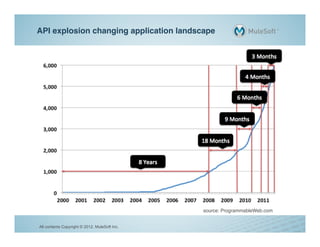

21. API explosion changing application landscape!
source: ProgrammableWeb.com!
All contents Copyright © 2012, MuleSoft Inc.

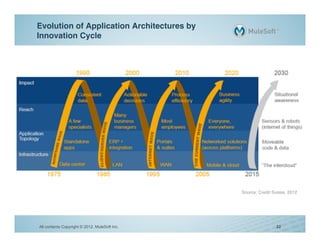

22. Evolution of Application Architectures by
Innovation Cycle !
Source: Credit Suisse, 2012!
All contents Copyright © 2012, MuleSoft Inc. 22

23. Everything needs to connect!
By 2020:!
! 5 billion internet users!
! 50 billion connected devices!
! 1 million open APIs!
! Millions of apps!
!
! We are shifting from writing apps to composing APIs!
All contents Copyright © 2012, MuleSoft Inc. 23

24. 50,000,000,000 Devices!
! 50,000,000,000 devices / 5,000,000,000 internet users = 10!
! Average 4 people per household = 40 devices per household!
! Concentration in developed countries ~!
! = 100 devices per connected person!
All contents Copyright © 2012, MuleSoft Inc. 24

25. Apple’s Siri Architecture!
Presentation Tier
! Middle Tier
! Data Tier
!
All contents Copyright © 2012, MuleSoft Inc. 25

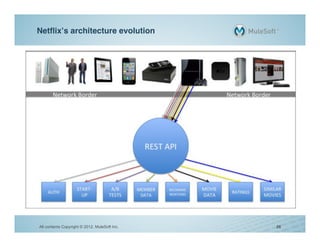

26. Netflix’s architecture evolution!
All contents Copyright © 2012, MuleSoft Inc. 26

27. Netflix’s architecture evolution!
Platfrom for building APIs
!
All contents Copyright © 2012, MuleSoft Inc. 27

28. Next Architecture Wave is…!
Client !
Presentation Tier
! Presentation Tier
! 3rd party Apps
!
JSON / XML! JSON / XML! JSON / XML!
Middle Tier
! Server !
API
! API
! API
!
API
!
API
!
SaaS, Web Services, Social Data!
database!
API
!
Media APIs! API
! Data Tier
!
API
! API
!
API
! API
!
API
!
28
All contents Copyright © 2012, MuleSoft Inc.

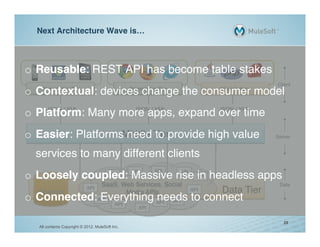

29. Next Architecture Wave is…!
!
!
!
!
o Reusable: REST API has become table stakes!
Client !
o Contextual: devices change the consumer model!
Presentation Tier
! Presentation Tier
! 3rd party Apps
!
o Platform: Many more apps, expand overXML!
JSON / XML! JSON / XML! JSON /
time!
o Easier: PlatformsMiddle Tierprovide high value
need to ! Server !
services to many different clients!
API
!
o Loosely coupled: Massive rise API! headless apps!
API
!
in API
!
API
!
SaaS, Web Services, Social Data!
database!
API
!
Media APIs! API
! Data Tier
!
o Connected: API! API!
Everything API! API! to connect!
needs
API
!
29
All contents Copyright © 2012, MuleSoft Inc.
