The main goal of Mulesoft's API Modelling Framework (AMF) is to provide a way for developers to interact with API specifications written in either RAML or OpenAPI. This talk will give an overview of the API Modelling Framework, a set of tools to model, query and expose all aspects of an API specification. During this talk, we will go through several use cases, some simple and some more complex ones, to showcase how this can be useful at all stages of the API design process. We will show how the API Modelling Framework stores model and data for the model in a single unified data graph, and how it persists and allows querying using a declarative language. We will also show how, thanks to the formal qualities of the tools, automatic reasoning can be used to add inferred data to the model in order to solve particular data integration scenarios. - Github repo: https://github.com/raml-org/api-modeling-framework - Playground: https://mulesoft-labs.github.io/amf-playground/

1. A Toolbox for API Specs

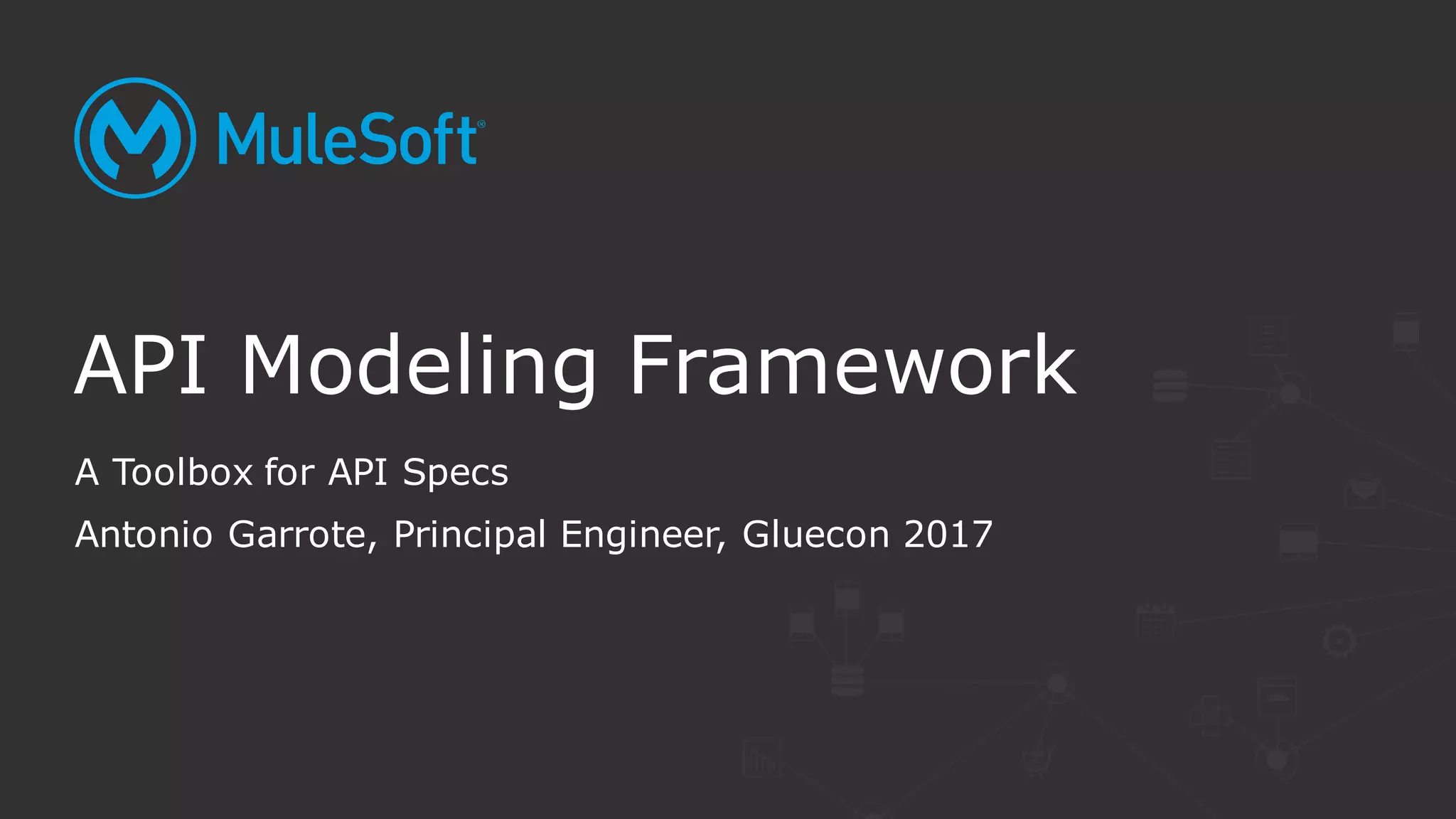

Antonio Garrote, Principal Engineer, Gluecon 2017
API Modeling Framework

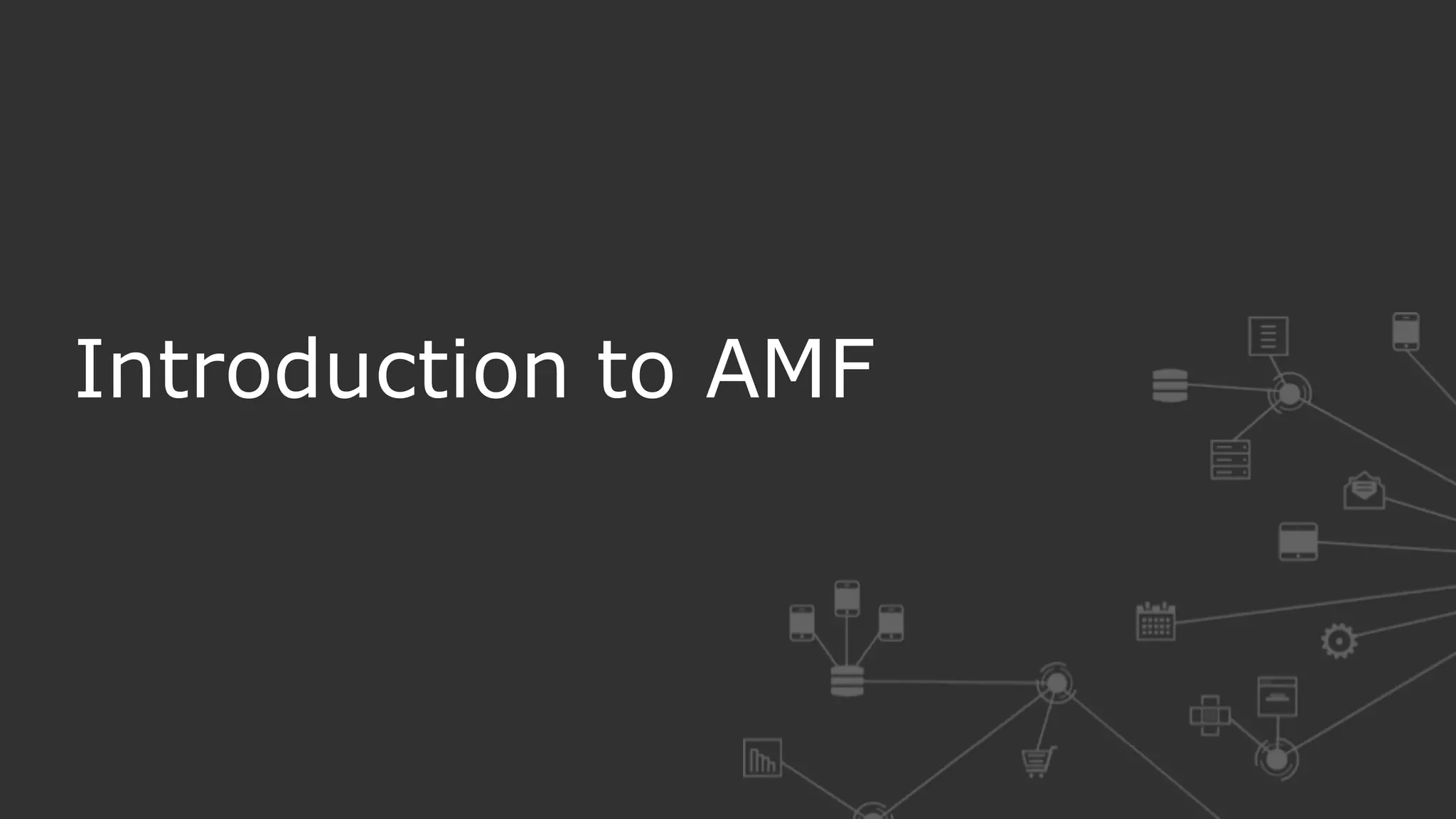

2. Introduction to AMF

3. All contents © MuleSoft Inc.
What is AMF?
3
• Project under current development in MuleSoft
• Goal
– Capture all the information about an organisation APIs and APIs’ data
into a single unified model
• Features
– Modular and reusable descriptions
– Describe multiple kinds of APIs
– Decentralised model description
– Support for multiple syntaxes
– Extensible descriptions
– Foundation for Domain Driven approach to APIs

4. All contents © MuleSoft Inc.
AMF Model
4

5. All contents © MuleSoft Inc.
AMF Model
5

6. All contents © MuleSoft Inc.
AMF Model
6

7. All contents © MuleSoft Inc.
AMF Model
7

8. All contents © MuleSoft Inc.
AMF Model
8

9. All contents © MuleSoft Inc.
AMF Model
9

10. AMF Model Demo

11. All contents © MuleSoft Inc.
AMF Model Demo: Exploring document declarations
11

12. All contents © MuleSoft Inc.
AMF Model Demo: Exploring the domain model
12

13. All contents © MuleSoft Inc.
AMF Model Demo: Domain model graph
13

14. All contents © MuleSoft Inc.
AMF Model Demo: Domain graph after resolution
14

15. AMF Features

16. All contents © MuleSoft Inc.
RAML / OpenAPI Interoperability
16

17. All contents © MuleSoft Inc.
RAML / OpenAPI Interoperability
17
•Mapping functions are not bijective:
• Every valid RAML/Open API model is a valid AMF model
• Every valid AMF model is not a valid RAML model
• Every valid AMF model is not a valid Open API model

18. All contents © MuleSoft Inc.
RAML / OpenAPI Interoperability
18

19. All contents © MuleSoft Inc.
RAML / OpenAPI Parsing and Generation
19

20. All contents © MuleSoft Inc.
RAML / OpenAPI Parsing and Generation
20

21. All contents © MuleSoft Inc.
RAML / OpenAPI Parsing and Generation
21

22. All contents © MuleSoft Inc.
RAML / OpenAPI Parsing and Generation
22

23. AMF Interop Demo

24. All contents © MuleSoft Inc.
AMF Interop Demo: RAML -> OpenAPI translation
24

25. All contents © MuleSoft Inc.
AMF Interop Demo: RAML -> OpenAPI translation
25

26. All contents © MuleSoft Inc.
Document Level Dependency Tracking
26

27. All contents © MuleSoft Inc.
Document Level Dependency Tracking
27

28. All contents © MuleSoft Inc.
Document Level Dependency Tracking
28

29. AMF Server Demo

30. All contents © MuleSoft Inc.
AMF Server Demo: Exploring APIs repositories
30

31. All contents © MuleSoft Inc.
AMF Server Demo: Tracking dependencies
31

32. All contents © MuleSoft Inc.
AMF Server Demo: Pushing changes with deps
32

33. All contents © MuleSoft Inc.
Domain Level Dependency Tracking
33

34. All contents © MuleSoft Inc.
Domain Level Dependency Tracking
34

35. All contents © MuleSoft Inc.
Domain Level Dependency Tracking
35

36. AMF Diff Explorer Demo

37. All contents © MuleSoft Inc.
AMF Diff Demo: Computing semantic hash
37

38. All contents © MuleSoft Inc.
AMF Diff Demo: Diff entity report
38

39. All contents © MuleSoft Inc.
AMF Diff Demo: Diff graph
39

40. All contents © MuleSoft Inc.
AMF Diff Demo: Diff graph
40

41. All contents © MuleSoft Inc.
Validation
41

42. All contents © MuleSoft Inc.
Validation
42

43. All contents © MuleSoft Inc.
Validation
43

44. AMF Validation Demo

45. All contents © MuleSoft Inc.
AMF Validation Demo: RAML Types
45

46. All contents © MuleSoft Inc.
AMF Validation Demo: JSON Schema
46

47. All contents © MuleSoft Inc.
Model Management
47

48. AMF Query Demo

49. All contents © MuleSoft Inc.
AMF Query Demo: Model query
49

50. All contents © MuleSoft Inc.
AMF Query Demo: Introspection query
50

51. All contents © MuleSoft Inc.
Built with Standards
51
Feature Standard
Data Model RDF
Validation SHACL
Vocabulary Modeling OWL
Query SPARQL
Vocabularies Schema.org / Hydra

52. W3C Standards Demo

53. All contents © MuleSoft Inc.
W3C Standards Demo: JSON-LD RDF Graph
53

54. All contents © MuleSoft Inc.
W3C Standards Demo: SHACL Constraints
54

55. All contents © MuleSoft Inc.
W3C Standards Demo: SPARQL Query
55

56. All contents © MuleSoft Inc.
Open Source
56
https://github.com/raml-org/api-modeling-framework

57. Thank You
